Deep Learning Based Model Identification System Exploits the Modular Structure of a Bio-Inspired Posture Control Model for Humans and Humanoids

02/04/2021
by   Vittorio Lippi, et al.
Universitätsklinikum Freiburg
0

This work presents a system identification procedure based on Convolutional Neural Networks (CNN) for human posture control using the DEC (Disturbance Estimation and Compensation) parametric model. The modular structure of the proposed control model inspired the design of a modular identification procedure, in the sense that the same neural network is used to identify the parameters of the modules controlling different degrees of freedom. In this way the presented examples of body sway induced by external stimuli provide several training samples at once

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 5

page 6

09/17/2019

An Image Based Visual Servo Approach with Deep Learning for Robotic Manipulation

Aiming at the difficulty of extracting image features and estimating the...
06/04/2020

Deep Learning for Posture Control Nonlinear Model System and Noise Identification

In this work we present a system identification procedure based on Convo...
07/27/2021

Identification of parameters in the torsional dynamics of a drilling process through Bayesian statistics

This work presents the estimation of the parameters of an experimental s...
12/04/2021

A Bio-inspired Modular System for Humanoid Posture Control

Bio-inspired sensorimotor control systems may be appealing to roboticist...
10/25/2019

BlenderProc

BlenderProc is a modular procedural pipeline, which helps in generating ...
05/29/2018

Review of Applications of Generalized Regression Neural Networks in Identification and Control of Dynamic Systems

This paper depicts a brief revision of Generalized Regression Neural Net...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

The application of convolutional neural networks (CNN) in human movement analysis has produced promising results in recent experiments [7, 20, 1, 2], and in general deep learning is starting to be applied to system identification [12, 4, 34, 11, 28]. This work aims to apply CNN to the identification of human posture control models, that are used in several studies for the analysis of human data and the control of humanoids, e.g. [42, 43, 41, 15, 31, 14, 36, 19, 8]. Most of the studies on posture control use linear models like the independent channel (IC) model [37], and make the assumption of linear and time-invariant behavior [13]. In this work a nonlinear model will be considered. This makes the use of deep learning more interesting, as the identification of nonlinear systems is more complex and in general it is performed using computationally expensive iterative algorithms as in [6]. In a previous work, CNNs proved to be suitable to identify the parameters of a human posture control model [27]. Specifically, the CNN presented in [27] was applied to a single inverted pendulum (SIP) model, but it proved to work also in identifying the parameters of a double inverted pendulum system. In this work a triple inverted pendulum (TIP) model of posture control will be used to show how the identification process can be extended to an arbitrary number of degrees of freedom. The model used here, the Disturbance Estimation and Compensation (DEC) has a modular structure [23], i.e. each degree of freedom is controlled by a module and all the modules share the same structure. Exploiting this characteristic, one CNN is used to identify the parameters of the three modules controlling the three degrees of freedom. In this way each simulation provides three training samples at once.

2 Methods

2.1 Posture Control Scenario

The scenario considered here models a human (or humanoid) balancing on a tilting support surface as a TIP. The three degrees of freedom considered in the sagittal plane are the ankles, the knees and the hips (Fig. 1A). The support surface tilt represents the input of the system and it is the same for all the simulations. The profile of the tilt of the support surface is the pseudo-random ternary sequence, PRTS, shown in Fig. 1B. Such stimulus is used in human experiments because it is not predictable for the subject [37]. It is composed by a sequence of velocity steps suitable to excite the dynamics of the system over several frequencies. The output of the system is the sway of the body segments: shank, thigh (leg) and trunk addressed as , , and respectively.

2.2 Human and Humanoid Posture Control: The DEC Model


Figure 1: Balance scenario and posture control system. (A) The triple inverted pendulum model used to simulate human posture control together with the control modules. The represent the sway of the body COM around the ankle joint. (B) The Pseudo-Random Ternary Signal, PRTS, the time profile for support surface tilt. (C) Schema of a control module. The disturbances are compensated feeding them in the form of an angle equivalent as input to the servo controller (PID).

The DEC is a model of the human postural control mechanisms [31, 23]. It has a modular structure that can be applied to multiple DoF robots [23, 44, 35, 26, 17, 18]. Here it is implemented specifically on the TIP model, using three control modules. A block diagram of the DEC control is shown in Fig.1. A complete description of the model is beyond the scope of this paper and can be found in [23]

. In the following a general description of the model is provided with particular emphasis on the components that have an impact on the definition of the machine learning problem. A control module based on the DEC concept is implemented as servo loop, here implemented as a PID controller (the neural controller in Fig.

1C). The controlled variable can consist in the COM sway of all the segments above the joint controlled by the module with respect to the gravitational vertical passing through the controlled joint (e.g. in Fig 1 for the ankle joint). The sensory channels shown in Fig.1 (C) as Vestibular, Proprioceptive, and Force are used for disturbance estimation. The disturbance estimates are fed into the servo so that the joint torque on-line compensates for the disturbances. The lumped delay in Fig. 1 (C) represents all the delay effects that are distributed in humans, and humanoids [5, 16]. The model used in this work considers gravity and support surface tilt as disturbances. The gravity torque to be compensated is assumed to be proportional to the sway of the COM of groups of segments above the controlled joints. Ideally the gain required to compensate gravity is , where and are the total mass and the COM height of the controlled segments respectively, and is the gravity acceleration. The integral component of the PID controller is not applied to the compensation as in [35]. The support surface tilt estimator includes a non-linearity, introduced to represent the behavior observed in humans [30, 29], defined as:

(1)

where is the ankle joint angle signal from proprioception. stands for Body-to-Foot. The function is a dead-band threshold defined as

(2)

The estimated is then up-channeled through the control modules and used to control body position. In this work the threshold is set as . The disturbance compensation and the total torque commanded by the servo controller for the ankle joint is:

(3)

where and is the derivative coefficient for the PD controller, and is the lump delay. Notice that the derivative component is also acting on gravity , representing a sort of anticipation of the disturbance. There is also a passive torque acting on the joints represented as a spring-damper model:

(4)

The coefficients and are kept fixed for all the simulations. The standard parameters are shown in Table 1. In general the gains are proportional to the for the groups of segments above the controlled joint, this will be used in the next section to normalize the parameters. The anthropometric of the TIP model is taken from previous works [25, 24].

2.3 The Training Set

Control parameters and target set.

The training set has been generated simulating the posture control scenario with different parameters, these parameters represent the target for the neural network and the sway of the segments represents the input. In order to exploit the modular structure of the DEC control the CNN has been designed to identify the parameters of a specific module. In this way each simulation provides three training samples associated with the three control modules. As explained in the previous section, the gains of the controllers are proportional to the of the segments above the controlled joint, and the lumped delay is larger for the ankle module and smaller for the hip module. In order to use such parameters for the training of the same CNN their value is expressed as deviation from the default value and normalized dividing it by the default value, e.g. in Table 1

. Besides the PID gains the target vector includes the lumped delay and a variable

that is set to when the controlled variable is the joint angle and to when the controlled variable is the COM. This leads to a sample with the following form:

(5)

where the indicates that the values are normalized.

The training samples are generated with random parameters from normal distributions

that is summed to the normalized parameters. The variable

is sampled with equal probability (

) between the two cases. In order to avoid negative values the absolute value of the obtained parameters is used ”‘warping”’ the normal distribution on positive values. A set of parameters is used as a sample only if the behavior it produces is stable: simulations with body sway larger than are not considered realistic balancing scenarios and are discarded. Overall the obtained data consist of samples, used as training set, as validation set and

as test set. The three sets are normalized subtracting the average divided by the variance of the training set. The resulting distribution of the normalized

is shown in Fig. 2 together with the distribution of maximum body sway amplitudes.

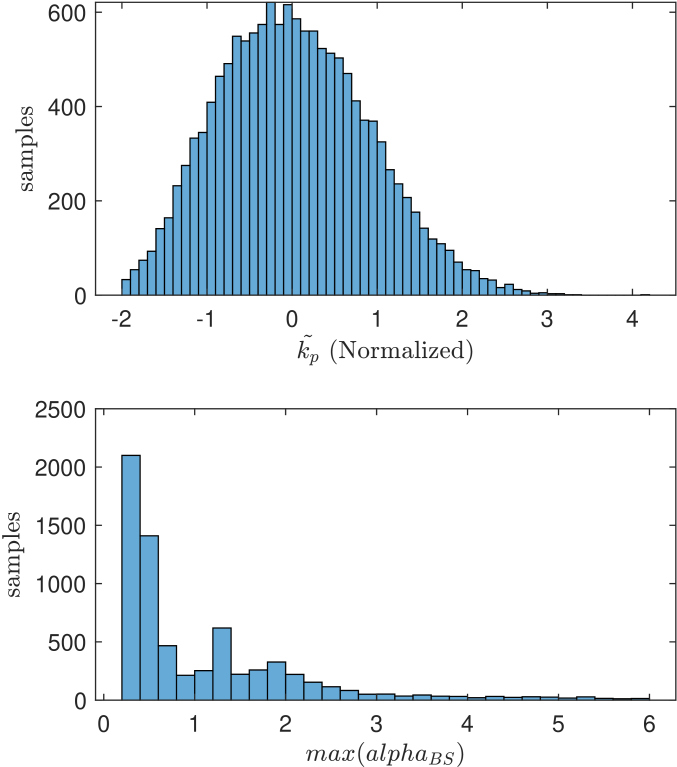

Figure 2: Output of the performed simulations. Above the distribution of the normalized parameter produced during the stable simulations. Below the distribution of the body sway amplitudes. The last column of the histogram on the right includes the simulations that were aborted because the body sway reached the threshold of .
Parameter Symbol Ankle Knee Hip unit
Active proportional gain 465.98 245.25 73.575
Active derivative gain 116.49 18.394 18.394
Active integrator gain 11.649 6.1312 1.8394
Passive stiffness 232.5000 61.2500 36.5000
Passive damping 145.000 11.2500 11.2500
Foot rotation velocity threshold 0.03
Lumped delay 0.10 0.07 0.1210
Table 1: Default parameters

The CNN input.

The Input is a representation of the system output, i.e the sway of the segments. The simulation was performed with a fixed integration step of and sampled at , producing samples with a resolution of . In order to adapt the signal to the CNN the input was transformed into an image. The data considered were the sway with respect to the vertical of the two segments under and above the controlled joint, e.g. for the ankle module they are and

. The Spectrogram of the two signals is computed with short-time Fourier transform over windows of 250 samples overlapping for 135 computing 250 frequency points. This results in a

matrix of complex values. The first 51 columns of the matrix are here considered, corresponding to a bandwidth of approximately . Due to the low-pass dynamics of the body sway, the power spectrum of the signal at higher frequency is very poor and hence not giving important informations (i.e. almost black images independently of the parameters) . The resulting matrix is used to define the input image as follows: the module and the phase of the matrices associated to the two segments sway are computed. The first channel of the image is the module of the matrix describing the sway of the segment above, the second is the matrix describing the segment below and the third channel is the difference between the phases. The process is summarized in Fig 3. Also the input images are normalized subtracting the average and dividing by the variance of the training set through element-wise operation (i.e. pixel by pixel, channel by channel).

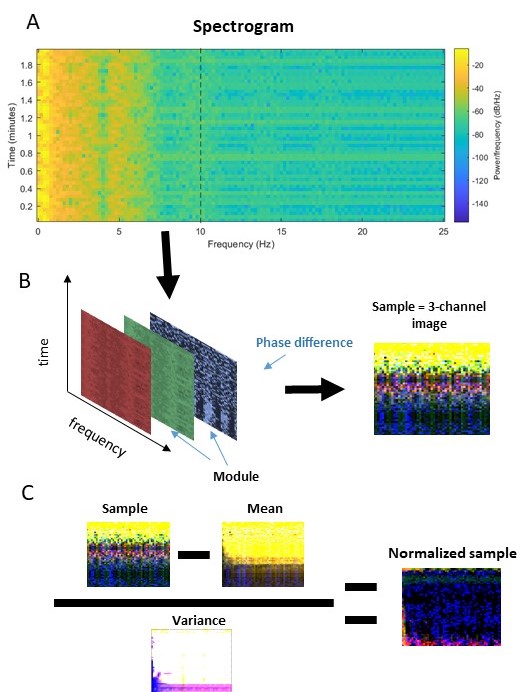

Figure 3: Design of the input features for the CNN. In A the spectrogram of a signal is given, the dashed line shows where it is cut. In B it is shown how the spectrograms associated with the sway of two body segments are combined to form a three channel pixel image. The image C shows the normalization of the samples using the mean and the variance of the training set, computed element-wise (pixel by pixel).

2.4 CNN Architecture

The neural network architecture is schematized in Fig 4. The network is implemented with Matlab™ Deep Learning Toolbox™. The network has been trained using stochastic gradient descent with momentum

as policy. The training was set to a limit of 200 epochs. The loss function is the

Mean Squared Error

MSE as expected with a regression task, although the target vector includes a categorical feature, the controlled variable, that implies a classification problem. The categorical variable produced by the CNN is interpreted considering the sign (positive = COM sway, negative = joint angle). The performance in regression and classification is discussed separately in the Results section.

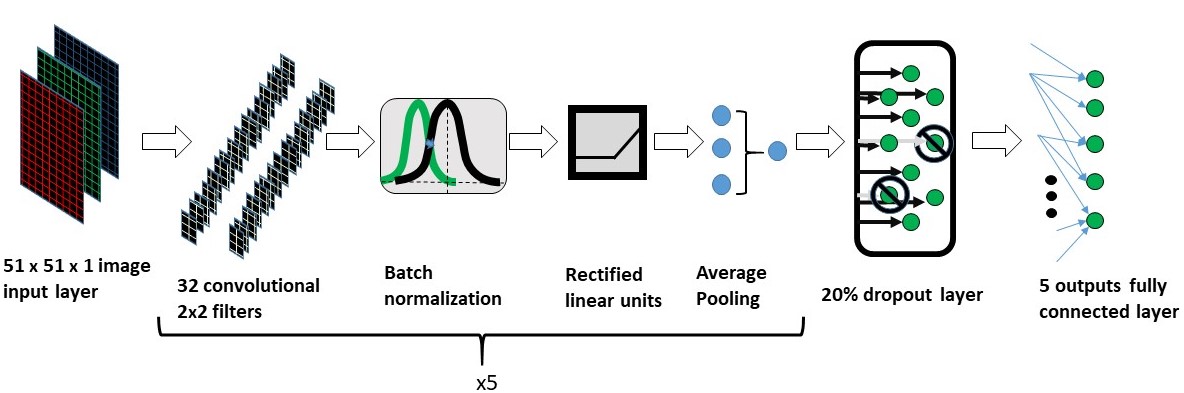

Figure 4: Neural Network architecture. The group of layers addressed with x 5 is repeated 5 times.

3 Results

3.1 Training and Test

The results of the training set are reported in Table 2. Notice that there is a total RMSE on the training set, including the error on the categorical variable, and a fit RMSE computed on the continuous variables. The average absolute error and absolute variance is shown in Fig. 5. The error is larger on . The identification error in this context can be defined as the norm of the difference between body sway obtained with the target parameters () and the one associated with the identified parameters () divided by the number of samples ,

(6)

, where the bold text represents the fact that is a vector of samples. The MSE on the single sample is computed considering the target error on the three control modules used in the simulation. The prediction error on the 15 normalized parameters is computer for each sample, leading to an MSE of

(7)

. The identification error plotted versus the MSE is shown in Fig. 6. On average the identification error on the training set is

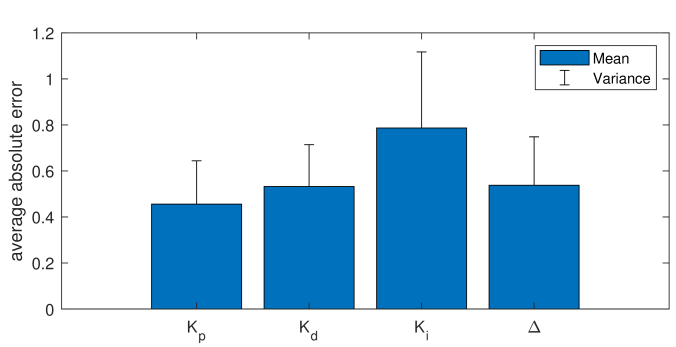

Figure 5: Average and variance of the error on the parameters.

max width=1center Dataset total RMSE fit RMSE Accuracy Training 1.3664 1.3296 85.79% Validation 1.5186 1.4810 83.90% Test 1.4846 1.4486 84.72%

Table 2: Training Results

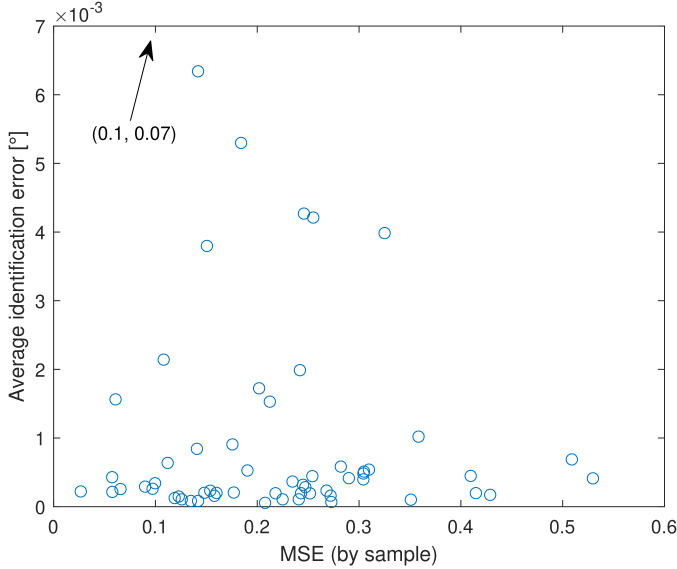

Figure 6:

Identification Error for a set of 60 training samples. The identification error is plotted versus the MSE error on the parameters (target output). The arrow addresses a point that is out of the scale of the axes (i.e MSE = 0.1, error=0.07). The correlation between the two measures of errors is

, which means in general larger MSE on the parameters are not associated to the larger identification errors. This may suggest a certain degree of redundancy in the model, allowing the system to reproduce a similar output with different sets of parameters.

3.2 Identification of Human Posture Control Parameters

The neural network is used to identify the control parameters from a human experiment performed with the same scenario simulated in the training set. The human experiment had the user stand with straight legs and hence the simulation was applied just to the ankle and the hip module. The identified parameters are reported in table 3 and the simulated sways of the segments are shown in Fig. 7, the result shows a good similarity between the simulation and the original data. For both the control modules, i.e. hip and ankle, the network proposed the sway in space of the segments as controlled variable, in according to previous studies on support surface tilt [16].

max width=1center Module Var Ankle 421.8574 74.6664 12.0254 0.0685 Sway Angle Hip 74.5148 8.2559 1.8854 0.0219 Sway Angle

Table 3: Parameters identified for an example from a human experiment.
Figure 7: Human data compared with simulated responses.

3.3 Identification with a Monolithic model

In order to evaluate the impact of the modular approach the experiment is repeated with a network that considers the three DOF together. The target vector incorporates the parameters for the 3 control modules, i.e. 15 values; the input is encoded as a 5 channel picture with with spectrograms as described in §2.3. Support surface tilt is not taken in account as it is the same for all the samples. The channels represent the modulus of the spectrogram for , , and , and the phase difference between and as well as between and . The dataset, rearranged in this way accounted for samples, i.e. one third of the original set. The dataset was split into a training set and a validation set of samples and a test set of samples.The network had the same structure of the one used in the modular case, but the input and the output layers were modified according to the dimensionality of the new dataset. Such network has the disadvantage of having less training samples and more parameters, but potentially the advantage of integrating more information about the global structure of the system (e.g. distinguishing explicitly between different DOFs). The results are shown in Table 4.

max width=1center Dataset total RMSE fit RMSE Accuracy Training 4.0731 3.2723 60.20% Validation 4.1597 3.3297 53.50% Test 4.0531 3.2586 51.51%

Table 4: Training Results with a monolithic model

The performance is overall worse than in the modular case, especially for the classification accuracy, suggesting that a modular approach is advantageous with this problem.

4 Conclusions and Future Work

In this work a method for posture control parameter identification based on CNN is presented. The system provides an efficient way to fit a model of the non-linear bio-inspired control system DEC on experimental data. This represents an advantage with respect to previous solutions relying on iterative methods. the training set is produced with parameters from normal distributions (although only the parameters producing a stable simulation are selected). Future work will focus on the distribution of human data. An a posteriori

test can be performed comparing the distribution of the parameters identified on the test set with the expected distribution on real data. This can help the process of choosing between different possible network hyperparameters sets as shown in

[38, 39].

Some parameters were better identified than others as shown in Fig. 5. This may be due to the kind of experimental set up or due to the choice of the input features. For example the effect of is mainly visible just in the low pass components of the spectrogram. Furthermore, simulations and robot experiments are able to reproduce human behavior in the considered set up (PRTS support surface tilt) without the integral component of the neural controller [31, 18, 16]. The integral component of the controller is more important in analyzing transient behavior, e.g. reaching a desired position, where it can be used to guarantee zero tracking error [35]. A tracking task may be better to identify more precisely.

The proposed CNN for posture control modeling can find application in bio-inspired humanoid control, e.g. [9, 3, 44, 32]. The CNN can also be helpful in setting up wearable robots using the control parameters identified on the user [10, 33]. The parameters can be a tool to benchmark humanoids and wearable devices [40], in particular, in the framework of the COMTEST project [22, 21] that aims to make a posture control testbed available for the humanoid robotics community, and to define performance metrics.

Acknowledgements

This work is supported by the project COMTEST, a sub-project of EUROBENCH (European Robotic Framework for Bipedal Locomotion Benchmarking, www.eurobench2020.eu) funded by H2020 Topic ICT 27-2017 under grant agreement number 779963.

References

  • [1] M. G. Abdu-Aguye and W. Gomaa. (2019) On the feasibility of on-body roaming models in human activity recognition. In Proceedings of the 16th International Conference on Informatics in Control, Automation and Robotics - Volume 1: ICINCO,, pp. 507–516. External Links: Document, ISBN 978-989-758-380-3 Cited by: §1.
  • [2] M. G. Abdu-Aguye and W. Gomaa. (2019)

    VersaTL: versatile transfer learning for imu-based activity recognition using convolutional neural networks

    .
    In Proceedings of the 16th International Conference on Informatics in Control, Automation and Robotics - Volume 1: ICINCO,, pp. 507–516. External Links: Document, ISBN 978-989-758-380-3 Cited by: §1.
  • [3] P. Abedi and A. L. Shoushtari (2012) Modelling and simulation of human-like movements for humanoid robots. In Proceedings of the 9th International Conference on Informatics in Control, Automation and Robotics - Volume 1: ICINCO,, pp. 342–346. External Links: Document, ISBN 978-989-8565-21-1 Cited by: §4.
  • [4] C. Andersson, A. H. Ribeiro, K. Tiels, N. Wahlström, and T. B. Schön (2019) Deep convolutional networks in system identification. In 2019 IEEE 58th Conference on Decision and Control (CDC), pp. 3670–3676. Cited by: §1.
  • [5] F. Antritter, F. Scholz, G. Hettich, and T. Mergner (2014) Stability analysis of human stance control from the system theoretic point of view. In Control Conference (ECC), 2014 European, pp. 1849–1855. Cited by: §2.2.
  • [6] L. Assländer, G. Hettich, and T. Mergner (2015) Visual contribution to human standing balance during support surface tilts. Human movement science 41, pp. 147–164. Cited by: §1.
  • [7] G. Batchuluun, R. A. Naqvi, W. Kim, and K. R. Park (2018) Body-movement-based human identification using convolutional neural network. Expert Systems with Applications 101, pp. 56–77. Cited by: §1.
  • [8] T. A. Boonstra, J. P. van Vugt, H. van der Kooij, and B. R. Bloem (2014) Balance asymmetry in parkinson’s disease and its contribution to freezing of gait. PLoS One 9 (7), pp. e102493. Cited by: §1.
  • [9] Y. Choi and D. Kim (2007) ON the balancing control of humanoid robot. In Proceedings of the Fourth International Conference on Informatics in Control, Automation and Robotics - Volume 2: ICINCO,, pp. 248–252. External Links: Document, ISBN 978-972-8865-83-2 Cited by: §4.
  • [10] D. Chugo, M. Koyama, M. Yokota, S. Kawazoe, S. Muramatsu, S. Yokota, H. Hashimoto, T. Katayama, Y. Mizuta, and A. Koujina (2019) Sitting assistance that considers user posture tolerance. In Proceedings of the 16th International Conference on Informatics in Control, Automation and Robotics - Volume 2: ICINCO,, pp. 489–496. External Links: Document, ISBN 978-989-758-380-3 Cited by: §4.
  • [11] E. De la Rosa, W. Yu, and X. Li (2015) Nonlinear system identification using deep learning and randomized algorithms. In 2015 IEEE International Conference on Information and Automation, pp. 274–279. Cited by: §1.
  • [12] E. De la Rosa and W. Yu (2016) Randomized algorithms for nonlinear system identification with deep learning modification. Information Sciences 364, pp. 197–212. Cited by: §1.
  • [13] D. Engelhart, T. A. Boonstra, R. G. Aarts, A. C. Schouten, and H. van der Kooij (2016) Comparison of closed-loop system identification techniques to quantify multi-joint human balance control. Annual reviews in control 41, pp. 58–70. Cited by: §1.
  • [14] D. Engelhart, J. H. Pasma, A. C. Schouten, C. G. Meskers, A. B. Maier, T. Mergner, and H. van der Kooij (2014) Impaired standing balance in elderly: a new engineering method helps to unravel causes and effects. Journal of the American Medical Directors Association 15 (3), pp. 227–e1. Cited by: §1.
  • [15] A. D. Goodworth and R. J. Peterka (2018) Identifying mechanisms of stance control: a single stimulus multiple output model-fit approach. Journal of neuroscience methods 296, pp. 44–56. Cited by: §1.
  • [16] G. Hettich, L. Assländer, A. Gollhofer, and T. Mergner (2014) Human hip—ankle coordination emerging from multisensory feedback control.. Human Movement Science 37, pp. 123–146. Cited by: §2.2, §3.2, §4.
  • [17] G. Hettich, V. Lippi, and T. Mergner (2013) Human-like sensor fusion mechanisms in a postural control robot.. In Proceedings of the International Congress on Neurotechnology, Electronics and Informatics. Vilamoura, Portugal, A. E. Londral, P. Encarnacao, and J. L. Pons (Eds.), pp. 152–160.. Cited by: §2.2.
  • [18] G. Hettich, V. Lippi, and T. Mergner (2015) Human-like sensor fusion implemented in the posture control of a bipedal robot. In Neurotechnology, Electronics, and Informatics, pp. 29–45. Cited by: §2.2, §4.
  • [19] J. J. Jeka, L. K. Allison, and T. Kiemel (2010) The dynamics of visual reweighting in healthy and fall-prone older adults. Journal of motor behavior 42 (4), pp. 197–208. Cited by: §1.
  • [20] A. Karatzoglou, N. Schnell, and M. Beigl (2018) A convolutional neural network approach for modeling semantic trajectories and predicting future locations. In International Conference on Artificial Neural Networks, pp. 61–72. Cited by: §1.
  • [21] V. Lippi, T. Mergner, C. Maurer, and T. Seel (2020-10) Performance indicators of humanoid posture control and balance inspired by human experiments. In The International Symposium on Wearable Robotics (WeRob2020) and WearRAcon Europe, EasyChair. Cited by: §4.
  • [22] V. Lippi, T. Mergner, T. Seel, and C. Maurer (2019) COMTEST project: a complete modular test stand for human and humanoid posture control and balance. In 2019 IEEE-RAS 19th International Conference on Humanoid Robots (Humanoids) Toronto, Canada. October 15-17, Cited by: §4.
  • [23] V. Lippi and T. Mergner (2017) Human-derived disturbance estimation and compensation (dec) method lends itself to a modular sensorimotor control in a humanoid robot. Frontiers in neurorobotics 11, pp. 49. Cited by: §1, §2.2.
  • [24] V. Lippi and T. Mergner (2020) A challenge: support of standing balance in assistive robotic devices. Applied Sciences 10 (15), pp. 5240. Cited by: §2.2.
  • [25] V. Lippi, F. Molinari, and T. Seel (2019) Distributed bio-inspired humanoid posture control. In 2019 41st Annual International Conference of the IEEE Engineering in Medicine and Biology Society (EMBC), pp. 5360–5365. Cited by: §2.2.
  • [26] V. Lippi (2018) Prediction in the context of a human-inspired posture control model. Robotics and Autonomous Systems. Cited by: §2.2.
  • [27] V. Lippi., T. Mergner., and C. Maurer. (2020) Deep learning for posture control nonlinear model system and noise identification. In Proceedings of the 17th International Conference on Informatics in Control, Automation and Robotics - Volume 1: ICINCO,, pp. 607–614. External Links: Document, ISBN 978-989-758-442-8 Cited by: §1.
  • [28] L. Ljung, C. Andersson, K. Tiels, and T. B. Schön (2020) Deep learning and system identification. In 21st IFAC World Congress, pp. 8. Cited by: §1.
  • [29] T. Mergner, C. Maurer, and R. J. Peterka (2003) A multisensory posture control model of human upright stance. Progress in Brain Research 142, pp. 189–201. Cited by: §2.2.
  • [30] T. Mergner, G. Schweigart, and L. Fennell (2009) Vestibular humanoid postural control. Journal of Physiology - Paris 103, pp. 178–194. Cited by: §2.2.
  • [31] T. Mergner (2010) A neurological view on reactive human stance control. Annual Reviews in Control 34 (2), pp. 77–198. Cited by: §1, §2.2, §4.
  • [32] T. Mergner and V. Lippi (2018) Posture Control–Human-Inspired Approaches for Humanoid Robot Benchmarking: Conceptualizing Tests, Protocols and Analyses. Frontiers in Neurorobotics 12, pp. 21. External Links: ISSN 1662-5218, Document, Link Cited by: §4.
  • [33] T. Mergner and V. Lippi (2019) Integrating posture control in assistive robotic devices to support standing balance.. In Wearable Robotics: Challenges and Trends. WeRob 2018., P. J. Carrozza M. (Ed.), Biosystems & Biorobotics, Vol. 22. External Links: Document, ISBN 978-3-030-01886-3 Cited by: §4.
  • [34] S. S. Miriyala and K. Mitra (2020) Deep learning based system identification of industrial integrated grinding circuits. Powder Technology 360, pp. 921–936. Cited by: §1.
  • [35] C. Ott, B. Henze, G. Hettich, T. N. Seyde, M. A. Roa, V. Lippi, and T. Mergner (2016) Good posture, good balance: comparison of bioinspired and model-based approaches for posture control of humanoid robotsg. IEEE Robotics & Automation Magazine 23 (1), pp. 22–33. Cited by: §2.2, §4.
  • [36] J. Pasma, D. Engelhart, A. Schouten, H. Van der Kooij, A. Maier, and C. Meskers (2014) Impaired standing balance: the clinical need for closing the loop. Neuroscience 267, pp. 157–165. Cited by: §1.
  • [37] R. Peterka (2002) Sensorimotor integration in human postural control. Journal of neurophysiology 88 (3), pp. 1097–1118. Cited by: §1, §2.1.
  • [38] F. Sforza, V. Lippi, and G. Chiarelli (2011) Rejection of multi-jet background in pp→ e

    + jj channel through a svm classifier

    .
    In Journal of Physics: Conference Series, Vol. 331, pp. 32–45. Cited by: §4.
  • [39] F. Sforza and V. Lippi (2013) Support vector machine classification on a biased training set: multi-jet background rejection at hadron colliders. Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment 722, pp. 11–19. Cited by: §4.
  • [40] D. Torricelli, R. S. Mizanoor, V. Lippi, M. Weckx, G. Mathijssen, B. Vanderborght, T. Mergner, D. Lefeber, and J. L. Pons (2020) Benchmarking human likeness of bipedal robot locomotion: state of the art and future trends. In Metrics of Sensory Motor Coordination and Integration in Robots and Animals, pp. 147–166. Cited by: §4.
  • [41] E. H. van Asseldonk, J. H. Buurke, B. R. Bloem, G. J. Renzenbrink, A. V. Nene, F. C. van der Helm, and H. van der Kooij (2006) Disentangling the contribution of the paretic and non-paretic ankle to balance control in stroke patients. Experimental neurology 201 (2), pp. 441–451. Cited by: §1.
  • [42] H. van der Kooij, E. H. F. van Asseldonk, J. Geelen, J. P. P. van Vugt, and B. R. Bloem (2007-08-16) Detecting asymmetries in balance control with system identification: first experimental results from parkinson patients. Journal of Neural Transmission 114 (10), pp. 1333. External Links: ISSN 1435-1463, Document, Link Cited by: §1.
  • [43] H. van der Kooij, E. van Asseldonk, and F. C. van der Helm (2005) Comparison of different methods to identify and quantify balance control. Journal of neuroscience methods 145 (1-2), pp. 175–203. Cited by: §1.
  • [44] M. Zebenay, V. Lippi, and T. Mergener (2015) Human-like humanoid robot posture control. In 2015 12th International Conference on Informatics in Control, Automation and Robotics (ICINCO), Vol. 2, pp. 304–309. Cited by: §2.2, §4.
