Deep Coupled-Representation Learning for Sparse Linear Inverse Problems with Side Information

by   Evaggelia Tsiligianni, et al.

In linear inverse problems, the goal is to recover a target signal from undersampled, incomplete or noisy linear measurements. Typically, the recovery relies on complex numerical optimization methods; recent approaches perform an unfolding of a numerical algorithm into a neural network form, resulting in a substantial reduction of the computational complexity. In this paper, we consider the recovery of a target signal with the aid of a correlated signal, the so-called side information (SI), and propose a deep unfolding model that incorporates SI. The proposed model is used to learn coupled representations of correlated signals from different modalities, enabling the recovery of multimodal data at a low computational cost. As such, our work introduces the first deep unfolding method with SI, which actually comes from a different modality. We apply our model to reconstruct near-infrared images from undersampled measurements given RGB images as SI. Experimental results demonstrate the superior performance of the proposed framework against single-modal deep learning methods that do not use SI, multimodal deep learning designs, and optimization algorithms.



There are no comments yet.


page 1

page 2

page 3

page 4


Deep Signal Recovery with One-Bit Quantization

Machine learning, and more specifically deep learning, have shown remark...

Onsager-corrected deep learning for sparse linear inverse problems

Deep learning has gained great popularity due to its widespread success ...

Multimodal Image Super-resolution via Deep Unfolding with Side Information

Deep learning methods have been successfully applied to various computer...

Multimodal Representation Learning using Deep Multiset Canonical Correlation

We propose Deep Multiset Canonical Correlation Analysis (dMCCA) as an ex...

One Network to Solve Them All --- Solving Linear Inverse Problems using Deep Projection Models

While deep learning methods have achieved state-of-the-art performance i...

Projecting to Manifolds via Unsupervised Learning

We present a new framework, called adversarial projections, for solving ...

On the Global-Local Dichotomy in Sparsity Modeling

The traditional sparse modeling approach, when applied to inverse proble...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

Linear inverse problems arise in various signal processing domains such as computational imaging, remote sensing, seismology and astronomy, to name a few. These problems can be expressed by a linear equation of the form:


where is the unknown signal, , , is a linear operator, and denotes the observations contaminated with noise . Sparsity is commonly used for the regularization of ill-posed inverse problems, leading to the so-called sparse approximation problem [1]. Compressed sensing (CS) [2] deals with the sparse recovery of linearly subsampled signals and falls in this category.

In several applications, besides the observations of the target signal, additional information from correlated signals is often available [3, 4, 5, 6, 7, 8, 9, 10]. In multimodal applications, combining information from multiple signals calls for methods that allow coupled signal representations, capturing the similarities between correlated data. To this end, coupled dictionary learning is a popular approach [8, 9, 10]; however, dictionary learning methods employ overcomplete dictionaries, resulting in computationally expensive sparse approximation problems.

Deep learning has gained a lot of momentum in solving inverse problems, often surpassing the performance of analytical approaches [11, 12, 13]. Nevertheless, neural networks have a complex structure and appear as “black boxes”; thus, understanding what the model has learned is an active research topic. Among the efforts trying to bridge the gap between analytical methods and deep learning is the work presented in [14], which introduced the idea of unfolding a numerical algorithm for sparse approximation into a neural network form. Several unfolding approaches [15, 16, 17] followed that of [14]. Although the primary motivation for deploying deep learning in inverse problems concerns the reduction of the computational complexity, unfolding offers another significant benefit: the model architecture allows a better insight in the inference procedure and enables the theoretical study of the network using results from sparse modelling [18, 19, 20, 15].

In this paper, we propose a deep unfolding model for the recovery of a signal with the aid of a correlated signal, the side information (SI). To the best of our knowledge, this is the first work in deep unfolding that incorporates SI. Our contribution is as follows: (i) Inspired by [14]

, we design a deep neural network that unfolds a proximal algorithm for sparse approximation with SI; we coin our model Learned Side Information Thresholding Algorithm (LeSITA). (ii) We use LeSITA in an autoencoder fashion to learn coupled representations of correlated signals from different modalities. (iii) We design a LeSITA-based reconstruction operator that utilizes learned SI provided by the autoencoder to enhance signal recovery.

We test our method in an example application, namely, multimodal reconstruction from CS measurements. Other inverse problems of the form (1

) such as image super-resolution

[21, 8] or image denoising [22] can benefit from the proposed approach. We compare our method with existing single-modal deep learning methods that do not use SI, multimodal deep learning designs, and optimization algorithms, showing its superior performance.

The paper is organized as follows. Section II provides the necessary background and reviews related work. The proposed framework is presented in Section III, followed by experimental results in Section IV. Conclusions are drawn in Section V.

Ii Background and Related Work

Figure 1: Graphical representation of the proximal operators of (a) ISTA and (b) SITA (for non-negative SI , ). are positive parameters.

A common approach for solving problems of the form (1) with sparsity constraints is convex optimization [23]. Let us assume that the unknown has a sparse representation with respect to a dictionary , , that is, . Then, (1) takes the form


and a solution can be obtained via the formulation of the minimization problem:


where denotes the -norm (), which promotes sparse solutions and is a regularization parameter.

Numerical methods [1] proposed to solve (3) include pivoting algorithms, interior-point methods, gradient based methods and message passing algorithms (AMP) [24]. Among gradient based methods, proximal methods are tailored to optimize an objective of the form


where is a convex differentiable function with a Lipschitz-continuous gradient, and is convex and possibly nonsmooth [25], [26]. Their main step involves the proximal operator, defined for a function according to


with and an upper bound on the Lipschitz constant of . A popular proximal algorithm is the Iterative Soft Thresholding Algorithm (ISTA) [27, 28]. Let us set , in (3). At the -th iteration ISTA computes:


where denotes the proximal operator [Figure 1(a)] expressed by the component-wise shrinkage function:


with .

In order to account for the high computational cost of numerical algorithms, Gregor and LeCun [14] unfolded ISTA into a neural network referred to as LISTA. Specifically, by setting , , (6) results in


Considering a correspondence of every iteration with a neural network layer, a number of iterations of (8

) can be implemented by a recurrent or feed forward neural network;

, and are learnable parameters, and the proximal operator (7

) acts as a nonlinear activation function. A fixed depth network allows the computation of sparse codes in a fixed amount of time. Similar unfolding methods were proposed in

[15, 16, 17].

Iii Proposed Framework

In this paper, we consider that, besides the observations of the target signal, we also have access to SI, that is, a signal correlated to the unknown . We assume that and have similar sparse representations , , under dictionaries , , , , respectively. Specifically, we assume that and are similar by means of the norm, that is, is small. The condition holds for representations with partially common support and a number of similar nonzero coefficients; we refer to them as coupled sparse representations. Then, can be obtained from the - minimization problem


(9) has been theoretically studied in [29] and has been employed for the recovery of sequential signals in [3, 4, 5].

We can easily obtain coupled sparse representations of sequential signals that change slowly using the same sparsifying dictionary [3, 4, 5]. However, this is not the case in most multimodal applications, where, typically, finding coupled sparse representations involves dictionary learning and complex optimization methods [8, 9, 10]. In this work, we propose an efficient approach based on a novel multimodal deep unfolding model. The model is employed for learning coupled representations of the target signal and the SI (Section III-B), and for reconstruction with SI (Section III-C). Our approach is inspired by a proximal algorithm for the solution of (9).

Iii-a Sparse Approximation with SI via Deep Unfolding

Problem (9) is of the form (4) with , , , and . The proximal operator for is defined by


where , and is an upper bound on the Lipschitz constant of . All terms in (10) are separable, thus, we can easily show that (see Appendix):

  1. For , :

  2. For , :


Figure 1(b) depicts the graphical representation of the proximal operator given by (11). With , a proximal method for (9) takes the form


We coin (13) Side-Information-driven iterative soft Thresholding Algorithm (SITA).

We unfold SITA to a neural network form, by settting , . Then (13) results in


(14) has a similar expression to LISTA (8); however, the two algorithms involve different proximal operators (Figure 1). A fixed number of iterations of (14) can be implemented by a recurrent or feed forward neural network, with the proximal operator given by (11), (12) employed as a nonlinear activation function, which integrates the SI; , and are learnable parameters. The network architecture is depicted in Figure 2.

We can train the neural network using pairs of sparse codes corresponding to pairs of correlated signals

, and a loss function of the form:



is the output estimation. The learning results in a fast sparse approximation operator that directly maps the input observation vector

to a sparse code with the aid of the SI . We coin this operator Learned Side Information Thresholding Algorithm (LeSITA).

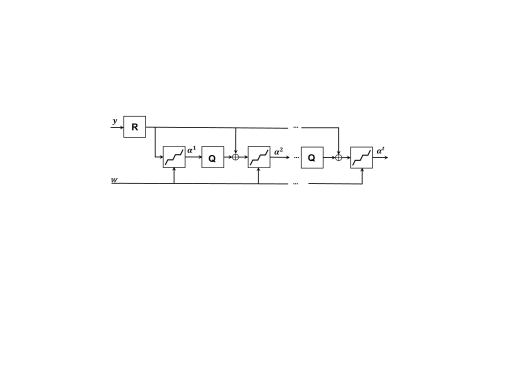

Figure 2: LeSITA: Unfolding SITA (13) to a neural network form (14).

Being based on an optimization method, LeSITA can be theoretically analyzed (see [7, 18, 19, 20, 15]). We leave this analysis for future work.

Iii-B LeSITA Autoencoder for Coupled Representations

Instead of training using sparse codes, we can use LeSITA in an autoencoder fashion to learn coupled representations of , . By setting

equal to the identity matrix, (

9) reduces to a sparse representation problem with SI. Then, (14) can compute a representation of according to . The proposed autoencoder is depicted in Figure 3. The main branch accepts as input the target signal (). The core component is a LeSITA encoder, followed by a linear decoder performing reconstruction, i.e., ; is a trainable dictionary ( is not tied to any other weight). A second branch referred to as SINET acts as an SI encoder, performing a (possibly) nonlinear transformation of the SI. We employ LISTA (8) to incorporate sparse priors in the transformation, obtaining , ; is given by (7), and , and are learnable parameters. The number of layers of LISTA and LeSITA may differ.

We use pairs of correlated signals to train our autoencoder, and an objective function of the form:


where is the reconstruction loss, is a constraint on the latent representations, and , are appropriate weights. We use the norm as reconstruction loss, i.e., , where is the -th sample of the target signal and is the respective output estimation. We set to promote coupled latent representations capturing the correlation between and .

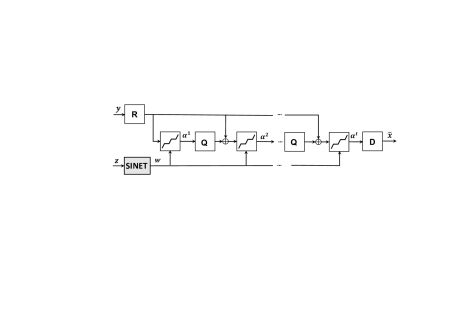

Figure 3: Use of LeSITA for signal representation or reconstruction with SI. The main branch comprises a LeSITA encoder and a linear decoder; the input is either the signal (Section III-B) or the observations (Section III-C). The SI branch (SINET) performs transformation of the SI. The transformed SI is used to guide LeSITA to produce a representation of the target signal that improves reconstruction.
