1. Introduction
With the advent of modern Virtual Reality (VR) headsets, there is a need for improved realtime computer graphics models for enhanced immersion. Traditional computer graphics techniques are capable of creating highly realistic renders of static scenes but at high computational cost. These models also depend on physically accurate estimates of geometry and shading model components. When high precision estimates are difficult to acquire, degradation in perceptual quality can be pronounced and difficult to control and anticipate. Finally, photorealistic rendering of dynamic scenes in real time remains a challenge.
Rendering the human face is particularly challenging. Humans are social animals that have evolved to express and read emotions in each other’s faces (Ekman, 1980). As a result, humans are extremely sensitive to rendering artifacts, which gives rise to the wellknown uncanny valley in photorealistic facial rendering and animation. The source of these artifacts can be attributed to deficiencies, both in the rendering model as well as its parameters. This problem is exacerbated in realtime applications, such as in VR, where limited compute budget necessitates approximations in the lighttransport models used to render the face. Common examples here include: material properties of the face that are complex and timeconsuming to simulate; fine geometric structures, such as eyelashes, pores, and vellus hair that are difficult to model; and subtle dynamics from motion, particularly during speech. Although compelling synthetic renderings of faces have been demonstrated in the movie industry, these models require significant manual cleanup (Lewis et al., 2014), and often a framebyframe adjustment is employed to alleviate deficiencies of the underlying model. This manual process makes them unsuitable for realtime applications.
The primary challenge posed by the traditional graphics pipeline stems form its physicsinspired model of light transport. For a specific known object class, like a human face, it is possible to circumvent this generic representation, and instead directly address the problem of generating images of the object using image statistics from a set of examples. This is the approach taken in Active Appearance Models (AAMs) (Cootes et al., 2001), which synthesize images of the face by employing a joint linear model of both texture and geometry (typically a small set of 2D points), learned from a collection of face images. Through a process coined analysisbysynthesis, AAMs were originally designed to infer the underlying geometry of the face in unseen images by optimizing the parameters of the linear model so that the synthesized result best matches the target image. Thus, the most important property of AAMs is their ability to accurately synthesize face images while being sufficiently constrained to only generate plausible faces. Although AAMs have been largely supplanted by direct regression methods for geometry registration problems (Xiong and la Torre Frade, 2013; Kazemi and Sullivan, 2014), their synthesis capabilities are of interest due to two factors. First, they can generate highly realistic face images from sparse 2D geometry. This is in contrast to physicsinspired face rendering that requires accurate, highresolution geometry and material properties. Second, the perceptual quality of AAM synthesis degrades gracefully. This factor is instrumental in a number of perceptual experiments that rely on the uncannyvalley being overcome (Cassidy et al., 2016; Boker et al., 2011).
Inspired by the AAM, in this work we develop a datadriven representation of the face that jointly models variations in sparse 3D geometry and viewdependent texture. Departing from the linear models employed in AAMs, we use a deep conditional variational autoencoder (Kingma and Welling, 2013) (CVAE) to learn the latent embedding of facial states and decode them into rendering elements (geometry and texture). A key component of our approach is the viewdependent texture synthesis, which can account for limitations posed by sparse geometry as well as complex nonlinear shading effects such as specularity. We explicitly factor out viewpoint from the latent representation, as it is extrinsic to the facial performance, and instead condition the decoder on the direction from which the model is viewed. To learn a deep appearance model of the face, we constructed a multiview capture apparatus with 40 cameras pointed at the front hemisphere of the face. A coarse geometric template is registered to all frames in a performance and it, along with the unwarped textures of each camera, constitute the data used to train the CVAE. We investigated the role of geometric precision and viewpoint granularity and found that, although direct deep image generation techniques such as those of Radford et al. (2015), Hou et al. (2017), or Kulkarni et al. (2015) can faithfully reconstruct data, extrapolation to novel viewpoints is greatly enhanced by separating the coarse graphics warp (via a triangle mesh) from appearance, confirming the basic premise of the parameterization.
Our proposed approach is well suited for visualizing faces in VR since; a) sparse geometry and dynamic texture are basic building blocks of modern realtime rendering engines, and b) modern VR hardware necessarily estimates viewing directions in realtime. However, in order to enable interaction using deep appearance models in VR, the user’s facial state needs to be estimated from a collection of sensors that typically have extreme and incomplete views of the face. An example of this is shown in the bottom left of Figure 1. This problem is further complicated in cases where the sensors measure a modality that differs from that used to build the model. A common example is the use of IR cameras, which defeats naive matching with images captured in the visible spectrum due to pronounced subsurface scattering in IR. To address this problem, we leverage the property of CVAE, where weight sharing across similar modalities tends to preserve semantics. Specifically, we found that learning a common CVAE over headset images and rerendered versions of the multiview capture images allows us to correspond the two modalities through their common latent representation. This, in turn, implies correspondence from headset images to latent codes of the deep appearance model, over which we can learn a regression. Coupled with the deep appearance model, this approach allows the creation of a completely personalized endtoend system where a person’s facial state is encoded with the tracking VAE encoder and decoded with the rendering VAE decoder without the need for manually defined correspondences between the two domains.
This paper makes two major contributions to the problem of realtime facial rendering and animation:

A formulation of deep appearance models that can generate highly realistic renderings of the human face. The approach does not rely on highprecision rendering elements, can be built completely automatically without requiring any manual cleanup, and is well suited to realtime interactive settings such as VR.

A semisupervised approach for relating the deep appearance model latent codes to images captured using sensors with drastically differing viewpoint and modality. The approach does not rely on any manually defined correspondence between the two modalities but can learn a direct mapping from images to latent codes that can be evaluated in realtime.
In §2 we cover related work, and describe our capture apparatus and data preparation in §3. The method for building the deep appearance models is described in §4, and the technique for driving it from headset mounted sensors in §5. Qualitative and quantitative results from investigating various design choices in our approach are presented in §6. We conclude in §7 with a discussion and directions of future work.
2. Related Work
Active Appearance Models (AAMs) (Cootes et al., 2001; Edwards et al., 1998; Matthews and Baker, 2004; Tzimiropoulos et al., 2013) and 3D morphable models (3DMM) (Blanz and Vetter, 1999; Knothe et al., 2011) have been used as an effective way to register faces in images through analysisbysynthesis using a low dimensional linear subspace of both shape and appearance. Our deep appearance model can be a seen as a repurposing of the generator component of these statistical models for rendering highly realistic faces. To perform this task effectively, there are two major modifications that were necessary over the classical AAM and 3DMM approaches; the use of deep neural networks inplace of linear generative functions, and a system for viewconditioning to specialize the generated image to the viewpoint of the camera.
Recently, there has been a great deal of work using deep networks to model human faces in images. Radford et al. (2015) use Generative Adversarial Networks (GANs) to learn representations of the face and learn how movements in this latent space can change attributes of the output image (e.g., wearing eyeglasses or not). Hou et al. (2017) use a variational autoencoder to perform a similar task. Kulkarni et al. (2015) attempt to separate semantically meaningful characteristics (e.g., pose, lighting, shape) from a database of rendered faces semiautomatically. All these methods operate only in the image domain and are restricted to small image sizes (256256 or less). By contrast, we learn to generate viewspecific texture maps of how the face changes due to facial expression and viewing direction. This greatly simplifies the learning problem, achieving highresolution realistic output as a result.
There has also been work on automatically creating imagebased avatars using a geometric facial model (Ichim et al., 2015; Hu et al., 2017; Thies et al., 2018). Cao et al. (2016) propose an imagebased avatar from 32 images captured from a webcam. To render the face, they construct a specially crafted function that blends the set of captured images based on the current facial expression and surface normals, which captures the dependence of both expression and viewpoint on facial appearance. Casas et al. (2016) propose a method for rapidly creating blendshapes from RGBD data, where the face is later rendered by taking a linear combination of the input texture maps. Although both methods take an imagebased approach, our method learns how appearance changes due to expression and view rather than prescribing it. Most importantly, these approaches are geared towards datalimited scenarios and, as a result, do not scale well in cases where data is more abundant. Our approach is designed specifically to leverage large quantities of high quality data to achieve the compelling depiction of human faces.
Because our method is concerned with viewdependent facial appearance, our work has a connection to others that have studied the view and lightdependent appearance of materials and objects. One way to view this work is as a compression of the “8D reflectance function that encapsulates the complex light interactions inside an imaginary manifold via the boundary conditions on the surface of the manifold” (Klehm et al., 2015). That is, we are capturing the lightfield at a manifold on which the cameras lie and compressing the appearance via a deconstruction of texture and geometry. Imagebased rendering methods (Kang et al., 2000; Gortler et al., 1996) represent the light field nonparametrically and attempt to use a large number of samples to reconstruct novel views. The Bidirectional Texture Function (Dana et al., 1999) is a method to model both spatiallyvarying and viewvarying appearance. These approaches have served as inspiration for this work.
To drive our model we develop a technique for learning a direct endtoend mapping from images to deep appearance model codes. Although state of the art techniques for face registration also employ regression methods (Xiong and la Torre Frade, 2013; Kazemi and Sullivan, 2014), most approaches assume a complete view of the face where correspondences are easily defined through facial landmarks. An approach closest to our work is that of Olszewski et al. (2016), which employ direct regression from images to blendshape coefficients. The main difference to our work is in how corresponding expressions are found between the two domains. Whereas in Olszewski et al.’s work, correspondences are defined semantically through peak expressions and auditory aligned features of speech sequences, our approach does not require any human defined correspondence, or even that the data contains the same sequence of facial motions. Since we leverage unsupervised domain adaptation techniques, the only requirement of our method is that the distribution of expressions in both domains are comparable.
There have recently been a number of works that perform unsupervised domain adaptation using deep networks (Liu et al., 2017; Kim et al., 2017; Bousmalis et al., 2017; Zhu et al., 2017). Many of these methods rely on Generative Adversarial Networks (GANs) to translate between two or more domains, sometimes with additional losses to ensure semantic consistency. Some works also use VAE in conjunction with other components to learn a common latent space between domains (Liu et al., 2017; Hsu et al., 2017). Our approach differs from these works in that we leverage the pretrained rendering VAE to help constrain the structure of the common latent space, resulting in semantics that are well matched between the modalities.
3. Capturing Facial Data
To learn to render faces, we need to collect a large amount of facial data. For this purpose, we have constructed a large multicamera capture apparatus with synchronized highresolution video focused on the face. The device contains 40 machine vision cameras capable of synchronously capturing 51203840 images at 30 frames per second. All cameras lie on the frontal hemisphere of the face and are placed at a distance of about one meter from it. We use zoomed in 50mm lenses, capturing porelevel detail, where each pixel observes about 50m on the face.
We preprocess the raw video data by performing multiview stereo reconstruction. In order to achieve the best results, we evenly place 200 directional LED point lights directed at the face to promote uniform illumination.
To keep the distribution of facial expressions consistent across identities, we have each subject make a predefined set of 122 facial expressions. Each subject also recites a set of 50 phoneticallybalanced sentences. The metadata regarding the semantic content of the recordings is not utilized in this work, but its inclusion as additional constraints in our system is straightforward and is a potential direction for future work.
As input to our deep appearance model learning framework, we take the original captured images as well as a tracked facial mesh. To generate this data, we build personalized blendshape models of the face from the captured expression performances, similar to Laine et al. (2017), and use it to track the face through the captured speech performances by matching the images and the dense 3D reconstructions.
4. Building A Datadriven Avatar
Our primary goal is to create extremely highfidelity facial models that can be built automatically from a multicamera capture setup and rendered and driven in real time in VR (90Hz). In achieving this goal, we avoid using handcrafted models or priors, and instead rely on the rich data we acquired from our multiview capture apparatus.
We unify the concepts of 3D morphable models, imagebased rendering, and variational autoencoders to create a realtime facial rendering model that can be learned from a multicamera capture rig. The idea is to construct a variational autoencoder that jointly encodes geometry and appearance. In our model, the decoder outputs viewdependent textures—that is, a texture map that is “unwrapped” from a single camera image. It is viewspecific and therefore contains viewdependent effects such as specularities, distortions due to imperfect geometry estimates, and missing data in areas of the face that are occluded.
The critical piece of the proposed method is that we use a conditional variational autoencoder to condition on the viewpoint of the viewer (at training time, the viewer is the camera from which the texture was unwrapped; at test time, the viewpoint we want to render from; in both cases the direction is composed with the inverse of the global headpose in the scene), allowing us to output the correct viewspecific texture. At test time, we can execute the decoder network in realtime to regress from latent encoding to geometry and texture and finally render using rasterization.

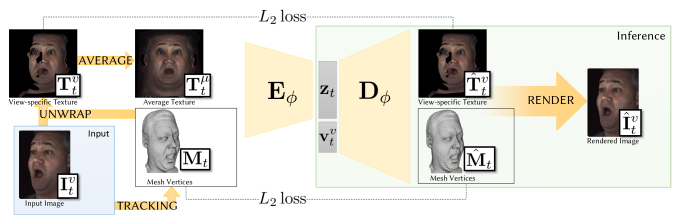

Figure 2 visualizes the training and inference pipeline of our algorithm. For this work, we assume that coarse facial geometry has been tracked and we use it as input to our algorithm with the original camera images. After geometry is tracked, we “unwrap” texture maps for each camera and for every frame of capture. Unwrapping is performed by tracing a ray from the camera to each texel of the texture map and copying the image pixel value into the texel if the ray is not occluded. These viewspecific texture maps are what we want to generate at test time: reproducing them will cause the rendered image to match the ground truth image after rendering. To learn how to generate them efficiently, we use a conditional variational autoencoder (CVAE) (Kingma and Welling, 2013)
. Because we jointly model geometry and appearance, our autoencoder has two branches: an RGB texture map and a vector of mesh vertex positions.
Let be an image from the multicamera capture rig at time instant from camera (for a total of cameras). In this work, we assume that the viewpoint vector is relative to the rigid head orientation that is estimated from the tracking algorithm. At each time instant we also have a 3D mesh (7306 vertices dimensional vector) with a consistent topology across time. Using the image and mesh we can “unwrap” a viewspecific texture map by casting rays through each pixel of the geometry and assigning the intersected texture coordinate to the color of the image pixel. During training, the conditional VAE takes the tuple as input and as the target. Here,
(1)
is the average texture, where is a factor indicating whether each texel is occluded (0) or unoccluded (1) from camera and represents an elementwise product. The primary reason for this asymmetry is to prevent the latent space from containing view information and to enforce a canonical latent state over all viewpoints for each time instant. The effects of this is discussed below.
The cornerstone of our method is the conditional variational autoencoder that learns to jointly compress and reconstruct the texture and mesh vertices
. This autoencoder can be viewed as a generalization of Principal Component Analysis (PCA) in conventional AAMs. The autoencoder consists of two halves: the encoder
and the decoder. The encoder takes as input the mesh vertices and texture intensities and outputs parameters of a Gaussian distribution of the latent space,
(2)
where the function is parameterized using a deep neural network with parameters . At training time, we sample from the distribution,
(3)
and pass it into the decoder and compute the reconstruction loss. This process approximates the expectation over the distribution defined by the encoder. The vector is a datadriven lowdimensional representation of the subject’s facial state. It encodes all aspects of the face, from eye gaze direction, to mouth pose, to tongue expression.
The decoder takes two inputs: the latent facial code and the view vector, represented as the vector pointing from the center of the head to the camera (relative to the head orientation that is estimated from the tracking algorithm). The decoder transforms the latent code and view vector into reconstructed mesh vertices and texture,
(4)
where is the reconstructed texture and is the reconstructed mesh. After decoding, the texture, mesh, and camera pose information can be used to render the final reconstructed image .

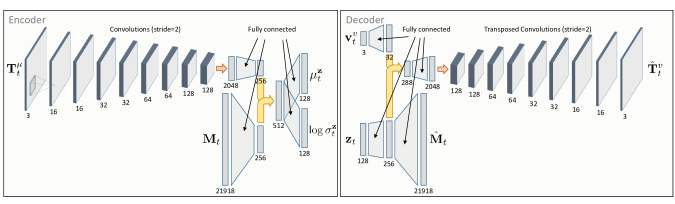

Figure 3 shows the architecture of the encoder and decoder. Conditioning is performed by concatenating the conditioning variable to the latent code
after each are transformed by a single fully connected layer. Since the mesh should be independent of viewpoint, it is only a function of the latent code. The texture decoder subnetwork consists of a series of strided transposed convolutions to increase the output resolution. In each layer, reparameterize the weight tensor using Weight Normalization
(Salimans and Kingma, 2016). We use leaky ReLU activations between layers with 0.2 leakiness. The decoder network must execute in less than 11.1 milliseconds to achieve 90Hz rendering for realtime VR systems. We are able to achieve this using transposed strided convolutions even with a final texture size of 1024
1024. This is a major departure from most previous work for generating facial imagery that has been limited to significantly smaller output sizes.Texture maps have nonstationary statistics that we can exploit in our network design. For example, DeepFace (Taigman et al., 2014) utilizes “locallyconnected layers”, a generalization of convolution where each pixel location has a unique convolution kernel. We utilize a similar but simpler approach: each convolutional layer has a bias that varies with both channel and the spatial dimensions. We find that this greatly improves reconstruction error and visual fidelity.
To train our system, we minimize the Ldistance between the input texture and geometry and the reconstructed texture and geometry plus the KLdivergence between the prior distribution (an isotropic Gaussian) and the distribution of the latent space:
(5)
where is a weighting term to ensure the loss does not penalize missing data (i.e., areas of the face that are not seen by the camera) and are weights for each term (in all experiments we set these values to , , ). We use the Adam algorithm (Kingma and Welling, 2013)
to optimize this loss. Before training, we standardize the texture and geometry so that they have zero mean and unit variance. For each subject, our dataset consists of around 5,000 frames of capture under 40 cameras per frame. Training typically takes around one day for 200,000 training iterations with a minibatch size of 16 on an NVIDIA Tesla M40.
During test time, we execute the decoder half to transform facial encodings and viewpoint into geometry and texture. Using the architecture shown in Figure 3, this takes approximately 5 milliseconds on an NVIDIA GeForce GTX 1080 graphics card; well within our target of 11.1 milliseconds. In practice, we find that in VR it is desirable to decode twice, creating one texture for each eye to induce parallax also in the generated texture. Our network is able to generalize in viewpoint enough that the small difference in viewpoint between the two eyes improves the experience by giving an impression of depth in regions that are poorly approximated by the sparse geometry (e.g., the oral cavity).
For our viewpoint conditioning to work, the decoder network must rely on the viewpoint conditioning vector to supply all the information about the viewpoint. In other words, the latent code should contain no information about the viewpoint of the input texture. This should be true for all types of variables that we may want to condition on at test time. The use of variational autoencoders (Kingma and Welling, 2013) does promote these properties in the learned representation (as we will discuss in section 4.1). However, for the special case of viewpoint, we can explicitly enforce this factorization by supplying input as the input texture, that is averaged across all cameras for a particular time instant . This allows us to easily enforce a viewpointindependent encoding of facial expression and gives us a canonical perframe latent encoding.
4.1. Conditioned Autoencoding
A critical piece of our model is the ability to condition the output of the network on some property we want to control at test time. For our base model to work properly, we must condition on the viewpoint of the virtual camera. The idea of conditioning on some information we want to control at test time can be extended to include illumination, gaze direction, and even identity. We can broadly divide conditioning variables into two categories: extrinsic variables (e.g., viewpoint, illumination, etc.) and intrinsic variables (e.g., speech, identity, gaze, etc.).
4.1.1. Viewpoint Conditioning
The main variable that must be conditioned on is the virtual camera viewpoint. We condition on viewpoint so that at test time we will generate the appropriate texture from that viewer’s point of view (relative to the avatars position and orientation). For this to work properly, the latent encoding must not encode any viewspecific information.
A viewpointindependent expression representation can be achieved by using a variational autoencoder (Kingma and Welling, 2013), which encourages the latent encoding to come from a zeromean unitvariance Gaussian distribution. It has been observed that variational autoencoders tend to learn a minimal encoding of the data because of the regularization of the latent space (Chen et al., 2016). Because of this, the network is encouraged to use the conditioning variable (in this case, viewpoint) as much as possible in order to minimize the number of dimensions used in the encoding. Rather than rely only on this mechanism, we input a texture map averaged over all viewpoints to the encoder network to ensure a viewpointindependent latent encoding . We will, however, exploit this mechanism for other conditioning variables.
4.1.2. Identity Conditioning
Avatars built with this system are personspecific. We would like to have a single encoder/decoder that models multiple people through an identity conditioning variable. With enough data, we may be able to learn to map single images to identity conditioning vectors, allowing us to dynamically create new avatars without needing a multicamera capture rig.
Interestingly, with this identity conditioning scheme, we notice that the network learns an identityindependent representation of facial expression in
despite not imposing any correspondence of facial expression between different people. This is because the variational autoencoder (VAE) is encouraged to learn a common representation of all identities through its prior. Semantics tend to be preserved probably because the network can reuse convolutional features throughout the network.
5. Driving a DataDriven Avatar
Now that we are able to train the decoder to map latent encodings to texture and geometry, we can render animated faces in realtime. We would like the ability to drive our avatars with live or recorded performance rather than only playing back data from the original capture. In this section, we detail how to animate our avatar by controlling the latent facial code with an unsupervised imagebased tracking method. Because our focus is on creating the highest possible quality avatars and facial animation, we limit our scope to personspecific models (i.e., a person can drive only his or her own avatar).
The primary challenge for driving performance with these avatars is obtaining correspondence between frames in our multicamera capture system and frames in our headset. Note that this is a unique problem for virtual reality avatars because one cannot wear the headset during the multicamera capture to allow us to capture both sets of data simultaneously, as the headset would occlude the face. We address this problem by utilizing unsupervised domain adaptation.
5.1. Videodriven Animation
Our approach centers around imagebased rendering on the rich multicamera data to simulate headset images. The first step is to compute approximate intrinsic and extrinsic headset camera parameters in the multicamera coordinate system (we do this by hand for one frame and propagate the tracked head pose). Then, for each pixel of the synthetic headset image, we raycast into the tracked geometry and project that point into one of the multicamera images to get a color value. This allows to produce synthetic images from the perspective of a headset with our multicamera system.
Unfortunately, the lighting in the headset images and multicamera images is quite different (and, in fact, of a different wavelength) so naively regressing from these synthetic headset images to facial encoding will likely not generalize to real headset images.
There has been much work recently on performing unsupervised domain adaptation using adversarial networks that learn to translate images from one domain to another without any explicit correspondence (e.g., (Zhu et al., 2017)
). One possibility for us is to use an imagetoimage translation approach to transform synthetic headset images into real headset images and then learn a regression from translated synthetic headset images to our latent code
. This scheme has two main drawbacks: first, the network learning the regression to latent code never trains on real headset images; second, the adversarial component of these methods tend to be difficult to train.We take the following alternative approach to solve this problem. First, we train a single variational autoencoder to encode/decode both real headset images and synthetic headset images. The Gaussian prior of the latent space will encourage the code
to form a common representation of both sets of images. We condition the decoder on a binary value indicating whether the image was from the set of real headset images or the set of synthetic images so that this information is not contained in the latent code. Next, we learn a linear transformation
that maps the latent code to the rendering code for the synthetic headset images because we have correspondence between images of our multicamera system and latent codesthrough our rendering encoder. If the VAE is successful in learning a common, semanticallyconsistent representation of real and synthetic headset images, then this linear regression will generalize to real headset images.
Note that while there is no guarantee that the semantics of the expression are the same when decoding in each of the two modalities, we observe that semantics tend to be preserved. We believe the primary reason for this is because the two image distributions are closely aligned and therefore the encoder network can make use of shared features.

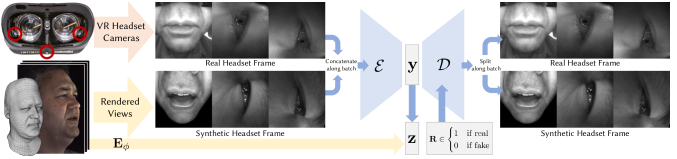

Figure 4 shows a pipeline of our technique. In this pipeline, the encoder takes one headset frame consisting of three images, mouth , left eye , and right eye . Each headset frame is either real or synthetic . The encoder produces a latent Gaussian distribution,
(6)
At training time, we sample from this distribution to get a latent code,
(7)
as before. Our decoder produces a headset frame given the latent code and an indicator variable :
(8)
where indicates whether the decoder should decode a real headset frame or a synthetic headset frame. This indicator variable allows the latent code to contain no modalityspecific information because the decoder network can get this information from the indicator variable instead.
The architecture of our headset encoder is as follows: for each of the three types of headset images (lower mouth, left eye, right eye), we create a threebranch network with each branch containing eight stride2 convolutions with each convolution followed by a leaky ReLU with 0.2 leakiness. The number of output channels for the first layer is 64 and doubles every other convolutional layer. The three branches are then concatenated together and two fullyconnected layers are used to output and . For our experiments, the latent vector has 256 dimensions. The decoder network is similar: three branches are created, with each branch consisting of a fullyconnected layer followed by eight stride2 transposed convolutions with each layer followed by a leaky ReLU with 0.2 leakiness. The first transposed convolution has 512 channels as input and this value halves every other transposed convolution. We condition the decoder by concatenting the conditioning variable to every layer, replicating across all spatial dimensions for convolutional layers. We don’t use any normalization in these networks. Our encoder network runs in 10ms on an NVIDIA GeForce GTX 1080, which enables realtime tracking.
To train the network, we optimize the reconstruction loss, retargetting loss, and KLdivergence loss,
(9)
where is known only for synthetic headset frames , linearly maps from tracking latent code to rendering code , and are weights for each term of the loss (in all experiments we set , , and ). We optimize this loss using the Adam optimizer (Kingma and Ba, 2014), as before. To make our method robust to the position of the HMD on the face, we perform a random translation, scaling, and rotation crop on the images. We also randomly scale the intensity values of the images to provide some robustness to lighting variation.
This completes the entire pipeline: a headset image is input to the headset encoding network to produce the headset encoding , then it is translated to the multicamera encoding , and finally it is decoded into avatar geometry and texture and rendered for the user. This architecture also works well for social interactions over a local or widearea network as only the latent code needs to be sent across the network, reducing bandwidth requirements.
5.2. Artist Controls
In addition to driving the deep appearance model with video, we want to provide a system for rigging these models by character artists. To do this, we use a geometrybased formulation where we optimize to find a latent code that satisfies some geometric constraints, similar to Lewis and Anjyo (2010). The artist can click vertices and drag them to a new location to create a constraint.
To find the latent code given the geometric constraints, we solve,
(10)
where is number of constraints, is the mesh resulting from decoding , is the vertex of constraint , and is the desired location for the vertex of constraint . The regularization on can be seen as a Gaussian prior, which is appropriate because the variational autoencoder encourages to take on a unit Gaussian distribution (we set ). Even though the constraint is only placed on geometry, the model will produce a plausible appearance for the constraints because geometry and appearance are jointly modeled.
6. Results
In this section, we give quantitative and qualitative results of our method for rendering human faces and driving them from HMD cameras. First, we explore the effects of geometric coarseness, viewpoint sparsity, and architecture choice on avatar quality. Next, we demonstrate how our tracking variational autoencoder can preserve facial semantics between two modalities (synthetic and real) by switching the conditioning label. Finally, we show results of our complete pipeline: encoding HMD images and decoding and rendering realistic avatars.
6.1. Qualitative Results
Figure 5 shows results of our method’s renderings compared to ground truth images for three different subjects. Our model is able to capture subtle details of motion and complex reflectance behavior by directly modeling the appearance of the face. Although some artifacts are present (e.g., blurring inside the mouth), they are less distracting than other types of facial rendering artifacts.
Figure 6
shows results of our multiidentity model. For this experiment, we used data from 8 different people and trained one network conditioned on a latent identity vector. Currently this model cannot generate plausible interpolations of people, but we believe this will be possible with significantly more data.
6.2. Effect of Geometric and Viewpoint Coarseness
A fundamental part of our model is that we jointly model geometry and texture. As a consequence, our model is able to “correct” for any bias in mesh tracking by altering the output of the texture maps to best match the true viewspecific texture map. This powerful ability is part of what allows us to produce highly realistic avatars. There is a limit, however, to the ability of the texture network to resolve those errors. To explore this, we have constructed a series of experiments to analyze quantitatively and qualitatively how the model behaves when the geometry becomes coarser and viewpoints become sparser.
We investigate four different types of geometric coarseness: our original tracked geometry, significant smoothing of the original tracked geometry (we use 1000 iterations of Taubin smoothing for this (Taubin, 1995)
), a static ellipsoid subsuming the original mesh, and a billboard quad. We test billboard quad because imagebased face generation in computer vision is typically performed on flat images. For each of these cases, we build our deep appearance model with different sets of training viewpoints (32 viewpoints, 16 viewpoints, 8 viewpoints, and 4 viewpoints) and compare performance in terms of meansquared error on a set of 8 validation viewpoints held out from the total set of training viewpoints.

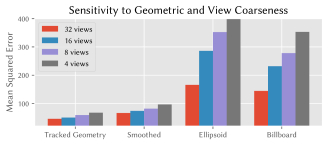

Figure 7 shows quantitative results for each of the four levels of geometric coarseness with four different sets of training viewpoints. The imagespace meansquared error (MSE), computed on the 8 validation viewpoints, shows a clear decrease in quality as the geometry is made more coarse. When the geometry input to our algorithm does not match the true geometry of the scene, the texture network must do more work to fill in the gaps, but there are limits to how well it generalizes. When the geometry fits well, the model performs well even with a small number of training viewpoints. When the geometry is too coarse, however, many viewpoints are needed for good generalization to new viewpoints.
Figure 8 shows qualitative results for the same experiment. This figure shows that accurate geometry (column “tracked”) generalizes even when there are few views for training. Coarse geometry, (columns “ellipsoid” and “billboard”), however, generalizes poorly by introducing artifacts or by simply replicating the closest training viewpoint. Note that with coarse geometry the network has no problem learning the appearance of the training views but the generalization to new viewpoints is very poor.
6.3. Architecture Search
We perform an evaluation of different architectures for our render encoder and decoder networks. We primarily tested across two axes: conditioning techniques and normalization methods. For conditioning techniques we tested two categories of conditioning: conditioning on an early decoder layer by concatenation and conditioning on all decoder layers by addition. For normalization techniques, we tested no normalization, batch normalization
(Ioffe and Szegedy, 2015), and weight normalization (Salimans and Kingma, 2016). Finally, we investigate the advantage of a deep architecture over a linear or bilinear model. In each case, we report imagespace meansquared error for all valid head pixels. Here, head pixels are determined by raycasting into a dense stereo reconstruction of each frame.6.3.1. Conditioning Methods

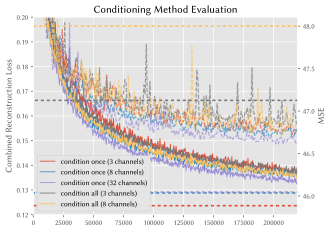

Figure 9 shows the results of our conditioning evaluation. The figure shows the reconstruction loss and the MSE for a series of experiments changing the conditioning method. We evaluate across two main axes: expanding the view vector to a larger dimensionality with a fully connected layer before conditioning, and conditioning on one early layer versus conditioning on all layers. Here, we found that conditioning on a single early layer in the decoder overall seems to outperform conditioning all layers in terms of the imagebased meansquared error on the set of 8 validation views. We also found that transforming the view vector before conditioning seems to be beneficial.
6.3.2. Normalization Methods

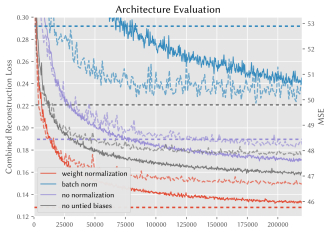

Figure 10 shows the results of our normalization evaluation. We tested three normalization methods: no normalization, batch normalization, and weight normalization. In addition, we tested weight normalization without using perchannelandpixel biases (described in section 4). The figure shows that weight normalization far outperforms the other normalization techniques and that perchannelandpixel biases are very important for accuracy.
6.3.3. Linear AAM vs. Deep AAM
Aside from view conditioning, the main way we have augmented traditional AAMs is by changing the latent subspace from linear to nonlinear. The primary effect of this is to increase the expressiveness of the model although it also reduces the number of parameters. To evaluate the tradeoff, we train our deep model compared to a linear model and a bilinear model (bilinear in view and facial state) with the same latent space dimensionality. Unfortunately a linear model requires of weights so we use only a output resolution for the linear and bilinear models.
Model Type

Our method  Linear  Bilinear
Subject 1  39.12  59.00  69.17
Subject 2  87.67  121.44  128.94
Subject 3  128.07  173.33  168.16
Table 1 shows quantitative results for linear and nonlinear representations. For each subject and method, we give the imagespace meansquared error. Our model has clear advantages over linear and bilinear models, including compactness in terms of number of parameters and reconstruction performance.
6.4. Imagebased vs. Texture/Geometrybased Loss
Traditional AAMs have been formulated as a PCA decomposition in terms of the texture and geometry jointly. By reformulating the AAM as an autoencoder we can actually make the loss a function of the reconstructed image itself. This is useful as it allows us to train on the metric on which we want to evaluate. It also opens the possibility of allowing the model to refine the output geometry over the input tracked geometry that may be erroneous.
To optimize with respect to the imagebased reconstruction error, we rewrite the loss function as,
(11)
where is the reconstructed image from view at timeinstant , and
is a mask that only penalizes pixels that contain the head (derived from the dense stereo reconstructions). We create a semidifferentiable rendering layer using two steps: the first step (nondifferentiably) rasterizes triangle indices to an image; the second step (differentiably) computes texel coordinates for each pixel given the triangle indices, camera parameters, and mesh vertices and samples the texture map at the coordinate computed for each pixel. This layer allows us to backpropagate through the parameters of our model and train the system endtoend.
To evaluate how an imagebased loss during training may improve the results we compare two different models: a model optimized with texture+geometry loss and a model optimized with texture+geometry+image loss. We found that without a geometry term, the loss becomes unstable and the geometry tends to lose its structure.
Loss Type

TG  TGI
Subject 1  39.12  33.66
Subject 2  87.67  75.48
Table 2 shows the quantitative results from these experiments. For each combination of training loss (TG–texture + geometry, TGI–texture + geometry + image) we give the imagebased loss on set of 8 validation viewpoints. Incorporating the imagebased loss certainly helps lower the MSE although qualitatively the results are similar. We also found that training was unstable without the geometry loss. This is likely because there is not enough longrange signal in the image gradients to effectively estimate geometry.
6.5. Videodriven Animation
In this section, we show how our tracking VAE () builds a common representation of facial state across two different modalities and then we give qualitative results showing our full live animation pipeline. Note that in this work our pipeline is entirely personspecific.
Figure 11 shows examples of encoding with one modality and decoding with the other. We can see in these examples that semantics tend to be preserved when the modality is changed at inference time despite only encoding and decoding the same modality at train time. This is primarily due to the variational autoencoder prior, which encourages the latent space to take on a unit Gaussian distribution.
Figure 12 shows qualitative results of a user driving an avatar in real time. Our system works well not only for expressions but also for subtle motion during speech. The benefit of our model is that it encodes facial state with high accuracy, encoding it into a joint geometry and appearance model. This allows us to model complex changes in appearance due to changes in blood flow, complex materials, and incorrect geometry estimates. Please see our supplemental video for additional examples.
7. Discussion
In this paper, we presented a method for capturing and encoding human facial appearance and rendering it in realtime. The method unifies the concepts of Active Appearance Models, viewdependent rendering, and deep networks. We showed that the model enables photorealistic rendering by leveraging multiview image data and that we can drive the model with performance. We believe there are exciting opportunities for extending our approach in different ways.
Our approach is unique because we directly predict a shaded appearance texture with a learned function. This is in contrast to traditional approaches that predict physicallyinspired lighting model parameters (e.g., albedo maps, specular maps) which enable relighting. A limitation of our approach in its current form is a limited ability to relight. With improvements to our capture apparatus to allow for dynamic lighting during capture, we believe we can alleviate these limitations by introducing lighting as a conditioning variable.
As our experiments showed, we are able to accurately predict the appearance of the face when our tracked geometry closely matches the true surface of the face. This approach is even effective for regions of the face that are typically very difficult to accurately model because of their complex reflectance properties (e.g., eyes and teeth). Some artifacts still remain, however (e.g., blurring on the teeth) especially where there is no true smooth surface (e.g., hair). We may be able to turn to alternative representations of geometry (e.g., point clouds) to alleviate some of these problems.
Our tracking model enables highfidelity realtime tracking from cameras mounted on a virtual reality headset by automatic unsupervised correspondence between headset images and multicamera capture images. In this work, we limited the scope to building personspecific trackers and rendering models. To increase the scalability of our work, we need to modify our approach to support tracking and rendering for arbitrary people. This is a difficult problem because it requires learning semantic facial correspondence between different people.
Finally, we believe that building realistic avatars of the entire body with our approach will help enable self and social presence in virtual reality. This task comes with a new set of problems: handling the dynamics of clothing, the difficulties of articulating limbs, and modeling the appearance of interactions between individuals. We are confident that these are tractable problems along this line of research.
