Decentralized Distributed PPO: Solving PointGoal Navigation

11/01/2019 ∙ by Erik Wijmans, et al. ∙ 45

We present Decentralized Distributed Proximal Policy Optimization (DD-PPO), a method for distributed reinforcement learning in resource-intensive simulated environments. DD-PPO is distributed (uses multiple machines), decentralized (lacks a centralized server), and synchronous (no computation is ever "stale"), making it conceptually simple and easy to implement. In our experiments on training virtual robots to navigate in Habitat-Sim, DD-PPO exhibits near-linear scaling – achieving a speedup of 107x on 128 GPUs over a serial implementation. We leverage this scaling to train an agent for 2.5 Billion steps of experience (the equivalent of 80 years of human experience) – over 6 months of GPU-time training in under 3 days of wall-clock time with 64 GPUs. This massive-scale training not only sets the state of art on Habitat Autonomous Navigation Challenge 2019, but essentially "solves" the task – near-perfect autonomous navigation in an unseen environment without access to a map, directly from an RGB-D camera and a GPS+Compass sensor. Fortuitously, error vs computation exhibits a power-law-like distribution; thus, 90 performance is obtained relatively early (at 100 million steps) and relatively cheaply (under 1 day with 8 GPUs). Finally, we show that the scene understanding and navigation policies learned can be transferred to other navigation tasks – the analog of "ImageNet pre-training + task-specific fine-tuning" for embodied AI. Our model outperforms ImageNet pre-trained CNNs on these transfer tasks and can serve as a universal resource (all models + code will be publicly available).

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 6

page 8

page 9

page 10

page 11

page 13

page 17

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Recent advances in deep reinforcement learning (RL) have given rise to systems that can outperform human experts at variety of games (Silver et al., 2017; Tian et al., 2019; OpenAI, 2018)

. These advances, even more-so than those from supervised learning, rely on significant numbers of training samples, making them impractical without large-scale, distributed parallelization. Thus, scaling RL via multi-node distribution is of importance to AI – that is the focus of this work.

Several works have proposed systems for distributed RL (Heess et al., 2017; Liang et al., 2018; Tian et al., 2019; Silver et al., 2016; OpenAI, 2018; Espeholt et al., 2018). These works utilize two core components: 1) workers that collect experience (‘rollout workers’), and 2) a parameter server that optimizes the model. The rollout workers are then distributed across, potentially, thousands of CPUs111Environments in OpenAI Gym (Brockman et al., 2016) and Atari games can be simulated on solely CPUs.. However, synchronizing thousands of workers introduces significant overhead (the parameter server must wait for the slowest worker, which can be costly as the number of workers grows). To combat this, they wait for only a few rollout workers, and then asynchronously optimize the model.

However, this paradigm – of a single parameter server and thousands of (typically CPU) workers – appears to be fundamentally incompatible with the needs of modern computer vision and robotics communities. Specifically, over the last few years, a large number of works have proposed training virtual robots (or

‘embodied agents’) in rich 3D simulators before transferring the learned skills from simulation to reality (Beattie et al., 2016; Chaplot et al., 2017; Das et al., 2018; Gordon et al., 2018; Anderson et al., 2018b; Wijmans et al., 2019; Savva et al., 2019). Unlike Gym or Atari, 3D simulators require GPU acceleration, and consequently, the number of rollout workers is greatly limited ( vs. ). Thus, there is a need to develop a different distributed architecture.

Figure 1: Left: In PointGoal Navigation, an agent must navigate from a random starting location (blue) to a target location (red) specified relative to the agent (“Go 5m north, 10m east of you”) in a previously unseen environment without access to a map. Right: Performance (SPL; higher is better) of an agent equipped with RGB-D and GPS+Compass sensors on the Habitat Challenge 2019 (Savva et al., 2019) train & val sets. Using DD-PPO, we train agents for over 180 days of GPU-time in under 3 days of wall-clock-time with 64 GPUs, achieving state-of-art results and ‘solving’ the task.

Contributions. We propose a simple, synchronous, distributed RL method that scales well. We call this method Decentralized Distributed Proximal Policy Optimization (DD-PPO) as it is decentralized (has no parameter server), distributed (runs across many different machines), and we use it to scale Proximal Policy Optimization (Schulman et al., 2017).

In DD-PPO, each worker alternates between collecting experience in a resource-intensive and GPU accelerated simulated environment and optimizing the model. This distribution is synchronous – there is an explicit communication stage where workers synchronize their updates to the model (the gradients). To avoid delays due to stragglers, we propose a preemption threshold where the experience collection of stragglers is forced to end early once a pre-specified percentage of the other workers finish collecting experience. All workers then begin optimizing the model.

We characterize the scaling of DD-PPO by the steps of experience per second with N workers relative to 1 worker. We consider two different workloads, 1) simulation time is roughly equivalent for all environments, and 2) simulation time can vary dramatically due to large differences in environment complexity. Under both workloads, we find that DD-PPO scales near-linearly. While we only examined our method with PPO, other on-policy RL algorithms can easily be used and we believe the method is general enough to be adapted to off-policy RL algorithms.

We leverage these large-scale engineering contributions to answer a key scientific question arising in embodied navigation. Mishkin et al. (2019) benchmarked classical (mapping + planning) and learning-based methods for agents with RGB-D and GPS+Compass sensors on PointGoal Navigation (Anderson et al., 2018a) (PointGoalNav), see Fig. 1, and showed that classical methods outperform learning-based. However, they trained for ‘only’ 5 million steps of experience. Savva et al. (2019) then scaled this training to 75 million steps and found that this trend reverses – learning-based outperforms classical, even in unseen environments! However, even with an order of magnitude more experience (75M vs 5M), they found that learning had not yet saturated. This begs the question – what are the fundamental limits of learnability in PointGoalNav? Is this task entirely learnable? We answer this question affirmatively via an ‘existence proof’.

Utilizing DD-PPO, we find that agents continue to improve for a long time (Fig. 1) – not only setting the state of art in Habitat Autonomous Navigation Challenge 2019 (Savva et al., 2019), but essentially ‘solving’ PointGoalNav (for agents with GPS+Compass). Specifically, these agents 1) almost always reach the goal (failing on 1/1000 val episodes on average), and 2) reach it nearly as efficiently as possible – nearly matching (within of) the performance of a shortest-path oracle! It is worth stressing how uncompromising that comparison is – in a new environment, an agent navigating without a map traverses a path nearly matching the shortest path on the map. This means there is no scope for mistakes of any kind – no wrong turn at a crossroad, no back-tracking from a dead-end, no exploration or deviation of any kind from the shortest-path. Our hypothesis is that the model learns to exploit the statistical regularities in the floor-plans of indoor environments (apartments, offices) in our datasets. The more challenging task of navigating purely from an RGB camera without GPS+Compass demonstrates progress but remains an open frontier.

Finally, we show that the scene understanding and navigation policies learned on PointGoalNav can be transferred to other tasks (Flee and Explore (Gordon et al., 2019)) – the analog of ‘ImageNet pre-training + task-specific fine-tuning’ for Embodied AI. Our models are able to rapidly learn these new tasks (outperforming ImageNet pre-trained CNNs) and can be utilized as near-perfect neural PointGoal controllers, a universal resource for other high-level navigation tasks (Anderson et al., 2018b; Das et al., 2018). We will make code and trained models publicly available.

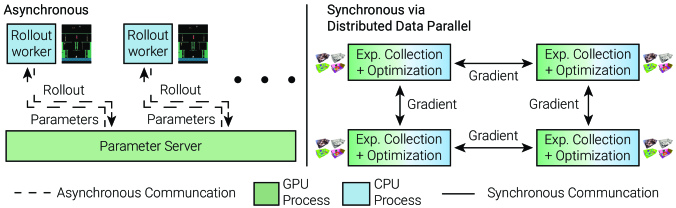

Figure 2: Comparison of asynchronous distribution (left) and synchronous distribution via distributed data parallelism (right) for RL. Left: rollout workers collect experience and asynchronously send it to the parameter-server. Right: a worker alternates between collecting experience, synchronizing gradients, and optimization. We find this highly effective in resource-intensive environments.

2 Preliminaries: RL and PPO

Reinforcement learning (RL) is concerned with decision making in Markov decision processes. In a partially observable MDP (POMDP), the agent receives an observation that does

not fully specify the state of the environment, (an egocentric RGB image), takes an action , and is given a reward . The objective is to maximize cumulative reward over an episode, Formally, let be a sequence of and . For a discount factor , which balances the trade-off between exploration and exploitation, the optimal policy, , is specified by

(1)

One technique to find is Proximal Policy Optimization (PPO) (Schulman et al., 2017), an on-policy algorithm in the policy-gradient family. Given a -parameterized policy and a set of trajectories collected with it (commonly referred to as a ‘rollout’), PPO updates as follows. Let

, be the estimate of the advantage, where

, and is the expected value of , and

be the ratio of the probability of the action

under the current policy and the policy used to collect the rollout. The parameters are then updated by maximizing

(2)

This clipped objective keeps this ratio within and functions as a trust-region optimization method; allowing for the multiple gradient updates using the rollout, thereby improving sample efficiency.

3 Decentralized Distributed Proximal Policy Optimization

In reinforcement learning, the dominant paradigm for distribution is asynchronous (see Fig. 2). Asynchronous distribution is notoriously difficult – even minor errors can result in opaque crashes – and the parameter server and rollout workers necessitate separate programs.

In supervised learning, however, synchronous distributed training via data parallelism (Hillis & Steele Jr, 1986) dominates. As a general abstraction, this method implements the following: at step , worker has a copy of the parameters, , calculates the gradient, , and updates via

(3)

where ParamUpdate is any first-order optimization technique (gradient descent) and AllReduce performs a reduction (mean) over all copies of a variable and returns the result to all workers. Distributed DataParallel scales very well (near-linear scaling up to 32,000 GPUs (Kurth et al., 2018)), and is reasonably simple to implement (all workers synchronously running identical code).

We adapt this to on-policy RL as follows: At step , a worker has a copy of the parameters ; it gathers experience (rollout) using , calculates the parameter-gradients via any policy-gradient method (PPO), synchronizes these gradients with other workers, and updates the model:

(4)

A key challenge to using this method in RL is variability in experience collection run-time. In SL, all gradient computations take approximately the same time. In RL, some resource-intensive environments can take significantly longer to simulate. This introduces significant synchronization overhead as every worker must wait for the slowest to finish collecting experience. To combat this, we introduce a preemption threshold where the rollout collection stage of these stragglers is preempted (forced to end early) once some percentage, , (we find to work well) of the other workers are finished collecting their rollout; thereby dramatically improving scaling. We weigh all worker’s contributions to the loss equally and limit the minimum number of steps before preemption to one-fourth the maximum to ensure all environments still contribute to learning.

While we only examined our method with PPO, other on-policy RL algorithms can easily be used and we believe the method can be adapted to off-policy RL algorithms. Off-policy RL algorithms also alternate between experience collection and optimization, but differ in how experience is collected/used and the parameter update rule. Our adaptations simply add synchronization to the optimization stage and a preemption to the experience collection stage.

Implementation.

We leverage PyTorch’s

(Paszke et al., 2017) DistributedDataParallel to synchronize gradients, and TCPStore – a simple distributed key-value storage – to track how many workers have finished collecting experience. See Appendix C for a detailed description with code.

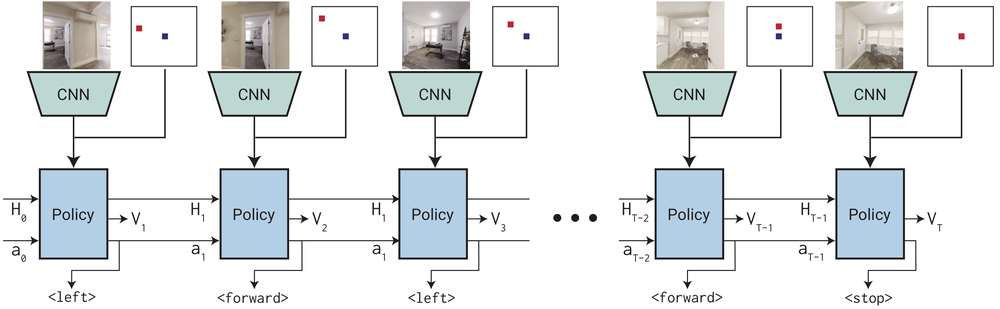

Figure 3: Our agent for PointGoalNav. At very time-step, the agent receives an egocentric 0ptor RGB (shown here) observation, utilizes its GPS+Compass sensor to update the target position to be relative to its current position, and outputs the next action and an estimate of the value function.

4 Experimental Setup: PointGoal Navigation, Agents, Simulator

PointGoal Navigation (PointGoalNav). An agent is initialized at a random starting position and orientation in a new environment and asked to navigate to target coordinates specified relative to the agent’s position; no map is available and the agent must navigate using only its sensors – in our case RGB-D (or RGB) and GPS+Compass (providing current position and orientation relative to start).

The evaluation criteria for an episode is as follows (Anderson et al., 2018a): Let indicate ‘success’ (did the agent stop within 0.2 meters of the target?), be the length of the shortest path between start and target, and be the length of the agent’s path, then Success weighted by (normalized inverse) Path Length . It is worth stressing that SPL is a highly punitive metric – to achieve SPL , the agent (navigating without the map) must match the performance of the shortest-path oracle that has access to the map! There is no scope for any mistake – no wrong turn at a crossroad, no back-tracking from a dead-end, no exploration or deviation from the shortest path. In general, this may not even be possible in a new environment (certainly not if an adversary designs the map).

Agent. As in Savva et al. (2019), the agent has 4 actions, stop, which indicates the agent has reached the goal, move_forward (0.25m), turn_left (), and turn_right (). It receives 256x256 sized images and uses the GPS+Compass to compute target coordinates relative to its current state. The RGB-D agent is limited to only 0ptas Savva et al. (2019) found this to perform best.

Our agent architecture (Fig. 3) has two main components – a visual encoder and a policy network.

The visual encoder is based on either ResNet (He et al., 2016) or SE (Hu et al., 2018)-ResNeXt (Xie et al., 2017) with the number of output channels at every layer reduced by half. We use a first layer of 2x2-AvgPool to reduce resolution (essentially performing low-pass filtering + down-sampling) – we find this to have no impact on performance while allowing faster training. From our initial experiments, we found it necessary to replace every BatchNorm layer (Ioffe & Szegedy, 2015) with GroupNorm (Wu & He, 2018) to account for highly correlated inputs seen in on-policy RL.

The policy is parameterized by a -layer LSTM with a -dimensional hidden state. It takes three inputs: the previous action, the target relative to current state, and the output of the visual encoder. The LSTM’s output is used to produce a softmax distribution over the action space and an estimate of the value function. See Appendix A for full details.

Training. We use PPO with Generalized Advantage Estimation (Schulman et al., 2015). We set the discount factor to and the GAE parameter to

. Each worker collects (up to) 128 frames of experience from 4 agents running in parallel (all in different environments) and then performs 2 epochs of PPO with 2 mini-batches per epoch. We use Adam

(Kingma & Ba, 2014) with a learning rate of . Unlike popular implementations of PPO, we do not normalize advantages as we find this leads to instabilities. We use DD-PPO to train with 64 workers on 64 GPUs.

The agent receives terminal reward , and shaped reward , where is the change in geodesic distance to the goal by performing action .

Simulator+Datasets. Our experiments are conducted using Habitat, a 3D simulation platform for embodied AI research (Savva et al., 2019). Habitat is a modular framework with a highly performant and stable simulator, making it an ideal framework for simulating billions of steps of experience.

We experiment with several different sources of data. First, we utilize the training data released as part of the Habitat Challenge 2019, consisting of 72 scenes from the Gibson dataset (Xia et al., 2018). We then augment this with all 90 scenes in the Matterport3D dataset (Chang et al., 2017) to create a larger training set (note that Matterport3D meshes tend to be larger and of better quality).222We use all Matterport3D scenes (including test and val) as we only evaluate on Gibson validation and test. Furthermore, Savva et al. (2019) curated the Gibson dataset by rating every mesh reconstruction on a quality scale of 0 to 5 and then filtered all splits such that each only contains scenes with a rating of 4 or above (Gibson-4+), leaving all scenes with a lower rating previously unexplored. We examine training on the 332 scenes from the original train split with a rating of 2 or above (Gibson-2+).

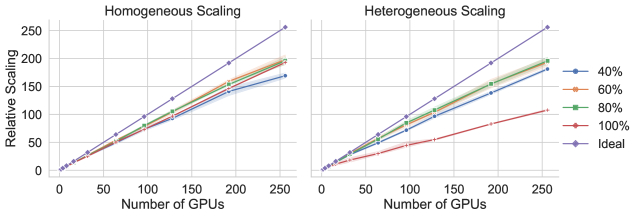

Figure 4: Scaling performance (in steps of experience per second relative to 1 GPU) of DD-PPO for various preemption threshold,

, values. Shading represents a 95% confidence interval.

5 Benchmarking: How does DD-PPO scale?

In this section, we examine how DD-PPO scales under two different workload regimes – homogeneous (every environment takes approximately the same amount of time to simulate) and heterogeneous (different environments can take orders of magnitude more/less time to simulate). We examine the number of steps of experience per second with N workers relative to 1 worker. We compare different values of the preemption threshold . We benchmark training our ResNet50 PointGoalNav agent with 0pton a cluster with Nvidia V100 GPUs and NCCL2.4.7 with Infiniband interconnect.

Homogeneous. To create a homogeneous workload, we train on scenes from the Gibson dataset, which require very similar times to simulate agent steps. As shown in Fig. 4 (left), DD-PPO exhibits near-linear scaling (linear = ideal) for preemption thresholds larger than 50%, achieving a 196x speed up with 256 GPUs relative to 1 GPU and an 7.3x speed up with 8 GPUs relative to 1.

Heterogeneous. To create a heterogeneous workload, we train on scenes from both Gibson and Matterport3D. Unlike Gibson, MP3D scenes vary significantly in complexity and time to simulate – the largest contains 8GB of data while the smallest is only 135MB. DD-PPO scales poorly at a preemption threshold of 100% (no preemption) due to the substantial straggler effect (one rollout taking substantially longer than the others); see Fig. 4 (right). However, with a preemption threshold of 80% or 60%, we achieve near-identical scaling to the homogeneous workload! We found no degradation in performance of models trained with any of these values for the preemption threshold despite learning in large scenes occurring at a lower frequency.

6 Mastering PointGoal Navigation with GPS+Compass

In this section, we answer the following questions: 1) What are the fundamental limits of learnability in PointGoalNav navigation? 2) Do more training scenes improve performance? 3) Do better visual encoders improve performance? 4) Is PointGoalNav ‘solvable’ when navigating from RGB instead of 0pt? 5) What are the open/unsolved problems – specifically, how does navigation without GPS+Compass perform? 6) Can agents trained for PointGoalNav be transferred to new tasks?

Agents continue to improve for a long time. Using DD-PPO, we train agents for 2.5 Billion steps of experience with 64 Tesla V100 GPUs in 2.75 days – 180 GPU-days of training, the equivalent of 80 years of human experience (assuming 1 human second per step, ). As a comparison, Savva et al. (2019) reached 75 million steps (an order of magnitude more than prior work) in 2.5 days using 2 GPUs – at that rate, it would take them over a month (wall-clock time) to achieve the scale of our study. Fig. 1 shows the performance of an agent with RGB-D and GPS+Compass sensors, utilizing an SE-ResNeXt50 visual encoder, trained on Gibson-2+ – it does not saturate before 1 billion steps333These trends are consistent across sensors (RGB), training datasets (Gibson-4+), and visual encoders., suggesting that previous studies were incomplete by 1-2 orders of magnitude. Fortuitously, error vs computation exhibits a power-law-like distribution; 90% of peak performance is obtained relatively early (at 100M steps) and relatively cheaply (in 0.1 day with 64 GPUs and in 1 day with 8 GPUs444The current on-demand price of an 8-GPU AWS instance (p2.8xlarge) is $/hr, or for 1 day.). Also noteworthy in Fig. 1 is the strong generalization (train to val) and corresponding lack of overfitting.

Increasing training data helps. Tab. 1 presents results with different training datasets and visual encoders for agent with RGB-D and GPS+Compass. Our most basic setting (ResNet50, Gibson-4+ training) already achieves SPL of 0.922 (val), 0.917 (test), which nearly misses (by 0.003) the top of the leaderboard for the Habitat Challenge 2019 RGB-D track555https://evalai.cloudcv.org/web/challenges/challenge-page/254/leaderboard/839. Next, we increase the size of the training data by adding in all Matterport3D scenes and see an improvement of 0.03 SPL – to 0.956 (val), 0.941 (test). Next, we compare training on Gibson-4+ and Gibson-2+. Recall that Gibson-{2, 3} corresponds to poorly reconstructed scenes (see Fig. 8). A priori, it is unclear whether the net effect of this addition would be positive or negative; adding them provides diverse experience to the agent, however, it is poor quality data. We find a potentially counter-intuitive result – adding poor 3D reconstructions to the train set improves performance on good reconstructions in val/test by 0.03 SPL – from 0.922 (val), 0.917 (test) to 0.956 (val), 0.944 (test). Our conjecture is that training on poor (Gibson-{2,3}) and good (4+) reconstructions leads to robustness in representations learned.

Better visual encoders and more parameters help. Using a better visual encoder, SE (Hu et al., 2018)-ResNeXt50 (Xie et al., 2017) instead of ResNet50, improves performance by 0.003 SPL (Tab. 1). Adding capacity to the visual encoder (SE-ResNeXt101 vs SE-ResNeXt50) and navigation policy (1024-d vs 512-d LSTM) further improves performance by 0.010 SPL.

Validation Test Standard
Training Dataset Agent Visual Encoder SPL Success SPL Success
Gibson-4+ ResNet50 0.922 0.004 0.967 0.003 0.917 0.970
Gibson-4+ and MP3D ResNet50 0.956 0.002 0.996 0.002 0.941 0.996
Gibson-2+ ResNet50 0.956 0.003 0.994 0.002 0.944 0.982
SE-ResNeXt50 0.959 0.002 0.999 0.001 0.943 0.988
SE-ResNeXt101 + 1024-d LSTM 0.969 0.002 0.997 0.001 0.948 0.980
Table 1: Performance (higher is better) of different architectures for agents with RGB-D and GPS+Compass sensors on the Habitat Challenge 2019 (Savva et al., 2019) validation and test-std splits (checkpoint selected on val). 10 samples taken for each episode on val. Gibson-4+ (2+) refers to the subset of Gibson train scenes (Xia et al., 2018) with a quality rating of 4 (2) or higher. See Tab. 2 for results of the best DD-PPO agent for Blind, RGB, and RGB-D and other baselines.

PointGoalNav ‘solved’ with RGB-D and GPS+Compass. Our best agent – SE-ResNeXt101 + 1024-d LSTM trained on Gibson-2+ – achieves SPL of 0.969 (val), 0.948 (test), which not only sets the state of art on the Habitat Challenge 2019 RGB-D track but is also within - of the shortest-path oracle666Videos: https://www.youtube.com/watch?v=x3fk-Ylb_7s&list=UUKkMUbmP7atzznCo0LXynlA. Given the challenges we outlined with achieving near-perfect SPL in new environments, it is important to dig deeper. Fig. 10 shows (a) distribution of episode lengths in val and (b) SPL vs episode length. We see that while the dataset is dominated by short episodes (2-12m) , the performance of the agent is remarkably stable over long distances and the average SPL is not necessarily inflated. Our hypothesis is the agent has learned to exploit the structural regularities in layouts of real indoor environments. One (admittedly imperfect) way to test this is by training a Blind agent with only a GPS+Compass sensor. Fig. 10 shows that this agent is able to handle short-range navigation (which primarily involve turning to face the target and walking straight) but performs very poorly over the longer trajectories – SPL of 0.3 (Blind) vs 0.95 (RGB-D) at 20-25m navigation. Thus, structural regularities, in part, explain performance for short-range navigation. However, the RGB-D agent is extracting overwhelming signal from its 0ptsensor for long-range navigation. We repeat this analysis on the two additional navigation datasets – longer episodes and ‘harder’ episodes (more navigation around obstacles) – proposed by Chaplot et al. (2019) and find similar trends (Fig. 11).

Performance with RGB is also improved. So far we studied RGB-D as this performed best in Savva et al. (2019). We now study RGB (with SE-ResNeXt50 encoder). We found it crucial to train on Gibson-2+ and all of Matterport3D, ensuring diversity in both layouts (Gibson-2+) and appearance (Matterport3D), and to channel-wise normalize RGB

(subtract by mean and divide by standard deviation) as our networks lack BatchNorm. Performance improves

dramatically from 0.57 (val), 0.47 (test) SPL in Savva et al. (2019) to near-perfect success 0.991 (val), 0.977 (test) and high SPL 0.929 (val), 0.920 (test). While SPL is considerably lower than the 0ptagent, (0.929 vs 0.959), interestingly, the RGB agent still reaches the goal a similar percentage of the time (99.1% vs 99.9%). This agent achieves state-of-art on the Habitat Challenge 2019 RGB track (rank 2 entry has 0.89 SPL).

No GPS+Compass remains unsolved. Finally, we examine if we also achieve better performance on the significantly more challenging task of navigation from RGB without GPS+Compass. At 100 million steps (an amount equivalent to Savva et al. (2019)), the agent achieves 0 SPL. By training to 2.5 billion steps, we make some progress and achieve 0.15 SPL. While this is a substantial improvement, the task continues to remain an open frontier for research in embodied AI.

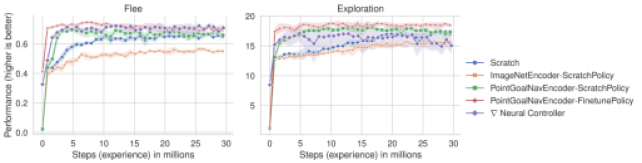

Figure 5: Performance (higher is better) on Flee (left) and Exploration (right) under five settings.

Transfer Learning. We examine transferring our agents to the following tasks (Gordon et al., 2019)

  1. Flee The agent maximizes its geodesic distance from its starting location. Let be the agent’s position at time , and denote the maximum distance over all reachable points, then the agent maximizes . The reward is .

  2. Exploration The agent maximizes the number of locations (specified by 1m cubes) visited. Let denote the number of location visited at time , then the agent maximizes . The reward is .

We use a PointGoalNav-trained agent with RGB and GPS+Compass, remove the GPS+Compass, and transfer to these tasks under five different settings:

  1. Scratch. All parameters (visual encoder + policy) are trained from scratch for each new task. Improvements over this baseline demonstrate benefits of transfer learning.

  2. ImageNetEncoder-ScratchPolicy. The visual encoder is initialized with ImageNet pre-trained weights and frozen; the navigation policy is trained from scratch.

  3. PointGoalNavEncoder-ScratchPolicy. The visual encoder is initialized from PointGoalNav and frozen; the navigation policy is trained from scratch.

  4. PointGoalNavEncoder-FinetunePolicy. Both visual encoder and policy parameters are initialized from PointGoalNav (critic layers are reinitialized). Encoder is frozen, policy is fine-tuned.777Since a PointGoalNav

    policy expects a goal-coordinate, we input a ‘dummy’ arbitrarily-chosen vector for the transfer tasks, which the agent quickly learns to ignore.

  5. Neural Controller We treat our agent as a differentiable neural controller, a closed-loop low-level controller than can navigate to a specified coordinate. We utilize this controller in a new task by training a light-weight high-level planner that predicts a goal-coordinate (at each time-step) for the controller to navigate to. Since the controller is fully differentiable, we can backprop through it. We freeze the controller, train the planner+controller system with PPO for the new task. The planner is a 2-layer LSTM and shares the (frozen) visual encoder with the controller.

Fig. 5 shows performance vs. experience results (higher is better). Nearly all methods outperform learning from scratch, establishing the value of transfer learning. PointGoalNav pre-trained visual encoders dramatically outperforms ImageNet pre-trained ones, indicating that the agent has learned generally useful scene understanding. For both tasks, fine-tuning an existing policy allows it to rapidly learn the new task, indicating that the agent has learned general navigation skills. Neural Controller outperforms PointGoalNavEncoder-ScratchPolicy on Flee and is competitive on Exploration, indicating that the agent can indeed be ‘controlled’ or directed to target locations by a planner. Overall, these results demonstrate that our trained model is useful for more than just PointGoalNav.

7 Related Work

Visual Navigation. Visual navigation in indoor environments has been the subject of many recent works (Gupta et al., 2017; Das et al., 2018; Anderson et al., 2018b; Savva et al., 2019; Mishkin et al., 2019). Our primary contribution is DD-PPO, thus we discuss other distributed works.

Synchronous Distributed RL. The work most closely related to DD-PPO is that of Stooke & Abbeel (2018), who also propose to use distributed data parallelism to scale RL; they experiment with Atari and find it not effective. We hypothesize that this is due to a subtle difference – their distribution design relies on a single worker collecting experience from multiple environments, stepping through them in lock step. This introduces significant synchronization and communication costs as every step in the rollout must be synchronized across as many as 64 processes (possible because each environment is resource-light, Atari). For instance, taking 1 step in 8 parallel pong environments takes approximately the same wall-clock time as 1 pong environment, but it takes 10 times longer to take 64 steps in lock-step; thus gains from parallelization are washed out due to the lock-step synchrnomization. In contrast, we study resource-intensive environments, where it is only possible to have 2 or 4 environments per worker, and find this technique to be effective.

We also propose an adaption to mitigate the straggler effect – preempting the rollout of stragglers and then beginning optimization. This improves scaling for homogeneous workloads and dramatically improves scaling for heterogeneous workloads.

Straggler Effect Mitigation. In supervised learning, the straggler effect is commonly caused by heterogeneous hardware or hardware failures. Chen et al. (2016) propose a pool of “back-up” workers – such that there are total workers – and perform the parameter update once workers finish. In comparison, their method a) requires a parameter server, and b) discards all work done by the stragglers. Chen et al. (2018)

propose to dynamically adjust the batch size of each worker such that all workers perform their forward and backward pass in the same amount of time. Our method aims to reduce variance in

experience collection times. While DD-PPO does dynamically adjust a worker’s batch size, this is a necessary side-effect of on-policy RL.

Asynchronous Distributed RL. Methods for asynchronous distributed reinforcement learning have been the subject of many works (Heess et al., 2017; Mnih et al., 2016; Liang et al., 2018; Tian et al., 2019; Silver et al., 2016; OpenAI, 2018; Espeholt et al., 2018). We present a method that is synchronous, decentralized (has no parameter server), and scales well in resource-intensive environments. Synchronous methods are easier to implement, and maintain as they require less code in a less challenging paradigm.

Distributed Synchronous SGD. Data parallelism is a common paradigm in high performance computing (Hillis & Steele Jr, 1986). In this paradigm, parallelism is achieved by workers performing the same work on different

data. This paradigm can be naturally adapted to supervised deep learning

(Chen et al., 2016). Works have used this to achieve state-of-the-art results in tasks ranging from computer vision (Goyal et al., 2017; He et al., 2017)

to natural language processing

(Peters et al., 2018; Devlin et al., 2018; Ott et al., 2019). Furthermore, multiple deep learning frameworks provide simple-to-use wrappers supporting this parallelism model (Paszke et al., 2017; Abadi et al., 2015; Sergeev & Balso, 2018). We adapt this framework to reinforcement learning.

8 Conclusion

We have presented Decentralized Distributed PPO (DD-PPO), an easy-to-implement method for distributed reinforcement learning in resource-intensive simulated environments that is synchronous and decentralized. We proposed a preemption threshold where only % of the workers finish experience collection while the remaining are preempted (forced to exit) before beginning optimization. With this, DD-PPO achieves near-linear scaling even on heterogeneous workloads with no impact on performance. We empirically demonstrated the effectiveness of DD-PPO by achieving state-of-the-art results and effectively ‘solving’ PointGoal Navigation for RGB and RGB-D agents with GPS+Compass and then transferred these agents to new tasks. We also demonstrated progress on the more challenging task of navigating from RGB without GPS+Compass, but this remains an open frontier for embodied AI. We will make code and trained models publicly available.

9 Acknowledgements

The Georgia Tech effort was supported in part by NSF, AFRL, DARPA, ONR YIPs, ARO PECASE. The views and conclusions contained herein are those of the authors and should not be interpreted as necessarily representing the official policies or endorsements, either expressed or implied, of the U.S. Government, or any sponsor.

References

Appendix A Agent Design

In this section, we outline the exact agent design we use. We break the agent into three components: a visual encoder, a goal encoder, and a navigation policy.

Visual Encoder. Out visual encoder uses one of three different backbones, ResNet50 (He et al., 2016), Squeeze-Excite(SE) (Hu et al., 2018)-ResNeXt50 (Xie et al., 2017), and SE-ResNeXt101. For all backbones, we reduce the number of output channels at each layer by half. We also add a x-AvgPool before each backbone so that the effective resolution is x. Given these modifications, each backbone produces a xx feature map. We then convert this to a xx feature map with a x-Conv.

We replace every BatchNorm layer with GroupNorm (Wu & He, 2018) to account for the highly correlated trajectories seen in on-policy RL and massively distributed training.

Goal encoder. Habitat (Savva et al., 2019) provides the vector pointing to the goal in ego-centric polar coordinates. We convert this to magnitude and a unit vector, [d, ] to [d, , ], to account for the discontinuity at the -axis in polar coordinates. We pass the goal vector to a fully connected layer, resulting in a -dimensional representation.

Navigation Policy. Our navigation policy takes the xx feature map from the visual encoder, flattens it, and then converts the 2048-d vector to the same size as the hidden size via a fully-connected layer. It then concatenates this vector with output of the goal encoder, and a -dimensional embedding of the previous action taken (or the start-token in the case of the first action) and then passes this to a -layer LSTM with either a -dimensional or -dimensional hidden dimension. The output of the LSTM is used as input to a fully connected layer, resulting in a soft-max distribution of the action space and an estimate of the value function.

Appendix B Additional scaling details

(a)
(b)
(c)
(d)
Figure 6: Scaling of DD-PPO under homogeneous and heterogeneous workloads for various different values of the percentage of rollouts that are fully completed by optimizing the model. Shading represents a bootstrapped 95% confidence interval.

We use the following procedure for benchmarking the throughput of our proposed DD-PPO: Each optimizer selects 4 scenes at random and then performs the process of collecting experience and optimizing the model based on that experience 10 times. We calculate throughput as the total number of steps of experience collected over the last 5 rollout/optimizing steps divided by the amount of time taken. We repeat this procedure over 10 different random seeds (we use the same random seeds for all variations of number of GPUs and sync-fraction values).

Appendix C DD-PPO Implementation

Utilizing Distributed Data Parallel in supervised learning is straightforward as frameworks such as PyTorch (Paszke et al., 2017) provide a simple wrapper. The recommended way to use these wrappers is to first write training code that runs on a single GPU and then enable distributed training via the wrapper. We follow a similar approach. Given an implementation of PPO that runs on one GPU we create a decentralized distributed variant by adding gradient synchronization, leveraging highly performant code written for this purpose in popular deep-learning frameworks, e.g. tf.distribute.MirroredStrategy in TensorFlow (Abadi et al., 2015) and torch.nn.parallel.DistributedDataParallel in PyTorch. Note that care must be taken to synchronize any training or rollout statistics between workers – in most cases these can also be synchronized via AllReduce.

We track how many workers have finished the experience collection stage with a distributed key-value storage – we use PyTorch’s torch.distributed.TCPStore, however almost any distributed key-value storage would be sufficient.

See Fig. 7 for an example implementation which adds 1) gradient synchronization via torch.nn.parallel.DistributedDataParallel, and 2) preempts stragglers by tracking the number of workers have finished the experience collection stage with a torch.distributed.TCPStore.

figures/main/ddppo_code.py090

Figure 7: Implementation of DD-PPO using PyTorch (Paszke et al., 2017) v1.1 and the NCCL backend. We use SLURM to populate the world_rank, world_size, and local_rank fields.

Appendix D Neural Controller additional details

The planner for neural controller used in Sec. 6 shares the same architecture as our agent’s policy, but utilizes a 512-d hidden state. It takes as input the previous action of the controller (or the start token), and the output of the visual encoder (which is shared with the controller). The output of the LSTM is then used to produced an estimate of the value function and a 3-dimensional vector specifying the PointGoal in magnitude and unit direction vector format. The magnitude competent is passed through an ELU activation and offset by 0.75. Each component of the unit direction vector is passed through a tanh activation – note that we do not re-normalize this vector have a length of 1 as we find doing so both unnecessary and harder to optimize.

(a) : big holes or significant texture issues, but good reconstruction
(b) : small holes, some texture issues, good reconstruction
(c) : no holes, some texture issues, good reconstruction
(d) : no holes, uniform textures, good reconstruction
Figure 8: Examples of Gibson meshes for a given quality rating from Savva et al. (2019)
Figure 9: Training and validation performance (in SPL; higher is better) of different architectures for 0ptagents with GPS+Compass on the Habitat Challenge 2019 (Savva et al., 2019). Gibson (Xia et al., 2018)-4+ refers to the subset of Gibson train scenes with a quality rating of 4 or better. Gibson-4+ and MP3D refers to training on both Gibson-4+ and all of Matterport3D. Gibson-2+ refers to training on the subset of Gibson train scenes with a quality rating of 2 or better.
Validation Test Standard
Perception Method SPL Success SPL Success
Blind Random 0.02 0.03 0.02
Forward-only 0.00 0.00 0.00
Goal-follower 0.23 0.23 0.23
DD-PPO (RL) 0.729 0.005 0.973 0.003 0.676 0.947
RGB DD-PPO (RL) 0.929 0.003 0.991 0.002 0.920 0.977
RGB-D (0pt) DD-PPO (RL) 0.969 0.002 0.997 0.001 0.948 0.980
Table 2: Performance (higher is better) of various sensors and agent methods on the Habitat Challenge 2019 (Savva et al., 2019) validation and test splits (checkpoint selected on val). Random, Forward-only, and Goal-follower taken from Savva et al. (2019). Best visual encoder reported for DD-PPO.

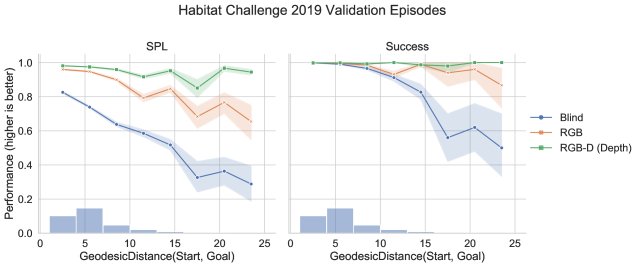

Figure 10: Performance vs. Geodesic Distance from start to goal for Blind, RGB, and RGB-D (using 0ptonly) models trained with DD-PPO on the Habitat Challenge 2019 (Savva et al., 2019) validation split. Bars at the bottom represent the fraction of episodes within each geodesic distance bin.
Figure 11: Performance vs. Geodesic Distance from start to goal for Blind, RGB, and RGB-D (using 0ptonly) models trained with DD-PPO on the longer and harder validation episodes proposed in Chaplot et al. (2019). Bars at the bottom represent the fraction of episodes within each geodesic distance bin.
