I Introduction
Teams of cooperative robots hold unique advantages over single actors across many task domains. Examples include mapping [1, 2], search [3, 4], precision agriculture [5, 6], and logistics and delivery [7]. There are, however, fundamental challenges to designing effective multirobot systems. The first is the high dimensionality of a team’s joint state space, which makes the planning problem difficult even in a full information setting. The second is that in realistic settings the information to support those decisions is spread throughout the team. As a result, today’s deployed systems often require a central authority and/or effectively unrestricted communication, both of which can lead to brittle solutions with limited scalability.
This work envisions a team of robots which work collectively as peers towards a common goal. Teammates can be dynamically added or removed, disrupting no explicit hierarchy or rigid agent specialization. Our methodology is to train agents as a team to mimic the actions of an expert policy. During training the expert policy may be centralized, full information, poorly scaling, communicationnaive; during deployment the agents will make due with local information and well defined communications constraints.
The key to task success is effective communication, but it is far from obvious how to manually engineer it. Information can be irrelevant, redundant, or salient but nonactionable. Messages themselves may wish to convey summaries of state, intended actions, or commands to other agents. We cotrain agents’ communication and decision processes as layered neural networks, where a small number of activations represent network links between agents in the team. In this way we learn communications that support the task.
Evolutionary methods can be used to coevolve agents represented by neural networks [8]
. Beyond these methods, there is a rich history of multiagent reinforcement learning (MARL)
[9], where a common approach is centralized training of decentralized policies [10, 11]. Recently, many works have explored multiagent analogues to singleagent deep reinforcement learning algorithms [12, 13]. These prior works focus on reinforcement learning as a paradigm to train a network, whereas our focus is on structuring the network in a way to decentralize known centralized policies.Deep reinforcement learning has been applied to to multiagent problems to explore learned communication protocols. In [14] agents learn to encode meaning in discrete communicative actions (“on/off”) to solve puzzles such as the “Switch Riddle.” A common element of these games is a rigid number of participants and strictly serial and sequential communication. Nearer to our vision, [15] considers multiturn games with agents in a grid world. Outside of reinforcement learning, [16] views communication as a selective exchange of private state and seeks policies to maximize the mutual information between states and optimal actions.
The primary contribution of this paper is an architecture for training decentralized agent policies based on examples of centralized, expert team play. This necessarily entails learning communication strategies, and the framework makes explicit that effective communication is a taskoriented property. Section II formulates our search for a distributed policy and the limitation of when such solutions can be expected to exist. Section III notes characteristics unique to mobile robot teams that will inform our architecture, which is detailed in Section IV. We introduce a perimeter defense game in Section V to demonstrate our architecture, evaluate performance in Section VI, and discuss future work in Section VII.
Ii Decentralization Problem
A
multiagent Markov Decision Process (MMDP)
[17] is a tuplewhere: are sets of states and agents; is the set of possible actions for agent ; is a transition rate function; is a cost rate function; and is a finite time horizon.
In the centralized setting, the objective is to find an optimal centralized policy such that , minimizes:
(1)
s.t.
In the distributed setting, there is a private observation function , where is the observation space for agent . The team observation function is , which corresponds to the set of private observations . These observation functions are set by the environment and not the agents.
We make the assumption that the state can be determined using only the current team observation:
Assumption 1 (Jointly Fully Observable).
There exists a surjective function .
The MDP under this assumption has been previously called a decentralized MDP (as opposed to a decentralized POMDP) in other contexts [18]. With this assumption, each agent has a communication function and action function:
where computes the communication an agent broadcasts to other agents based on its private observation ; and computes the action based on the private observation and received communications .
The distributed policy is the set of predicted actions given the communication and action functions. In this setting, the objective is to find a set of optimal communication and action functions , such that , the resulting distributed policy minimizes Eqn. (1).
Frequently, it may be difficult to directly search for optimal distributed policies, but optimal or close to optimal centralized policies are readily available, thus motivating the following problem.
Decentralization Problem: Given a centralized policy , the objective of the decentralization problem is to find the set of communication and action functions , such that . Assumption 1 is a sufficient, but not necessary, condition that the decentralization problem is feasible.
Iii Properties
We are interested in problems concerning homogeneous agents which are defined as having the same communication and action functions , . In addition, individuals in a team may fail, and it is desirable to have the policy be applicable for teams of variable size. The codomain of policy is then the set of all sets of arbitrary size of the form , i.e. the power set [19].
The restriction to homogeneous agents results in a specific invariance property for the policy. Intuitively, swapping two agents with each other should not have an effect on what a third agent does. This intuition is formalized by the concept of permutation invariance [19]. A function acting on sets is permutation invariant if for any permutation , .
In addition, at the team level, the set of actions should automatically rearrange themselves as the agents swap order. This notion is formalized by the concept of permutation equivariance [20, 21]. A function is permutation equivariant if for any permutation , .
In the MMDP with homogeneous agents, the following invariances must hold for the action function and policy:

[label=0.,ref=Step 0,leftmargin=*]

The action function is permutation invariant to the communications , and as a result, to the agents .

The policy is permutation equivariant to the agents .
For our specific scenario, our agents observe interchangeable objects in the environment. We would like to impose that the communication function is permutation invariant to these objects, and should also be able to handle variable sizes of these objects.
Iv Training Architecture
Neural networks are suitable for the decentralization problem, and multiagent systems in general, due to their connectionistic approach to computation. When properly designed, a neural network that represents the distributed policy for the team can be shattered into subnetworks to recover individual communication and action functions and for agents
. This insight implies that by operating at the aggregate team level, for example training the network using supervised learning to fit the centralized policy
, the communication and decision functions will automatically be learned.Using multilayer perceptron (
MLP) and permutation invariant neural network (PIN) components, we can impose structure on the network such that it satisfies the properties of Sec. III by construction. An MLP with layers is a composition of affine functions, each except the last one followed by a nonlinear activation function
, so that:where are the affine function parameters to be optimized, and
is a fixed function which we choose to be a rectified linear unit (ReLU) or leaky rectified linear unit (Leaky ReLU)
[22]. The MLP is a fixedtofixedfunction that takes in a vector of fixed size, and outputs a vector of fixed size. More structured architectures can be constructed by assigning some of the parameters beforehand, for example setting a specific weight and bias to be 0 in order to remove a connection, or by sharing weights across or between layers.
The PIN [19] is a neural network that takes as input a set of instances and outputs a vector of fixed size. A PIN consists of two MLPs , arranged in the form , where the input is a set . The PIN thus destroys the ordering in the set through the summation operation. In addition, due to weight sharing, it is a variabletofixed neural network, since the same MLP is applied to each instance .

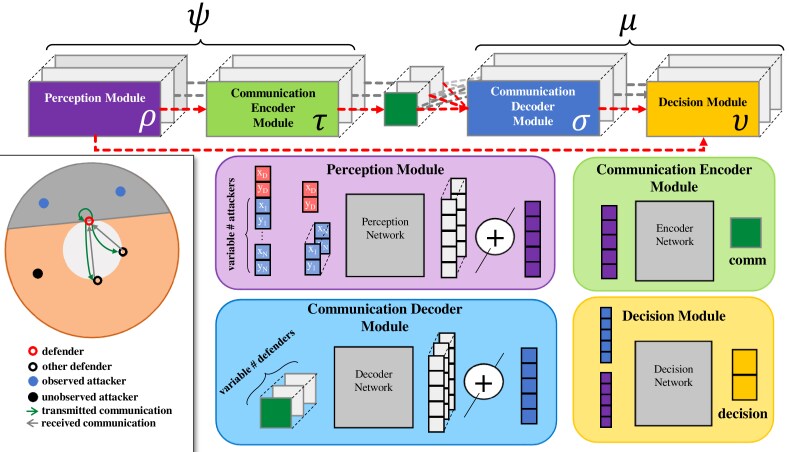

Fig. 1 depicts an architecture that obeys the properties highlighted in Sec. III, and can be easily shattered to obtain the communication and action functions and for each agent. The colored blocks on the top of Fig. 1 depict the subnetwork for a single agent. It consists of PINs in order to handle types of permutation invariance: action function is permutation invariant to communications and agents; and communication function is permutation invariant to the objects. Within each PIN, there are MLPs, thus our architecture consists of modules, with each module shown to have a different color. These modules are replicated for each agent in the team to form the distributed policy , represented by the entire diagram. This replication process enforces both the homogeneity in the agents, as well as the variable size property of the distributed policy.
The composition of these modular blocks leads to natural interpretation for each module. The first module is an MLP , called the perception module, and the second module is an MLP called the communication encoder module. The perception module is responsible for perceiving the world and processing it into some meaningful information called a perception feature , and the communication encoder module takes and computes the communication to be transmitted.
Usually, we want to impose permutation invariance to certain parts of the observations, for example to semantic objects in the environment, but not other parts such as position or velocity information, i.e. . As a result, our perception module consists of two subnetwork MLPs, and , where processes the object information we want to be invariant to, and processes other inputs. The perception feature is then the concatenation of the outputs of these two subnetworks , and the composition is a PIN that computes the communication and is invariant to the objects.
These communication functions are then run on every agent in the team, to get the set of communications . These communications are one of the most fundamental components of the neural network, as they represent the actual messages that will be sent between the agents of the teams. The width of these messages, i.e. the size of the message vector, should be small, since transmitting large messages is not desirable. As a result, they represent a bottleneck layer that is a compressed representation of the perceived information.
The third module is an MLP , called the communication decoder module that takes in the set of communications from the team and outputs a decoded feature . The fourth module is an MLP , called the decision module. The action function is then computed , and is a PIN that is permutation invariant to the communications, and as a result, the agents.
These action functions are run on every agent in the team to get the set of individual actions . is computed by aggregating these individual actions into a set . This aggregation procedure ensures that the network is permutation equivariant to the agents, as swapping the order of input of the agents will correspondingly swap the output actions.
The replication of the modules across the agents ensures that they are homogeneous since they each have the same communication and action functions. The usage of the PIN architecture allows for the neural network to handle variable sizes of both agents and objects, and also imposes the desired properties of permutation invariance and equivariance. In addition, the PIN architecture naturally results in a modular composition with semantic interpretation, and the joining of the PINs creates a bottleneck layer representing the actual transmitted and received communication messages.
We specified that message width should be small, and this notion can be made more precise by looking at the number of bits needed to represent that message. We can use tools from other areas of deep learning research to express this idea. Training with limitedprecision numbers
[23, 24] is an orthogonal area of research in neural networks where the motivation is to use lower precision representations in order to speed up computation and energy efficiency without sacrificing performance. The conversion of float to limitedprecision representations is a technique known as quantization. It has a clear application in the context of multiagent systems, since the quantization technique can be placed on the bottleneck communication layer as a means of controlling message size. We can thus use quantization to make a message small by limiting both the message width size, as well as the number of bits each message can use.V Perimeter Defense Game
We evaluate our architecture in a team perimeter defense game that naturally introduces dynamically varying numbers of teammates as well as varying degrees of private and shared information. A team of defenders move on the perimeter of a unit circle and seek to capture incoming intruders before the intruders reach the circle interior. Several simulated games are illustrated in Fig. 2. All agents move at unit speed, defenders capture intruders by closing within a distance , and both defender and intruder are consumed during capture.
In the controls literature this scenario has been formulated as a full information differential game [25]. Expert policies for both the defenders and intruders have been introduced based on the concept of maximum matching assignments between defenders and intruders. These assignmentbased strategies are combinatorial in nature and assume centralized information and full observability. Nevertheless, we use this expert, centralized, communicationunaware policy to train a team of cooperative defenders who share information through learned communication channels.
In our version of this game, each defender knows only its own position and the position of its observed intruders as coordinates. Any information about other defenders’ locations or unseen intruders’ locations will need to come through active communication. We consider both the situation where defenders see all intruders within a field of view (making the joint state strictly observable) and the more difficult case where defenders’ observations are limited to an outwardly directed field of view as depicted at the left of Fig. 1. This version of the game violates Assumption 1, as some attackers may not be seen by any defender.
Vi Evaluation
We train the neural network using supervised learning where the the expert is the maximum matching algorithm. We randomly sample million examples from each possible scenario (e.g. 5 vs. 3) and query for the expert action to generate a dataset.
Each network , of the perception module has 5 layers of size , and the perception feature vector is of size . The remaining modules each have layers of size , and the decoded feature is of size
. Each layer is followed by the Leaky ReLU activation function. We train the network in TensorFlow on an NVIDIA DGX1 using a batch size of
and a learning rate of that is dropped by a third every iterations. We randomly sample from the dataset using a manually defined biased sample that weights more difficult scenarios higher. Total training time for one network takes hours for iterations.Via Simulation Methodology
Games are instantiated with equal numbers of defenders and intruders starting from random position. We simulate games to completion in order to evaluate how learning to replicate the expert’s action choices at training time leads to successful online outcomes. As the games progress, both the size of the team and the number of observed targets change as defenders and intruders are consumed. The intruders execute an intelligent but uncooperative policy motivated by [25].

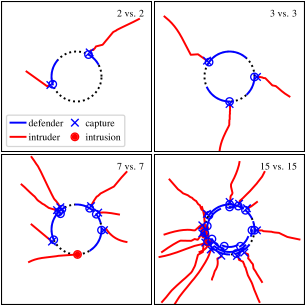

Simulations for several games are depicted in Fig. 2, where the defense team are trained agents with an field of view restriction. From some random starting configurations it is fundamentally impossible for any defense policy to capture all intruders. For this reason we evaluate the performance of our learned policies by comparing the number of intruders captured to the expert policy. In the shown 7 vs. 7 game the missed intruder is also missed by the expert policy, and in fact could never be captured. In the 15 vs. 15 game the trained model slightly underperforms the expert policy. The figure shows three of the fifteen intruders are missed, but the expert policy misses only one.
ViB Visualizing Actions
Each agent faces the decision of choosing one action based on available information about the dimensional game state^{1}^{1}1While not explicit in the representation, the defender positions lie on a 1dimensional manifold (the circle).. A slice of this continuous decision domain is sampled in Fig. 3 for a 4 vs. 4 game. The top left diagram illustrates the appropriate action for the highlighted purple defender as a function of the position of one roaming intruder. The three other defenders and three other intruders are held fixed in their shown locations. The defender should move counterclockwise if the final intruder is in a dark green region, and clockwise if it lies in a light green region. The top left figure shows this defender should usually move left, but can be called upon to move right if an intruder appears in the small light green region. The bottom left figure illustrates actions for a different defender in the team, and now includes grey regions where the assignmentbased expert policy chooses not to employ that defender.
Note that the precise location of an intruder can affect the required defender response even if the intruder is far from the defender. Intuitively, the appearance of an intruder can trigger a cascade of necessary reassignments that ultimately affect seemingly unrelated defenders.

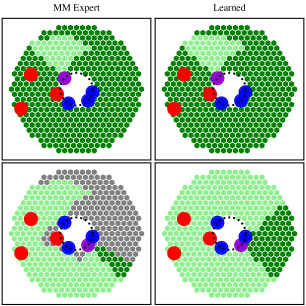

The right column of Fig. 3 shows the defender actions elected by the trained network based on peer communication. The top figure shows a fairly faithful rendering of the expert policy. Below we see that the trained network has simplified decision boundaries, because when the expert does not use a defender, the trained networks choice does not matter.
ViC Varying Team Size

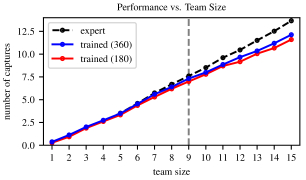

The network was trained using examples of teams of up to size 9; in testing we look at performance in teams of up to size 15. Fig. 4 depicts the average number of captures in vs. games of increasing size. We compare the centralized expert policy (using the full game state) to learned policies employing a message width of size one under both and fields of view constraints. Team performance closely approximates the expert policy in spite of communications bottlenecks up to the trained team size. As teams grow much larger than those seen during training, performance begins to lag the expert policy, but the decline in performance is graceful and does not seem to indicate a catastrophic loss of team cohesion and cooperative play.
ViD Varying Message Width

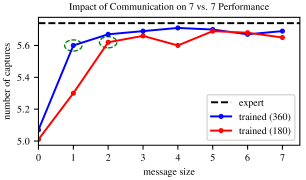

We compare the performance of models trained with varying message widths in Fig. 5. Messages are tuples of quantized 8bit values, and we try constraining the message length anywhere from from length (no communication) to length . Both trained distributed policies perform poorly with respect to the baseline centralized policy when no communication takes place.
The policy with a full field of view of intruders attains near expertlevel performance at a message width of 1 (all agents broadcast a single 8bit value), and increasing the message width does not significantly raise performance. Each defender need only hear all the other defenders’ locations to infer the full joint state, and agents have learned to encode this information into a single scalar value.
An effective message encoding when the field of view is limited to is more difficult to engineer. Each defender is not merely the only teammate to know its own location, it might be the only teammate to see any number of attackers. In spite of this difficulty, the trained model achieves near expert performance with a message size of only two 8bit values. This is suggestive that the agents are not merely summarizing local observations – they are learning to discern taskoriented information that supports the decision process.

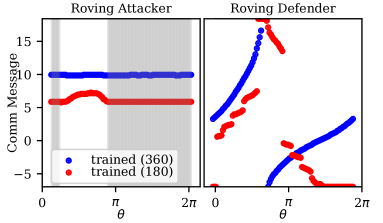

Fig. 6 provides qualitative insight into how these communication channels are being used in a 7 vs. 3 game with a message width of one. The left plot shows how one defender’s broadcast value changes as one intruder is moved around the playing field. The right plot shows how that defender’s broadcast value changes as its own position is varied. As expected, the field of view policy generates messages that are a function only of the defender’s own position, and not attacker locations. The agent has learned to omit redundant information (attackers seen by everyone else) and summarize critical information (the self x,y coordinates encoded as an angular value). Agents with only a field of view must learn a more sophisticated policy. Their message values are a function of the defender position, but observed attackers are also taken into account.
Vii Discussion
A motivation for this work was the recurring observation that due to the distributed nature of neural network computation, many neural network mechanisms (i.e. PIN, quantization) have clear application to multiagent systems. For example, we may want to impose other invariances, such as spatial invariance or a graph connectivity structure through Convolutional Neural Networks [22] and their generalization, the Graph Neural Network [26]. In addition, Fully Convolutional Networks [27] could address variable size inputs.
Originally developed to improve network training, batch normalization [28] can standardize the range of the message activations, which increases comparability of the quantization process across models. In addition, we can apply , regularization to the communication message. These regularization techniques are justified by the Minimum Description Length (MDL) principle [29], which finds the best compression of data, or in our case, message. Dropout [30] was originally developed to prevent overfitting by randomly dropping connections during training. In real world multiagent scenarios, communications from agents may be dropped, and we can model this phenomenon during training by using a dropout layer at the team communication level. When viewed in the lens of multiagent systems, all of these mechanisms gain an additional, practical interpretation, strengthening our belief that neural networks should play a fundamental role in multiagent systems.
Viii Conclusions
This paper poses a policy decentralization problem for multirobot teams: given a centralized policy which is a function of the full joint state, find an equivalent decentalized policy which can be implemented by agents obeying local observation and communications constraints. We suggest a construction of in terms of individual agent communication functions and action functions , and we describe sufficient conditions under which such a will exist.
We describe a modular neural network architecture for training teams of identical agents which naturally addresses variable team size and obeys certain invariants inherent to multirobot policies. This architecture provides a machinery for automatically approximating and , providing both communication and action policies at the agent level.
We evaluate our approach in a multiagent perimeter defense game. Simulation results demonstrate that compact communication policies are learned, and that at test time these agents can generalize to teams larger than those they were trained in.
A wide range of frameworks and analytic tools have be effectively applied to centralized multiagent problems. Learning to leverage this past success to develop distributed, communication aware policies is a path to more scalable, resilient, and effective robot teams.
