Deep Neural Networks (DNNs) have drastically advanced the state-of-the-art performance in many computer science applications, including computer vision(Krizhevsky et al., 2012), (He et al., 2016; Ren et al., 2015) et al., 2013; Bahdanau et al., 2014; Gehring et al., 2017) and speech recognition (Sak et al., 2014; Sercu et al., 2016)
. Yet, in the face of such significant developments, the age-old (accelerated) stochastic gradient descent (SGD) algorithm remains one of the most, if not the most, popular method for training DNNs(Sutskever et al., 2013; Goodfellow et al., 2016; Wilson et al., 2017).
Adaptive methods (Duchi et al., 2011; Zeiler, 2012; Hinton et al., 2012; Kingma and Ba, 2014; Ma and Yarats, 2018) sought to simplify the training process, while providing similar performance. However, while they are often used by practitioners, there are cases where their use leads to a performance gap (Wilson et al., 2017; Shah et al., 2018)
. At the same time, much of the state-of-the-art performance on highly contested benchmarks—such as the image classification dataset ImageNet—have been produced with accelerated SGD(Krizhevsky et al., 2012; He et al., 2016; Xie et al., 2017; Zagoruyko and Komodakis, 2016; Huang et al., 2017; Ren et al., 2015; Howard et al., 2017).
Nevertheless, a key factor in any algorithmic success still lies in hyperparameter tuning. For example, in the literature above, they obtain such performance with a well-tuned SGD with momentum and a learning rate decay schedule, or with a proper hyperparameter tuning in adaptive methods. Slight changes in learning rate, learning rate decay, momentum, and weight decay (amongst others) can drastically alter performance. Hyperparameter tuning is arguably one of the most time consuming parts of training DNNs, and researchers often resort to a costly grid search.
Thus, finding new and simple hyper-parameter tuning routines that boost the performance of state of the art algorithms is of ultimate importance and one of the most pressing problems in machine learning.
The focus of this work is on the momentum parameter and how we can boost the performance of training methods with a simple technique. Momentum helps speed up learning in directions of low curvature, without becoming unstable in directions of high curvature. Minimizing the objective function , the simplest and most common momentum method, classical momentum (CM) (Polyak, 1964)
, is given by the following recursion for variable vector:
The coefficient —traditionally, selected constant in —controls how quickly the momentum decays, represents a stochastic gradient, usually , and is the step size.
But how do we select ? The most prominent choice among practitioners is . This is supported by recent works that prescribe it (Chen et al., 2016; Kingma and Ba, 2014; Hinton et al., 2012; Reddi et al., 2019)
, and by the fact that most common softwares, such as PyTorch(Paszke et al., 2017), declare as the default value in their optimizer implementations. However, there is no indication that this choice is universally well-behaved.
There are papers that attempt to tune the momentum parameter. Under an asynchronous distributed setting, (Mitliagkas et al., 2016) observe that running SGD asynchronously is similar to adding a momentum-like term to SGD; they also provide experimental evidence that naively setting would result in a momentum “overdose”, leading to suboptimal performance. As another example, YellowFin (Zhang and Mitliagkas, 2017) is a learning rate and momentum adaptive method for both the synchronous and asynchronous setting, motivated by a quadratic model analysis and some robustness insights. The main message of that work is that, like , momentum acceleration needs to be carefully selected based on properties of the objective, the data, and the underlying computational resources. Finally, moving from classical DNN settings towards generative adversarial networks (GANs), the proposed momentum values tend to decrease from (Mirza and Osindero, 2014; Radford et al., 2015; Arjovsky et al., 2017), taking even negative values (Gidel et al., 2018).
In this paper, we introduce a novel momentum decay rule which significantly surpasses the performance of both Adam and CM (as they are used currently), in addition to other state-of-the-art adaptive learning rate and adaptive momentum methods, across a variety of datasets and networks. In particular, our findings can be summarized as follows:
We propose a new momentum decay rule, motivated by decaying the total contribution of a gradient to all future updates, with limited overhead and additional computation.
Using the momentum decay rule with Adam, we observe large performance gains—relative to vanilla Adam—where the network continues to learn for far longer after Adam begins to plateau, and suggest that the momentum decay rule should be used as default for this method.
We observe comparative performance for CM between momentum decay and learning rate decay; a surprising finding given the unparalleled effectiveness of learning rate decay schedule.
Experiments are provided on various datasets, including MNIST, CIFAR-10, CIFAR-100, STL-10, Penn Treebank (PTB), and networks, including Convolutional Neural Networks (CNN) with Residual architecture (ResNet)(He et al., 2016), Wide Residual architecture (Wide ResNet) (Zagoruyko and Komodakis, 2016), Non-Residual architecture (VGG-16) (Simonyan and Zisserman, 2014)1997)
, Variational AutoEncoders (VAE)(Kingma and Welling, 2015), and the recent Noise Conditional Score Network (NCSN) (Song and Ermon, 2019).
Plain stochastic gradient descent motions. Let be the parameters of the network at time step , where is the learning rate/step size, and is the stochastic gradient w.r.t. for empirical loss , such that . Then, plain stochastic gradient descent (SGD) uses the recursion: . Here, the step size could also be time dependent, , but practice shows that decreasing the value of at regular or predefined intervals works favorably compared to decreasing the value of at every iteration.
CM is parameterized by , the momentum coefficient, and follows the recursion:
where accumulates momentum. Observe that for , the above recursion is equivalent to SGD. Common values for are closer to one, with the most used value (Ruder, 2016).
Adaptive gradient descent motions. These algorithms utilize current and past gradient information to design preconditioning matrices that better approximate the local curvature of . Beginning with AdaGrad (Duchi et al., 2011), the SGD recursion, per coordinate of , becomes:
where is usually a diagonal preconditioning matrix as a summation of squares of past gradients, and a small constant.
RMSprop (Hinton et al., 2012) substitutes the ever accumulating matrix with a root mean squared operation. Denoting the average of squared gradients as , per iteration we compute: , where was first proposed as . Here, denotes the per-coordinate multiplication. Then, RMSprop updates as—where a momentum term can also be optionally added:
Finally, Adam (Kingma and Ba, 2014), in addition, keeps an exponentially decaying average of past gradients: , leading to the recursion:111For clarity, we will skip the bias correction step in this description of Adam; see Kingma and Ba (2014).
where usually and . Observe that Adam is equivalent to RMSprop when , and when no bias correction is applied results in the same recursion.
3 Demon: Decaying momentum algorithm
Motivation and interpretation. Demon is motivated by learning rate rules: by decaying the momentum parameter, we decay the total contribution of a gradient to all future updates. Similar reasoning applies for learning rate decay routines: however, our goal here is to present a concrete and easy-to-use momentum decay procedure, which can be used with or without learning rate routines, as we show in the experimental section. The key component is the momentum decay schedule:
The interpretation of this rule comes from the following argument: Assume fixed momentum parameter ; e.g., , as literature dictates. For our discussion, we will use the accelerated SGD recursion. We know that , and . Then, the main recursion can be unrolled into:
Interpreting the above recursion, a particular gradient term contributes a total of of its “energy” to all future gradient updates. Moreover, for an asymptotically large number of iterations, we know that contributes on up to terms. Then, . Thus, in our quest for a decaying schedule and for a simple linear momentum decay, it is natural to consider a scheme where the cumulative momentum is decayed to . Let be the initial ; then at current step with total steps, we design the decay routine such that: . This leads to equation 1.
Connection to previous algorithms. Demon introduces an implicit discount factor. The main recursions of the algorithm are the same with standard algorithms in machine learning. E.g., for we obtain SGD with momentum, and for we obtain plain SGD in Algorithm 1; in Algorithm 2, for with a slightly adjustment of learning rate we obtain Adam, while for we obtain a non-accumulative AdaGrad algorithm. We choose to apply Demon to a slightly adjusted Adam—instead of vanilla Adam—to isolate the effect of the momentum parameter, since the momentum parameter adjusts the magnitude of the current gradient as well in vanilla Adam.
Efficiency. Demon requires only limited extra overhead and computation in comparison to the vanilla counterparts, for the computation of .
Practical suggestions. For settings in which is typically large, such as image classification, we advocate for decaying momentum from at , to at
as a general rule. We also observe and report improved performance by delaying momentum decay till later epochs. In many cases, performance can be further improved by decaying to a small negative value, such as 0.3.
4 Related work
There are numerous techniques for automatic hyperparameter tuning. The most widely used are learning rate adaptive methods, starting with AdaGrad (Duchi et al., 2011), AdaDelta (Zeiler, 2012), RMSprop (Hinton et al., 2012), and Adam (Kingma and Ba, 2014). Adam (Kingma and Ba, 2014), the most popular, introduced a momentum term, which is combined with the current gradient before multiplying with an adaptive learning rate. Interest in closing the generalization difference between adaptive methods and CM led to AdamW (Loshchilov and Hutter, 2017), by fixing the weight decay of Adam, and Padam (Chen and Gu, 2018)
, by lowering the exponent of the second moment.
Asynchronous methods are commonly used in deep learning, and (Mitliagkas et al., 2016) show that running SGD asynchronously is similar to adding a momentum-like term to SGD without assumptions of convexity of the objective function. They demonstrate this natural connection empirically on CNNs. This implies that the momentum parameter needs to be tuned according to the level of asynchrony. YellowFin (Zhang and Mitliagkas, 2017) is a learning rate and momentum adaptive method for both the synchronous and asynchronous setting motivated by a quadratic model analysis and robustness insights. In the non-convex setting, STORM (Cutkosky and Orabona, 2019)
uses a variant of momentum for variance reduction.
There is substantial research, both empirical and theoretical, into the convergence of momentum methods (Wibisono and Wilson, 2015; Wibisono et al., 2016; Wilson et al., 2016; Kidambi et al., 2018). In addition, (Sutskever et al., 2013) explored momentum schedules, with even increasing momentum schedules during training, inspired by Nesterov’s routines for convex optimization. There is some work into reducing oscillations during training, by adapting the momentum (O’donoghue and Candes, 2015). There is also work into adapting momentum in well-conditioned convex problems as opposed to setting to zero (Srinivasan et al., 2018). Another approach in this area is to keep several momentum vectors according to different and combining them (Lucas et al., 2018). We are aware of the theoretical work of (Yuan,, 2016) which prove under certain conditions that momentum SGD is equivalent to SGD with a rescaled learning rate, however our experiments in the deep learning setting show slightly different behavior and understanding why is an exciting direction of research.
Smaller values of have gradually been employed for Generative Adversarial Networks (GAN), and recent developments in game dynamics (Gidel et al., 2018) show a negative momentum is helpful for GANs.
|Experiment short name||Model||Dataset||Optimizer|
|WRN-STL10-DEMONCM||Wide ResNet 16-8||STL10||Demon CM|
|WRN-STL10-DEMONAdam||Wide ResNet 16-8||STL10||Demon Adam|
|LSTM-PTB-DEMONCM||LSTM RNN||Penn TreeBank||Demon CM|
|LSTM-PTB-DEMONAdam||LSTM RNN||Penn TreeBank||Demon Adam|
We separate experiments into those with adaptive learning rate and those with adaptive momentum. All settings, with exact hyper-parameters, are briefly summarized in Table 1 and comprehensively detailed in Appendix A. We report improved performance by delaying the application of Demon where applicable, and report performance across different number of total epochs to demonstrate effectiveness regardless of the training budget. Note that the predefined number of epochs we run all experiments affects the proposed decaying momentum routine, by definition of .
5.1 Adaptive methods
At first, we apply Demon Adam (Algorithm 2) to a variety of models and tasks. We select vanilla Adam as the baseline algorithm and include more recent state-of-the-art adaptive learning rate methods Quasi-Hyperbolic Adam (QHAdam) (Ma and Yarats, 2018) and AMSGrad (Reddi et al., 2019) in our comparison. See Appendix A.2.1 for details. We tune all learning rates in roughly multiples of 3 and try to keep all other parameters close to those recommended in the original literature. For Demon Adam, we leave and decay from to in all experiments.
Residual Neural Network (RN18-CIFAR10-DEMONAdam). We train a ResNet18 (He et al., 2016) model on the CIFAR-10 dataset. With Demon Adam, we achieve the generalization error reported in the literature (He et al., 2016) for this model, attained using CM and a curated learning rate decay schedule, whilst all other methods are non-competitive. Refer to Table 2 for exact results.
In Figure 2 (Top row, two left-most plots), Demon Adam is able to learn in terms of both loss and accuracy after other methods have plateaued. Running 5 seeds, Demon Adam outperforms all other methods by a large 2%-5% generalization error margin with a small and large number of epochs.
|30 epochs||75 epochs||150 epochs||300 epochs|
|Adam||16.58 .18||13.63 .22||11.90 .06||11.94 .06|
|AMSGrad||16.98 .36||13.43 .14||11.83 .12||10.48 .12|
|QHAdam||16.41 .38||15.55 .25||13.78 .08||13.36 .11|
|Demon Adam||11.75 .15||9.69 .10||8.83 .08||8.44 .05|
Non-Residual Neural Network (VGG16-CIFAR100-DEMONAdam). For the CIFAR-100 dataset, we train an adjusted VGG-16 model (Simonyan and Zisserman, 2014). Similarly to the previous setting, we observe similar learning behavior of Demon Adam, where it continues to improve after other methods appear to begin to plateau. We note that this behavior results in a 1-3% decrease in generalization error than typically reported results with the same model and task (Sankaranarayanan et al., 2018), which are attained using CM and a curated learning rate decay schedule.
Running 5 seeds, Demon Adam achieves an improvement of 3%-6% generalization error margin over all other methods, both for a small and large number of epochs. Refer to Figure 2 (Top row, right-most plot) and Table 3 for more details.
|VGG-16||Wide Residual 16-8|
|75 epochs||150 epochs||300 epochs||50 epochs||100 epochs||200 epochs|
|Adam||37.98 .20||33.62 .11||31.09 .09||23.35 .20||19.63 .26||18.65 .07|
|AMSGrad||40.67 .65||34.46 .21||31.62 .12||21.73 .25||19.35 .20||18.21 .18|
|QHAdam||36.53 .20||32.96 .11||30.97 .10||21.25 .22||19.81 .18||18.52 .25|
|Demon Adam||32.40 .19||28.84 .18||27.11 .19||19.42 .10||18.36 .11||17.62 .12|
Wide Residual Neural Network (WRN-STL10-DEMONAdam). The STL-10 dataset presents a different challenge with a significantly smaller number of images than the CIFAR datasets, but in higher resolution. We train a Wide Residual 16-8 model (Zagoruyko and Komodakis, 2016) for this task. In this setting, we note again the behavior of Demon Adam significantly outperforming other methods in the latter stages of training.
Running 5 seeds, Demon Adam outperforms all other methods by a 0.5%-2% generalization error margin with a small and large number of epochs. Refer to Figure 2 (Bottom row, left-most plot) and Table 3 for more details.

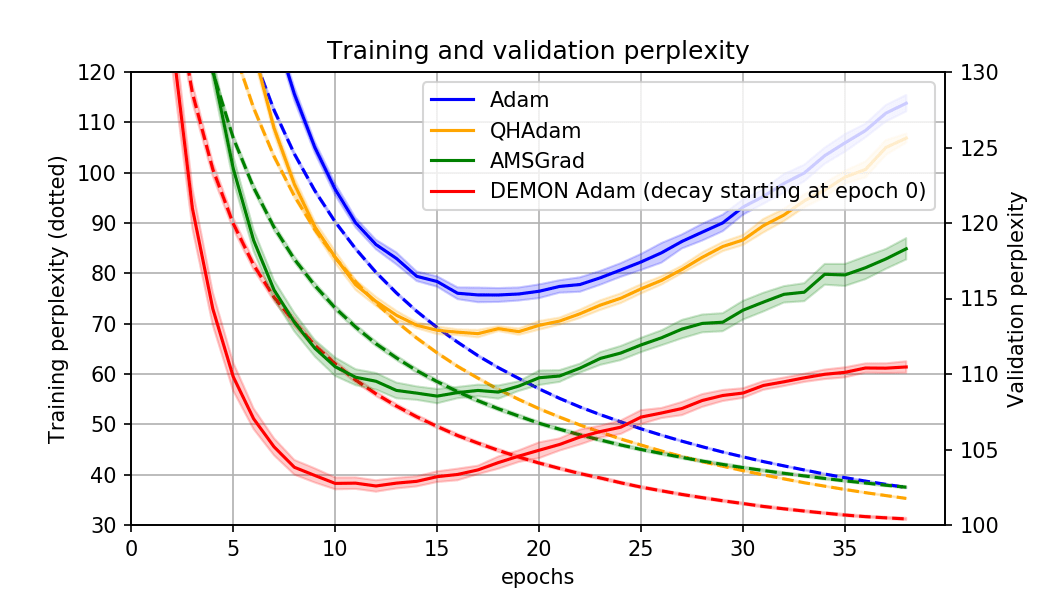

LSTM (PTB-LSTM-DEMONAdam). Language modeling can have gradient distributions which are sharp; for example, in the case of rare words. We use an LSTM (Hochreiter and Schmidhuber, 1997) model to this task. We observe overfitting for all adaptive methods.
Similar to above, running 5 seeds, Demon Adam outperforms all other methods by a 6-14 generalization perplexity margin, with both a small and large number of epochs. Refer to Figure 2 (Bottom row, middle plot) and Table 4 for more details.
|25 epochs||39 epochs||50 epochs||100 epochs||200 epochs||512 epochs|
|Adam||115.54 .64||115.02 .52||136.28 .18||134.64 .14||134.66 .17||8.15 .20|
|AMSGrad||108.07 .19||107.87 .25||137.89 .12||135.69 .03||134.75 .18||-|
|QHAdam||112.52 .23||112.45 .39||136.69 .17||134.84 .08||134.12 .12||-|
|Demon Adam||101.57 .32||101.44 .47||134.46 .17||134.12 .08||133.87 .21||8.07 .08|
Variational AutoEncoder (VAE-MNIST-DEMONAdam)
. Generative models are a branch of unsupervised learning that try to learn the data distribution. VAEs(Kingma and Welling, 2015)
pair a generator network with a second Neural Network, a recognition model that performs approximate inference, and can be trained with backpropagation. We train VAEs on the MNIST dataset.
Noise Conditional Score Network (NCSN-CIFAR10-DEMONAdam). NCSN (Song and Ermon, 2019)
is a recent generative network achieving state-of-the-art inception score on CIFAR10. NCSN estimates the gradients of the data distribution with score matching. Samples are then produced via Langevin dynamics using those gradients. We train a NCSN on the CIFAR10 dataset and, using the official implementation, were unable to reproduce the reported score in the literature. NSCN trained with Adam achieves a superior inception score in Table4, however the produced images in Figure 1 exhibit a noticeably unnatural green compared to those produced by Demon Adam.
for 200 epochs. Dotted and solid lines represent training and generalization metrics respectively. Shaded bands represent one standard deviation.
5.2 Adaptive momentum methods
We apply Demon CM (Algorithm 1) to a variety of models and tasks. Since CM with learning rate decay is most often used to achieve the state-of-the-art results with the architectures and tasks in question, we include CM with learning rate decay as the target to beat. CM with learning rate decay is implemented with a decay on validation error plateau, where we hand-tune the number of epochs to define plateau. Recent adaptive momentum methods included in this section are Aggregated Momentum (AggMo) (Lucas et al., 2018), and Quasi-Hyperbolic Momentum (QHM) (Ma and Yarats, 2018). We exclude accelerated SGD (Jain et al., 2017) due to difficulties in tuning. See Appendix A.2.2 for details. Similar to the last section, we tune all learning rates in roughly multiples of 3 and try to keep all other parameters close to those recommended in the original literature. For Demon CM, we leave for most experiments and generally decay from to .
Residual Neural Network (RN18-CIFAR10-DEMONCM). We train a ResNet18 model on the CIFAR-10 dataset. With Demon CM, we achieve better generalization error than CM with learning rate decay, the optimizer for producing state-of-the-art results with ResNet architecture. It is very surprising that decaying momentum can produce even better performance relative to learning rate decay.
Running 5 seeds, Demon CM outperforms all other adaptive momentum methods by a large 3%-8% validation error margin with a small and large number of epochs and is competitive or better than CM with learning rate decay. In Figure 3 (Top row, two left-most plots), Demon CM is observed to continue learning after other adaptive momentum methods appear to begin to plateau.
|30 epochs||75 epochs||150 epochs||300 epochs|
|CM learning rate decay||11.29 .35||9.05 .07||8.26 .07||7.97 .14|
|AggMo||18.85 .27||13.02 .23||11.95 .15||10.94 .12|
|QHM||14.65 .24||12.66 .19||11.27 .13||10.42 .05|
|Demon CM||10.89 .12||8.97 .16||8.39 .10||7.58 .04|
Non-Residual Neural Network (VGG16-CIFAR100-DEMONCM). For the CIFAR-100 dataset, we train an adjusted VGG-16 model. In Figure 3 (Top row, right-most plot), we observe Demon CM to learn slowly initially in loss and error, but similar to the previous setting it continues to learn after other methods begin to plateau, resulting in superior final generalization error.
Running 5 seeds, Demon CM achieves an improvement of 1%-8% generalization error margin over all other methods. Refer to Table 6 for more details.
|VGG-16||Wide Residual 16-8|
|75 epochs||150 epochs||300 epochs||75 epochs||150 epochs||300 epochs|
|CM learning rate decay||35.29 .59||30.65 .31||29.74 .43||21.05 .27||17.83 0.39||15.16 .36|
|AggMo||42.85 .89||34.25 .24||32.32 .18||22.70 .11||20.06 .31||17.90 .13|
|QHM||42.14 .79||33.87 .26||32.45 .13||22.86 .15||19.40 .23||17.79 .08|
|Demon CM||34.35 .44||30.59 .26||28.99 .16||19.45 .20||15.98 .40||13.67 .13|
Wide Residual Neural Network (WRN-STL10-DEMONCM). We train a Wide Residual 16-8 model for the STL-10 dataset. In Figure 3 (Bottom row, left-most plot), training in both loss and error slows down quickly for other adaptive momentum methods with a large gap with CM learning rate decay. Demon CM continues to improve and eventually catches up to CM learning rate decay.
Running 5 seeds, Demon CM outperforms all other methods by a 1.5%-2% generalization error margin with a small and large number of epochs. Refer to Table 6 for more details.

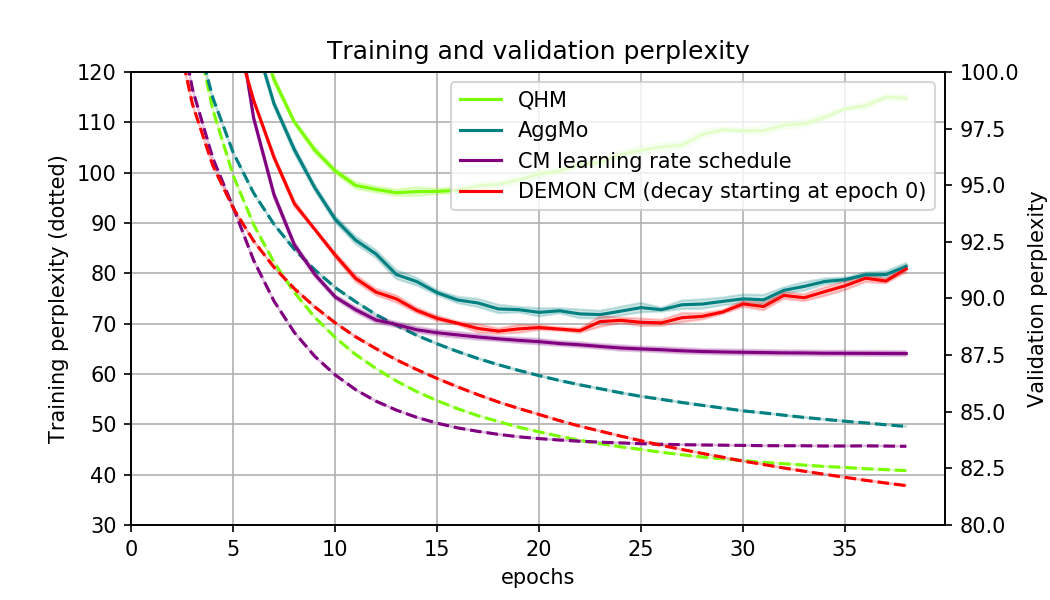

LSTM (PTB-LSTM-DEMONCM). We train an RNN with LSTM architecture for the PTB language modeling task. Running 5 seeds, Demon CM slightly outperforms other adaptive momentum methods in generalization perplexity, and is competitive with CM with learning rate decay. Refer to Figure 3 (Bottom row, middle plot) and Table 7 for more details.
|25 epochs||39 epochs||50 epochs||100 epochs||200 epochs|
|CM learning rate decay||89.59 .07||87.57 .11||140.51 .73||139.54 .34||137.33 .49|
|AggMo||89.09 .16||89.07 .15||139.69 .17||139.07 .26||137.64 .20|
|QHM||94.47 .19||94.44 .13||145.84 .39||140.92 .19||137.64 .20|
|Demon CM||88.33 .16||88.32 .12||139.32 .23||137.51 .29||135.95 .21|
Variational AutoEncoder (VAE-MNIST-DEMONCM). We train the generative model VAE on the MNIST dataset. Running 5 seeds, Demon CM outperforms all other methods by a 2%-6% generalization error for a small and large number of epochs. Refer to Figure 3 (Bottom row, right-most plot) and Table 7 for more details.
We show the effectiveness of the proposed momentum decay rule, Demon, across a number of datasets and architectures. The adaptive optimizer Adam combined with Demon is empirically substantially superior to the popular Adam, in addition to other state-of-the-art adaptive learning rate algorithms, suggesting a drop-in replacement. Surprisingly, it is also demonstrated that Demon CM is comparable to CM with learning rate decay. In cases where budget is limited, Demon CM may be preferable. Demon is computationally cheap, easy to understand and use, and we hope it is useful in practice and as a subject of future research.
- Wasserstein GAN. arXiv preprint arXiv:1701.07875. Cited by: §1.
- Neural machine translation by jointly learning to align and translate. arXiv preprint arXiv:1409.0473. Cited by: §1.
- Revisiting distributed synchronous SGD. arXiv preprint arXiv:1604.00981. Cited by: §1.
- Closing the generalization gap of adaptive gradient methods in training deep neural networks. arXiv preprint arXiv:1806.06763. Cited by: §4.
- Momentum-based variance reduction in non-convex sgd. arXiv preprint arXiv:1905.10018. Cited by: §4.
Incorporating nesterov momentum into adam. ICLR Workshop, (1):2013–2016. Cited by: §A.2.1.
- Adaptive subgradient methods for online learning and stochastic optimization. Journal of Machine Learning Research 12 (Jul), pp. 2121–2159. Cited by: §1, §2, §4.
- Convolutional sequence to sequence learning. In Proceedings of the 34th International Conference on Machine Learning-Volume 70, pp. 1243–1252. Cited by: §1.
- Negative momentum for improved game dynamics. arXiv preprint arXiv:1807.04740. Cited by: §1, §4.
- Deep learning. Vol. 1, MIT Press. Cited by: §1.
Deep residual learning for image recognition.
Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 770–778. Cited by: 1st item, §1, §1, §1, §5.1.
- Neural networks for machine learning lecture 6a overview of mini-batch gradient descent. Cited on 14, pp. 8. Cited by: §1, §1, §2, §4.
- Long short-term memory. Neural computation 9 (8), pp. 1735–1780. Cited by: 4th item, §1, §5.1.
- Mobilenets: efficient convolutional neural networks for mobile vision applications. arXiv preprint arXiv:1704.04861. Cited by: §1.
- Densely connected convolutional networks. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 4700–4708. Cited by: §1.
- Accelerating stochastic gradient descent for least squares regression. arXiv preprint arXiv:1704.08227. Cited by: §A.2.2, §5.2.
- On the insufficiency of existing momentum schemes for stochastic optimization. In 2018 Information Theory and Applications Workshop (ITA), pp. 1–9. Cited by: §4.
- Adam: a method for stochastic optimization. arXiv preprint arXiv:1412.6980. Cited by: §A.2.1, §1, §1, §2, §4, footnote 1.
- Auto-encoding variational bayes.. arXiv preprint arXiv:1312.6114. Cited by: 5th item, §1, §5.1.
- Imagenet classification with deep convolutional neural networks. In Advances in neural information processing systems, pp. 1097–1105. Cited by: §1, §1.
- Analysis and design of optimization algorithms via integral quadratic constraints. SIAM Journal on Optimization 26 (1), pp. 57–95. Cited by: §A.2.2.
- Fixing weight decay regularization in adam. arXiv preprint arXiv:1711.05101. Cited by: §4.
- Aggregated momentum: stability through passive damping. arXiv preprint arXiv:1804.00325. Cited by: §A.2.2, §4, §5.2.
- Quasi-hyperbolic momentum and Adam for deep learning. arXiv preprint arXiv:1810.06801. Cited by: §A.2.1, §A.2.2, §1, §5.1, §5.2.
- Distributed representations of words and phrases and their compositionality. In Advances in neural information processing systems, pp. 3111–3119. Cited by: §1.
- Conditional generative adversarial nets. arXiv preprint arXiv:1411.1784. Cited by: §1.
- Asynchrony begets momentum, with an application to deep learning. In 2016 54th Annual Allerton Conference on Communication, Control, and Computing (Allerton), pp. 997–1004. Cited by: §1, §4.
- A method for solving the convex programming problem with convergence rate of (1/kˆ2). Soviet Mathematics Doklady 27 (2), pp. 372–376. Cited by: §A.2.2.
- Adaptive restart for accelerated gradient schemes. Foundations of computational mathematics 15 (3), pp. 715–732. Cited by: §4.
- Automatic differentiation in pytorch. Cited by: §1.
- Some methods of speeding up the convergence of iteration methods. USSR Computational Mathematics and Mathematical Physics 4 (5), pp. 1–17. Cited by: §1.
- Unsupervised representation learning with deep convolutional generative adversarial networks. arXiv preprint arXiv:1511.06434. Cited by: §1.
- On the convergence of Adam and beyond. arXiv preprint arXiv:1904.09237. Cited by: §A.2.1, §1, §5.1.
- Faster R-CNN: towards real-time object detection with region proposal networks. In Advances in neural information processing systems, pp. 91–99. Cited by: §1, §1.
- An overview of gradient descent optimization algorithms. arXiv preprint arXiv:1609.04747. Cited by: §2.
- Long short-term memory recurrent neural network architectures for large scale acoustic modeling. In Fifteenth annual conference of the international speech communication association, Cited by: §1.
- Regularizing deep networks using efficient layerwise adversarial training. arXiv preprint arXiv:1705.07819. Cited by: §5.1.
- Very deep multilingual convolutional neural networks for LVCSR. In 2016 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), pp. 4955–4959. Cited by: §1.
- Minimum norm solutions do not always generalize well for over-parameterized problems. arXiv preprint arXiv:1811.07055. Cited by: §1.
- Very deep convolutional networks for large-scale image recognition. arXiv preprint arXiv:1409.1556. Cited by: 2nd item, §1, §5.1.
- Generative modeling by estimating gradients of the data distribution. arXiv preprint arXiv:1907.05600. Cited by: 6th item, §1, §5.1.
ADINE: an adaptive momentum method for stochastic gradient descent.
Proceedings of the ACM India Joint International Conference on Data Science and Management of Data, pp. 249–256. Cited by: §4.
- On the importance of initialization and momentum in deep learning. In International conference on machine learning, pp. 1139–1147. Cited by: §1, §4.
- A variational perspective on accelerated methods in optimization. proceedings of the National Academy of Sciences 113 (47), pp. E7351–E7358. Cited by: §4.
- On accelerated methods in optimization. arXiv preprint arXiv:1509.03616. Cited by: §4.
- A Lyapunov analysis of momentum methods in optimization. arXiv preprint arXiv:1611.02635. Cited by: §4.
- The marginal value of adaptive gradient methods in machine learning. In Advances in Neural Information Processing Systems, pp. 4148–4158. Cited by: §1, §1.
- Aggregated residual transformations for deep neural networks. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 1492–1500. Cited by: §1.
- On the influence of momentum acceleration on online learning. Journal of Machine Learning Research 17 (192), pp. 1–66. Cited by: §4.
- Wide residual networks. arXiv preprint arXiv:1605.07146. Cited by: 3rd item, §1, §1, §5.1.
- ADADELTA: an adaptive learning rate method. arXiv preprint arXiv:1212.5701. Cited by: §1, §4.
- Yellowfin and the art of momentum tuning. arXiv preprint arXiv:1706.03471. Cited by: §1, §4.
Appendix A Experiments
We evaluated the momentum decay rule with Adam and CM on Residual CNNs, Non Residual CNNS, RNNs and generative models. For CNNs, we used the image classification datasets CIFAR10, CIFAR100 and STL10 datasets. For RNNs, we used the language modeling dataset PTB. For generative modeling, we used the MNIST and CIFAR10 datasets. For each network dataset pair other than NSCN, we evaluated Adam, QHAdam, AMSGrad, Demon Adam, AggMo, QHM, Demon CM, and CM with learning rate decay. For adaptive learning rate methods and adaptive momentum methods, we generally perform a grid search over the learning rate. For CM, we generally perform a grid search over learning rate and initial momentum. For CM learning rate decay, the learning rate is decayed by a factor of 0.1 after there is no improvement in validation loss for the best of epochs.
We describe the six test problems in this paper.
CIFAR10 - ResNet18 CIFAR10 contains 60,000 32x32x3 images with a 50,000 training set, 10,000 test set split. There are 10 classes. ResNet18 (He et al., 2016) is an 18 layers deep CNN with skip connections for image classification. Trained with a batch size of 128.
CIFAR100 - VGG16 CIFAR100 is a fine-grained version of CIFAR-10 and contains 60,000 32x32x3 images with a 50,000 training set, 10,000 test set split. There are 100 classes. VGG16 (Simonyan and Zisserman, 2014) is a 16 layers deep CNN with extensive use of 3x3 convolutional filters. Trained with a batch size of 128
STL10 - Wide ResNet 16-8 STL10 contains 1300 96x96x3 images with a 500 training set, 800 test set split. There are 10 classes. Wide ResNet 16-8 (Zagoruyko and Komodakis, 2016) is a 16 layers deep ResNet which is 8 times wider. Trained with a batch size of 64.
PTB - LSTM PTB is an English text corpus containing 929,000 training words, 73,000 validation words, and 82,000 test words. There are 10,000 words in the vocabulary. The model is stacked LSTMs (Hochreiter and Schmidhuber, 1997) with 2 layers, 650 units per layer, and dropout of 0.5. Trained with a batch size of 20.
MNIST - VAE MNIST contains 60,000 32x32x1 grayscale images with a 50,000 training set, 10,000 test set split. There are 10 classes of 10 digits. VAE (Kingma and Welling, 2015) with three dense encoding layers and three dense decoding layers with a latent space of size 2. Trained with a batch size of 100.
CIFAR10 - NCSN CIFAR10 contains 60,000 32x32x3 images with a 50,000 training set, 10,000 test set split. There are 10 classes. NCSN (Song and Ermon, 2019) is a recent state-of-the-art generative model which achieves the best reported inception score. We compute inception scores based on a total of 50000 samples. We follow the exact implementation in and defer details to the original paper.
a.2.1 Adaptive learning rate
Adam (Kingma and Ba, 2014), as previously introduced in section 2, keeps an exponentially decaying average of squares of past gradients to adapt the learning rate. It also introduces an exponentially decaying average of gradients.
The Adam algorithm is parameterized by learning rate , discount factors and , a small constant , and uses the update rule:
AMSGrad (Reddi et al., 2019) resolves an issue in the proof of Adam related to the exponential moving average , where Adam does not converge for a simple optimization problem. Instead of an exponential moving average, AMSGrad keeps a running maximum of .
The AMSGrad algorithm is parameterized by learning rate , discount factors and , a small constant , and uses the update rule:
where and are defined identically to Adam.
QHAdam (Quasi-Hyperbolic Adam) (Ma and Yarats, 2018) extends QHM (Quasi-Hyperbolic Momentum), introduced further below, to replace both momentum estimators in Adam with quasi-hyperbolic terms. This quasi-hyperbolic formulation is capable of recovering Adam and NAdam (Dozat, 2016), amongst others.
The QHAdam algorithm is parameterized by learning rate , discount factors and , , a small constant , and uses the update rule:
where and are defined identically to Adam.
a.2.2 Adaptive momentum
AggMo (Aggregated Momentum) (Lucas et al., 2018) takes a linear combination of multiple momentum buffers. It maintains momentum buffers, each with a different discount factor, and averages them for the update.
The AggMo algorithm is parameterized by learning rate , discount factors , and uses the update rule:
QHM (Quasi-Hyperbolic Momentum) (Ma and Yarats, 2018) is a weighted average of the momentum and plain SGD. QHM is capable of recovering Nesterov Momentum (Nesterov, 1983), Synthesized Nesterov Variants (Lessard et al., 2016), accSGD (Jain et al., 2017) and others.
The QHM algorithm is parameterized by learning rate , discount factor , immediate discount factor , and uses the update rule:
a.3 Optimizer hyperparameters
|Optimization method||epochs||other parameters|
|QHAdam||30||0.001||, , ,|
|CM learning rate decay||30||0.1||, patience = 5|
|CM learning rate decay||75||0.1||, patience = 20|
|CM learning rate decay||150||0.1||, patience = 20|
|CM learning rate decay||300||0.1||, patience = 40|
|Optimization method||epochs||other parameters|
|QHAdam||75||0.0003||, , ,|
|CM learning rate decay||75||0.1||, patience = 5|
|CM learning rate decay||150||0.03||, patience = 20|
|CM learning rate decay||300||0.03||, patience = 30|
|QHAdam||50||0.0003||, , ,|
|CM learning rate decay||50||0.1||, patience = 10|
|CM learning rate decay||100||0.1||, patience = 10|
|CM learning rate decay||200||0.1||, patience = 20|
|Optimization method||epochs||other parameters|
|QHAdam||25||0.0003||, , ,|
|CM learning rate decay||25||0.1||, smooth learning rate decay|
|CM learning rate decay||39||1.0||, smooth learning rate decay|
|Optimization method||epochs||other parameters|
|QHAdam||50||0.001||, , ,|
|CM learning rate decay||50||0.00001||, patience = 5|
|CM learning rate decay||100||0.000003||, patience = 5|
|CM learning rate decay||200||0.000003||, patience = 20|
