De-identification In practice

by   Besat Kassaie, et al.

We report our effort to identify the sensitive information, subset of data items listed by HIPAA (Health Insurance Portability and Accountability), from medical text using the recent advances in natural language processing and machine learning techniques. We represent the words with high dimensional continuous vectors learned by a variant of Word2Vec called Continous Bag Of Words (CBOW). We feed the word vectors into a simple neural network with a Long Short-Term Memory (LSTM) architecture. Without any attempts to extract manually crafted features and considering that our medical dataset is too small to be fed into neural network, we obtained promising results. The results thrilled us to think about the larger scale of the project with precise parameter tuning and other possible improvements.


page 1

page 2

page 3

page 4


Semi-supervised Word Sense Disambiguation with Neural Models

Determining the intended sense of words in text - word sense disambiguat...

De-identification of medical records using conditional random fields and long short-term memory networks

The CEGS N-GRID 2016 Shared Task 1 in Clinical Natural Language Processi...

A Neural-Symbolic Approach to Natural Language Tasks

Deep learning (DL) has in recent years been widely used in natural langu...

One Single Deep Bidirectional LSTM Network for Word Sense Disambiguation of Text Data

Due to recent technical and scientific advances, we have a wealth of inf...

Detect Language of Transliterated Texts

Informal transliteration from other languages to English is prevalent in...

Automatic Text Scoring Using Neural Networks

Automated Text Scoring (ATS) provides a cost-effective and consistent al...

Generating Continuous Representations of Medical Texts

We present an architecture that generates medical texts while learning a...

1 Motivation

Electronic Health Record (EHR) systems have been developed to provide individuals with high quality, continuing health care. These systems are being adopted throughout the world. For example, the Optometry Clinic at the University of Waterloo’s School of Optometry and Vision Science, which is one of the largest vision care centers in Canada, adopted an EHR system. In fact, Transparency Market Research has predicted that the value of the global electronic health records solution market to reach 30.28 billion USD by the end of 2023.

As well as supporting individual health care, such data has the potential to be used in a broader scope to improve the lives of multiple generations. Researchers from various domains such as public health, social science, and economics can extract invaluable insights using this data. On the other hand working with medical data requires addressing several problems, such as dealing with unstructured fields, data privacy, and access control. Considering only data privacy, there are a plethora of privacy legislations which have to be considered in any system working on sensitive data, such as PIPEDA, PHIPA, FIPPA, HIPAA, and COPPA. These concerns make it difficult to share medical data among researchers. The Optometry Clinic at UW wishes to give some level of privacy preserving access over their data to optometry researchers . However, due to the lack of ability in ensuring data privacy, currently clinicians can only use data for primary health care, and it is not possible to share the data with researchers. One of the biggest challenge in the Optometry Clinic at UW data is using free text field in which clinicians are able to write comments. The aim of these concise and informal comments is to record the patients state, to write some reminders for feature visits or to notify the next clinician about some details of the treatment process. So these free-text fields easily contain many sensitive information such as patient name, the medical centers which the patient is related to, family members identities among others. These types of information not only make an adversary linkage attack very possible but also in many cases they are not necessary to be included in many of texts. Other issues that have been observed in the optometry data were many misspelled words, extensive use of non standard abbreviations. However, the main objective of the current project is to capture the identifying informations form free text fields ,de-identification, using the state of the art machine learning and Natural Language Processing techniques.

2 Related Works

The current project falls into two different area of works ,i.e. automatic free text de-identification and application of deep learning in natural language processing. Extracting specific information from text such as ,in a wide range, from company names to emotions


is not a new topic. In fact if we consider the de-identification task as a specific kind of Named Entity Recognition (NER) in which the aim is to identify some coarse grain entities such as locations, dates and person it has 25 years of research behind

[18],[19]. Because of the importance of automatic de-identification of text, a NLP challenge is held as a part of i2b2Informatic for Integrating Biology & the Beside project[30]. The objective of this challenge is the same as ours although the datasets that have been used are different. Some of the approaches that have been applied in this challenge includes classification[20], sequence labeling using CRFs [21], rule-based mechanisms[22] or a hybrid of other approaches [23]. Other works came out which essentially were founded on the challenge approaches such as [24]

in which they proposed a hybrid system of rule-based and token/character-level CRFs. The commonality between all of these works is their intensive works on configuring the problem specific feature sets and capturing context patterns in terms of rules and regular expressions. This makes them very time consuming to develop in real world applications and also hard to generalize them over different datasets. In the machine learning community a large number of works are devoted to extract features and capture the domain automatically. They came up with the idea of using deep neural networks to learn the features and also to retain the context information. There are plenty of NLP tasks on which variants of deep neural network such as Recurrent Neural Networks have been applied successfully such as opinion mining

[25], speech recognition [26], language modeling [11], Named Entity Recognition [27], and recently de idenntification of patient notes [28]. The objective and methods used in our work is quite similar to [28] from an high level view. Although we use a different dataset composed of optometry patient records which suffers from informality. Our way of building the word representation is slightly different as we use a relatively large dataset to learn them, whereas [28] exploits pre-trained word vectors. Our current LSTM architecture is also different from [28].

2.1 Background

2.2 Word Representations

Reflecting semantic and syntactic of words in their representation can improve different natural processing tasks. By relying solely on naive representations such as Bag of Words, i.e. using sparse vectors to represent words as atomic entities, we ignore many levels of semantics and syntactics which are embedded in words and also in their relations with other words. On the other hand relations such as similarity are not a static and permanent notion and vary based on the context. Recently some interesting works came out which try to capture some levels of semantic and syntactic similarities between words by representing words as continues vectors. We need a representation which can be changed based on the contexts and also can capture the semantics and syntactics existing in an specific context. One approach which has been studied very well so far is using word neighbors. The neighbors can be a large number of words existing in a document or it can be a small window surrounding the word. In one approach based on the window containing the word, we can build a cooccurance matrix in which each entry of the matrix can hold some statistics about the neighbors. The resulting matrix will be sparse and also very large in dimension. For a better performance we need to decrease the dimensionality of the matrix using dimensionality reduction techniques which impose a high computational cost into the process. Other approach is to learn the low dimensional continuous vectors for word representation from the beginning using neural networks. There have been designed various neural network based models to capture this representation [1],[2], [3]. Among the proposed techniques we use the model proposed in [4]. Two quite similar architectures, are proposed in [4] called Continuous Bag Of Words and Continuous Skip-gram. The former model ,as shown in Figure 2, uses the continues representation of context, a window surrounding an specific word, to predict the current word. The latter model predicts the context based on the current word. Using the projection learned by the model as the word representation, we are able to capture semantic and syntactic relations between words in terms of word similarities. In fact the learned word representations capture syntactic and semantic regularities[5]. Many of these linguistic regularities can be shown as linear translations between pairs of words. The quality of such relations is hard to be evaluated with a rigorous method. It is subjective, intuitive and it firmly depends on the context. However using such representations has shown significant improvements on different downstream NLP tasks.

2.3 Conditional Random Fields

CRFs and semiCRFs[6] have shown acceptable performance in many areas such as natural language processing, and biomedical domains among others. CRFs are undirected graphical models which provides a discriminative approach to predict multiple output variables which depend on each other[7]. Extracting suitable features and introducing them into the model as feature functions is an important an labor intensive step in implementing CRFs.

2.4 Lstm

Wherever we face with data which has sequential nature such as text or spoken language the need for capturing the context for each unit of data that can be a word, an audio signal ,or a sentence is crucial. Previous methods for addressing these problems were using hand-designed systems to deal with the sequential nature of data. Recently due to the advances in neural networks, Recurrent Neural Networks (RNN) has been applied extensively on the machine learning learning tasks, related to sequential data. Handwriting recognition [8], [9], machine translation [10], and language modeling [11] are a few among others. In theory standard RNN architectures are able to capture the long term dependencies, however in practice the context for which they are able to maintain dependencies is very small. In fact RNNs suffer from the vanishing gradient problem, i.e. sensitivity of the network and subsequently the output to the inputs decrease over time [12]. LSTMs [13] are a type of RNNs, that are more effective at capturing long-term temporal dependencies without the optimization problems that comes with standard RNNs. The main idea behind the LSTM architecture is a memory cell which can maintain its state over time, and some non-linear units which regulate the information flow through each LSTM cell. Different architectures of LSTM such as Bidirectional Long Short-Term Memory [14] have been designed in which LSTM get trained in both directions over inputs. For the current project we have used an architecture quite similar to the primary LSTM architecture introduced in [15]. To improve the performance of the LSTM, as recommended in [16], we add a bias value equal to 1 to the forget gate.

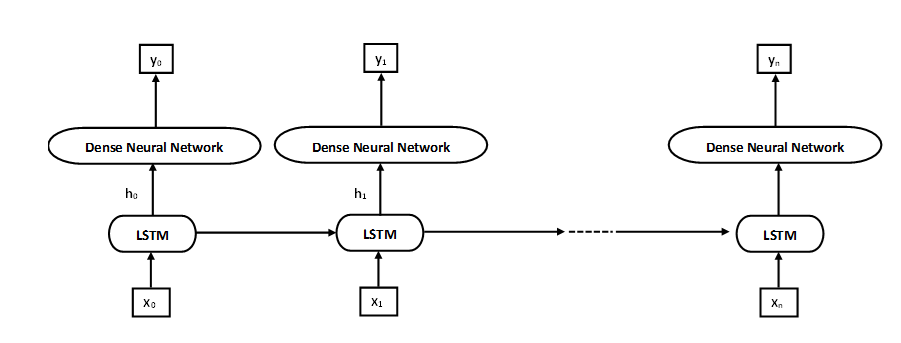

Figure 1: Our LSTM architecture which in each time step takes a vector as input and predict the corresponding label . In the current model we set .

3 DataSet

We have used two different datasets for this project: AMIA de-identification challenge dataset [29] and the Optometry dataset. The reader can look at [29] for the description of their dataset. The optometry dataset contains 68278 records belonging to patients for a period of one year. Each record contains seven items in which the practitioner can write comments and notes such as DIAGNONSIS,CHIEF-COMPLAINT, COMMENT, NOTE, EXTERNAL-NOTE among others. Our aim is to identify sensitive information from these seven items. 299 records have been selected randomly to be annotated manually. We view our problem as a sequence labeling problem. We annotated all 299 files in the same way as described in [29] to be feed into the CRFs model. We did some extra processes over datasets to train/test our LSTM model as we will describe later. The distribution of tokens are presented in Table 1,2, and 3.

Key Number of Tokens
Date 1203
Doctor 462
Hospital 10
Location 258
Patient 119
Phone 19
All Identifiers 2071
Table 1: Distribution of tokens in Optometry dataset, token refers to the number of words in each PHI category.
Key Number of Tokens
Date 1075
Doctor 501
Hospital 10
Location 2790
Patient 985
Phone 424
All Identifiers 5785
Table 2: Distribution of tokens in Optometry formal letters dataset.
Key Number of Tokens
Date 7651
Doctor 7697
Hospital 5204
Location 518
Patient 1737
Phone 271
All Identifiers 23078
Table 3: Distribution of tokens in AMIA dataset.

4 Experiments

HIPAA regulation obliges health care organizations to remove Protected Health Information(PHI) from data sets before sharing them with researchers. HIPAA provides a list of 18 identifiers for the de-identification purpose. Although majority of these categories have been observed in the Optometry dataset, in this project we will focus on the identification of six categories which have been tried before in the AMIA de-identification challenge held by i2b2 [30]. By focusing on this subset we are able to compare our system performance with the best system [21] participated in the NLP challenge [29] [TODO: need to find i2b2 new dataset 2014-2016].

4.1 Evaluation

We have used three standard metrics to evaluate our experiments. The metrics are as following:

We have computed all of the aforementioned metrics in the token level. For example assume the location PHI composed of three tokens such as Canada National Library. The evaluation can be in instance level or token level. The former means if all of the tokens in PHI are tagged correctly then it is considered as True Positive. Token level considers all of the three words separately. Note that as we will explain later we use sliding window approach to generate fixed length segments to feed into LSTM model, consequently each token falls into more than one segment and takes different labels. However the metrics are computed on the merged segments to be comparable with the original text. To merge the result (labels) we apply the following rules:

  • If all the labels assigned to a token in different windows are the same we keep the label

  • If the token has different labels, a mixture of non PHI and PHI, we choose PHI label.

  • If we have any conflicting PHI we choose the label with larger index. As LSTM uses the past information for prediction, the label with larger index is more accurate.

4.2 Experiment Using CRFs

As we found that the way of representing the six PHIs in the optometry dataset and the dataset provided by i2b2 is quite similar, we decided to try the tool [31] used by [21] for de-identification on the optometry dataset. [21] defines the de-identification as a sequence labeling task for which graphical models can effectively predict the output variables. MIST uses Carafe for sequence labeling. Carafe is a sequence labeling system implemented for phrase identification task and showed a significant performance. In fact Carafe implemented Conditional Random Fields(CRFs) for phrase identification task. [21] have introduced some new and task specific features to Carafe to make it applicable on the de-identification task.

To make sure that the Carafe setting is the same that used in the challenge we first tried the tool on the AMIA data set and produced quite similar results in terms of Precision, Recall and F-measure. A bit of discrepancies exist in our results in compare to the [21] due to the some parameter tuning. Then we trained and evaluated their proposed model on the optometry dataset using 3-fold cross validation. By training model, associated weights of feature functions get fitted to optometry data. Surprisingly training MIST CRFs model on the optometry dataset concluded in quit poor results (Table 5) even in Doctor and Date data items which were presented in a very similar way in both datasets. The results presented in Table 5 are based on token level evaluation.

The discharge summary dataset used in the challenge is a set of well written texts. On the other hand [29] created this dataset by combining some structured fields so we can see some regularities in each record. In the Optometry free text fields, no regularities can be observed. So we conducted another experiment using referral letter dataset from optometry. We conducted this experiment to investigate whether AMIA’s CRFs model, works better for the well written text, as we find in formal letter dataset. The results of this experiment is presented in Table 7 showing that the overall result is improved.

Key Precision Recall F-measure
Date 0.293 0.218 0.25
Doctor 0.51 0.163 0.247
Hospital 0 0 0
Location 0.121 0.212 0.154
Patient 1 1 1
Phone 0 0 0
All 0.321 0.321 0.275
Table 4: Running LSTM model on AMIA Test set - Word representations built over Optometry Dataset

A main challenge with regard to using CRFs is designing good feature functions. Designing these feature sets is rather straight forward in case of AMIA data. That is firstly because, this dataset is formed from some formally written discharge summaries. Also this unstructured data comes from putting together a number of fields, such as date, hospital name, and etc., from an structured data source. In contrast, the optometry free text data were written in an informal language and many misspelled data as well as abbreviations appear frequently. Also, the source of data in optometry case is unstructured from the beginning. So, due to the lack of regularities in optometry data, manually designing feature functions would be highly challenging. That is why we need other techniques instead of CRFs.

Key Precision Recall F-measure
Date 0.595 0.651 0.621
Doctor 0.504 0.487 0.495
Hospital 1.000 0.233 0.333
Location 0.741 0.264 0.319
Patient 0.406 0.291 0.319
Phone 0.963 0.054 0.092
All 0.702 0.33 0.363
Table 5: Training the AMIA model on optometry dataset 3-fold cross validations
Key Precision Recall F-measure
Date 0.803 0.802 0.803
Doctor 0.828 0.876 0.851
Hospital 0 0 0
Location 0.486 0.462 0.474
Patient 0.477 0.399 0.435
Phone 0 0 0
All 0.432 0.432 0.432
Table 6: Training LSTM model on optometry dataset 3-fold cross validations
Key Precision Recall F-measure
Date 0.568 0.587 0.576
Doctor 0.593 0.539 0.564
Hospital 0 0 0
Location 0.467 0.498 0.481
Patient 0.606 0.490 0.541
Phone 0.575 0.583 0.579
All 0.566 0.539 0.552
Table 7: Training the AMIA model on 160 formal letters - average of, 3 fold cross validation
Key Precision Recall F-measure
Date 0.833 0.966 0.895
Doctor 0.806 0.856 0.830
Hospital 0.656 0.618 0.636
Location 0.847 0.332 0.477
Patient 1 1 1
Phone 0.877 0.430 0.577
All 0.8365 0.7 0.736
Table 8: Training LSTM model on AMIA dataset using a composed Word2Vec AMIA+GOOGLE

4.3 Experiment Using Deep Learning

As RNNs have shown significant performance on sequence labeling tasks in recent studies, we decided to use LSTM, a variant of RNN in our work. LSTM allows us to use automatically extracted features in terms of word embeddings. As distributed continuous word representation is a powerful technique to capture the semantic and syntactics of relations between words, we used the CBOW architecture as has been shown in Figure 2 to learn word representations. We used all of 68278 records of optometry dataset to build the model. In this architecture we set the window size to five. We ignore words with frequency less than two. We replace all rare words ,i.e. occurred once, in the training set and unseen words in the test set with UNK [32]. We replace all sequences of numbers with DIGIT [33]. For example 1990 and 2005 both will be mapped to DIGITDIGITDIGITDIGIT. We will try different assignment of DIGIT to the numbers. For example we will replace 1998 with DIGIT DIGIT DIGIT DIGIT to put the burden of learning the pattern on the Word2Vec model shoulder. Also we set the length of word vectors to 200.

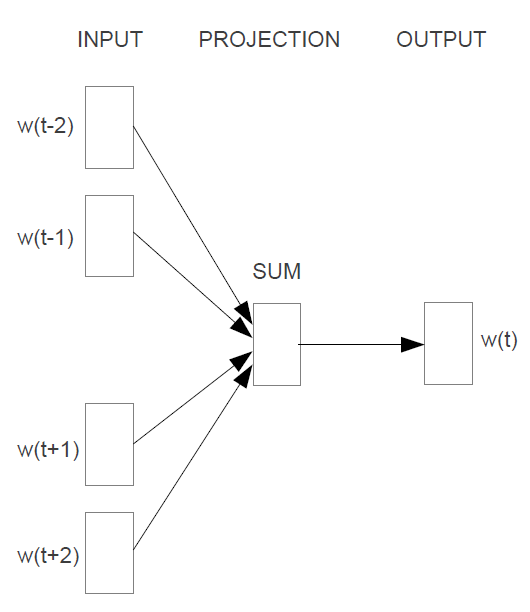

Figure 2: Continuous Bag of Words [4]

4.3.1 Evaluating Word2vec

One of the challenges we faced during the project was to evaluate the word2vec model to make sure that the word vectors are trained well enough to be used in our specific task. We used the test set presented in [4]. The test set contains some semantic and syntactic questions. These questions are designed to evaluate different kinds of similarities which exist between words. For example Italy and Canada are similar in the sense that they are both country. On the other hand Canada and Ottawa are similar in the sense that Ottawa is the capital city of Canada. As we can observe there exist different type of similarities between words. In [4] they designed a set of questions for two pairs of words holding the same similarity relations among. For pairs like (France, Paris) and (Canada, Ottawa), a possible question to be asked is What is the word that is similar to France in the same way as Canada is similar to Ottawa? For answering this question, [4] gets the corresponding representation vectors for Canada, Ottawa, France

and by a simple linear transformation such as following

, they look for a word with highest cosine similarity with vector

. In this example should be .

We did not know that whether the amount of data used for building word embeddings was sufficient as others, such as [4], have used hundred of millions of words to build their representations. In other words we wanted to realize that whether adding more data will improve the quality of our vectors.

To do so we divided randomly the optometry data set into four groups. Then we used the test set(the question list) to evaluate the quality of the Word2Vec model built over 1/4,2/4,3/4, and finally the whole dataset. To have a measure of quality we fixed the set of questions. We focused on those questions which all of their words exist in 1/4 of our data. For each specific question the amount of cosine similarity between the right and left hand side of the below equation is considered as a quality measure.

The cosine similarity is computed for each model. The average of cosine similarities computed for our fixed set of questions over different models are shown in Figure 3

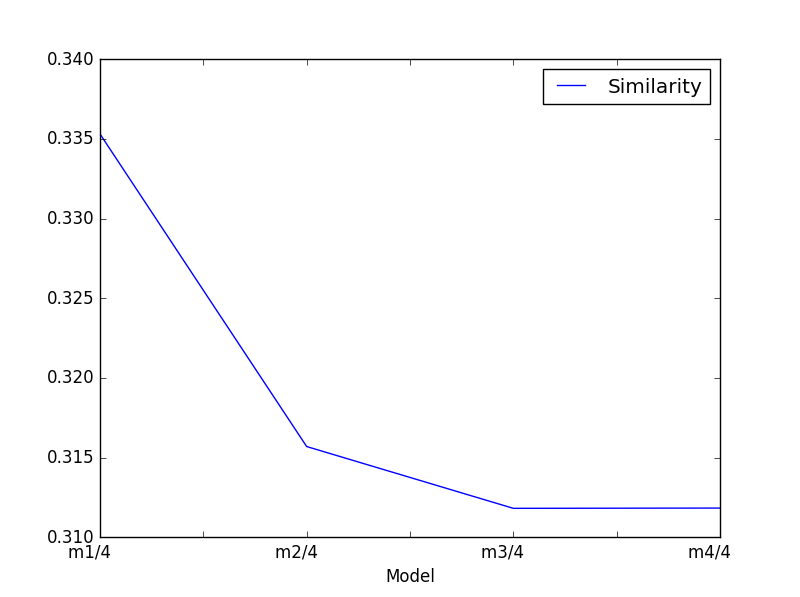

Figure 3: Effect of increasing the data size on the similarity

Figure 3 shows that the average cosine similarity has been decreased as data sized increased from model 1/4 to model 3/4 and then we see that the similarity does not change that much from 3/4 to 4/4. First we wanted to know whether these changes are meaningful. So we need to conduct an statistical test. Our problem statement suit well on an statistical test called Repeated Measures t test. The result of the statistical test has been shown in Table 9. Table 9 shows that the increase in data size from model 1/4 to model 2/4 and also from 2/4 to 3/4 has significant impact on the average similarities between pairs. However, we can not say decreasing the similarity could be translated to improvement or worsening of the models.

Our attempt does not show certainly and accurately that adding more data will improve the quality of the word representations. Since the selected statistical test may not be valid for this case, as by adding more data, we are creating a new model from scratch. In fact we are not capturing the effect of other confounding parameters in our statistical test. Assume that our statistical test is valid, there is no guarantee that the regularities discovered between pairs should be always linear. Finally, we decided to evaluate the quality of word vectors by evaluating the downstream results, after applying LSTM. It is worth to mention that using continues vector representations produces close vectors, in terms of cosine similarity, for misspelled words and abbreviations. For example the most similar word to pt was patient or the most similar words to glaucoma were glc, glauc, gluacoma. This indeed helps to deal with misspelled and abbreviated words.

Test pvalue
Model1/4 to 2/4 5.3341860080300578e-78
Model2/4 to 3/4 1.6130983991735885e-09
Model3/4 to 4/4 0.48765969479743881
Table 9:

Repeated Measures t Test results

4.3.2 Data Preprocessing

For the LSTM Model, we have labeled each word to show that whether it is a part of PHI or not. We have assigned a code for each label. Table 10 shows some of the labels along with the assigned codes.

As we need to have a fixed length of word sequences to feed into LSTM, we have created sliding window over the training set. Sliding window may break some of tags. To deal with the broken tags, all the labels in a broken tag replaced with ’O’ and only if the tag exists completely inside the window we retain it.

To feed each label into LSTM model it will be replaced by its corresponding code as shown in Table 10. Also each word get replaced by a vector with dimensionality of 200, obtained from the Word2Vec model.

Label Code Decsription
BODOC [1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0] Beginning of Doctor
IODOC [0,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0] Inside of Doctor
BOP [0,0,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0] Beginning of Patient
IOP [0,0,0,1,0,0,0,0,0,0,0,0,0,0,0,0,0] Inside of Patient
BOD [0,0,0,0,1,0,0,0,0,0,0,0,0,0,0,0,0] Beginning of Date
IOD [0,0,0,0,0,1,0,0,0,0,0,0,0,0,0,0,0] Inside of Date
BOH [0,0,0,0,0,0,0,0,1,0,0,0,0,0,0,0,0] Beginning of Hospital
O [0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1] Outside
Table 10: Sample of labels and corresponding codes

4.3.3 Sequence Labeling with LSTM for Optometry Dataset

We trained LSTM on the optometry dataset. The architecture of our model is presented in Figure 1. In this architecture, word sequences of length 15 are fed into the first layer of network, which consists of 15 LSTM component. These word sequences are obtained by applying sliding window over training set as described before. Each word in these sequences is represented by a vector of length 200. This vector was obtained from the trained Word2Vec model as explained before.

The output of each LSTM component would be another vector of length 200. A dense neural network is attached to each of these output vectors. A dense neural network is simply a fully connected neural network. This network has output vector of length 17 called

, which represents probability distribution over possible label values. We used dropout of 0.2,

Binary Cross Entropy

for loss function and

Adam [34] as our optimization algorithm. We set epoch parameter to 10.

In our experiment we used respectively 56%, 19% of randomly selected word sequences from optometry data set as training/validation set and remaining 25% of sequences in test set. The results is shown in Table 6.

Figure 4: Correlation between the data size and F-measure

As a second experiment, for evaluating the transferability of the model, learned by LSTM, over optometry dataset, we applied that model, over AMIA dataset. The word representations are the same as what previously we got form Optometry dataset, Table 4 shows the results.

4.3.4 LSTM for AMIA dataset

We also tried to use the same strategy of using LSTM to label AMIA dataset. However, in this case we do not have access to a plenty of records for learning word representations based on AMIA dataset. Therefore, we used a set of pretrained word vectors based on news data, provided by Google. Our strategy was to use the few number of records, in AMIA data set, to build a primary vector representation for words. Beside that we also used the vectors, from the pretrained model, as a second source, whenever, we cannot find a word representation based on the primary model, Table 11 shows the distribution of the words obtained from different models.

Then we applied sliding window approach over the AMIA dataset, similar to what we did with optometry dataset to provide word sequences. We used the same training and test set as AMIA. We used the same LSTM network architecture that we used for optometry data. Results are provided in Table 4. In this experiment we used vector length of 300 as the pre trained model uses this length.

Word2Vec Model Number of Words
GoogleNews 1036212
AMIA Word2Vec 1281033
Unknown Words 23250
Table 11: Number of word vectors in AMIA test set obtained from different Word2Vec models

5 Discussion

The abundance of data is a determining factor for applying deep neural network successfully. However in our case, we had a few number of labeled instances for training our network. This problem is more evident for rare tags in our dataset, such as phone or hospital names, Table 1. As the results in Table 6

shows, for these two tags, our deep learning model was not able to detect any cases. In contrast, the model based on CRFs, was more successful for these tags. The reason is that, in AMIA model, they have introduced very specific features, based on regular expressions and also they have enriched their system by using external lexicons.

On the other hand, for all the other tags, for which we had relatively more samples, such as Date and Doctor, our model outperformed the AMIA model, without using any manually designed feature set.

The quality of word vectors is another issue in our work. We could not conclude our experiments on quality of our word vectors. Therefore, we are not sure that, given the size of optometry data set, the quality of our word vectors are good enough. This can be assumed as the another reason for getting the results with low accuracy than expected. It is particularly important to note that most such experiments in the literature were conducted over word vectors that were trained over millions of records. A possible remedy for our case could be using the publicly available pretrained word vectors, such as the one provided by Google, as the initial values instead of other initializations such as random methods , and then refine/adjust them by training over our own dataset.

Another aspect in our work that has a lot of room for improvement is our network architecture. We have used a preliminary architecture for our neural network, which has just one level of unidirectional LSTM. Many similar works in the literature have used multiple bidirectional layers of LSTM to improve capturing the context in different abstraction levels. Another related and very important issue in our work is setting hyper-parameters. In all steps, from setting the length of sliding windows, to setting network parameters we should try different combination of parameter values. Particularly, setting the hyper-parameters of the neural network, such as dropout, learning rate and LSTM specific parameters like forget rate are very determining for improving performance. We can employ methods such as grid search for finding the optimum values for the hyper-parameters. Different optimization algorithms as well as different loss functions should be tried. Finally, i2b2 proposed a new dataset for de identification and it worth to conduct our experiments on the new dataset.


  • [1] D. E. Rumelhart, J. L. McClelland, and C. PDP Research Group, eds., Parallel Distributed Processing: Explorations in the Microstructure of Cognition, Vol. 1: Foundations. Cambridge, MA, USA: MIT Press, 1986.
  • [2] Y. Bengio, R. Ducharme, P. Vincent, and C. Janvin, “A Neural Probabilistic Language Model,” J. Mach. Learn. Res., vol. 3, pp. 1137–1155, Mar. 2003.
  • [3] D. E. Rumelhart, G. E. Hinton, and R. J. Williams, “Neurocomputing: Foundations of Research,” pp. 696–699, Cambridge, MA, USA: MIT Press, 1988.
  • [4] T. Mikolov, K. Chen, G. Corrado, and J. Dean, “Efficient Estimation of Word Representations in Vector Space,” arXiv:1301.3781 [cs], Jan. 2013. arXiv: 1301.3781.
  • [5] T. Mikolov, S. W.-t. Yih, and G. Zweig, “Linguistic Regularities in Continuous Space Word Representations,” Microsoft Research, May 2013.
  • [6] A. McCallum, “Efficiently Inducing Features of Conditional Random Fields,” in

    Proceedings of the Nineteenth Conference on Uncertainty in Artificial Intelligence

    , UAI’03, (San Francisco, CA, USA), pp. 403–410, Morgan Kaufmann Publishers Inc., 2003.
  • [7] C. Sutton and A. McCallum, “An introduction to conditional random fields,” Foundations and Trends in Machine Learning, vol. 4, no. 4, p. 267–373, 2012.
  • [8] P. Doetsch, M. Kozielski, and H. Ney, “Fast and robust training of recurrent neural networks for offline handwriting recognition,” in International Conference on Frontiers in Handwriting Recognition, (Crete, Greece), pp. 279–284, Sept. 2014.
  • [9] A. Graves, M. Liwicki, S. Fernández, R. Bertolami, H. Bunke, and J. Schmidhuber, “A Novel Connectionist System for Unconstrained Handwriting Recognition,” IEEE Trans. Pattern Anal. Mach. Intell., vol. 31, pp. 855–868, May 2009.
  • [10]

    T. Luong, I. Sutskever, Q. V. Le, O. Vinyals, and W. Zaremba, “Addressing the Rare Word Problem in Neural Machine Translation,” 2015.

  • [11] W. Zaremba, I. Sutskever, and O. Vinyals, “Recurrent Neural Network Regularization,” arXiv:1409.2329 [cs], Sept. 2014. arXiv: 1409.2329.
  • [12] A. Graves, Supervised Sequence Labelling with Recurrent Neural Networks, vol. 385 of Studies in Computational Intelligence. Springer, 2012.
  • [13] S. Hochreiter and J. Schmidhuber, “Long Short-Term Memory,” Neural Comput., vol. 9, pp. 1735–1780, Nov. 1997.
  • [14] A. Graves and J. Schmidhuber, “Framewise phoneme classification with bidirectional LSTM and other neural network architectures,” Neural Networks, vol. 18, no. 5-6, pp. 602–610, 2005.
  • [15] F. A. Gers, J. A. Schmidhuber, and F. A. Cummins, “Learning to Forget: Continual Prediction with LSTM,” Neural Comput., vol. 12, pp. 2451–2471, Oct. 2000.
  • [16] R. Jozefowicz, W. Zaremba, and I. Sutskever, “An empirical exploration of recurrent network architectures,” 2015.
  • [17] C. Strapparava and R. Mihalcea, “Learning to Identify Emotions in Text,” in Proceedings of the 2008 ACM Symposium on Applied Computing, SAC ’08, (New York, NY, USA), pp. 1556–1560, ACM, 2008.
  • [18] L. F. Rau, “Extracting company names from text,” in , Seventh IEEE Conference on Artificial Intelligence Applications, 1991. Proceedings, vol. i, pp. 29–32, Feb. 1991.
  • [19] R. Grishman and B. Sundheim, “Message Understanding Conference-6: A Brief History,” in Proceedings of the 16th Conference on Computational Linguistics - Volume 1, COLING ’96, (Stroudsburg, PA, USA), pp. 466–471, Association for Computational Linguistics, 1996.
  • [20] G. Szarvas, R. Farkas, and R. Busa-Fekete, “State-of-the-art anonymization of medical records using an iterative machine learning framework.,” Journal of the American Medical Informatics Association : JAMIA, vol. 14, no. 5, pp. 574–580, 2007.
  • [21] B. Wellner, M. Huyck, S. Mardis, J. Aberdeen, A. Morgan, L. Peshkin, A. Yeh, J. Hitzeman, and L. Hirschman, “Rapidly Retargetable Approaches to De-identification in Medical Records,” Journal of the American Medical Informatics Association : JAMIA, vol. 14, no. 5, pp. 564–573, 2007.
  • [22] R. Guillen, “Automated de-identification and categorization of medical records,” 2006.
  • [23]

    K. Hara, “Applying a SVM based chunker and a text classifier to the deid challenge,” 2006.

  • [24] Z. Liu, Y. Chen, B. Tang, X. Wang, Q. Chen, H. Li, J. Wang, Q. Deng, and S. Zhu, “Automatic De-identification of Electronic Medical Records using Token-level and Character-level Conditional Random Fields,” Journal of biomedical informatics, vol. 58, pp. S47–S52, Dec. 2015.
  • [25] O. İrsoy and C. Cardie, “Opinion mining with deep recurrent neural networks,” in Proceedings of the Conference on Empirical Methods in Natural Language Processing, pp. 720–728, 2014.
  • [26] A. Graves, N. Jaitly, and A. Mohamed, “Hybrid speech recognition with deep bidirectional LSTM,” in 2013 IEEE Workshop on Automatic Speech Recognition and Understanding, Olomouc, Czech Republic, December 8-12, 2013, pp. 273–278, 2013.
  • [27] J. Hammerton, “Named Entity Recognition with Long Short-term Memory,” in Proceedings of the Seventh Conference on Natural Language Learning at HLT-NAACL 2003 - Volume 4, CONLL ’03, (Stroudsburg, PA, USA), pp. 172–175, Association for Computational Linguistics, 2003.
  • [28] F. Dernoncourt, J. Y. Lee, O. Uzuner, and P. Szolovits, “De-identification of Patient Notes with Recurrent Neural Networks,” arXiv:1606.03475 [cs, stat], June 2016. arXiv: 1606.03475.
  • [29] z. Uzuner, Y. Luo, and P. Szolovits, “Evaluating the State-of-the-Art in Automatic De-identification,” Journal of the American Medical Informatics Association : JAMIA, vol. 14, no. 5, pp. 550–563, 2007.
  • [30] “i2b2: Informatics for Integrating Biology & the Bedside.”
  • [31] “MIST: The MITRE Identification Scrubber Toolkit.”
  • [32] K. Yao, G. Zweig, M.-Y. Hwang, Y. Shi, and D. Yu, “Recurrent Neural Networks for Language Understanding,” Microsoft Research, Aug. 2013.
  • [33] R. Collobert, J. Weston, L. Bottou, M. Karlen, K. Kavukcuoglu, and P. Kuksa, “Natural Language Processing (almost) from Scratch,” arXiv:1103.0398 [cs], Mar. 2011. arXiv: 1103.0398.
  • [34] D. Kingma and J. Ba, “Adam: A Method for Stochastic Optimization,” arXiv:1412.6980 [cs], Dec. 2014. arXiv: 1412.6980.
