1 Introduction

Most modern cities have followed a car-centric development in the 20th century [1] and are today allocating a privileged amount of urban space to automobile traffic [2, 3]. From a network perspective, this space can be described as the street layer of a larger mathematical object, the multiplex transport network [4, 5, 6]. A city’s multiplex transport network contains other network layers that have co-evolved with the street layer, such as the bicycle layer or the rail network layer, which together constitute the multimodal transportation backbone of a city. Due to the car-centric development of most cities, street layers are the most developed layers and define or strongly limit other layers: For example, sidewalks are by definition footpaths along the side of a street and make up a substantial part of a city’s pedestrian space [2]; similarly most bicycle paths are part of a street or are built along the side. From an urban sustainability perspective, this situation is suboptimal because the unsustainable mode of automobile transportation dominates sustainable modes like cycling. Consequently, urban planning movements in a number of pioneering cities are increasingly experimenting with drastic policies, such as applying congestion charges (London) [7] and repurposing or removing car parking (Amsterdam, Oslo) [8, 9, 10]. These scattered efforts have shown preliminary success, however, a quantitative framework for developing and assessing systematic strategies is missing.

Here we consider the transport networks of 15 world cities and develop an urban fingerprinting technique based on multiplex network theory to characterize the various ways their transport layers are interconnected, outlining the potential for multimodal transport. Using clustering algorithms on the resulting urban fingerprints, we find clear classes of cities reflecting their transport priorities. We uncover network fragmentation within different layers and find that the bicycle layer is the most fragmented mobility infrastructure. To improve a city’s vital dedicated bicycle infrastructure [11, 12, 13, 14], we develop algorithms for connecting disconnected graphs based on concrete quality metrics from bicycle network planning [15] and apply them to the empirical bicycle networks via network growth simulations. We find that localized investment into targeted missing links can rapidly consolidate fragmented bicycle networks, allowing to significantly increase their connectedness and directness, with potentially crucial implications for sustainable transport policy planning.

2 Data acquisition and network construction

We acquired urban transportation networks from multiple cities around the world using OSMnx [16], a Python library to download and construct networks from OpenStreetMap (OSM). These data sets are of high quality [17, 18] in terms of correspondence with municipal open data [19] and completeness: More than of the world is covered by OSM [20]. In particular, OSM’s bicycle layer has better coverage than proprietary alternatives like Google Maps [21]. We collect data from a diverse set of cities to capture different development states of bicycle infrastructure networks; from consolidated networks like Amsterdam and Copenhagen, less developed ones like Manhattan and Mexico City, to rapidly developing cities like Jakarta and Singapore. The various analyzed urban areas and their properties are reported in Table S.I. 1 in the Supplementary Information (SI). Figure 1 shows the different network layers for two of our analyzed cities. The pedestrian layer contains all sidewalks and pedestrian paths. The bicycle layer consists of all infrastructure exclusive to bicycles, like designated cycleways and bicycle trails. The rail network captures all public transportation that uses rails, including subways and tramways. Finally the street layer is composed of all streets designated for motor vehicles.

The data to replicate the results can be downloaded from Harvard Dataverse (, the code is available as Jupyter Notebooks (

We characterize each city as a multiplex network [22, 23, 24] with layers and nodes that can be active in one or more layers in the system. Layers are represented by a primal approach [25] in which nodes are intersections (that may be present in one or more layers), while links represent streets (s), bicycle paths and designated bicycle infrastructure (b), subways, trams and rail infrastructure (r), or pedestrian infrastructure (p). This recent approach has been useful to demonstrate how cities grow [26, 27], how efficient [28] and dense they are, and to capture the tendency of travel routes to gravitate towards city centers [29]. Each layer is described by an adjacency matrix where if there is a link between nodes and in layer

and 0 otherwise. The multiplex urban system is then specified as a vector of adjacency matrices

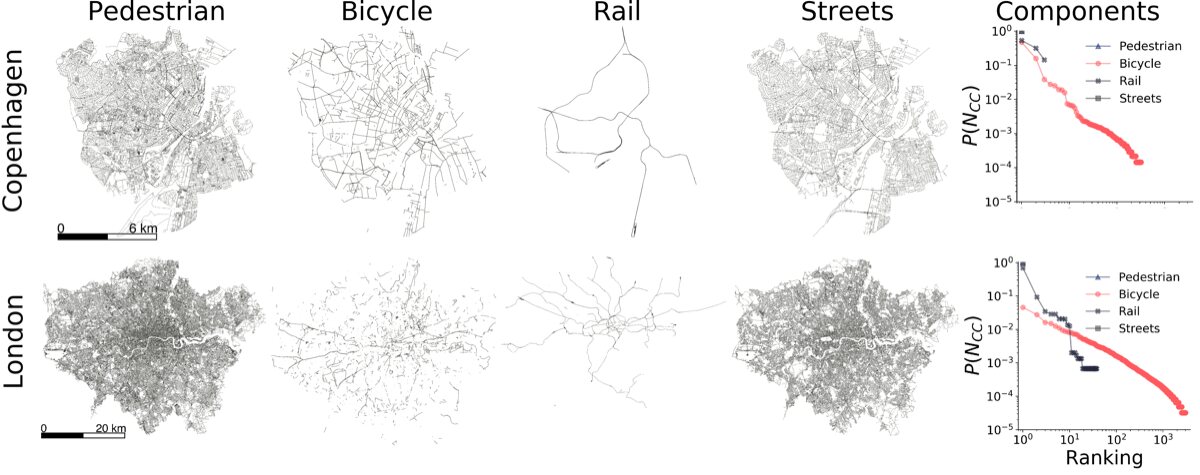

Figure 1: (Map plots, left) Networks representing various layers of transport infrastructure (pedestrian paths, bicycle paths, rail lines, and streets) for Copenhagen and London, with data from OpenStreetMap. (Right) Connected component size distribution as a function of the ranking of the component for all considered network layers and cities. All layers are well connected except the bicycle layer: Copenhagen has 321 bicycle network components despite being known as a bicycle-friendly city, while London’s bicycle layer is much more fragmented, featuring over 3000 disconnected components. Copenhagen’s largest connected bicycle component (leftmost data point) spans 50% of the network, but London’s only less than 5%.

3 Quantifying multimodality with the overlap census

Whereas one of the simplest features of single layer networks is the degree distribution, in multiplex networks a node can have different degrees in each layer, which inform us about the multimodal potential of a city through the different roles that its intersections play. If a city has nodes that are mainly active in one layer but not in others, there is no potential for multimodality. On the contrary, in a multimodal city we expect to find many transport hubs that connect different layers, such as train stations with bicycle and street access, i.e. nodes that are active in different multiplex configurations. Note that even in a multimodally ”optimal” city there will be a high heterogeneity of node activities due to the different speeds and nature of transport modes, implying, for example, a much lower density of nodes necessary for a train network than for a bicycle network. Still, if we had a way to see and compare all combinations of node activities in the system, we could learn how much focus a city puts on connecting different modes. We can define such a fingerprint using the multiplex network formalism. We call the plot that counts the combinations of node activities a city’s overlap census (Figure 2). Similar to edge overlap [30, 31] and multiplex motifs [32] that provide a characterization of multiplexity at the local scale, the overlap census captures the percentage of nodes that are active in different multiplex configurations and provides an "urban fingerprint” of multimodality [6].

To define the overlap census formally, we calculate the degree of each node in layer as . We store degrees in a vector for each layer, k, indicating layers by ‘p’ for pedestrian, ‘b’ for bicycle, ‘r’ for rail infrastructure, and ‘s’ for streets, as before. The use of vectorial variables like A and k instead of those of the aggregated network lets us capture the richness of the system and work in the various layers independently. In Fig. 2(a) we show a schematic of how the overlap census is built: taking the multiplex network, transforming it to its corresponding degree vectors for all layers in the system, and calculating the percentage of nodes that overlaps in different configurations. Note that the overlap census provides more information than a simple counting of nodes, edges, or other single-layer network measures. The multiplex approach addresses the multimodality of a city: it not only counts how many nodes or links there are in each layer, but it shows how they are combined, revealing the possible multimodal mobility combinations in the city. Understanding the possibilities for interchange between mobility layers provide us with a better understanding of urban systems, showing us the complexity and interplay between layers.

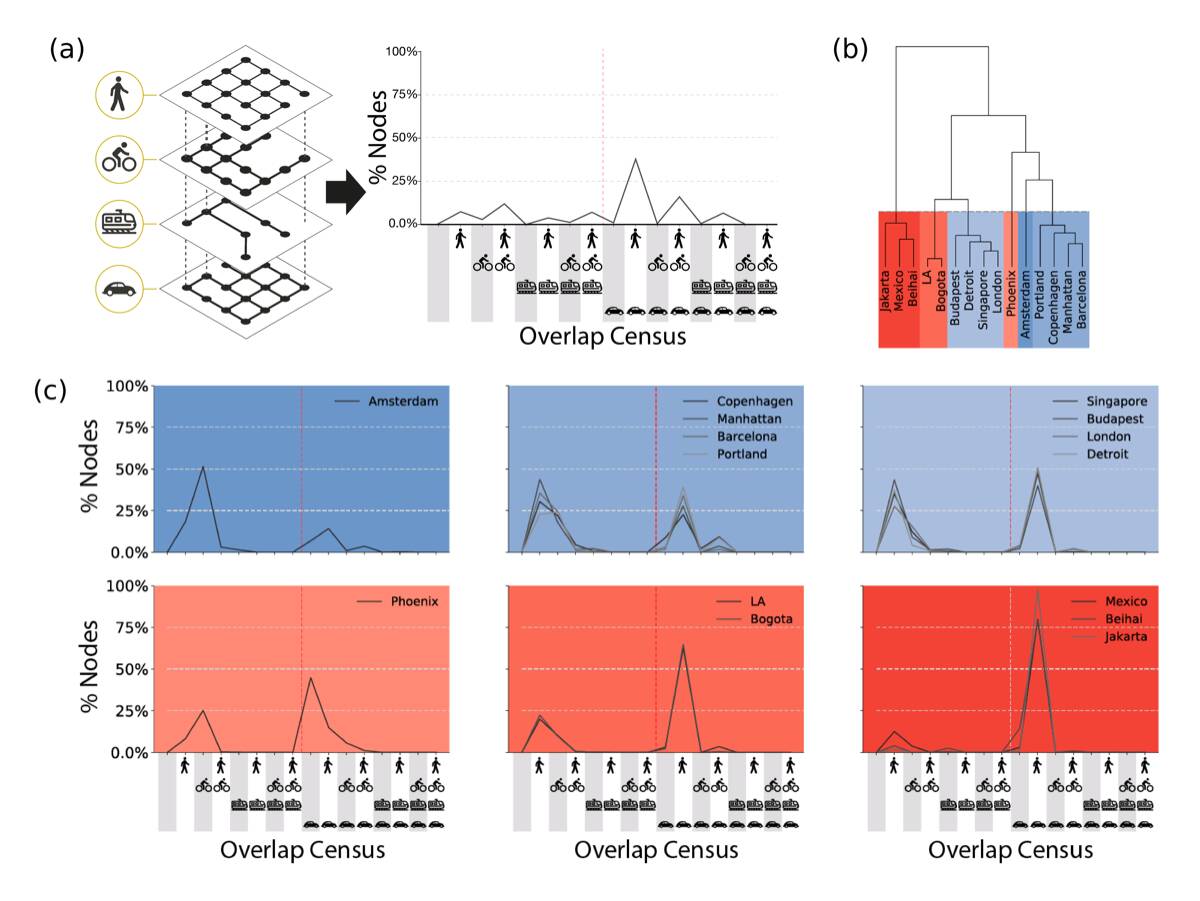

Figure 2: (a) Schematic of multiplex layers in a city (left) and its transformation to the overlap census (right). In the overlap census, the vertical red line gives a visual separation of the left from the right half where nodes become active in the street layer. High spikes in the right half indicate car-centricity. (b)

Clusters of cities based on similarity of their overlap census. We find six different clusters using a k-means algorithm (coloured areas), which explain more than

of the variance.

(c) Overlap census for cities in each cluster. The first one corresponds to Amsterdam (the city with most active nodes in bicycle-only configurations). The Copenhagen-Manhattan-Barcelona-Portland city cluster has many active nodes in pedestrian-only and bicycle-only configurations, representing an active mobility city. The clusters of Los Angeles-Bogota and Mexico-Beihai-Jakarta are car-centric.

Due to the expected heterogeneity of node activities in different layers, the overlap census of a specific city is also expected to be heterogeneous and hard to assess on its own. Therefore, a good way to assess a city’s overlap census is by comparing it with the overlap census of other cities. Explicitly, we find similarities between cities via a k-means algorithm. The algorithm separates the 15 analyzed cities into six different clusters [Fig. 2(b)]. On the left half of the overlap census we show the configurations in which nodes are not active in the street layer, while the right half contains car-related configurations. These clusters of cities are useful to explain similarities in infrastructure planning in different urban transport development paths [33, 34], with clusters of car-centric urbanization (like Mexico, Beihai, and Jakarta) opposed to clusters that show a more multimodally focused evolution of their urban mobility infrastructure (like Copenhagen, Manhattan, Barcelona, and Portland). In the extreme cluster that contains only Amsterdam, close to of nodes are active in the bicycle layer, while in the Mexico-Beihai-Jakarta cluster more than of nodes are active in the street-pedestrian configuration. This concentration of nodes in just one configuration informs us not only about the (sometimes already well-known) mobility character of the city, i.e. Amsterdam being a bicycle-friendly city, but unveils the importance of explicitly considering overlooked layers and their interconnections. For example, Singapore, Budapest, London, and Detroit have two main peaks indicating that most of their nodes are either active in the street-pedestrian or only in the pedestrian configuration, i.e. there are plenty of walkable areas exclusive to pedestrians. This is not the case in Los Angeles and Bogota, where the majority of nodes is active in the car-pedestrian combination, i.e. the pedestrians have to share most of the city with cars.

4 Defining bicycle network growth strategies and quality metrics

Across all cities considered, the data reveal that the pedestrian and street layers are the most connected, while the bicycle and rail layers are the most fragmented, particularly the former (see Table S.I. 1 in SI). The overlap census reflects this fact, as configurations where bicycles are active are less frequent than configurations where they are not active. To quantify such an underdevelopment in the sustainable mobility infrastructure, we focus on the single layer of bicycle networks and on two well-established metrics in bicycle infrastructure quality assessment [35, 36, 37, 15, 38]: connectedness and directness. Connectedness indicates “the ease with which people can travel across the transportation system” [15], and it is related to answering the question “can I go where I want to, safely?”. Directness addresses the question “how far out of their way do users have to travel to find a facility they can or want to use?”, and can be measured by how easy it is to go from one point to another in a city using bicycle infrastructure versus other mobility options, like car travel.

We choose to measure connectedness and directness over the designated bicycle infrastructure only, without considering travel on streets. Although it is possible to cycle on streets, growing evidence from bicycle infrastructure and safety research is unveiling serious safety issues for cycling when mixed with vehicular traffic [39, 40, 41]. To quantify connectedness, we first measure the number of disconnected components of each city’s bicycle network. It is no surprise that car-centric cities have a highly fragmented bicycle infrastructure: for example, London has more than 3,000 disconnected bicycle infrastructure segments. However, even bicycle-friendly cities like Copenhagen have over 300 disconnected bicycle path components – see the connected component size distribution in Fig. 1. This infrastructure fragmentation in the bicycle layer poses a challenge for a city’s multimodal mobility options and for the safety of its cycling citizens [42, 43].

There are various approaches in developing automated strategies for bicycle infrastructure planning. Hyodo et al. [44] have proposed a bicycle route choice model to plan bicycle lanes taking into account facility characteristics. Other studies have used input data from bicycle share systems [45] or origin destination matrices [46] to plan bicycle lanes. More recently, taxi trips have been used to identify susceptible clusters for bicycle infrastructure [47]. Here we attempt an alternative approach: Since hundreds of bicycle network components already exist in most cities, we aim at consolidating the existing infrastructure by making strategic connections between components rather than starting from scratch.

Our approach takes into account the currently available bicycle infrastructure and uses an algorithmic process to improve the network by finding the most important missing links step by step. This way we focus on optimizing the connectedness metric, growing the bicycle infrastructure by making it more connected, merging parts into fewer and fewer components. We develop two iterative greedy algorithms that we check against a random and a minimum investment approach. The first algorithm, Largest-to-Second (L2S), identifies in each step the largest connected component and connects it to the second largest. The second algorithm, Largest-to-Closest (L2C), also identifies the largest connected component, but connects it to the closest of the remaining components. See the SI for details. In both algorithms, components are connected through a direct link between their two closest nodes. We use this technique as an approximation to the underlying street-shortest path – since the most relevant shortest 100 connections typically range from to meters, roughly the length of two blocks, this approximation is reasonable. The algorithms repeat this process until there are no more disconnected components in the network.

To have a random baseline, we compare our algorithms with a Random-to-Closest (R2C) component approach. In each step of this baseline approach, one component is picked at random and connected with the closest remaining one. This baseline allows us to model a scenario where infrastructure is developed following a systematic but random linking approach – in urban development this corresponds to uncoordinated local planning that randomly connects close pieces of bicycle infrastructure. We also implement a second baseline, the extreme case of Closest-Components (CC), which prioritizes connecting the closest two components disregarding their size. This CC approach is equivalent to an “invest as little as possible” development strategy – it builds up a minimum-spanning-tree-like structure. All four algorithms connect components optimizing a well-defined criterion, finding the critical missing links in the network, and adding one new link per iteration. See Fig. 3(a) for a schematic of the four algorithms.

To test how much cities improve their bicycle layers using these four algorithms, we define two metrics on the bicycle layer that operationalize the notion of connectedness: i) , the fraction of nodes inside the largest connected component () compared to the total number of nodes (), and ii) , the fraction of link kilometers inside the largest connected component () compared to the total number of link kilometers in the network (). Both metrics take values between 0 and 1, where 1 means that there is only one connected component. An intermediate value, for example 0.2, means that the largest connected component contains 20% of all bicycle intersections or path kilometers. Executing our algorithms step by step these metrics can only grow, approaching 1 when the process is complete and they terminate. What distinguishes the algorithms is how fast these values grow.

We quantify directness through the metric of: iii) bicycle-car directness , which answers the question “how direct are the average routes of bicycles compared to cars?” For example, if the shortest car-route from west to east Manhattan is 4 km instead of the straight-line distance of 3 km, then the car’s route has a (car) directness of . If the shortest route on the bicycle network between these two points is 5 km, the bicycle’s route has a (bicycle) directness of . Comparing these two values yields a bicycle-car directness of for this route. The bicycle-car directness averages this value over all possible routes. Note that if the bicycle network is a subset of the street network, then cannot be larger than . Formally we write , where is the average directness in layer over all nodes and existing in that layer, with the euclidean distance between nodes and , and the length of the shortest path between them in layer . In each iteration of any of our algorithms, we implement this measure by randomly selecting one thousand pairs of origin-destinations nodes and then averaging the corresponding street/bicycle directness (for the bicycle layer, a route between disconnected components has directness 0).

Finally, in order to measure the cumulative efficiency of our algorithms, we define the metric: iv) as the relative gain of bicycle path kilometers in the largest connected component. For example, means that the algorithm has increased the largest connected component’s original size by 150%. Formally, , where is the sum of kilometers in the largest connected component before the algorithm runs. As with all other metrics, is monotonically increasing with the growth algorithm, and reaches at the end of the dynamics.

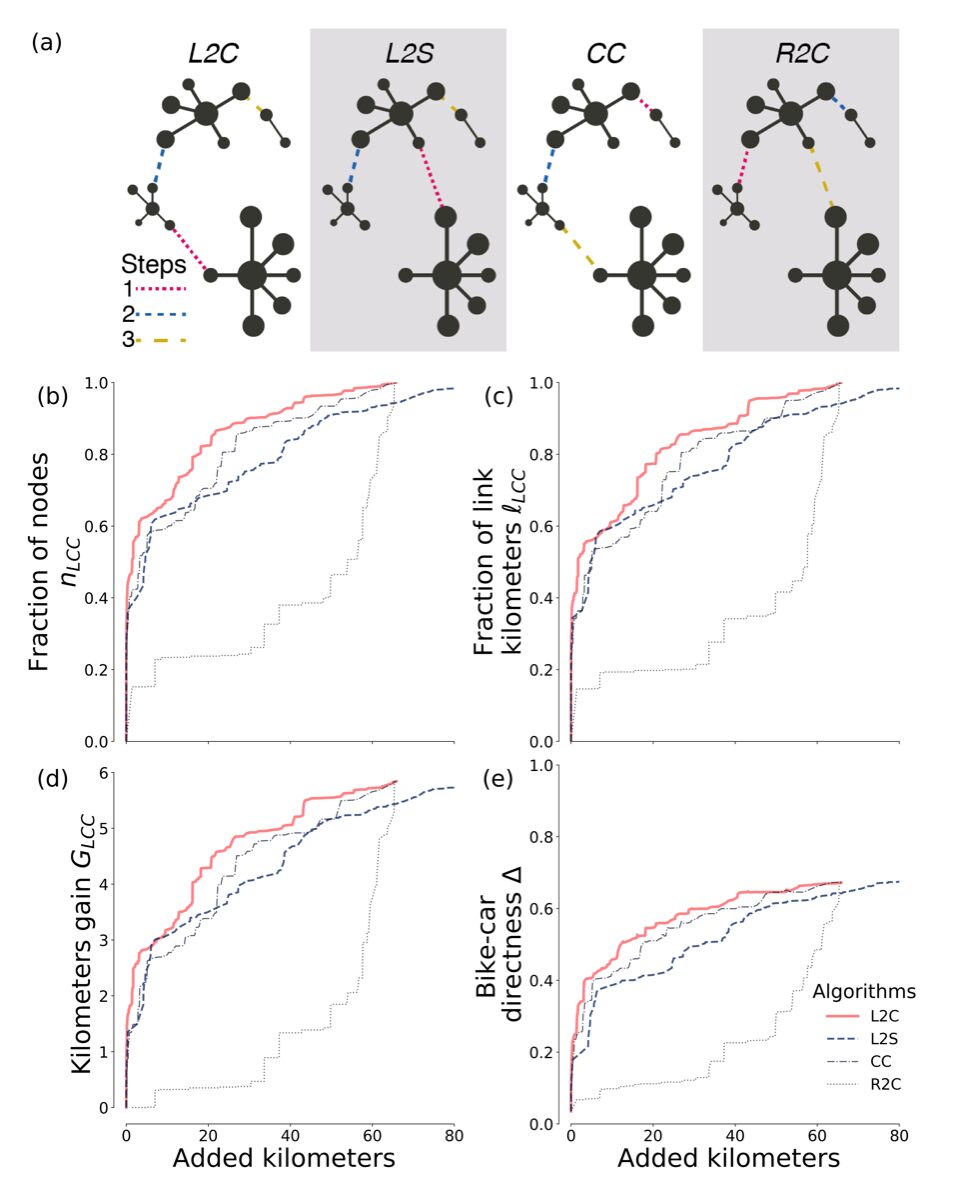

Figure 3: (a) Schematic representation of algorithms to improve bicycle network infrastructure: Largest-to-Closest (L2C) finds the largest component and connects it with the closest one; Largest-to-Second (L2S) connects the largest component with the second largest; Closest-Connected (CC) connects the two closest components; and Random-to-Closest (R2C) picks a random component and connects it to the closest. (b) Normalized increase in nodes inside the largest connected component (). (c) Normalized increase in kilometers inside the largest connected component (). (d) Kilometers gain (). (e) Bicycle-car directness (). Measures in (b-e) are plotted as a function of the sum of added links in kilometers, for the case of Budapest.

5 Growing bicycle networks

We demonstrate in Fig. 3 the power of the various growth strategies by showing the initial state of the bicycle layer for the case of Budapest and its state after 85 iterations of the Largest-to-Closest algorithm: At this point the network has almost quadrupled the size of its largest connected component (from 82 km to 313 km), with a negligible investment of just less than 5 km in new connecting bicycle paths. In terms of connectedness, it goes from to connected. This rapid increase shows that the city can easily improve its bicycle infrastructure with small investments. For some extreme cases, like Bogota, with the same 5 km investment, the bicycle-car directness increases from to almost and connectedness from to . Similar encouraging results hold for other cities (see SI).

The fraction of nodes inside the largest connected component increases rapidly with newly added links for all considered algorithms except Random-to-Closest, Fig. 3(b). The Largest-to-Closest algorithm performs better than the others, even more than Closest-Components which prioritizes minimum investments in the network. Since we are considering bicycle infrastructure, a better practical measure than the number of intersections is the number of kilometers that can be cycled using only designated paths. Figure 3(c) shows how this measure improves in a similarly explosive way: with an investment of only 20 km, the largest connected component will contain of the original bicycle infrastructure. Results for the kilometer gain are shown in Fig. 3(d). Three of the four algorithms rapidly gain new kilometers, but as the invested new kilometers grow, each algorithm follows a different gain rate. Also for this metric, Largest-to-Closest is the algorithm with the best performance.

We also measure the bicycle-car directness ratio, Fig. 3(e). The bicycle-car directness improves as the algorithms consolidate the network. These improvements are, however, indirectly driven by the improvement of connectedness, which boosts the accessibility of bicycles to different areas of the city. The flattening of the curves at a value considerably smaller than 1 (around 0.65) shows that cars will always outperform bicycles in terms of directness, having on average at least 33% shorter paths in the city. This suboptimal flattening is a natural consequence of the algorithms optimizing for connectedness only, not adding “redundant” connections. Nevertheless, the measure shows that, similar to connectedness, with a relatively negligible investment of bicycle path kilometers into the system, the bicycle network’s directness improves drastically, even in the greediest case where the shortest possible missing link is added in every iteration. This result holds for all analyzed cities (see SI). The large differences between the baseline Random-to-Closest and our two algorithms (Largest-to-Second and Largest-to-Closest) show the importance of following an approach that consolidates and grows the largest connected component.

Since every city has a unique overlap census, Fig. 2(c), differences also arise in the state of the bicycle layer and its improvement after applying a growth algorithm. To see this effect, we rank how cities improve using the Largest-to-Closest algorithm in two different investment scenarios: investing either i) 5 km, or ii) 30 km. Figure 4(a) shows how cities improve when investing 5 km of bicycle infrastructure. We see that some cities get above of their existing infrastructure connected, meaning that their bicycle layer only needs a small extension. On the other hand, cities like London, Los Angeles, and Jakarta need a larger investment to improve. Concerning bicycle-car directness, cities reach lower values due to the focus of the algorithms on completeness. In the worst performing cities like Los Angeles, a covered length close to can be reached easily, while the bicycle-car directness ratio stays below , showing that it is much harder to gain an acceptable bicycle infrastructure in cities where cars are overprioritized. The 35 km investment strategy shows that most cities can get at least of their bicycle infrastructure connected, Fig. 4

(b). The worst performing outlier is London, due to its bicycle layer containing more than 3000 connected components scattered around

km (see Table S.I. 1). In terms of bicycle-car directness London also performs badly, while Amsterdam is the best performing one.

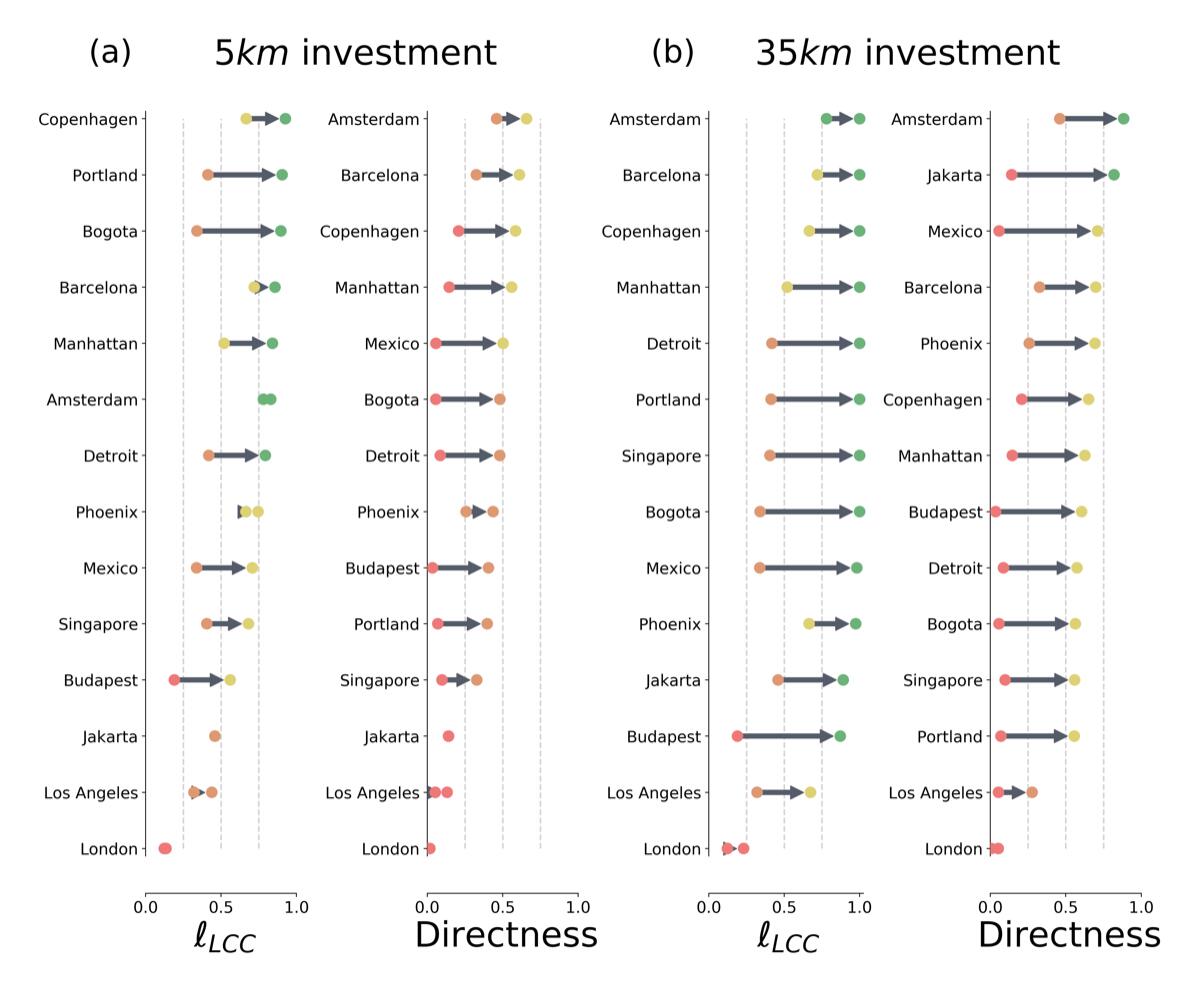

Figure 4: Cities improvement and ranking using the Largest-to-Closest algorithm. We report the improvement and ranking on the fraction of total kilometers of bicycle infrastructure in the largest connected component () and in the bicycle-car directness (). Dotted lines show thresholds of , , and . Plots (a-b) show investment strategies of 5 km and 35 km, respectively.

6 Discussion

We have developed a transport multiplexity fingerprint for cities, and have shown that every city has a unique multiplex profile, with some cities displaying a car-centric profile and others more multimodal profiles. Independently of these profiles, one common characteristic of cities is the fragmentation of their bicycle layers. We have proposed the use of data-driven algorithms to consolidate bicycle network components into connected networks to improve efficiently sustainable transport. We have shown that connecting the bicycle infrastructure in an algorithmic way rapidly improves the connectedness and directness of the bicycle layer. These algorithms, when compared with two baselines, highlight the usefulness of growing the bicycle network on a city-wide scale (considering all areas of the city) rather than randomly adding local bicycle infrastructure. Improving the connectivity of bicycle lanes and paths improves not only the network itself, but also promotes the use of bicycles as means of transportation in a city, improving the health of its inhabitants [48].

Improving bicycle infrastructure one link at the time (by identifying suitable components to connect) is only the first step towards a systematic framework for realistic bicycle network growth strategies. Our current approach is not the last word in this development, since it does not yet explicitly optimize for directness and does not account for transport flow. In these algorithms, each new link works as a bridge between components, potentially having large betweenness centrality. Such high-betweenness segments could become overused and create bottlenecks in practice. To improve this situation, it would be necessary to create links in the network that act as redundant paths. In doing so, directness would also be improved, along with the network’s robustness to interruptions. This is an interesting and possibly demanding task that we leave for future research, as the new links would have to be created in a coherent manner balancing trade-offs between network structure and mobility dynamics. Despite these various possibilities for qualitative updates to the studied growth strategies, our first models have demonstrated the capability to generate substantial improvements with minimal effort.

The use of data-driven algorithms to identify crucially missing links in bicycle infrastructure has the potential to improve the mobility infrastructure of cities efficiently and economically. This approach is not only useful for planning city structure, but could also be used together with simulating mobility flows and to provide insights on how the system will behave after new measures are implemented. We anticipate that a future stream of work should include longitudinal studies in multiple cities, along with algorithmic simulations to first model and simulate possible changes to the transport network, and then to test those models with ground truth data, to compare the evolution of infrastructure and mobility dynamics between cities with different transport priorities.


Icons in Figs. 2(a-b) and 3(a) designed by Freepik for The authors wish to thank Ana Paula Velasco and Roberta Sinatra for their comments and support.


  • [1] Jane Jacobs. The death and life of great American cities. Random House, New York, New York, USA, 1961.
  • [2] Stefan Gössling, Marcel Schröder, Philipp Späth, and Tim Freytag. Urban Space Distribution and Sustainable Transport. Transport Reviews, 36(5):659–679, 2016.
  • [3] Michael Szell. Crowdsourced Quantification and Visualization of Urban Mobility Space Inequality. Urban Planning, 3(1):1, 2018.
  • [4] R. G. Morris and M. Barthelemy. Transport on coupled spatial networks. Physical Review Letters, 109(12):128703, 2012.
  • [5] Emanuele Strano, Saray Shai, Simon Dobson, and Marc Barthelemy. Multiplex networks in metropolitan areas: generic features and local effects. Journal of the Royal Society, Interface, 12(111):20150651, 2015.
  • [6] Alberto Aleta, Sandro Meloni, and Yamir Moreno. A Multilayer perspective for the analysis of urban transportation systems. Scientific Reports, 7, 2017.
  • [7] Jonas Eliasson. Lessons from the Stockholm congestion charging trial. Transport Policy, 15(6):395–404, 2008.
  • [8] Hélène Littke. Revisiting the San Francisco parklets problematizing publicness, parks, and transferability. Urban Forestry and Urban Greening, 15:165–173, 2016.
  • [9] L. Bliss. How to cut 10,000 parking spaces without anyone complaining. Citylab, 2019.
  • [10] Mark J. Nieuwenhuijsen and Haneen Khreis. Car free cities: Pathway to healthy urban living, 2016.
  • [11] Jennifer Dill and Theresa Carr. Bicycle Commuting and Facilities in Major U.S. Cities: If You Build Them, Commuters Will Use Them. Transportation Research Record: Journal of the Transportation Research Board, 1828(1):116–123, 2013.
  • [12] Jessica E. Schoner and David M. Levinson. The missing link : bicycle infrastructure networks and ridership in 74 US cities. Transportation, 41(6):1187–1204, 2014.
  • [13] Angela Hull and Craig O’Holleran. Bicycle infrastructure: can good design encourage cycling? Urban, Planning and Transport Research, 2(1):369–406, 2014.
  • [14] Ralph Buehler and Jennifer Dill. Bikeway Networks: A Review of Effects on Cycling. Transport Reviews, 36(1):9–27, 2016.
  • [15] Hannah Twaddell (ICF), Eliot Rose (ICF), Joseph Broach (PSU), Jennifer Dill (PSU), Kelly Clifton (PSU), Claire Lust (PSU), Kimberly Voros (Alta), Hugh Louch (Alta), and Erin David (Alta). Measuring Multimodal Network Connectivity, 2018.
  • [16] Geoff Boeing. OSMnx: New methods for acquiring, constructing, analyzing, and visualizing complex street networks. Computers, Environment and Urban Systems, 65:126–139, 2017.
  • [17] Mordechai Haklay. How good is volunteered geographical information? A comparative study of OpenStreetMap and ordnance survey datasets. Environment and Planning B: Planning and Design, 37(4):682–703, 2010.
  • [18] Jean François Girres and Guillaume Touya. Quality Assessment of the French OpenStreetMap Dataset. Transactions in GIS, 14(4):435–459, 2010.
  • [19] Colin Ferster, Jaimy Fischer, Kevin Manaugh, Trisalyn Nelson, and Meghan Winters. Using OpenStreetMap to inventory bicycle infrastructure: A comparison with open data from cities. International Journal of Sustainable Transportation, pages 1–10, 2019.
  • [20] Hugo Barbosa-Filho, Marc Barthelemy, Gourab Ghoshal, Charlotte R. James, Maxime Lenormand, Thomas Louail, Ronaldo Menezes, José J. Ramasco, Filippo Simini, and Marcello Tomasini. Human Mobility: Models and Applications. 2017.
  • [21] Hartwig H. Hochmair, Dennis Zielstra, and Pascal Neis. Assessing the Completeness of Bicycle Trail and Designated Lane Features in OpenStreetMap for the United States and Europe Revised. pages 111–137. 2012.
  • [22] S Boccaletti, G Bianconi, R Criado, C I del Genio, J. Gómez-Gardeñes, M Romance, I. Sendiña-Nadal, Z Wang, and M Zanin. The structure and dynamics of multilayer networks, 2014.
  • [23] Mikko Kivelä, Alex Arenas, Marc Barthelemy, James P Gleeson, Yamir Moreno, and Mason A. Porter. Multilayer networks. Journal of Complex Networks, 2(3):203–271, 2014.
  • [24] Federico Battiston, Vincenzo Nicosia, and Vito Latora. The new challenges of multiplex networks: Measures and models. European Physical Journal: Special Topics, 226(3):401–416, 2017.
  • [25] Sergio Porta, Paolo Crucitti, and Vito Latora. The network analysis of urban streets : a primal approach. Environment and Planning B: Planning and Design, 33(5):705–726, 2006.
  • [26] Emanuele Strano, Vincenzo Nicosia, Vito Latora, Sergio Porta, and Marc Barthélemy. Elementary processes governing the evolution of road networks. Scientific Reports, 2(1):296, 2012.
  • [27] Marc Barthelemy, Patricia Bordin, Henri Berestycki, and Maurizio Gribaudi. Self-organization versus top-down planning in the evolution of a city. Scientific Reports, 3(1):2153, 2013.
  • [28] Riccardo Gallotti and Marc Barthelemy. Anatomy and efficiency of urban multimodal mobility. Scientific Reports, 4(1):6911, 2014.
  • [29] Minjin Lee, Hugo Barbosa-Filho, Hyejin Youn, Petter Holme, and Gourab Ghoshal. Morphology of travel routes and the organization of cities. Nature Communications, 8(1):2229, 2017.
  • [30] Ginestra Bianconi. Statistical mechanics of multiplex networks: Entropy and overlap. Physical Review E - Statistical, Nonlinear, and Soft Matter Physics, 87(6):062806, 2013.
  • [31] Federico Battiston, Vincenzo Nicosia, and Vito Latora. Structural measures for multiplex networks. Physical Review E - Statistical, Nonlinear, and Soft Matter Physics, 89(3):1–16, 2014.
  • [32] Federico Battiston, Vincenzo Nicosia, Mario Chavez, and Vito Latora. Multilayer motif analysis of brain networks. Chaos, 27(4):047404, 2017.
  • [33] Jean-Paul Rodrigue, Claude Comtois, and Brian Slack. The Geography of Transport Systems (Third Edition). Routledge, 2013.
  • [34] Rémi Louf and Marc Barthelemy. A typology of street patterns. Journal of the Royal Society, Interface / the Royal Society, 11(101):20140924, 2014.
  • [35] Kevin J. Krizek and Rio W. Roland. What is at the end of the road? Understanding discontinuities of on-street bicycle lanes in urban settings. Transportation Research Part D: Transport and Environment, 10(1):55–68, 2005.
  • [36] Urban Movement. Cycling in the city, 2013.
  • [37] Urban Systems. Pedestrian and Bicycle Facility Design Guidance, 2014.
  • [38] Ben Beck, Derek Chong, Jake Olivier, Monica Perkins, Anthony Tsay, Adam Rushford, Lingxiao Li, Peter Cameron, Richard Fry, and Marilyn Johnson. How much space do drivers provide when passing cyclists? Understanding the impact of motor vehicle and infrastructure characteristics on passing distance. Accident Analysis & Prevention, 2019.
  • [39] Conor C.O. Reynolds, M Anne Harris, Kay Teschke, Peter A Cripton, and Meghan Winters. The impact of transportation infrastructure on bicycling injuries and crashes: A review of the literature. Environmental Health: A Global Access Science Source, 8(1):47, 2009.
  • [40] Kay Teschke, M. Anne Harris, Conor C.O. Reynolds, Meghan Winters, Shelina Babul, Mary Chipman, Michael D. Cusimano, Jeff R. Brubacher, Garth Hunte, Steven M. Friedman, Melody Monro, Hui Shen, Lee Vernich, and Peter A. Cripton. Route infrastructure and the risk of injuries to bicyclists: A case-crossover study. American Journal of Public Health, 102(12):2336–2343, 2012.
  • [41] John Pucher and Ralph Buehler. Safer Cycling Through Improved Infrastructure. American Journal of Public Health, 106(12):2089–2091, 2016.
  • [42] Jennifer Dill. Bicycling for transportation and health: The role of infrastructure. Journal of Public Health Policy, 30(SUPPL. 1):95–110, 2009.
  • [43] Elijah Steven Chataway, Sigal Kaplan, Thomas Alexander Sick Nielsen, and Carlo Giacomo Prato. Safety perceptions and reported behavior related to cycling in mixed traffic: A comparison between Brisbane and Copenhagen. Transportation Research Part F: Traffic Psychology and Behaviour, 23:32–43, 2014.
  • [44] Tetsuro Hyodo, Norikazu Suzuki, and Katsumi Takahashi. Modeling of Bicycle Route and Destination Choice Behavior for Bicycle Road Network Plan. Transportation Research Record: Journal of the Transportation Research Board, 1705(1):70–76, 2000.
  • [45] Jie Bao, Sijie Ruan, Tianfu He, Yu Zheng, Yanhua Li, Sijie Ruan, Yanhua Li, and Yu Zheng. Planning Bike Lanes based on Sharing-Bikes’ Trajectories. In Proceedings of the 23rd ACM SIGKDD International Conference on Knowledge Discovery and Data Mining - KDD ’17, pages 1377–1386, New York, New York, USA, 2017. ACM Press.
  • [46] Antonio Mauttone, Gonzalo Mercadante, María Rabaza, and Fernanda Toledo. Bicycle network design: Model and solution algorithm. In Transportation Research Procedia, volume 27, pages 969–976. Elsevier, 2017.
  • [47] Meisam Akbarzadeh, Syed Sina Mohri, and Ehsan Yazdian. Designing bike networks using the concept of network clusters. Applied Network Science, 3(1):12, 2018.
  • [48] Natalie Mueller, David Rojas-Rueda, Maëlle Salmon, David Martinez, Albert Ambros, Christian Brand, Audrey de Nazelle, Evi Dons, Mailin Gaupp-Berghausen, Regine Gerike, Thomas Götschi, Francesco Iacorossi, Luc Int Panis, Sonja Kahlmeier, Elisabeth Raser, and Mark Nieuwenhuijsen. Health impact assessment of cycling network expansions in European cities. Preventive Medicine, 109:62–70, 2018.

Supplementary information


Table S.I. 1 shows measures for the fifteen analyzed cities. For each layer in a city we report the number of nodes and the number of connected components .

width=0.6keepaspectratio Walk Bike Rail Drive Area Amsterdam 221.77 1 23,321 355 34,529 8 1,096 1 15,125 Barcelona 104.80 1 20,203 122 75,53 15 249 1 10,393 Beihai 2,380 1 2,026 0 0 3 59 1 2,192 Bogota 614.45 1 81,814 171 97,60 12 166 1 62,017 Budapest 529.96 1 73,172 257 10,494 20 1,588 1 37,012 Copenhagen 100.04 1 30,746 321 13,980 3 276 1 15,822 Detroit 431.43 1 47,828 53 3,663 3 20 1 28,462 Jakarta 5,679.87 1 140,042 19 248 6 58 1 138,388 Los Angeles 1,315.26 1 89,543 230 14,577 9 173 1 71,091 London 1,637.13 1 270,659 3023 62,398 38 2988 1 179,782 Manhattan 73.43 1 13,326 105 3,871 5 349 1 5,671 Mexico 1,489.42 1 108,033 52 5,218 17 370 1 95,375 Phoenix 1,348.43 1 111,363 141 35,631 4 105 1 73,688 Portland 382.22 1 50,878 198 24,252 2 230 1 35,025 Singapore 640.10 1 82,808 104 12,981 14 683 1 50,403

Table S.I. 1: Measures for the administrative area of analyzed cities. The number of connected components () and nodes () for each layer in all cities of our dataset are highly diverse due to the varying developmental levels and focus of transport.

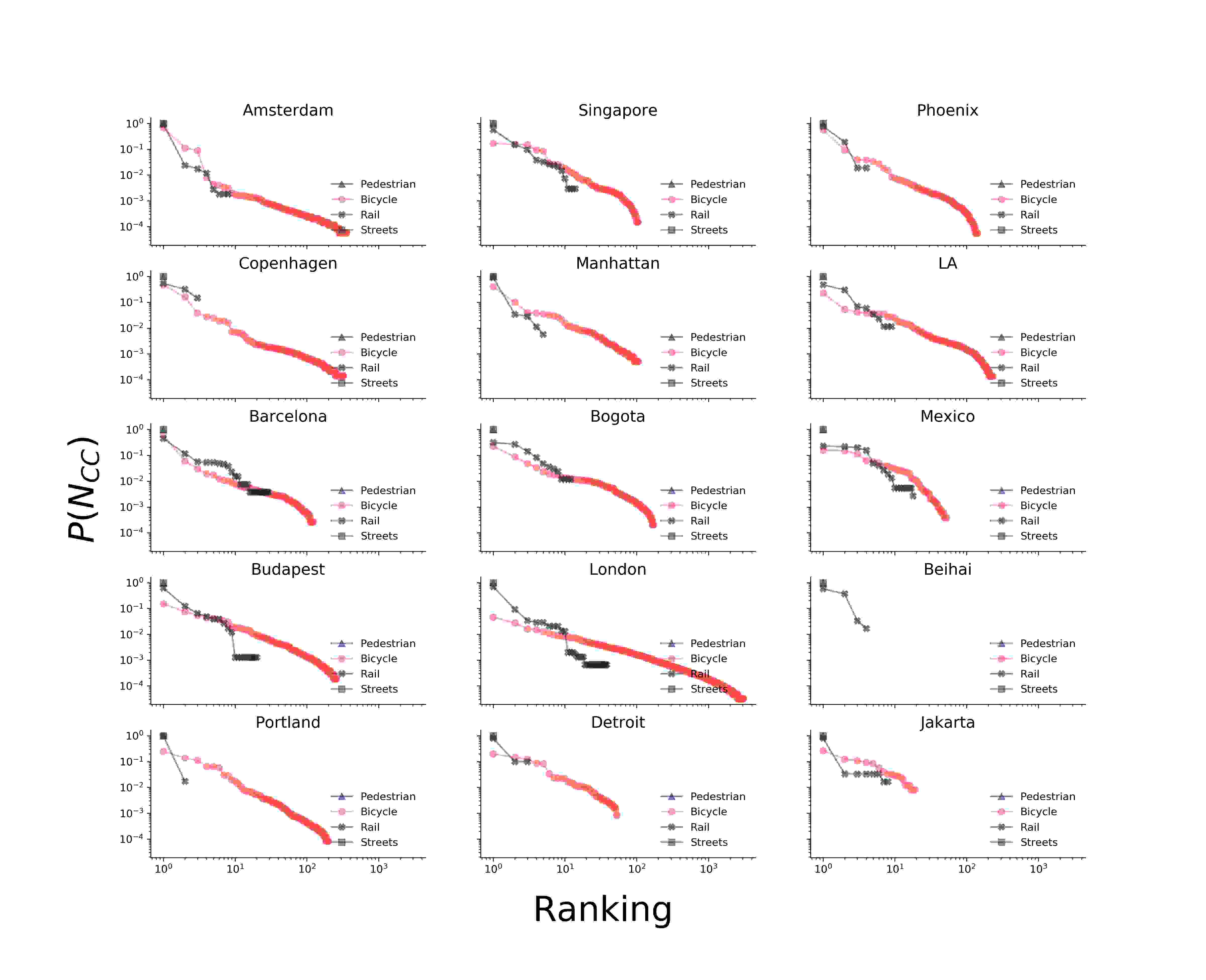

Figure S.I.1 shows the connected component size distribution for all considered layers and cities.

Figure S.I.1: The connected component size distribution [] for all cities and layers is well connected except in the bicycle layer. London has the most fragmented bicycle infrastructure layer, with more than 3000 components


We develop two main algorithms to improve the bicycle layer. The first algorithm, Largest-to-Second, identifies in each step the largest connected component and connects it to the second largest. The second algorithm, Largest-to-Closest, also identifies the largest connected component, but in each step connects it to the closest of the remaining components.

To evaluate our algorithms we test them against a random baseline, Random-to-Closest. In each step, Random-to-Closest picks a component at random and connects it to the closest of the remaining components. We implement another baseline, the extreme case of Closest-Components, which prioritizes connecting the closest two components.

1:procedure L2S
4:     loop for n-1 components in wcc:
5:     sort wcc by components size
9:     goto loop.
10:     close;
Algorithm 1 Largest-to-Second
1:procedure L2C
4:     loop for n-1 components in wcc:
5:     sort wcc by components size
10:     goto loop.
11:     close;
Algorithm 2 Largest-to-Closest
1:procedure R2C
4:     loop for n-1 components in wcc:
9:     goto loop.
10:     close;
Algorithm 3 Random-to-Closest
1:procedure CC
4:     loop for n-1 components in wcc:
10:     goto loop.
11:     close;
Algorithm 4 Closest-Components

Bicycle network improvement

Here we show the improvement of the bicycle network after the implementation of the algorithms. We measure the improvement with four different metrics. Two of them implement the notion of connectedness: i) Fraction of nodes inside the largest connected component compared to the total number of nodes in the bicycle layer, and ii) the fraction of link kilometers inside the largest connected component. In Figure S.I.2 and S.I.3 we show these two measures for fourteen different cities. We also quantify iii) bicycle-to-car directness to answer the question “how direct are the average routes of bicycles compared to cars?”. Finally, in order to measure the cumulative efficiency of our algorithms, we define the metric: iv) as the relative gain of bicycle path kilometers in the largest connected component. In Figures S.I.4 and S.I.5 we report these two measures for all algorithms and cities considered.

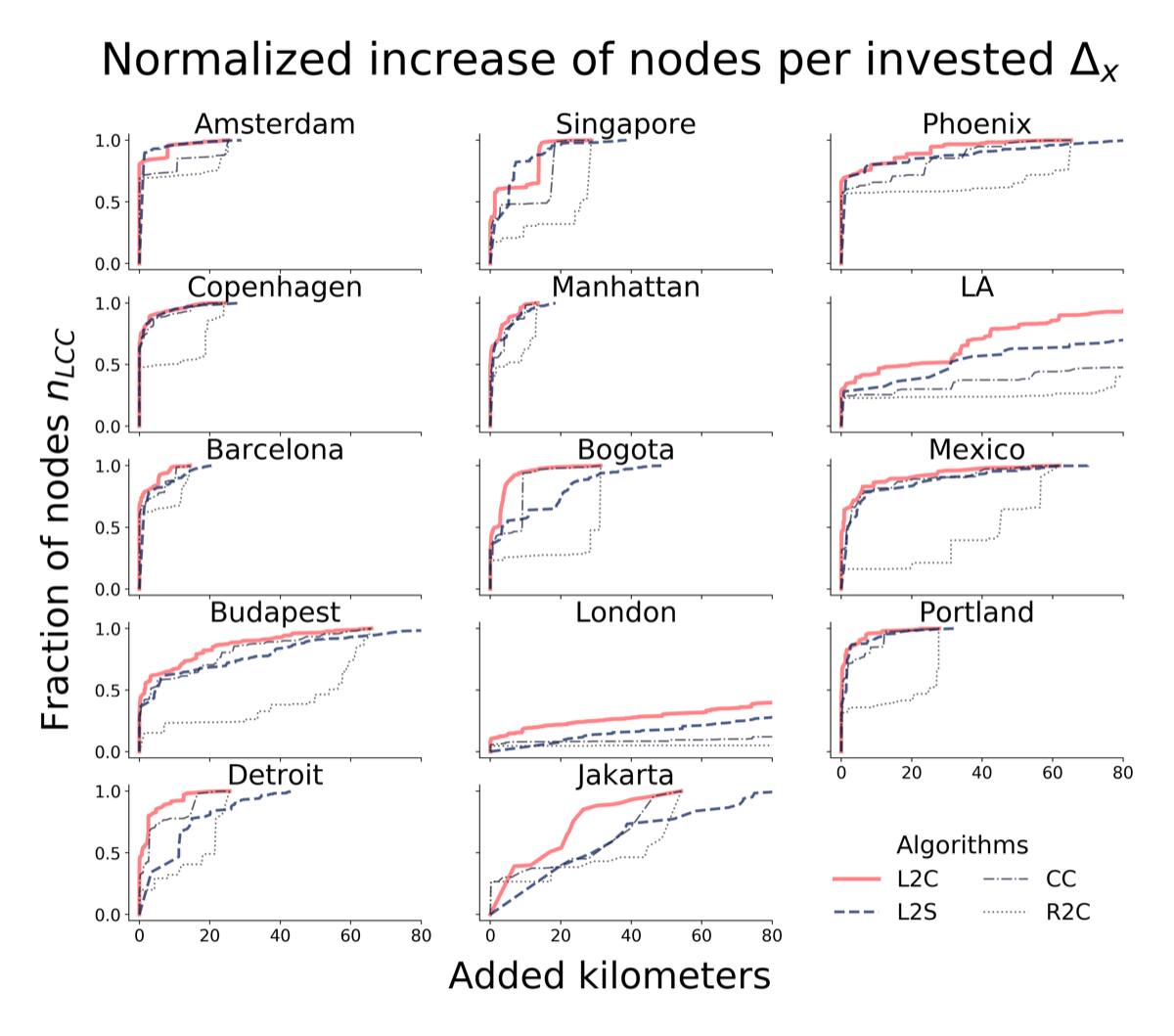

Figure S.I.2: Normalized increase in nodes inside the largest connected component ().

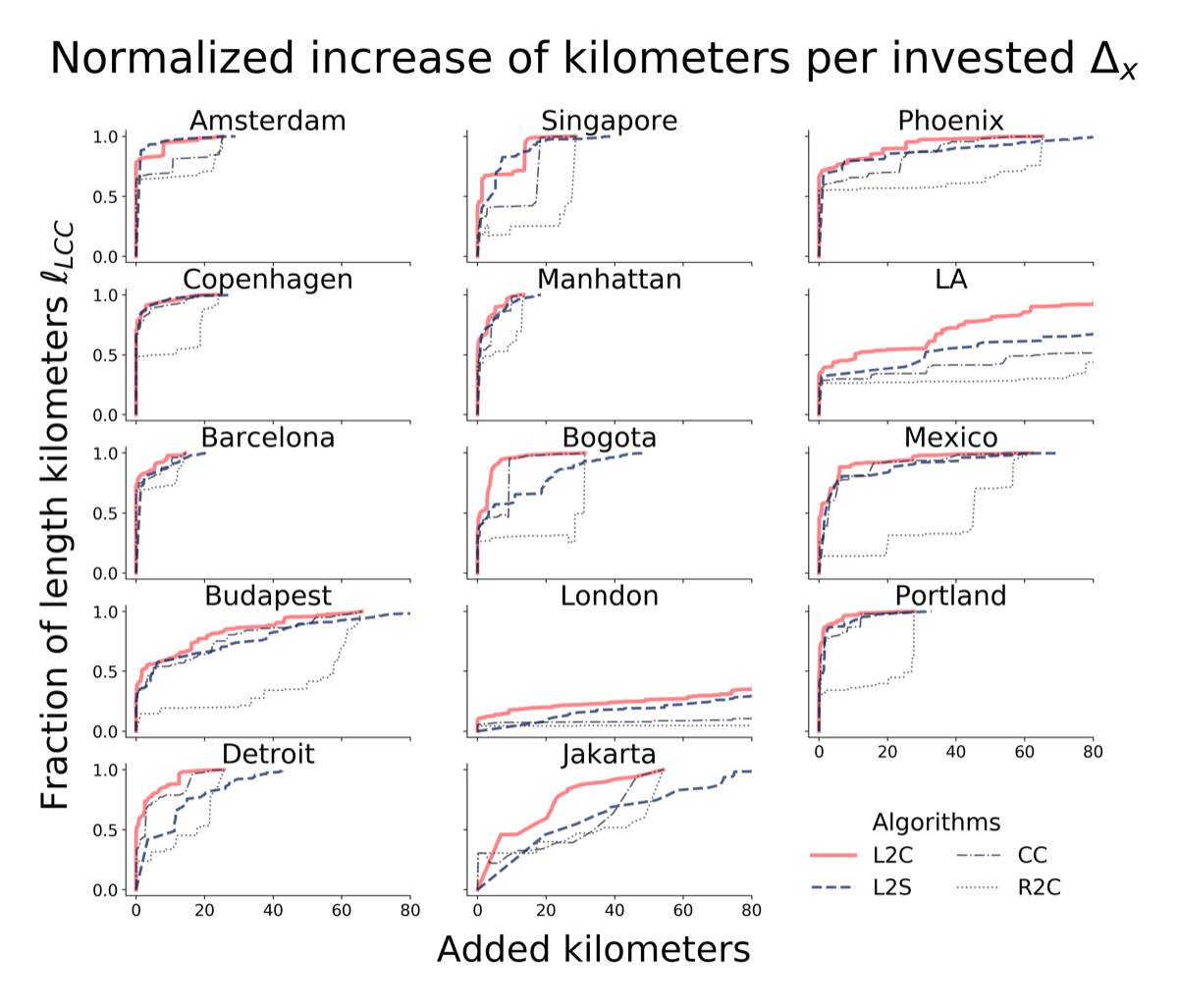

Figure S.I.3: Normalized increase in kilometers inside the largest connected component ().

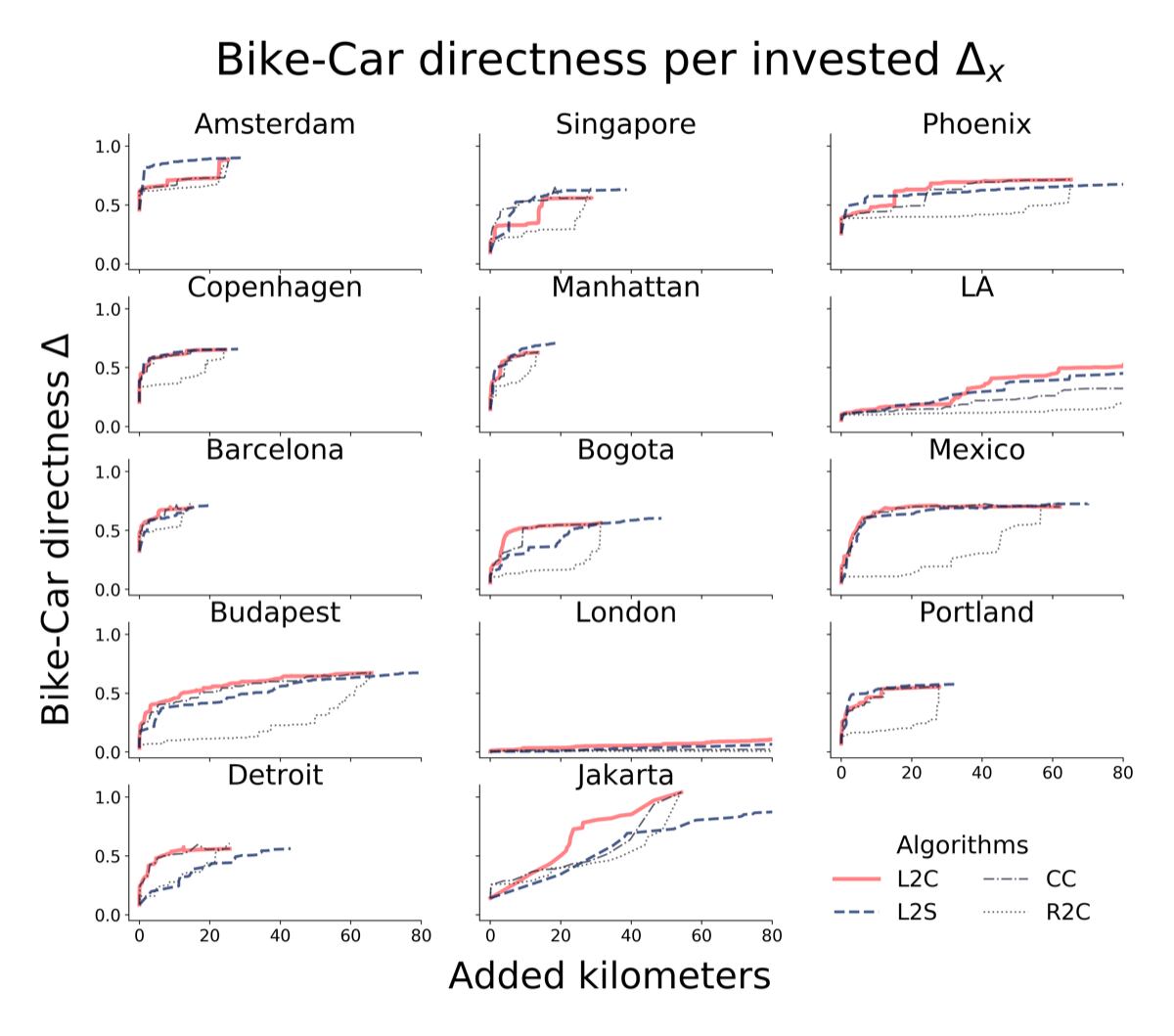

Figure S.I.4: Bike-car directness per invested kilometers.

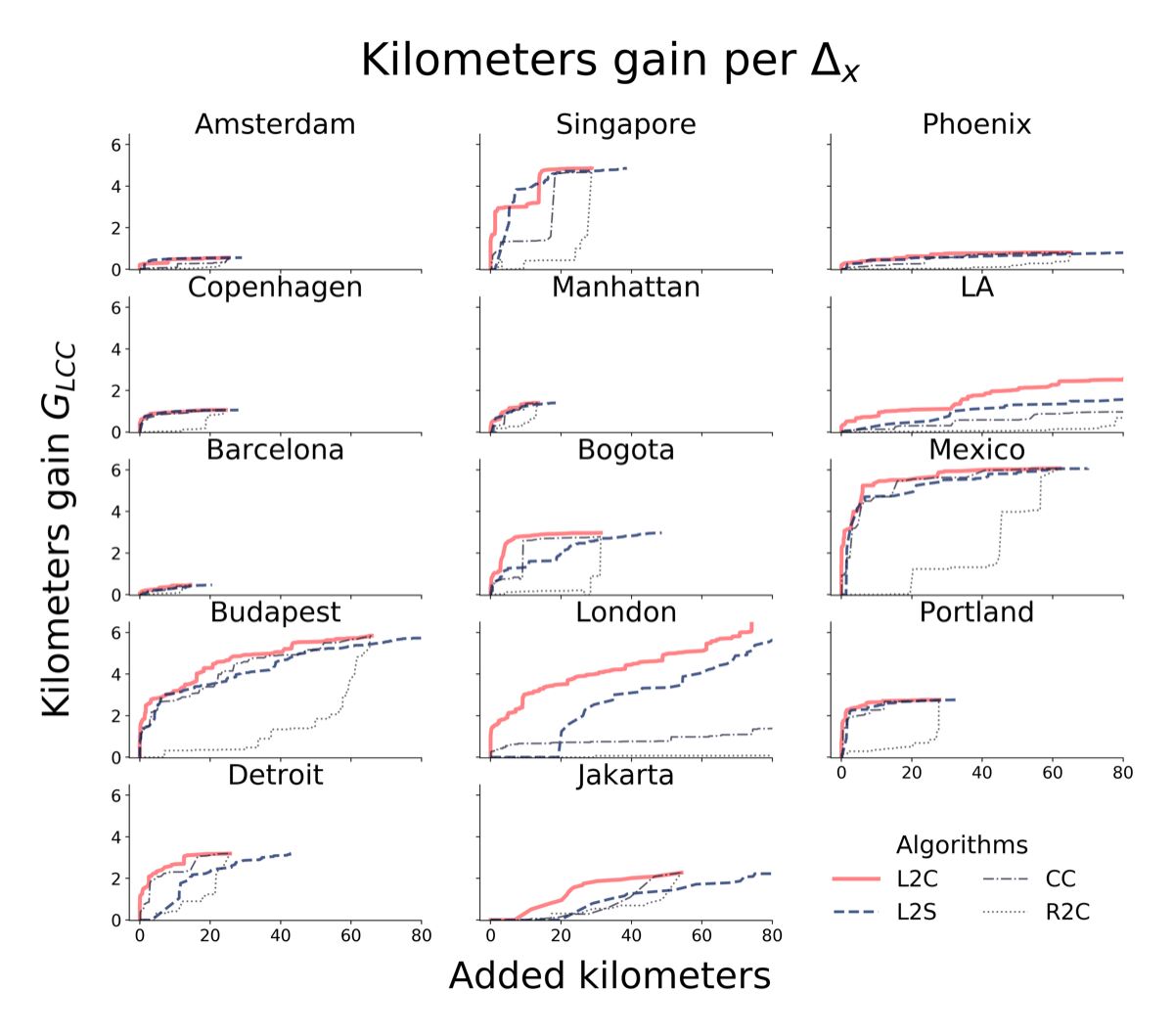

Figure S.I.5: Kilometers gain in the largest connected component.
