1 Introduction
Directed graphical models (DGMs) are widely used in causal reasoning and predictive analytics where prediction interpretability is desirable [32]
. A typical use case of these models is in answering “whatif” queries over domains that work with sensitive information. For example, DGMs are used in medical diagnosis for answering questions like what is the most probable disease given a set of symptoms
[43]. In learning such models, it is common that the model’s graph structure is publicly known. For example, in the case of a medical data set the dependencies between several physiological symptoms and diseases are well established and standardized. However, the parameters of the model have to be learned from observations that correspond to the random variables of the model. These observations may contain sensitive information, as in the case of medical applications; thus, learning and publicly releasing the parameters of the probabilistic model may lead to privacy violations
[46, 59]. This establishes the need for privacypreserving learning mechanisms for DGMs.In this paper, we focus on the problem of privacypreserving learning of the parameters of a DGM. For our privacy measure, we use differential privacy (DP) [17]
– the defacto standard for privacy. We consider the case when the structure of the target DGM is publicly known and the parameters of the model are learned from fully observed data. In this case, all parameters can be estimated via counting queries over the input observations (also referred to as
data set in the remainder of the paper). One way to ensure privacy is to add suitable noise to the observations using the standard Laplace mechanism [17]. Unfortunately, this method is dataindependent, i.e., the noise added to the base observations is agnostic to properties of the input data set and the structure of the DGM, and degrades utility. To address this issue, we turn to datadependent methods, i.e., methods in which the added noise is customized to the properties of the input data sets [37, 62, 10, 2, 56, 55, 33].We propose a datadependent, DP algorithm for learning the parameters of a DGM over fully observed data. Our goal is to minimize errors in arbitrary inference queries that are subsequently answered over the learned DGM. We outline our main contributions as follows:
(1) Explicit datadependent privacybudget allocation:
Our algorithm computes the parameters of the conditional probability distribution of each random variable in the DGM via separate measurements from the input data set; this gives rise to an opportunity to optimize the privacy budget allocation across the different variables with the objective of reducing the error in inference queries. We formulate this objective in a datadependent manner; the objective is informed by both the private input data set and the public graph structure of the DGM. To the best of our knowledge this is the first paper to propose
explicit datadependent privacybudget allocation for DGMs. We evaluate our algorithm on four benchmark DGMs. We demonstrate that our scheme only requires a privacy budget of to yield the same utility that a standard dataindependent method achieves with .(2) New theoretical results: To preserve privacy we add noise to the parameters of the DGM. To understand how this noise propagates to inference queries, we provide two new theoretical results on the upper and lower bound of the error of inference queries. The upper bound has an exponential dependency on the treewidth of the input DGM while the lower bound depends on its maximum degree. We also provide a formulation to compute the sensitivity [35] of the parameters associated with a node of a DGM targeting only the probability distribution of its child nodes only.
2 Background
We review basic background material for the problems and techniques discussed in this paper.
Directed Graphical Models:
A directed graphical model (DGM) or a Bayesian network is a probabilistic model that is represented as a directed acyclic graph
. The nodes of the graph represent random variables and the edges encode conditional dependencies between the variables. The graphical structure of the DGM represents a factorization of the joint probability distribution of these random variables. Specifically, given a DGM with graph , let be the random variables corresponding to the nodes of and denote the set of parents in for the node corresponding to variable . The joint probability distribution factorizes as where each factorcorresponds to a conditional probability distribution (CPD). For DGMs with discrete random variables, each CPD can be represented as a table of parameters
where each parameter corresponds to a conditional probability and and denote variable assignments and .A key task in DGMs is parameter learning. Given a DGM with known graph structure , the goal of parameter learning is to estimate each a task solved via maximum likelihood estimation (MLE). In the presence of fully observed data over the random variables of ^{1}^{1}1The attributes of the dataset become the nodes of the DGM’s graph. For the remainder of the paper we use them interchangeably depending on the context., the maximum likelihood estimates of the CPD parameters take the closedform [32]:
(1)
where denotes the number of records in such that .
After learning, the fully specified DGM can be used to answer inference queries, i.e., queries that seek to compute the marginal or conditional probabilities of certain events (variables) of interest. Inference queries can also involve evidence, in which case the assignment of a subset of nodes is fixed. Inference queries are of three types: (1) marginal inference, (2) conditional inference, and (3) maximum a posteriori (MAP) inference. We refer the reader to Appendix 8.1 for more details.
For DGMs, inference queries can be answered exactly by the variable elimination (VE) algorithm [32], which is described in detail in Appendix 8.1.1. The basic idea is that we "eliminate" one variable at a time following a predefined order over the graph nodes. Let denote a set of probability factors (initialized with all the CPDs of the DGM) and denote the variable to be eliminated. First, all probability factors involving are removed from and multiplied together to generate a new product factor. Next is summed out from this combined factor generating a new factor that is entered into . VE corresponds to repeated sumproduct computations: .
Differential Privacy: We define differential privacy as follows:
Definition 2.1.
An algorithm satisfies differential privacy (DP), where is a privacy parameter, iff for any two datasets and that differ in a single record, we have
(2)
A result by [47, 31, 39] shows that the privacy guarantee of a differentially private algorithm can be amplified by a preceding sampling step. Let be an DP algorithm and is an input data set. Let be an algorithm that runs on a random subset of obtained by sampling it with probability .
Lemma 2.1.
Algorithm will satisfy DP where
3 DataDependent Differentially Private Parameter Learning for DGMs
We start with an overview of differntially private learning for DGMs over fully observed data and our datadependent algorithm for DP. We then present our algorithm in detail.
3.1 Problem and Approach Overview
Let be a sensitive data set of size with attributes and let be the DGM of interest. The graph structure of defined over the attribute set is publicly known. Our goal is to learn the parameters , i.e., the CPDs of , in a datadependent differentially private manner from . In addition to guaranteeing DP, we seek to optimize the way noise is introduced in the learned parameters such that the error in inference queries over the DP DGM is minimized. Errors are defined by comparing the inference results over the DP DGM to the inference results obtained over the MLE DGM with no noise injection.
We build upon two observations to solve the above problem:
(1) Parameters of DGM
can be estimated separately via counting queries over the empirical marginal table (joint distribution
) of the attribute set .(2) The factorization over decomposes the overall DP learning problem into a series of separate DP learning subproblems (one for each CPD). As a result the total privacy budget has to be divided among these subproblems. However, owing to the structure of the graph and the data set, certain nodes will have more impact on an inference query than others. Hence, allocating more budget (and thereby getting better accuracy) to these nodes will result in reduced overall error for the inference queries. Thus, careful privacy budget allocation across the marginal tables can lead to better utility guarantees as compared to a naive budgeting scheme that assigns equal budget to all marginal tables.
The above observations are key to our proposed algorithm, which computes the parameters of from their respective marginal tables with datadependent noise injections to guarantee DP. Our method is outlined in Algorithm 2 and proceeds in two stages. In the first stage, we obtain preliminary noisy measurements of the parameters of , which are used along with graph specific properties (i.e., the height and outdegree of each node) to formulate a datadependent optimization objective for privacy budget allocation. The solution of this objective is then used in the second stage to compute the final parameters. In summary, if is the total privacy budget available, we spend of it to obtain preliminary parameter measurements in Stage I and the remaining is used for the final parameter computation in Stage II, after optimal allocation across the marginal tables.
Next we describe our algorithm in detail and highlight how we address two core technical challenges in our approach: (1) how to reduce the privacy budget cost for the first stage (equivalently increase ) (see Alg. 2, Lines 13), and (2) what properties of the input dataset and graph should the optimization objective be based on (see Alg. 2, Lines 510).
3.2 Algorithm Description
We now describe the two stages of our core method in turn:
Stage I – Formulation of optimization objective: First, we handle the tradeoff between the two parts of the total privacy budget and . While one wants to maximize to reduce the amount of noise in the final parameters, sufficient budget is required to obtain good estimates of the statistics of the data set that are required to form the datadependent budget allocation objective. To handle this tradeoff, we use Lemma 2.1 to improve the accuracy of the optimization objective computation (Alg. 2, Lines 12). This allows us to assign a relatively low value to so that our budget for the final parameter computation is increased. Recall from Lemma 2.1 that if we perform a preceding sampling step before a DP mechanism, then the overall mechanism is DP where . Hence, for large values of and sampling rate , where LHS is the error for the above mechanism while RHS is the error of a standard DP mechanism (assuming Laplace mechanism – Appendix 8.1.2).
Next, we estimate the parameters on the aforementioned sampled data set via the procedure ComputeParameters (described below and outlined in Algorithm 1) using budget allocation (Alg. 2, Lines 34). Note that, is only required for the optimization objective formulation and is different from the final parameters (Alg. 2, Line 13). Hence, for we use a naive allocation of policy of equal privacy budget for all tables by using ComputeParameters (Alg. 2, Line 4).
Finally, lines 512 of Algorithm 2 correspond to the estimation of the privacy budget optimization objective that depends on the data set and graph structure and is detailed in Section 3.3.
Stage II – Final parameter computation: We solve for the optimal privacy budget allocation from and compute the final parameters using ComputeParameters (Alg. 2, Lines 1315).
Procedure ComputeParameters: This procedure is outlined in Algorithm 1. Its goal is, given a privacy budget allocation , to derive the parameters of in a differentially private manner. To this end, the algorithm first materializes the table for a subset of attributes (Alg. 1, Line 2), and then injects noise drawn from into each of its cells (Alg. 1, Line 3) to generate [17]. Since each entry of corresponds to a counting query, the sensitivity is 1. Next, it converts to a marginal table , i.e., joint distribution (Alg. 1, Line 4). This is followed by ensuring that all s are mutually consistent on all subsets of attributes using the method described in Appendix 8.2.1. Finally, the algorithm derives (the noisy estimate of ) from (Lines 710). Note that deriving the marginal table from instead of directly computing it results in lower error (since the sensitivity of is ).
3.3 Optimal Privacy Budget Allocation
Our goal is to find the optimal privacy budget allocation over the marginal tables, for such that the error in the subsequent inference queries on is minimized.
Observation I: A more accurate estimate of the parameters of will result in better accuracy for the subsequent inference queries. Hence, we focus on reducing the total error of the parameters of . From Eq (1) and our Laplace noise injection (Alg. 1, Line 3), for a privacy budget of , the value of a parameter of the DGM computed from the noisy marginal tables is expected to be
(3)
From the rules of standard error propagation
[20], the error in is

(4)
where denotes the number of records in with . Thus the mean error for the parameters of is where is the domain of the attribute set . Since using the true values of the counts would lead to privacy violation, our algorithm uses the noisy estimates from (Alg. 2, Line 8).
Observation II: Depending on the data set and the graph structure, different nodes will have different impact on the final inference queries. This information can be captured by a corresponding weighting coefficient for each node.
Let denote the optimal privacy budget for node . Thus from the above observations, we formulate our optimization objective as a weighted sum of the parameter error as follows

(5)

(6)

(7)
where is the height of the node , is the outdegree of , is the sensitivity [35] of the parameters of , gives the measure for estimated mean error for the parameters (CPD) of and the denominator of the last term captures the linear constraint .
Computation of weighting coefficient : For a given node , the weighting coefficient is computed from the following three node features:
(1) Height of the node : The height of a node is defined as the length of the longest path between and a leaf node. From the VE algorithm, it is intuitive that when a node with a large height is eliminated early in the order, its errors can affect the computation of nodes with low height.
(2) Outdegree of the node : A node causally affects all its children nodes. Thus the impact of a node, with high fanout degree, on inference queries will be more than say a leaf node.
(3) Sensitivity : Sensitivity of a parameter in a DGM measures the impact of small changes in the parameter value on a target probability. Laskey [35] proposed a method of computing the sensitivity by using the partial derivative of output probabilities with respect to the parameter being varied. However, previous work have mostly focused on the target probability to be a joint distribution of all the variables. In this paper we present a method to compute sensitivity targeting the probability distribution of child nodes only. Let denote the mean sensitivity of the parameters of on target probabilities of all the nodes in = . Formally,

(8)
Observe that a node can affect another node only iff (its Markov blanket–Defn. 8.1). However due to the factorization of the joint distribution of all random variables of a DGM, can be expressed without . Thus just computing the mean sensitivity of the parameters over the set of child nodes turns out to be a good weighting metric for our setting. for leaf nodes is thus 0. Note that is distinct from the notion of sensitivity of a function used in Laplace mechanism (Appendix 8.1.2).
Computing Sensitivity : Let and denote the set of all nodes such that there is a directed path from to . Basically denotes the set of ancestors of in . From the factorization of it is easy to see that from the conditional probability distributions of of the nodes in it is sufficient to compute as follows
Therefore, using our noisy preliminary parameter estimates (Alg 2, Line 4), we compute

(9)
where ensures that only the product terms involving parameters with attributes in that match up with the corresponding values in are retained in the computation (as all others terms have partial derivative 0). Thus the noisy mean sensitivity estimate for the parameters of node , can be computed from Eq. (8) and (9) (Alg. 2, Line 9).

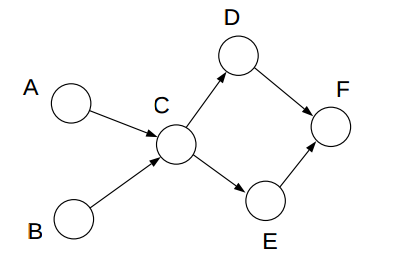

For example, for the DGM given by Figure 2 for node (assuming binary attributes for simplicity) we need to compute the sensitivity of its parameters on the target probability of , i.e., and which is computed as . The rest of the partial derivatives are computed in a similar manner to give us .
Thus the weighting coefficient is defined as the product of the aforementioned three features and given by Eq. (7). The extra additive term is used to handle leaf nodes so that the weighting coefficients are nonzero. Assuming , has a closed form solution as follows
(10)
Discussion: Note that there are two paradigms of information to be considered for a DGM  (1) graph structure (2) data set . and are purely graph characteristics and they summarise the graphical properties of the node . captures the interactions of the graph structure with the actual parameter values thereby encoding the data set dependent information. Hence we theorize that the aforementioned three features are sufficient for constructing the weighting coefficients.
3.4 Privacy Analysis
Theorem 3.1.
The proposed algorithm (Algorithm 2) for learning the parameters of a directed graphical model over fully observed data is differentially private.
Proof.
The sensitivity of counting queries is 1. Hence, the computation of the noisy tables (Alg 1, Line 23) is a straightforward application of Laplace mechanism (Section 8.1.2). This together with Lemma 2.1 makes the computation of , DP. Now the subsequent computation of the optimal privacy budget allocation is a postprocessing operation on and hence by Theorem 8.4 is still DP. The final parameter computation is clearly ()DP. Thus by the theorem of sequential composition (Theorem 8.3), Algorithm 2 is DP. The DGM thus learned can be released publicly and any inference query run on it will still be DP (from Theorem 8.4). ∎
4 Error Analysis for Inference Queries
As discussed in Section 3, our optimization objective minimizes a weighted sum of the parameter errors. To understand how the error propagates from the parameters to the inference queries, we present two general results bounding the error of a sumproduct term of the VE algorithm, given the errors in the factors.
Theorem 4.1.
[Lower Bound] For a DGM , for any sumproduct term of the form in the VE algorithm, we have
(11)
where is the attribute being eliminated, is the set of attributes in , .
Theorem 4.2.
[Upper Bound] For a DGM , for any sumproduct term of the form , in the VE algorithm with the optimal elimination order, we have
where is the attribute being eliminated, is the treewidth of , is the maximum domain size of an attribute, is the set of attributes in , , and
For proving the lower bound, we introduce a specific instance of the DGM based on Lemma 8.1. For the upper bound, with the optimal elimination order of the VE algorithm, the maximum error has an exponential dependency on the treewidth . This is very intuitive as even the complexity of the VE algorithm has the same dependency on . The answer of a marginal inference query is the factor generated from the last sumproduct term. Also, since the initial set of s for the first sumproduct term computation are the actual parameters of the DGM, all the errors in the subsequent intermediate factors and hence the inference query itself can be bounded by functions of parameter errors using the above theorems.
5 Evaluation
We now evaluate the utility of the DGM learned under differential privacy using our algorithm. Specifically, we study the following three questions: (1) Does our scheme lead to low error approximation of the DGM parameters? (2) Does our scheme result in low error inference query responses? (3) How does our scheme fare against dataindependent approaches?
Evaluation Highlights: First, focusing on the parameters of the DGM, we find that our scheme achieves low L1 error (at most for ) and low KL divergence (at most for ) across all test data sets. Second, we find that for marginal and conditional inferences, our scheme provides low L1 error and KL divergence (both around at max for ) for all test data sets. Our scheme also provides high accuracy for MAP queries ( accuracy for averaged over all test data sets). Finally, our scheme achieves strictly better utility than the dataindependent baseline; our scheme only requires a privacy budget of to yield the same utility that the dataindependent baseline achieves with .
5.1 Experimental Setup
Data sets: We evaluate our proposed scheme on four benchmark DGMs [8] –
(1) Asia: Number of nodes – 8; Number of arcs – 8; Number of parameters – 18
(2) Sachs: Number of nodes – 11; Number of arcs – 17; Number of parameters – 178
(3) Child: Number of nodes – 20; Number of arcs – 25; Number of parameters – 230
(4) Alarm: Number of nodes – 37; Number of arcs – 46; Number of parameters – 509
For all four DGMs, the evaluation is carried out on corresponding synthetic data sets [12, 13] with 10,000 records each.
Metrics: For conditional and marginal inference queries we compute the following two metrics: L1error, and KL divergence, = where denotes either a true CPD of the DGM (parameter) or a true marginal/conditional inference query response and is the corresponding noisy estimate obtained from our proposed scheme. For answering MAP inferences, we compute .
Setup: We evaluate each data set on 20 random inference queries (10 marginal inference, 10 conditional inference) and report mean error over 10 runs. For MAP queries, we run 20 random queries and report the mean result over 10 runs. The queries are of the form where attribute subsets and are varied from being singletons up to the full attribute set. We compare our results with a standard dataindependent baseline (denoted by DInd) [63, 61] which corresponds to executing Algorithm 1 on the entire input data set and the privacy budget array . All the experiments have been implemented in Python and we set .
5.2 Experimental Results
Figure 1 shows the mean and for noisy parameters and marginal and conditional inferences for the data sets Sachs and Child. The main observation is that our scheme achieves strictly lower error than that of DInd; specifically our scheme only requires a privacy budget of to yield the same utility that DInd achieves with . In most practical scenarios, the value of typically does not exceed [29]. In Table 1, we present our experimental results for MAP queries. We see that our scheme achieves higher accuracy. For example, our scheme provides an accuracy of at least while DInd achieves accuracy for . Finally, given a marginal inference query , we compute the scale normalized error in as where and are the upper and lower bound respectively computed using Theorem 4.2 and Theorem 4.1^{2}^{2}2 and are computed separately for each run of the experiment from their respective empirical parameter errors.. Clearly, the lower the value of is the closer it is to the lower bound and vice versa. We report the mean value of for 20 random inference queries (marginal and conditional) for in Table 2. We observe that the errors are closer to their respective lower bounds. This is more prominent for the errors obtained from our datadependent scheme than those of DInd.
Asia  Sachs  Child  Alarm
DInd  Our  DInd  Our  DInd  Our  DInd  Our
Scheme  Scheme  Scheme  Scheme  Scheme  Scheme  Scheme  Scheme
1  0.88  1  0.81  0.86  0.79  0.93  0.89  0.95
1.5  0.93  1  0.87  0.93  0.83  0.95  0.92  0.98
2  1  1  0.92  0.98  0.89  0.97  0.95  1
2.5  1  1  0.96  1  1  1  1  1
3  1  1  1  1  1  1  1  1
Asia  Sachs  Child  Alarm

DInd  0.008  0.065  0.0035  0.0046
Scheme
Our  0.0035  0.04  0.0014  0.0012
Scheme
Thus we conclude that the nonuniform budget allocation in our datadependent scheme gives better utility than an uniform budget allocation. For example, for a total privacy budget in DGM Sachs, our scheme assigns the highest budget () to node "PKC" which is the root with 5 child nodes and least budget to "Jnk" () which is a leaf node .
6 Related Work
In this section we review related literature. There has been a steadily growing amount work in differentially private machine learning models for the last couple of years. We list some of the most recent work in this line (not exhaustive list).
[1, 53, 3] address the problem of differentially private SGD. The authors of [41]present an algorithm for differentially private expectation maximization. In
[36] the problem of differentially private Mestimators is addressed. Algorithms for performing expected risk minimization under differential privacy has been proposed in [49, 9]. In [50] two differentially private subspace clustering algorithms are proposed.There has been a fair amount of work in differentially private Bayesian inferencing and related notions [15, 51, 21, 63, 22, 7, 28, 60, 45, 40, 30, 5, 6, 19, 61]. In [28] the authors present a solution for DP Bayesian learning in a distributed setting, where each party only holds a subset of the data a single sample or a few samples of the data. In [19] the authors show that a datadependent prior learnt under DP yields a valid PACBayes bound. The authors in [52] show that probabilistic inference over differentially private measurements to derive posterior distributions over the data sets and model parameters can potentially improve accuracy. An algorithm to learn an unknown probability distribution over a discrete population from random samples under DP is presented in [14]. In [7]
the authors present a method for private Bayesian inference in exponential families that learns from sufficient statistics. The authors of
[51] and [15] show that posterior sampling gives differential privacy "for free" under certain assumptions. In [21] the authors show that Laplace mechanism based alternative for "One Posterior Sample" is as asymptotically efficient as nonprivate posterior inference, under general assumptions. A Rényi differentially private posterior sampling algorithm is presented in [22]. [60]proposes a differential private Naive Bayes classification algorithm for data streams.
[63] presents algorithms for private Bayesian inference on probabilistic graphical models. In [40], the authors introduce a general privacypreserving framework for Variational Bayes. An expressive framework for writing and verifying differentially private Bayesian machine learning algorithms is presented in [5]. The problem of learning discrete, undirected graphical models in a differentially private way is studied in [6]. [45] presents a general method for privacypreserving Bayesian inference in Poisson factorization. In [63] the authors propose algorithms for private Bayesian inference on graphical models. However, their proposed solution does not add datadependent noise. In fact their proposed algorithms (Algorithm 1 and Algorithm 2 as in [63]) are essentially the same in spirit as our baseline solution DInd. Moreover, some proposals from [63] can be combined with DInd; for example to ensure mutual consistency, [63] adds Laplace noise in the Fourier domain while DInd uses techniques of [26]. DInd is also identical (DInd has an additional consistency step) to an algorithm used in [61]which uses DGMs to generate highdimensional data.
A number of datadependent differentially private algorithms have been proposed in the past few years. [2, 56, 62, 55] outline datadependent mechanisms for publishing histograms. In [10] the authors construct an estimate of the dataset by building differentially private kdtrees. MWEM [25] derives estimate of the dataset iteratively via multiplicative weight updates. In [37] differential privacy is achieved by adding data and workload dependent noise. [34] presents a datadependent differentially private algorithm selection technique. [24, 18] present two general datadependent differentially private mechanisms. Certain dataindependent mechanisms attempt to find a better set of measurements in support of a given workload. One of the most prominent technique is the matrix mechanism framework [58, 38] which formalizes the measurement selection problem as a rankconstrained SDP. Another popular approach is to employ a hierarchical strategy [27, 11, 54]. [57, 4, 16, 23, 48, 26] propose techniques for marginal table release.
7 Conclusion
In this paper we have proposed an algorithm for differentially private learning of the parameters of a DGM with a publicly known graph structure over fully observed data. The noise added is customized to the private input data set as well as the public graph structure of the DGM. To the best of our knowledge, we propose the first explicit datadependent privacy budget allocation mechanism for DGMs. Our solution achieves strictly higher utility than that of a standard dataindependent approach; our solution requires at least smaller privacy budget to achieve the same or higher utility.
