1 Introduction
Network embedding, which learns lowdimensional embedding vectors for nodes from networks, is an important technique enabling the applications of machine learning models on networkstructured data [Perozzi et al.2014, Tang et al.2015, Grover and Leskovec2016, Hamilton et al.2017]. It learns to preserve structural and property similarity in embedding space and can support different downstream machine learning tasks, such as node classification [Yang et al.2016] and network visualization [Tang et al.2016].
However, most of existing methods mainly focus on learning representations for nodes from a single network. As a result, when handling multiple networks, they suffer from embedding space drift [Du et al.2018] and embedding distribution discrepancy [Tzeng et al.2017]
, resulting in decreased accuracy when transferring the downstream machine learning models across networks to handle the same task. As the branch of transfer learning that handles the same task on different datasets is usually known as domain adaptation
[Mansour et al.2009], we define the network embedding algorithms that can support such transfer learning on different networks as domain adaptive network embedding, which brings following advantages. The first advantage is that it alleviates the cost of training downstream machine learning models by enabling models to be reused on other networks. The second advantage is that it handles the scarcity of labeled data by transferring downstream models trained well on a labeled network to unlabeled networks. Apart from the above advantages, compared with traditional discriminative domain adaptation methods requiring label information from source domain, domain adaptive network embedding learns representations in an unsupervised manner, requiring no label information from neither the source network nor the target network. Therefore, it makes no difference which network is the source network in downstream tasks, enabling bidirectional domain adaptation.Currently, most researches of domain adaptation concentrate on CV and NLP fields [Long et al.2015, Fu et al.2017]. existing domain adaptation methods can not be directly applied on network embedding problems. First, these methods are usually designed for CV and NLP tasks, where samples, e.g. images and sequences are independent and identically distributed, resulting in little requirement for model rotational invariance [Khasanova and Frossard2017]. However, network structured data, where nodes are connected with edges representing their relations, require models with rotational invariance because of the phenomenon known as graph isomorphism [Defferrard et al.2016]. Therefore, existing methods can not model network structural information, which is the core of network embeddings. Second, most existing domain adaptation models learn discriminative representations in a supervised manner [Tzeng et al.2017]
, where the value of loss function is only associated with each single sample’s absolute position in their feature space. Network embedding, alternatively, usually aims to learn multipurpose representations in an unsupervised manner by preserving the relative position of all node pairs, resulting in increased difficulty in optimization. As a result, more stable model architecture and loss functions are required to alleviate such difficulty.
Essentially, domain adaptive network embedding suffers from two major challenges, the more straightforward of which is the embedding space alignment, which means that structurally similar nodes should have similar representations in the embedding space, even if they are from different networks. However, many typical network embedding methods only preserve the structural similarity within a single network [Heimann and Koutra2017] which are not applicable for crossnetwork node pairs. The other less explicit challenge is that distribution shift of embedding vectors also influences the performance of model on target networks, because most machine learning models perform as guaranteed only when they work on data with similar distribution as training data.
In this paper, we propose DANE, an unsupervised network embedding framework handling embedding space drift and distribution shift in domain adaptation via graph convolutional network [Kipf and Welling2016a] and adversarial learning [Goodfellow et al.2014]. To enable GCN to preserve the structural similarity of crossnetwork node pairs, we apply shared weight architecture, which means that the GCN embeds nodes from both source network and target network via shared learnable parameters.
The distribution shift in domain adaptation is handled via an adversarial learning component based on least square generative adversarial network [Mao et al.2017] . Compared with the original GAN used in existing domain adaptation models, the loss function and architecture of LSGAN can generate gradients with larger scale for samples lying a long way to the decision boundary, which relieves the problem of vanishing gradients when models are close to convergence.
In summary, our contributions are:

We formulate the task of designing a domain adaptive network embedding framework. It is beneficial for transferring models across multiple networks, which has not been explored by previous network embedding methods.

We propose DANE, a framework that can achieve embedding space alignment and distribution alignment via shared weight graph convolutional network and adversarial learning regularization based on LSGAN.

We constructed two datasets to test network embedding methods’ performance on the task of supporting domain adaptation and conducted experiments on DANE and other baselines via these datasets. The result indicate that our model has leading performance in this task.
2 Related Work
Network Embedding. Network embedding maps the vertices or edges of a network into a lowdimensional vector space. Such mapping can benefit the application of many machine learning models in many downstream tasks on network structured data[Yang et al.2016, Tang et al.2016, Zhang et al.2018b, Zhang et al.2018a, Wang et al.2019]. Existing methods include transductive methods and inductive methods. Transductive methods directly optimize the representation vectors. They usually apply matrix factorization [Li et al.2019] or SkipGram model inspired by word2vec [Perozzi et al.2014, Tang et al.2015, Grover and Leskovec2016]
. Inductive methods learn functions which take the structural information and node features as input and output their representation vectors. They usually model the mapping function via deep neural networks like graph convolutional networks
[Kipf and Welling2016b, Hamilton et al.2017]. All the methods above mainly focus on representing a single network better, without considering the domain adaptation on multiple unconnected networks.Domain Adaptation. Domain adaptation aims to learn machine learning models transferable on different but relevant domains sharing same label space [Mansour et al.2009]
. Recent research mainly focus on learning domain invariant representation via neural networks so that deep learning models trained on labeled source datasets can be transferred to a target datasets with few or no labeled samples
[Ganin and Lempitsky2015, Long et al.2015, Peng and Dredze2017, Fu et al.2017, Tzeng et al.2017]. Above methods are mostly designed for image or text while not considering the application on graph structured data because of their lack of rotational invariance and limits in handling graph isomorphism. Only a few methods [Alam et al.2018, Das and Lee2018] make use of information of a similarity graph whose edges represent artificially designed similarity (like dot product of representation vectors) of independent samples (text or images), instead of real links between relevant nodes.3 Problem Definition


Notations  Definition


Network
Source network
Target network
Node set of network
Edge set of network
Node feature matrix of network
Embedding space
Embedding vector set of network
Probability density function of in

Definition 1: Domain Adaptation on Networks. Domain adaptation on networks aims to train a machine learning model for a downstream task by minimizing its loss function on and ensure that can also have good performance when we transfer it on to handle the same task.
To this end, following two constraints need to be satisfied:

Embedding Space Alignment. Embedding space alignment aims to project the nodes of and into a shared embedding space , where structurally similar nodes have similar representation vectors even if they are from different networks, so that M can be transferable on and .

Distribution Alignment. Distribution alignment aims to constrain and close almost everywhere in , so that and can have similar distributions.
Obviously, not arbitrary pairs of networks enables bidirectional domain adaptation. In this paper, we mainly deal with networks where edges are homogeneous and node features express the same meaning. We denote such networks as domain compatible networks.
Problem Statement: Domain Adaptive Network Embedding. Given two domain compatible networks and , domain adaptive network embedding aims to learn network embedding in an unsupervised manner, which can support bidirectional domain adaptations from to and reciprocally as well, by achieving embedding space alignment and distribution alignment.
4 Proposed Method

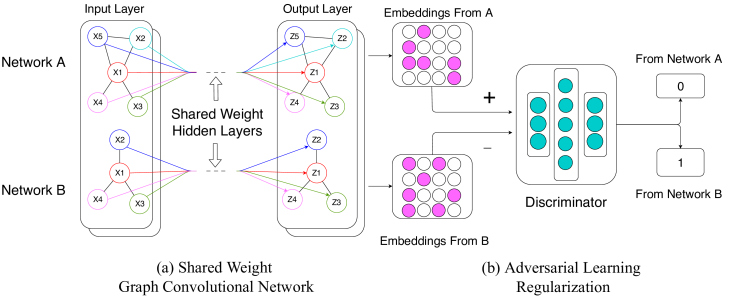

4.1 Overall Framework
To enable domain adaptation on networks, we propose domain adaptive network embedding (DANE), a model that leverages a Shared Weight Graph Convolutional Network to achieve embedding space alignment and apply Adversarial Learning Regularization to achieve distribution alignment. The overview of our model is shown in Fig 1.

Shared Weight Graph Convolutional Network. In order to learn embeddings that preserve the crossnetwork structural similarity, we use shared learnable parameters when encoding the nodes from two networks to vectors via GCN.

Adversarial Learning Regularization. To align the the distribution of embedding vectors from different networks, we apply adversarial learning to force our model to learn embeddings that can confuse the discriminator trained to distinguish which network a representation vector is from.
Without loss of generality, we assume is the source network and is the target network. As DANE’s architecture and loss function are symmetric, it is able to handle bidirectional domain adaptations.
4.2 Shared Weight Graph Convolutional Network
Graph Convolutional Network (GCN) [Kipf and Welling2016a] represents each vertex in a graph as an embedding vector based on node feature matrix and adjacency matrix . In GCN, each layer can be expressed as follows:
(1)
where , , is the output of the th layer, ,
is activation function and
are learnable parameters of the th layer. We use a shared parameter set to embed both source and target model. As proven by Jure Leskovec et al [Donnat et al.2018], graph convolution operations can preserve the similarity of a node pair if their local subnetworks (i.e. the subgraph consisting of hop neighbors of a node and the node itself) are similar. Therefore, GCN with such shared weight architecture can preserve local subnetwork similarity. Under structural equivalence hypothesis in complex network theory [Henderson et al.2012, Grover and Leskovec2016], two nodes having similar local network neighborhoods can be considered structurally similar even if they are from two different networks. Hence, shared weight graph convolutional network architecture can project the nodes of and into a shared embedding space , where structurally similar nodes have similar representation vectors.To learn compatible parameters for both and , we apply a multitask loss function preserving properties on two networks simultaneously:
(2)
where denotes the loss function on the source network and denotes the same function calculated on the target network. We apply the firstorder loss function proposed in LINE [Tang et al.2015]:
(3)
where is the set of edge, is the number of negative samples, is a noise distribution where negative samples are drawn and
is the sigmoid function. In this paper, we set
, where is degree of node . As a flexible framework, DANE is able to preserve other network properties like triadic closure [Huang et al.2014] when we replace with corresponding loss functions.4.3 Adversarial Learning Regularization
In order to align the distribution of and in embedding space , we add Adversarial Learning Regularization into our model. We train a discriminator to distinguish which network an embedding vector is from, and train the Shared Weight Graph Convolutional Network to confuse the discriminator, just like what GANs do. Such training method will force and to keep close almost everywhere in the embedding space , which is equivalent to distribution alignment.
In this work, inspired by LSGAN [Mao et al.2017], we design the architecture and loss function of discriminator based on Pearson divergence to avoid the instability of adversarial learning. Discriminator
is a multilayer perceptron having no activation function in the final layer. We expect
to output when the input vector is sampled from and output otherwise. So the discriminator’s loss function of is:(4)
where is the output of the discriminator. In LSGAN, on the contrary, the generator confuses the discriminator unidirectionally by forcing the distribution of fake samples to approximate that of real samples. However, hoping to keep DANE’s architecture and loss function symmetric so that it can handle bidirectional domain adaptation, we design following adversarial training loss function:
(5)
We combine the training of Shared Weight Graph Convolutional Network and Adversarial Learning Regularization together by defining the overall loss function of DANE as follows:
(6)
where
is a hyperparameter to control the weight of regularization. In this paper, we set
as . In each iteration, we first train the discriminator for steps to optimize , followed by training our embedding model for step to optimize the graph convolutional network based on Equation 6.4.4 Theoretical Analysis
In this section, we show that the better embedding spaces and distributions are aligned, the better the downstream model performs on target network. We provide a theoretical analysis by exploring the relation between alignment effects and the upper bound of the difference between the loss function value on model on the source network and the target network when handling a node classification task.
We assume that outputs the conditional distribution of a node’s label based on its representation vector and model parameter , denoted as . gives the possibility that a node has a label given the embedding vector of the node. The loss function of the model on , denoted as , is defined as follows:
(7)
where is the groundtruth, and measures the distance of two distributions. Assuming that contain as many nodes as being able to approximate as a continuous variable, we have the following equation:
(8)
In a similar way, the performance of the same model on can be measured by following loss function:
(9)
We introduce a theorem:
Theorem 1
If following inequalities are satisfied:
(10)
(11)
where measures the distance of two distributions and satisfy triangular inequality:
(12)
Then we will have following inequality:
(13)
Proof
(14)
Methods  Paper Citation Network (Singlelabel)  Coauthor Network (Multilabel)
AB  BA  AB  BA
Macro F1  Micro F1  Macro F1  Micro F1  Macro F1  Micro F1  Macro F1  Micro F1
DeepWalk  0.282  0.381  0.22  0.32  0.517  0.646  0.502  0.620
LINE  0.156  0.214  0.175  0.272  0.525  0.634  0.506  0.601
Node2vec  0.147  0.196  0.248  0.32  0.513  0.632  0.520  0.627
GraphSAGE Unsup  0.671  0.703  0.861  0.853  0.724  0.809  0.741  0.832
DANE  0.797  0.803  0.852  0.872  0.785  0.847  0.776  0.849
This theorem ensures that an embedding algorithm can support domain adaptation better when it : (1) makes and closer; (2) makes and closer. Obviously, the former objective can be achieved via distribution alignment. Simultaneously, the latter objective is achieved via embedding space alignment. Because DANE applies shared weight GCN, it represents two nodes having similar local network neighborhoods with similar embedding vectors. Meanwhile, under structural equivalence hypothesis, two nodes having similar local network neighborhoods are likely to have same label. Consequently, embedding space alignment can help keep and close almost everywhere in .
5 Experiments
5.1 Experiment Settings
5.1.1 Datasets


Network Name  Nodes  Edges


Paper Citation A  2277  8245
Paper Citation B  3121  7519
Coauthor A  1500  10184
Coauthor B  1500  10606

Paper Citation Networks.
Paper Citation Networks^{2}^{2}2collected from Aminer database [Tang2016] consist of two different networks and , where each node is a paper. The label of each paper is its field. The feature of each node is a word frequency vectors constructed from the abstract of papers.
Coauthor Networks.
Coauthor Networks^{2} consist of two different networks and , where each node is an author. Each author is assigned with one or more label denoting research topics. The feature of each node is a word frequency vector constructed from the keyword of the author’s papers.
5.1.2 Relevant Methods and Evaluation Metrics
We compare our model with wellrecognized network embedding algorithms including DeepWalk, LINE, Node2vec, unsupervised GraphSAGE(GCN version)[Perozzi et al.2014, Tang et al.2015, Grover and Leskovec2016, Hamilton et al.2017]
. When using GraphSAGE, we train it on the source network and directly use the optimized parameter to embed the nodes from target network without further training. We evaluate these methods by testing their performance on a domain adaptation task of node classification. We train a classifier based on L2regularized logistic regression via SGD algorithm with the embeddings from source network, then test the performance of the classifier on target network. We adopt micro and macro F1 score to evaluate the performance.
5.1.3 Hyperparameter Setup
To be fair, for all methods we set the embedding dimension to 128 on Paper Citation Networks, and 32 on Coauthor Networks. For methods applying negative sampling, we set negative sampling number as 5. For methods employing GCN, we use same activation function and 2layer architecture.
5.2 Domain Adaptation
In this section, we firstly compare DANE with other baselines by training classifiers on source network embedding and testing their performance on target network embedding. Table 2 shows the result of all methods on Paper Citation Networks and Coauthor Networks. DANE outperforms all other methods in knowledge transferring. Besides, we can find following phenomenons:
All deep network embedding algorithms outperforms other methods. We propose that this is because the local subnetwork is suitable for measuring the similarity crossnetwork node pairs. DeepWalk, LINE and Node2vec all preserve order proximity, which consider two nodes within hops are similar. However, the distance between two nodes from different networks is infinity. Consequently, the structural similarity of crossnetwork node pairs can not be preserved, resulting in poorly aligned embedding spaces and performance close to random guess on target network.
Meanwhile, with same architecture of GCN, DANE outperform GraphSAGE. This phenomenon reflects the contribution of the combination of distribution alignment and the multitask loss function.
5.3 Ablation Test
In this section, by comparing DANE with its variants, we indicate the importance of DANE’s unique design.

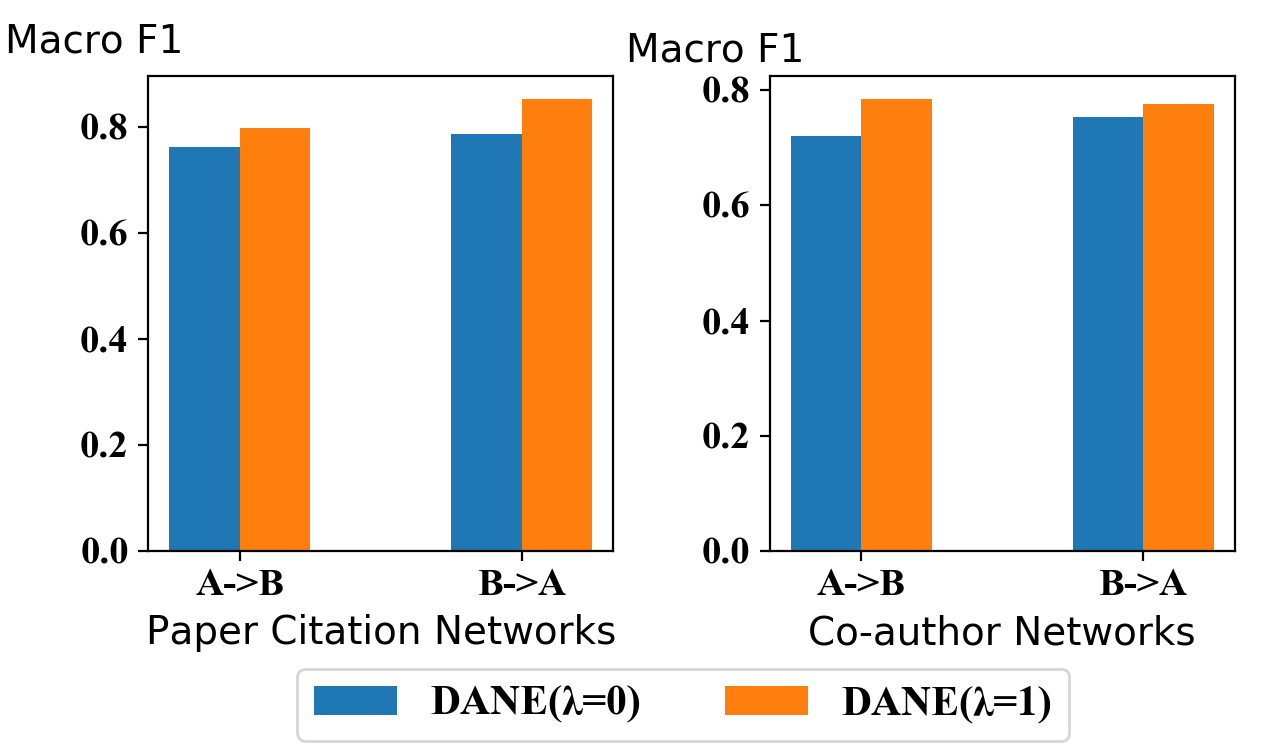

First, to analyze the importance of distribution alignment, we compare complete DANE, denoted as DANE (), and its variant which has no adversarial learning regularization, denoted as DANE (). The result is shown in Fig 2. DANE () performs better in both transferring directions on two networks comparing to its own variant that has no adversarial learning regularization. This phenomenon indicates the importance of adversarial learning regularization.

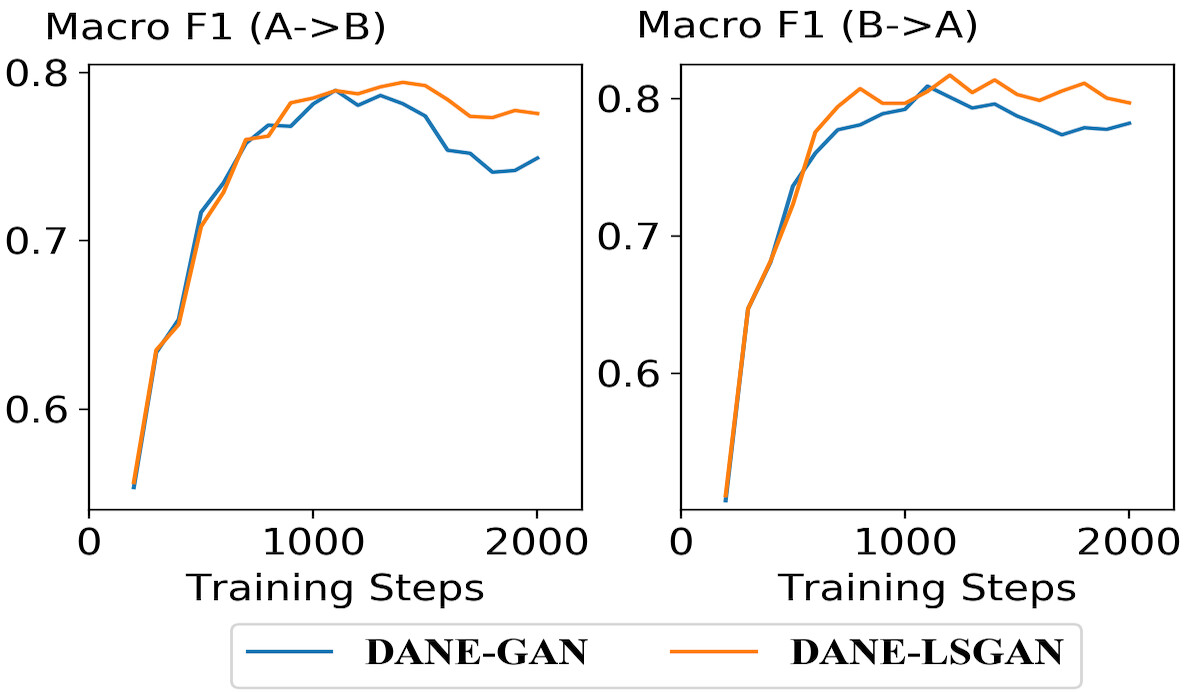

Second, we replace the LSGANbased adversarial learning regularization with GANbased regularization while preserving all other hyperparameter settings. Fig 3 is a line chart reflecting the relation between number of training batches and model’s performance on target network. Compared with the LSGANbased DANE, the GANbased DANE suffers from a more serious performance drop after reaching the peak^{3}^{3}3Although the GANvariant performs as steadily as the LSGANbased version under some random seeds, it is difficult to find those ’steady’ seeds when labels on target network are scarce..

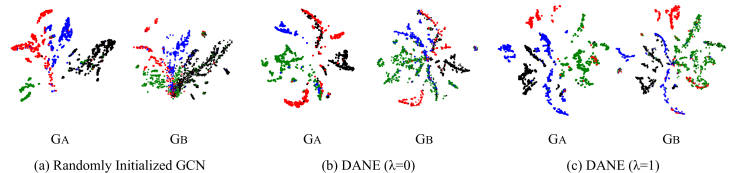

5.4 Embedding Visualization
In this section, to understand the advantage of distribution alignment better, we visualize the embedding of two paper citation networks generated by DANE (), DANE () and a randomly initialized GCN. The randomly initialized GCN also embeds two networks via shared parameters. We use tSNE [Maaten and Hinton2008] package to reduce the dimensionality of embedding vectors to . The result is shown in Fig 4. The color of each node represent its label.
Due to shared parameter architecture, all three algorithms achieves that most nodes having similar representations have same labels. This phenomenon indicates the advantage of share parameter architecture: it can align embedding space without requirement for training. After further training without distribution alignment, DANE () succeeds in making the distribution of two network’s embedding similar. Furthermore, when adding distribution alignment, DANE () can generate embeddings with more similar distributions in the area nearby boundary line of different labels than DANE (). Therefore, DANE will have better performance in model transferring task.
6 Conclusion and Future Works
In this paper, we formulate the task of unsupervised network embedding supporting domain adaptation on multiple domain compatible networks. To the best of our knowledge, we are the first team to propose this significant task. Meanwhile, we propose Domain Adaptive Network Embedding (DANE) to handle this task. Specifically, we apply a shared weight graph convolutional network architecture with constraints of adversarial learning regularization. Empirically, we verify DANE’s performance in a variety of domain compatible network datasets. The extensive experimental results of node classification and embedding visualization indicate the advantages of DANE. For future work, one intriguing direction is to generalize DANE to solve the domain adaptation on heterogeneous networks. Also, improving the framework of DANE to solve semisupervised and supervised domain adaptation will be beneficial for diverse scenarioes.
Acknowledgments
This work was supported by the National Natural Science Foundation of China (Grant No. 61876006 and No. 61572041).
References
 [Alam et al.2018] Firoj Alam, Shafiq R. Joty, and Muhammad Imran. Domain adaptation with adversarial training and graph embeddings. In ACL, pages 1077–1087, 2018.
 [Das and Lee2018] Debasmit Das and C. S. George Lee. Graph matching and pseudolabel guided deep unsupervised domain adaptation. In ICANN, pages 342–352, 2018.
 [Defferrard et al.2016] Michael Defferrard, Xavier Bresson, and Pierre Vandergheynst. Convolutional neural networks on graphs with fast localized spectral filtering. In NIPS, pages 3837–3845, 2016.
 [Donnat et al.2018] Claire Donnat, Marinka Zitnik, David Hallac, and Jure Leskovec. Learning structural node embeddings via diffusion wavelets. In KDD, pages 1320–1329. ACM, 2018.
 [Du et al.2018] Lun Du, Yun Wang, Guojie Song, Zhicong Lu, and Junshan Wang. Dynamic network embedding : An extended approach for skipgram based network embedding. In IJCAI, pages 2086–2092, 7 2018.
 [Fu et al.2017] Lisheng Fu, Thien Huu Nguyen, Bonan Min, and Ralph Grishman. Domain adaptation for relation extraction with domain adversarial neural network. In IJCNLP(2), pages 425–429, 2017.

[Ganin and
Lempitsky2015]
Yaroslav Ganin and Victor S. Lempitsky.
Unsupervised domain adaptation by backpropagation.
In ICML, pages 1180–1189, 2015.  [Goodfellow et al.2014] Ian Goodfellow, Jean PougetAbadie, Mehdi Mirza, Bing Xu, David WardeFarley, Sherjil Ozair, Aaron Courville, and Yoshua Bengio. Generative adversarial nets. In NIPS, pages 2672–2680. 2014.
 [Grover and Leskovec2016] Aditya Grover and Jure Leskovec. node2vec: Scalable feature learning for networks. In KDD, pages 855–864, 2016.
 [Hamilton et al.2017] William L. Hamilton, Zhitao Ying, and Jure Leskovec. Inductive representation learning on large graphs. In NIPS, pages 1025–1035, 2017.
 [Heimann and Koutra2017] Mark Heimann and Danai Koutra. On generalizing neural node embedding methods to multinetwork problems. In MLG, 2017.
 [Henderson et al.2012] Keith Henderson, Brian Gallagher, Tina EliassiRad, Hanghang Tong, Sugato Basu, Leman Akoglu, Danai Koutra, Christos Faloutsos, and Lei Li. Rolx: structural role extraction & mining in large graphs. In KDD, pages 1231–1239. ACM, 2012.
 [Huang et al.2014] Hong Huang, Jie Tang, Sen Wu, Lu Liu, and Xiaoming Fu. Mining triadic closure patterns in social networks. In WWW, pages 499–504. ACM, 2014.
 [Khasanova and Frossard2017] Renata Khasanova and Pascal Frossard. Graphbased isometry invariant representation learning. In ICML, pages 1847–1856, 2017.
 [Kipf and Welling2016a] Thomas N. Kipf and Max Welling. Semisupervised classification with graph convolutional networks. CoRR, abs/1609.02907, 2016.
 [Kipf and Welling2016b] Thomas N. Kipf and Max Welling. Variational graph autoencoders. CoRR, abs/1611.07308, 2016.
 [Li et al.2019] Ziyao Li, Liang Zhang, and Guojie Song. Sepne: Bringing separability to network embedding. AAAI 2019, abs/1811.05614, 2019.
 [Long et al.2015] Mingsheng Long, Yue Cao, Jianmin Wang, and Michael I. Jordan. Learning transferable features with deep adaptation networks. In ICML, pages 97–105, 2015.
 [Maaten and Hinton2008] Laurens Van Der Maaten and Geoffrey Hinton. Visualizing data using tsne. Journal of Machine Learning Research, 9(2605):2579–2605, 2008.
 [Mansour et al.2009] Yishay Mansour, Mehryar Mohri, and Afshin Rostamizadeh. Domain adaptation: Learning bounds and algorithms. In COLT, 2009.
 [Mao et al.2017] Xudong Mao, Qing Li, Haoran Xie, Raymond Y. K. Lau, Zhen Wang, and Stephen Paul Smolley. Least squares generative adversarial networks. In ICCV, pages 2813–2821, 2017.
 [Peng and Dredze2017] Nanyun Peng and Mark Dredze. Multitask domain adaptation for sequence tagging. In Rep4NLP@ACL, pages 91–100, 2017.
 [Perozzi et al.2014] Bryan Perozzi, Rami Alrfou, and Steven Skiena. Deepwalk: online learning of social representations. KDD, pages 701–710, 2014.
 [Tang et al.2015] Jian Tang, Meng Qu, Mingzhe Wang, Ming Zhang, Jun Yan, and Qiaozhu Mei. Line: Largescale information network embedding. In WWW, pages 1067–1077, 2015.

[Tang et al.2016]
Jian Tang, Jingzhou Liu, Ming Zhang, and Qiaozhu Mei.
Visualizing largescale and highdimensional data.
In WWW, pages 287–297. ACM, 2016.  [Tang2016] Jie Tang. Aminer: Mining deep knowledge from big scholar data. In WWW, page 373. ACM, 2016.
 [Tzeng et al.2017] Eric Tzeng, Judy Hoffman, Kate Saenko, and Trevor Darrell. Adversarial discriminative domain adaptation. In CVPR, pages 2962–2971, 2017.
 [Wang et al.2019] Junshan Wang, Zhicong Lu, Guojie Song, Yue Fan, Lun Du, and Wei Lin. Tag2vec: Learning tag representations in tag networks. In The World Wide Web Conference, WWW 2019, pages 3314–3320, 2019.

[Yang et al.2016]
Zhilin Yang, William W. Cohen, and Ruslan Salakhutdinov.
Revisiting semisupervised learning with graph embeddings.
In ICML, pages 40–48, 2016.  [Zhang et al.2018a] Jing Zhang, Bo Chen, Xianming Wang, Hong Chen, Cuiping Li, Fengmei Jin, Guojie Song, and Yutao Zhang. Mego2vec: Embedding matched ego networks for user alignment across social networks. In CIKM 2018, pages 327–336, 2018.
 [Zhang et al.2018b] Yizhou Zhang, Xiaojun Ma, and Guojie Song. Chinese medical concept normalization by using text and comorbidity network embedding. In ICDM, pages 777–786, 2018.
