I Introduction

Deep Reinforcement Learning (DRL), deploying deep neural networks as function approximators for high-dimensional RL tasks, achieves state of the art performance in various fields of research

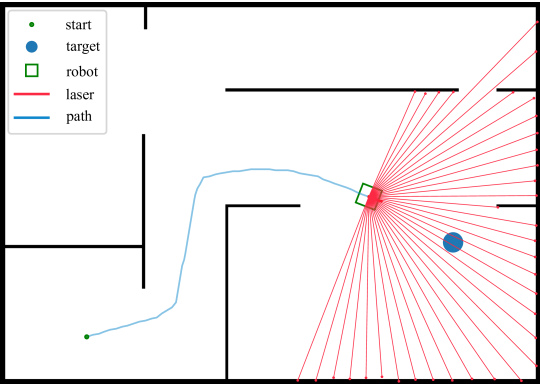

Fig. 1: We study the problem of mapless navigation, where without a given the map of the environment, the autonomous agent is required to navigate to a target whose relative location can be easily acquired by cheap localization solutions. Structures like long corridors and dead corners make it challenging for DRL agents to learn optimal navigation policies. Trained with reward signals that are augmented by intrinsic motivation, our proposed agent efficiently tackles this task, and shows that its learned policy generalizes well to previously unseen environments.

DRL algorithms have been studied under the context of learning navigation policies for mobile robots. Traditional navigation solutions in robotics generally require a system of procedures, such as Simultaneous Localization and Mapping (SLAM) [2], localization and path planning in a given map, etc. With the powerful representation learning capabilities of deep networks, DRL methods bring about the possibility of learning control policies directly from raw sensory inputs, bypassing all the intermediate steps.

Eliminating the requirement for localization, mapping, or path planning procedures, several DRL works have been presented that learn successful navigation policies directly from raw sensor inputs: target-driven navigation [3], successor feature RL for transferring navigation policies [4], and using auxiliary tasks to boost DRL training [5]. Many follow-up works have also been proposed, such as embedding SLAM-like structures into DRL networks [6], or utilizing DRL for multi-robot collision avoidance [7].

In this paper, we focus specifically on mapless navigation, where the agent is expected to navigate to a designated goal location without the knowledge of the map of its current environment. We assume that the relative pose of the target is easily acquirable for the agent via cheap localization solutions such as visible light localization [8] or Wi-Fi signal localization [9]. Tai et al. [10] successfully applied DRL for mapless navigation, taking as input sparse laser range readings, as well as the velocity of the robot and the relative target position. Trained with asynchronous DRL, the policy network outputs continuous control commands for a nonholonomic mobile robot, and is directly deployable in real-world indoor environments.

Most of the aforementioned methods, however, either rely on random exploration strategies like -greedy, or on state-independent exploration by maximizing the entropy of the policy. As the previous works present experiments in environments which do not impose considerable challenges for the exploration of DRL algorithms, we suspect that these exploration approaches might not be sufficient for learning efficient navigation policies in more complex environments.

Proposed by Pathak et al. [11], the agent’s ability to predict the consequences of its own actions can be used to measure the novelty of the states, or the intrinsic curiosity. The Intrinsic Curiosity Module (ICM) is employed to acquire this signal during the process of reinforcement learning, and its prediction error can serve as an intrinsic reward. As illustrated in their experiments, the intrinsic reward, learned completely in a self-supervised manner, can motivate the agent to better explore the current environment, and make use of the structures of the environment for more efficient planning strategies.

Similar intrinsic signals have also been used as auxiliary tasks to encourage exploration by Khan et al. [12], where a planning agent is developed using differentiable memory and self-supervised state, reward and action prediction.

In this paper, we investigate exploration mechanisms for aiding DRL agents to learn successful navigation policies in challenging environments that might contain structures like long corridors and dead corners. We conduct a series of experiments in simulated environments, and show the sample-efficiency, stability, and generalization ability of our proposed agent.

Ii Methods

Ii-a Background

We formulate the problem of autonomous navigation as a Markov Decision Process (MDP), where at each time step , the agent receives an observation of its current state , takes an action , receives a reward , and transits to the next state following the transition dynamics of the environment. For the mapless navigation task that we consider, the state consists of laser range readings and the relative pose of the goal . The task of the agent is to reach the goal position without colliding with obstacles.

Ii-B Extrinsic Reward for Mapless Navigation

We define the extrinsic reward (the traditional reinforcement signal received from the environment) at timestep t as follows ( and denote the scaling factors):


where imposes the main task ( represents the pose of the agent at ):

and the position- and orientation-based penalties and are defined as:

Ii-C Intrinsic Reward for Curiosity-driven Exploration

On top of the normal extrinsic reward , we use intrinsic motivation measured by curiosity, rewarding novel states to encourage exploration and consequently improve the learning and generalization performance of DRL agents in environments that require more guided exploration.

Following the formulation of [11], we measure the intrinsic reward via an Intrinsic Curiosity Module (ICM) (depicted in Fig. 2

). It contains several feature extraction layers

, a forward model (parameterized by ), and an inverse model (parameterized by ).

First, and are passed through , encoded into their corresponding features and . Then, predicts from and (trained through cross-entropy loss for discrete actions with the ground truth ), while predicts from and (trained through mean squared error loss with the ground truth ). , and are learned and updated together with the actor-critic parameters and (Sec. II-D) during the training process.

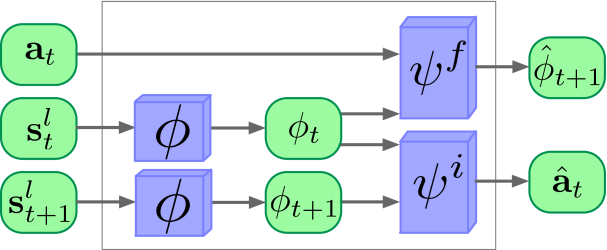

Fig. 2: ICM architecture. and are first passed through the feature extraction layers , and encoded into and . Then and are input together into the inverse model , to infer the action . At the same time, and are together used to predict , through the forward model . The prediction error between and is used as the intrinsic reward .

The overall optimization objective is

where the first part corresponds to the inverse model training objective, and the second part to the forward model prediction error. These losses are weighted by the parameter, which helps control the trade-off between the characteristics both models are conferring to the feature extraction layers: 1) the inverse model seeks to extract information useful to predict the action taking the agent between consecutive states, and 2) the forward model strives to encourage extracting more predictable feature embeddings. To avoid learning constant features for all states (which would be trivially predictable), the magnitude of forward model’s contribution to the learning process needs to be balanced by the weight . Both of these influences, however, help to exclude environmental factors which are unaffected by and do not affect the agent, so it would not stay constantly curious of irrelevant or inherently unpredictable details of the environment.

The prediction error between and through is then used as the intrinsic reward :


Following this intrinsic reward, the agent is encouraged to visit novel states in the environment, which is crucial in guiding the agent to get out of local minimums or premature convergence of sub-optimal policies. This exploration strategy allows the agent to make better use of the learned environment dynamics to accomplish the task at hand.

Ii-D Asynchronous Deep Reinforcement Learning

For training the navigation policies, we follow the asynchronous advantage actor-critic (A3C) algorithm [1], with the weighted sum of the external reward and the intrinsic reward as the supervision signal:


where is a scaling coefficient.

A3C updates both the parameters of a policy network and a value network

, to maximize the cumulative expected reward. The value estimate is bootstrapped from

-step returns with a discount factor (where represents the maximum number of steps for a single rollout):


Each learning thread accumulates gradients for every experience contained in a step rollout, where the gradients are calculated according to the following equations:


where is the entropy of the policy, and represents the coefficient of the entropy regularization. This discourages premature convergence to suboptimal deterministic policies, and is the default exploration strategy that has been used with A3C.

Iii Experiments

Iii-a Experimental setup

We conduct our experiments in a simulated environment, where a robot is equipped with a laser range sensor, and is navigating in the environments shown in Fig. 3. At the beginning of each episode, the starting pose of the agent and the target position are randomly chosen such that a collision-free path is guaranteed to exist between them. An episode is terminated after the agent either reaches the goal, collides with an obstacle, or after a maximum of steps during training and for testing.

(a) Map1
(b) Map2
(c) Map3
(d) Map4
Fig. 3: Different floor plans we considered in our experiments. Map1,3,4 have similar wall structures, while imposing gradually more exploration challenges for DRL agents to effectively learn navigation policies. Map2, while holding a level of challenge for exploration similar to that of Map1, has some structural variations such as the angled walls. We only train agents on Map1. The performance of the trained agents is later evaluated on Map1, and tested on Map2,3,4 for their generalization capabilities. The maps are all of size .
(a) Average reward.
(b) Average steps.
Fig. 4: Comparison of (Fig. 3(a)) average reward and (Fig. 3(b)

) steps for different exploration strategies that we considered (switching on/off the entropy loss or the intrinsic reward). The mean and confidence interval for each configuration is calculated over the statistics of 3 independent runs.

The state consists of -dimensional laser range readings (with a maximum range of ), and a -dimensional relative goal position (relative distance, and and of the relative orientation in the agent’s local coordinate frame). At each timestep, the agent can select one of three discrete actions: {go straight for , turn left °, turn right °}.

The hyper-parameters regarding the reward function (II-B,II-C) are the following: , , , , , , , and the scale for the intrinsic reward is set to .

The actor-critic network uses two convolutional layers of

filters with stride

, and kernel sizes of and respectively, each followed by ELU nonlinearities. These are followed by two fully connected layers with and units, also ELU nonlinearities, to transform the laser sensor readings into a -dimensional embedding. This representation is concatenated with the relative goal position , and fed into a single layer of LSTM cells. The output is then concatenated with

again, and used to produce the discrete action probabilities by a linear layer followed by a softmax, and the value function by a linear layer.

The ICM inverse model consists of three fully connected layers with 128, 64, and 16 units, each followed by an ELU nonlinearity, producing features and from and . Those features are then concatenated and put through a fully connected layer with 32 units and an ELU nonlinearity, the output of which predicts by a linear layer followed by a softmax. The ICM forward model accepts the true features and a one-hot representation of the action , and feeds them into two linear layers with 64 and 32 units respectively, followed by ELU and a linear layer that predicts .

We train A3C with the Adam optimizer with statistics shared across learner threads, with a learning rate of . The rollout step is set to . ICM is learned jointly with shared Adam with the same learning rate and . Each training of million iterations takes approximately hours using only CPU computation.

We only train agents on Map1 (Fig. 2(a)), varying exploration strategies (Sec. III-B). Map2,3,4 are used to test the generalization ability of the trained policies (Sec. III-C).

Iii-B Training and Evaluation on Map1

We experiment with variations of exploration strategies by switching on and off the entropy loss and the intrinsic reward: 1) A3C-: A3C with ; 2) Entropy: A3C with ; 3) ICM: A3C with , with ICM; 4) ICM+Entropy: A3C with , with ICM.

The average reward and steps obtained in the evaluation during training are shown in Fig. 4. We can clearly observe that without any explicit exploration mechanisms, A3C- exhibits unstable behavior during learning. ICM alone is much more effective in guiding the policy learning than Entropy alone, since the exploration imposed by the latter is state-independent, while with ICM the agent is able to actively acquire new useful knowledge from the environment, and learn efficient navigation strategies for the environmental structures that it has encountered. ICM+Entropy stably and efficiently achieves the best performance.

We run evaluations on the same set of random episodes on Map1 after training, and report the resulting statistics in Table I. In addition, we conducted another set of experiments where we remove the LSTM layers in the actor-critic network. We report their evaluation results in Table I as well. Although without LSTM none of the configurations manage to converge to a good policy (so we omit their training curves in Fig. 4), we can still observe a clear trend of performance improvements for the policies trained both with and without LSTM, brought about by ICM exploration.

Exploration Success Steps
Strategy Ratio (%) (meanstd)
Map1 Entropy 34.3 313.787135.513
ICM 65.7 233.147143.260
(w/o LSTM) ICM+Entropy 73.3 162.733150.291
Map1 A3C- 88.3 173.063123.277
Entropy 96.7 102.22090.230
ICM 98.7 91.23062.511
(w/ LSTM) ICM+Entropy 100 75.16052.075
TABLE I: Evaluation on Map1.

Iii-C Generalization Tests on Map2,3,4

To test the generalization capabilities of the learned policies, we deploy the networks trained on Map1, collect statistics on a fixed set of random episodes on Map2,3,4, and report the results in Table II.

As discussed earlier in Fig. 3, Map2 is relatively simple but contains unfamiliar structures; Map3 and Map4 are more challenging, but the structures inside these floorplans are more similar to the training environment of Map1. With the exploratory behaviors brought by both ICM and Entropy, the agent learns well how to exploit structures similar to those it has encountered during training. Thus from Table II we can observe that, although the full model ICM+Entropy is slightly worse than ICM exploration alone on Map2, it achieves better performance in the more challenging environments of Map3 and Map4.

Exploration Success Steps
Strategy Ratio (%) (meanstd)
Map2 A3C- 66.0 199.343145.924
Entropy 85.3 115.567107.474
ICM 87.7 101.160102.789
ICM+Entropy 82.7 109.690107.043
Map3 A3C- 51.3 197.200141.292
Entropy 69.7 175.667139.811
ICM 63.7 152.627135.982
ICM+Entropy 72.7 139.423120.144
Map4 A3C- 44.3 273.353148.527
Entropy 34.3 240.197164.565
ICM 45.0 236.847169.169
ICM+Entropy 55.0 209.500161.767
TABLE II: Generalization tests on new maps.

Iii-D Discussion

As can be seen from our results, the ICM agents, even if they are not always more successful in reaching the targets, tend to find shorter paths to them. We believe that this can be viewed as evidence that exploratory behaviors due to curiosity help escape local minima of the policy function (in form of solutions that choose inefficient ways of reaching the target). We speculate that the reason for this improvement lies in the ICM agents seeing a bigger part of the environment, as the intrinsic motivation attracts them towards novel and currently less predictable states, while random exploration does little to avoid re-exploring the same areas again and again, getting stuck in structures which are difficult to escape by pure chance.

Iv Conclusions

We investigate exploration strategies for learning mapless navigation policies with DRL, augmenting the reward signals with intrinsic motivation. Our proposed method achieves better sample efficiency and convergence properties during training than all the baseline methods, as well as better generalization capabilities during tests on previously unseen maps. Our future work includes studying how to better adapt the weighting of the different components in the reward function, as well as real-world robotics experiments.
