1 Introduction

In the past 15 years, machine-learning methods have pushed forward many brain-imaging problems: decoding the neural support of cognition

(haynes2006), information mapping (kriegeskorte2006), prediction of individual differences –behavioral or clinical– (smith2015positive), rich encoding models (nishimoto2011), principled reverse inferences (poldrack2009decoding), etc. Replacing in-sample statistical testing by prediction gives more power to fit rich models and complex data (norman2006; varoquaux2014machine).

The validity of these models is established by their ability to generalize: to make accurate predictions about some properties of new data. They need to be tested on data independent from the data used to fit them. Technically, this test is done via cross-validation: the available data is split in two, a first part, the train set used to fit the model, and a second part, the test set used to test the model (pereira2009machine; varoquaux2017assessing).

Cross-validation is thus central to statistical control of the numerous neuroimaging techniques relying on machine learning: decoding, MVPA (multi-voxel pattern analysis), searchlight, computer aided diagnostic, etc. varoquaux2017assessing conducted a review of cross-validation techniques with an empirical study on neuroimaging data. These experiments revealed that cross-validation made errors in measuring prediction accuracy typically around . Such large error bars are worrying.

Here, I show with very simple analyses that the observed errors of cross-validation are inherent to small number of samples. I argue that they provide loopholes that are exploited in the neuroimaging literature, probably unwittingly. The problems are particularly severe for methods development and inter-subject diagnostics studies. Conversely, cognitive neuroscience studies are less impacted, as they often have access to higher sample sizes using multiple trials per subjects and multiple subjects. These issues could undermine the potential of machine-learning methods in neuroimaging and the credibility of related publications. I give recommendations on best practices and explore cost-effective avenues to ensure reliable cross-validation results in neuroimaging.

The effects that I describe are related to the “power failure” of button2013power: lack of statistical power. In the specific case of testing predictive models, the shortcoming of small samples are more stringent and inherent as they are not offset with large effect sizes. My goals here are to raise awareness that studies based on predictive modeling require larger sample sizes than standard statistical approaches.

2 Results: cross-validation errors

a. Neuroimaging data d. Kaggle competition b. Simulations c. Binomial law
Figure 1: Cross-validation errors. a – Distribution of errors between the prediction accuracy as assessed via cross-validation (average across folds) and as measured on a large independent test set for different types of neuroimaging data. Results from varoquaux2017assessing (see B) b – Distribution of errors between the prediction accuracy as assessed via cross-validation on data of various sample sizes and as measured on 10 000 new data points for simple simulations (see C). c – Distribution of errors as given by a binomial law: difference between the observed prediction error and the population value of the error, , for different sample sizes. d – Discrepancies between private and public score. Each dot represents the difference between the accuracy of a method on the public test data and on the private one. The scores are retrieved from www.kaggle.com/c/mlsp-2014-mri, in which 144 subjects were used total, 86 for training the predictive model, 30 for the public test set, and 28 for the private test set. The bar and whiskers indicate the median and the 5th and 95th percentile. Measures on cross-validation (a and b) are reported for two reasonable choices of cross-validation strategy: leave one out (leave one run out or leave one subject out in data with multiple runs or subjects), or 50-times repeated splitting of 20% of the data.

2.1 Distribution of errors in cross-validation

Cross-validation strives to measure the generalization power of a model: how well it will predict on new data. To simplify the discussion, I will focus on balanced classification, predicting two categories of samples; prediction accuracy can then be measured in percents and chance is at 50%. The cross-validation error is the discrepancy between the prediction accuracy measured by cross-validation and the expected accuracy on new data.

Previous results: cross-validation on brain images

varoquaux2017assessing used a nested cross-validation on neuroimaging data to measure this discrepancy: we split the data multiple times and compared errors (see B

). The strength of such an experiment is that it is applied on actual neuroimaging data, mimicking usage by practitioners. Its weakness is that the models’ true generalization accuracy is not known and must be estimated.

Figure 1a summarizes the resulting cross-validation errors, show a similar behavior across different reasonable choices of cross-validation strategy: the common leave-one-run-out, and the recommended random splitting strategy (varoquaux2017assessing). The 5th and 95th percentile of the distribution of errors are of particular interest as they correspond to the commonly accepted .05 threshold on p-values. The results show that these confidence bounds extends at least 10% both ways, regardless of the cross-validation strategy used. It implies that, when computing a given cross-validated accuracy, there is a 5% chance that it is 10% above the true generalization accuracy, and a 5% chance this it is 10% below.

Spread out predictions in a public challenge

There could be something unusual in the settings of varoquaux2017assessing. To reflect common practice in neuroimaging, I have inspected the results of a public prediction challenge (silva2014tenth) on the Kaggle website111https://www.kaggle.com/c/mlsp-2014-mri. The competition –predicting Schizophrenia diagnosis from functional and structural MRI– reports two accuracy measures estimated on a public () and a private () test set.

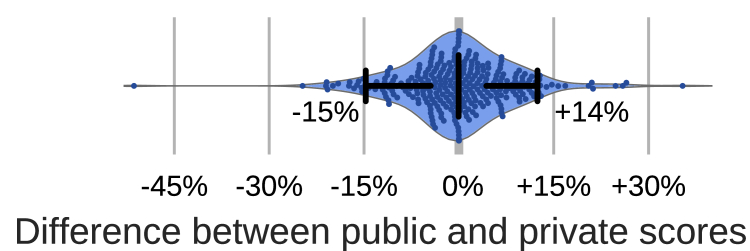

The accuracy scores reported on the public and the private test set show a large difference. Figure 1d summarizes these differences. Computing confidence bounds from these discrepancies gives errors on the order of . As neither the public nor the private test set is a gold standard, it is reasonable to assume that errors are shared between the two scores, and thus the actual margin of error on a single measurement is smaller by a factor of two.

Simple simulations also display large error bars

To understand better the origin of these discrepancies, I used simple simulations: fitting a linear SVM on a two-class dataset, samples drawn i.i.d.

from two Gaussian distributions with a separation tuned such that the classifier achieves 75% accuracy. I then compare the prediction accuracy measure by cross-validation on these data with the accuracy that the classifier achieved on a large amount (10 000) new samples drawn from the same distribution. An important benefit of this experiment is that it shows the difference between the cross-validation measure of the classifier’s accuracy, and the

true generalization accuracy.

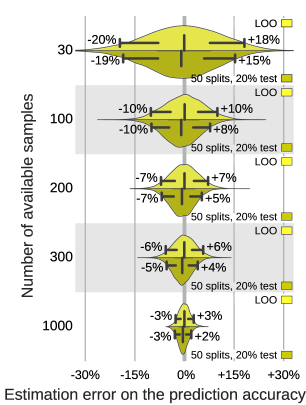

Figure 1b shows the resulting distribution of errors on the prediction accuracy estimated by cross validation for different size of the data available. For 100 samples, these experiments reproduces well the errors observed on neuroimaging data (Figure 1a and 1d). Both leave one out and more sophisticated cross-validation strategies display large error bars222Performing 50 repeated splits of 20% of the data yields slightly smaller error bars than leave one out, and can be significantly less computationally expensive for large datasets. This cross-validation strategy should be preferred, but will not fix the problem of large error bars.. As the sample size of the simulated data goes up, the error bars narrow markedly.

Intrinsically large sampling noise

The data clearly shows that the accuracy of predictive models is not well measured in neuroimaging. The small sample sizes encountered in neuroimaging indeed make this task very challenging: as I show below, even in ideal situations, there is a large sampling noise in the measure.

The typical sample size of neuroimaging studies is less than 100 observations given to the classifier, trials or subjects depending on the settings (Figure 2). The simplest model for the observed prediction errors is that of tossing a coin 100 times with a probability of success at each toss. The probability corresponds to the accuracy of the classifier that we are trying to measure. The distribution of number of successes is then given by a binomial law (pereira2011information; stelzer2013statistical). With 100 tosses, associated confidence bounds lie away from the true accuracy (see Figure 1c).

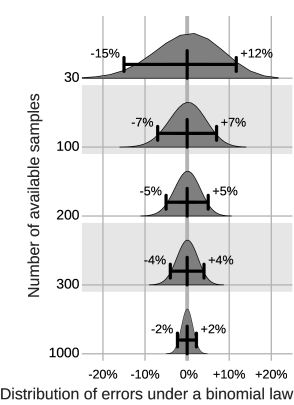

This binomial law is a best-case scenario for errors on the accuracy measure: observations are i.i.d. and there is no additional variability from training a decoder. On the opposite, neuroimaging data is strife with correlation across samples and confounding effects, e.g.

 the temporal structure of trials or samples drawn either from the same subject or different subjects. These reduce the statistical degrees of freedom and create an intrinsic variance in the prediction accuracy

(saeb2017; little2017). This is why we observe that cross-validation has larger errors on neuroimaging data (Figure 1a) than on the simulations (Figure 1b) or with the ideal binomial law (Figure 1c).

Figure 2: Sample sizes in neuroimaging studies A stacked histogram compounding sample sizes from multiple sources: the woo2017building review paper, differentiating Autism, Depression, Pyschosis, and Alzheimer’s studies, the arbabshirani2017single review paper, differentiating Schizophrenia and Alzheimer’s studies, the brown2016machine review on prediction from connectomes, and the wolfers2015estimating review on prediction for psychiatric disorders, as well as the 100 first answers to a pubmed search on ”fmri decoding”. The total histogram comprises 642 studies, with a median number of samples of 89. Note that I did not consider groups of less than 25 studies, and hence did not break up into pathologies the brown2016machine and wolfers2015estimating reviews.

Simulations and a simple null model therefore show that the error bars of cross-validation observed in neuroimaging are perfectly expected given the sample sizes. Improvements on cross-validation such as the reusable holdout (dwork2015reusable) cannot circumvent intrinsic limitations of small samples (see A).

2.2 Small sample sizes undermine statistical control

Underestimated errors

Not only are the errors of cross-validation large, but it is also easy to underestimate them, as when using as a null the binomial distribution.

The simplest approach to put error bars on cross-validation results is to look at the dispersion of the prediction accuracy across the folds. However as the predictions are not independent across folds, estimates of the variance or related statistical tests are optimistic (bengio2004no). On the simulated data, formulas based on the standard error to mean underestimate confidence bounds by a factor of 0.7 in the best case (D).

Permutation testing gives good statistical control on the prediction accuracy (stelzer2013statistical). Literature search on Google Scholar333Pubmed does not do full-text search. On Google scholar, a search for “fmri decoding” in the last 5 years returned 15 500 results, while “fmri decoding permutation” returned 2380; similarly, “fmri mvpa” return 2360 results while “fmri mvpa permutation” return 728. suggest that around a 30% of the publications on MVPA (mostly searchlight-based analysis) use permutations, but that only 15% of the fMRI decoding studies use permutations.

Vibration effects

Analytic pipelines come with various methodological choices that are hard to settle a priori (carp2012secret)

. With a high-variance test statistic, as cross validation on few samples, methodological choices can have a drastic impact on the outcome of the analysis. This is sometimes known as

vibration, and the key quantity is the ratio between the effect size and the variations due to analytical choices (ioannidis2008most). I explored vibration effects in decoding using the face versus place opposition in the haxby2001

data. I inverted the labels to predict in one session out of two, to create a dataset in which fMRI should not predict the experimental condition. On this data, I ran a variety of classic decoding pipelines, namely SVM or logistic regression, optionally with feature selection of 100, 200, 500, 1 000, or 2 000 voxels and smoothing at 2, 4, or 6 mm. These are standard choices, but they give altogether almost 50 different related decoding pipelines. I applied all these pipelines to various subsets of the data: the full 12 sessions, the 6 first or 6 last, or the 4 first or 4 last sessions.

Figure 3: Different decoders on fMRI with permuted labels On each line shows the distribution of cross-validation scores for a variety of decoders (SVC and logistic regression, with different amount of univariate feature selection and spatial smoothing); a dot is the cross-validation score for one choice of decoder. These are applied to the fMRI data of the first subject in haxby2001, discriminating face viewing and place viewing, but with labels inverted one session out of two; hence the expected accuracy is chance: 50%.

Figure 3 shows the cross-validation scores obtained with the various pipelines. The expected prediction score is 50%, chance. When using all 12 sessions, the observed scores group well around 50%, with excursions ranging from 44% to 52%. However, when using less data the excursions are much more pronounced, going up to 57% for 6 sessions and 71% for 4 sessions. In addition, the mean observed score varies notably across subsets of the data. Such variation can be explained by nonstationarities, e.g. fluctuation of attention of the subject, or sampling noise discussed above: the observations are very correlated and thus may not represent well the faces and places conditions.

3 Implications for neuroimaging

3.1 An open door to overfit and confirmation bias

The large error bars are worrying, whether it is for methods development of predictive models or their use to study the brain and the mind. Indeed, a large variance of results combined with publication incentives weaken scientific progress (ioannidis2005most).

With conventional statistical hypothesis testing, the danger of vibration effects is well recognized: arbitrary degrees of freedom in the analysis explore the variance of the results and, as a consequence, control on false positives is easily lost

(simmons2011false). (carp2012secret) has found that the variety of analytics choices is such in fMRI that almost every publication uses a unique pipeline. In predictive models, arbitrary choices can leads to artificial improvements in the prediction accuracy measured by cross-validation (see subsection 2.2 and skocik2016tried). The larger is the variance of the measure of the prediction score, the larger are these effects. The improvements are meaningless as they will not carry over to predicting on new data. The danger is well known in machine learning, where it is known as overfit. The standard remedy is to keep a large independent test set. However it is difficult in neuroimaging, where data acquisition is costly. To mitigate such intrinsic problems, clinical trials often use blind analysis where part of the labels are unknown to the statistician.

Scientific publishing makes things worse: the literature acts as a filter as only studies that report significant effects are published. Such selective reporting can further undermine control of the fraction of false detections in a body of literature (rosenthal1979file). It also tends to inflate the reported effect size (vul2009puzzlingly). An additional a dangerous effect of large variance is that it enables and justifies confirmation bias in publications: investigators or reviewers are more likely to publish results that are in agreement with their theory. Analysis of the literature suggests that publications are indeed too often on the edge of significance (szucs2016empirical) and are vastly biased by selection according to the prevailing opinions (ioannidis2008most).

Figure 4: Reported accuracy and sample size The various plots show reported prediction accuracy as a function of sample size for the studies in different the reviews considered in Figure 2. The black line and grey area represent the threshold with a binomial null model, which, as shown in the results section, is likely to be optimistic. The lines are Lowess fit to the data: robust non-parametric local regression.

The combination of large variance and the filter effect of publications could explain why the prediction accuracy reported in publication often decreases as sample sizes increase. Indeed, in Figure 4 I plot an meta analysis uniting the results discussed in several review papers. Each of these review select a variety of studies on different criteria such as methodology used or pathology studied. Overall, the typical prediction accuracy reported in studies with small samples size is larger that reported in studies with many samples444Depression studies, as reported by woo2017building do not show this decrease, however none of these have a large sample.. Homogeneity of the population and the imaging data is harder to control on larger cohorts. Hence uncontrolled heterogeneity might explain such a decrease. However, very few studies have compared large heterogeneous cohorts to smaller well-controlled group with the same analytic pipeline. A notable exception, abraham2017deriving, finds that pooling data across sites leads to better predictive biomarkers of Autism, although this is a highly-heterogeneous spectrum disorder.

3.2 Cross-validation is nonetheless a crucial tool

Cross-validation is not a silver bullet. However, it is the best tool available, because it is the only non-parametric method to test for model generalization. Bayesian approaches such as Bayesian model selection or Bayesian model averaging rely on model evidence to test or select models (penny2007, chap. 35). However, they are strongly parametric: the statistical control or the usefulness of this test collapses if the modeling assumptions are wrong. Additionally, these approaches do not measure the ability of the model to predict on new data.

Testing for generalization is central to diagnostics or prognosis applications, where prediction is indeed the question. It has also a broader importance as the ability to generalize findings is central to scientific investigations. Research in psychology and neuroscience has focused on explaining data, to seek causal mechanisms using tightly-controlled experiments, eg based on randomization. However, too strong a focus on well-controlled explanation may limit the generality of the results (yarkoni2016choosing). The essential aspect of cross-validation is that it tests a model on observations independent from the data that was used to fit the model. This is the only assumption-free way to bound model complexity. Indeed, more complex model will always fit the data better. There are statistical procedures to set model complexity, such as Bayesian information criterion (BIC) and the related Akaike information criterion (AIC) and minimum descriptor length (MDL). However, they rely on modeling assumption such as data distribution, independence of the observations, and need much more observations than model parameters (hastie2009elements, sec. 7.5).

3.3 Looking forward: some recommendations

Predictive models can extract richer and finer information from the complex data provided by brain imaging. However, best practices need to be adapted to ensure enough statistical power to test these models. While larger datasets are certainly desirable, they are difficult and costly to acquire. At the subject level, data accumulation is limited by fatigue of the subject in the scanner as well as habituation effects to the paradigm. Scanning many subjects may entails operational budgets beyond that typical of a neuroimaging grant. Nevertheless, there are a variety of solutions feasible without major changes in the field.

Data sharing and pooling, despite heterogeneity

Reusing shared data across investigators can increase sample sizes while keeping bounds on data-acquisition costs (poldrack2014making). Platforms to share neuroimaging data are rapidly growing, as with OpenfMRI (poldrack2013toward) that now hosts 63 studies comprising 2 200 subjects, or Neurovault (gorgolewski2015neurovault) with 26 000 brain maps in 1 100 collection. Such sharing is easiest with harmonized protocols and conventions. Yet, outside of concerted efforts, there is a massive amount of data potentially available: around 30 000 studies using fMRI are published each year555As estimated from a PubMed search on fMRI., many with new data. They answer a wide variety of different questions; still they have some overlap. This overlap provides opportunity for reuse, increasing sample size. For cognitive neuroimaging, joint analysis is challenging due to the high specificity of cognitive questions studied. However, the success of meta-analysis in fMRI suggests that pooling data can be beneficial, whether it is by assembling a small number of well-matched studies or over a wider coverage of the literature (laird2005ale; costafreda2009pooling). In a remarkable example of predictive models using pooled data, wager2013pain were able to combine multiple pain studies to extract a neural signature specific to physical pain, discriminating it from social pain or warmth.

To pool studies of brain pathologies, it is often easier to define a common covariate to predict across subjects, typically a diagnostic status. However, studies of the same pathology can differ in their inclusion criteria, introducing heterogeneity that confounds predictions or interpretations. Heterogeneity may be a challenge to the clinical relevance of studies on heterogeneous groups, as many neuro-psychiatric diseases are spectrum disorders that are likely composed of several forms of the disease. However, biomarkers that are too specific to a certain site or a certain cohort have reduced clinical value (woo2017building). There are many documented successes of prediction from heterogeneous brain imaging data. For anatomical markers of aging, ziegler2014individualized show that using data from many scanners enables to generalize to new scanner. yahata7small and abraham2017deriving show that, for a disorder as heterogeneous as Autism, predicting diagnostic status across sites was possible. Moreover, abraham2017deriving and dansereau2017statistical show that with a large number of sites, prediction across sites performed as well as prediction across subjects in the same site. Cross-validation on heterogeneous data requires some care, as prediction may be driven by a confounding covariate (little2017). For instance, when predicting with several sessions per subject, care must be taken to avoid having different sessions of the same subject in the train and test set, to prevent subject-identification to be driving prediction (saeb2017).

Paradigms facilitating larger data

Some experimental paradigms make it easier to accumulate data, often to the cost relinquishing fine control on cognition. For instance, to study cognition, standard localizer-type paradigms (saxe2006divide) can easily be shared across many acquisitions, leading to large databases (pinel2007fast). Naturalistic stimuli enables faster presentations for longer times without fatigue of the subject. Therefore they can be used to accumulate subjects’ responses for rich decoding studies (kay2008identifying). To study inter-individual differences, acquisition protocols that are comparatively universal and easy to acquire lead to large sample sizes. For instance there are more standard T1 maps available than myelin maps. In functional imaging, resting-state fMRI acquisition are a promising source of very large data, via post-hoc aggregation (biswal2010; thompson2014enigma; di2014autism) or large concerted efforts (miller2016multimodal; van2013wu).

Cognitive neuroimaging results: at the group level

In cognitive neuroimaging, multi-voxel pattern analysis (MVPA) generally performs cross-validation across trials in the same subject. The number of trials cannot always be easily extended, due to habituation effects or limited time in the scanner. A more promising avenue to increase sample size is to exploit the replication of these decoding results across subjects. As there is significant variability in cognitive strategy or performance across subjects, pooling across subjects raises concerns. Yet, conclusions should be drawn from the group, and not at the subject level, where the small sample size tends to compromise cross-validation. There are several approaches. First, as outlined in stelzer2013statistical even when cross-validation is performed at the subject level, testing for significance of predictions can be done at the group level. This approach is used by a good fraction of the MVPA studies. Another option is to predict across subjects. This requires fine-grain matching of subjects’ anatomy and function, yet it bears the promise of more general representations of cognition (haxby2011common).

Evaluating methods on multiple studies

For methods development, the vibration effects observed on Figure 3 are very troublesome. Indeed, the empirical work in methods development often amounts to trying out multiple approaches and publishing the one that works best. It leads naturally to overfit if the data are not large enough to guarantee errors on the measurement prediction accuracy smaller than the difference between methods. As I outline in subsection 2.2 and D), it is hard to measure these error bars and they are usually underestimated. The best way to compare approaches without loophole is to test them across several datasets (demvsar2006statistical). With the sample size typical of neuroimaging, I personally believe that this is the only sound way of doing methods development. As most methods researchers, I have not always worked like this in the past, and some of the promising results that we have published have not carried over666As an example, we were not able to reproduce the benefits of the specific algorithm in michel2012supervised on other datasets, though we later validated some of the core ideas –voxel clustering– on many other datasets varoquaux2012icml; hoyos2016recursive..

4 Conclusion: improving predictive neuroimaging

With predictive models even more than with standard statistics small sample sizes undermine accurate tests. The problem is inherent to the discriminant nature of the test, measuring only a success or failure per observations. Estimates of variance across cross-validation folds give a false sense of security as they strongly underestimates errors on the prediction accuracy: folds are far from independent. Rather, to avoid the illusion of biomarkers that do not generalize or overly-optimistic methods development, ballpark estimates of confidence bounds summarized in Table 1 may be more useful. A typical sample size in neuroimaging, 100 observations, leads to errors in prediction accuracy. Cognitive neuroscience MVPA studies often control these errors by performing a group-level statistical analysis.

Sample size 30 100 300 1000
Confidence bounds
Table 1: Confidence bounds to be expected for a binary classification, summarizing experiments and simulations in Figure 1. Actual confidence bounds may be significantly larger in adverse situations such as with correlated observations or very unstable classifiers.

Exploring arbitrary choices in analytic pipelines easily creates improvements in measured prediction accuracy that will not generalize to new data. Such effect is a major impediment for methods development as it becomes challenging to ensure that improvements observed are meaningful. Due to the specificities of datasets, protocols, or pathologies, there cannot be a one-size-fits-all optimal method for predictive modeling. However, to limit the variety of analytics pipelines, we, methods developers, must provide general recommendations validated on many datasets.

With small sample sizes, research with predictive models is performed blindfolded. The problem is neither new nor specific to neuroimaging. In genomics, braga2004cross have asked “Is cross-validation valid for small-sample microarray classification?”. In neuroimaging, it is magnified by the intrinsic difficulty of acquiring large datasets. The problem will not be fixed by better classifiers or cross-validation approaches. Solutions will lie in approaches using larger samples sizes or preregistered analyses. Overall, exploring larger datasets is a promising future for neuroimaging (poldrack2016scanning). Their richness is best captured by multivariate models (miller2016multimodal). For predictive applications such as biomarkers, larger datasets lead to better prediction on hard problems, even in the face of increased variability.

Acknowledgments

Computing resources were provided by the NiConnect project (ANR-11-BINF-0004_NiConnect). I am grateful to Aaron Schurger, Steve Smith, and Russell Poldrack for feedback on the manuscript. I would also like to thank Alexandra Elbakyan for help with the literature review, as well as Colin Brown and Choong-Wan Woo for sharing data of their review papers.

References

Appendix A Additional considerations on uncertainty in prediction accuracy

a.1 The reusable holdout

dwork2015reusable propose an elegant technique to reuse a given holdout set while avoiding overfitting it. However, the technique relies on jittering the measure of prediction error when it is below a threshold777Technically, the jitter is performed when train and test errors are very close to each other. Optimally-tuned predictors strike a balance between over and under fit and hence have close error rates on the train and test set.

. The technique does not fix the intrinsic uncertainty in the measurement of the prediction accuracy –a task likely impossible– but it embeds this uncertainty in the validation procedure, refusing to conclude beyond a threshold directly related to confidence intervals of the prediction

(dwork2015reusable, supp mat). A given control on generalization performance requires setting the threshold proportional to . The reusable holdout is a beautiful improvement to cross-validation, that is however aligned with the main point that I am making: measuring prediction accuracy is not reliable with small samples.

a.2 Confidence bounds for varying expected accuracy

Figure A1: Varying expected accuracy Binomial distributions for varying expected accuracy and number of samples. These indicate the shape of sampling noise, whether it is for a null distribution or the observed values.

The experiments performed so far are for a chance level of 50% and an average prediction accuracy of 75%. While these numbers are typical in many decoding experiments, some experiments probe multiclass decoding, sometimes with many classes, in which case the accuracy under chance as well as the observed accuracy may be much lower. In such situations, the mechanisms driving estimation errors in cross-validation are the same, hence a binomial law still give a lower-bound on the distribution of errors. The binomial must be adapted to be centered on the expected accuracy, whether it is to compute the null distribution or to evaluate confidence bounds on observed values. Figure A1 shows different binomial distributions for various values of expected accuracy and number of samples. For expected accuracy close to 0% or 100%, the distributions narrow and becomes asymmetric due to the censoring effect of these limits. With large sample sizes, the distributions are more narrow, and these effects are less visible. Table A1 gives corresponding 5 and 95% confidence bounds and shows that indeed, the confidence bounds are tighter near 0% or 100% prediction accuracy.

Expected 5%–95% confidence bounds
accuracy 30 samples 100 samples 300 samples
10.0%
25.0%
50.0%
75.0%
90.0%
Table A1: Confidence bounds for a varying expected accuracy and varying number of samples, the 5 and 95% percentile of the binomial distribution, giving a lower-bound on the confidence bounds as it is a conservative distribution of errors (see Figure A5). Not that experiments revealed that the binomial distribution underestimates errors, hence actual confidence bounds are likely to be higher.

Appendix B Experiments of Varoquaux 2017

To facilitate reading this paper, I summarize here the experimental protocol used in varoquaux2017assessing. The principle of the experiment is that the data are split twice (see Figure A2): first in a decoding set and a validation set; then cross-validation is performed on the decoding set results in an estimate of prediction accuracy –as in any cross-validation based study–; finally this estimate is compared to the prediction accuracy of the models on the left-out validation set. To give a good measure of accuracy on the validation set, this set is taken large, as large as the decoding set. The estimation error of cross-validation is then measured by the discrepancy between the prediction accuracy on the validation set, and the prediction accuracy obtained by the cross-validation procedure on the decoding set. varoquaux2017assessing applied such experiments on a variety of neuroimaging decoding datasets, within and across subjects, in fMRI, VBM (Voxel Based Morphometry) and MEG (Magneto EncephaloGraphy).

Figure A2: Splitting the data twice: first in validation and decoding set, and then performing cross-validation on the decoding set.

Appendix C Details on the simulations

c.1 Dataset simulation

I generate data with samples from two classes, each described by a Gaussian of identity covariance in 100 dimensions. The classes are centered respectively on vectors

and where is a parameter adjusted to control the separability of the classes. With larger the expected predictive accuracy would be higher. The samples are generated i.i.d., with is a simplification compared to time-series, as in decoding, where there often is a dependence between neighboring observations, or in the same session. I chose the separability empirically to have a classification accuracy of 75%. Figure A3 shows a 2D view of the corresponding data. Code to reproduce the simulations can be found on https://github.com/GaelVaroquaux/cross_validation_failure.

Figure A3: 2D view on simulated data The two classes are represented in red and blue circles. Here, to simplify visualization, the data are generated in 2D (2 features), unlike the actual experiments, which are performed on 300 features.

c.2 Experiments on simulated data

Unlike with a brain imaging datasets, simulations open the door to measuring the actual prediction performance of a classifier, and therefore comparing it to the cross-validation measure.

For this purpose, I generate a pseudo-experimental data with a varying number of train samples, and a separate very large test set, with 10 000 samples. The train samples correspond to the data available during a neuroimaging experiment, and I perform cross-validation on these. I then apply the decoder on the test set. The large number of test samples provides a good measure of prediction power of the decoder (arlot2010). As a decoder, I use a linear SVM with C=1, as it is common in neuroimaging. To accumulate measures, I repeat the whole procedure 1000 times.

Appendix D Results on the standard error of the mean

CV train SEM empirical
strategy size error bar error bar
LOO 30
100
300
1000
50 splits,
20% test
30
100
300
1000
Figure A4: Error bars: SEM estimates versus observed In conventional models, the confidence limits are a factor 1.64 of the standard error of the mean (SEM). This figure represents such confidence limits on cross-validation estimated from SEM across the folds as a function of the actual estimation error observed in the simulations. Using the standard formula to compute the 95% confidence limit under-estimates it significantly compared to the actual 95 percentile of the observed error, thought the two different choices of cross-validation strategy, leave one out, and 50-times repeated splitting of 20% of the data, give different under-estimation: a factor of 0.73 for leave one out, and 0.26 for 50 repeat splits.

A common approach to give error bars is to compute the standard error of the mean (SEM) across the cross-validation folds. For samples drawn from a normal distribution, the distance from the mean of the upper and lower 95% confidence limit is given by 1.64 SEM

888If the test is two-sided, the confidence bound are given by 1.96 SEM.

. The SEM is also the quantity that appears in a T test. On the simulations, I compared such confidence limits computed from the SEM to the observed percentile of

Figure A4.

Using the standard formula based on the SEM under-estimates actual confidence bounds by a factor of 0.73 for leave one out and 0.26 for repeated train-test split with 20% left out and 50 splits. There is indeed a wide difference is how much different folds are correlated in a cross-validation strategy. To give a more precise estimation of prediction accuracy, repeated random splits create more correlations across fold, and hence standard SEM computation that ignores this correlation is more severely incorrect.

Appendix E Experiments with the perfect predictor

To fully rule out that the errors witnessed on cross-validation are due to instabilities of the predictive model, I repeated the experiments with a predictor independent from the data. Specifically, I used the knowledge of the data-generating process to create a classifier making best decision possible. I then ran the cross-validation experiments with this classifier. Figure A5 gives the corresponding distribution of mismatch between the accuracy measured by cross-validation and the actually accuracy of the classifier.

Perfect predictor

Figure A5: Cross-validation error with the perfect predictor. Given a data-independent optimal predictor, distribution of errors between the prediction accuracy as assessed via cross-validation on data of various sample sizes and the expected error of the predictor. The bar and whiskers indicate the median and the 5th and 95th percentile. The distributions are reported for two reasonable choices of cross-validation strategy: leave one out, or 50-times repeated splitting of 20% of the data.

The results with the perfect predictor are very similar to those using an actual decoder trained on the data999Note that I set the separation in the data generation to have a prediction accuracy of 75%. As the perfect predictor is a better predictor than a linear SVC, experiments with the perfect predictor are done with a large separation. (Figure 1b using a linear SVM). Given that the classifier is independent of the data, the variability observed here can clearly be traced to sampling noise in the test set. Leave-one-out and random splits with 20% of the data give the same errors.
