Person-identification aims at identifying the same person from different cameras. Given a probe person image, it retrieves images with the same ID in gallery images. It is a difficult problem because the appearance of probe images and gallery images can be quite different even with the identical ID. As shown in Fig. 1, due to illumination, camera model differences, viewpoint changes, and pose variations, the foreground person images can vary a lot. In addition to background clusters, identifying the same person is difficult. Person re-identification is also a zero-shot problem , which means the IDs in the training set is not used in the testing set, and after learning to identify training IDs, the model needs to discriminate new persons which are never seen before.
Despite those challenges, with the advances of deep neural networks and the continuous effects made by the person re-identification community, RGB ReID has gained a lot of progress and achieved high accuracy [40, 43, 44, 57, 37, 12, 27]. However, RGB ReID will fail in dark conditions. Without extra artificially lighting, a conventional ReID system using RGB cameras can only work in day time. In other words, the system can not function well in almost half the time of one day, which substantially limits the application of ReID.
In real-world scenarios, many surveillance cameras will switch to night mode, using an infrared camera to capture images at night. Then a new question arises: can we identify a person across infrared images and RGB images? Compared with RGB images with rich color information and structure patterns, infrared images are captured under the infrared spectrum, resulting in a quite different appearance. As shown in Fig. 1, in the first row the discriminative pattern of the striped T-shirt in RGB spectrum is missing in the infrared spectrum, and in the second row, the distinctive yellow color is lost. The modality discrepancy makes it more difficult to identify the same person between the RGB spectrum and infrared spectrum. This new problem is a cross-modality problem and only a few pioneer works have been made in recent years.
To investigate this RGB-infrared cross-modality person re-identification problem, we need to collect new data including RGB images and infrared images of the same person.
proposes SYSU-MM01 dataset, which contains images captured by 4 RGB cameras and 2 near-infrared cameras of both indoor and outdoor scenarios. A deep zero-padding method is also proposed to extract unified feature vectors for both RGB images and infrared images. The deep zero-padding method is simple and efficient, where RGB sub-network handles RGB images and infrared sub-network handles infrared images. But computation cost for the zero-padded channel is wasted and the shared features of two modalities cannot be well extracted. Instead, in this paper, every input channel is utilized and a cross-spectrum strategy is applied to discover shared features in all modalities.
Apart from one-stream methods,  and  also demonstrate the efficiency of two-stream methods. A Hierarchical Cross-modality Metric Learning (HCML)  method first extracts features separately for each modality and then uses shared layers to obtain the final unified features. After that, a metric learning strategy follows to further promote performance. However, a two-stage training process requiring human intervention makes it less convenient for practical large-scale applications.
improves this idea and proposes a novel dual-constrained top-ranking loss function to guide the feature learning process, making the training end-to-end. Unlike those pioneer works, we design a one-stream deep convolutional neural network (CNN) to discover shared features with a simpler network structure.
In the HCML  work, a new visible-thermal dataset called RegDB is also proposed, which exploits the original data from  and designs an evaluation protocol similar to SYSU-MM01  dataset. The main difference is, SYSU-MM01  contains RGB and near-infrared images, while RegDB  contains RGB and far-infrared images, which makes it even more difficult for a method to work in both two datasets. Some examples are shown in Fig. 2. As we can see, due to its shorter wavelength, near-infrared images from SYSU-MM01  dataset have a sharp edge and clear background. While, as a comparison, far-infrared images from RegDB  dataset have blurred edges, losing a lot of color patterns. A robust RGB-infrared method needs to handle both of these situations. Our proposed method achieves a new state-of-the-art score in both SYSU-MM01 and RegDB , demonstrating its efficiency and generality.
Another idea to fill the gap between RGB modality and infrared modality is using a Generative Adversarial Nets (GAN)  model. Cross-modality generative adversarial network (cmGAN)  trains a deep convolutional neural network as a generator to generate a modality-invariant representation for RGB and IR images in a common subspace and a discriminator to learn a discriminative feature representation from different modalities. Instead of mapping images from different modalities to a common feature subspace, a recent work called Dual-level Discrepancy Reduction Learning ()  translates an infrared image into its visible counterpart and a visible image to its infrared version using an image-level sub-network to reduce modality discrepancy and uses a feature-level sub-network to reduce the remaining appearance discrepancy through feature embedding. Those works both achieve superior performance, but training a generator and a discriminator makes the network more complex, and how to balance the generator and discriminator is non-trivial. Instead, our new proposed method uses a simpler network structure trained in an end-to-end way.
Although those pioneer works have made great progress in the RGB-infrared ReID task, compared with conventional RGB ReID task, the performance is still inferior, which may limit its wide application in real-world scenarios. The main challenge for RGB-infrared ReID is that the method needs to handle not only appearance discrepancy in traditional ReID caused by illumination, pose variations and viewpoint changes, but also additional modality discrepancy produced by cameras of the different spectrum, which makes RGB-infrared ReID problem more difficult.
For appearance discrepancy, existing works on traditional RGB ReID task like batch hard triplet loss  have been demonstrated that they are efficient to deal with appearance difference and extract discriminative features. We adopt this idea and introduce batch hard triplet loss  to supervise our network to push inter-class persons away and pull intra-class persons together. We also add a cross-entropy classification loss to further facilitate the convergence of the training process.
As for modality discrepancy, unlike cmGAN  mapping images of two modalities to common subspace or  mapping images to unified image space, we argue that we can directly extract shared cross-modality features using a one-stream network. To achieve this objective, we need to explicitly guide the network to only focus on the shared features across modalities and ignore the modality-specific features. In this paper, we propose a Cross-Spectrum Image Generation (CSIG) method to generate multi-spectrum images, including the blue spectrum, yellow spectrum, red spectrum, and gray spectrum. As a result, the network is trained with multi-spectrum images and is forced to discover cross-spectrum shared features for correct discrimination of all spectrum.
Another challenge of RGB-infrared ReID is that the intra-person (images from the same person) distance across RGB and infrared cameras is often larger than the inter-person (images from different persons) distance of the same type of cameras . As shown in Fig. 3, due to modality discrepancy, images of the same person from two different modalities are quite different, and the distance between anchor image and positive image can be larger than the distance between anchor image and negative image in the embedded space. As shown in the right side of Fig. 3, although anchor and negative images are from different persons, they look quite similar, because they are both infrared images (same modality), while the positive sample is RGB image(cross-modality). To address this problem, we propose a novel dual-subspace pairing strategy which couples the original images from one subspace with a generated image in another subspace. The generated image has an identical underlying appearance with the original image, but in a different modality. In this way, the network can learn to focus on eliminating cross-modality difference and extracting discriminative features from all modalities. Compared with traditional RGB ReID models extracting all-spectrum features, our model focuses on extracting only cross-spectrum features, reducing the modality distraction and producing a more unified feature (an actual feature distribution is shown in Fig. 7).
During the training process of our proposed model, we use the cross spectrum image generation method to produce image pairs. Apart from sampling from all spectrum through a uniform distribution, we could also sampling based on the current model state. Cause with the training progressing, the model can learn to classify samples from one spectrum better than samples from another spectrum. As a result, uniform sampling is not an optimal option. Therefore, we propose a Dynamic Hard Spectrum Mining strategy to automatically evaluate the difficulty level of different spectrum based on the current model state, and assign a harder spectrum a larger sampling probability. The experimental results have demonstrated the efficiency of our proposed method.
The main contribution of this paper can be summarized in four-fold:
(1) Unlike existing RGB-infrared ReID methods, we adopt a one-stream network structure with carefully designed paired input to mining cross-spectrum features, achieving superior performance and providing a new paradigm for future works. More detailed discussion can be found in Section III-E;
(2) a cross-spectrum image generation method which can generate multi-spectrum images efficiently with almost no extra computation cost; a dual-subspace pairing strategy that can help the network to learn to reduce the cross-modality discrepancy and extract shared features across modalities;
(3) We also propose a novel Dynamic Hard Spectrum Mining method to automatically mine more hard training samples from hard spectrum based on the current model state during the training process, further promoting the performance of the network;
(4) we design a one-stream neural network with input channel expansion to extract discriminative features for the RGB-infrared cross-modality ReID problem. Combining with the cross-spectrum image generation method and dual-subspace pairing strategy, our network achieves superior performance and outperforms current state-of-the-art methods by a large margin on both SYSU-MM01  dataset and RegDB  dataset. And our code will be publicly released.
Ii Related Works
Metric Based ReID. Metric based methods learn a distance metric to determine the similarity between two images. Traditional metric learning algorithms include Locally adaptive Decision Functions (LADF) , Cross-view Quadratic Discriminant Analysis (XQDA) , Data-Driven Distance Metric (DDDM) method , Keep It Simple and Straightforward Metric Learning (KISSME)  and its improvement Dual-Regularized KISS Metric Learning , Local Fisher Discriminant Analysis (LFDA)  and its kernel variant (k-LFDA) . With the advance of the deep neural network, loss function based metric learning deep methods become popular.  proposes a Siamese Convolutional Neural Network structure (SCNN) and uses the Fisher criterion for deep metric learning.  designs a Gated Siamese Convolutional Neural Network (Gated-SCNN) with contrastive loss function proposed in
as a metric criterion. In the face recognition area, triplet loss function has been proven to be efficient for deep metric learning in FaceNet .  also introduces the triplet loss function for deep metric learning and achieves good accuracy. After that,  proposes an improved triplet loss function to further promote the performance. But some works [54, 1] argue that a classification loss, possibly combined with a verification loss, is superior for the ReID task. In defense of triplet loss,  proposes a batch hard triplet loss with a -sampling batch generation strategy, achieving an impressive performance and becoming popular in ReID task. A variant of triplet loss using an extra sample for distance comparison called Quadruplet Loss  is also proposed, which can lead to the model output with a larger inter-class variation and a smaller intra-class variation compared to the triplet loss. Apart from point-to-point metric, Set-to-set (S2S) distance metric  is also investigated, in which the underline objective focuses on preserving the compactness of intraclass samples for each camera view, while maximizing the margin between the intraclass set and interclass set. Multilinear Multi-index Fusion method  explores the complementary information hidden in different indexes more thoroughly by formulating this procedure as a multilinear based optimization problem. Re-ranking method is also widely used in the ReID task, such as k-Reciprocal re-ranking , Ranking Aggregation of Similarity Pulling and Dissimilarity Pushing , and Reciprocal Optimization (RO) method .
Part Based ReID. Pose is an important clue to locate different human body parts, thus many pose-based ReID methods are proposed, which divide the input image into different parts using pose information. Pose-driven Deep Convolutional (PDC)  model explicitly leverages the human part cues and transfers both global human body and local body parts into normalized and homologous state for better feature embedding. Spindle Net  adopts a human body region guided multi-stage feature decomposition and tree-structured competitive feature fusion. The Global-Local-Alignment Descriptor (GLAD) estimates four human key points that are robust for various poses and camera viewpoints using an external model and then extracts corresponding features of the global body and local parts. PoseBox
generates a PoseBox structure through pose estimation followed by affine transformations to align pedestrians to a standard pose and reduce the impact of pose estimation errors and information loss during PoseBox construction through a PoseBox fusion CNN architecture. Pose-Normalized GAN (PN-GAN) designs a specific generative adversarial network for pose normalization, and the model can learn a new type of deep ReID features free of the influence of pose variations using synthesized images, which are complementary to features learned with the original images. Feature Distilling GAN (FD-GAN)  also uses GAN to learn identity-related and pose-unrelated representations based on a Siamese structure with multiple novel discriminators on human poses and identities. Apart from pose-based part methods, [3, 33, 27] adopt a part-division strategy using horizontal stripes, which is simple and demonstrated to be efficient.
adds three novel constraints on Spatial Transformer Networks (STN) for effective latent parts localization and body-part feature representation, then fuses full-body and body-part identity discriminative features for powerful pedestrian representation.  gathers together feature maps depicting different body parts by clustering feature maps based on the location of their maximum responses.
presents a novel siamese Long Short-Term Memory (LSTM) architecture that can process image regions sequentially and enhance the discriminative capability of local feature representation by leveraging contextual information.
proposes a Domain Guided Dropout method that assigns each neuron a specific dropout rate for each domain according to its effectiveness on that domain.
introduces the binary segmentation masks to construct synthetic RGB-Mask pairs as network inputs and design a mask-guided contrastive attention model (MGCAM) to learn features from the body and background regions separately. And presents a deep mutual learning (DML) strategy based on model distillation where, rather than a one-way transfer between a static predefined teacher and a student, an ensemble of students learn collaboratively and teach each other throughout the training process.  proposes a novel deep learning framework, called Similarity-Guided Graph Neural Network (SGGNN) to overcome the limitation that the similarity estimation of some hard samples might not be accurate. Apart from image-based ReID, video-based ReID is also an important task where both temporal and spatial information in the videos need to be handled properly. For example, Deep Siamese Attention Networks  designs a siamese attention architecture that jointly learns spatiotemporal video representations and their similarity metrics. Data labeling is also time-consuming for video-based ReID, and Feature Affinity-based Pseudo Labeling (FAPL) method  employs pseudo-labeling by measuring the affinity of unlabeled samples with the underlying clusters of labeled data samples using the intermediate features of deep neural networks. ReID can also be integrated into the person tracking task. Context-Aware Hypergraph Modeling  uses a hypergraph representation to link related objects for re-identification and a diverse hypergraph ranking technique for person-focused network summarization.
RGB-infrared ReID. Compared with conventional RGB ReID, the RGB-infrared ReID is a relatively new problem and it needs to address not only the appearance discrepancy but also the modality discrepancy. Although it is a challenging task, some great pioneer works have been made.  contributes a new multiple modality Re-ID dataset named SYSU-MM01, including RGB and IR images, and proposes a deep zero-padding method to train a one-stream network towards automatically evolving domain-specific nodes in the network for cross-modality matching.  designs a novel cross-modality generative adversarial network (cmGAN) to learn discriminative feature representation from different modalities.  introduces a two-stage framework including a TwO-stream CNN NEtwork (TONE) to learn the multi-modality sharable feature representations and a Hierarchical Cross-modality Metric Learning (HCML) method. However, a two-stage process requires a human intervention, which limits its wide large-scale application in real-world scenarios. In another work,  proposes a dual-path network with a novel bi-directional dual-constrained top-ranking loss to learn discriminative feature representations in an end-to-end way. Recently,  introduces a novel Dual-level Discrepancy Reduction Learning () scheme which reduces modality discrepancy using an image-level sub-network and reduces the remaining appearance discrepancy through a feature-level sub-network. Hypersphere Manifold Embedding (HSME)  maps the input images onto a hypersphere manifold, and acquires decorrelated features with a two-stage training scheme.
Iii Our Approach
In this section, we will describe the proposed cross-spectrum image generation method and dual-sub-space pairing strategy in details, then we will introduce our designed one-stream network for feature extracting and its corresponding loss function we adopted. Finally, the dynamic hard spectrum mining strategy is introduced, and a discussion of different network structures follows.
Iii-a Cross-spectrum Image Generation
The core challenge for RGB-infrared cross-modality ReID is that the same person with exactly the same appearance will produce a quite different image under RGB cameras and infrared cameras, which we call modality-discrepancy.
Modality-discrepancy is caused by the spectrum difference that RGB cameras capture the features of a person in the RGB spectrum while infrared cameras capture the features in the infrared spectrum. From one modality to another modality, some information is irreversibly lost and can not be recovered. As we can see in Fig. 1, the yellow color of the cloth and striped pattern of the T-shirt in RGB images are missing in infrared images. Based on this observation, we focus our attention on extracting features existing in all modalities, in other words, the shared cross-modality features.
To accomplish this goal, we can directly feed RGB images and infrared images together into a one-stream network and let the network learn to extract unified features automatically, no matter which modality the input image is. However, without explicit constraints, the network can only achieve an inferior performance, which is verified from the experimental results in Section IV.
Instead, we propose a novel cross-spectrum image generation method which can produce images in multi-spectrum. Given an RGB image, we produce images in the red spectrum, green spectrum, and blue spectrum by extracting pixels from the corresponding color channel. In addition, we also add the gray-scale image of the original RGB image as a special spectrum to further increase the number of modalities. For an input RGB color image with red channel , green channel , blue channel and corresponding gray-scale image , our cross-spectrum image generation method can be denoted as follows:
where is our cross-spectrum image generation function.
Some examples are shown in Fig. 4. We can observe that the four generated images in different spectrum show kind of diverse appearances, and are similar to the appearance captured by an infrared camera. Note the bi-color pattern backpack in the first row, this pattern disappears in the green spectrum image, as well as in the infrared spectrum image.
Introducing more modalities into the training process can add extra supervision signal for the network to discover discriminative shared features existing in all modalities, in other words, cross-spectrum shared features, leading to a better feature embedding.
To maintain consistency, for infrared images, we simply apply a random brightness jitter augmentation with a fixed jitter ratio .
Experimental results in Section IV demonstrate the efficiency of the proposed cross-spectrum image generation method.
Iii-B Dual-subspace Pairing Strategy
Another challenge of RGB-infrared cross-modality ReID is that the intra-person distance across RGB and infrared cameras is often larger than the inter-person distance of the same type of cameras. As shown in Fig. 3, in traditional RGB ReID dataset like Market-1501 , images of the same person are more visually similar to the images of different persons. While in an RGB-infrared dataset like SYSU-MM01 , images of the same person in two different modalities are quite dissimilar due to modality discrepancy, and the dissimilarity can be even larger than which lies between different persons within the same modality.
As a result, in the training process, the network needs to learn to classify samples with smaller distance into different classes and classify samples with larger distance into the same class, which is confusing and hard to converge, leading to inferior performance.
To address this problem, we propose a novel dual-subspace pairing strategy. As shown in Fig. 6. For each input original image, we use a cross-spectrum image generation method to produce a paired image, and then feed them together into the network.
Through cross-spectrum image generation, the underlying actual appearance is exactly the same between the original image and the generated paired image. Therefore, the appearance discrepancy can be neglected and ideally the embedded cross-spectrum shared feature should be the same for both the original and generated images.
In this dual-subspace pairing way, the network can focus on learning to eliminate the cross-modality discrepancy between two subspaces and extract discriminative cross-spectrum features.
Specifically, for each input original image, we randomly choose one cross-spectrum image from all generated images for RGB image and the random brightness jittered image for infrared image, as the paired counterpart.
Iii-C Our One-Stream Network

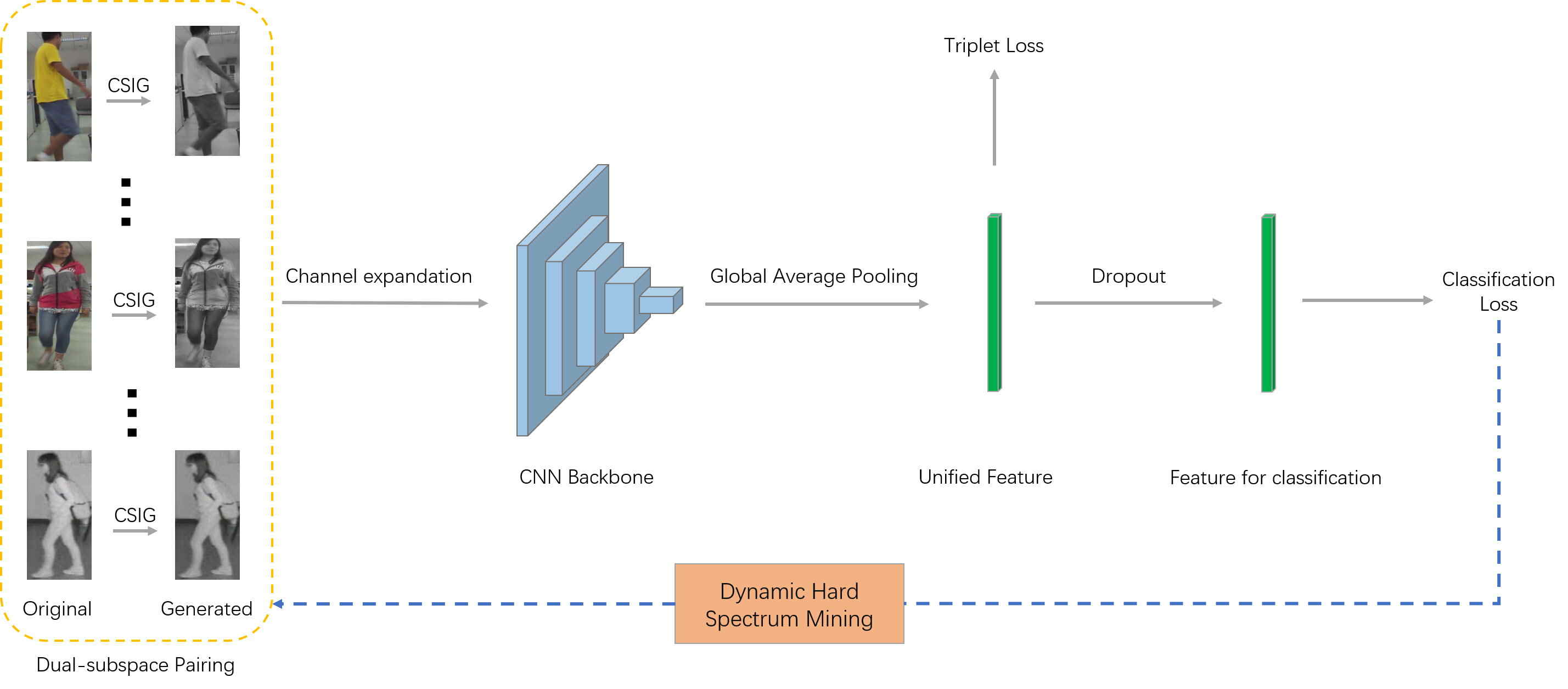

We also design a one-stream deep convolutional neural network for an efficient feature embedding.
First, for all input original images, we apply our proposed cross-spectrum image generation method to create coupled dual-subspace pairs. However, the generated images have only one channel as infrared images, while RGB images have three color channels. We introduce a channel expansion strategy to expand the single channel image to three channels by duplicating, so all input images will have three channels.

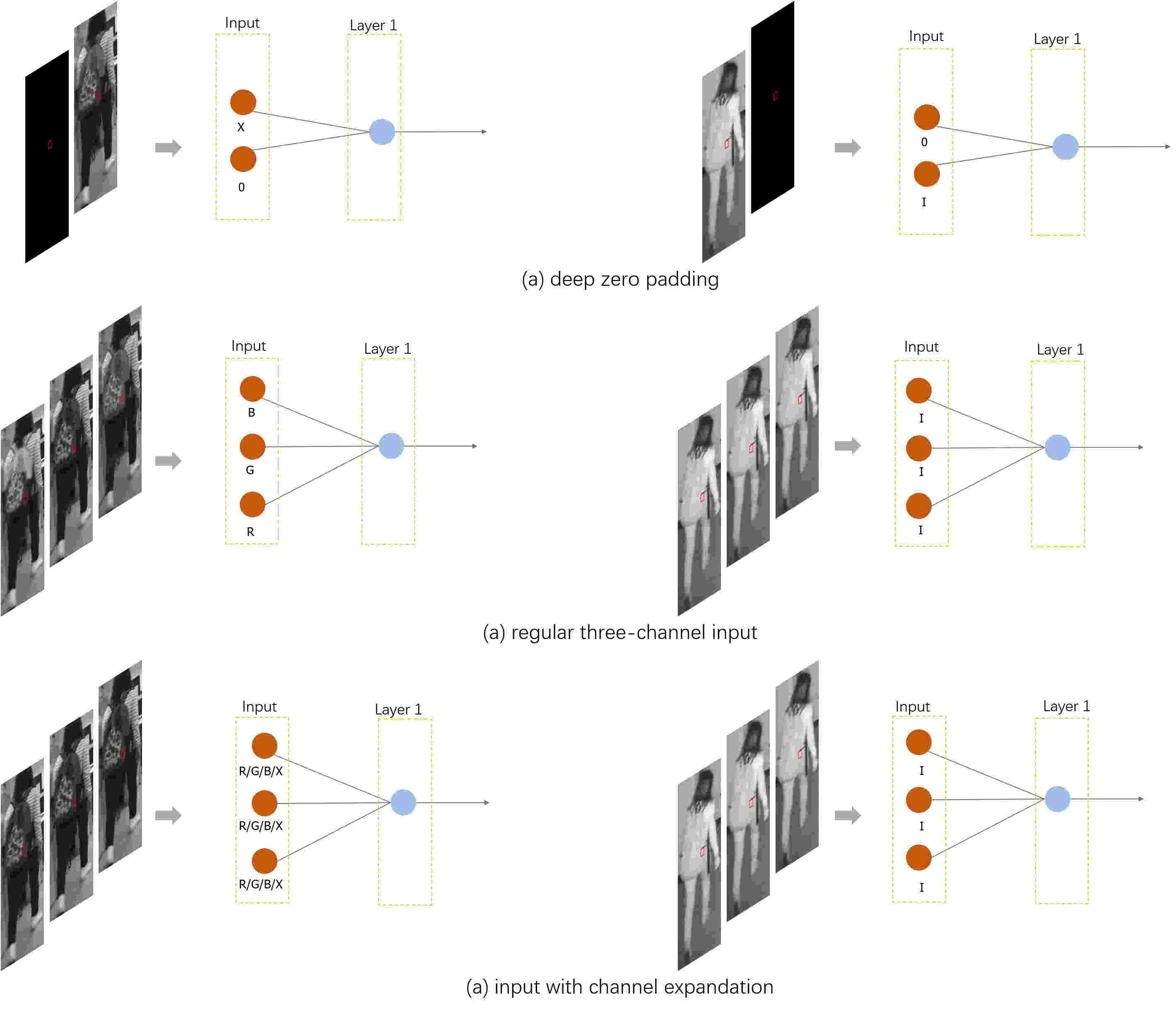

As shown in Fig. 5, three possible input types can be used for a one-stream network:
(a) The deep zero-padding way first converts RGB color image into a gray-scale image, then adds a zero-channel for both gray image and infrared images, producing a two-channel input. For zero-padded gray channel or infrared channel, some nodes will output zero constantly (not activated), which means they are domain-specific. Therefore, gray-scale sub-network and infrared sub-network can handle each modality separately, and the shared nodes can extract shared features for both modalities. However, the computation cost for zero-channel is wasted, and there no explicit constraint for digging shared features across modalities.
(b) We can also simply use a three-channel input for RGB images, and expand channels of infrared images. In this way, nodes need to learn to extract features from both the RGB image and infrared images.
(c) With our cross-spectrum image generation method, we can also choose one generated image in the red, green, blue, or gray spectrum, and expand the one-channel image into a three channel input. Compared with the regular three-channel input that three weights of a node in layer 1 handle only one color channel and one infrared channel respectively, for the input with channel expansion, every weight of a node in layer 1 needs to handle all red, green, blue, gray, and infrared channels, which forces the network to discover discriminative cross-spectrum features existing in all spectrum. Experiments in Section IV demonstrate that those cross-spectrum features can indeed help promote the performance of cross-modality ReID.
Following , we use a sampling strategy to construct an input mini-batch, randomly choosing persons and images for each person. With the dual-subspace pairing strategy, we generate a paired image using cross-spectrum image generation method for each original image, resulting in a final mini-batch size of .
, a global average pooling layer is applied to obtain an embedded unified feature vector. We then introduce a dropout layer to prevent over-fitting and produce more discriminative features, followed by a classification fully-connected layer and a softmax function to predict the probability distributionof -th input image and -th predicted class. A classification cross-entropy loss is computed based on the predicted probability distribution, which can be formulated as follows:
where is the total number of training persons, when is the target class and otherwise.
We use a batch hard triplet loss on the original image set to further maximize inter-person distance and reduce the intra-person discrepancy. The generated image set of multi-spectrum is quite different, and a batch hard triplet loss on the generated set turns to be hard to converge, so we only apply the batch hard triplet loss on the original image set. The batch hard triplet loss can be formulated as follows:
where is a margin constant, is function to guarantee the non-negativity constraint, and is a distance function between two features, which we use Euclidean distance in this work.
The total loss of our network is the sum of classification and batch hard triplet loss:
where is the trade-off between classification loss and triplet loss. To keep simplicity, we fix to 1 in all our experiments.
Iii-D Dynamic Hard Spectrum Mining
In the cross-spectrum image generation process, every candidate spectrum is treated equally, and gray, blue, red, yellow colors have the same probability to be chosen, which is not optimal. During the training process, the model learns to extract cross-spectrum discriminate features from each spectrum. Some spectrum can be learned fast, and some other spectrum can be learned slow. It is hard to manually determine which spectrum is easy or hard to learn, and the difficulty level may vary due to different model structures or parameter settings. Therefore, we also propose a Dynamic Hard Spectrum Mining (DHSM) strategy to automatically evaluate the difficulty level of different spectrum, and assign harder spectrum a larger sampling probability.
In this way, once the model learns to handle a specific spectrum, the sampling probability decreases, and there is less training data from this spectrum in the future. As discussed in , being told over and over again that an easy sample belongs to some specific person I already know does not teach one anything, we need to be presented with hard samples which we currently can not handle to learn new knowledge. So easy samples should be reduced and hard samples should be mined. Unlike traditional sample-level hard mining like Triplet Hard  or Quadruplet Hard , in this paper, we propose a novel spectrum-level hard mining method to dynamically mine hard spectrum during the training process.
-th input cross-spectrum generated image in a training epoch, the current predicted classification probability of target class is, and is the spectrum of this sample, which could be R, G, B, and X in this paper. The overall confidence of a specific spectrum during a training epoch can be defined as follows:
where is the total number of generated images in the last training epoch, is the number of samples. Now, the sampling probability of each spectrum in the -th epoch is computed as:
As shown in Equation 6, if the model predicts images from a specific spectrum with a high target probability , then the new sampling probability is small, meaning there are less generated images of this spectrum in the next training epoch. Through a normalization operation, the total probability is . To further utilize the historical information and keep the sampling probability smoothly changing, the final sampling probability is obtained by:
where is the actual sampling probability for -th epoch, and is a constant value to balance the historical probability and current probability. Now, the cross-spectrum image-generation with dynamic hard spectrum mining can be formulated as follows:
where is the current sampling probability distribution. With this dynamic hard spectrum mining strategy, we could mine hard samples from the hard spectrum as shown in Fig. 6, benefiting to the training process and further promoting the model performance.
Iii-E Discussion of Network Structures
In the pioneering zero-padding  RGB-infrared cross-modality ReID work, four different network structures are categorized and compared. After that, some other RGB-infrared cross-modality ReID methods have been proposed, and now we could revise which structure the methods for this task actually use and what is their difference. Unlike , in this paper, we categorize common RGB-infrared ReID network structures into 5 types. All structures are shown in Fig. 7, and we will discuss these structures respectively.
All-Spectrum Traditional RGB ReID methods like SVDNet  and Triplet Hard  usually use a one stream network structure. As shown in Fig. 7 (a), we can directly apply this structure into the RGB-infrared ReID task with a mixed two-domain input. Cause there is only one domain in the original RGB ReID task, in this way, RGB images and infrared images are treated the same, and features from all spectrum are extracted, resulting in an inferior performance. This structure can be used as a baseline network, just like in zero-padding , , and this paper.

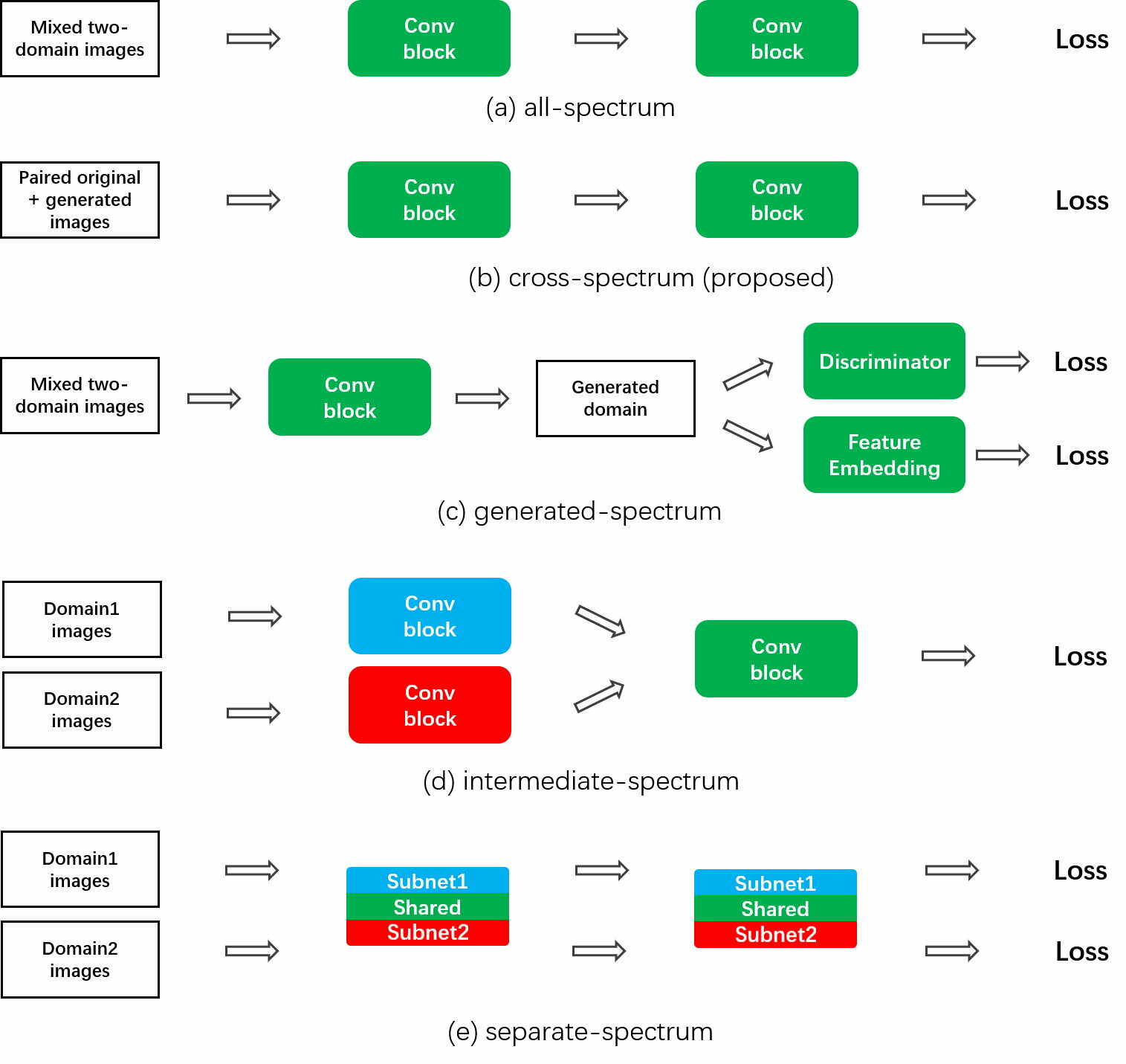

Cross-Spectrum As shown in Fig. 7 (b), the key difference between our proposed cross-spectrum method and all-spectrum methods is that, we train the network with a carefully designed input through the cross-spectrum dual-subspace strategy, which can force the network to discover cross-spectrum features and ignore spectrum-specific features. Experimental results on both SYSU-MM0  dataset and RegDB  dataset have demonstrated the efficiency and generality of the proposed method, outperforming the state-of-the-art methods by a large margin. Our structure is quite different from existing RGB-infrared methods, and provide a new paradigm for the future works. Furthermore, our structure is similar to the traditional RGB ReID network, hence we can benefit from progress in the RGB ReID task and incorporate it into our network to promote the performance.
Generated-Spectrum Since RGB images and infrared images are from different spectrum, if we want to conduct cross-modality searching, it is reasonable to map those two domain inputs into a generated common domain first. In cmGAN , a generator is used to map an image into a feature vector within a shared common space (generated-spectrum), then feature embedding and discriminator follow, as shown in Fig. 7 (c).  also applies a similar network structure, but unlike cmGAN  using a feature vector, it generates a four-channel image in a unified space to reduce the image-level discrepancy.
Intermediate-Spectrum Low-level features are different for different domain images, but the high-level features for the same person should be consistent, therefore a two-stage network structure could be used to first capture domain-specific features separately, obtaining intermediate-spectrum representations, and then extract domain-shared features through a shared module in the second stage, as shown in Fig. 7 (d). HCML  adopts this network structure and optimize the model with a cross-modality metric learning method. BDTR  employs this structure with a dual-constrained top-ranking loss. HSME  also utilize this structure to learn a hypersphere manifold embedding.
Separate-Spectrum Zero-padding  uses a zero-value padded four-channel input. Since the padded input channels are all zero, the activation of the padded input is also zero (omitting bias). In this zero-padding way, the one-stream network can act like a two-stream network, automatically evolving domain-specific nodes in the network for cross-modality matching, as shown in Fig. 7 (e). But separating two domains into two different sub-network paths without cross-spectrum feature mining hinders the improvement of performance.
SYSU-MM01  is a large-scale benchmark dataset for RGB-infrared cross-modality ReID. The images are captured by six cameras, including four RGB cameras and two infrared cameras. Three cameras are indoor scenes and the other three cameras are outdoor scenes, which makes it more challenging. Overall, there are 491 identities with 287,628 RGB images and 15,792 infrared images. The dataset has a fixed partition of the training set and testing. For training, a total of 32,451 images including 19,659 RGB images and 12,792 infrared images are used. For testing, we follow the standard evaluation protocol proposed by the dataset author
. Since there are multiple groundtruths in the gallery images, standard cumulated matching characteristics (CMC) and mean average precision (mAP) are adopted as an evaluation metric to measure the performance. Single-shot all-search scores computed by the SYSU-MM01 evaluation code are reported.
RegDB  is a visible-thermal person re-identification dataset captured by visible and far-infrared cameras. It contains 412 persons, and each person has 10 visible images and 10 thermal images. We follow the evaluation protocol in , which randomly split the dataset into two halves, one for training and the other for testing. For testing, images of one modality act as query and images of the other modality act as the gallery. Both thermal-to-visible and visible-to-thermal results of CMC and mAP are computed. As in , this procedure is repeated 10 times to achieve statistically stable results, and the average scores are reported.
Iv-B Implementation Details
We implement our proposed method using PyTorch deep learning framework. The input image size is, random horizontal flipping data augmentation is applied. We initialize our ResNet-50
CNN backbone with weights pre-trained on ImageNet. Adam optimizer with the default hyper-parameter values (, , ) is used. The random brightness jitter ratio for the infrared image is 0.1. The initial learning rate is and then reduced to and . The dropout rate is set to 0.5. is set to 0.1. Margin value for batch hard triplet loss is fixed to 0.3. For SYSU-MM01 , sampling parameters are and , thus the original image number in a mini-batch is 64. With a paired image for each original image, the final batch size is 128. The overall training phase is set to 200 epochs. For RegDB , since it contains fewer samples, we train the network only for 100 epochs and keep the rest of settings identical to SYSU-MM01  model. More implementation details can be found in the released code.
Iv-C Comparison with the State-of-the-art Methods
To evaluate the efficiency of our proposed method, we compare the performance of our best Cross-spectrum Dual-subspace Pairing (CDP) model with state-of-the-art methods on two public datasets.
|One-stream ||ICCV 2017||12.0||49.7||66.7||13.7|
|Two-stream ||ICCV 2017||11.7||48.0||65.5||12.9|
|Zero-Padding ||ICCV 2017||14.8||54.1||71.3||16.0|
|TONE [47, 48]||AAAI 2018||12.5||50.7||68.6||14.4|
|HCML [47, 48]||AAAI 2018||14.3||53.2||69.2||16.2|
|BDTR ||IJCAI 2018||17.0||55.4||72.0||19.7|
|cmGAN ||IJCAI 2018||27.0||67.5||80.6||27.8|
|D-HSME ||AAAI 2019||20.7||62.7||78.0||23.1|
|Visible to Thermal|
|Zero-Padding [39, 48]||ICCV 2017||17.8||34.2||44.4||18.9|
|TONE [47, 48]||AAAI 2018||16.9||34.0||44.1||14.9|
|HCML ||AAAI 2018||24.4||47.5||56.8||20.1|
|BDTR ||IJCAI 2018||33.5||58.4||67.5||31.8|
|HSME ||AAAI 2019||41.3||65.2||75.1||38.3|
|D-HSME ||AAAI 2019||50.9||73.4||81.7||47.0|
|Thermal to Visible|
|Zero-Padding [39, 48]||ICCV 2017||16.6||34.7||44.3||17.8|
|TONE [47, 48]||AAAI 2018||13.9||30.1||40.1||17.0|
|HCML ||AAAI 2018||21.7||45.0||55.6||22.2|
|BDTR ||IJCAI 2018||32.7||58.0||68.9||31.1|
|HSME ||AAAI 2019||40.7||65.4||75.3||37.5|
|D-HSME ||AAAI 2019||50.2||72.4||81.1||46.2|
As shown in Table I, our CDP model achieves a rank-1 accuracy of , which is absolute points higher than the recent  work. We also achieve an mAP of , outperforming the state-of-the-art methods by a large margin. With the help of DHSM, the performance could be further improved to a rank-1 accuracy of and an mAP score of .
As shown in Table II, We achieve the best performance in both visible-to-thermal and thermal-to-visible settings, which has demonstrated the efficiency of our proposed method. Note that, on RegDB dataset, rank-1 accuracy is improved from by D-HSME  to , and mAP is improved from to . To the best of our knowledge, it is the highest score ever reported, setting up a new state-of-the-art.
The deep zero-padding  method only utilizes a sub-network for each modality, which limits the capacity of the network and leads to inferior performance. After this pioneering work, HCML  is proposed, which jointly optimizes the modality-specific and modality-shared metrics. But the two-stage training process requires human intervention, limiting its wide large-scale application in real-world scenarios. While our CDP model can be trained in an end-to-end way without interruption.
BDTR  proposes a dual-path network with a novel bi-directional dual-constrained top-ranking loss. We also leverage the power of ranking loss, adding a batch hard triplet loss. But we use a one-stream network and carefully design the way of training data generation. With the help of the cross-spectrum image generation method and dual-subspace pairing strategy, we achieve better performance.
HSME  maps the input images onto a hypersphere manifold, and acquires decorrelated features with a two-stage training scheme. While our proposed model can be trained in an end-to-end way, and dynamic hard spectrum mining strategy can also be incorporated into the training process with no need for multi-stage training.
GAN-base methods like cmGAN  and  are also proposed in recently years. Different from those methods, our cross-image generation method does not need to train an extra GAN model, and generating new images is simple, with high computational efficiency. Unlike , we do not require extra Market-1501  dataset for pre-training.
In conclusion, our proposed method is easy to implement, and can be trained in an end-to-end way requiring no extra data, achieving a new state-of-the-art performance.
Iv-D Ablation Study
Sampling and Loss Function. To investigate the influence of sampling strategy and different loss function choices, we design a series of baseline models based on our one-stream network without cross-spectrum image generation method or dual-subspace pairing strategy. As shown in Table III, baseline-1 without sampling obtains an inferior performance. After adopting the sampling strategy, baseline-2 achieves much better performance, as sampling can balance the instance numbers among different persons. Baseline-3 with only batch hard triplet loss gets an inferior performance, which demonstrates the necessity of classification loss (identity loss). Combining sampling, classification loss and batch hard triplet loss, baseline-4 achieves the best performance.
Dual-Subspace Pairing. The influence of the dual-subspace pairing strategy is shown in Table IV. After adding the proposed dual-subspace pairing strategy, our CDP-1 model outperforms baseline-4 with only classification loss, which shows the efficiency of our proposed dual-subspace pairing strategy. With the help of batch hard triplet loss, the performance is further improved and the resulting CDP model achieves a rank-1 accuracy of .

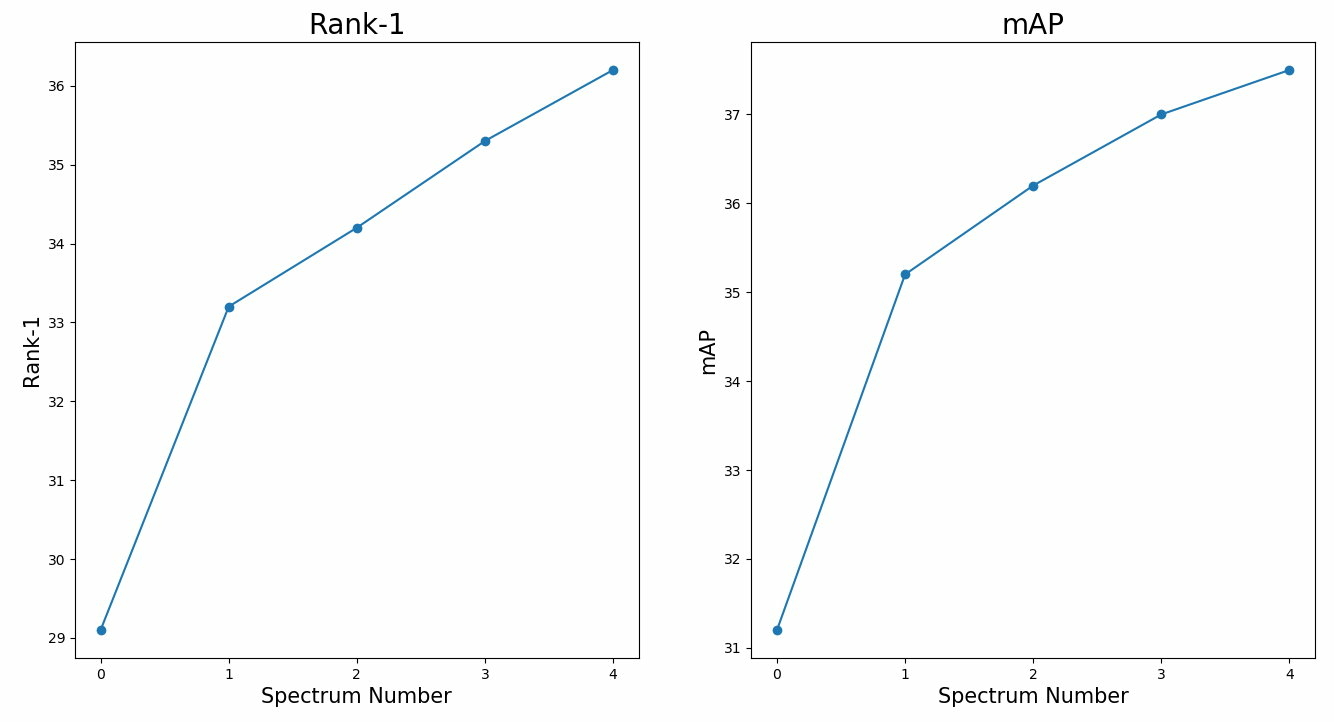

Cross-Spectrum Image Generation. For each original image, we generate a paired image randomly chosen from four modalities, which are red, green, blue, and gray spectrum respectively. To further investigate the influence of the cross-spectrum image generation method, we reduce the number of generated modalities to one for CDP-2 and three for CDP-3 model. The result is shown in Table VI. For the CDP-2 model, we only generate the gray spectrum counterpart for each original image, while for the CDP-3 model, we obtain the paired image through randomly choosing from red, green, and blue channels. As we can see from Table VI, with the increase of modality number, the performance improves. And cross-spectrum image generation with all RGB and gray spectrum achieves the best performance, which conforms to our motivation that after seeing input images from more modalities, the network is guided to discover more discriminative cross-spectrum shared features across all modalities.
Reducing RGB channel Considering the gray spectrum is a linear combination of RGB spectrum, we also conduct an ablation experiment to see how the performance will change if we reduce RGB channel and only use one or two color channels. The result is shown in Table V. As we can see, without any cross-spectrum image generation, the result in the first row is inferior. As we increase the spectrum number, the performance improves, which can be seen in Fig. 8. Since we adopt the dual-subspace pairing strategy, each original input image is paired with a generated image regardless of which spectrum it is sampled from, therefor training with only gray spectrum, gray spectrum with a single color spectrum (red, green, or blue), or gray spectrum with all color spectrum has exactly the same computation cost. The more spectrum we use, the better performance we get, so we use all spectrum in our final CDP model. This is also the reason why we choose a three channel model input, R-G-B and R-R-R are different spectrum, and we want the model to see more input spectrum to extract cross-spectrum discriminated features. In addition, using three-channel input only adds computation cost in the first layer, which is minor, and the pre-trained model we use also has three-channel input.
Different Color Spaces In addition to RGB color space, a question naturally arises in the mind, can we use other color spaces like YUV or HSV instead of RGB color space and maybe they can achieve a better performance? or can we combine RGB color space as well as other color spaces like YUV or HSV to further promote the performance? So we also conduct a ablation study replacing or combing RGB color space with YUV and HSV color spaces, and the result is that all these experiments end up with no convergence and fail to obtain a usable model. After examining the training data and model settings, we attribute it to three reasons: (1) the YUV and HSV images are too visually different with RGB images, and (2) the pre-trained model on ImageNet we use for model initialization is trained on RGB images, so it is not directly applicable for YUV and HSV images, and (3) the key point of this paper is cross-spectrum dual subspace pairing, and RGB images have homogeneous channels which can be equally sampled and replaced, while YUV and HSV images have heterogeneous channels encoding different attributes (for example, HSV channels represent hue, saturation and value respectively), which is not suitable for our model.

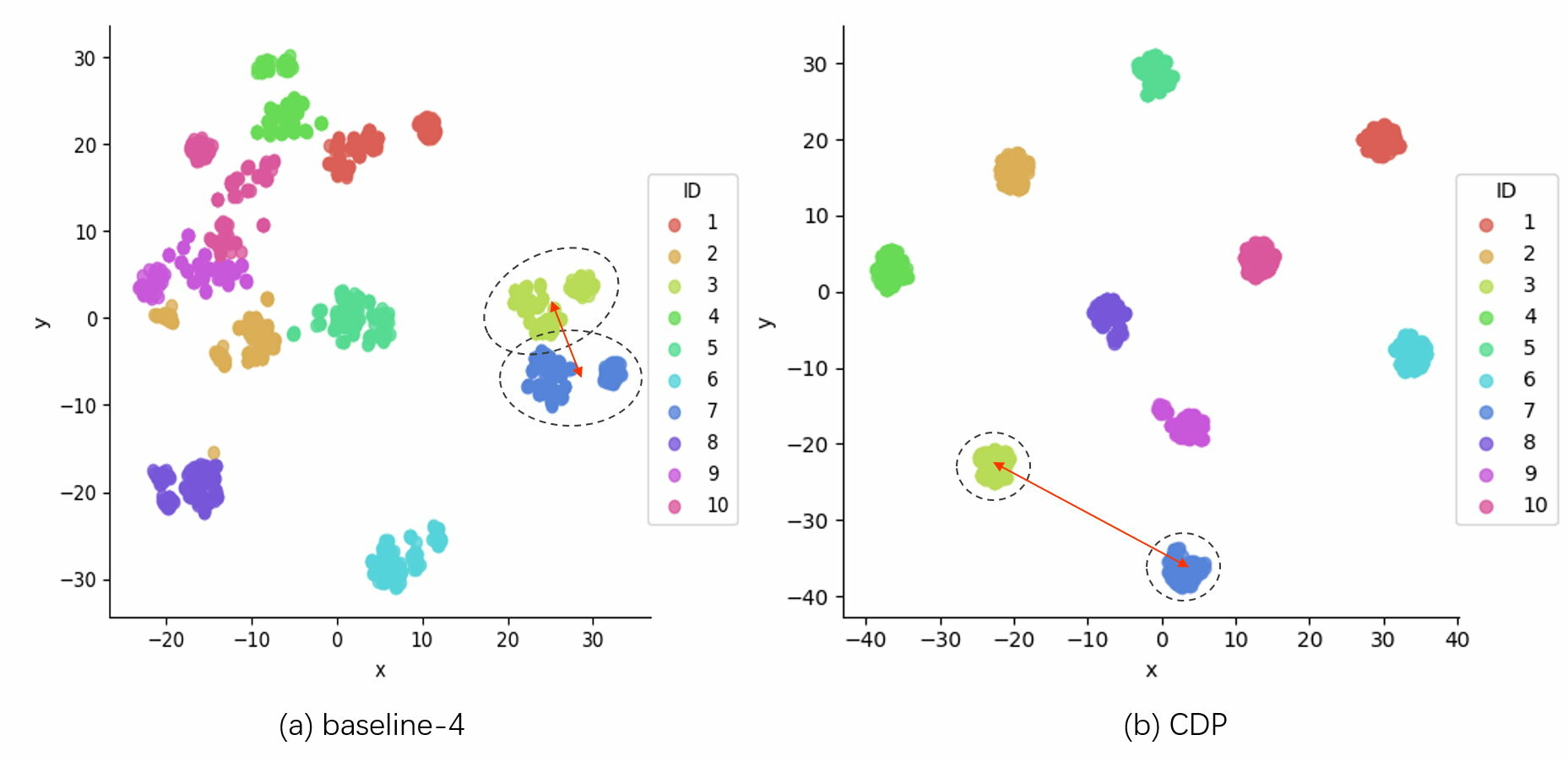

Visualization of Feature Embedding. To investigate the distribution of different person in the embedding space, we randomly choose 10 persons and extract the features of RGB images, infrared images and generated images of each person. We use a t-SNE  method to visualize the features in 2-dimension space. As shown in Fig. 9, for each person, the baseline-4 model has two distribution corresponding to two different modalities, while the CDP maps input images of different modalities into a unified feature distribution, for example, the blue dots of the person with ID 7. Note that baseline-4 and CDP models both adopt a sampling strategy with the same loss function, and the difference is that CDP adds a cross-spectrum dual-space pairing strategy. Our motivation is that a person should have a fixed underlying appearance, although appearing different in different modalities. If we want to do cross-modalities searching, we should focus on the cross-spectrum shared features. As shown in Fig. 9, our proposed method can map images of different modalities into a shared cross-spectrum space, and achieves a new state-of-the-art performance.
In this paper, we propose a cross-spectrum image generation method to produce multi-spectrum images, which can enrich the diversity of modalities in training process. After seeing more training modalities, the network can do better to discover more discriminative shared features across all modalities. Both appearance discrepancy and modality discrepancy exist in RGB-infrared ReID task, and intra-person distance is often larger than the inter-person distance due to the large modality discrepancy. To address this problem, we propose a dual-subspace pairing strategy which pairs each original image with a generated image with the same underlying appearance in a different spectrum, therefore, the network can focus on eliminating the modality discrepancy without the interference of appearance discrepancy. To evaluate the performance of our proposed method, we design a one-stream convolutional neural network for RGB-infrared cross-modality ReID task. Furthermore, we also propose a dynamic hard spectrum mining method to generate more hard samples during the training process, based on current model state. Experimental results on two public datasets, SYSU-MM01  with RGB + near-infrared images and RegDB  with RGB + far-infrared images, have demonstrated the efficiency and generality of our proposed method, which outperform the current state-of-the-art approaches by a large margin.
