Cross-Scale Internal Graph Neural Network for Image Super-Resolution

06/30/2020 ∙ by Shangchen Zhou, et al. ∙ SenseTime Corporation Harbin Institute of Technology Nanyang Technological University 5

Non-local self-similarity in natural images has been well studied as an effective prior in image restoration. However, for single image super-resolution (SISR), most existing deep non-local methods (e.g., non-local neural networks) only exploit similar patches within the same scale of the low-resolution (LR) input image. Consequently, the restoration is limited to using the same-scale information while neglecting potential high-resolution (HR) cues from other scales. In this paper, we explore the cross-scale patch recurrence property of a natural image, i.e., similar patches tend to recur many times across different scales. This is achieved using a novel cross-scale internal graph neural network (IGNN). Specifically, we dynamically construct a cross-scale graph by searching k-nearest neighboring patches in the downsampled LR image for each query patch in the LR image. We then obtain the corresponding k HR neighboring patches in the LR image and aggregate them adaptively in accordance to the edge label of the constructed graph. In this way, the HR information can be passed from k HR neighboring patches to the LR query patch to help it recover more detailed textures. Besides, these internal image-specific LR/HR exemplars are also significant complements to the external information learned from the training dataset. Extensive experiments demonstrate the effectiveness of IGNN against the state-of-the-art SISR methods including existing non-local networks on standard benchmarks.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 7

page 8

page 11

page 12

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

The goal of single image super-resolution (SISR) [9]

is to recover the sharp high-resolution (HR) counterpart from its low-resolution (LR) observation. Image SR is an ill-posed problem, since there are multiple HR solutions for a LR input. To solve this inverse problem, many convolutional neural networks (CNNs)

[6, 37, 17, 23, 42, 13, 5] have been proposed to capture useful priors by learning mappings between LR and HR images. While immense performance has been achieved, learning from external training data solely still falls short in recovering detailed textures for specific images, especially when the up-scaling factor is large.

Apart from exploiting external paired data, internal image-specific information has also been widely studied in image restoration. Some classical non-local methods [2, 4, 25, 10] have shown the values of capturing correlation among non-local self-similar patches for improving the restoration quality. However, convolutional operations are not able to capture such patterns due to the locality of convolutional kernels. Though the receptive fields are large in the deep networks, some long-range dependencies still cannot be well maintained. Inspired by the classical non-local means method [2], non-local neural networks [36] are proposed to capture long-range dependencies for video classification. Non-local neural networks are thereafter introduced to image restoration tasks [24, 43].

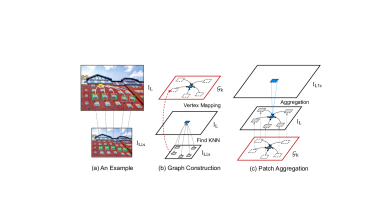

Figure 1: Example of patch recurrence across scales of a single image (a), and illustration of Graph Construction (b) and Patch Aggregation (c) in the image domain. The and are input LR image and its downsampled counterpart. is the constructed cross-scale graph and is the patch aggregated result with scale.

These methods, in general, perform self-attention weighting of full connection among positions in the features. Besides non-local neural networks, the neural nearest neighbors network [29] and graph-convolutional denoiser network [35] have been proposed to aggregate nearest neighboring patches for image restoration. However, all these methods only exploit correlations of recurrent patches within the same scale, without harvesting any high-resolution information. Different from image denoising, the aggregation of multiple similar patches at the same scale (only subpixel misalignments) hardly improve the performance for SR.

The proposed the cross-scale internal graph neural network (IGNN) is inspired by the traditional self-example based SR methods [7, 3, 14]. Our IGNN is based on cross-scale patch recurrence property verified statistically in [45, 9, 28] that patches in a single natural image tend to recur many times across scales. An illustrative example is shown in Figure 1 (a). Given a query patch (yellow square) in the LR image , many similar patches (solid-marked green squares) can be found in the downsampled image . Thus the corresponding HR patches (dashed-marked green squares) in the original LR image

can also be obtained. Such cross-scale patches provide an indication of what the (unknown) HR patches of the query patch might look like. The cross-scale patch recurrence is previously utilized as example-based SR constraints to estimate a HR image

[9, 39] or a SR kernel [28].

In this paper, we model this internal correlations between cross-scale similar patches as a graph, where every patch is a vertex and the edge is similarity-weighted connection of two vertexes from two different scales. Based on this graph structure, we then present our IGNN to process this irregular graph data and explore cross-scale recurrence property effectively. Instead of using this property as constraints [9, 28], IGNN intrinsically aggregates HR patches using the proposed graph module, which includes two operations: graph construction and patch aggregation. More specifically, as shown in Figure 1 (b)(c), we first dynamically construct a cross-scale graph by searching -nearest neighboring patches in the downsampled LR image for each query patch in the LR image . After mapping the regions of neighbors from to scale, the constructed cross-scale graph can provide LR/HR patch pairs for each query patch. In , the vertexes are the patches in LR image and their HR neighboring patches and the edges are correlations of these matched LR/HR patches. Inspired by Edge-Conditioned Convolution [30], we formulate an edge-conditioned patch aggregation operation based on the graph . The operation aggregates HR patches conditioned on edge labels (similarity of two matched patches). Different from previous non-local methods that explore and aggregate neighboring patches at the same scale, we search for similar patches at the downsampled LR scale but aggregate HR patches. It allows our network to perform more efficiently and effectively for SISR.

The proposed IGNN obtains image-specific LR/HR patch correspondences as helpful complements to the external information learned from a training dataset. Instead of learning a LR-to-HR mapping only from external data as other SR networks do, the proposed IGNN makes full use of most likely HR counterparts found from the LR image itself to recover more detailed textures. In this way, the ill-posed issue in SR can be alleviated in IGNN. We thoroughly analyze and discuss the proposed graph module via extensive ablation studies. The proposed IGNN performs favorably against state-of-the-art CNN-based SR baselines and existing non-local neural networks, demonstrating the usefulness of cross-scale graph convolution for image super-resolution.

2 Methodology

In this section, we start by briefly reviewing the general formulation of some previous non-local methods. We then introduce the proposed cross-scale graph aggregation module (GraphAgg) based on graph message aggregation methods [8, 11, 19, 41, 30]. Built on GraphAgg module, we finally present our cross-scale internal graph neural network (IGNN).

2.1 Background of Non-local Methods for Image Restoration

Non-local aggregation strategy has been widely applied in image restoration. Under the assumption that similar patches frequently recur in a natural image, many classical methods, e.g., non-local means [2] and BM3D [4], have been proposed to aggregate similar patches for image denoising. With the development of deep neural network, the non-local neural networks [36, 24, 43] and some -nearest neighbor based networks [21, 29, 35] are proposed for image restoration to explore this non-local self-similarity strategy. For these non-local methods that consider similar patch aggregation, the aggregation process can be generally formulated as:

(1)

where and are the input and output feature patch (or element) at -th location (aggregation center), and is also the query item in Eq. (1). is the -th neighbors included in the neighboring feature patch set for -th location. The transforms the input to the other feature space. As for , it computes an aggregation weights for transformed neighbors and the more similar patch relative to should have the larger weight. The output is finally normalized by a factor , i.e., .

The above aggregation can be treated as a GNN if we treat the feature patches and weighted connections as vertices and edges respectively. The non-local neural networks [36, 24, 43] actually model a fully-connected self-similarity graph. They estimate the aggregation weights between the query item and all the spatially nearby patches in a window (or within the whole features). To reduce the memory and computational costs introduced by the above dense connection, some -nearest neighbor based networks, e.g., GCDN [35] and NNet [29], only consider () most similar feature patches for aggregation and treat them as the neighbors in for every query . For all the above mentioned non-local methods, the aggregated neighboring patches are all in the same scale of the query and no HR information is incorporated, thus leading to a limited performance improvement for SISR. In [9, 45, 28], Irani et al. notice that patch recurrence also exists across the different scales. They explore these cross-scale recurrent LR/HR pairs as example-based constraints to recover the HR images [9, 39] or to estimate the SR kernels [28] from the LR images.

2.2 Cross-Scale Graph Aggregation Module

For the aforementioned methods [2, 4, 24, 35, 29], the patch size of the aggregated feature patches is the same as the query one. Even though it works well for image denoising, it fails to incorporate high-resolution information and only provides limited improvement for SR. Based on the patch recurrency property [45] that similar patches will recur in different scales of nature image, we propose a cross-scale internal graph neural network (IGNN) for SISR. An example of patch aggregation in image domain is shown in Figure 1. For each query patch (yellow square) in , we search for the most similar patches (solid-marked squares) in the downsampled image . we then aggregate their HR corresponding patches (dashed-marked squares) in .

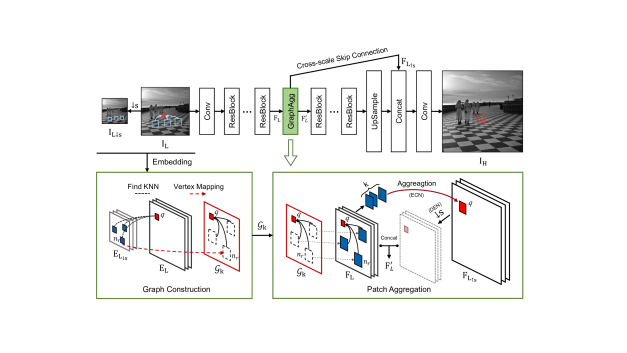

Figure 2: An illustration of the proposed the cross-scale Internal Graph Neural Network (IGNN) and the Cross-Scale Graph Aggregation module (GraphAgg). The GraphAgg includes two operations: Graph Construction and Patch Aggregation. A cross-scale graph is constructed by Graph Construction. Taking as input, the HR features and the enriched LR features are obtained by Patch Aggregation, which enables our network to take advantage of internal HR information to recover more details. The skip connection across different scales passes the HR features to enrich subsequent upsampled features.

The connections between cross-scale patches can be well constructed as a graph, where every patch is a vertex and edge is a similarity-weighted connection of two vertices from two different scales. To exploit the information of HR patches for SR, we propose a cross-scale graph aggregation module (GraphAgg) to aggregate HR patches in feature domain. As shown in Figure 2, the GraphAgg includes two operations: Graph Construction and Patch Aggregation.

Graph Construction: We first downsample the input LR image by a factor of using the widely used Bicubic operation. The downsampled image is denoted as , where the downsampling ratio is equal to the desired SR up-scaling factor. Thus the found neighboring feature patches in graph are the same size as the desired HR feature patch.

To obtain the neighboring feature patches, we first extract embedded features and by the first three layers of VGG19 [31] from and , respectively. Following the notion of block matching in classical non-local methods [2, 4, 25, 10], for a query feature patch in , we find k nearest neighboring patches in according to the Euclidean distance between the query feature patch and neighboring ones. Then, we can get the HR feature patch corresponding to in . We mark this process with a dashed red line in Figure 2, denoted as Vertex Mapping.

Consequently, a cross-scale -nearest neighbor graph is constructed. is the patch set (vertices in graph) including a LR patch set and a HR neighboring patch set , where the size of equals to number of LR patches in . Set is the correlation set (edges in graph) with size , which indicates correlations in for each LR patch in . The two vertices of each edge in this cross-scale graph are LR and HR feature patches, respectively. To measure the similarity of query and the -th neighbor , we define the edge label as the difference between the query feature patch and neighboring patch , i.e., . It will be used to estimate aggregation weights in the following Patch Aggregation operation.

We search similar patches from rather than , hence our searching space is times smaller than previous non-local methods. Unlike the fully-connected feature graph in non-local neural networks [24], we only select nearset HR neighbors for aggregation, which further leads to a more efficient network. Following the previous non-local methods [2, 4, 24], we also design a searching window in , which is centered with the position of the query patch in the downsampled scale. As verified statistically in [45, 9, 28], there are abundant cross-scale recurring patches in the whole single image. Our experiments show that searching for HR parches from a window region is sufficient for the network to achieve the desired performance.

Patch Aggregation: Inspired by Edge-Conditioned Convolution (ECC) [30], we aggregate HR neighbors in graph weighted on the edge labels . Our Patch Aggregation reformulates the general non-local aggregation Eq. (1) as:

(2)

where is the -th neighboring HR feature patch from GraphAgg module input and is the output HR feature patch at the query location. And the patch2img [29] operator is used to transform the output feature patches into the output feature . We propose to use an adaptive Edge-Conditioned sub-network (ECN), i.e., , to estimate the aggregation weight for each neighbor according to , which is the feature difference between the query patch and neighboring patch from the embedded feature . We use to denote the exponential function and to represent the normalization factor. Therefore, Eq. (1) defines an adaptive edge-conditioned aggregation utilizing the sub-network ECN. By exploiting edge labels (i.e., ), the proposed GraphAgg aggregates HR feature patches in a robust and flexible manner.

To further utilize , we use a small Downsampled-Embedding sub-network (DEN) to embed it to a feature with the same resolution as and then concatenate it with to get . Then is used in subsequent layers of the network. Note that the two sub-networks ECN and DEN in Patch Aggregation are both very small networks containing only three convolutional layers, respectively. Please see Figure 2 for more details.

Adaptive Patch Normalization: We observe that the obtained HR neighboring patches have some low-frequency discrepancy, e.g., color, brightness, with the query patch. Besides the adaptive weighting by edge-conditioned aggregation, we propose an Adaptive Patch Normalization (AdaPN), which is inspired by Adaptive Instance Normalization (AdaIN) [15] for image style transfer, to align the neighboring patches to the query one. Let us denote and as the -th channel of features of the query patch and -th HR neighboring patch in , respectively. The -th normalized neighboring patch by AdaPN is formulated as:

(3)

where and

are the mean and standard deviation. By aligning the mean and variance of the each neighboring patch features with those of the query patch one, AdaPN transfers the low-frequency information of the query to the neighbors and keep their high-frequency texture information unchanged. By eliminating the discrepancy between query patch and

neighbor patches, the proposed AdaPN benefits the subsequent feature aggregation.

2.3 Cross-Scale Internal Graph Neural Network

As shown in Figure 2, we build the IGNN based on GraphAgg. After the GraphAgg module, a final HR feature is obtained. With a skip connection across different scales, the rich HR information in aggregated HR feature is passed directly from the middle to the late position in the network. This mechanism allows the HR information to help the network in generating outputs with more details. Besides, the enriched intermediate feature is obtained by concatenating the input feature and the downsampled-embedded feature from using sub-network DEN. It is then fed into the subsequent layers of the network, enabling the network to explore more cross-scale internal information.

Compared to the previous non-local networks [21, 29, 24, 43] for image restoration that only exploit self-similarity patches with the same LR scale, the proposed IGNN exploits internal recurring patches across different scales. Benefits from the GraphAgg module, IGNN obtains internal image-specific LR/HR feature patches as effective HR complements to the external information learned from a training dataset. Instead of learning a LR-to-HR mapping only from external data as other CNN SR networks do, IGNN takes advantage of most likely HR counterparts to recover more detailed textures. By LR/HR exemplars mining, the ill-posed issue of SR can be mitigated in the IGNN.

To show the effectiveness of our GraphAgg module, we choose the widely used EDSR [23] as our backbone network, which contains 32 residual blocks. The proposed GraphAgg module is only used once in IGNN and it is inserted after the 16th residual block.

In Graph Construction, we use the first three layers of the VGG19 [31] with fixed pre-trained parameters to embed image and to and , respectively. In Graph Aggregation, both adaptive edge-conditioned network and downsample-embedding network are small network with three convolutional layers. More detailed structures are provided in the supplementary material.

3 Experiments

Datasets and Evaluation Metrics

: Following  [23, 12, 44, 42, 5], we use 800 high-quality (2K resolution) images from DIV2K dataset [33] as training set. We evaluate our models on five standard benchmarks: Set5 [1], Set14 [40], BSD100 [26], Urban100 [14] and Manga109 [27] in three upscaling factors: , and . The estimated high-resolution images are evaluated by PSNR and SSIM [38] on Y channel (i.e., luminance) of the transformed YCbCr space.

Training Settings: We crop the HR patches from DIV2K dataset [33] for training. Then these patches are downsampled by Bicubic to get the LR patches. For all different downsampling scales in our experiments, we fixed the size of LR patches as . All the training patches are augmented by randomly horizontally flipping and ratation of , ,  [23]. We set the minibatch size to 4 and train our model using ADAM [18] optimizer with the settings of , , . The initial learning rate is set as and then decreases to half for every iterations. Training is terminated after iterations. The network is trained by using

norm loss. The IGNN is implemented on the PyTorch framework on an NVIDIA Tesla V100 GPU.

In the Graph Aggregation module, we set the number of neighbors as 5. The size of the searching window is 30 within the times downsampled LR (i.e., ). Note that our GraphAgg is a plug-in module, and the backbone of our network is based on EDSR. We use the pretrained backbone model to initialize the IGNN in order to improve the training stability and save the training time.

3.1 Comparisons with State-of-the-Art Methods

Method Scale Set5 Set14 BSD100 Urban100 Manga109
PSNR SSIM PSNR SSIM PSNR SSIM PSNR SSIM PSNR SSIM
VDSR [16] 2 37.53 0.9590 33.05 0.9130 31.90 0.8960 30.77 0.9140 37.22 0.9750

LapSRN [20]
2 37.52 0.9591 33.08 0.9130 31.08 0.8950 30.41 0.9101 37.27 0.9740
MemNet [32] 2 37.78 0.9597 33.28 0.9142 32.08 0.8978 31.31 0.9195 37.72 0.9740
DBPN [12] 2 38.09 0.9600 33.85 0.9190 32.27 0.9000 32.55 0.9324 38.89 0.9775
RDN [44] 2 38.24 0.9614 34.01 0.9212 32.34 0.9017 32.89 0.9353 39.18 0.9780
NLRN [24] 2 38.00 0.9603 33.46 0.9159 32.19 0.8992 31.81 0.9249
RNAN [43] 2 38.17 0.9611 33.87 0.9207 32.32 0.9014 32.73 0.9340 39.23 0.9785
SRFBN [22] 2 38.11 0.9609 33.82 0.9196 32.29 0.9010 32.62 0.9328 39.08 0.9779
OISR-RK3 [13] 2 38.21 0.9612 33.94 0.9206 32.36 0.9019 33.03 0.9365 39.20 0.9782
SAN [5] 2 38.31 0.9620 34.07 0.9213 32.42 0.9028 33.10 0.9370 39.32 0.9792
EDSR [23] 2 38.11 0.9602 33.92 0.9195 32.32 0.9013 32.93 0.9351 39.10 0.9773
IGNN (Ours) 2 38.24 0.9613 34.07 0.9217 32.41 0.9025 33.23 0.9383 39.35 0.9786

IGNN+ (Ours)
2 38.31 0.9616 34.18 0.9222 32.46 0.9030 33.42 0.9396 39.54 0.9790


VDSR [16]
3 33.67 0.9210 29.78 0.8320 28.83 0.7990 27.14 0.8290 32.01 0.9340

LapSRN [20]
3 33.82 0.9227 29.87 0.8320 28.82 0.7980 27.07 0.8280 32.21 0.9350
MemNet [32] 3 34.09 0.9248 30.00 0.8350 28.96 0.8001 27.56 0.8376 32.51 0.9369
RDN [44] 3 34.71 0.9296 30.57 0.8468 29.26 0.8093 28.80 0.8653 34.13 0.9484
NLRN [24] 3 34.27 0.9266 30.16 0.8374 29.06 0.8026 27.93 0.8453 - -
RNAN [43] 3 34.66 0.9290 30.52 0.8463 29.26 0.8090 28.75 0.8646 34.25 0.9483
SRFBN [22] 3 34.70 0.9292 30.51 0.8461 29.24 0.8084 28.73 0.8641 34.18 0.9481
OISR-RK3 [13] 3 34.72 0.9297 30.57 0.8470 29.29 0.8103 28.95 0.8680 34.32 0.9493
SAN [5] 3 34.75 0.9300 30.59 0.8476 29.33 0.8112 28.93 0.8671 34.30 0.9494
EDSR [23] 3 34.65 0.9280 30.52 0.8462 29.25 0.8093 28.80 0.8653 34.17 0.9476
IGNN (Ours) 3 34.72 0.9298 30.66 0.8484 29.31 0.8105 29.03 0.8696 34.39 0.9496
IGNN+ (Ours) 3 34.84 0.9305 30.75 0.8496 29.37 0.8115 29.20 0.8721 34.67 0.9509

VDSR [16]
4 31.35 0.8830 28.02 0.7680 27.29 0.0726 25.18 0.7540 28.83 0.8870

LapSRN [20]
4 31.54 0.8850 28.19 0.7720 27.32 0.7270 25.21 0.7560 29.09 0.8900
MemNet [32] 4 31.74 0.8893 28.26 0.7723 27.40 0.7281 25.50 0.7630 29.42 0.8942
DBPN [12] 4 32.47 0.8980 28.82 0.7860 27.72 0.7400 26.38 0.7946 30.91 0.9137
RDN [44] 4 32.47 0.8990 28.81 0.7871 27.72 0.7419 26.61 0.8028 31.00 0.9151
NLRN [24] 4 31.92 0.8916 28.36 0.7745 27.48 0.7306 25.79 0.7729 - -
RNAN [43] 4 32.49 0.8982 28.83 0.7878 27.72 0.7421 26.61 0.8023 31.09 0.9149
SRFBN [22] 4 32.47 0.8983 28.81 0.7868 27.72 0.7409 26.60 0.8015 31.15 0.9160
OISR-RK3 [13] 4 32.53 0.8992 28.86 0.7878 27.75 0.7428 26.79 0.8068 31.26 0.9170
SAN [5] 4 32.64 0.9003 28.92 0.7888 27.78 0.7436 26.79 0.8068 31.18 0.9169
EDSR [23] 4 32.46 0.8968 28.80 0.7876 27.71 0.7420 26.64 0.8033 31.02 0.9148

IGNN (Ours)
4 32.57 0.8998 28.85 0.7891 27.77 0.7434 26.84 0.8090 31.28 0.9182

IGNN+ (Ours)
4 32.71 0.9011 28.96 0.7908 27.84 0.7447 27.04 0.8128 31.59 0.9207

Table 1: Quantitative results in comparison with the state-of-the-art methods. Average PSNR/SSIM for scale factor 2, 3 and 4 on benchmark datasets Set5, Set14, BSD100, Urban100, and Manga109. Best and second best performance are highlighted and underlined.

We compare our proposed method with 11 state-of-the-art methods: VDSR [16], LapSRN [20], MemNet [32], EDSR [23], DBPN [12], RDN [44], NLRN [24], RNAN [43], SRFBN [22], OISR [13], and SAN [5]. Following [23, 34, 43, 5], we also use self-ensemble strategy to further improve our IGNN and denote the self-ensembled one as IGNN+.

As shown in Table 1, the proposed IGNN outperforms existing CNN-based methods, e.g. VDSR [16], LapSRN [20], MemNet [32], EDSR [23], DBPN [12], RDN [44], SRFBN [22] and OISR [13], and existing non-local neural networks, e.g. NLRN [24] and RNAN [43]. Similar to OISR [13], IGNN is also built based on EDSR [23] but has better performance. This demonstrates the effectiveness of the proposed GraphAgg for SISR. In addition, the GraphAgg only has two very small sub-networks (ECN and DEN), each of which only contain three convolutional layers. Thus, the improvement comes from the cross-scale aggregation rather than a larger model size. As to SAN [5], it performs the best in some cases. However, it uses a very deep network (including 200 residual blocks) which is around seven times deeper than the proposed IGNN.

valign=t
Urban100 (4): img_004
valign=t
HR  PSNR/SSIM Bicubic  20.53/0.6403 VDSR [16]  22.38/0.7948
EDSR [23]  24.07/0.8596 RDN [44]  24.13/0.8634 OISR [13]  24.39/0.8670
SAN [5]  24.94/0.8762 RNAN  [43]  24.29/0.8598 IGNN (Ours)  25.21/0.8794
Figure 3: Visual results with Bicubic downsampling () on “img _004” from Urban100. The proposed method recovers more details.

We also present a qualitative comparison of our IGNN with other state-of-the-art methods, as shown in Figure 3. The IGNN recovers more details with less blurring, especially on small recurring textures. This results demonstrate that IGNN indeed explores the rich texture from cross-scale patch searching and aggregation. Compared with other methods, IGNN obtains image-specific information from the searched HR feature patches. Such internal cues complement external information obtained by network learning from the dataset. More visual results are provided in the supplementary material.

3.2 Analysis and Discussions

In this section, we conduct a number of comparative experiments for further analysis and discussions.

Baseline (EDSR) Non-local IGNN
PSNR 32.93 32.98 33.23
SSIM 0.9351 0.9362 0.9383
Table 3: Results on Urban100 () for different positions of GraphAgg in the network.
after 8th after 16th after 24th
PSNR 33.17 33.23 33.19
SSIM 0.9378 0.9383 0.9380
Table 2: Comparison GraphAgg with the Non-local block on Urban100 ().

Effectiveness of Graph Aggregation Module: In order to show the effectiveness of the cross-scale aggregation intuitively, we provide a non-learning version, denoted as GraphAgg*, which constructs the cross-scale graph in exactly the same way as to IGNN. Different from IGNNwhose GraphAgg aggregates extracted features in IGNN, GraphAgg* directly aggregates neighboring HR patches cropped from the input LR image by simply averaging. As shown in the first row of Figure 4, GraphAgg* is capable of recovering more detailed and sharper result, compared with the Bicubic upsampled input LR image. The results intuitively show the effectiveness of cross-scale aggregation in image SR task. Even though the SR images generated from GraphAgg* are promising, they still contain some artifacts in the second row of Figure 4

. The proposed IGNN can remove them and restore better images with finer details by aggregating the features extracted from the network.

To further verify the effectiveness of GraphAgg, we replace it with the basic non-local block [36, 24] with Embedded Gaussian distance. The results in Table 3 show that the basic non-local blocks bring limited improvements of only 0.05 dB in PSNR. In contrast, IGNN shows evident improvements in performance, suggesting the importance of cross-scale aggregation for SISR.

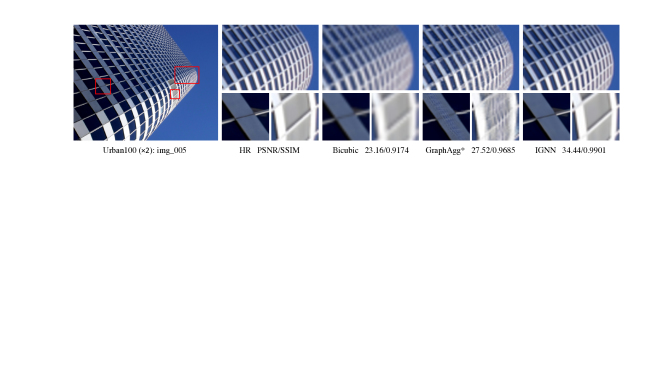

Figure 4: Visual results with Bicubic downsampling () on “img_005” from Urban100. The GraphAgg* denotes the non-learning version of GraphAgg, which aggregates cross-scale information in the image domain. Compared with the Bicubic upsampled result, GraphAgg* recovers sharper details, suggesting the effectiveness of the proposed cross-scale aggregation. However, GraphAgg* still generates some artifacts with a direct aggregation (patch2img) in image domain. By aggregating in feature domain, the proposed IGNNremoves the artifacts and generates better SR image.

Position of Graph Aggregation Module: We compare three positions in the backbone network to integrate GraphAgg, i.e., after the 8th residual block, after the 16th residual block and after the 24th residual block. As summarized in Table 3, performance improvement is observed at all positions. The largest gain is achieved by inserting GraphAgg in the middle, i.e., after the 16th residual block.

PSNR 33.14 33.18 33.23 33.24
SSIM 0.9372 0.9380 0.9383 0.9383
Table 5: Results on Urban100 () for varying neighbor number .
PSNR 33.17 33.21 33.23 33.23 33.22 33.22
SSIM 0.9377 0.9381 0.9383 0.9382 0.9382 0.9381
Table 4: Results on Urban100 () for varying sizes of searching window. represents searching neighbors among the whole .

Settings for Graph Aggregation Module: We investigate the influence of the searching window size and neighborhood number in GraphAgg. Table 5 shows the results on Urban100 () for different size of searching window . As expected, the estimated SR image has better quality when increases. We also find that has almost the same performance relative to searching among the whole downsampled features (). Therefore, we empirically set (i.e., window) as a trade-off between the computational complexity and performance.

Table 5 presents the results on Urban100 () for different number of neighbors . In general, more neighbors improve SR results since more HR information can be utilized by GraphAgg. However, the performance does not improve after since it may be hard to find more than five useful HR neighbors for aggregation.

w/o AdaPN w/o ECN w/o AdaPN and w/o ECN IGNN
PSNR 33.18 33.12 33.09 33.23
SSIM 0.9379 0.9372 0.9369 0.9383
Table 6: Results on Urban100 () for variants of GraphAgg. The (w/o AdaPN), (w/o ECN), and (w/o AdaPN, w/o ECN) denote removing Adaptive Patch Normalization, removing Edge-Conditioned sub-network, and removing both of them, respectively.

Effectiveness of Adaptive Patch Normalization and Edge-Conditioned sub-network: The retrieved HR neighboring patches are sometimes mismatched with the query patch in low-frequency information, e.g., color, brightness. To solve this problem, we adopt two modules in the proposed GraphAgg, i.e., Adaptive Patch Normalization (AdaPN) and Edge-Conditioned sub-network (ECN), i.e., . To validate the effectiveness of AdaPN and ECN, we compare GraphAgg with three variants: removing AdaPN only (w/o AdaPN), removing ECN only (w/o ECN), and removing both of them (w/o AdaPN and w/o ECN). Table 3.2 shows that the network performs worse when any one of them is removed. Note that we remove ECN by replacing in Eq. (2) by the metric of weighted Euclidean distance with Gaussian kernel, i.e., . The above experimental results demonstrate that AdaPN and ECW indeed make the GraphAgg module more robust for the patch aggregation.

4 Conclusion

We present a novel notion of modelling internal correlations of cross-scale recurring patches as a graph, and then propose a graph network IGNN that explores this internal recurrence property effectively. IGNN obtains rich textures from the HR counterparts found from LR features itself to alleviate the ill-posed nature in SISR and recover more detailed textures. The paper has shown the effectiveness of the cross-scale graph aggregation, which passes HR information from HR neighboring patches to LR ones. Extensive results over benchmarks demonstrate the effectiveness of the proposed IGNN against state-of-the-art SISR methods.
