Cross-lingual Speaker Verification with Deep Feature Learning

06/22/2017 ∙ by Lantian Li, et al. ∙ 0

Existing speaker verification (SV) systems often suffer from performance degradation if there is any language mismatch between model training, speaker enrollment, and test. A major cause of this degradation is that most existing SV methods rely on a probabilistic model to infer the speaker factor, so any significant change on the distribution of the speech signal will impact the inference. Recently, we proposed a deep learning model that can learn how to extract the speaker factor by a deep neural network (DNN). By this feature learning, an SV system can be constructed with a very simple back-end model. In this paper, we investigate the robustness of the feature-based SV system in situations with language mismatch. Our experiments were conducted on a complex cross-lingual scenario, where the model training was in English, and the enrollment and test were in Chinese or Uyghur. The experiments demonstrated that the feature-based system outperformed the i-vector system with a large margin, particularly with language mismatch between enrollment and test.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Speaker verification (SV) is an important biometric recognition technology and has gained great popularity in a wide range of applications, such as access control, transaction authentication, forensics and personalization. After decades of research, speaker verification has gained significant performance improvement, and has been deployed in some practical applications [1, 2, 3, 4]. In spite of the great achievement, current speaker verification systems perform well only if the enrollment and test utterances are well matched, otherwise the performance will be seriously degraded.

Language discrepancy is a particularly mismatch that degrades SV performance. In the latest decades, the development of the Internet has greatly sped up information exchange and has glued the entire world together. An interesting consequence is the widespread bilingual and multilingual phenomena. This leads to the notorious cross-language issue for SV systems. There are two types of language mismatch: the first type of mismatch occurs when the system is trained with data in one language, but operates in other languages; the second type of mismatch occurs when a speaker enrolles in one language but tests in a different language. These two types of mismatch may be mixed, i.e., the training, enrollment, and test are in three different languages. As an example, in Urumchi, a large city in the western China, Uyghur and Chinese are both official languages and are used by many people interchangeably even without notice. Hence for people living Urumchi, language mismatch between enrollment and test is very likely to occur. However, for both Chinese and Uyghur, there are no standard databases to train the SV system, and we have to resort to speech databases in English, e.g., the Fisher database published by LDC. This practical scenario involves two types of language mismatch, and is highly complex and challenging for SV systems.

Intuitively, the mismatch in language should not be a problem, since a person’s speaker trait is nothing to do with what he/she is speaking. From this perspective, SV should be naturally cross-lingual. However, for most present SV systems, the language mismatch is indeed a serious problem and great performance degradation has been reported [5, 6, 7, 8]

. We argue that a deep reason for the cross-lingual loss is the probabilistic modelling approach used by most of the existing SV systems, particularly the famous Gaussian mixture model-universal background model (GMM-UBM)

[9] architecture, and the succeeding joint factor analysis (JFA) model [10] and its ‘simplified’ version, the state-of-the-art i-vector model [11]. By these models, the speaker property is modeled as an ‘additive component’ augmented to the basic phonetic variation that is represented by the Gaussian components, e.g., a mean vector shift from the speaker independent Gaussian. This implies that if the distribution of the basic phonetic variation is changed (the case with cross-lingual operation, both enrollment and test), the speaker property will be poorly represented. This is why existing SV systems perform bad with language mismatch.

Perhaps the best solution for the cross-lingual problem is to retrieve high-quality speaker features. If the phonetic variation can be effectively eliminated from the feature, we can entirely discard the probabilistic model such as the GMM, and the SV model will be ideally language independent. Essentially, if we can find such a feature, most of the difficulties of the existing SV models will be solved, not limited to the cross-lingual problem. This has motivated quite some researchers to pursue ‘fundamental’ speaker features, e.g., [12, 13]. However, most of the feature engineering methods rely on human knowledge, which turns out to be extremely difficult. This is why the state-of-the-art SV systems are still based on probabilistic models.

Fortunately, we recently found a powerful feature learning approach based on a deep neural network (DNN) structure [14]. This structure consists of a convolutional (CN) component and a time-delay (TD) component, designed to learn local patterns and extend the temporal context, respectively. Our experimental results demonstrated that this CT-DNN model could learn strong speaker sensitive features and outperformed the i-vector model especially in short utterance conditions. By this deep feature learning structure, the speaker-discriminative information can be preserved and strengthened, while speaker-irrelevant variations, especially the phone content, are diminished and removed. We conjecture that this feature learning SV approach is particularly robust in scenarios where there is significant phonetic variation, for example in the cross-lingual circumstances.

In this paper we will investigate the performance of the feature learning SV approach with a cross-lingual SV task, where the model is trained with a large English speech database, and the enrollment and test could be in Chinese or Uyghur. We found that the feature-based SV outperformed the state-the-art i-vector system with a large margin. Besides, we designed a phone-aware deep feature learning structure that further improves the cross-lingual SV performance.

The organization of this paper is as follows: we firstly describe some related work on the deep feature learning approach in Section 2, and then present the CT-DNN structure in Section 3. The experiments will be presented in Section 4, followed by some conclusions and discussions in Section 5.

2 Related work

Cross-lingual SV has been studied by some authors. For example, Ma et al. [5] studied the enrollment-test mismatch and found that it caused significant performance degradation for speaker recognition. Auckenthaler [6] investigated the mismatch between training and operation, within the GMM-UBM architecture. They found considerable performance degradations if the speech data used to train the UBM and the speech data used to enroll/test speakers were in different languages. Abhinav et al. [7] studied the same problem within the state-of-the-art i-vector architecture [11], and investigated both the training-operation mismatch and the enrollment-test mismatch. Their results confirmed that language mismatch, despite where it occurs, leads to significant performance degradation.

Some compensation methods have been proposed to alleviate the cross-lingual impact. Akbacak et al. [15] proposed two normalization techniques: normalization at the utterance-level via language identification and normalization at the segment-level via multilingual phone recognition. Askar et al. [16]

applied the constrained maximum likelihood linear regression (CMLLR) to learn a transform that maps acoustic features from one language to another. Lu et al.

[17] formulated the cross-lingual problem in a more elegant Bayesian framework, and the joint factor analysis (JFA) formulation was extended by adding a latent factor to represent the language. This language factor was inferred and compensated for the enrollment and test. Recently, Askar et al. [8] proposed a phone-aware PLDA approach that involves phone information when training PLDA.

All the above compensation methods are based on the probabilistic modeling framework. There are also some work on features. For example, Wang et al.  [13] studied vocal fold features, such as the residual phase cepstral coefficients (RPCCs) and the glottal glow cepstral coefficients (GLFCCs). They employed these features to address the cross-lingual challenge and found some reasonable performance improvement.

The idea of deep feature learning was originated by Ehsan et al. [18]. They constructed a DNN model with speakers in the training set as the targets. The frame-level features were read from the activations of the last hidden layer, and the utterance-level representations (called ‘d-vector’) were obtained by averaging over the frame-level features. Although the pure d-vector system was not better than the state-of-the-art i-vector system, this work triggered much interest on the deep neural approach for SV, though most followers focused on an end-to-end scheme  [19, 20, 21, 22] that learns a neural scoring network together with the feature network. This actually departed from the original spirit of speaker feature learning.

Our group follows the feature learning scheme. Recently, we proposed a convolutional time-delay deep neural network structure (CT-DNN) that can learn speaker features very well [14], and the feature-based SV outperformed the i-vector model especially in short utterance conditions. This paper extends this work and investigates the performance of the feature-based SV in situations with language mismatch.

3 Deep feature learning structure

This section presents our DNN structures for deep speaker feature learning. Firstly we review the basic phone-blind CT-DNN structure proposed in [14], and then propose a phone-aware structure that employs phonetic information as a conditional variable to regularize the speaker feature learning.

3.1 Phone-blind structure

The basic DNN feature learning structure is illustrated in Fig. 1. This structure, denoted by ‘CT-DNN’, involves several convolutional layers to extract local discriminative patterns from the raw features, and several time-delayed layers to increase the effective temporal context. More specifically, it consists of a convolutional (CN) component and a time-delay (TD) component, connected by a bottleneck layer consisting of

hidden units. The convolutional component involves two CN layers, each followed by a max-pooling layer. This component is used to learn local patterns that are useful in representing speaker traits. The TD component involves two TD layers, each followed by a P-norm layer. This component is used to extend the temporal context. The settings for the two components, including the patch size, the number of feature maps, the time-delay window, the group size of the P-norm, have been shown in Fig.

1. A simple calculation shows that with these settings, the size of the effective context window is frames. The output of the P-norm layer is projected to a feature layer consisting of units, where the vector of the units are re-normalized to a fixed length . This -dimensional normalized vector is used as the deep speaker feature. This feature layer is finally connected to the output layer whose units correspond to the speakers in the training data.

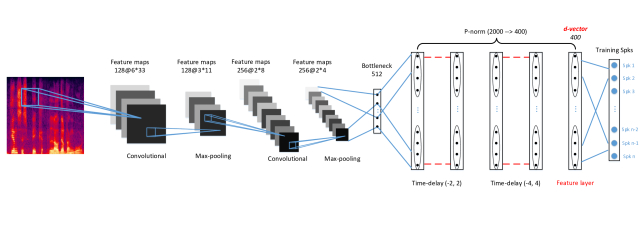

Figure 1: The basic deep feature learning structure.

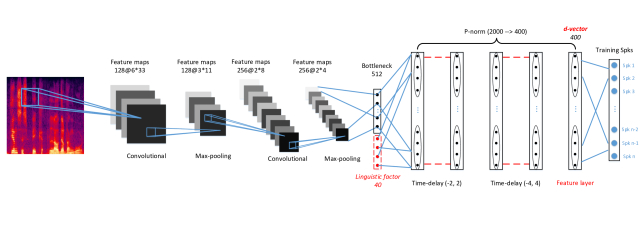

Figure 2: The phone-aware deep feature learning structure.

3.2 Phone-aware structure

A potential problem of the CT-DNN model described in the previous section is that it is a ‘blind learning’, i.e., the features are learned from raw data without prior information. This blind has to deal with the large within-speaker variations caused by the phonetic content. This is a challenging task and requires more complex models and more speech data. A possible improvement is to inform the CT-DNN model the phonetic content of each frame, by which most of the within-speaker variations can be explained away, hence simplifying the speaker feature learning. This leads to a phone-aware CT-DNN architecture, as shown in Fig. 2, where linguistic factor represents the phonetic content information. The phonetic content information, or the linguistic factor, can be produced by any model that can discriminate phones. In this study, we use a DNN model that has been well trained for Chinese speech recognition.

The two deep feature learning structures can be trained using the natural stochastic gradient descent (NSGD)

[23] algorithm. Once the models have been trained, the deep speaker feature can be read from the feature layer, i.e., the last hidden layer of the models.

4 Experiments

In this section, we first present the database used in the experiments, then report the results with the i-vector and the two feature-based systems, one is phone-blind and the other is phone-aware. All the experiments were conducted using the Kaldi toolkit [24].

4.1 Database

The Fisher database and the CSLT-CUDGT2014 Chinese-Uyghur bilingual database were used in our experiments. All the database is in 8kHz sampling rate. The training set and the evaluation set are presented as follows.

  • Training set: It consists of male and female speakers, with utterances randomly selected from the Fisher database, and each speaker has about utterances and totally seconds in length. This dataset was used for training the i-vector system, LDA model, PLDA model, and two deep speaker systems.

  • Evaluation set: The CSLT-CUDGT2014 Chinese-Uyghur bilingual database. It consists of speakers, each speaking Chinese digital strings and Uyghur digital strings. Each string contains Chinese or Uyghur digits, and is about - seconds.

The test were conducted in conditions, as shown in Table 1. ‘LNG1-LNG2’ means that enroll with utterances in language LNG1 and test with utterances in language LNG2. As the trials are symmetric pairs, the ‘CHS-UYG’ and ‘UYG-CHS’ share the same data profile. We highlight that this data profile and test setting involve highly complex cross-lingual effect: the training is in English, and the enrollment and test can be in either Chinese or Uyghur. This is therefore a challenging benchmark to evaluate SV systems in cross-lingual situations.

Test condition CHS-CHS UYG-UYG CHS-UYG/UYG-CHS
#. of Utts. 1,779 1,779 3,558
Avg. dur of Utts. 2.20s 2.50s 2.35s
#. of Target trials 7.87k 7.87k 17.52k
#. of Nontarget trials 1.57M 1.57M 3.15M
Table 1: Data profile of the test conditions.

4.2 Model settings

We built an i-vector system as the baseline. The raw feature involved -dimensional MFCCs plus the log energy. This raw feature was augmented by its first- and second-order derivatives, resulting in a 60-dimensional feature vector. This feature was used by the i-vector model. The UBM was composed of Gaussian components, and the dimensionality of the i-vector space was . The dimensionality of the LDA projection space was set to . Prior to PLDA scoring [25], i-vectors were centered and length normalized. The entire system was trained using the Kaldi SRE08 recipe.

For the phone-blind d-vector system, the architecture was based on Fig. 1. The input feature was 40-dimensional Fbanks, with a symmetric -frame window to splice the neighboring frames, resulting in frames in total. The number of output units was , corresponding to the number of speakers in the training data. The speaker features were extracted from the last hidden layer (the feature layer in Figure 1), and the utterance-level d-vectors were derived by averaging the frame-level features. The scoring metrics used for the i-vector system were also used for the d-vector system during the test, including cosine distance, LDA and PLDA.

For the phone-aware d-vector system, the phonetic DNN was trained for Chinese speech recognition (ASR). The training used more than hours Chinese telephone speech, using the Kaldi toolkit following the WSJ nnet3 s5 recipe. The input feature was 40-dimensional Fbanks. With time-delay hidden layers, the valid context window of each frame was frames. Each hidden layer contained hidden units, and the output layer contained

units, corresponding to the number of GMM senones. To produce the linguistic factor for the phone-aware CT-DNN, a Singular Value Decomposition (SVD) was applied to decompose the final affine transformation matrix of the ASR DNN, by setting the rank of the SVD to

. The -dimensional activations were read from the low-rank layer of the decomposed matrix, and were used as the linguistic factor of the CT-DNN model.

4.3 Experimental results

EER%
Systems Metric CHS-CHS UYG-UYG CHS/UYG
i-vector Cosine 7.55 6.16 15.14
LDA 6.30 5.63 12.77
PLDA 5.31 4.29 9.82
d-vector Cosine 4.17 4.09 10.45
(phone-blind) LDA 6.64 5.47 13.16
PLDA 3.75 3.71 8.66
d-vector Cosine 4.07 4.03 10.30
(phone-aware) LDA 6.09 5.21 13.02
PLDA 3.61 3.52 8.37
Table 2: The EER(%) results of cross-lingual speaker verification.

The results are shown in Table 2. As ‘CHS-UYG’ and ‘UYG-CHS’ are symmetric in the test, they are merge as ‘CHS/UYG’. From these results, we can observe that with all the three systems, the models trained with the Fisher database still work on the new dataset CSLT-CUDGT2014, it is in totally different languages. This indicates that both the i-vector system and d-vector system posses certain cross-lingual generalizability. However, the d-vector systems outperform the i-vector system with a large margin. According to our previous work [14], in the language-matched test, the i-vector system has no such big advantage on the -seconds test condition. This therefore demonstrated that the deep feature systems are more robust against language mismatch. Compared to CHS-CHS and UYG-UYG, the performance with enrollment-test language mismatch (CHS/UYG) is clearly worse, though the performance with the d-vector systems is clearly superior compared to the i-vector system.

Compared with the phone-blind d-vector system, the phone-aware d-vector system exhibits better performance. This demonstrated that adding the phonetic information can reduce the burden of the CT-DNN model in learning the phonetic-relevant variation, hence producing speaker features with better quality.

The robustness of the d-vector systems in situation with language mismatch demonstrated that the deep features learned by the CT-DNNs have caught some ‘fundamental patterns’ of speakers, and eliminated most language-relevant variations. This is a strong evidence that the deep features are highly robust and generalizable, which is the key value that deep learning offers to the SV research.

5 Conclusions

This paper investigated the feature-based speaker verification approach in situations with language mismatch between training, enrollment and test. Two deep feature learning structures were studied, one is phone-blind and the other is phone-aware. The experimental results demonstrated that the feature-based SV systems work very well in cross-lingual situations and outperformed the state-of-the-art i-vector/PLDA system, and the phone-aware system is more superior. This indicates that the proposed feature learning model indeed learned how to extract the ‘fundamental patterns’ of speakers, and the extracted features are robust and generalizable. In the further work, we will investigate the robustness and generalizability of deep speaker features in other situations, e.g., with channel mismatch and strong background noise. More powerful feature learning models will be investigated as well.

Acknowledgment

This work was supported by the National Natural Science Foundation of China under Grant No. 61371136 / 61633013 and the National Basic Research Program (973 Program) of China under Grant No. 2013CB329302.

References

  • [1] J. P. Campbell, “Speaker recognition: A tutorial,” Proceedings of the IEEE, vol. 85, no. 9, pp. 1437–1462, 1997.
  • [2] D. A. Reynolds, “An overview of automatic speaker recognition technology,” in Acoustics, speech, and signal processing (ICASSP), 2002 IEEE international conference on, vol. 4.   IEEE, 2002, pp. IV–4072.
  • [3] T. Kinnunen and H. Li, “An overview of text-independent speaker recognition: From features to supervectors,” Speech communication, vol. 52, no. 1, pp. 12–40, 2010.
  • [4] J. H. Hansen and T. Hasan, “Speaker recognition by machines and humans: A tutorial review,” IEEE Signal processing magazine, vol. 32, no. 6, pp. 74–99, 2015.
  • [5] B. Ma and H. Meng, “English-chinese bilingual text-independent speaker verification,” in Acoustics, Speech, and Signal Processing, 2004. Proceedings.(ICASSP’04). IEEE International Conference on, vol. 5.   IEEE, 2004, pp. V–293.
  • [6] R. Auckenthaler, M. J. Carey, and J. S. Mason, “Language dependency in text-independent speaker verification,” in Acoustics, Speech, and Signal Processing, 2001. Proceedings.(ICASSP’01). 2001 IEEE International Conference on, vol. 1.   IEEE, 2001, pp. 441–444.
  • [7] A. Misra and J. H. L. Hansen, “Spoken language mismatch in speaker verification: An investigation with nist-sre and crss bi-ling corpora,” in IEEE Spoken Language Technology Workshop.   IEEE, 2014, pp. 372–377.
  • [8] A. Rozi, D. Wang, L. Li, and T. F. Zheng, “Language-aware PLDA for multilingual speaker recognition,” in O-COCOSDA 2016, 2016.
  • [9] D. Reynolds, T. Quatieri, and R. Dunn, “Speaker verification using adapted gaussian mixture models,” Digital Signal Processing, vol. 10, no. 1, pp. 19–41, 2000.
  • [10] P. Kenny, G. Boulianne, P. Ouellet, and P. Dumouchel, “Joint factor analysis versus eigenchannels in speaker recognition,” IEEE Transactions on Audio, Speech, and Language Processing, vol. 15, pp. 1435–1447, 2007.
  • [11] N. Dehak, P. J. Kenny, R. Dehak, P. Dumouchel, and P. Ouellet, “Front-end factor analysis for speaker verification,” IEEE Transactions on Audio, Speech, and Language Processing, vol. 19, no. 4, pp. 788–798, 2011.
  • [12] T. Kinnunen and H. Li, “An overview of text-independent speaker recognition: From features to supervectors,” Speech communication, vol. 52, no. 1, pp. 12–40, 2010.
  • [13] J. Wang and M. T. Johnson, “Vocal source features for bilingual speaker identification,” in Signal and Information Processing (ChinaSIP), 2013 IEEE China Summit & International Conference on.   IEEE, 2013, pp. 170–173.
  • [14] L. Li, Y. Chen, Y. Shi, Z. Tang, and D. Wang, “Deep speaker feature learning for text-independent speaker verification,” arXiv preprint arXiv:1705.03670, 2017.
  • [15] M. Akbacak and J. H. Hansen, “Language normalization for bilingual speaker recognition systems,” in Acoustics, Speech and Signal Processing, 2007. ICASSP 2007. IEEE International Conference on, vol. 4.   IEEE, 2007, pp. IV–257.
  • [16]

    R. Askar, D. Wang, F. Bie, J. Wang, and T. F. Zheng, “Cross-lingual speaker verification based on linear transform,” in

    Signal and Information Processing (ChinaSIP), 2015 IEEE China Summit and International Conference on.   IEEE, 2015, pp. 519–523.
  • [17] L. Lu, Y. Dong, X. Zhao, J. Liu, and H. Wang, “The effect of language factors for robust speaker recognition,” in Acoustics, Speech and Signal Processing, 2009. ICASSP 2009. IEEE International Conference on.   IEEE, 2009, pp. 4217–4220.
  • [18] V. Ehsan, L. Xin, M. Erik, L. M. Ignacio, and G.-D. Javier, “Deep neural networks for small footprint text-dependent speaker verification,” in Acoustics, Speech and Signal Processing (ICASSP), 2014 IEEE International Conference on, vol. 28, no. 4, 2014, pp. 357–366.
  • [19] G. Heigold, I. Moreno, S. Bengio, and N. Shazeer, “End-to-end text-dependent speaker verification,” in Acoustics, Speech and Signal Processing (ICASSP), 2016 IEEE International Conference on.   IEEE, 2016, pp. 5115–5119.
  • [20] S.-X. Zhang, Z. Chen, Y. Zhao, J. Li, and Y. Gong, “End-to-end attention based text-dependent speaker verification,” arXiv preprint arXiv:1701.00562, 2017.
  • [21] D. Snyder, P. Ghahremani, D. Povey, D. Garcia-Romero, Y. Carmiel, and S. Khudanpur, “Deep neural network-based speaker embeddings for end-to-end speaker verification,” in SLT’2016, 2016.
  • [22] C. Li, X. Ma, B. Jiang, X. Li, X. Zhang, X. Liu, Y. Cao, A. Kannan, and Z. Zhu, “Deep speaker: an end-to-end neural speaker embedding system,” arXiv preprint arXiv:1705.02304, 2017.
  • [23] D. Povey, X. Zhang, and S. Khudanpur, “Parallel training of dnns with natural gradient and parameter averaging,” arXiv preprint arXiv:1410.7455, 2014.
  • [24] D. Povey, A. Ghoshal, G. Boulianne, L. Burget, O. Glembek, N. Goel, M. Hannemann, P. Motlicek, Y. Qian, P. Schwarz et al., “The kaldi speech recognition toolkit,” in IEEE 2011 workshop on automatic speech recognition and understanding, no. EPFL-CONF-192584.   IEEE Signal Processing Society, 2011.
  • [25] S. Ioffe, “Probabilistic linear discriminant analysis,” Computer Vision ECCV 2006, Springer Berlin Heidelberg, pp. 531–542, 2006.
