Intelligent systems help us write by proactively suggesting words or phrases while we type. These systems often build on a language model that picks most likely phrases based on previous words in context, in an attempt to increase entry speed and accuracy. However, recent work Arnold et al. (2016) has shown that writers appreciate suggestions that have creative wording, and can find phrases suggested based on frequency alone to be boring. For example, at the beginning of a restaurant review, “I love this place” is a reasonable prediction, but a review writer might prefer a suggestion of a much less likely phrase such as “This was truly a wonderful experience”—they may simply not have thought of this more enthusiastic phrase. Figure 1 shows another example.
We propose a new task for NLP research: generate suggestions for writers. Doing well at this task requires innovation in language generation but also interaction with people: suggestions must be evaluated by presenting them to actual writers. Since writing is a highly contextual creative process, traditional batch methods for training and evaluating human-facing systems are insufficient: asking someone whether they think something would make a good suggestion in a given context is very different from presenting them with a suggestion in a natural writing context and observing their response. But if evaluating every proposed parameter adjustment required interactive feedback from writers, research progress would be slow and limited to those with resources to run large-scale writing experiments.
In this paper we propose a hybrid approach: we maintain a natural human-centered objective, but introduce a proxy task that provides an unbiased estimate of expected performance on human evaluations. Our approach involves developing astochastic baseline system (which we call the reference policy), logging data from how writers interact with it, then estimating the performance of candidate policies by comparing how they would behave with how the reference policy did behave in the contexts logged. As long as the behavior of the candidate policy is not too different from that of the reference policy (in a sense that we formalize), this approach replaces complex human-in-the-loop evaluation with a simple convex optimization problem.
This paper demonstrates our approach: we collected data of how humans use suggestions made by a reference policy while writing reviews of a well-known restaurant. We then used logged interaction data to optimize a simple discriminative language model, and find that even this simple model generates better suggestions than a baseline trained without interaction data. We also ran simulations to validate the estimation approach under a known model of human behavior.
Our contributions are summarized below:
We present a new NLP task of phrase suggestion for writing.111Code and data are available at https://github.com/kcarnold/counterfactual-lm.
We show how to use counterfactual learning for goal-directed training of language models from interaction data.
We show that a simple discriminative language model can be trained with offline interaction data to generate better suggestions in unseen contexts.
2 Related Work
. However, these models do not model human preferences from interactions. Existing deployed keyboards use n-gram language modelsQuinn and Zhai (2016); Kneser and Ney (1995), or sometimes neural language models Kim et al. (2016), trained to predict the next word given recent context. Recent advances in language modeling have increased the accuracy of these predictions by using additional context Mikolov and Zweig (2012). But as argued in Arnold et al. (2016), these increases in accuracy do not necessarily translate into better suggestions.
The difference between suggestion and prediction is more pronounced when showing phrases rather than just words. Prior work has extended predictive language modeling to phrase prediction Nandi and Jagadish (2007) and sentence completion Bickel et al. (2005), but do not directly model human preferences. Google’s “Smart Reply” email response suggestion system Kannan et al. (2016)
avoids showing a likely predicted response if it is too similar to one of the options already presented, but the approach is heuristic, based on a priori similarity. Search engine query completion also generates phrases that can function as suggestions, but is typically trained to predict what query is made (e.g.,Jiang et al. (2014)).
3 Counterfactual Learning for Generating Suggestions
We consider the task of generating good words and phrases to present to writers. We choose a pragmatic quality measure: a suggestion system is good if it generates suggestions that writers accept. Let denote a suggestion system, characterized by
, the probability thatwill suggest the word or phrase when in context (e.g., words typed so far).222Our notation follows Swaminathan and Joachims (2015) but uses “reward” rather than “loss.” Since has the form of a contextual language model, we will refer to it as a “model.” We consider deploying in an interactive interface such as Figure 1, which suggests phrases using a familiar predictive typing interface. Let denote a reward that a system receives from that interaction; in our case, the number of words accepted.333Our setting admits alternative rewards, such as the speed that a sentence was written, or an annotator’s rating of quality. We define the overall quality of a suggestion system by its expected reward over all contexts.
Counterfactual learning allows us to evaluate and ultimately learn models that differ from those that were deployed to collect the data, so we can deploy a single model and improve it based on the data collected Swaminathan and Joachims (2015). Intuitively, if we deploy a model and observe what actions it takes and what feedback it gets, we could improve the model by making it more likely to suggest the phrases that got good feedback.
Suppose we deploy a reference model444Some other literature calls a logging policy. and log a dataset
of contexts (words typed so far), actions (phrases suggested), rewards, and propensities respectively, where . Now consider deploying an alternative model (we will show an example as Eq. (1) below). We can obtain an unbiased estimate of the reward that would incur using importance sampling:
However, the variance of this estimate can be unbounded because the importance weightscan be arbitrarily large for small . Like Ionides (2008), we clip the importance weights to a maximum :
The improved model can be learned by optimizing
This optimization problem is convex and differentiable; we solve it with BFGS. 555We use the BFGS implementation in SciPy.
4 Demonstration Using Discriminative Language Modeling
We now demonstrate how counterfactual learning can be used to evaluate and optimize the acceptability of suggestions made by a language model. We start with a traditional predictive language model of any form, trained by maximum likelihood on a given corpus.666The model may take any form, but n-gram Heafield et al. (2013) and neural language models (e.g., Kim et al. (2016)) are common, and it may be unconditional or conditioned on some source features such as application, document, or topic context. This model can be used for generation: sampling from the model yields words or phrases that match the frequency statistics of the corpus. However, rather than offering representative samples from , most deployed systems instead sample from , where is a “temperature” parameter; corresponds to sampling based on (soft-max), while corresponds to greedy maximum likelihood generation (hard-max), which many deployed keyboards use Quinn and Zhai (2016)
. The effect is to skew the sampling distribution towards more probable words. This choice is based on a heuristic assumption that writers desire more probable suggestions; what if writers instead find common phrases to be overly cliché and favor more descriptive phrases? To capture these potential effects, we add features that can emphasize various characteristics of the generated text, then use counterfactual learning to assign weights to those features that result in suggestions that writers prefer.
We consider locally-normalized log-linear language models of the form
where is a phrase and
is a feature vector for a candidate wordgiven its context . ( is a shorthand for
.) Models of this form are commonly used in sequence labeling tasks, where they are called Max-Entropy Markov ModelsMcCallum et al. (2000). Our approach generalizes to other models such as conditional random fields Lafferty et al. (2001).
The feature vector can include a variety of features. By changing feature weights, we obtain language models with different characteristics. To illustrate, we describe a model with three features below. The first feature (LM) is the log likelihood under a base 5-gram language model trained on the Yelp Dataset777https://www.yelp.com/dataset_challenge; we used only restaurant reviews with Kneser-Ney smoothing Heafield et al. (2013). The second and third features “bonus” two characteristics of : long-word is a binary indicator of long word length (we arbitrarily choose letters), and POS
is a one-hot encoding of its most common POS tag. Table1 shows examples of phrases generated with different feature weights.
Note that if we set the weight vector to zero except for a weight of on LM, the model reduces to sampling from the base language model with “temperature” . The fitted model weights of the log-linear model in our experiments is shown in supplementary material.
Reference model .
In counterfactual estimation, we deploy one reference model to learn another —but weight truncation will prevent from deviating too far from . So must offer a broad range of types of suggestions, but they must be of sufficiently quality that some are ultimately chosen. To balance these concerns, we use temperature sampling with a temperature ):
We use our reference model to generate 6-word suggestions one word at a time, so is the product of the conditional probabilities of each word.
4.1 Simulation Experiment
We present an illustrative model of suggestion acceptance behavior, and simulate acceptance behavior under that model to validate our methodology. Our method successfully learns a suggestion model fitting writer preference.

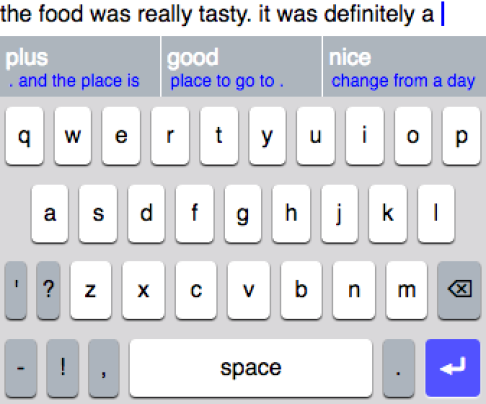

We model the behavior of a writer using the interface in Fig. 1, which displays 3 suggestions at a time. At each timestep they can choose to accept one of the 3 suggestions , or reject the suggestions by tapping a key. Let denote the likelihood of suggestion under a predictive model, and let denote the probability of any other word. Let denote the writer’s probability of choosing the corresponding suggestion, and denote the probability of rejecting the suggestions offered. If the writer decided exactly what to write before interacting with the system and used suggestions for optimal efficiency, then would equal . But suppose the writer finds certain suggestions desirable. Let give the desirability of a suggestion, e.g., could be the number of long words in suggestion . We model their behavior by adding the desirabilities to the log probabilities of each suggestion:
where The net effect is to move probability mass from the “reject” action to suggestions that are close enough to what the writer wanted to say but desirable.
Experiment Settings and Results.
We sample 10% of the reviews in the Yelp Dataset, hold them out from training , and split them into an equal-sized training set and test set. We randomly sample suggestion locations from the training set. We cut off that phrase and pretend to retype it. We generate three phrases from the reference model , then allow the simulated author to pick one phrase, subject to their preference as modeled by the desirability model. We learn a customized language model and then evaluate it on an additional 500 sentences from the test set.

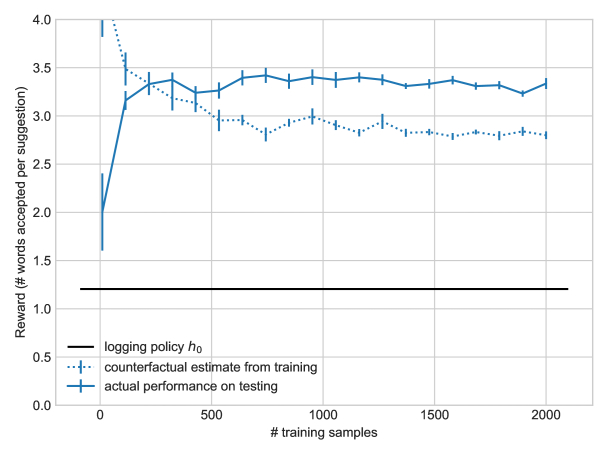

For an illustrative example, we set the desirability to the number of long words ( characters) in the suggestion, multiplied by 10. Figure 3 shows that counterfactual learning quickly finds model parameters that make suggestions that are more likely to be accepted, and the counterfactual estimates are not only useful for learning but also correlate well with the actual improvement. In fact, since weight truncation (controlled by ) acts as regularization, the counterfactual estimate consistently underestimates the actual reward.
4.2 Experiments with Human Writers
We recruited 74 workers through MTurk to write reviews of Chipotle Mexican Grill using the interface in Fig 1 from Arnold et al. Arnold et al. (2016). For the sake of simplicity, we assumed that all human writers have the same preference. Based on pilot experiments, Chipotle was chosen as a restaurant that many crowd workers had dined at. User feedback was largely positive, and users generally understood the suggestions’ intent. The users’ engagement with the suggestions varied greatly—some loved the suggestions and their entire review consisted of nearly only words entered with suggestions while others used very few suggestions. Several users reported that the suggestions helped them select words to write down an idea or also gave them ideas of what to write. We did not systematically enforce quality, but informally we find that most reviews written were grammatical and sensible, which indicates that participants evaluated suggestions before taking them. The dataset contains 74 restaurant reviews typed with phrase suggestions. The mean word count is 69.3, std=25.70. In total, this data comprises 5125 words, along with almost 30k suggestions made (including mid-word).
Estimated Generation Performance.
We learn an improved suggestion model by the estimated expected reward (). We fix and evaluate the performance of the learned parameters on held-out data using 5-fold cross-validation. Figure 4 shows that while the estimated performance of the new model does vary with the used when estimating the expected reward, the relationships are consistent: the fitted model consistently receives the highest expected reward, followed by an ablated model that can only adjust the temperature parameter , and both outperform the reference model (with ). The fitted model weights suggest that the workers seemed to prefer long words and pronouns, and eschewed punctuation.
Our model assumed all writers have the same preferences. Modeling variations between writers, such as in style or vocabulary, could improve performance, as has been done in other domains (e.g., Lee et al. (2017)). Each review in our dataset was written by a different writer, so our dataset could be used to evaluate online personalization approaches.
Our task of crowdsourced reviews of a single restaurant may not be representative of other tasks or populations of users. However, the predictive language model is a replaceable component, and a stronger model that incorporates more context (e.g., Sordoni et al. (2015)) could improve our baselines and extend our approach to other domains.
Future work can improve on the simple discriminative language model presented here to increase grammaticality and relevance, and thus acceptability, of the suggestions that the customized language models generate.
Kai-Wei Chang was supported in part by National Science Foundation Grant IIS-1657193. Part of the work was done while Kai-Wei Chang and Kenneth C. Arnold visited Microsoft Research, Cambridge.
- Arnold et al. (2016) Kenneth C. Arnold, Krzysztof Z. Gajos, and Adam T. Kalai. 2016. On suggesting phrases vs. predicting words for mobile text composition. In Proceedings of UIST ’16.
- Bickel et al. (2005) Steffen Bickel, Peter Haider, and Tobias Scheffer. 2005. Learning to complete sentences. In Machine Learning: ECML 2005, pages 497–504. Springer.
- Heafield et al. (2013) Kenneth Heafield, Ivan Pouzyrevsky, Jonathan H. Clark, and Philipp Koehn. 2013. Scalable modified Kneser-Ney language model estimation. In Proceedings of the 51st Annual Meeting of the Association for Computational Linguistics, pages 690–696, Sofia, Bulgaria.
- Ionides (2008) Edward L Ionides. 2008. Truncated importance sampling. Journal of Computational and Graphical Statistics, 17(2):295–311.
- Jiang et al. (2014) Jyun-Yu Jiang, Yen-Yu Ke, Pao-Yu Chien, and Pu-Jen Cheng. 2014. Learning user reformulation behavior for query auto-completion. In Proceedings of the 37th International ACM SIGIR Conference on Research & Development in Information Retrieval, SIGIR ’14, pages 445–454, New York, NY, USA. ACM.
- Johnson et al. (2016) Melvin Johnson, Mike Schuster, Quoc V. Le, Maxim Krikun, Yonghui Wu, Zhifeng Chen, Nikhil Thorat, Fernanda B. Viégas, Martin Wattenberg, Greg Corrado, Macduff Hughes, and Jeffrey Dean. 2016. Google’s multilingual neural machine translation system: Enabling zero-shot translation. CoRR, abs/1611.04558.
- Kannan et al. (2016) Anjuli Kannan, Karol Kurach, Sujith Ravi, Tobias Kaufmann, Andrew Tomkins, Balint Miklos, Greg Corrado, Laszlo Lukacs, Marina Ganea, Peter Young, and Vivek Ramavajjala. 2016. Smart reply: Automated response suggestion for email. In Proceedings of the ACM SIGKDD Conference on Knowledge Discovery and Data Mining (KDD).
Kim et al. (2016)
Yoon Kim, Yacine Jernite, David Sontag, and Alexander M Rush. 2016.
Character-aware neural language models.
Proceedings of the National Conference on Artificial Intelligence (AAAI).
- Kneser and Ney (1995) Reinhard Kneser and Hermann Ney. 1995. Improved backing-off for m-gram language modeling. In Proceedings of the IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP). IEEE.
- Lafferty et al. (2001) John Lafferty, Andrew McCallum, and Fernando Pereira. 2001. Conditional random fields: Probabilistic models for segmenting and labeling sequence data. In Proceedings of the International Conference on Machine Learning (ICML), pages 282–289.
- Lee et al. (2017) Hung-Yi Lee, Bo-Hsiang Tseng, Tsung-Hsien Wen, Yu Tsao, Hung-Yi Lee, Bo-Hsiang Tseng, Tsung-Hsien Wen, and Yu Tsao. 2017. Personalizing recurrent-neural-network-based language model by social network. IEEE/ACM Trans. Audio, Speech and Lang. Proc., 25(3):519–530.
- Mani (2001) Inderjeet Mani. 2001. Automatic Summarization, volume 3 of Natural Language Processing. John Benjamins Publishing Company, Amsterdam/Philadelphia.
- McCallum et al. (2000) Andrew McCallum, Dayne Freitag, and Fernando Pereira. 2000. Maximum entropy Markov models for information extraction and segmentation. In Proceedings of the International Conference on Machine Learning (ICML).
Mikolov and Zweig (2012)
Tomas Mikolov and Geoffrey Zweig. 2012.
Context dependent recurrent neural network language model.In SLT, pages 234–239.
- Nandi and Jagadish (2007) Arnab Nandi and HV Jagadish. 2007. Effective phrase prediction. In Proceedings of the 33rd international conference on Very large data bases, pages 219–230. VLDB Endowment.
- Quinn and Zhai (2016) Philip Quinn and Shumin Zhai. 2016. A Cost-Benefit Study of Text Entry Suggestion Interaction. Proceedings of the 2016 CHI Conference on Human Factors in Computing Systems, pages 83–88.
- Rambow et al. (2001) Owen Rambow, Srinivas Bangalore, and Marilyn Walker. 2001. Natural language generation in dialog systems. In Proceedings of the first international conference on Human language technology research, pages 1–4.
- Sordoni et al. (2015) Alessandro Sordoni, Michel Galley, Michael Auli, Chris Brockett, Yangfeng Ji, Margaret Mitchell, Jian-Yun Nie, Jianfeng Gao, and Bill Dolan. 2015. A neural network approach to context-sensitive generation of conversational responses. In Proceedings of the Conference of the North American Chapter of the Association for Computational Linguistics (NAACL).
- Swaminathan and Joachims (2015) Adith Swaminathan and Thorsten Joachims. 2015. Counterfactual risk minimization. In Proceedings of the 24th International Conference on World Wide Web Companion, pages 939–941. International World Wide Web Conferences Steering Committee.
Appendix A Supplemental Material
a.1 Experiment details
Crowd workers were U.S.-based Mechanical Turk workers who were paid $3.50 to write a review of Chipotle using the keyboard interface illustrated in Figure 1. They could elect to use the interface on either a smartphone or on a personal computer. In the former case, the interaction was natural as it mimicked a standard keyboard. In the latter case, users clicked with their mouses on the screen to simulate taps. (There did not seem to be significant differences between these two groups.) The instructions are given below:
a.2 Qualitative feedback
We include quotes from feedback from participants who used the system with suggestions generated by the reference model , i.e., -grams with temperature 1/2. Some users found the suggestions accurate at predicting what they intended to say, some found them useful in shaping one’s thoughts or finding the “right words,” and others found them overly simplistic or irrelevant.
“The phrases were helpful in giving ideas of where I wanted to go next in my writing, more as a jumping off point than word for word. I’ve always liked predictive text so the phrases are the next level of what I never knew I wanted.”
“Kind of easy to review but they also sometimes went totally tangent directions to the thoughts that I was trying to accomplish.”
“I was surprised how well the words matched up with what I was expecting to type.”
“I did like the phrase suggestions very much. They really came in handy when you knew what you wanted to say, but just couldn’t find the right words.”
“I thought they were very easy to use and helped me shape my thoughts as well! I think they may have been a bit too simple in their own, but became more creative with my input.”
a.3 Fitted model weights
The following table gives the fitted weights for each feature in the log-linear model, averaged across dataset folds.
