I Introduction

Code review is a critical part of software maintenance and evaluation. A general process of code review is shown in Fig. 1. Whenever the developer has submitted the revision code and the comments, the system will schedule an appropriate reviewer who will need to compare the differences between the original file, the modified file and combine the content of the developer’s comments to verify whether the code meets the requirements. However, it also has a great demand for human resources [9], which makes it impossible to expand code review on a large scale.

Therefore, many researchers are committed to Automatic Code Review (ACR) to solve the problem [10, 12, 14]. For ACR, they provide the model with the original code and the revised code, and the model returns the suggestions on whether this modification is acceptable.

In this paper, we present a new perspective that the ACR should not only contain code fragments. The developer’s comments, explaining why and how to change code, are also an essential source of information in the code review process. The model should fully consider the developer’s comments when giving suggestions for code review. Therefore, we focus on the Multi-Modal ACR task. However, there are three main challenges: 1) there is no corresponding dataset, 2) most of the existing models ignore the problem of few-shot, and 3) there is no multi-modal model in the Multi-Modal ACR task.

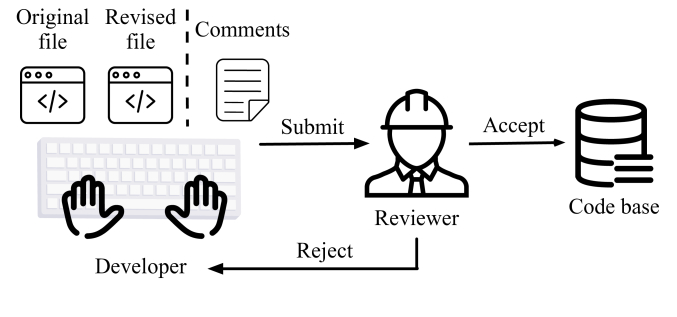

Fig. 1: Traditional code review process.

Since there is still a lack of relevant public datasets, we propose and open-source a Multi-Modal Apache Automatic Code Review dataset (MACR

111https://github.com/SimAST-GCN/CLMN), with 11 projects and over 500 thousand samples.

Recent works [10, 17, 14, 12]

have shown that deep learning methods perform better in capturing the syntactical and semantic information of the source code, enabling suitable code review suggestions. Among them, Shi et al.

[10]

proposes a method called DACE, which uses long short-term memory (LSTM) and convolutional neural network (CNN) to capture the semantic and syntactical information, respectively. Zhang et al.

[17]

proposes a method called ASTNN. The main idea is to obtain better feature extraction ability by dividing the abstract syntax tree (AST) into sentence-level blocks. Although these approaches are excellent in modeling code fragments, they do not consider the problem of few-shot. Misclassification may occur when the model encounters code fragments that have not been seen before. Therefore, in this paper, we adopt contrastive learning to obtain a uniform distributed vector representation to improve the robustness of the model.

In addition, we explore a new method CLMN, to represent code snippets and textual content. We first model the code snippets and textual content separately using two independent encoding modules SimAST-GCN [14] and RoBERTa [7], respectively. Since RoBERTa already has ideal pre-training parameters, we need to pre-train SimAST-GCN. We adopt the method of contrastive learning to train the parameters of the SimAST-GCN module. After finishing the pre-training of the two encoders, we concatenate the vector representations of two encoders to obtain a joint representation of code and text to predict the final code review result.

Experiments results show that the proposed methods achieve significantly better results than the state-of-the-art baseline methods on MACR datasets. Our main contributions are summarized as follows:

  • We provide a large-scale Multi-Modal Apache Automatic Code Review dataset (MACR) for the Multi-Modal ACR task.

  • We propose a novel neural network CLMN to learn the combined relationship of the code fragments and textual content to improve the accuracy of Multi-Modal ACR.

  • We conduct a series of large-scale comprehensive experiments to confirm the effectiveness of our approach.

The rest of this paper is organized as follows. Section II introduces the background. Section III describes our approach. Section IV provides our experimental settings. Section V presents the experimental results and answers the research questions. Finally, Section VI concludes our work.

Ii Background

Ii-a Code Review

The general process of traditional code review is shown in Fig. 1. In traditional approaches, researchers cannot solve the main challenge in code review: understanding the code [1]. Therefore, researchers can only improve efficiency from other aspects of code review, such as recommending suitable reviewers [13, 15] and using static analysis tools [2, 5].

With the development of deep learning, we can understand the code by modeling the source code [10, 12, 14]. However, these methods only use code fragments to predict the results, lacking the exploitation of developer’s comments in code review.

To solve the Multi-Modal ACR task, the model first extracts features from the original file, the revised file, and the comments. Then, the model needs to encode these features into vector representations and combine the code representation and the comment representation into a uniform representation. Finally, the neural network can make the final suggestion about the code review according to the uniform representation.

Ii-B Abstract Syntax Tree

An abstract syntax tree (AST) is a kind of tree aimed at representing the abstract syntactic structure of source code. AST has been widely used as a vital feature in deep learning [10, 8, 14]. For example, it has a wide range of applications in source code representation [17], defect prediction [11], and other fields. Each node of an AST corresponds to constructs or symbols of the source code. On the one hand, compared with plain source code, ASTs are abstract and do not include all details such as punctuation and delimiters. On the other hand, ASTs can be used to describe the lexical information and the syntactic structure of the source code. In this paper, we use the Simplified AST [14] as the input for the code encoder module.

Ii-C SimAST-GCN

In our previous study, we proposed a method SimAST-GCN [14]. SimAST-GCN first parses the code fragment into the AST and uses a specially designed algorithm to simplify the AST into a Simplified-AST. Then, we use preorder traversal algorithm to get the node sequence and the relation graph , where is the number of nodes. Next, the representations for nodes are obtained by:

(1)

Then, we use GCN to aggregate the information from their neighborhoods.

(2)

where is the graph hidden status, is the . Finally, we adopt a retrieval-based attention mechanism [16] to combine and to get the final representation of the code fragment.

Ii-D Contrastive learning

Contrastive learning aims to learn effective representation by pulling semantically close neighbors together and pushing apart non-neighbors. It assumes a set of paired samples , where and are semantically related. We follow the contrastive framework in Chen et al. [3] and take a cross-entropy objective with in-batch negatives [4] : let and denote the representation of and , the training objective for with a mini-batch of pairs is:

(3)

where

is a temperature hyperparameter and

is the cosine similarity

. In this work, we encode code fragments using a graph-based model SimAST-GCN and then train all the parameters using the contrastive learning objective (Eq. 3). For the text encoder, we use the pre-trained model RoBERTa and the parameters are trained by SimCSE [6].

Iii Proposed Approach

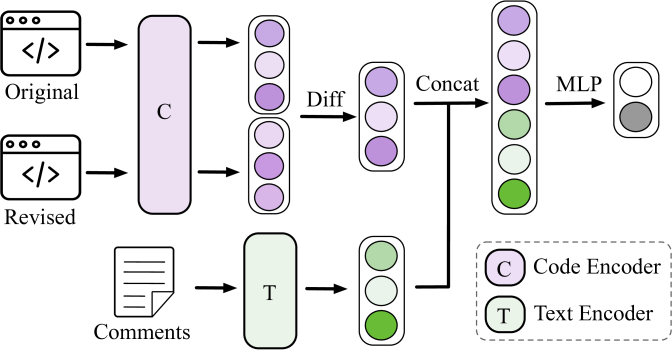

Fig. 2: General framework of CLMN.

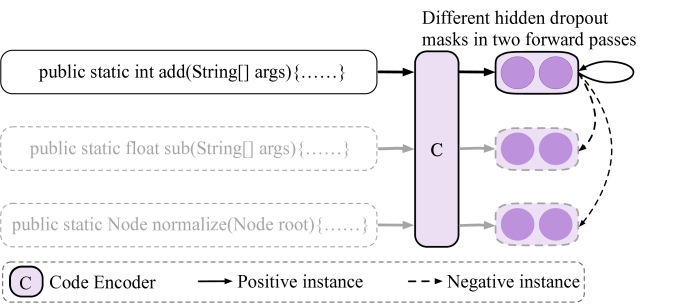

Fig. 3: Unsupervised Code Encoder predicts the input code fragment itself from in-batch negatives, with different hidden dropout masks applied.

We introduce our approach CLMN in this section. As shown in Fig. 2, the framework of the proposed CLMN contains two main components: the Code Encoder (SimAST-GCN) and the Text Encoder (RoBERTa). For each encoder, we use contrastive learning to learn an adequate representation of code fragments and the developer’s comments. For the Code Encoder, we use an unsupervised contrastive learning method to train its parameters. During the training process, we use dropout as noise to obtain positive samples. The process is shown in Fig. 3. For the Text Encoder, we use the parameters trained by SimCSE directly. After the unsupervised training for the two encoders, we use the pre-trained Encoders to fine-tune the finally model CLMN to predict the results.

Iii-a Contrastive Learning for Code Encoder

The main challenge for contrastive learning is how to get positive samples. As shown in Fig. 3, in the Code Encoder, we pass the same code fragment to the model SimAST-GCN twice: by applying the standard dropout twice, we can obtain two different embeddings as “positive pairs”. Then we take other code fragments in the same mini-batch as “negative” samples, and the model predicts the positive one among negative samples. Although it may appear strikingly simple, this approach is widely used in natural language models

[6].

In this work, we take a collection of code fragments and use . We use the independent dropout for and to make it work. In SimAST-GCN, there are dropout placed on each GCN layers(default ). We denote where is a random mask for dropout. We feed the same input to the encoder twice and get two embeddings with different dropout masks , and the training objective of Code Encoder becomes:

(4)

for a mini-batch of code fragments. Note that is just the standard dropout mask in SimAST-GCN and we do not add any additional dropout.

Iii-B Clmn

Iii-B1 Encoder Module

In our CLMN model, we have two pre-trained encoder modules, code encoder (SimAST-GCN) and text encoder (RoBERTa). For the code encoder, we denote where is a code fragment and is the representation for this code fragment. For the text encoder, we denote where is developer’s comments and is the corresponding representation. In the Multi-Modal ACR task, each data example contains three parts: original code fragment, revised code fragment, and developer’s comments. Thus, for each data, we can get three representations , corresponding to the original code fragment, revised code fragment, and the developer’s comments.

Iii-B2 Combined Representation

As shown in Fig. 2, after getting three representations, we first calculate the difference between the original code fragment and the revised code fragment:

(5)

where denotes the difference between the two code fragments. Then, we need to combine the difference representation with the comments representation, because the developer’s comments describe the difference between the two code fragments.

(6)

Thus, we get the combined representation for this data sample.

Iii-B3 Prediction

In this part, we make the prediction according to the combined representation .

(7)

where

is the softmax function to obtain the output distribution of the classifier,

and are weights and biases, respectively.

The objective to train the classifiers is defined as minimizing the weighted cross entropy loss between the predicted and ground-truth distributions:

(8)

where is the number of training samples, denotes the weight of incorrectly predicting a rejected change as approved, and denotes the weight of incorrectly predicting an approved change as rejected. These two terms provide the opportunity to handle an imbalanced label distribution. is the weight of the regularization term. denotes all trainable parameters.

Iv Experimental design

This section introduces the process of the experiment, including the repository selection and the data construction, baseline setting, evaluation metrics, and experimental setting.


Repository
#samples #rejected reject rate
accumulo 20,903 9,042 43.3%
ambari 41,424 14,262 34.4%
beam 82,438 22,141 26.9%
cloudstack 37,599 18,703 49.7%
commons-lang 9,958 8,959 90.0%
flink 133,614 112,733 84.4%
hadoop 39,958 33,861 84.7%
incubator-pinot 13,903 2,118 15.2%
kafka 64,872 37,077 57.2%
lucene-solr 58,823 50,042 85.1%
shardingsphere 19,993 1,216 6.1%

TABLE I: Statistics of the MACR dataset.

Iv-a Dataset Construction

We selected 11 projects from Github belonging to the Apache Foundation, which is a widely used code review source [10, 14]. Three of them (accumulo, ambari, cloudstack) were selected by Shi et al. [10]. The remaining projects (beam, commons-lang, flink, hadoop, incubator-point, kafka, lucene-solr, shardingsphere) were chosen because they have over 2000 stars. The language of all the projects is Java.

For data processing, we extracted all issues belonging to these projects from 2015 to 2020. Among these issues, many do not involve code submission, but only provide feedback, so we chose the types PullRequestEvent and PullRequestReviewCommentEvent.

In many practical cases, we can easily extract the original code, the revised code and the developer’s comments from the issue, but because these codes are usually contained in many files, it is difficult for us to use them directly as the input of the network. Therefore, we assume that all of the changes are independent and identically distributed [10], so there is no connection between these changes, and if a file contains many changed methods, we can split these methods independently as inputs.

Further, if we add a new method or delete a whole method, half of the input data is empty. So we discard these data because they cannot be fed into the network. That is, we only consider the case where the code has been changed. In addition, considering that the submitted data may be too large, we subdivide the code submitted each time into the method level for subsequent experiments.

After processing the data, each piece of data comprises four parts: the original code fragment, the revised code fragment, the developer’s comments and the label. The original code fragment and the revised code fragment are both method-level Java programs. The developer’s comments are in English. The label uses 0 and 1 to represent rejection and acceptance. The basic statistics of the MACR are summarized in Table I.

In this paper, the rate of the rejection between 6% and 90% means that there is class imbalance during model training and it will lead to poor performance, so we use a weight-based class imbalance approach, setting the ‘class_weight’ parameter to ‘balance’ in our model.

Iv-B Comparison Models

In this paper, we compared our proposed model CLMN with three other models in the Multi-Modal ACR task. These models use different methods (including delimiter-based method, token-based method, tree-based method) to obtain the code features. The baseline models are as follows:

  • DACE [10]

    divides the code according to the delimiter and designs a pairwise autoencoder to compare the code.

  • TBRNN serializes the AST into tokens and uses an RNN to capture the syntactic and semantic information.

  • ASTNN [17] splits large ASTs into a sequence of small statement trees and calculates the representation distance to compare the code.

Please note that for all the methods above, we add the same text encoder RoBERTa to make all the methods can get the developer’s comments as the input.

In order to ensure the fairness of the experiment and the stability of the results, we ran all the methods on the new MACR dataset, and each experiment was repeated 30 times.

Iv-C Evaluation

Since the Multi-Modal ACR can be formulated as a binary classification problem (accept or reject) [10], we choose the F1-measure (F1) because it is widely used and the Matthews correlation coefficient (MCC) because it can better evaluate the performance of a model on imbalanced datasets.

The calculation formula of F1 is as follows:

(9)
(10)
(11)

where TP, FP, FN, and TN represent True Positives, False Positives, False Negatives, and True Negatives, respectively. The F1 score is the harmonic mean of the precision and recall. The value range of F1 is [0,1].

The calculation formula of MCC is:

(12)

The value range of MCC is [-1,1]. For all metrics, higher values are better.

Iv-D Experimental Setting

In our experiments, we used the javalang tools222https://github.com/c2nes/javalang to obtain ASTs for Java code, and we trained embeddings of symbols using word2vec with the Skip-gram algorithm. For the code encoder, the embedding size was set to 512. The hidden size of Bi-GRU was 512. The number of GCN layers was 4. For the text encoder, we used the default parameters. The coefficients and were related to the dataset, and the coefficient of regularization item was set to . Adam was utilized as the optimizer with a learning rate of to train the model, and the mini-batch was 64. We random initialized all the and with a uniform distribution.

All the experiments were conducted on a server with 24 cores of 3.8GHz CPU and a GeForce RTX 3090 GPU.


Repository
DACE TBRNN ASTNN CLMN
accumulo 0.995 0.99 0.995 0.996
ambari 0.977 0.979 0.979 0.98
beam 0.995 0.994 0.995 0.996
cloudstack 0.979 0.979 0.98 0.981
commons-lang 0.957 0.963 0.965 0.964
flink 0.421 0.959 0.972 0.979
hadoop 0.947 0.934 0.949 0.952
incubator-pinot 0.859 0.795 0.954 0.994
kafka 0.985 0.691 0.985 0.986
lucene-solr 0.978 0.979 0.978 0.975
shardingsphere 0.992 0.991 0.927 0.994
Average 0.917 0.932 0.971 0.981

TABLE II: Performance comparison in terms of F1.

Repository
DACE TBRNN ASTNN CLMN
accumulo 0.989 0.978 0.99 0.991
ambari 0.936 0.941 0.943 0.946
beam 0.982 0.977 0.983 0.985
cloudstack 0.957 0.957 0.96 0.961
commons-lang 0.954 0.96 0.962 0.961
flink 0.306 0.952 0.967 0.975
hadoop 0.939 0.923 0.94 0.944
incubator-pinot 0.466 0.146 0.894 0.961
kafka 0.974 0.457 0.974 0.975
lucene-solr 0.975 0.976 0.975 0.971
shardingsphere 0.876 0.863 0.295 0.899
Average 0.85 0.83 0.898 0.961

TABLE III: Performance comparison in terms of MCC.

Repository
CLMN w/o Text CLMN
F1 MCC F1 MCC
accumulo 0.761 0.448 0.996 0.991
ambari 0.704 0.013 0.98 0.946
beam 0.824 0.321 0.996 0.985
cloudstack 0.532 0.215 0.981 0.961
commons-lang 0.469 0.474 0.964 0.961
flink 0.367 0.237 0.979 0.975
hadoop 0.393 0.298 0.952 0.944
incubator-pinot 0.673 0.181 0.994 0.961
kafka 0.604 0.298 0.986 0.975
lucene-solr 0.392 0.297 0.975 0.971
shardingsphere 0.839 0.191 0.994 0.899
Average 0.596 0.27 0.981 0.961

  • CLMN w/o Text means the CLMN without the Text Encoder.

TABLE IV: Impact of the addition of developer comments.

Repository
beam based CLMN self based CLMN
F1 MCC F1 MCC
accumulo 0.996 0.99 0.996 0.991
ambari 0.98 0.946 0.98 0.946
cloudstack 0.98 0.961 0.981 0.961
commons-lang 0.948 0.944 0.964 0.961
flink 0.973 0.968 0.979 0.975
hadoop 0.951 0.943 0.952 0.944
incubator-pinot 0.989 0.934 0.994 0.961
kafka 0.984 0.973 0.986 0.975
lucene-solr 0.973 0.968 0.975 0.971
shardingsphere 0.993 0.887 0.994 0.899
Average 0.977 0.951 0.98 0.958

  • beam based CLMN: using the Code Encoder pre-trained by beam.

  • self based CLMN: using the Code Encoder pre-trained by themselves.

TABLE V: Impact of contrastive learning on model robustness.

V Experimental Results

This section shows the performance of our proposed method CLMN with other baseline methods. Therefore, we put forward the following research questions:

  • RQ1: Does our proposed model CLMN outperform other models for Multi-Modal ACR?

  • RQ2: Does the addition of developer’s comments improve the performance of ACR?

  • RQ3: How about the impact of contrastive learning on model robustness?

V-a Does our proposed model CLMN outperform other models for Multi-Modal ACR?

Tables II, III show the comparison results on the MACR dataset. The results show that the proposed CLMN consistently outperforms all comparison models. This verifies the effectiveness of our proposed method at Multi-Modal ACR.

Compared with DACE, our model CLMN achieves the best performance in both the F1 and MCC metrics, with 6.4% and 11.1% improvement, respectively. Compared with TBRNN and ASTNN, CLMN improved by 4.9% and 1% respectively in F1. In the MCC metric, CLMN also gained 13.1% and 6.3% improvement.

One aspect of our improvement comes from using a better code encoder. Our code encoder uses the Simplified AST as input, which is better than the source code fragment and the original AST. Simplified AST has fewer tokens and tighter node connections. Besides, our code encoder uses the GCN layers to get more syntactic and semantic information than the Bi-GRU layers in other methods.

Another aspect of our improvement comes from the application of contrastive learning. We utilize contrastive learning to obtain a more evenly distributed representation of the source code, which allows our model to perform better when encountering few-shot and 0-shot samples. In addition, the pre-training parameters obtained by contrastive learning can be flexibly applied to other tasks (discussed in RQ3), thereby reducing the consumption of resources.

In summary, this is the first study to apply contrastive learning to improve the performance in the multi-modal automatic code review task. Our experiments show the effectiveness of exploiting the Simplified AST and the contrastive learning.

V-B Does the addition of developer’s comments improve the performance of ACR?

Table IV shows the comparison results between the CLMN with and without the developer’s comments. The results show that CLMN without the developer’s comments tends to drop sharply.

We can observe that the CLMN without the developer’s comments has the worst result on ambari, with a 93% drop in MCC compared to the original result. On the flink project, the F1 value of CLMN without Text has dropped 61%. On average, CLMN without Text has an overall decrease of 69% in MCC and 38% in F1. This establishes that Multi-Modal ACR can make better decisions with the developer’s comments rather than only using the code fragments.

V-C How about the impact of contrastive learning on model robustness?

To investigate the robustness of parameters obtained by contrastive learning, we use beam as the original pre-training project. After getting the pre-trained parameters of the code encoder of beam, we apply it to the remaining projects with fine-tuning to obtain the performance in other projects. Table V shows the impact of contrastive learning on model robustness.

We can find that after using beam’s pre-trained parameters, the performance of our model in the other ten repositories does not drop significantly compared to the performance pre-trained by themselves. There is even no drop in some repositories. On average, there is only a drop of 0.3% in F1 and 0.7% in MCC. In other words, the hyperparameters obtained using contrastive learning can be easily extended to different projects and obtain similar results. When the model encounters an unseen code fragment (few-shot or 0-shot), it can also generate its vector representation accurately.

The results are soundproof that contrastive learning can effectively increase the robustness of the model. It also demonstrates that the parameters obtained by contrastive learning can help the code get a more uniform distribution in the vector space, resulting in better performance across different projects.

Vi Conclusion

In this paper, we first present MACR, which is the first open-sourced Multi-Modal dataset for Multi-Modal ACR. Then, we propose a novel model called CLMN. CLMN has two encoders, SimAST-GCN as the code encoder and RoBERTa as the text encoder. The two encoders are separately pre-trained using contrastive learning to obtain a uniformly distributed representation, which improves the robustness of the model and solves the few-shot and 0-shot issues. Finally, we combine the two encoders to obtain a vector representation of the code review and predict the results. Experimental results on the MACR dataset show that our proposed model CLMN outperforms state-of-the-art methods. Our code and experimental data are publicly available at https://github.com/SimAST-GCN/CLMN.

Acknowledgment

This work was partially supported by the National Natural Science Foundation of China (61772263, 61872177, 61972289, 61832009), the Collaborative Innovation Center of Novel Software Technology and Industrialization, and the Priority Academic Program Development of Jiangsu Higher Education Institutions.

References

  • [1] A. Bacchelli and C. Bird (2013) Expectations, outcomes, and challenges of modern code review. In 2013 35th International Conference on Software Engineering (ICSE), pp. 712–721. Cited by: §II-A.
  • [2] V. Balachandran (2013) Reducing human effort and improving quality in peer code reviews using automatic static analysis and reviewer recommendation. In 2013 35th International Conference on Software Engineering (ICSE), pp. 931–940. Cited by: §II-A.
  • [3] T. Chen, S. Kornblith, M. Norouzi, and G. Hinton (2020) A simple framework for contrastive learning of visual representations. In

    International conference on machine learning

    ,
    pp. 1597–1607. Cited by: §II-D.
  • [4] T. Chen, Y. Sun, Y. Shi, and L. Hong (2017) On sampling strategies for neural network-based collaborative filtering. In Proceedings of the 23rd ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, KDD ’17, New York, NY, USA, pp. 767–776. External Links: ISBN 9781450348874, Link, Document Cited by: §II-D.
  • [5] G. Díaz and J. R. Bermejo (2013) Static analysis of source code security: assessment of tools against samate tests. Information and software technology 55 (8), pp. 1462–1476. Cited by: §II-A.
  • [6] T. Gao, X. Yao, and D. Chen (2021) Simcse: simple contrastive learning of sentence embeddings. arXiv preprint arXiv:2104.08821. Cited by: §II-D, §III-A.
  • [7] Y. Liu, M. Ott, N. Goyal, J. Du, M. Joshi, D. Chen, O. Levy, M. Lewis, L. Zettlemoyer, and V. Stoyanov (2019) Roberta: a robustly optimized bert pretraining approach. arXiv preprint arXiv:1907.11692. Cited by: §I.
  • [8] L. Mou, G. Li, Z. Jin, L. Zhang, and T. Wang (2014) TBCNN: a tree-based convolutional neural network for programming language processing. arXiv preprint arXiv:1409.5718. Cited by: §II-B.
  • [9] C. Sadowski, E. Söderberg, L. Church, M. Sipko, and A. Bacchelli (2018) Modern code review: a case study at google. In Proceedings of the 40th International Conference on Software Engineering: Software Engineering in Practice, pp. 181–190. Cited by: §I.
  • [10] S. Shi, M. Li, D. Lo, F. Thung, and X. Huo (2019) Automatic code review by learning the revision of source code. In

    Proceedings of the AAAI Conference on Artificial Intelligence

    ,
    Vol. 33(01), pp. 4910–4917. Cited by: §I, §I, §II-A, §II-B, 1st item, §IV-A, §IV-A, §IV-C.
  • [11] T. Shippey, D. Bowes, and T. Hall (2019)

    Automatically identifying code features for software defect prediction: using ast n-grams

    .
    Information and Software Technology 106, pp. 142–160. Cited by: §II-B.
  • [12] J. K. Siow, C. Gao, L. Fan, S. Chen, and Y. Liu (2020) Core: automating review recommendation for code changes. In 2020 IEEE 27th International Conference on Software Analysis, Evolution and Reengineering (SANER), pp. 284–295. Cited by: §I, §I, §II-A.
  • [13] P. Thongtanunam, C. Tantithamthavorn, R. G. Kula, N. Yoshida, H. Iida, and K. Matsumoto (2015) Who should review my code? a file location-based code-reviewer recommendation approach for modern code review. In 2015 IEEE 22nd International Conference on Software Analysis, Evolution, and Reengineering (SANER), pp. 141–150. Cited by: §II-A.
  • [14] B. Wu, B. Liang, and X. Zhang (2022) Turn tree into graph: automatic code review via simplified ast driven graph convolutional network. arXiv preprint arXiv:2104.08821. Cited by: §I, §I, §I, §II-A, §II-B, §II-C, §IV-A.
  • [15] Z. Xia, H. Sun, J. Jiang, X. Wang, and X. Liu (2017) A hybrid approach to code reviewer recommendation with collaborative filtering. In 2017 6th International Workshop on Software Mining (SoftwareMining), pp. 24–31. Cited by: §II-A.
  • [16] C. Zhang, Q. Li, and D. Song (2019) Aspect-based sentiment classification with aspect-specific graph convolutional networks. arXiv preprint arXiv:1909.03477. Cited by: §II-C.
  • [17] J. Zhang, X. Wang, H. Zhang, H. Sun, K. Wang, and X. Liu (2019) A novel neural source code representation based on abstract syntax tree. (), pp. 783–794. External Links: Document Cited by: §I, §II-B, 3rd item.
