I Introduction
Continuous observation over data streams has been utilized in several realworld applications. For example, security companies continuously analyze network traffic to detect abnormal Internet behaviors [10]. Despite tangible benefits, analyzing and releasing data raises privacy concerns when these data contain sensitive individual information. Directly publishing raw statistics may reveal individual users’ private information, such as daily routines and living habits. For instance, electricity usage data from smart meters can reveal whether a user is at home or even what household appliances are in use at some specific time [31]. These potential privacy risks would discourage data sharing.
A promising technique for private statistics releasing is differential privacy (DP) [18], which has become the gold standard in the privacyresearch community. Informally, any algorithm satisfying DP has the property that its output distribution on a given database is close to the output distribution when any single record in the dataset is replaced. The closeness is quantified by a parameter . A smaller means a better privacy guarantee.
To provide statistics (e.g., the moving average) over data streams while satisfying DP, a widelyaccepted technique is hierarchical algorithm [9, 19]. The idea is to partition the time series into multiple granularities and add noise proportional to the upper bound of the data. In [33], the authors observed that in many cases, data in the stream is concentrated below a threshold, which is much smaller than the upper bound. A commonly used technique in DP is called contribution limitation, which truncates the values using a specified threshold (i.e., values larger than will be replaced by ) e.g., [47, 28, 15, 45, 27]). The rationale is to reduce the noise (now the DP noise is proportional only to the threshold) while maintaining most of the utility in the data. To find such a threshold while maintaining DP, [33] developed a method based on smooth sensitivity [32]. The result can then be applied to the hierarchical algorithm to publish streams with improved utility.
We find three key limitations in [33]. First, it tries to privately find the th percentile to serve as the threshold . Unfortunately, using the th percentile (or any other fixed percentile) is unlikely to work across different settings with varying values, data ranges, and data distributions. Second, in order to achieve an analytical upperbound on the error caused by truncation (this error is also called bias), it further increases the estimated th percentile by first adding a positive bias term, and then multiplying a coefficient greater than 1. As a result, the chosen value is often unnecessarily large. When is small (e.g., ), the chosen values are usually larger than the maximal possible value, defeating the purpose of choosing the threshold in the first place. Third, the method utilizes a basic hierarchical approach directly to output the stream, and does not fully take advantage of possible postprocessing optimizations. As a result, the accuracy of the outputted stream is quite low, and the results are even worse when answering range queries with small selectivity.
In this paper, we propose a new approach by addressing the above limitations. First, we design a datadependent method to find the threshold by looking into the data distribution (with DP guarantee), without the need to estimate a fixed percentile. Second, we identify that the reason for the conflict between the threshold and the small is that the existing method only considers the bias error due to truncation, and ignores the noise error of DP. To address this conflict, we propose an algorithm built upon the differentially private exponential mechanism (EM [30]) by considering both errors simultaneously. The new algorithm is able to select an appropriate with minimal overall errors. Third, we propose a new hierarchical algorithm to get accurate results. Specifically, we design an online consistency algorithm to enforce the consistency over the noisy estimates on the hierarchy to provide better utility. In addition, we observe that the estimates in the lower levels of the hierarchy tend to be overwhelmed by the noise, leading to a low signalnoise ratio. Thus, we further extend the algorithm to prune the lowerlevel nodes based on optimization criteria. Our new hierarchical algorithm is also able to handle infinite streams.
We generalize the procedure of the above algorithms into a new framework for streaming data publication. It consists of three components: a Threshold optimizer, a Perturber, and a Smoother. The threshold optimizer consumes a portion of the input stream, and finds a threshold . It then truncates any incoming value by and sends them to the perturber. The perturber adds noise to each incoming element of the stream, and releases noisy counts to the smoother. Finally, the smoother performs further postprocessing on the noisy counts and outputs the final stream. Integrate with the new algorithms described above, we call our solution ToPS.
Based on the framework of ToPS, we design the first algorithm to output streams while satisfying local DP (LDP), which offers stronger privacy protection than DP. We call the resulting method ToPL. Under LDP, only the users know the true values and thus remove the dependence on the trusted central server. In ToPL, we use stateoftheart LDP mechanisms for the Threshold optimizer and the Perturber. The design of ToPL relies on the findings in ToPS. In particular, ToPL implements the idea of minimizing both the bias and noise into the LDP primitive to find the optimal . Moreover, we adapt existing LDP mechanisms to the problem tackled by this paper for better performance.
We implement both ToPS and ToPL, and evaluate them using four realworld datasets, including anonymized DNS queries, taxi trip records, click sreams and merchant transactions. We use the Mean Squared Error (MSE) over random range queries as the metric of performance evaluation. The experimental results demonstrate that our ToPS significantly outperforms the previous stateoftheart algorithms. More specifically, the most significant improvement comes from our new method to find . It contributes orders of magnitude better utility than PAK. Even given the same reasonable , ToPS can answer range queries more accurately than PAK in terms of MSE. Putting the two together, ToPS improves orders of magnitude in terms of utility over PAK.
Contributions. To summarize, the main contributions of this paper are threefold:

We design ToPS for releasing realtime data streams under differential privacy. Its contributions include an EMbased algorithm to find the threshold, an online consistency algorithm, the use of a smoother to reduce the noise, and the ability to handle infinite streams.

We extend ToPS to solve the problem in the more stringent setting of LDP and propose a new algorithm called ToPL. To the best of our knowledge, ToPL is the first attempt to publish streaming data under LDP.

We evaluate ToPS and ToPL using several realworld datasets. The experimental results indicate that both can output stream pretty accurately in their settings, respectively. Moreover, ToPS outperforms the previous stateoftheart algorithms by a factor of orders.
Roadmap. In Section II, we present the problem definition and the background knowledge of DP and LDP. We present the existing solutions and our proposed method in Sections III. Experimental results are presented in IV. Finally we discuss related work in Section V and provide concluding remarks in Section VI.
Ii Problem Definition and Preliminaries
We consider the setting of publishing a stream of real values under differential privacy (DP). The length of the stream could be unbounded. And one wants to compute the aggregated estimates (e.g., prefixsum and moving average) of the values. For instance, in [33], the authors gave an example of estimating average commute time in realtime where the stream consists of commute times of trips made by passengers.
Iia Formal Problem Definition
There is a sequence of readings , each being a real number in the range of . The goal is to publish a private sequence of the same size as in a way that satisfies differential privacy.
We measure the similarity between the private stream and the estimated stream using range queries, similar to [33]. Specifically, let be the sum of the stream from index to , i.e., . We want a mechanism that minimizes the expected squared error of any randomly sampled range queries
(1)
IiB Differential Privacy
Definition 1 (Eventlevel Dp).
An algorithm satisfies differential privacy (DP), where , if and only if for any two neighboring sequences and and for any possible output set ,
where two sequences and are neighbors, denoted by , when for all except one index.
As the algorithm has access to the true sequence , this model is called the centralized DP model (DP for short). For brevity, we use DP to denote Definition 1. When , which is the case we consider in this paper, we omit the part and write DP instead of DP.
Eventlevel DP means that information about each individual event remains private. In many cases, eventlevel DP is a suitable guarantee of privacy, e.g., individuals might be happy to disclose their routine trip to work while unwilling to share the occasional detour. The definition of eventlevel DP is also adopted by other works such as [11, 19, 9].
Compared to the centralized setting, the local version of DP offers a stronger level of protection, because each value is reported to the server in a perturbed form. The user’s privacy is still protected even if the server is malicious. For each value in the stream of , we have the following guarantee:
Definition 2 (Ldp).
An algorithm satisfies local differential privacy (LDP), where , if and only if for any pair of input values , and any set O of possible outputs of , we have
Typically, in LDP. Thus we simplify the notation and call it LDP. The notion of LDP differs from DP in that each user perturbs the data before sending it out and thus do not need to trust the server under LDP. In this paper, we focus on both the DP and the LDP setting.
IiC Mechanisms of Differential Privacy
We first review several primitives proposed for satisfying DP. We defer the descriptions of LDP primitives to Appendix AC as our LDP method mostly uses the LDP primitives as blackboxes.
Laplace Mechanism. The Laplace mechanism computes a function on the input in a differentially private way, by adding to a random noise. The magnitude of the noise depends on , the global sensitivity or the sensitivity of , defined as,
When outputs a single element, such a mechanism is given below:
In the definition above,
denotes a random variable sampled from the Laplace distribution with scale parameter
such that . Whenoutputs a vector,
adds independent samples of to each element of the vector.Exponential Mechanism. The exponential mechanism (EM) [30]
samples from the set of all possible answers according to an exponential distribution, with answers that are “more accurate” being sampled with higher probability. This approach requires the specification of a quality functions
that takes as input the data , a possible output , and outputs a realnumbered quality score. The global sensitivity of the quality functions is defined as:(2)
The following method satisfies differential privacy:
(3)
As shown in [30], if the quality function satisfies the condition that when the input dataset is changed from to , the quality scores of all outcomes change in the same direction, i.e., for any neighboring and
Then one can remove the factor of in the exponent of Equation (3) and return with probability proportional to . This improves the accuracy of the result.
IiD Composition Properties
The following composition properties hold for both DP and LDP algorithms, each commonly used for building complex differentially private algorithms from simpler subroutines.
Sequential Composition. Differential privacy is composable in the sense that combining multiple subroutines that satisfy differential privacy for results in a mechanism that satisfies differential privacy for . Because of this, we refer to as the privacy budget of a privacypreserving data analysis task. When a task involves multiple steps, each step uses a portion of so that the sum of these portions is no more than .
Parallel Composition. Given algorithms working on disjoint subsets of the dataset, each satisfying DP for , the result satisfies differential privacy for .
Postprocessing. Given an DP algorithm , releasing for any still satisfies DP. That is, postprocessing an output of a differentially private algorithm does not incur any additional loss of privacy.
The composition properties allow us to execute multiple differentially private computations and reason about the cumulative privacy risk. In our applications, we want to bound the total risk so we impose a total “privacy budget” and allocate a portion of to each private computation.
Iii Publishing Streaming Data via
Differential Privacy
Iiia Existing Work: PAK
For privately release binary stream, Dwork et al. [19] proposed an approach which is to inject Laplace noise to each data point in the stream and use hierarchical method for answering range queries. Perrier et al. [33] studied a more general setting where data points are sampled from , where is some public upper bound. They observed that most of the values are concentrated below a threshold and proposed a method, which we call PAK for short (the initials of the authors’ last names), to find such threshold and truncate data points below it reduce the scale of the injected Laplace noises. In PAK, the first values are used to estimate a reasonable threshold which is smaller than the values’ upper bound under differential privacy. After that, the hierarchical method is used for estimating the stream statistics with the remaining values (PAK assumes there are observations).
Phase 1: Finding the Threshold. The intuition is that in many real world streaming data, the public upper bound can be quite large, but most data points in the stream are much smaller than this bound. For instance, the largest possible purchase price of supermarket transactions is much larger than what a ordinary customer usually spends. After obtaining , the following values in the stream are truncated to be no larger than . Reducing the upper bound from to reduces the DP noise (via reducing sensitivity).
The work of PAK proposed a specially designed algorithm based on smooth sensitivity [32] to get the
quantile (or
percentile) as , i.e., of the values are smaller than . Here we describe the highlevel idea of the algorithm.As shown in [32], smooth sensitivity can be used to compute the median in a differentially private manner. It can be easily extended to privately release the quantile. In [33], the authors claim that the result of smooth sensitivity is unbiased, but they want the result to be larger than the real quantile. This is because if the estimated percentile is smaller, the truncation in the next phase will introduce more bias. As a result, PAK modifies the original smooth sensitivity method to guarantee that it is unlikely the result is smaller than the real quantile. As the details of the method is not directly used in the rest of the paper, we defer the details of both smooth sensitivity and the algorithm itself to Appendix AA and AB.
There are two drawbacks of this method. First, it requires a value to be available beforehand. But a good choice of actually depends on the dataset, , and . PAK simply uses . As shown in our experiment in Section IVD, it does not perform well in every scenario. Second, PAK bounds the probability that is smaller than the quantile to be small. To ensure this, a positive bias is introduced to , making even larger.
Phase 2: The Hierarchical Algorithm. To achieve higher accuracy for range sums computed from the released private stream, the most straightforward way is to add independent noise generated through the Laplace distribution scaled to , where is the threshold obtained from the previous phase. However, this results in cumulative error (absolute difference from the true sum) of after observations.
To get rid of the linear dependency on , the hierarchical method is proposed [19, 9]. Given a string of length , the algorithm first constructs a tree: the leaves are labelled by the intervals and each parent node is the union of intervals of its child nodes. To output the noisy count , the algorithm finds at most nodes in the tree, whose union equal . Given that the noise added to each node is only scaled to , this results in an error of .
As we will show in Section IIID, since the first proposal [19], there have been improvements to the hierarchical method [34], and it is straightforward to implement the new methods. Moreover, directly using the hierarchical method introduces overwhelming noise to the leaf nodes. We will demonstrate how to overcome this issue in Section IIIE.
IiiB Technical Overview of Our Approach: the Framework
The design of PAK was guided by asymptotic analysis. Unfortunately, for the parameters that are likely to occur in practice, the methods and parameters chosen by asymptotic analysis can be far from optimal, as such analysis ignores important constant factors. We advocate an approach that uses concrete error analysis to better guide the choice of methods and parameters.
In this section, we first deal with the threshold selection problem using the exponential mechanism (EM, as described in Section IIC), which satisfies pure DP (without introducing ). Empirical experiments show its superiority especially in small scenarios (which means compared to PAK, we can achieve the same performance with better privacy guarantees). We then introduce multiple improvements for the hierarchical methods including an online consistency method, and a method to reduce the noise in the lower levels of the hierarchy. We integrate all the components in a general framework, which stands for the combination of a Threshold optimizer, a Perturber, and a Smoother:

Threshold optimizer: The threshold optimizer uses the input stream to find a threshold for optimizing the errors due to noise and bias. It then truncates any incoming values by and releases them to the perturber.

Perturber: The perturber adds noise to each truncated incoming element of the stream, and releases noisy counts to the smoother.

Smoother: The smoother performs further postprocessing on the noisy counts and output the final stream.
In the following subsections, we will instantiate the framework with differentially private algorithms. We call our method ToPS. Figure 1 gives the architecture of ToPS. It takes as input the raw stream and outputs a private stream . In this paper, we focus on the setting used in PAK. In particular, the threshold optimizer does not publishes the first values, and instead uses them to obtain . After the first values, it sends to the perturber and truncates any incoming value by . We will discuss more about the flexibility of ToPS in the Section VI.
IiiC Threshold Optimizer
We design a method, called threshold optimizer, to find the threshold in a differentially private way. Given , input values greater than it will be truncated to . However, this also introduces another error of bias due to the truncation. Thus choosing a good percentile that balances the two sources of errors is important.
PAK uses the approximate th percentile as . However,
is just a heuristic and may not work in every scenario. The choice should depend on factors such as
and others. For example, when the noise is small ( is relatively larger), we may want a larger percentile to reduce bias; but when is smaller, we may want a small percentile.We first formulate choosing as an optimization problem that minimizes the combined error, and then introduce a function that approximates the error function while having a low sensitivity so that we can effectively use the Exponential Mechanism to solve it. We first consider the expected squared error of estimating a single value . Assuming that is the estimation of
, it is well known that the expected squared error is the summation of variance and the squared bias of
:Lemma 1.
.
Proof.
∎
Given a threshold and privacy budget , and .
Since we are using the hierarchical method [34] to publish data stream for answering range queries, we use the error estimations of the hierarchical method to instantiate Lemma 1. Qardaji et al. [34] show that there are approximately nodes to be estimated given any random query of range smaller than , where is the fanout factor of the hierarchical method; and the variance of each node is . For bias, within range limitation , a random query will cover around leaf nodes on average. Thus the combined error of the hierarchical method for answering random range query would be:
(4)
For the exponential mechanism (EM) to be effective, the quality function should have a low sensitivity. However, if we directly use Equation 4 as the quality function, the sensitivity is large: a change of value from to will result in the increase of Equation 4 by . Thus we choose to approximate the mean squared error in our quality function in the following ways.
Denote as the number of values to be used in EM, and as the number of values that are smaller than from these values, i.e.,
where and denotes the cardinality of set
. The first approximation method we use is to replace the variance and squared bias with standard deviation and bias. Second, we use
to approximate . Here is a constant that we will describe later. Finally, we multiply both the standard deviation and bias errors by to ensure the sensitivity is (the sensitivity is defined in Equation (2)), and the quality score of the target is the highest. Equation 5 gives us the quality function:(5)
The first term is a constant depending on and is independent on the private data, while the second term has sensitivity of . The set of possible values considered in the quality function should be a discrete set that covers the range . The granularity of the set plays a role. If it is too coarsegrained (e.g., ), the method is inaccurate, because we are not sampling enough from the range, and the desired value might be far from the sampled values. On the other hand, if it is too finegrained, the EM algorithm will run slowly, but it does not influence the accuracy much because of the normalization in EM (i.e., by the denominator in Equation (3)). In the experiment, we use all integers in the range of as the possible set of .
One unexplained parameter in the quality function (5) is . We choose . The rationale for choosing is that (a) We use to approximate the bias term . This is an underestimation, so we want to scale it up. (b) As we will describe later in Section IIID and IIIE, the actual variance will be reduced by our newly proposed method (but there is no closed form for it); thus the variance formula overestimates the real variance, and we want to scale up the bias formula further to compensate for that. In practice demonstrated in the evaluation, we observe using to approximate is reasonable; moreover, the empirical improvement of our new method is roughly . Thus we set .
Figure 2 illustrates the distribution of quality scores and measured errors on a dataset which is used in the experiments in Section IV. The dataset is a network streaming dataset, called DNS. We use , which are the same as those parameters used in experiments. From Figure 2, we can see that the distributions between the true measured errors (Equation 4) and the corresponding quality scores (Equation 5) on two datasets are very close. The figure also illustrates the bias and variance factors of the quality scores. The two factors grow in opposite directions which makes a global minimum where the target lies. In addition, we also show that the threshold that minimizes our quality function Equation (5) is close to the target threshold which minimizes the real measured errors (Equation 4). Therefore, the above empirical evaluation results show the capability of the threshold optimizer in finding accurate values.
IiiD Perturber
The perturber is implemented by the hierarchical method introduced in [19], which is the standard way of handling range queries. In this section, we investigate the hierarchical method and propose improvements for it.
IiiD1 Improving the Hierarchical Algorithm
We first present two straightforward extensions of the hierarchical method.
Better Fanout. First of all, we note that according to [34], using a fanout instead of (used in PAK) in the hierarchy can give better empirical result. This is done by optimizing the expected error numerically (instead of asymptotically). We thus use fanout by default.
Handling Infinite Streams. Second, we extend the hierarchical method to support infinite streams. PAK requires a fixed length in the beginning. After observations, the algorithm will stop. To handle this infinite stream model, we propose to keep applying hierarchies. There is a question of how high the hierarchy should be. We can have higher hierarchies for handling larger queries. This is also what [9] proposed. But we note that most of the queries focus on small range. We thus propose to have an upper bound on the query range denoted by and then split equally to the layers. The value of stands for a limit below which most queries’ range fall, and is determined externally. For each chunk of observations, we output a height hierarchy. We note that each hierarchy handles a disjoint substream of observations and thus this extension does not consume additional privacy budget because of the parallel composition property of differential privacy.
IiiD2 Online Consistency
Given a noisy hierarchy, Hay et al. [24] proposed an efficient algorithm for enforcing consistency among the values in it. By enforcing consistency, the accuracy of the hierarchy can be improved. Note that this is a postprocessing step and does not consume any privacy budget. Unfortunately, the algorithm is offline and requires the whole hierarchy data to be saved (i.e., after every observations). In this subsection, we propose an online algorithm to enforce consistency. That is, we can output the noisy streams promptly, and the noisy stream is consistent itself. Our method is built on [24]. So before going into details of our method, we first describe the consistency framework of Hay et al. [24].
Offline Consistency. We use to denote a node on the hierarchy , and let to be the height of (the height of a leaf is ; and root is of height ). We also denote , and to denote the children, parent, and siblings of , respectively. We use to denote the value corresponding to node in the hierarchy. The first step updates the values in from bottom to top. The leaf nodes remain the same; and for each height node , where iterates from up to , we update it
(6)
We then update the values again from top to bottom. This time the value on root remains the same, and for each height node , where iterates from down to , we update it
(7)

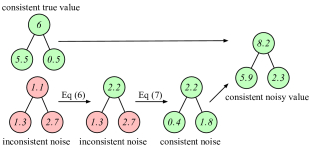

An Online Algorithm. Our method is derived from the observation that the noisy estimates can be decomposed into true values and pure noise. The idea of our approach is to generate all the required noises in advance and then enforce consistency among the noises. During the online publishing, we can just add the consistent noises on the final results to ensure consistency.
More formally, we decompose the noisy values in into two parts: the true values and the pure noises, denoted as and , respectively. is the independent noise from the Laplace mechanism (described in Section IIC). is defined by induction: for a leaf , corresponds to one true value , and for a node in a higher level, . The true values from are consistent naturally. Thus if is consistent, is also consistent. To see it, consider any internal node ,
In the online consistency algorithm, we internally generate the noise hierarchy and run the steps given in Equations (6) and (7) to make consistent. After this preprocessing step, we can ignore the higherlayers of the hierarchy, and use only the leaf nodes which add consistent noise to each individual value. This is because the results from the higherlayers are already consistent with those from the the leaves, thus it suffices to only output the most finegrained result. Figure 3 gives an example using a simple binary tree.
We prove that resulted from the onlinealgorithm is equivalent to that of the offline algorithm.
Theorem 1.
The online consistency algorithm gives the same result as the offline consistency algorithm.
Proof.
We first examine the bottomup update step. According to Equation (6), the updated equals to
Adding to it, we have the updated equals to
Adding to it, we have the updated equals to
IiiE Smoother
In this section, we introduce a smoother to further improve the utility of the algorithm. The highlevel idea of the smoother is to replace the individual estimate given by the perturber with predicted values. By doing this, the perturber can focus on only the aggregated summations and be more accurate.
More specifically, the original perturber works on layers (although only the leaf nodes will be outputted, we draw Laplace noise from the other higher layers to make the noise consistent; and having a hierarchy helps when answering range queries). The smoother replaces some lower levels of with predicted values, and the perturber runs on the upper layers. Next, we show how to determine .
Optimizing . Selecting is important. A larger results in smaller noise errors: because there are now layers in the hierarchy, each layer will receive more privacy budget according to sequential composition (given in Section IID). On the other hand, a larger probably leads to a larger bias (because we are only doing the actual estimate once every values; others in between are independent of, and thus can be far from, the true values). Choosing a good value of thus is a balance between noise errors and bias. Unfortunately, the bias depends on the true data distribution. Thus we assume the bias for each value is approximately half of the truncation limit . We use the following equation to approximate the squared error:
(10)
Given the values of and , can be computed by minimizing the above error.
Smoothing Method. Given , we now describe choices of implementing the smoother. Denote as the noisy estimates given by the leaves of the perturber (or the th levels of the original hierarchy). Each is the noisy sum of values. Let (initially there is no estimations from the hierarchy; we thus use half of the threshold as mean). The smoother will take the sequence of and output the final result for each input value. Let , we consider several functions:

Recent smoother: . It takes the mean of the most recent output from the perturber.

Mean smoother:
. It takes the mean of the output from the perturber up until the moment.

Median smoother: . Similar to the mean smoother, the median smoother takes the median of the output from the perturber up until the moment.

Moving average smoother: . Similar to the mean smoother, it takes the mean over the most recent outputs from the perturber. When , we use the average of the first values of divided by as .

Exponential smoother: if , and if , where is the smoothing parameter. The exponential smoother put more weight on the more recent values from the hierarchy.
IiiF Outputting Streams in the LDP Setting
In this section, we describe our method ToPL for outputting streaming data in the local DP (LDP) setting. To the best of our knowledge, this is the first algorithm that deals with this problem in LDP.
In LDP, users perturb their values locally before sending them to the server, and thus do not need to trust the server. Applying to the streaming values in our setting, each value should be perturbed before being sent to the server. What the server does is only postprocessing of the perturbed reports. After that, the results can be used or shared with other parties.
Our method follows the design framework of ToPS. There is a threshold optimizer to find the threshold based on optimal estimated error; and the threshold is used to truncate the users’ values in the later stage. Different from the centralized DP setting, in the local setting, the obtained threshold will be shared with the users so that they can truncate their values locally. The perturber section is also run within each user’s local side, because of the privacy requirement that no other parties other than the users themselves can see the true data. There is no smoother section. In what follows, we describe the construction for the threshold optimizer and the perturber.
IiiF1 Design of the Threshold Optimizer
In LDP, each user only has a local view (i.e., they only know their own data; no one has a global view of the true distribution of all data), thus there is no Exponential Mechanism (EM) (described in Section IIC) that we can use as in the DP setting (the threshold optimizer in Section IIIC). Instead, most existing LDP algorithms rely on frequency estimation, i.e., estimation of how many users possess each value, as what the Laplace mechanism does in DP. We also rely on the frequency estimation to find the optimal threshold. Although the distribution estimation is more informative, it is actually less accurate than EM because more noise needs to be added.
Frequency Estimation in LDP. Li et al. [29] propose the Square Wave mechanism (SW for short) for ordinal and numerical domains. It extends the idea of randomized response [44]
in that values near the true value will be reported with high probability, and those far from it have a low probability of being reported. The server, after receiving the reports from users, runs a specially designed Expectation Maximization algorithm to find an estimated density distribution that maximizes the expectation of observing the output. For the completeness, we describe details about SW in Appendix
AC1.Optimized Threshold with Estimated Distribution. To find the threshold, the baseline method is to find a specific percentile to find the a threshold . This method is used for finding frequent itemset [42]. Based on the lessons learned from the threshold optimizer in the DP setting, we use the optimization equation given in Lemma 1 to find .
Specifically, denote as the estimated distribution where is the estimated frequency of value . Here the set of all possible to be considered can no longer be . Instead, we sample values uniformly from . This is because SW uses the Expectation Maximization algorithm, and a large domain size makes it time and space consuming. Similar to Equation (4) considered in the DP setting, we use an error formula:
(11)
where is the expected size of the range query. Here denotes the variance of estimating , which we will describe in the perturber. It is multiplied by because in expectation, each random range query will involve values, and each of them is estimated independently. For the second part of Equation (11), it can be calculated directly with SW (without any approximation, as in the case of Equation (5)). The multiplicative coefficient is the averaged case over all possible range queries. That is, denote as the range of a query, there are range queries within a limit , and there are all together possible queries. For each of them, we have a coefficient in the squared bias. Thus, we have as the averagecase coefficient. Finally, we find a that minimizes Equation (11).
Using SW as a White Box.
One thing to note is that, SW is proposed for estimating smoothed distributions, while in our case, the distribution is very skewed, because the majority of values are expected to be concentrated below a threshold. To make SW output reasonable thresholds, instead of using SW as a blackbox, we make the following modifications. First, we eliminate the smoothing step from SW, because we observe that in some cases, the smoothing operation will “push” the density to the two ends, which is unlikely to happen. Second, we add a postprocessing step to prune the small densities outputted by SW. In particular, we find the first
so that . This is a signal that the density after will converge to . We thus replace the estimated density after with . In the experiment, we observe that the two steps help finding a more accurate .IiiF2 Design of the (Local) Perturber
After obtaining the threshold , the server sends to all users. When a user reports a value, it will first be truncated. The user then reports the truncated value using the Hybrid mechanism. The method is described in Appendix AC2. It can estimate with worstcase variance of given in Equation (13), which can be plugged into Equation (11) to find . Note that the reports are unbiased by themselves. So to answer a range query, we just need to sum up values from the corresponding range, and there is no need for a smoother.
IiiG Discussion
We claim that ToPS and ToPL satisfy DP and LDP, respectively. For ToPS, the perturber uses to add Laplace noise to each layer of the the hierarchical structure. By sequential composition, the overall data structure satisfies DP. To find the threshold, ToPS uses a disjoint set of observations and runs an DP algorithm. Due to the parallel composition property of DP, the threshold optimizer and the perturber together satisfy DP. The online consistency algorithm and the smoother’s operations are postprocessing procedures and do not affect the privacy guarantee. For ToPL, similarly, it satisfies LDP as we only use existing LDP primitives.
The design of our method is inspired by PAK. But we include some unique design choices to handle the problem. The difference between the two methods are as follows. PAK has two phases, the threshold finder and the hierarchical method. The biggest drawback of PAK is that it focuses on methods that provide good theoretical bound while ignored the empirical performance. We improve both phases using either new methods or methods from existing literature. As we use EM, our algorithm satisfies DP while PAK satisfies DP. Moreover, we introduce a smoother that further improves accuracy.
Iv Experimental Evaluation
The experiment includes four phases. First, we give a highlevel endtoend evaluation of the whole process. Second, we fix a truncation threshold and evaluate the performance of the hierarchical method. Third, we fix the hierarchical method and test different algorithms that gives the truncation threshold. Fourth, we evaluate the performance in the local setting.
Iva Evaluation Setup
Datasets. Our experiments are conducted on four real world datasets.

DNS: This dataset is extracted from a set of DNS query logs collected by a campus resolver with all user ids and source IP addresses removed. ^{1}^{1}1The data collection process has been approved by the IRB of the campus. This dataset includes 14 days of DNS queries. The number of queries is estimated, which can be used to assess Internet usage in a region.

Fare [2]: New York city taxi travel fare. We use the Yellow Taxi Trip Records for January 2019.

Kosarak [1]: A dataset of click streams on a Hungarian website that contains around one million users and 41270 categories. The data is formatted so that each user click through multiple categories. We take it as a streaming data and use the size of click categories as the value of the stream.

POS [49]: A dataset containing merchant transactions of half a million users and 1657 categories. We use the size of the transaction as the value of the stream.
Table I gives the distribution statistics of the datasets.
Dataset  max

DNS  1141961  2000  617  63  85  135  37.9
Fare  8704495  30000  26770  440  1036  2037  279.9
Kosarak  990002  41270  2498  10  28  133  8.1
POS  515597  1657  165  13  21  39  7.5
Metrics. To evaluate the performance of different methods, we use the metric of Mean Squared Error (MSE) of answering randomly generated queries. In particular, we measure
(12)
where is the set of the randomly generated queries. It reflects the analytical utility measured by Equation 1 from Section IIA. We set as the maximal range of any query.
Methodology. The prototype was implemented using Python 3.7.3 and numpy 1.15.3 libraries. The experiments were conducted on servers running Linux kernel version 5.0 with Intel Xeon E78867 v3 CPU @ 2.50GHz and 576GB memory. For each dataset and each method, we randomly choose 200 range queries and calculate their MSE. We repeat each experiment 100 times and report the result of mean and standard deviation. Note that the values of standard deviation are typically very small, and barely noticeable in the figures.
IvB Results of the Whole Process
First of all, as a case study, we visualize the estimated stream of our method ToPS on the DNS dataset. Figure 4 shows the result. The top row shows the performance of ToPS. As a comparison, we also plot the visualization of PAK in the bottom row. We run algorithms only once for each setting to demonstrate the realworld usage. Similar to the setting of PAK, in ToPS, we use the first observations to obtain the threshold (we will show later that ToPS does not need this large observations to be blocked). As can be observed from Figure 4, our method ToPS can give fairly accurate predictions when is pretty small. On the other hand, PAK, even though under a larger , still performs worse than ToPS. Note that to obtain the threshold , PAK satisfies DP. Our ToPS satisfies pure DP during the whole process.
We then compare the performance of ToPS and PAK with our metric of MSE given in Equation (12), and show the results in Figure 5. Between ToPS and PAK, we also include two intermediate methods that replace the Phase 1 (finding ) and 2 (hierarchical method) of PAK by our proposed method EME (used in threshold optimizer) and (used for the perturber and smoother together), respectively, to demonstrate the performance boost due to our new design (we will evaluate the two phases in more details in later subsections). From the figure, we can see that the performance of all the algorithms gets better as increases, which is as expected. Second, our proposed ToPS can outperform PAK by to orders of magnitude. Third, the effect (in terms of improving utility) using EME is much more significant than using . Interestingly, the performance of ToPS and EME is similar in the Fare and Kosarak datasets. This is because in these cases, the bias (due to truncation by ) is dominant.
IvC Performance of Publishing the Stream
Several components contribute to the promising performance of ToPS. To demonstrate the precise effect of each of them, we next analyze them one by one in the reverse order. Namely, we first fix other things and compare different designs of the smoother and the perturber. Then, we analyze the methods of obtaining the threshold in Section IVD. To make the comparison clear, we set to be the th percentile of the values. Moreover, we assume the true values are no larger than (the ground truth is truncated). We will compare the performance of different methods in obtaining in Section IVD.
Comparison of Different Smoothers. Fixing a threshold and the the hierarchical method optimized in Section IIID, we now compare the performance of five smoother algorithms listed in Section IIIE (note that the smoothers will replace the values where is given in Equation (10)). In Figure 6, we vary the value of from to and plot the MSE of the smoothers. Overall the performance gets better when increases, which is as expected. The difference of them are very small in the Fare and Kosarak datasets. This is because there is no clear pattern in these datasets. In the DNS dataset, Recent performs better than others, as the data is stable in the short term. In POS, the method of Mean and Median performs worse than the other three. This is because Mean and Median consider all the history (all the previous values given from the hierarchy, as described in Section IIIE), while the other methods considers more recent results. And due to the stability property in the dataset (similar to the case of DNS), methods that utilize the recent output (i.e., the more recent ) will perform better. As Recent performs the best in DNS, and is among the best in other datasets, we use it as the default smoother algorithm.
Comparison of Different Hierarchical Algorithms. To demonstrate the precise effect of each design detail, we line up several intermediate protocols for the hierarchy and threshold, respectively. For the hierarchy component, we evaluate:

: Original binary tree used in PAK.

: A good fanout is used in the hierarchy.

: The optimal with consistency method.

: We use the hat notation to denote the Recent smoother. It is built on top of .

Base: A baseline method that always output . Base is used to understand whether each method gives meaningful result.
Figure 7 gives the result varying from to . First of all, we see that all methods (except the baseline) give better accuracy as increases, which is as expected. Moreover, except , the performance of all other methods increases by a factor of when increases from to . This is also indicated by the analysis (variance is proportional to ). Comparing each method, we observe that using the optimal branching factor ( versus ) in this case also gives a improvement, and by adopting the consistency step, we have another roughly ( versus ) of accuracy boost. For , we see a constant improvement over except in the DNS dataset, where performs roughly the same as when . The reason here is that the error of is composed of two parts, the noise error from the constraint of DP, and the bias error of outputting the predicted values. When is large, the second error dominates the first one in the DNS dataset.
IvD Comparison of Threshold Phase
Having examined the performance of different methods of outputting the stream, we now switch gear to look at the algorithms that are used to find the threshold.
Setup. Following [33], we use the first values to obtain the threshold. To eliminate the unexpected influence of distribution change, for now, we use the same values to build the hierarchy using (with the best smoothing strategy called recent smoother).
No Single Quantile Works Perfectly for All Scenarios. We first want to show that there is no single quantile that can work perfectly for every scenario. We use the true quantile for and test in different scenarios (with different and values). We also include our threshold optimizer (EME) which is introduced to find a threshold only based on the estimated error and set for it. Figure 8 shows the results of answering range queries given these true percentiles. Several findings are demonstrated from the figures. First of all, the performance gets better when gets larger for all values. Second, in some cases, the performance improvement is negligible with respect to (e.g., and in Figure 8(b) and , and Figure 8(d)). This is because in these scenarios, is set too small, making the bias dominates the noise error. Third, our threshold optimizer with can achieve a similar performance with the optimal quantile.
Varying . We then compare different methods of outputting . We evaluate:

EME: The threshold optimizer in ToPS. It does not require a percentile.

SPAK: The smooth sensitivity method used in PAK. We use , as used in [33].

SP: The original smooth sensitivity method. Similar to SPAK, we also use .
In Figure 9, we compare with existing differentially private methods on finding the threshold . We vary the value of for obtaining . The result is the MSE of answering range queries using . Note that to make the comparison more clear, we fix in . In all the datasets, our proposed EME performs much better than existing methods. Moreover, the performance does not change much when increases. This is because the output of EME is stable even in small domains. Finally, both SPAK and SP perform worse than the baseline method, which always give on any input values, indicating the given by them is too large.
IvE Performance of ToPL
In this section, we evaluate the LDP algorithm ToPL. We first check the methods to find . Following the setting of ToPS, we also use the first observations to obtain the threshold . The difference from the DP setting is that due to the higher amount of noise of LDP, we vary in a larger range (from to ). We remind the readers that our method find by using the square wave (SW) mechanism to estimate the distribution, and then minimizing Equation (11). Moreover, our approach modifies SW to exploit the prior knowledge that the distribution is skewed. We use SWW to denote this method. In addition, we also include another baseline, which uses SW as a black box (and we use SW to denote it).
Figure 10 shows the performance of finding in ToPL. We vary the used to find from to while fixing used to output the stream at . Similar to the DP setting, we did not observe the performance improvement because the for the perturber is fixed, and both SW and SWW can output pretty stable with different values. Comparing SW and SWW, we can observe that our method SWW can outperform SW as well as the baseline in all the four datasets, and the improvement (measured by MSE of answering random range queries) is around orders of magnitude.

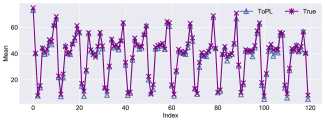

In Figure 11, we visualize the estimated stream of our method ToPL on the DNS dataset using . We run algorithms only once to demonstrate the realworld usage. As can be seen from this figure, our method ToPL can give pretty accurate predictions.
V Related Work
Va Dealing with Streaming Data in Differential Privacy
A number of solutions have been proposed for solving the problem of releasing realtime aggregated statistics under differential privacy (DP). Here, besides the PAK approach [33], we briefly describe several other related works.
Eventlevel DP. The first line of work is the hierarchical method for handling binary stream. Eventlevel DP is satisfied in this case. Dwork et al. [19] proposed a differentially private continual counter release algorithm over a fixed length binary stream with a bounded error at each time step, where is the stream length. Chan et al. [9] studied the same problem and proposed a release algorithm based on binary tree which achieves a similar error bound without requiring a prior knowledge of the stream length. There is also on online consistency method proposed in [9]. But that method focuses on enforcing integrality of the output (because it handles the binary setting), while our method minimizes the overall noise error.
Chen et al. [11] also considers the eventlevel DP, but in a different setting. In particular, the data can be any number instead of only a binary number. The data model is the same as what our paper and [33] consider. Moreover, [11] considers the application of outputting the number of connections to a wifi hotspot, and protect any event of a single user (i.e., whether a user connects to the hotspot). Thus, the sensitivity is only (while in our setting, the original sensitivity is the maximal possible value , and we first find a threshold ). The method in [11] partitions the stream into a series of intervals so that values inside each interval are “stable”, and publish the median of each interval.
Userlevel DP. There is also work that focuses on providing the notion of userlevel DP. Because the userlevel DP is more challenging, proposals under this setting relies more on the auxiliary information. In particular, Fan et al. [22]
proposed to release perturbed statistics at sampled timestamps and uses the Kalman filter to predict the nonsampled values and correct the noisy sampled values. It takes advantage of the seasonal patterns of the underlying data. Another direction is the offline setting, where the server has the global view of all the values first, and then releases a streaming model satisfying DP. In this setting,
[4]proposes an algorithm based on Discrete Fourier Transform (DFT), and
[36] further incorporate sampling, clustering, and and smoothing into the process.eventlevel DP. To balance the privacy loss and utility loss between userlevel and eventlevel privacy models, relaxed privacy notions are proposed. Bolot et al. [8] extended the binary tree mechanism on releasing perturbed answers on sliding window sum queries over infinite binary streams with a fixed window size and using a more relaxed privacy concept called decayed privacy. Kellaris et al. [26] proposes event DP and two new privacy budget allocation schemes (i.e., split into individual events) to achieve it. More recently, [39] works explicitly for spatiotemporal traces, and improves Kellaris et al. [26] by adaptively allocating privacy budget based on the similarity of the data sources; and [23] improves Kellaris et al. [26] using a similar approach of Fan et al [22]: sampling representative data points to add noise, and smoothing to reconstruct the other data points.
In our work, we follow the eventlevel privacy model and dealing with a more extended setting where data points are from a bounded range instead of the binary domain, and publish the stream in an online manner. Moreover, we do not rely on any pattern to exist in the data; and we propose methods for both DP and LDP.
VB Dealing with Streams in Local DP
In the local DP setting, most existing work focus on estimating frequencies of values in the categorical domain [21, 7, 6, 40, 46, 3]. These techniques can be applied to other applications such as heavy hitter identification [6, 43, 37] frequent itemset mining [35, 42], multidimension data estimation [41, 48, 13, 14]. In the numerical/ordinal setting, previous work [16, 38] mostly focused on estimating mean. Recently, Li et al. [29] proposed the square wave mechanism for the more general task of estimating the density.
To the best of our knowledge, there are two methods that deals with streaming data in userlevel LDP; and they work in different data models. In particular, [20] assumes the users’ values can only change by , and there are at most changes in a given time range. [25]
assumes all users’ values are repeatedly drawn from some distributions, e.g., a bit from a Bernoulli distribution.
VC Other Related Topics
Choosing the Threshold. Many DP problems require choosing a threshold for truncation. Examples include: (1) Choosing contribution limit in transactional data such as finding frequent itemset [47, 28]. (2) Choosing configuration for publishing graph degree sequence under nodeDP (e.g., sensitivity in social network is typically very large) [15]. (3) Answering aggregation queries over relational database (each user’s contribution, a.k.a., sensitivity, can be large) [45, 27]. All of them use heuristicbased approaches. On the other hand, we start from an optimization perspective, and aim to select the threshold that can approximately minimize the optimization objective.
Using ShuffleDP to Help LDP. Another related line of research is the shufferDP problem. When many user reports are anonymized and then mixed (shuffled), one can argue a stronger privacy guarantee [20, 5, 12]. Such a privacy amplification effect holds only when the anonymization party is trusted. This extension can be applied in our setting. In particular, reports of the first values can be sent to a shuffler. Assuming these values are perturbed using an LDP protocol before sending them to the shuffler, it is proved in [5] that the output of those shuffled reports will satisfy DP, for some .
Vi Conclusion and Discussion
We have presented a privacypreserving algorithm ToPS to continually outsource a stream of observations. ToPS first finds a threshold to truncate the stream using the exponential mechanism, optimizing errors due to noise and bias. Then ToPS runs an online hierarchical structure and adds noise to the stream to satisfy differential privacy (DP). Finally, the noisy data are smoothed to improve utility. We also design a mechanism ToPL that satisfies the local version of DP. Our mechanisms can be applied to realworld applications where continuous monitoring and reporting of statistics, e.g., smart meter data and taxi fares, are required. The design of ToPS and ToPL are flexible and have the potential to be extended to incorporate more properties of the data. We list some as follows.
Shorten the Holdout of the Stream. We follow the setting of PAK [33] and use the first values to output the threshold . If we want to start outputting the stream sooner, we can use our Threshold optimizer with only a few observations to find a rough threshold. During the process of outputting the stream, we can use sequential composition (described in Section IID) with a smaller privacy budget but more data points to fine tune the threshold.
Update . We follow the setting of PAK and assume the distribution stays the same. If the distribution changes, we can have the Threshold optimizer run multiple times (using either sequential composition to update while simultaneously outputting the stream, or the parallel composition theorem to block some values to update ).
Utilizing Patterns of the Data. If there is further information, such that the data changes slowly (e.g., the current value and the next one differ in only a small amount), or the data changes regularly (e.g., if the values show some Diurnal patterns), are given, we can potentially utilize that to improve the performance of our method as well.
References
 [1] Frequent itemset mining dataset repository. http://fimi.ua.ac.be/data/.
 [2] New york taxi trip record data. https://www1.nyc.gov/site/tlc/about/tlctriprecorddata.page.
 [3] J. Acharya, Z. Sun, and H. Zhang. Hadamard response: Estimating distributions privately, efficiently, and with little communication. In AISTATS, 2019.
 [4] G. Acs and C. Castelluccia. A case study: Privacy preserving release of spatiotemporal density in paris. In Proceedings of the 20th ACM SIGKDD international conference on Knowledge discovery and data mining, pages 1679–1688, 2014.
 [5] B. Balle, J. Bell, A. Gascón, and K. Nissim. The privacy blanket of the shuffle model. In Annual International Cryptology Conference, pages 638–667. Springer, 2019.
 [6] R. Bassily, K. Nissim, U. Stemmer, and A. G. Thakurta. Practical locally private heavy hitters. In NIPS, 2017.
 [7] R. Bassily and A. D. Smith. Local, private, efficient protocols for succinct histograms. In STOC, 2015.
 [8] J. Bolot, N. Fawaz, S. Muthukrishnan, A. Nikolov, and N. Taft. Private decayed predicate sums on streams. In Proceedings of the 16th International Conference on Database Theory, pages 284–295. ACM, 2013.
 [9] T.H. H. Chan, E. Shi, and D. Song. Private and continual release of statistics. ACM Transactions on Information and System Security (TISSEC), 14(3):1–24, 2011.
 [10] V. Chandola, A. Banerjee, and V. Kumar. Anomaly detection: A survey. ACM computing surveys (CSUR), 41(3):1–58, 2009.
 [11] Y. Chen, A. Machanavajjhala, M. Hay, and G. Miklau. Pegasus: Dataadaptive differentially private stream processing. In Proceedings of the 2017 ACM SIGSAC Conference on Computer and Communications Security, pages 1375–1388. ACM, 2017.
 [12] A. Cheu, A. D. Smith, J. Ullman, D. Zeber, and M. Zhilyaev. Distributed differential privacy via shuffling. In EUROCRYPT, pages 375–403, 2019.
 [13] G. Cormode, S. Jha, T. Kulkarni, N. Li, D. Srivastava, and T. Wang. Privacy at scale: Local differential privacy in practice. In SIGMOD, 2018.
 [14] G. Cormode, T. Kulkarni, and D. Srivastava. Answering range queries under local differential privacy. PVLDB, 2019.
 [15] W.Y. Day, N. Li, and M. Lyu. Publishing graph degree distribution with node differential privacy. In Proceedings of the 2016 International Conference on Management of Data, pages 123–138, 2016.
 [16] J. C. Duchi, M. I. Jordan, and M. J. Wainwright. Local privacy and statistical minimax rates. In FOCS, 2013.
 [17] J. C. Duchi, M. I. Jordan, and M. J. Wainwright. Minimax optimal procedures for locally private estimation. Journal of the American Statistical Association, 113(521):182–201, 2018.
 [18] C. Dwork, F. McSherry, K. Nissim, and A. Smith. Calibrating noise to sensitivity in private data analysis. In TCC, 2006.

[19]
C. Dwork, M. Naor, T. Pitassi, and G. N. Rothblum.
Differential privacy under continual observation.
In
Proceedings of the fortysecond ACM symposium on Theory of computing
, pages 715–724, 2010.  [20] Ú. Erlingsson, V. Feldman, I. Mironov, A. Raghunathan, K. Talwar, and A. Thakurta. Amplification by shuffling: From local to central differential privacy via anonymity. arXiv preprint arXiv:1811.12469, 2018.
 [21] Ú. Erlingsson, V. Pihur, and A. Korolova. RAPPOR: randomized aggregatable privacypreserving ordinal response. In CCS, 2014.
 [22] L. Fan and L. Xiong. An adaptive approach to realtime aggregate monitoring with differential privacy. IEEE Transactions on knowledge and data engineering, 26(9):2094–2106, 2013.

[23]
F. Fioretto and P. Van Hentenryck.
Optstream: releasing time series privately.
Journal of Artificial Intelligence Research
, 65:423–456, 2019.  [24] M. Hay, V. Rastogi, G. Miklau, and D. Suciu. Boosting the accuracy of differentially private histograms through consistency. PVLDB, 3(1), 2010.
 [25] M. Joseph, A. Roth, J. Ullman, and B. Waggoner. Local differential privacy for evolving data. 2018.
 [26] G. Kellaris, S. Papadopoulos, X. Xiao, and D. Papadias. Differentially private event sequences over infinite streams. Proceedings of the VLDB Endowment, 7(12):1155–1166, 2014.
 [27] I. Kotsogiannis, Y. Tao, X. He, M. Fanaeepour, A. Machanavajjhala, M. Hay, and G. Miklau. Privatesql: a differentially private sql query engine. Proceedings of the VLDB Endowment, 12(11):1371–1384, 2019.
 [28] N. Li, W. Qardaji, D. Su, and J. Cao. Privbasis: Frequent itemset mining with differential privacy. Proceedings of the VLDB Endowment, 5(11):1340–1351, 2012.
 [29] Z. Li, T. Wang, M. LopuhaäZwakenberg, B. Skoric, and N. Li. Estimating numerical distributions under local differential privacy. In SIGMOD, 2020.
 [30] F. McSherry and K. Talwar. Mechanism design via differential privacy. In FOCS, volume 7, pages 94–103, 2007.
 [31] A. MolinaMarkham, P. Shenoy, K. Fu, E. Cecchet, and D. Irwin. Private memoirs of a smart meter. In Proceedings of the 2nd ACM workshop on embedded sensing systems for energyefficiency in building, pages 61–66, 2010.
 [32] K. Nissim, S. Raskhodnikova, and A. Smith. Smooth sensitivity and sampling in private data analysis. In Proceedings of the thirtyninth annual ACM symposium on Theory of computing, pages 75–84. ACM, 2007.
 [33] V. Perrier, H. J. Asghar, and D. Kaafar. Private continual release of realvalued data streams. ndss, 2019.
 [34] W. H. Qardaji, W. Yang, and N. Li. Understanding hierarchical methods for differentially private histograms. PVLDB, 6(14), 2013.
 [35] Z. Qin, Y. Yang, T. Yu, I. Khalil, X. Xiao, and K. Ren. Heavy hitter estimation over setvalued data with local differential privacy. In CCS, 2016.
 [36] V. Rastogi and S. Nath. Differentially private aggregation of distributed timeseries with transformation and encryption. In Proceedings of the 2010 ACM SIGMOD International Conference on Management of data, pages 735–746, 2010.
 [37] N. Wang, X. Xiao, Y. Yang, T. D. Hoang, H. Shin, J. Shin, and G. Yu. Privtrie: Effective frequent term discovery under local differential privacy. In ICDE, 2018.
 [38] N. Wang, X. Xiao, Y. Yang, J. Zhao, S. C. Hui, H. Shin, J. Shin, and G. Yu. Collecting and analyzing multidimensional data with local differential privacy. In Proceedings of IEEE ICDE, 2019.
 [39] Q. Wang, Y. Zhang, X. Lu, Z. Wang, Z. Qin, and K. Ren. Realtime and spatiotemporal crowdsourced social network data publishing with differential privacy. IEEE Transactions on Dependable and Secure Computing, 15(4):591–606, 2016.
 [40] T. Wang, J. Blocki, N. Li, and S. Jha. Locally differentially private protocols for frequency estimation. In USENIX Security, 2017.
 [41] T. Wang, B. Ding, J. Zhou, C. Hong, Z. Huang, N. Li, and S. Jha. Answering multidimensional analytical queries under local differential privacy. In SIGMOD, 2019.
 [42] T. Wang, N. Li, and S. Jha. Locally differentially private frequent itemset mining. In SP, 2018.
 [43] T. Wang, N. Li, and S. Jha. Locally differentially private heavy hitter identification. IEEE Transactions on Dependable and Secure Computing, 2019.
 [44] S. L. Warner. Randomized response: A survey technique for eliminating evasive answer bias. Journal of the American Statistical Association, 60(309), 1965.
 [45] R. J. Wilson, C. Y. Zhang, W. Lam, D. Desfontaines, D. SimmonsMarengo, and B. Gipson. Differentially private sql with bounded user contribution. In International Symposium on Privacy Enhancing Technologies Symposium. Springer, 2020.
 [46] M. Ye and A. Barg. Optimal schemes for discrete distribution estimation under locally differential privacy. IEEE Transactions on Information Theory, 2018.
 [47] C. Zeng, J. F. Naughton, and J.Y. Cai. On differentially private frequent itemset mining. Proceedings of the VLDB Endowment, 6(1):25–36, 2012.
 [48] Z. Zhang, T. Wang, N. Li, S. He, and J. Chen. Calm: Consistent adaptive local marginal for marginal release under local differential privacy. In CCS, 2018.
 [49] Z. Zheng, R. Kohavi, and L. Mason. Real world performance of association rule algorithms. In Proceedings of the seventh ACM SIGKDD international conference on Knowledge discovery and data mining, pages 401–406. ACM, 2001.
Appendix A Supplementary Mechanisms
Aa Mechanisms of Differential Privacy
We review the method of smooth sensitivity that PAK [33] uses for estimating the percentile.
Smooth Sensitivity. Rather than the global sensitivity that considers any pair of neighboring sequences, the local sensitivity fixes one dataset and only considers all possible neighboring sequence around .
The advantage of using local sensitivity is that we only need to consider neighbors of which could result in lower sensitivity of the function , and consequently lower noise added to the true answer . Unfortunately, replacing the global sensitivity with local sensitivity directly (e.g., in the Laplace mechanism) violates DP. This is handled by using smooth sensitivity [32] instead.
For , the smooth sensitivity of at , denoted by , is defined as
where denotes the hamming distance between and . The method of smooth sensitivity is given below:
where is a random variable from some specified distribution. To obtain DP,
is drawn from the Cauchy distribution with density
for. But to use an exponentially decaying distribution (which gives good accuracy), such as standard Laplace or Gaussian distribution, one can only obtain
DP. For both, we set as the smoothing parameter. If we use the Laplace distribution with scale 1, . When the noise is standard Gaussian, then [32].AB More Details about PAK
PAK computes the smooth sensitivity of the empirical quantile, i.e., , as
Here, is the sorted string of the first values of in ascending order, where if and if . And is the rank of . After computing the smooth sensitivity, [32] sets the threshold as
where is a random variable from some specified distribution in order to satisfy DP.
In [33], the authors propose to bound to be arbitrarily small (by an arbitrary ) and thus uses
where is a positive real number and denotes the CDF of the distribution of .
The threshold released via the above mechanism is differentially private since is a smooth upper bound of and only depends on public parameters.
In their evaluation, the authors aim to get the percentile and set , and .
AC Mechanisms of Local Differential Privacy
In this subsection, we review the primitives proposed for LDP. We use to denote the user’s private value, and as the user’s report that satisfies LDP. In this section, following the notations in the LDP literature, we use and to denote probabilities.
AC1 LDP Mechanism for Density Estimation
One basic primitive of LDP is to estimate the histogram (or density if the domain is continuous). It is like what Laplace mechanism solves in the centralized DP setting.
Square Wave. In [29], an LDP method that can give the full density estimation is proposed. The intuition behind this approach is to try to increase the probability that a noisy reported value carries meaningful information about the input. Intuitively, if the reported value is the true value, then the report is a “useful signal”, as it conveys the extract correct information about the true input. If the reported value is not the true value, the report is in some sense noise that needs to be removed. Exploiting the ordinal nature of the domain, a report that is different from but close to the true value also carries useful information about the distribution. Therefore, given input , we can report values closer to with a higher probability than values that are farther away from . The reporting probability looks like a squared wave, so the authors call the method Square Wave method (SW for short).
Without loss of generality, we assume values are in the domain of . To handle an arbitrary range , each user first transforms into (mapping to ); and the estimated result is transformed back. Define the “closeness” measure , the Square Wave mechanism SW is defined as:
By maximizing the difference between and while satisfying the total probability adds up to , we can derive and .
After receiving perturbed reports from all users, the server runs the Expectation Maximization algorithm to find an estimated density distribution that maximizes the expectation of observing the output. Additionally, the server applies a special smoothing requirement to the Expectation Maximization algorithm to avoid overfitting.
AC2 Candidate Methods for the Perturber
As we are essentially interested in estimating the sum over time, the following methods that estimate mean within a population are useful. We first describe two basic methods. Then we describe a method that adaptively uses these two to get a better accuracy in all cases. Our perturber will use the final method.
Stochastic Rounding. This method uses stochastic rounding to estimates the mean of a continuous/ordinal domain [17]. We call it Stochastic Rounding (SR for short). Assume the private input value is in the range of (otherwise, we can first projected the domain into ), the main idea is to round to so that with probability and w/p . This stochastic rounding step is unbiased in that . Then given a value , the method runs binary random response to perturb into . In particular, let and , w/p , and w/p . The method has variance . Piecewise Mechanism. This method is proposed in [38]. It is also used for mean estimation, but can get more accurate mean estimation than SR when . In this method, the input domain is , and the output domain is , where . For each , there is an associated range where and , such that with input , a value in the range will be reported with higher probability than a value outside the range. The highprobability range looks like a “piece” above the true value, so the authors call the method Piecewise Mechanism (PM for short). The perturbation function is defined as
