1 Introduction

Speech-to-text translation (ST) has been traditionally addressed by pipeline approaches involving several components [iwsltprec_2019]

. The most important blocks are the speech recognition (ASR), which converts the input audio into its transcript, and the neural machine translation (NMT), which translates the transcript into the target language. Direct ST models

[berard_2016, weiss2017sequence] recently gained attention as an alternative approach, thanks to their appealing promises to overcome some of the pipeline systems’ problems, such as error propagation and loss of information present in the audio (prosody in particular).

Both pipeline and direct solutions, however, can be significantly affected by mismatches in the segmentation of the input between training and test data. On one side, the two solutions involve the use of training data segmented at sentence level. This, for instance, holds for the parallel corpora normally used to train the NMT component of the pipeline approach, as well as for all the available ST corpora used for direct ST training. On the other side, at inference time both solutions will be exposed to data segmented according to criteria that look at properties of the audio input rather than at linguistic notions like sentence well-formedness. The most widespread approach consists in fact in using voice activity detection (VAD) to split the audio stream into chunks, which are input to the ST system. In particular, VAD systems determine whether a given short (usually 10-30 ms) audio segment actually contains speech, and this information is used in the context of ST for two purposes: i) dividing the audio stream into segments containing uninterrupted speech; ii) filtering out audio segments containing other sounds.

Since VAD is solely based on the alternation between human voice, silences and other sounds, the resulting splits might not correspond to well-formed sentences but to fragments of one or more sentences. The impact of feeding an ST model trained on “clean” data with sub-optimal, not linguistically-motivated segmentations varies according to the characteristics of the VAD employed and its settings. Very aggressive settings reduce the generation of long (cross-sentential) segments, which are difficult to handle by neural models that are typically very sensitive to input length. On the downside, they produce short (sub-sentential) segments that might not provide enough context for proper translation. To address this problem, pipeline systems include an additional component that re-segments the ASR output to provide the NMT with well-formed sentences [matusov_segm, oda-etal-2014-optimizing, Cho2017]. Since this solution is not possible for direct ST, where the two steps are not decoupled, researchers have worked on alternative audio segmentation techniques. In the 2019 IWSLT offline ST task [iwsltprec_2019], for instance, the best direct ST system [potapczyk_tomasz_2019] had one of its key features in the segmentation method.

Instead of working on the segmentation algorithm, in this paper we aim to make our direct ST models more robust to VAD-segmented data. To train them on a data distribution more similar to the one fed at inference time, we generate an artificial dataset by randomly re-segmenting clean (i.e. sentence-based) ST data. Then, we experiment with two approaches: i) fine-tuning on the new dataset; ii) improving our direct ST model with the capability to look back and attend to the preceding segment as contextual information. Our experiments show that the proposed context-based solution effectively handles the segmentation of different VAD systems and configurations, reducing the drop in translation quality caused by segmentation mismatches in the training and test data by up to 55%.

2 Context-aware ST

The idea of exploiting contextual information to improve translation has been successfully applied in NMT [wang-etal-2017-exploiting-cross, zhang-etal-2018-improving, bawden-etal-2018-evaluating, kim-etal-2019-document]. In our use case, unlike [wang-etal-2017-exploiting-cross], we are interested only in modeling short-range cross-segment dependencies to cope with the sub-optimal breaks introduced by VAD segmentation. We hence consider as context only the segment immediately preceding the one to be translated, leaving out of our study hierarchical approaches modeling the whole document as context. Moreover, while in document-level NMT the best approach is to use the source side of the sentence(s) as contextual information, in the ST scenario it is not trivial to understand which side is best. On one hand, audio source avoids the error propagation and exposure bias introduced by using as context the translations generated at inference time. On the other, these problems are balanced by the easiness of extracting information from text rather than from audio [instance_based]. In this work, we study both options.

To integrate context information into the model, we explore the two solutions that gave the best results for NMT [kim-etal-2019-document]. They respectively use sequential [zhang-etal-2018-improving] and parallel [bawden-etal-2018-evaluating] decoders. We also experimented with the integration of context information in the encoder [zhang-etal-2018-improving], but the trainings were either very unstable (when using audio as context) or ineffective, eventually leading to worse results. For this reason, we do not consider this type of integration in the rest of the paper. Finally, supported by previous findings [kim-etal-2019-document], we neither investigate the concatenation of the context with the current input [agrawal_ctx], nor the combination of encoded representations of the two [voita-etal-2018-context].

Our base model is an adaptation of Transformer [transformer]: its encoder is enhanced to take into account the characteristics of speech input by means of two 2D convolutional layers and a logarithmic distance penalty in its self-attention layers [digangi:interspeech19]. Both the sequential and the parallel decoder use a multi-encoder approach, with an additional encoder dedicated to the context information. However,

they differ in the way this information is integrated into the base model. The context encoder is composed of Transformer encoder layers, but its input depends on the modality of the segment used as context, i.e. text or audio. When we use the generated translations as context, its tokens are converted into vectors with

word embeddings (namely, we re-use the decoder embeddings), summed with positional encoding and then provided to the encoder Transformer layers. When we use the audio as context, the input audio features are first processed by the encoder of the base model and then passed to the context encoder [instance_based].

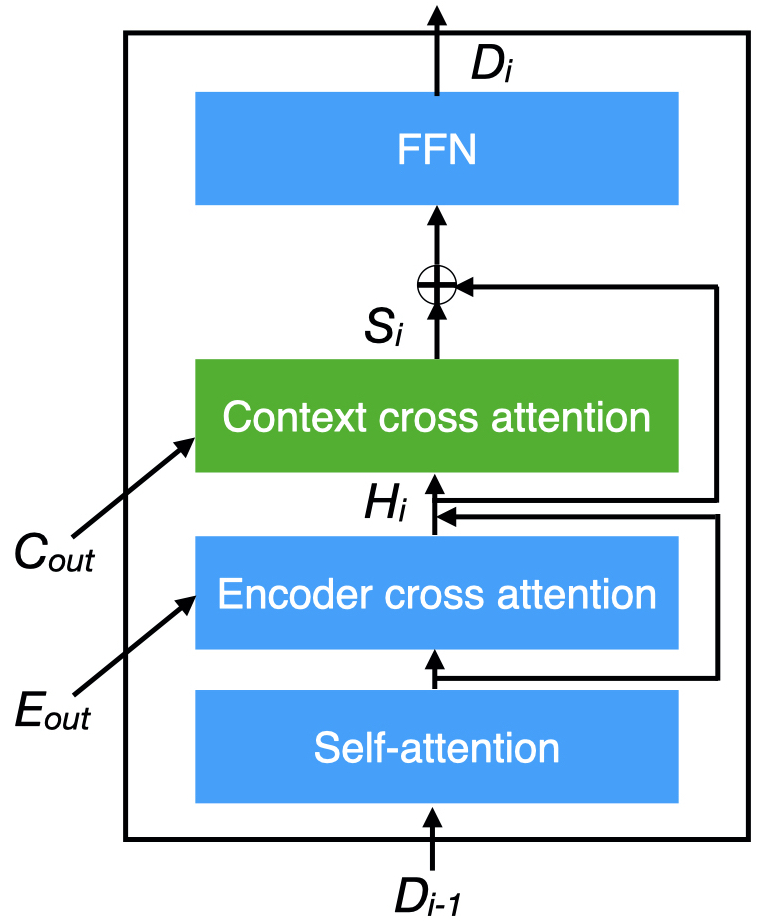

Figure 1: Sequential context integration.

Sequential (Figure 1). In each decoder Transformer layer, an additional multi-head cross-attention sub-layer is introduced. It queries the output of the context encoder using the output of the -th encoder cross-attention sub-layer. The result of this operation is combined with using a position-wise gating mechanism, before being fed to the feed-forward network . Hence, the output of the -th decoder layer is:

(1)
(2)
Figure 2: Parallel context integration.

Parallel (Figure 2). In each decoder Transformer layer, the output of the self-attention sub-layer is used as query for both the encoder cross-attention and the context cross-attention defined in the same way as in the previous case. The outputs of these two sub-layers are then combined using the position-wise gating mechanism described in Eq.(2).

To avoid over-relying on the context, we add a regularization on the context gate. Our regularization is slightly different from the one proposed by [li2019regularized]: we always penalize the context information, so that the model will use it only when it is strictly needed. With the regularization factor, the resulting loss is:

(3)

3 Experimental settings

3.1 Clean and artificial data

Our base models are trained and evaluated on English-German data drawn from the MuST-C corpus, the largest ST dataset currently available [mustc]. MuST-C comprises 234K samples (corresponding to about 408 hours of speech) divided into training (229K), validation (1.5K) and test sets (3.5K).

To cope with segmentation mismatches between the clean data used for training and the VAD-processed ones handled at inference time, we generate an automatic re-segmentation of the MuST-C training and validation set.

The re-segmentation starts by picking a random (with uniform distribution)

split word for each sample in the original English transcripts. Each fragment spanning from a split word to the word before the next split word becomes a segment of the new training set and the preceding fragment becomes its context. We extract the audio corresponding to each resulting transcript by leveraging word alignments computed with Gentle.111https://github.com/lowerquality/gentle/ Then, we retrieve the corresponding translations using word alignments generated with fast_align [dyer-etal-2013-simple]. In case of missing alignments (either with the audio or with the translation), the sample is discarded. The resulting training dataset contains 225K samples (4K less than the original), while the validation set size is almost unchanged.

A manual check on a sample of the produced aligned segments revealed that about 96% of them are acceptable. The most frequently observed issue is that some translations contain 1-2 words more than the optimum, mostly due to the lack of some word alignments and to word-reordering. This leads to the presence of overlapping words between the context and the target German references in 25% of the samples. In early experiments, this caused model instability at inference time because models learnt to copy the final context words, up to producing nonsensical sequences of repeated tokens. We solved the issue by filtering out the overlapping words from the context.

3.2 VAD and segmentation

As we want our systems to be robust to different VAD outputs, we test our models on two different open source VAD tools: LIUM

[meigner2010lium] and WebRTC’s VAD.222https://webrtc.org/. We use the open-source Python interface https://github.com/wiseman/py-webrtcvad For WebRTC we tested all the possible configurations, varying the frame size (allowed values are ms, ms and ms) and the aggressiveness (ranging from to , extremes included). We discarded those producing either too long (s) or too many segments (, i.e. twice the segments of the original sentence-based segmentation of the MuST-C test set). In this way, we ended up with three configurations, whose characteristics are described in Table 1.

Overall, the segments produced by WebRTC have much higher variance in their length (ranging from

s to s) compared to LIUM (from s to s) and are significantly more ( vs ). As anticipated in , this can affect the final performance of neural ST models, for which handling very long/short segments is difficult. However, from a qualitative standpoint, a manual inspection of 50 samples showed that the split times selected by LIUM are less accurate than those selected by WebRTC: while the former often splits fluent speech, the latter always selects positions in which the speaker is silent.

System Man. LIUM WebRTC
Frame size 30ms 20ms 20ms
Aggress. 3 2 3
% filt. audio 14.66 0.00 11.27 9.53 15.58
Num. segm. 2,574 2,725 3,714 3,506 5,005
Max len. (s) 51.97 18.63 48.84 58.62 46.76
Min len. (s) 0.05 2.50 0.60 0.40 0.40
Table 1: Statistics for different segmentations of the MuST-C test set. “Man.” refers to the original sentence-based segmentation.

3.3 Training settings

All our models are optimized with label smoothed cross entropy [szegedy2016rethinking] using the Adam optimizer [adam] with a learning rate starting from , increasing linearly up to in the first steps and then decaying with inverse square root policy. The overall batch size was (audio, translation) pairs. We used the BIG configuration from [digangi:interspeech19] regarding all layers’ hidden sizes. The number of context encoder layers is set to , as [zhang-etal-2018-improving] shows that this leads to the best results. Since [kim-etal-2019-document] has demonstrated that poorly regularized systems can lead to ambiguous results when integrating context, we used dropout and SpecAugment [Park_2019] to prevent this issue.

We performed preliminary experiments on a baseline model (BASE_MUSTC) with encoder layers and decoder layers trained on the MuST-C En-De training set. Since models using the generated translations as context are affected by exposure bias, we wanted to test our solution also in more realistic conditions, with a stronger baseline model trained in rich data conditions. This model (BASE_ALL) was trained with set to and to , on all the data available for the IWSLT 2020 evaluation campaign,333http://iwslt.org/doku.php?id=offline_speech_translation with knowledge distillation from an MT model and synthetic data generated translating the transcripts of ASR corpora. Its training involves a pre-training on the synthetic data, a fine-tuning on the data having ground-truth translations and a second fine-tuning using label-smoothed cross entropy instead of knowledge distillation [gaido-etal-2020-end].

All the context-aware models are initialized with the corresponding baseline model trained on sentence-segmented data. We experimented with freezing all the pre-trained parameters as in [zhang-etal-2018-improving], but freezing the decoder weights turned out to be harmful. If freezed, decoder’s layers are not able to adapt to the new inputs (with different segmentation) and this slows down convergence and leads to worse results. We hence freeze only the encoder. Our code is based on fairseq [ott-etal-2019-fairseq] and is available at https://github.com/mgaido91/FBK-fairseq-ST.

Textual data were pre-processed with tokenization and punctuation normalization performed using Moses [koehn-etal-2007-moses], and were segmented with BPE merge rules [sennrich2015neural]. For the audio, we applied Mel filters with window size of

ms and stride of

ms, performing speaker normalization with XNMT [neubig-etal-2018-xnmt]. To avoid out-of-memory errors, we excluded from the training set the audio segments longer than seconds.

In all cases, evaluation is performed on the best model according to the loss on the validation set. The metrics used are BLEU [papineni2002bleu] and TER [Snover:06], computed against the reference translations in the MuST-C En-De test set.

4 Results

We performed preliminary experiments with BASE_MUSTC (scoring 21.08 BLEU on the original MuST-C En-De test set) to compare the context integration techniques and select the most suitable one for ST. We then compared the fine-tuning with the context-aware models using the stronger baseline model BASE_ALL (scoring 27.55 BLEU on the original test set).

LIUM WebRTC
3, 30ms 2, 20ms 3, 20ms
BASE_MUSTC 17.32 17.82 17.75 16.31
SRC SEQ 19.08 18.81 18.00 17.42
SRC PAR 19.25 18.90 18.25 17.30
TGT SEQ 19.57 19.21 18.81 17.60
TGT PAR 20.01 18.98 18.82 17.32
Table 2: Evaluation results on the VAD-segmented test set. Notes: SRC=audio as context; TGT=generated translation as context; SEQ=sequential; PAR=parallel.
LIUM WebRTC
AGG=3, FS=30ms AGG=2, FS=20ms AGG=3, FS=20ms
BLEU () TER () BLEU () TER () BLEU () TER () BLEU () TER ()
BASE_ALL 19.66 76.57 22.07 67.08 21.98 66.83 19.59 72.62
FINE-TUNE 22.48 64.21 23.48 60.03 23.40 61.54 21.35 63.90
TGT SEQ 23.18 58.60 22.85 58.49 22.59 59.79 21.11 60.51
   + REG 23.88 58.81 23.61 58.57 23.15 60.36 21.88 60.97
TGT PAR 23.77 59.02 23.34 58.94 22.91 60.09 21.75 60.77
   + REG 23.91 58.95 23.51 58.64 23.40 59.95 22.03 60.83
Table 3: Comparison between base model, fine-tuning and context-aware models.

4.1 Context information and integration

Table 2 shows that all the tested approaches outperform the baseline on VAD-segmented data with a margin that ranges from 0.25 to 2.69 BLEU points. This indicates that the context is useful to mitigate the effect of VAD-based segmentation. On LIUM, our models achieve the highest score (TGT PAR, 20.01 BLEU) and the largest gain over the baseline; on WebRTC the improvements are significant but smaller. We argue that the reason lies in the different characteristics of the two tools. The split positions selected by LIUM do not always correspond to actual pauses in the audio, which prevents the baseline model from disposing of all the information necessary for translation. This information, instead, is available to the context-aware models as they can access the previous segment. WebRTC, instead, produces very long/short segments, whose effect on context-aware models is limited: the contribution of adding the previous segment is low both in case of very long segments, as only the first part is influenced by it, and in case of very short ones, as having a short segment as context means adding little information. We also experimented with including manually-segmented data, but it was not beneficial for any of our models.

Looking at the context modality (text vs audio), we observe that supplying the previously generated translation (TGT*) yields higher BLEU scores than supplying its corresponding audio (SRC*) with both the integration types (*SEQ and *PAR). This suggests that the audio representation produced by current ST models is less suitable than text to extract useful content information to support traslation. In light of these observations, we decided to proceed with TGT SEQ and TGT PAR in the following experiments with the stronger BASE_ALL model.

4.2 Context vs fine-tuning

In this section, we compare the performance of the fine-tuning and the context-aware solutions. In this way, we can disentangle the benefits produced by the context and those due to the use of artificial training data.

The results in Table 3 show that: i) fine-tuning on the artificial data produces significant gains over BASE_ALL (respectively, 2.82 BLEU points on LIUM and from 1.41 to 1.76 on WebRTC), and ii) TGT PAR outperforms TGT SEQ on all datasets (by 0.32 to 0.64). TGT PAR without regularization is superior to the fine-tuning when the VAD splits very aggressively (21.75 vs 21.35 on WebRTC 3, 20ms) or in non-pause positions (23.77 vs 22.48 on LIUM). On the other VAD configurations, the results are close, but inferior to the fine-tuning. Our intuition is that this behavior is caused by the noise added by the context-attention when the context is not needed. This is confirmed by the results obtained adding the context-gate regularization presented in Eq. (3) (TGT PAR+REG and TGT SEQ+REG). The regularization allows our best context-aware model (TGT PAR+REG) to outperform the fine-tuned model on 3 out of 4 VAD configurations tested (in one case BLEU is on par) and improves both integration types. TGT SEQ benefits more from it, closing the gap with TGT PAR

. The value of the hyperparameter

was chosen among , , and : we set it to as it provided the best loss on the validation set.

The difference between context-aware models and fine-tuning is even more evident if we consider the TER metric (the lower the better). In this case, TGT SEQ obtains the best scores in every setting, but the results of all context-aware models are close and are to points better than those obtained with fine-tuning. We also noticed that 1-,2-,3- and 4-gram BLEU scores are always significantly higher for the context-aware solutions than for the fine-tuning, even when the overall BLEU scores are similar. The reason lies in the brevity penalty, as the context-aware models produce shorter translations. Interestingly, the best result (23.91 BLEU) is obtained by exploiting the context in one of the hardest segmentations for the base model (19.66 BLEU). This is coherent with the behavior observed in .

5 Analysis

We performed a manual analysis of the translations produced by the baseline and by our best context-aware model (TGT PAR + REG) on the LIUM-segmented test set. The goal was to check whether the gains are actually due to the use of contextual information and to understand how this information is exploited. We noticed three main issues solved by the context-aware approach. They are all related to the presence of sub-sentential fragments located at the beginning or the end of a segment. First, these fragments are often ignored by the baseline model. Being trained only on well-formed sentences from the clean MuST-C corpus, this model seems unable to handle segments reflecting truncated sentences and, instead of returning partial translations, it opts for ignoring part of the input audio. Second, the base model produces hallucinations [Lee2018HallucinationsIN] trying to translate a sub-sentential fragment into a well-formed target sentence. Our models, instead, produce the translation corresponding to the incomplete fragment. Third, the baseline model translates the sub-sentential fragment and the adjacent sentence in the same segment into one single output sentence, mixing them. In contrast, our models are able to translate them separately.

6 Conclusions

We studied how to make ST models trained on data segmented at sentence-level robust to VAD-segmented audio supplied at inference time. To this aim, we explored different approaches to integrate contextual information provided by the segment preceding the one to be translated. Our experiments show that adopting a context-aware architecture, combined with training on artificial data generated with random segmentation, is beneficial to improve final translation quality. We also demonstrate that, compared to the best automatic segmentation (22.07 BLEU), context-aware models achieve results that are similar in the worst case (22.03) and significantly better in the best case (23.91). In this case, our context-based approach allows to reduce by 55% the performance gap of the base model (19.66) with respect to optimal (i.e. sentence-level) manual segmentation (27.55). All in all, this suggests that working on models’ robustness to sub-optimal VAD segmentation is at least as promising as improving the segmentation itself.

7 Acknowledgements

This work is part of the “End-to-end Spoken Language Translation in Rich Data Conditions” project,444https://ict.fbk.eu/units-hlt-mt-e2eslt/ which is financially supported by an Amazon AWS ML Grant.
