1 Introduction
Appearancebased generic object recognition is a challenging problem because all possible appearance of new objects, which are produced every day cannot be completely registered. In contrast, function of objects is common to many objects regularly handled by humans and has a comparatively small number of prototypes. Therefore, a functionbased classification of new objects could be valuable for generic object recognition. The effectiveness of object functions in generic object recognition has been already discussed and indicated [1, 2]. However, in the papers, each function is manually defined for each object category. It is desirable that information specifying functions can be extracted without manually assigning function labels to many objects.
The object function is closely related to the interactions between the functional object and human hand. Specifically, it embodies the approach of the hand to the object, the parts of the object contacted by the hand, and the hand shape activated by the interaction [3]. The interaction types specified by such factors have been precisely analyzed in the literature [4]. Hand–object interactions are therefore promising for functionbased classification in imagebased recognition. Some parts of objects, such as grips, bottoms, and brims, are handled in typical ways (Fig. 1). Such interactions with specific parts are called perceived affordance [5].
Assuming that a hand–object interaction can be represented by a descriptor, the descriptor can be considered as a latent attribute of the object itself. Such descriptors are available for training samples but not for the test samples. In the context of machine learning, training with hidden information (such as latent attributes) can improve the classification accuracy [6, 7, 8, 9]
. The hidden information contains additional records of each training sample: for example, age, gender, or race in facial recognition algorithms. The classifier is trained to recognize facial image patterns by calculating the similarity metric of the hidden information such as age, gender, or race, which provides the error costs. Although the hidden information is not available for test samples, considering the hidden information on training brings the classification boundaries with no overfitting and good inference performance. A similar framework is potentially applicable to recognition based on hand–object interactions.
Alessandro Pieropan et al. have proposed an method estimating an object function from a sequence of interactions
[10]. They focus on defining a function by a sequence of descriptions of predefined actions (comparatively large motion), not including shapes of hands and objects, which are important for interaction between a hand and a tool. Dan Song et al. have proposed an method estimating a human intention from an image sequence of an interaction[11]. In the method, relationship between intention and appearances is learned supervisedly. The interaction type is discretely defined and required to be given manually before modeling for each action samples. Since an object shape and grasping hand–postures intrinsically have continuous variations, descriptions of interactions should reflect such variation continuously.We propose a system that can embed a hand–object interaction as a “interaction descriptor” vector in a small dimensional space. The interaction descriptor represents hand–object interactions continuously in contrast to discrete label sets, which only discriminate several predefined objects (“cup”, “pen”, …) or function classes (for “drink”, “write”, …). The proposed method can achieve the embedding in unsupervised way. Assuming that object function is closely related to handobject interactions, the interaction descriptor is helpful for modeling object functions.
For a numerical representation of hand–object interactions, we introduce the interaction descriptor space
. This space is unsupervisedly constructed by a convolutional autoencoder (CAE)
[12], an unsupervised feature extraction method. When training the model, we introduce a sparseness term in the evaluation function that clusters similar interactions in the descriptor space. The training is based on the appearances of hand–object interactions of typical functional objects such as scissors, cutters, pens, and cups. The latent attributes in the training are the
interaction images, comprising the appearance itself and its segmentation images of the hand and object. The descriptor space can quantitatively discriminate among an infinite number of functional object types.Employing the convolutional neural network (CNN)

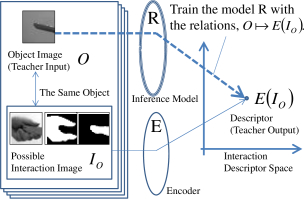

[13], we then model the relation between an object’s appearance and its corresponding hand–object interaction state in the interaction descriptor space. In this way, the model can infer the interaction state from the object image alone.We demonstrate that the descriptor space and the proposed framework successfully encode the hand–object interaction state from a single object image.
2 Interaction descriptor space
The object function is closely related to the type of hand–object interaction during handling of a functional object, such as grasping the object, picking it up, the direction of approach of the hand, and other characteristic motions. Therefore, these hand–object interactions are potentially useful for describing the object function. Since an object shape and grasping hand–postures intrinsically have continuous variations, interaction descriptors should continuously reflect such variations. We represent an interaction descriptor as a vector in a continuous vector space, “interaction descriptor space”. We generate an interaction descriptor vector by encoding an appearance of a hand–object interaction because the appearance reflects the type of the interaction.
The problem is how to generate the mapping from an appearance to an interaction descriptor. The mapping should satisfy the following conditions:

The mapping extracts only the essential information of the interaction. The detailed shape or texture of the object, which are not relevant to the interaction, should be ignored.

The mapping can be learned with a set of unlabeled appearances and therefore can be generated without manually classifying the interactions beforehand.

Images corresponding to different interactions are mapped to distantly spaced descriptors. The difference between two interactions should be reflected in the numerical distance between their corresponding descriptors.

Images corresponding to similar interactions are mapped to closely spaced descriptors, even when the objects differ in size or shape and are slightly displaced from each other in the images.

Certain spatially local features, such as edges and grips, are common to multiple interactions and are effective for distinguishing among interactions. Such useful features should be automatically found from a set of appearances.
The essential information can be extracted by the autoencoder method [14, 15], which employs an encoder and a decoder. The encoder converts an input to a code with lower dimensionality, and the decoder approximately restores the original input from the code. Both elements are trained such that the combination restores the input as correctly as possible for a certain set of vectors. Under this constraint, the encoder generates a numerical representation of the principal components required for input restoration. In addition, the encoder and decoder can be trained with unlabeled vectors (satisfying condition B, mentioned above).
If we can restore an interaction appearance from a descriptor, then the descriptor contains information of the interaction. The mapping that satisfies conditions A and B is generated by autoencoder method.
To satisfy condition C, we concentrate the descriptors corresponding to certain types of interaction appearances and isolate them from descriptors corresponding to other types of interactions. If a label specifying an interaction type can be assigned to each appearance, we can further constrain the mapping so that the descriptors of two different interaction types are distantly spaced. However, to satisfy B, the important components that specify an interaction must be found from unlabeled appearances. In previous studies, the important components among a set of unlabeled vectors have been found by sparse coding methods [16, 17, 18, 19, 20]. However, these methods require additional inequality or equality constraint.
(a) encoder
(b) decoder
To resolve this problem, we introduce a sparseness constraint to the autoencoder. Although sparse autoencoders have been previously proposed [21, 15], the method in [21] requires an inequality constraint when training the model. The method in [15] requires the scheduling of the sparsity level.
We introduce the sparseness constraint that does not require equality or inequality constraint. It is applicable to a general CNNbased autoencoder that is followed by fully connected neural networks with nonlinear activation functions. As a CNN consists of convolutional filters that uniformly extract spatially local features from an image, the extracted local features are positionindependent (satisfying conditions
D and E). In addition, the CNN filters can be trained by an unsupervised learning method (satisfying
B).3 Interaction image
Before generating a descriptor from an interaction appearance, we need to define the appearance which contains sufficient information to distinguish among interactions.

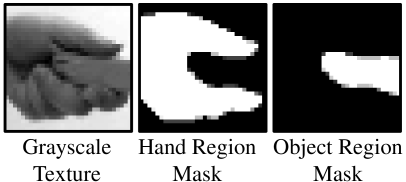

The appearance is derived from an interaction image (Fig. 4), a 3channel normalized image consisting of a total appearance, a hand region mask and an object region mask.
4 Autoencoder for generating descriptors
We simultaneously constructed the interaction descriptor space and the mapping using a sparse convolutional autoencoder (CAE).
4.1 Network structure
To automatically extract the local features that effectively identify an interaction, we place the CNN as the first layer of the encoder. For learning the nonlinear relation between the local features and interactions, the first layer is followed by a threelayer fully connected neural network in which each layer precedes a nonlinear activation function (Fig. 4(a)). Similarly, the decoder is a fully connected neural network with a nonlinear activation function for representing the nonlinear relation (Fig. 4(b)).
4.2 Cost function
Generally, an autoencoder is trained such that the encoder–decoder combination approximately restores an input in a certain input set. It is formulated as
(1)
where , , , , and denote the input to be reconstructed, a set of inputs, the encoder, the decoder, and the norm, respectively. In our problem, and denote the interaction image and its corresponding descriptor, respectively.
In the above objective function, the encoder should preserve the information of an input among a certain set of inputs. Our problem requests that the encoder can extract the essential components common to the interaction appearances of similar type. According to the basis pursuit concept [23] or sparse coding method, this can be achieved by constraining the norm of the encoder’s output. Simply, the constraint can be imposed on the objective function as follows:
(2)
However, simply adding the norm term is ineffective because the additional term can be rendered arbitrarily small by scalar multiplication of the encoder output and the decoder input. Basis pursuit avoids this problem by adding a constraint of the magnitude of the encoder matrix, as given by Eq.(1) in [21]:
(3)
subject to
where and mean an input vector and an decoder matrix, respectively, and denotes the code corresponding to . However, such a constraint is not easily imposed on an NNbased encoder. Instead, we introduce a constraint term that simultaneously limits the norm and the magnitude of the encoder’s output as follows:
(4)
(5)
(6)
The additional term is the ratio of the norm to the norm of the descriptor . is smaller if the descriptor vector is more sparse [24, 25]. The autoencoder is trained to minimize the total cost function .
For a dimensional vector , is minimized at 1 only when the vector has a single nonzero component and all other components are zero (the sparsest case). Conversely, it is maximized when all components of have a common absolute value. The lower the , the fewer basis vectors required in the weighted sum that approximates the decoder outputs.
This decoder obtains the shapes of a hand and an object and their spatial relation from a point on the interaction descriptor space (Fig. 5).
5 Inference model
With the numerical interaction descriptor, the CNN can learn the relation between an object appearance and a possible interaction (Fig. 6). We can then infer an instance of the interaction descriptor from the appearance of an object.

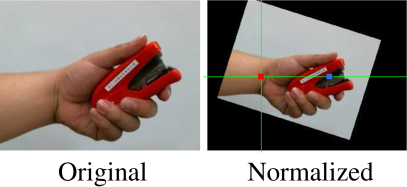

Each interaction descriptor does not represent an absolute direction of an interaction in an image because it is based on interaction images and they are normalized by the wrist–object coordinate system, as shown in Fig. 4. An interaction descriptor represents shapes of a hand and an object, their relative position and their relative direction. So, when pairing an objectonly appearance with an interaction descriptor for training the inference model, any rotated versions of the objectonly appearance may be paired with the interaction descriptor. Although it is possible to train the inference model with all pairs of any rotated objectonly appearance and an interaction descriptor, a convolutional neural network (CNN) cannot effectively extract common components from many rotated variations [26]. To learn common shapes of objects with common possible interactions by a CNN effectively, it is desirable that directions of objects with common interactions are standardized. Since an objectonly appearance does not have an obvious standard direction, we have normalized a direction of an objectonly appearance so that the object has a direction similar to that of an object in the paired interaction image.
Due to the normalization, when inferring an interaction descriptor from an objectonly appearance, we have to rotate the appearance so that its direction matches to that of a similar object used in training. Since appropriate rotation for an object is unknown generally, we have to infer interaction descriptors from all possible versions of the rotated appearance.
However, if objects have some typical poses in images due to gravity or other reason, the inference model should be trained with pairs of an appearances of an object in such a typical pose and a corresponding interaction descriptor. The inference model trained in that way can infer an interaction descriptor from an objectonly appearance itself because it matches to one of typical poses.

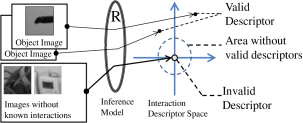

We also introduce an invalid descriptor that discriminates between images with and without known interactions. For an input without known interactions, the model is trained to output the descriptor closest to the invalid descriptor. The invalid descriptor is defined as a zero vector. The model is trained with two types of teacher samples (Fig. 7); pairs of an image with a known interaction and its descriptor (positive samples), and pairs of an image without known interactions and an invalid descriptor (negative samples).

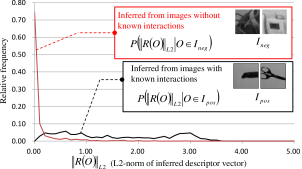

After training the model, we estimate the probability distribution of the
norms of the inferred descriptors for samples of each teacher type. These samples differ from the training samples of the inference model . Figure 8 shows the estimated distributions of and , where denotes the inference model, denotes an input image, and and are the sets of teacher images with and without known interactions, respectively. As shown in the figure, a high norm of an inferred descriptor indicates large likelihood that the input has a known interaction. The likelihood that an input image has a known interaction is given by(7)
where
(8)

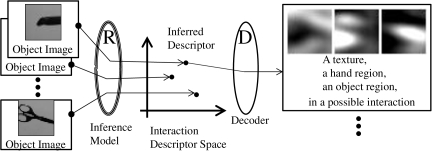

By connecting the inference model and the decoder , our system infers a possible interaction image from the appearance of an object (Fig. 9). The inference model is the CNN shown in Fig. 10.
6 Experiment

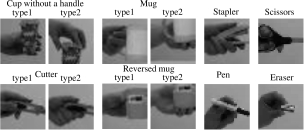

The encoder and decoder were trained with interaction images generated from 1,680 scenes showing 12 types of interactions (Fig. 11). Each interaction image was generated from a subimage randomly located in the scene image. We generated multiple instances of interaction images from each scene by randomly extracting subsquares with sufficient area of a hand region. The total variation exceeds 500,000. Masks in interaction images were generated by skin color extraction and background subtraction. The encoder and decoder were trained by minimizing
using stochastic gradient descent (SGD)
[13].6.1 Distribution of descriptors
To demonstrate the effect of the sparseness cost, we define the diameter of a set of descriptors as follows:
(9)
We also define as a set of descriptors of the th interaction type, and denote as the mean of for . If is small, the descriptors corresponding to a similar interaction are closely placed. This is a desirable property because similarity of interactions should be reflected in closeness of their descriptors.
Figure 12 shows the relation between the sparseness cost and the mean diameter of the descriptor sets. Each point corresponds to a pair of and after the training process for each weight in the cost function (4). The case is equivalent to the case without a sparseness cost. The figure shows that larger brings smaller and smaller brings smaller . Smaller means that descriptors corresponding to a similar interaction are more aggregated. This result shows that the proposed method can unsupervisedly generate interaction descriptors that make aggregates corresponding to hand–object interactions.
To compare distributions of descriptors by autoencoders trained with/without the sparseness cost in (4), we calculated the purity, an evaluation measure of clustering quality, The purity is defined by how many samples in a cluster belong to the most frequent class label (correct label given manually) in the cluster as follows;
(10)
where means the number of samples assigned to the th cluster, and means the number of samples from the th type interaction assigned to the th cluster. If the purity of clusters is close to 1, almost all descriptors of each cluster belong to a common interaction type. This means that the clusters generated without information of interaction types approximately form subdivision of interaction types. We calculated descriptors from 800 hand–object interaction images not used in the training for each autoencoder, and applied meanshift clustering to the descriptors. Table 1 shows the purities for autoencoders trained with/without the sparseness cost . The purity for the autoencoder trained with the sparseness cost (the proposed method) was 0.99, while that for that without sparseness cost was 0.16. 99 percent of descriptors in a cluster by the proposed method belong to a common interaction type. This implies that the descriptors for the same interaction type are more separately embedded by the autoencoder trained with sparseness cost than without sparseness cost. It is important that these clusters with the similar interaction was unsupervisedly generated from only image signals.
Autoencoder  Purity

Without the sparseness cost  0.16
With the sparseness cost (the proposed method)  0.99

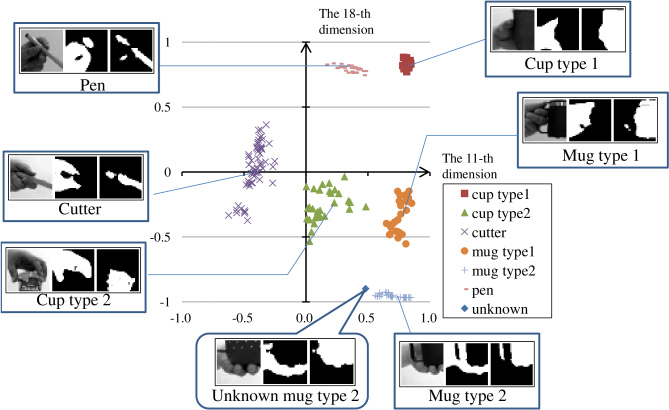

Figure 13 shows the distribution of various object images within 11th and 18th dimensions of the interaction descriptor space. “Mug type 1” and “Mug type 2” are different hand–mug interactions. In the former interaction, the hand grips the mug’s handle; in the latter, the hand holds the mug from the bottom. As shown in Fig. 13, these interactions form two separate clusters in the descriptor space. In addition, the interaction image “Mug type 2”, which was not used in training, maps to a descriptor near those of the mug–hand interaction images used in training. As a group of similar interactions composes a cluster in the interaction descriptor space, that space well characterizes the types of hand–object interactions.
6.2 Restoration by the decoder
Figure 14 shows examples of the decoder restorations. The encoder abstracts the rough shapes and positions of image features, ignoring their specific textures.
(a) Cutter type1  (b) Cutter type2
(c) Mug type2  (d) Scissors
6.3 Inference of an interaction
Figure 15 shows interaction images inferred from appearances of objects. In these examples, the pairs of masks of the inferred hand and object show their positional relations in the possible interaction. The hand–object interactions were successfully inferred from the single object images.
Figure 16 shows the region of interaction between scissors and a human hand. The colored regions mark the center of a window in which the likelihood exceeds . High and low likelihoods are inferred around the grip and edges of the scissors, respectively, reflecting the human interactions with the grip of scissors and avoidance of the edge in teacher images. The inference model can therefore infer the interaction regions of human hands and scissors.
Figure 17 is a color representation of the inferred interaction descriptors for parts of a cup. The color of each position is determined by mean shift clustering of the vectors containing the inferred descriptor and the position. This figure reveals the different types of interactions inferred on the grip and the bottom of the cup. Figure 18 shows the handregion masks inferred in these two interaction types. The model can infer an interaction descriptor corresponding to possible interaction at a particular position.
To demonstrate that the proposed method can infer a possible interaction from an appearance of an unknown object in an unknown category, we inferred interaction descriptors from an appearance of a bag shown in the top image in Fig. 19. No bags are not used in training, but a grip of the bag has an appearance similar to that of a mug used in training. The bottom left image in Fig. 19 is a hand region mask inferred from an image around a grip of the bag. It shows that the inference model can infer a hand region mask like handling the grip of the bag from an image rotated so that the direction of the grip is close to that of a mug used in training the inference model. This means that the inference model learns the relation between a griplike shape and an interaction for handling it. And also, as shown in the bottom right image in Fig. 19, a hand region like supporting the bottom is inferred from the other part of the bag, which is similar a bottom of a mug.
This indicates that the inference model can infer a possible interaction from a partial appearance of an unknown object in an unknown category if the model is trained with similar partial appearances included in other objects.
To evaluate the proposed inference model, we compared an interaction image inferred from an appearance of an object with a real instance of an interaction image occurred with the same object. To compare the two interaction images quantitatively, we calculated mean peak signal to noise ratios (PSNRs) between them for each channel (total appearance, hand region mask and object region mask), which is defined as below.
(11)
where
(12)
The calculated values of PSNRs are shown in Tab. 2. The values of PSNRs for training samples are from 8[dB] to 10[dB]. They are lower than 20[dB] that indicates unacceptable image quality in image compression[27]. This is because the autoencoder extracts essential components common to some appearances of interactions instead of encoding detail of each interaction image. However, Fig. 15 shows that the proposed method can infer rough shapes of a hand and an object. From an appearance of a cutter, a hand mask region like grasping the cutter is inferred. An object hand mask region inferred from the cutter indicates a narrow and long region and it matches rough shape of the grip of the cutter. From an appearance of a cup, a hand mask region like grasping the cup is inferred. Although the value of PSNRs are not high, the proposed method can roughly infer a possible interaction.
(a) A cutter  (b) Scissors
(c) A cup  (d) A pen
Mean PSNR [dB] for each channel

Total appearance  Hand region  Object region
for training samples  8.80  10.33  10.94
for test samples  3.66  6.53  7.22
7 Conclusion
We proposed the interaction descriptor space for describing the hand–object interactions of functional objects. The space is automatically constructed from sets of objecthandling images of typical functional objects such as mugs, scissors, cutters. We demonstrated that a descriptor corresponds to a quantitative interaction state and descriptors make clusters consistent with interaction types. We also proposed an inference model that infers a possible interaction from an object image alone. Given an object image, the model successfully inferred an interaction descriptor corresponding to a possible interaction at each position of the image.
The interaction descriptor space can characterize hand–object interactions and it can be used to model the relations between an object and its possible interactions. The proposed approach is a potentially valuable tool in functionbased classification.
