# Construction of 1-Bit Transmit Signal Vectors for Downlink MU-MISO Systems: QAM constellations

In this paper, we investigate the construction of transmit signal for a base station (BS) with a massive number of antenna arrays under cost-effective 1-bit digital-to-analog converters (DACs). Because of the coarse nonlinear property, conventional precoding methods could not yield satisfactory performances. Moreover, finding an optimal transmit signal is computationally implausible due to its combinatorial nature. Thus, it is still an open problem to construct a 1-bit transmit signal efficiently. We first derive a feasibility condition which ensures that each user's noiseless observation belongs to a desired decision region, and then formulate it as linear constraints. Taking into account the robustness to a noise, we develop a mixed-integer-linear-programming (MILP) problem. Also, we propose an efficient algorithm to solve it (equivalently, to generate a 1-bit transmit vector). We further compare the computational complexities of the proposed and existing methods. Simulation results validate the computation complexity and the detection performance of the proposed method.

## Authors

• 2 publications
• 6 publications
• 7 publications
06/01/2021

### Low-Complexity Symbol-Level Precoding for MU-MISO Downlink Systems with QAM Signals

This study proposes the construction of a transmit signal for large-scal...
01/23/2019

### Construction of One-Bit Transmit-Signal Vectors for Downlink MU-MISO Systems with PSK Signaling

We study a downlink multi-user multiple-input single-output (MU-MISO) sy...
10/29/2018

### Hybrid Analog-Digital Precoding for Interference Exploitation

We study the multi-user massive multiple-input-single-output (MISO) and ...
02/28/2018

### Reconsidering Linear Transmit Signal Processing in 1-Bit Quantized Multi-User MISO Systems

In this contribution, we investigate a coarsely quantized Multi-User (MU...
05/16/2020

### Quantized Massive MIMO Systems with Multicell Coordinated Beamforming and Power Control

In this paper, we investigate a coordinated multipoint (CoMP) beamformin...
12/04/2020

### Massive MIMO with Dense Arrays and 1-bit Data Converters

We consider wireless communication systems with compact planar arrays ha...
12/10/2018

### A Supervised-Learning Detector for Multihop Distributed Reception Systems

We consider a multihop distributed uplink reception system in which K us...
##### This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

## I Introduction

In recent years, massive multiple-input single-output (MISO) has been actively investigated for fifth-generation (5G) and future wireless communication systems due to its significant gain in spectral efficiency [1]. In contrast, because of the large number of antennas, dealing with a high hardware cost and considerable power consumption become one of the key challenges. In massive MISO systems, the use of cheap and efficient building block, e.g., digital-to-analog converters (DACs), has attracted the most interest as a promising low-power solution [2, 3]. Considering the same clock frequency and resolution, it is known that DACs have lower power consumption than analog to digital converters, therefore research on low-resolution DACs are often ignored for this reason. However, in downlink multiuser massive MISO systems, the number of transmit antenna at base station (BS) is much larger than the number of receive antennas. In this context, we should consider DACs’ power consumption, cost, and computation complexity. In downlink systems, conventional precoding method such as zero-forcing (ZF) and regularized ZF (RZF) achieve almost optimal performance effectively [4]. These linear precoding schemes have a low complexity and widely used in wireless communication with high resolution DACs (e.g., 12 bits). But in reality, massive MISO must be built with low cost DACs. This is because power consumption due to quantization increases exponentially as resolution increases. Many non-linear precoding methods with phase-shift-keying (PSK) constellation have been studied actively in the system, which achieve good performances with low complexities [5, 6, 7, 8]. Especially, near-optimal performance with PSK is demonstrated using branch and bound method (B&B) in [8]. However, the above methods cannot be applied to more practical quadrature-amplitude-modulation (QAM) constellations, due to the property of QAM as boundness of decision regions. Recently, some precoding methods with QAM has been investigated in [9, 10]. Exploiting a superposition coding of two QPSK symbols to generalize a 16-QAM symbol, the authors in [9] formulated an optimization problem using gradient projection to obtain 1-bit transmit vectors, and stored them in a look-up-table per coherent channel. In [10], non-linear 1-bit precoding schemes for Massive MIMO with high-order QAM were proposed which are enabled by semidefinite relaxation and -norm relaxation. These methods aim at reducing the performance-loss compared with conventional cases with infinite-resolution DACs. In the aggregate, we need to study an effective precoding method resulting in good performance and low complexity at QAM constellation in the downlink MU-MISO system with 1-bit DACs.

Unlike PSK constellations, the boundness of a decision region in QAM constellations should be carefully considered to design a transmit signal vector. Although the 1-bit precoding constructions under QAM constellations have been studied in various perspectives, they do not provide an elegant complexity-performance trade-off. In this paper, we suggest a novel direction to construct a 1-bit transmit signal vector in the system. The first key contribution is to derive a simple feasibility condition which ensures that each user’s noiseless received signal is located in a desired decision region. Also, we present an optimization problem as mixed integer linear programming (MILP), by incorporating the robustness to a noise into the feasibility criterion. Unfortunately, it is too complex to solve the MILP optimally. We thus propose an efficient algorithm to solve the MILP, in which it is fist solved with a LP relaxation and then the resulting solution is refined to satisfy the 1-bit constraint. Via simulation results, the proposed method shows better performances than the existing benchmark methods. In addition, the complexity comparisons of the proposed and existing methods demonstrate the potential of the proposed direction and algorithm.

This paper is organized as follows. In Section II, we provide useful notations and definitions, and describe a system model. In Section III, we propose an efficient method to construct a transmit signal vector for downlink MU-MISO systems with 1-bit DACs. Section IV provides simulation results. Conclusions are provided in V.

## Ii Preliminaries

In this section, we provide useful notations which will be used throughout the paper, and then describe the system model.

### Ii-a Notation

The lowercase and uppercase bold letters represent column vectors and matrices, respectively. The symbol denotes the transpose of a vector or a matrix. For any vector , represents the -th component of . Let for any integer and with . and represent the real and complex parts of a complex vector , respectively. Given a , we let

 g(x)=[Re(x),Im(x)]T, (1)

and the inverse mapping of is denoted as . Also, and are the component-wise operations, i.e., . For a complex-value , its real-valued matrix expansion is defined as

 ϕ(x)=[Re(x)−Im(x)Im(x)Re(x)]. (2)

As an extension into a vector, we have .

### Ii-B System Model

We consider a downlink MU-MISO system in which BS equipped with transmits antennas serves users, each of which has a single antenna. As the natural extension of our earlier work in [5], where PSK constellations were only considered, this paper focuses on -QAM with . Let denote the set of constellation points of -QAM. Also, let be a transmit vector at the BS. Then, the received signal vector at the users is given as

 y=√ρHx+z, (3)

where

denotes the frequency-flat Rayleigh fading channel, each of which component follows a complex Gaussian distribution with zero mean and unit variance, and

denotes the additive Gaussian noise vector whose each element are distributed as complex Gaussian random variables with zero mean and unit variance, i.e.,

. The signal-to-noise ratio (SNR) is defined as

, where denotes the per-antenna power constraint. Throughout the paper, it is assumed that the channel matrix is perfectly known at the BS.

Given a message vector , BS needs to construct a transmit vector such that each user can recover the desired message successfully. Toward this, our goal is to construct a precoding function :

 x=P(H,s), (4)

which produces a transmit vector from the channel matrix and the message vector . Focusing on the impact of 1-bit DACs on the downlink precoding, we assume that BS is equipped with 1-bit DACs while all users are equipped with infinite-resolution ADCs. Accordingly, each component of the transmit vector is restricted as

 Re(xi) and Im(xi)∈{−1,1}. (5)

Since this restriction causes a severe non-linearity, conventional precoding methods, developed by exploiting the linearity, cannot ensure an attractive performance. The goal of this paper is to construct a precoding function having a manageable complexity and suitable for the considered non-linear MISO channels.

## Iii The Proposed Transmit-Signal Vectors

We formulate an optimization problem to construct a transmit-vector under -QAM. Especially, this problem can be represented as a manageable mixed integer linear programming (MILP). We remark that our earlier work on PSK [5] cannot be employed as the decision regions of -QAM are bounded (see Fig. 1). For the ease of exploration, an equivalent real-valued expression will be used in the following:

 ~y=√ρ~H~x+~z, (6)

where , , , and denotes the real-value expansion matrix of .

Before explaining the main result, we provide the useful definitions which will be used throughout the paper.

###### Definition 1

(Decision region) For any constellation point , the decision region of is defined as

 R(s)≜{y∈C:|y−s|≤minc∈C:c≠s|y−c|}. (7)

This region implies that any received signal is detected as . Also, the corresponding real-valued decision region is given as

 ~R(s)=g(R(s)). (8)

###### Definition 2

(Base region) A base region , is defined as

 ~Bi≜{α1im1i+α2im2i:α1i,α2i>0}, (9)

where represents a basis vector with

 (10)

In the sequel, the decision region in Definition 1 will be represented by the intersections of the base regions in Definition 2 with proper shift values. This representation makes it easier to formulate an optimization problem.

First of all, we need to decide the size of bounded decision regions, i.e., the parameter in Fig. 1 should be determined. Note that denotes the minimum Euclidean distance of the given constellation points. In PSK, is always infinite regardless of a channel matrix, whereas in -QAM, it should be well-optimized. Specifically, should be chosen as large as possible to ensure a reliable performance, provided that a noiseless received signal belongs to the corresponding decision regions at all the users. Unfortunately, it is not tractable to find an optimal according to a given channel matrix. In this paper, we follow the asymptotic result in [11], where is fully determined as a function of and :

 τΔ=√2/π6 ⎷2ρNt2~f(K,n), (11)

where

 ~f(K,n)=K2n+13(2n−1)+2√K(2n+1)(22n−4)22.5(2n−1)3. (12)

We will explain how to construct a transmit-signal vector for a given decision size . Given -QAM, each symbol is indexed by a length- quaternary vector with , i.e.,

 C={s(n)(0,…,0),s(n)(0,…,1),…,s(n)(3,…,3)}. (13)

Each constellation point can be represented as a linear combination of the basis symbols ’s such as

 s(n)(i1,…,in)≜τn∑l=12n−l⋅cil. (14)

Here, the basis symbols are defined as

 ci≜√2{cos(π4(1+2i))+jsin(π4(1+2i))}, (15)

for . For the ease of expression, we represent the the constellation and the corresponding decision regions in the corresponding real-valued forms:

 ~C={g(s(n)(0,…,0)),g(s(n)(0,…,1)),…,g(s(n)(3,…,3))}, (16)

and

 (17)

A transmit vector should ensure that a noiseless received signal at the -th user (i.e., ) should be placed in the corresponding decision regions for all users . This necessity condition implies that should satisfy the following condition:

 g(rk) ∈~R(s(n)(μk,1,…,μk,n)),k∈[1:K]. (18)

for , where denotes a noiseless received signal (i.e., ).

Feasibility condition: The condition in (18) will be rewritten in a way that the optimization problem can be interpreted as an LP problem. The decision region in (18) can be expressed as the intersections of the shifted base regions in Definition 2:

 ~R(s(n)(i1,…,in))≜~Bi1n⋂l=2{~Bil+2n−(l−1)g(s(l−1)(i1,…,il−1))}, (19)

where the shifted base region with a bias is defined as

 ~Bi+c≜{α1im1i+α2im2i+c:α1i,α2i>0}. (20)

Then, the condition in (18) holds if can be represented by the following linear equations with some positive coefficients, i.e.,

 g(rk) =α1k,1m1μk,1+α2k,1m2μk,1+2ng(0) (21) =α1k,2m1μk,2+α2k,2m2μk,2+2n−1g(s(1)(μk,1)) ⋮ =α1k,nm1μk,n+α2k,nm2μk,n+21g(s(n−1)(μk,1,…,μk,n−1)),

for some . The condition in (21) is called a feasibility condition as it can guarantee that for . In other words, if this condition is satisfied, all users can reliably detect the desired messages in higher SNRs.

###### Example 1

Assuming 16-QAM, we will explain how to obtain the feasibility condition in (19). Consider the decision region . From Fig. 1, the decision region is represented by the intersection of the two base regions (i.e., the infinite region with blue basis in Fig. 1) and (i.e., the infinite region with red basis in Fig. 1). Thus, the decision region (i.e., the gray region in Fig. 1) is represented as

 R(s(2)(0,2))≜{B0+22g(0)}∩{B2+21s(1)(0)}. (22)

Also. from Definition 2, the above condition can be represented by the following two linear equations:

 g(rk)= α1k,1m10+α2k,1m20+22g(0), = α1k,2m12+α2k,2m22+21g(s(1)(0)), (23)

for some positive coefficients . This is equivalent to the condition in (21). In the same way, we can verify the feasibility condition in (19).

We are now ready to derive MILP problem which can generate an optimal transmit vector under 1-bt DAC constraints. We first represent the feasibility condition in a matrix form. Define the copies of the channel vector as

 HkΔ=1n⊗hk=[hTk,…,hTkn]T, (24)

where denotes the -th row of , denotes the length- all-1 vector, and indicates Kronecker product operator. Also, the corresponding real-valued expression is denoted as

 ~Hk=ϕ(Hk). (25)

Accordingly, the -extended received vector at -th user is defined as

 rk ≜g(Hkx) =~Hk~x=1n⊗g(rk). (26)

We next express the right-hand side of (21) (i.e., linear constraints) in a matrix form. From Definition 2, we let:

 Mi≜[m1i m2i]=[Re(ci)00Im(ci)]. (27)

We remark that is symmetric and orthogonal matrices, i.e.,

 MiMi=I. (28)

Since the decision region of a constellation point -QAM is formed as the conjunction of shifted base regions, we need to establish a tightly packed format that can cope with both base regions and shifts (biases). The former is addressed by the basis matrix and coefficient vector , which are respectively written as

 Mμk ≜diag(Mμk,1,…,Mμk,n) (29) \boldmathαk ≜[α1k,1,α2k,1,…,α1k,n,α2k,n]T. (30)

Lastly, the whole series of the biases are formed as the bias vector

, defined as

 bμk≜g([2n⋅0,2n−1⋅s(1)(μk,1),…,21⋅s(n−1)(μk,1,…,μk,n−1)]T). (31)

From (29)-(31), the matrix form of -th user’s feasibility conditions (21) is given as

 rk=Mμkαk+bμk. (32)

Leveraging the expression designed for each user, we construct the cascaded matrix form of feasibility condition on all users as

 ¯r=¯H~x=¯M¯α+¯b, (33)

where

 ¯M ≜diag(Mμ1,…,MμK),¯H≜[(~H1)T,…,(~HK)T]T ¯r ≜[(r1)T,…,(rK)T]T,¯b≜[(bμ1)T,…,(bμK)T]T ¯α ≜[(α1)T,…,(αK)T]T.

Thus, the feasibility condition in (33) is rewritten as

 ¯α=¯M¯H≜Λ~x−¯M¯b≜Λb, (34)

where we used the fact that from (28). We remark that and are fully determined by the channel matrix and users’ messages .

Robustness: A feasible transmit vector can provide an attractive performance in higher SNR regimes. Whereas, it could not guarantee the robustness to an additive Gaussian noise. To enhance the robustness, one reasonable way is to make a noiseless received signal to be placed in the center of the decision region. By taking this goal into account, we formulate the following optimization problem:

 P1: max~xmin{αik,j:i=1,2,j=1,2,k∈[1:K]} (35) s.t. ¯α=Λ~x−Λb α1k,j,α2k,j>0, k∈[1:K], j∈[1:n] ~x∈{−1,1}2Nt.

To be specific, we aim at moving away the noiseless received signal from the boundaries of the detection lines. Fig. 2 verifies the proposed approach, where normalized noiseless signals are plotted with , , and . The blue points depicts the noiseless received signals when ZF precoding in [4] is used with the assumption of infinite resolution. In contrast, the red points show the noiseless received signals when the proposed 1-bit transmit vectors, obtained from the solutions of , are used. Fig. 2 clearly shows that the red points can provide more robustness than the blue points.

Furthermore, is transformed to MILP:

 P2: \operatornamewithlimitsargmax~x,t  t s.t. Λi~x−Λb,i≥t, i∈[1:2nK] ~x∈{−1,1}2Nt, (36)

where and denote the -th row of and , respectively. The MILP problem can be solved via branch-and-bound (B&B) method [8], which can achieve a near optimal performance. However, its computation complexity is quite expensive for a realistic implement [8].

In the remaining part of this section, we present an efficient algorithm to solve MILP problem . We first solve the LP problem by relaxing the integer constraint in as the bounded interval:

 P3: \operatornamewithlimitsargmax~x,t  t s.t. Λi~x−Λb,i≥t, i∈[1:2nK] −1≤~xj≤1, j∈[1:2Nt]. (37)

This problem can be efficiently solved via interior point method [12], and the corresponding relaxed LP solution is denoted as . Then, we refine the solution of via a greedy algorithm (see Algorithm 1) so that it fulfills the desired one-bit constraints. Starting from the solution of , i.e., , the main idea behind the second stage is to choose an antenna index , to test the possible values of the antennas, that is , to calculate the set of scaling coefficients when we artificially change , and finally to set where the substitution of for insists the maximization of the minimum element in the coefficients.

### Iii-a Computation complexity

We compare the proposed algorithm with the existing methods in terms of a computational complexity. Following the related works [6, 5], the computational complexity is measured by the total number of the required real-valued multiplications. We first evaluate the complexity of the optimal method (i.e., an exhaustive search) which explores all the possible signal candidates . Since each candidate requires operations to generate the magnitude of coefficients in the feasibility conditions in (34), the total complexity of the exhaustive search is computed as

 Xe=4nKNt⋅22Nt. (38)

Also, as a low-complexity method, we consider the symbol-scaling method proposed in [6], where the total computation complexity is given as

 XSS=4N2t+24nKNt−2nK. (39)

We next focus on the computational complexity of the proposed algorithm which consists of LP solver and greedy algorithm. For the LP solver, the interior point method in [12] is assumed.

The proposed method is divided into LP solver and greedy algorithm. To solve the LP problem in , we use the interior point method[12]. The corresponding complexity (denoted as ) is given in [6] such as (42), where and denote the induced -norm of matrix and the accuracy, respectively. Also, the quantized LP represents the algorithm that directly quantizes the solution of to generate 1-bit transmit vector using sign function, given as

 xq=sign(xLP). (40)

Thus, the corresponding complexity is the same as that of LP as

 Xq=XLP. (41)

Also, the complexity of the greedy algorithm is obtained as

 Xgreedy=2⋅2nK⋅2Nt=8nKNt. (43)

Thus, the total computation complexity of proposed method is computed as

 Xpro=XLP+Xgreedy=XLP+8nKNt. (44)

The complexity of optimization-based method (42) cannot be directly compared with algorithm-based methods, since the complexity of optimization-based is obtained by analytic upper bound in worst case, not required number of real multiplications. For fair comparisons, thus, the complexities of all methods are compared via execution time (see Table I).

## Iv Simulation Results

In this section, we compare symbol error rate (SER) performances of various methods such as symbol scaling (SS), quantized LP (i.e., solving ) and the proposed algorithm. In addition, we evaluate the computational complexities with the simulation time (i.e., execution time) of the above methods and MILP-based method (i.e., solving ). Recall that is defined as per-antenna signal power to noise, i.e., .

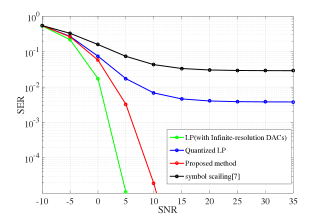

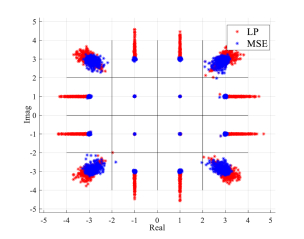

Fig. 3 shows the SER performance comparisons of the above algorithms for downlink MU-MISO systems with 1-bit DACs, where , , -QAM. Without 1-bit constraints, LP method (i.e., solving ) provides an optimal performance with infinite-resolution DACs. This can be interpreted as the lower-bound of the above 1-bit constraint methods. Note that, in this setting, we cannot evaluate the performance of MILP due to its unmanageable complexity. At high SNR, we observe that quantized LP suffers from a severe error-floor. Thus, it is required to consider the other LP-based methods instead of using the direct quantization of LP. For this reason, we apply the greedy algorithm which determines the entries of such that they belong to while keeping the feasibility and robustness. In Fig.3, we can see that the proposed method achieves an attractive performance closed to a lower bound, with low-complexity, while SS method which yielded a good performance in PSK constellations, suffers from an error-floor in QAM constellations.

In comparisons of computational complexities, we consider the average running time in executing realizations of each algorithm, and the corresponding results are summarized in Table I. For simulations, we consider the downlink MU-MISO systems, where , , -QAM, and . It is shown that MILP has an infeasible complexity in realistic implementation while the proposed method has extremely lower complexity than MILP. Moreover, the proposed method has a similar order of complexity with the symbol scaling method. In other words, these methods provide a lower complexity. Combining the results of Fig. 3 and Table I, we can conclude that the proposed method achieves an elegant complexity-performance tradeoff.

## V Conclusion

We proposed the construction of 1-bit transmit signal vector for downlink MU-MISO systems with QAM constellations. In this regard, we derived the linear feasibility constraints which ensures that each user can recover the desired message successfully, and transformed them into the cascaded matrix form. From this, we constructed mixed integer linear programming (MILP) problem whose solution generates a 1-bit transmit vector to satisfy the feasibility and guarantee the robustness to a noise. To address the computational complexity of MILP, we proposed the LP-relaxed algorithm consisting of two steps: i) solve the relaxed LP; ii) refine the LP solution to fit into the 1-bit constraint. Via simulation results, we demonstrated that the proposed method shows better performances than the benchmark methods with low-complexity. One promising future work is to further reduce the complexity of the proposed method without the cost of the performance loss.

## References

• [1] T. L. Marzetta, “Noncooperative Cellular Wireless with Unlimited Numbers of Base Station Antennas,” IEEE Trans. on Wireless Commun., vol. 9, no. 11, pp. 3590–3600, 2010.
• [2] Q. H. Spencer, C. B. Peel, A. L. Swindlehurst, and M. Haardt, “An introduction to the multi-user mimo downlink,” IEEE communications Magazine, vol. 42, no. 10, pp. 60–67, 2004.
• [3] E. G. Larsson, O. Edfors, F. Tufvesson, and T. L. Marzetta, “Massive mimo for next generation wireless systems,” IEEE communications magazine, vol. 52, no. 2, pp. 186–195, 2014.
• [4] C. B. Peel, B. M. Hochwald, and A. L. Swindlehurst, “A vector-perturbation technique for near-capacity multiantenna multiuser communication-part i: channel inversion and regularization,” IEEE Transactions on Communications, vol. 53, no. 1, pp. 195–202, 2005.
• [5] G.-J. Park and S.-N. Hong, “Construction of 1-bit transmit-signal vectors for downlink mu-miso systems with psk signaling,” IEEE Transactions on Vehicular Technology, vol. 68, no. 8, pp. 8270–8274, 2019.
• [6] A. Li, C. Masouros, F. Liu, and A. L. Swindlehurst, “Massive mimo 1-bit dac transmission: A low-complexity symbol scaling approach,” IEEE Transactions on Wireless Communications, vol. 17, no. 11, pp. 7559–7575, 2018.
• [7] O. Castañeda, S. Jacobsson, G. Durisi, M. Coldrey, T. Goldstein, and C. Studer, “1-bit massive mu-mimo precoding in vlsi,” IEEE Journal on Emerging and Selected Topics in Circuits and Systems, vol. 7, no. 4, pp. 508–522, 2017.
• [8] L. T. Landau and R. C. de Lamare, “Branch-and-bound precoding for multiuser mimo systems with 1-bit quantization,” IEEE Wireless Communications Letters, vol. 6, no. 6, pp. 770–773, 2017.
• [9] D. B. Amor, H. Jedda, and J. Nossek, “16 qam communication with 1-bit transmitters,” in WSA 2017; 21th International ITG Workshop on Smart Antennas.   VDE, 2017, pp. 1–5.
• [10] S. Jacobsson, G. Durisi, M. Coldrey, T. Goldstein, and C. Studer, “Nonlinear 1-bit precoding for massive mu-mimo with higher-order modulation,” in 2016 50th Asilomar Conference on Signals, Systems and Computers.   IEEE, 2016, pp. 763–767.
• [11] F. Sohrabi, Y.-F. Liu, and W. Yu, “One-bit precoding and constellation range design for massive mimo with qam signaling,” IEEE Journal of Selected Topics in Signal Processing, vol. 12, no. 3, pp. 557–570, 2018.
• [12] D. Den Hertog, Interior point approach to linear, quadratic and convex programming: algorithms and complexity.   Springer Science & Business Media, 2012, vol. 277.
