1 Introduction
In the recent years, deep convolutional neural networks (CNNs) have been dominating semantic segmentation problems, both in computer vision and medical imaging, achieving groundbreaking performances when fullsupervision is available
[4, 5, 6]. In semantic segmentation, full supervision requires laborious pixel/voxel annotations, which may not be available in a breadth of applications, more so when dealing with volumetric data. Furthermore, pixel/voxel level annotations become a serious impediment for scaling deep segmentation networks to new object categories or target domains.To reduce the burden of pixellevel annotations, weak supervision in the form partial or uncertain labels, for instance, bounding boxes [7], points [8], scribbles [9, 10], or image tags [11, 12]
, is attracting significant research attention. Imposing prior knowledge on the network’s output in the form of unsupervised loss terms is a wellestablished approach in machine learning
[13, 14]. Such priors can be viewed as regularization terms that leverage unlabeled data, embedding domainspecific knowledge. For instance, the recent studies in [15, 10] showed that direct regularization losses, e.g., dense conditional random field (CRF) or pairwise clustering, can yield outstanding results in weakly supervised segmentation, reaching almost fullsupervision performances in natural image segmentation. Surprisingly, such a principled directloss approach is not common in weakly supervised segmentation. In fact, most of the existing techniques synthesize fullylabeled training masks (proposals) from the available partial labels, mimicking full supervision [16, 17, 9, 18]. Typically, such proposalbased techniques iterate two steps: CNN learning and proposal generation facilitated by dense CRFs and fast meanfield inference [19], which are now the defacto choice for pairwise regularization in semantic segmentation algorithms.Our purpose here is to embed highorder (global) inequality constraints on the network outputs directly in the loss function, so as to guide learning. For instance, assume that we have some prior knowledge on the size (or volume) of the target region, e.g., in the form of lower and upper bounds on size, a common scenario in medical image segmentation [20, 21]. Let denotes a given training image, with a discrete image domain and the number of pixels/voxels in the image. is a weak (partial) groundtruth segmentation of the image, taking the form of a partial annotation of the target region, e.g., a few points (see Figure 2). In this case, one can optimize a partial crossentropy loss subject to inequality constraints on the network outputs [1]:
(1)
where S =
is a vector of softmax probabilities
^{2}^{2}2The softmax probabilities take the form: , where is a real scalar function representing the output of the network for pixel . For notation simplicity, we omit the dependence of on and as this does not result in any ambiguity in the presentation. generated by the network at each pixel and . Priors and denote the given upper and lower bounds on the size (or cardinality) of the target region. Inequality constraints of the form in (1) are very flexible because they do not assume exact knowledge of the target size, unlike [22, 23, 24]. Also, multiple instance learning (MIL) constraints [1], which enforce imagetag priors, can be handled by constrained model (1). Image tags are a form of weak supervision, which enforce the constraints that a target region is present or absent in a given training image [1]. They can be viewed as particular cases of the inequality constraints in (1). For instance, a suppression constraint, which takes the form , enforces that the target region is not in the image. enforces the presence of the region.Even though constraints of the form (1) are linear (and hence convex) with respect to the network outputs, constrained problem (1) is very challenging due to the nonconvexity of CNNs. One possibility would be to minimize the corresponding Lagrangian dual. However, as pointed out in [1, 25], this is computationally intractable for semantic segmentation networks involving millions of parameters; one has to optimize a CNN within each dual iteration. In fact, constrained optimization has been largely avoided in deep networks [26]
, even thought some Lagrangian techniques were applied to neural networks a long time before the deep learning era
[27, 28]. These constrained optimization techniques are not applicable to deep CNNs as they solve large linear systems of equations. The numerical solvers underlying these constrained techniques would have to deal with matrices of very large dimensions in the case of deep networks [25].To the best of our knowledge, the method of Pathak et al. [1] is the only prior work that addresses inequality constraints in deep weakly supervised CNN segmentation. It uses the constraints to synthesize fullylabeled training masks (proposals) from the available partial labels, mimicking full supervision, which avoids intractable dual optimization of the constraints when minimizing the loss function. The main idea of [1]
is to model the proposals via a latent distribution. Then, it minimize a KL divergence, encouraging the softmax output of the CNN to match the latent distribution as closely as possible. Therefore, they impose constraints on the latent distribution rather than on the network output, which facilitates Lagrangian dual optimization. This decouples stochastic gradient descent learning of the network parameters and constrained optimization: The authors of
[1] alternate between optimizing w.r.t the latent distribution, which corresponds to proposal generation subject to the constraints^{3}^{3}3This subproblem is convex when the constraints are convex., and standard stochastic gradient descent for optimizing w.r.t the network parameters.We propose to introduce a differentiable term, which enforces inequality constraints (1) directly in the loss function, avoiding expensive Lagrangian dual iterates and proposal generation. From constrained optimization perspective, our simple approach is not optimal as there is no guarantee that the constraints are satisfied. However, surprisingly, it yields substantially better results than the Lagrangianbased constrained CNNs in [1], while reducing the computational demand for training. In the context of cardiac image segmentation, we reached a performance close to full supervision while using a fraction of the full groundtruth labels (). Our framework can be easily extended to nonlinear inequality constraints, e.g., invariant shape moments [2] or other region statistics [3]. Therefore, it has the potential to close the gap between weakly and fully supervised learning in semantic medical image segmentation. Our code is publicly available ^{4}^{4}4The code can be found at https://github.com/LIVIAETS/SizeLoss_WSS.
2 Related work
2.1 Weak supervision for semantic image segmentation:
Training segmentation models with partial and/or uncertain annotations is a challenging problem [29, 30]. Due to the relatively easy task of providing global, imagelevel information about the presence or absence of objects in an image, many weakly supervised approaches used image tags to learn a segmentation model [31, 32]. For example, in [31], a probabilistic latent semantic analysis (PLSA) model was learned from imagelevel keywords. This model was later employed as a unary potential in a Markov random field (MRF) to capture the spatial 2D relationships between neighbours. Also, bounding boxes have become very popular as weak annotations due, in part, to the wide use of classical interactive segmentation approaches such as the very popular GrabCut [33]
. This method learns two Gaussian mixture models (GMM) to model the foreground and background regions defined by the bounding box. To segment the image, appearance and smoothness are encoded in a binary MRF, for which exact inference via graphcuts is possible, as the energies are submodular. Another popular form of weak supervision is the use of scribbles, which might be performed interactively by an annotator so as to correct the segmentation outcome.
GrabCut is a notable example in a wide body of “shallow” interactive segmentation works that used weak supervision before the deep learning era. More recently, within the computer vision community, there has been a substantial interest in leveraging weak annotations to train deep CNNs for color image segmentation using, for instance, image tags [1, 34, 35, 17, 11, 12], bounding boxes [7, 16, 36], scribbles [37, 9, 38, 15, 10] or points [8]. Most of these weakly supervised semantic segmentation techniques mimic full supervision by generating full training masks (segmentation proposals) from the weak labels. The proposals can be viewed as synthesized groundtruth used to train a CNN. In general, these techniques follow an iterative process that alternates two steps: (1) standard stochastic gradient descent for training a CNN from the proposals; and (2) standard regularizationbased segmentation, which yields the proposals. This second step typically uses a standard optimizer such meanfield inference [17, 16] or graph cuts [9]. In particular, the dense CRF regularizer of Krähenbühl and Koltun [19], facilitated by fast parallel meanfield inference, has become very popular in semantic segmentation, both in the fully [39, 40] and weakly [17, 16] supervised settings. This followed from the great success of DeepLab [40], which popularized the use of dense CRF and meanfield inference as a postprocessing step in the context fully supervised CNN segmentation.
An important drawback of these proposal strategies is that they are vulnerable to errors in the proposals, which might reinforce themselves in such selftaught learning schemes [41], undermining convergence guarantee. The recent approaches in [15, 10] have integrated standard regularizers such as dense CRF or pairwise graph clustering directly into the loss functions, avoiding extra inference steps or proposal generation. Such direct regularization losses achieved stateoftheart performances for weakly supervised color segmentation, reaching near fullsupervision accuracy. While these approaches encourage pairwise consistencies between pixels during training, they do not explicitly impose global constraint as in (1).
2.2 Medical image segmentation with weak supervision:
Despite the increasing amount of works focusing on weakly supervised deep CNNs in semantic segmentation of color images, leveraging weak annotations in medical imaging settings is not simple. To our knowledge, the literature on this matter is still scarce, which makes weaksupervision approaches appealing in medical image segmentation. As in color images, common settings for weak annotations are bounding boxes. For instance, DeepCut [16] follows a similar setting as [17]. It generates image proposals, which are refined by a dense CRF before being reused as “fake” labels to train the CNN. Using the bounding boxes as initializations for the Grabcut algorithm, the authors showed that, by this iterative optimization scheme, one can obtain a performance better than the shallow counterpart, i.e., GrabCut. In another weakly supervised scenario [42], images were segmented in an unsupervised manner, generating a set of superpixels [43], among which users had to select the regions belonging to the object of interest. Then, these masks generated from the superpixels were employed to train a CNN. Nevertheless, as proposals are generated in an unsupervised manner, and due to the poor contrast and challenging targets typically present in medical images, these “fake” labels are likely prone to errors, which can be propagated during training, as stated before.
2.3 Constrained CNNs:
To the best of our knowledge, there are only a few recent works [1, 25, 24] that addressed imposing global constraints on deep CNNs. In fact, standard Lagrangiandual optimization has been completely avoided in modern deep networks involving millions of parameters. As pointed out recently in [1, 25], there is a consensus within the community that imposing constraints on the outputs of deep CNNs that are common in modern computer vision and medical image analysis problems is impractical: the direct use of Lagrangiandual optimization for networks with millions of parameters requires training a whole CNN after each iterative dual step [1]. To avoid computationally intractable dual optimization, Pathak et al. [1] imposed inequality constraints on a latent distribution instead of the network output. This latent distribution describes a “fake” ground truth (or segmentation proposal). Then, they trained a single CNN so as to minimize the KL divergence between the network probability outputs and the latent distribution. This priorart work is the most closely related to our study and, to our knowledge, is the only work that addressed inequality constraints in weakly supervised CNN segmentation. The work in [25]
imposed hard equality constraints on 3D human pose estimation. To tackle the computational difficulty, they used a Kyrlov subspace approach and limited the solver to only a randomly selected subset of the constraints within each iteration. Therefore, constraints that are satisfied at one iteration may not be satisfied at the next, which might explain the negative results in
[25]. A surprising result in [25] is that replacing the equality constraints with simple penalties yields better results than Lagrangian optimization, although such a simple penaltybased formulation does not guarantee constraint satisfaction. A similar penalty was used in [24] to impose equality constraints on the size of the target regions in the context of histopathology segmentation. While the equalityconstrained formulations in [25, 24] are very interesting, they assume exact knowledge of the target function (e.g., region size), unlike the inequalityconstraint formulation in (1), which allows much more flexibility as to the required prior domainspecific knowledge.3 Proposed loss function
We propose the following loss for weakly supervised segmentation:
(2)
where , is a positive constant that weighs the importance of constraints, and function is given by (See the illustration in Fig. 1):
(3)
Now, our differentiable term accommodates standard stochastic gradient descent. During backpropagation, the term of gradientdescent update corresponding to can be written as follows:
(4)
where denotes the standard derivative of the softmax outputs of the network. The gradient in (4) has a clear interpretation. During backpropagation, when the current constraints are satisfied, i.e., , observe that . Therefore, in this case, the gradient stemming from our term has no effect on the current update of the network parameters. Now, suppose without loss of generality that the current set of parameters corresponds to , which means the current target region is smaller than its lower bound . In this case of constraint violation, term is positive and, therefore, the first line of (4) performs a gradient ascent step on softmax outputs, increasing . This makes sense because it increases the size of the current region, , so as to satisfy the constraint. The case has a similar interpretation.
The next section details the dataset, the weak annotations and our implementation. Then, we report comprehensive evaluations of the effect of our constrainedCNN losses on segmentation performance. We also report comparisons to the Lagrangianbased constrained CNN method in [1] and to the fully supervised setting.
4 Experiments
4.1 Medical Image Data:
In this section, the proposed loss function is evaluated on three publicly available datasets, each corresponding to a different application – cardiac, vertebral body and prostate segmentation. Below are additional details of these data sets.
4.1.1 Leftventricle (LV) on cine MRI
A part of our experiments focused on left ventricular endocardium segmentation. We used the training set from the publicly available data of the 2017 ACDC Challenge^{5}^{5}5https://www.creatis.insalyon.fr/Challenge/acdc/. This set consists of 100 cine magnetic resonance (MR) exams covering well defined pathologies: dilated cardiomyopathy, hypertrophic cardiomyopathy, myocardial infarction with altered left ventricular ejection fraction and abnormal right ventricle. It also included normal subjects. Each exam contains acquisitions only at the diastolic and systolic phases. The exams were acquired in breathhold with a retrospective or prospective gating and a SSFP sequence in 2chambers, 4chambers and in shortaxis orientations. A series of shortaxis slices cover the LV from the base to the apex, with a thickness of 5 to 8 mm and an interslice gap of 5 mm. The spatial resolution goes from 0.83 to 1.75 mm/pixel. For all the experiments, we employed the same 75 exams for training and the remaining 25 for validation.
4.1.2 Vertebral body (VB) on MRT2
This dataset contains 23 3D T2weighted turbo spin echo MR images from 23 patients and the associated groundtruth segmentation, and is freely available from ^{6}^{6}6http://dx.doi.org/10.5281/zenodo.22304. Each patient was scanned with 1.5 Tesla MRI Siemens scanner (Siemens Healthcare, Erlangen, Germany) to generate T2weighted sagittal images. All the images are sampled to have the same sizes of 39305305 voxels, with a voxel spacing of 21.251.25 mm. In each image, 7 vertebral bodies, from T11 to L5, were manually identified and segmented, resulting in 161 labeled regions in total. For this dataset, we employed 15 scans for training and the remaining 5 for validation.
4.1.3 Prostate segmentation on MRT2
The third dataset was made available at the MICCAI 2012 prostate MR segmentation challenge^{7}^{7}7https://promise12.grandchallenge.org. It contains the transversal T2weighted MR images of 50 patients acquired at different centers with multiple MRI vendors and different scanning protocols. It is comprised of various diseases, i.e., benign and prostate cancers. The images resolution ranges from to voxels with a spacing ranging from to mm. We employed 40 patients for training and 10 for validation.
4.2 Weak annotations:
To show that the proposed approach is robust to the strategy for generating the weak labels, as well as to their location, we consider two different strategies generating weak annotations from fully labeled images. Figure 2 depicts some examples of fully annotated images and the corresponding weak labels.
Erosion
For the leftventricle dataset, we employed binary erosion on the fully annotations with a kernel of size 1010. If the resulted label disappeared, we repeated the operation with a smaller kernel (i.e., 77) until we get a small contour. Thus, the total number of annotated pixels represented the 0.1 of the labeled pixels in the fully supervised scenario. This correspond to the second row in Figure 2.
Random point
The weak labels for the vertebral body and prostate datasets were generated by randomly selecting a point within the groundtruth mask and creating a circle around it with a maximum radius of 4 pixels (fourth and sixth row in Fig. 2), while ensuring there is no overlap with the background. With these weak annotations, only of the pixels in the dataset have groundtruth labels.
4.3 Different levels of supervision:
Training models with diverse levels of supervision requires that appropriate objectives be defined for each case. In this section, we introduce the different models, each with different levels of supervision.
4.3.1 Baselines
We trained a segmentation network from weakly annotated images with no additional information, which served as a lower baseline. Training this model relies on minimizing the crossentropy corresponding to the fraction of labeled pixels: . In the following discussion of the experiments, we refer to this model as partial crossentropy (CE).
As an upper baseline, we resort to the fullysupervised setting, where class labels (foreground and background) are known for every pixel during training (). This model is referred to as fullysupervised.
4.3.2 Size constraints
We incorporated information about the size of the target region during training, and optimized the partial crossentropy loss subject to inequality constraints of the general form in Eq. (1). We trained several models using the same weakly annotated images but different constraint values.
Image tags bounds
Similar to MIL scenarios, we first used imagetag priors by enforcing the presence or absence of a the target in a given training image, as introduced earlier. This reduces to enforcing that the size of the predicted region is less or equal to if the target is absent from the image, or larger than otherwise. To simplify the implementation, we can represent the constraints as:
(5)
While being very coarse, these constraints convey relevant information about the target regions, which may be used to find common patterns in the case of region absence or presence.
Common bounds
The next level of supervision consists of using tighter bounds for the positive cases, instead of . To this end, the complete segmentation of a single patient is employed to compute the minimum and maximum size of the target region across all the slices. Then, we multiplied these minimum and maximum values by and , respectively, to account for interpatient variability. In this case, all the images containing the object of interest have the same lower and upper bounds. As an example, this results in the following values for the ACDC dataset:
(6)
Individual bounds
With common bounds, the range of values for a given target may be very large. To investigate whether a more precise knowledge of the target is helpful, we also consider the use of individual bounds for each slice, based on the true size of the region:
with denoting the full annotation of image . As before, we introduce some uncertainty on the target size, and multiply by the same lower and upper factors, resulting in the following bounds:
(7)
4.3.3 Hybrid training
We also investigate whether combining our proposed weak supervision approach with fully annotated images during the training leads to performance improvements. For this purpose, considering we have a training set of weakly annotated images, we replace () among these by their fully annotated counterparts. Thus, the training amounts to minimizing the crossentropy loss for the fully annotated images, along with the partial crossentropy constrained with common size bounds for the remaining weakly labeled images. To examine the positive effect of size constraints in this scenario (referred to as Hybrid), we compare the results to a network trained with the fully annotated images (without constraints).
4.4 Constraining a 3D volume:
We can extend our formulation to constrain a 3D volume as follows:
where denotes the targetregion volume, denotes a training batch containing all the 2D slices of the 3D volume^{8}^{8}8For readability, we simplify a batch as a list of labels and associated predictions ., and the 3D constraints are now given by:
Notice that, with constraints on the whole 3D volume, we have less supervision than the 2D scenarios from 4.3.2, where all the 2D slices have independent supervision (e.g., the image tags).
4.5 Training and implementation details:
For the experiments on the leftventricle and vertebralbody datasets, we used ENet [44], as it has shown a good tradeoff between accuracy and inference time. Due to the higher difficulty of the prostate segmentation task, we employed a fully residual version of UNet [45], similar to [46].
For the three datasets, we trained the networks from scratch using the Adam optimizer and an initial learning rate of
that we decreased by a factor of 2 if the performances on the validation set did not improve over 20 epochs. All the 3D volumes were sliced into
pixels images, and zeropadded when needed. Batch sizes were equal to 1, 4, and 20 for the leftventricle, prostate and vertebral body, respectively. Those values were not tuned for optimal performances, but to speedup experiments when enough data were available. The weight of our loss in (
2) was empirically set to 110. Due to the difficulty of the task, data augmentation was used for the prostate dataset, where we generated 4 copies of each training image using random mirroring, flipping and rotation.All our tests were implemented in Pytorch
[47]. We ran the experiments on a machine equipped with a NVIDIA GTX 1080 Ti GPU (11GBs of video memory), AMD Ryzen 1700X CPU and 32GBs of memory. The code is available at https://github.com/LIVIAETS/SizeLoss_WSS. We used the common Dice similarity coefficient (DSC) to evaluate the segmentation performance of trained models.4.5.1 Modification and tweaks for Lagrangian proposals
For a fair comparison, we reimplemented the Lagrangianproposal method of Pathak et al. [1] in PyTorch, to take advantage of GPU capabilities and avoid costly transfers between GPU and CPU. Lagrangian proposals reuse the same network and loss function as the fullysupervised setting. At each iteration, the method alternates between two steps. First, it synthesizes a ground truth with projected gradient ascent (PGA) over the dual variables, with the network parameters fixed. Then, for fixed , the crossentropy between and is optimized as in standard fullysupervised CNN training. The learning rate used for this PGA was set experimentally to , as suboptimal values lead to numerical errors. We found that limiting the number of iterations for the PGA to (instead of the original ) saved time without affecting the results.
We also introduced an early stopping mechanism into the PGA in the case of convergence, to improve speed without impacting the results (a comparison can be found in Table 5). The constraints of the form required specific care, as the formulation from [1] is not designed to work on equalities, unlike our penalty approach, which systematically handles equality constraints when . In this case, the bounds for [1] were modified to .
5 Results
To validate the proposed approach, we first performed a series of experiments focusing on LV segmentation. In Sec. 5.1, the impact of including size constraints is evaluated using our direct penalty. We further compare to the Lagrangianproposal method in [1], showing that our simple method yields substantial improvements over [1] in the same weakly supervised settings. We also provide the results for several degrees of supervision, including hybrid and fully supervised learning in Sec. 5.2. Then, to show the wide applicability of the proposed constrained loss, results are reported for two other applications in Sec. 5.3: MRT2 vertebral body segmentation and prostate segmentation task. We further provide qualitative results for the three applications in Sec. 5.4. In Sec. 5.5, we investigate the sensitivity of the proposed loss to both the lower and upper bounds. Finally, the efficiency of different learning strategies are compared (Sec. 5.6), showing that our direct constrainedCNN loss does not add to the training time, unlike the Lagrangianproposal method in [1].
5.1 Weakly supervised segmentation with size constraints:
2D segmentation

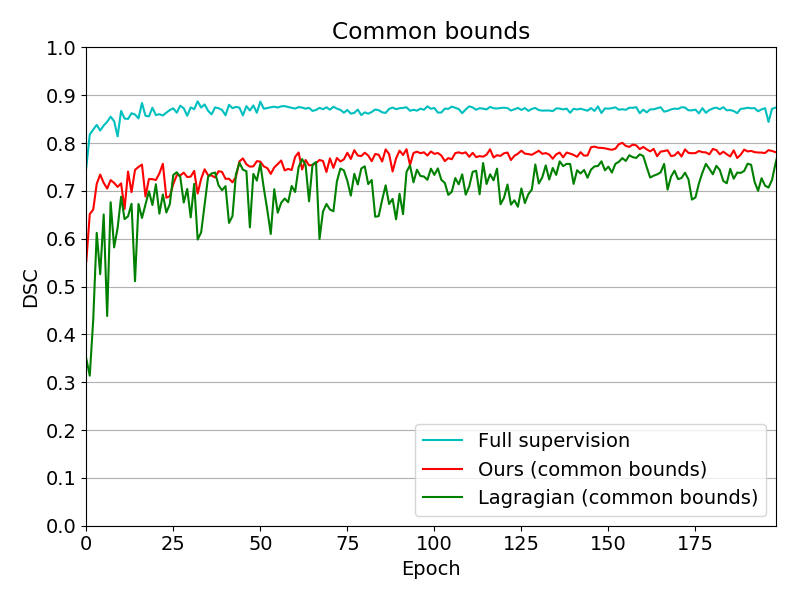

Table 1 reports the results on the leftventricle validation set for all the models trained with both the Lagrangian proposals in [1] and our direct loss. As expected, using the partial cross entropy with a fraction of the labeled pixels yielded poor results, with a mean DSC less than . Enforcing the imagetag constraints, as in the MIL scenarios, increased substantially the DSC to a value of . Using common bounds increased the results marginally in this case, slightly increasing the mean Dice value by . The Lagrangian proposal [1] reaches similar results, albeit slightly lower and much more unstable than our penalty approach (see Figure 3).

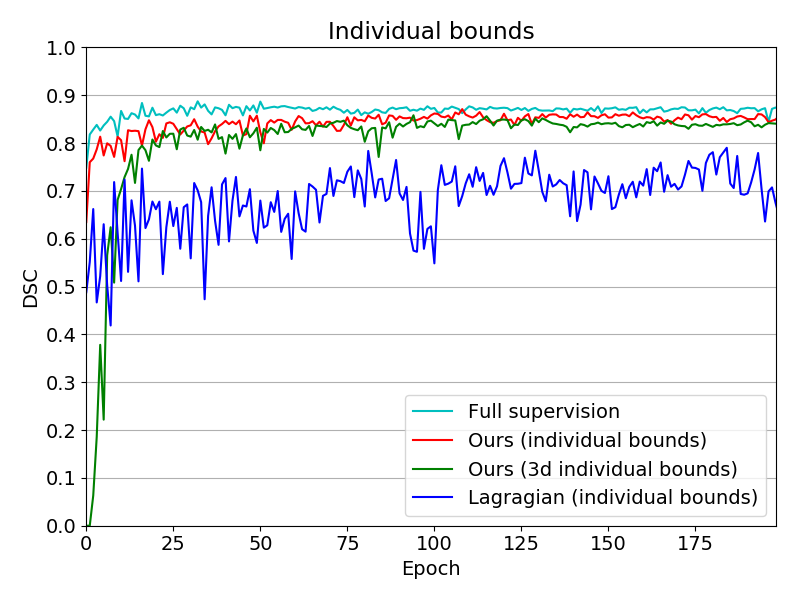

The difference in performance is more pronounced when we employ individual bounds instead. In this setting, our method achieves a DSC of , only lower than full supervision. However, the Lagrangianproposal method achieves a performance similar to using common (loose) bounds, suggesting that it is not able to make use of this extra, more precise information. This can be explained by its proposalgeneration method, which tends to reinforce early mistakes (especially when training from scratch): the network is trained with conflicting information – i.e., similarlooking patches are both foreground and background according the the synthetic ground truth – and is not able to recover from those initial misclassifications.
3D segmentation
Constraining the size of the 3D volume of the target region also shows the benefit of our penalty approach, yielding a mean DSC of . Recall that, here, we are using less supervision than the 2D case. Since we do not use tag information in this case, these results suggest that only a fraction of all the slices may be used when creating the labels, allowing annotators to scribble the 3D image directly instead of going through all the 2D slices one by one.
Model  Method  DSC (Val)
Weakly supervised  Partial CE  0.1497
CE + Tags  Lagrangian Proposals [1]  0.7707
Partial CE + Tags  Direct loss (Ours)  0.7924
CE + Tags + Size*  Lagrangian Proposals [1]  0.7854
Partial CE + Tags + Size*  Direct loss (Ours)  0.8004
CE + Tags + Size**  Lagrangian Proposals [1]  0.7900
Partial CE + Tags + Size**  Direct loss (Ours)  0.8708
CE + 3D Size**  Lagrangian Proposals [1]  N/A
Partial CE + 3D Size**  Direct loss (Ours)  0.8580

Crossentropy  0.8872
*Common bounds / ** Individual bounds
5.2 Hybrid training: mixing fully and weakly annotated images:

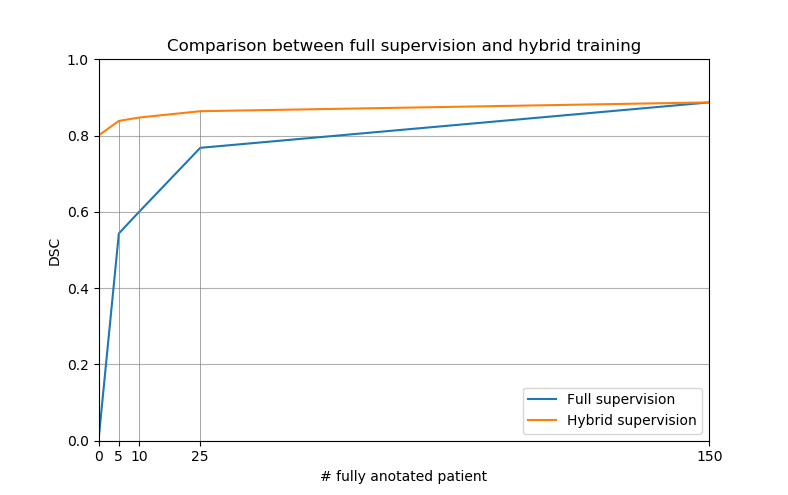

Table 2 and Figure 4 summarize the results obtained when combining weak and full supervision. First, and as expected, we can observe that adding fully annotated images to the training set (Hybrid) improves the performances in comparison to the model trained solely with the weakly annotated images, i.e., WeakAll. Particularly, the DSC increases by 4%,5% and 6% when is equal to 5,10 and 25, respectively, approaching the fullsupervision performance with only 25% of the fully labeled images.
Nevertheless, it is more interesting to see the impact of adding weakly annotated images (i.e., Hybrid) to a model trained solely with fully labeled images (i.e., Full). From the results, we can observe that adding weakly annotated images to the training set significantly increases the performance, particularly when the amount of fully annotated images (i.e., ) is limited. For instance, in the case of equal to 5, adding weakly annotated images enhanced the performance by more than 30 in comparison to full supervision with equal to . Despite the fact that this gap decreases with the number of fully annotated images, the difference between both settings (i.e., Full and Hybrid) remains significant. More interestingly, training the same model with a high amount of weakly annotated images and no or a very reduced set of fully labeled images (for example WeakAll or Hybrid5) achieves better performances than employing datasets with much higher numbers of fully labeled images, e.g, Full25.
These results suggest that a good strategy when annotating a new dataset might be to start with weak labels for all the images, and progressively complete full annotations, should ressources become available.
Name  Training approach

DSC

Weak_All  Weak supervision*  0/150  0.8004
Full_5  Full supervision  5/0  0.5434
Hybrid_5  Full + weak supervision*  5/145  0.8386
Full_10  Full supervision  10/0  0.6004
Hybrid_10  Full + weak supervision*  10/140  0.8475
Full_25  Full supervision  25/0  0.7680
Hybrid_25  Full + weak supervision*  25/125  0.8641
Full_All  Full supervision  150/0  0.8872
*Common bounds
5.3 MRT2 vertebral body and prostate segmentation:
The results obtained for the vertebralbody dataset (Table 3) highlight well the differences in the performances of different levels of supervision. Using tag bounds produces a network that roughly locates the object of interest (DSC of ), but fails to identify its boundaries (as seen in Figure 6, third column). Employing the common size strategy achieves satisfactory results for the slices containing objects with a regular shape but still fails when more difficult/irregular targets are present, resulting in an overall improvement of DSC (). However, when using individual bounds, the network is able to satisfactory segment even the most difficult cases, obtaining a DSC of , only lower than full supervision.
Method  Vertebral body DSC  Prostate DSC

Partial CE  0.1155  0.0320
Partial CE + Tags  0.5597  0.6911
Partial CE + Tags + Common size  0.7900  0.7214
Partial CE + Tags + Individual size  0.8604  0.8298
Fully supervised  0.8999  0.8911
For the prostate dataset, one can observe that common bounds still improve the results obtained with tags (), but the difference is much smaller than the case of vertebralbody segmentation. Using individual bounds increases the DSC value by , reaching , a behaviour similar to what we observed earlier for the other datasets. Nevertheless, in this case, the gap between full and weak supervision with individual bounds constraints is larger than what we obtained for the other datasets.
5.4 Qualitative results:
To gain some intuition on different learning strategies and their impact on the segmentation, we visualize some results sampled from the validation sets in Fig. 5, 6 and 7 for LV, VB and prostate, respectively.
LV segmentation task
We compare 4 methods to the ground truth: full supervision, Lagrangian proposals [1] with common bounds, direct loss with common bounds and direct loss with individual bounds. We can see that, for the easy cases containing regular shapes and visible borders, all methods obtain similar results. However, the methods employing common bounds can easily oversegment the object, especially when their size is considerably smaller; see for example the last row in Figure 5. Since individual bounds are specific to each image, a model trained with these bounds will not suffer in such cases, as shown in the figure.
Vertebralbody segmentation task
In this case, we visualize the results of full supervision, tag bounds, common bounds and individual bounds. In line with results reported in Table 3, we can visually observe the gap in performances between each setting, which clearly highlights the impact of the different values of the bounds during the optimization process. Using only tags, the network learn to roughly locate the object. When size bounds are included as common size information, the network is able to somehow learn the boundaries, but only for object shapes that are within the standard variability of a typical vertebral body shape. As it can be observed, the model fails to segment the unusual shapes (last three rows in Figure 6). Lastly, a network trained with individual sizes is able to better handle those cases, while still being imprecise on some regions.
Prostate segmentation task
As in the previous case, we depict the results of full supervision, tag bounds, common bounds and individual bounds. Both the tags and common bounds locate the object in a similar fashion, but both have difficulties finding a precise contour, typically oversegmenting the target region. This is easily explained by the variability of the organ and the very low contrast on some images. As shown in the last column, using individual bounds greatly improves the results.
5.5 Sensitivity to the constraint boundaries:
In this section, an ablation study is performed on the lower and upper bounds when using common bounds, and investigate their effect on the performance on the vertebralbody segmentation task. Results for different bounds are reported in Table 4. It can be observed that progressively increasing the value of the upper bound decreases the performance. For example, the DSC drops by nearly 12% and 16% when the upper bound is increased by a factor of 5 and 10, respectively. Decreasing the lower bound from 80 to 0 has a much smaller impact than the upper bound, with a constant drop of less than 1%. These findings are aligned with visual predictions illustrated in Figure 6. While a network trained only with tag bounds tends to oversegment, adding an upper bound easily fixes the oversegmentation, correcting most of the mistakes. Nevertheless, for the same reason, i.e., oversegmentation, very few slices benefit from a lower bound.
Bounds  Mean DSC
Model  Lower (a)  Upper (b)
Weak Sup. w/ direct loss  0.8604
Weak Sup. w/ direct loss  80  1100  0.7900
Weak Sup. w/ direct loss  80  5000  0.6704
Weak Sup. w/ direct loss  80  10000  0.6349
Weak Sup. w/ direct loss  0  1100  0.7820
Weak Sup. w/ direct loss  0  5000  0.6694
Weak Sup. w/ direct loss  0  10000  0.6255
Weak Sup. w/ direct loss  0  65536  0.5597
5.6 Efficiency:
In this section, we compare the several learning approaches in terms of efficiency (Table 5). Both the weakly supervised partial crossentropy and the fully supervised model need to compute only one loss per pass. This is reflected in the lowest training times reported in the table. Including the size loss does not add to the computational time, as can be seen in these results. As expected, the iterative process introduced by [1] at each forward pass adds a significant overhead during training. To generate their synthetic ground truth, they need to optimize the Lagrangian function with respect to its dual variables (Lagrange multipliers of the constraints), which requires alternating between training a CNN and Lagrangiandual optimization. Even in the simplest optimization case (with only one constraint), where optimization over the dual variable converges rapidly, their method remains two times slower than ours. Without the early stopping criteria that we introduced, the overhead is much worse with a sixfold slowdown. In addition, their method also slows down when more constraints are added. This is particularly significant when there is many classes to constrain/supervise.
Generating the proposals at each iteration also makes it much more difficult to build an efficient implementation for larger batch sizes. One either needs to generate them one by one (so the overhead grows linearly with the batch size) or try to perform it in parallel. However, due to the nature of GPU design, the parallel Lagrangian optimizations will slow each other down, meaning that there may be limited improvements over a sequential generation. In some cases it may be faster to perform it on CPU (where the cores can truly perform independent tasks in parallel), at the cost of slow transfers between GPU and CPU. The optimal strategy would depend on the batch size and the host machine, especially its available GPU, number of CPU cores and bus frequency.
Method  Training time (ms/batch)

Partial CE  112
Direct loss (1 bound)  113
Direct loss (2 bounds)  113
Lagrangian proposals (1 bound)  610
Lagrangian proposals (2 bounds)  675
Lagrangian proposals (1 bound), w/ early stop  221
Lagrangian proposals (2 bounds), w/ early stop  220
Fully supervised  112
6 Discussion
We have presented a method to train deep CNNs with linear constraints in weakly supervised segmentation. To this end, we introduce a differentiable term, which enforces inequality constraints directly in the loss function, avoiding expensive Lagrangian dual iterates and proposal generation.
Results have demonstrated that leveraging the power of weakly annotated data with the proposed direct size loss is highly beneficial, particularly when limited full annotated data is available. This could be explained by the fact that the network is already trained properly when a large fully annotated training set is available, which is in line with the values reported in Table 2. Similar findings were reported in [48, 49], where authors exhibited an increased of performance when including nonannotated images in a semisupervised setting. This suggests that including more unlabelled or weakly labelled data can potentially lead to significantly improvements in performance.
Findings from experiments across different segmentation tasks indicate that highly competitive performance can be obtained with a rough estimation of the target size. This is especially the case on well structured problems where the size and/or shape of the object remains consistent across subjects. If more precise size bounds are provided, the proposed approach is able to reach performances close to full supervision, even when the size and shape variability across subjects is large. For difficult tasks, where the gap between our approach and full supervision is larger, such as prostate segmentation, including an unsupervised regularization loss [10, 15] to encourage pairwise consistencies between pixels may boost the performance of the proposed strategy. A noteworthy point is the robustness of our method to the weaklabel generation. While the weak labels were generated from a groundtruth erosion for the first dataset, with seeds always in the center of the target region, they were randomly generated and placed for the other two datasets. Thus, the results showed consistency in the behaviour of the different methods, regardless of the strategy used.
Even though the proposed method has been shown to provide good generalization capabilities across three different applications, the segmentation of images with severe abnormalities, whose sizes largely differ from those seen in the training set, has not been assessed. Nevertheless, the ablation study performed on the values of the size bounds, and the results obtained with common bound sizes suggest that the proposed approach may perform satisfactorily in the presence of these severe abnormalities, by simply increasing the upper bound value. In addition, if a greater ‘precise’ estimation of the abnormality size is given, our proposed loss may improve segmentation performance, as demonstrated by the results achieved by the individual bounds strategy. It is important to note that, even in the case of full supervision, if a new testing image contains a severe abnormality much larger than the objects seen during the training phase, the network will likely to poorly segment the region of interest.
Our framework can be easily extended to other nonlinear (fractional) constraints, e.g., invariant shape moments [2] or other statistics such as the mean of intensities within the target regions [3]. For instance, a normalized (scale invariant) shape moment of a target region can be directly expressed in term of network outputs using the following general fractional form:
(8)
where is a unary potential expressed in term of exponents of pixel/voxel coordinates. For example, the coordinates of the center of mass of the target region are particular cases of (8) and correspond to firstorder scaleinvariant shape moments. In this case, potentials correspond to pixel coordinates. Now, assume a weaksupervision scenario in which we have a rough localization of the centroid of the target region. In this case, instead of a constraint on size representation as in Eq. (3), one can use a cue on centroid as follows: . This can be embedded as a direct loss using differentiable penalty . Of course, here, is a nonlinear fractional term unlike region size. Therefore, in future work, it would be interesting to examine the behaviour of such fractional terms for constraining deep CNNs with a penalty approach. Finally, it is worth noting that the general form in Eq. (8) is not confined to shape moments. For instance, the image (intensity) statistics within the target region, such as the mean^{9}^{9}9Notice that the mean of intensity within the target region can be represented with network output using general form (8), with corresponding to the intensity of pixel , follow the same general form in (8). Therefore, a similar approach could be used in cases where we have prior knowledge on such image statistics.
Our direct penaltybased approach for inequality constraints yields a considerable increase in performance with respect to to Lagrangiandual optimization [1], while being faster and more stable. We hypothesize that this is due, in part, to the interplay between stochastic optimization (e.g., stochastic gradient descent) for the primal and the iterates/projections for the Lagrangian dual^{10}^{10}10In fact, a similar hypothesis was made in [25] to explain the negative results of Lagrangian optimization in the case of equality constraints.. Such dual iterates/projections are basic (nonstochastic) gradient methods for handling the constraints. Basic gradient methods have wellknown issues with deep networks, e.g., they are sensitive to the learning rate and prone to weak local minima. Therefore, the dual part in Lagrangian optimization might obstruct the practical and theoretical benefits of stochastic optimization (e.g., speed and strong generalization performance), which are widely established for unconstrained deep network losses [50]. Our penaltybased approach transforms a constrained problem into an unconstrained loss, thereby handling the constraints fully within stochastic optimization and avoiding completely the dual steps. While penaltybased approaches do not guarantee constraint satisfaction, our work showed that they can be extremely useful in the context of constrained CNN segmentation.
7 Conclusion
In this paper, a novel loss function is present for weakly supervised image segmentation, which, despite its simplicity, performs significantly better than Lagrangian optimization for this task. We achieve results close to full supervision by annotating only a small fraction of the pixels, across three different tasks, and with negligible computation overhead. While our experiments focused on basic linear constraints such as the targetregion size and image tags, our direct constrainedCNN loss can be easily extended to other nonlinear constraints, e.g., invariant shape moments [2] or other region statistics [3]. Therefore, it has the potential to close the gap between weakly and fully supervised learning in semantic medical image segmentation.
