1 Introduction
There are two fundamental ways in which Machine Learning can be leveraged in chemistry:

To evaluate a molecule for a given application.

To find a promising molecule for a given application.
There has been much progress in the first usecase through the development of quantitative structure activity relationship (QSAR) models using deep learning
[Ma et al., 2015]. These models have achieved stateoftheart results in predicting properties of known molecules.The second usecase, finding new molecules that are useful for a given application, is arguably more important however. One existing approach for finding molecules that maximise an applicationspecific metric involves searching a large library of compounds, either physically or virtually PyzerKnapp et al. [2015]. This has the disadvantage that the search is not openended; if the molecule is not in the library you specify, the search won’t find it.
A second method involves the use of genetic algorithms. In this approach, a known molecule acts as a seed and a local search is performed over a discrete space of molecules. Although these methods have enjoyed success in producing biologically active compounds, an approach featuring a search over an openended, continuous space would be beneficial. The use of geometrical cues such as gradients to guide the search in continuous space could accelerate both drug
[PyzerKnapp et al., 2015, GómezBombarelli et al., 2016a] and material [Hachmann et al., 2011, 2014] discovery by functioning as a highthroughput virtual screen of unpromising candidates.Recently, GómezBombarelli et al. [GómezBombarelli et al., 2016b] presented Automatic Chemical Design, a VAE architecture capable of encoding continuous representations of molecules. In continuous latent space, gradientbased optimization is leveraged to find molecules that maximize a design metric.
Although a strong proof of concept, Automatic Chemical Design possesses a deficiency in so far as it fails to generate a high proportion of valid molecular structures. GómezBombarelli et al. [2016b] hypothesise that molecules selected by Bayesian Optimization lie in dead regions of the latent space far away from any data that the VAE has seen in training, yielding invalid structures when decoded. Although there have been many attempts to address the issue of generating valid molecules, they all rely on model assumptions that can negatively impact either the complexity [Jaques et al., 2017, Janz et al., 2017, Kusner et al., 2017] or the diversity [Jin et al., 2018] of the generated molecules.
The principle contribution of this paper will be to present an approach based on constrained Bayesian optimization that generates a high proportion of valid sequences without relying on model assumptions that affect the complexity or the diversity of the generated molecules.
2 Methods
2.1 SMILES Representation
SMILES strings Weininger [1988]

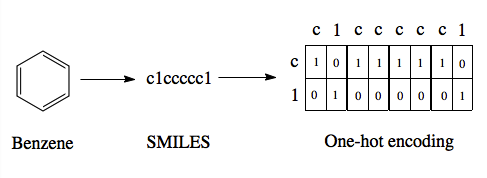

are a means of representing molecules as a character sequence. This textbased format facilitates the use of tools from natural language processing for applications such as organic chemistry reaction prediction
Schwaller et al. [2017], Jin et al. [2017]. For use with the variational autoencoder, the SMILES strings in turn are converted into onehot vectors indicating the presence or absence of a particular character within a sequence as illustrated in
Figure 1.2.2 Variational Autoencoder

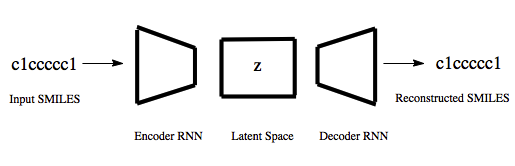

Variational autoencoders Kingma and Welling [2013], Kingma et al. [2014] allow us to map molecules to and from continuous values in a latent space. The encoding is interpreted as a latent variable in a probabilistic generative model over which there is a prior distribution . The probabilistic decoder is defined by the likelihood function . The posterior distribution is interpreted as the probabilistic encoder. The parameters of the likelihood as well as the parameters of the approximate posterior distribution are learned by maximizing the evidence lower bound (ELBO)
Variational autoencoders have been coupled with recurrent neural networks by
Bowman et al. [2015] to encode sentences into a continuous latent space. This approach is followed for the SMILES format both by GómezBombarelli et al. [2016b] and here. The SMILES variational autoencoder is shown in Figure 2.2.3 Bayesian Optimization of Molecules
Bayesian Optimization is performed in the latent space of the variational autoencoder in order to find molecules that score highly under a specified objective function. We assess molecular quality on the following objectives:
denotes a molecule, is the wateroctanol partition coefficient,
is the quantitative estimate of druglikeness
[Bickerton et al., 2012] and is the synthetic accessibility [Ertl and Schuffenhauer, 2009]. The ring penalty term is as featured in [GómezBombarelli et al., 2016b]. The comp subscript is designed to indicate that the objective function is a composite of standalone metrics.It is important to note, that the first objective, a common metric of comparison in this area GómezBombarelli et al. [2016b], Kusner et al. [2017], Jin et al. [2018], is misspecified. From a chemical standpoint it is undesirable to maximize the logP score as is being done here. Rather it is preferable to optimize logP to be in a range that is in accordance with the Lipinski Rule of Five Lipinski et al. [1997]. We use the penalized logP objective here because regardless of its relevance for chemistry, it serves as a point of comparison against other methods.
2.4 Constrained Bayesian Optimization of Molecules
We now describe our extension to the Bayesian Optimization procedure followed by GómezBombarelli et al. [2016b]. Expressed formally, the constrained Bayesian optimization problem is
where is a blackbox objective function,
denotes the probability that a boolean constraint
is satisfied and is some userspecified minimum confidence that the constraint is satisfied [Gelbart et al., 2014]. The constraint is that a latent point must decode successfully a large fraction of the times decoding is attempted. The blackbox objective function is noisy because a single latent point may decode to multiple molecules when the model makes a mistake, obtaining different values under the objective. In practice, is one of the objectives described in section 2.32.5 Expected Improvement with Constraints (EIC)
EIC may be thought of as expected improvement (EI) that offers improvement only when a set of constraints are satisfied [Schonlau et al., 1998]:
The implicit incumbent solution suppressed in , may be set in an analogous way to vanilla expected improvement [Gelbart, 2015] as either:

The best observation in which all constraints are observed to be satisfied.

The minimum of the posterior mean such that all constraints are satisfied.
The latter approach is adopted for the experiments performed in this paper. If at the stage in the Bayesian optimization procedure where a feasible point has yet to be located, the form of acquisition function used is that defined by [Gelbart, 2015]
with the intuition being that if the probabilistic constraint is violated everywhere, the acquisition function selects the point having the highest probability of lying within the feasible region. The algorithm ignores the objective until it has located the feasible region. It would also have been possible to adopt the methodology introduced by Rainforth et al. [2016] under the assumption that the constraint is cheap to evaluate.
3 Related Work
GómezBombarelli et al. [2016b], Segler et al. [2017] constructed characterlevel generative models of SMILES strings using recurrent decoders. These models both suffered from the problem that they produced a high proportion of invalid SMILES strings. Blaschke et al. [2017] compared a range of autoencoder architectures in terms of their ability to produce valid molecules. Kusner et al. [2017], Dai et al. [2018] addressed the issue of generating valid molecules explicitly by imposing syntactic and semantic constraints using context free and attribute grammars while Janz et al. [2017], Guimaraes et al. [2017] leveraged additional training signal to enforce molecular validity.
A potential drawback of these methods is that the constraints may favour the generation of simple molecules. Simonovsky and Komodakis [2018], Li et al. [2018] build generative models of molecular graphs but do not impose any constraints for molecular validity. Jin et al. [2018] build a generative model of molecular graphs with constraints in order to achieve 100% validity. One possible disadvantage of this approach is that each molecule is assumed to be constructed from a fixed vocabulary of subgraphs and so it will be impossible to generate a molecule comprised of subgraphs outside this vocabulary. Direct comparison with the aforementioned methods is complicated due to the orthogonality of the assumptions made for each model. As such, we compare out method against GómezBombarelli et al. [2016b] only.
Our principle contribution is in showing that valid molecules can be generated without encoding assumptions into the design model that limit the complexity and diversity of the generated molecules.
4 Experiment II: Drug Design
In this section we conduct an empirical test of the hypothesis from [GómezBombarelli et al., 2016b] that the decoder’s lack of efficiency is due to data point collection in dead regions of the latent space far from the data on which the VAE was trained. We use this information to construct a binary classification BNN to serve as a constraint function that outputs the probability of a latent point being valid. Secondly, we compare the performance of our constrained Bayesian optimization implementation against the original model (baseline) in terms of the numbers of valid and druglike molecules generated. Thirdly, we compare the quality of the molecules produced by constrained Bayesian optimization with those of the baseline model.
4.1 Implementation
The implementation details of the encoderdecoder network as well as the sparse GP for modelling the objective remain unchanged from [GómezBombarelli et al., 2016b]. For the constrained Bayesian optimization algorithm, the BNN is constructed with hidden layers each
units wide with ReLU activation functions and a logistic output. Minibatch size is set to
and the network is trained for epochs with a learning rate of 0.0005. iterations of parallel Bayesian optimization are performed using the KrigingBeliever algorithm in all cases. Data is collected in batch sizes of . The same training set as [GómezBombarelli et al., 2016b] is used, namely druglike molecules drawn at random from the ZINC database [Irwin et al., 2012].4.2 Diagnostic Experiments and Labelling Criteria
These experiments were designed to test the hypothesis that points collected by Bayesian optimization lie far away from the training data in latent space. In doing so, they also serve as labelling criteria for the data collected to train the BNN acting as the constraint function. The resulting observations are summarized in Figure 3.
There is a noticeable decrease in the percentage of valid molecules decoded as one moves further away from the training data in latent space. Points collected by Bayesian optimization do the worst in terms of the percentage of valid decodings. This would suggest that these points lie farthest from the training data. The decoder overgenerates methane molecules when far away from the data. One hypothesis for why this is the case is that methane is represented as ’C’ in the SMILES syntax and is by far the most common character. Hence far away from the training data, combinations such as ’C’ followed by a stop character may have high probability under the distribution over sequences learned by the decoder.
Given that methane has far too low a molecular weight to be a suitable drug candidate, a third plot in Figure 3(c), shows the percentage of decoded molecules such that the molecules are both valid and have a tangible molecular weight. The definition of a tangible molecular weight was interpreted somewhat arbitrarily as a SMILES length of or greater. Henceforth, molecules that are both valid and have a SMILES length greater than will be loosely referred to as druglike. This is not to imply that a molecule comprising five SMILES characters is likely to be druglike, but rather this SMILES length serves the purpose of determining whether the decoder has been successful or not.
As a result of these diagnostic experiments, it was decided that the criteria for labelling latent points to initialize the binary classification neural network for the constraint would be the following: if the latent point decodes into druglike molecules in more than
of decode attempts, it should be classified as druglike and non druglike otherwise.
4.3 Molecular Validity
The BNN for the constraint was initialized with positive class points and negative class points. The positive points were obtained by running the training data through the decoder assigning them positive labels if they satisfied the criteria outlined in the previous section. The negative class points were collected by decoding points sampled uniformly at random across the latent dimensions of the design space. Each latent point undergoes decode attempts and the most probable SMILES string is retained. is the choice of objective function. The relative performance of constrained Bayesian optimization and unconstrained Bayesian optimization (baseline) [GómezBombarelli et al., 2016b] is compared in (a).
The percentage of latent points decoded to druglike molecules. The results are from 20 iterations of Bayesian optimization with batches of 50 data points collected at each iteration (1000 latent points decoded in total). The standard error is given for 5 separate train/test set splits of 90/10.
The results show that greater than of the latent points decoded by constrained Bayesian optimization produce druglike molecules compared to less than for unconstrained Bayesian optimization. One must account however, for the fact that the constrained approach may be decoding multiple instances of the same novel molecules. Constrained and unconstrained Bayesian optimization are compared on the metric of the percentage of unique novel molecules produced in (b).
One may observe that constrained Bayesian optimization outperforms unconstrained Bayesian optimization in terms of the generation of unique molecules, but not by a large margin. A manual inspection of the SMILES strings collected by the unconstrained optimization approach showed that there were many strings with lengths marginally larger than the cutoff point, which is suggestive of partially decoded molecules. As such, a fairer metric for comparison should be the quality of the new molecules produced as judged by the scores from the blackbox objective function. This is examined next.
4.4 Molecular Quality
The results of Figure 5 indicate that constrained Bayesian optimization is able to generate higher quality molecules relative to unconstrained Bayesian optimization across the three druglikeness metrics introduced in section 2.3. Over the independent runs, the constrained optimization procedure in every run produced new druglike molecules ranked in the 100th percentile of the distribution over training set scores for the objective and over the 90th percentile for the remaining objectives. Table 1 gives the percentile that the averaged score of the new molecules found by each process occupies in the distribution over training set scores.
Objective  Baseline  Constrained

LogP Composite  36 14  92 4
QED Composite  14 3  72 10
QED  11 2  79 4
5 Experiment 3: Material Design
In order to show that the constrained Bayesian optimization approach is extensible beyond the realm of drug design, we trained the model on data from the Harvard Clean Energy Project [Hachmann et al., 2011, 2014] to generate molecules optimized for power conversion efficiency (PCE).
5.1 Implementation
5.2 Results

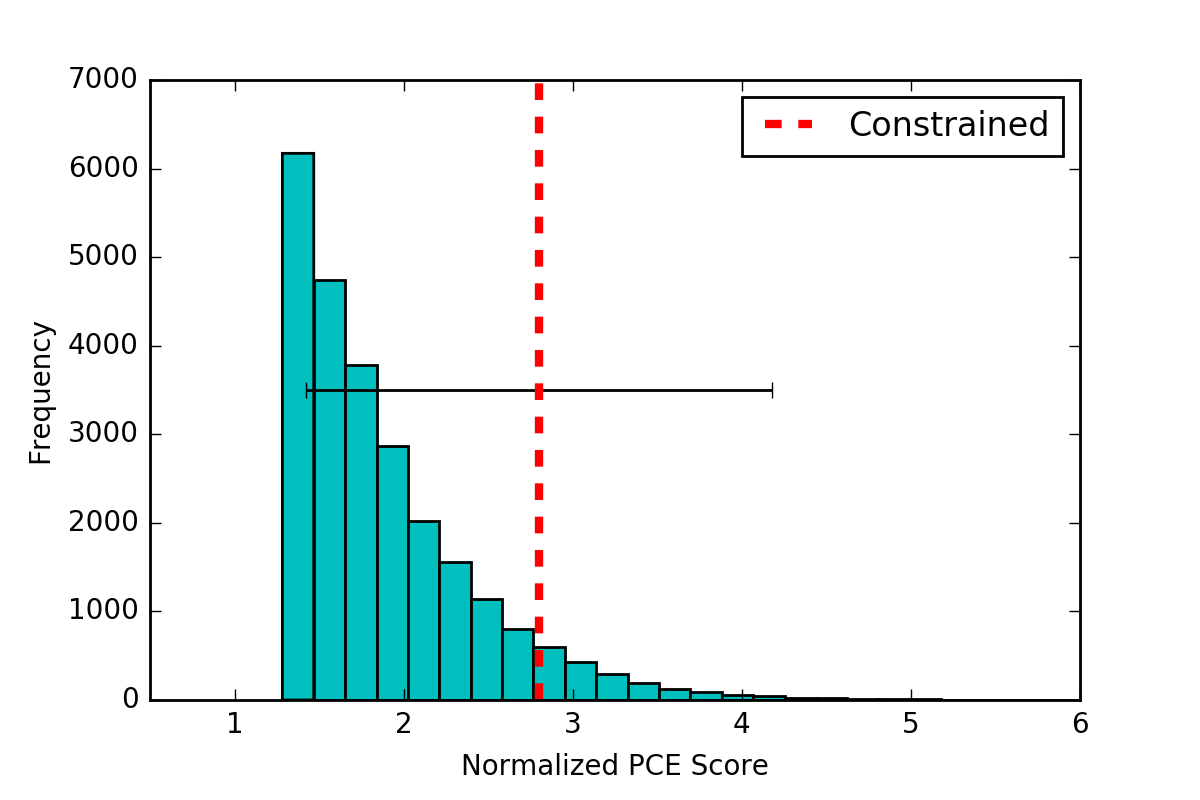

The results are given in Figure 6. The averaged score of the new molecules generated lies above the 90th percentile in the distribution over training set scores. Given that the objective function in this instance was learned using a neural network, advances in predicting chemical properties from data Duvenaud et al. [2015], Ramsundar et al. [2015] are liable to yield concomitant improvements in the optimized molecules generated through this approach.
6 Conclusion and Future Work
6.1 Contributions
The reformulation of the search procedure in the Automatic Chemical Design model as a constrained Bayesian optimization problem has led to concrete improvements on two fronts:

Validity  The number of valid molecules produced by the constrained optimization procedure offers a marked improvement over the original model. Notably, by applying constraints solely to the latent space of the variational autoencoder, the method does not require model assumptions that compromise either the complexity or the diversity of the generated molecules.

Quality  For five independent train/test splits, the scores of the best molecules generated by the constrained optimization procedure consistently ranked above the 90th percentile of the distribution over training set scores for all objectives considered. The ability to find new molecules that are competitive with the very best of a training set of already druglike molecules is a powerful demonstration of the model’s capabilities. As a further point, the generality of the approach should be emphasised. This approach is liable to work for a large range of objectives encoding countless desirable molecular properties.
6.2 Future Work
Future work could investigate whether performance gains can be achieved through the implementation of a more accurate constraint model. Recent work by Blaschke et al. [2017] has featured a more targeted search for novel compounds with predicted activity against dopamine receptor type 2. This represents a move towards more industriallyrelevant objective functions for Bayesian Optimization which should ultimately replace the chemically misspecified objectives, such as the penalized logP score, identified here.
References
 Ma et al. [2015] Junshui Ma, Robert P Sheridan, Andy Liaw, George E Dahl, and Vladimir Svetnik. Deep neural nets as a method for quantitative structure–activity relationships. Journal of chemical information and modeling, 55(2):263–274, 2015.
 PyzerKnapp et al. [2015] E. O. PyzerKnapp, C. Suh, R. GómezBombarelli, J. AguileraIparraguirre, and A. AspuruGuzik. What is highthroughput virtual screening? a perspective from organic materials discovery. Annual Review of Materials Research, 45:195–216, 2015.
 GómezBombarelli et al. [2016a] R. GómezBombarelli, J. AguileraIparraguirre, T. D. Hirzel, D. Duvenaud, D. Maclaurin, M. A. BloodForsythe, H. S. Chae, M. Einzinger, DG. Ha, T. Wu, and G. Markopoulos. Design of efficient molecular organic lightemitting diodes by a highthroughput virtual screening and experimental approach. Nature materials, 15(10):1120–1127, 2016a.
 Hachmann et al. [2011] J. Hachmann, R. OlivaresAmaya, S. AtahanEvrenk, C. AmadorBedolla, R. S. SánchezCarrera., A. GoldParker, L. Vogt, A. M. Brockway, and A. AspuruGuzik. The harvard clean energy project: Largescale computational screening and design of organic photovoltaics on the world community grid. The Journal of Physical Chemistry Letters, 2(17):2241–2251, 2011. doi: 10.1021/jz200866s.
 Hachmann et al. [2014] J. Hachmann, R. OlivaresAmaya, A. Jinich, A. L. Appleton, M. A. BloodForsythe, L. R. Seress, C. RomanSalgado, K. Trepte, S. AtahanEvrenk, S. Er, S. Shrestha, R. Mondal, A. Sokolov, Z. Bao, and A. AspuruGuzik. Lead candidates for highperformance organic photovoltaics from highthroughput quantum chemistry  the harvard clean energy project. Energy Environ. Sci., 7:698–704, 2014.
 GómezBombarelli et al. [2016b] R. GómezBombarelli, D. Duvenaud, J. M. HernándezLobato, J. AguileraIparraguirre, T. D. Hirzel, R. P. Adams, and A. AspuruGuzik. Automatic chemical design using a datadriven continuous representation of molecules. arXiv preprint arXiv:1610.02415, 2016b.
 Jaques et al. [2017] N. Jaques, S. Gu, D. Bahdanau, J. M. HernándezLobato, R. E. Turner, and D. Eck. Sequence tutor: Conservative finetuning of sequence generation models with KLcontrol. In Proceedings of the 34th International Conference on Machine Learning, volume 70 of Proceedings of Machine Learning Research, pages 1645–1654, International Convention Centre, Sydney, Australia, 06–11 Aug 2017. PMLR.
 Janz et al. [2017] David Janz, Jos van der Westhuizen, Brooks Paige, Matt J Kusner, and Jose Miguel HernandezLabato. Learning a generative model for validity in complex discrete structures. arXiv preprint arXiv:1712.01664, 2017.
 Kusner et al. [2017] Matt J Kusner, Brooks Paige, and José Miguel HernándezLobato. Grammar variational autoencoder. In International Conference on Machine Learning, pages 1945–1954, 2017.
 Jin et al. [2018] Wengong Jin, Regina Barzilay, and Tommi Jaakkola. Junction tree variational autoencoder for molecular graph generation. arXiv preprint arXiv:1802.04364, 2018.
 Weininger [1988] David Weininger. Smiles, a chemical language and information system. 1. introduction to methodology and encoding rules. Journal of chemical information and computer sciences, 28(1):31–36, 1988.
 Schwaller et al. [2017] Philippe Schwaller, Theophile Gaudin, David Lanyi, Costas Bekas, and Teodoro Laino. " found in translation": Predicting outcome of complex organic chemistry reactions using neural sequencetosequence models. arXiv preprint arXiv:1711.04810, 2017.
 Jin et al. [2017] Wengong Jin, Connor Coley, Regina Barzilay, and Tommi Jaakkola. Predicting organic reaction outcomes with weisfeilerlehman network. In Advances in Neural Information Processing Systems, pages 2604–2613, 2017.
 Kingma and Welling [2013] Diederik P Kingma and Max Welling. Autoencoding variational bayes. arXiv preprint arXiv:1312.6114, 2013.
 Kingma et al. [2014] Diederik P Kingma, Shakir Mohamed, Danilo Jimenez Rezende, and Max Welling. Semisupervised learning with deep generative models. In Advances in Neural Information Processing Systems, pages 3581–3589, 2014.
 Bowman et al. [2015] S. R. Bowman, L. Vilnis, O. Vinyals, A. M. Dai, R. Jozefowicz, and S. Bengio. Generating sentences from a continuous space. arXiv preprint arXiv:1511.06349, 2015.
 Bickerton et al. [2012] R. G. Bickerton, G. V. Paolini, J. Besnard, S. Muresan, and A. L. Hopkins. Quantifying the chemical beauty of drugs. Nature chemistry, 4(2):90–98, 2012.
 Ertl and Schuffenhauer [2009] P. Ertl and A. Schuffenhauer. Estimation of synthetic accessibility score of druglike molecules based on molecular complexity and fragment contributions. Journal of cheminformatics, 1(1):8, 2009.
 Lipinski et al. [1997] C. A. Lipinski, F. Lombardo, B. W. Dominy, and P. J. Feeney. Experimental and computational approaches to estimate solubility and permeability in drug discovery and development settings. Advanced drug delivery reviews, 23(13):3–25, 1997.
 Gelbart et al. [2014] M. A. Gelbart, J. Snoek, and R. P. Adams. Bayesian optimization with unknown constraints. arXiv preprint arXiv:1403.5607, 2014.
 Schonlau et al. [1998] M. Schonlau, W. J. Welch, and D. R. Jones. Global versus local search in constrained optimization of computer models. Lecture NotesMonograph Series, pages 11–25, 1998.
 Gelbart [2015] M. A. Gelbart. Constrained Bayesian Optimization and Applications. PhD thesis, Harvard University, 2015.
 Rainforth et al. [2016] Tom Rainforth, Tuan Anh Le, JanWillem van de Meent, Michael A Osborne, and Frank Wood. Bayesian optimization for probabilistic programs. In Advances in Neural Information Processing Systems, pages 280–288, 2016.
 Segler et al. [2017] Marwin HS Segler, Thierry Kogej, Christian Tyrchan, and Mark P Waller. Generating focused molecule libraries for drug discovery with recurrent neural networks. ACS Central Science, 2017.
 Blaschke et al. [2017] Thomas Blaschke, Marcus Olivecrona, Ola Engkvist, Jürgen Bajorath, and Hongming Chen. Application of generative autoencoder in de novo molecular design. Molecular informatics, 2017.
 Dai et al. [2018] Hanjun Dai, Yingtao Tian, Bo Dai, Steven Skiena, and Le Song. Syntaxdirected variational autoencoder for structured data. arXiv preprint arXiv:1802.08786, 2018.
 Guimaraes et al. [2017] Gabriel Lima Guimaraes, Benjamin SanchezLengeling, Pedro Luis Cunha Farias, and Alán AspuruGuzik. Objectivereinforced generative adversarial networks (organ) for sequence generation models. arXiv preprint arXiv:1705.10843, 2017.
 Simonovsky and Komodakis [2018] Martin Simonovsky and Nikos Komodakis. Graphvae: Towards generation of small graphs using variational autoencoders. arXiv preprint arXiv:1802.03480, 2018.
 Li et al. [2018] Yujia Li, Oriol Vinyals, Chris Dyer, Razvan Pascanu, and Peter Battaglia. Learning deep generative models of graphs. arXiv preprint arXiv:1803.03324, 2018.
 Irwin et al. [2012] J. J. Irwin, T. Sterling, M. M. Mysinger, E. S. Bolstad, and R. G. Coleman. Zinc: a free tool to discover chemistry for biology. Journal of chemical information and modeling, 52(7):1757–1768, 2012.
 Rogers and Hahn [2010] D. Rogers and M. Hahn. Extendedconnectivity fingerprints. Journal of chemical information and modeling, 50(5):742–754, 2010.
 [32] RDKit. Rdkit: Opensource cheminformatics. URL http://www.rdkit.org.
 Duvenaud et al. [2015] D. Duvenaud, D. Maclaurin, J. AguileraIparraguirre, R. GómezBombarelli, T. Hirzel, A. AspuruGuzik, and R. P. Adams. Convolutional networks on graphs for learning molecular fingerprints. In Proceedings of the 28th International Conference on Neural Information Processing Systems  Volume 2, NIPS’15, pages 2224–2232, Cambridge, MA, USA, 2015. MIT Press.
 Ramsundar et al. [2015] B. Ramsundar, S. Kearnes, P. Riley, D. Webster, D. Konerding, and V. Pande. Massively Multitask Networks for Drug Discovery. ArXiv eprints, February 2015.
