I Introduction

It is well-known that the next generation of wireless networks (5G) is expected to support a wide range of new services. Ultra reliable low latency communications (URLLC) is an example of such services that implies very strict requirements on packet delivery delay ( ms) and packet loss ratio ([1].

To provide such a low PLR, the link adaptation algorithm (i.e., the algorithm which selects modulation and coding scheme (MCS) according to the current link quality) should be robust to any change of channel conditions. In LTE and 5G systems, link adaptation works as follows. User Equipment (UE) measures the signal-to-noise ratio (SNR), maps these measurements to channel quality indicators (CQIs) and then reports them to a base station. Using the received CQI reports, the base station (gNB) selects such an MCS, which provides block error rate (BLER) less than some target value (in LTE it is set to 10%). Apparently, the latest CQI report cannot give an accurate estimation of SNR, and many works in the literature focus on robust link adaptation schemes correcting such inaccuracies. Moreover, the number of CQI values is smaller than the number of available MCSs.

To address these problems, a popular algorithm of the outer loop link adaptation (OLLA) [2, 3] uses hybrid automatic repeat request (HARQ) statistics on positive and negative acknowledgments (ACK/NACK) to adjust MCS at the base station. Specifically, OLLA adds some offset to SNR estimation, which increases on each received ACK and decreases on each NACK. However, slow convergence of this approach makes it inapplicable to URLLC scenarios.

In [4], the authors consider link adaptation for URLLC traffic in the presence of interference and do not pay much attention to the estimation of fading. However, our results show that even for slowly moving UEs in the scenario without interference, we have to take into account fading when predicting channel degradation in order to provide high reliability.

The authors of [5] propose a scheduling algorithm with dynamic BLER adjustment for URLLC and eMBB (enhanced mobile broadband) traffic. In particular, they divide the scheduling process into two steps: (i) scheduling of the minimal amount of channel resource, which is enough to transmit URLLC data with a given target BLER; (ii) scheduling of the remaining channel resource in order to transmit data with a more conservative (and thus more reliable) MCS. In this paper, we use a similar idea of using a more conservative MCS than the latest CQI report suggests. However, in contrast to [5], we take into account the available URLLC packet delay budget.

In LTE, the delay increases with the number of performed HARQ retransmissions since each retransmission is sent only after receiving NACK or after some timeout. In [6], the authors propose to use the so-called feedbackless transmissions for URLLC. Specifically, before any transmission, the base station chooses one of the two options: (i) normal feedback-based transmission allowing transmission attempts (initial transmission and HARQ retransmissions); (ii) one-shot transmission with

times lower code rate. For that, the authors of the paper use a reinforcement learning approach that aims at minimizing the expected long-term cost, which depends on the latency and the reliability of transmission. However, the authors assume that the code rate is constant. In contrast, we focus on link adaptation and an appropriate MCS selection.

The paper [7] studies dynamic adjustment of the target BLER for initial transmission and a HARQ retransmission of a URLLC packet. Specifically, the authors propose to send two CQI reports corresponding to two different target BLERs. These target BLERs should be selected in such a way to make the initial transmission efficient and to provide the required reliability with HARQ retransmission on more robust MCS. Despite the benefits achieved with this approach, there are still some challenges in its applicability to URLLC since it strongly relies on accurate channel estimation.

A recent 3GPP report from Nokia [8] states that in a highly-variant channel, it is beneficial to know the worst case SNR conditions experienced by the UE at a given time. Unfortunately, the specific algorithm for MCS selection is considered for future study. Inspired by their idea, we propose a conservative link adaptation algorithm, which estimates the maximal channel degradation based on the difference between CQI reports obtained at the gNB and shows good performance in terms of PLR, latency and channel resource consumption.

The rest of the paper is organized as follows. In Section II, we describe the proposed algorithm. We evaluate the performance of this algorithm and analyze the obtained results in Section III. Section IV concludes the paper.

Ii Proposed Algorithm

Ii-a Main Idea

Fig. 1

illustrates how the channel quality of one resource block (RB) varies with time. We can see that for high speeds of UEs, the channel quality changes very fast. This complicates the problem of MCS selection since the optimal MCS shall (i) provide high success probability, and (ii) be as high as possible to consume channel resource frugally. However, in URLLC scenarios, we have a very low delay budget for transmission, which is enough only for one or two transmission attempts for each packet. In this case, we cannot rely solely on the last report from the UE because it can be non-relevant at the time of actual transmission.

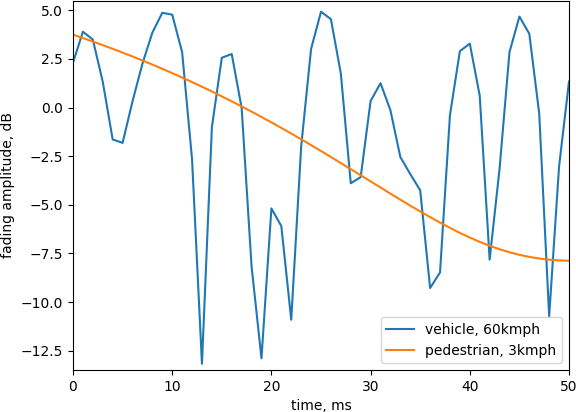

Fig. 1: Rayleigh fading.

To address this problem, we propose a conservative approach which is based on the estimation of the worst-case conditions. In particular, we estimate the maximal channel degradation during the interval between the instant when the CQI was measured and the instant, when the transmission was performed. Below we describe the algorithm in detail.

Ii-B CQI estimation

The UEs divide the whole band into several subbands containing the integer number of RBs. Once in a CQI reporting period the UEs calculate the average SNRs in each subband, map obtained SNRs to integer CQIs and report them to the gNB.

The amount of data which can be successfully delivered in an RB depends on its current state. During the scheduling procedure at time moment , the channel quality is estimated using previously received CQI reports. Let be the time moment when the last CQI report has been received by the gNB. Then, when actual data transmission is performed, the last received CQI is outdated by , where is scheduling delay which is needed for scheduling procedure and preparing data for transmission and is the delay needed for CQI report generation and transmission (see Fig. 2).

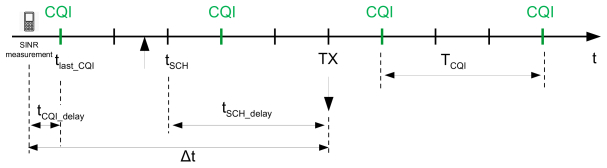

Fig. 2: CQI estimation.

Since the channel quality can significantly change with time, the estimation error which we obtain using such an outdated CQI report can be very high. Hence, we propose to estimate channel quality conservatively assuming that the channel degradation between time moments and is less than the maximal channel degradation observed between time moments and for any , where is the observation window, i.e.,

Specifically, we estimate CQI in each subband as follows:

(1)

To calculate , we collect statistics on previously received CQI reports. Obviously, the maximal value of equals , when the CQI report is obtained right after scheduling procedure at time moment . Therefore, to estimate the channel degradation during any on each received CQI report, we need to collect statistics only on last CQI reports. Then, on each received CQI report , we calculate and replace in CQI value corresponding to time moment with .

In order to estimate the maximal channel degradation, we calculate the maximum value of in a sliding window of size . In other words, for each (quantized with step ) we keep the maximal value of the observed channel quality degradation during the time interval .

Using the described above procedure, we can estimate for each subband separately. In scenarios, where noise and/or interference affects the whole band, i.e., all subbands in the same manner, we can merge statistics collected for all subbands and find the maximal channel degradation faster (using a lower value of ). For that, we take the maximum value from values measured in different subbands.

Ii-C MCS Selection and Resource Allocation

When scheduling algorithm makes a decision on allocating RBs to UEs, it should take into account the channel conditions in a certain subband corresponding to the moment of actual transmission, i.e., utilize CQI values calculated according to (1). However, the result of the subtraction is truncated by zero, so that we lose information about the RBs with reported CQIs close to zero. Hence, in the scheduling algorithm we use both the last reported CQIs and the estimated CQIs as follows.

  1. For each RB, calculate the scheduling metric for each UE (e.g., with LLC-PF scheduler designed in [9] for URLLC) and sort UEs according to this metric.

  2. For each RB, remove from consideration those UEs that have reported CQI 0 (according to last reported CQIs) for this RB.

  3. Find leaders for each RB, i.e., UEs with the highest scheduling metric.

  4. Sort RBs in the descending order of CQIs reported by corresponding leaders.

  5. Starting from the first RB (with the highest CQI value), allocate RBs to the corresponding leader.

  6. For each UE, calculate the maximal transport block (TB) size, i.e., the number of bits which can be transmitted with allocated to this user RBs, using CQI estimation (as described below). All RBs assigned to the UE at step (5) and not used are considered for further scheduling.

  7. Remove from consideration the UEs that can transmit all buffered data in already allocated RBs.

  8. Go to step (3) and continue procedure until all RBs are allocated or none of the remaining RBs can increase the TB size for any UE.

Let us describe the maximal TB size search procedure at step (6). Consider a UE with the allocated set of RBs .

  1. For each RB from the set, we calculate the CQI estimation according to equation (1) and map the obtained CQIs to Signal-to-noise-ratios . Below we assume that RBs are sorted in the descending order of SNRs.

  2. We calculate a single effective (see [10] for details) for each subset .

  3. Using the effective , we find such an MCS that allows obtaining BLER less than the given target value.

  4. Assuming that is used in all RBs, we calculate the TB size for each subset .

  5. We find the subset providing the maximal TB size.

Since URLLC traffic implies strict delay and PLR requirements, to avoid packet losses, we do not use RBs with reported CQI 0 in the described above procedure. However, for the UE that cannot deliver packet before its deadline and has selected the lowest MCS (i.e., MCS 0) for transmission these RBs can be useful. Hence, after the end of the described above procedure we do the following steps.

  1. For each UE, we check whether it can deliver its packets before their deadlines.

  2. For those UEs which cannot transmit a packet before deadline, we calculate the TB size which is needed to meet the deadline and check whether we can obtain such TB size using MCS 0 and RBs having CQI equal 0.

  3. If the required TB size can be obtained, we select MCS 0 and add to previously selected RBs the minimal number of RBs which allow satisfying the UE demands.

Iii Numerical Results

Iii-a Simulation Setup

To evaluate the performance of the proposed link adaptation algorithm, we use a well-known discrete-event simulator NS-3 [11] with implemented features enabling URLLC (see [9]). Simulation parameters are summarized in Table I. Similar to [9]:

  • We consider a mini-slots time structure with the mini-slot duration of 2 OFDM symbols, where 25% of mini-slot is used for control data and reference signals and 75% is used for user data.

  • The time interval between the initial transmission of a packet and its HARQ retransmission equals 3 mini-slots.

  • For each URLLC packet, we consider the delay budget of 1 ms (i.e., seven mini-slots). Therefore, only one HARQ retransmission can be performed within the given delay budget.

  • The control channel is reliable, i.e., HARQ feedback and CQI report messages are always successfully delivered.

In experiments, we consider a single gNB and a single UE. The UEs receives URLLC traffic in downlink with packet inter-arrival time of 3 ms. Obviously, packet transmission latency and reliability depend on the channel quality. Hence, we vary the Geometry factor, which equals SNR experienced by a UE in the same position without fading. For that, we vary the distance between the UE and the gNB.

Parameter Value
Carrier frequency 2 GHz
Bandwidth 20 MHz
Subcarriers spacing 15 kHz
RB width 12 subcarriers
OFDM symbol duration  us
Mini-slot duration 2 OFDM symbols

Number of HARQ retransmissions per packet

1
gNB/UE TX power 30 / 23 dBm
gNB antenna pattern omnidirectional

Fading model

Rayleigh multipath fading (Extended Pedestrian/Vehicle A)

Geometry factor -3..25 dB
TABLE I: Simulation parameters

We compare the following solutions:

  1. last CQI estimation, which uses only last reported CQIs for MCS selection;

  2. conservative link adaptation algorithm described in Section II with ;

  3. MCS0 in best RBs which always selects MCS 0 and allocates the best RBs such that the obtained TB size is greater than the current queue size, or allocates all RBs if it is impossible.

For performance evaluation, we consider the following key performance indicators.

  1. PLR is the fraction of packets which delivered after the deadline or have been lost;

  2. The average MCS used for transmissions.

  3. RB usage is the percentage of RBs used for data transmission. It characterizes channel resource consumption.

Iii-B Analysis of Results

Fig. 3: Influence of WND for vehicle UE (60 kmph).
Fig. 4: Influence of CQI period for pedestrian UE (3 kmph).
Fig. 5: Influence of CQI period for vehicle UE (60 kmph).

First, let us evaluate the influence of parameter on the proposed conservative algorithm performance. Fig. 3 shows results for a highly variable channel with Rayleigh fading corresponding to vehicles speeds of 60 kmph. We can see, that the channel estimation based on the last CQI provides very high PLR (higher than ) even for a UE close to the gNB (with high geometry factor) because the gNB selects MCS values based on outdated CQIs. Although this solution consumes much less channel resource than other solutions, such a high PLR makes URLLC service impossible. In contrast, always selecting MCS 0 significantly reduces PLR but consumes much more channel resorce. Since MCS 0 provides the highest reliability for transmission, we can consider black curves as the lower bound of PLR which can be achieved with any solution.

Let us consider the proposed conservative algorithm. We can see that its performance depends on : the higher is selected, the lower PLR is achieved and the higher channel resource consumption is observed. These results can be explained by the fact that with a higher window the behavior of the algorithm becomes more conservative and it selects more robust MCS considering higher channel degradation. Figures show that small window () is not enough to guarantee PLR . Hence, in the experiments below, we use .

Now let us evaluate the influence of the CQI period on the performance of various link adaptation algorithms. Figs. 4 and 5 show the results for fading corresponding to pedestrians with 3 kmph speed and vehicles with 60 kmph speed, respectively. The average selected MCS for the algorithm which only considers the last CQI does not depend on the CQI period since the average reported CQI remains the same with different CQI periods. Hence, the CQI period has almost no impact on the channel resource consumption for this algorithm. However, we can see a noticeable difference in PLR which increases with the CQI period since the reports become outdated for a higher CQI period. In contrast, for the proposed conservative algorithm, there is almost no difference in PLR for various values of the CQI period, but the channel consumption significantly increases with CQI period. This happens because in equation (1) increases with the CQI period and hence the algorithm selects more robust MCS. Comparing with the solution which always selects MCS 0, we can see that the proposed algorithm significantly reduces channel consumption. In particular, for the pedestrian case, the reduction is observed even for cell edge UEs (i.e., with a low geometry factor). For high geometry factor, the difference in RB usage reaches six times for both pedestrian and vehicle cases. So, we can conclude that the proposed link adaptation algorithm allows achieving the same coverage as MCS 0 solution (i.e., PLR requirement is satisfied for UEs having low geometry factor) while significantly reducing channel resource consumption.

Iv Conclusion

In this paper, we have proposed the novel conservative link adaptation algorithm for URLLC that estimates the worst-case channel degradation experienced by UEs. For that, the gNB keeps statistics of received CQI reports and calculates the maximum channel quality degradation over a time window. We compare this algorithm with two reference solutions: (i) to select MCS based on the latest received CQI report, and (ii) to select always the most robust MCS (i.e., MCS 0). The results obtained with NS-3 simulator show that the first reference solution does not allow the gNB to satisfy strict URLLC requirements, especially in highly mobile scenarios, while the second one consumes too much channel resource. In contrast, the proposed approach allows satisfying URLLC requirements for a wide range of geometry factor values (i.e. provide high network coverage) and at the same time provides up to 6 times reduction in channel consumption compared to the second reference solution.
