Conditional Task and Motion Planning through an Effort-based Approach

This paper proposes a Conditional Task and Motion Planning algorithm able to find a plan that minimizes robot efforts while solving assigned tasks. Unlike most of existing approaches that replan a path only when it becomes unfeasible, the proposed algorithm takes into consideration a replanning every time an effort saving is possible. The effort is here considered as the execution time but it is extensible to the energy consumption. The computed plan is both conditional and dynamically adaptable to the unexpected environment changes. Authors prove the completeness and scalability of their proposal.


Dynamically Constrained Motion Planning Networks for Non-Holonomic Robots

Reliable real-time planning for robots is essential in today's rapidly e...

A Rapidly-Exploring Random Trees Motion Planning Algorithm for Hybrid Dynamical Systems

This paper proposes a rapidly-exploring random trees (RRT) algorithm to ...

Anytime Stochastic Task and Motion Policies

In order to solve complex, long-horizon tasks, intelligent robots need t...

Flying Trapeze Act Motion Planning Algorithm for Two-Link Free-Flying Acrobatic Robot

A flying trapeze act can be a challenging task for a robotics system sin...

Anytime Integrated Task and Motion Policies for Stochastic Environments

In order to solve complex, long-horizon tasks, intelligent robots need t...

Safety-aware time-optimal motion planning with uncertain human state estimation

Human awareness in robot motion planning is crucial for seamless interac...

Coordinated Motion Planning: Reconfiguring a Swarm of Labeled Robots with Bounded Stretch

We present a number of breakthroughs for coordinated motion planning, in...

I Introduction

Let a human assign a task to a robot. e.g., the pick of a can of coke from a cluttered table or the resolution of a Navigation Among Movable Obstacles (NAMO) [1, 2] problem (see Figure 1). In order to achieve these targets, the robot needs to fulfill high-level task planning in conjunction with low-level motion planning. As stated in [3], efficient algorithms exist to solve task and motion planning problems in isolation; however, their integration is still challenging in terms of generality, completeness, and scalability.

Authors provide a Task and Motion Planning (TAMP) system which combines a Fast-Forward (FF) task planner [4] and a revisited version of the Lazy Kinodynamic Motion Planning by Interior-Exterior Cell Exploration (L-KPIECE) motion planner [5], as proposed in [6, 7]. The goal is to give the possibility to any type of robot to use this system for solving any type of task, from manipulation to navigation, in an unknown, real-world scenario. The implementation aims to reflect the human behavior: humans take plans while efficiently managing their time and energy. In detail, given the actions that the robot can perform, together with its initial and final states, one feasible task plan, namely a reachability graph, is computed by using FF (no optimality check is required). The corresponding motion plan is generated by using [7]. Based on the knowledge of the robot world at its current state, a collision checking is performed so that the final plan would take into consideration only those objects and sub-tasks that minimize robot efforts (the execution time in this case, but the energy used by the robot can also be considered). The robot starts moving. While acting, if failures or environment changes occur (e.g., objects are detected which obstruct the computed path), an online replanning routine is adopted. Starting from the robot current state, it regenerates the remaining task plan by evaluating and substituting those actions which preconditions are no longer feasible. Starting from the new task plan, the algorithm proposed in [7] is invoked to find a new feasible set of motions.

Fig. 1: A Navigation Among Movable Obstacles problem: while navigating towards a goal, the robot takes into consideration the possibility of moving movable obstacles.

Completeness. Acting in the real world is non-deterministic: the planner has no complete and certain knowledge of the environment and actions can have unpredictable effects. This means that a robot should be able to dynamically adapt to changes and efficiently recover from failures while avoiding the explosion of the computed reachability graph because of the new alternatives introduced. In the case of analysis, starting from a relax task, i.e., a plan which ignores the delete lists of operators, FF extracts an explicit solution to the plan by using a search strategy called enforced hill-climbing (EHC). This strategy does not use backtracking, meaning that some parts of the search space are lost, but if FF fails to find a solution using EHC by getting stuck in dead-ends, it switches to standard best-first searches (e.g., greedy or A* search) which expands all search nodes by increasing order of goal distance evaluation. This recovery routine guarantees completeness. As stated in [5]

, KPIECE is, instead, probabilistically complete. Moreover, the proposed planner handles known and unknown events through the online replanning routine until a maximum number of attempts is reached. This means that if the number of attempts tends to infinity, the probability of finding a plan, if one exists, will tend to one.

Scalability. The task planning problem is exponential in the number of sub-tasks and the motion planning problem is exponential in the number of collision objects populating the workspace. Indeed, multiple sub-tasks exist fulfilling the assigned task and different combinations of sub-tasks can bring to the same result. Moreover, when operating in the clutter, a robot has to decide which objects to move, where to place them, if moving them is necessary or convenient. Focusing on the task-level planning, FF employs an helpful actions pruning that maintains in the relaxed plan only those actions that are really useful in a state, so one can restrict the successors of any state to only those produced by members of the respective relaxed solution. Focusing on the motion-level planning, [7] is based on KPIECE because KPIECE uses the information collected during the planning process in order to decrease the amount of forward propagation it needs [5]. Moreover, by using the Lazy strategy, edges of the computed path are not immediately checked for collision: they are checked only when a better path to the goal is found. By eliminating the majority of collision checks and efficiently forward propagating the exploration during the planning, the proposed algorithm speeds up to convergence in complex problems, like that of TAMP, where collision checking is relatively expensive. It also requires restrained runtime and memory so that it can handle high dimensional systems with complex dynamics.

Ii Related Work

Various researchers investigated the problem of combining task and motion planning. Most of them tried to combine the symbolic reasoning of task planning with the geometric reasoning of motion planning. Dornhege et al. [8, 9], for instance, proposed a system that calls the motion planner only to check the geometric feasibility of the planned tasks. Another example is the FFRob approach proposed by Garrett [10, 11]: it integrates geometric information with the state-of-the-art Fast-Forward (FF) [4] task planner by sampling a fixed set of object poses and robot configurations and then planning with them by using FF. Benefits of FFRob are its probabilistic completeness and exponentially convergence. Its major limit is its focus: the approach solves only a particular class of pick-and-place problems. Moreover, it does not use planning to guide sampling.

Other approaches such as [12, 13, 14] still focus on manipulation tasks but they propose solutions based on Hierarchical Planning that evaluate task-level decisions by using low-level geometric-reasoning modules. In particular, Srivastava [12] combines off-the-shelf task planners with an optimization-based motion planner [15, 16]

that exploits a heuristic function to remove potentially-interfering objects. This approach first plans a task and then tries to produce a motion plan that satisfies the computed set of discrete actions. If the induced motion planning problem is infeasible, the task planning is repeated taking into consideration the set of preconditions that identifies the infeasibility.,

Finally, Dantam et al. [3] propose an incremental task and motion planner which combines discrete decisions about objects and actions with geometric decisions about collision free motion: they use an incremental constraint solver that adds motion constraints to the computed candidate task plan. The task plan is computed by using a Satisfiability Modulo Theories (SMT) approach, while the Open Motion Planning Library (OMPL) is used to find a feasible motion plan. At each failure, the algorithm iteratively increases the plan depth and motion planning timeouts such that it guarantees probabilistically completeness for fixed placements and grasps.

Instead of only focusing on manipulation domains, the proposed approach aims to integrate task and motion planning routines while performing generic tasks, that means robots should be able to use this system in order to handle both navigation and manipulation domains. Moreover, while most of the state-of-the-art approaches evaluate the objects relocation only when free-space motion planning is unfeasible, the proposed algorithm revalues a plan every time an action can save effort, not only when the ongoing trajectory becomes unfeasible.

Iii Problem Statement

This Section defines the Deterministic Task (III-A) and Motion Planning (III-B) problems. These concepts will be the definition basis of the Conditional Task and Motion Planning authors will introduce in III-C.

Iii-a Deterministic Task Planning

Suppose the assignment of a task to a robot . A task planner aims to find an optimal plan solving . moves from its start state to a goal state by combining the set of actions that is able to perform according to its capabilities.

The problem is deterministic if the actions domain is fully observable and every action is fully defined as a sentence in the Planning Domain Definition Language (PDDL) [16] with a set of preconditions and a set of effects, described as conjunctive lists of literals in first-order logic.

computes a set of plans , where is defined as

and iff is satisfied by and brings to .

A plan is optimal if it has the lowest cost among all the computed plans:

is the cost of action being executed in state .

Iii-B Deterministic Motion Planning

A motion planner tries to find an optimal path that lets move from to while avoiding collisions. The problem is deterministic if the working space is fully observable. In this case, MP can find a set of paths , where is a path in the free space:

is optimal if its trajectory is of minimum length:

Iii-C Conditional Task and Motion Planning

Suppose the existence of a Task and a Motion Planner (See III-A and III-B). Suppose that is assigned to . finds the optimal plan performing and returns the optimal trajectory executing . The solution is optimal if is of minimum cost:

where is the cost of the trajectory necessary to perform the i-th planned action. Without loss of generality, in this paper the solution is optimal if it minimizes the robot’s effort: and . The effort is defined as the execution time.

The problem is deterministic if the actions space is a priori fully defined and each action is executed infallibly. However, in the real world actions can generate unexpected effects and the robot can perceives changes at its surroundings. This means that the outcomes of environment and actuation actions should be processed in order to address uncertainties due to partial observability at the time of offline planning [17]. The definition of is unchanged but the way used to find it is new: the plan should handle every known condition through the definition of a reachability graph and an online recovery procedure should handle unexpected events by combining sensing and actuation actions and minimizing the global cost of the computed path.

Iv Algorithm

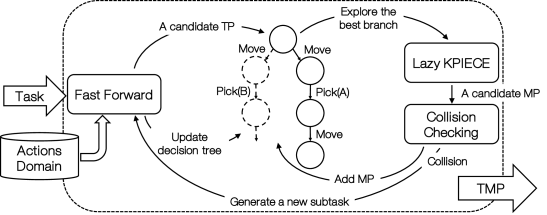

Fig. 2: Algorithm Pipeline. The algorithm computes a candidate Task Plan (TP), explores the best branch, and computes the corresponding candidate Motion Plan (MP). It checks for collisions in the candidate Motion Plan. If a collision exists, it generates a new subtask to handle the collision object, it replans, and updates the reachability graph. If there is no collision, it updates the reachability graph with the MP. It repeats the pipeline until the goal state is reached.
