I Introduction

In 5G and Internet of Things, tens of billions of devices are expected to be deployed to serve our societies[al2015internet, gupta2015survey, vaezi2018multiple]. With such an enormous number of nodes, the collection of data using the conventional multi-access schemes is impractical because this would result in excessive network latency with limited radio resources.

To solve the problem, a promising solution is computation over multi-access channel (CoMAC). It exploits the signal-superposition property of wireless channel by computing the desired function through concurrent node transmissions[goldenbaum2015nomographic, goldenbaum2013robust, abari2016over, goldenbaum2014channel, kortke2014analog, zhu2018over, wu2019experimental, nazer2007computation, appuswamy2014computing, erez2005lattices, wu2018experimental, nazer2011compute, jeon2014computation, Jeon2016Opportunistic, wang2015interactive, goldenbaum2014computation]. Many networks computing a class of nomographic functions of the distributed data can employ CoMAC[goldenbaum2015nomographic]. For example, wireless sensor networks can use the framework of CoMAC since it only aims to obtain a functional value of the sensor readings (e.g., arithmetic mean, polynomial or the number of active nodes) instead of requiring all readings from all sensors.

Analog CoMAC was first studied in [goldenbaum2013robust, abari2016over, goldenbaum2014channel, kortke2014analog, zhu2018over, wu2019experimental], where pre-processing at each node and post-processing at the fusion center were used to fight fading and compute functions. The designs of pre-processing and post-processing used to compute linear and non-linear functions have been proposed in[abari2016over]

, and the effect of channel estimation error was characterized in

[goldenbaum2014channel]. In order to verify the feasibility of analog CoMAC in practice, software defined radio was built in [kortke2014analog]. A multi-function computation method has been presented in [zhu2018over], which utilized a multi-antenna fusion center to collect data transmitted by a cluster of multi-antenna multi-modal sensors. Also, the authors in [wu2019experimental] studied how to compute multiple functions over-the-air with antennas arrays at devices and the access point, where different linear combinations with arbitrary coefficients for the Gaussian sources were computed. In summary, the simple analog CoMAC has led to an active area focusing on the design and implementation techniques for receiving a desired function.

Since analog CoMAC is not robust to noise, digital CoMAC was proposed to use joint source-channel coding in [nazer2007computation, appuswamy2014computing, erez2005lattices, nazer2011compute, jeon2014computation, Jeon2016Opportunistic, wang2015interactive, goldenbaum2014computation, wu2018experimental, wu2018computation] to improve equivalent signal-to-noise ratio (SNR). The potential of linear source coding was discussed in [nazer2007computation], and its application was presented in [appuswamy2014computing] for CoMAC. Compared with linear source coding, nested lattice coding can approach the performance of a standard random coding[erez2005lattices]. The lattice-based CoMAC was extended to a general framework in [nazer2011compute] for relay networks with linear channels and additive white Gaussian noise (AWGN). In order to combat non-uniform fading, a uniform-forcing transceiver design was given in [wu2018experimental]. Achievable computation rates were given in [nazer2011compute, jeon2014computation, Jeon2016Opportunistic] for digital CoMAC through theoretical analysis.

One serious issue in digital CoMAC is the vanishing rate as the number of nodes increases when the fading MAC is considered. In order to prevent the vanishing rate, a narrow-band CoMAC (NB-CoMAC) with opportunistic computation has been studied in [Jeon2016Opportunistic]. A wide-band CoMAC (WB-CoMAC) has been extended in [wu2018computation] against both frequency selective fading and the vanishing computation rate.

To the best of our knowledge, all the aforementioned CoMAC works only considered the use of orthogonal multiple access (OMA) for functions by transmitting the function in different resource blocks (RBs), i.e, time slots or sub-carriers. Non-orthogonal multiple access (NOMA) is well-known for improving spectrum efficiency but has never been considered in CoMAC[ding2017survey, dai2018survey, wang2006comparison]. For example, the authors in [wang2006comparison] compared NOMA and OMA in the uplink, which showed that NOMA achieves higher ergodic sum rates while the fairness of nodes has been considered. NOMA based on user pairing was considered in [ding2016impact, yang2016general, sedaghat2018user] to ease successive interference cancellation (SIC) caused by the superposition transmission of too many nodes at the base station. Different from NOMA for information transmission, NOMA-based CoMAC (NOMA-CoMAC) superposes multiple functions instead of different bit sequences from different nodes in each RB. Also, nodes with disparate channel conditions are allowed to be served simultaneously in conventional NOMA to improve the performance, whereas the node with poor channel condition only makes the computation rate vanishing in NOMA-CoMAC system since the function computed by nodes requires the uniform fading. It suggests that the direct use of NOMA in CoMAC system is not suitable.

Motivated by the above observations, in this work, we propose a NOMA-CoMAC system through the division, superposition, SIC and reconstruction of the desired functions. Analytical expression for the achievable computation rate with sub-function superposition is derived based on nested lattice coding[jeon2014computation, Jeon2016Opportunistic, wang2015interactive, goldenbaum2014computation]. Furthermore, several limiting cases are considered to characterize the lower bound of the computation rate and the diversity order. Our contributions can be summarized as follows:

• Novel NOMA-CoMAC. We propose a NOMA-CoMAC system with sub-function superposition. Unlike NOMA systems for information transmission, NOMA-CoMAC decomposes the desired functions into several sub-functions, superposes these sub-functions with large equivalent channel gains in each RB, executes the process of SIC and reconstructs the desired functions at the fusion center.

• Improved computation rate. The analytical expression of the computation rate of NOMA-CoMAC is derived. Using the closed-form expression, the power allocated to each node can be calculated directly with low computational complexity. Compared with the conventional CoMAC schemes, both achievable computation rate and non-vanishing rate with massive nodes are improved.

• Limiting cases. We characterize the lower bound of the computation rate with an exact expression as the number of nodes goes to infinity. It provides a straightforward way to evaluate the system performance. As the power of each node goes to infinity, we obtain the diversity order of the computation rate of NOMA-CoMAC. It shows that the node with the worst channel gain among these sub-functions in each RB plays a dominant role.

The rest of the paper is organized as follows. Section II introduces the definitions and the existing results of NB-CoMAC and WB-CoMAC. The system model of NOMA-CoMAC is further given. In Section III, we summarize the main results of this paper and compare them with the conventional CoMAC schemes. Section IV presents the proposed NOMA-CoMAC with sub-function superposition in detail and analyzes the computation rate. Section V focuses on the performance of the proposed NOMA-CoMAC, which includes the power control and outage. Simulation results and the corresponding discussion are presented in Section VI, and conclusions are given in Section VII.

Ii System Model

We introduce two typical CoMAC frameworks in this section, and review the main results of several previous works. We define and as the ceiling function. Let denote a set and

represent the transpose of a vector or matrix. For a set

, denotes the cardinality of

. Let the entropy of a random variable

be and denote the diagonal matrix of which the diagonal elements are from to . A set is written as or for short.

Ii-a Narrow-Band CoMAC

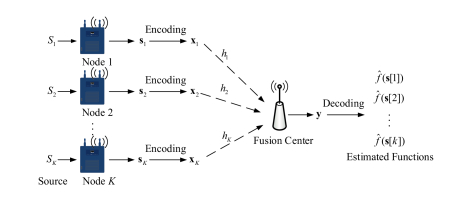

The framework of NB-CoMAC is shown as Fig. 1, where each node draws data from a corresponding random source for times and obtains a length- data vector. After encoding the data vector, the fusion center computes a desired function as all nodes transmit theirs data vector simultaneously.

First of all, we define the data matrix to describe the data from nodes during time slots.

Definition 1 (Data Matrix).

A data matrix represents the data from nodes during time slots. It is expressed as

 S =⎡⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢⎣s1[1]⋯s1[j]⋯s1[Td]⋮⋮⋮si[1]⋯si[j]⋯si[Td]⋮⋮⋮sK[1]⋯sK[j]⋯sK[Td]⎤⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥⎦ =[s[1]T⋯s[j]T⋯s[Td]T] (1)

where , , is the -th data of the -th node from the random source , is the -th data of all nodes and is the data vector of node . Each data belongs to , which means it is mapped to a number between 0 and through quantization. Let

be a random vector associated with a joint probability mass function

as is independently drawn from .

A function with respect to the random source vector is called the desired function. Its definition is given as follows.

Definition 2 (Desired Function).

For all , every function

 f(s1[j],s2[j],⋯,sK[j])=f(s[j]) (2)

that is computed at the fusion center is called a desired function where is independently drawn from (See Definition 1). Every function can be seen as a realization of . Thus, it has functions when each node gets data from each random source for times.

In order to be robust against noise, we use sequences of nested lattice codes[nazer2011compute] throughout this paper. Based on this coding, the definitions of encoding and decoding are given as follows.

Definition 3 (Encoding & Decoding).

Let denote the data vector for the -th node whose length is (see Definition 1). Denote as the length- transmitted vector for node . The received vector with length is given by at the fusion center. Assuming a block code with length , the encoding and decoding functions can be expressed as follows.

• Encoding Functions: the univariate function which generates is an encoding function of node . It maps with length to a transmitted vector with length for node .

• Decoding Functions: the decoding function is used to estimate the -th desired function , which satisfies . It implies the fusion center obtains desired functions depending on the whole received vector with length .

Considering the block code with length , the definition of computation rate[Jeon2016Opportunistic, jeon2014computation, goldenbaum2015nomographic, goldenbaum2014computation] can be given as follows.

Definition 4 (Computation rate).

The computation rate specifies how many function values can be computed per channel use within a predefined accuracy. It can be written as where is the number of function values (see Definition 2), is the length of the block code and is the entropy of . Apart from this, is achievable only if there is a length- block code so that the probability as increases.

Ii-B Wide-Band CoMAC

The framework of CoMAC was adopted to a wide-band MAC which aims to improve the computation rate over NB-CoMAC. The desired function as a whole cannot be allocated into several sub-carriers. Thus, it divided the desired function into sub-functions transmitted as bit sequences, and allocated sub-functions to each sub-carrier so as to provide a improved non-vanishing computation rate. The framework of WB-CoMAC is shown in Fig. 2.

A desired function is computed through the simultaneous transmission of all nodes. If only a subset of nodes participates in the computation, the function computed by a subset of nodes is called the sub-function. The sub-function is only part of the desired function. Assuming that a sub-function is computed by chosen nodes and the number of all nodes is , the desired function is split into parts.

Definition 5 (Sub-Function).

Let

 τu={x∈[1:K]:|τu|=M} (3)

denote a set where each element is the index from the chosen nodes. Suppose that and for all , a function is said to be a sub-function if and only if there exists a function satisfying .

Remark 1 (Detachable functions).

As studied in [giridhar2005computing, wang2015interactive, goldenbaum2014computation, jeon2014computation], CoMAC can be designed to compute different types of desired function. We focus on two typical functions, the arithmetic sum function and the type function. A function is the arithmetic sum function where is the weighting factor for node . A function is regarded as the type function where denotes the indicator function and . Both arithmetic sum function and type function are detachable from Definition 5.

Ii-C Existing Results

The computation rates of NB-CoMAC and WB-CoMAC are given as follows.

Theorem 1 (Rate of NB-CoMAC).

As shown in [Jeon2016Opportunistic, Theorem 1], for any satisfying , the ergodic computation rate of NB-CoMAC is given by

 R=1BE⎡⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢⎣C+⎛⎜ ⎜ ⎜ ⎜ ⎜ ⎜⎝1M+|hIM|2KPME[|hIM|2|h|2]⎞⎟ ⎟ ⎟ ⎟ ⎟ ⎟⎠⎤⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥⎦, (4)

where is the number of nodes, is the number of the chosen nodes to compute a sub-function, is the channel gain of the -th node, is the -th element of the set of the ordered indexes of channel gains such that and is any random variable.

Theorem 1 considered a NB-CoMAC with flat fading, [wu2018computation] expanded it to a WB-CoMAC with frequency selective fading to focus on high speed transmission.

Theorem 2 (Rate of WB-CoMAC).

As mentioned in [wu2018computation, Corollary 2 and Eq. (27)], for any satisfying , the ergodic computation rate of WB-CoMAC over frequency selective fading MAC is given by

 (5)

where is the number of sub-carriers, is the channel gain of the -th node at the -th sub-carrier and is the -th element of the set of ordered indexes of channel gains at the -th sub-carrier such that .

One sees that both CoMAC schemes in the above only consider the use of OMA to transmit a function in each RB. This results in low spectrum efficiency. Since NOMA can offer extra improvement in spectrum efficiency, we apply NOMA to CoMAC to improve the computation rate. Thus, we propose a NOMA-CoMAC system with sub-function superposition, where each sub-carrier can serve these sub-functions with large equivalent channel gains simultaneously. It can not only achieve a higher computation rate, but also can provide an improved non-vanishing rate with massive nodes.

Ii-D Novel NOMA for Wide-Band MAC

The framework of WB-CoMAC discussed in Section II-B will be used to transmit multiple functions simultaneously in each sub-carrier using NOMA. We consider an OFDM-based system with sub-carriers during OFDM symbols while the length of the block code is . In each sub-carrier, functions are chosen to be transmitted. Then, the -th received OFDM symbol at the fusion center can be expressed as

 Y[m]=L∑l=1K∑i=1Vli[m]Xli[m]Hi[m]+W[m], (6)

where , , is the number of nodes, the power allocation matrix of node is whose diagonal element is the power allocated to compute the -th function at each sub-carrier, is the transmitted diagonal matrix of node to compute the -th function, a diagonal matrix is the channel response matrix of which the diagonal element is the channel response of each sub-carrier for node and the diagonal element of is identically and independently distributed (i.i.d.) complex Gaussian random noise following .

Assuming perfect synchronization and perfect removal of inter-carrier interference, based on Eq. (6), the received signal in the -th sub-carrier at the -th OFDM symbol can be given as

 yg[m]=L∑l=1K∑i=1vli,g[m]xli,g[m]hi,g[m]+wi,g[m], (7)

where is the power of node allocated in the sub-carrier for computing the -th function, is the transmitted symbol of node for the -th function in the -th sub-carrier from the transmitted vector (See Definition 3), is the channel response of the sub-carrier for node and is i.i.d. complex Gaussian random noise following .

Iii Main Results

In the OFDM-based system, all the nodes is sorted by their channel gains in each sub-carrier, and the ordered nodes are divided into parts to compute sub-functions. Only the first sub-functions with large equivalent channel gains are chosen to be superposed in a sub-carrier. Then, the computation rate of NOMA-CoMAC is achievable with the limit of large .

Theorem 3 (Rate of NOMA-CoMAC).

For any satisfying and , the ergodic computation rate of NOMA-CoMAC over wide-band MAC is given as

 R=MLKNTsTs∑m=1⎡⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢⎣N∑g=1mini∈[1:L]⎡⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢⎣C+⎛⎜ ⎜ ⎜ ⎜ ⎜ ⎜⎝NM+Nminu∈Ml[|hIgu[m],g[m]|2PIgu[m],g[m]]1+NL∑j=i+1minu∈Mj[|hIgu[m],g[m]|2PIgu[m],g[m]]⎞⎟ ⎟ ⎟ ⎟ ⎟ ⎟⎠⎤⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥⎦⎤⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥⎦, (8)

where is the number of nodes, is the number of chosen nodes to compute a sub-function, is the number of chosen sub-functions in each sub-carrier, is the number of sub-carriers, is the number of OFDM symbols, is a set including the indexes of the chosen nodes to compute the corresponding sub-function, is the -th index of the ordered indexes of nodes in the -th sub-carrier at the- OFDM symbol, is the channel gain of the -th node in the -th sub-carrier at the -th OFDM symbol and is the power allocated to node .

Proof:

Please refer to Section IV for proof. ∎

Remark 2 (Property of NOMA-CoMAC).

Theorem 3 presents a general rate which can be used with power control. It shows that the rate of NOMA-CoMAC is determined by the sub-function with the slowest rate among the sub-functions in every sub-carrier, since the desired function can not be reconstructed unless all sub-functions are received at the fusion center.

Remark 3 (Generalization of rates for NB-CoMAC and WB-CoMAC).

The rate of NOMA-CoMAC in Theorem 3 generalizes the rates of NB-CoMAC and WB-CoMAC. By setting in Theorem 3, we can obtain the rate of WB-CoMAC in Theorem 2. The rate of NB-CoMAC in Theorem 1 can be also obtained by setting in Theorem 3.

In the proposed scheme, we choose the first sub-functions with large channel gains in each sub-carrier. Since the superposition transmission of too many sub-functions makes SIC at the fusion center difficult, only two sub-functions () as a pair are chosen to be transmitted in a single sub-carrier.

Corollary 1 (Rate of NOMA-CoMAC with average power control).

Considering an OFDM-based system where each sub-carrier serves a sub-function pair (), the ergodic computation rate of NOMA-CoMAC considering the average power control, i.e, for node , can be obtained as

 R=2BNE⎡⎢ ⎢⎣N∑g=1C+⎛⎜ ⎜⎝NM+2PKM|hIgM,g|2Γ+√Γ2+4PKM|hIgM,g|2ϖ1,g⎞⎟ ⎟⎠⎤⎥ ⎥⎦, (9)

where and .

Proof:

Please refer to Section V and Appendix A for proof. ∎

Corollary 1 provides an easy way to allocate the power into each sub-function when average power control is considered, since the power allocated to each node can be calculated directly using the closed-form expression with low computational complexity.

Similar to the previous works, the rate of NOMA-CoMAC in Corollary 1 can also prevent the rate from vanishing as the number of nodes increases. Nevertheless, the previous works only verified the non-vanishing rate through simulation and did not obtain its exact value through mathematical analysis. We characterize the lower bound of the computation rate as the limiting rate. It can be used to calculate the accurate value of the non-vanishing computation rate with given parameters.

Corollary 2 (Limiting Rate of NOMA-CoMAC).

As increases, the computation rate of NOMA-CoMAC approaches an exact value which is only determined by and can be given as

 R(r)=2rC+⎛⎜ ⎜⎝NrK+2Pξ1−rξ1−2rrΔM+√(rΔM)2+4rϖ1Pξ1−rξ21−2r⎞⎟ ⎟⎠, (10)

where , , and

is the cumulative distribution function (CDF) of

is the CDF of the exponential distribution with parameter one, i.e.,

and .

Proof:

Please refer to Appendix B for proof. ∎

Note that previous works only proved that the computation rate was non-vanishing through simulation, Corollary 2 provides the lower bound of the computation rate of NOMA-CoMAC, which is easier to evaluate the performance. Using a similar proof of Corollary 2, we can obtain the limiting rates of WB-CoMAC and NB-CoMAC.

Remark 4 (Limiting Rates for NB-CoMAC and WB-CoMAC).

No exact lower bound of the computation rates and their limiting rates are available in previous works. Hence, we derive the exact expression of these limiting rates, which can calculate the exact values of these non-vanishing rates with given parameters. Following a similar proof, the limiting rate of WB-CoMAC in Theorem 2 can be obtained easily as

 R(r)=rC+(NrK+ξ1−rPrϖ1). (11)

It also generalizes the limiting rate of NB-CoMAC in Theorem 1 as . Unlike conventional works with respect to a series of random variables and , these limiting rates are only determined by ( or ).

In conclusion, we summarize these achievable computation rates and limiting rates in Table I.

Iv Proposed NOMA-CoMAC Scheme

Iv-a Proposed Scheme

As mentioned in Section II-C, NB-CoMAC only considered the flat fading channel. In order to improve the computation rate and deal with frequency selective fading, WB-CoMAC was proposed. These conventional CoMAC schemes transmit only one function (or sub-function) in each RB resulting in low spectrum utilization efficiency, hence applying NOMA design into CoMAC is a way to improve the computation rate through multiple sub-functions superposition.

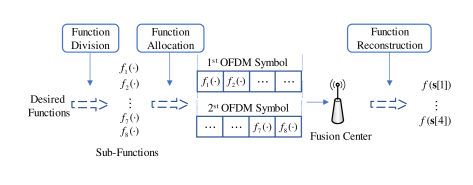

As shown in Fig. 3, we provide a simplified description on the proposed scheme in a hybrid OFDM-NOMA system.

• Sub-Function Process. In each sub-carrier, we sort all the nodes depending on the corresponding channel gains. Then, every nodes in such an order computes a function which is regarded as a sub-function in Fig. LABEL:sub@fig:noma-comac-a. Referring to Definition 5, denotes the set whose elements belong to these indexes of nodes to compute a sub-function . Then, let the set

 S={τ⊆[1:K]:|τ|=M} (12)

include all the possible sub-functions111For easy presentation, we use the element stands for the sub-function which is computed by these nodes in ., and the cardinality of is .

• Superposition Process. As shown in Fig. LABEL:sub@fig:noma-comac-a, let the worst channel gain in the sub-function stand for the equivalent channel gain of the sub-function. Then, we sort all the sub-functions in each sub-carrier according to these equivalent channel gains. Only the first sub-functions are chosen to be simultaneously transmitted, which is seen as a superposition. Then, one possible superposition can be defined as

 δ={τ1,⋯,τL:τu∩τv=∅,|δ|=L}, (13)

where , and sub-functions . All the possible superpositions are in a set

 H={δ∈S:|H|=L−1∏l=0(K−MlM)}. (14)
• SIC Process. As shown in Fig. LABEL:sub@fig:noma-comac-b, all the OFDM symbols are received at the fusion center. Each sub-carrier contains a superposition with sub-functions. Through SIC given in [nazer2011compute], we can obtain all the sub-functions.

• Reconstruction Process. As mentioned in Definition 5, all the sub-functions need to be reconstructed at the fusion center. The set

 X={φ={δ1,δ2,⋯,δD}:δu∩δv=∅,D⋃u=1δu=[1:K],|φ|=D=BL}D⋃u=1δu=[1:K],|φ|=D=BL} (15)

contains all the possible combinations whose element can reconstruct a whole desired function, and the cardinality of is . After all the sub-functions are collected in Fig. LABEL:sub@fig:noma-comac-b, we can recover the desired functions by using the relationship between the sub-functions and the desired functions.

Iv-B Computation Rate of NOMA-CoMAC

As shown in Fig. 3, the desired function is divided into parts, each part can be regarded as a sub-function which is computed at fusion center individually. In each sub-carrier, sub-functions are chosen to be transmitted. Based on those definitions in the previous sub-section, we use the following parts to derive the computation rate step by step.

Rate of Sub-Function . As mentioned in Fig. LABEL:sub@fig:noma-comac-a, sub-functions are chosen for the -th sub-carrier at the -th OFDM symbol to be transmitted. The -th sub-function is computed by nodes whose indexes are in the set at the fusion center. We assume the bandwidth of the hybrid OFDM-NOMA system with sub-carriers is the same as the mentioned conventional CoMAC system. The bandwidth that each sub-carrier owns is of the total bandwidth. Then, the computation rate of the -th sub-function in a sub-carrier at the -th OFDM symbol can be given as follows.

Lemma 1 (Computation Rate of a Sub-Function).

With the limit of large and sub-functions in the -th sub-carrier, the instantaneous computation rate of the -th sub-function at the

-th OFDM symbol with AWGN whose variance is

can be express as

 Rl,g[m]=1NC+⎛⎜ ⎜ ⎜ ⎜ ⎜ ⎜⎝NM+Nminu∈Ml[|hIgu[m],g[m]|2PIgu[m],g[m]]1+NL∑j=l+1minu∈Mj[|hIgu[m],g[m]|2PIgu[m],g[m]]⎞⎟ ⎟ ⎟ ⎟ ⎟ ⎟⎠, (16)

where is the channel gain of the -th sub-carrier for the node , is the power allocated to the -th node in the -th sub-carrier and is the set including the index of the chosen nodes to compute the -th sub-function (See Eq. (8)).

Proof:

As demonstrated in [nazer2011compute], CoMAC can subtract part of the contribution from the channel observation to compute several functions at the fusion center based on successive cancellation. Let denote the channel vector and denote the coefficient vector to compute the -th function. From [nazer2011compute, Theorem 12], the computation rate of the -th function from the channel observation with a noise variance of can be express as

 Rl=C+⎛⎝P|αl|2+P∥αlh−∑lj=1aj∥2⎞⎠, (17)

where is the scalar parameter to move the channel coefficients closer to the -th desired function. By giving the optimal following [nazer2011compute, Remark 11], of the noise variance and the -th element of the coefficient vector

 al[i]={h[i]i∈{Igu[m]}u∈Ml0otherwise, (18)

the computation rate of the -th sub-function in single sub-carrier can be given as

 Rl=C+⎛⎝NM+NP∥al∥21+NP∑Lj=i+1∥aj∥2⎞⎠. (19)

Then combining Eq. (19) with [jeon2014computation, Theorem 3], the computation rate considering fading channel and power control at the -th time slot is further expressed as

 Rl[t]=C+⎛⎜ ⎜ ⎜⎝NM+Nminu∈Ml[|hIu[t][t]|2PIu[t][t]]1+N∑Lj=l+1minu∈Mj[|hIu[t][t]|2PIu[t][t]]⎞⎟ ⎟ ⎟⎠. (20)

Since the propagation time of a sub-carrier symbol in OFDM needs time slots as mentioned in [wu2018computation, Lemma 1], for the -th sub-function in the -th sub-carrier at the -th OFDM symbol is of . In conclusion, Lemma 1 has been proved. ∎

Rate of Superposition . Compared with conventional CoMAC schemes, each sub-function in the same sub-carrier has to face inter-function interference in NOMA-CoMAC, which causes the different computation rates of different sub-functions in the same sub-carrier. Lemma 1 demonstrates the rate of the -th function in the -th sub-carrier is a part of the sum rate of the superposition of the sub-functions in single sub-carrier. From Fig. LABEL:sub@fig:noma-comac-a, it shows that we need to determine the sum rate of all the sub-functions in a superposition since those sub-functions are transmitted as a whole.

Lemma 2 (Computation Rate of a Superposition).

As the limit of large , the instantaneous computation rate of the superposition of sub-functions in the -th sub-carrier at the -th OFDM symbol with AWGN whose variance is can be express as

 Rδφ,g[m]=minl∈[1:L]Rl,g[m] (21)
Proof:

The rate of the superposition of sub-functions is determined by the minimum for all , since each sub-function is a part of the original desired function and the desired function can be reconstructed if and only if all parts have been received at the fusion center. ∎

Rate of Combination . In the hybrid OFDM-NOMA system with sub-carriers, the number of OFDM symbols is at least 222In order to simplify the derivation, the number of OFDM symbols in Eq. (6) is given as instead.. It also implies that the number of all the sub-carriers during OFDM symbols is , and each sub-carrier serves one superposition . We define a set including those sub-carriers that serve the combination and a set containing the sub-carriers that serve the specific superposition in the combination . Since the superpositions and the combinations in practice are random depending on channel realizations, it causes that and are stochastic. As the limit of large , the set and contain, respectively, sub-carriers and sub-carriers referring to [wu2018computation, Lemma 2]. Then, the transmission of the specific superposition in the combination totally occupies OFDM symbols333Although these superpositions are sent separately in different sub-carrier in different OFMD symbol, we can consider that they are transmitted centrally when obtaining the achievable rate..

Lemma 3 (Computation Rate of a Combination).

The average rate for computing those sub-functions in the combination during OFDM symbols can be given as

 Rφ=1TφTδφ∑m=11NN∑g=1Rδφ,g[m]. (22)
Proof:

According to Eqs. (6) and (7), the received signal in the -th sub-carrier for the superposition based on the combination can be given as

 yδφ,g[m]= ∑τl∈δ∑i∈τlvτli,φ,g[m]xτli,φ,g[m]hτli,φ,g[m]+wτli,φ,g[m] (23) = ∑τl∈δ∑i∈τlxτli,φ,g[m]h′τli,φ,g[m]+wτli,φ,g[m], (24)

where , contains the indexes of the -th sub-function in the superposition and is equivalent channel.

Depending on the conclusions of Lemmas 12 and Eq. (24), we can obtain the average rate for computing the superposition in the combination during OFDM symbols

 Rδφ=1TδφTδφ∑m=11NN∑g=1Rδφ,g[m]. (25)

Then, the average rate for computing those sub-function in the combination is expressed as

 Rφ(a)=1Dminδ∈φRδφ(b)=1DRδφ, (26)

where condition follows because of the similar result to Lemma 2 and condition follows as each average rate approaches the same value with the limit of large . ∎

With the help of Eq. (22) and the length of the transmitted vector , the length of the data vector is as the same as the number of the desired function values reconstructed by combination (See Definitions 3 and 4). is only the part of all the values of desired function , and the exact number of desired function values for all during OFDM symbols is

 Td=∑φ∈XUφ. (27)

Finally, with the help of Lemmas 1, 2 and 3, the computation rate of NOMA-CoMAC based on Definition 4 can be given as

 R =limn→∞TdnH(f(sr)) =limn→∞∑φ∈XRφ|Mφ|H(f(sr))nH(f(sr)) =MLKN1TsTs∑m=1N∑g=1Rδφ,g[m]. (28)

In conclusion, the rate in Theorem 3 is achievable as increases.

V Performance of Proposed NOMA-CoMAC Scheme

In this section, we derive the achievable computation rate of the proposed NOMA-CoMAC with average power control based on the general rate in Theorem 3. We further analyze the outage performance and obtain the diversity order.

V-a Power Control

We consider an average power control method where the average power of each node in each sub-carrier is no more than for all , i.e., . Let represent the transmitted power in the -th sub-carrier at the -th OFDM symbol for the node , and it can be express as

 PIgi[m],g[m]=⎧⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪⎨⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪⎩βl,g[m]KP|hIgMl[m],g[m]|2|hIgi[m],g[m]|2NL∑l=1βl,g[m]ϖl,gi∈Ml,∀l∈[1:L]0otherwise, (29)

where as a constant, can be regarded as the power factor to compute the -th sub-function in the -th sub-carrier and the detailed derivation is given in Appendix A. By putting Eq. (29) into Eq. (16), the rate of the -th sub-function in Lemma 1 can be rewritten as

 Rl,g[m]=1NC+⎛⎜⎝NM+PK|hIgMl[m],g[m]|2βl,g[m]M∑Ll=1βl,g[m]ϖl,g+∑Lj=l+1PK|hIgMj[m],g[m]|2βj,g[m]⎞⎟⎠. (30)

V-B Problem Formulation

We work on maximizing the instantaneous rate of each OFDM symbol to improve the ergodic rate, since the rate in Theorem 3 can be regarded as the mean of the instantaneous rate. Then we formulate the following optimization.

Problem 1.
 maximizeβl,g[m] N∑g=1minl∈[1:L]Rl,g[m] s.t. βl,g[m]≥0∀l∈[1:L]

Because the superposition transmission of too many sub-functions brings the difficulty of SIC at the fusion center and makes the mathematical analysis hard, we choose two sub-functions as a pair to be transmitted in single sub-carrier. By setting in Problem 1, the relationship between and can be obtained as

 β1,g[m]=(√(Υ[m]ϖ2,g+ϖ1,g)2+4PKM|hIgM[m],g[m]|2ϖ1,g√(Υϖ2,g+ϖ1,g)2+4PKM|hIgM[m],g[m]|2ϖ1,g+ϖ1,g−Υ[m]ϖ2,g)β2,g[m]2Υ[m]ϖ1,g, (31)

where
