I Introduction

Compressive sensing [1, 2, 3] (CS) has led to real applications, including the single-pixel camera [4], the lensless camera [5, 6], video compressive sensing [7, 8, 9, 10, 11], depth compressive sensing [8, 12], hyperspectral compressive imaging [13, 14, 15], polarization compressive sensing [16], terahertz imaging [17], and millimeter wave imaging [18]. In this paper, we focus on the two-dimensional (2D) image case, though similar technique can be used for videos [19] and other bandwidths. Specifically, we develop our algorithm under the lensless compressive imaging architecture [5, 20], which has provided excellent reconstruction images from the compressive measurements using simple and off-the-shelf hardware [20].

Diverse algorithms [21, 22, 23, 24, 25, 26] have been developed for compressive sensing recovery, which plays a pivot role in CS, to reconstruct the desired signal from compressive measurements. Sparsity, the key ingredient of CS, has been investigated extensively in these algorithms. The wavelet transformation [27, 28, 29, 21] is generally used since it provides the sparse representation of an image with fast transformations (thus very efficient). A parallel research is using the total variation (TV) for CS recovery [23, 30], which provides good results for piecewise smooth signals. The aforementioned algorithms do not increase the unknown parameters significantly during the reconstruction, as usually the wavelet coefficients will have similar (or the same) number of the image pixels. Recently, researchers have found that by exploiting the sparsity of local patches [31, 32], better results can be achieved. In summary, CS recovery algorithms fall into the following three categories: 1) global basis based algorithm, e.g., using the wavelet transformation, 2) TV based algorithm, and 3) local basis based algorithm, i.e., DCT or dictionary learning or denoising based algorithms. State-of-the-art CS inversion results have been obtained in [33, 34], which generally lie within the third category. In this paper, we propose an alternative inversion algorithm that exploits the low-rank property of image patches.

Generally, the CS recovery is an iterative process in which two steps are performed at each iteration [34]: projecting the measurements to the image level, which can be done by the majorization-minimization (MM) approach [22, 35], or the Euclidean projection [36], or the alternating direction method of multipliers (ADMM) [37], denoising this projected image and updating the recovery of the desired image. These two steps are performed iteratively until some criterion is satisfied. A general framework is developed in [34] under the approximate message passing (AMP) framework, in which diverse denoising algorithms [38] can be plugged in. One key difference of the denoising based CS inversion algorithms compared with the wavelet based CS inversion algorithms is that the former exploits the local sparsity based on (overlapping) patches, as state-of-the-art denoising algorithm is using sparse representation of local patches, e.g.[39]. The number of coefficients for the patches (under some basis or dictionary) is usually larger than the image pixel number (because the overlapping patches are used).

I-a Contributions

The proposed algorithm in this paper also lies in the third category mentioned earlier, which is based on the local basis (for image patches). Specific contributions of this work can be summarized as below:

  • We investigate the low-rank property of image patches under the Gaussian mixture model (GMM) framework. Different from the low-rank model investigated in [33], which requires patch clustering (block matching) as an additional step, in our algorithm, each patch is modeled by a GMM with different weights corresponding to different Gaussian components, which can be seen as a soft clustering approach based on these weights. Furthermore, these weights are updated in each iteration.

  • We develop an general framework using ADMM to explore the sparsity (and low-rank property) of patches in order to recover the desired signal.

  • If each patch is modeled by a single Gaussian component, our GMM degrades to the piecewise linear estimator (PLE) [40, 41]. Therefore, a low-rank PLE algorithm is also proposed for CS recovery.

  • We conduct experiments using our proposed algorithm and other leading algorithms on the real data captured by our lensless camera. This verifies real applications of each algorithm.

I-B Organization of This Paper

We start with the derivation of an ADMM formulation for CS recovery to investigate the sparsity of local overlapping patches in Section II. The proposed low-rank GMM algorithm is developed in Section III and the joint reconstruction algorithm is summarized in Section IV. Extensive results on both simulation and real data are reported in Sections V-VI. Section VII concludes the paper.

Ii CS Inversion via Exploiting Sparsity of Patches

Under the CS framework, the problem we are solving can be formulated as:

(1)
s.t. (2)

where is the sensing matrix, is the desired signal, is the coefficients which are sparse under the basis . From , we can recover easily via , which can be known a priori, (e.g., a wavelet or DCT basis) or learned based on during the reconstruction.

Considering the image case investigated here, let

denote the vectorized image and the sparse representation,

, is now modeled on image patches. Therefore, (2) can be reformulated as:

(3)

where denotes the patch extraction and vectorization operation and considering each patch, we have

(4)

with indexes the patches.

The problem can be reformulated as:

(5)
s.t. (6)

Note this is shared for all patches for current discussion, and in the following analysis, similar patches can be grouped together [33] and each group can have its own .

Next, we develop an ADMM [37] formulation of (5) to solve the problem, which will also be used in our GMM formulation in Section IV. Introducing Lagrange multipliers and parameter in (5) results in the objective function

(7)

Define ,

(8)

The ADMM cyclically solves the following 3 sub-problems:

(9)
(10)
(11)

where denotes the iteration index.

Equation (9) is a quadratic optimization problem and can be simplified to

(12)

which admits the closed-form solution,

(13)

However, the dimension of is large (the pixels of the desired image), requiring a high computational workload. Alternatively, since is invertible, the matrix inversion formula can be used to reduce the computational workload. As is used to extract -th patch from an image, is a diagonal matrix

(14)

Each of the diagonal entries corresponds to an image pixel location and its value is the number of overlapping patches that cover that pixel. Therefore, and

(15)

However, this is not necessarily easy to calculate though can be pre-computed. needs to be saved for computation. Alternatively, (13) can be solved by the conjugate gradient algorithm [42].

To mitigate this problem, we apply the ADMM again on (5) and introduce another auxiliary variable , leading to the following optimization problem:

(16)
s.t. (17)

Following this,

(18)

which can be simplified to (by setting ):

(19)

The optimization of (II) consists of the following iterations:

(20)
(21)
(22)
(23)

For fixed {}, admits the following closed-form solution:

(24)

which can be simplified to

(25)

For the case considered in our work (as implemented in the lensless camera [5]), is the permuted Hadamard matrix and thus

is an identity matrix:

(26)

Similarly, for fixed {}, admits the following closed-form solution:

(27)

Recall that is a diagonal matrix , thus can be computed element wise via

(28)

where denotes the -th entry of the vector inside .

Similar to (10), (22) can be considered as a dictionary learning model, where is the dictionary. If the orthonormal transformation is used (e.g., the DCT), can be solved by the shrinkage thresholding operation [22, 27].

Since the key of this algorithm is to investigate the sparsity of the local overlapping patches, we term this framework as SLOPE (Shrinkage of Local Overlapping Patches Estimator), where the ‘local’ stands for the local basis rather than the global basis such as wavelet. The ADMM-SLOPE is summarized in Algorithm 1.

While good results have been obtained using similar approaches [31, 33] as in Algorithm 1, in the next section, we develop a low-rank GMM framework imposed on the patches and a full formulation of the proposed algorithm is presented in Section IV.

0:  Measurements , sensing matrix , {, , }.
1:  Initial to all 0.
2:  for  to Max-Iter  do
3:     Update by Eq. (II).
4:     Update by Eq. (II).
5:     Update by shrinkage operator.
6:     Update by Eq. (23).
7:  end for
Algorithm 1 ADMM-SLOPE

Iii The Gaussian Mixture Model

The Gaussian mixture model (GMM) has been re-recognized as an advanced dictionary learning approach and has achieved excellent results in image processing [40, 41] and video compressive sensing [43, 19]. Recall the image patches extracted from the 2D image, where the patch size is and there are in total patches. For -th patch , it is modeled by a GMM with Gaussians [44]:

(29)

where represent the mean and covariance matrix of -the Gaussian, and denotes the weights of these Gaussian component.

In this paper, we further impose the GMM is low-rank and now the model in (2) becomes (29) and the problem to be solved becomes

(30)
s.t. (31)

where denotes -th patch from , which is an vectorized image. symbolize the low-rank GMM.

The following problem is to estimate this low-rank GMM. Recalling Section I, we review that the CS recovery is an iterative two-step procedure. In each iteration, one can get an estimate from the projection of the measurements (details discussed in Section IV). We hereby learn a (full rank) GMM from this estimate and then proposing the eigenvalue thresholding approach to derive the low-rank GMM based on this full rank GMM.

Iii-a Low-Rank GMM

In the following, we provide a motivation for the next step in the algorithm. The random vector in (29) (modeled as a GMM) can be written as, dropping the subscript for simplicity,

(32)

where each

is a random vector of multivariate normal distribution, given by

(33)

The random vector

can be decomposed into independent random variables of normal distribution

[45, 43] as follows

(34)

where , is the rank of , and is a vector whose components are independent random variables.

In order to reduce noise, we use a model in which has a small number of independent random components, i.e., we require to be small. This is equivalent to requiring have a reduced rank. More specifically, introducing the parameter , we solve the following minimization problem [46]:

(35)

where is the Frobenious norm, and

is the nuclear norm (sum of the singular values). It is shown in

[46] that the solution to (35) can be readily obtained by a shrinkage on the singular values (which are similar to the eigenvalues) of . Specifically, consider

(36)
(37)

We impose that via

(38)
(39)

And we term this as the eigenvalue thresholding (EVT). Following this, is obtained by

(40)

We further define

(41)

Next, we define a new random vector

(42)

which is modeled by a low-rank GMM, parameterized by .

Iii-B Update Estimate via the Low-Rank GMM

Given an estimated image , the GMM in (29

) can be learned via the Expectation-Maximization (EM) algorithm

[44, 43] based on overlapping patches. Then for each Gaussian component, we adopt the EVT to the covariance matrix to obtain the low-rank GMM . Following this, the estimated image or patches can be updated via this low-rank GMM, to or . Dropping the subscript , given , the conditional distribution for maybe evaluated as

(43)

Since is a low-rank version of , we assume:

(44)

where is modeled as an additive Gaussian noise, thus

(45)

Plugging (45) into (43), we have

(46)
(47)
(48)

which is an analytical solution with [44]

(49)
(50)
(51)

Note that is low-rank obtained via EVT from , but by adding (), is invertible. While (48) provides a posterior distribution for , we obtain the point estimate of via the posterior mean:

(52)

which is a closed-form solution.

The procedure of learning and updating the GMM can be summarized as below:

  • Step 1: Lean a GMM (not low-rank) via EM from an estimate of , which can be obtained from IST, GAP or ADMM described below in Section IV.

  • Step 2: For each Gaussian component, derive the low-rank version by eigenvalue value thresholding via (36)-(41).

  • Step 3: Update the estimate of the image by using (48)-(52).

Iii-C Degrade to the Piecewise Linear Estimator

The piecewise linear estimator (PLE) proposed in [41]

has demonstrated excellent performance on diverse image processing tasks. If each patch is considered drawn from a single Gaussian distribution, our GMM degrades to the PLE and the weights

(or ) are not required. Furthermore, the update equation of will become the Winer filter. The MAP-EM procedure proposed in [41] can still be used to determine which Gaussian each patch lies in and to estimate the denoising version of the each patch. However, this method has been shown that it is very sensitive to the initialization and selecting is critical to the performance of the method. We compare our proposed algorithm with PLE by experiments in Section V-D.

It is worthing nothing that, even using PLE, the eigenvalue thresholding method used to obtain the low-rank Gaussian model is first proposed in this paper. In this case, the PLE model is very similar to the NLR-CS [33], where the low-rank is imposed on each cluster of patches, while in the PLE, the low-rank is imposed on the patches belonging to the same Gaussian component; this can also be seen as a cluster.

Next, we review the MAP-EM algorithm proposed in [41] and adopt it to the current context. In the E-step, assuming that the estimates of the low-rank Gaussian parameters are known, (following the previous M-step), for each patch, one calculates the MAP estimates of all the Gaussian models and selects the best Gaussian model to obtain the estimate of the patch . In the M-step, assuming that the Gaussian models selection and the signal estimate , are known (following the previous E-step), one updates the Gaussian models and then impose them to be low-rank.

  • E-step: Signal Estimation and Model Selection:

    For each image patch , the signal estimation and the model selection are calculated to maximize the log a posterioriprobability :

    (53)

    Recall that we consider is a low-rank version of and

    (54)

    Therefore:

    (55)
    (56)

    This maximization is first calculated over and then over . Given a prior Gaussian signal model , can be estimated by the posteriori mean

    (57)

    The best Gaussian model that generates the maximum MAP probability among all the models is then selected with the estimated

    (58)

    The signal estimate is obtained by plugging in the best model in the MAP estimate

    (59)
  • M-step: Model Estimation:

    In the M-step, the Gaussian model selection and the signal estimate of all the patches are assumed to be know (derived from the IST, GAP or ADMM as shown in Section IV). The parameters of each Gaussian model are estimated with the maximum-likelihood (ML) estimate using all the patches in the same Gaussian model:

    (60)

    where denotes the ensemble of the patch indices that are assigned to the -th Gaussian model and

    (61)
    (62)

Return to the low-rank model proposed in this paper. The E-step is same as above and one more step is added in the M-step. The full rank (not low-rank) Gaussian models are first estimated via (60)-(62), and then each Gaussian model is imposed to be low-rank by thresholding the eigenvalues via (36)-(40). The new low-rank PLE algorithm can be summarized into the following 3 steps:

  • Step 1: Signal estimation and model selection by (57)-(59).

  • Step 2: Model update for the (non low-rank) Gaussian models by (60)-(62).

  • Step 3: Estimate the low-rank Gaussian models from via (36)-(41).

Iv The Joint Reconstruction Algorithm

Section III presents an algorithm to obtain a better estimate (or a denoised version) of the signal given an initial estimate utilizing the low-rank GMM. In this section, the GMM will be wrapped into our joint reconstruction algorithm by different update methods to get the initial estimate, which can be considered as projecting the measurement to the image plane . This is obtained by minimizing the following objection function

(63)

Diverse algorithms have been proposed and we review two of them below and develop an ADMM formulation in Section IV-C. Other approaches, for example, the TwIST [27] can also be used.

Iv-a Iterative Shrinkage Thresholding

By using the majorization-minimization approach [22] to minimize , we can avoid solving a system of linear equations. At each iteration of the MM approach, we should find a function that coincides with at but otherwise upper-bounds . We should choose a majorizer which can be minimized more easily (without having to solve a system of equations). The is defined as

(64)

where denotes the identity matrix and must be chosen to be equal to or greater than the maximum eigenvalue of . For the Hadamard sensing matrix used in our camera, the maximum eigenvalue of is easily obtained. The update equation of in this Iterative Shrinkage Thresholding (IST) algorithm [35] is given by:

(65)

Iv-B Generalized Alternating Projection

The Generalized Alternating Projection (GAP) algorithm proposed in [36], which enjoys the anytime property and has been demonstrated high performance in video compressive sensing [8], has the following update equation by using the Euclidean projection:

(66)

Under some condition of the sensing matrix , as the Hadamard matrix used in our system, is the identity matrix and thus (66) is same as (65) with .

In addition to (66), aiming to speed-up the convergence, the authors in [36] have proposed the accelerated update equations

(67)
(68)

Better results have been achieved in our experiments using this accelerated GAP.

0:  Measurements , sensing matrix .
1:  Initial .
2:  for  to Max-Iter  do
3:     Update by IST (65), or GAP (67) or ADMM (71).
4:     Update related parameters in IST, GAP or ADMM.
5:     Learn a GMM (not low-rank) from .
6:     Obtain the low-rank GMM via eigenvalue shrinkage thresholding (35).
7:     Update by the low-rank GMM using expectation in (52).
8:  end for
Algorithm 2 LR-GMM-SLOPE
0:  Measurements , sensing matrix .
1:  Initial .
2:  for  to Max-Iter  do
3:     Update by IST (65), or GAP (67) or ADMM (71).
4:     Update related parameters in IST, GAP or ADMM.
5:     Update the Gaussian models (not low-rank) from via (60)-(62).
6:     Obtain the low-rank Gaussian models via (35).
7:     Update by the low-rank Gaussian models using (57)-(59).
8:  end for
Algorithm 3 LR-PLE-SLOPE

Iv-C An ADMM Formulation

Under the GMM framework, we don’t have the sparse variable as in (5), the objective function can be formulated as:

(69)

where is obtained by the low-rank GMM model. Following the procedure in (16) by introducing the auxiliary variable {}, we have

(70)

The optimization of (IV-C) consists of the following iterations:

(71)
(72)
(73)

where the update of is given by the low-rank GMM in (48)-(52). Under the sensing matrix considered here in our work, , the solution of (71) is given by (II). Eq. (72) can be solved by

(74)

Similar to (28), can be solved element-wise but in one shot.

The proposed low-rank GMM algorithm, integrated with the three approaches to update (projecting to ), constitutes the LR-GMM-SLOPE algorithm summarized in Algorithm 2. Similarly, when the low-rank constraint is imposed on the PLE, we obtain the LR-PLE-SLOPE in Algorithm 3.

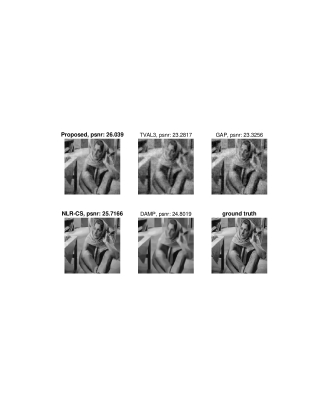

Image Method CSr CSr CSr CSr CSr CSr CSr CSr
Proposed 21.7416 22.7603 23.5292 24.1613 24.6844 25.2192 25.6663 26.0390
NLR-CS 20.4887 21.8187 20.9706 21.6355 24.5237 25.4407 25.5486 25.7166
D-AMP 19.5424 20.4412 21.6364 22.2731 23.0846 23.8539 24.5367 25.0486
GAP-w 20.0870 20.9902 21.6160 22.2509 22.6795 23.0811 23.4164 23.7371
barbara TVAL3 18.1065 19.3655 20.6883 21.4713 22.0738 22.8414 23.0771 23.4208
Proposed 22.7729 22.8600 24.6319 25.2106 25.9662 26.5287 27.1382 27.7893
NLR-CS 21.8342 21.4521 24.3866 16.9015 22.2784 24.5024 23.7634 23.7528
D-AMP 19.7960 20.9017 21.9684 22.8501 23.5793 24.2540 24.9395 25.5490
GAP-w 20.6312 21.2215 21.8709 22.3753 22.8921 23.3859 23.7879 24.1355
boat TVAL3 18.2669 19.4750 20.2451 21.5041 21.9831 22.3542 22.7917 23.1918
Proposed 21.3706 22.1542 22.8186 23.4861 24.0118 24.4425 24.8875 25.1473
NLR-CS 12.0313 16.6251 16.0262 17.7892 17.8507 18.7355 19.2338 21.5345
D-AMP 18.3514 19.3660 20.3618 21.2030 22.0050 22.7786 23.3635 24.0456
GAP-w 19.1932 19.7725 20.2935 21.1823 21.5875 21.8644 22.1527 23.8935
cameraman TVAL3 17.8787 18.6441 20.1835 20.2041 20.8832 21.2041 21.2917 21.4903
Proposed 28.8157 29.8322 30.5442 31.5101 32.0363 32.5592 33.2439 33.5244
NLR-CS 29.7873 30.4427 31.9318 33.4732 34.0312 34.8470 34.9993 34.4573
D-AMP 22.3218 24.4925 26.1075 27.5484 28.9518 30.2165 31.4011 32.3636
GAP-w 24.5972 25.5398 26.2436 26.8443 27.3006 27.8175 28.2215 26.6864
foreman TVAL3 19.3428 20.9050 23.1337 24.1152 24.9492 25.42780 25.9380 26.5072
Proposed 26.7712 28.5080 29.5543 30.1185 31.0571 31.5114 32.1238 32.6598
NLR-CS 25.8497 28.1219 30.6011 27.6256 30.1692 31.5297 28.8471 29.2505
D-AMP 21.7965 23.7841 25.2089 26.6130 27.8643 28.9586 30.0785 31.1040
GAP-w 23.0012 23.8285 24.5941 25.3161 25.8258 26.3531 26.8563 27.2498
house TVAL3 19.0674 20.6872 21.7140 23.4273 23.7382 24.0901 24.5912 25.1538
Proposed 22.9046 23.9496 24.6221 25.3661 25.9910 26.3633 26.9981 27.3694
NLR-CS 22.6851 22.6874 24.8531 23.2517 21.2840 24.2211 25.7213 27.2040
D-AMP 20.4629 21.7906 22.5929 23.6507 24.2494 24.7895 25.3561 25.8032
GAP-w 20.7381 21.4840 22.2093 22.6754 23.0767 23.5415 23.9218 24.2559
lena TVAL3 19.1813 19.7752 20.7421 21.7209 22.1211 22.6207 23.0676 23.6665
Proposed 19.2072 20.1870 21.3428 22.3022 22.9918 23.6285 24.2536 24.7206
NLR-CS 16.1196 17.5697 17.1601 14.6306 15.5702 18.8192 20.8003 20.8957
D-AMP 16.8849 17.6731 18.8636 19.7654 20.8845 21.8400 22.7742 23.4913
GAP-w 17.3904 18.0572 18.8062 19.3374 19.8313 20.2766 20.7840 21.1890
monarch TVAL3 16.2031 17.4510 18.0521 18.6358 19.0864 19.6194 19.9829 20.4556
Proposed 23.1402 24.1143 24.9261 25.5033 26.4840 26.9776 27.4935 28.1257
NLR-CS 20.4401 20.9168 22.6560 22.1715 22.1582 22.4706 24.1134 26.3153
D-AMP 19.5304 20.8630 21.9746 22.8995 23.9191 24.6991 25.5513 26.5082
GAP-w 20.9576 21.9057 22.5781 23.1853 23.7812 24.2326 24.7597 25.1206
parrot TVAL3 18.2386 19.7337 21.4420 22.1800 21.8906 22.6345 22.9478 23.5418
Proposed 23.3141 24.4109 25.2446 25.9507 26.6528 27.1457 27.6911 28.1719
NLR-CS 21.1545 22.4543 23.5732 22.1848 23.4832 25.0708 25.2534 26.1408
D-AMP 19.8358 21.1640 22.3393 23.3504 24.3173 25.1738 26.0001 26.7392
GAP-w 20.8245 21.5999 22.2766 22.8427 23.3212 23.7845 24.2015 24.5660
average TVAL3 18.2857 19.5046 20.7751 21.6573 22.0907 22.5990 22.9610 23.4285
TABLE I: Reconstruction PSNR (dB) of different images with diverse algorithms at various CSr.
Image Method CSr CSr CSr CSr CSr CSr CSr CSr
Proposed 22.0258 23.0449 23.8714 24.4931 25.0737 25.6280 26.0476 26.4061
NLR-CS 12.9754 13.8812 19.0401 17.2073 17.5413 18.9149 22.0660 21.8692
D-AMP 17.3405 18.9956 20.6016 21.8303 22.8833 23.8037 24.6248 25.1828
GAP-w 18.9621 19.8426 20.5282 21.0880 21.5961 21.9764 22.2893 22.5441
TVAL3 15.9549 17.0403 18.0474 18.9911 19.4949 20.1248 20.4482 20.8150
Proposed 22.4159 23.4245 24.4111 25.3072 26.1026 26.7247 27.3431 27.8475
NLR-CS 15.5817 19.0300 19.9201 19.4926 21.1154 23.7973 24.8067 23.6006
D-AMP 17.3405 18.9956 20.6018 21.8303 22.8833 23.8037 24.6248 25.1828
GAP-w 18.9621 19.8426 20.5282 21.0880 21.5961 21.9764 22.2893 22.5441
TVAL3 15.9549 17.0403 18.0474 18.9911 19.4949 20.1248 20.4482 20.8150
TABLE II: Reconstruction PSNR (dB) of RGB images with diverse algorithms at various CSr.

V Simulation Results

We test the proposed algorithm on simulation datasets with 2D images. The proposed algorithm is compared with other leading algorithms 1) TVAL3 [30], 2) GAP based on wavelet [36], 3) DAMP [34] with BM3D denoising, and 4) NLR-CS [33], which explores the low rank of similar patches. State-of-the-art results have been obtained by [34, 33]. The Gaussian components in our mixture model is set to for all the experiments and the analysis of this number is provided in Section V-C. When updating , accelerated GAP in (67) is used and the comparison of different approaches is shown in Section V-B. We obtained the low-rank GMM by setting the rank of each Gaussian component learned via the EM algorithm to the half of the full rank , where P = 64 for the patch size used in this paper. The proposed algorithm is further compared with JPEG compression in Section V-A.

Fig. 1: Images used for CS experiment, {barbara, boat, cameraman, foreman, house, lena, monarch, parrot}.
Fig. 2: Reconstruction results of different algorithms at CSr, image size .

Following the formulation of the lensless camera [5], the permuted Hadamard matrix is used as the sensing matrix. Each image is resized to and these images are shown in Figure 1. The CSr is defined as:

(75)

where the number of columns in is equivalent to the total pixel number of the image. The sensing matrix is constructed from rows of a Hadamard matrix of order . The columns of the Hadamard matrix is permuted according to a predetermined random permutation (the same permutation is used in the real data captured by our lensless camera). For each CSr, we use the first CSr rows of the column-permuted Hadamard matrix as the sensing matrix. By selecting some other rows of the permutated Hadamard matrix, we can get better results [47]. However, here we just select the top rows to be consistent to the implementation of our lensless camera. Note that in this case, is an identity matrix and it is very fast to use accelerated GAP update for in (67). We observed that best results are obtained by the LR-GMM-SLOPE with GAP updates of and these results are reported in this section. For the comparison of IST, GAP and ADMM, please refer to Section V-B.

Since when CSr=0.1, good results have been achieved for most images (see Figure 2 for one example), we here spend more efforts on the extremely low CSr, in particular CSr, which may be of interest to the real applications that are used to detect anomalous events [48] without caring too much about the image quality. The results are summarized in Table I. We can observe that best results are obtained by the proposed aglorithm, NLR-CS or D-AMP. When CSr is less than 0.1, the proposed algorithm usually provides best results except “foreman”, where NLR-CS is the best. We also observed that NLR-CS is very sensitive to the parameters and sometimes the PSNRs are not linearly increasing as the CSr increases, while the other algorithms including the proposed do not have this problem. On average, our proposed algorithm works best when CSr. Though did not reported here, when CSr, the proposed algorithm also provides comparable or better results than D-AMP and NLR-CS. But we need to tune the noise parameter used in , while for all the results presented here, we set it to the same value . In addition, we need to tune the rank thresholds , for which we have observed that a higher CSr requires a larger .

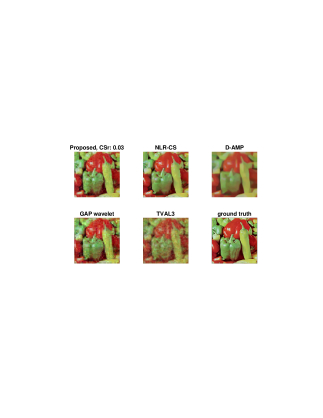

Fig. 3: Reconstruction results of different algorithms at CSr.

In addition to the grayscale images tested above as in other papers, we also conduct our proposed algorithm on the RGB images with results shown in Table II. Three sensors are simulated to capture the R, G and B components of the image. The “book” scene corresponds to the real data captured by our lensless camera. Again, our proposed algorithm provides the best results. One example with CSr is shown in Figure 3. It can be seen that our algorithms provide more details than NLR-CS and D-AMP; both of them presents “blob” artifacts.

V-a Compare to JPEG Compression

JPEG Compression CS Reconstruction Difference
Size PSNR PSNR PSNR
Quality (bytes) (dB) CSr (dB) (dB)
1 1,563 22.0683 0.0334 22.1507 -0.0823
3 1,716 22.7278 0.0367 22.4125 0.3154
5 2,153 24.8416 0.0460 23.2433 1.5983
7 2,559 26.0924 0.0547 23.8426 2.2548
9 2,946 26.9623 0.0630 24.3308 2.6315
10 3,141 27.2853 0.0672 24.5945 2.6908
12 3,494 27.8379 0.0747 24.9514 2.8866
14 3,815 28.2981 0.0816 25.3233 2.9748
16 4,160 28.6912 0.0890 25.6880 3.0032
18 4,478 29.0306 0.0958 25.9230 3.1077
20 4,752
