Compressed Data Structures for Binary Relations in Practice

02/20/2020 ∙ by Carlos Quijada-Fuentes, et al. ∙ Universidade da Coruña Universidad del Bío-Bío 0

Binary relations are commonly used in Computer Science for modeling data. In addition to classical representations using matrices or lists, some compressed data structures have recently been proposed to represent binary relations in compact space, such as the k^2-tree and the Binary Relation Wavelet Tree (BRWT). Knowing their storage needs, supported operations and time performance is key for enabling an appropriate choice of data representation given a domain or application, its data distribution and typical operations that are computed over the data. In this work, we present an empirical comparison among several compressed representations for binary relations. We analyze their space usage and the speed of their operations using different (synthetic and real) data distributions. We include both neighborhood and set operations, also proposing algorithms for set operations for the BRWT, which were not presented before in the literature. We conclude that there is not a clear choice that outperforms the rest, but we give some recommendations of usage of each compact representation depending on the data distribution and types of operations performed over the data. We also include a scalability study of the data representations.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 5

page 8

page 9

page 10

page 11

page 12

page 13

page 14

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

Let and be two sets of objects. A binary relation is defined as a subset of the Cartesian product , where for each element , we say that is related to and denote this as . In the areas of Mathematics and Computer Science, binary relations constitute a fundamental conceptual and methodological tool [DOUGHERTY2006228] used for representing properties or relationships among objects in a simple and intelligent way [Ah2013]. In Computer Science, binary relations can be modeled by using data structures such as graphs, trees, inverted indices, or discrete grids [BBN12, BCPdBNis17]. By using binary relations, it is possible to model complex problems. For instance, connections among pages of a particular Web site, or even among all pages in the World Wide Web (WWW) [Broder2000, BV2004, Papadimitriou2010, BLN14]; other fields are automated recommendation systems, where the users (customers) are related to purchased products [ABP2005, HFY2015, Nav16].

For these relations we can name a number of Neighborhood queries, such as those defined in [yao2004semantics]. Consider a relation , with a total ordering in and a total ordering in . Then, we define the following operations:

  • .

Binary relations have been traditionally stored using either adjacency matrices or adjacency lists. However, and due to the growth on the size that the sets of binary relations currently generated are experiencing (for example, a graph of the whole WWW), it is convenient to store these sets using compact data structures. The goal of doing so is to reduce the storage needs (either RAM or disk), but maintaining the capacity of processing the data directly in their compressed form. Reducing the storage size may have the advantage of diminishing, even removing, the need for I/O operations.

One of the most widely known compact data structures used to store binary relations are the -tree [BLN14] and the Binary Relation Wavelet Tree (BRWT) [BCN13], which is based on a Wavelet Tree [Grossi:2003:HET:644108.644250]. In general, these structures support only some basic operations. For example, the -tree was initially proposed to represent Web graphs, so it implemented operations such as (which tests whether page links to page , called in the original paper), finding successor or predecessor neighbors, and range neighborhood queries. More recently, in [QUIJADAFUENTES201976], the operations over -trees were extended to include set operations, that is, union, intersection, or difference, among others. In the case of BRWTs, there is a number of operations defined over them, such as primitive operations obtaining the labels associated to a given object, or the range of objects associated to a given label. However, no set operations are defined over BRWTs.

When deciding which compact data structure to choose for representing binary relations in the context of a given domain or application, it is very convenient to know in advance the adequacy of the available data structures, in terms of storage needs, supported operations, and time performance. The decision can also consider the frequency of each kind of operation. For example, one application might make an intensive use of union and intersection operations, but rarely searches for predecessor neighbors or performs range neighborhood queries.

In this work, we present a comparison of three compact data structures that can be used to represent binary relations: -tree, -tree1 and BRWT (Binary Relation Wavelet Tree). The comparison considers the same operations for all evaluated data structures. Basically, they are set operations (union, intersection, difference, and symmetric difference) and primitive neighborhood operations (isRelated, successors, predecessors, and range neighborhood queries). The goal of this comparison is to facilitate the choice of the most accurate data structure for a particular application or domain. As an additional alternative to compact data structures, we also include in our comparison the representation of the binary relations using compressed adjacency lists (using QMX and Rice-runs encoders).

Another contribution of the current work is the design and implementation of all of the algorithms needed to perform the set operations and the neighborhood queries over binary relations represented with BRWT. Like the operations we use for -trees and -tree1s, these algorithms operate directly over the compact data structures, without decompressing them.

The rest of this paper is organized as follows. Section II shows a review of the compact data structures considered in the comparison. Section III describes the algorithms for performing set operations over BRWTs. Section IV shows our empirical evaluation. Finally, the last section offers the overall discussion of the results and some conclusions of this work.

Ii Previous work

In this section, we describe the compact data structures and encoders that will be used in our comparison.

Ii-a -tree

A -tree [BLN14] is a succinct data structure originally designed to represent Web graphs, but it is able to represent any binary relation.

A -tree for a binary relation represented by a matrix of size is built as follows111If the matrix is not squared or is not a power of , it is conceptually extended to the right and to the bottom with 0s, rounding the size up to the next power of . This does not cause a significant overhead because the -tree can handle large areas of 0s efficiently.: the root node is associated to the whole matrix, which is divided into submatrices ( rows by columns). For each of these submatrices, a child is added to the root node. We store a 0 in the node if all cells in the submatrix are 0s, or a 1 if any cell contains a 1. We then proceed recursively on all children associated to a 1. The recursion stops when the algorithm processes either an individual cell or a submatrix of 0s, so the resulting tree is not balanced.

By design, -trees perform very well when the matrix has a relatively low number of 1s that are clustered together, because large areas of 0s are represented by a single 0 bit in the -tree. However, each 1 in the matrix can use more than one bit in the -tree, so its behavior worsens if the number of 1s increases. To avoid this problem, a variation of the -tree, which we denote -tree1 in this work, was designed in [BAB+13]. Basically, it represents a uniform submatrix (either full of ones or zeroes) by a single 0 (with an additional bitmap to decide whether it is full of ones or zeroes) and mixed submatrices with ones and zeroes by a 1. The recursion proceeds only for these mixed areas.

Being succinct data structures, the described conceptual trees are not stored, but only the bitmaps of their nodes. Navigation operations over -trees and -tree1s are described in [BLN14] and [BAB+13], respectively. Set operations for both, including the pseudocode for the algorithms as well as empirical results on their performance, are described in [QUIJADAFUENTES201976].

Ii-B Brwt

A Binary Relation Wavelet Tree, or BRWT [BCN13], is a special type of wavelet tree [Grossi:WT] specifically designed to represent binary relations. An example of the conceptual tree built for a given binary matrix is show in Figure 1. Each node contains two bitmaps, which correspond to two submatrices: the top and bottom halves of the original matrix. A bitmap position is set to 0 if all values in this column of the submatrix are 0s (as in column 1 for the A-D bitmap in the root node) and it is set to 1 if any cell in this column has a 1 (column 2 at the same bitmap).

(a) A binary relation matrix
(b) Its BRWT representation
Fig. 1: A BRWT example (based on [BCN13]).

The left and right subtrees are built recursively considering the bits set to 1 at the top/bottom bitmaps. For example, column 1 does not appear in the left subtree of the root node. Note also that, like column 2, a column can propagate to both left and right subtrees. This fact makes the BRWT different from the original wavelet trees, because the bits of a given level may be more than , the number of objects. Interested readers can find in [BCN13] more information about the operations supported by BRWTs and some bounds on their complexity. We shall provide in the next section detailed information, as well as the pseudocode on which our implementation is based, of the set operations for binary relations implemented in BRWTs.

Ii-C Compressed adjacency lists

A very naive and (generally) space-consuming representation of a binary relation is an adjacency list. Although a valid representation, it is not suitable if the relation is big and does not fit into main memory. To avoid this problem, the adjacency lists can be compressed.

There are multiple techniques for compressing lists of integers, such as QMX and Rice-runs. QMX [Tro14] is a compression algorithm that combines word-alignment, SIMD instructions, and run-length encoding. It also includes a SIMD-aware intersection algorithm [LBK16]. Rice-runs combines the well-known Rice coding [WMB99] with run-length compression [CM10, TS10]. QMX performs really well for long adjacency lists, where SIMD instructions can be exploited. Rice-runs is specially suitable when the lists contain large sequences of consecutive 1s in the input relation matrix, due to the use of run-length compression, boosting both compression and intersection speed.

These techniques can be applied to compress any input. The authors have already used them to compress binary relations, using their own implementation in [QUIJADAFUENTES201976]. We must note, however, that these are not compact data structures. They are only compression schemes, and the lists must be decompressed before they can be used to efficiently perform the requested operations on the uncompressed data.

Iii Set Operations over BRWT

We now describe the algorithms for computing union, intersection, difference, and symmetric difference of binary relations represented using BRWTs.

Like the -tree, BRWT is a hierarchical structure. Thus, the approach for the algorithms described in [QUIJADAFUENTES201976, BrisaboaBGLPT15] to implement set operations over -trees can be applied here. Of course, the differences and specific properties of the BRWT must be taken into account.

The algorithms use essentially a breadth-first traversal of the trees that represent the input relations for the union, and a depth-first traversal for the remaining operations. The algorithm for the union is presented in Subsection III-A, and the algorithm for the intersection is described in Subsection  III-B. The remaining operations, difference and symmetric difference, use an algorithm very similar to the intersection, so they are briefly described in the same subsection.

For this section, given a node of the BRWT, and represent the bitmaps associated to . For instance, considering the root node of the BRWT at Figure 1, is , and is .

Iii-a Breadth-first traversal algorithm (Union)

Given the properties of the union, if we are processing two nodes (of the two input BRWT), it is possible to obtain the result without accessing the children of these nodes. That is, if a bit representing a column in one of the nodes is , the output is regardless of the value of the bit in the other node, and if both bits are , the output is . This enables the use of a breadth-first traversal over the BRWTs to compute the result of the union operation.

The traversal is performed by doing a synchronized sequential scan of the two input BRWT bitmaps and . Note that this synchronization must take into account that there can exist a column that is defined in one of the two nodes being processed, but not in the other. Algorithm 1 uses queues (as usual for breadth-first traversal of any tree). In this case, each element of the queue is a pair of flags (indicating if the current column is defined in inputs and , respectively), which is used to determine the output bit, and whether we should enqueue a new pair to process the current column in the child nodes (at the next level of the conceptual tree).

The algorithm actually uses two queues: and . The reason behind their use is the way the bitmaps are stored: for each node , we store the followed by the . Then, is used to manage the breadth-first traversal of the BRWT, while is only used to process the part of each node (we can see in the algorithm that when an element is dequeued from , it is enqueued in , but the enqueuing needed to process lower levels of the conceptual tree is always done in ).

1:
2:
3:
4:   for  do
5:
6:   end for
7:
8:   while   do
9:       if  then
10:
11:       end if
12:
13:       while   do
14:           if  then
15:
16:           else
17:
18:           end if
19:
20:
21:           if  then
22:
23:
24:           end if
25:
26:
27:           if  then
28:
29:           end if
30:           if  then
31:
32:           end if
33:           if  then
34:
35:           end if
36:       end while
37:
38:       if  then
39:
40:       end if
41:   end while
42:   return
Algorithm 1 UnionBRWT()

Iii-B Depth-first traversal algorithms (intersection, difference, and symmetric difference)

The algorithms for the intersection, difference and symmetric difference use a depth-first traversal of the input BRWTs, because the output bit for a column in a node depends on the values of the same column in the descendants of this node, down to the leaves. The algorithms for the three operations are very similar, in fact the navigation scheme is exactly the same for all of them. The only changes are the value of the output, and the decision of whether it is necessary to explore the children or omit these nodes. Thus, we will explain the depth-first traversal only for the intersection, and highlight the differences for the rest of the operations.

The general idea is to process the input BRWTs column by column, recursively. Algorithm 2 describes how to perform the intersection between two BRWTs, processing every column of the root nodes calling the recursive algorithm for the intersection (Algorithm 3). An indication of how to adapt these algorithms to perform the difference and symmetric difference is shown later.

For the intersection, testing the value of a column in a given node, if both inputs have a (meaning this column is defined in both BRWTs), requires a recursive checking. However, if one of the inputs does not have this column defined, the output of the intersection will be a , and there is no need to process their children. This is done for the parts and of each node . For the intersection, the algorithm produces a column in the output if any of the parts ( or ) has this column defined. Otherwise, the column is omitted in the output.

Note that, even when the access to any child could be done by using the rank and select operations for bitmaps, we considered the use of pointers to speed up the operations222We have included in Section IV-D a brief note about the implications of this change.. The operation in Algorithm 2 initializes these pointers to the start of each node. During the operation, if a column is defined in one of the BRWTs but not in the other, the function updates the pointers of the descendant nodes to omit this column. Otherwise, the pointers are shifted one position to process the next column after recursively computing the output value.

Algorithm 4 shows the function. Although in the worst case it would have to process all nodes of the BRWT, this case is extremely infrequent in practice.

1:
2:
3:
4:
5:   for  do
6:
7:   end for
8:   return
Algorithm 2 IntersectBRWT()
1:
2:
3:
4:
5:
6:
7:    {BEGIN code specific to Intersection}
8:   if  then
9:       if  then
10:
11:       else if  then
12:
13:       else if  then
14:
15:       end if
16:       if  then
17:
18:       else if  then
19:
20:       else if  then
21:
22:       end if
23:   else
24:
25:
26:   end if {END code specific to Intersection}
27:   if  then
28:
29:
30:   end if
31:   if  then
32:
33:
34:   end if
35:   if  then
36:
37:
38:   end if
39:   return
Algorithm 3 Intersect()
1:   if  then
2:
3:       if  then
4:
5:
6:       end if
7:
8:       if  then
9:
10:
11:       end if
12:   end if
13:
14:
Algorithm 4 Skip()

As Algorithm 3 shows, lines 826 are specific for the intersection. These lines must be modified to implement the difference and symmetric difference. The pseudocode for these changes is shown in Table I, but in summary there are basically two changes: the output bit for the column, and the management of the column when it is defined in only one BRWT. The output bit in lines 25–26 of Algorithm 3 is computed by performing the between the two bits for the intersection, while it is the with negated second bit for the difference, and the for the symmetric difference. The recursion when the current column is defined for both input BRWTs is the same for all the algorithms, but when only one column is defined, they differ. We introduce a new function, which basically copies a column in one of the input bitmaps to the output bitmap. The algorithm for the difference copies the current column of the first bitmap if it is not defined in the second input. On the contrary, if the column is only defined in the second bitmap, it is skipped. For the symmetric difference, if the column is defined in either bitmap, it is copied to the output. No skipping is needed for this algorithm.

Difference
if then
      ifthen

     else if then


     else if then

     end if      if then

     else if then

     else if then

     end if
else


end if
Symmetric difference
if then
     if then

     else if then

     else if then

     else

     end if
     if then

     else if then

     else if then

     else

     end if
else


end if
TABLE I: Code snippets for set operations.

Iv Empirical Evaluation

In this section we describe the experiments we have conducted to compare the performance of the three compact data structures (-trees, -tree1s, and BRWT) and that of the compressed adjacency lists used to represent binary relations.

We first describe the datasets used in our experiments, of which one of them is real and three of them are synthetic. Then, we include some implementation details of our algorithms, and describe the experimental hardware and software framework we have used. Finally, we present our results.

Iv-a Datasets

We ran our experiments over a real dataset (snaps-uk) and three synthetically generated distributions that use well-known random models, such as Erdős and Rényi [randomgraphs:1959], small-world (using Newman Watts-Strogatz distribution [smallworld:2001]), and Barabasi-Albert distribution [barabasi:2002]. We shall refer to these dataset distributions as random, smallworld and barabasi, respectively. Each dataset is formed by 12 files, so the metrics obtained on the sizes and timings consider the average for these files.

The snaps-uk dataset was taken from a series of twelve monthly snapshots of a Web graph from the .uk domain, collected by the Laboratory for Web Algorithmics333http://law.di.unimi.it [BoVWFI, BRSLLP, BSVLTAG]. We have cut down these graphs to use 1 million nodes (). More information on this dataset is also available in [QUIJADAFUENTES201976].

The three synthetic datasets were generated using the NetworkX444https://networkx.github.io/ Python library. For the random distribution, only the number of nodes and number of edges were required as arguments. For the Barabasi-Albert and small-world distributions, a third parameter is needed, to specify the -nearest neighbors to connect to a given node. This parameter determines the number of edges that is generated. If the number of generated edges is greater than the specified number , the remaining edges are removed.

The output is a binary file containing the plain adjacency list, which in turn is used to build the compact data structure representations (for -trees, -tree1s, and BRWT) as well as the compressed adjacency lists (QMX and Rice-runs).

We have also generated 12 files for each distribution. All of them have nodes. In order to have the same density, the number of generated edges for each file was the same as the corresponding file for the snaps-uk dataset. That resulted in an average number of edges of per distribution, which gives a density .

Given that the distribution of 1s has a high impact on the size of the compressed structures, as well as in the performance of data structures, a sample of all datasets is shown in Figure 2. As we can see, the synthetically generated datasets are much less clustered than snaps-uk, the real dataset.

(a) Barabasi
(b) random
(c) smallworld
(d) snaps-uk
Fig. 2: A sample of all dataset distributions.

Iv-B Experimental framework

The comparison we performed considered, for all the data structures, the following operations:

  • Neighborhood queries: isRelated, successors, predecessors, and range neighborhood.

  • Set operations: union, intersection, difference, and symmetric difference.

The work described here required the coding of all of the algorithms (both neighborhood and set operations) for BRWT, as well as the neighborhood operations for -tree1s and compressed adjacency lists using QMX and Rice-runs. For the remaining algorithms, we use the source code by the authors of the works described in [BLN14] and [BAB+13].

The implementation language for all algorithms is C, compiled with gcc version 6.3.0. The experiments were run on an isolated Intel® Xeon® ES2470@2.30GHz processor with 20 MB of cache, and 64 GB of RAM. It runs Debian 10.1 (buster) with kernel 4.19.0 (64 bits).

Iv-C Results

We present in this section the results of our empirical evaluation. First, we study independently the storage needs (the actual size) of the data structures, and their performance for both neighborhood queries and set operations. Then, both sizes and times are considered together in order to present some trade-offs that would apply when choosing a specific data structure. Finally, we analyze the data structures in terms of scalability.

In the neighborhood operations, besides the isRelated operation, we have included a similar one: isRelated-True. In fact, it is the same operation, but the result of the query is known to be (which corresponds to having a 1 in the matrix). Thus, isRelated-True acts as a worst-case scenario for the isRelated operation in most cases. For example, for -trees, we know that this operation must navigate the tree until its leaves (the result is 1, so it cannot be discarded by a 0 in a previous level of the tree).

Also note that, for the naming of the data structures in the tables and graphics of this section, we have chosen shorter names: kt for -tree, ktone for -tree1, brwt for BWRT, qmx for the QMX encoder, and rice for the Rice-runs encoder.

Iv-C1 Storage

The average size taken up by each structure for all distribution is shown in Table II. As a reference, the size of the full uncompressed adjacency lists is also included in the table. Our standard implementation uses 32-bit integers, so it is used as the base number. However, in order to represent a relation for 1 million nodes, only 20 bits suffice. Thus, we also show the size theoretically needed to represent this relation. Table III shows the same information as a ratio, considering the full adjacency lists as the base for comparison (value ), so the deviations can be better seen.

barabasi random smallworld snaps-uk
Full adj. list (32 bits) 12,963,523 12,963,523 12,963,523 12,963,523
Full adj. list (20 bits) 8,102,201 8,102,201 8,102,201 8,102,201
brwt 10,367,083 10,894,448 7,413,171 2,371,233
kt 9,737,915 10,724,430 4,770,940 1,419,065
ktone 15,613,223 17,304,302 7,344,613 1,771,421
qmx 16,567,964 22,101,395 19,599,142 7,569,547
rice 13,808,180 17,651,437 14,440,775 6,672,224
TABLE II: Average size (in bytes) for the different datasets.
barabasi random smallworld snaps-uk
Full adj. list (32 bits) 1.00 1.00 1.00 1.00
Full adj. list (20 bits) 0.63 0.63 0.63 0.63
brwt 0.80 0.84 0.57 0.18
kt 0.75 0.83 0.37 0.11
ktone 1.20 1.33 0.57 0.14
qmx 1.28 1.70 1.51 0.58
rice 1.07 1.36 1.11 0.51
TABLE III: Average size, shown as a ratio.

Considering the datasets, we can see that the distribution that allows for the best compression ratios (actually, the only one that gets compressed by all structures) is snaps-uk. This is reasonable, because this distribution is clustered, unlike the three synthetic ones, which are based on random models. More concretely, the best compression ratios are obtained by the -tree variants, which benefit from distributions of small number of ones that are clustered. As for the QMX and Rice-runs, their behavior is worse, because they are based on run-length compression, and having a smaller runs of 1s produces worse compression ratios.

Considering the compressed data structures, we can see that standard -trees obtain better results than the plain adjacency list using 20 bits for those clustered distributions (smallworld and snaps-uk), but not for those that follow a more random model (barabasi and random). In any case, compressed data structures obtain generally better results than compressed adjacency lists (except in the case of barabasi, which obtains better results for Rice-runs than for -tree1). Compressed adjacency lists require, for all synthetic data distributions, larger spaces than the original plain representation. For example, using QMX to compress the random distribution actually obtains a file 70% bigger than the full adjacency lists using 32 bits.

Iv-C2 Timings

The timings shown in this section consider only the time devoted to the operations themselves, without taking into account the I/O time of reading the structures (for neighborhood and set operations) or writing the result (only for set operations). In the case of the neighborhood operations, the time shown corresponds to the execution of queries of the same type over the same structure.

Let us first discuss the neighborhood operations. Their timings, in milliseconds, are shown in Table IV. For a better comparison, Table V shows the same information as ratios. The value corresponds to the shortest time for the operation on a distribution.

Query barabasi random smallworld snaps-uk
isRelated brwt 0.312 0.418 0.261 0.075
kt 0.975 1.240 1.057 0.313
ktone 0.867 1.192 1.122 0.453
qmx 0.565 0.941 0.602 0.162
rice 0.460 0.586 0.456 0.135
isRelated-True brwt 4.539 4.563 4.607 6.103
kt 2.768 2.601 2.620 3.318
ktone 2.899 3.501 2.506 3.260
qmx 1.461 1.121 1.103 3.690
rice 1.335 0.655 0.645 3.023
predecessors brwt 19.814 20.709 16.269 14.018
kt 270.140 356.439 190.632 11.515
ktone 444.631 653.985 304.679 14.634
qmx 337111.835 468610.372 358252.193 101397.174
rice 206217.818 270400.268 200732.389 78405.505
successors brwt 16.258 18.792 16.278 16.322
kt 263.515 334.947 189.781 10.459
ktone 437.586 635.259 298.441 13.610
qmx 0.660 0.841 0.755 0.269
rice 0.461 0.641 0.482 0.195
rangeNeighborhood brwt 35.709 40.745 32.419 21.644
kt 1.767 2.461 1.371 0.316
ktone 4.308 6.175 1.860 0.373
qmx 80.690 110.513 124.586 53.651
rice 75.017 88.380 76.048 48.724
TABLE IV: Timings for neighborhood queries (in ms).
Query barabasi random smallworld snaps-uk
isRelated brwt 1.00 1.00 1.00 1.00
kt 3.13 2.97 4.05 4.17
ktone 2.78 2.85 4.30 6.04
qmx 1.81 2.25 2.31 2.16
rice 1.47 1.40 1.75 1.80
isRelated-True brwt 3.40 6.97 7.14 2.02
kt 2.07 3.97 4.06 1.10
ktone 2.17 5.35 3.89 1.08
qmx 1.09 1.71 1.71 1.22
rice 1.00 1.00 1.00 1.00
predecessors brwt 1.00 1.00 1.00 1.22
kt 13.63 17.21 11.72 1.00
ktone 22.44 31.58 18.73 1.27
qmx 17013.82 22628.34 22020.54 8805.66
rice 10407.68 13057.14 12338.34 6808.99
successors brwt 35.27 29.32 33.77 83.70
kt 571.62 522.54 393.74 53.64
ktone 949.21 991.04 619.17 69.79
qmx 1.43 1.31 1.57 1.38
rice 1.00 1.00 1.00 1.00
rangeNeighborhood brwt 20.21 16.56 23.65 68.49
kt 1.00 1.00 1.00 1.00
ktone 2.44 2.51 1.36 1.18
qmx 45.66 44.91 90.87 169.78
rice 42.45 35.91 55.47 154.19
TABLE V: Timings for neighborhood queries (ratio).

The information that stands out most in these tables corresponds to the predecessors operation, where the fastest structure is the BRWT, and the QMX and Rice-runs encoders are much slower (up to times slower in the case of the random dataset). This is reasonable because encoders compress the adjacency lists row by row, and finding the predecessors requires the decompression of all of the encoded lists.

For successors, however, Rice-runs is the fastest, closely followed by QMX, while -trees and -tree1s are slower (almost times). The reason is that, in this case, the encoders have to decompress only one list (at most; if there are no 1s in the row, the answer is immediate).

Considering together predecessors and successors, we can see that the difference between the best and the worst is much larger in the predecessors because, as we mentioned, QMX and Rice-runs must decode all of the lists. However, for successors, the compact data structures have to explore only part of the binary relation, not all of it. This is because all of them are actually self-indices, so they allow for a fast access to a portion of the matrix. For the same reason, if we consider the rangeNeighborhood queries, we can see that the compact data structures perform better than the encoders, and, in this case, -tree is the fastest structure.

For the isRelated and isRelated-True queries, all structures offer a more homogeneous behavior. Anyway, BRWT is the fastest for isRelated, while it is Rice-runs for isRelated-True. This is due to the fact that isRelated accesses a random cell in the matrix, and with a low density BRWT is able to answer false without reaching the leaf nodes, while in the case of isRelated-True query, BRWT must always reach a leaf node. The same happens for -trees and -tree1s.

Operation barabasi random smallworld snaps-uk
Difference brwt 8228.666 9336.838 3706.757 745.321
kt 4244.713 5001.098 1942.896 349.290
ktone 5468.160 6072.274 2188.450 265.957
qmx 715.745 890.225 694.532 310.097
rice 480.035 563.134 377.019 148.794
Intersection brwt 3887.119 4313.796 2304.365 610.479
kt 2543.189 3095.668 1233.486 199.862
ktone 4958.742 5491.372 2040.778 224.208
qmx 562.268 682.922 680.239 321.681
rice 284.395 335.176 367.698 153.825
Symmetric brwt 11817.572 17987.314 5173.330 767.283
Difference kt 5778.197 6716.642 2676.058 527.112
ktone 5317.761 6253.623 2385.553 379.348
qmx 819.924 952.049 724.674 346.717
rice 561.967 661.309 445.186 126.816
Union brwt 7371.075 7960.348 4201.526 1218.818
kt 4117.581 4517.057 1927.165 571.612
ktone 5552.810 6351.123 2392.387 444.056
qmx 841.915 999.932 780.056 410.269
rice 624.011 680.933 524.918 271.250
TABLE VI: Timings for set operations (in ms).
Operation barabasi random smallworld snaps-uk
Difference brwt 17.14 16.58 9.83 5.01
kt 8.84 8.88 5.15 2.35
ktone 11.39 10.78 5.80 1.79
qmx 1.49 1.58 1.84 2.08
rice 1.00 1.00 1.00 1.00
Intersection brwt 13.67 12.87 6.27 3.97
kt 8.94 9.24 3.35 1.30
ktone 17.44 16.38 5.55 1.46
qmx 1.98 2.04 1.85 2.09
rice 1.00 1.00 1.00 1.00
Symmetric brwt 21.03 27.20 11.62 6.05
Difference kt 10.28 10.16 6.01 4.16
ktone 9.46 9.46 5.36 2.99
qmx 1.46 1.44 1.63 2.73
rice 1.00 1.00 1.00 1.00
Union brwt 11.81 11.69 8.00 4.49
kt 6.60 6.63 3.67 2.11
ktone 8.90 9.33 4.56 1.64
qmx 1.35 1.47 1.49 1.51
rice 1.00 1.00 1.00 1.00
TABLE VII: Timings for set operations (ratio).

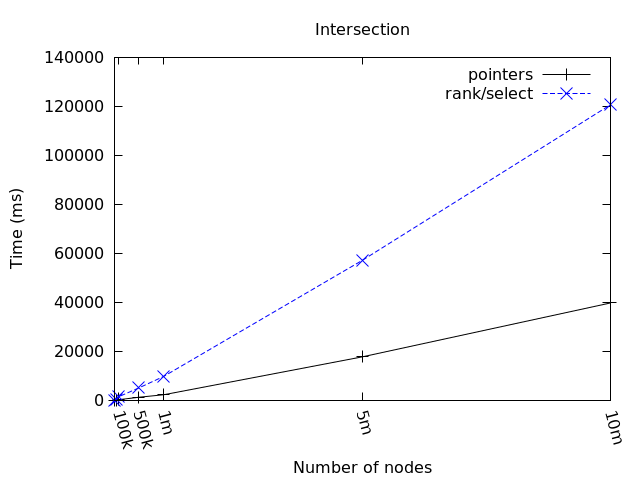

For the set operations, Table VI shows the actual times of our experiments, and the same information as ratios is shown in Table VII. Even when the difference between the best and worst data structure is not as large as for neighborhood operations, it is clear that the encoders (Rice-runs, closely followed by QMX) are the best option. The BRWT is almost always the slowest for these kinds of operations.

The reason behind that behavior is that set operations must access in general all the elements of the binary relation. The encoders just decompress row by row, build the result and encode it as a new output row. However, the three compact data structures, being self-indices, have an overhead that (as in general for any type of index) worsens the performance when the full dataset has to be accessed.

Iv-C3 Storage size versus time

Let us consider now the trade-off between storage size and performance for all compared data structures. Figures 37 analyze their behavior. All figures contain two graphics: for the neighborhood operations, and for the set operations.

For the neighborhood operations, it is clear that the compact data structures, especially the standard -tree, is the best option, in terms of both size and performance, while the encoders use more space and perform worse. Figure 3 shows this behavior considering an average of all the datasets together. If we take into account the data distribution, we can see that the previous conclusion is generally true, except for the -tree1. This data structure is highly dependant on the degree of clustering (remember that it compresses areas of 1s in the matrix), and thus its size grows for non-clustered datasets (like barabasi, and random, as seen in Figures 4 and 5 respectively), and it behaves better for the more clustered (smallworld and and especially snaps-uk, as seen in Figures 6 and 7 respectively).

For the set operations, none of the data structures outperforms the rest in terms of size and performance. On the contrary, we can see in Figure 3 that we have a trade-off, because the compact data structures use less space, but they are slower than the encoders. The encoders are faster, but they need more space. Thus, the general advice would be the following: if we are primarily interested in speed, and there is enough available RAM to fit the data structures using the encoders, then use the encoders. If the datasets would not fit into RAM, use the compact data structures.

Parts of Figures 47 show this behavior for each data distribution. We can see that the BRWT is a poor choice for the set operations in any distribution in terms of speed (not in terms of space). Again, the -tree1 shows a behavior highly dependent on the clusterization, being one of the fastest data structures for the snaps-uk dataset and one of the slowest technique for barabasi.

(a) Neighborhood operations
(b) Set operations
Fig. 3: Average time versus average size for all distributions.
(a) Neighborhood operations
(b) Set operations
Fig. 4: Average time versus average size for barabasi.
(a) Neighborhood operations
(b) Set operations
Fig. 5: Average time versus average size for random.
(a) Neighborhood operations
(b) Set operations
Fig. 6: Average time versus average size for smallworld.
(a) Neighborhood operations
(b) Set operations
Fig. 7: Average time versus average size for snaps-uk.

Iv-D A note on scalability

The previous section analyzed the performance of the data structures over relations having 1 million nodes. However, we are also interested in the behavior of the data structures when the size of the relation grows.

We shall describe in this section the behavior of the data structures when the number of nodes varies, growing up to nodes. We have chosen the smallworld data distribution for these experiments, because it is the less biased distribution: it is not as clustered as the real dataset (snaps-uk), which would benefit the compact data structures, and it is not as evenly distributed as random or barabasi, which would benefit the QMX and Rice-runs encoders. The dataset was generated also using the NetworkX Python library, considering a value of 2 for the parameter (indicating the nearest neighbors that would be linked in the graph) in all cases.

Let us first analyze the neighborhood operations shown in Figure 8. In general, we can see that the data structures behavior is as expected from the previous analysis. The encoders scale very well for the isRelated-True and successors operations. Note that we have chosen the isRelated-True operation instead of isRelated, in order to force the structures to either navigate down the tree (compact data structures) or decompress a non-empty list (for the encoders). We also concluded that the encoders performed badly for predecessors, and this gets confirmed here. In fact, this operation could not be completed for the relations with 5 and 10 million nodes, with our hardware configuration. If we remove the encoders from the plot (Figure 7(d)), we can see that the BRWT scales well (almost constant) while the remaining compact data structures scale in a logarithmic order. It is also worth noticing that the -tree and -tree1 have a similar trend in all operations.

For the rangeNeighborhood operation, shown in Figure 9, we have tested the scalability in two different ways: varying the number of nodes (as in the previous cases) but maintaining a fixed range size of , and fixing the number of nodes but varying the range size (up to

). It might seem strange that QMX and Rice-runs solve the range queries faster when the number of nodes increases. However, this can be explained, as when the number of nodes increases, the number of empty rows will probably increase too. Therefore, the number of rows actually explored and decompressed decreases, so the time to solve the query is shorter. Note that the behavior of the compact data structures is quite similar (it is not decreasing, but almost constant). Considering the variation of the range size, we can see that all data structures increase the time for longer ranges, but in a sublinear order in general, being the

-tree and -tree1 the most efficient data structures.

(a) isRelated
(b) successors
(c) predecessors
(d) predecessors (compact)
Fig. 8: Number of nodes versus average time on neighborhood operations for scalability.
(a) Varying the number of nodes
(b) Varying the range size
Fig. 9: Scalability measures for rangeNeighborhood queries

For the set operations, illustrated in Figure 10, all data structures scale quite well, and in a uniform way (note that there are no crosses among the lines in the figure). We can highlight that the BRWT is the worst option for these operations, while the encoders are the more suitable ones. This confirms what was shown in Section IV-C2.

(a) Union
(b) Intersection
(c) Difference
(d) Symmetric Difference
Fig. 10: Number of nodes versus average time on set operations for scalability.

A final note about scalability, but regarding some implementation decisions for our algorithms: as we mentioned in Section III-B, we decided to use a set of pointers instead of using the rank and select operations to speed up the depth-first set operations over BRWTs. The same decision was taken to speed up the operations over both variants of -trees. Figure 11 shows the behavior of the intersection algorithm using both implementations. The version with pointers clearly outperforms the rank/select version, especially for large datasets (up to 3 times faster). Of course, this speed-up comes with a price, because the pointer version takes up more memory (between 30% and 56%).

Fig. 11: Speed improvement of queries on BRWT by using pointers

V Conclusions

In this work, we have conducted several experiments to compare the behavior of several data structures used to store binary relations. We have considered three compact data structures (-tree, -tree1 and BRWT) and two encoders or compressors (QMX and Rice-runs).

For the compact data structures, we used the algorithms for -trees and -tree1s developed in [BLN14] and [QUIJADAFUENTES201976], but the algorithms for set operation over the BRWT are presented here for the first time, thus extending the functionality of this data structure.

We have found that there is no clear winner, no data structure is better than the rest in all cases. All of them have some advantages and disadvantages, depending on several factors. We have considered the storage size and the response time as basic measurements, and have tested them using several datasets with different characteristics, because the data distribution has a great impact on the performance of all data structures.

In order to offer some general conclusions, we can group the data structures in three groups that have a similar behavior: the encoders (QMX and Rice-runs), both -tree variants, and BRWT.

With respect to the encoders, they proved to be the fastest option for the set operations in all cases, and are competitive for some neighborhood queries, except for rangeNeighborhood and especially the predecessors queries (which could not actually be executed for large datasets). In terms of storage needs, the encoders use in general more space than the compact data structures.

The -trees excel at the rangeNeighborhood queries, but are outperformed for the successors operation. For the rest of the neighborhood queries they are competitive. For the set operations, these structures are not as fast as the encoders, but they are the best option amongst the compact data structures. They also scale reasonably well when the dataset grows. In terms of storage, -trees are always the best option, using much less space than the other structures. This can let the -tree be a good option for those operations where they are slower than the encoders, when the encoders cannot fit the relation into main memory.

BRWT is competitive for the neighborhood queries in general, and is the best option for the predecessors queries. For the set operations, however, it is usually the worst option. In terms of storage needs, it is competitive with respect to the remaining compact data structures, and better than the encoders.

Finally, we must highlight that the data distribution has a great impact on both the size of the data structure and the speed of the operations. In general, clustered data distributions tend to favor compact data structures, while more random or evenly distributed datasets tend to benefit the encoders.

We have presented here, to the best of our knowledge, the first study about the behavior of compressed data structures for binary relations, evaluating storage needs and speed of the operations based on different (synthetic and real) data distributions, considering also the scalability of the data structures.

References
