Comparing Nonparametric Bayesian Tree Priors for Clonal Reconstruction of Tumors

08/11/2014 ∙ by Amit G. Deshwar, et al. ∙ 0

Statistical machine learning methods, especially nonparametric Bayesian methods, have become increasingly popular to infer clonal population structure of tumors. Here we describe the treeCRP, an extension of the Chinese restaurant process (CRP), a popular construction used in nonparametric mixture models, to infer the phylogeny and genotype of major subclonal lineages represented in the population of cancer cells. We also propose new split-merge updates tailored to the subclonal reconstruction problem that improve the mixing time of Markov chains. In comparisons with the tree-structured stick breaking prior used in PhyloSub, we demonstrate superior mixing and running time using the treeCRP with our new split-merge procedures. We also show that given the same number of samples, TSSB and treeCRP have similar ability to recover the subclonal structure of a tumor.



There are no comments yet.


page 4

page 8

page 9

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

The clonal theory of cancer posits that tumors contain multiple, genetically diverse subclonal populations of cells that evolved from a single progenitor population through successive waves of expansion and selection [nowell1976]. Recent genetic analyses of tumor subpopulations support this theory[Gerlinger12, hughes2014clonal]. These analyses also identify characteristic driver mutations involved in cancer development and progression [Hanahan11] and provide insight into understanding and predicting treatment response [aparicio2013implications]. Understanding this intratumor genotype heterogeneity is especially important because different subclonal populations have different abilities to metastasize and resist treatment [ding2012clonal, Gerlinger12]. These somatic mutations are detected through high-throughput sequencing of tumor and normal tissue; and can be broadly divided into two types: Simple Somatic Mutations (SSMs) consisting of substitutions and small insertions / deletions, and Copy Number Variations (CNVs) resulting from larger structural changes.

Current, widely-used high-throughput sequencing (HTS) technology generates short reads that rarely span multiple SSM loci, so in almost all cases only the variant allele frequency (VAF), i.e., the proportion of reads containing the variant, are available for individual SSMs. These VAFs have been used to partially reconstruct the tumor subpopulations [Mullighan08, Navin10, Marusyk10, nik12, Gerlinger12, Schuh12, Carter13, Landau13, trap, phylosub, pyclone, clomial, cloneHD, recBTP]. However, surprisingly, these VAFs can be used to completely subpopulation genotypes in some cases, by reconstructing the evolutionary history of the subpopulations [phylosub, trap, recBTP]; SSM VAFs from multiple tumor samples improve this reconstruction[clomial, phylosub, cloneHD].

These evolution-based subclonal reconstruction methods use a specific tree representation in which mutations are assigned to both internal and leaf nodes. This representation excludes tree inference methods, like hierarchical clustering or the nested Chinese restaurant process

[blei2010nested] that assign observations (mutations) only to leaf nodes. To our knowledge only two tree-based statistical models have been described that i) allow mutations to be assigned to internal nodes and ii) are non-parametric, i.e., that do not require pre-specification of the number of nodes. PhyloSub[phylosub] has previously applied the tree-structured stick-breaking (TSSB) prior[AdamsGJ10] to this problem. Here, we derive a version of the tree-Chinese Restaurant Process (treeCRP)[MeedsRZR08] for subclonal reconstruction and new associated split-merge MCMC updates. We compare the two models in terms of their sampling efficiency and accuracy in subclonal reconstruction.

In the next section we provide an overview of the subclonal reconstruction problem. The remainder of this paper consists of a formal description of the treeCRP model and the results from a series of empirical comparisons of the TSSB model against several treeCRP variants.

2 Methods

2.1 Subclonal Reconstruction

Figure 1 provides an illustrative overview of the assumed process of tumor evolution and the task of subclonal reconstruction. Panel (i) of this figure shows a visualization of the evolution of a tumor over time as noncancerous cells (grey) are replaced by, at first, one clonal cancerous population (green) which then further develops into multiple cancerous subpopulations. Tumor cells define new subpopulations by acquiring new oncogenic mutations that allow their descendants to expanding relative to the other tumor subpopulations. Each circle in Panel (i) refers to a subpopulation. We associate each subpopulation with the set of shared somatic mutations (shown as a diamond) that distinguish it from its parent subpopulation. However, each subpopulation also inherits all of its parent’s mutations; as such, mutations may be present in multiple subpopulations. We define the subclonal lineage of a mutation as the set of all subpopulations that contain it. For example, the subclonal lineage corresponding to the blue diamond includes the subpopulation (D) associated with that set of mutations and all decedent subpopulations (E,F,G). For clarity, and to highlight the link between subpopulations and their set of subpopulation-defining mutations, we will use the corresponding lower-case letter to refer to these mutations. For example, we will use d to refer to the set of mutations represented by the blue diamond.

Mutation sets, and their associated subpopulations, are defined by analyzing the population frequencies of somatic mutations detected in a tumor sample. In the simple case that we consider here, SSMs occur in one copy of diploid regions of the genome; allowing one to estimate the

clonal frequency (i.e. the proportion of the sampled cells with the mutation) of a mutation by simply doubling its variant allele frequency, i.e., the proportion of reads mapping to the mutated locus that contain the SSM. See Deshwar et al. [phylowgsarxiv] for the case when SSMs occur in non-diploid sections of the genome. Panel (ii) shows an example histogram of the SSM VAFs found in a heterogeneous tumor sample. Each subpopulation is defined by both the small number of oncogenic ‘driver’ mutations that cause rapid expansion but also a larger number of ‘passenger’ mutations acquired before the driver mutation(s) through errors in DNA replication (even noncancerous cells accumulate somatic mutations at a rate of per cell division [behjati2014genome]). When a subpopulation expands, both the driver and the passenger SSMs increase in clonal frequency, and so have essentially identical frequencies. Due to sampling noise in the measurement of the VAFs, these mutation sets correspond to clusters (or modes) in the VAF distribution. The central VAF of a particular cluster is determined by the population frequency of its subclonal lineage. It is important to note that a given VAF cluster need not correspond to a subpopulation that is currently present in the tumor. For example, in Panel (ii), there is a VAF mode corresponding to mutation set d even though subpopulation D has a population frequency of in the tumor sample. Only methods that attempt to reconstruct phylogenies (shown as panel (iii)), such as PhyloSub [phylosub] and rec-BTP [recBTP], can detect when ‘vestigial’ VAF clusters correspond to historical subpopulations that are no longer present in the sample.

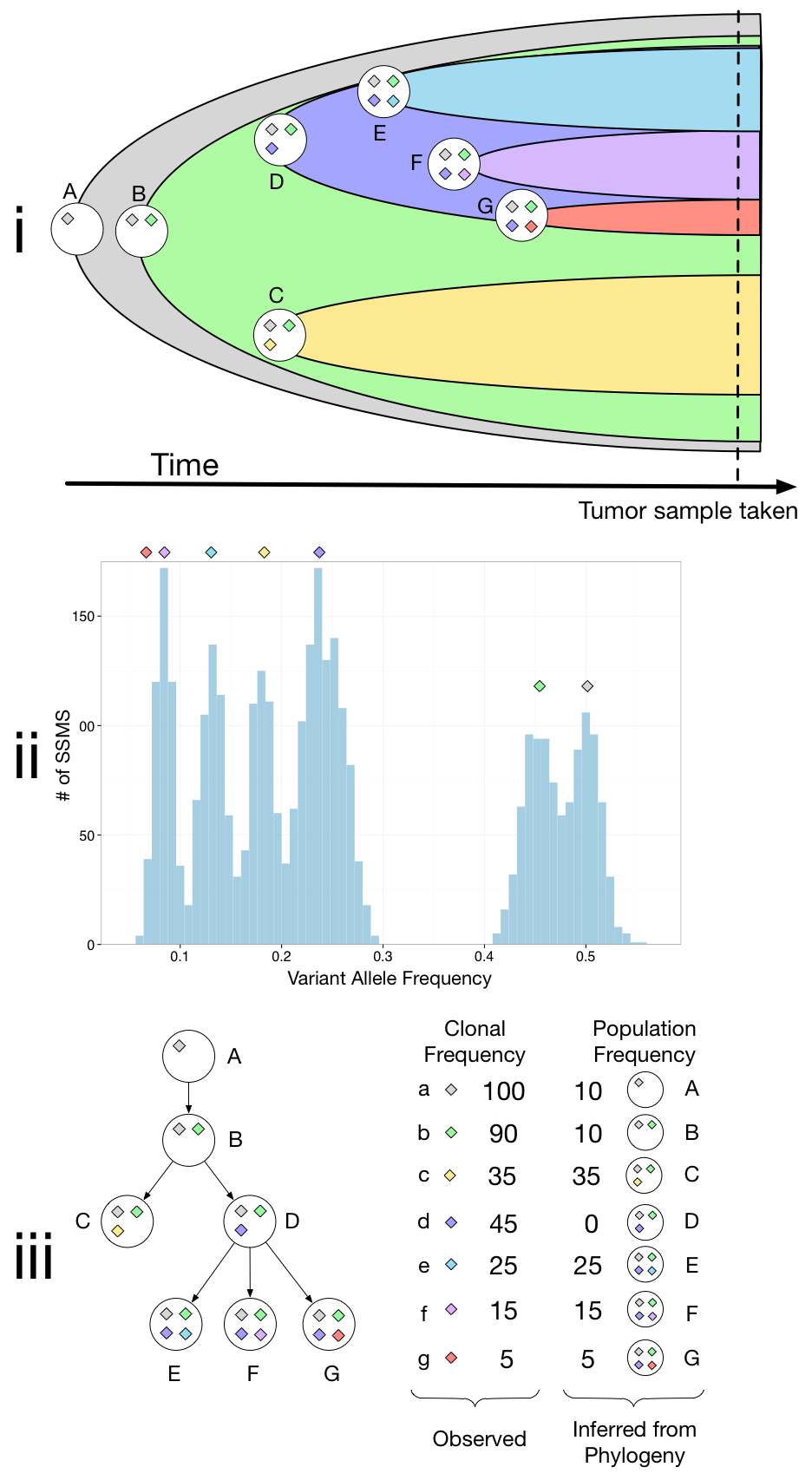

Figure 1: The development of intratumor heterogeneity (i), the resulting distribution of variant allele frequencies (ii) and the desired output of subclonal inference (iii)

2.2 Our Approach

We use a directed tree to represent the evolutionary relationship among the tumor subpopulations. Each node in the tree represents a subpopulation (either currently in the sample or that existed at some point in the tumor development) and the links connect parental subpopulations to their direct descendants. The set of SSMs assigned to a node are the defining set for the node’s associated subpopulation. The subclonal lineage of an SSM consists of the subpopulation it is assigned to and that population’s descendants. Each node is also assigned a frequency which is the inferred clonal frequency of the SSMs in the node. The population frequency of the node’s subpopulation, , is the difference between the node’s clonal frequency and the sum of the clonal frequencies of the node’s children, i.e., where is the set of the indices of the children of node . The complete set of SSMs present in a subpopulation is the union of the SSMs assigned to it and those of all its ancestral nodes.

2.3 Dirichlet process mixture models

The treeCRP is derived from the Dirichlet process mixture model (DPMM) which we introduce here. Consider the problem of clustering data objects using a Bayesian finite mixture model of components (clusters) with the following generative process [Teh2010]:


where are the non-negative mixing weights such that , is the concentration parameter of the symmetric Dirichlet prior placed on the mixing weights, is the cluster assignment variable, is the prior distribution from which the component parameters are drawn, is the component distribution parameterized by . The finite mixture model can be extended to a model with an infinite number of mixture components by replacing the Dirichlet prior with a Dirichlet process (DP) prior resulting in what is known as the DPMM [Antoniak74]. Unlike finite mixture models, DPMMs automatically estimate the number of components from the data thereby circumventing the problem of fixing the number of components a priori. The Chinese Restaurant Process (CRP) provides a method to draw samples from a Dirichlet process. In this construction, an observation is assigned to an existing cluster

with probability proportional to the number of objects

in that cluster, excluding . A new cluster is created with probability proportional to the concentration parameter. More formally,


where . The generative process for infinite mixture models using the Chinese restaurant process is:


2.4 Tree-structured Chinese restaurant process

The Chinese restaurant process construction (2) described above can be used to produce a flat clustering of objects, where the clusters are independent of each other. Meeds et al. [MeedsRZR08] extended this construction for relational clustering that produces a clustering of objects where the clusters are connected to form a rooted tree.

In the tree-structured Chinese restaurant process (treeCRP), initially, a tree consists of a single root node (cluster) with all the data objects assigned to it. Subsequently, an object is assigned to an existing node with probability proportional to the number of objects in that node, excluding . A new node is is created as a child node to one of the existing nodes in the tree with probability proportional to . More formally,


2.5 Binomial observation model

Our probabilistic model for read count data is based on the one used by PhyloSub[phylosub]. Let and denote the number of reads matching the reference allele and the variant allele respectively at position , and let . This represents the total number of reads at locus . Let represent the population frequency of subpopulation (node in our tree). Let denote the probability of sampling a reference allele from the reference population where is the error rate of the sequencer. We set to for all our experiments. Let denote the probability of sampling a reference allele from the variant population. For the purposes of this paper we assume that all mutations are heterozygous and all loci have two copies, so we set to 0.5. Our model constrains the subpopulation frequencies such that and that . We recover the node clonal frequencies using the recursive equation: . The observation model for read counts has the following likelihood:


2.6 Inference

Given this model and a set of observations , the tree structure and the subpopulation frequencies are inferred using Markov Chain Monte Carlo (MCMC) sampling. To sample the assignments of observations (SSMs) to nodes in the tree (

) we use Gibbs sampling where the probability of assigning a node is the prior probability (Equation (

4)) multiplied by the likelihood of the data given that cluster identity (Equation (5)). After completing a single pass through the observations in random order we then use Metropolis-Hasting sampling for 100 iterations to sample the variables. We use an asymmetric Dirichlet distribution as the proposal distribution where the concentration parameter is set during burn-in to achieve an acceptance ratio between 0.05 and 0.75.

For all experiments we sample for 2600 iterations and discard the first 100 samples as burn-in.

2.7 Split-merge updates

The Gibbs updates described previously only allow one cluster assignment to change at a time, which can result in slow mixing as described in the original treeCRP paper [MeedsRZR08]. Meeds et al. [MeedsRZR08] overcame this limitation by using split-merge updates in their implementation of the treeCRP. However, their updates relied on the partial conjugacy of the cluster parameters as described in [jain2004split], which is not the case in our observation model. In addition, the subclonal tree we are inferring has a natural ordering not present in the original treeCRP model. This natural ordering is that the clonal frequency of a node in our tree must always be greater than or equal to the sum of the clonal frequencies of its children. This natural ordering means that arbitrary split-merge moves are unlikely to be accepted. We therefore propose two “local” split-merge updates that are more likely to be accepted: the parent-child split merge (PCSM) and the leaf-sibling-split-merge (LSSM).

The PCSM selects a node in the tree at random and then with equal probability either splits or merges that node. If merge is selected, then the node is merged with its parent (i.e., its SSMs are assigned to its parent) and all its children become its parent’s children. If split is selected, a new node is added to the tree as the child of the selected node. The selected node’s children are split with the new node, assigning a given child to the new node with probability 0.5. The LSSM selects a leaf of the tree at random and, as the PCSM, selects with equal probability whether to add a new sibling node (i.e., split) or merge the selected node with a randomly selected sibling node. Only leaf nodes are considered in this operation for implementation simplicity and because our subjective observation that leaf nodes exhibited slower mixing than the internal nodes. Whenever a new node is created through a split in either a PCSM or a LSSM update, the SSMs assigned to the split node are reassigned between the split and new node using restricted Gibbs updates. The population frequency of a new node () is selected uniformly at random between 0 and the population frequency of its parent, while the parents population frequency is decreased by to maintain . Figure 2 shows an example of PCMS and LSSM updates.

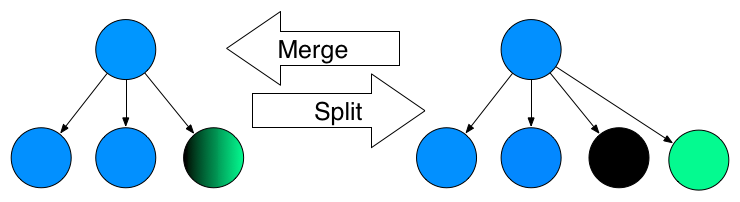

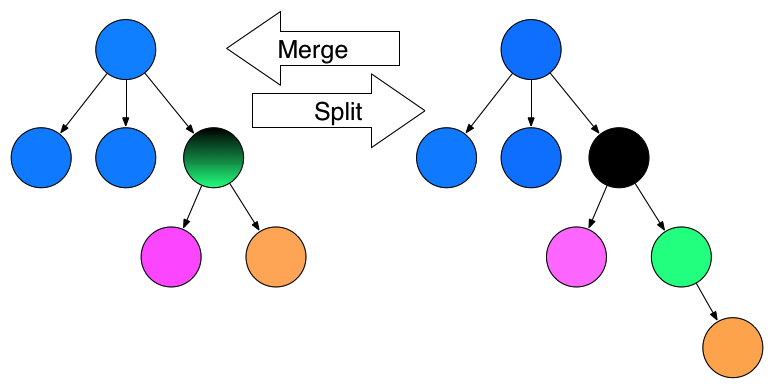

Figure 2: Example of a Parent-Child Split-Merge move (left) and a Leaf-Sibling Split-Merge move (right)

3 Results

In order to compare our approaches we constructed a series of simulated datasets and applied PhyloSub [phylosub] (which uses the TSSB prior) and the treeCRP model with either Gibbs updates only (treeCRP-Gibbs), Gibbs updates and Parent Child Split-Merge moves (treeCRP-PCSM), Gibbs updates and Leaf-Sibling Split-Merge moves (treeCRP-LSSM) and all three types of updates (treeCRP-all). For treeCRP-all, we propose a PCSM update and then a LSSM update after each Gibbs update. Our simulations looked at a range of total population counts (3, 4, 5, 6), read depths (20, 30, 50, 70, 100, 200, 300) and number of SSMs per population (5, 10, 25, 50, 100, 200, 500). In each case, the first population is a normal population with no associated SSMs, while each subsequent population is a descendant of all previous populations (i.e. a chain phylogeny). For each simulated SSM in population , reference allele reads () were drawn as:

where is the clonal frequency of population and is the simulated read depth. A table of the values used can be found as Table 1.

Number of populations values used
3 0.44, 0.11
4 0.56, 0.25, 0.06
5 0.64, 0.36, 0.16, 0.04
6 0.71, 0.44, 0.25, 0.11, 0.03
Table 1: Table of subclonal lineage proportions used

First, we compared how quickly the Markov chain mixes for the different tree priors and MCMC sampling strategies. A chain that is fast-mixing requires fewer burn-in samples, is less likely to remain stuck in local modes and for a fixed desired accuracy requires fewer samples (or for the same number of samples delivers estimates with higher accuracy). We measure mixing by first computing the effective sample size of the chain and then dividing by the number of actual samples taken. By dividing the effective sample size by the number of actual samples we get a measure of sampling efficiency, where a higher value indicates better mixing. Effective sample size is calculated by the Coda package [coda], using the spectral density at frequency zero. Figure 3 shows the sampling efficiency for the five algorithms on our simulated datasets. The TSSB, the treeCRP-Gibbs and treeCRP-LSSM methods have consistently lower sampling efficiency than the treeCRP-PCSM and the treeCRP-all. Furthermore, for treeCRP-PCSM and treeCRP-all the sampling efficiency is not strongly affected by the number of SSMs, whereas the efficiency of the other three methods decreases with increasing numbers of SSMs.

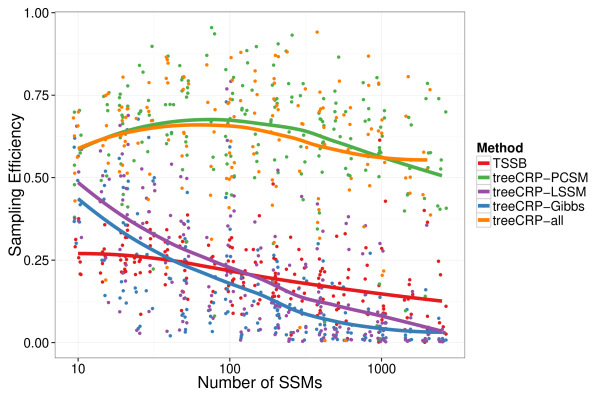

Figure 3: The relationship between number of SSMs and sampling efficiency for the five algorithms. Lines are are Loess curves. X-axis positions are jittered for clarity.

Next, we assessed the accuracy of the mapping from population to SSM. To measure accuracy in a systematic way that accounts for class-imbalance, varying number of mutations and differing number of populations we used the Area Under the Precision-Recall Curve (AUPR) between the known true co-clustering matrix and the average co-clustering matrix over all samples. The co-clustering matrix is a binary matrix where if SSM and SSM are in the same subclonal lineage. Figure 4 shows the distribution of AUPR values over all simulations. Although the absolute differences in AUPR are small, most of the pairwise differences are significant (7 out of 10, , Wilcoxon paired signed rank test, Bonferroni correction) and generally correspond to the differences in sampling efficiency in figure 3 except that there are no significant differences between the AUPRs for TSSB and those of treeCRP-all and -PCSM. This suggests that the sampling efficiency differences have practical implications in reconstruction accuracy but neither prior is clearly superior.

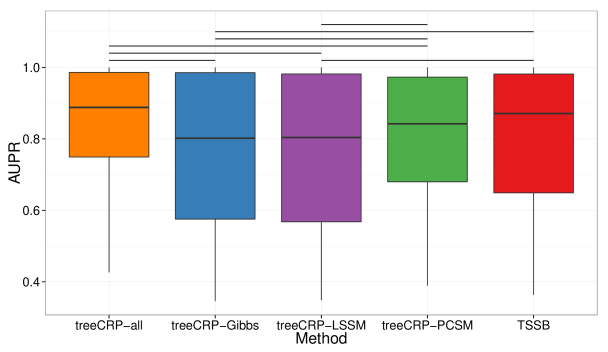

Figure 4: Distribution of AUPR results for the five algorithms. Horizontal lines indicate statistically significant differences (, Wilcoxon paired signed rank test, Bonferroni correction)

Finally, we are interested in the relative time required to draw one sample. This is because in most situations a sampling budget is a given amount of CPU time, so greater efficiency per sample could be counteracted by greater computational effort to compute that sample. Because the cluster on which the experiments were run is composed of heterogeneous nodes it was meaningless to compare the runtimes of our experiments. Instead, we ran all five algorithms on the same computer using the simulated dataset with 5 subpopulations, read depth of 200 and 500 SSMs per subpopulation. Figure 5 (i) shows the average runtime per sampling iteration for the different algorithms, normalized to the runtime of the treeCRP-Gibbs algorithm while Figure 5 (ii) shows the runtime per effective sample. We observe that the TSSB algorithm is the slowest followed by the -all, -PCSM, -LSSM and finally the Gibbs only variant of the treeCRP. After adjusting for sampling efficiency, TSSB remains slower than the treeCRP methods but the treeCRP-PCSM and treeCRP-all are now about 5 times faster than the other treeCRP methods.

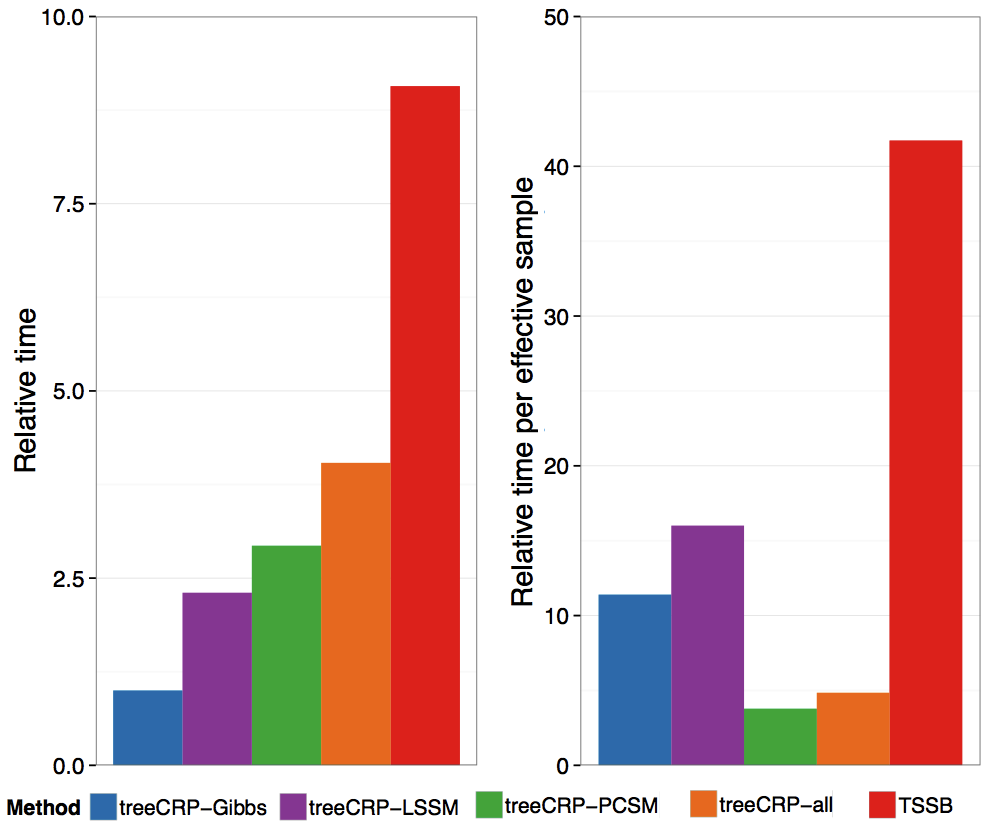

Figure 5: Relative time per sample (i) and relative time per effective sample (ii) for the five methods
