I Introduction
Topic modelling is one of the most important and widely used machine learning tools. It has been successfully applied to various types of problems, including text analysis, image processing, speech recognition, and more. Topic models are useful in learning the hierarchical structures of data. For example, when applied to text documents, latent Dirichlet allocation (LDA)
[1] is a generative probabilistic topic model for collections of text corpora. In this application, each document is modeled as a finite mixture over a set of underlying topics, and each topic is modeled as a distribution over words.Supervised latent Dirichlet allocation (sLDA) [2] is used to infer latent topics predictive of document labeling variables. For example, sLDA has been used to predict star ratings using movie reviews, or to predict ecommerce sales using customer reviews, and so on. Along with the exponential growth of data, especially the text data and images on the Web, sLDA is often used in applications dealing with big data. The largescale learning of sLDA is generally slow and difficult. A natural way to speed up the computation is to resort to parallel computing. In this paper, we aim at designing an efficient parallel algorithm for largescale learning of sLDA.
Communicationfree parallel algorithm are commonly used in machine learning, which minimizes communication costs resulted from learning synchronization. Recent research [3, 4, 5, 6, 7]
proposed a parallel Markov chain Monte Carlo (MCMC) algorithm with little communication cost, and showed that it can significantly improve the computation speed. The basic idea is to independently run a separate MCMC sampler to generate a local sample set for each subdataset, and combine the local sample sets to estimate the desired global posterior distribution. However, existing algorithms have limitations in learning graphical models with multimodal posteriors because of the quasiergodicity problem. It means that although theoretically a sampler has positive probability of switching from a local mode to another, the sampler may get stuck in a local mode numerically. If the local posteriors converge to different local modes and differ significantly, the global posterior representation achieved in the final combination stage can be highly inaccurate. The posterior of topics in (s)LDA is multimodal because each permutation of the topics forms a new mode. Hence, the existing parallel technique cannot be directly applied to sLDA.
In this paper, we develop a parallel algorithm for sLDA which maintains the speed advantage of embarrassingly parallel computing while at the same time bypassing the problematic quasiergodicity problem. The idea is that since the main objective of sLDA is prediction rather than mere categorization, it is not necessary to estimate the global posterior of document topics. It allows us to switch the order of document topics combination and labeling variable prediction and thus overcome the quasiergodicity problem cause by multimodal posterior of sLDA. Specifically, instead of firstly combining the sub sampled topics generated by the parallel samplers to form a sample of the global posterior distribution and secondly making predictions based on the estimated global posterior, we first make predictions using subposteriors based on each subdataset and then combine the local predictions to make the global prediction. By making prediction first, we can project the highdimensional topics that follow a multimodal distribution into the onedimensional document label that follow a unimodal distribution. Hence, we overcome the quasiergodicity problem in the combination stage.
To implement our parallel algorithm for sLDA, we propose two different combination rules to combine the local predictions to the global predictions, i.e., Simple Average and Weighted Average. In Simple Average, we first apply MCMC in parallel to sample topics for the words and make predictions of the test dataset using each of the locally estimated sLDA model, called local predictions. After that, we take the simple arithmetic average of the local predictions as our global predictions (i.e., predictions using the whole training dataset). In Weighted Average, the only difference from Simple Average is the way we combine local predictions into global predictions. Instead of taking simple arithmetic average, we take a weighted average of the local predictions. The weight for the local predictions is equal to either the inverse of the corresponding training dataset mean square errors (MSEs) or the prediction accuracy of the corresponding training dataset.
We conduct two empirical experiments to evaluate our parallel algorithm for sLDA. In first experiment we use textual documents of corporate annual reports to predict the labeling variable earnings per share. In the second experiment we use the textual documents of IMDB movie reviews to predict the labeling variable, sentiment scores based on the IMDB ratings. The empirical performance confirms that the test set mean square error and prediction accuracy using our embarrassingly parallel algorithm is comparable to a single machine sLDA while the computation time is significantly reduced.
Ii Related Work
The paper is related to recent literatures on parallel MCMC. [3] presented a parallel MCMC algorithm that requires little communication but still maintains asymptotic correctness. The idea is to first partition the dataset into multiple subdatasets, and then perform MCMC sampling in parallel using only the subdataset on each machine, and finally combine the subsamples to construct the full samples. In [3], Gaussian models are assumed for each local posterior, which allows for an explicit product of densities in the final combination stage. Using a similar idea, [4] makes one step further by representing the posterior as a Weierstrass transform. They analytically show that the approximation error for the Weierstrass sampler is bounded by some tuning parameters and provide suggestions for choice of the values. The simulation result confirms its computation efficiency. [5]
improve the final combination stage in the presence of outliers by using the median posterior (i.e., the geometric median of subset posterior distributions). Specifically,
[5]proposed a Bayesian inference approach that is scalable and robust to corruption in the data, which allows to avoid extensive communication among machines by running independent MCMC chains for split subsets. The novelty is that they proposed a different approximation to the full data posterior for each subset based on the evaluation of the geometric median of subset posterior distributions. Our paper also focuses on the posterior combination stage in order to overcome the quasiergodicity problem.
This paper is also related to another stream of literature on (s)LDA. Since being introduced in [1], LDA has been widely used in text mining and machine learning. In [2], supervised latent Dirichlet allocation (sLDA) is introduced to infer latent topics predictive of the response. Compared with LDA in [1]
, sLDA is more appropriate for prediction rather than mere categorization. For parameter estimation, an approximated maximumlikelihood estimation is carried out using a variational ExpectationMaximization (EM) procedure to handle intractable posterior expectations. The sLDA model proposed in
[2] can accommodate various types of response. However, the parameter estimation using ExpectationMaximization (EM) algorithm is susceptible to problems involving local maxima and slow convergence rate. [8] develop a MCMC method for LDA using collapsed Gibbs sampling. The method has been widely used and has also been adapted for learning sLDA [9]. In order to increase computational efficiency of learning largescale sLDA, a natural idea is to resort to parallel techniques. However, as the posteriors in LDA are multimodal, parallel sampling can be problematic because of the quasiergodicity problem. In this paper, we overcome the quasiergodicity problem for embarrassingly parallel sLDA by focusing on prediction rather than topic categorization.Iii Embarrassingly Parallel MCMC for sLDA
We start with introducing the embarrassingly parallel MCMC method and illustrating the quasiergodicity problem for learning multimodal graphical models, such as sLDA. Then we introduce the single machine nonparallel MCMC method for supervised topic models, on which we base our paralleled MCMC method. After that, we propose our embarrassingly paralleled MCMC method for sLDA which overcomes the quasiergodicity problem.
Iiia Quasiergodicity of Embarrassingly Parallel MCMC
Recent research ([3, 4, 5]) has shown that for models with certain properties, embarrassingly parallel MCMC can guarantee asymptotic property theoretically and perform well empirically. The basic idea of embarrassingly parallel MCMC is to independently run a Gibbs sampler in parallel for each subdataset and then combine the local subsamples to global posterior distribution (see illustration in Figure 1). Following this basic idea, a naive application of embarrassingly parallel MCMC on sLDA includes the following four steps:^{1}^{1}1For convenience in algorithm descriptions, we assume we apply sLDA to model textual topics for text documents, which is the most popular application of sLDA.

Divide the training dataset into several subsets.

Run MCMC in parallel to sample textual topics for the documents in each subset.

Combine the sampled topics for each subset and treat the combined samples as if they were directly sampled using all documents in the whole dataset.

Estimate sLDA parameters using the combined topics and make predictions based on the estimated model.
However, in the presence of multimodal posteriors, which is often true for models with a large number of latent variables such as LDA (because there exists a mode for each permutation of the topic labels), embarrassingly parallel MCMC can fail due to quasiergodicity. As a result, the global posterior representation achieved in the sample combination stage can be highly inaccurate.

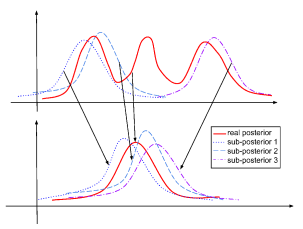

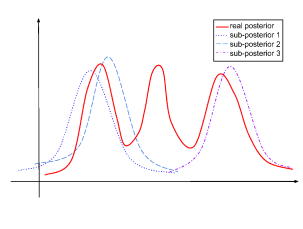

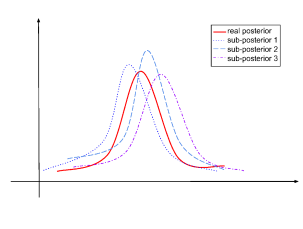

The intuition of the quasiergodicity problem can be shown in a comparison of unimodal posteriors illustrated in Figure 1 and multimodal posteriors illustrated in Figure 2. In Figure 1, the true posterior is a unimodal distribution. The parallel computing uses three machines, and each machine generates some subsamples whose empirical distribution is close to the true posterior. Therefore, the empirical distribution of the combined samples constitutes a valid estimation of the true posterior. In Figure 2, the true posterior is a threemodal distribution. The parallel computing also uses three machines. With multimodal posteriors, it is very likely that samples generated by different machines will converge to different modes, especially in highdimensional space. In the example shown in Figure 2, two machines turn out to sample from the leftmost mode and the third machine samples from the rightmost mode. For a single machine, converging to any one of the three modes catches one peak of the true posterior, and thus can be considered as a consistent posterior. However, it is problematic to naively combine the posterior samples generated by three machines converging to different modes. In this case, the combined posterior might not have significant peak but have a wide flat region which covers both peak and nadir in the true posterior. The resulting empirical posterior would be significantly different from the true posterior.
The quasiergodicity problem seems difficult to avoid for LDA in which the objective is to learn the categorization of topics. However, the quasiergodicity problem can be bypassed in sLDA in which the main objective is to make predictions based on topics rather than learning the topic categorization.
Our proposed solution is to switch the order of subsample combination and prediction. In particular, instead of first combining subsamples generated by running MCMC on each subdataset to constitute the samples for full training dataset and then using the combined sample to make predictions of the document label, we first make predictions based on subsamples and then combine these predictions using our proposed combination rules: Simple Average and Weighted Average. The intuition is illustrated in Figure 3 about why switching the order of subset combination and prediction can help to bypass the quasiergodicity problem. By making predictions first, we can project the highdimensional topics that follow a multimodal distribution into a onedimensional document labels that follow a unimodal distribution.
IiiB MCMC for sLDA
Before we describe our embarrassingly parallel MCMC algorithm for sLDA, we first review the basic notations, the background, and the existing single machine nonparallel MCMC method of sLDA.
The generative process of sLDA [2] is as follows (the graphical structure is shown in Fig 4):

For each topic :

Draw word distribution ;

Draw parameter .


For each document :

Draw topic distribution ;

For each word :

Draw topic ;

Draw word .


Draw response where and is an indicator function, i.e., if and otherwise.

The Gibbs sampling method for LDA was first introduced by [8], and [9] modified the method for sLDA. In this paper, we follow [9] for both posterior inference and prediction using MCMC in supervised topic modeling. The data is divided into training data (TR) for posterior inference and testing data (TE) for prediction.
IiiB1 Posterior Inference
There are two alternative steps for posterior inference using stochastic EM. The first step is a Gibbs sampling to assign a topic to each token . The second step is to optimize the regression parameters .
Gibbs Sampling
The probability of assigning topic to token in training document is:
(1)
where is the mean of the Gaussian generating if and is a count that does not include the current assignment of . The first term, , is the margin of the response; the second term, , is the ratio representing the probability of topic in document ; and the third term, , is the ratio representing the probability of word under topic .
Optimizing the Regression Parameters
The parameters is estimated by maximizing the likelihood:
(2)
The alternative iteration converges with the estimated parameters , and the distribution over words of topic is estimated as:
(3)
IiiB2 Prediction
For prediction for the test data, we first sample the topic assignments for all tokens in the test data:
(4)
The predicted value is the estimated value of response:
(5)
where is the empirical topic distribution of test document .
Note that when the label
is discrete, we can model the logit probability of the label
to be normally distributed. The corresponding MCMC method for sLDA can be achieved by slightly adjusting the procedures described above.
IiiC Embarrassingly Parallel MCMC for sLDA
After illustrating the procedure of unparalleled MCMC algorithm of sLDA, we move to the procedure of embarrassingly parallel MCMC algorithm of sLDA. As a benchmark, we first introduce the Naive Combination which intuitively and naively follows the embarrassingly parallel MCMC by combining subposterior rather than subpredictions.
Naive Combination

Divide the documents to training documents and testing documents . Partition the training documents into subset ;

For (in parallel): assign each token a topic through Gibbs sampling;

Conduct posterior inference by treating the combination of subsample topics as if they were directly sampled for the whole training sample:

obtain the estimated parameters
by ordinary linear regression;

the distribution over words of topic ;


Prediction: Gibbs sampling using to obtain the empirical topic distribution of test document as , and estimate the prediction for document as .
As discussed above, the Naive Combination has the quasiergodicity problem because of the multimodal posterior of LDA. We propose our embarrassingly parallel MCMC for sLDA to overcome the quasiergodicity problem by leveraging the fact that the main objective of sLDA is prediction rather than mere categorization. For prediction in sLDA, it is not necessary to generate a global posterior about the topics. Our method is to first run prediction using the subposterior based on each subdataset and then combine the local predictions to the global predictions, instead of first combining the subposterior to a global posterior and then run prediction using the global posterior as suggested in the Naive Combination. The formal procedure of our embarrassingly parallel algorithm is described as follows:
Embarrassingly parallel for sLDA

Divide the documents to training documents and testing documents . Partition the training documents into subset ;

For (in parallel):

Posterior inference: obtain the estimated parameters and the distribution over words of topic ;

Prediction: Gibbs sampling using to obtain the empirical topic distribution of test document as , and estimate subprediction for document as ;


Combine the subpredictions to fulldata prediction:
(6)
Now, we specify how to combine the local predictions to the global predictions. We propose two combination methods: Simple Average and Weighted Average. The first two steps in the embarrassingly parallel procedure are the same for Simple Average and Weighted Average. The two methods are different only in the third step: they use different combination functions.
Simple Average
In Simple Average, after making separate predictions for the test data set using topics sampled by parallel MCMC based on each subtraining data set, we take the arithmetic average of the local predictions to get the global predictions:
(7)
Weighted Average
In Weighted Average, after making predictions based on topics sampled by parallel MCMC based on each subset, we take the weighted average of the local predictions to get the global predictions. For example, the weight assigned to each set of local predictions can be equal to the inverse of training set Mean Square Error (MSE) for the sLDA learned based on the corresponding subset:
(8)
(9)
The training set MSE is generated by using the sLDA learned on each subset to predict the dependent labels of the whole training set.
Iv Empirical Results
In this section, we evaluate our algorithms by comparing our embarrassingly parallel MCMC algorithms of sLDA (both Simple Average and Weighted Average) with two benchmarks: (1) Nonparallel MCMC algorithm of sLDA, and (2) Embarrassingly parallel MCMC algorithm of sLDA combining subposterior rather than subpredictions (Naive Combination). We include Nonparallel MCMC algorithm of sLDA as a benchmark to compare both the prediction accuracy and the computation time of our embarrassingly parallel MCMC algorithms of sLDA. We include Naive Combination as another benchmark to empirically show that naively combining the subsamples does not constitute a valid sample from the posterior based on the whole sample in topic models and thus results in low prediction accuracy.
We conduct two groups of experiments using different data sets. The first group of experiments uses the documents in management discussion and analysis (MD&A) in 10K report to predict the earnings per share in the corresponding firmyear. The second group of experiments uses the text in movie reviews to predict the sentiment of the movie reviews.
Iva Description of Data Sets
We first introduce the data sets used in our experiments.
IvA1 Experiment I  Management Discussion and Analysis
In the United States, the Securities and Exchange Commission mandates all public firms to file yearly corporate reports known as “Form 10K”. This report typically includes corporate organization and history information, consolidated statements, as well as management discussion and analysis (MD&A), and our analysis focus on the text information in the MD&A section, where firm managers often express their subjective opinions of a firm’s operational performance. The textual information is believed to be highly correlated with variables that measure firm performance and has been investigated in lots of work in financial economics (e.g., [10, 11]). The document labeling variable we use is earnings per share (EPS). Therefore, our goal is to predict EPS based on management discussions using a sLDA model.
The 10K reports are publicly available on the SEC Edgar database, and earnings per share information is from Compustat database. We use Central Index Key (CIK) as an identifier to match firms in both databases.
We first downloaded all the 10K reports in year 2012, extracted the MD&A section, tokenized the text, tagged the tokens using Stanford Loglinear PartOfSpeech Tagger [12], and generated adjectivenoun phrases based on the taggedtokens. As most of the phrases appear very infrequently, we only included phrases that appear in at least 2% of the total number of firms. Our finalized dataset contains 4216 firms and 4238 phrases.
IvA2 Experiment II  Movie Reviews
The data set consists of 50,000 IMDB movie reviews with labels.^{2}^{2}2The data set can be downloaded at https://www.kaggle.com/c/word2vecnlptutorial/data.
Those movie reviews are specially selected for sentiment analysis. The label is the sentiment of the movie review, which is represented by a binary sentiment score. The sentiment score is
if the IMDB rating is smaller than (i.e., negative reviews) and is if the IMDB rating is higher than (i.e., positive reviews). Our goal is to predict the sentiment score based on the text of movie reviews using a sLDA model.The data set is divided into the 25,000 review labeled training set and the 25,000 review test set. No individual movie has more than 30 reviews.
IvB Evaluation
Now we explain how we evaluate our algorithm in those two groups of experiments.
IvB1 Experiment I  Management Discussion and Analysis
We randomly draw 3000 of the 4216 observations as the training set, and the rest 1216 observations as the test set. We test the parallel algorithms on a dualcore CPU computer with 4 threads, and thus for each run of parallel computing, we randomly divide our training set into 4 subset, 750 observations each.
We evaluate the computational speed and prediction accuracy of the four algorithms we mentioned above: Nonparallel, Naive Combination, Simple Average and Weighted Average, by comparing the computational time and test set prediction mean square error (MSE). The average results of 100 runs are shown in Figure 6.
IvB2 Experiment II  Movie Reviews
We only use the labeled training set containing 25,000 reviews in our experiment because there is no label for the test set to verify the accuracy. We randomly draw 20,000 observations (out of the 25,000 review labeled training set) as the training set and use it to predict the sentiment score of the rest 5,000 observations as the test set. We test the parallel algorithms on a dualcore CPU computer with 4 threads, and thus for each run of parallel computing, we randomly divide our training set into 4 subset, 5,000 observations each.
We evaluate the computational speed and prediction accuracy of the four algorithms we mentioned above: Nonparallel, Naive Combination, Simple Average and Weighted Average, by comparing the computational time and test set prediction accuracy. The average results of 100 runs are shown in Figure 7.
IvB3 Results and Discussion

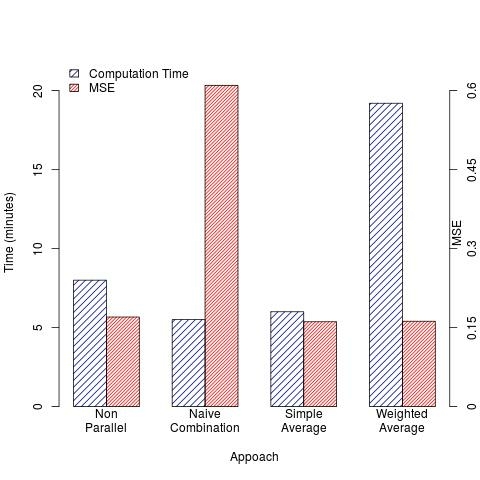

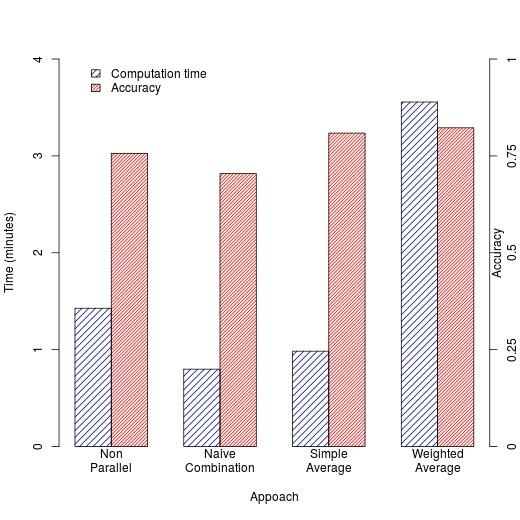

As shown in Figure 6 and Figure 7, Naive Combination and Simple Average are faster than the Nonparallel approach, but Weighted Average is much slower than the other three. Naive Combination is the fastest one because of the computational advantage of communicationfree parallel MCMC. Simple Average and Weighted Average also benefit from the computational advantage of parallel MCMC. Whereas, in these two algorithms, we need to make predictions for the test dataset based on the local posteriors using each sub training dataset, which means four predictions based on four different sub training dataset are generated for each test data, while only one prediction is necessary to be made for Naive Combination. The additional predictions required by Simple Average and Weighted Average weaken the speed advantage of parallel computing and, thus, Simple Average and Weighted Average are slower than Naive Combination. Compared with Nonparallel, Simple Average is still much faster. A drawback of Weighted Average is that it also needs to make predictions for the training dataset in order to derive the weights, and the step is so costly when the training dataset is large that it is even slower than Nonparallel in our experiment.
Figure 6 shows that the test dataset MSE of Naive Combination is much larger than the other three algorithms. Similarly, Figure 7 shows that the test dataset prediction accuracy of Naive Combination is lower than the other three algorithms. These results confirm the existence of quasiergodicity problem of LDA models. Figure 6 also shows that the test dataset MSE of Simple Average and Weighted Average is close to the Nonparallel benchmark. Figure 7 shows that the test dataset prediction accuracy of Simple Average and Weighted Average can be slightly higher than the Nonparallel benchmark. These results imply the quasiergodicity problem is overcome by our proposed algorithms. Therefore, the proposed parallel algorithms can indeed bypass the quasiergodicity problem for sLDA.
After all, when considering both the computation time and prediction accuracy, Simple Average seems to be the most efficient approach. It speeds up computation and also retains prediction accuracy. One computational drawback of Simple Average is that we need to predict test dataset in each parallel machine. This implies Simple Average can save more time compared with Nonparallel when we have large training dataset and small test dataset.
V Conclusion
In this paper, we develop an embarrassingly parallel MCMC method for sLDA to bypass the quasiergodicity problem. A naive application of embarrassingly parallel MCMC for (s)LDA suffers from the quasiergodicity problem so a simple combination of sampled topics generated by parallel samplers for each sub training dataset does not constitute valid samples for the global posterior distribution. The quasiergodicity problem can be bypassed by switching the order of subset combination and prediction, meaning firstly making predictions using local subsamples and then combining the local predictions to form the global prediction. This order switching is allowed in sLDA because the main objective is prediction rather than topic categorization.
Based on our framework, we propose two communicationfree parallel MCMC algorithms for sLDA: Simple Average and Weighted Average. In Simple Average, after making predictions for the test dataset based on local topic posteriors for each sub training dataset, we generate the global predictions by taking the arithmetic average of the local predictions. In Weighted Average, after making local predictions in the same way as that in Simple Average, we generate the global predictions by taking the weighted average of the local predictions, where the weights are the inverse of training MSEs (when the labeling variable is continuous) or training accuracy (when the labeling variable is binary.
We empirically evaluate the performance of our algorithms by comparing our algorithms with nonparallel algorithm and Naive Combination (in which it first combines the subposterior and then makes predictions using the combined global posterior). The empirical results suggest that Simple Average can significantly reduce computation time without sacrificing prediction accuracy.
References
 [1] D. M. Blei, A. Y. Ng, and M. I. Jordan, “Latent dirichlet allocation,” the Journal of machine Learning research, vol. 3, pp. 993–1022, 2003.
 [2] J. D. Mcauliffe and D. M. Blei, “Supervised topic models,” in Advances in neural information processing systems, 2008, pp. 121–128.
 [3] W. Neiswanger, C. Wang, and E. Xing, “Asymptotically exact, embarrassingly parallel mcmc,” arXiv preprint arXiv:1311.4780, 2013.
 [4] X. Wang and D. B. Dunson, “Parallel mcmc via weierstrass sampler,” arXiv preprint arXiv:1312.4605, 2013.
 [5] S. Minsker, S. Srivastava, L. Lin, and D. Dunson, “Scalable and robust bayesian inference via the median posterior,” in Proceedings of the 31st International Conference on Machine Learning (ICML14), 2014, pp. 1656–1664.

[6]
M. Xu, B. Lakshminarayanan, Y. W. Teh, J. Zhu, and B. Zhang, “Distributed bayesian posterior sampling via moment sharing,” in
Advances in Neural Information Processing Systems, 2014, pp. 3356–3364.  [7] B. Calderhead, “A general construction for parallelizing metropolis hastings algorithms,” Proceedings of the National Academy of Sciences, vol. 111, no. 49, pp. 17 408–17 413, 2014.
 [8] T. L. Griffiths and M. Steyvers, “Finding scientific topics,” Proceedings of the National Academy of Sciences, vol. 101, no. suppl 1, pp. 5228–5235, 2004.

[9]
V.A. Nguyen, J. BoydGraber, and P. Resnik, “Sometimes average is best: The
importance of averaging for prediction using mcmc inference in topic
modeling,” in
Empirical Methods in Natural Language Processing
, 2014.  [10] S. Kogan, D. Levin, B. R. Routledge, J. S. Sagi, and N. A. Smith, “Predicting risk from financial reports with regression,” in Proceedings of Human Language Technologies: The 2009 Annual Conference of the North American Chapter of the Association for Computational Linguistics. Association for Computational Linguistics, 2009, pp. 272–280.
 [11] T. Loughran and B. McDonald, “When is a liability not a liability? textual analysis, dictionaries, and 10ks,” The Journal of Finance, vol. 66, no. 1, pp. 35–65, 2011.
 [12] K. Toutanova, D. Klein, C. D. Manning, and Y. Singer, “Featurerich partofspeech tagging with a cyclic dependency network,” in Proceedings of the 2003 Conference of the North American Chapter of the Association for Computational Linguistics on Human Language TechnologyVolume 1. Association for Computational Linguistics, 2003, pp. 173–180.
