I Introduction

Autonomous vehicles have been widely regarded as a promising technology to address great challenges in the intelligent transportation systems, such as driving safety, vehicle string stability (related to ride comfort), and road traffic throughput [8320295]. However, the gains of autonomous driving are determined by the accuracy of the on-board sensors (e.g. Radar, camera, GPS) [Kato8584062]

. Nevertheless, these on-board sensors are usually costly as the equipment of an individual vehicle, if a vehicle does not equip complete on-board sensors, the inaccurate sensing information and traffic estimation may incur serious accidents. Vehicle-to-Vehicle (V2V) communications compensate for the perceived deficiency of an individual vehicle since the perception region of V2V communication is usually much larger than that of on-board sensors. The on-board processors and information can be shared for many vehicles in a large region. Thus, using shared computing and information, the Connected Autonomous Vehicle (CAV) not be necessarily equipped with complete on-board sensors for the cost reduction

[liulin2018].

Driving safety and road traffic throughput are always the main goal for the driving strategy of CAVs. As the most important aspect of autonomous vehicle systems, driving safety is achieved by maintaining a suitable safety distance. The safety distance is defined as the inter-vehicle spacing, with which a crash can be avoided. Decreasing the inter-vehicle spacing is an effective way to increase road traffic throughput. In this case, platoons formed by vehicles with the same driving speed and direction have the potential to increase road traffic throughput by allowing small inter-vehicle spacing. However, the dense road traffic with the small inter-vehicle spacing can easily incur a back-and-forth velocity oscillation in the platoon, which deteriorates an important platoon metric, vehicle string stability. The string stability is commonly associated with the acceleration frequency and amplitude of vehicles in platoon [Dunbar5876300]. Maintaining vehicle string stability can lead to a good driving safety. Therefore, the transportation management system should account for safe driving, road traffic throughput, and vehicle string stability, simultaneously.

It is known that accelerations of CAVs are controlled by the Cooperative Adaptive Cruise Control (CACC) system, which adaptively changes the vehicle velocity to maintain a suitable inter-vehicle spacing through Vehicle-to-Vehicle (V2V) communication [7349170]. However, the inter-vehicle spacing among CAVs is associated with the V2V bandwidth (communication resource) and on-board processing capacity (computing resource). Sufficient communication and computing resources can shorten the safety distance through reducing the the data transmission delay and the on-board processing delay [8798668]. Unfortunately, due to the random distribution of vehicles, the communication bandwidth in some road segments with low road traffic is under-utilized, while the bandwidth is exhausted in other road segments with road traffic jams. Additionally, the high mobility of vehicles deteriorates the intermittent V2V communication [Qiao044]. Previous work on CACC systems ignored the unbalance and uncertainty of the resources allocated in CAVs, which may result in undesired inter-vehicle spacing to deteriorate road traffic.

This paper focuses on the exploration of the relation between safety distance, string stability, and road traffic throughput. Next, we propose an effective inter-vehicle spacing control scheme to optimize the string stability and road traffic throughput upon safe driving through resource management. The contributions of this paper can be summarized as follows:

  • Based on the continuum road traffic model, we propose a mathematical model of the string stability in an account of safety distance. We further propose an optimal inter-vehicle spacing scheme that jointly optimizes road traffic throughput and string stability upon safe driving.

  • By leveraging the theory of network calculus, we derive the closed-form of the upper bound of V2V offloading delay for the contention-based medium access control approaches such as IEEE 802.11p. This upper bound can provide a criterion to decide whether a vehicle has deficient communication and computing resource.

  • According to the upper bound, we design an efficient communication and computing resource management approach that allocates the excess resource from the resource-rich vehicles to the resource-deficient vehicles in order to obtain the desired inter-vehicle spacing among all CAVs. This resource management approach is able to significantly reduce the execution time.

The remainder of this paper is organized as follows. Section II reviews the related work. Section III presents the continuum road traffic metrics. Section IV proposes the joint optimization scheme. Section V gives the upper bound of the V2V offloading delay. Section VI presents the resource allocation scheme. Section VII demonstrates simulation results and discussion. Finally, we draw the conclusion in Section VIII. A summary of the important mathematical notations used in the paper is given in Table I.

Symbol Description
The safety distance
The perception-reaction delay
The upper bound of the V2V offloading delay for the application from vehicle to vehicle
The vehicle density (number of vehicles in an unit area)
The flux of vehicle string
The road traffic throughput
The available communication bandwidth of road segment
The weight of string stability in optimization model
TABLE I: A summary of important mathematical notations.

Ii Related Work

The advantage of the V2V based cooperative perception enables an individual vehicle to have a longer perception range, which can be used in the cooperative collision detection [Gallego8845107] and lane changing warning. Nunen et al. [8317758] proposed an intended acceleration prediction based on V2V perception, which demands sufficient time to ensure high performance and robustness in terms of string stability and driving safety. However, the mathematical relation between string stability and V2V cooperative perception is not identified. Nekoui et al. [Nekoui2010Fundamental] demonstrated the V2V communication improves road traffic throughput by reducing driver Perception-Reaction Time (Delay), which implies a high-speed compact platoon. However, this work is not accounted for the impact of the string stability on the vehicle string. The high-speed compact platoons easily result in the vehicle string shockwaves that adversely affects the ride comfort [Dunbar5876300]. Although these work discuss the V2V based perception impacting on road traffic metrics, they ignored to jointly optimize driving safety, string stability, and throughput through resource management.

Fig. 1: Driving safety, string stability, and road traffic throughput are jointly optimized in multi-road segments.

In order to realize efficient resource management in the V2V aided CAVs system, the critical work is to establish the quantitative relations between the resources and the road traffic metrics. There are many resource allocation studies [Qiao573, Kato8847416], which attempt to establish reliable and efficient V2V resource sharing among vehicles. However, most of them did not give any mathematical explanation for the impact of resources on the road traffic. Based on the network calculus theory, Katsaros et al. [7277110] analyzed the upper bound of the end-to-end delay for the location-based routing in a hybrid vehicular network. However, they did not consider the multi-tasks scenario, which is impractical in CAVs systems. In addition, the aforementioned work also did not address the resource allocation with intermittent V2V communication due to the high mobility of vehicles. It is still an open challenge to jointly optimize driving safety, vehicle string stability, and road traffic throughput in the high dynamic CAVs system.

Iii System Model

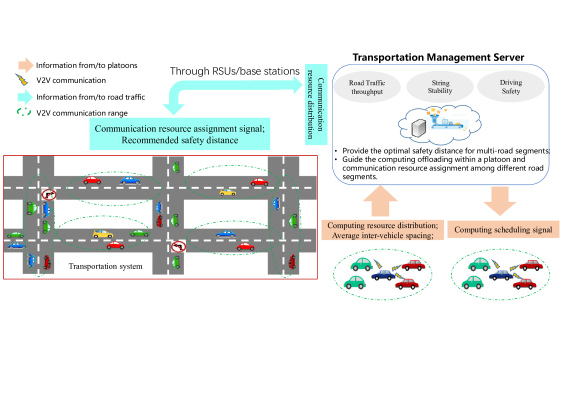

The system model of joint optimizing multiple road traffic metrics is illustrated in Fig. 1. The average inter-vehicle spacing of each road segment is reported by platoons to the transportation management servers through the Road Side Units (RSUs) or cellular base stations. Each platoon will declare own computing capability. Additionally, the information about available bandwidth for a road segment is counted by the near RSUs or base stations.

By virtue of our proposed algorithm, the transportation management server provides the optimal safety distance (recommended inter-vehicle spacing) to each road segment to improve the string stability and road traffic throughput upon safe driving. However, optimal safety distance requires sufficient communication and computing resource. Because of the unbalanced resource distribution of the vehicles, the computing resource in some vehicles with powerful on-board processors are non-utilized. However, the resource in other vehicles is exhausted [Shao119]. One possible solution to handle the maldistributed resource problem is the platoon-based edge computing, where a platoon of vehicles with sufficient on-board computing resources and communication bandwidth can offer additional mobile edge computing resources cooperatively [Wang8360847, Kato8361406]. Based on our proposed resource assignment algorithm, the transportation management server issues the instruction to implement the edge computing within a platoon and communication reassignment among road segments.

To achieve optimal driving experience, a joint utility of driving safety, string stability, and road traffic throughput should be addressed. Driving safety aims to avoid accidents occurring. The string stability typically is mainly impacted by the vehicle accelerations [Dunbar5876300]. Road traffic throughput is determined by the average velocity and inter-vehicle spacing [Nekoui2010Fundamental]. Moreover, these road metrics are all relevant to the inter-vehicle spacing. Hereafter, we investigate the continuum road traffic model to reveal the relation of inter-vehicle spacing with driving safety, string stability, and traffic throughput.

Iii-a Safety Distance

The CACC system is used to make the follower keep a proper inter-vehicle spacing from the leader. This proper inter-vehicle spacing is named safety distance . If the inter-vehicle spacing is less than the safety distance, the collision accident cannot be avoided [Lian7322289]. To ensure the safe driving, we investigate the rear-end scenario, where the average velocity of vehicles is set to . The preceding vehicle starts to brake with the deceleration at time . The follower detects the braking behavior of the preceding vehicle at . Hereafter, it starts with the deceleration to slowdown at , where represents the interval from the braking of the preceding vehicle to the perceiving of the follower. This interval depends on the V2V transmission delay. Moreover, is determined by the on-board processing capacity of the follower. To avoid accidents, the safety distance between two adjacent vehicles caters to Eq. (1) at ,

(1)

where is referred to the perception-reaction delay or time, which is the duration of time from an accident happened to the driver reacts [Nekoui2010Fundamental]. If the inter-vehicle spacing is larger than the safety distance, safe driving can be guaranteed.

Iii-B Vehicle String stability

There are many different aspects on stability. In this paper, we focus on the vehicle string stability that is characterized by the amplification of accelerations along the vehicle string. Moreover, stable string stability has the property that the maximal amplification of acceleration goes to 0 with the time approaching infinity [Dunbar5876300]. It can be expressed as

(2)

where is the position of the head vehicle. is the Laplace operator for the vehicle position, and . Furthermore, there is , where is the vehicle flux, and is a parameter that is proportional to .

If Eq. (2) is violated, few accelerations of the vehicle in the vehicle string will result in so-called shockwaves of the vehicle string upon the dense road traffic condition. In the dense road traffic condition, the velocity of vehicles is lower than the speed limit on the road due to the short inter-vehicle spacing. While, in the sparse road traffic condition, the inter-vehicle spacing is large enough to make vehicles attain the speed limit without influencing road safety. The optimal driving strategy of a vehicle in the sparse road traffic condition is trivial: the velocity of the vehicle is equal to the road speed limit. Hence, in this paper, we only concentrate on the dense road traffic.

In the dense road traffic, CAVs have to accelerate/decelerate continually to adjust the inter-vehicle spacing to approach the safety distance. When the inter-vehicle spacing is over the safety distance , the follower will accelerate to narrow the gap that can improve the road traffic throughput. However, when the inter-vehicle spacing is less than the safety distance , for safety driving, the follower should decelerate to leave enough inter-vehicle spacing with the preceding vehicle. Then, we give a concise condition to guarantee the vehicle string stability upon the dense road traffic condition.

Theorem 1.

In the dense road traffic condition, as the safety distance approaching the current average inter-vehicle spacing of a vehicle string, i.e.,

(3)

the vehicle string stability is guaranteed.

Proof.

Here, represents the vehicle density. We use to denote the position of the vehicle in the vehicle string at the time . Investigating the and vehicles of a vehicle string, if , the acceleration of vehicle is proportional to the gap . While , the deceleration of vehicle is inversely proportional to the gap . The behaviours of the and vehicles are same with that of and vehicles in the vehicle string. Moreover, the above statements in can be summarized as,

(4)

where is a scale factor. is the acceleration of the vehicle. Furthermore, the average position of the vehicle is written as . Hence, we get

(5)

In addition, the basic conservation equation of the continuum road traffic model is given as [Tosin2009],

(6)

where is the average velocity of vehicles on road. is the time component. According to , substituting Eq. (5) to Eq. (6) and multiplying in the both sides, we obtain,

(7)

in which is the flux of the vehicle string. represents the spatial gradient of the flux. If is small, the spatial differentiation of and will be constrained. Then, road traffic flow through different positions will become smooth that amplifies the driving experience. Similarly, reflects the temporal differentiation of the vehicle velocity. The larger indicates the heavy fluctuations of the vehicle string. Consequentially, the optimal string stability is attained when and are both equal to . it results in

(8)

Conversely, when the inter-vehicle spacing approaches the safety distance, i.e., , the gradient of the vehicles flux . Furthermore, due to , it implies . Additionally, the flux of the preceding vehicle is always positive. Therefore, the inequality holds. The vehicle string stability is guaranteed.

Iii-C Road Traffic Throughput

The road traffic throughput is defined as the scalar form of the vehicle string flux . Therefore,

(9)

where the density is inversely proportional to the average inter-vehicle spacing. Thus, shorten the average inter-vehicle spacing that can increase road traffic throughput. Besides, due to applying the CACC system, the inter-vehicle spacing always surrounds the safety distance. Therefore, we can convert the maximization of road traffic throughput to minimize the safety distance . However, the optimization of vehicle string stability aims to narrow the gap between safety distance and the average inter-vehicle spacing . Consequently, transportation management cannot only optimize road traffic throughput but consider the impact on vehicle string stability.

Remark.

In a dense road traffic condition, if the safety distance is less than the current average inter-vehicle spacing, i.e., , improving road traffic throughput will deteriorate the vehicle string stability.

Iv Joint Optimization of Driving Safety, String Stability, and Road Traffic Throughput

In this section, we propose an optimization model that jointly optimizes driving safety, string stability, and road traffic throughput in multi-road segments. Note that guaranteeing the driving safety is the prerequisite of optimizing string stability and road traffic throughput. To drive safety, the following vehicles should maintain the safety distance with the preceding vehicle in the vehicle string. In [8644035], the safety distance of road segment is determined by communication bandwidth and on-board computing capacity of vehicle , where the computing capacity represents the CPU cycles of vehicle [Kato8361406]. We assume vehicles in the same road segment competing with each other for the common V2V bandwidth. And, there are road segments in the transportation system. To achieve the optimal road traffic throughput and string stability upon driving safety, the optimization model is proposed as

(10)

where represents the safe distance in road segment ; is the set of on-board computing resource offered by vehicles in road segment . The vehicle density of the road segment is ; is a coefficient to balance road traffic throughput and string stability. is the total communication resource of the transportation system. is the available on-board computing capacity for vehicle .

It is difficult to solve the directly since is nonlinear with and . Therefore, to efficiently solve , we decompose into two sub-problems in this paper. In the first part, we convert into that omits the communication and computing resources constraints on CAVs (constraint C2 and C3). The optimal safety distance of jointly optimizes road traffic throughput and string stability without the resources constraints. Hereafter, the second part is designed to propose a resource management that allocates the communication and computing resource to meet the demands of the optimal safety distance. Moreover, the resource management caters to and constraints.

(11)

In the first part, we introduce the intermediate constraint to transform to the general form to apply the consensus Alternating Directions Method of Multipliers algorithm (ADMM) [BoydS2010]. One benefit of the consensus ADMM is to make the safety distance of different road segments identical by iterations, which gradually eliminates the traffic fluctuations when vehicles alter into another road segment. In addition, the monotonicity of is same with that of . Thus, we can replace with in to transform to the standard LASSO form [BoydS2010].

(12)

Since the minimum results in a non-negative , the constraint is unnecessary in . Moreover, the augmented Lagrangian of is

(13)

where is a positive penalty parameter in the augmented Lagrangian [Zhou8667693].

is the vector of Lagrange multipliers. The iterations of updating

, global variable , and Lagrange multiplier are given as

(14)

where . is the expectation of . is the set of safety distance in different road segments. represents the set of . . is the soft threshold operator that is given by [BoydS2010]

(15)

In addition, the stopping criterion of the iteration is

(16)

where and represent the primal residual and the dual residual, respectively [BoydS2010]. and are the constant thresholds. Based on the above analysis, the multi-road segment joint optimization scheme is summarized as Alg. 1.

1 , , ;
2 while  and  do
3       Update ;
4       Update ;
5       Update ;
6       Update ;
7
Algorithm 1 ADMM-based joint optimization scheme

V Upper Bound of V2V Offloading Delay

To take account of constraints and , we need to figure out the demands of communication and computing resource to support the optimal safety distance. In addition, a typical task offloading paradigm includes the communication process and the computing process. Therefore, the V2V task offloading performance can be used to determine the demands of communication and computing resource in the CACC system. However, most previous works mainly concentrated on the access delay [5967982]. As for edge computing-based applications, the computing/processing delay is also a dominant factor to affect the quality of services. Hence, we take the account of the communication delay and the computing delay in the delay performance analysis.

In addition, this paper focuses on the upper bound delay performance rather than the average delay performance. If we adjust the upper bound delay of V2V offloading smaller than the delay requirement of the application, the delay requirement of the application can be guaranteed. However, the average delay is an average time consuming of the V2V offloading. When the variance of the offloading delay becomes large, the average delay cannot give any promise to complete the application offloading in time. The upper bound delay of vehicular communication have been widely studied

[5967982]. However, the previous work did not consider the transmission collisions. An advantage of the network calculus (NC) is that it can easily obtain the end-to-end upper bound delay in the competitive concatenated system. Thus, in this paper, we apply the NC model to obtain the end-to-end delay for the V2V application offloading.

In the NC theory, an arrival process represents the cumulative number of the input network traffic of a vehicle in the time interval . There are categories of driving assistance applications . The data volume of the CACC application is denoted by and the average arrival rate is [Kato7636965]. According to the -upper constraint, we have [Jiang2008Stochastic]. Thus, the arrival curve of CACC application in vehicle is .

Besides, the total volume of network traffic should not exceed the communication capacity, i.e., . is the number of CAVs in road segment . is the communication bandwidth of road segment . Based on the optimal safety distance obtained from Alg. 1, we get , where is the number of lanes in the road segment. is the V2V radio range. Hereafter, the upper bound delay of V2V offloading is given as follow

Theorem 2.

The upper bound delay of V2V offloading for vehicle with application in road segment is

(17)

where is the protocol-related part; is the computing delay; represents the transmission delay; is regarded as the competition delay, in which and .

Proof.

The competitive V2V communication applies the contention-based medium access control approaches such as the IEEE 802.11p standard, which resorts to the exponential back-off algorithm. This paper assumes the exponential back-off process has back-off states and the initial size of the back-off window is . Therefore, the size of the window in the back-off state is expressed as , where is a threshold to limit the increase of the counter, . If the back-off counter exceeds , the size of the back-off window will not grow anymore. Therefore, the maximum waiting time for the V2V access is

(18)

According to the superposition property [Jiang2008Stochastic], the whole arrival curves except for the CACC application traffic of vehicle is regarded as a superposition curve :

(19)

The transmission capability of the competitive V2V channel is constrained by the classical latency-rate service curve [Jiang2008Stochastic], in which is the service delay of the V2V channel. Hence, we get

(20)

where . Next, according to the theory of Leftover Service [Jiang2008Stochastic], we obtain the service curve of the V2V transmission to serve CACC application for vehicle

(21)
(a) Upper bound delay of the different communication and computing capacities in a platoon with 3 vehicles.
(b) Upper bound delay of the different number of vehicles, where the computing capacity of each vehicle is 60 Mbps.
Fig. 2: Numerical demonstration of Eq. (26).

where , and . Similarly, the service curve of on-board computing and executing is

(22)

where is the execution rate, which is much higher than the V2V transmission capacity, i.e. . Then, according to the concatenation property [Katsaros2016End], the total offloading service curve of the CACC application for vehicle is

(23)

where . Thus, we get

(24)

Based on the delay bound theorem [Jiang2008Stochastic], the service delay of the application offloading satisfies

(25)

where . Finally, the upper bound of the V2V offloading delay of application for vehicle is

(26)

To show the effectiveness of the proposed bound in Eq. (26), we use a simple numerical example to demonstrate the impact of communication and computing resources on the upper bound delay of V2V offloading in Fig. 2. Fig. (a)a depicts the curve of upper bound delay with the communication capacity and computing capacity of vehicle in road segment . In the numerical scenario, the platoon is assembled by vehicles. Each vehicle has to support vehicular assistance applications, i.e. . The data volume of applications is randomly distributed from (Mb). The arrival rate

is generated from the uniform distribution where

 . , , , and . As shown in Fig. (a)a, the upper bound delay drops with the rising communication capacity and on-board computing capacity . While is generated from to , the upper bound declines significantly. However, if is over , the benefits from the high computing will become less. This is because the bottleneck of the upper bound delay is caused by the V2V transmission rather than computing delay when a vehicle has enough computing capacity.

Fig. (b)b demonstrates the upper bound delay with a different number of vehicles. Due to the competition among vehicles, the upper bound delay increases with the number of vehicles. However, when the bandwidth is sufficiently large, then the delay caused by the transmission competition can be negligible. Therefore, upon the large communication bandwidth, the upper bound delay is less affected by the number of vehicles in the platoon, but it is predominated by the computing capacity of each vehicle.

Lemma 1.

When the on-board computing is sufficient large, then the upper bound of V2V offloading delay is reduced to the summation of a transmission delay, a competition delay, and a protocol-related part. i.e., . While the bandwidth is sufficient large, then the upper bound of V2V offloading delay is reduced to the computing delay plus the protocol-related part. i.e., .

Proof.

The above equations can be derived by Eq. (26) taking and , respectively. ∎

Lemma 1 indicates the efficient way to increase resource that can significantly reduce the upper bound delay of V2V offloading.

Vi Multi-Armed Bandit Resource Scheduling

The CACC system needs sufficient computing and communication to process diverse and historical kinetic analyses to maintain the optimal inter-vehicle spacing among vehicles. However, many other automated assistance applications, such as cooperative malicious attacks detection applications [Wang7999188], and cooperative lane change applications, will compete with the CACC application for the limited bandwidth and on-board process capacity. If the CACC system cannot obtain sufficient resources to maintain the optimal safety distance obtained from Alg. 1, CAVs will increase the inter-vehicle spacing to reduce the resource demands of the CACC application [8644035].

In general, different vehicles occupy different computing resources since the on-board processors are diverse. Besides, the available V2V communication bandwidth of a road segment is determined by the number of vehicles and the bandwidth assignment of the road segment [8080373]. Because of the unbalanced distribution of vehicles and resources, some vehicles with the deficient computing or communication resource cannot attain the optimal inter-vehicle spacing.

In this section, we study the resource allocation under intermittent V2V communication. Here, through Alg. 1, we can obtain the optimal safety distance of . Hereafter, according to Eq. (1), the delay requirement of CACC application to maintain the optimal among CAVs is

(27)

where is the perception-reaction delay that represents the duration from an event happens to the preventive action adopted by vehicles [Nekoui2010Fundamental]. To satisfy the limited resource constraints, the upper bound of the V2V offloading delay should not exceed the perception-reaction delay of the optimal safety distance .

Therefore, the vehicles in a road segment can be divided into two groups: one group is resource-deficient vehicles, another is resource-rich vehicles. The criterion of distinguishing the two groups is based on the value of . Vehicles with are clustered into that represents the vehicles with sufficient resources. While vehicles with are clustered into that represents the vehicles lacking of resource. Due to the resource constraints, the inter-vehicle spacing of vehicles in cannot maintain the optimal safety distance with the preceding vehicle.

Hereafter, we rank in order of descending . For instance, is the vehicle with the largest . Next, will offload its application to the vehicles in set . Afterwards, vehicle offloads its applications to the vehicles, and so on. Before each offloading, vehicles will update the value for the next scheduling. In addition, we draw the offloading pairs of vehicles of and in Fig. 3. In this demonstration, each vehicle of has applications needed to offload. The offloading targets are selected from . Each vehicle of can handle multiply offloading tasks according to the redundant computing capability.

Fig. 3: Offloading pairs between and .

Consequently, we propose a Sleeping Multi-Armed Bandit Tree-based Offloading (SMTO) scheduling that selects candidate vehicles to process the offloading applications in a high mobility circumstance. The sleeping Multi-Armed Bandit (MAB) model refers to the sequential optimization problem where the action set is time-varying [Kleinberg2010]. The available actions at each round are uncertain that is same with the intermittent V2V transmission, where the application will disappear when the vehicle leave the radio range of the target vehicle.

We assume that the offloading vehicle does not have prior knowledge about its environment (e.g., which vehicles will leave or stay in the radio range). This significantly reduces the communication overhead. The offloading vehicle does not need to issue its kinetic information to surroundings. Our proposed algorithm focuses on the vehicle platoon, where vehicles may drive off the communication platoon during the offloading. The candidate offloading target are selected by

(28)

where represents the selected target to process the offloading application from the vehicle at time . is the reward of finishing the application at time [Kato8657791]. is the connected duration between the vehicle and vehicle at time , which can be measured by the period HELLO message. When vehicle leaves the platoon, is reset to , where represents any vehicle in the platoon. is the number of selection times of vehicle to be the offloading target for vehicle . And, is a weight of application . However, according to Eq. (28), if a new vehicle appears in the platoon, it will be selected as the offloading target. The reason is that a new vehicle usually stays longer than the previous vehicles in the platoon. So that the new vehicle can provide a more stable V2V connection than that of the previous vehicles in the platoon.

The Sleeping MAB Tree search structure is illustrated in Fig. 4. Since one platoon can only support vehicles, each vehicle connects with vehicles via V2V communication. There are number of V2V applications for offloading. In addition, we sort the vehicular applications with the order of priority, where application represents the priority application. The application has the highest priority. The application with high priority is delay-sensitive, such as CACC and lane change assist applications. As shown in Fig. 4, the first row of the tree demonstrates the application offloading. Subsequently, the application is offloaded in the second row, etc. In each application offloading, the algorithm will check the of the road segment is whether or not empty. If , the algorithm is stopped.

Fig. 4: Sleeping MAB Tree-based Offloading.

In this paper, the V2V bandwidth of each road segment is centrally assigned by the transportation management server. After the match of and , we divide the road segments into two groups. The road segments with belong to . The other road segments with belong to , where represents the road segment without any deficiency vehicle. However, represents the road segments that still have some vehicle lacking of resource to maintain the optimal safety distance. According to Eq. (26), the minimum recouped communication bandwidth is used to recoup the bandwidth of road segment that is identical to

(29)

On the other hand, road segments of provide their part of communication bandwidth to recoup the deficient resource in . Similarly, based on Eq. (26), the maximum communication bandwidth supplied by road segment is

(30)

Therefore, to balance the bandwidth distribution of different road segments, the provided bandwidth of road segment is

(31)

And, the supplied bandwidth of road segment is

(32)

where is the difference between the total surplus bandwidth of and the total deficient bandwidth of . While , the total bandwidth of the transportation system cannot maintain all vehicles with the optimal safety distance . Some vehicles in the deficient road segment will increase their average inter-vehicle spacing (sacrificing road traffic efficiency) to guarantee driving safety.

The process of the SMTO resource allocation is elaborated in Alg. 2, where . is the total number of road segments. is the reward of the parent of the node in vehicle . At time , if a new vehicle becomes available to connect with vehicle , the algorithm will choose it as the offloading target. Otherwise, the algorithm selects the vehicle with Eq. (28) among the available vehicles, where

is the width of the confidence interval of vehicle

at the time . Hereafter, we verify whether it is the empty set. If it is not, the transportation management server will reassign the bandwidth to recoup the deficient resource in .

1 , , , and
2 for  road segment to  do
3       while True do
4             if  then
5                   Update reward ; while  has the parent do
6                         Update ;
7
8            if  is a leaf node then
9                   Select a child for application ;
10                   ;
11            , for all if vehicle accepts the application  then
12                   Append the child to the tree;
13                   Update ;
14            if  then
15                   if  then
16                         ;
17                  if  then
18                         ;
19
20            else
21                   Break;
22
23
Algorithm 2 SMTO Resource Allocation
(a) Impact of the safety distance on vehicle string stability.
(b) Impact of the safety distance on throughput.
(c) Relation between string stability and road traffic throughput.
(d) Safety distance with different that represents the weight of string stability in .
Fig. 5: Relations of the safety distance with string stability and road traffic throughput.

Vii Performance Evaluation

To confirm the impact of safety distance on the string stability and road traffic throughput, we account for a Cellular Automata-based three-lane highway scenario, which has been investigated in a plethora of road traffic studies. Daoudia et al. [Daoudia2003Numerical] proposed a Cellular Automata-based three-lane version which takes into account of the exchange vehicles between the different lanes. However, this model did not account for the acceleration of vehicles. Li et al. [Li2016ACS] considered the heterogeneity of vehicle acceleration by the Cellular Automata, but the simulation is only suitable for the freeway traffic flow. Zamith et al. [Zamith2015A] defined the actions of a specific vehicle in the Cellular Automata traffic context that depicts the vehicle behaviors by the stochastic rules. However, vehicle behaviors are not always stochastic. Some of which should follow the traffic rules. In this section, we assume that a vehicle involves velocity updating (deceleration/acceleration), lane changing, and road congestion. These behaviors are elaborated below.

Vii-1 Acceleration

if , (), and the distance with the preceding vehicle is lager than the safety distance, (the distance with the preceding vehicle is less than the safety distance), , (), where is the limit speed in a particular road segment.

Vii-2 Uniform speed

if or the inter-vehicle spacing is equal to the safety distance, .

Vii-3 Lane Changing

If one adjacent lane has enough consecutive space, while there is heavy traffic on the current lane, the vehicle will go into the adjacent lane with a certain probability.

Vii-4 Road congestion

road congestion is triggered when two successive vehicles touch each other. In this case, the velocity of the touched vehicles set to .

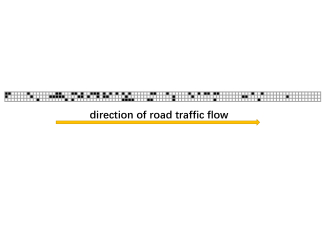

Fig. 6: Cellular Automation for road traffic. The length of the road segment is , and the limit speed is .

The above-mentioned behaviors can precisely imitate the real vehicle behaviors on road. The simulation scenario is shown in Fig. 6, in which each black pixel represents a vehicle and each white pixel represents a unit empty space on road. The initial speed of the entry vehicles is set to . The average arrival rate is . The length of the road segment is . Leveraging the Cellular Automata simulation, we investigate the impact of the safety distance on string stability and road traffic throughput in Fig. (a)a and Fig. (b)b, respectively.

Vii-a The impact of safety distance on comfort and throughput

In Fig. (a)a, the differential distance represents the difference of the average inter-vehicle spacing in two successive time slots, i.e., , where is the average inter-vehicle spacing in a road segment at time . In general, the differential distance reflects the fluctuation of the inter-vehicle spacing that represents the instability of vehicle string. The large differential distance results in a heavy fluctuation of vehicle string and deteriorating ride comfort and energy efficiency. When the average inter-vehicle spacing closes to the safety distance , as shown in Fig. (a)a, the differential distance becomes small in time interval . However, in time interval , the average inter-vehicle spacing is far away from the safety distance, which results in a large fluctuation of differential distance. Meanwhile, the vehicle string becomes unstable and deteriorates the ride comfort of passengers. Fig. (b)b illustrates that road traffic throughput is inversely proportional to the safety distance. The reason is that the safety distance is the equilibrium inter-vehicle spacing. And, the road traffic throughput density is determined by the equilibrium inter-vehicle spacing and velocity. Moreover, larger equilibrium vehicle spacing derives the lower road traffic throughput. Therefore, the safety distance is inversely proportional to the road traffic throughput.

Vii-B The relation between string stability and throughput

Hereafter, we investigate the relation between string stability and road traffic throughput. To carefully compare the string stability metric with road traffic throughput, we introduce the normalized gap , which is defined as

(33)

where is an infinitesimal number to avoid zero denominator. Road traffic throughput compared with the normalized gap is demonstrated in Fig. (c)c. Road traffic throughput increases with the normalized gap. The large normalized gap represents the heavy fluctuation of a vehicle string that deteriorates string stability. This result verifies our analysis conclusion: the transportation operator cannot optimize road traffic throughput without considering the impact on the vehicle string stability.

(a) Execution time.
(b) Average offloading delay.
(c) Acceptance ratio distribution.
(d) Rewards distribution.
Fig. 7: Performances of different algorithms.

The numerical simulation of Alg. 1 is depicted in Fig. (d)d. Here, we investigate five road segments whose initial road densities are randomly generated from . There are 3 vehicular applications to offload. The arrival rate of each application is randomly generated from . and are both initialized to . As shown in Fig. (d)d, each curve represents an asymptotic result of Alg. 1 with a certain . Fig. (d)d demonstrates the optimal safety distance increased with the value of . This is because represents the weight of the stability of road traffic in the optimization. According to the optimization (12), larger is prone to minimize , where as . In our simulation, . Thus, the optimal safety distance approaches to when becomes large. However, if is small, the algorithm prefers to minimize for road throughput. When is over , the affect of can be neglected in Eq. (12). The optimization model reduces to a simple -Norm problem, which results in a fast convergence of the curves , , and . Therefore, transportation management server can adapt the different values of to obtain the favourable vehicle string stability and road traffic throughput.

In addition, we investigate our proposed SMTO algorithm in terms of execution time, average offloading delay, acceptance ratio, and rewards, compared with that of the FML algorithm, FML-D algorithm, traditional UCB algorithm, and the Greedy algorithm. FML is proposed by Sim et al. [8472783, 7775114], which is a contextual multi-armed bandit online learning algorithm. FML-D is the FML algorithm combined with the upper bound delay information. In the FML-D algorithm, the exploitation process is revised as , where represents the returned reward of completing the application at time . The UCB algorithm is a classical learning algorithm for multi-armed bandit problems [Auer2002]. However, it does not take the account of upper bound delay . Comparing with the SMTO, the Greedy algorithm does not consider the upper bound delay and always stays in the exploitation process.

Due to the limited communication bandwidth, the maximum number of vehicles of the platoon is set to in our simulation. The leaving probability of each vehicle in the platoon is followed by the experiential distribution, where the average leaving rate is . The initial number of vehicles in the platoon is . The computing resource (CPU frequency) of each vehicle is randomly selected from . The sharing communication bandwidth of the platoon is . The category of applications is set to . The data volume of each application is generated from , uniformly. Each application has own delay requirement that is selected from the range of seconds. Moreover, each application has own priority that represents the importance of this category application. When a high priority application has been finished, it feedbacks a high reward. The summation of the feedback rewards is denoted by in Eq. (28). In the simulation, each algorithm implements 1000 times to obtain stable statistical results. The simulation is implemented by Wolfram Mathematica on a laptop with i5-8300h CPU and 16G RAM.

Vii-C Execution Time

The execution time of different algorithms is illustrated in Fig. (a)a. The execution time is collected from 1000 times offloading process since the SMTO, FML-D, FML, and UCB algorithms need enough simulation time to train. For fairly comparing, the Greedy algorithm also implements 1000 times. The Greedy algorithm has the lowest execution time because of the simplicity. The execution time of the proposed SMTO is lower than the UCB, FML, and FML-D algorithms. Since the collection of the upper bound delay information requires extra time, the FML-D has the highest execution time for decision making. Because of the extra upper bound delay information and simple search structure, SMTO is faster than the UCB, FML, and FML-D upon the exploitation process that results in the low execution time of SMTO.

Vii-D Offloading Delay

Fig. (b)b depicts the offloading delay of different algorithms. In our simulation, the offloading delay is composed of the transmission delay and processing delay [Kato8322166]. If an offloading delay excesses the requirement delay of the application, we regard the double times of the requirement delay as the offloading delay. The SMTO algorithm achieves the least offloading delay. Comparing to the other algorithms, the offloading delay of the Greedy algorithm is unstable.

Vii-E Acceptance Ratio

Next, we investigate the impact of the different algorithms on the acceptance ratio and rewards of the V2V related applications. Fig. (c)c illustrates the box-plot of applications acceptance ratio for different algorithms. The offloading acceptance ratio (AR) is given as

(34)

where and represent the number of the total arrived applications and the number of accepted applications, respectively. The y-axis of Fig. (c)c is the acceptance ratio. The expectation of acceptance ratio of SMTO is the largest, and that of Greedy algorithm is the smallest. In addition, acceptance ratio of FML-D, FML, and UCB are very similar.

Vii-F Rewards

The box-plot of the rewards versus different algorithms is illustrated in Fig. (d)d, where the y-axis is the average rewards. Each category application has its own reward to courage vehicles to complete this category application in time. In general, the rewards of the CACC applications are higher than that of the lane change assist applications. In our simulation, there are categories applications whose the rewards are assumed as , respectively. In Fig. (d)d, the average reward of SMTO is the largest. The Greedy algorithm has better rewards than that of the UCB. However, the fluctuation of Greedy algorithm is the largest compared with that of the other four algorithms. The reason is that the Greedy algorithm only invokes a simple maximum rewards exploitation, which is not suitable for the high dynamic vehicular environment.

Viii Conclusion

In this paper, we analyze the properties of driving safety, vehicle string stability, and road traffic throughput, as well as the relationship between them. Then, the joint optimization of these road metrics is formulated in terms of resource management. It can be found that the vehicle string stability and road traffic throughput are coupled with each other upon the precondition of safe driving. Optimizing one of the road traffic metrics cannot avoid the influence on the other one. In addition, communication bandwidth and on-board computing can be regarded as the control variables for these road traffic metrics from the perspective of resource management. With a given amount of communication and computing resources, the upper bound delay of V2V offloading can be determined based on the NC theory. The obtained upper bound delay is helpful for the transportation planner to improve road traffic performances. As a future work, we will study a comprehensive scheme taking an account of the Cellular-based Vehicle-to-Everything (C-V2X) communication in transportation management.
