1 Introduction

Magnetic resonance imaging (MRI) plays a crucial role in quantitatively measuring the differences in anatomical structures between either individuals or groups. In many clinical studies, the hippocampal volumetry from MRI is one of the bio-markers used to examine the diagnosis of Alzheimer disease (AD) Leung et al. (2010); Nestor et al. (2013). Volumetric hippocampal measurements are the best predictors of AD conversion in subjects with mild cognitive impairment Clerx et al. (2013).

Manual volumetry is considered the gold standard, but it is time consuming. Consequently, many automatic approaches have been proposed to extract hippocampal structures from brain MRI. Among them, atlas-based methods have been demonstrated to outperform other algorithms Babalola et al. (2009). In the context of this study, an atlas is an image in one modality with its respective labeling (typically generated by manual segmentation) Aljabar et al. (2009). Atlas-based segmentation is motivated by the observation that segmentation strongly correlates with the context information. After warping the atlas to the target image, context is directly transferred from the atlas to the target image. In medical images, context plays a very important role because the anatomical structures are primarily constrained to relatively fixed positions.

However, the disease status of the subject-atlases used in this approach may affect the quality of the results. Therefore, atlases should be customized for pathological studies. There are atlases in epilepsy Jafari-Khouzani et al. (2011) and in AD Frisoni et al. (2015) for hippocampal segmentation, which capture the significant morphological variations that occur in both disease processes.

Assuming that manual labeling is the ground truth, the errors produced by atlas-based segmentation can be primarily attributed to the registration step. Segmentations with a single atlas are intrinsically biased toward the shape and the appearance of a subject Barnes et al. (2008). Several studies have shown that approaches that incorporate the properties of a group of atlases outperform the use of a single atlas Aljabar et al. (2009); Rohlfing et al. (2005); Heckemann et al. (2006); Lotjonen et al. (2010); Collins and Pruessner (2010). Multi-atlas segmentation is a popular approach for labeling anatomical structures from medical images. A subset of atlases within a database are registered to a target image, and their segmentations can be transformed and subsequently fused to provide a consensus segmentation. The main benefit of the multi-atlas label fusion is that the effect of errors associated with any single atlas propagation can be reduced in the process of combination. The main drawback of this approach is its computational complexity. Indeed, the computational time for segmentation increases linearly with the number of atlases that have to be registered. Although the availability and low cost of multi-core processors are making this approach more feasible, an atlas selection is generally required such that the number of atlases is as low as possible so that no further improvement is expected when adding more atlases Aljabar et al. (2009); Klein et al. (2008); van Rikxoort et al. (2010). Furthermore, a label fusion method is also required to obtain the resulting segmentation. This paper is focused on the label fusion problem.

The label fusion methods have been classified into two categories: global weighted voting and local weighted voting. Most existing label fusion methods are based on global weighted voting, such as majority voting

Rohlfing et al. (2005) (MV), STAPLE Warfield et al. (2004) or weighted voting (WV) Artaechevarria et al. (2009), which are widely used in medical image segmentation. In these approaches, each atlas contributes to the resulting segmentation with the same weight for all of its voxels. It is very sensitive to registration errors because it does not take into account the relevance of each sample. Recent works have shown that local weighted voting methods outperform global methods Artaechevarria et al. (2009); Sabuncu et al. (2010); Coupé et al. (2011).

Moreover, the errors differ if the registration is affine or non-rigid. In affine transformations, the structures of the target image and the atlases are only aligned in position, orientation and scale, but the context information of the aligned atlas is preserved in the domain of the target image. However, the atlases are typically warped to the target image using non-rigid registration techniques. This approach presents the advantage of forcing the resulting segmentation to have a similar global shape to those of expert-labeled structures in the atlases. In these approaches, there is a one-to-one mapping between the target image and each atlas. The major drawback of applying non-rigid registration to the atlases is the smoothing of the transferred labels. Indeed, because of the regularization constraints involved in these registrations, some details can be lost, and the local high variability cannot be captured. We propose combining the information from the registered atlases by means of an affine as non-rigid registrations.

In atlas-warping by non-rigid registrations, label fusion methods generally calculate the labels associated with the target image via maximum a posteriori (MAP) estimation

Lotjonen et al. (2010); Sabuncu et al. (2010); van der Lijn et al. (2008)

. A statistical model is constructed from the registered atlases, which is normally decomposed into an appearance model and a shape prior term. Appearance models are able to combine many of the local intensity statistics. These models have difficulty in taking the regional information into account. For this reason, appearance models are joined with shape prior models. The MAP inference can be obtained via expectation maximization

Sabuncu et al. (2010); Ledig et al. (2012) or by transforming the labeling problem in terms of energy minimization Lotjonen et al. (2010); van der Lijn et al. (2008); Song et al. (2006); Wolz et al. (2010); Platero and Tobar (2014).

Patch-based label fusion methods have shown great potential using only affine registrations Coupé et al. (2011); Rousseau et al. (2011); Wang et al. (2013); Tong et al. (2013). Rather than fusing label maps as in multi-atlas segmentation, this framework is based on the non-local mean principle Buades et al. (2006). Each voxel is represented by a small image patch. Similar patches on each atlas image are aggregated to a reference voxel in the target image based on the non-local mean. The more similar a patch of a voxel in an atlas image is to a reference voxel in the target image, the higher is the weight that is used to propagate its labeling to the reference voxel in the target image. All selected patches from a subset of atlases with their weighed labelings are fused to estimate the labeling of the reference voxel. These methods exhibit two interesting properties: (i) this approach drastically increases the number of samples considered during the labeling estimation, and (ii) the local intensity context (i.e., patch) can be used to produce a robust comparison among samples Coupé et al. (2011). Therefore, the usual assumption of one-to-one mapping in the label fusion using non-rigid registrations is relaxed by using local search windows. Although these methods are powerful, they highly depend on the intensity-based similarity measures between patches. For selected patches with similar appearance according to the similarity measures used, their corresponding labelings may be very different. Image similarities over small image patches may not be an optimal estimator Wang et al. (2013). Moreover, the labeling is local and independent, without global constraints. To overcome these drawbacks, Asman and Landman Asman and Landman (2013) have proposed an iterative algorithm between the estimation of the labeling and the weights of the patches that maximizes the expected value of a conditional likelihood function. Alternatively, we propose an algorithm without iterations. An estimate of the labeling with constraints in the shape priors is inferred by a label fusion method based on non-rigid registrations. Then, a patch-based labeling method is applied, which selects the patches, and their weights are calculated using similarity measures of the intensities and binary labelings. These combined similarity measures produce better selection of the patches, and their weights are more robust, which improves the segmentation results compared to other existing approaches.

In this paper, brain MRI are used to validate the proposed framework. These images generally show different structures of interest to be segmented. Therefore, a region-wise approach is more appropriate Han and Fischl (2007), which can be achieved by dividing the image into multiple anatomically meaningful regions Shi et al. (2010). Once the regions of interest (ROIs) are defined, a ranking of atlases is calculated for each ROI Aljabar et al. (2009), and the selected registered atlases are fused into each ROI of the target image. Partitioning the problem in ROIs improves the registration and segmentation results. Indeed, the multi-atlas approaches have greater accuracy when the registrations are only made near the object of interest and not in the entire image Shi et al. (2010). Furthermore, these approaches convert the complex multi-label problem into feasible binary segmentation problems.

Finally, we test different label fusion methods on publicly available MRI of human brains. We demonstrate that our approach produces as good or even better automatic segmentations than other label fusion methods.

The remainder of this paper is organized as follows. In Section 2, the proposed method of combining a patch-based labeling method with an atlas-warping using non-rigid registrations is presented. The experiments and results for the hippocampal segmentation are described in Section 3. The discussion and conclusions are presented in Section 4.

2 Methods

We propose a patch-based labeling method that cooperates with atlas-warping using non-rigid registrations. First, a subset of atlases are registered non-rigidly into the target image, and then a label fusion method is applied. The label fusion method is based on minimizing a pseudo-Boolean function using graph cuts with information of appearance, shape and context Lotjonen et al. (2010); van der Lijn et al. (2008); Song et al. (2006); Wolz et al. (2010); Platero and Tobar (2015). Then, a patch-based labeling method is applied using the above segmentation of the target image. The patches of another subset of atlases, which are registered by affine transformations, are pre-selected with a structural similarity measure that takes into account both the intensity and the labeling of the candidate patches. From the selected patches, a multi-point label estimation is calculated for each voxel that belongs to the target image. The weights of the selected patches are computed from a combination of -norm measures between patches using intensity-based distances and labeling-based distances. The following paragraphs explain the methods used and how they work together.

2.1 Label fusion using atlas-warping by non-rigid registrations

Given a ROI of the target image , a subset of atlases are used for the label fusion method using non-rigid registrations, where are the modality images and are the label maps. In the labeled images, voxels that belong to the anatomical structure of interest are designated by the label and background voxels are designated by the label . We denote as the spatial mapping from the target image coordinates to the coordinates of the th atlas. For simplicity, we assume that have been pre-computed using a pairwise registration procedure. This assumption allows us to shorthand

as the atlases into the coordinates of the target image. We seek to minimize an energy function under the Bayesian formulation, which defines the conditional probability as a discrete random field

with a neighborhood system . The neighborhood system is the set of edges that connect variables in the random field. A conditional random field model Lafferty et al. (2001) (CRF) is defined by the following pseudo-Boolean function:

(1)

where are the model parameters for this ROI and is a tunable parameter that determines the trade-off between the unary and pairwise potentials. We next define the form of the two potential functions and their parameters.

2.1.1 The unary potentials

The unary potentials use the Bayesian formulation, which allows prior information about the shape and appearance of structures to be segmented to be incorporated in the model.

Image likelihood

We assume that the observed intensities of

are independent random variables. The image likelihood

can then be written as a product of the likelihoods of the individual voxels:

A discriminative appearance model with low computational effort is selected. The registered atlas images are convolved with a filter-bank. A set of feature extraction kernels

are used to produce different feature maps:

where

is the dimension of the feature vector and

denotes the resulting feature vector of at voxel associated with the filter . In this paper, derivatives of Gaussians Leung and Malik (2001); Shotton et al. (2009) and 3D steerable filters Derpanis and Gryn (2005) are adopted to extract features (for further details, see section 3.1.1). The responses for all registered atlas image voxels are whitened separately (to provide zero mean and unit covariance). These feature vectors are used to train a -nearest neighbor (-NN) appearance model. For computational efficiency, we use the d-tree algorithm Mount and Arya (2015) to perform the nearest neighbor search. A d-tree model is constructed with . The target image is also convolved and whitened.

For each label , we consider as the set of feature vectors extracted from the voxels that belong to the registered atlas images and whose labels are . Let be the set whose elements are nearest neighbors to and be the set of the indices of the feature vectors with label that are nearest neighbors to . The image likelihoods of the individual voxels that belong to the target image are calculated using the following formula:

(2)

Label prior

The label prior probability

models the joint probability of all voxels that belong to the ROI in a particular label configuration. However, we assume that the prior probability that voxel has label only depends on its position, the similarity between and and the transferred atlas-labeled images:

This assumption is not realistic, but we encode the correlations of the labels using pairwise potentials. For each voxel and each label , we define:

where , is a local or global similarity measure between the target image and the registered atlas image at , and is an associated gain exponent Artaechevarria et al. (2009). The prior probability is defined as

(3)

The image likelihood and label prior terms are combined to define the unary potentials :

2.1.2 Spatial regularization

Following the work of Song et al. Song et al. (2006), a smoothness term is added to the energy function. These authors combined intensity and local boundary information into the pairwise potentials, which have been successfully applied for brain segmentation. These pairwise potentials take the form of a contrast-sensitive Potts model:

where

where with a normalization factor . is a line that joins and , and is the robust scale of image . The parameter controls the influence of the boundary-based and intensity-based parts.

2.2 Patch-based labeling method

Given a subset of the aligned atlases in a ROI of the target image using affine transformations, each voxel in is correlated to each voxel in with a weight of . In the conventional method, the weights are defined by intensity-based similarity measures between patches. A patch-based representation is extracted using a sub-volume centered at from the target image or the aligned atlas. These signatures are denoted by and , respectively. The signature difference between a reference voxel and a voxel in an atlas image is used to define :

(5)

where denotes the neighborhood of voxel in the atlas images. The parameter determines how this method assigns the weights for each patch . We use to show the minimal distance between the target patch and its neighboring patches  Coupé et al. (2011).

Using these weights, we can use a single-point model for the label fusion from the atlases, as follows:

where is an estimation of label ’1’ for every voxel and is the number of the selected aligned atlases used to fuse. However, because the similarity measure is based on patches, one can obtain a multi-point model for the label fusion Rousseau et al. (2011):

where is a label patch that belongs to the th atlas and is a label patch estimation of the target image at , i.e., for each voxel, a vector of the likelihood for label ’1’ is calculated. These estimates are then aggregated using a combination classifier. In this work, we used the majority voting rule to fuse these estimates. The label patch estimation provides better results than the single estimation Rousseau et al. (2011).

2.3 Combining patch-based and registration-based label fusion

The similarity measure is the core of the patch-based labeling methods, and this measure is only calculated using intensity-based distances. The selected patches from the atlases can have similar distances to the patch of the reference voxel, but nevertheless, their label patches may be very different. In addition, these approaches estimate the labels in a local manner, without global constraints such as the shape priors. To overcome this drawback, a new similarity measure based on the labeling distance is added.

We consider the label patch as a clique, i.e., a connected set of voxels, whose labels are conditionally dependent on each other. A label patch estimation can be inferred by minimizing (1) using global shape constraints. Next, we add a measure using label-based distances:

(6)

where and are defined as the minimal distances between the target patch and its neighboring patches according to the intensities and labelings, respectively (for further details, see section 3.1.2). Now, the weights of the patches are calculated considering both the local appearance and the global shape. Moreover, this proposal does not require the addition of more tunable parameters compared to the path-based conventional labeling method.

3 Experiments with Brain MRI data

To evaluate the performance and the robustness of the proposed label fusion method, we select hippocampal segmentation because it is one of the most studied problems in the analysis of brain images. We employ two available databases of T1-weighted (T1W) MRI: (i) 18 modified images from the Internet Brain Segmentation Repository (IBSR) IBS (2015); Rohlfing (2012) and (ii) 50 images of epileptic and nonepileptic patients with hippocampal outlines (HFH) Jafari-Khouzani et al. (2011). IBSR contains images of healthy patients with expert segmentation of 43 anatomical structures. The voxel spacing of these images is 0.9375 x 1.5 x 0.9375 . In contrast, HFH contains a total of 50 images, which were randomly divided into 25 images used for the training set and the other 25 for the test set. Manual segmentations are only available for the training images. Images were acquired using two MRI systems with different field strengths (1.5 T and 3.0 T) and with different resolutions (0.78 x 2 x 0.78 and 0.39 x 2 x 0.39 ).

The proposed segmentation scheme involves four main steps: (1) MRI pre-processing, (2) spatial normalization and definition of the ROIs, (3) the first labeling based on atlas warping using non-rigid registrations and (4) the final labeling by patches based on similarity measures in intensity and labeling.

During pre-processing of the databases, non-brain regions are removed from all structural images. Removing non-brain tissue prior to registration is generally accepted as a means to simplify the inter-subject registration problem and thus increase the quality of the registrations Battaglini et al. (2008); Klein et al. (2009). The images are skull-stripped using BET Smith (2002). Then, all images are spatially normalized to a reference atlas using an affine registration. For the IBSR database, CMTK’s affine registration tool is used Studholme et al. (1999)

. In HFH, an atlas (HFH_021) is selected as a reference to which all atlases are then co-registered with an affine transformation using FLIRT with 12 degrees of freedom

Jenkinson et al. (2002). After spatial normalization for both of the databases, a region of interest is defined for each structure studied (left and right hippocampus) as the minimum bounding box containing the structure for all of the training atlases expanded by three voxels along each dimension. The patient image is also processed using a skull-striping filter, and an affine transformation is applied to the common reference space. Then, the normalized patient image is cropped around the structures of interest.

For each ROI, the normalized atlas images are first ranked based on their similarity according to the normalized target image using the mutual information (MI) measure Viola and Wells III (1997). Then, the -selected atlases are registered non-rigidly into the ROI of the normalized target image. Next, the registered atlases are fused, and the labeling is calculated using graph cuts based on minimizing the energy function of (1).

Next, an intensity normalization is applied to the above normalized atlas images using the histogram matching algorithm Gonzales and Woods (2002) with the ROI of the normalized target image as a reference. Now, the sum of the squared difference (SSD) measure between each atlas image and the target image is used to rank and select the first atlases. This measure is chosen because SSD is related to the similarity between patches in intensities. Finally, from the previous labeling of the target image and the -selected atlases, the segmentation result is obtained using the proposed patch-based labeling method, and an inverse affine transformation is applied to return the automatic segmentation into the native space of the target image. Fig. 1 shows a flow chart that summarizes the processing of the images.

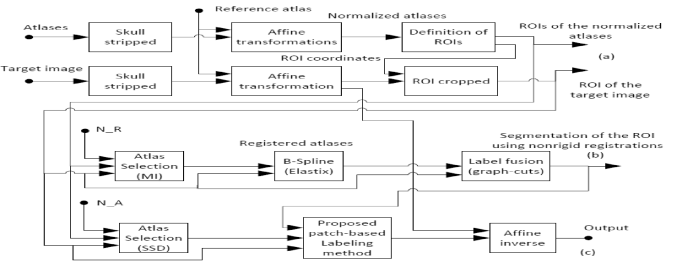

Figure 1: Flow chart summarizing the processing of the patient images: (a) MRI pre-processing, spatial normalization and definition of the ROIs. (b) Segmenting of the ROIs using the non-rigid registration-based label fusion method. (c) Segmenting of the ROIs using the proposed patch-based labeling method.

Although in the theoretical framework (see section 2.1), the registrations were performed from the atlases into the target image, there is no loss of generality using the spatial normalization by using affine transformations. This intermediate step improves the computational efficiency. Furthermore, the ranking of the atlases for both fusion methods is immediately calculated with the spatial normalization. The normalized atlases are also used to obtain the library of the patches for implementing the patch-based labeling method.

3.1 Experiments with the training atlases

For each database, a leave-one-out validation strategy is performed to determinate the tunable parameters. These parameters are varied in certain ranges, and their effects are measured from the overlap between the resulting segmentation and the ground truth. The DICE coefficient Dice (1945) is chosen as the measure of the segmentation overlaps: , where and represent the automatic and manual segmentation binary images, respectively. The function indicates the size of ’1’ in the set. In atlas warping by non-rigid registrations, the parameters in (1) of each ROI are first learned by piecewise training and then recombined with the tunable weight . With respect to the patch-based labeling method, the influence of the patch pre-selection process, the patch and search volume size, the local adaptation of and the number of the fused atlases are studied.

3.1.1 Setting the parameters of the label fusion method using non-rigid registrations

The non-rigid registrations, the atlas selection and the label fusion method have to be investigated to improve the performance of the multi-atlas segmentation approach. For each ROI, the atlases are ranked based on their similarity according to the target image using MI Aljabar et al. (2009). Once the atlases are ranked, we employ a leave-one-out validation strategy to determinate the number of atlases that are fused to the target image. In our experiments, the first atlases more similar to the target image were registered non-rigidly (Platero and Tobar (2015). Then, the selected atlases are co-registered non-rigidly to the ROI of the target image. All non-rigid registrations are computed using Elastix Klein et al. (2010), a publicly available package for medical image registration. Non-rigid registration of images is based on the maximization of MI, in combination with a deformation field parameterized by cubic B-splines Rueckert et al. (1999). The MI is implemented according to Thévenaz and Unser (2000)

, using a joint histogram size of 32 x 32 and cubic B-spline Parzen windows. A unique resolution is employed using a B-spline control point spacing of 3.0 mm in all directions. To optimize the cost function, an iterative stochastic gradient descent optimizer is used

Klein et al. (2007). In each iteration, 2000 random samples are used to calculate the derivative of the cost function. A maximum of 500 iterations of the stochastic optimization procedure is used. The above-described settings were determined through trial-and-error experiments on two image pairs. These parameters of the non-rigid registrations are equally applicable to both databases.

The atlas-labeled images are modeled using the logarithm of odds (LogOdds) formulation, which is based on the signed distance transform

Pohl et al. (2006)

. This representation replaces the labels by the signed distances, which are assumed to be positive inside the structure of interest. We find that the LogOdds model produces more accurate results compared with trilinear interpolation or nearest-neighbor interpolation for transferring the atlas-labeled images

Sabuncu et al. (2010).

Then, the registered atlases are fused, and the labeling is calculated based on minimizing the energy function of (1). We now examine the impact of the label fusion parameters using atlas-warping by non-rigid registrations. Regarding the discriminative appearance model, we have explored three types of feature vectors: derivatives of Gaussians, 3D steerable filters and patches. The filter-banks provided similar results to the patches. The feature vectors using filter-banks are applied to the images because their dimensions are smaller than patches.

The experimental results lead us to choose a 12-dimensional filter bank, which is applied in the HFH database. The images are convolved with Gaussians at scales of , and ; derivatives of Gaussians at scales of and ; and Laplacians of Gaussians at scales of , and  Shotton et al. (2009). Following our experiments, in the IBSR database, a 16-dimensional steerable filter bank is used Derpanis and Gryn (2005): the 6 basis functions of the second derivatives of Gaussian and 10 basic functions of the Hilbert transform. We hypothesize that the difference in the filter bank used in each database is due to the voxel spacing. The Gaussian-based filter bank is better if the voxel spacing is strongly anisotropic.

We choose a k-NN appearance model due to the compromise between performing the estimation and computational efficiency. This model could be replaced by other discriminative approaches, such as sophisticated randomized trees or boosting-based classifiers. Preliminary results on random forests

Breiman (2001) have shown similar results but with a higher computational cost (note that the discriminative model must also be trained at runtime). From the proposed k-NN appearance model and given the feature vector of a voxel belonging to the target image, the training vectors in the d-tree that are nearest are found. These vectors are used to calculate the distances to each label, and then equation (2) is applied for obtaining . The amount of training data in the discriminative model is often biased toward the background class. A classifier learned on these data will have a prior preference for this class. To normalize for this bias, we weight each training example by the inverse class frequency. The classifiers trained using this weighting tend to provide better performance Shotton et al. (2008).

In the weighted voting method for estimating the label prior probabilities, similarity measures are required between regions of the target image and each registered atlas image, i.e., in (3). A semi-global strategy is used to calculate the weight for each registered atlas. This strategy is most appropriate when the contrast between neighboring structures is low, as in the case of the hippocampus Artaechevarria et al. (2009). A binary mask is used for measuring this similarity between the target image and the registered atlases. This mask is constructed by joining all transferred labeled images. A voxel is considered in the binary mask if at least one vote of the foreground class is received. Because a statistical relationship is assumed among the intensities of these images, MI is used as a similarity measure. The gain exponent is set to  Artaechevarria et al. (2009).

Finally, we consider a 3D grid-graph with 26 neighborhood systems in , and is calculated from the derivatives of Gaussians at scale for obtaining the pairwise potentials in (2.1.2). The final trained parameters for both database were , (IBSR), and (HFH).

3.1.2 Setting the parameters of the patch-based labeling method

A subset of the target image domain is considered to accelerate the patch-based labeling method Coupé et al. (2011). A binary mask is given with the union of all transferred labeled images using non-rigid registrations, . Figure 2 shows the first advantage of the collaboration between the atlas-warping by non-rigid registrations and the patch-based labeling method. When the domains are calculated using non-rigid registrations, rather than using affine transformations as Coupé et al. (2011), the overlap between and the ground-truth segmentation is increased (i.e., is higher) and the volume of decreases with respect to the manually labeled hippocampal volumes (i.e., is lower). In this experiment, two conclusions were drawn: a) because obtained by the non-rigid registrations are more robust than those obtained by affine transformations, the success rates of the labelings are increased, and b) the computational time of the patch-based labeling method is reduced by having fewer voxels with uncertainty in their labels.

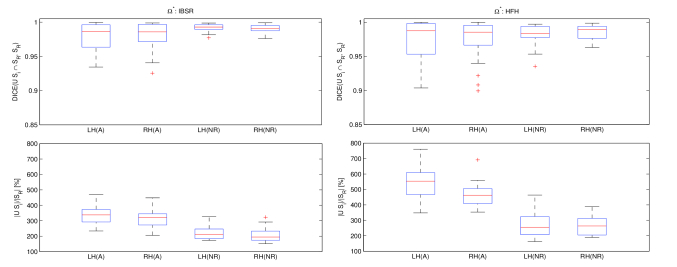

Figure 2: Comparison of between affine transformations (A) and non-rigid registrations (NR) for the IBSR and HFH datasets. For the left (LH) and right (RH) hippocampus, the first row plots the distribution of , where is the ground-truth segmentation. The second row plots the distribution of .

An atlas selection is also used to identify a subset of the normalized atlases to the normalized target image by affine transformations. First, the image intensities are normalized through histogram matching. Then, the SSD measure in between each atlas image and the target image is used to rank the atlases. A compromise between the performance of the patch-based labeling method and computational efficiency is to choose the first 10 atlases that most resemble the target image Rousseau et al. (2011); Tong et al. (2013) ().

Next, for each voxel in and whose label is uncertain, a patch pre-selection is used to accelerate the label fusion procedure and to improve the robustness of label fusion by excluding the unrelated patches Coupé et al. (2011); Wu et al. (2014). The pre-selection process uses a modified version of the well-know structural similarity measure Wang et al. (2004). We consider a similarity measure that takes both the intensity and the labeling of the candidate patch into account:

(7)

where and

are the mean and standard deviation of the target patches

and , respectively. Similarly, and are the mean and standard deviation of the candidate patch and belonging to the th selected atlas.

In the conventional patch-based labeling method, if the value of a similarity measure is larger than a given threshold , the candidate patch is selected Coupé et al. (2011). To avoid adding more tuning parameters in our proposed approach, we consider a candidate patch if our similarity measure is greater than , . We evaluated the label fusion accuracy when applying different thresholds during the pre-selection. The value of was varied from to , showing no significant improvement in the label fusion accuracy. In all experiments, we set the similarity threshold as . On overage, thousands of patches of the selected aligned atlases are used to calculate the non-local mean label fusion in every voxel. Figure 3 shows the distributions of the number of selected patches according to the ranking of the aligned atlases. A comparison between the conventional and proposed patch pre-selection procedures is shown. The number of selected patches with our similarity measure is approximately one-third less than that of the conventional method. Our proposal selects more patches than the conventional pre-selection process and also improves the robustness of label fusion by excluding the patches whose labelings are not similar to the labeling of the target voxel. Our approach allows geometrical constraints, such as shape priors, to be imposed due to the labeling obtained by the atlas warping using non-rigid registrations. Indeed, the selected patches show similarity in appearance and labeling according to the target voxel. This is the second advantage of the collaboration between the atlas-warping by non-rigid registrations and the patch-based labeling method.

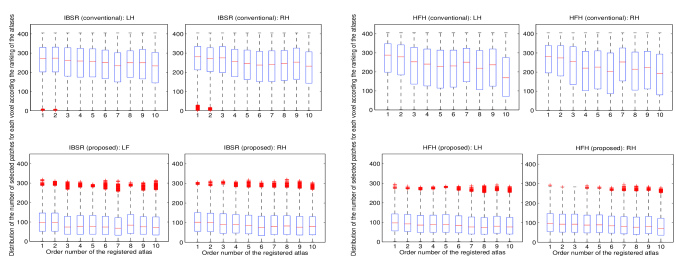

Figure 3: Comparison between the conventional and proposed patch pre-selection procedures. The figure shows the distributions of the number of the selected patches for each voxel according to the ranking of the aligned atlases. We use .

The impacts of the patch size and the search volume size must be investigated. The patch size is related to the complexity of the anatomical structure, and the search volume size reflects the anatomy variability of the structure of interest Coupé et al. (2011). These parameters are normally defined with a cube-shaped neighborhood by the radius . In the case of the hippocampal segmentation, Coupe et al. Coupé et al. (2011) have reported a patch size of voxels and a search volume of . Wang et al. Wang et al. (2013) and Tong et al. Tong et al. (2013) have proposed a patch size of and a search volume size of , whereas Rousseau et al. Rousseau et al. (2011) have used a patch size of and a search volume size of .

Because the voxel spacing of brain T1W-MRI is not the same in all components (particularly in the HFH database), we analyze this parameter by taking into account the values in each direction. Now, we use a cuboid-shaped patch, which is expressed the radius in millimeters, and the patch size and the search volume size are defined by

where rounds to toward plus infinity of the nearest integer. Figure 4 shows the DICE distributions over varying patch and search volume sizes on both datasets. The last three above-standard cube-shaped patches are used. By contrast, the cuboid-shaped patch is defined by or mm in the path size and or mm in the search volume size. The comparison between the cube-shaped patch and the cuboid-shaped patch shows improvement when the patch size and the search volume size consider the voxel spacing.

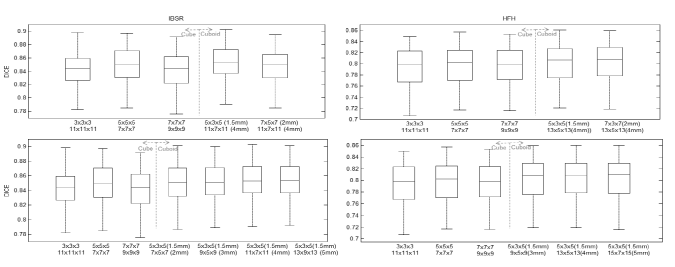

Figure 4: Effects of the patch size and the search volume size on segmentation accuracy. The results are shown using the DICE coefficient distributions for both datasets. A comparison between the cube-shaped patch and the cuboid-shaped patch is shown. The first row shows the impact of the patch size with a constant search volume: or mm in the path size with a search volume size of mm. The second row shows the impact of search volume size with a constant path size: or mm in the search volume size with a path size of mm. The standard cube-shaped patches are also plotted and compared with our proposal. In HFH data, images are first subsampled by a factor of two in the plane to reduce the computation time. Preliminary experiments showed that using the full-resolution data increased the computation times and negligibly improved the results.

The parameter of (5) plays a crucial role in the weighting of the selected patches. When is low, only a few samples are taken into account. If is high, all selected patches tend to have the same weight, and the estimation is similar to a classical average. We use a modified version of  Coupé et al. (2011), which estimates based on the minimal distance between the target patch and its neighboring patches  Coupé et al. (2011). A smoothing parameter is added to the estimation of , which depends on the noise level. The parameter is common in image denoising tasks with the non-local mean principle Coupé et al. (2008) or in the kernel used by Rousseau et al. Rousseau et al. (2011) in their patch-based labeling method. For low levels of noise in images, the best value of is close to . For high levels of noise, this value is  Coupé et al. (2008). Considering the above, we define and of (6) as:

(8)

where and are small constants to ensure numerical stability in case the patch under consideration is contained in its neighboring patches. The value of is set to and for . The aligned atlas images are considered to have low noise, but not the results of the label fusion method using non-rigid registrations, i.e., the similarity measures between labelings are considered to have a high noise level to relax restrictions imposed by the labeling obtained by the atlas warping.

Because the registered atlases using non-rigid registrations to the target image are available, we explore the possibility of replacing the affine transformations by non-rigid registrations for obtaining the library of the training patches. Figure 5 shows that the results with the DICE distributions in both datasets are worse using the non-rigid registrations than those using affine transformations. We believe that the reason for this result is that the context information is better represented using patches with affine transformations than non-rigid registrations. Moreover, the proposed combination increases the robustness using information that is less correlated because the algorithm employs both aligned atlases as the registered atlases.

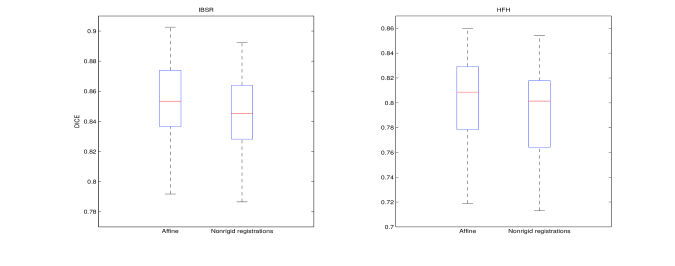

Figure 5: A comparison of the proposed patch-based labeling method between registered atlases by affine transformations and non-rigid registrations, which are used to obtain the library of the patches.

3.2 Results and comparisons

We compare our results with those obtained other label fusion methods. Five label fusion methods are chosen: STAPLE, majority voting (MV) and the three methods that we have used from our framework (the conventional patch-based labeling method Rousseau et al. (2011), the non-rigid registration-based label fusion method and the proposed combined method). For each of the methods in the experiments, we report the DICE coefficient as a segmentation quality measure. Table 1 shows the quantitative segmentation results for each label fusion method and each ROI in the IBSR and HFH databases. As previously reported in Artaechevarria et al. (2009); Rousseau et al. (2011), STAPLE does not necessarily lead to higher DICE coefficients compared to the majority voting rule.

Method ROI IBSR HFH
STAPLE LH
RH
Majority LH
voting RH
Patch LH
labeling RH
Atlas Warping LH
using NR RH
Proposed LH
combination RH

Table 1: Average values and standard deviations of the DICE coefficient for all images belonging to the IBSR and HFH databases using a) STAPLE, b) majority voting rule, c) the conventional patch-based labeling method, d) The non-rigid registration-based label fusion method and e) the proposed method.

Statistical significance is evaluated using the Wilcoxon signed-rank test, where a value of shows significant improvement. Given the DICE coefficient distributions of the proposed method as references, the values are shown in Table 2 for the DICE coefficient distributions corresponding to the other label fusion methods. These values indicate significant improvement between our approach and other conventional approaches. Additionally, note that there is no significant improvement when the proposed method is replaced by the atlas warping using non-rigid registrations.

Approach ROI IBSR HFH
STAPLE LH
RH
Majority LH
voting RH
Patch LH
labeling RH
Atlas Warping LH
using NR RH
Table 2: values using the DICE coefficient distributions of the proposed method as a reference: a) STAPLE, b) majority voting rule, c) the conventional patch-based labeling method, and d) the atlas warping using non-rigid registrations.

The evaluation of the test images that belong to the HFH database is performed by an external team by submitting the results to a web site Jafari-Khouzani et al. (2011). The given evaluations are of the entire hippocampus (see Table 3). These results are consistent with the values obtained in the training images of the HFH database.

Approach ROI HFH
Atlas Warping using NR LH+RH
Proposed Method LH+RH
Table 3: Average values and standard deviations of the DICE coefficient for all 25 test images belonging to the HFH database using the proposed model and the atlas warping using non-rigid registrations.

Figure 6 shows the segmentation results of the five label fusion methods for one typical subject. These qualitative results also indicate improvement over the conventional methods. However, there are no significant differences between the proposed method and the atlas deformation using non-rigid registrations, as indicated by the test of statistical significance.

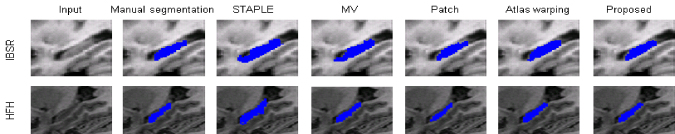

Figure 6: Comparison with STAPLE, majority voting, conventional patch-based method, atlas warping using non-rigid registration and the proposed method.

Table 4 presents the average values and standard deviations of the computing times in seconds for all training images. We only report the times for non-rigid registrations of the images and label fusions. The computational complexity is primarily due to the non-rigid registrations of the selected atlases into the target image. The computational time for segmentation increases linearly with the number of atlases that have to be registered. However, due to the availability and low cost of multi-core processors, this approach is becoming more feasible. The task of non-rigid registrations has been parallelized. The registration of the first 15 atlases in a ROI requires less than 45 seconds. The computing times of the registration tasks have a weak dependence on the image resolution because B-Spline uses an isotropic grid with the same physical units (i.e., the spacing is specified in millimeters). By contrast, the computational cost of the label fusion method depends on the image resolution. The label fusion method using non-rigid registrations calculates the unary and pairwise potentials of the CRF model in (1), and the labeling is found by applying the min-cut/max-flow algorithm of Boykov and Kolmogorov (2004). The CRF model is only trained for voxels whose labels have uncertainty such that the computational burden is reduced. A voxel is uncertain in its label when the atlas-labeled images are transferred and this voxel receives votes from different classes. Using the k-NN discriminative model with d-tree, the semi-global strategy to infer the label prior probabilities and the graph cut techniques applied only in voxels with uncertainty makes the implementation very efficient, even without the optimized code. In the patch-based labeling method, many optimizations can be used because each voxel is treated independently, which allows multithreading. The optimized implementation should also be investigated Coupé et al. (2008). In our first version, we parallelize the labeling for each voxel of the target image with uncertainty. The values of the computing times for our proposed method include both the cost of the labeling method based on graph cuts and patches. Our approach takes an average of approximately and seconds for fusing labels (included non-rigid registrations) of both the left and right hippocampus on images belonging to IBSR and HFH, respectively. The code of the label fusion methods is not yet optimized; thus, the computing times can be easily reduced. The scripts used in this study are available at https://www.nitrc.org/projects/lf_patches/.

Type IBSR HFH

Registration
LH
RH
Atlas warping LH
using NR RH
Proposed LH
combination RH

Table 4: Average values and standard deviations of the computing times in seconds for all training images ([Dual CPU] Intel Xeon E5520 @ 2.27 GHz)

Comparing segmentation results between different published methods is always difficult. The quality of the databases used for validation, the anatomical definition of the structure, the quality of expert segmentations, the populations studied and the different measures reported all make comparing results difficult. With these caveats in mind, we compare our segmentation results with other approaches that used the same databases. Table 5 shows the results reported in the literature obtained on the IBSR and HFH datasets.

Liu et al. Liu et al. (2010) have developed an auto context model to segment the sub-cortical structures from T1W MRI. This technique combines a discriminative model for appearance with a label prior term. They have tested their approach on the IBSR database and compared their results with FreeSurfer Fischl et al. (2002), which has been widely in this field. They reported average Dice coefficients of and for the hippocampus in FreeSurfer and their approach, respectively. The IBSR databased is also used for the weighted voting method proposed by Artaechevarria et al. Artaechevarria et al. (2009). The best average Dice coefficients were and for left and right hippocampus, respectively. Rousseau et al. Rousseau et al. (2011) proposed a conventional patch-based labeling method using a fast multi-point algorithm, i.e., only the voxels that are in the subdomain are evaluated and a label patch is estimated in each voxel. These authors have evaluated their implementation with the IBSR database. Their Dice coefficients were and for left and right hippocampus, respectively. We report similar results for the conventional method. However, we demonstrate that our proposal has significant improvements over the conventional method.

Jafari-Khouzani et al. Jafari-Khouzani et al. (2011) developed the HFH database. They have evaluated two approaches on the HFH database: (i) Parser Tu et al. (2008) and (ii) classifier fusion and labeling (CFL) Aljabar et al. (2009). Brain Parser uses Adaboost to select and fuse a set of features from the training data to obtain the discriminative appearance model, which is combined with a generative shape model. Jafari-Khouzani et al. have reported average Dice coefficients of for the hippocampus. In CFL, the selected atlases are co-registered to the target image, and their transferred labels are fused using the voting rule. The authors have reported Dice coefficients of for the hippocampus. Therefore, our results are as good as or even better than those previously reported.

Method Proposed Rousseau Fischl Liu Arteachavarria
et al Rousseau et al. (2011) et al Fischl et al. (2002) et al Liu et al. (2010) et al Artaechevarria et al. (2009)
LH - RH 0.842-0.849 0.81-0.81 0.75 0.74 0.74-0.76
Method Proposed Brain Parser CFL
Tu et al. (2008); Jafari-Khouzani et al. (2011) Aljabar et al. (2009); Jafari-Khouzani et al. (2011)
LH - RH 0.790-0.804 0.64 0.75
Table 5: Comparison of the proposed method with other segmentation methods using the mean DICE coefficient on the IBSR and HFH databases.

4 Discussion and conclusion

In this work, we developed a patch-based labeling method that cooperates with atlas-warping using non-rigid registrations. First, a labeling of the target image is inferred with atlas-warping by non-rigid registrations. Then, a patch-based label fusion method is applied, whose patches and weights are computed from a combination of similarity measures between patches using intensity-based distances and labeling-based distances, where the labeling distances are calculated from the previous binary labeling of the target image by atlas-warping using non-rigid registrations.

The patch-based labeling methods have the advantages of considering multiple samples during the labeling estimation and the local context is well represented by the patches, particularly with affine transformations. In contrast, the label fusion methods using non-rigid registrations lead to segmentations with shape prior constraints. When the delineation of the anatomical structures do not rely on intensity contrast, as in the case of hippocampal segmentation, the conventional patch-based labeling is not sufficient for obtaining good results. We have experimentally observed that the collaboration between these two approaches through the addition of a similarity measure based on the distance between binary labeling produces higher quality segmentations.

The collaboration between the two methods is given in the following levels: (1) the sub-domain considered to accelerate the algorithm, , generated by non-rigid registrations is smaller and has more overlap with the manual segmentation than that obtained by affine registrations. The consequence is a higher computational efficiency due to the smaller size of and improved segmentation results by increasing the overlapping between the union of the transferred labeled atlases and the ground-truth segmentations. (2) The pre-selection of the patches in the atlases are improved by adding similarity measures based on both the intensity and labeling of the candidate patches. In our experiments, we observe that the numbers of selected patches with our similarity measure are approximately one-third less than that with the conventional method without adding any additional parameter to tune. (3) The weights of our selected patches are also more robust through the addition of label-based distances. The segmentation results are the best compared to other label fusion methods, including the conventional patch-based labeling method. Moreover, our proposed method does not require further tuning parameters compared to the conventional patch-based methods, neither in the selected patches nor in calculating the weights. (4) In the conventional patch-based labeling method, there are no global constraints. Both in the pre-selection patch process and in determining their weights, our approach imposes geometrical restrictions, such as shape priors, using similarity measures based on binary labeling. (5) We observe that an improvement in the segmentation results using the label fusion method with non-rigid registrations becomes an improvement of the proposed method. This is a consequence of improvement in the selection and the robustness weights of the patches. (6) The spatial normalization of the atlases and the target images into a reference makes the work-flow very efficient. The ranking of the atlases for both fusion methods and the library of the patches are obtained from the spatial normalization. In the first version of our sources, without the optimized code and only parallelization of the non-rigid registration task and the patch-based labeling, our proposal takes an average of approximately 3 and 6 minutes for segmenting the left and right hippocampus on images belonging to the IBSR and HFH databases, respectively. Finally, we also propose a type of patch adapted to the voxel spacing that provides better results than standard solutions, which uses a cube shape. The scripts used in this study are available at https://www.nitrc.org/projects/lf_patches/.

In this paper, the patch-based labeling method is based on similarity measures of intensities and labeling. A new strategy of patch-based labeling has been proposed using the minimal reconstruction error Tong et al. (2013). The patch library of the aligned atlases is considered as a dictionary, and the target patch is modeled as a sparse linear combination of the atoms in the dictionary. An extension of the patch reconstruction can be achieved by adding the inferred labeling from the label fusion using non-rigid registrations, in the same manner as performed on the similarity measures. Another limitation in this work is that the weights of the patches have been computed independently for each aligned atlas, without taking into account the fact that the selected atlases may produce similar label errors due to a high correlation between them. Wang et al. Wang et al. (2013) proposed that the weighted voting is formulated in terms of minimizing the total expectation of labeling error and in which pairwise dependency between atlases is explicitly modeled as the joint probability of two atlases, creating a segmentation error at a voxel. We leave these two themes (i.e., the minimal reconstruction error and the pairwise dependency between the patches of the atlases) for future work.

References

  • Leung et al. (2010) Leung, K.K., Barnes, J., Ridgway, G.R., Bartlett, J.W., Clarkson, M.J., Macdonald, K., et al. Automated cross-sectional and longitudinal hippocampal volume measurement in mild cognitive impairment and Alzheimer’s disease. Neuroimage 2010;51(4):1345–1359.
  • Nestor et al. (2013) Nestor, S.M., Gibson, E., Gao, F.Q., Kiss, A., Black, S.E.. A direct morphometric comparison of five labeling protocols for multi-atlas driven automatic segmentation of the hippocampus in Alzheimer’s disease. Neuroimage 2013;66:50–70.
  • Clerx et al. (2013) Clerx, L., van Rossum, I.A., Burns, L., Knol, D.L., Scheltens, P., Verhey, F., et al. Measurements of medial temporal lobe atrophy for prediction of Alzheimer’s disease in subjects with mild cognitive impairment. Neurobiology of aging 2013;34(8):2003–2013.
  • Babalola et al. (2009) Babalola, K.O., Patenaude, B., Aljabar, P., Schnabel, J., Kennedy, D., Crum, W., et al. An evaluation of four automatic methods of segmenting the subcortical structures in the brain. Neuroimage 2009;47(4):1435–1447.
  • Aljabar et al. (2009) Aljabar, P., Heckemann, R., Hammers, A., Hajnal, J., Rueckert, D.. Multi-atlas based segmentation of brain images: Atlas selection and its effect on accuracy. Neuroimage 2009;46(3):726–738.
  • Jafari-Khouzani et al. (2011) Jafari-Khouzani, K., Elisevich, K.V., Patel, S., Soltanian-Zadeh, H.. Dataset of magnetic resonance images of nonepileptic subjects and temporal lobe epilepsy patients for validation of hippocampal segmentation techniques. Neuroinformatics 2011;9(4):335–346.
  • Frisoni et al. (2015) Frisoni, G.B., Jack, C.R., Bocchetta, M., Bauer, C., Frederiksen, K.S., Liu, Y., et al. The EADC-ADNI Harmonized Protocol for manual hippocampal segmentation on magnetic resonance: Evidence of validity. Alzheimer’s & Dementia 2015;11(2):111–125.
  • Barnes et al. (2008) Barnes, J., Foster, J., Boyes, R., Pepple, T., Moore, E., Schott, J., et al. A comparison of methods for the automated calculation of volumes and atrophy rates in the hippocampus. Neuroimage 2008;40(4):1655–1671.
  • Rohlfing et al. (2005) Rohlfing, T., Brandt, R., Menzel, R., Russakoff, D., Maurer, C.. Quo vadis, atlas-based segmentation? Handbook of Biomedical Image Analysis 2005;:435–486.
  • Heckemann et al. (2006) Heckemann, R., Hajnal, J., Aljabar, P., Rueckert, D., Hammers, A.. Automatic anatomical brain MRI segmentation combining label propagation and decision fusion. Neuroimage 2006;33(1):115–126.
  • Lotjonen et al. (2010) Lotjonen, J., Wolz, R., Koikkalainen, J., Thurfjell, L., Waldemar, G., Soininen, H., et al. Fast and robust multi-atlas segmentation of brain magnetic resonance images. Neuroimage 2010;49(3):2352–2365.
  • Collins and Pruessner (2010) Collins, D.L., Pruessner, J.C.. Towards accurate, automatic segmentation of the hippocampus and amygdala from MRI by augmenting ANIMAL with a template library and label fusion. Neuroimage 2010;52(4):1355–1366.
  • Klein et al. (2008) Klein, S., van der Heide, U., Lips, I., van Vulpen, M., Staring, M.. Automatic segmentation of the prostate in 3D MR images by atlas matching using localized mutual information. Medical Physics 2008;35(4):1407–1417.
  • van Rikxoort et al. (2010) van Rikxoort, E., Isgum, I., Arzhaeva, Y., Staring, M., Klein, S., Viergever, M., et al. Adaptive local multi-atlas segmentation: Application to the heart and the caudate nucleus. Medical Image Analysis 2010;14(1):39–49.
  • Warfield et al. (2004) Warfield, S., Zou, K., Wells, W.. Simultaneous truth and performance level estimation (STAPLE): an algorithm for the validation of image segmentation. IEEE Transactions on Medical Imaging 2004;23(7):903–921.
  • Artaechevarria et al. (2009) Artaechevarria, X., Muñoz-Barrutia, A., Ortiz-de Solorzano, C.. Combination strategies in multi-atlas image segmentation: Application to brain MR data. IEEE Transactions on Medical Imaging 2009;28(8):1266–1277.
  • Sabuncu et al. (2010) Sabuncu, M., Yeo, B., Van Leemput, K., Fischl, B., Golland, P.. A generative model for image segmentation based on label fusion. IEEE Transactions on Medical Imaging 2010;29(10):1714–1729.
  • Coupé et al. (2011) Coupé, P., Manjón, J.V., Fonov, V., Pruessner, J., Robles, M., Collins, D.L.. Patch-based segmentation using expert priors: Application to hippocampus and ventricle segmentation. Neuroimage 2011;54(2):940–954.
  • van der Lijn et al. (2008) van der Lijn, F., den Heijer, T., Breteler, M., Niessen, W.. Hippocampus segmentation in MR images using atlas registration, voxel classification, and graph cuts. Neuroimage 2008;43(4):708–720.
  • Ledig et al. (2012) Ledig, C., Wolz, R., Aljabar, P., Lotjonen, J., Heckemann, R.A., Hammers, A., et al. Multi-class brain segmentation using atlas propagation and EM-based refinement. In: 9th IEEE International Symposium on Biomedical Imaging (ISBI). IEEE; 2012, p. 896–899.
  • Song et al. (2006) Song, Z., Tustison, N., Avants, B., Gee, J.. Integrated graph cuts for brain MRI segmentation. Medical Image Computing and Computer-Assisted Intervention–MICCAI 2006;4191:831–838.
  • Wolz et al. (2010) Wolz, R., Heckemann, R.A., Aljabar, P., Hajnal, J.V., Hammers, A., Lötjönen, J., et al. Measurement of hippocampal atrophy using 4D graph-cut segmentation: application to ADNI. Neuroimage 2010;52(1):109–118.
  • Platero and Tobar (2014) Platero, C., Tobar, M.C.. A multiatlas segmentation using graph cuts with applications to liver segmentation in CT scans. Computational and Mathematical Methods in Medicine 2014;2014(182909):1–16.
  • Rousseau et al. (2011) Rousseau, F., Habas, P.A., Studholme, C.. A supervised patch-based approach for human brain labeling. IEEE Transactions on Medical Imaging 2011;30(10):1852–1862.
  • Wang et al. (2013) Wang, H., Suh, J.W., Das, S.R., Pluta, J.B., Craige, C., Yushkevich, P.A.. Multi-atlas segmentation with joint label fusion. IEEE Transactions on Pattern Analysis and Machine Intelligence 2013;35(3):611–623.
  • Tong et al. (2013) Tong, T., Wolz, R., Coupé, P., Hajnal, J.V., Rueckert, D.. Segmentation of MR images via discriminative dictionary learning and sparse coding: application to hippocampus labeling. Neuroimage 2013;76:11–23.
  • Buades et al. (2006) Buades, A., Coll, B., Morel, J.. A review of image denoising algorithms, with a new one. Multiscale Modeling and Simulation 2006;4(2):490–530.
  • Asman and Landman (2013) Asman, A.J., Landman, B.A.. Non-local statistical label fusion for multi-atlas segmentation. Medical Image Analysis 2013;17(2):194–208.
  • Han and Fischl (2007) Han, X., Fischl, B.. Atlas renormalization for improved brain MR image segmentation across scanner platforms. IEEE Transactions on Medical Imaging 2007;26(4):479–486.
  • Shi et al. (2010) Shi, F., Yap, P.T., Fan, Y., Gilmore, J.H., Lin, W., Shen, D.. Construction of multi-region-multi-reference atlases for neonatal brain MRI segmentation. Neuroimage 2010;51(2):684–693.
  • Platero and Tobar (2015) Platero, C., Tobar, M.C.. A label fusion method using conditional random fields with higher-order potentials: Application to hippocampal segmentation. Artificial Intelligence in Medicine 2015;64(2):117–129.
  • Lafferty et al. (2001) Lafferty, J., McCallum, A., Pereira, F.. Conditional random fields: Probabilistic models for segmenting and labeling sequence data.

    In: International Conference on Machine Learning. 2001, p. 282–289.

  • Leung and Malik (2001) Leung, T., Malik, J.. Representing and recognizing the visual appearance of materials using three-dimensional textons.

    International Journal of Computer Vision 2001;43(1):29–44.

  • Shotton et al. (2009) Shotton, J., Winn, J., Rother, C., Criminisi, A.. Textonboost for image understanding: Multi-class object recognition and segmentation by jointly modeling texture, layout, and context. International Journal of Computer Vision 2009;81(1):2–23.
  • Derpanis and Gryn (2005) Derpanis, K.G., Gryn, J.M.. Three-dimensional nth derivative of Gaussian separable steerable filters. In: IEEE International Conference on Image Processing; vol. 3. IEEE; 2005, p. III553–6.
  • Mount and Arya (2015) Mount, D.M., Arya, S.. Ann: A library for approximate nearest neighbor searching. http://www.cs.umd.edu/~mount/ANN/; 2010 (Accessed: 16 June 2015). Version 1.1.2.
  • IBS (2015) Internet brain segmentation repository, IBSR. http://www.cma.mgh.harvard.edu/ibsr/; (Accessed: 16 June 2015).
  • Rohlfing (2012) Rohlfing, T.. Image similarity and tissue overlaps as surrogates for image registration accuracy: widely used but unreliable. IEEE Transactions on Medical Imaging 2012;31(2):153–163.
  • Battaglini et al. (2008) Battaglini, M., Smith, S.M., Brogi, S., De Stefano, N.. Enhanced brain extraction improves the accuracy of brain atrophy estimation. Neuroimage 2008;40(2):583–589.
  • Klein et al. (2009) Klein, A., Andersson, J., Ardekani, B.A., Ashburner, J., Avants, B., Chiang, M.C., et al. Evaluation of 14 nonlinear deformation algorithms applied to human brain MRI registration. Neuroimage 2009;46(3):786–802.
  • Smith (2002) Smith, S.M.. Fast robust automated brain extraction. Human Brain Mapping 2002;17(3):143–155.
  • Studholme et al. (1999) Studholme, C., Hill, D., Hawkes, D.. An overlap invariant entropy measure of 3D medical image alignment. Pattern Recognition 1999;32(1):71–86.
  • Jenkinson et al. (2002) Jenkinson, M., Bannister, P., Brady, M., Smith, S.. Improved optimization for the robust and accurate linear registration and motion correction of brain images. Neuroimage 2002;17(2):825–841.
  • Viola and Wells III (1997) Viola, P., Wells III, W.M.. Alignment by maximization of mutual information. International Journal of Computer Vision 1997;24(2):137–154.
  • Gonzales and Woods (2002) Gonzales, R.C., Woods, R.E.. Digital image processing. New Jersey: Prentice Hall 2002;6:1–689.
  • Dice (1945) Dice, L.. Measures of the amount of ecologic association between species. Ecology 1945;26(3):297–302.
  • Klein et al. (2010) Klein, S., Staring, M., Murphy, K., Viergever, M., Pluim, J.. Elastix: a toolbox for intensity-based medical image registration. IEEE Transactions on Medical Imaging 2010;29(1):196–205.
  • Rueckert et al. (1999) Rueckert, D., Sonoda, L., Hayes, C., Hill, D., Leach, M., Hawkes, D.. Nonrigid registration using free-form deformations: application to breast MR images. IEEE Transactions on Medical Imaging 1999;18(8):712–721.
  • Thévenaz and Unser (2000) Thévenaz, P., Unser, M.. Optimization of mutual information for multiresolution image registration. IEEE Transactions on Image Processing 2000;9(12):2083–2099.
  • Klein et al. (2007) Klein, S., Staring, M., Pluim, J.. Evaluation of optimization methods for nonrigid medical image registration using mutual information and B-splines. IEEE Transactions on Image Processing 2007;16(12):2879–2890.
  • Pohl et al. (2006) Pohl, K.M., Fisher, J., Shenton, M., McCarley, R.W., Grimson, W.E.L., Kikinis, R., et al. Logarithm odds maps for shape representation. In: Medical Image Computing and Computer-Assisted Intervention–MICCAI. Springer; 2006, p. 955–963.
  • Breiman (2001) Breiman, L.. Random forests. Machine Learning 2001;45(1):5–32.
  • Shotton et al. (2008) Shotton, J., Johnson, M., Cipolla, R.. Semantic texton forests for image categorization and segmentation. In: IEEE Conference on Computer Vision and Pattern Recognition. 2008, p. 1–8.
  • Wu et al. (2014) Wu, G., Wang, Q., Zhang, D., Nie, F., Huang, H., Shen, D.. A generative probability model of joint label fusion for multi-atlas based brain segmentation. Medical Image Analysis 2014;18(6):881–890.
  • Wang et al. (2004) Wang, Z., Bovik, A.C., Sheikh, H.R., Simoncelli, E.P.. Image quality assessment: from error visibility to structural similarity. IEEE Transactions onImage Processing 2004;13(4):600–612.
  • Coupé et al. (2008) Coupé, P., Yger, P., Prima, S., Hellier, P., Kervrann, C., Barillot, C.. An optimized blockwise nonlocal means denoising filter for 3-D magnetic resonance images. IEEE Transactions on Medical Imaging 2008;27(4):425–441.
  • Boykov and Kolmogorov (2004) Boykov, Y., Kolmogorov, V.. An experimental comparison of min-cut/max-flow algorithms for energy minimization in vision. IEEE Transactions on Pattern Analysis and Machine Intelligence 2004;26(9):1124–1137.
  • Liu et al. (2010) Liu, C.Y., Iglesias, J.E., Toga, A., Tu, Z.. Fusing adaptive atlas and informative features for robust 3D brain image segmentation. In: IEEE International Symposium on Biomedical Imaging: From Nano to Macro. 2010, p. 848–851.
  • Fischl et al. (2002) Fischl, B., Salat, D., Busa, E., Albert, M., Dieterich, M., Haselgrove, C., et al. Whole brain segmentation: automated labeling of neuroanatomical structures in the human brain. Neuron 2002;33(3):341–355.
  • Tu et al. (2008) Tu, Z., Narr, K., Dollár, P., Dinov, I., Thompson, P., Toga, A.. Brain anatomical structure segmentation by hybrid discriminative/generative models. IEEE Transactions on Medical Imaging 2008;27(4):495–508.
