1 Introduction

Recent years have seen rapid progress in knowledge graph (KG) construction and application. A KG is typically a multi-relational graph composed of entities as nodes and relations as different types of edges. Each edge is represented as a subject-relation-object triple , indicating a specific relation between the two entities. Although such triples are effective in organizing knowledge, their symbolic nature makes them difficult to handle by most learning algorithms. KG embedding, which aims to project symbolic entities and relations into continuous vector spaces, has thus been proposed and quickly gained broad attention Nickel et al. (2016a); Wang et al. (2017). These embeddings preserve the inherent structures of KGs, and have shown to be beneficial in a variety of downstream tasks, e.g., relation extraction Weston et al. (2013); Riedel et al. (2013) and question answering Bordes et al. (2014); Yang et al. (2019).


Figure 1: An example of BarackObama, where the left subgraph shows his political role (dashed blue) and the right one his family role (solid orange).

Current approaches typically learn for each entity or relation a single static representation, to describe its global meaning in a given KG. However, entities and relations rarely appear in isolation. Instead, they form rich, varied graph contexts such as edges, paths, or even subgraphs. We argue that entities and relations, when involved in different graph contexts, might exhibit different meanings, just like words do when they appear in different textual contexts Peters et al. (2018). Figure 1 provides an example of entity BarackObama. The left subgraph (dashed blue) shows his political role as a former president of US, while the right one (solid orange) shows his family role as a husband and a father, which possess quite different properties. Take relation HasPart as another example, which also presents contextualized meanings, e.g., composition-related as (Table, HasPart, Leg) and location-related as (Atlantics, HasPart, NewYorkBayXiao et al. (2016). Learning entity and relation representations that could effectively capture their contextual meanings poses a new challenge to KG embedding.

Inspired by recent advances in contextualized word embedding Devlin et al. (2019), we propose Contextualized Knowledge Graph Embedding (or CoKE for short), a novel KG embedding paradigm that is flexible, dynamic, and fully contextualized. Unlike previous methods that allow a single static representation for each entity or relation, CoKE models that representation as a function of input graph contexts. Two types of graph contexts are considered: edges and paths, both formalized as sequences of entities and relations. Given an input sequence, CoKE employs a stack of Transformer Vaswani et al. (2017) blocks to encode the input and obtain contextualized representations for its components. The model is then trained by predicting a missing component in the sequence, based on these contextualized representations. In this way, CoKE learns KG embeddings dynamically adaptive to each input sequence, capturing contextual meanings of entities and relations therein.

We evaluate CoKE with two tasks: link prediction and path query answering Guu et al. (2015). Both can be formulated exactly in the same way as how CoKE is trained, i.e., to predict a missing entity from a given sequence (triple or path). CoKE performs extremely well in these tasks. It outperforms, or at least performs equally well as current state-of-the-art in almost every case. In particular, it offers an absolute improvement of up to 19.7% in H@10 on path query answering, demonstrating its superior capability for multi-hop reasoning. Though using Transformer, CoKE is still parameter efficient, achieving better or comparable results with much fewer parameters. Visualization further demonstrates that CoKE can discern fine-grained contextual meanings of entities and relations.

We summarize our contributions as follows: (1) We propose the notion of contextualized KG embedding, which differs from previous paradigms by modeling contextual nature of entities and relations in KGs. (2) We devise a new approach CoKE to learn fully contextualized KG embeddings. We show that CoKE can be naturally applied to a variety of tasks like link prediction and path query answering. (3) Extensive experiments demonstrate the superiority of CoKE. It achieves new state-of-the-art results on a number of public benchmarks.

2 Related Work

KG embedding aims at learning distributed representations for entities and relations of a given KG. Recent years have witnessed increasing interest in this task, and various KG embedding techniques have been devised, e.g., translation-based models

Bordes et al. (2013); Wang et al. (2014); Lin et al. (2015b), simple semantic matching models Yang et al. (2015); Nickel et al. (2016b); Trouillon et al. (2016)

, and neural network models

Dettmers et al. (2018); Jiang et al. (2019); Nguyen et al. (2018). We refer readers to Nickel et al. (2016a); Wang et al. (2017) for a thorough review. Most of these traditional models learn a static, global representation for each entity or relation, solely from individual subject-relation-object triples.

Beyond triples, recent work tried to use more global graph structures like multi-hop paths Lin et al. (2015a); Das et al. (2017) and -degree neighborhoods Feng et al. (2016); Schlichtkrull et al. (2017) to learn better embeddings. Although such approaches take into account rich graph contexts, they are not “contextualized”, still learning a static global representation for each entity/relation.

The contextual nature of entities and relations has been noted previously, but from distinct views. Consider a classic translation-based model TransE Bordes et al. (2013). To overcome its disadvantages in dealing with 1-to-N, N-to-1 and N-to-N relations, some researchers introduced relation-specific projections, by which an entity would get different projected representations when involved in different relations Wang et al. (2014); Lin et al. (2015b); Ji et al. (2015). Xiao et al. Xiao et al. (2016) noted that relations can be polysemous, showing different meanings with different entity pairs. So they modeled relations as mixtures of Gaussians to deal with this polysemy issue. Although similar phenomena have been touched upon in previous work, there is little formal discussion about the contextual nature of KGs, and the solutions, of course, are not “contextualized”.

This work is inspired by recent advances in learning contextualized word representations McCann et al. (2017); Peters et al. (2018); Devlin et al. (2019), by drawing connections of graph edges/paths to natural language phrases/sentences. Such connections have been studied extensively in graph embedding Perozzi et al. (2014); Grover and Leskovec (2016); Ristoski and Paulheim (2016); Cochez et al. (2017). But most of these approaches obtain static embeddings via traditional word embedding techniques, and fail to capture the contextual nature of entities and relations.

3 Our Approach

Unlike previous methods that assign a single static representation to each entity/relation learned from the whole KG, CoKE models that representation as a function of each individual graph context, i.e., an edge or a path. Given a graph context as input, CoKE employs Transformer blocks to encode the input and obtain contextualized representations for entities and relations therein. The model is trained by predicting a missing entity in the input, based on these contextualized representations. Figure 2 gives an overview of our approach.

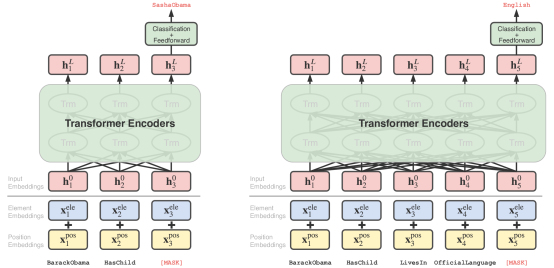

Figure 2: Overall framework of CoKE. An edge (left) or a path (right) is given as an input sequence, with an entity replaced by a special token [MASK]. The input is then fed into a stack of Transformer encoder blocks. The final hidden state corresponding to [MASK] is used to predict the target entity.

3.1 Problem Formulation

We are given a KG composed of subject-relation-object triples . Each triple indicates a relation between two entities , e.g., (BarackObama, HasChild, SashaObama). Here, is the entity vocabulary and the relation set. These entities and relations form rich, varied graph contexts. Two types of graph contexts are considered here: edges and paths, both formalized as sequences composed of entities and relations.

  • An edge is a sequence formed by a triple, e.g., BarackObama HasChild SashaObama. This is the basic unit of a KG, and also the simplest form of graph contexts.

  • A path is a sequence formed by a list of relations linking two entities, e.g., BarackObama HasChild LivesIn OfficialLanguage English.111Entities in parentheses (Sasha and US) are not components of the path, just used to show how the path is generated. The length of a path is defined as the number of relations therein. The example above is a path of length 3. Edges can be viewed as special paths of length 1.

Here we follow Guu et al. (2015) and exclude intermediate entities from paths, by which the paths will get a close relationship with Horn clauses and first-order logic rules Lao and Cohen (2010). We leave the investigation of other path forms for future work. Given edges and paths that reveal rich graph structures, the aim of CoKE is to learn entity and relation representations dynamically adaptive to each input graph context.

3.2 Model Architecture

CoKE borrows ideas from recent techniques for learning contextualized word embeddings Devlin et al. (2019). Given a graph context, i.e., an edge or a path, we unify the input as a sequence , where the first and last elements are entities from , and the others in between are relations from . For each element in , we construct its input representation as:

where is the element embedding and the position embedding. The former is used to identify the current element, and the latter its position in the sequence. We allow an element embedding for each entity/relation in , and a position embedding for each position within length .

After constructing all input representations, we feed them into a stack of successive Transformer encoders Vaswani et al. (2017) to encode the sequence and obtain:

where is the hidden state of after the -th layer. Unlike sequential left-to-right or right-to-left encoding strategies, Transformer uses a multi-head self-attention mechanism, which allows each element to attend to all elements in the sequence, and thus is more effective in context modeling. As the use of Transformer has become ubiquitous recently, we omit a detailed description of the model architecture and refer readers to Vaswani et al. (2017). The final hidden states are taken as the desired representations for entities and relations within the specific graph context . These representations are naturally contextualized, automatically adaptive to the input.

3.3 Model Training

To train the model, we design an entity prediction task, i.e., to predict a missing entity from a given graph context. This task amounts to single-hop or multi-hop question answering on KGs.

  • Each edge is associated with two training instances: and . It is a single-hop question answering task, e.g., BarackObama HasChild is to answer “Who is the child of Barack Obama?”.

  • Each path is also associated with two training instances, one to predict and the other to predict . This is a multi-hop question answering task, e.g., BarackObama HasChild LivesIn OfficialLanguage is to answer “What is the official language of the country where Barack Obama’s child lives in?”.

This entity prediction task resembles the masked language model (MLM) task studied in Devlin et al. (2019). But unlike MLM that randomly picks some input tokens to mask and predict, we restrict the masking and prediction solely to entities in a given edge/path, so as to create meaningful question answering instances. Moreover, many downstream tasks considered in the evaluation phase, e.g., link prediction and path query answering, can be formulated exactly in the same way as entity prediction (will be detailed in  4), which avoids training-test discrepancy.

During training, for each edge or path unified as a sequence , we create two training instances, one by replacing with a special token [MASK] (to predict ), and the other by replacing with [MASK] (to predict ). Then, the masked sequence is fed into the Transformer encoding blocks. The final hidden state corresponding to [MASK], i.e., or , after a feedforward layer, is used to predict the target entity, via a standard softmax classification layer:

Here, / is the hidden state of / after the feedforward layer, the classification weight shared with the input element embedding matrix, the hidden size, the entity vocabulary size, and / the predicted distribution of / (/) over all entities. Figure 2 provides a visual illustration of this whole process.

We use cross-entropy between the label (/) and the prediction / as our training loss:

where / is the -th component of /, and / the -th component of /. As a one-hot label here will restrict each entity prediction task to a single correct answer, we use a label smooth-ing strategy to lessen this restriction, i.e., we set for the target entity, and for each of the other entities.

4 Experiments

We demonstrate the effectiveness of CoKE in link prediction and path query answering. We further visualize CoKE embeddings to show how they can discern contextual usage of entities and relations.

4.1 Link Prediction

This task is to complete a triple with or missing, i.e., to predict or Bordes et al. (2013). It is in the same form as our training task, i.e., entity prediction within edges.

Datasets

We conduct experiments on four widely used benchmarks. The statistics of the datasets are summarized in Table 1. FB15k and WN18 were introduced in Bordes et al. (2013), with the former sampled from Freebase and the latter from WordNet. FB15k-237 Toutanova and Chen (2015) and WN18RR Dettmers et al. (2018) are their modified versions, which exclude inverse relations and are harder to fit.

FB15k WN18 FB15k-237 WN18RR
Entities 14,951 40,943 14,541 40,943
Relations 1,345 18 237 11
Train 483,142 141,442 272,115 86,835
Dev 50,000 5,000 17,535 3,034
Test 59,071 5,000 20,466 3,134
Table 1: Number of entities, relations, and triples in each split of the four benchmarks.

Training Details

In this task, we train our model with only triples from the training set. The maximum input sequence length is hence restricted to . We use the following configuration for CoKE: the number of Transformer blocks , number of self-attention heads , hidden size , and feed-forward size . We employ dropout on all layers, with the rate tuned in . The label smoothing rate is tuned in with steps of . We use the Adam optimizer Kingma and Ba (2014) with a learning rate . We also use learning rate warmup over the first 10% training steps and linear decay of the learning rate. We train with batch size

for at most 1000 epochs. The best hyperparameter setting is selected according to MRR (described later) on the dev set.

Evaluation Protocol

During evaluation, given a test triple , we replace with [MASK], feed the sequence into CoKE, and obtain the predicted distribution of

over all entities. We sort the distribution probabilities in descending order and get the rank of

. During ranking, we remove any that already exists in the training, dev, or test set, i.e., a filtered setting Bordes et al. (2013). This whole procedure is repeated while predicting . We report the mean reciprocal rank (MRR) and the proportion of ranks no larger than (H@).

FB15k WN18
MRR H@1 H@3 H@10 MRR H@1 H@3 H@10
Methods that use triples alone
SimplE Kazemi and Poole (2018) .727 .660 .773 .838 .942 .939 .944 .947
TorusE Ebisu and Ichise (2018) .733 .674 .771 .832 .947 .943 .950 .954
ConvE Dettmers et al. (2018) .745 .670 .801 .873 .942 .935 .947 .955
ConvR Jiang et al. (2019) .782 .720 .826 .887 .951 .947 .955 .958
RotatE Sun et al. (2019) .797 .746 .830 .884 .949 .944 .952 .959
HypER Balažević et al. (2019a) .790 .734 .829 .885 .951 .947 .955 .958
TuckER Balažević et al. (2019b) .795 .741 .833 .892 .953 .949 .955 .958
Methods that use graph contexts or rules
R-GCN+ Schlichtkrull et al. (2017) .696 .601 .760 .842 .819 .697 .929 .964
KBLRN Garcia-Duran and Niepert (2017) .794 .748 .875
ComplEx-NNE+AER Ding et al. (2018) .803 .761 .831 .874 .943 .940 .945 .948
pLogicNet Qu and Tang (2019) .844 .812 .862 .902 .945 .939 .947 .958
CoKE (with triples alone) .852 .823 .868 .904 .951 .947 .954 .960
Table 2: Link prediction results on FB15k and WN18. Baseline results are taken from original papers.
FB15k-237 WN18RR
MRR H@1 H@3 H@10 MRR H@1 H@3 H@10
Methods that use triples alone
ConvE Dettmers et al. (2018) .316 .239 .350 .491 .46 .39 .43 .48
ConvR Jiang et al. (2019) .350 .261 .385 .528 .475 .443 .489 .537
RotatE Sun et al. (2019) .338 .241 .375 .533 .476 .428 .492 .571
HypER Balažević et al. (2019a) .341 .252 .376 .520 .465 .436 .477 .522
TuckER Balažević et al. (2019b) .358 .266 .394 .544 .470 .443 .482 .526
Methods that use graph contexts or rules
R-GCN+ Schlichtkrull et al. (2017) .249 .151 .264 .417
KBLRN Garcia-Duran and Niepert (2017) .309 .219 .493
pLogicNet Qu and Tang (2019) .332 .237 .367 .524 .441 .398 .446 .537
CoKE (with triples alone) .361 .269 .398 .547 .475 .437 .490 .552
Table 3: Link prediction results on FB15k-237 and WN18RR. Baseline results are taken from original papers.

Main Results

Tables 2 and 3 report link prediction results on the four datasets. We select competitive baselines from the most recent publications with good results reported. Our baselines are categorized into two groups: methods that use triples alone and methods that further integrate rich graph contexts or logic rules (rules have a close relationship to multi-hop paths). CoKE falls into the first group as it uses only triples from the training set.

The results are quite promising. CoKE outperforms all the competitive baselines on FB15k and FB15k-237, and obtains comparable results as the best of them on the other two datasets. CoKE is also the most stable among the methods. It performs consistently the best (or near the best) on all the datasets, while the baselines fail to do so (e.g., pLogicNet which performs quite well on FB15k underperforms on FB15k-237/WN18RR; TuckER and RotatE which perform near the best on these two datasets obtain substantially worse results on FB15k). The results demonstrate the effectiveness of CoKE in single-hop reasoning.

FB15k FB15k-237
RotatE 31.25M .797 .884 29.32M .338 .533
TuckER 11.26M .795 .892 10.96M .358 .544
CoKE 7.42M .852 .904 7.03M .361 .547
WN18 WN18RR
RotatE 40.95M .949 .959 40.95M .476 .571
TuckER 9.39M .953 .958 9.39M .470 .526
CoKE 13.76M .952 .960 13.76M .475 .552
Table 4: Parameter efficiency on the four benchmarks. Each cell reports number of parameters, MRR, H@10.

Parameter Efficiency

We investigate parameter efficiency of CoKE. For comparison, we consider RotatE Sun et al. (2019) and TuckER Balažević et al. (2019b), which achieve previous state-of-the-art results with their optimal configurations explicitly stated. Table 4 presents the results on the four benchmarks. For each method, we report the number of parameters associated with the optimal configuration that leads to the performance shown in Tables 2 and 3.

Though a Transformer structure is used, CoKE is still parameter efficient, achieving better results with fewer parameters on FB15k/FB15k-237, and comparable results with a relatively small number of parameters on WN18/WN18RR. The reason is that compared with the rather small Transformer structure (6 layers with 4 attention heads), entity embeddings contribute most to the parameters due to a large vocabulary size. As entity embeddings are required by all the methods, their size becomes key to parameter efficiency. CoKE is able to work well with a small embedding size on all the datasets.

4.2 Path Query Answering

This task is to answer path queries on KGs Guu et al. (2015). A path query consists of an initial entity and a sequence of relations . Answering this question is to predict an entity that can be reached from by traversing in turn. It is also formulated the same as our training task, i.e., entity prediction within paths. It degenerates to link prediction when .

Datasets

We adopt the two datasets released by Guu et al. Guu et al. (2015), created from WordNet and Freebase.222https://www.codalab.org/worksheets/0xfcace41fdeec45f3bc6ddf31107b829f Triples of these two datasets are split into training and test sets, and paths have already been generated by random walks. Paths used for training are sampled from the graph composed of training triples alone, with the following procedure: (1) Uniformly sample a path length and a starting entity . (2) Perform a random walk starting at , continuing steps by traversing , and reaching entity . (3) Output a path . Paths of length 1 are not sampled, but constructed by directly adding training triples. Paths used for test are generated from the whole graph containing both training and test triples, with the same procedure. Test paths which also appear as training instances are removed. See Guu et al. (2015) for a detailed description of the dataset construction. Table 5 summarizes statistics of the two datasets.333The statistics reported here are calculated directly from the released data, which are slightly different from the numbers reported in the original literature Guu et al. (2015).

WordNet Freebase
Entities 38,551 75,043
Relations 11 13
Train Triples 110,361 316,232
Dev Triples 2,602 5,908
Test Triples 10,462 23,733
Train Paths 2,129,539 6,266,058
Dev Paths 11,277 27,163
Test Paths 46,577 109,557
Table 5: Number of entities, relations, triples and paths in each split of the two datasets.

Training Details

In this task, we train our model with paths from the training set (triples are paths of length 1). The maximum input sequence length is hence restricted to (at most 5 relations between 2 entities). We use the same configuration for CoKE as in the link prediction task. We train with a learning rate of and a batch size of 2048 for at most 20 epochs. We compute MQ (detailed later) over the dev set every 5 epochs, and select the epoch that leads to the best MQ.

Evaluation Protocol

We follow the same evaluation protocol of Guu et al. (2015), to make our results directly comparable. Specifically, for each test path and the query , we define: (1) candidate answers that “type match”, namely entities that participate in the final relation at least once, i.e., ; (2) correct answers that can be reached from by traversing , i.e., ; (3) incorrect answers . Here is the whole graph composed of training and test triples. Then we replace entity with [MASK], feed the sequence into CoKE, and get the predicted distribution of over all entities. We rank correct answer along with incorrect answers

according to the distribution probabilities in descending order, and compute the quantile as fraction of incorrect answers ranked after

. The quantile ranges from 0 to 1, with 1 being optimal. We report the mean quantile (MQ) aggregated over all test paths, and also the percentage of test cases with the correct answer ranked in the top 10 (H@10).444The H@10 metric used here is slightly different from the one used in the link prediction task. Here incorrect answers are restricted to be entities that “type match”. But there is no such restriction in link prediction. We follow this definition of H@10 to make our results directly comparable to Guu et al. Guu et al. (2015). We refer readers to their evaluation script for details: https://www.codalab.org/worksheets/0xfcace41fdeec45f3bc6ddf31107b829f.

WordNet Freebase
MQ H@10 MQ H@10
Bilinear-COMP 0.894 0.543 0.835 0.421
DistMult-COMP 0.904 0.311 0.848 0.386
TransE-COMP 0.933 0.435 0.880 0.505
Path-RNN 0.989
ROP 0.907 0.567
CoKE (PATHS ) 0.731 0.157 0.730 0.367
CoKE (PATHS ) 0.914 0.490 0.889 0.570
CoKE (PATHS ) 0.928 0.594 0.920 0.656
CoKE (PATHS ) 0.939 0.643 0.935 0.719
CoKE (PATHS ) 0.942 0.674 0.948 0.764
Table 6: Path query answering results on WordNet and Freebase. Results reported from Guu et al. (2015), results from Das et al. (2017), and results from Yin et al. (2018).

Main Results

Table 6 reports the results of path query answering on the two datasets. As baselines, we choose compositional Bilinear, DistMult, and TransE devised by Guu et al. Guu et al. (2015), which model multi-hop paths by combining relations with additions and multiplications. We also compare with an improved Path-RNN Das et al. (2017) and ROP Yin et al. (2018)

, which combine relations with recurrent neural networks. We test our approach in five settings: CoKE

(PATHS ) for , which means training with paths of length 1 to . The setting enables a fair comparison with the baselines, while the settings actually use shorter paths for training.

As we can see, CoKE performs extremely well on this task. CoKE (PATHS ) outperforms all the baselines (except for the MQ metric on WordNet), offering an absolute improvement in H@10 of up to 13.1% on WordNet and that of up to 19.7% on Freebase, compared against the current best-so-far (denoted by ). Notably, CoKE can achieve good results even if trained on relatively short paths. The setting on WordNet and setting on Freebase already outperform the baselines (in H@10) trained on longer paths of length up to 5. And the performance of CoKE grows significantly as the maximum path length increases. The results demonstrate the superior capability of CoKE to model compositional patterns within paths so as to support multi-hop reasoning.

Figure 3: Link prediction results on length-1 test paths from WordNet (left) and Freebase (right).

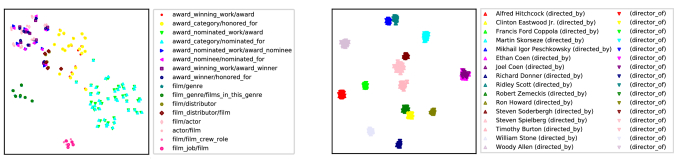

Figure 4: Contextualized representations of TheKingsSpeech (left) and DirectorOf/DirectedBy (right) learned by CoKE from FB15k. Each point is an entity/relation embedding within a triple. Different colors are used to distinguish different relations (left) or subjects/objects (right).

Further Analysis

We further verify that training on multi-hop paths improves not only multi-hop reasoning but also single-hop reasoning. To do so, we consider a link prediction task on the two path query datasets. Specifically, we keep the training set unchanged (training paths of length 1 to 5), but consider only test paths of length 1. For each test triple , we create two prediction cases: and , and report aggregated MRR and H@ for (see  4.1 for details).

We evaluate CoKE (PATHS ) for , which means training with paths of length up to but test only on paths of length 1. The results are presented in Figure 3. We can see that the settings significantly outperform the setting in almost all metrics on both datasets (except for in H@1 on WordNet). And the performance generally grows as increases. The results verify that training on multi-hop paths further improves single-hop reasoning.

4.3 Visual Illustrations

This section provides visual illustrations of CoKE representations to show how they can distinguish contextual usage of entities and relations.

We choose entity TheKingsSpeech from FB15k as an example, collecting all triples where it appears. We feed these triples into the optimal CoKE model learned during link prediction, and get final hidden states of this entity, i.e., its contextualized representations within different triples. We visualize these representations in a 2D plot via t-SNE Van der Maaten and Hinton (2008), and show the result in Figure 4 (left). Here, a different color is used for each relation, and relations appearing less than 5 times are discarded. We can see that representations of this entity vary across triples, falling into clusters according to the relations. Similar relations, e.g., award_winning_work/award_winner and award_nominated_work/award_nominee, tend to have overlapping clusters. This indicates the capability of CoKE to distinguish fine-grained contextual meanings of entities, i.e., how the meaning of an entity varies across relations. Moreover, we observe that the two representations, one obtained when this entity appears as a subject in and the other as an object in , nearly coincide with each other in almost every case, where is the inverse relation of , e.g., film/genre and genre/films_in_this_genre. This indicates that CoKE is pretty good at identifying relations and their inverse relations.

Figure 4 (right) further visualizes the contextualized representations of relation DirectorOf and its inverse relation DirectedBy, obtained in a similar way as the above case. Here, different colors are used distinguish different directors. Directors appearing less than 10 times are discarded. Again, we observe that the two representations, one for DirectorOf in and the other for Directed By in , nearly coincide in almost every case. And these representations fall into clusters according to directors. The two overlapping clusters (rightmost ones) correspond to JoelCoen and EthanCoen, referred to as the Coen brothers who write, direct and produce films jointly. This indicates the capability of CoKE to distinguish fine-grained contextual meanings of relations, i.e., how the meaning of a relation varies across entities.

5 Conclusion

This paper introduces Contextualized Knowledge Graph Embedding (CoKE), a novel paradigm that learns dynamic, flexible, and fully contextualized KG embeddings. Given an edge or a path formalized as a sequence of entities and relations, CoKE employs Transformer encoder to obtain contextualized representations for its components, which are naturally adaptive to the input, capturing contextual meanings of entities and relations therein. CoKE is conceptually simple yet empirically powerful, achieving new state of the art results in link prediction and path query answering on a number of widely used benchmarks. Visualization further demonstrates that CoKE representations can indeed discern fine-grained contextual meanings of entities and relations.

As future work, we would like to (1) Investigate the effectiveness of different path definitions, e.g., those with intermediate entities. (2) Generalize CoKE to other types of graph contexts beyond edges and paths, e.g., subgraphs in arbitrary forms. (3) Apply CoKE to more downstream tasks, not only those within a given KG, but also those scaling to broader domains like computer vision and natural language understanding.
