Coarse-to-Fine Salient Object Detection with Low-Rank Matrix Recovery

05/21/2018 ∙ by Qi Zheng, et al. ∙ University of Florida Huazhong University of Science u0026 Technology 0

Despite the great potential of using the low-rank matrix recovery (LRMR) theory on the task of salient object detection, existing LRMR-based approaches scarcely consider the interrelationship among elements within the sparse components and suffer from high computational cost. In this paper, we propose a novel LRMR-based saliency detection method under a coarse-to-fine framework to circumvent these two limitations. The first step of our approach is to generate a coarse saliency map by integrating a ℓ_1-norm sparsity constraint imposed on the sparse matrix and a Laplacian regularization for smoothness. Following this, we aim to exploit and reveal the interrelationship among sparse elements and to increase detection recall values near the object boundaries using a learned mapping function to precisely distinguish foreground and background in the cluttered or complex scenes. Extensive experiments on three benchmark datasets demonstrate that our method can achieve enhanced performance compared with other 12 state-of-the-art saliency detection approaches, and also verifies the efficacy of our coarse-to-fine architecture.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 3

page 4

page 6

page 7

page 11

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Visual saliency has been a fundamental problem in neuroscience, psychology, and computer vision for a long time

borji2013state ; borji2015salient . It refers to the identification of a portion of essential visual information contained in the original image. Recently, studies of visual saliency have been extended from originally predicting eye-fixation to identifying a region containing salient objects, known as salient object detection or saliency detection wang2017salient

. Tremendous efforts have been made to saliency detection over the past decades owing to its extensive real applications in the realm of computer vision and pattern recognition

brown2015generalisable ; chen2015salient . For example, object detection and recognition become much more efficient and reliable by exploring only those salient locations and ignoring large irrelevant background.

Existing approaches for saliency detection can be divided into two categories: the bottom-up (or stimulus-driven) approaches and the top-down (or task-driven) approaches borji2013state

. The bottom-up approaches detect saliency regions only using low-level visual information such as color, texture and localization, without requiring any specific knowledge on the objects and/or background. By contrast, the top-down approaches, including recently proposed deep-learning based methods (e.g.,

jetley2016end ; zhang2017learning ; wang2018detect

), utilize high-level human perceptual knowledge such as object labels or semantic information to guide the estimation of saliency maps. Compared with the top-down methods, bottom-up ones require less computational power and exhibit better generality and scalability

borji2013state ; borji2015salient .

A recent trend is to combine bottom-up cues with top-down priors to facilitate saliency detection using low-rank matrix recovery (LRMR) theory candes2011robust . Generally speaking, these methods (e.g., yan2010visual ; lang2012saliency ; zou2013segmentation ) assume that a natural scene image consists of visually consistent background regions (corresponding to a highly redundant information component with low-rank structure) and distinctive foreground regions (corresponding to a visually salient component with sparse structure). In yan2010visual , Yan et al. proposed a LRMR based model using sparse representation of image features as input, where the sparse representation is obtained by learning a dictionary upon image patches. In lang2012saliency , Lang et al. introduced a multitask sparsity pursuit for saliency detection, where a single low-rank matrix decomposition is replaced by seeking consistently sparse elements from the joint decompositions of multiple-feature matrices into pairs of low-rank and sparse matrices. Despite promising results achieved by various LRMR-based methods, there still remain two challenging problems peng2017salient : 1) Inter-correlations among elements within the sparse component are neglected, causing incompleteness or scattering of detected object; 2) Low-rank matrix recovery model is hard to separate salient objects from background when the background is cluttered or has similar appearance with the salient objects. Therefore, tree-structured sparsity constraint and Laplacian regularization are introduced in peng2017salient to address these two issues respectively.

In this paper, we first argue that the main reason for these two problems is that the spatial relationship among image regions (or super-pixels) is not fully taken into consideration in the original LRMR model. Moreover, the structured-sparse constraint in peng2017salient , actually, cannot effectively preserve such a relationship. To this end, we propose a novel LRMR based saliency detection method under a coarse-to-fine framework to address the key issue while maintaining high efficiency. Our framework features two modules in a successive manner: a coarse-processing module, in which a Laplacian smooth term is integrated into a baseline -norm constrained LRMR model to roughly detect salient regions; and a refinement module, in which a projection is learned upon the coarse saliency map to enhance object boundaries.

To summarize, our main contributions are threefold:

  • An effective saliency detection model, integrating -norm sparsity constrained LRMR and Laplacian regularization, is proposed to roughly detect salient regions. We set this as our baseline model and demonstrate that it performs well in diverse scenes.

  • A learning-based refinement module is developed to assign more accurate saliency values to such obscure regions, i.e., regions located around object boundaries, thus promoting the entirety of detected salient objects.

  • Extensive experiments are conducted on three benchmark datasets to demonstrate the superiority of our method against other LRMR based methods and the efficacy of the proposed coarse-to-fine framework.

The remainder of this paper is organized as follows. Section 2 briefly reviews related work. In Section 3, we present our coarse-to-fine framework for salient object detection in details. Section 4 shows the experimental results and analysis. Finally, Section 5 draws the conclusion.

2 Related Work

An extensive review on saliency detection is beyond the scope of this paper. We refer interested readers to two recently published surveys borji2013state ; borji2015salient for more details about existing bottom-up and top-down approaches for saliency detection. This section first briefly reviews the prevailing unsupervised bottom-up saliency detection methods, and then introduces several popular LRMR based methods that are closely related to our work.

2.1 Popular Bottom-up Saliency Detection Methods

As a pioneering work, Itti et al. itti1998model innovatively suggested using “Center and Surround” filters to extract image features and to simulate human vision system on multi-scale levels to generate saliency maps. Motivated by Itti’s framework, various contrast based approaches have been developed in past decades, which include local-contrast-based ones (e.g., goferman2012context ; jiang2011automatic ), global-contrasts-based ones (e.g., cheng2015global ; perazzi2012saliency ; margolin2013makes ), or even those combining both local and global contrasts (e.g., borji2012exploiting ; lu2012saliency ; lu2014robust ). Local contrast is estimated by measuring the difference between a “center” pixel or small region with its neighbors, thus it is sensitive to high frequency changes such as edges and noises. On the contrary, global contrast is much more robust to local textures and edges, but they can fail to distinguish salient objects from the background that shares high similarity with the objects borji2015salient ; kim2016salient ; li2016double .

On the other hand, frequency domain also provides a reliable avenue for salient object detection. For example, Hou and Zhang hou2007saliency analyzed spectral residual of an image in spectral domain, where the high-frequency components are considered as background. A similar work was presented by Fang et al. fang2012bottom

, where the standard Fast Fourier Transform (FFT) is substituted with Quaternion Fourier Transform (QFT). Other representative examples include

li2013visual ; imamoglu2013saliency .

Graph theory based methods (e.g.,yang2013saliency ; wang2016grab ; zhu2014saliency ) have attracted increasing attention in recent years due to their superior robustness and adaptability. For instance, Yang et al. yang2013saliency adopted manifold ranking to rank the similarity of super-pixels with foreground and background seeds. Based on this model, Wang et al. wang2016grab suggested detecting saliency by combining local graph structure and background priors together. This way, salient information among different nodes can be jointly exploited. However, a fully connected graph suffers from high computational cost.

2.2 LRMR-based Saliency Detection Methods

The usage of LRMR theory on saliency detection was initiated by Yan et al. yan2010visual and then extended in shen2012unified . Generally, the LRMR based methods assume that an image consists of an information-redundant part and a visually salient part, which are characterized with a low-rank component and a sparse component respectively. Specifically, a given image is firstly divided into small regions or super-pixels to reduce computational complexity, where is the number of regions. Features are extracted for each region, forming a feature matrix . The LRMR theory is deployed to decompose as follows:

(1)

where denotes nuclear norm for the low-rank component and denotes -norm that is used to encourage sparseness. is a trade-off parameter balancing the low rank term and the sparse term. After the decomposition, a saliency map can be generated from the obtained sparse matrix :

(2)

where denotes the th column of matrix . Note that

is a vector herein, thus its

-norm is the sum of the absolute value of each entry.

Early LRMR based methods are data-dependent, i.e., the learned dictionaries or transformations depend heavily on selected training images or image patches, which suffer from limited adaptability and generalization capability. To this end, various approaches are developed in an unsupervised manner by either adopting a multitask scheme (e.g., lang2012saliency ) or introducing extra priors (e.g., zou2013segmentation ; zhang2017salient ). For example, Lang et al. lang2012saliency proposed to jointly decompose multiple-feature matrices instead of directly combining individual saliency maps generated by decomposing each feature matrix. Zou et al. zou2013segmentation introduced segmentation priors to cooperate with sparse saliency in an advanced manner. To preserve the entirety of detection objects, saliency fusion models (e.g.,li2016double ; li2014visual ; li2017saliency ; huang2015saliency ) were proposed thereafter. For instance, double low-rank matrix recovery (DLRMR) was suggested in li2016double to fuse saliency maps detected by multiple approaches.

Although above extensions improved algorithm robustness to cluttered backgrounds, there still remain two open problems. First, extra priors zou2013segmentation or complicated operations (such as saliency fusion li2016double ; huang2015saliency ) may incur expensive computational cost. Second, these methods neglect the spatial relationship among image regions, which cannot ensure the entirety of detected objects. The first work that attempts to address above two limitations is the recently proposed structured matrix decomposition (SMD) by Peng at al. peng2017salient . Specifically, SMD introduces two new regularization terms to Eq. (2.2): a tree-structured sparse constraint that is used to preserve inter-correlations among sparse elements and a Laplacian regularization term that is adopted to enlarge the difference between foreground and background. This way, the spatial relationship among sparse elements and the coherence between low rank component and sparse component are explicitly modeled and optimized in a unified model. The objective of SMD is formulated as:

(3)

where the matrix represents high-level priors shen2012unified , and denotes dot-product of matrices. The term denotes the structured-sparse constraint, is the -norm (), is the depth (or layer) of index tree and is the number of nodes at the -th layer. Here denotes the -th node at the -th level of the index tree such that ( and ), , and , where is the indexing at the -th level. ( denotes set cardinality) is the sub-matrix of corresponding to node . The third term is introduced to promote the performance under cluttered background, where is a parameter that balances this regularization and the other two terms. is un-normalized graph Laplacian matrix.

Our work is directly motivated by SMD peng2017salient . However, two observations prompt us to propose our method:

  • SMD uses Laplacian constraint to reduce the coherence between low rank component and sparse component under cluttered background. In fact, the Laplacian constraint is not novel in saliency detection literature. In our perspective, it performs more like a smooth term (just like it does in previous saliency detection literature) that can hardly increase the discrepancy between foreground and background.

  • The structured-sparse constraint in SMD cannot effectively preserve spatial relationship among image regions. In fact, it may even disrupt such relationship if we apply this constraint on deep layers (as recommended by the authors).

The effects or functionality of Laplacian constraint can trace back to early work on saliency detection (e.g., borji2013state ; borji2015salient ; zhu2014saliency ; lu2014learning ), which use it as a smooth regularization term to reduce the discrepancy of saliency values from regions that have similar appearance or feature representations. Therefore, in the scenario of cluttered background (i.e., the salient object may be interfered by the background), the Laplacian constraint can hardly increase the discrepancy between foreground and background.

Regarding the second argument, spatial relationship among super-pixels is taken into consideration in the construction of tree nodes . However, such relationship has not been preserved if we naively impose the -norm sparse constraint on these nodes. It should be pointed out that in the deepest level of the tree, one node is composed of a single super-pixel, whereas in the shallowest level, one node is composed of all the super-pixels. According to scale theory, there exists an optimal scale for an object lindeberg1998feature . However, in tree-structured sparsity constraint, nodes in different levels contribute equally to final sparsity, which does not emphasize or highlight spatial relationship among image regions. Moreover, one should note that the -norm and the -norm in a specific node lead to row-sparsity and column-sparsity respectively, which has little relationship to the spatial structure.

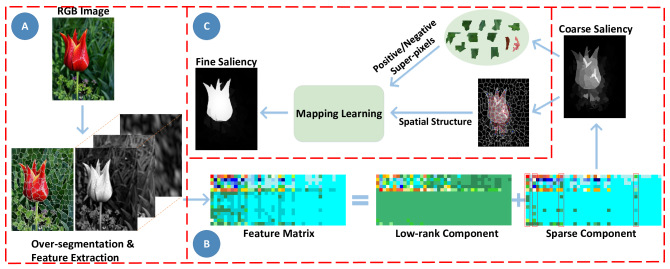

Figure 1:

The general coarse-to-fine framework of our proposed LRMR based saliency detection method. Given an input image, we first conduct over-segmentation and feature extraction (module (A)), and then generate coarse saliency map via applying low-rank matrix decomposition to the feature matrix (module (B)). We finally learn a projection, using super-pixels in the coarse saliency map, to map raw features to their refined saliency values (module (C)).

3 Our Method

This paper proposed a novel LRMR based saliency detection method under a coarse-to-fine framework that can effectively preserve object entirety, even in the scenarios of multiple objects or cluttered background. To this end, we integrate the basic LRMR model in Eq. (2.2) and Laplacian regularization to generate a coarse saliency map. Then, we learn a projection on top of super-pixels sampled from the coarse saliency map to obtain final saliency. By exploiting the spatial relationship among super-pixels in the refinement module, the proposed method is robust to cluttered background. The overall flowchart of our method is illustrated in Fig. 1.

3.1 The Limitation of Tree-Structured Sparsity in SMD

In Section 2.2, we pointed out that tree-structured regularization in SMD is not suitable for salient object detection. In this section, we further propose two arguments to specify the limitations of tree-structured regularization: (1) for images containing only a single object, the regularization imposed on shallow layers of the index tree is sufficient to render satisfactory performance, and (2) for images containing multiple objects or complex scenes, the regularization imposed on deeper layers will destroy the spatial structure of a group of objects, thus disrupting the entirety of detected saliency regions.

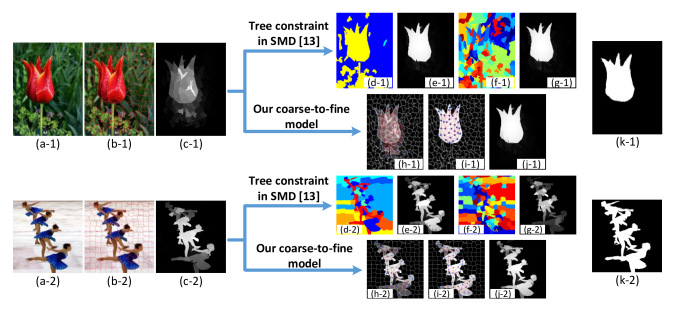

Figure 2: Comparison of a four-layer-based index-tree structured constraint in SMD peng2017salient and our coarse-to-fine architecture. In both two examples, (a) shows the raw image; (b) shows the over-segmented super-pixels; (c) shows the coarse saliency map obtained by our baseline model (i.e., Eq. (3.2)); (d) shows the merged graph in the -nd layer of the index tree; (e) shows the saliency map obtained by incorporating tree-constraint in both the -st layer and the -nd layer; (f) shows the merged graph in the -th layer of the index tree; (g) shows saliency map obtained by incorporating tree-constraints from the -st layer to the -th layer; (h) shows the coarse graph constructed with salient super-pixels from the rough saliency map in (c); (i) shows the refined salient graph; (j) shows the refined saliency map given by refined salient graph in (i); (k) shows the ground truth. The tree-structured constraint in shallow layers can effectively preserve the spatial relationship and the entirety of detected object. However, this functionality disappears with respect to deeper layers in the scenario of multiple objects (or complex backgrounds as shown in the supplementary material). By contrast, our coarse-to-fine model enhances object entirety in a designated way, with much clearer boundaries, regardless of the number and the size of objects in the image. More examples are available in our supplementary material.

To experimentally validate the effects of structured-sparse regularization in Eq. (2.2) and our coarse-to-fine architecture, we give two examples in Fig. 2111More examples are shown in supplementary material. Specifically, we construct a four-layer index-tree for validation. It is worth noting that the bottom layer (the 4-th layer) of index tree is composed of graphs, each containing a super-pixel, whereas the top layer (the 1-st layer) of index tree only contains one graph that incorporating all super-pixels. The -norm constraint is applied to each graph separately and then the results are summed.

The first image is presented to illustrate the case of single object in pure background. Comparing Fig. 2(c-1) with Fig. 2(e-1) and Fig. 2(g-1) respectively, we can observe that adding constraint to the 2-nd layer eliminates irrelevant background, while deeper constraint is unnecessary for preserving spatial structure of the flower. Meanwhile, comparing Fig. 2(c-1) with Fig. 2(i-1), we can see that our coarse-to-fine architecture is also able to remove irrelevant background, e.g., regions below the flower.

The second image is presented to illustrate the case of multiple objects. Comparing Fig. 2(c-2) with Fig. 2(e-2) and Fig. 2(g-2), we can observe that adding constraint to the 2-nd layer promotes the structural entirety of objects to some extent, while deeper constraint destroys the spatial structure of the bodies. On the contrary, comparing Fig. 2(c-2) with Fig. 2(i-2), we can see that our coarse-to-fine architecture produces more accurate saliency of super-pixels around object boundaries, e.g., super-pixels in leg areas adjacent to image boundary, thus improves the entirety of salient objects.

3.2 Coarse Saliency from Low-Rank Matrix Recovery

Due to the limitations of tree-structured sparsity, we revert to the original -norm sparsity constraint, yielding sparsity by treating each element individually. Specifically, we roughly measure saliency of image regions using

(4)

where matrices , is un-normalized graph Laplacian matrix. Once the low-rank matrix and sparse matrix are determined, saliency value of the th super-pixel can be calculated by Eq. (2).

Optimization: The optimization problem in Eq. (3.2) can be efficiently solved via the alternating direction method of multipliers (ADMMs) lin2011linearized . For simplification, we denote the projected feature matrix as . An auxiliary variable is introduced and problem Eq. (3.2) becomes

(5)

Lagrange multipliers and are introduced to remove the equality constraints, and the augmented Lagrangian function is constructed as

(6)

where is the penalty parameter.

Iterative steps of minimizing the Lagrangian function are utilized to optimize Eq. (3.2), and stop criteria at step are given by Eq. (7) and Eq. (8)

(7)
(8)

The variables and can be alternately updated by minimizing the augmented Lagrangian function with other variables fixed. In this model, each variable can be updated with a closed form solution. With respect to and , they can be updated as follows

(9)
(10)

where the soft-thresholding operator is defined by

and , where SVD is the singular value decomposition.

Regarding and , we can update them as follows

(11)
(12)
(13)
(14)

where the parameter controls the convergence speed.

3.3 Learning-based Saliency Refinement

As we have discussed in Section 2.2, the coarse saliency map generated by LRMR based approaches ignores spatial relationship among adjacent super-pixels. To further improve the detection results, we refine the coarse saliency by learning a projection from image features to saliency values.

Given the coarse saliency calculated using Eq. (2), we can roughly distinguish salient regions from background. In order to obtain common interior feature of foreground and background respectively, we choose confident super-pixels based on their coarse saliency value. Specifically, we set two thresholds to select confident super-pixel samples for background and for foreground respectively, i.e., super-pixels with saliency value lower than are considered as negative samples, and super-pixels with saliency value higher than are considered as positive ones. We denote as the sample matrix composed of both positive and negative samples, and as corresponding label matrix, where is the total number of confident samples. For the th positive sample, its label vector is , while for the th negative sample, its label vector is . See Fig. 3 for more intuitive examples.

In order to determine the saliency of those tough samples , we utilize their spatial relationship with these confident samples, as shown in Fig. 3. Based on the coarse saliency and adjacency, rough saliency for the th tough sample is generated by

(15)

where is the number of super-pixels adjacent to the th tough sample , and denotes the number of pixels contained in the th super-pixel. Similarly, we formulate label vector of as , and the label matrix , where is the number of tough samples.

(a) (b) (c) (d)
Figure 3: Illustration for the process of learning-based saliency refinement. (a) Over-segmented RGB images (). (b) Coarse saliency maps and corresponding graph structure of salient super-pixels. (c) Positive samples (in orange), negative samples (in purple) and tough samples (in black) generated from coarse saliency map. The line-connections demonstrate spatial relationship around those tough samples. (d) Refined saliency of those tough samples and their spatial relationship.

Combining the coarse saliency for confident samples and tough samples, we build our saliency refining model as follows

(16)

where and represent tough samples and corresponding labels, respectively. is the projection to be learned, and are regularization parameters. The first term imposes regularization on to avoid over-fitting, whereas the second and third terms require respectively labeled confident and tough samples. Once the projection is learned, saliency of those tough super-pixels are given by the first column of matrix .

Despite the simplicity of Eq. (16), one should note that background region is typically much larger than salient region. This leads to the issue of learning in the circumstance of imbalanced data. In order to overcome this limitation, we introduce sample-wise weights to balance the contributions of positive and negative samples in projection learning, which is formulated as follows

(17)

where is the weight for the th confident sample. Now the second term distinguishes the importance of positive samples from that of negative ones. In fact, we can simplify Eq. (17) by combining the second term and the third term with generalized weights as follows

(18)

where is the weight for the th sample, either positive one, negative one or tough one. Given that there are much more positive samples than negative ones, we adopt the weighting strategy that is widely used in imbalanced date problems sun2009strategies to leverage the effect of positive and negative samples, i.e, , where and are the weights of the th positive sample and the th negative sample, respectively. and denote the number of negative and positive samples. Moreover, noting that labels of positive/negative samples are more reliable than that of tough ones, the weight of a tough sample is set to be half of that for a confident sample. To summarize, the weighting scheme is given by

where . Optimization problem in Eq. (18) can be efficiently solved by

(19)

where is a diagonal matrix with , and

is an identity matrix.

3.4 Complexity analysis

Here we briefly discuss the computational complexity of optimization in Section 3.2 and Section 3.3 respectively, and we have , .

We set the th iteration for coarse saliency generation as an example. The time consumption mainly involves three kinds of operations, i.e., SVD, matrix inversion and matrix multiplication. Specifically, update for and is addressed by SVD, with the complexity of and , respectively. While major operations in updating include matrix inversion and matrix multiplication, with complexity of . Considering , the final computational complexity is . Compared with this, the optimization for the tree-structured sparsity in peng2017salient requires no extra computational complexity. However, multi-scale segmentation in constructing the index tree introduces computational cost thus slows down the speed, as listed in Table 3.

For saliency refinement, the solution in Eq. (19) involves matrix inversion and matrix multiplication, with the complexity of and , respectively. Considering , the final computational complexity is .

4 Experiments

In this section, extensive experiments are conducted to demonstrate the effectiveness and superiority of our method. We first introduce the quantitative metrics and the implementation details of our method in Section 4.1. Then in Section 4.2, we compare our method (including our baseline model) with other LRMR based methods to emphasize the effectiveness and advantage of our coarse-to-fine architecture. In Section 4.3, we present a systematic comparison with state-or-the-arts to show the superiority of our method. Finally in Section 4.4, we analyze the effects of different parameters in our method. Three benchmark datasets are selected: MSRA10K cheng2015global contains 10,000 images with a single object per image, iCoSeg batra2011interactively contains 643 images with multiple objects per image, and ECSSD perazzi2012saliency contains 1,000 images with cluttered backgrounds. We also select state-of-the-art methods for comparison. Among them, three methods are LRMR based, i.e., SMD peng2017salient , SLR zou2013segmentation and ULR shen2012unified . Moreover, we select five state-of-the-art methods that use contrasts or incorporating priors, i.e., RBD zhu2014saliency , PCA margolin2013makes , HS yan2013hierarchical , HCT kim2016salient and DSR li2013saliency . The four remaining methods are MR yang2013saliency , SS hou2012image , FT achanta2009frequency , and DRFI wang2017salient . All the experiments in this paper were conducted with MATLAB2016b on an Intel i5-6500 3.2GHz Dual Core PC with 16GB RAM.

4.1 Experimental Setup

We follow the same experimental setup in SMD peng2017salient to compare the performance of different methods. The quantitative metrics include precision-recall (PR) curve, receiver operating characteristic (ROC) curve, area under the ROC curve (AUC), weighted -measure (WF), overlapping ratio (OR) and mean absolute error (MAE). Supposing saliency values are normalized to the range of

, the generated saliency map can be binarized with a given threshold, i.e., salient or non-salient. PR curve is obtained by setting a series of discrete threshold ranging from

to on the grayscale saliency map. ROC curve is obtained in a similar way, the only difference is that ROC measures hit-rate (recall) and false-alarm. WF is proposed in margolin2014evaluate

to achieve a trade-off between precision and recall

, with in previous work wang2017salient ; zhu2014saliency . OR measures the intersection between predicted (binarized) saliency map (S) and the ground-truth saliency map (G), . MAE gives a numerical difference between the continuous saliency map and the true saliency map.

For our method, we adopt simple linear iterative clustering (SLIC) algorithm achanta2012slic () for over-segmentation and extract the widely used -dimensional features (i.e., color, responses of steerable pyramid filters, responses of Gabor filters) as conducted in previous approaches zou2013segmentation ; peng2017salient ; shen2012unified . Initialization for variables and parameters in the coarse module are set as . Regularization parameters for coarse saliency generation are set as optimal ones, i.e., through out the experiments except for parametric analysis. For the refinement module, we set and corresponding parametric sensitivity is provided in Section 4.4. As for homogenization, we consider location, contrast and background priors as done in peng2017salient .

Dataset MSRA10K iCoSeg ECSSD
WF OR AUC MAE WF OR AUC MAE WF OR AUC MAE
ULR shen2012unified 0.425 0.524 0.831 0.224 0.379 0.443 0.814 0.222 0.351 0.369 0.788 0.274
SLR zou2013segmentation 0.601 0.691 0.840 0.141 0.473 0.505 0.805 0.179 0.402 0.486 0.805 0.226
SMD peng2017salient 0.704 0.741 0.847 0.104 0.611 0.598 0.822 0.138 0.544 0.563 0.813 0.174
Ours (C) 0.688 0.734 0.844 0.108 0.614 0.599 0.823 0.137 0.535 0.557 0.810 0.175
ULR 0.532 0.597 0.846 0.195 0.439 0.459 0.814 0.219 0.421 0.418 0.801 0.262
SLR 0.681 0.726 0.847 0.122 0.602 0.587 0.816 0.161 0.519 0.542 0.814 0.199
SMD 0.706 0.753 0.854 0.103 0.630 0.618 0.838 0.132 0.546 0.571 0.820 0.175
Ours 0.705 0.751 0.854 0.104 0.634 0.624 0.838 0.131 0.545 0.571 0.820 0.176
Table 1: Comparison with the other low-rank methods and performance boost with different baselines on three datasets. The best two results are marked with red and blue respectively. The sign denotes method with refinement.
RGB ULR shen2012unified SLR zou2013segmentation SMD peng2017salient Ours (C) ULR SLR SMD Ours GT
Figure 4: Visual comparison of our method (the coarse and the fine) with the other low-rank involved approaches. The sign denotes method with refinement. The three images are randomly selected from MSRA10K, iCoSeg and ECSSD datasets, respectively.

4.2 Comparison with LRMR-based methods

4.2.1 The effectiveness of our baseline model

To evaluate the performance of our baseline model, i.e., the low-rank decomposition model with Laplacian constraint in Eq. (3.2), a thorough comparison with other LRMR based methods including ULR shen2012unified , SLR zou2013segmentation and SMD peng2017salient is provided in Table 1 and Fig. 4. From the qualitative comparison in Fig. 4, we can see that methods such as ULR and SLR fail to generate uniform detection results. By contrast, salient objects detected by SMD peng2017salient and our baseline model are much smoother. This results further validate our argument that the Laplacian regularization plays more like a smooth term, rather than increasing the discriminancy around object boundaries as claimed in peng2017salient . From quantitative comparison in Table 1, we can see that our baseline model and SMD peng2017salient outperform ULR shen2012unified and SLR zou2013segmentation by a large margin. It is worth noting that our baseline model is only slightly outperformed by SMD peng2017salient on MSRA10K and ECSSD datasets. While on iCoSeg dataset, our baseline model achieves even better result than SMD peng2017salient in terms of all the four metrics. Two key conclusions can be drawn from the experimental results. First, the basic -norm sparsity constraint performs almost equally to the structured-sparse regularization, which indicates that the latter can hardly preserve spatial relationship among elements within the sparse component. Second, tree-structured sparsity constraint is not suitable in the scenario of multiple objects.

4.2.2 The advantage of our coarse-to-fine framework

It can be observed in Fig. 4 that salient objects detected by these LRMR based approaches are not entire enough, and even contain irrelevant background regions. This is because the basic LRMR model ignores the spatial relationship of object parts. Though SMD peng2017salient attempts to handle this issue by replacing original -norm sparsity constraint with structured-sparse constraint, it can hardly achieve the goal as aforementioned. Instead, we address the issue by cascading a learned projection to produce finer saliency maps. We can see that our method generates more entire saliency result compared with our baseline model, e.g., the persons in the second image and the dog in the third image. Besides, the refinement module also helps eliminate irrelevant background, e.g., blue water in the first image. With quantitative comparison listed in Table 1, we can see an obvious boost of performance of our model on all the three benchmark datasets, compared with that of our baseline model.

To further verify the general effectiveness of our coarse-to-fine architecture, we conduct more experiments with different LRMR baseline models, i.e., ULR shen2012unified , SLR zou2013segmentation and SMD peng2017salient . Test results are also summarized in Table 1. Comparing with original baselines, models with refinement show an improvement on all the three datasets. The best performance is achieved by our method and also by the SMD peng2017salient model with refinement. Similar visual improvement as discussed above can be observed in Fig. 4. It is especially obvious for the ULR shen2012unified baseline, where clearer and more entire saliency maps are generated after refinement.

4.3 Comparison with State-of-the-Arts

To evaluate the superiority of our coarse-to-fine model, we systematically compare it with the other twelve state-of-the-arts. PR curves on three datasets are shown in Fig. 5, ROC curves are shown on Fig. 6, and results of four metrics mentioned above are listed in Table 2. Besides, qualitative comparisons are provided in Fig. 9. From the results we can see that, in most cases, our model ranks first or second on the three datasets under different criteria. It is worth noting that we report the result of DRFI wang2017salient as a reference, which belongs to top-down methods with supervised training.

(a) Metric   Ours SMDpeng2017salient DRFIwang2017salient RBDzhu2014saliency HCTkim2016salient DSRli2013saliency PCAmargolin2013makes MRyang2013saliency SLRzou2013segmentation SShou2012image ULRshen2012unified HSyan2013hierarchical FTachanta2009frequency
WF 0.705 0.704 0.666 0.685 0.582 0.656 0.473 0.642 0.601 0.137 0.425 0.604 0.277
OR 0.751 0.741 0.723 0.716 0.674 0.654 0.576 0.693 0.691 0.148 0.524 0.656 0.379
AUC 0.854 0.847 0.857 0.834 0.847 0.825 0.839 0.601 0.840 0.801 0.831 0.833 0.690
MAE 0.104 0.104 0.114 0.108 0.143 0.121 0.185 0.125 0.141 0.255 0.224 0.149 0.231
(b) Metric   Ours SMDpeng2017salient DRFIwang2017salient RBDzhu2014saliency HCTkim2016salient DSRli2013saliency PCAmargolin2013makes MRyang2013saliency SLRzou2013segmentation SShou2012image ULRshen2012unified HSyan2013hierarchical FTachanta2009frequency
WF 0.634 0.611 0.592 0.599 0.464 0.548 0.407 0.554 0.473 0.126 0.379 0.563 0.289
OR 0.624 0.598 0.582 0.588 0.519 0.514 0.427 0.573 0.505 0.164 0.443 0.537 0.387
AUC 0.838 0.822 0.839 0.827 0.833 0.801 0.798 0.795 0.805 0.630 0.814 0.812 0.717
MAE 0.131 0.138 0.139 0.138 0.179 0.153 0.201 0.162 0.179 0.253 0.222 0.176 0.223
(c) Metric   Ours SMDpeng2017salient DRFIwang2017salient RBDzhu2014saliency HCTkim2016salient DSRli2013saliency PCAmargolin2013makes MRyang2013saliency SLRzou2013segmentation SShou2012image ULRshen2012unified HSyan2013hierarchical FTachanta2009frequency
WF 0.545 0.544 0.547 0.513 0.446 0.514 0.364 0.496 0.402 0.128 0.351 0.454 0.195
OR 0.571 0.563 0.568 0.526 0.486 0.514 0.395 0.523 0.486 0.103 0.369 0.458 0.216
AUC 0.820 0.813 0.817 0.781 0.785 0.785 0.791 0.793 0.805 0.567 0.788 0.801 0.607
MAE 0.176 0.174 0.160 0.171 0.198 0.171 0.247 0.186 0.226 0.278 0.274 0.227 0.270
Table 2: WF, OR, AUC, MAE of all methods on (a) MSRA10K, (b) iCoSeg and (c) ECSSD. The best three results are marked with red, green and blue respectively.
(a) (b) (c)
Figure 5: PR curve of all methods. (a) results on MSRA10K dataset. (b) results on iCoSeg dataset. (c) results on ECSSD dataset
(a) (b) (c)
Figure 6: ROC curve of all methods. (a) results on MSRA10K dataset. (b) results on iCoSeg dataset. (c) results on ECSSD dataset

4.3.1 Results on single-object images

The MSRA10K dataset contains images with diverse objects of varying size, and with only one object in each image. From Fig. 5 (a), Fig. 6 (a) and Table 2 (a), we can see that our method achieves the best result with the highest weighted F-measure, overlapping ratio and the lowest mean average error, while DRFI wang2017salient obtains the highest AUC score. It is worth noting that, our method even outperforms DRFI wang2017salient with just simple features and no supervision. Frequency-based methods like FT achanta2009frequency perform badly, as it is difficult to choose a proper scale to suppress background without knowing of object size. While SS hou2012image considers sparsity directly in standard spatial space and DCT space, it can only give a rough result of detected objects. In PR curves, our method shows an obvious superiority to other approaches. While in ROC curves, DRFI wang2017salient and our method are the best two among those competitive methods.

4.3.2 Results on multiple-object images

The iCoSeg dataset contains images with multiple objects, separate or adjacent. From Fig. 5 (b), Fig. 6 (b) and Table 2 (b), we can see that our method also achieves the highest weighted F-measure, overlapping ratio and the lowest mean average error, which shows that our method is effective under cases of multiple objects. However, the performance of PCA margolin2013makes , SLR zou2013segmentation , DSR li2013saliency and ULR shen2012unified decrease heavily. As PCA margolin2013makes considers the dissimilarity between image patches and SLR zou2013segmentation introduces a segmentation prior, they are more sensitive to the quantity of object within a scene. As for DSR li2013saliency , its precision drops dramatically with the increase of recall due to its dependence on background templates. This is because in the scenario of multiple objects, salient objects are more likely to overlap with image boundary regions. ULR shen2012unified trains a feature transformation on MSRA dataset, hence it obtains poor performance for the detection of multiple objects. In PR curves, our method presents better stability with increased recall. While in ROC curves, our method and DRFI wang2017salient achieve the best performance and almost the same AUC score, outperforming the rest approaches.

4.3.3 Results on complex scene images

The ECSSD dataset contains images with complicated background and also objects of varying size. From Fig. 5 (c), Fig. 6 (c) and Table 2 (c), we can see that our method achieves the highest overlapping ratio and AUC score, and is outperformed by DRFI wang2017salient in terms of weighted F-measure and mean absolute error. In PR curves, our method performs similarly to SMD peng2017salient , while in ROC curves, DRFI wang2017salient and our method are the best two among the state-of-the-arts. The result demonstrates that our method is competitive under complex scene. Approaches such as HS yan2013hierarchical , HCT kim2016salient , MR yang2013saliency and RBD zhu2014saliency that depend on cues like contrast bias and center bias fail to keep good performance.

4.3.4 Visual comparison

To have an intuitive concept of the performance, we provide a visual comparison of detection result with images selected from the three benchmark datasets, which are diverse in object size, complexity of background and number of objects, as listed in Fig. 9. We can see that our method works well under most cases, and is capable of providing a relatively entire detection. As analyzed above, frequency-tuned method FT achanta2009frequency tends either to filter out part of object or to preserve part of background. Basic low-rank matrix recovery methods like SLR zou2013segmentation and ULR shen2012unified are not robust enough to background and fail to provide a uniform saliency map. Approaches depending on prior cues such as HC yan2013hierarchical , HCT kim2016salient , MR yang2013saliency and RBD zhu2014saliency are more likely to miss object parts that are adjacent to image boundary. Finally, time consumption for all methods is provided in Table 3, which demonstrates the efficiency of our method.

Methods Ours SMD DRFI RBD HCT DSR PCA MR SLR SS ULR HS FT
Time(s) 0.83 1.59 9.06 0.20 4.12 10.2 4.43 1.84 22.80 0.05 15.62 0.53 0.07
Code M+C M+C M+C M+C M M+C M+C M+C M+C M M+C EXE C
Table 3: Average time consumption for each method to process an image in MSRA10K dataset.
(a) (b) (c)
Figure 7: Parametric sensitivity analysis: (a) shows the variation of WF, OR, AUC, MAE w.r.t. by fixing . (b) shows the variation of WF, OR, AUC, MAE w.r.t. by fixing . (c) shows the variation of WF, OR, AUC, MAE w.r.t. by fixing .
(a) (b) (c)
Figure 8: Parametric sensitivity analysis: (a) shows the variation of WF, OR, AUC, MAE w.r.t. . (b) shows the PR curve of different thresholding strategies. (c) shows the ROC curve of different thresholding strategies.

4.4 Analysis of Parameters

4.4.1 Parameters in coarse module

In our coarse module, the algorithm takes three parameters, i.e., the number of super-pixels in over-segmentation, regularization parameters . We examine the sensitivity of our model to changes of on iCoSeg dataset as an example. The analysis is conducted by tuning one parameter while fixing another two. The performance changes in terms of WF, OR, AUC, MAE are shown in Fig. 7. For , we observe that similar results are achieved by varying and is a good trade-off between efficiency and performance, as larger requires more expensive computation. Besides, we observe that when is fixed (), the WF, OR and MAE performance decreases while the AUC performance initially increases, spikes within a range of from to , and then decreases. Thus, we choose the optimal . When is fixed (), the WF and OR performance initially increases, spikes within a range of from to . The AUC performance initially maintains and then decreases, and the MAE performance initially maintains, increases within a range of from to , and then decreases. Thus, we choose the optimal .

4.4.2 Parameters in refining module

In our fine module, the main parameter is the regularization parameter . The sensitivity in terms of WF, OR, AUC, MAE is shown in Fig. 8 (a). We observe that the WF, OR performance initially increases, spikes within a range of from to , and then decreases. The AUC performance initially increases, spikes within a range of from to , and then decreases. The MAE performance initially increases, spikes at , and then maintains. The results illustrate that compared a small , the model performs worse with a lack of label information from those samples (including both confident ones and tough ones). When is large, the performance suffers from an obvious drop, which may be caused by over-fitting the confident samples. Therefore, we choose in our method.

Moreover, we also examine the sensitivity of our model to the changes of different thresholding strategies in our refining module. We fix the lower threshold, i.e., we set as the average value of coarse saliency, and test varying . PR curves and ROC curves of and are shown in Fig. 8 (b) and (c). We observe that our method performs similarly under the three strategies, which demonstrates its robustness.

5 Conclusion

In this paper, we present a coarse-to-fine saliency detection architecture that first estimates a coarse saliency map using a novel LRMR model and then refines the obtained coarse saliency map using a learning scheme. Compared with state-of-the-art approaches, our method can efficiently detect salient objects with enhanced object boundaries, even in the scenario of multiple objects. We also show that our fine-tuning scheme can be easily imposed on previous LRMR based methods to significantly improve their detection accuracy.

Image FT ULR SS HS SLR MR PCA DSR HCT RBD DRFI SMD Ours GT
Figure 9: Visible comparison of saliency maps generated by different methods. We select six images from the MSRA10K dataset, four from the iCoSeg dataset and four from the ECSSD dataset, which are arranged sequentially.

Acknowledgment

This work was supported partially by the Key Program for International S&T Cooperation Projects of China (No. 2016YFE0121200), in part by the National Natural Science Foundation of China (No. 61571205), in part by the National Natural Science Foundation of China (No. 61772220).

References

References

  • (1)

    A. Borji, L. Itti, State-of-the-art in visual attention modeling, IEEE transactions on pattern analysis and machine intelligence 35 (1) (2013) 185–207.

  • (2) A. Borji, M.-M. Cheng, H. Jiang, J. Li, Salient object detection: A benchmark, IEEE transactions on image processing 24 (12) (2015) 5706–5722.
  • (3) J. Wang, H. Jiang, Z. Yuan, M.-M. Cheng, X. Hu, N. Zheng, Salient object detection: A discriminative regional feature integration approach, International journal of computer vision 123 (2) (2017) 251–268.
  • (4) M. Brown, D. Windridge, J.-Y. Guillemaut, A generalisable framework for saliency-based line segment detection, Pattern Recognition 48 (12) (2015) 3993–4011.
  • (5) Y.-C. Chen, V. M. Patel, R. Chellappa, P. J. Phillips, Salient views and view-dependent dictionaries for object recognition, Pattern Recognition 48 (10) (2015) 3053–3066.
  • (6)

    S. Jetley, N. Murray, E. Vig, End-to-end saliency mapping via probability distribution prediction, in: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, 2016.

  • (7) P. Zhang, D. Wang, H. Lu, H. Wang, B. Yin, Learning uncertain convolutional features for accurate saliency detection, in: Computer Vision (ICCV), 2017 IEEE International Conference on, IEEE, 2017, pp. 212–221.
  • (8) T. Wang, L. Zhang, S. Wang, H. Lu, G. Yang, X. Ruan, A. Borji, Detect globally, refine locally: A novel approach to saliency detection, in: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, 2018, pp. 3127–3135.
  • (9)

    E. J. Candès, X. Li, Y. Ma, J. Wright, Robust principal component analysis?, Journal of the ACM (JACM) 58 (3) (2011) 11.

  • (10) J. Yan, M. Zhu, H. Liu, Y. Liu, Visual saliency detection via sparsity pursuit, IEEE Signal Processing Letters 17 (8) (2010) 739–742.
  • (11) C. Lang, G. Liu, J. Yu, S. Yan, Saliency detection by multitask sparsity pursuit, IEEE transactions on image processing 21 (3) (2012) 1327–1338.
  • (12) W. Zou, K. Kpalma, Z. Liu, J. Ronsin, Segmentation driven low-rank matrix recovery for saliency detection, in: BMVC, 2013.
  • (13) H. Peng, B. Li, H. Ling, W. Hu, W. Xiong, S. J. Maybank, Salient object detection via structured matrix decomposition, IEEE transactions on pattern analysis and machine intelligence 39 (4) (2017) 818–832.
  • (14) L. Itti, C. Koch, E. Niebur, A model of saliency-based visual attention for rapid scene analysis, IEEE transactions on pattern analysis and machine intelligence 20 (11) (1998) 1254–1259.
  • (15) S. Goferman, L. Zelnik-Manor, A. Tal, Context-aware saliency detection, IEEE transactions on pattern analysis and machine intelligence 34 (10) (2012) 1915–1926.
  • (16) H. Jiang, J. Wang, Z. Yuan, T. Liu, N. Zheng, S. Li, Automatic salient object segmentation based on context and shape prior., in: BMVC, Vol. 6, 2011.
  • (17) M.-M. Cheng, N. J. Mitra, X. Huang, P. H. Torr, S.-M. Hu, Global contrast based salient region detection, IEEE transactions on pattern analysis and machine intelligence 37 (3) (2015) 569–582.
  • (18) F. Perazzi, P. Krähenbühl, Y. Pritch, A. Hornung, Saliency filters: Contrast based filtering for salient region detection, in: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, 2012.
  • (19) R. Margolin, A. Tal, L. Zelnik-Manor, What makes a patch distinct?, in: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, 2013.
  • (20) A. Borji, L. Itti, Exploiting local and global patch rarities for saliency detection, in: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, 2012.
  • (21) S. Lu, J.-H. Lim, Saliency modeling from image histograms, in: European Conference on Computer Vision, 2012.
  • (22) S. Lu, C. Tan, J.-H. Lim, Robust and efficient saliency modeling from image co-occurrence histograms, IEEE transactions on pattern analysis and machine intelligence 36 (1) (2014) 195–201.
  • (23) J. Kim, D. Han, Y.-W. Tai, J. Kim, Salient region detection via high-dimensional color transform and local spatial support, IEEE transactions on image processing 25 (1) (2016) 9–23.
  • (24) J. Li, L. Luo, F. Zhang, J. Yang, D. Rajan, Double low rank matrix recovery for saliency fusion, IEEE transactions on image processing 25 (9) (2016) 4421–4432.
  • (25) X. Hou, L. Zhang, Saliency detection: A spectral residual approach, in: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, 2007.
  • (26) Y. Fang, W. Lin, B.-S. Lee, C.-T. Lau, Z. Chen, C.-W. Lin, Bottom-up saliency detection model based on human visual sensitivity and amplitude spectrum, IEEE transactions on multimedia 14 (1) (2012) 187–198.
  • (27) J. Li, M. D. Levine, X. An, X. Xu, H. He, Visual saliency based on scale-space analysis in the frequency domain, IEEE transactions on pattern analysis and machine intelligence 35 (4) (2013) 996–1010.
  • (28) N. Imamoglu, W. Lin, Y. Fang, A saliency detection model using low-level features based on wavelet transform, IEEE transactions on multimedia 15 (1) (2013) 96–105.
  • (29) C. Yang, L. Zhang, H. Lu, X. Ruan, M.-H. Yang, Saliency detection via graph-based manifold ranking, in: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, 2013.
  • (30) Q. Wang, W. Zheng, R. Piramuthu, Grab: Visual saliency via novel graph model and background priors, in: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, 2016.
  • (31) W. Zhu, S. Liang, Y. Wei, J. Sun, Saliency optimization from robust background detection, in: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, 2014.
  • (32) X. Shen, Y. Wu, A unified approach to salient object detection via low rank matrix recovery, in: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, 2012.
  • (33) Q. Zhang, Y. Liu, S. Zhu, J. Han, Salient object detection based on super-pixel clustering and unified low-rank representation, Computer Vision and Image Understanding 161 (2017) 51–64.
  • (34) J. Li, J. Ding, J. Yang, Visual salience learning via low rank matrix recovery, in: Asian Conference on Computer Vision, 2014.
  • (35) J. Li, J. Yang, C. Gong, Q. Liu, Saliency fusion via sparse and double low rank decomposition, Pattern Recognition Letters.
  • (36) R. Huang, W. Feng, J. Sun, Saliency and co-saliency detection by low-rank multiscale fusion, in: IEEE International Conference on Multimedia and Expo (ICME), 2015.
  • (37) S. Lu, V. Mahadevan, N. Vasconcelos, Learning optimal seeds for diffusion-based salient object detection, in: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, 2014.
  • (38) T. Lindeberg, Feature detection with automatic scale selection, International journal of computer vision 30 (2) (1998) 79–116.
  • (39) Z. Lin, R. Liu, Z. Su, Linearized alternating direction method with adaptive penalty for low-rank representation, in: Advances in neural information processing systems, 2011.
  • (40) A. Sun, E.-P. Lim, Y. Liu, On strategies for imbalanced text classification using svm: A comparative study, Decision Support Systems 48 (1) (2009) 191–201.
  • (41) D. Batra, A. Kowdle, D. Parikh, J. Luo, T. Chen, Interactively co-segmentating topically related images with intelligent scribble guidance, International journal of computer vision 93 (3) (2011) 273–292.
  • (42) Q. Yan, L. Xu, J. Shi, J. Jia, Hierarchical saliency detection, in: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, 2013.
  • (43) X. Li, H. Lu, L. Zhang, X. Ruan, M.-H. Yang, Saliency detection via dense and sparse reconstruction, in: Proceedings of the IEEE International Conference on Computer Vision, 2013.
  • (44) X. Hou, J. Harel, C. Koch, Image signature: Highlighting sparse salient regions, IEEE transactions on pattern analysis and machine intelligence 34 (1) (2012) 194–201.
  • (45) R. Achanta, S. Hemami, F. Estrada, S. Susstrunk, Frequency-tuned salient region detection, in: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, 2009.
  • (46) R. Margolin, L. Zelnik-Manor, A. Tal, How to evaluate foreground maps?, in: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, 2014.
  • (47) R. Achanta, A. Shaji, K. Smith, A. Lucchi, P. Fua, S. Süsstrunk, Slic superpixels compared to state-of-the-art superpixel methods, IEEE transactions on pattern analysis and machine intelligence 34 (11) (2012) 2274–2282.
