CoAPI: An Efficient Two-Phase Algorithm Using Core-Guided Over-Approximate Cover for Prime Compilation of Non-Clausal Formulae

Prime compilation, i.e., the generation of all prime implicates or implicants (primes for short) of formulae, is a prominent fundamental issue for AI. Recently, the prime compilation for non-clausal formulae has received great attention. The state-of-the-art approaches generate all primes along with a prime cover constructed by prime implicates using dual rail encoding. However, the dual rail encoding potentially expands search space. In addition, constructing a prime cover, which is necessary for their methods, is time-consuming. To address these issues, we propose a novel two-phase method -- CoAPI. The two phases are the key to construct a cover without using dual rail encoding. Specifically, given a non-clausal formula, we first propose a core-guided method to rewrite the non-clausal formula into a cover constructed by over-approximate implicates in the first phase. Then, we generate all the primes based on the cover in the second phase. In order to reduce the size of the cover, we provide a multi-order based shrinking method, with a good tradeoff between the small size and efficiency, to compress the size of cover considerably. The experimental results show that CoAPI outperforms state-of-the-art approaches. Particularly, for generating all prime implicates, CoAPI consumes about one order of magnitude less time.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

10/18/2020

Arboricity Games: the Core and the Nucleolus

The arboricity of a network is the minimum number of forests needed to c...
11/12/2018

An Algorithm for Computing Prime Implicates in Modal Logic

In this paper we have proposed an algorithm for computing prime implicat...
06/07/2018

On the near prime-order MNT curves

In their seminar paper, Miyaji, Nakabayashi and Takano introduced the fi...
06/10/2020

Noisy polynomial interpolation modulo prime powers

We consider the noisy polynomial interpolation problem of recovering an ...
01/23/2019

Approximate k-Cover in Hypergraphs: Efficient Algorithms, and Applications

Given a weighted hypergraph H(V, E⊆ 2^V, w), the approximate k-cover pro...
02/23/2021

Structural Similarity of Boundary Conditions and an Efficient Local Search Algorithm for Goal Conflict Identification

In goal-oriented requirements engineering, goal conflict identification ...
06/06/2011

Nearest Prime Simplicial Complex for Object Recognition

The structure representation of data distribution plays an important rol...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Prime compilation is a prominent fundamental issue for AI. Given a non-clausal Boolean formula, prime compilation aims to generate all the primes of the formula. A prime does not contain redundant literals so that it can represent refined information. Because of that, this problem has widely applications, including logic minimization [Ignatiev et al.2015], multi-agent systems [Slavkovik and Agotnes2014], fault tree analysis [Luo and Wei2017], model checking [Bradley and Manna2007], bioinformatics [Acuna et al.2012], etc.

This problem is computationally hard. For a non-clausal Boolean formula, the number of primes may be exponential in the size of the formula, while finding one prime is hard for the second level of the PH. In practice, most problems can be hardly expressed in clausal formulae [Stuckey2013]. Hence, non-clausal formulae are often transformed into CNF by some encoding methods, such as Tseitin encoding [Tseitin1968], which reduce the complexity by adding auxiliary variables. Most of the earlier works only generate all primes of a CNF, but they cannot directly compute all primes of a non-clausal formula. Therefore, this issue for non-clausal formula has received great attention [Previti et al.2015].

The state-of-the-art approaches [Previti et al.2015] are capable of generating all primes of a non-clausal formula through several iterations. They use dual rail encoding [Bryant et al.1987, Roorda and Claessen2005] to encode search space in all produce. Either a prime implicate or a prime implicant is computed at each iteration until a prime cover and all primes are obtained. The cover is logically equivalent to the non-clausal formula, which guarantees that all the primes can be obtained. Particularly, they extract a prime from an assignment based on the asymptotically optimal QuickXplain algorithm [Junker2004, Bradley and Manna2007].

There are three issues in their methods. (i) The dual rail encoding with twice the number of variables than original encoding results in larger search space. (ii) It is a time-consuming task to construct a prime cover because it should completely remove all redundant literals. (iii) It requires a minimal or maximal assignment in order to ensure the correctness, which often exerts a negative influence on SAT solving. These issues probably explain that their performance on the inherent intractability of computing cases is still not satisfactory. Notably, it is questionable whether finding a prime cover has a practical value since the influence of the size of the cover on the other parts of the algorithm is only vaguely known although the prime cover can be smaller.

We propose a novel two-phase method – CoAPI that focuses on an over-approximate cover with a good tradeoff between the small size of the cover and efficiency to improve the performance. We stay within the idea of the work [Previti et al.2015] that generates all primes based on a cover. However, we use two separate phases to avoid using dual rail encoding in all phases. We construct a cover without dual rail encoding in the first phase. In the second phase, we generate all primes with that. Furthermore, we introduce the notion of the over-approximate implicate (AIP for short) that is an implicate containing as few literals as possible. We consider constructing a cover with a set of AIPs – over-approximate cover (AC for short), rather than with a prime cover. Note that an AC is also logically equivalent to the non-clausal formula.

There are two challenges in our work. The first one is the efficient computation of AIP. Motivated by the applications of the unsatisfiable core in optimizing large-scale search problems [Narodytska and Bacchus2014, Yamada et al.2016], we propose a core-guided method to produce AIPs. A smaller unsatisfiable core containing fewer literals should be efficiently obtained, which helps to reduce the number of AIPs in the cover. It is the second challenge, i.e., producing smaller unsatisfiable cores. We notice that the SAT solvers based on the two literal watching scheme [Moskewicz et al.2001] cannot produce the smallest unsatisfiable core because of the limitation of the partial watching. As for this, we provide a multi-order based shrinking method, in which we defined different decision orders to guide the shrinking of unsatisfiable cores in an iterative framework.

We evaluate CoAPI on four benchmarks introduced by previti15. The experimental results show that CoAPI exhibits better performance than state-of-the-art methods. Especially for generating all prime implicates, CoAPI is faster about one order of magnitude.

The paper is organized as follows. Section 2 first introduces the basic concepts. Then, Section 3 and Section 4 present the main features of CoAPI in detail. After that, Section 5 reports the experiments. Finally, Section 6 discusses related works and Section 7 concludes this paper.

Due to space limit, omitted proofs and supporting materials are provided in the additional file and online appendix (http://tinyurl.com/IJCAI19-233).

2 Preliminaries

This section introduces the notations and backgrounds.

A term is a conjunction of literals, represented as a set of literals. is the size of , i.e., the number of literals in . Given a Boolean formula , a model is an assignment satisfying . Particularly, a model is said to be minimal (resp. maximal), when it contains the minimal (resp. maximal) number of variables assigned . A clause is the disjunction of literals, which is also represented by the set of its literals. The size of a clause is the number of literals in it. A Boolean formula is in conjunctive normal form (CNF) if it is formed as a conjunction of clauses, which denotes a set of clauses. For a Boolean formula in CNF, means the sum of the size of clauses in . Two Boolean formulae are logically equivalent iff they are satisfied by the same models.

Definition 1.

A clause is called an implicate of if . Especially, is called prime if any clause s.t. is not an implicate of .

Definition 2.

A term is called an implicant of if . Especially, is called prime if any term s.t. is not an implicant of .

The prime compilation aims to compute all the prime implicates or implicants, respectively, denoted by and .

Given a Boolean formula , if is unsatisfiable, a SAT solver based on CDCL, such as MiniSAT [Eén and Sörensson2003], can produce a proof of unsatisfiability [McMillan and Amla2003, Zhang and Malik2003b] using the resolution rule.

Definition 3.

A proof of unsatisfiability for a set of clauses is a directed acyclic graph , where is a set of clauses. For every vertex , if , then is a root; otherwise has exactly two predecessors, and , such that is the resolvent of and . The empty clause, denoted by , is the unique leaf.

Definition 4.

Given a proof of unsatisfiability , for every clause , the fan-in cone of includes of all the from which there is at least one path to .

A proof of unsatisfiability can answer what clauses are in the transitive fan-in cone of the empty clause. Therefore, an unsatisfiable core can be generated through backward traversing from .

Definition 5.

Given a Boolean formula in CNF, an unsatisfiable core is a subset of and that is inconsistent.

The SAT solver, such as MiniSAT, is capable of handling assumptions. When the solver derives unsatisfiability based on the assumptions for a Boolean formula, it can return failed assumptions, which is a subset of assumptions inconsistent with the formula. From here on, we use the terms failed assumptions and unsatisfiable core interchangeably since every unsatisfiable core corresponds to definite failed assumptions.

3 New Approach – CoAPI

In this section, we first introduce the overview of CoAPI, then show the details.

3.1 Overview

Given a Boolean formula , we first, based on original encoding, construct a cover in CNF to rewrite in the first phase, i.e., the cover is logically equivalent to

; then generate all primes in the second phase based on dual rail encoding. Note that the two-phase produce not only avoids using dual rail encoding in all phases but also exploits the powerful heuristic branching method for SAT solving. For simplicity, this paper only introduces the generation of all prime implicants of

(similarly for prime implicates because of the duality).

We extend the concepts of the prime implicate and prime cover into the AIP and AC, respectively, which are essential concepts in our algorithm and are defined as follows.

Definition 6.

An over-approximate implicate is a clause s.t. . Given two over-approximate implicates and of , if , then we call is smaller than .

The concept of AIP is different from the concept of implicate because the former is as small as possible. Notably, the prime implicate is a minimal AIP.

Definition 7.

An over-approximate cover of is a conjunction of over-approximate implicates of and is logically equivalent to . The cost of an over-approximate cover , denoted by cost prime .

Intuitively, cost measures the degree of approximation of to prime 111prime returns a prime cover of ..

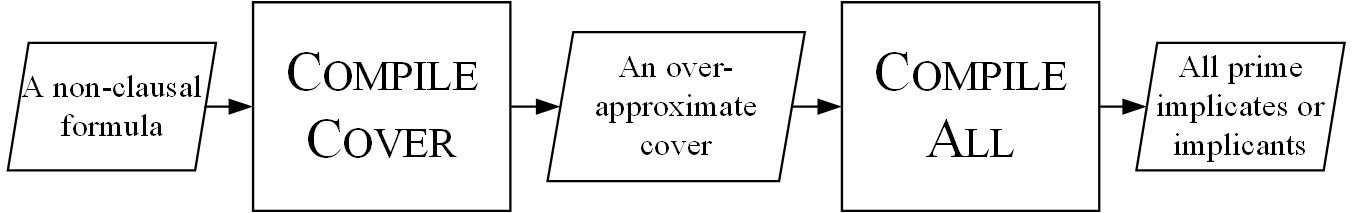

Figure 1: The framework of CoAPI.

The framework of CoAPI includes two phases, namely CompileCover and CompileAll, which is shown in Figure 1. It takes a non-clausal Boolean formula and its negation as inputs. The inputs are encoded as a set of clauses by Tseitin encoding or other methods. Its output is all primes of . CompileCover first produces an AC of and then CompileAll computes all primes. We introduce the two phases in detail as follows.

3.2 Core-Guided Over-Approximate Cover

In order to construct a cover, the work [Previti et al.2015] produces several prime implicates based on the QuickXplain algorithm. A naive approach to extract a prime from an implicate, namely linear approach, is to linearly query whether it is still an implicate after flipping each literal of the implicate. Therefore, the QuickXplain algorithm, based on recursively splitting the implicate, requires exponentially fewer queries in the optimal case than the linear approach. However, it is still time-consuming for producing a prime implicate because there are considerable SAT queries to guarantee the prime.

In addition, the influence of the size of the cover on the other phases is only vaguely known. Hence, although more computation time can lead to a smaller cover, it is not clear whether it is cost-effective in the overall algorithm. The results of the Experiment 5.1 demonstrate this view. Based on the above considerations, we propose a core-guided method to produce AIPs to rewrite . It is possible to trade off the quality of the cover with the run time for extraction.

Input   : A formula and its negation in CNF
Output   : An AC
1 ;
2 while  do
3       , SAT()
4       if  is  then
5             return
6
7      else
8             OverApproximate(, )
9
10
11
ALGORITHM 1 CompileCover

We construct a cover to rewrite by iteratively computing AIPs in CompileCover shown in Algorithm 1. To this end, CompileCover maintains a set of clauses , where encodes in CNF ( for ) and blocks already computed models.

We illustrate each iteration as follows. CompileCover first searches for a model of which is not blocked by (Line 3). Then, OverApproximate is invoked to shrink the unsatisfiable core of and (Line 7). The more detail will be introduced in Section 4. After shrinking, CompileCover updates by adding (Line 8). Clearly, is a smaller AIP of than , since and . In the end, the updated prunes the search space for the next iteration (Line 9).

During the iterations, on the one hand, CompileCover applies an incremental SAT solver to continually shrink the search space by conflict clauses. On the other hand, it also uses to block the space that has been found. Eventually, prunes all the search space of , i.e., an AC of has been constructed by . At this point, is unsatisfiable and the algorithm terminates. We summarize an example for Algorithm 1 as follows.

Example 1.

Given a formula , in the first iteration, a model of is found; then, by consecutive SAT queries, we get a core ; finally, an AIP is produced, clearly, . During the same step, we can obtain a new AIP . In total, is unsatisfiable, where CompileCover produces an AC .

For this example, previti15 constructs the same result as us. However, CoAPI needs fewer SAT queries while their methods need more queries according to the size of implicate. In general, CoAPI reduces the number of SAT queries to speed up each iteration although it may take more iterations.

3.3 Generation of All Primes

In CompileAll, we encode by dual rail encoding to initialize . Then, based on SAT solving, we iteratively compute all the minimal models of , i.e., all the prime implicants of . This process is similar to [Jabbour et al.2014]. The more details about CompileAll show in the additional file.

4 Multi-Order based Shrinking

Constructing an AC of can be carried out iteratively to produce unsatisfiable cores. Unfortunately, the SAT solver based on deterministic branching strategy often produces similar unsatisfiable cores for similar assumptions. In the worst case, the unsatisfiable core is the same size as the assumptions. Therefore, it is worthwhile finding smaller unsatisfiable cores to compress the size of AC.

Given a proof of unsatisfiability , an unsatisfiable core can be produced by traversing backward. Therefore, the generation of determines the size of the unsatisfiable core. We notice that the SAT solver based on the two literal watching scheme, which is powerful for SAT solving, selectively ignores some information during generating . We call this case blocker ignoring defined as follows.

Definition 8.

Given a Boolean formula in CNF and a proof of unsatisfiability , the clause is a blocker, if and is not a root. An SAT solver ignore the satisfiability of the clauses containing .

Theorem 1.

If a clause is a blocker of , then there does not exist a clauses s.t. unless is in the fan-in cone of .

Intuitively, if a blocker is generated, i.e., the literal is satisfied, then all clauses containing are naturally satisfied that can be ignored until backtracking to result in the freedom of in SAT solving. Therefore, these clauses do not appear in the except the fan-in cone of . This is powerful to search for a model because only the satisfiability of the necessary clauses needs to be considered, which is the core of the two literal watching scheme. However, the blocker ignoring can miss important information for producing a small unsatisfiable core. We use an example to explain this point.

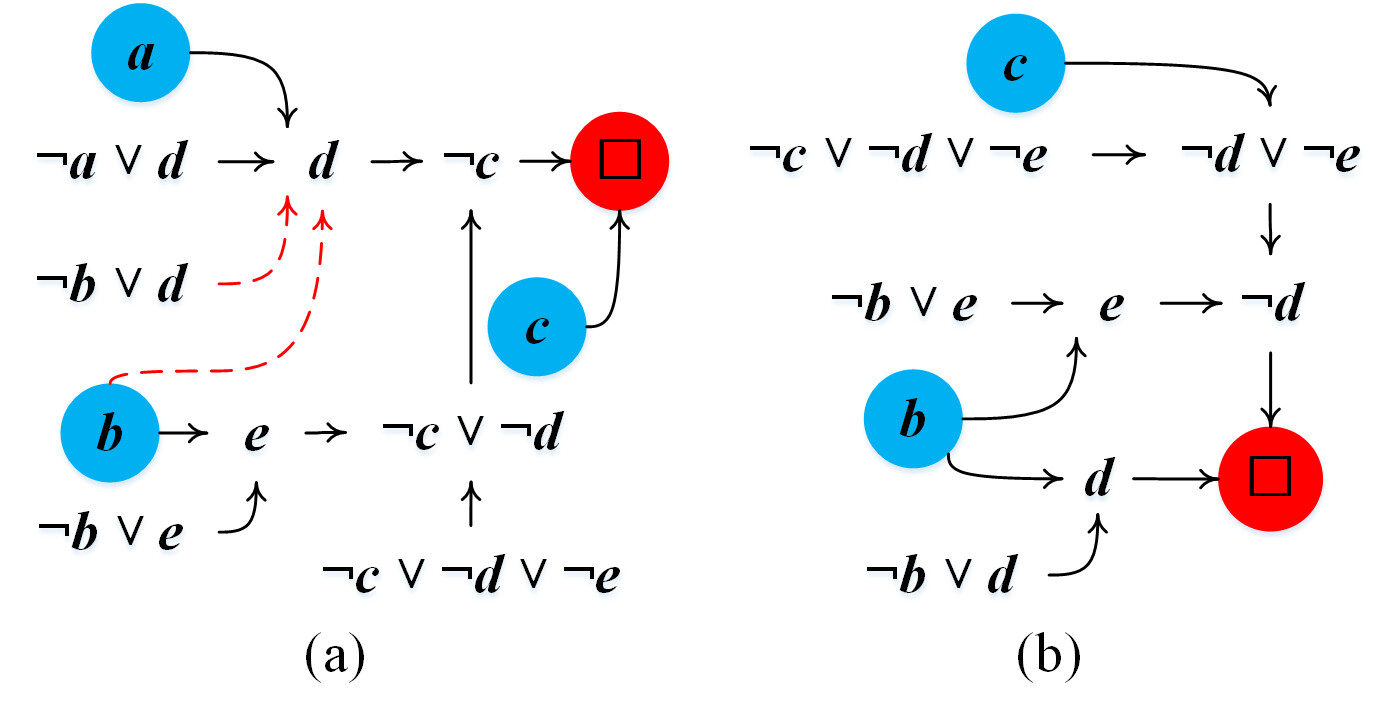

Figure 2: An example for the proof of unsatisfiability.

Example 2.

Given , the proof of unsatisfiability is shown in Figure 2(a) based on the assumptions . We can notice that the is missing due to blocker , in which is not the resolvent of and , but and . This proof can produce the unsatisfiable core .

Disturbing decision order iteratively in the SAT solving is a useful and straightforward method to guide the smaller unsatisfiable core. A similar approach was proposed by  [Zhang and Malik2003a]. They iteratively invoke a SAT solver based on a random decision strategy to shrink an unsatisfiable core. However, it lacks power for the prime compilation, which can be shown by the results of the Experiment 5.2. We propose a multi-order decision strategy instead of the random to iteratively shrink a small unsatisfiable core. The multi-order decision strategy includes three kinds of decision orders defined as follows.

Definition 9.

A decision order is a list of variables , in which and is picked earlier than by a SAT solver.

Definition 10.

Given an original decision order , the forward decision order is the same as . The interval decision order has two parts and with the following properties: (i) if is in (resp. ), then is in (resp. ); (ii) in (resp. ), if in s.t. , then is also picked earlier than in (resp. ). The backward decision order is a reverse of .

Our method allows a SAT solver to have the opportunity to produce a smaller unsatisfiable core from different definite orders. Given a Boolean formula in CNF and its three variables , , and , assume that a SAT solver can produce an unsatisfiable core of based on while or can result in blockers to enlarge the size of the core. Intuitively, for an original decision order (resp. ), based on the forward (resp.backward) decision order, CoAPI can reduce the impact of blockers. For an original order , the impact can be lessened based on the interval decision decision order (, ).

Example 3.

Following the above Example 2, the proof of unsatisfiability in Figure 2(b) is based on . In this case, a smaller unsatisfiable core, , can be produced.

We provide a multi-order based shrinking method shown in Algorithm 2, in which OrderSAT invokes a SAT solver with certain decision order. The whole algorithm consists of two phases: basic and iterative. In the basic phase, we first apply (Line 2), and then use and (Line 4). In the iterative phase, we use (Line 7) and (Line 9) alternately until the bound of iterations or the fixpoint has been reached. The fixpoint is that the size of the core does not change.

Input   : A CNF and a model of
Output   : An unsatisfiable core
1 Initialize orders , , , and based on the order of the index of variables in
2 , OrderSAT(, , )
3 Update and based on
4 Interval(, , , )
5 while The bound of iterations or the fixpoint has not been reached do
6       if the last order is  then
7             , OrderSAT(, , )
8
9      else
10             , OrderSAT(, , )
11
12
13return
ALGORITHM 2 OverApproximate
Input   : A CNF , a model of , , and .
Output   : An unsatisfiable core
1
2 if  is  then
3       return
4
5else
6       , Partition(, , )
7       , OrderSAT(, , )
8       if  is  then
9             Update and based on
10             return Interval(, , , )
11
12      else
13             , OrderSAT(, , )
14             if  is  then
15                   Update and based on
16                   return Interval(, , , )
17
18            else
19                   return
20
21
22
ALGORITHM 3 Interval

Based on the interval decision order, we partition the unsatisfiable core to explore better results. Algorithm 3 summarizes Interval that is similar to the QuickXplain algorithm, in which Partition partitions an unsatisfiable core based on and . Compared with the QuickXplain algorithm, Interval avoids discussing the case where none of and is a model of to cut down the time consumption (Line 16).

Note that OrderSAT with or is potentially harder than that with or . The reasons are as follows. First, OrderSAT with the assumptions in Interval, in which is unknown, is in NPC. Second, based on or , OrderSAT with the assumptions , in which holds, is in polynomial time. Hence, we only use the interval decision order in the basic phase while apply and in the two phases.

5 Experimental Results

(a) Computation of prime implicate.
(b) Computation of prime implicant.
(c) Shrinking results.
Figure 3: Performance comparison.

To evaluate our method, we compared CoAPI and its variants with the state-of-the-art methods – primer-a and primer-b [Previti et al.2015]222https://reason.di.fc.ul.pt/wiki/doku.php?id=-primer. over four benchmarks, and discussed the effects of different shrinking strategies. In each experiment, we considered two tasks: (i) generating all prime implicates; (ii) generating all prime implicants. We implemented CoAPI utilizing MiniSAT333https://github.com/niklasso/minisat. that was also used to implement primer-a and primer-b. The benchmarks are introduced by previti15, denoted by QG6, Geffe gen., F+PHP, and F+GT, respectively. The experiments were performed on an Intel Core i5-7400 3 GHz, with 8 GByte of memory and running Ubuntu. For each case, the time limit was set to 3600 seconds and the memory limit to 7 GByte.

5.1 Comparisons between CoAPI and primer

We assess the performance of CoAPI in this section. In this experiment, we implemented the variant of CoAPI, denoted by CoAPI-qx, which uses the QuickXplain algorithm to construct a prime cover in the first phase. We also implemented CoAPI with only one iteration, denoted by CoAPI-1it. We evaluate the performance of CoAPI-qx, CoAPI-1it, primer-a, and primer-b by the 743 cases.

QG6 Geffe gen. F+PHP F+GT Total
(83) (600) (30) (30) (743)
primer-a 30 / 66 576 / 596 30 / 30 28 / 30 664 / 722
primer-b 30 / 65 577 / 596 30 / 30 28 / 30 665 / 721
CoAPI-qx 30 / 70 589 / 592 30 / 30 26 / 30 675 / 722
CoAPI-1it 30 / 81 589 / 591 30 / 30 30 / 30 679 / 732
Table 1: The number of solved cases.

Table 1 shows the number of cases that can be computed. The results are separated by the symbol ‘/’, on the right of which is for the task (i) and the left of which is for the task (ii). It is used for all tables. Overall, CoAPI-qx and CoAPI-1it can successfully solve more cases than primer-a and primer-b. Note that the 679 cases solved by CoAPI-1it include all the 664 (resp. 665) ones solved by primer-a (resp. primer-b) in the task (i). It is obvious that, for QG6, CoAPI-qx and CoAPI-1it dramatically increase the number of cases successfully solved in the task (ii).

The more detailed comparisons of these methods for the task (i) are shown in Figure 3(a). The X-axis indicates the time in seconds taken by CoAPI-qx or CoAPI-1it, and the Y-axis indicates that taken by primer-a or primer-b. Points above the diagonal indicate advantages for CoAPI-qx or CoAPI-1it. CoAPI-1it generally computes much faster than primer-a (resp. primer-b) in 92% (resp. 96%) cases – it consumes about at least one order of magnitude less time than primer-a (resp. primer-b) in 26% (resp. 27%) cases. For CoAPI-qx, the advantage is still obvious. It is in 73% (resp. 80%) cases that CoAPI-qx beats primer-a (resp. primer-b), in which CoAPI-qx is about one order of magnitude faster in 18% (resp. 19%) cases than primer-a (resp. primer-b). In this task, most of the literals in implicate are necessary. Therefore, the QuickXplain algorithm may require significantly more SAT queries than our method.

Figure 3(b) shows the performance of these methods for the task (ii) in detail. Cases that are negative for CoAPI-1it focus on F+PHP and F+GT, because the prime covers of these formulae are in the form that is extremely beneficial to generate all primes. We focus on the challenging cases that are computed over 1000s by primer-a or primer-b, i.e., the cases are shown in the green area in Figure 3(b). Most of the points above the diagonal (at least 62% cases for CoAPI-qx and 84% for CoAPI-1it) indicate the advantage of our methods. In particular, CoAPI-1it dominates primer-a and primer-b on QG6 reducing used time for at least 40.26%.

Win Win x10+
CoAPI-qx vs. primer-a 70% / 64% 47% / 0%
CoAPI-qx vs. primer-b 70% / 62% 47% / 0%
CoAPI-1it vs. primer-a 93% / 86% 50% / 0%
CoAPI-1it vs. primer-b 93% / 84% 50% / 0%
Table 2: The improvement of our methods for challenging cases.

For challenging cases, the improvements of our methods are shown in Table 2, in which the columns present the percentage of faster cases (Win) and the percentage of at least one order of magnitude faster cases (Win x10+). Note that, for CoAPI-1it, the number of faster cases in the task (ii) increases to 86% (resp. 84%) and the number of cases with at least one order of magnitude faster improves to 50% (resp. 50%) in the task (i).

In general, our methods outperform the state-of-the-art methods, particularly in the task (i). The outstanding performance of CoAPI-qx shows that the two-phases framework is efficient because it avoids using dual rail encoding and the minimal or maximal assignment strategy throughout the whole algorithm. Moreover, we can notice that CoAPI-1it is better than CoAPI-qx because of the AC, which is described in the next section.

5.2 Evaluations of Over-Approximation

To evaluate the different shrinking strategies, we implemented CoAPI-0it without iterations and CoAPI-2it with two iterations. Moreover, CoAPI-zm uses the strategy proposed by  [Zhang and Malik2003a]. Based on our experiences, CoAPI-zm with 11 iterations gives the best performance for the two tasks in practice.

Cost Fixpoint First Shrink Other Shrink
CoAPI-0it 1.00 / 2.59 / 7% / 92% 7% / 93%
CoAPI-1it 1.00 / 1.75 0% / 0% 7% / 92% 7% / 94%
CoAPI-2it 1.00 / 1.72 99% / 74% 7% / 92% 7% / 94%
CoAPI-zm 1.00 / 6854.80 100% / 99% 7% / 65% 7% / 67%
Table 3: Results of shrinking unsatisfiable cores.

We compare CoAPI and CoAPI-zm in different shrinking strategies on the same benchmarks as above. The results are shown in Figure 3(c). The most points are above the diagonal line, which represents a less used time for CoAPI-1it in most cases. CoAPI-2it and CoAPI-zm are comparable in the task (i). However, in the task (ii), CoAPI-zm only solves 302 of 743 cases that are all simple for CoAPI-1it.

Table 3 shows the statistics on average for shrinking unsatisfiable cores. Due to CoAPI-qx with a prime cover, we compute the cost of ACs based on the CoAPI-qx. The columns present the cost (Cost), the ratio of reaching the fixpoint (Fixpoint), the ratio of the shrinking size in the first time (First Shrink), and the ratio of the shrinking size in the other times (Other Shrink).

The generally lower costs of CoAPI-0it, CoAPI-1it, and CoAPI-2it show the shrunk unsatisfiable core can be much smaller in all cases. From the statistics, the cost is often reduced by running the shrinking procedure iteratively, but usually, the gains for the shrinking core are not as substantial as the first shrinking. This point is also reflected in the ratio of shrinking size, in which the size of the AIPs reduces dramatically in the first time, but not by much during the following shrinkings. We also note that CoAPI-2it can reach a fixpoint in most cases. These statistics mean that the only one iteration is the best tradeoff for the quality of the unsatisfiable core with the run time for these benchmarks. Comparing CoAPI-2it with CoAPI-zm, the cost and the ratio of the shrinking size in the task (ii) illustrate that CoAPI-zm cannot effectively control shrinking, while CoAPI-2it does well for it.

6 Related Works and Discussions

Many of techniques to the prime compilation are based on branch and bound/backtrack search procedures [Castell1996, Ravi and Somenzi2004, Déharbe et al.2013, Jabbour et al.2014]. They take full advantage of powerful SAT solvers, while these methods cannot generate the primes for non-clausal formulae. In addition, a number of approaches based on binary decision diagrams (BDD) [Coudert and Madre1992] or zero-suppressed BDD (ZBDD) [Simon2001] have been proposed. These methods can encode primes in a compact space thanks to BDD. Given the complexity of the problem, however, these methods may still suffer from time or memory limitations in practice. Almost simultaneously, a

0-1 integer linear programming (ILP)

formulation [Pizzuti1996, Manquinho et al.1997, Marques-Silva1997, Palopoli et al.1999] was proposed to compute primes of CNF formulae. Although these approaches can naturally encode the minimal constraints utilizing ILP, their efficiency is questionable.

Most present works [Castell1996, Pizzuti1996, Manquinho et al.1997, Marques-Silva1997, Palopoli et al.1999, Ravi and Somenzi2004, Jabbour et al.2014] only focus on computing primes of CNF or DNF, while there are also some approaches for working on non-clausal formulae. Such as, nagir93 nagir93 studied a more general algorithm for prime implicate generation, which allows any conjunction of DNF formulae. The approaches based on the BDD/ZBDD can compute prime implicants of non-clausal formulae. Additionally, ramesh97 ramesh97 computed prime implicants and prime implicates of NNF formula. Recently, previti15 previti15 described the most efficient approach at present.

In order to produce a small AIP, we need to generate small unsatisfiable cores. zhang03b zhang03b produced small unsatisfiable cores by the random order and multiple iterations. This approach is similar to our idea, but they fail to find the relationship between the order and the size of unsatisfiable cores, resulting in their approach without the ability to further shrink unsatisfiable cores. gershman06 gershman06 suggested a more effective shrinking procedure based on dominators resulting from the proof of unsatisfiability. Naturally, analysis based on proof of unsatisfiability increases the cost of a single iteration. Hence, considering large-scale iterations for shrinking different unsatisfiable cores in our work, their method does not work well to this.

7 Conclusions and Future Works

We have proposed a novel approach – CoAPI for the prime compilation based on unsatisfiable cores. Compared with the work [Previti et al.2015], CoAPI separates the generating processes into two phases, which can permit us to construct a cover without using dual rail encoding resulting in shrinking the search space. Moreover, we have proposed a core-guided approach to construct an AC to rewrite the formula. It should emphasize that the AC can be efficiently computed. Besides, we have provided a multi-order based method to shrink a small unsatisfiable core. The experimental results have shown that CoAPI has a significant advantage for the generation of prime implicates and better performance for prime implicants than state-of-the-art methods.

For future work, we expect that our method can be applied to the task of producing a small proof of unsatisfiability.
