The DeepGlobe Building Detection Challenge  follows the second round of the SpaceNet Challenge 111https://community.topcoder.com/tc?module=MatchDetails&rd=16892. It poses the challenge of automatically detecting buildings from satellite images
Top competitors of the SpaceNet challenge have submitted their code which is now publicly available 222https://github.com/SpaceNetChallenge/BuildingDetectors_Round2. We thus studied the winning solution that consists in an ensemble of three U-Net  based models whose segmentation results are averaged, further called the “baseline”.
A model built by merging the prediction of multiple sub models, like this one, is called an ensemble model; it generally performs better than the best of the merged models . The most common merging strategy for image segmentation is an unweighted average of the predictions.
We propose to replace the original unweighted average by another ensemble model that we a call a deep combiner. Its architecture is equivalent to the combined models (i.e, U-Net based) and works with a MUL input as well as predicted segmentations. This combiner improves the baseline from 1% in Vegas to 7.4% in Khartoum.
This paper is organized as follows. Section 2 presents previous works on building detection and fusion techniques. We see here the existing building extraction methods, existing work on models’ output fusion for segmentation, and SpaceNet’s winning solution presentation. Section 3 presents our deep combiner. Section 4 shows the results; the combiner enhance the segmentation and the detection of buildings. Section 5 concludes this work.
2 Previous work
We based our model on the winning solution of the SpaceNet challenge. it used an unweghted average based ensemble of 3 U-Net models to segment buildings from the 8 MUL channels of the input Image as well as OpenStreetMap data. The contours of the building are then extractedd from the segmentation by grouping together into one building all connected pixels.
2.1 Limitations of the baseline
Several limits of the baseline appear. Firstly, the models are trained to predict a mask, which is not optimal. When two buildings are too close to each other, the contours of the buildings cannot be extracted from the corresponding mask (Figure 3) and the two buildings are considered as one.
to split adjacent buildings. Those adjacent buildings will be fused into one single building if a group of at least one pixel adjacent to both of them is classified as a group of building pixels. Another example of what can be done during the post processing phase is the smoothing of building edges. Because most of the time, buildings have regular shapes, we can use this knowledge to predict shapes closer to reality. CRF techniques have been used to smooth edges and enhance the resolution of segmentations. It could help sharpening polygons and separating them.
could be used to try to enhance the segmentation score. They outperform the U-Net architecture in ImageNet segmentation tasks. However, their strong performance comes from the ability to detect tiny objects as well as big ones, which may not be so useful in the building detection problem.
Finally, a simple unweighted average is often a good default choice, as it will reduce the variance of the result, but might not be the best fusion solution as it gives the same importance to all models regardless of their performance, and is subject to errors when one of the merged models is overconfident, or when a large proportion of the merged models is erroneous. This critical proportion is easily reached when only three models are merged.
This study focuses on this final limitation. We thus review the state of ensemble modeling applied to problems of image segmentation.
2.2 Ensemble modeling for image segmentation
Ju et al  show that unweighted average (used by Marmanis et al  on multiple instances of the same model architecture and by Kamnitsas et al  on complementary architectures) is a fusion method that performs as good as, if not better than, other known methods. It is favorable for reducing variance among predictions, but suffers from overconfident models. Majority voting (used by Dolz et al ) generally has a lower performance pixel wise, but can produce an uncertainty map, which can be used to focus the model training on uncertain areas , or to prevent uncertain pixel classifications  which could help differentiate buildings close to each other and lead to worthier performances in building detection.
Weighted average with learned weights is called by Ju et al  a super learner. It is a model that takes segmentation as an input and outputs a more advantageous one. The simplest one can be seen as convolution where is the number of models fusionned. In their study on the CIFAR10  dataset, they show that it usually performs better than unweighted averages but does not investigate more complex super learners, such as the one studied here; super learners taking neighborhood into account, or deep super learners. They do not talk about non learned weights, such as weighs accordingly proportional to the models’ performances , but we can reasonably assume that those weights would be reached by learn methods if they happened to be optimal, simply by setting them as initial weights.
The success of residual networks  shows that learning residual functions with reference to the layer inputs, instead of learning unreferenced functions can lead to better performance. Scaled up to the model instead of the layer, we study a model that will use the input image as well as the fused models’ outputs to learn a better segmentation. This additional input puts our model outside of the super learner category. We will label as combiners those models dealing with combining the output of other models, with or without additional outputs.
3 Proposed combiner
We propose a deep learning approach to the fusion of segmentation: a U-net based deep combiner that combines the segmentations output of the combined models as well as the MUL channels of the input image.
The Deep combiner approach aims to enhance the segmentation by letting the deep neural network compute complex features such as edge detection, distance to building pixels etc. Moreover, this combiner uses not only the three predicted segmentations, but also the original image as input. This image can be used by the combiner model to determine the residuals of input models and fix their mistakes. We use the MUL channels of the original image as input.
We use the same U-Net architecture as input networks, with 29 hidden layers and parameters. This architecture is usually used to segment images. Combining segmentations into one can be seen as performing a new segmentation on an image in which some channels correspond to some proposed segmentations. It thus makes sense to use a segmentation architecture to perform the combination.
This combiner was not manually initialized to perform the unweighted average of the previous segmentation as it would jeopardize the learning process. Weigths are initialized with a uniform distribution between -0.05 and +0.05. We name this combiner theU-net approach.
Training data is augmented, as we don’t have enough images for some cities to train a deep learning model. For example, we train the model for Khartoum on 708 images and validate it on 304. The additional data comes from the rotation of the original image of 90, 180 and 270 degrees, as well as a symmetry along both axis.
We train our combiner during 20 epochs with a batch size of 1. We selecte the best epoch based on the validation score. Optimal validation score is usually reached between epoch 5 and epoch 10. We evaluate the segmentation using the Jaccard coefficient and a predicted segmentation to be evaluated , the Jaccard coefficient is defined as:
which for images translates into:
With the assumption that . As the Jaccard coefficient produces a value between 0 and 1, it is straightforward to transform it into a loss function:
4.1 F-score improvement
reports the maximum value of F-score obtained on each city dataset with the baseline and the combiner. The gain is defined as. There has only been a slight improvement on Vegas because the baseline is already performing extremely well. However a large improvement on Khartoum shows that our solution can address more cases than a simple unweighted average.
|City||Baseline||U-Net||U-Net final score|
4.2 Visualization of Detected Buildings
Images in Figures 1 and 2 have been produced with the SpaceNet Challenge Building Detector Visualizer 333https://github.com/SpaceNetChallenge/BuildingDetectorVisualizer. Ground truth and predicted polygons are overlaid over the RGB images. Matching ground truth and predicted polygons are white. Yellow polygons are false positives (predicted polygon with no matching ground truth). Blue polygons are false negatives (ground truth polygon with no matching prediction).
A vast majority of buildings are properly segmented. Only buidings with a surface area significantly smaller than surrounding buildings are ignored by the combiner. The major difficulty is to separate buildings too close from each other.

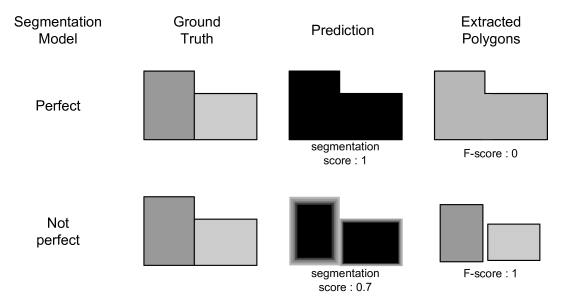

We have been able to highlight two main sources of errors. The first one is the adjacent buildings problem (Figure 3). When we reduce the model uncertainty around buildings, adjacent buildings are considered as one unique building instead of two different ones. The second one comes from numerous errors in labeled data. Those errors can prevent the models to learn useful features or can punish them when they do. Missing a lot of small buildings will have a huge impact on the F-score, but smaller buildings are not consistenly labeled, especially in Shanghai.
To solve the adjacent buildings problem, Marmanis et al  introduce the border class, such that the model classifies each pixel in three classes: building, building border, and background. It is then easier to split adjacent buildings. Yuan et al  use a distance field as label. Each pixel value is its distance to the closest border (negative when inside a building). It is then possible to configure the post-processing and set a predicted distance (0 in the mask) as the border. But it requires a large receptive field for this dataset.
We used the same architecture for the combiner as the one used for the combined models. More architectures should be tested to determine if regular convnets are the best combiners. Maggiori et al
used a recurrent neural network to improve their segmentation, which is another solution. Baiet al  used a new architecture of convnets to perform an instance segmentation. Their model takes the input image and the result of a segmentation as an input, just like our U-net.
The deep combiner was only tested with the combined learned output segmentation and the MUL input. The OSM layers and multi band inputs were not used. Of the three combined learners, the best ones don’t use RGB, but multiband image and OSM layers. A deep combiner using those inputs is likely to have better performances too and will thus be implemented once the adjacent buildings’ problem will be solved.
This paper addresses the problem of segmenting buildings from aerial images. It proposes a fusion solution for an ensemble of U-net models used to segment aerial images and extract buildings’ contours from the segmentation. We used SpaceNet’s challenge winning solution as a baseline to evaluate the benefits of combiners over unweighted averages for model fusion. This baseline corresponds to an ensemble of three models with the same architecture but different inputs. For two of the three studied images set (Vegas and Khartoum), a better segmentation led to a better F- score, and combiners were thus performing superiorly than the existing unweighted averages. For the Paris dataset, the enhancement of the segmentation led to a worsened F-score, showing that the separation of adjacent buildings should be the next part of the solution to enhance.
Future work will focus on adjacent buildings’ separation, thanks to an advantageous label such as the addition of a building borders class, or through post processing of the segmentation, as proposed by Bai et al .
