1 Introduction

The urine sediment examination of biological particles in microscopic images is one of the most commonly performed vitro diagnostic screening tests in clinical laboratories and it plays an important role in evaluating the kidney and genitourinary system and monitoring body state. General indications for urinalysis include: the possibility of urinary tract infection or urinary stone formation; non-infectious renal or post-renal diseases; in pregnant women and patients with diabetes mellitus or metabolic states who may have proteinuria, glycosuria, ketosis or acidosis/alkalosis kouri2000eclm ; ince2016comparison .

Traditionally, the trained technicians count the number of each kind of particles of urinary sediment by visual inspection. The manual urine sediment examination works but is labor-intensive, time-consuming, subjective, and operator-dependent in high-volume laboratories.

The issues involved in the manual analysis have motivated lots of automated methods for the analysis of urine microscope images (e.g. ranzato2007automatic ; liang2009false ; shen2009urine ; almadhoun2014automated ; avci2014new ; li2015join ). As shown in figure 1(a), almost all of them follow the multi-stage pipeline, i.e., first generating candidate regions based on segmentation and then extracting hand-crafted features over regions for classification. Therefore, the performance of these methods heavily depends on the accuracy of the segmentation and the effectiveness of the hand-crafted features. However, due to the complicated characteristics of urinary images, the precise segmentation of the interested particles is quite difficult, or even impossible, and the resulting hand-crafted region features are often less discriminatory.

(a) The traditional multi-stage pipeline
(b) The CNN-based end-to-end pipeline
Figure 1: The pipelines for urinary particles recognition.

To avoid the precise segmentation stage and improve the discriminability of features, as shown in figure 1(b), in this paper we exploit CNN to automatically learn task-specific features and perform the urine particles recognition in an end-to-end manner. We treat the urine particles recognition as object detection and exploit two well-known CNN-based object detection methods, Faster R-CNN ren2015faster and SSD liu2016ssd , along with their variants including Multiple Scale Faster R-CNN (MS-FRCNN) hoang2016multiple , Faster R-CNN with online hard example mining shrivastava2016training (OHEM-FRCNN) and Trimmed SSD to accomplish it. We investigate different factors such as training strategies, network structures, fine-tuning tricks, data augmentation etc, to make these methods more appropriate for urine particles recognition .

In this study, we exploringly apply both Faster R-CNN and SSD approaches to the recognition of urinary sediment particles. The end-to-end methods integrate feature extraction, location and classification to an unified convolutional network. Avoiding segmentation and hand-crafted features extraction, they can automatically learn urine-specific recognition task from annotated micro-images.

We summarize our contributions as follows:

  • We exploit Faster R-CNN ren2015faster and SSD liu2016ssd for urine sediment recognition. It is segmentation free and can learn task-specific features in an end-to-end manner.

  • We investigate various factors to improve the performance of Faster R-CNN ren2015faster and its variants hoang2016multiple ; shrivastava2016training for urine particles recognition.

  • We propose a scheme, Trimmed SSD, to prune the network structure adopted in SSD liu2016ssd to achieve better performance for urine sediment recognition.

  • We obtain a best mAP of 84.1% while taking only 72 ms per image for 7 categories recognition of urine sediment particles. Importantly, we also get a best AP of 77.2% for cast particles, the most valuable but most difficult to detect ingredients chien2007urine ; budak2011comparison ; zhou2012automatic .

The remainder of this paper is organized as follows: Section 2 reviews the research status of urine particles recognition and the development of CNN-based methods for generic object detection. Section 3 describes the detection architectures applied to urine particles recognition, i.e., Faster R-CNN, SSD and their variants. Section 4 details the urinalysis database organization and provides deep analysis of extensive experiments for urine particle recognition. Section 5 shows more experimental comparisons intuitively. Section 6 presents our final conclusions.

2 Related work

2.1 Urine particles recognition

The recognition of urinary sediment particles has been extensively studied following the traditional multi-stage pipeline (Fig 1(a)) and a variety of approaches can be adopted in each stage.

In ranzato2007automatic , Rabznto et al. first obtained patches of interest by a detection algorithm, and then extracted invariant features based on “local jets” schmid1997local

. Classification performed with a mixture of Gaussians classifier

bishop1995neural . Although the system presented reliable recognition results on a pollen dataset, more accurate location for interest patches needed to be improved. Liang et al. liang2009false adopted a two-step process (the first location step and the second tuning step) to segment particles’ contour. After features extraction by a novel local jet context feature scheme, they proposed a two-tier classification strategy to better reduce the false positive rate caused by impurity and poor focused regions. Shen et al. shen2009urine used AdaBoost to select a little part typical Harr features for SVM classification, and improved system speed via cascade accelerating algorithm. Zhou et al. zhou2012automatic demonstrated an easy-implemented automatic urinalysis system employing a SVM classifier to distinguish casts from other particles. In paper avci2014new

, a new technique based on the Adaptive Discrete Wavelet Entropy Energy for adaptive feature extraction was proposed, which follows the image preprocessing stage including noise reduction, contrast enhancement and segmentation. In classification, the Artificial Neural Network (ANN) classifier was selected for the best performance. Li et al.

li2015join mainly focused on the texture feature extraction of the segmented urinary particles. After the adhesive particles separation by watershed algorithm, the authors combined the Gabor filter with the scattering transform for robust feature description, which not only keeps invariant of scaling, rotation and translation but also shows good performance in the course of SVM classification.

The conventional recognition model works for automated urinalysis, but importantly, segmentation, feature extraction and classification all need to be carefully designed. In addition, the complicated characteristics of urine micro-images also bring more challenges to this task. Therefore, there is an increasing demand for better solutions relying more on automatic learning and less on hand-designed heuristics.

(a) Faster R-CNN
(b) MS-FRCNN
(c) OHEM-FRCNN
Figure 2: The architectures of Faster R-CNN, MS-FRCNN and OHEM-FRCNN.

2.2 CNN-based object detection

Since the revival of deep Convolutional Neural Networks (CNNs)

lecun1998gradient ; krizhevsky2012imagenet

with prominent performance, the state-of-the-art methods in image classification and object detection have all used deep learning techniques. Specially in generic object detection, there are two established series as representatives of deep learning methods: the Overfeat

sermanet2013overfeat series based on sliding windows and the R-CNN girshick2014rich series based on region proposals classification.

On the one hand, since Girshick et al. proposed R-CNN girshick2014rich combing region proposals with CNNs, the method has attracted wide attentions and has been improved in a variety of ways. First, in order to mitigate the time-consuming process of features computation, SPP-net he2014spatial introduces a spatial pyramid pooling layer that can flexibly handle variable-size inputs. Avoiding repeatedly computing the convolutional features (compute only once per image), it accelerates R-CNN significantly. Instead of a spatial pyramid pooling layer, then Girshick extended SPP-net by a ROI pooling layer, and introduced a multi-task loss, namely, the joint classification loss and bounding box regression loss. With the two improvements, the framework can fine-tune all layers in an end-to-end manner, which comparatively speeds up the stages of training and testing, so called as Fast R-CNN girshick2015fast .

Until now, compelling speed and accuracy have been achieved. However, when considering the computation time spent on region proposals (e.g., Selective Search uijlings2013selective ), this process immediately becomes the bottleneck of object detection systems. Discarding the engineered low-level features used in most popular methods, several papers (like MultiBox erhan2014scalable ; szegedy2014scalable ) generate region proposals directly from a auxiliary deep neural network. Further, in Faster R-CNN ren2015faster , Ren et al. merged a region proposal network (RPN) and Fast R-CNN into a single network by sharing their full-image convolutional features, thus producing small marginal cost for region proposals generation. Combining different networks, Faster R-CNN can detect general objects very accurately at near real-time rate.

Faster R-CNN is a powerful baseline system and is flexible to many applications. Although Region-based Fully Convolutional Network (R-FCN) li2016r has been proposed recently, Faster R-CNN is still very prevalent in the region-based family. In addition, there are several variants of Faster R-CNN for domain-specific detection. For example, aiming at the detections of driver’s cell-phone usage and hands on steering wheel, Le et al. presented a multiple scale Faster R-CNN (MS-FRCNN) hoang2016multiple , which mainly addresses low precision problem to small object detection. Also Zhang et al. in zhang2016faster improved unsatisfactory accuracy to small instances by pooling finer features from shallower layers and increasing feature maps size via the “à trous” trick.

On the other hand, skipping the proposal step, the OverFeat sermanet2013overfeat series directly predicts confidences and bounding boxes accross multiple categories through a sliding window mechanism. Initially, Overfeat sermanet2013overfeat simultaneously run classifier and regressor networks at each spatial location and scale for confidences and bounding boxes prediction, and adopts a greedy merge strategy to complete final detections. But Overfeat is a disjoint system. So, YOLO redmon2016you

frames object detection as a single regression problem and predicts multiple bounding boxes and class probabilities directly from full image in one evaluation. Both OverFeat and YOLO approaches only use the topmost feature map to detect all categories, which leads to unsatisfactory detection results. In order to flexibly handle various-size objects, SSD

liu2016ssd sets a set of default boxes over different aspect ratios and scales at each feature map location, and combines all predictions from multiple feature maps with different resolutions. Therefore, SSD has achieved state-of-the-art performance in the OverFeat series. But SSD has a notable drawback. It foregoes reusing the higher-resolution maps of the feature hierarchy, just as pointed out in Feature Pyramid Network(FPN) lin2016feature . In the following experiments section, we also demonstrate the importance of these finer features for small objects detection, such as erythrocyte, leukocyte and epithelial nuclei.

3 Methods

In this paper, we employ two well-known CNN-based object detection methods, Faster RCNN ren2015faster and SSD liu2016ssd , to urine particles recognition, and further exploit several structural variants, namely, Multiple Scale Faster R-CNN (MS-FRCNN) hoang2016multiple , Faster R-CNN with online hard example mining (OHEM-FRCNN) and Trimmed SSD.

3.1 Faster R-CNN and its variants

Faster R-CNN ren2015faster is a single unified network which integrates a fully convolutional region proposal generator (RPN) with a fast region-based object detector (Fast R-CNN) girshick2015fast . As shown in figure 2(a), the deep detection framework also can be described as the pipeline of “shareable CNN feature extraction + region proposal generation + region classification and regression”. Moreover, to predict objects across multiple scales and aspect ratios, the authors in paper ren2015faster designed a pyramid of anchors creatively, which is a key component for sharing features without extra cost. Therefore, Faster R-CNN is a segmentation free method without using hand-crafted features and successful for general object detection.

MS-FRCNN hoang2016multiple is a follow-up improvement based on Faster R-CNN to detect whether driver’s hands are on a steering wheel or not and if a cell-phone is being used. It keeps Region Proposal Network (RPN) unchanged and builds a more sophisticated network for Fast R-CNN detector by a combination of both global context and local appearance features. As figure 2(b)

shows, each object proposal receives three feature tensors through ROI pooling from the last three convolutional layers. After L2 normalization to each tensor, outputs are concatenated and compressed to maintain the same size as the original architecture.

OHEM-FRCNN is a combination of online hard example mining (OHEM) shrivastava2016training and Faster R-CNN ren2015faster . OHEM shrivastava2016training is a novel bootstrapping for modern CNN-based object detectors trained purely online with SGD, like Fast R-CNN girshick2015fast . Instead of a sampled mini-batch ren2015faster

, it eliminates several heuristics and hyperparameters in common use and selects automatically hard examples by loss. Although OHEM can be applied to any region-based ConvNet detector, no combination of OHEM and Faster R-CNN has been published yet. As figure

2(c) shows, in this paper we apply OHEM to Faster R-CNN for urine particles recognition. For each iteration, given the feature map from shareable convolutional network and ROIs from RPN, the read-only ROI network performs a forward pass and computes loss for all input ROIs. Then the regular ROI network computes forward and backward passes only for hard examples selected by hard ROI sampling module according to a distribution that favors diverse, high loss candidates.

Figure 3: The architecture of SSD.

3.2 SSD and its variants

SSD liu2016ssd , a single-shot multibox detector for multiple categories, can be decomposed into a truncated base network (usually a VGG-16 net) and several auxiliary convolutional layers used as feature maps and predictors. Unlike Faster R-CNN ren2015faster , SSD increases detection speed by removing the region proposal generation and the subsequent pixel or feature resampling stages. Unlike YOLO redmon2016you , it improves detection quality by applying a set of small convolutional filters to multiple feature maps to predict confidences and boxes offsets for various-size categories (like figure 3 shows).

Trimmed SSD is a simplified version of the original SSD model liu2016ssd . As figure 3 shows, from bottom to top, original SSD selects conv4_3, fc7 (convolutional layer), conv6_2, conv7_2, conv8_2, conv9_2 and pool6 as feature maps to produce confidences and locations. If we directly transfer it to urine particles recognition with only 7 categories, it may produce a large number of redundant prediction results interfering with the final detection performance. And the framework is too complicated to perfectly fit our dataset. For simplification, we attempt to remove several top convolutional layers from the auxiliary network of SSD, which leads to the trimmed SSD.


When applying above methods to urine particles recognition, we effectively adopt the mechanism of deep transfer learning, and conduct extensive experimental analysis to demonstrate the impact of various factors. Specifically, in the course of Faster R-CNN being used, we explore different training strategies, network structures and anchor scales, and carry out data augmentation to further increase training samples. Also, when using SSD, we adjust several parameters, including the scales of default boxes (similar to the Faster R-CNN anchors) and the size of input images to boost small objects detection.

4 Experiments

4.1 Dataset organization

In order to perform our study, we first establish the urinalysis micro-images database that is marked with ground truth boxes by clinical experts. All 6,804 annotated color images have a size of 800 x 600, which include 8 categories of urinary sediment particles, i.e., erythrocyte (eryth), leukocyte (leuko), epithelial cell (epith), crystal (cryst), cast, mycete, epithelial nuclei (epithn) and noise. Specifically, eryth, leuko, crystal, mycete and epithn are only annotated at high-power field, epith and cast only at low-power field. Figure 5 shows 7 categories of urinary sediment particles from our database, each of which includes many subcategories with various shapes.

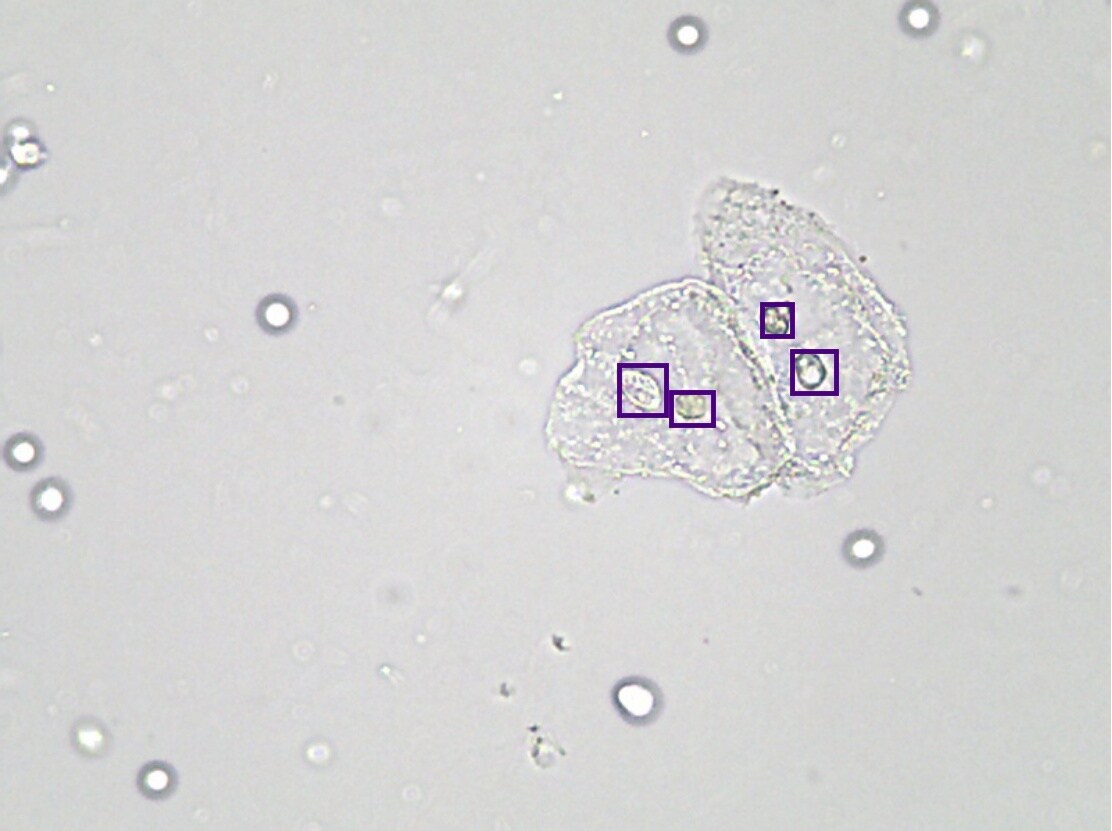

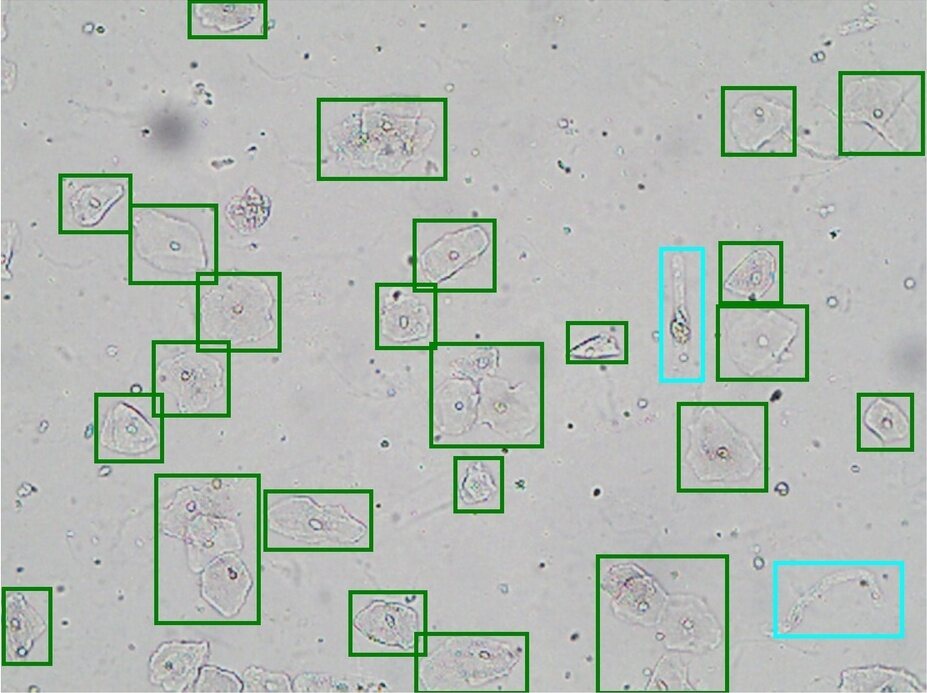

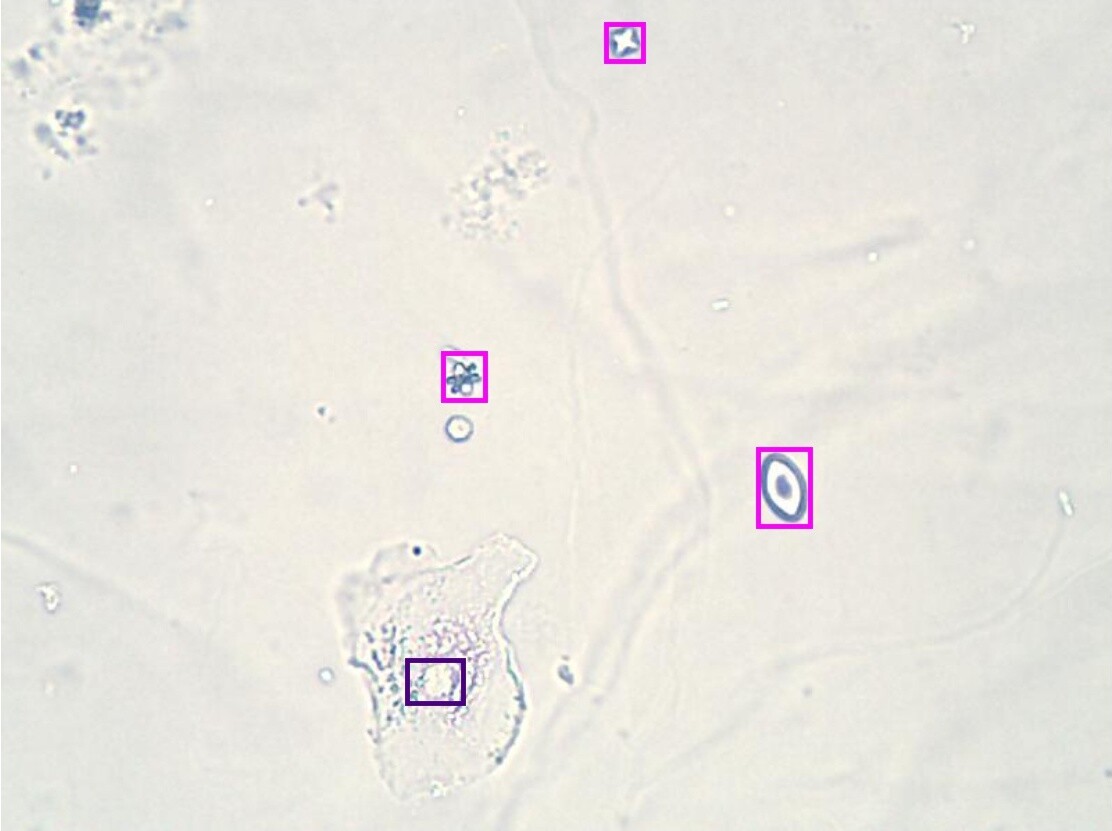

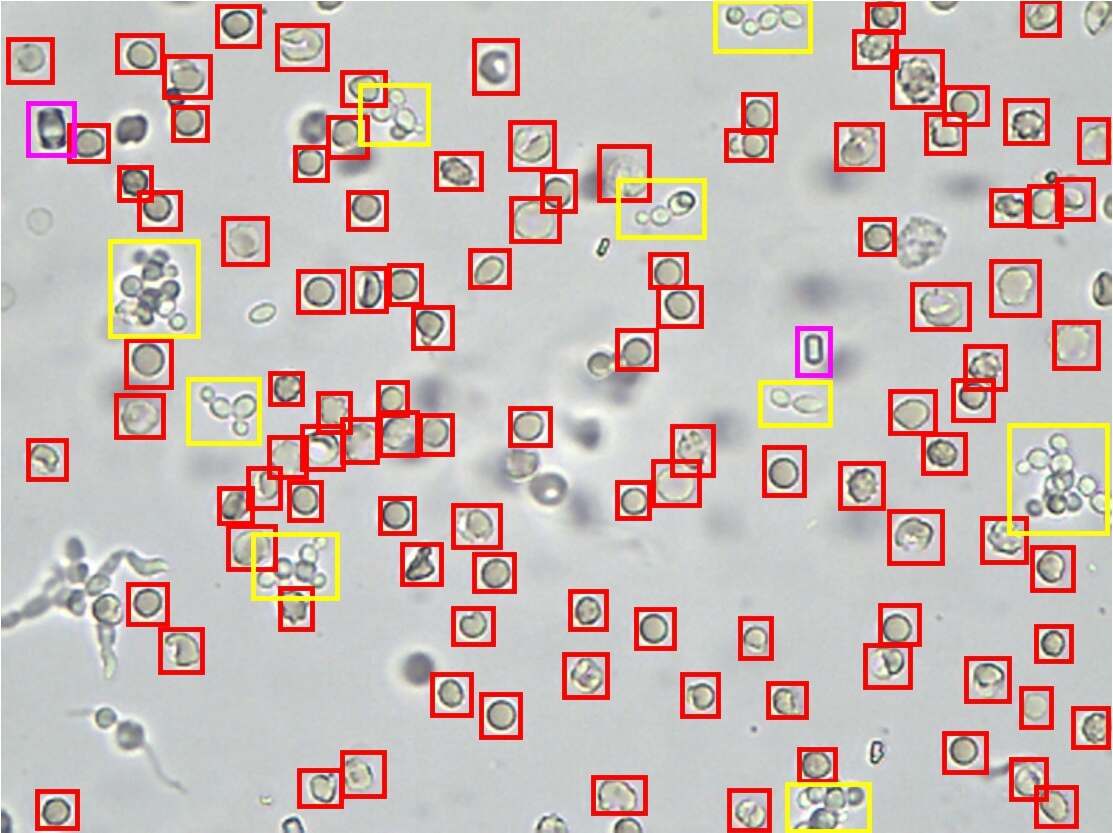

Figure 4: Selected samples of urinary sediment particle.

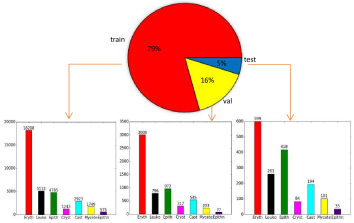

Figure 5: Dataset organization and categories distribution.

In fact, our 6,804 annotated images have a total of 273,718 ground truths, where meaningless noise occupies 230,919 annotations, up to eight-four percent. We remove images only including noise and finally get 5,376 useful images, more concretely, which contain (ground truth boxes) 21,815 for eryth, 6,169 for leuko, 6,175 for epith, 1,644 for cryst, 3,663 for cast, 2,083 for mycete and 687 for epithn. From the final 5,376 images, we randomly select 268 images making up 1/20 as test set, and the others as trainval set, where train set makes up 5/6. Figure 5 demonstrates the details of dataset organization and categories distribution. The top pie chart shows how 5,376 images are organized into train/val/test sets. The bottom bar graphs display detailed objects distribution for the imbalanced database.

4.2 Experimental analysis

Our experiments perform on a 64 bits Ubuntu 14.04.5 computer with CPU Intel(R) Core(TM) i7-5960X CPU@ 3.00GHz, NVIDIA Corporation GM200 [GeForce GTX TITAN X] and Python 2.7.6. In training stage, we adopt the transfer learning mechanism: first initialize CNN frameworks with models pre-trained on ImageNet dataset, then fine tune them using different strategies. By default, we still use PASCAL-style Average Precision (AP) at a single IoU threshold of 0.5 and mean Average Precision (mAP) to evaluate our detection results. Lots of significant test results have been obtained via various kinds of training trials. Details are listed below.

4.2.1 Urine particles recognition based on Faster R-CNN

When training Faster R-CNN, we fine-tune pre-trained models with SGD for 70k mini-batch iterations (unless specified otherwise), with a mini-batch size of 128 on 1 GPU, a momentum of 0.9 and a weight decay of 0.0005. We start from a learning rate 0.001, and decrease it by 1/10 after 50k iterations. But fine-tuning PVANet kim2016pvanet adopts a learning rate policy of plateau: 0.003 base learning rate, 0.3165 gamma and a different weight decay of 0.0002.


Different training strategies. As all know, there are two training solutions in the released Faster R-CNN python code, 4-step alternating training and approximate joint training (also called as end2end training). In order to select one more effective and efficient solution for the following networks training, we design this experiment based on small ZF zeiler2014visualizing net and medium VGG-16 simonyan2014very net. By default, the training parameters of two networks remain the same with the released code. Table 1 shows that adopting the strategy of approximate joint training takes less time, but yields higher mAP (nearly the same accuracy on VGG-16 net), so the next series of experiments all adopt the end2end training solution.

net training strategy training time(h) mAP
ZF 4-step alternating training 5.33 0.694
end2end training 4.6 0.723
VGG-16 4-step alternating training 12.23 0.756
end2end training 11.68 0.757
Table 1: Training time and mAP by different training solutions. Experiments perform on the ZF and VGG-16 networks, and keep the default settings from the released python code, in which the iteration parameters of 4-step alternating training is [80,000 40,000 80,000 40,000].
net anchor scales mAP eryth leuko epith cryst cast mycete epithn test time
(sec/img)
ZF 0.723 0.607 0.749 0.845 0.856 0.658 0.781 0.566 0.044
0.796 0.853 0.809 0.855 0.858 0.671 0.861 0.665 0.045
0.779 0.859 0.805 0.854 0.847 0.657 0.863 0.57 0.046
0.757 0.748 0.823 0.846 0.85 0.642 0.82 0.568 0.044
VGG-16 0.757 0.599 0.772 0.874 0.794 0.708 0.874 0.679 0.102
0.802 0.842 0.818 0.868 0.873 0.716 0.877 0.621 0.104
0.795 0.854 0.825 0.857 0.851 0.724 0.876 0.576 0.104
0.762 0.743 0.822 0.863 0.759 0.712 0.88 0.558 0.104
ResNet-50 0.77 0.613 0.831 0.853 0.852 0.757 0.873 0.615 0.219
0.784 0.761 0.824 0.86 0.822 0.768 0.859 0.595 0.219
0.804 0.876 0.812 0.86 0.854 0.747 0.874 0.605 0.22
ResNet-101 0.761 0.606 0.83 0.864 0.802 0.769 0.875 0.578 0.268
0.773 0.841 0.814 0.848 0.852 0.749 0.863 0.446 0.267
0.801 0.872 0.809 0.839 0.852 0.772 0.883 0.581 0.268
PVANet 0.841 0.884 0.843 0.871 0.877 0.765 0.890 0.760 0.072
Table 2: Comparisons of detection results using different networks and different anchor scales. By default, we keep anchor ratios unchanged: only PVANet sets it to {0.5, 0.667, 1.0, 1.5, 2.0}, all the others set {2:1, 1:1, 1:2}. The last column is an approximate time of net forward-propagating when test an image. And the last two rows are test results after 60k mini-batch iterations.

Different networks. In this part, we mainly use 4 networks pre-trained on ImageNet for classification to initialize our detection model: ZF net zeiler2014visualizing proposed by Zeiler and Fergus is a small and fast convolutional version; VGG-16 net simonyan2014very , a medium version, proposed by Simonyan and Zisserman has 16 shareable convolutional layers; the deeper ResNet he2016deep , including ResNet-50 and ResNet-101, introduces a residual learning framework to ease the optimization of training stage; and the latest PVANet kim2016pvanet has less channels and more layers. We fine tune all convolutional layers of ZF net and PVANet, the conv3_1 and up of VGG-16 net and ResNet.

From ZF, VGG-16 to ResNet-50, table 2 roughly demonstrates that as nets go deeper, we get higher detection accuracy and more testing time per image. In anchor scales of { , , , }, the mAPs fluctuate, which mostly is a trade-off between stronger semantics and coarser resolutions. Moreover, from ResNet-50 to ResNet-101, mAPs are nearly unchanged. we due it to the complexity of our dataset. Just as paper kim2016pvanet claims the deep but lightweight PVANet can achieve solid detection results while minimizing computation cost, we indeed obtain the best performance on our urine sediment recognition task.


Different anchor scales. Unlike generic objects in camera images, the particles of urinary sediment vary widely in their shapes, sizes and numbers. Moreover, some urinary micro-images include a lot of small objects (like erythrocyte and leukocyte), so as many anchors as possible should be covered in our experiment, especially small scales.

In this part, we compare the detection results using different anchor scales. First, for networks of ZF, VGG-16 and ResNet we all choose the default settings (the anchor scales of { , , } and the aspect ratios of {1:1, 1:2, 2:1}) as benchmarks. Then, keep aspect ratios unchanged and gradually increase anchors with smaller scales (i.e., and ). Overall, table 2 shows us that more anchors yield higher mAP. In detail, increasing anchor scales { , , , } to { , , , , } can not achieve better performance on both ZF net and VGG-16 net. It mainly due to the capacity of networks becoming saturated because we do get an accuracy boost when using ResNet-50 and ResNet-101. Further, we delete the scale of as comparison only using ZF and VGG-16 nets. On ZF net, the scales of has the same 9 anchors with { , , }, but outperforms by 3.4% mAP. Similarly, on VGG-16 net, increases by 0.5% mAP. It indicates that most particles in our dataset are small objects and the small anchor scales are indispensable. In addition, we note that deeper networks take more test time, but anchor scales have little impact on detection cost. Finally, it’s worth mentioning that the PVANet with best performance takes less test time despite deeper layers, partly because of more anchor scales (5 x 5) but thin structure.


Data augmentation. Commonly, adopting data augmentation in deep learning can expand training samples, avoid over-fitting and improve test accuracy, especially for small-scale training sets. Faster R-CNN also adopts a horizontal flip to augment training set. Empirically, we append a vertical flip to further expand training data. As comparison, we remove all data augmentations and only use original data in training-stage. Table 3 shows us that adopting horizontal flip or vertical flip alone does increase mAPs. However, there is no benefit to further append vertical flip after a horizontal flip.

flip types mAP eryth leuko epith cryst cast mycete epithn
no flip 0.748 0.865 0.819 0.826 0.764 0.582 0.844 0.533
only horizontal flip 0.779 0.859 0.805 0.854 0.847 0.657 0.863 0.57
only verticle flip 0.767 0.853 0.827 0.855 0.879 0.647 0.858 0.448
horizontal and verticle flip 0.742 0.756 0.795 0.836 0.771 0.677 0.763 0.599
Table 3: The effect of data augmentation on test precision. The network is ZF using a anchor scales of and a aspect ratios of {1:1, 1:2, 2:1}.
method anchor scales mAP eryth leuko epith cryst cast mycete epithn test time
(sec/img)
FRCNN 0.723 0.607 0.749 0.845 0.856 0.658 0.781 0.566 0.044
MS-FRCNN 0.712 0.601 0.747 0.817 0.822 0.61 0.781 0.607 0.075
FRCNN 0.796 0.853 0.809 0.855 0.858 0.671 0.861 0.665 0.045
MS-FRCNN 0.756 0.845 0.811 0.824 0.835 0.639 0.815 0.512 0.08
FRCNN 0.779 0.859 0.805 0.854 0.847 0.657 0.863 0.57 0.046
MS-FRCNN 0.775 0.867 0.81 0.836 0.809 0.646 0.871 0.589 0.077
Table 4: Comparisons on ZF net using different anchor scales when adding a multi-scale structure from MS-FRCNN.

MS-FRCNN. Generally, Faster R-CNN could obtain excellent performance on several natural image benchmarks everingham2010pascal ; lin2014microsoft ; russakovsky2015imagenet

that hold objects almost occupying the majority of an image. But as mentioned in the previous section, most objects in urine sediment micro-images are small and low-resolution. Faster R-CNN only uses one higher convolutional layer as feature map, which hardly detects some small objects because of bigger stride and larger receptive field size. Therefore, inspired by

long2015fully that combines semantic information from a deep, coarse layer with appearance information from a shallow, fine layer for accurate and detailed segmentations, there have been proposed several multi-scale approaches bell2016inside ; hoang2016multiple ; liu2016ssd ; kong2016hypernet ; cai2016unified ; kim2016pvanet , so that the size of receptive field could match various-size objects, especially small instances.

In order to validate the effectiveness of multi-scale methods for urine particles recognition, we conduct a series of experiments based on the MS-FRCNN architecture. The final results are shown in table 4. Overall, MS-FRCNN takes more test time per image and the mAPs are worse a bit than original Faster R-CNN (FRCNN). But we can get an interesting observation from the table, as the number of anchors increases, the final gap between precisions becomes smaller (a difference of 0.4%). In addition, the accuracy of small objects (i.e., eryth, leuko, and epithn) is more superior than no multi-scale. It is a mention that the PVANet also contains a multi-scale structure kong2016hypernet , but different from MS-FRCNN used in this part. We argue that the excellent performance of PVNet partly benefits from it.


OHEM-FRCNN. We choose Faster R-CNN as a base object detector and embed the novel bootstrapping technique, online hard example mining (OHEM). As reported in table 5, OHEM improves the mAP of Faster R-CNN (FRCNN) from 79.5% to 81% while taking approximately the same test time. Specifically, all categories except leukocyte yield better APs, where erythrocyte, cast and epithelial nuclei benefit more. In addition, the gains from OHEM can be increased by enlarging and complicating training set.

4.2.2 Urine particles recognition based on SSD

When training SSD, we fine-tune a pre-trained model with SGD for 120k mini-batch iterations, with a mini-batch size of 32 on 1 GPU (a mini-batch size of 16 on 2 GPU during SSD500 training), a momentum of 0.9 and a weight decay of 0.0005. By default, we adopt the multistep learning rate policy with a base learning rate of 0.001 (0.01 when use batch normalization for all newly added layers), a stepvalue of [80,000, 10,000, 120,000] and a gamma of 0.1.

method mAP eryth leuko epith cryst cast mycete epithn test time
(sec/img)
FRCNN 0.795 0.854 0.825 0.857 0.851 0.724 0.876 0.576 0.104
OHEM-FRCNN 0.810 0.871 0.807 0.866 0.859 0.755 0.877 0.633 0.115
Table 5: Comparisons between FRCNN and OHEM-FRCNN on VGG-16 net using the same anchor scales of .
SSD model mAP eryth leuko epith cryst cast mycete epithn test time
(sec/img)
SSD300 0.2 0.9 0.732 0.841 0.764 0.828 0.745 0.559 0.797 0.587 0.021
0.1 0.9 0.752 0.766 0.741 0.838 0.782 0.7 0.839 0.596 0.021
SSD300 0.2 0.9 0.773 0.846 0.748 0.837 0.772 0.721 0.85 0.638 0.021
SSD500 0.1 0.9 0.658 0.557 0.609 0.834 0.632 0.669 0.792 0.512 0.047
Table 6: Detection results using SSD model, where SSD300 has an input size of 300 x 300, SSD500 increases it to 500 x 500, and the penultimate row, SSD300, represents a Trimmed SSD removing conv7, conv8, and conv9 layers.

Different scales of the default boxes. We have known that SSD discretizes the output space of bounding boxes into a set of default boxes over different aspect ratios and scales at each feature map cell. In order to relate these default boxes from different feature maps to corresponding receptive fields, the authors in paper liu2016ssd designed a scale strategy that regularly but roughly responses specific boxes to specific areas of the image, where the lowest feature map has a minimum scale of and the highest feature map has a maximum scale of , and all other feature maps in between are regularly scattered (more details, please refer to the paper liu2016ssd ).

Considering lots of small particles in urine sediment images, we adjust empirically the scales of default boxes when training SSD300. From experimental results in table 6, we can see that decreasing the minimum scale of 0.2 to 0.1 (the maximum scale of 0.9 remains unchanged.) increases mAP by 2% in which the AP of cast increases by 14.1%.


Trimmed SSD. In order to reduce the complexity of the original SSD model and avert over-fitting on the small-scale urinalysis database, we take a pruning strategy, Trimmed SSD. Specifically, in this experiment we remove conv7, conv8, and conv9 layers of SSD300. The penultimate row in table 6 shows us that deleting the conv7, conv8, and conv9 layers does yield a better mAP (a boost of 4.1%), but no better speed.


Different input sizes. Generally, increasing the size of input images can improve detection accuracy, especially to small objects. Imitating the paper liu2016ssd , we also increase the input size from 300 x 300 to 500 x 500. Here we train SSD500 only once, with a minimum scale of 0.1 and a maximum scale of 0.9. Unfortunately, we just obtain a poor 65.8% mAP (the last row in table 6), because of decreasing the batch size setting from 32 to 16 to run this model in limited GPU resources. We argue that better results can be achieved if increase the setting of batch size.


So far, there is still much room for SSD improvement. Given the boost of Trimmed SSD, we have glimpsed the structural deficiencies of original SSD model, but lack more sophisticated analysis for further research. Also, we can design a more suitable default boxes distribution over different scales and aspect ratios to fit the urinalysis database. They are interesting and open questions for us to future study.


The above experimental results clearly make out that Faster R-CNN outperforms SSD in precision (Figure 8 also shows this in appendix), but the latter is faster. In view of the importance of accuracy in medical applications, Faster R-CNN will be an priority for automated urinalysis system.

5 Adding bells & whistles

As mentioned, Faster R-CNN exceeds SSD in detection accuracy, especially on PVANet with fast detection speed by a significant margin. In structure, Faster R-CNN mainly contains a region proposal network (RPN) than SSD for ROIs generation. In this section, we study in detail the impact of several factors to region proposal generation while combining above experiments. Further, we also compare PVANet against VGG-16 on specific detection performances more intuitively.

5.1 Analysis for region proposal generation

Anchor scales. In this part, we provide analysis of anchor scales affection to object proposals on VGG-16 net. The curve of recall for anchor scales at different proposal numbers is plotted in figure 6. Correspondingly, the related detection performances are shown in table 2 (the VGG-16 module). Figure 6 displays, from the default anchor scales { , , }, the proposals recall increases gradually while adding smaller scales (i.e., and ), and the scales of { , , , } outperforms the scales of { , , } by a significant margin, closed to the scales of { , , , }. The results are consistent with the detection accuracy with respect to mAP & APs, and indicates two keys about anchor scales: (1) the more the better. (2) the smaller the superior. Reasonable design of anchor scales benefits ROIs generation and final detection.

Networks. Table 2 has fully demonstrated the impact of different networks to detection performances with respect to accuracy and speed. Treating RPN as a class-agnostic object detector, we further investigate different networks in terms of proposals quality. Figure 6, plotting recall versus number of proposals with a loose IoU of 0.5, shows little differences between several networks when adopting the best anchor scales of { , , , , }. For higher IoU thresholds, shown in figure 6, the recall of PVANet drops faster than other networks. Given its superior detection performances, PVANet must obtain more compensation from the latter stage.

5.2 PVANet versus VGG-16

Although PVANet displays under-performances for region proposal generation, eventually it achieves very prominent detection results, a mAP of 84.1% shown in table 2. By inference, we owe it to the latter Fast R-CNN detector. In this part, we compare PVANet against VGG-16 to verify the inference.

Figure 7 shows curves of precision-to-recall separately on PVANet and VGG-16 networks. In contrast, PVANet maintains higher precisions stably, as recalls increases. The precisions of VGG-16 net drop sharply in the end. For detections of cast and epithelial nuclei, PVANet also performs better than VGG-16 net.

Figure 6: Analysis for region proposal generation on urinalysis database. (a) Recall versus number of proposal for different anchor scales using VGG-16 with a fixed IoU of 0.5. (b) Recall versus number of proposal for different networks with a fixed IoU of 0.5. (c) Recall versus IoU threshold for different networks with a fixed number of proposal (600).
(a) VGG-16
(b) PVANet
Figure 7: Precision versus recall. (a) VGG-16 net with a anchor scales of { , , , , } and a mAP of 79.5%. (b) PVANet with a mAP of 84.1%.

6 Conclusions

In this paper, we treat the urine particles recognition as object detection and select two well-known CNN-based approaches, Faster R-CNN and SSD, as base detection framework. They are segmentation free and can learn task-specific features in an end-to-end manner. When applying Faster R-CNN, SSD, and their variants to urine particles recognition, we effectively adopt the mechanism of deep transfer learning. Moreover, we conduct extensive experimental analysis to demonstrate the impact of various factors, including training strategies, network structures, anchor scales, and so on. After a variety of experiments, we obtain a best mAP of 84.1% with a test time of 70 ms per image while using Faster R-CNN on PVANet. We believe the result is very meaningful for automatic urine sediment examination and the experimental analysis is instructive for other researchers. Of course, for urine particles recognition, there is still a lot of room to further improve and it will be an interesting future direction for us.

Acknowledgements

This research was partially supported by the Natural Science Foundation of Hunan Province, China (No. 14JJ2008) and the National Natural Science Foundation of China under Grant No. 61602522, No. 61573380, No. 61672542.

Compliance with ethical standards

Funding: It has been stated in the “Acknowledgments“ section.
Conflict of Interest: The authors declare that they have no conflict of interest.
Ethical approval: This article does not contain any studies with human participants or animals performed by any of the authors.

References

  • (1) Kouri, T., Fogazzi, G., Gant, V., Hallander, H., Hofmann, W., Guder, W.: European urinalysis guidelines. Scandinavian Journal of Clinical and Laboratory Investigation-Supplement 60(231) (2000)
  • (2) İnce, F.D., Ellidağ, H.Y., Koseoğlu, M., Şimşek, N., Yalçın, H., Zengin, M.O.: The comparison of automated urine analyzers with manual microscopic examination for urinalysis automated urine analyzers and manual urinalysis. Practical Laboratory Medicine 5 (2016) 14–20
  • (3) Ranzato, M., Taylor, P., House, J., Flagan, R., LeCun, Y., Perona, P.: Automatic recognition of biological particles in microscopic images. Pattern recognition letters 28(1) (2007) 31–39
  • (4) Liang, Y., Fang, B., Qian, J., Chen, L., Li, C., Liu, Y.: False positive reduction in urinary particle recognition. Expert Systems with Applications 36(9) (2009) 11429–11438
  • (5) Shen, M.l., Zhang, R.: Urine sediment recognition method based on svm and adaboost. In: Computational Intelligence and Software Engineering, 2009. CiSE 2009. International Conference on, IEEE (2009) 1–4
  • (6) Almadhoun, M.D., El-Halees, A.: Automated recognition of urinary microscopic solid particles. Journal of medical engineering & technology 38(2) (2014) 104–110
  • (7) Avci, D., Leblebicioglu, M.K., Poyraz, M., Dogantekin, E.: A new method based on adaptive discrete wavelet entropy energy and neural network classifier (adweenn) for recognition of urine cells from microscopic images independent of rotation and scaling. Journal of medical systems 38(2) (2014)  7
  • (8) Li, C., Tang, Y.Y., Luo, H., Zheng, X.: Join gabor and scattering transform for urine sediment particle texture analysis. In: Cybernetics (CYBCONF), 2015 IEEE 2nd International Conference on, IEEE (2015) 410–415
  • (9) Ren, S., He, K., Girshick, R., Sun, J.: Faster r-cnn: Towards real-time object detection with region proposal networks. In: Advances in neural information processing systems. (2015) 91–99
  • (10) Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S., Fu, C.Y., Berg, A.C.: Ssd: Single shot multibox detector.

    In: European Conference on Computer Vision, Springer (2016) 21–37

  • (11) Hoang Ngan Le, T., Zheng, Y., Zhu, C., Luu, K., Savvides, M.: Multiple scale faster-rcnn approach to driver’s cell-phone usage and hands on steering wheel detection. In: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition Workshops. (2016) 46–53
  • (12) Shrivastava, A., Gupta, A., Girshick, R.: Training region-based object detectors with online hard example mining. In: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. (2016) 761–769
  • (13) Chien, T.I., Kao, J.T., Liu, H.L., Lin, P.C., Hong, J.S., Hsieh, H.P., Chien, M.J.: Urine sediment examination: a comparison of automated urinalysis systems and manual microscopy. Clinica Chimica Acta 384(1) (2007) 28–34
  • (14) Budak, Y.U., Huysal, K.: Comparison of three automated systems for urine chemistry and sediment analysis in routine laboratory practice. Clinical laboratory 57(1) (2011)  47
  • (15) Schmid, C., Mohr, R.:

    Local grayvalue invariants for image retrieval.

    IEEE transactions on pattern analysis and machine intelligence 19(5) (1997) 530–535
  • (16) Bishop, C.M.: Neural networks for pattern recognition. Oxford university press (1995)
  • (17) Zhou, Y., Zhou, H.: Automatic classification and recognition of particles in urinary sediment images. In: Computer, Informatics, Cybernetics and Applications. Springer (2012) 1071–1078
  • (18) LeCun, Y., Bottou, L., Bengio, Y., Haffner, P.: Gradient-based learning applied to document recognition. Proceedings of the IEEE 86(11) (1998) 2278–2324
  • (19) Krizhevsky, A., Sutskever, I., Hinton, G.E.: Imagenet classification with deep convolutional neural networks. In: Advances in neural information processing systems. (2012) 1097–1105
  • (20) Sermanet, P., Eigen, D., Zhang, X., Mathieu, M., Fergus, R., LeCun, Y.: Overfeat: Integrated recognition, localization and detection using convolutional networks. arXiv preprint arXiv:1312.6229 (2013)
  • (21) Girshick, R., Donahue, J., Darrell, T., Malik, J.: Rich feature hierarchies for accurate object detection and semantic segmentation. In: Proceedings of the IEEE conference on computer vision and pattern recognition. (2014) 580–587
  • (22) He, K., Zhang, X., Ren, S., Sun, J.: Spatial pyramid pooling in deep convolutional networks for visual recognition. In: European Conference on Computer Vision, Springer (2014) 346–361
  • (23) Girshick, R.: Fast r-cnn. In: Proceedings of the IEEE International Conference on Computer Vision. (2015) 1440–1448
  • (24) Uijlings, J.R., Van De Sande, K.E., Gevers, T., Smeulders, A.W.: Selective search for object recognition. International journal of computer vision 104(2) (2013) 154–171
  • (25) Erhan, D., Szegedy, C., Toshev, A., Anguelov, D.: Scalable object detection using deep neural networks. In: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. (2014) 2147–2154
  • (26) Szegedy, C., Reed, S., Erhan, D., Anguelov, D., Ioffe, S.: Scalable, high-quality object detection. arXiv preprint arXiv:1412.1441 (2014)
  • (27) Li, Y., He, K., Sun, J., et al.: R-fcn: Object detection via region-based fully convolutional networks. In: Advances in Neural Information Processing Systems. (2016) 379–387
  • (28) Zhang, L., Lin, L., Liang, X., He, K.: Is faster r-cnn doing well for pedestrian detection? In: European Conference on Computer Vision, Springer (2016) 443–457
  • (29) Redmon, J., Divvala, S., Girshick, R., Farhadi, A.: You only look once: Unified, real-time object detection. In: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. (2016) 779–788
  • (30) Lin, T.Y., Dollár, P., Girshick, R., He, K., Hariharan, B., Belongie, S.: Feature pyramid networks for object detection. arXiv preprint arXiv:1612.03144 (2016)
  • (31) Kim, K.H., Hong, S., Roh, B., Cheon, Y., Park, M.: Pvanet: Deep but lightweight neural networks for real-time object detection. arXiv preprint arXiv:1608.08021 (2016)
  • (32) Zeiler, M.D., Fergus, R.: Visualizing and understanding convolutional networks. In: European conference on computer vision, Springer (2014) 818–833
  • (33) Simonyan, K., Zisserman, A.: Very deep convolutional networks for large-scale image recognition. arXiv preprint arXiv:1409.1556 (2014)
  • (34) He, K., Zhang, X., Ren, S., Sun, J.: Deep residual learning for image recognition. In: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. (2016) 770–778
  • (35) Everingham, M., Van Gool, L., Williams, C.K., Winn, J., Zisserman, A.: The pascal visual object classes (voc) challenge. International journal of computer vision 88(2) (2010) 303–338
  • (36) Lin, T.Y., Maire, M., Belongie, S., Hays, J., Perona, P., Ramanan, D., Dollár, P., Zitnick, C.L.: Microsoft coco: Common objects in context. In: European Conference on Computer Vision, Springer (2014) 740–755
  • (37) Russakovsky, O., Deng, J., Su, H., Krause, J., Satheesh, S., Ma, S., Huang, Z., Karpathy, A., Khosla, A., Bernstein, M., et al.: Imagenet large scale visual recognition challenge. International Journal of Computer Vision 115(3) (2015) 211–252
  • (38) Long, J., Shelhamer, E., Darrell, T.: Fully convolutional networks for semantic segmentation. In: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. (2015) 3431–3440
  • (39) Bell, S., Lawrence Zitnick, C., Bala, K., Girshick, R.:

    Inside-outside net: Detecting objects in context with skip pooling and recurrent neural networks.

    In: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. (2016) 2874–2883
  • (40) Kong, T., Yao, A., Chen, Y., Sun, F.: Hypernet: towards accurate region proposal generation and joint object detection. In: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. (2016) 845–853
  • (41) Cai, Z., Fan, Q., Feris, R.S., Vasconcelos, N.: A unified multi-scale deep convolutional neural network for fast object detection. In: European Conference on Computer Vision, Springer (2016) 354–370

Appendix

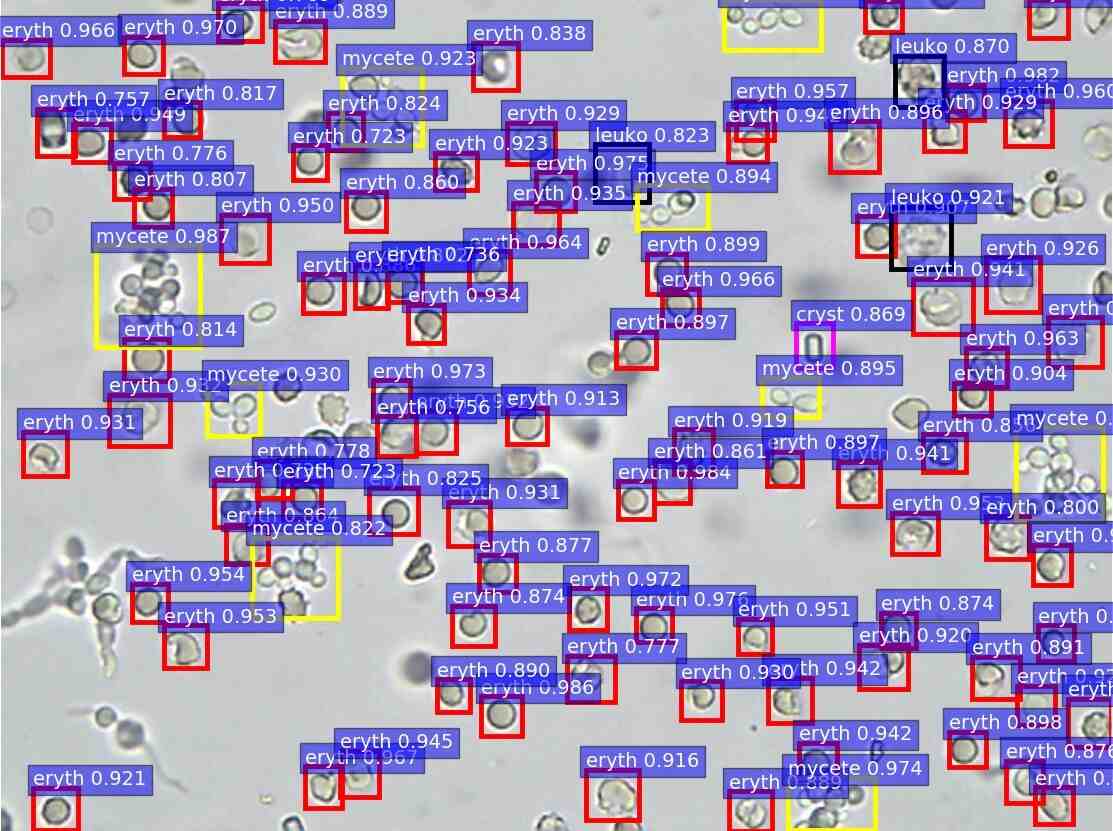

(a) annotations
(b) ZF
(c) VGG-16
(d) ResNet-50
(e) PVANet
(f) SSD300

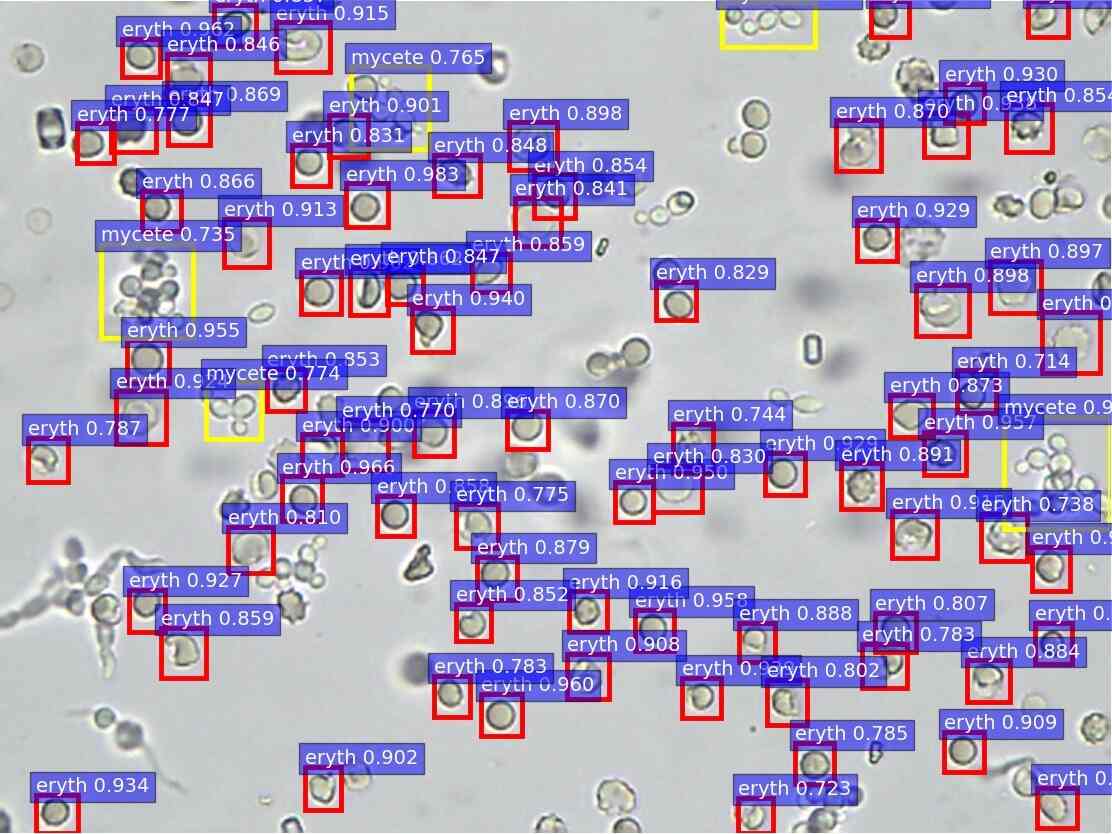

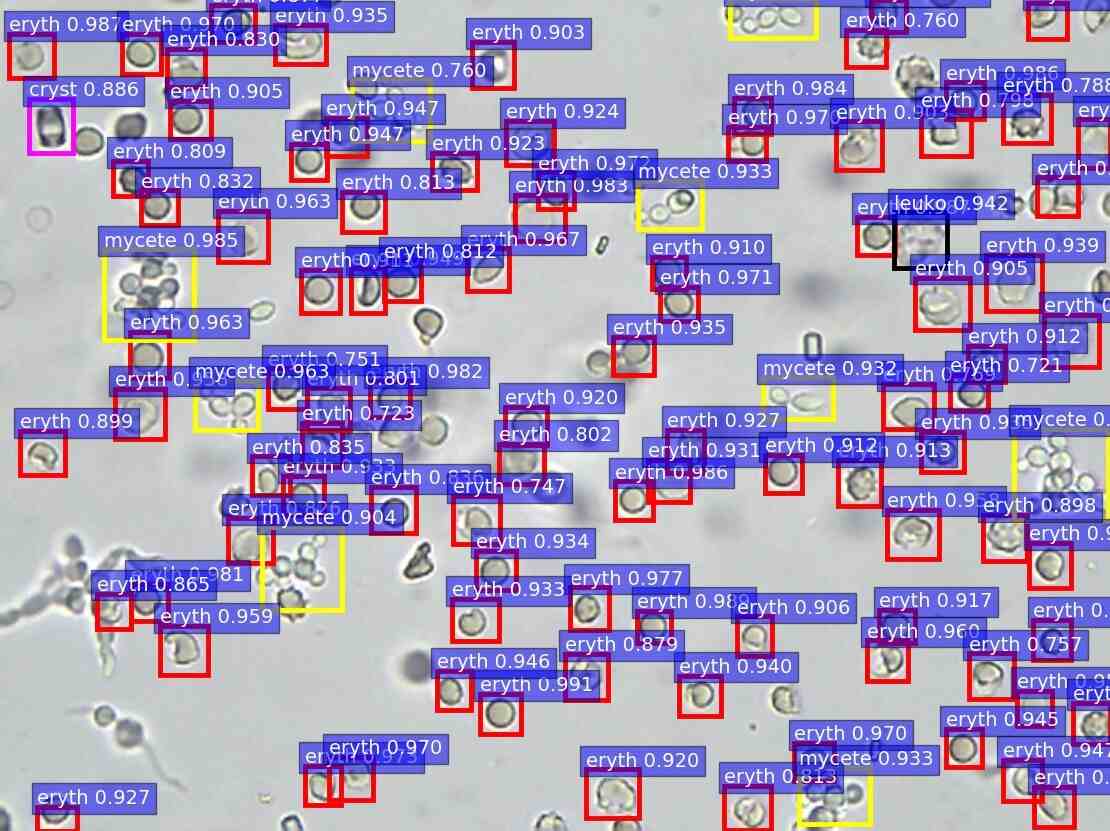

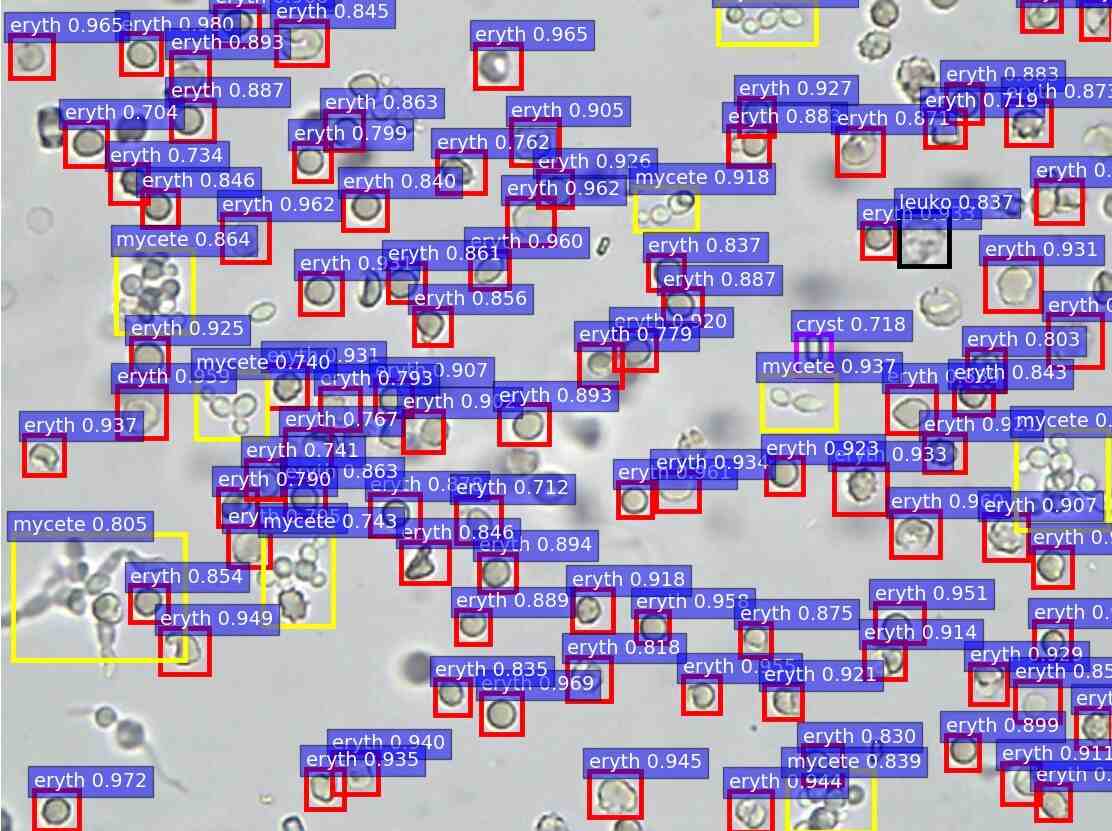

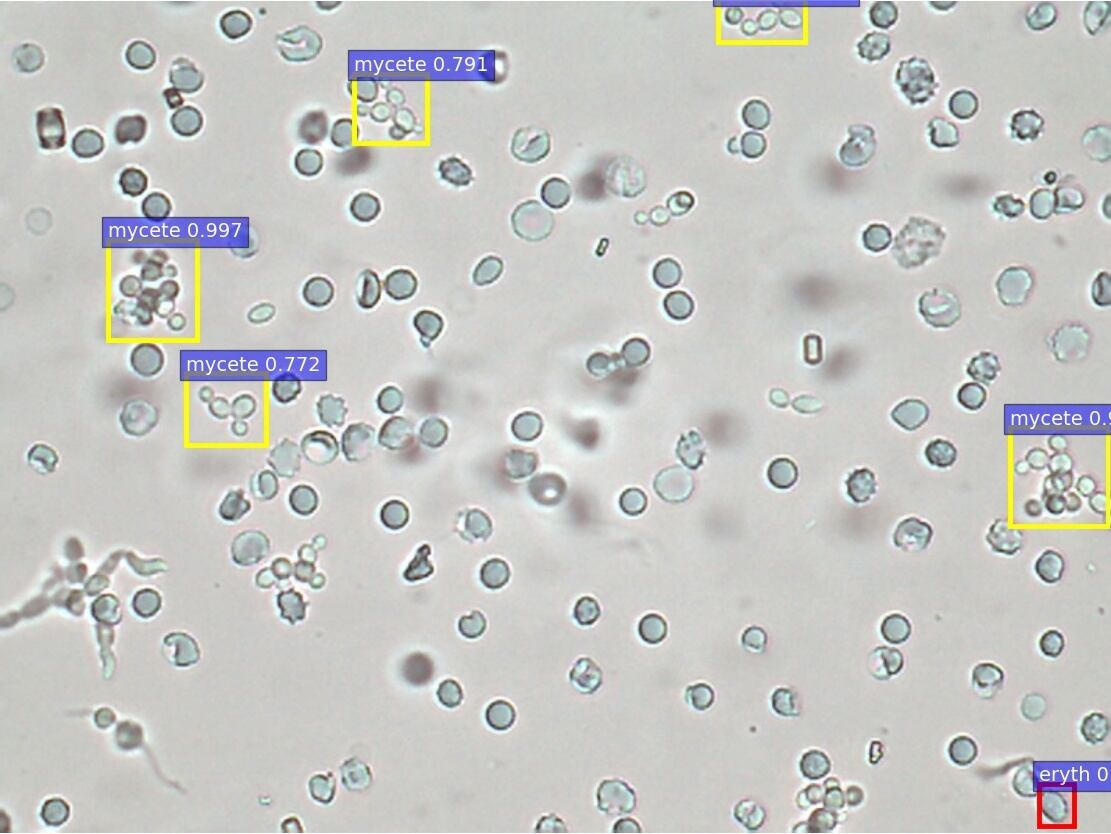

1 : detection results of erythrocyte

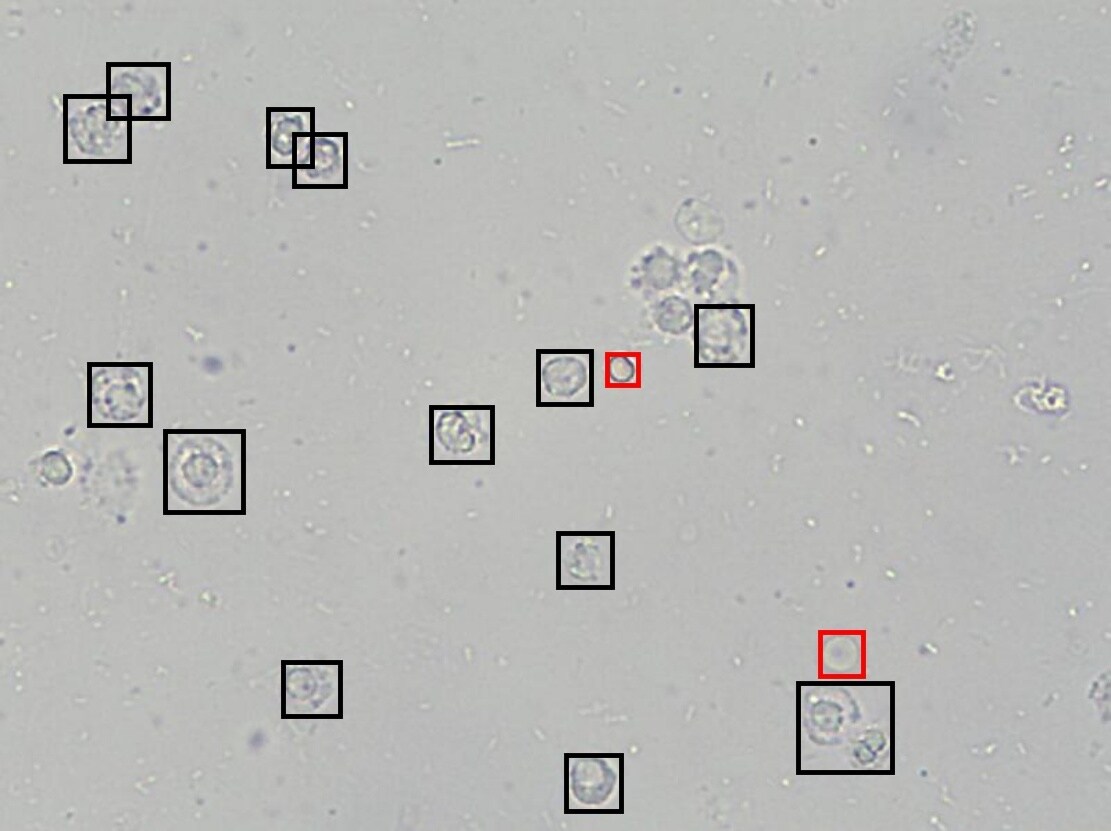

(a) annotations
(b) ZF
(c) VGG-16
(d) ResNet-50
(e) PVANet
(f) SSD300

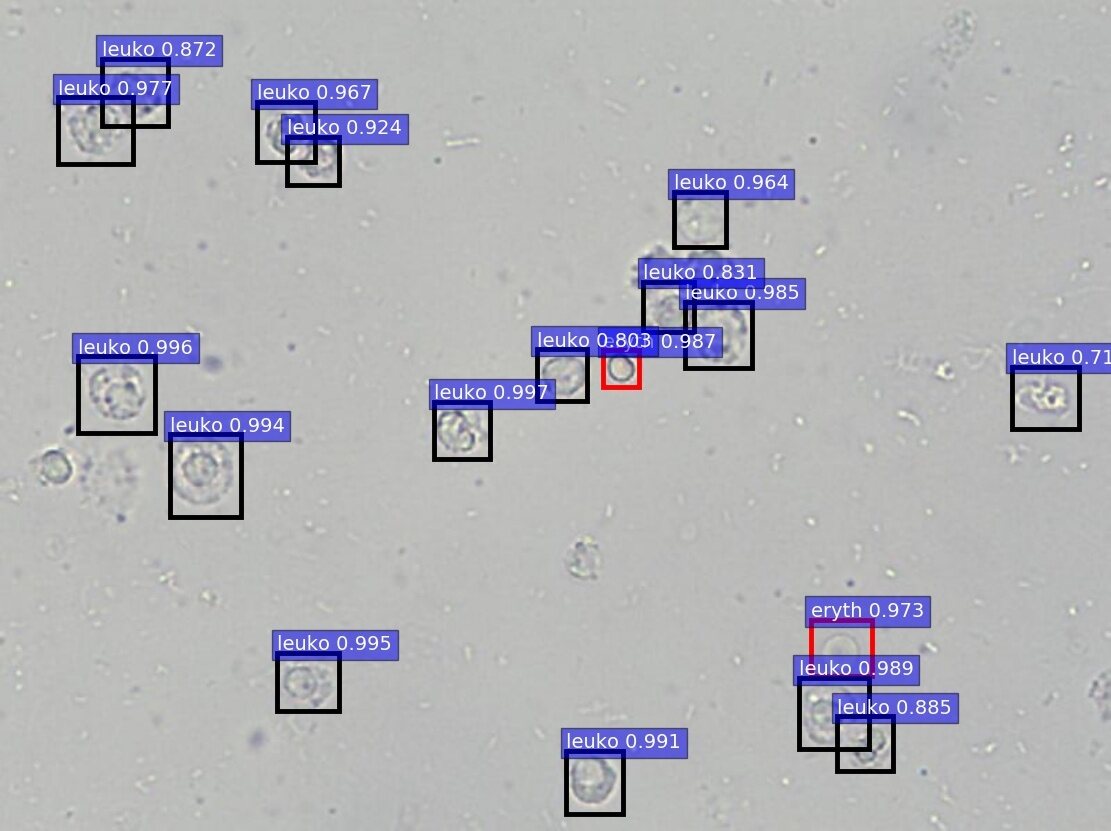

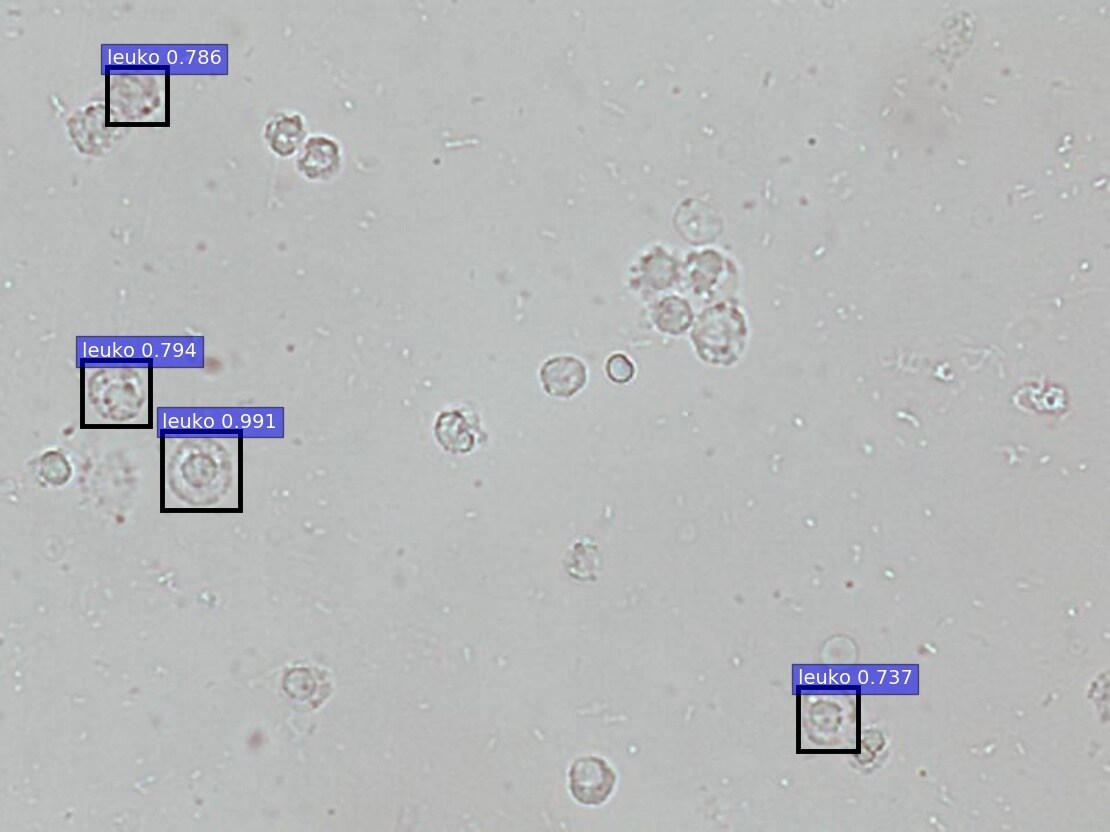

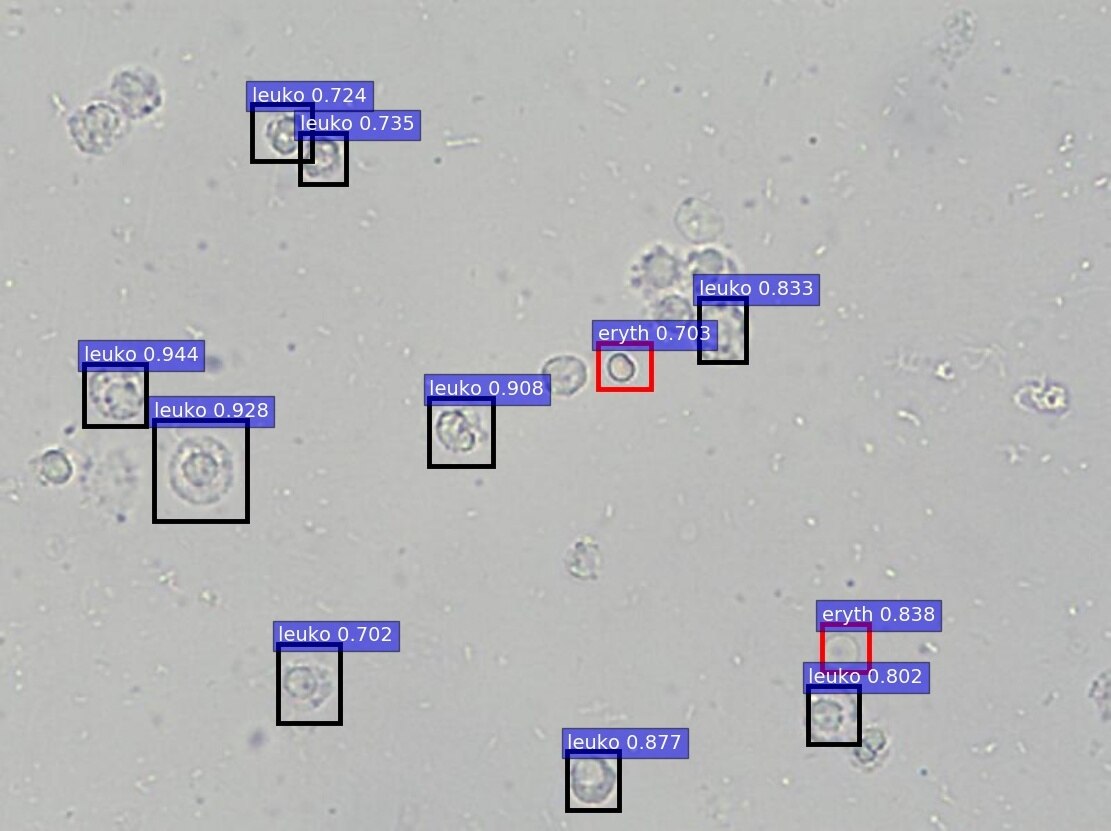

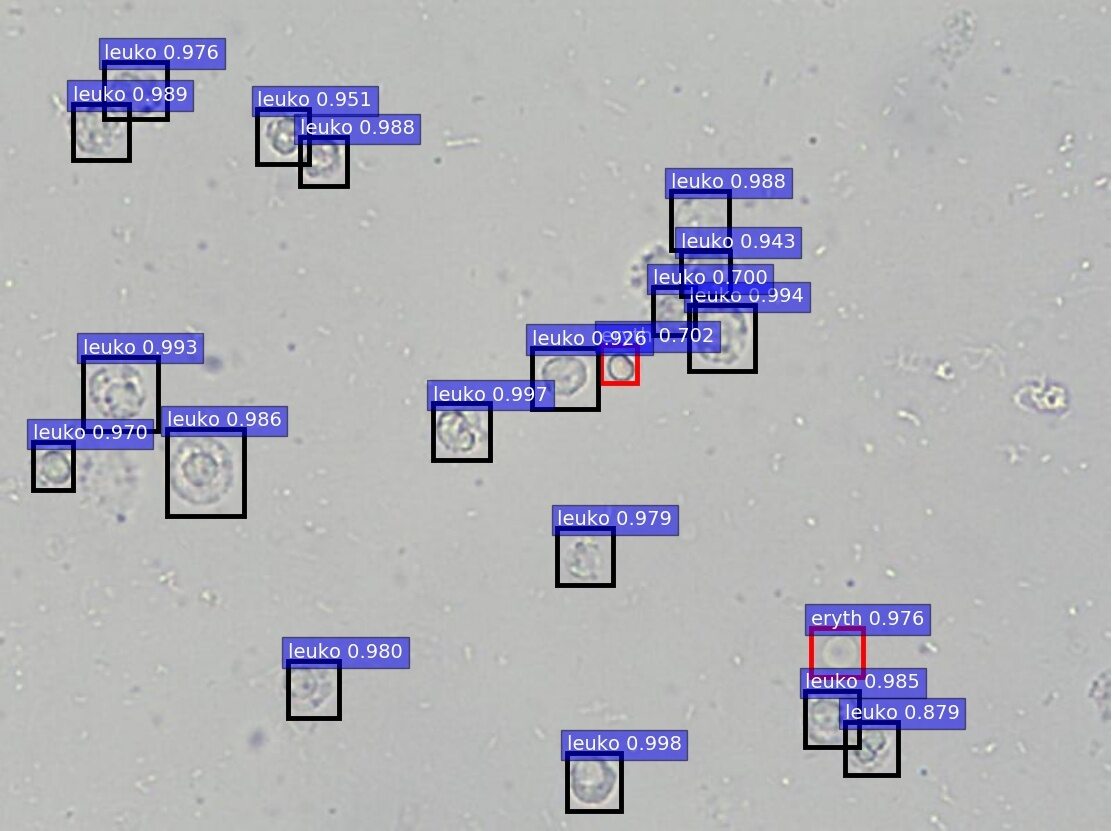

2 : detection results of leukocyte
(a) annotations
(b) ZF
(c) VGG-16
(d) ResNet-50
(e) PVANet
(f) SSD300

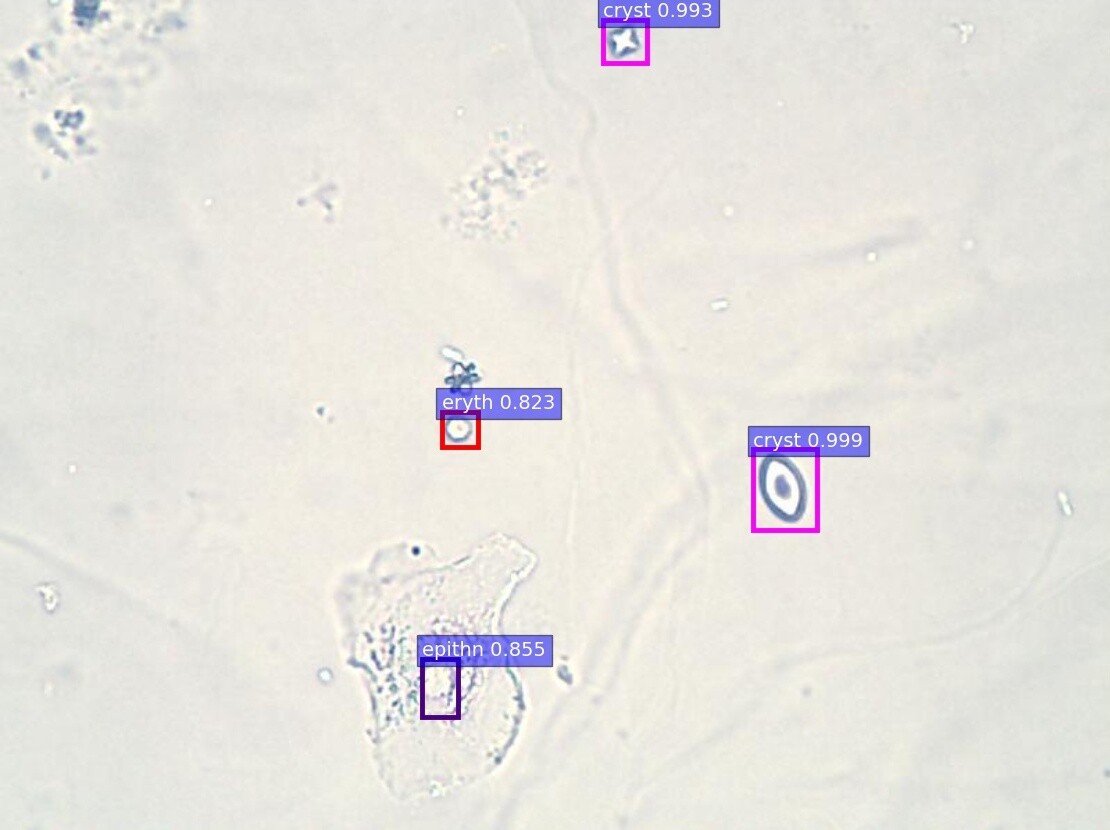

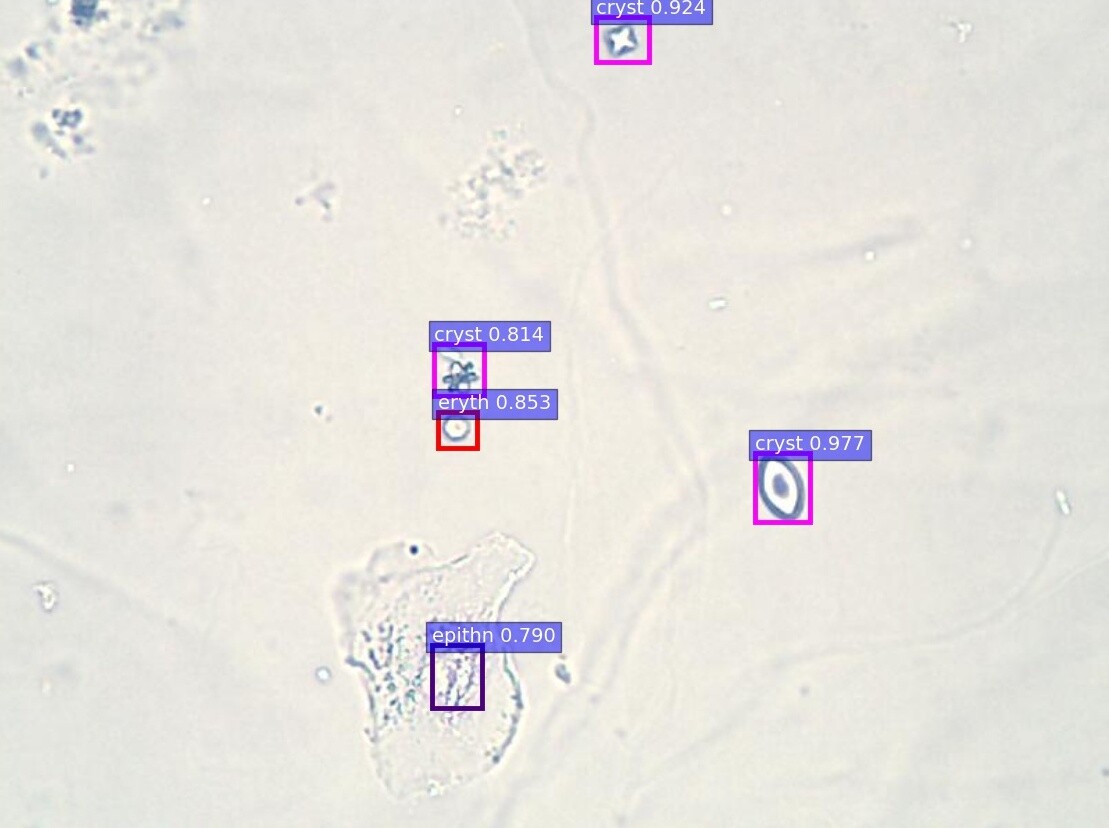

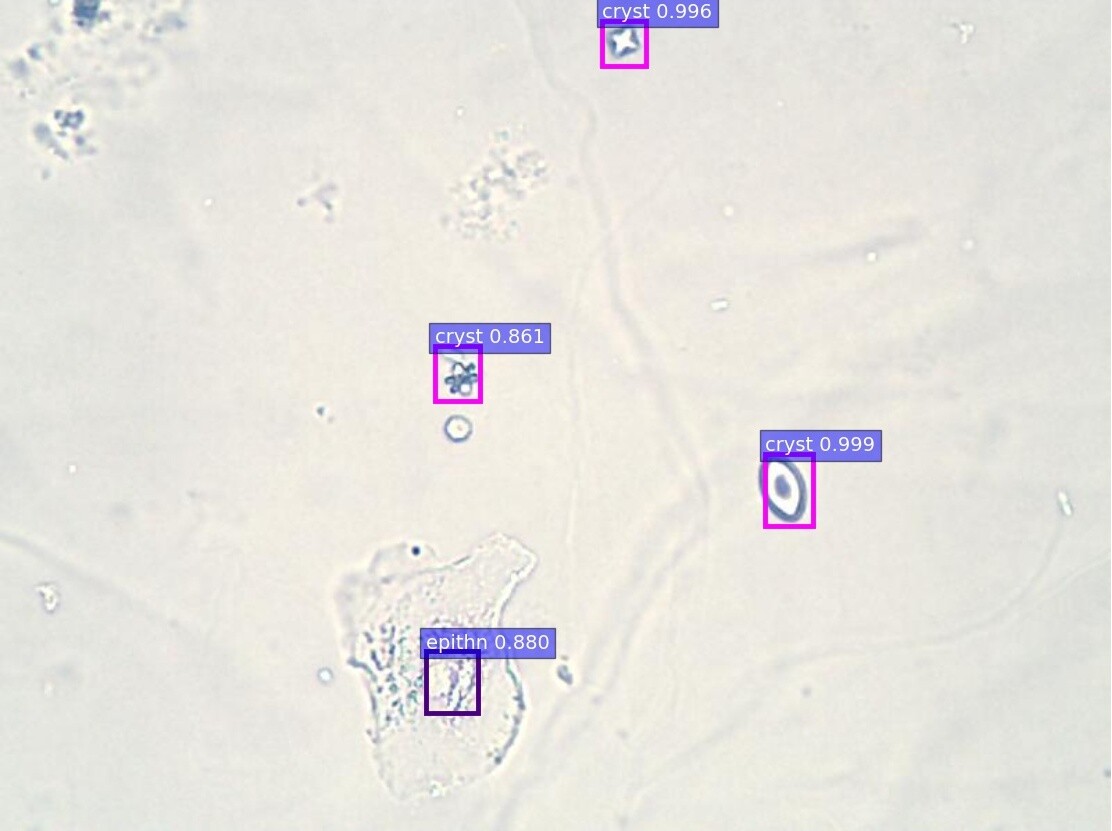

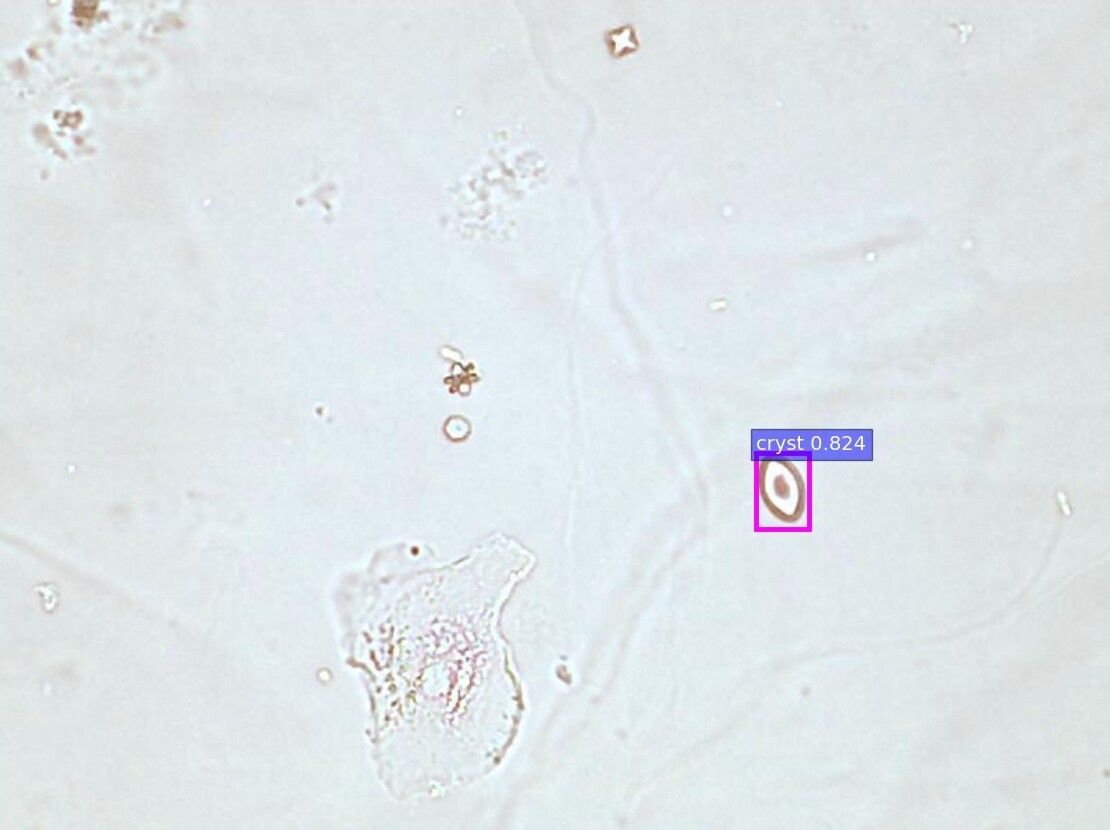

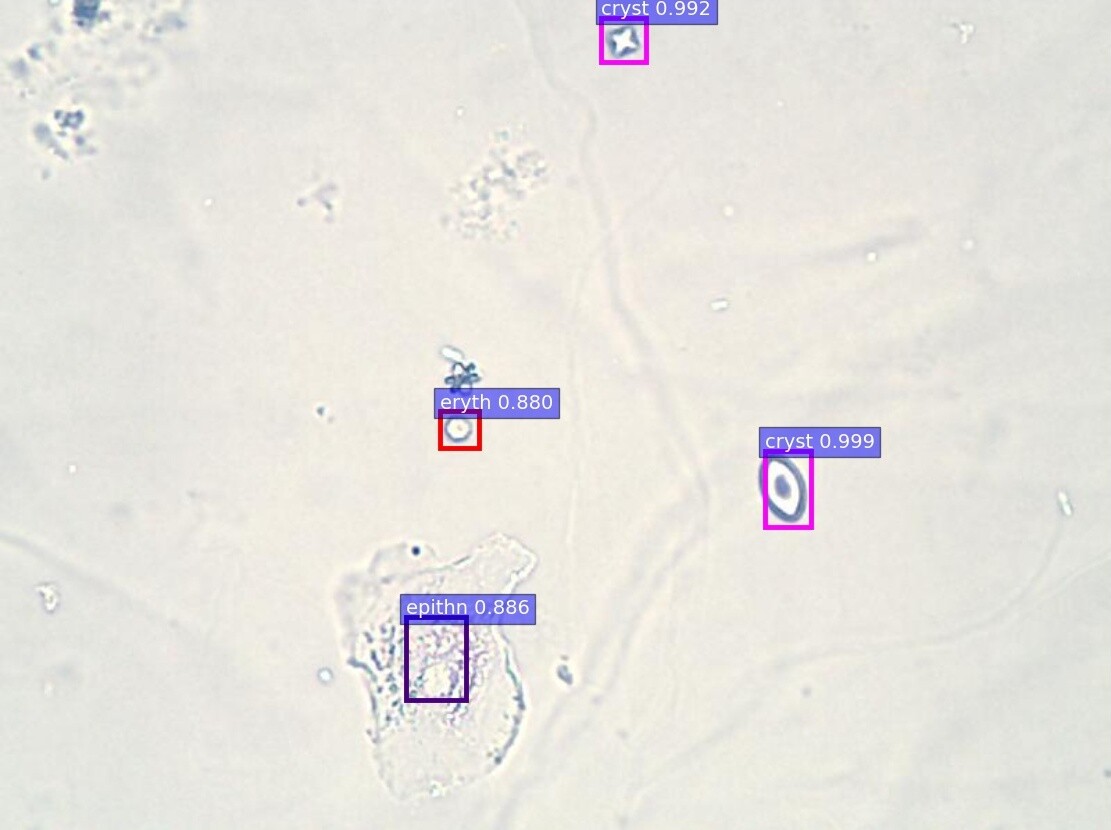

3 : detection results of crystal

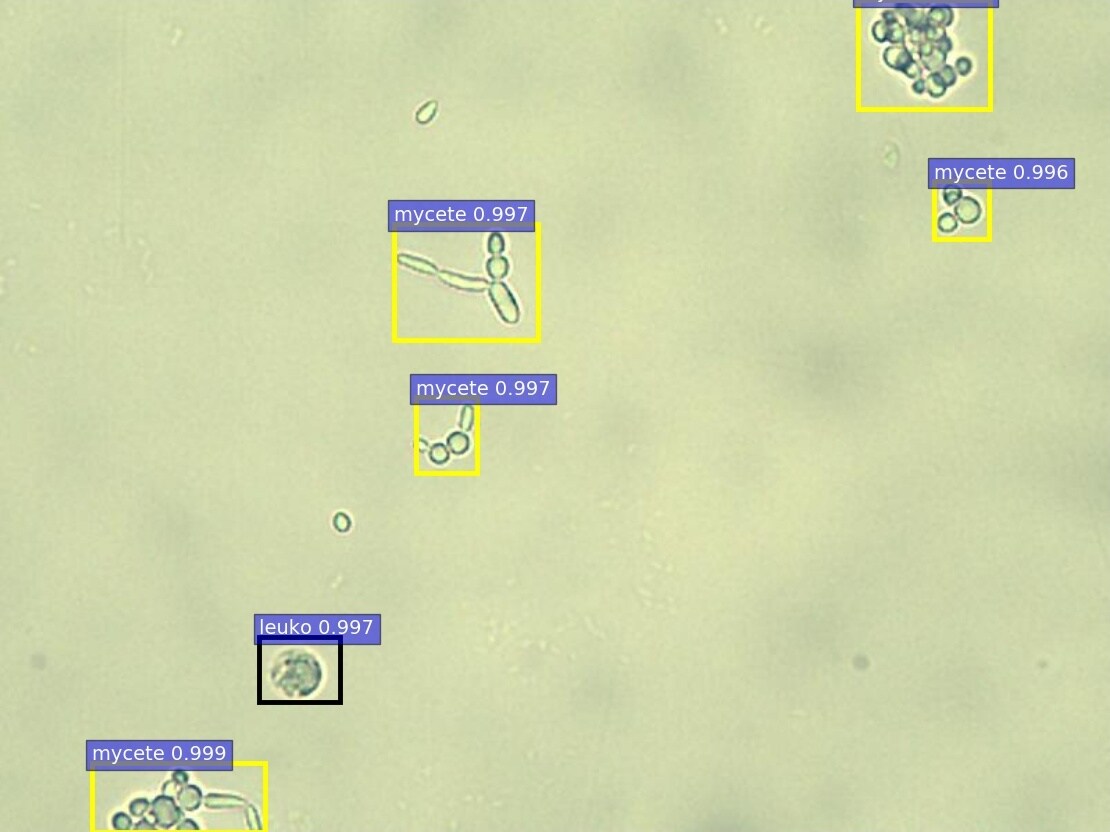

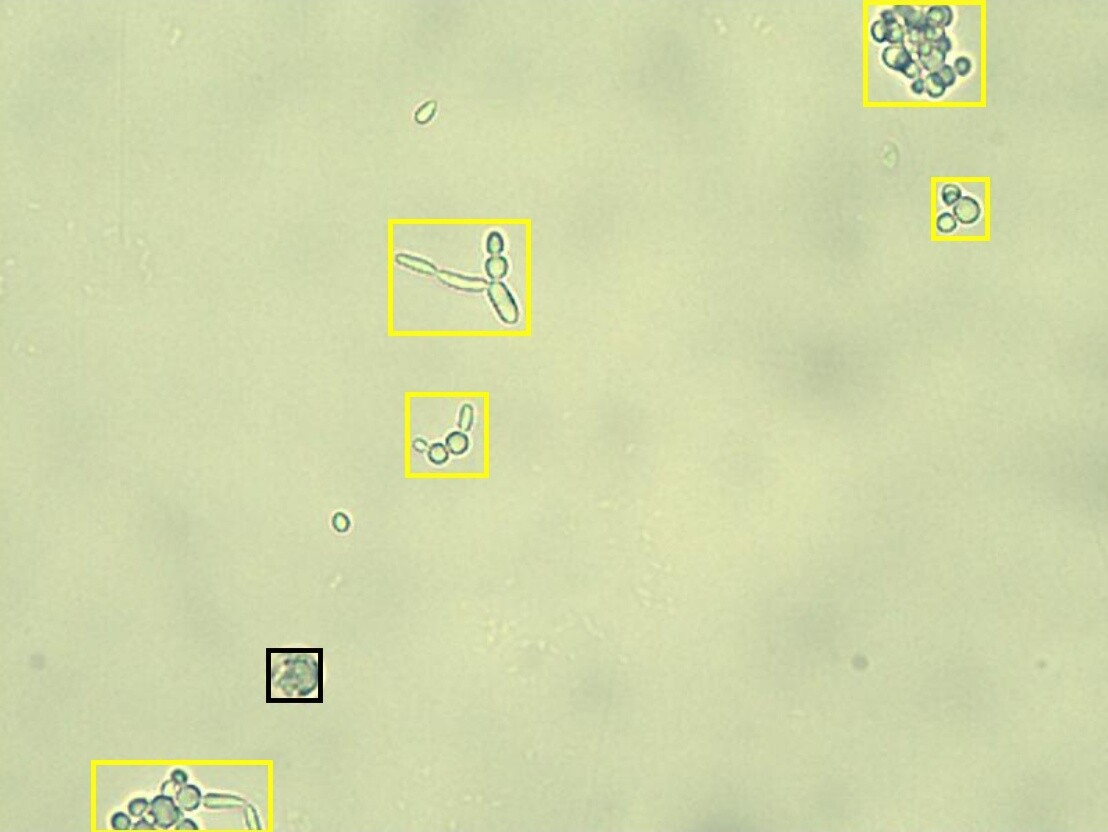

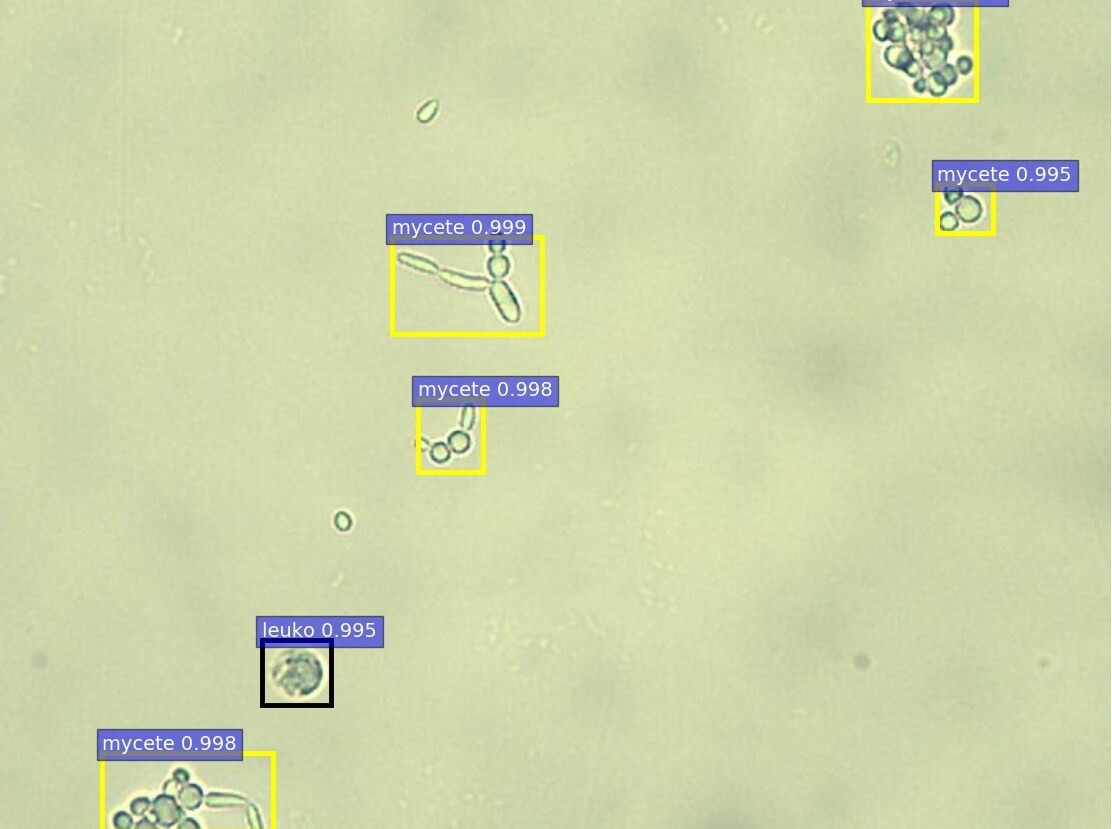

(a) annotations
(b) ZF
(c) VGG-16
(d) ResNet-50
(e) PVANet
(f) SSD300

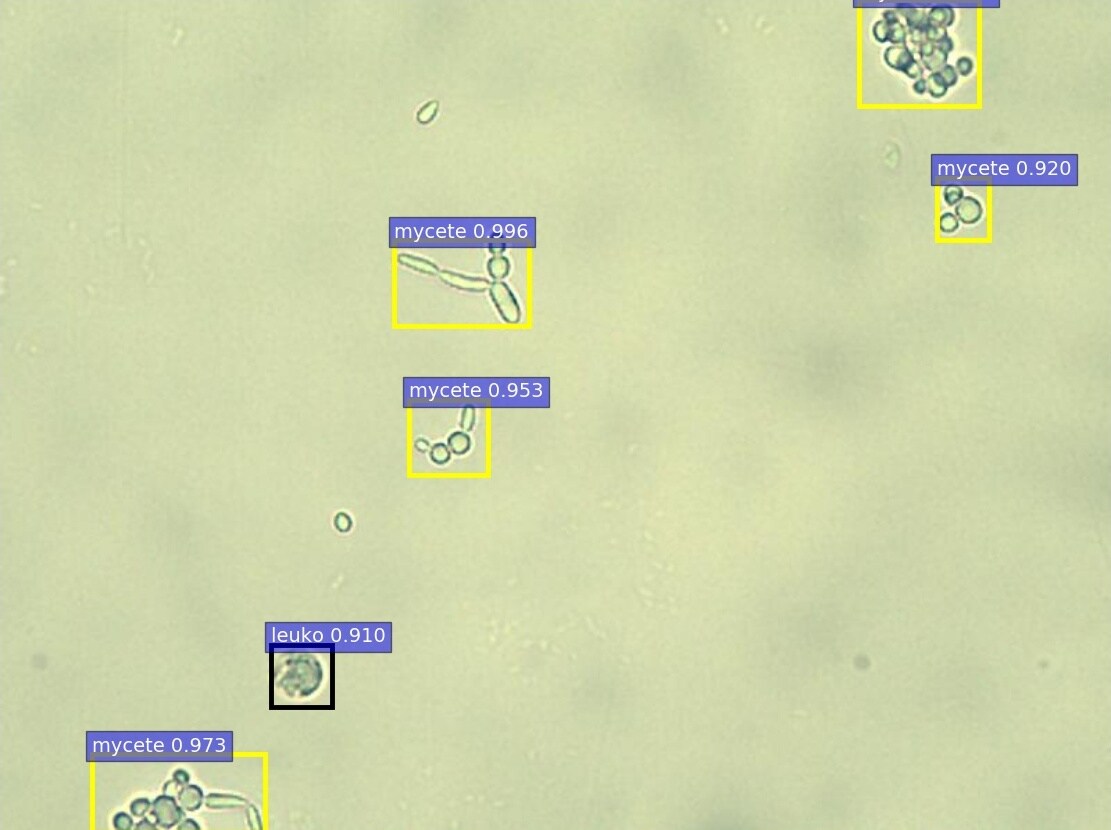

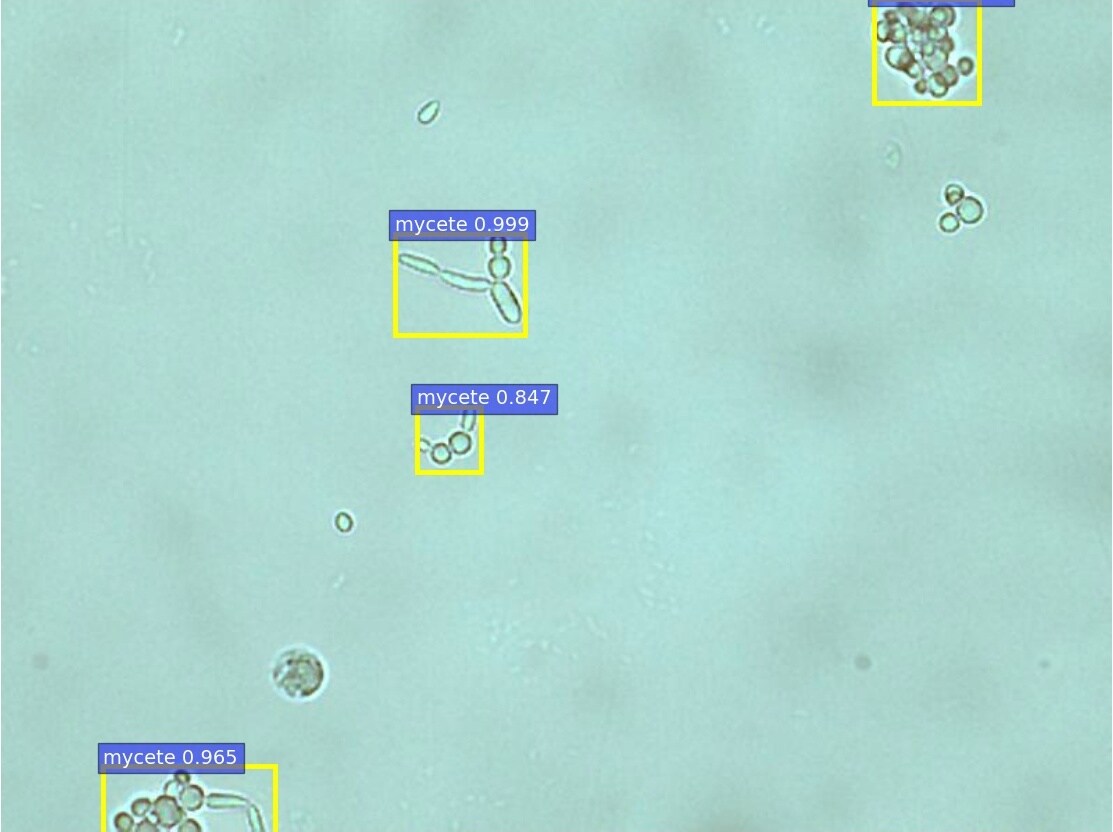

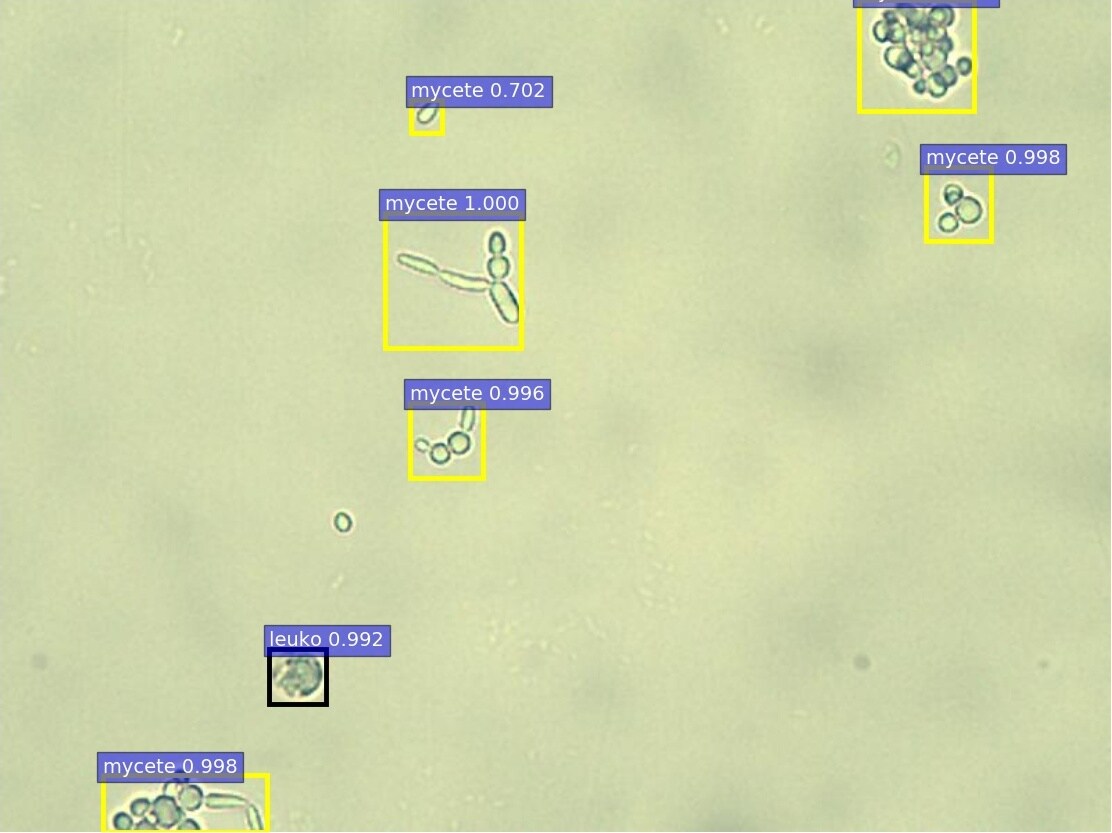

4 : detection results of mycete

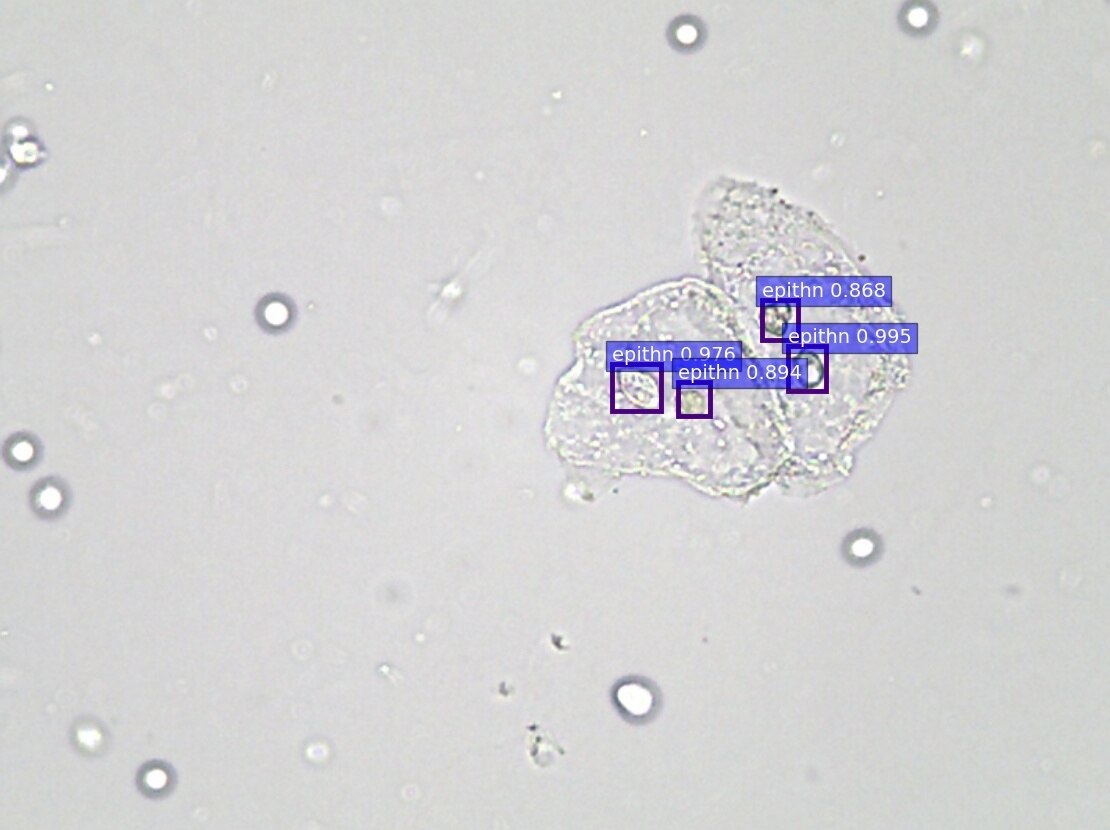

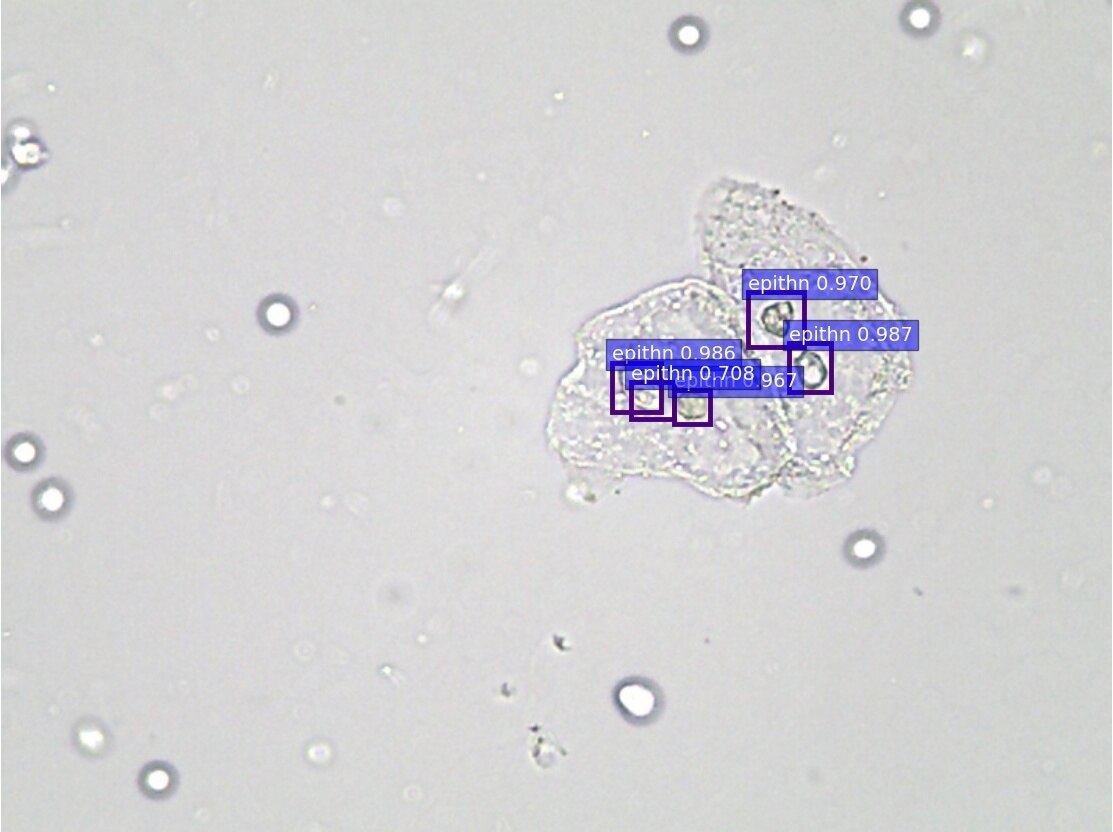

(a) annotations
(b) ZF
(c) VGG-16
(d) ResNet-50
(e) PVANet
(f) SSD300
5 : detection results of epithelial nuclei

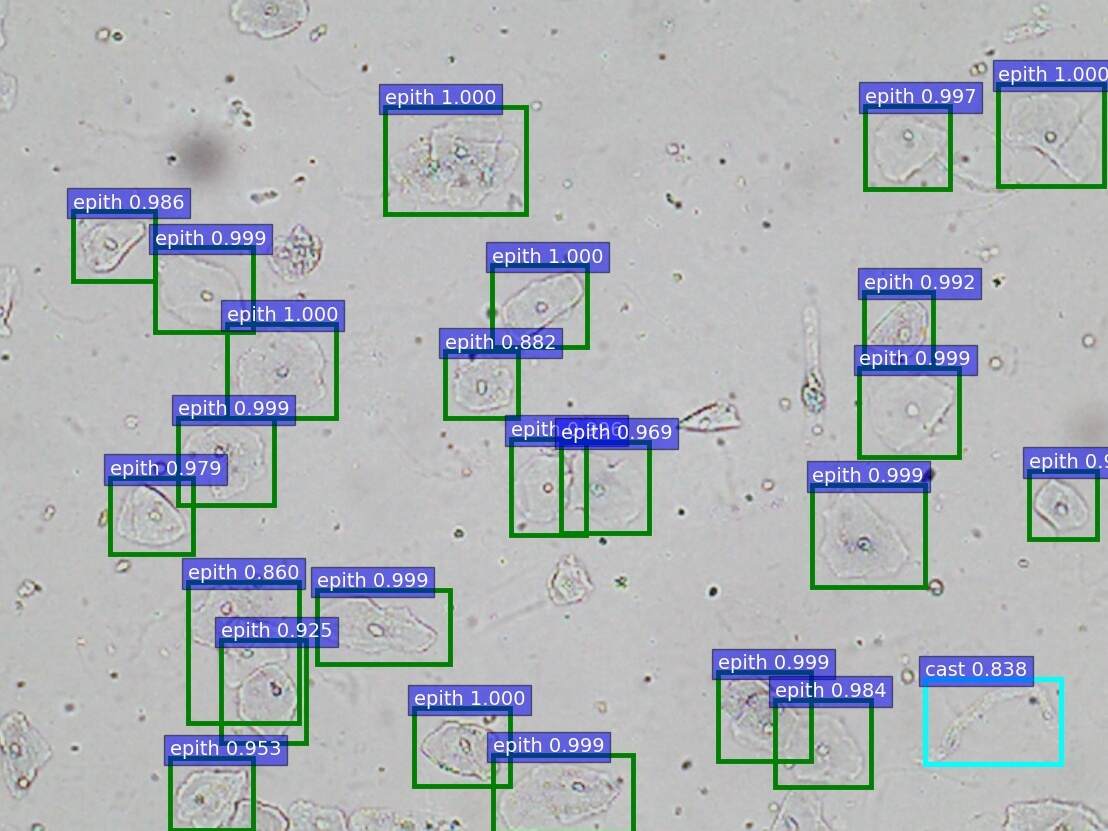

(a) annotations
(b) ZF
(c) VGG-16
(d) ResNet-50
(e) PVANet
(f) SSD300

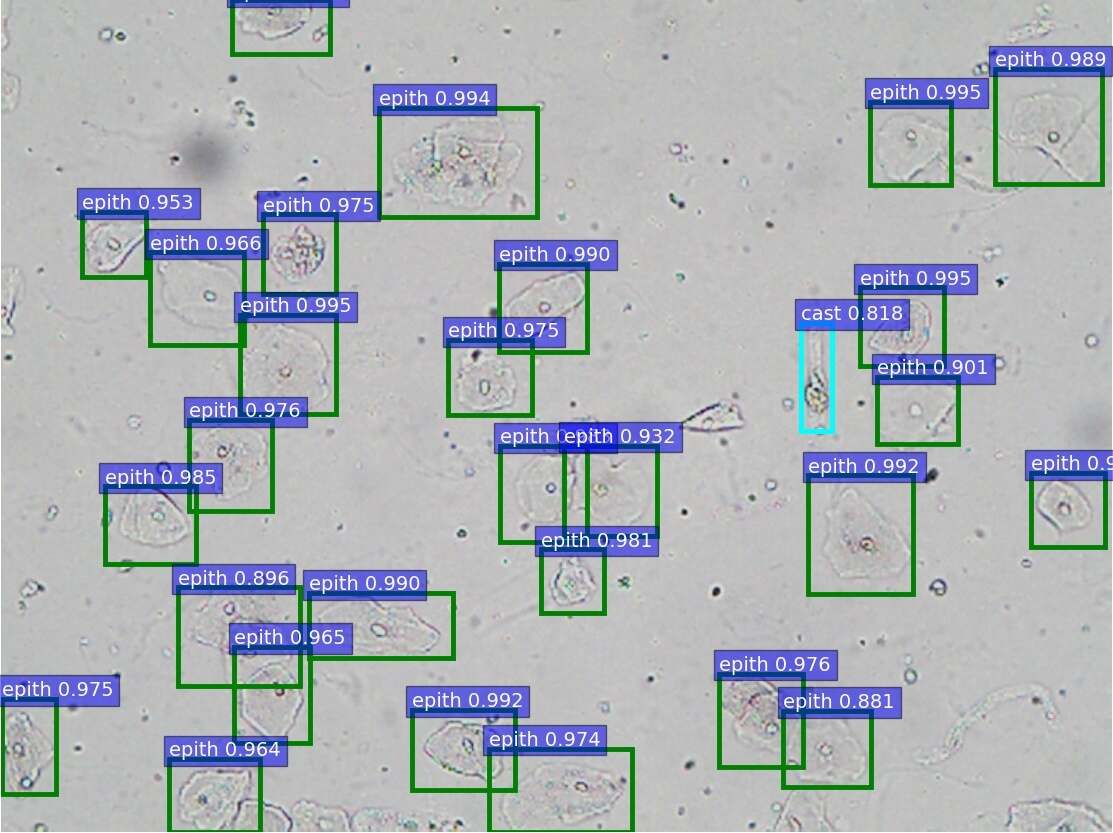

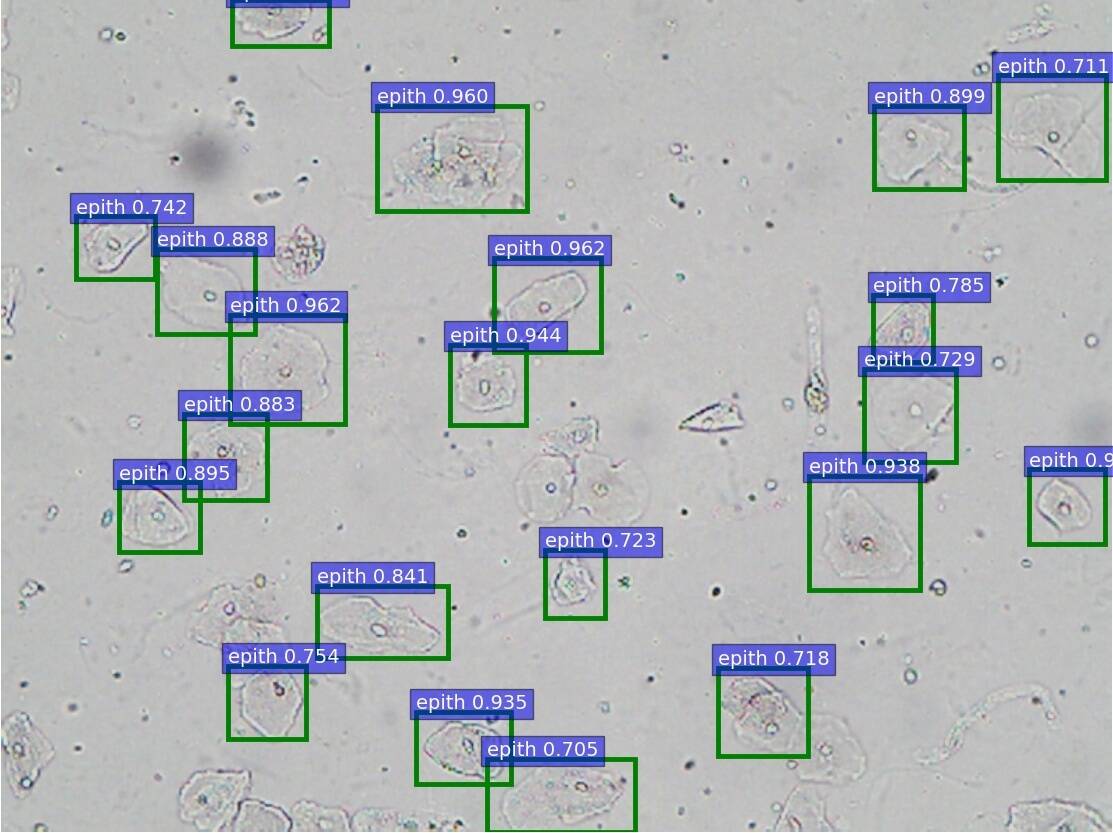

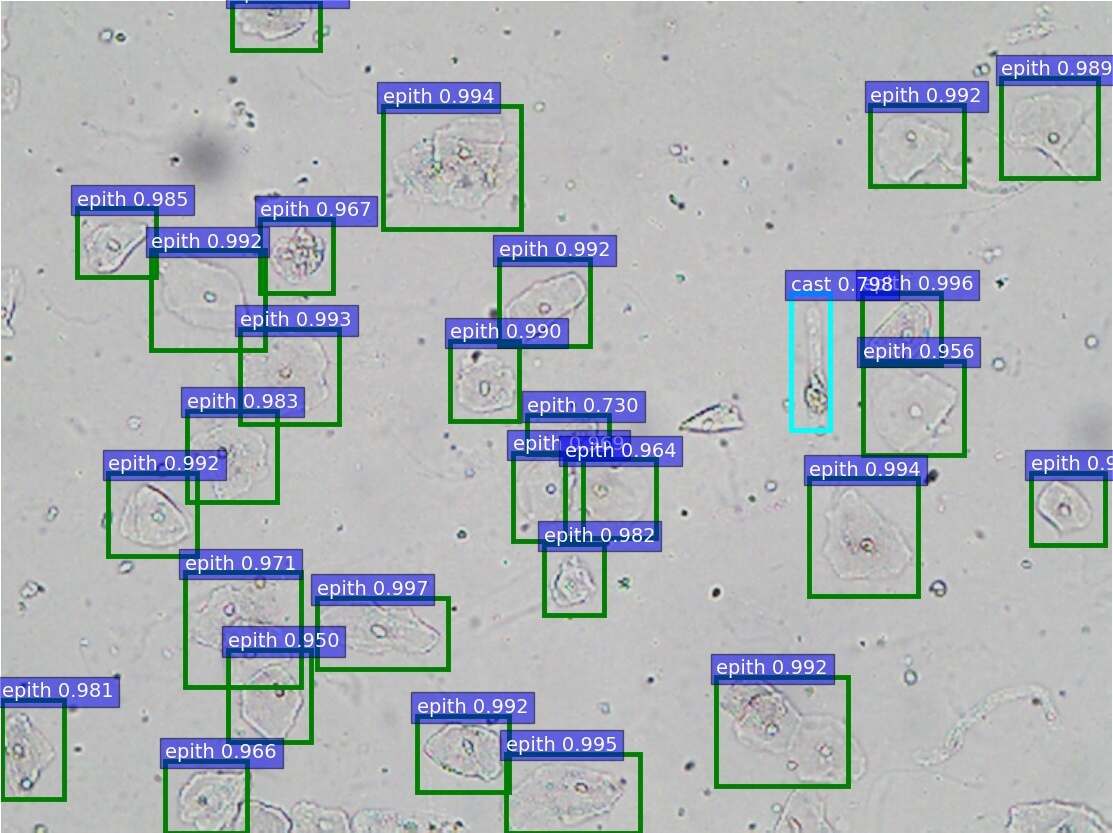

6 : detection results of epithelial cell

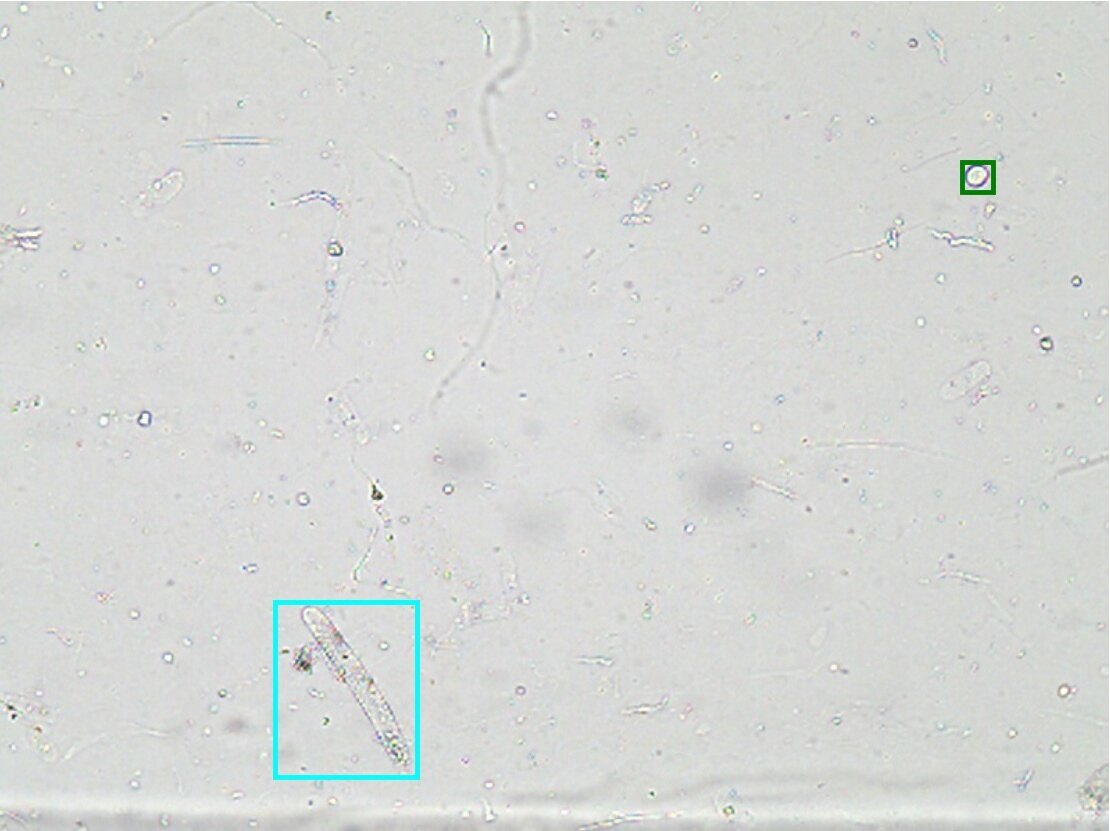

(a) annotations
(b) ZF
(c) VGG-16
(d) ResNet-50
(e) PVANet
(f) SSD300

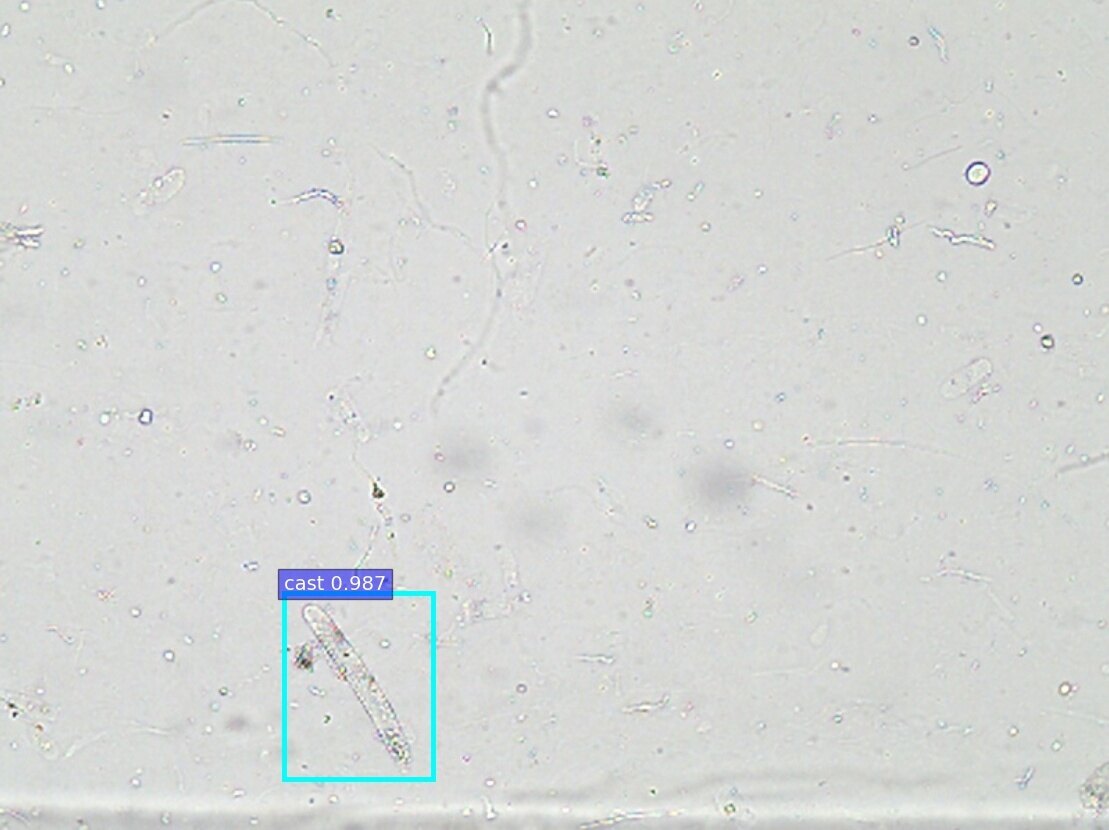

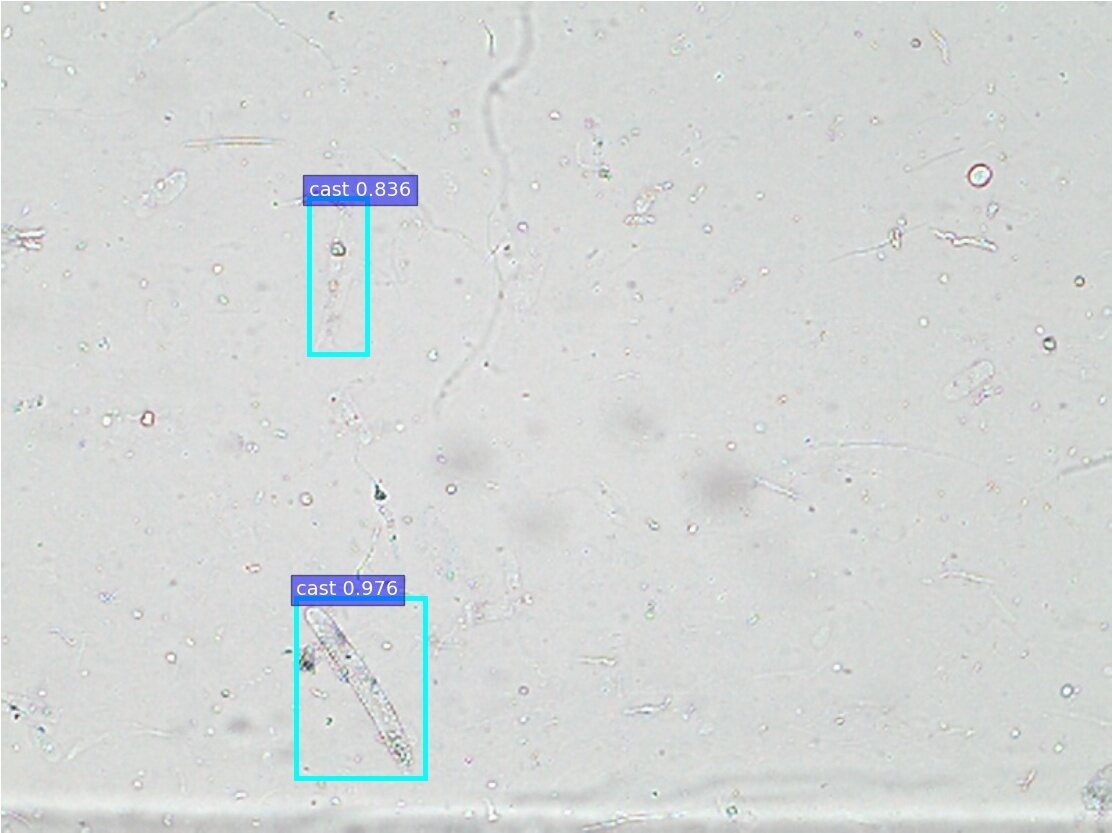

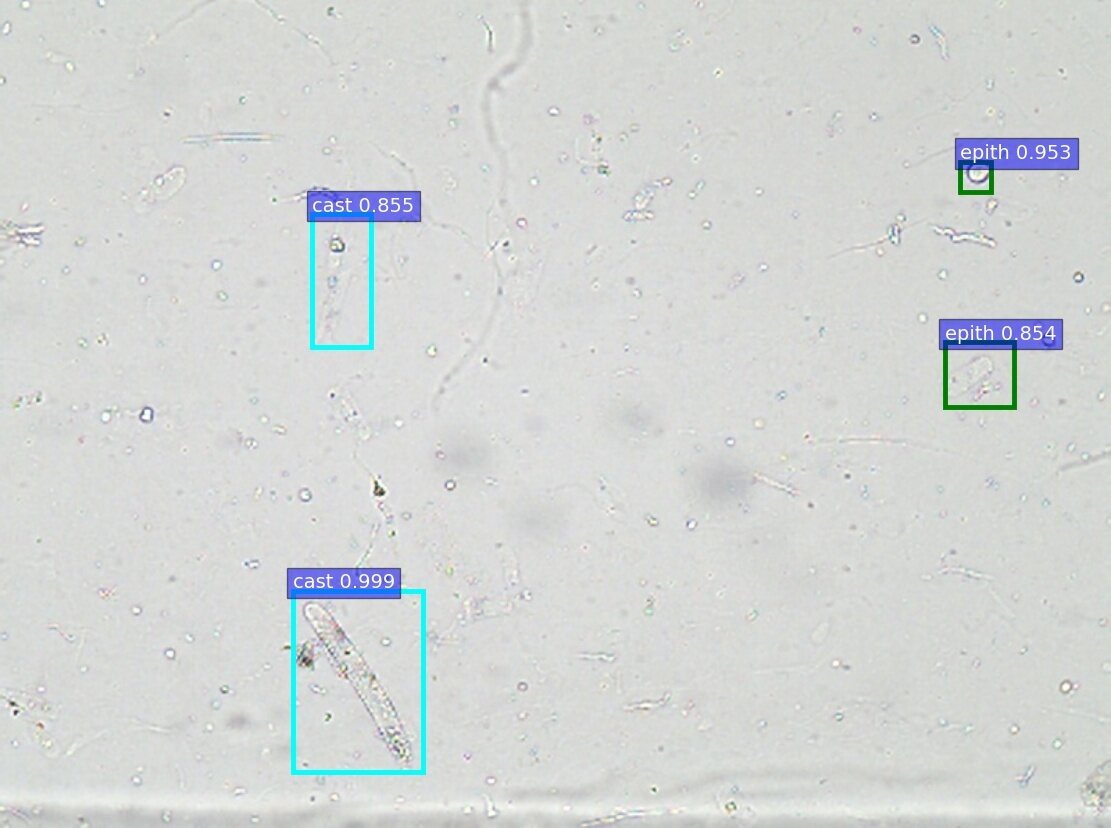

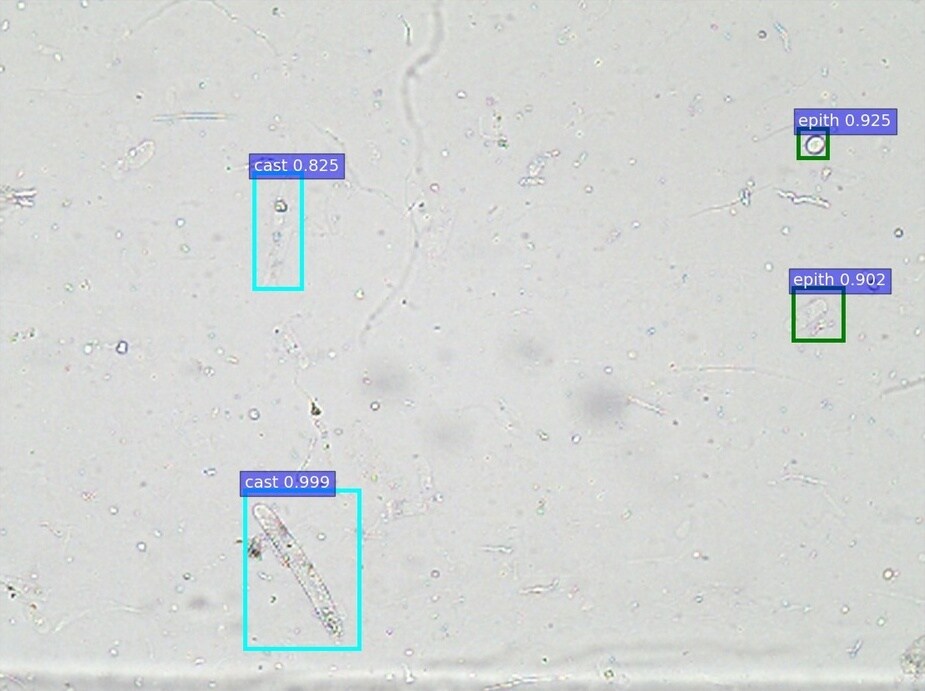

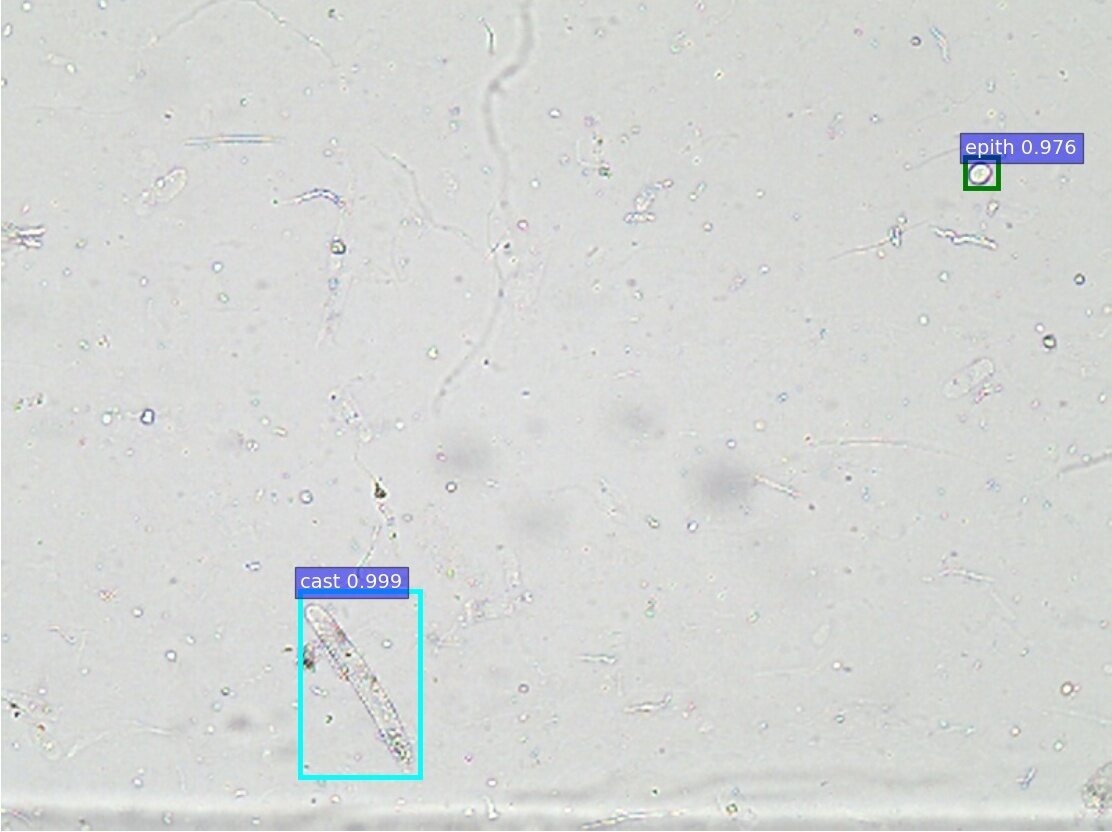

7 : detection results of cast
Figure 8: Selected detection examples of urine particles on urinalysis test set. We show detections with scores higher than 0.7. All examples are divided into 7 groups, where 5 groups are at high-power field (i.e., erythrocyte, leukocyte, crystal, mycete, epithelial nuclei ) and the other 2 groups at low-power field (i.e., epithelial cell, cast ). In each group: (a) shows original image with ground truth boxes; (b-d) are Faster R-CNN detections separately on ZF, VGG-16 and ResNet-50 networks with a anchor scales of ; (e) shows detection results on PVANet; (f) shows detection results on SSD300 model. For the ground truths and detection boxes, different categories use only different colors: eryth (red), leuko (black), epith (green), crystal (magenta), cast (cyan), mycete (yellow). As shown in this figure, the performance of SSD is inferior to Faster R-CNN, and it misses a lot of small objects.
