I Introduction

In recent years, the automation of data collection and recording implied a deluge of information about many different kinds of systems Golder and Macy (2011); Michel et al. (2011); Bollen et al. (2009); Amancio et al. (2012); Dean and Ghemawat (2008); Viana et al. (2013); Aggarwal and Zhai (2012); Ridgeway and Madigan (2003). As a consequence, many methodologies aimed at organizing and modeling data have been developed Fayyad et al. (1996). Such methodologies are motivated by their widespread application in diagnosis Bellazzi and Zupan (2008), education Abdullah et al. (2011), forecasting Khashei and Bijari (2010), and many other domains Joachims (1998). The definition, evaluation and application of these methodologies are all part of the machine learning field Witten and Frank (2005), which became a major subarea of computer science and statistics due to their crucial role in the modern world.

Machine learning encompasses different topics such as regression analysis

Wang et al. (2010)

, feature selection methods

Blum and Langley (1997), and classification Witten and Frank (2005). The latter involves assigning classes to the objects in a dataset. Three main approaches can be considered for classification: supervised, semi-supervised and unsupervised classification. In the former case, the classes, or labels, of some objects are known beforehand, defining the training set, and an algorithm is used to obtain the classification criteria. Semi-supervised classification deals with training the algorithm using both labeled and unlabeled data. They are commonly used when manually labeling a dataset becomes costly. Lastly, unsupervised classification, henceforth referred as clustering, deals with defining

classes from the data without knowledge of the class labels. The purpose of clustering algorithms is to identify groups of objects, or clusters, that are more similar to each other than to other clusters. Such an approach to data analysis is closely related to the task of creating a model of the data, that is, defining a simplified set of properties that can provide intuitive explanation about relevant aspects of a dataset. Clustering methods are generally more demanding than supervised approaches, but provide more insights about complex data. This type of classifiers constitute the main object of the current work.

Because clustering algorithms involve several parameters, often operate in high dimensional spaces, and have to cope with noisy, incomplete and sampled data, their performance can vary substantially for different applications and types of data. For such reasons, several different approaches to clustering have been proposed in the literature (e.g.  Jing et al. (2007); Suzuki and Shimodaira (2006); Camastra and Verri (2005)). In practice, it becomes a difficult endeavor, given a dataset or problem, to choose a suitable clustering approach. Nevertheless, much can be learned by comparing different clustering methods. Several previous efforts for comparing clustering algorithms have been reported in the literature Jung et al. (2014); Kinnunen et al. (2011); Abbas et al. (2008); Pirim et al. (2012); Costa et al. (2004); de Souto et al. (2008); Dougherty et al. (2002); Brohée and van Helden (2006); Maulik and Bandyopadhyay (2002); Fraley and Raftery (1998). Here, we focus on generating a diversified and comprehensive set of artificial data containing not only distinct number of classes, features, number of objects and separation between classes, but also a varied structure of the involved groups (e.g. possessing predefined correlation distributions between features). The purpose of using artificial data is the possibility to obtain an unlimited number of samples and to systematically change any of the aforementioned properties of a dataset. Such features allow the clustering algorithms to be comprehensive and strictly evaluated in a vast number of circumstances, and also grants the possibility of quantifying the sensitivity of the performance with respect to small changes in the data.

Here we associate performance with the similarity between the known labels of the objects and those found by the algorithm. Many measurements have been defined for quantifying such similarity Halkidi et al. (2001)

, we compare the Jaccard index

Jaccard (1908), Adjusted Rand index Hubert and Arabie (1985), Fowlkes-Mallows index E. B. Fowlkes (1983) and Normalized mutual information Strehl et al. (2002). A modified version of the procedure developed by Hirschberger et al. (2007) was used to create 270 distinct datasets, which were used in order to quantify the performance of the clustering algorithms. In Section IV.1 we describe the adopted procedure and the respective parameters used for data generation. Related approaches include Amancio et al. (2014).

Each clustering algorithm relies on a set of parameters that needs to be adjusted in order to achieve viable performance, which corresponds to an important point to be addressed while comparing clustering algorithms. A long standing problem in machine learning is the definition of a proper procedure for setting the parameter values Berkhin (2006). In principle, one can apply an optimization procedure (e.g., simulated annealing Hwang (1988)

or genetic algorithms

Goldberg and Holland (1988)) to find the parameter configuration providing the best performance of a given algorithm. Nevertheless, there are two major problems with such an approach. First, adjusting parameters to a given dataset may lead to overfitting Hawkins (2004). That is, the specific values found to provide good performance may lead to worse results if new data is considered. Second, parameter optimization can be unfeasible in some cases, given the time complexity of many algorithms, combined with their typically large number of parameters. Ultimately, many researchers resort to applying classifier or clustering algorithms using the default parameters provided by the software. Therefore, efforts are required for evaluating and comparing the performance of clustering algorithms in the optimization and default situations. In the following, we consider some representative examples of algorithms applied in the literature Berkhin (2006); Jain et al. (1999).

Clustering algorithms have been implemented in several programming languages and packages. During the development and implementation of such codes, it is common to implement changes or optimizations, leading to new versions of the original methods. The current work focuses on the comparative analysis of several clustering algorithm found in popular packages available in the R programming language R Development Core Team (2006). This choice was motivated by the popularity of the R language in the data mining field, and by virtue of the well-established clustering packages it contains. This study is intended to assist researchers who have programming skills in R language, but with little experience in clustering of data.

The algorithms are evaluated on three distinct situations. First, we consider their performance when using the default parameters provided by the packages. Then, we consider the performance variation when single parameters of the algorithms are changed, while the rest are kept at their default values. Finally, we consider the simultaneous variation of all parameters by means of a random sampling procedure. We compare the results obtained for the latter two situations with those achieved by the default parameters, in such a way as to investigate the possible improvements in performance which could be achieved by modifying the algorithms.

The text is divided as follows. We start by revising some of the main approaches to clustering algorithms comparison. Next, we describe the clustering methods considered in the analysis, we also present the R packages implementing such methods. In Section 4 we detail the data generation method and the performance measurements used to compare the algorithms. In Section 5 we present the performance results obtained for the default parameters (Section 5.1), for single parameter variation (Section 5.2) and for random parameter sampling (Section 5.3).

Ii Related works

Previous approaches for comparing the performance of clustering algorithms can be divided according to the nature of used datasets. While some studies use either real-world or artificial data, others employ both types of datasets to compare the performance of several clustering methods.

A comparative analysis using real world dataset is presented in several works Kou et al. (2014); Costa et al. (2004); Erman et al. (2006); de Souto et al. (2008); Kinnunen et al. (2011); Jung et al. (2014). Some of these works are reviewed briefly in the following. In Kou et al. (2014), the authors propose an evaluation approach based in a multiple criteria decision making in the domain of financial risk analysis over three real world credit risk and bankruptcy risk datasets. More specifically, clustering algorithms are evaluated in terms of a combination of clustering measurements, which includes a collection of external and internal validity indexes. Their results show that no algorithm can achieve the best performance on all measurements for any dataset and, for this reason, it is mandatory to use more than one performance measure to evaluate clustering algorithms.

In Kinnunen et al. (2011)

, a comparative analysis of clustering methods was performed in the context of text-independent speaker verification task, using three dataset of documents. Two approaches were considered: clustering algorithms focused in minimizing a distance based objective function and a Gaussian models-based approach. The following algorithms were compared: k-means, random swap, expectation-maximization, hierarchical clustering, self-organized maps (SOM) and fuzzy c-means. The authors found that the most important factor for the success of the algorithms is the model order, which represents the number of centroid or Gaussian components (for Gaussian models-based approaches) considered. Overall, the recognition accuracy was similar for clustering algorithms focused in minimizing a distance based objective function. When the number of clusters was small, SOM and hierarchical methods provided significantly poorer accuracy than the other methods. Finally, a comparison of the computational efficiency of the methods revealed that the split hierarchical method is the fastest clustering algorithm in the considered dataset.

In de Souto et al. (2008)

, five clustering methods were studied: k-means, multivariate Gaussian mixture, hierarchical clustering, spectral and nearest neighbor methods. Four proximity measures were used in the experiments: pearson and spearman correlation coefficient, cosine similarity and the euclidean distance. The algorithms were evaluated in the context of 35 gene expression data from either Affymetrix or cDNA chip platforms, using the adjusted rand index for performance evaluation. The multivariate Gaussian mixture method provided the best performance in recovering the actual number of clusters of the datasets. The k-means method displayed similar performance. In this same analysis, the hierarchical method led to limited performance, while the spectral method showed to be quite sensitive to the proximity measure employed.

In Costa et al. (2004), experiments were performed to compare five different types of clustering algorithms: CLICK, self organized mapping-based method (SOM), k-means, hierarchical and dynamical clustering. Data sets of gene expression time series of the Saccharomyces cerevisiae yeast were used. A k-fold cross-validation procedure was considered to compare different algorithms. The authors found that k-means, dynamical clustering and SOM obtained high accuracy in all experiments. On the other hand, hierarchical clustering presented a poor performance in clustering larger datasets, yielding low accuracy in some experiments.

A comparative analysis using artificial data is presented in Mingoti and Lima (2006); Mangiameli et al. (1996); Parsons et al. (2004a). In Parsons et al. (2004a), two subspace clustering methods were compared: MAFIA (Adaptive Grids for Clustering Massive Data Sets) Burdick et al. (2001) and FINDIT (A fast and intelligent subspace clustering algorithm using dimension voting) Parsons et al. (2004b)

. The artificial data, modeled according to a normal distribution, allowed the control of the number of dimensions and instances. The methods were evaluated in terms of both scalability and accuracy. In the former, the running time of both algorithms were compared for different number of instances and features. In addition, the authors assessed the ability of the methods in finding adequate subspaces for each cluster. They found that MAFIA discovered all relevant clusters, but one significant dimension was left out in most cases. Conversely, the FINDIT method performed better in the task of identifying the most relevant dimensions. Both algorithms were found to scale linearly with the number of instances, however MAFIA outperformed FINDIT in most of the tests.

Another common approach for comparing clustering algorithms considers using a mixture of real world and artificial data (e.g.  Verma and Meila (2003); Maulik and Bandyopadhyay (2002); Pirim et al. (2012); Dougherty et al. (2002); Brohée and van Helden (2006)). In Maulik and Bandyopadhyay (2002), the performance of k-means, single linkage and simulated annealing (SA) was evaluated, considering different partitions obtained by validation indexes. The authors used two real world datasets obtained from UCI and three artificial datasets (having two dimensions and 10 clusters). The authors proposed a new validation index called index that measures the separation based on the maximum distance between clusters and compactness based on the sum of distances between objects and their respective centroids. They found that such an index was the most reliable among other considered indices, reaching its maximum value when the number of clusters is properly chosen. In addition, the authors concluded that the studied SA-based algorithms outperformed the traditional k-means.

A systematic quantitative evaluation of four graph-based clustering methods was performed in Brohée and van Helden (2006). The compared methods were: markov clustering (MCL), restricted neighborhood search clustering (RNSC), super paramagnetic clustering (SPC), and molecular complex detection (MCODE). Six datasets modeling protein interactions in the Saccharomyces cerevisiae and 84 random graphs were used for the comparison. For each algorithm, the robustness of the methods was measured in a twofold fashion: the variation of performance was quantified in terms of changes in the (i) methods parameters and (ii) dataset properties. In the latter, connections were included and removed to reflect uncertainties in the relationship between proteins. The restricted neighborhood search clustering method turned out to be remarkably robust to variations in the choice of method parameters, whereas the other algorithms were found to be more robust to dataset alterations.

Iii Clustering methods

Many different types of clustering methods have been proposed in the literature Guha et al. (1998); Aggarwal and Reddy (2013a); Karypis et al. (1999); Huang et al. (2013). Despite such a diversity, some methods are more frequently used Wu et al. (2008). Also, many of the commonly employed methods are defined in terms of similar assumptions about the data (e.g., k-means and k-medoids) or consider analogous mathematical concepts (e.g, similarity matrices for spectral or graph clustering) and, consequently, should provide similar performance in typical usage scenarios. Therefore, in the following we consider a choice of clustering algorithms from different families of methods. Several taxonomies have been proposed to organize the many different types of clustering algorithms into families Jain et al. (2004); Fraley and Raftery (1998). While some taxonomies categorize the algorithms based on their objective functions Jain et al. (2004), others aim at the specific structures desired for the obtained clusters (e.g. hierarchical) Fraley and Raftery (1998). Here we consider the algorithms indicated in Table 1 as examples of the categories indicated in the same table. The algorithms represent some of the main types of methods in the literature. Note that some algorithms are from the same family, but in these cases they posses notable differences in their applications (e.g., treating very large datasets using clara). In Section S1 of the supplementary material, we provide a short description about the parameters of each algorithm.

Algorithm name Category Function in R Library in R
k-means Partitional k-means stats
clara Partitional clara cluster
hierarchical Linkage agnes cluster
EM Model-based mstep, estep mclust
hcmodel Model-based hc mclust
spectral Spectral methods specc kernlab
subspace Based on subspaces hddc HDclassif
Table 1: Clustering methods considered in our analysis and the respective libraries and functions in R employing the methods. The first column shows the name of the algorithms used throughout the text. The second column indicates the category of the algorithms. The third and fourth columns contain, respectively, the function name and R library of each algorithm.

Regarding partitional approaches, the k-means MacQueen et al. (1967) algorithm is widely used by researchers Wu et al. (2008). This method requires as input parameters the number of groups () and a distance metric. Initially, each data point is associated with one of the clusters according to its distance to the centroids (clusters centers) of each cluster. An example is shown in Figure 1(a), where black points correspond to centroids and the remaining points have the same color if the centroid that is closest to them is the same. Then, new centroids are calculated, and the classification of the data points is repeated for the new centroids, as indicated in Figure 1(b), where gray points indicate the position of the centroids in the previous iteration. The process is repeated until no significant changes of the centroids positions is observed at each new step, as shown in Figures 1(c) and (d).


Figure 1: Illustration of the k-means clustering method. Each plot shows the partition obtained after specific iterations of the algorithm. The centroids of the clusters are shown as a black marker. Points are colored according to their assigned clusters. Gray markers indicate the position of the centroids in the previous iteration. The dataset contains 2 clusters, but seeds were used in the algorithm.

The a priori setting of the number of clusters is the main limitation of the k-means algorithm. This is so because the final classification can strongly depend on the choice of the number of centroids MacQueen et al. (1967). In addition, the k-means is not particularly recommended in cases where the clusters do not show convex distribution or have very different sizes Jain (2010); Steinley (2006). Moreover, the k-means algorithm is sensitive to the initial seed selection Jain et al. (1999). Given these limitations, many modifications of this algorithm have been proposed Dunn (1973); Huang (1998); Raykov et al. (2016), such as the k-medoid Kaufman and Rousseeuw (1990) and k-means Arthur and Vassilvitskii (2007)

. Nevertheless, this algorithm, besides having low computational cost, can provide good results in many practical situations such as in anomaly detection

Sequeira and Zaki (2002) and data segmentation Williams and Huang (1997). The R routine used for k-means clustering was the k-means from the stats package.

Another interesting example of partitional clustering algorithms is the clustering for large applications (clara) Kaufman and Rousseeuw (1990). This method takes into account multiple fixed samples of the dataset to minimize sampling bias and, subsequently, select the best medoids among the chosen samples, where a medoid is defined as the object for which the average dissimilarity to all other objects in its cluster is minimal. This method is efficient for large amounts of data because it does not explore the whole neighborhood of the data points Han and Kamber (2006), although the quality of the results have been found to strongly depend on the number of objects in the sample data Huang (1998). The clara algorithm employed in our analysis was from the clara function contained in the cluster package.

Clustering methods that take into account the linkage between data points, traditionally known as hierarchical methods, can be subdivided into two groups: agglomerative and divisive Jain (2010). In an agglomerative hierarchical clustering algorithm, initially, each object belongs to a respective individual cluster. Then, after successive iterations, groups are merged until stop conditions are reached. On the other hand, a divisive hierarchical clustering method starts with all objects in a single cluster and, after successive iterations, objects are separated into clusters. There are two main packages in the R language that provide routines for performing hierarchical clustering, they are the stats and cluster. Here we consider the agnes routine from the cluster package. Four well-known linkage criteria are available in agnes, namely single linkage, complete linkage, Ward’s method, and weighted average linkage Lance and Williams (1967).

Model-based methods can be regarded as a general framework for estimating the maximum likelihood of the parameters of an underlying distribution to a given dataset. A well-known instance of model-based methods is the expectation-maximization algorithm (EM). Most commonly, one considers that the data from each class can be modeled by multivariate normal distributions, and, therefore, the distribution observed for the whole data can be seen as a mixture of such normal distributions. A maximum likelihood approach is then applied for finding the most probable parameters of the normal distributions of each class. The EM approach for clustering is particularly suitable when the dataset is incomplete

Redner and Walker (1984); Dempster et al. (1977). On the other hand, the clusters obtained from the method may strongly depend on the initial conditions Aggarwal and Reddy (2013b). In addition, the algorithm may fail to find very small clusters Fraley and Raftery (1998, 2002). In the R language, functions estep and mstep from the mclust Fraley and Raftery (1999, 2003) package can be used for employing the EM method. A related algorithm that is also analyzed in the current study is the hcmodel, which can be found in the hc function of the mclust

package. The hcmodel algorithm is also based on Gaussian-mixture evaluation, but it contains many additional steps such as an agglomerative procedure and the adjustment of model parameters through a Bayes factor selection with the BIC aproximation

Schwarz et al. (1978).

Another class of methods considered in our analyses is spectral clustering. These methods emerged as an alternative to traditional clustering approaches that were not able to define nonlinear discriminative hypersurfaces

Nascimento and De Carvalho (2011). The main advantage of spectral methods lies on the definition of an adjacency structure from the original dataset, which avoids imposing a prefixed shape for the clusters Filippone et al. (2008)

. The first step of the method is to construct an affinity matrix

, where the value in the -th row and -th column indicates the similarity between points and

. This matrix can be regarded as a weighted graph representation of the data. Then, the eigenvalues and eigenvectors of the matrix are used for partitioning the data according to a given criterion. Many different types of similarity matrices can be used, a popular choice being the Laplacian matrix

Von Luxburg (2007). One disadvantage of spectral methods is the costly process of calculating the eigenvectors of the similarity matrix Aggarwal and Reddy (2013b). The function specc from the kernlab R package, which employs a kernel function to compute the affinity matrix, was used for evaluating the performance of the spectral method.

In recent years, the efficient handling of high dimensional data has become of paramount importance and, for this reason, this feature has been desired when choosing the most appropriate method for obtaining accurate partitions. To tackle high dimensional data, subspace clustering was proposed

Parsons et al. (2004b). This method works by considering the similarity between objects with respect to distinct subsets of the attributes Kriegel et al. (2012). The motivation for doing so is that different subsets of the attributes might define distinct separations between the data. Therefore, the algorithm can identify clusters that exist in multiple, possibly overlapping, subspaces Parsons et al. (2004b). Subspace algorithms can be categorized into four main families Sim et al. (2013), namely: lattice, statistical, approximation and hybrid. The hddc function from package HDclassif implements the subspace clustering method in the R language. The algorithm is based on statistical models, with the assumption that all attributes may be relevant for clustering Bouveyron et al. (2007). Some parameters of the algorithm, such as the number of clusters or model to be used, are estimated using an EM procedure.

Iv Materials and Methods

iv.1 Artificial datasets

The proper comparison of clustering algorithms requires a robust artificial data generation method to produce a variety of datasets. For such a task, we apply a methodology based on a previous work by Hirschberger et al. Hirschberger et al. (2007). The procedure can be used to generate samples characterized by features and separated into

classes. In addition, the method can control both the variance and correlation distributions among the features for each class. The artificial dataset can also be generated by varying the number of objects per class,

, and the expected separation, , between the classes.

The main difficult in generating datasets with the aforementioned properties is the definition of a proper covariance matrix for the considered features. A valid covariance matrix must be positive semi-definite Horn and Johnson (2012), which is hard to ensure. However, for a given matrix , the matrix is guaranteed to be positive semi-definite Horn and Johnson (2012)

. Thus any random matrix

can define a valid respective covariance matrix. As a consequence, additional constraints on matrix can be imposed for the generation of datasets with the required properties. Hirschberger et al. Hirschberger et al. (2007)

developed a robust approach to generate such a matrix given the first two statistical moments of the co-variance distribution of a set of

artificial features. The resulting covariance matrix contains variances and co-variances drawn from such distribution. Here we consider a normal distribution to represent the elements of .

For each class in the dataset, a covariance matrix of size is generated, and this matrix is used to define objects for the classes. This means that pairs of features can have distinct correlation for each generated class. Then, the generated class values are divided by and translated by , where

is a random variable described by a uniform random distribution defined in the interval

. Parameter is associated with the expected distances between classes. Such distances can have different impacts on clusterization depending on the number of objects and features used in the dataset. Notice that such a procedure for the generation of artificial datasets was previously used in Amancio et al. (2014).

In Figure 2, we show some examples of artificially generated data. For visualization purposes, all considered cases contain features. The parameters used for each case are described in the caption of the figure. Note that the methodology can generate a variety of dataset configurations, including variations in features correlation for each class.

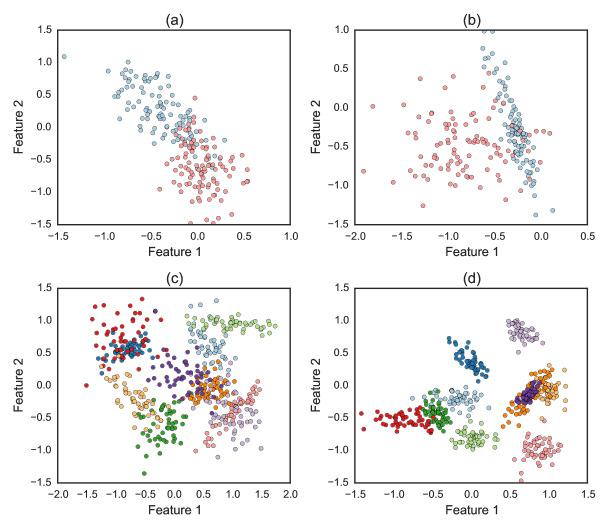

Figure 2: Examples of artificial datasets generated by the methodology. The parameters used for each case are (a) =2, =100 and =3.3. (b) =2, =100 and =2.3. (c) =10, =50 and =4.3. (d) =10, =50 and =6.3. Note that each class can present highly distinct properties due to differences in correlation between their features.

In this study, we considered the following values for the artificial dataset parameters:

  • Number of classes (): The generated datasets are divided into classes.

  • Number of features (): The number of features to characterize the objects is .

  • Number of object per class (): we considered objects per class. In our experiments, in a given generated dataset, the number of instances for each class is constant.

  • Mixing parameter (): This parameter has a non-trivial dependence on the number of classes and features. Therefore, for each dataset, the value of this parameter was tuned so that no algorithm would achieve an accuracy of 0% or 100%.

We refer to datasets containing 2, 10 and 50 features as DB2F, DB10F, DB50F, respectively. Such datasets are composed of all considered number of classes, C=, and 50 elements for each class (i.e., Ne=50). In some cases, we also indicate the number of classes considered for the dataset. For example, dataset DB2C10F contains 2 classes, 10 features and 50 elements per class. For each case, we consider 10 realizations of the dataset. Therefore, 270 datasets were generated in total.

iv.2 Evaluating the performance of clustering algorithms

The evaluation of the quality of the generated partitions is one of the most important issues in cluster analysis

Halkidi et al. (2001). Here, we adopt the most traditional indexes, which are the Jaccard Index (J) Jaccard (1908), Adjusted Rand Index (ARI) Hubert and Arabie (1985), Fowlkes Mallows Index (FM) E. B. Fowlkes (1983) and Normalized Mutual Information (NMI) Strehl et al. (2002).

In order to define the cluster quality metrics, we consider the following concepts. Let represent the original partition of a dataset, where denote a subset of the objects associated with cluster . Equivalently, let represent the partition found by a cluster algorithm. We denote as the number of pairs of objects that are placed in the same group in both and . Mathematically, can be computed by

(1)

where is the number of objects belonging to both subset and .
Let indicate the number of pairs of objects belonging to the same group in but different groups in , i.e.

(2)

where . Let be the number of pairs of objects belonging to different groups in and to the same group in , which can be written as

(3)

where .

The Jaccard Index (), Adjusted Rand Index (ARI) and Fowlkes Mallows (FM) index can then be defined based on , , :

(4)
(5)
(6)

We also consider the normalized mutual information(NMI) as a quality metric because it quantifies the mutual dependence between two random variables based on well-established concepts of information theory Cover and Thomas (2012). The NMI measure is defined as Strehl and Ghosh (2002)

(7)

where is the random variable denoting the cluster assignments of the points, and is the random variable denoting the underlying class labels on the points. is the mutual information between the random variables and . is the Shannon entropy of . is the conditional entropy of given .

Note that when the two sets of labels have a perfect one-to-one correspondence, the quality measures are all equal to unity.

V Results and Discussion

The accuracy of each considered clustering algorithm was evaluated using three methodologies. In the first methodology, we consider the default parameters of the algorithms provided by the R package. The reason for measuring performance using the default parameters is to consider the case where a researcher applies the classifier to a dataset without any parameter adjustment. This is a common scenario when the researcher is not a machine learning expert. In the second methodology, we quantify the influence of the algorithms parameters on the accuracy. This is done by varying a single parameter of an algorithm while keeping the others at their default values. The third methodology consists in analyzing the performance by randomly varying all parameters of a classifier. This procedure allows the quantification of certain properties such as the maximum accuracy attained and the sensibility of the algorithm to parameter variation.

v.1 Performance when using default parameters

In this experiment, we evaluated the performance of the classifiers for all datasets described in Section IV.1. All unsupervised algorithms were set with their default configuration of parameters. For each algorithm, we divide the results according to the number of features contained in the dataset. In other words, for a given number of features, , we used datasets with classes, and objects for each class. Thus, the performance results obtained for each corresponds to the performance averaged over distinct number of classes and objects per class. We note that the algorithm based on subspaces cannot be applied to datasets containing 2 features, and therefore its accuracy was not quantified for such datasets.

In Figure 3, we show the obtained values for the four considered performance metrics. The results indicate that all performance metrics provide similar results. Also, the hierarchical method seems to be strongly affected by the number of features in the dataset. In fact, when using 50 features the hierarchical method provided the worst results among all methods. The k-means and spectral methods benefit from an increment in the number of features. Interestingly, the hcmodel has a better performance in the datasets containing 10 features than in those containing 2 and 50 features, which suggests an optimum performance for this algorithm for datasets containing around 10 features. It is also clear that for 2 features all algorithms display similar performance, while a larger number of features induce marked differences in performance. In particular, for 50 features, the spectral algorithm provides the best results among all classifiers.

Figure 3: Average performance of the seven considered clustering algorithms according to the number of features in the dataset. All datasets described in Section IV.1 were used for evaluation. The averages were calculated separately for datasets containing 2, 10 and 50 features. The considered performance indexes are (a) adjusted Rand, (b) Jaccard, (c) normalized mutual information and (d) Fowlkes Mallows.

We use the Kruskal-Wallis test

McKight and Najab (2010), a one-way ANOVA nonparametric test, to explore the statistical differences in performance when considering distinct number of features in clustering methods. First, we test if the difference in performance is significant for 2 features. For this case, the Kruskal-Wallis test returns a p-value of , with a chi-squared distance of . Therefore, the difference in performance do not seem to be statistically significant. When considering the results for 10 features, a p-value of is returned by the Kruskal-Wallis test, with a chi-squared distance of ). For 50 features, the test returns a p-value of , with a chi-squared distance of ). This means that, in contrast for the case of 2 features, the algorithms indeed have significant differences in performance for 10 and 50 features, as indicated in Figure 3.

In order to verify the influence of the number of objects used for classification, we also calculated the average accuracy for datasets separated according to the number of objects . The result is shown in Figure 4. We observe that the impact that changing has on the accuracy depends on the algorithm. Surprisingly, the hierarchical, k-means and clara methods attain lower accuracy when more data is used. The result indicates that these algorithms are less robust with respect to the larger overlap between the clusters due to an increase in the number of objects. We also observe that a larger markedly benefits the performance of the subspace method. This results is in agreement with Bergé et al. (2012).

Figure 4: Average performance of the seven considered clustering algorithms according to the number of objects per class in the dataset. All datasets described in Section IV.1 were used for evaluation. The averages were calculated separately for datasets containing 5, 50 and 100 objects per class. The considered performance indexes are (a) adjusted Rand, (b) Jaccard, (c) normalized mutual information and (d) Fowlkes Mallows.

It is also interesting to verify the performance of the clustering algorithms when setting distinct values for the expected number of classes in the dataset. Such a value is usually not known beforehand in real datasets. For instance, one might expect the data to contain 10 classes, and, as a consequence, set in the algorithm, but the objects may actually be better divided into 12 classes. An accurate algorithm should still provide reasonable results when setting a wrong number of classes. Considering this, we varied for each algorithm and verified the resulting variation in accuracy. In order to simplify the analysis, we consider a two-fold variation of datasets: (i) a dataset comprising objects described by 10 features and divided into 10 classes (DB10C10F); and (ii) a dataset comprising objects described by 10 features and divided into 2 classes (DB2C10F). In Figures 5 and 5, we show the average ARI and Jaccard indexes calculated for DB10C10F, while the same indexes for DB2C10F are shown in Figures 5 and 5. The results for DB10C10F indicate that setting leads to a markedly worse performance than cases where , which suggests that a slight overestimation of the number of classes does not lead to much worse performance. Therefore, a good strategy for choosing seems to be setting it to values that are slightly larger than the number of expected classes. An interesting behavior is observed for hierarchical clustering. The accuracy improves as the number of expected classes increases. This behavior is due to the default value of the method parameter, which is set as “average”. The “average” value means that the unweighted pair group method with arithmetic mean (UPGMA) is used to agglomerate the points. UPGMA is the average of the dissimilarities between the points in one cluster and the points in the other cluster. The poor performance of UPGMA in recovering the original groups, even with high subgroup differentiation, is because UPGMA tends to result in highly unbalanced clusters, that is, the majority of the objects are assigned to a few clusters while many other clusters contain only one or two objects.

Figure 5: Performance of the algorithms when changing the expected number of clusters in the dataset. Plots (a) and (b) correspond to the ARI and Jaccard indexes averaged for all datasets containing 10 classes and 10 features (DB10C10F). Plots (c) and (d) correspond to the same indexes averaged for datasets containing 2 classes and 10 features (DB2C10F). The dashed red line indicates the actual number of clusters in the dataset.

The results obtained for the default parameters are summarized in Table 2. The table is divided into four parts, each part corresponds to a performance metric. For each performance metric, the value in row and column of the table represents the average performance of the method in row minus the average performance of the method in column . The last column of the table indicates the average performance of each algorithm. We note that the averages were taken over all generated datasets.

Algorithm hierarchical k-means clara spectral hcmodel subspace EM MAcc
NMI hierarchical - -22.68% -20.70% -35.17% -20.07% -16.60% -7.51 % 45.53%
k-means 22.68% - 1.98% -12.49% 2.61% 6.08% 15.17 % 68.21%
clara 20.70% -1.98% - -14.47% 0.63% 4.10% 13.19% 66.23%
spectral 35.17% 12.49% 14.47% - 15.10% 18.57% 27.66 % 80.70%
hcmodel 20.07% -2.61% -0.63 % -15.10% - 3.47% 12.56% 65.60%
subspace 16.60% -6.08% -4.10% -18.57% -3.47 - 9.09% 62.13%
EM 7.51% -15.17% -13.19% -27.66% -12.56 -9.09% - 53.04%
ARI hierarchical - -27.38% -25.03% -40.99% -18.72% -33.77% -9.27 % 24.81%
k-means 27.38% - 2.35% -13.61% 8.66% -6.39% 18.11% 52.19%
clara 25.03% -2.35% - -15.96% 6.31% -8.74% 15.76% 49.84%
spectral 40.99% 13.61% 15.96% - 22.27% 7.22% 31.72% 65.80%
hcmodel 18.72% -8.66% -6.31% -22.27% - -15.05% 9.45% 43.53%
subspace 33.77% 6.39% 8.74% -7.22% 15.05 - 24.50% 58.58%
EM 9.27% -18.11% -15.76% -31.72% -9.45 -24.50% - 34.08%
Jaccard hierarchical - -14.45% -11.78% -26.98% -8.50% -23.53% -2.58% 33.24%
k-means 14.45% - 2.67% -12.53% 5.95% -9.08% 11.87% 47.69%
clara 11.78% -2.67% - -15.20% 3.28% -11.75% 9.20% 45.02%
spectral 26.98% 12.53% 15.20% - 18.48% 3.45% 24.40% 60.22%
hcmodel 8.50% -5.95% -3.28% -18.48 - -15.03% 5.92% 41.74%
subspace 23.53% 9.08 % 11.75 % -3.45% 15.03 - 20.95% 56.77%
EM 2.58% -11.87% -9.20% -24.40% -5.92 -20.95% - 35.82%
FM hierarchical - -11.66% -8.29% -21.87% -6.61% -18.31% -0.19 % 51.40%
k-means 11.66% - 3.37% -10.21% 5.05% -6.65% 11.47% 63.06%
clara 8.29% -3.37% - -13.58% 1.68% -10.02% 8.10% 59.69%
spectral 21.87% 10.21% 13.58% - 15.26% 3.56% 21.68% 73.27%
hcmodel 6.61% -5.05% -1.68% -15.26 % - -11.70% 6.42% 58.01%
subspace 18.31% 6.65% 10.02% -3.56% 11.70 - 18.12% 69.71%
EM 0.19% -11.47% -8.10% -21.68% -6.42 -18.12% - 51.59%
Table 2: Average difference of accuracies obtained when clustering algorithms are used with their default configuration of parameters. In general, the spectral algorithm provides the highest accuracy rate among all evaluated methods.

The results shown in Table 2 indicate that the spectral algorithm tends to outperform the other algorithms by at least 10%. On the other hand, the hierarchical method attained a poor performance in all considered cases. Another interesting result is that the k-means, clara and hcmodel provide equivalent performance when considering all datasets. In light of the results, we can conclude that the spectral method is to be preferred when no optimitization of parameters values is performed.

v.2 One-dimensional analysis

The objective of the one-dimensional analysis is to verify how sensitive the accuracy of the clustering algorithms is to the variation of a single parameter. In addition, this analysis is also useful to verify if a very simple optimization strategy can lead to significant improvements in performance. For the one-dimensional analysis, we considered the databases DB2C2F and DB10C2F with and , respectively. We also considered DB2C10F and DB10C10F with and , respectively. For each parameter, we varied its values while keeping the other parameters value in their default configuration. The effect of varying the values of a single parameter was quantified by comparing the obtained accuracy when the parameter takes the value and the accuracy achieved with the default configuration of parameters. The improvement in performance was quantified in terms of the average () and maximum value (), given by

(8)
(9)

where is the cardinality of all possible values taken by the parameter in our experiments. We also measured the sensitivity of varying the values of

using the standard deviation

:

(10)

In addition to the aforementioned quantities, we also measured, for each dataset, the maximum accuracy obtained when varying each single parameter of the algorithm. We then calculate the average of maximum accuracies, , obtained over all considered datasets. In Table 3, we show the values of , , and for datasets containing two features. When considering a two-class problem (DB2C2F), a significant improvement in performance () was observed when varying parameter modelName of the EM method. Similarly, parameter kpar of the spectral method provided an average improvement of . For all other cases, only minor average gain in performance was observed. For the 10-class problem, we notice that an inadequate value for parameter method of the hierarchical algorithm can lead to much worse accuracy ( on average). In most cases, however, the average variation in performance was small.

DB2C2F DB10C2F Algorithm Parameter (%) (%) (%) (%) (%) (%) (%) (%) k-means iter.max 0.05 2.37 14.46 51.5 0.04 0.91 4.49 47.3 k-means nstart 1.98 5.62 16.73 51.9 1.24 1.98 6.80 47.9 k-means algorithm 0.29 2.46 6.63 49.8 -0.92 1.29 0.65 45.0 clara metric -1.52 8.10 11.27 49.6 -3.66 5.36 5.10 42.5 clara samples -0.10 3.82 6.39 52.3 -0.21 3.03 7.48 47.5 clara sampsize -2.78 12.96 27.31 54.0 -0.54 2.92 4.88 47.1 clara rngR -0.16 3.19 4.19 51.0 -4.53 4.04 -0.03 41.7 hierarchical metric 5.27 22.28 63.65 23.3 1.83 3.64 9.26 42.3 hierarchical method 2.07 36.90 100.0 57.2 -16.15 21.26 15.89 46.5 hierarchical par.method 0.0 0.0 0.0 18.0 0.0 0.0 0.0 40.5 spectral kernel -0.61 10.42 39.45 43.7 -0.3 2.84 6.78 48.0 spectral kpar 7.36 16.78 33.3 44.6 -1.83 3.16 3.35 43.5 spectral iter 1.14 19.19 85.34 54.1 0.06 2.62 5.84 47.9 spectral mod.simple -2.11 9.7 33.32 43.0 0.54 2.02 4.5 47.7 hcmodel modelName -2.41 19.48 29.89 60.0 -0.56 3.26 6.44 48.4 hcmodel use -2.14 10.14 12.58 57.4 -0.50 1.11 2.19 47.5 EM z 1.71 8.77 19.34 33.9 7.04 8.30 28.17 45.4 EM modelName 10.75 26.18 66.64 64.4 0.14 6.25 16.20 45.0
Table 3: One-parameter analysis performed in DB2C2F and DB10C2F. This analysis is based on the performance (measured through the ARI index) obtained when varying a single parameter of the clustering algorithm, while maintaining the others in their default configuration. , , are associated with the average, standard deviation and maximum difference between the performance obtained when varying a single parameter and the performance obtained for the default parameter values. We also measure , the average of best ARI values obtained when varying each parameter, where the average is calculated over all considered datasets.

In Table 4, we show the values of , , and for datasets described by 10 features. For the the two-class clustering problem, a moderate improvement can be observed for the k-means algorithm through the variation of parameter nstart. A significant increase in accuracy was observed when varying parameter method of the hierarchical algorithm and parameter modelName of the EM method. These parameters provided an average accuracy gain of and , respectively. A similar behavior was obtained when the number of classes was set to . For 10 classes, the variation of method in the hierarchical algorithm provided an average improvement of . A high improvement was also observed when varying parameter modelName of the EM algorithm, with an average improvement of .

Differently from the parameters discussed so far, the variation of some parameters plays a minor role in the discriminative power of the clustering algorithms. This is the case, for instance, of parameters kernel and iter of the spectral clustering algorithm and parameter iter.max of the kmeans clustering. In some cases, the effect of a unidimensional variation of parameter resulted in reduction of performance. For instance, the variation of min.individuals and models of the subspace algorithm provided an average loss of accuracy on the order of , depending on the dataset. A similar trend was observed for parameters metric and rngR of the clara algorithm.

DB2C10F DB10C10F Algorithm Parameter (%) (%) (%) (%) (%) (%) (%) (%) k-means iter.max 0.30 8.13 36.36 53.2 0.14 1.92 6.41 56.6 k-means nstart 5.26 12.0 36.36 53.5 2.68 2.65 9.43 57.8 k-means algorithm -0.35 6.72 25.5 42.3 -2.11 3.3 2.71 52.7 clara metric -10.9 22.31 25.05 51.8 -16.63 6.84 -5.1 37.6 clara samples 1.04 8.94 25.05 60.4 -4.83 8.96 10.26 51.9 clara sampsize 0.44 13.94 37.31 61.0 -4.46 9.97 14.18 57.6 clara rngR -2.89 15.08 25.05 56.9 -14.75 6.29 -5.21 39.3 hierarchical metric 4.82 21.46 96.0 9.7 1.15 8.52 27.18 19.2 hierarchical method 8.76 21.93 100.0 43.7 6.72 25.52 71.1 61.5 hierarchical par.method 0.00 0.00 0.00 0.00 0.0 0.0 0.0 13.8 spectral kernel 0.64 15.91 50.56 87.9 1.3 7.13 15.81 82.3 spectral kpar -1.08 16.88 50.56 88.1 -2.25 5.81 6.03 71.7 spectral iter -0.96 15.91 50.56 87.9 0.45 7.27 20.01 79.8 spectral mod.simple 3.36 15.72 50.56 87.9 -1.35 7.55 14.24 78.7 subspace models -1.77 36.80 97.4 100.0 -22.44 8.92 -6.7 69.6 subspace init -0.78 23.47 97.4 99.5 -0.57 9.29 11.13 87.4 subspace algo -1.32 1.99 0.27 88.9 0.7 1.1 1.9 87.4 subspace min.individuals -26.9 43.17 10.73 90.9 -12.32 16.6 7.78 89.1 hcmodel modelName 3.70 24.23 75.6 51.3 3.63 4.89 14.4 61.5 hcmodel use -0.92 17.68 51.47 49.1 -1.86 6.09 10.69 55.9 EM z 1.68 8.62 18.99 29.9 -0.35 5.49 15.06 43.3 EM modelName 18.80 31.93 96.62 100.0 13.63 16.09 64.52 91.6

Table 4: One-parameter analysis performed in DB2C10F and DB10C10F. This analysis is based on the performance obtained when varying a single parameter, while maintaining the others in their default configuration. , , are associated with the average, standard deviation and maximum difference between the performance obtained when varying a single parameter and the performance obtained for the default parameter values. We also measure , the average of best ARI values obtained when varying each parameter, where the average is calculated over all considered datasets.

v.3 Multi-dimensional analysis

A complete analysis of the performance of a clustering algorithm requires the simultaneous variation of all of its parameters. Nevertheless, such a task is difficult to do in practice, given the large number of parameter combinations that need to be taken into account. Therefore, here we consider a random variation of parameters aimed at obtaining a sampling of each algorithm performance for its complete multi-dimensional parameter space.

The methodology is applied as follows. Considering the one-dimensional variation of parameters, presented in the previous section, we identify the parameter bounds, , where the classification either does not significantly change anymore or provides much worse results when compared to the default parameter value. Such bounds define the interval where the parameter will be randomly sampled. In order to generate the values for a given set of parameters of an algorithm, we randomly sample each parameter

according to a uniform distribution defined in the interval

. This procedure generates sets of parameter values, which are then used to evaluate the performance of the algorithms. For each algorithm, 500 sets of parameters were generated.

The performance of the algorithms for the different sets of parameters was evaluated according to the following procedure. Consider the histogram of ARI values obtained for the random sampling of parameters for the k-means algorithm, shown in Figure 6. The red dashed line indicates the ARI value obtained for the default parameters of the algorithm. The light blue shaded region indicates the parameters configurations where the performance of the algorithm improved. From this result we calculated four main measures. The first, which we call p-value, is given by the area of the blue region divided by the total histogram area, multiplied by 100 in order to result in a percentage value. The p-value represents the percentage of parameter configurations where the algorithm performance improved when compared to the default parameters configuration. The second, third and fourth measures are given by the mean, , standard deviation, , and maximum value, , of the relative performance for all cases where the performance is improved (e.g. the blue shaded region in Figure 6). The relative performance is calculated as the difference in performance between a given realization of parameter values and the default parameters. The mean indicates the expected improvement of the algorithm for the random variation of parameters. The standard deviation represents the stability of such improvement, that is, how certain one is that the performance will be improved when doing such random variation. The maximum value indicates the largest improvement obtained when random parameters are considered. We also measured the average of the maximum accuracies obtained for each dataset when randomly selecting the parameters. In Section S2 of the supplementary material we show the distribution of ARI values obtained for the random sampling of parameters for all clustering algorithms considered in our analysis.

Figure 6: Distribution of ARI values obtained for the random sampling of the k-means parameters. The algorithm was applied to dataset DB10C10F, and 500 sets of parameters were drawn.

In Table 5 we show the performance (ARI) of the algorithms for dataset DB2C2F when applying the aforementioned random selection of parameters. The EM method is the only algorithm with a p-value larger than 50%. Also, a high average gain in performance was observed for the EM (22.1%) and hierarchical (30.6%) algorithms. Moderate improvement was obtained for the hcmodel, kmeans and spectral algorithms.

Algorithm p-value
(%) (%) (%) (%) (%)
EM 68.1 22.1 21.7 69.6 69.0
hierarchical 43.9 30.6 33.6 100.0 63.0
clara 29.2 4.9 4.7 27.3 60.0
hcmodel 25.8 13.3 8.2 29.9 63.0
k-means 21.7 13.2 3.9 21.4 55.0
spectral 47.0 14.7 13.9 85.3 59.0
Table 5: Multi-parameter analysis performed in dataset DB2C2F. The p-value represents the probability that the classifier set with a random configuration of parameters outperform the same classifier set with its default parameters. , and represent the average, standard deviation and maximum value of the improvement obtained when random parameters are considered. Column indicates the average of the best accuracies obtained for each dataset.

The performance of the algorithms for dataset DB10C2F is presented in Table 6. A high p-value was obtained for the EM (76.5%) and k-means (77.7%) algorithms. Nevertheless, the average improvement in performance was relatively low for all algorithms.

Algorithm p-value
(%) (%) (%) (%) (%)
EM 76.5 7.5 8.0 35.8 51.4
clara 54.7 2.3 1.8 9.0 51.0
k-means 77.7 2.2 1.7 6.9 49.0
hcmodel 28.4 2.7 2.5 6.8 49.0
hierarchical 36.6 5.9 4.2 21.7 49.0
spectral 40.0 2.3 1.6 8.0 52.0
Table 6: Multi-parameter analysis performed in dataset DB10C2F. The p-value represents the probability that the classifier set with a random configuration of parameters outperform the same classifier set with its default parameters. , and represent the average, standard deviation and maximum value of the improvement obtained when random parameters are considered. Column indicates the average of the best accuracies obtained for each dataset.

A more diverse variation in performance was observed for dataset DB2C10F, with results shown in Table 7. The EM, kmeans and hierarchical clustering are the only algorithms with a p-value larger than 50%. In such cases, when the performance was improved, the average gain in performance was 30.1%, 18.0% and 25.9%, respectively. This means that the random variation of parameters might represent a valid approach for improving these algorithms. Actually, with the exception of clara, all methods display significant average improvement in performance for this dataset. The results also show that a maximum accuracy of 100% can be achieved for the EM and subspace algorithms.

Algorithm p-value
(%) (%) (%) (%) (%)
EM 70.8 30.1 29.9 96.6 100.0
hierarchical 52.0 25.9 31.4 100.0 80.0
subspace 11.1 43.1 45.4 97.4 100.0
clara 44.9 6.5 6.3 37.3 70.0
hcmodel 38.4 31.8 25.3 81.2 70.0
k-means 50.1 18.0 7.1 62.4 60.0
spectral 48.9 9.9 18.5 31.5 90.0
Table 7: Multi-parameter analysis performed in dataset DB2C10F. The p-value represents the probability that the classifier set with a random configuration of parameters outperform the same classifier set with its default parameters. , and represent the average, standard deviation and maximum value of the improvement obtained when random parameters are considered. Column indicates the average of the best accuracies obtained for each dataset.

In Table 8 we show the performance of the algorithms for dataset DB10C10F. The p-value for the EM, clara and k-means indicates that the random selection of parameters usually improves the performance of these algorithms, although only the EM method display a significant improvement in performance (). The hierarchical algorithm can be significantly improved by the considered random selection of parameters. This is a consequence of the default value of parameter method, which, as discussed in Section V.2, is not appropriate for this dataset.

Algorithm p-value
(%) (%) (%) (%) (%)
EM 86.0 17.1 15.5 69.1 100.0
clara 72.1 7.1 4.4 22.8 68.0
k-means 83.0 4.3 2.3 12.0 60.0
hcmodel 53.4 7.4 4.6 17.5 64.0
hierarchical 51.9 32.1 19.4 72.9 68.0
spectral 49.1 5.6 4.1 19.7 87.3
subspace 10.7 7.5 4.7 21.4 99.3
Table 8: Multi-parameter analysis performed in dataset DB10C10F. The p-value represents the probability that the classifier set with a random configuration of parameters outperform the same classifier set with its default parameters. , and represent the average, standard deviation and maximum value of the improvement obtained when random parameters are considered. Column indicates the average of the best accuracies obtained for each dataset.

Vi Conclusions

Clustering data is a complex task involving the choice between many different methods, parameters and performance metrics, with implications in many real-world problems Arruda et al. (2012); Naeni et al. (2016); Amancio (2015); Raykov et al. (2016); Garcia (2016); Colavizza and Franceschet (2016); Benaim (1992). Consequently, the analysis of the advantages and pitfalls of clustering algorithms is also a difficult task that has been received much attention. Here, we approached this task focusing on a comprehensive methodology for generating a large diversity of heterogeneous datasets with precisely defined properties such as the distances between classes and correlations between features. Using packages in the R language, we developed a comparison of the performance of seven popular clustering methods applied to 270 artificial datasets. Three situations were considered: default parameters, single parameter variation and random variation of parameters. Besides serving as a practical guidance to the application of clustering methods when the researcher is not an expert in data mining techniques, a number of interesting results regarding the considered clustering methods were obtained.

Regarding the default parameters, the difference in performance of clustering methods was not significant for low-dimensional datasets. Specifically, the Kruskal-Wallis test on the differences in performance when 2 features were considered resulted in a p-value of (with a chi-squared distance of ). When more features were considered, the performance became markedly distinct among the methods. Considering 50 features resulted in a p-value of for the Kruskal-Wallis test () in the difference in performance.

The Spectral method provided the best performance when using default parameters, with an Adjusted Rand Index (ARI) of 65.80%, as indicated in Table 2

. In contrast, the hierarchical method showed the worst results with an ARI of 24.81%. On the other hand, the hierarchical clustering based on parametric Gaussian mixture models, implemented in the function hc from the

mclust package, had a better performance with an ARI of 43.53%. It is also interesting that underestimating the number of classes in the dataset led to worse performance than in overestimation situations. This was observed for all algorithms and is in accordance with previous results Erman et al. (2006).

Regarding single parameter variations, for datasets containing 2 features, only the hierarchical and EM methods showed significant performance variation. On the other hand, for datasets containing 10 features, most methods could be readily improved through changes on selected parameters.

With respect to the multidimensional analysis for datasets containing two classes and ten features, the EM, hcmodel, subspace and hierarchical algorithm showed significant gain in performance. The EM algorithm also resulted in a high p-value (70.8%), which indicates that many parameter values for this algorithm can provide better results than the default configuration. For datasets containing ten classes and ten features, the improvement was significantly lower for almost all the algorithms, with the exception of the hierarchical clustering. For datasets containing ten classes and two features, the performance of the algorithms for the multidimensional selection of parameters was similar to the performance when using the default parameters. This suggests that the algorithms are not sensitive to parameter variations for this dataset.

In Tables 9 and 10 we show a summary of the best accuracies obtained during our analysis. The tables contain the best performance, measured as the ARI of the resulting partitions, achieved by each algorithm in the three considered situations (default, one- and multi-dimensional adjustment of parameters). The results are respective to datasets DB2C2F, DB10C2F, DB2C10F and DB10C10F. We observe that, for datasets containing 2 features, all algorithms show similar performance. For datasets containing 10 features, the subspace algorithm seems to consistently provide the best performance, although the EM algorithm can also achieve similar performance with some tuning of its parameters.

DB2C2F DB10C2F Algorithm (%) (%) (%) (%) (%) (%) EM 32.2 64.4 69.0 38.4 45.4 51.4 spectral 37.2 54.1 59.0 45.4 48.0 52.0 clara 51.1 54.0 60.0 46.2 47.5 51.0 hcmodel 54.0 60.0 63.0 47.1 48.4 49.0 k-means 48.1 51.9 55.0 45.2 47.9 49.0 hierarchical 18.0 57.2 63.0 40.5 46.5 49.0
Table 9: Summary table for the performance of clustering algorithms in datasets DB2C2F and DB10C2F. represents the average accuracy obtained when considering the default parameters of the algorithms. represents the average of the best accuracies obtained when varying a single parameter. represents the average of the best accuracies obtained when parameters are randomly selected.
DB2C10F DB10C10F Algorithm (%) (%) (%) (%) (%) (%) subspace 89.9 100.0 100.0 86.1 89.1 99.3 EM 23.4 100.0 100.0 40.9 91.6 100.0 spectral 82.4 88.1 90.0 70.9 82.3 87.3 clara 53.0 61.0 70.0 51.9 57.6 68.0 hcmodel 34.2 51.3 70.0 54.2 61.5 64.0 k-means 36.6 53.5 60.0 52.0 57.8 60.0 hierarchical 0.0 43.7 80.0 13.8 61.5 68.0
Table 10: Summary table for the performance of clustering algorithms in datasets DB2C10F and DB10C10F. represents the average accuracy obtained when considering the default parameters of the algorithms. represents the average of the best accuracies obtained when varying a single parameter. represents the average of the best accuracies obtained when parameters are randomly selected.

Other algorithms could be compared in future extensions of this work. An important aspect that could also be explored is to consider other statistical distributions for modeling the data. In addition, an analogous approach could be applied to semi-supervised classification.

Acknowledgments

M. M. Z. Rodriguez thanks CAPES for financial support. C. H. Comin thanks FAPESP (grant no. 15/18942-8) for financial support. D. R. Amancio thanks FAPESP (grant no. 14/20830-0 and 16/19069-9). O. M. Bruno gratefully acknowledges the financial support of CNPq (grant no. 307797/2014-7) and FAPESP (grant no. 14/08026-1). L. da F. Costa thanks CNPq (grant no. 307333/2013-2) and NAP-PRP-USP for sponsorship. This work has been supported also by FAPESP grant 11/50761-2.

References

  • Golder and Macy (2011) S. A. Golder and M. W. Macy, Science 333, 1878 (2011).
  • Michel et al. (2011) J.-B. Michel, Y. K. Shen, A. P. Aiden, A. Veres, M. K. Gray, , J. P. Pickett, D. Hoiberg, D. Clancy, P. Norvig, J. Orwant, S. Pinker, M. A. Nowak,  and E. L. Aiden, Science 331, 176 (2011).
  • Bollen et al. (2009) J. Bollen, H. Van de Sompel, A. Hagberg,  and R. Chute, PLoS ONE 4, 1 (2009).
  • Amancio et al. (2012) D. R. Amancio, O. N. Oliveira Jr.,  and L. F. Costa, Journal of Informetrics 6, 427 (2012).
  • Dean and Ghemawat (2008) J. Dean and S. Ghemawat, Commun. ACM 51, 107 (2008).
  • Viana et al. (2013) M. P. Viana, D. R. Amancio,  and L. F. Costa, Journal of Informetrics 7, 371 (2013).
  • Aggarwal and Zhai (2012) C. C. Aggarwal and C. Zhai, “A survey of text clustering algorithms,” in Mining Text Data, edited by C. C. Aggarwal and C. Zhai (Springer US, Boston, MA, 2012) pp. 77–128.
  • Ridgeway and Madigan (2003) G. Ridgeway and D. Madigan, Data Mining and Knowledge Discovery 7, 301 (2003).
  • Fayyad et al. (1996) U. Fayyad, G. Piatetsky-Shapiro,  and P. Smyth, AI magazine 17, 37 (1996).
  • Bellazzi and Zupan (2008) R. Bellazzi and B. Zupan, International journal of medical informatics 77, 81 (2008).
  • Abdullah et al. (2011) Z. Abdullah, T. Herawan, N. Ahmad,  and M. M. Deris, Procedia-Social and Behavioral Sciences 28, 107 (2011).
  • Khashei and Bijari (2010) M. Khashei and M. Bijari, Expert Systems with applications 37, 479 (2010).
  • Joachims (1998) T. Joachims, in European conference on machine learning (Springer, 1998) pp. 137–142.
  • Witten and Frank (2005) I. H. Witten and E. Frank, Data Mining: Practical machine learning tools and techniques (Morgan Kaufmann, 2005).
  • Wang et al. (2010) Y. Wang, Y. Fan, P. Bhatt,  and C. Davatzikos, Neuroimage 50, 1519 (2010).
  • Blum and Langley (1997)

    A. L. Blum and P. Langley, Artificial intelligence

    97, 245 (1997).
  • Jing et al. (2007) L. Jing, M. K. Ng,  and J. Z. Huang, IEEE Transactions on knowledge and data engineering 19, 1026 (2007).
  • Suzuki and Shimodaira (2006) R. Suzuki and H. Shimodaira, Bioinformatics 22, 1540 (2006).
  • Camastra and Verri (2005) F. Camastra and A. Verri, IEEE Transactions on Pattern Analysis and Machine Intelligence 27, 801 (2005).
  • Jung et al. (2014) Y. G. Jung, M. S. Kang,  and J. Heo, Biotechnology & Biotechnological Equipment 28, S44 (2014).
  • Kinnunen et al. (2011) T. Kinnunen, I. Sidoroff, M. Tuononen,  and P. Fränti, Pattern Recognition Letters 32, 1604 (2011).
  • Abbas et al. (2008) O. A. Abbas et al., Int. Arab J. Inf. Technol. 5, 320 (2008).
  • Pirim et al. (2012) H. Pirim, B. Ekşioğlu, A. D. Perkins,  and Ç. Yüceer, Computers & operations research 39, 3046 (2012).
  • Costa et al. (2004) I. G. Costa, F. d. A. T. d. Carvalho,  and M. A.-l. C. P. d. Souto, Genetics and Molecular Biology 27, 623 (2004).
  • de Souto et al. (2008) M. C. de Souto, I. G. Costa, D. S. de Araujo, T. B. Ludermir,  and A. Schliep, BMC bioinformatics 9, 1 (2008).
  • Dougherty et al. (2002) E. R. Dougherty, J. Barrera, M. Brun, S. Kim, R. M. Cesar, Y. Chen, M. Bittner,  and J. M. Trent, Journal of Computational Biology 9, 105 (2002).
  • Brohée and van Helden (2006) S. Brohée and J. van Helden, BMC Bioinformatics 7, 1 (2006).
  • Maulik and Bandyopadhyay (2002) U. Maulik and S. Bandyopadhyay, IEEE Transactions on Pattern Analysis and Machine Intelligence 24, 1650 (2002).
  • Fraley and Raftery (1998) C. Fraley and A. E. Raftery, The computer journal 41, 578 (1998).
  • Halkidi et al. (2001) M. Halkidi, Y. Batistakis,  and M. Vazirgiannis, Journal of intelligent information systems 17, 107 (2001).
  • Jaccard (1908) P. Jaccard, Bulletin de la Sociète Vaudense des Sciences Naturelles 44, 223 (1908).
  • Hubert and Arabie (1985) L. Hubert and P. Arabie,  2, 193 (1985).
  • E. B. Fowlkes (1983) C. L. M. E. B. Fowlkes, Journal of the American Statistical Association 78, 553 (1983).
  • Strehl et al. (2002) A. Strehl, J. Ghosh,  and C. Cardie, Journal of Machine Learning Research 3, 583 (2002).
  • Hirschberger et al. (2007) M. Hirschberger, Y. Qi,  and R. E. Steuer, European Journal of Operational Research 177, 1610 (2007).
  • Amancio et al. (2014) D. R. Amancio, C. H. Comin, D. Casanova, G. Travieso, O. M. Bruno, F. A. Rodrigues,  and L. da Fontoura Costa, PloS one 9, e94137 (2014).
  • Berkhin (2006) P. Berkhin, in Grouping multidimensional data (Springer, 2006) pp. 25–71.
  • Hwang (1988) C.-R. Hwang, Acta Applicandae Mathematicae 12, 108 (1988).
  • Goldberg and Holland (1988) D. E. Goldberg and J. H. Holland, Machine learning 3, 95 (1988).
  • Hawkins (2004) D. M. Hawkins, Journal of chemical information and computer sciences 44, 1 (2004).
  • Jain et al. (1999) A. K. Jain, M. N. Murty,  and P. J. Flynn, ACM computing surveys (CSUR) 31, 264 (1999).
  • R Development Core Team (2006) R Development Core Team, R: A Language and Environment for Statistical Computing, R Foundation for Statistical Computing, Vienna, Austria (2006), ISBN 3-900051-07-0.
  • Kou et al. (2014) G. Kou, Y. Peng,  and G. Wang, Information Sciences 275, 1 (2014).
  • Erman et al. (2006) J. Erman, M. Arlitt,  and A. Mahanti, in Proceedings of the 2006 SIGCOMM workshop on Mining network data (ACM, 2006) pp. 281–286.
  • Mingoti and Lima (2006) S. A. Mingoti and J. O. Lima, European Journal of Operational Research 174, 1742 (2006).
  • Mangiameli et al. (1996) P. Mangiameli, S. K. Chen,  and D. West, European Journal of Operational Research 93, 402 (1996).
  • Parsons et al. (2004a) L. Parsons, E. Haque, H. Liu, et al., in Workshop on Clustering High Dimensional Data and its Applications, SIAM Int. Conf. on Data Mining (Citeseer, 2004) pp. 48–56.
  • Burdick et al. (2001) D. Burdick, M. Calimlim,  and J. Gehrke, in Proceedings of the 17th International Conference on Data Engineering (IEEE Computer Society, Washington, DC, USA, 2001) pp. 443–452.
  • Parsons et al. (2004b) L. Parsons, E. Haque,  and H. Liu, ACM SIGKDD Explorations Newsletter 6, 90 (2004b).
  • Verma and Meila (2003) D. Verma and M. Meila, University of Washington Tech Rep UWCSE030501 1, 1 (2003).
  • (51) UCI, “breast-cancer-wisconsin,” .
  • Guha et al. (1998) S. Guha, R. Rastogi,  and K. Shim, ACM SIGMOD Record,  27, 73 (1998).
  • Aggarwal and Reddy (2013a) C. C. Aggarwal and C. K. Reddy, Data Clustering: Algorithms and Applications (CR Press, 2013).
  • Karypis et al. (1999) G. Karypis, E.-H. Han,  and V. Kumar, Computer 32, 68 (1999).
  • Huang et al. (2013) J. Huang, H. Sun, J. Kang, J. Qi, H. Deng,  and Q. Song, Knowledge-Based Systems 40, 111 (2013).
  • Wu et al. (2008) X. Wu, V. Kumar, J. R. Quinlan, J. Ghosh, Q. Yang, H. Motoda, G. J. McLachlan, A. Ng, B. Liu, S. Y. Philip, et al., Knowledge and information systems 14, 1 (2008).
  • Jain et al. (2004) A. K. Jain, A. Topchy, M. H. Law,  and J. M. Buhmann, in Pattern Recognition, 2004. ICPR 2004. Proceedings of the 17th International Conference on, Vol. 1 (IEEE, 2004) pp. 260–263.
  • MacQueen et al. (1967) J. MacQueen et al., in Proceedings of the fifth Berkeley symposium on mathematical statistics and probability, Vol. 1 (Oakland, CA, USA., 1967) pp. 281–297.
  • Jain (2010) A. Jain, Pattern Recognition Letters 31, 651 (2010).
  • Steinley (2006) D. Steinley, British Journal of Mathematical and Statistical Psychology 59, 1 (2006).
  • Dunn (1973) J. C. Dunn,  (1973).
  • Huang (1998) Z. Huang, Data mining and knowledge discovery 2, 283 (1998).
  • Raykov et al. (2016) Y. P. Raykov, A. Boukouvalas, F. Baig,  and M. A. Little, PLoS ONE 11, 1 (2016).
  • Kaufman and Rousseeuw (1990) L. Kaufman and P. J. Rousseeuw, Finding groups in data: an introduction to cluster analysis , 126 (1990).
  • Arthur and Vassilvitskii (2007) D. Arthur and S. Vassilvitskii, in Proceedings of the eighteenth annual ACM-SIAM symposium on Discrete algorithms (Society for Industrial and Applied Mathematics, 2007) pp. 1027–1035.
  • Sequeira and Zaki (2002) K. Sequeira and M. Zaki, in Proceedings of the eighth ACM SIGKDD international conference on Knowledge discovery and data mining (ACM, 2002) pp. 386–395.
  • Williams and Huang (1997) G. J. Williams and Z. Huang, in Australian Joint Conference on Artificial Intelligence (Springer, 1997) pp. 340–348.
  • Han and Kamber (2006) J. Han and M. Kamber, Data Mining: Concepts and Techniques. Second Edition, Vol. 2 (Elseiver, 2006).
  • Lance and Williams (1967) G. N. Lance and W. T. Williams, The computer journal 10, 271 (1967).
  • Redner and Walker (1984) R. Redner and H. Walker, SIAM Review 26 (1984).
  • Dempster et al. (1977) A. Dempster, N. Laird,  and D. Rubin, Journal of the Royal Statistical Society. Series B (Methodological) 39 (1977).
  • Aggarwal and Reddy (2013b) C. C. Aggarwal and C. K. Reddy, Data clustering: algorithms and applications (CRC Press, 2013).
  • Fraley and Raftery (2002) C. Fraley and A. E. Raftery, Journal of the American statistical Association 97, 611 (2002).
  • Fraley and Raftery (1999) C. Fraley and A. E. Raftery, Journal of Classification 16, 297 (1999).
  • Fraley and Raftery (2003) C. Fraley and E. A. Raftery,  20, 263 (2003).
  • Schwarz et al. (1978) G. Schwarz et al., The annals of statistics 6, 461 (1978).
  • Nascimento and De Carvalho (2011) M. C. Nascimento and A. C. De Carvalho, European Journal of Operational Research 211, 221 (2011).
  • Filippone et al. (2008) M. Filippone, F. Camastra, F. Masulli,  and S. Rovetta, Pattern recognition 41, 176 (2008).
  • Von Luxburg (2007) U. Von Luxburg, Statistics and computing 17, 395 (2007).
  • Kriegel et al. (2012) H.-P. Kriegel, P. Kröger,  and A. Zimek, Wiley Interdisciplinary Reviews: Data Mining and Knowledge Discovery 2, 351 (2012).
  • Sim et al. (2013) K. Sim, V. Gopalkrishnan, A. Zimek,  and G. Cong, Data mining and knowledge discovery 26, 332 (2013).
  • Bouveyron et al. (2007) C. Bouveyron, S. Girard,  and C. Schmid, Computational Statistics & Data Analysis 52, 502 (2007).
  • Horn and Johnson (2012) R. A. Horn and C. R. Johnson, Matrix analysis (Cambridge university press, 2012).
  • Cover and Thomas (2012) T. M. Cover and J. A. Thomas, Elements of information theory (John Wiley & Sons, 2012).
  • Strehl and Ghosh (2002) A. Strehl and J. Ghosh, Journal of machine learning research 3, 583 (2002).
  • McKight and Najab (2010) P. E. McKight and J. Najab, Corsini Encyclopedia of Psychology  (2010).
  • Bergé et al. (2012) L. Bergé, C. Bouveyron,  and S. Girard, Journal of Statistical Software 46, 1 (2012).
  • Arruda et al. (2012) G. F. Arruda, L. F. Costa,  and F. A. Rodrigues, Physica A: Statistical Mechanics and its Applications 391, 6174 (2012).
  • Naeni et al. (2016) L. M. Naeni, H. Craig, R. Berretta,  and P. Moscato, PLOS ONE 11, 1 (2016).
  • Amancio (2015) D. R. Amancio, Journal of Statistical Mechanics: Theory and Experiment 2015, P03005 (2015).
  • Garcia (2016) C. Garcia, PLOS ONE 11, 1 (2016).
  • Colavizza and Franceschet (2016) G. Colavizza and M. Franceschet, Journal of Informetrics 10, 1037 (2016).
  • Benaim (1992) M. Benaim, EPL (Europhysics Letters) 19, 241 (1992).

Supplementary information for “Clustering Algorithms: A Comparative Approach”

S1 Description of the clustering algorithms’ parameters

In the following, we provide a brief description about the parameters of the clustering algorithms considered in the main text. We note that, since some algorithms do not have a default value for the number of clusters, in all cases we set this parameter as the number of clusters in the dataset.

k-means clustering

The k-means algorithm used in the main text has the following parameters:

  • iter.max: integer, the maximum number of iterations. Default value: 10.

  • nstart: integer, indicates how many random sets should be chosen. Default value: 1.

  • algorithm: string, implementation of the k-means algorithm to use. Default value: “Hartigan-Wong”.

  • centers: integer, number of clusters. Default value: number of clusters in dataset.

Clustering for large applications (clara)

The algorithm has the following parameters:

  • metric: string, specifies the metric to be used for calculating dissimilarities between observations. Default value: “euclidean”.

  • sample: integer, number of samples to be drawn from the dataset. Default value: 5.

  • sampsize: integer, number of observations in each sample. sampsize should be larger than the number of clusters. Default value: , where is the number of objects.

  • rngR: boolean, whether R’s random number generator should be used instead of the primitive clara. Default value: false.

  • k: integer, the number of clusters. Default value: number of clusters in dataset.

Hierarchical clustering

The hierarchical method has the following options:

  • metric: string, metric to use for calculating distances between samples. Default value: “Euclidean”.

  • method: string, clustering method to use. Default value: “average”.

  • par.method: integer, specifies the parameter for the dissimilarity calculation in some methods. Default value: 0.

Expectation maximization (EM)

The algorithm used for expectation maximization clusterization is provided by the mclust package. Two routines of the package are used for applying the method:

  • mstep: Maximization step in the EM algorithm for parametric Gaussian mixture models.

    • z: string, conditional probability of the -th observation belonging to the -th component of the mixture. Default value: “random”.

    • modelName: string, indicates the model to be used. Default value: “VII”.

  • estep: Implements the expectation step of EM algorithm for parameterized Gaussian mixture models.

    • modelName: string, indicates the model to be used. Default value: “VII”.

    • parameters: List containing the mean, variance and mixing proportion for each component. These parameters are usually obtained in the expectation mstep.

hcmodel clustering

Provided by the mclust package. The hc routine employing the hcmodel has the following parameters:

  • modelName: string, indicates the model to be used. Default value: “VII”.

  • use: string, specify what type of data/transformation should be used for model-based hierarchical clustering. Default value: “VARS”.

  • G: integer, number of clusters. Default value: number of clusters in dataset.

Spectral algorithm

The routine specc of the kernlab package has the following options:

  • centers: integer, number of clusters. Default value: number of clusters in dataset.

  • kernel: string, the kernel function used in computing the affinity matrix. Default value: “rbfdot”. The following options are available:

    • rbfdot: Radial Basis kernel function (“Gaussian”).

    • polydot: Polynomial kernel function.

    • vanilladot: Linear kernel function.

    • tanhdot Hyperbolic tangent kernel function.

    • laplacedot Laplacian kernel function.

    • besseldot: Bessel kernel function.

    • anovadot: ANOVA RBF kernel function.

    • splinedot: Spline kernel.

    • stringdot: String kernel

  • kpar: string, the kernel parameter can also be set to a user defined function of class “kernel” by passing the function name as an argument. Default value: “automatic”.

  • nystrom.sample: float, proportion of data to use when estimating sigma. Default value: , where is the number of objects.

  • iter: integer, the maximum number of iterations. Default value: 200.

Subspace algorithm

The routine used for subspace clustering, contained in the HDclassif package, is called hddc (High Dimensional Data Clustering). It has the following parameters:

  • model: integer or string, 14 models can be used: 12 models with class specific orientation matrix and two models with common covariance matrix. Default value: “akjbkQkdk” or 1.

  • k: designates the number of clusters. The algorithm selects the result with the maximum BIC value. Default value: the selected k is in the default interval .

  • algo: string, the algorithm used for clustering. Can be either EM, CEM (Classification EM) or SEM (Stochastic EM). Default value: “EM”.

  • init: string, how to the initial class assignments are done. Default value: “kmeans”. Four initializations have been implemented:

    • random: each observation is randomly assigned to a class.

    • kmeans: the initial class of each observation is provided by the k-means algorithm.

    • param: initializes according to a multivariate normal distribution.

    • mini-em: the EM algorithm is run times for iterations, the result with the highest likelihood is kept as the initialization of the algorithm.

  • mini.nb: integer, used when parameter init is “mini-em”. It is an array of length 2 containing and . Default value: (5, 10).

S2 Clustering performance obtained for random selection of parameters

Figures S2.1 and S2.2 show the histograms of ARI values obtained for identifying the clusters of, respectively, datasets DB10C10F and DB2C10F using random selection of parameters. Each plot corresponds to a clustering method considered in the main text.

Figure S2.1: Distribution of ARI values obtained for dataset DB10C10F using random selection of parameters. The distributions correspond to the (a) hcmodel, (b) clara, (c) hierarchical, (d) spectral, (e) Subspace and (f) EM methods. The red dashed line indicates the performance achieved when using the default parameters provided by the respective implementations of the algorithms.
Figure S2.2: Distribution of ARI values obtained for dataset DB2C10F using random selection of parameters. The distributions correspond to the (a) hcmodel, (b) clara, (c) hierarchical, (d) spectral, (e) Subspace and (f) EM methods. The red dashed line indicates the performance achieved when using the default parameters provided by the respective implementations of the algorithms.
