Clustered Object Detection in Aerial Images

by   Fan Yang, et al.
Temple University

Detecting objects in aerial images is challenging for at least two reasons: (1) target objects like pedestrians are very small in terms of pixels, making them hard to be distinguished from surrounding background; and (2) targets are in general very sparsely and nonuniformly distributed, making the detection very inefficient. In this paper we address both issues inspired by the observation that these targets are often clustered. In particular, we propose a Clustered Detection (ClusDet) network that unifies object cluster and detection in an end-to-end framework. The key components in ClusDet include a cluster proposal sub-network (CPNet), a scale estimation sub-network (ScaleNet), and a dedicated detection network (DetecNet). Given an input image, CPNet produces (object) cluster regions and ScaleNet estimates object scales for these regions. Then, each scale-normalized cluster region and their features are fed into DetecNet for object detection. Compared with previous solutions, ClusDet has several advantages: (1) it greatly reduces the number of blocks for final object detection and hence achieves high running time efficiency, (2) the cluster-based scale estimation is more accurate than previously used single-object based ones, hence effectively improves the detection for small objects, and (3) the final DetecNet is dedicated for clustered regions and implicitly models the prior context information so as to boost detection accuracy. The proposed method is tested on three representative aerial image datasets including VisDrone, UAVDT and DOTA. In all the experiments, ClusDet achieves promising performance in both efficiency and accuracy, in comparison with state-of-the-art detectors.


page 1

page 2

page 4

page 5


RelationRS: Relationship Representation Network for Object Detection in Aerial Images

Object detection is a basic and important task in the field of aerial im...

Focus-and-Detect: A Small Object Detection Framework for Aerial Images

Despite recent advances, object detection in aerial images is still a ch...

AMRNet: Chips Augmentation in Areial Images Object Detection

Detecting object in aerial image is challenging task due to 1) objects a...

Automated Crabgrass Detection in Aerial Imagery with Context

In this paper, we demonstrate the ability to discriminate between cultiv...

Automated Grassy Weed Detection in Aerial Imagery with Context

In this paper, we demonstrate the ability to discriminate between cultiv...

The Elephant in the Room

We showcase a family of common failures of state-of-the art object detec...

Learning to Reduce Information Bottleneck for Object Detection in Aerial Images

Object detection in aerial images is a fundamental research topic in the...

1 Introduction

With the advance of deep neural networks, object detection (, Faster R-CNN

[26], YOLO [24], SSD [22]) has witnessed great progress for natural images (, 600400 images in MS COCO [21]) in recent years. Despite the promising results for general object detection, the performance of these detectors on the aerial images (, 2,0001,500 images in VisDrone [35]) are far from satisfactory in both accuracy effectiveness and efficiency awareness, which are caused by two challenges: (1) targets typically have small scales relative to the images; and (2) targets are generally sparsely and nonuniformly distributed in the whole image.

Figure 1:

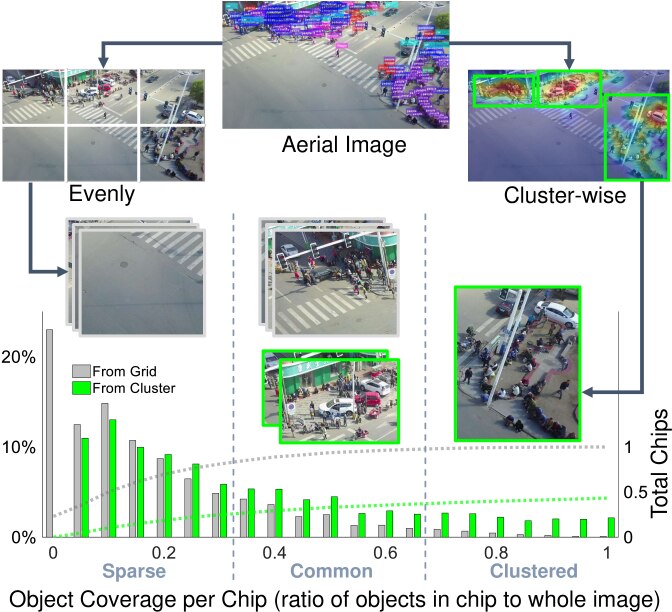

Comparison of different image partition methods: grid-based uniform partition and the proposed cluster-based partition. For the narrative purpose, we intentionally classify a chip into three types:

sparse chip, common chip, and clustered chip objects. We observe that, for grid-based uniform partition, more than 73% chips are sparse (including 23% chips with zero objects), around 25% chips are common, and about 2% chips are clustered. By contrast, for cluster-based partition, around 50% chips are sparse, 35% are common, and about 15% belong to clustered chips, which is 7 more than that of grid-based partition.
Figure 2:

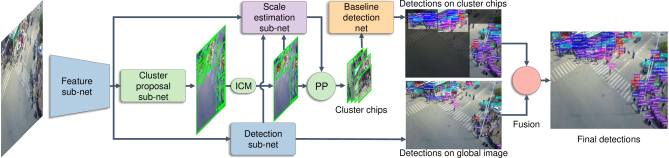

Clustered object Detection (ClusDet) network. The ClusDet network consists of three key components: (1) a cluster proposal subnet (CPNet); (2) a scale estimation subnet (ScaleNet); and (3) a dedicated detection network (DetecNet). CPNet serves to predict the cluster regions. ScaleNet is to estimate the object scale in the clusters. DetecNet performs detection on cluster chips. The final detections are generated by fusing detections from cluster chips and global image. The details of ICM (iterative cluster merging) and PP (partition and padding) are given in Section


Compared with objects in natural images, the scale challenge causes less effective feature representation of deep networks for objects in aerial images. Therefore, it is difficult for the modern detectors to effectively leverage appearance information to distinguish the objects from surrounding background or similar objects. In order to deal with the scale issue, a natural solution is to partition an aerial image into several uniform small chips, and then perform detection on each of them [10, 23]. Although these approaches alleviate the resolution challenge to some extent, they are inefficient in performing detection due to the ignorance of the target sparsity challenge. Consequently, a lot computation resources are inefficiently applied on regions with sparse or even no objects (see Fig. 1). We observe from Fig. 1 that, in an aerial image objects are not only sparse and nonuniform but also tend to be highly clustered in certain regions. For example, pedestrians are usually concentrated in squares and vehicles are often clustered in highways. Hence, an intuitive way to improve detection efficiency is to focus the detector on these clustered regions with a large mount of objects.

Inspired by this motivation, this paper proposes a novel clustered detection (ClusDet) network for addressing both challenges aforementioned by integrating object and cluster detection in a uniform framework. As illustrated in Fig. 2, ClusDet consists of three key components including a cluster proposal sub-network (CPNet), a scale estimation sub-network (ScaleNet) and a baseline detection network (DetecNet). According to the initial detection of an aerial image, CPNet generates a set of regions of object clusters. After obtaining the clustered regions, they are cropped out for subsequent fine detection. To such end, these regions have to be firstly resized to fit the detector, which may result in extremely large or small objects in the clustered regions and thus deteriorate the detection performance [29]. To handle this issue, we present the ScaleNet to estimate an appropriate scale for the objects in each cluster chip and then rescale the chip accordingly before feeding it to a detector, which is different from [10, 23, 18] by directly resizing cropped chips. Afterwards, each clustered chip is fed to the dedicated detector DetecNet for fine detection. The final detection is achieved by fusing the detection results on both cluster chips and the global image.

Compared to previous approaches, the proposed ClusDet shows several advantages: (i) Owing to the CPNet, we only need to deal with the clustered regions with plenty of objects, which significantly reduces the computation cost and improves detection efficiency; (ii) With the help of the ScaleNet, each clustered chip is refined for better subsequent fine detection, leading to improvement in accuracy; and (iii) The DetecNet is specially designated for clustered region detection and implicitly models the prior context information to further boost detection accuracy. In extensive experiments on three aerial image datasets, ClusDet achieves the best performance using a single mode while with less computation cost.

In summary, the paper has the following contributions:

  1. A novel ClusDet network is proposed to simultaneously address the scale and sparsity challenges for object detection in aerial images.

  2. An effective ScaleNet is present to alleviate nonuniform scale issue in clustered chips for better fine detection.

  3. Achieve state-of-the-art performance on three representative aerial image datasets including VisDrone  [35], UAVDT [8], DOTA [31] with less computation.

The rest of this paper is organized as follows. Section 2 briefly reviews the related works of this paper. In Section 3, we describe the proposed approach in details. Experimental results are shown in Section 4, followed by the conclusion in Section 5.

2 Related work

Object detection has been extensively explored in recent decades with a huge amount of literature. In the following we first review three lines of works that are the most relevant to ours, and then highlight the differences of existing approaches with ours.

Generic Object Detection. Inspired by the success in image recognition [17]

, deep convolutional neural networks (CNNs) have been dominated in object detection. According to the detection pipeline, existing detectors can roughly be categorized into two types: region-based detectors and region-free detectors. The region-based detectors separate detection into two steps including proposal extraction and object detection. In the first stage, the search space for detection is significantly reduced through extracting candidate regions (, proposals). In the second stage, these proposals are further classified into specific categories. Representatives of region-based detectors include R-CNN

[12], Fast/er R-CNN [11, 26], Mask R-CNN [14] and Cascade R-CNN [3]. On the contrary, the region-free detectors, such as SSD [22] YOLO [24], YOLO9000 [25], RetinaNet [20] and RefineDet [34], perform detection without region proposal, which leads to high efficiency at the sacrifice of accuracy.

Despite excellent performance on natural images (, 500400 images in PASCAL VOC [9] and 600400 images in MS COCO [21]), these generic detectors are degenerated when applied on high-resolution aerial images (, 2,0001,500 images in VisDrone [35]).

Aerial Image Detection.

Compared to detection in natural images, aerial image detection is more challenging because (1) objects have small scales relative to the high-resolution aerial images and (2) targets are sparse and nonuniform and concentrated in certain regions. Since this work is focused on deep learning, we only review some relevant works using deep neural networks for aerial image detection. In

[27], a simple CNNs based approach is presented for automatic detection in aerial images. The method in [2] integrates detection in aerial images with semantic segmentation to improve performance. In [30], the authors directly extend the Fast/er R-CNN  [11, 26] for vehicle detection in aerial images. The work of [6] proposes a coupled region-based CNNs for aerial vehicle detection. The approach of [7] investigates the problem of misalignment between Region of Interests (RoI) and objects in aerial image detection, and introduces a ROI transformer to address this issue. The algorithm in [33] presents a scale adaptive proposal network for object detection in aerial images.

Region Search in Detection. The strategy of region search is commonly adopted in detection to handle small objects. The approach of [23] proposes to adaptively direct computational resources to sub-regions where objects are sparse and small. The work of [1] introduces a context driven search method to efficiently localize the regions containing a specific class of object. In [4], the authors propose to dynamically explore the search space in proposal-based object detection by learning contextual relations. The method in [10]

proposes to leverage reinforcement learning to sequentially select regions for detection at higher resolution scale. In a more specific domain, vehicle detection in wide aerial motion imagery (WAMI), the work of

[18] suggests a two-stage spatial-temporal convolutional neural networks to detect vehicles from a sequence of WAMI.

Our Approach. In this paper, we aim at solving two aforementioned challenges for aerial image detection. Our approach is related to but different from the previous region search based detectors (, [23, 10]), which partition high-resolution images into small uniforms chips for detection. In contrast, our solution first predicts cluster regions in the images, and then extract these clustered regions for fine detection, leading to significant reduction of the computation cost. Although the method in [18] also performs detection on chips that potentially contain objects, our approach significantly differs from it. In [18], the obtained chips are directly resized to fit the detector for subsequent detection. On the contrary, inspired by the observation in [29] that objects with extreme scales may deteriorate the detection performance, we propose a ScaleNet to alleviate this issue, resulting in improvement in fine detection on each chip.

3 Clustered Detection (ClusDet) Network

3.1 Overview

As shown in Fig. 2

, detection of an aerial image consists of three stages: cluster region extraction, fine detection on cluster chips and fusion of detection results. In specific, after the feature extraction of an aerial image, CPNet takes as input the feature maps and outputs the clustered regions. In order to avoid processing too many cluster chips, we propose an iterative cluster merging (ICM) module to reduce the noisy cluster chips. Afterwards, the cluster chips as well as the initial detection results on global image are fed into the ScaleNet to estimate an appropriate scale for the objects in cluster chips. With the scale information, the cluster chips are rescaled for fine detection with DetecNet. The final detection is obtained by fusing the detection results of each cluster chip and global image with standard non-maximum suppression (NMS).

3.2 Cluster Region Extraction

Cluster region extraction consists of two steps: initial cluster generation using cluster proposal sub-network (CPNet) and cluster reduction with iterative cluster merging (ICM).

3.2.1 Cluster Proposal Sub-network (CPNet)

The core of the cluster region extraction is the cluster proposal sub-network (CPNet). CPNet works on the high-level feature maps of an aerial image, and aims at predicting the locations and scales of clusters111In this work, a cluster in aerial images is defined by a rectangle region containing at least three objects.. Motivated by the region proposal networks (RPN) [26], we formulate CPNet as a block of fully convolutional networks. In specific, CPNet takes as input the high-level feature maps from feature extraction backbone, and utilizes two subnets for regression and classification, respectively. Although our CPNet shares the similar idea with RPN, they are different. RPN is used to propose the candidate regions of objects, while CPNet aims at proposing the candidate regions of clusters. Compared to the object proposal, the size of cluster is much larger, and thus CPNer needs a larger receptive field than that of RPN. For this reason, we attach CPNet on the top of the feature extraction backbone.

(a) cluster detections
(b) cluster detections + IMC
Figure 3: Illustration of merging of cluster detections. The red boxes are the cluster detections from CPNet. The blue boxes represent clusters after iterative merge operation (ICM).

It is worth noting that the learning of CPNet is a supervised process. However, none of existing public datasets provide groundtruth for clusters. In this work, we adopt a simple strategy to generate the required groundtruth of clusters for training CPNet. We refer the readers to supplementary material for details in generating cluster groundtruth.

3.2.2 Iterative Cluster Merging (ICM)

As shown in Fig. 3 (a), we observe that the initial clusters produced by CPNet are dense and messy. These dense and messy cluster regions are difficult to be directly leveraged for fine detection because of their high overlap and large amount, resulting in extremely heavy computation burden in practice. To solve this problem, we present a simple yet effective iterative cluster merging (ICM) module to clean up clusters. Let represent the set of cluster bounding boxes detected by CPNet, and denote the corresponding cluster classification scores. With a pre-defined overlap threshold and maximum number of clusters after merging, we can obtain the merged cluster set with clusters with Alg. 1.

Briefly speaking, we first find the with highest score, then select the clusters whose overlaps with are larger the threshold to merge with . All the merged clusters are removed. Afterwards, we repeat the aforementioned process until is empty. All the processes mentioned above correspond to the non-max merging (NMM) in Alg. 1. We conduct the NMM several times until the preset is reached. For the details of the NMM, the readers are referred to supplementary material. Fig. 3 (b) demonstrates the final merged clusters, showing that the proposed ICM module is able to effectively merge the dense and messy clusters.

Input: Initial cluster bounding boxes ,
initial cluster scores , threshold and maximum number of merged clusters ;
Output: Merged clusters ;
       while   do
             , NMM)
             if   then
                  ; ;
             end if
       end while
       for  do
       end for
Algorithm 1 Iterative Cluster Merging (ICM)

3.3 Fine Detection on Cluster Chip

After obtaining the cluster chips, a dedicated detector is utilized to perform fine detection on these chips. Unlike in existing approaches [23, 18, 10] that directly resize these chips for detection, we present a scale estimation sub-network (ScaleNet) to estimate the scales of objects in chips, which avoids extreme scales of objects degrading detection performance. Based on the estimated scales, we perform partition and padding (PP) operations on each chip for detection.

3.3.1 Scale Estimation Sub-network (ScaleNet)

We regard scale estimation as a regression problem and formulate ScaleNet using a bunch of fully connected networks. As shown in Fig. 4, ScaleNet receives three inputs including the feature maps extracted from network backbone, cluster bounding boxes and initial detection results on global image, and outputs a relative scale offset for objects in the cluster chip. Here, the initial detection results are obtained from the detection subnet.

Figure 4:

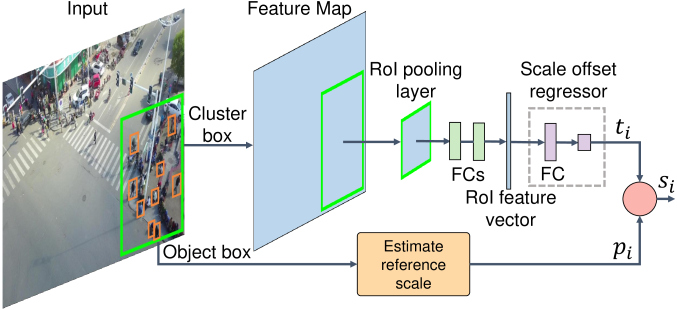

The architecture of the scale estimation network (ScaleNet). The cluster detections are projected to feature map space. Each cluster is pooled into a fixed-size feature map and mapped into a feature vector by fully connected layers (FCs). The network has an output per cluster, , the scale regression offset.

Let be the relative scale offset for cluster , where and represent the reference scale of the detected objects and the average scale of the groundtruth boxes in cluster , respectively. Thus, the loss of the ScaleNet can be mathematically defined as


where is the estimated relative scale offset, is the estimated scale, and is the number of cluster boxes. The is a smoothly loss function [11].

3.3.2 Partition and Padding (PP)

The partition and padding (PP) operations are utilized to ensure that the scales of objects are within a reasonable range. Given the cluster bounding box , the corresponding estimated object scale and the input size of a detector, we can compute the approximate object scale in the input space of the detector . If the scale is larger than a certain range, the cluster is padded proportionally, otherwise the cluster is partitioned it into two equal chips. Note that detections in the padded region are ignored in final detection. The visualization of the process is in Fig. 5. The specific scale range setting is discussed in Section 4.

After rescaling the cluster chip, a dedicated baseline detection network (DetecNet) performs fine object detection. The architecture of the DetecNet can be any state-of-the-art detectors. The backbone of the detector can be any standard backbone networks, e.g., VGG [28], ResNet [15], ResNeXt [32].

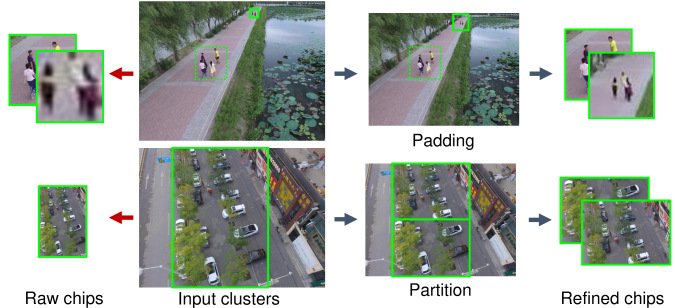

Figure 5: Illustration of the partition and padding (PP) process. The raw chips and refined chips are the input of detector without and with using PP, respectively.

3.4 Final Detection with Local-Global Fusion

The final detection of an aerial image is obtained by fusing the local detection results of cluster chips and global detection results of the whole image with the standard NMS post-processing (see Fig. 6). The local detection results are obtained through the proposed approach mentioned above, and the global detection results are derived from detection subnet (Fig. 2). It is worth noting that any existing modern detectors can be used for global detection.

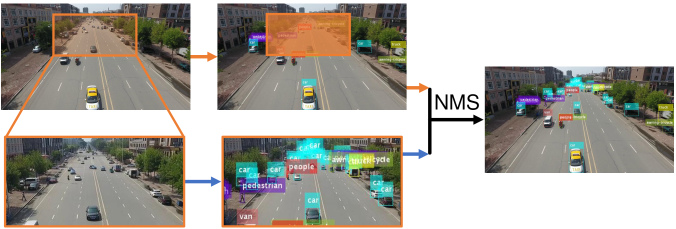

Figure 6: The illustration of fusing detections from whole images and cluster chips.The object detections in orange region from whole image are eliminated when applying fusion operation.
Methods backbone test data img
FRCNN[26]+FPN[19] ResNet50 o 548 21.4 40.7 19.9 11.7 33.9 54.7
FRCNN[26]+FPN[19] ResNet101 o 548 21.4 40.7 20.3 11.6 33.9 54.9
FRCNN[26]+FPN[19] ResNeXt101 o 548 21.8 41.8 20.1 11.9 34.8 55.5
FRCNN[26]+FPN[19]+EIP ResNet50 c 3,288 21.1 44.0 18.1 14.4 30.9 30.0
FRCNN[26]+FPN[19]+EIP ResNet101 c 3,288 23.5 46.1 21.1 17.1 33.9 29.1
FRCNN[26]+FPN[19]+EIP ResNeXt101 c 3,288 24.4 47.8 21.8 17.8 34.8 34.3
DetecNet+CPNet ResNet50 o+ca 1,945 25.6 47.9 24.3 16.2 38.4 53.7
DetecNet+CPNet ResNet101 o+ca 1,945 25.3 47.4 23.8 15.6 38.1 54.6
DetecNet+CPNet ResNeXt101 o+ca 1,945 27.6 51.2 26.2 17.5 41.0 54.2
DetecNet+CPNet+ScaleNet ResNet50 o+ca 2,716 26.7 50.6 24.7 17.6 38.9 51.4
DetecNet+CPNet+ScaleNet ResNet101 o+ca 2,716 26.7 50.4 25.2 17.2 39.3 54.9
DetecNet+CPNet+ScaleNet ResNeXt101 o+ca 2,716 28.4 53.2 26.4 19.1 40.8 54.4
Table 1: The ablation study on VisDrone dataset. The ‘c’ denotes EIP cropped images. The ’ca’ indicates cluster-aware cropped images. The ‘o’ indicates the original validation data. The img is the number of images forwarded to detector. The ‘s’, ‘m’, and ‘l’ represent small, medium, and large, respectively.

4 Experiments

4.1 Implementation Details

We implement ClusDet based on the publicly available Detectron [13] and Caffe2. The Faster R-CNN (FRCNN) [26] with Feature Pyramid Network (FPN) [19] are adopted as the baseline detection network (DetecNet). The feature subnet and detection subnet (Fig. 2) share the weights with the backbone network and object detection subnet in DetecNet, respectively. The architecture of the CPNet is implemented with a convolutional layer followed by two sibling convolutional layers (for regression and classification, respectively). In ScaleNet, the FC layers to convert feature map into feature vector are with size of 1024; The size of FC layers in the scale offset regressor are 1024 and 1 respectively. The IoU threshold for merging clusters in NMM process is set to 0.7. Following the definition in the COCO[21] dataset, the object scale range in cluster chip partition and padding is set to pixels.

Training hase. The input size of the detector is set to pixels on the VisDrone [35] and UAVDT [8] datasets and pixels on the DOTA [31] dataset. On the three datasets, the training data is augmented by dividing images into chips. On the VisDrone [35] and UAVDT [8] datasets, each image is uniformly divided into 6 and 4 chips without overlap. The reason of setting a specific number of chips is that the size of cropped chip can be similar with that in COCO [21] dataset. On the DOTA [31] dataset, we use the tool provided by the authors to divide the images. When training model on the VisDrone [35] and UAVDT [8] datasets by using 2 GPUs, we set the base learning rate to 0.005 and total iteration to 140k. After the first 120k iterations, the learning rate decreases to 0.0005. Then, we train the model for 100k iterations before lowering the learning rate to 0.00005. A momentum of 0.9 and parameter decay of 0.0005 (on weights and biases) are used. On the DOTA [31] dataset, the base learning and the total iterations are set to 0.005 and 40k, respectively. The learning rate is deceased by a factor of 0.1 after 30k and 35k iterations.

Test phase. The input size of detector is the same with that in training phase whenever not specified. The maximum number of clusters (TopN) in cluster chip generation is empirically set to 3 on VisDrone [35], 2 on UAVDT [8], and 5 on the DOTA [31] dataset. In fusing detection, the threshold of the standard non-max suppression (NMS) is set to 0.5 in all datasets. The final detection number is set to 500.

4.2 Datasets

To validate the effectiveness of the proposed method, we conduct extensive experiments on three publicly accessible datasets: VisDrone [35], UAVDT [8], and DOTA [31].

VisDrone. The dataset consists of 10, 209 images (6,471 for training, 548 for validation, 3,190 for testing) with rich annotations on ten categories of objects. The image scale of the dataset is about pixels. Since the evaluation server is closed now, we cannot test our method on the test dataset. Therefore, the validation dataset is used as test dataset to evaluate our method.

UAVDT. The UAVDT [8]] dataset contains 23,258 images of training data and 15,069 images of test data. The resolution of the image is about pixels. The dataset is acquired with an UAV platform at a number of locations in urban areas. The categories of the annotated objects are car, bus, and truck.

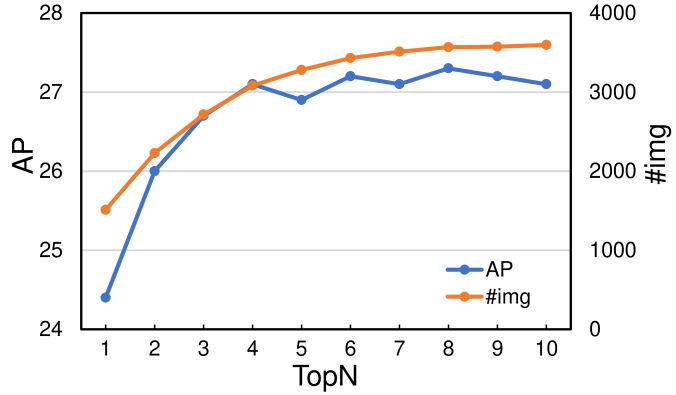

Figure 7: The AP and number of forwarded images over different settings of TopN in ClusDet.

DOTA. The dataset is collected from multiple sensors and platforms (e.g. Google Earth) with multiple resolutions (800800 through 4,0004,000 pixels) at multiple cities. Fifteen categories are chosen and annotated. Considering our method is based on the cluster characteristic of the objects in aerial image, some categories in the dataset are not suitable for our method, e.g., roundabout, bridge. Thus, we only choose the images with movable objects in the dataset to evaluate our method, i.e., plane, ship, large vehicle, small vehicle, and helicopter, Thus, the training and validation data contain 920 images and 285 images, respectively.

4.3 Compared Methods

we compare our ClusDet with evenly image partition (EIP) method on all datasets. On some datasets if the EIP is not provided, we implement it according to the property of the datasets. In addition, we also compare our method with representative state-of-the-art methods on all datasets.

 Methods backbone
RetinaNet[20]+FPN[19] ResNet50 13.9 23.0 14.9
RetinaNet[20]+FPN[19] ResNet101 14.1 23.4 14.9
RetinaNet[20]+FPN[19] ResNeXt101 14.4 24.1 15.5
FRCNN[26]+FPN[19] ResNet50 21.4 40.7 19.9
FRCNN[26]+FPN[19] ResNet101 21.4 40.7 20.3
FRCNN[26]+FPN[19] ResNeXt101 21.8 41.8 20.1
FRCNN[26]+FPN[19] ResNeXt101 28.7 51.8 27.7
FRCNN[26]+FPN[19]+EIP ResNet50 21.1 44.0 18.1
FRCNN[26]+FPN[19]+EIP ResNet101 23.5 46.1 21.1
FRCNN[26]+FPN[19]+EIP ResNeXt101 24.4 47.8 21.8
FRCNN[26]+FPN[19]+EIP ResNeXt101 25.7 48.4 24.1
ClusDet ResNet50 26.7 50.6 24.7
ClusDet ResNet101 26.7 50.4 25.2
ClusDet ResNeXt101 28.4 53.2 26.4
ClusDet ResNeXt101 32.4 56.2 31.6
Table 2: The detection performance on VisDrone validation dataset. The denotes the multi-scale inference and bounding box voting are utilized in test phase.
Methods backbone img
R-FCN[5] ResNet50 15,069 7.0 17.5 3.9 4.4 14.7 12.1
SSD[22] N/A 15,069 9.3 21.4 6.7 7.1 17.1 12.0
RON[16] N/A 15,069 5.0 15.9 1.7 2.9 12.7 11.2
FRCNN[26] VGG 15,069 5.8 17.4 2.5 3.8 12.3 9.4
FRCNN[26]+FPN[19] ResNet50 15,069 11.0 23.4 8.4 8.1 20.2 26.5
FRCNN[26]+FPN[19]+EIP ResNet50 60,276 6.6 16.8 3.4 5.2 13.0 17.2
ClusDet ResNet50 25,427 13.7 26.5 12.5 9.1 25.1 31.2
Table 3: The detection performance of the baselines and proposed method on the UAVDT [8] dataset.
Methods backbone img
RetinaNet[20]+FPN[19]+EIP ResNet50 2,838 24.9 41.5 27.4 9.9 32.7 30.1
RetinaNet[20]+FPN[19]+EIP ResNet101 2,838 27.1 44.4 30.1 10.6 34.8 33.7
RetinaNet[20]+FPN[19]+EIP ResNeXt101 2,838 27.4 44.7 29.8 10.5 35.8 32.8
FRCNN[26]+FPN[19]+EIP ResNet50 2,838 31.0 50.7 32.9 16.2 37.9 37.2
FRCNN[26]+FPN[19]+EIP ResNet101 2,838 31.5 50.4 36.6 16.0 38.5 38.1
ClusDet ResNet50 1,055 32.2 47.6 39.2 16.6 32.0 50.0
ClusDet ResNet101 1,055 31.6 47.8 38.2 15.9 31.7 49.3
ClusDet ResNeXt101 1,055 31.4 47.1 37.4 17.3 32.0 45.4
Table 4: The detection performance of the baselines and proposed method on DOTA [31] dataset.

4.4 Evaluation Metric

Following the evaluation protocol on the COCO [21] dataset, we use , , and as the metrics to measure the precision. Specifically, is computed by averaging over all categories. and are computed at the single IoU threshold 0.5 and 0.75 over all categories. The efficiency is measured by the number of images needed to be processed by the detector in inference stage. In specific, the number of images refer to the summation of global images and cropped chips. In the subsequent experiments, the number of images is denoted as .

4.5 Ablation Study

To validate the contributions of the cluster detection and scale estimation to the improvement of detection performance, we conduct extensive experiments on VisDrone [35] dataset.

In the following experiments, the input size of detector in test phase is set to pixels. To validate if the proposed method can gain consistent improvement in performance under different backbone networks, we conduct experiments with three backbone networks: ResNet-50 [15], ResNet-101 [15], and ResNeXt-101 [32].

Effect of EIP. The experimental results are listed in Table 1. We note that FRCNN [26] performs inferior compared to that in COCO [21] dataset (AP=36.7). This is because the relative scale of object to image in the VisDrone [35] dataset is much smaller than that in the COCO [21] dataset. By applying EIP to the image, the performance of detectors are increased significantly, especially on small objects (). However, the number of images needed to be processed increases 6 times (3,288 vs 548). In addition, we note that although the overall performance is improved by applying EIP, the performance of large scale objects () is decreased. This is because the EIP truncates the large objects into pieces, which results in a lot of false positives.

Effect of Cluster Detection. From Table 1, we note that the DetecNet+CPNet processes much less amount of images (1,945 vs 3,288) but achieves better performance than FRCNN [26] plus EIP. This demonstrates that the CPNet not only selects the clustered regions to save computation resource but also implicitly encodes the prior context information to improve the performance. In addition, we note that compared to EIP, the CPNet dose not reduce the performance of large objects (), this can be attributed to the CPNet, which introduces the spatial distribution information of the object into the ClusDet network so as to avoid truncating the large object.

Effect of Scale Estimation. After integrating ScaleNet into CPNet and DetecNet, we note that the number of processed image increases to 2,716, this is because the PP module partitions some cluster chips into pieces. This mitigates the small scale problem when performing detection, such that the performance () is improved to 26.7 on ResNet50 [15] backbone network. In addition, we see that the ScaleNet improves the detection performance on all types of backbone networks. Particularly, the metric is boosted by 2-3 points. In addition, the is increased by 1.6 points even on very strong backbone, ResNeXt101 [15]. This demonstrate that the ScaleNet does alleviate the scale problem to certain extent.

The Effect of Hyperparameter TopN.

To fairly investigate the effect of TopN, we only change the setting in test phase, which avoids the influence by the amount of training data. From Fig. 7, we see that after , the number of processed images gradually increases, yet the AP dose not change too much and just fluctuates around . This means that a lot of cluster regions are repetitively computed when TopN is set to a high value. This observation also indicates that the cluster merge operation is critical to decrease the computation cost.

4.6 Quantitative Results

VisDrone The detection performance of the proposed method and representative detectors, i.e., Faster RCNN[26] and RetinaNet[20] is shown in Table 2. We note that our method outperforms the state-of-the-art methods by a large margin over various backbone settings. Besides, we observe that when testing the model using multi-scale setting (denoted by ), the performance is significantly boosted, except for the methods using EIP. This is because in multi-scale test, the cropped chips are resized to extremely large scale such that detectors output a lot of false positives on background or local regions of objects.

UAVDT The experimental results on the UAVDT [8] dataset are displayed in Table 3. The performance of the compared methods, except for FRCNN [26]+FPN [19], is computed using the experimental results provided in [8]. From the Table 3, we observe that applying EIP on test data dose not improve the performance. On the contrary, it dramatically decreases the performance (11.0 vs 6.1). The reason of this phenomenon is that the objects, i.e. vehicles, in the UAVDT always appear in the center of the image, while the EIP operation divides the objects into pieces such that the detector cannot correctly estimate the objects scale. Compared to FRCNN [26]+FPN [19] (FFPN), our method is superior to the FFPN and FFPN+EIP. The performance improvement mainly benefits from the different image crop operation. In our method, the image is cropped based on the clusters information, which is less likely to truncate numerous objects. The performance of detectors on UAVDT [8] is much lower than that on VisDrone [36], this is caused by the extremely unbalanced data.

DOTA On the DOTA[31] dataset, our method achieves similar performance with state-of-the-art methods but processes dramatically less image chips. This is because the CPNet significantly reduces the number of chips for fine detection. Although our method does not outperform the state-of-the-art methods in term of the overall performance (), it obtains higher value, which indicates that our method can more precisely estimate the object scale. Besides, we observe that the performance does not change too much when more complex backbone networks are adopted. This can be attributed to the limited training images. Without a large amount of data, the complex model cannot achieve its superiority.

5 Conclusion

This work presents a Clustered object Detection (ClusDet) network to unify object cluster and object detection in an end-to-end framework. We show that the ClusDet network can successfully predict the clustered regions in image to significantly reduce the number of blocks for detection so as to improve the efficiency. Moreover, we propose a cluster-based object scale estimation network to effectively detect the small object. In addition, we experimentally demonstrate that the proposed ClusDet network implicitly models the prior context information to improve the detection precision. By extensive experiments, we show that our method obtains state-of-the-art performance on three public datasets.


  • [1] B. Alexe, N. Heess, Y. W. Teh, and V. Ferrari. Searching for objects driven by context. In NIPS. 2012.
  • [2] N. Audebert, B. Le Saux, and S. Lefèvre. Segment-before-detect: Vehicle detection and classification through semantic segmentation of aerial images. Remote Sensing, 9(4):368, 2017.
  • [3] Z. Cai and N. Vasconcelos. Cascade r-cnn: Delving into high quality object detection. In CVPR, 2018.
  • [4] X. S. Chen, H. He, and L. S. Davis. Object detection in 20 questions. In WACV, 2016.
  • [5] J. Dai, Y. Li, K. He, and J. Sun. R-fcn: Object detection via region-based fully convolutional networks. In NIPS, 2016.
  • [6] Z. Deng, H. Sun, S. Zhou, J. Zhao, and H. Zou. Toward fast and accurate vehicle detection in aerial images using coupled region-based convolutional neural networks. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 10(8):3652–3664, 2017.
  • [7] J. Ding, N. Xue, Y. Long, G.-S. Xia, and Q. Lu. Learning roi transformer for detecting oriented objects in aerial images. In CVPR, 2019.
  • [8] D. Du, Y. Qi, H. Yu, Y. Yang, K. Duan, G. Li, W. Zhang, Q. Huang, and Q. Tian. The unmanned aerial vehicle benchmark: object detection and tracking. In ECCV, 2018.
  • [9] M. Everingham, S. A. Eslami, L. Van Gool, C. K. Williams, J. Winn, and A. Zisserman. The pascal visual object classes challenge: A retrospective. IJCV, 111(1):98–136, 2015.
  • [10] M. Gao, R. Yu, A. Li, V. I. Morariu, and L. S. Davis. Dynamic zoom-in network for fast object detection in large images. In CVPR, 2018.
  • [11] R. Girshick. Fast r-cnn. In ICCV, 2015.
  • [12] R. Girshick, J. Donahue, T. Darrell, and J. Malik. Rich feature hierarchies for accurate object detection and semantic segmentation. In CVPR, 2014.
  • [13] R. Girshick, I. Radosavovic, G. Gkioxari, P. Dollár, and K. He. Detectron., 2018.
  • [14] K. He, G. Gkioxari, P. Dollár, and R. Girshick. Mask r-cnn. In ICCV, 2017.
  • [15] K. He, X. Zhang, S. Ren, and J. Sun. Deep residual learning for image recognition. In CVPR, 2016.
  • [16] T. Kong, F. Sun, A. Yao, H. Liu, M. Lu, and Y. Chen. Ron: Reverse connection with objectness prior networks for object detection. In

    Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition

    , pages 5936–5944, 2017.
  • [17] A. Krizhevsky, I. Sutskever, and G. E. Hinton. Imagenet classification with deep convolutional neural networks. In NIPS, 2012.
  • [18] R. LaLonde, D. Zhang, and M. Shah. Clusternet: Detecting small objects in large scenes by exploiting spatio-temporal information. In CVPR, 2018.
  • [19] T.-Y. Lin, P. Dollár, R. Girshick, K. He, B. Hariharan, and S. Belongie. Feature pyramid networks for object detection. In CVPR, 2017.
  • [20] T.-Y. Lin, P. Goyal, R. Girshick, K. He, and P. Dollár. Focal loss for dense object detection. In ICCV, 2017.
  • [21] T.-Y. Lin, M. Maire, S. Belongie, J. Hays, P. Perona, D. Ramanan, P. Dollár, and C. L. Zitnick. Microsoft coco: Common objects in context. In ECCV, 2014.
  • [22] W. Liu, D. Anguelov, D. Erhan, C. Szegedy, S. Reed, C.-Y. Fu, and A. C. Berg. Ssd: Single shot multibox detector. In ECCV, 2016.
  • [23] Y. Lu, T. Javidi, and S. Lazebnik. Adaptive object detection using adjacency and zoom prediction. In CVPR, 2016.
  • [24] J. Redmon, S. Divvala, R. Girshick, and A. Farhadi. You only look once: Unified, real-time object detection. In CVPR, 2016.
  • [25] J. Redmon and A. Farhadi. Yolo9000: better, faster, stronger. In CVPR, 2017.
  • [26] S. Ren, K. He, R. Girshick, and J. Sun. Faster r-cnn: Towards real-time object detection with region proposal networks. In NIPS, 2015.
  • [27] I. Ševo and A. Avramović. Convolutional neural network based automatic object detection on aerial images. GRSL, 13(5):740–744, 2016.
  • [28] K. Simonyan and A. Zisserman. Very deep convolutional networks for large-scale image recognition. In ICLR, 2015.
  • [29] B. Singh and L. S. Davis. An analysis of scale invariance in object detection snip. In CVPR, 2018.
  • [30] L. W. Sommer, T. Schuchert, and J. Beyerer. Fast deep vehicle detection in aerial images. In WACV, 2017.
  • [31] G.-S. Xia, X. Bai, J. Ding, Z. Zhu, S. Belongie, J. Luo, M. Datcu, M. Pelillo, and L. Zhang. Dota: A large-scale dataset for object detection in aerial images. In CVPR, 2018.
  • [32] S. Xie, R. Girshick, P. Dollár, Z. Tu, and K. He. Aggregated residual transformations for deep neural networks. In CVPR, 2017.
  • [33] S. Zhang, G. He, H.-B. Chen, N. Jing, and Q. Wang. Scale adaptive proposal network for object detection in remote sensing images. GRSL, 2019.
  • [34] S. Zhang, L. Wen, X. Bian, Z. Lei, and S. Z. Li. Single-shot refinement neural network for object detection. In CVPR, 2018.
  • [35] P. Zhu, L. Wen, X. Bian, H. Ling, and Q. Hu. Vision meets drones: a challenge. arXiv:1804.07437, 2018.
  • [36] P. Zhu et al. Visdrone-det2018: The vision meets drone object detection in image challenge results. In ECCVW, 2018.
