Classification of postoperative surgical site infections from blood measurements with missing data using recurrent neural networks

Clinical measurements that can be represented as time series constitute an important fraction of the electronic health records and are often both uncertain and incomplete. Recurrent neural networks are a special class of neural networks that are particularly suitable to process time series data but, in their original formulation, cannot explicitly deal with missing data. In this paper, we explore imputation strategies for handling missing values in classifiers based on recurrent neural network (RNN) and apply a recently proposed recurrent architecture, the Gated Recurrent Unit with Decay, specifically designed to handle missing data. We focus on the problem of detecting surgical site infection in patients by analyzing time series of their blood sample measurements and we compare the results obtained with different RNN-based classifiers.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

10/20/2017

Learning compressed representations of blood samples time series with missing data

Clinical measurements collected over time are naturally represented as m...
06/13/2016

Modeling Missing Data in Clinical Time Series with RNNs

We demonstrate a simple strategy to cope with missing data in sequential...
03/22/2021

Handling Missing Observations with an RNN-based Prediction-Update Cycle

In tasks such as tracking, time-series data inevitably carry missing obs...
08/03/2017

Detecting early signs of depressive and manic episodes in patients with bipolar disorder using the signature-based model

Recurrent major mood episodes and subsyndromal mood instability cause su...
08/17/2020

HiPPO: Recurrent Memory with Optimal Polynomial Projections

A central problem in learning from sequential data is representing cumul...
04/17/2021

Recursive input and state estimation: A general framework for learning from time series with missing data

Time series with missing data are signals encountered in important setti...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

Surgical Site Infection (SSI) is one of the most common types of nosocomial infection [lewis2013] and represents up to 30% of hospital-acquired infections [magill2012prevalence]. Studies have shown that being infected with SSI both increases the risk of re-admissions [shah2017evaluation], and prolongs the postoperative stay for up to two weeks and thereby also the cost per patient [whitehouse2002]. Hence, being able to detect infections is of utmost importance both for the patients and for the healthcare system.

Blood sample measurements represent a fundamental source of information for predicting the risk of getting SSI in a given patient. In some studies blood tests have been jointly analyzed together with other electronic health record data for detecting the presence of SSI [soguero2016support, hu2017strategies]. However, due to the fact that blood samples are recorded frequently with low burden for the patients and describe the health status of a patient with certainty, other studies have successfully focused on the analysis of blood tests alone for predicting SSI [soguero2015data, angiolini2016].

Blood samples are usually collected for each patient in given periods both before and after the surgery. The data are series of several indicators, measured on a patient over time and, due to the presence of important relationships in time among the measurements, data can be naturally represented as multivariate time series. An effective machine learning framework used to model and analyze multivariate time series (MTS) is the Recurrent Neural Network (RNN).

RNNs are a special class of Neural Networks characterized by internal self-connections, which are capable of modeling sequential data of variable lengths [DBLP:journals/corr/BianchiMKRJ17]. Thanks to their recurrent nature, an RNN captures temporal dependencies in the MTS to perform prediction or classification. At each time step, the RNN output depends on past inputs and previously computed states. This allows the network to develop a memory of previous events, which is implicitly encoded in its internal state. Thanks to these properties, RNNs have proven powerful in a number of different healthcare applications [pmlr-v56-Choi16, GULER2005506].

Although a vanilla RNN, or Elman RNN (ERNN), can in principle learn how to model very complex relationships, an optimal training is often difficult to achieve and the network often performs poorly on unseen data and fails to capture long-term dependencies. A more sophisticated architecture, called Gated Recurrent Unit [cho2014learning] (GRU), implements recurrent units that adaptively captures dependencies at different time scales and it demonstrated to outperform other architectures on several tasks [DBLP:journals/corr/ChungGCB14].

Most clinical data, including blood sample measurements, are corrupted by the presence of missing values. Indeed, for each patient some measurements may not be registered and, at some time, data might be not collected at all. Most machine learning models, including RNNs, are not designed to deal with missing data and their presence often complicates the training and deteriorate performances [García-Laencina2010]. A commonly used approach is to replace missing data with imputation methods [AZPH:AZPH464], trying to introduce as less bias as possible.

The Gated Recurrent Unit with Decay (GRUD) [DBLP:journals/corr/ChePCSL16] is a recently proposed RNN, specifically designed to handle MTS with missing data and to leverage on the missing patterns to achieve better prediction results. GRUD takes as input two representations of missing patterns: a masking that informs the model which inputs are observed or missing and time intervals that encapsulate the input observation patterns.

In this work, we study the problem of identifying surgical site infection by only relying on blood measurements that contain many missing data. We evaluate the classification performance of three types of RNN-based classifiers, to discriminate between MTS relative to infected and non-infected patients. Specifically, we compare ERNN and GRU, where missing data are imputed, and GRUD, which handles missing data without having to resort to imputation.

Ii Methods

Let us consider a dataset of multivariate time series with variables of same length . Since a time series may contain missing entries, according to the procedure in [DBLP:journals/corr/ChePCSL16] we associate to a binary mask , whose element if is missing, otherwise .

Ii-a Approaches for handling missing data

To replace missing values from the input data, we consider three baseline imputation techniques [AZPH:AZPH464].

  • Zero imputation: the missing values in each time series are replaced with . The main drawback of this imputation is the introduction of a strong bias in the data.

  • Last value carried forward: for each variable in the missing values are replaced by the last value observed for . The main problem with this method is the assumption that there will be no change from one observed value to the next.

  • Mean substitution: for each variable in the missing values are replaced by the mean value of across all the time series. Mean values are computed only relative to values that are observed, i.e. that are associated to a “1” in each matrix

    . As main drawback, this method can lead to under-estimates of the variance.

Ii-B Elman RNN

The state update in a ERNN is governed by the difference equation , where and are the recurrent and inputs weights respectively,

is a bias vector, and

is the activation function usually implemented by a

tanh. The network output is computed as , where is the last hidden state of the RNN produced once the whole MTS is processed, and are the output weights and bias respectively, and is a softmax function. The parameters , , , and are trained with gradient descent so that the matches a desired output .

Ii-C Gated Recurrent Unit

The Gated Recurrent Unit (GRU) [cho2014learning]

is a gated architecture that can store information for longer periods of time, with respect to ERNNs. While the ERNN neuron implements a single squashing nonlinearity, GRU has a more elaborated processing unit called

cell

, which is composed of different nonlinear components interacting with each other in a particular way. The internal state of a cell is modified by the network only through linear interactions. This permits information to backpropagate smoothly across time, with a consequent enhancement of the memory capacity of the cell. A schema of the GRU cell is depicted in Fig.

1.

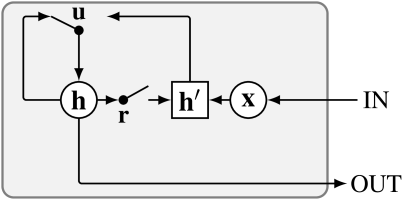

Fig. 1: Schema of the GRU cell.

A GRU protects and controls the information in the cell through two gates. The update gate, controls how much the current content of the cell should be updated with the new candidate state. The reset gate if closed (value near to 0) can effectively reset the memory of the cell and make the unit act as if the next processed input was the first in the sequence. The activation of each gate depends on the current external input, the previous state of the GRU cells and their output. The state equations of the GRU are the following:

Here, and are a non-linear functions usually implemented as hyperbolic tangent and logistic function, respectively. The parameters are the rectangular matrices , , , the square matrices , , , and the bias vectors , , . To control the behavior of each gate, those parameters are trained with gradient descent to solve a target task.

Ii-D Gated Recurrent Unit with Decay

In the GRUD cell the standard GRU architecture is modified to implement a decay mechanism for the input variables and the hidden states, according to the missing values in input. Such decays capture two different properties that characterize health care data. First, the values of the missing variable tend to be close to some default value if its last observation occurs far in time [vodovotz2013systems]. Second, the influence of the last seen input variables diminish over time when the next values are missing [ZHOU2007183].

Beside the mask , to track missing values in each MTS , GRUD maintains the last time interval when each variable was observed in a matrix . Specifically, an element of is defined as

where are the time stamps relative to each measurement. A vector of decay rates is defined as

(1)

where and are trained on data along with the other parameters. GRUD employs two different decays. First, , decays the input over time toward its empirical mean

(2)

where is the last value observed for variable and is its empirical mean. Secondly, decays the extracted features before computing the next hidden state

(3)

The state update equations for GRUD are

where and are respectively updated according to Eq. 2 and Eq. 3, while , and are additional trainable weights for the masking values in . A schema of the GRUD architecture is depicted in Fig. 2.

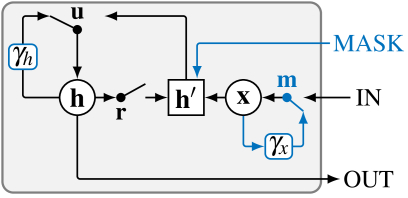

Fig. 2: Schema of the GRUD cell. Modification with respect to the original GRU architecture are highlighted in blue.
