Classification of Hyperspectral and LiDAR Data Using Coupled CNNs

02/04/2020 ∙ by Renlong Hang, et al. ∙ DLR University of Missouri-Kansas City 15

In this paper, we propose an efficient and effective framework to fuse hyperspectral and Light Detection And Ranging (LiDAR) data using two coupled convolutional neural networks (CNNs). One CNN is designed to learn spectral-spatial features from hyperspectral data, and the other one is used to capture the elevation information from LiDAR data. Both of them consist of three convolutional layers, and the last two convolutional layers are coupled together via a parameter sharing strategy. In the fusion phase, feature-level and decision-level fusion methods are simultaneously used to integrate these heterogeneous features sufficiently. For the feature-level fusion, three different fusion strategies are evaluated, including the concatenation strategy, the maximization strategy, and the summation strategy. For the decision-level fusion, a weighted summation strategy is adopted, where the weights are determined by the classification accuracy of each output. The proposed model is evaluated on an urban data set acquired over Houston, USA, and a rural one captured over Trento, Italy. On the Houston data, our model can achieve a new record overall accuracy of 96.03 achieves an overall accuracy of 99.12 effectiveness of our proposed model.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 4

page 5

page 7

page 8

page 10

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

Accurate land-use and land-cover classification plays an important role in many applications such as urban planning and change detection. In the past few years, hyperspectral data have been widely explored for this task [12, 9, 15]. Compared to multispectral data, hyperspectral data have more rich spectral information, ranging from the visible spectrum to the infrared spectrum [16]. Such information, combined with some spatial information in hyperspectral data, can generally acquire satisfying classification results [6, 13]. However, for urban and rural areas, there often exist many complex objects that are difficult to discriminate, because they have similar spectral responses. Thanks to the development of remote sensing technologies, nowadays, it is possible to measure different aspects of the same object on the Earth’s surface [8]

. Different from hyperspectral data, Light Detection And Ranging (LiDAR) data can record the elevation information of objects, thus providing complementary information for hyperspectral data. For instance, if the building roof and the road are both made up of concrete, it is very difficult to distinguish them using only hyperspectral data since their spectral responses are similar. However, LiDAR data can accurately classify those two classes as they have different heights. On the contrary, LiDAR data cannot differentiate between two different roads, which are made up of different materials (e.g., asphalt and concrete), having the same height. Therefore, fusing hyperspectral and LiDAR data is a promising scheme whose performance has already been validated in the literature for land-cover and land-use classification

[8, 4].

In order to take advantage of the complementary information between hyperspectral and LiDAR data, a lot of works have been proposed. One widely used class of methods is based on the feature-level fusion. In [25]

, morphological extended attribute profiles (EAPs) were applied to hyperspectral and LiDAR data respectively. These profiles and the original spectral information of hyperspectral data were stacked together for classification. However, the direct stacking of these high-dimensional features inevitably results in the well-known Hughes phenomenon, especially when only a relatively small number of training samples is available. To address this issue, principal component analysis (PCA) was employed to reduce the dimensionality. Similar to this work, many subspace-related models can be designed to fuse the extracted spectral, spatial, and elevation features

[35, 20, 27, 26, 28]. For example, a graph embedding framework was proposed in [20]; a low-rank component analysis model was proposed in [27]. Different from them, Gu et al. attempted to use multiple-kernel learning [24] to combine heterogeneous features [10]. They constructed a kernel for each feature, and then combined these kernels together in a weighted summation manner. Different weights can represent the importance of different features for classification.

Besides the feature-level fusion, the decision-level fusion is another popularly adopted method. In [19]

, spectral features, spatial features, elevation features, and their fused features were fed into the support vector machine (SVM) individually to generate four classifiers, and the final classification result was determined by them. In

[36]

, two different fusion strategies named hard decision fusion and soft decision fusion were used to integrate the classification results from different data source. Their fusion weights were uniformly distributed. In

[37]

, three different classifiers, including the maximum likelihood classifier, SVM, and the multinomial logistic regression, were used to classify the extracted features. The fusion weights for these classifiers were adaptively optimized by a differential evolution algorithm. Recently, a novel ensemble classifier using random forest was proposed, in which a majority voting method was used to produce the final classification result

[29]

. In summary, the difference between feature-level fusion and decision-level fusion methods lies in the phase where the fusion process happens, but both of them require powerful representations of hyperspectral and LiDAR data. To achieve this goal, one needs to spend a lot of time designing appropriate feature extraction and feature selection methods. These handcrafted features often require domain expertise and prior knowledge.

In recent years, deep learning has attracted more and more attention in the field of remote sensing

[33, 11]. In contrast to the handcrafted features, deep learning can learn high-level semantic features from data itself in an end-to-end manner [39]. Among various deep learning models, convolutional neural networks (CNNs) gain the most attention and have been explored in various tasks. For example, in [3], CNN was applied to object detection in remote sensing images. In [1], three CNN frameworks were proposed for hyperspectral image classification. In [21], Liu et al.

used CNNs to learn multi-scale deep features for remote sensing image scene classification. Due to its powerful feature learning ability, some researchers attempted to use CNN for hyperspectral and LiDAR data fusion recently. An early attempt appears in

[23]. It directly considered LiDAR data as another spectral band of hyperspectral data, and then fed the concatenated data into CNN to learn features and perform classification. In [5], Ghamisi et al. tried to combine the traditional feature extraction method and CNN together. They fed the fused features to CNN for learning a higher-level representation and getting a classification result. Similarly, Li et al. constructed three CNNs to learn spectral, spatial, and elevation features, respectively, and then used a composite kernel method to fuse them [18]. Different from them, an end-to-end CNN fusion model was designed in [2], which embedded feature extraction, feature fusion, and classification into one framework. Specifically, the hyperspectral and LiDAR data were directly fed into their corresponding CNNs to extract features, and then these features were concatenated together, followed by a fully-connected layer to further fuse them. Based on this two-branch framework, Xu et al. also proposed a spectral-spatial CNN for hyperspectral data analysis and another spatial CNN for LiDAR data analysis [30].

It is well-known that the performance of CNN-based models heavily depends on the number of available samples. However, in the field of hyperspectral and LiDAR data fusion, there often exists a small number of training samples. To address this issue, an unsupervised CNN model was proposed in [34] based on the famous encoder-decoder architecture [22]

. Specifically, it first mapped the hyperspectral data into a hidden space via an encoding path, and then reconstructed the LiDAR data with a decoding path. After that, the hidden representation in the encoding path can be considered as fused features of hyperspectral and LiDAR data. Nevertheless, there still exist some issues. For examples, the loss of supervised information from labeled samples will lead to a suboptimal feature representation; it also needs to design another network to classify the learned representation, which will increase the computation complexity. In this paper, we propose a supervised model to fuse hyperspectral and LiDAR data by designing an efficient and effective CNN framework. Similar to

[2], we also use two CNNs but with a more efficient representation. We use three convolutional layers with small kernels (i.e., ), and two of them share parameters. Besides the output layer, we do not use any fully-connected layers. The major contributions of this paper are summarized as follows.

  1. In order to sufficiently fuse hyperspectral and LiDAR data, two coupled CNNs are designed. Compared to the existing CNN-based fusion models, our model is more efficient and effective. The coupled convolution layers can reduce the number of parameters, and more importantly, guide the two CNNs learn from each other, thus facilitating the following feature fusion process.

  2. In the fusion phase, we simultaneously use feature-level and decision-level fusion strategies. For the feature-level fusion, we propose summation and maximization fusion methods in addition to the widely adopted concatenation method. To enhance the discriminative ability of learned features, we add two output layers to the CNNs, respectively. These three output results are finally combined together via a weighted summation method, whose weights are determined by the classification accuracy of each output on the training data.

  3. We test the effectiveness of the proposed model on two data sets using standard training and test sets. On the Houston data, we can achieve an overall accuracy of 96.03%, which is the best result ever reported in the literature. On the Trento data, we can also obtain very high performance (i.e., an overall accuracy of 99.12%).

The rest of this paper is organized as follows. Section II describes the details of the proposed model, including the coupled CNN framework, the data fusion model, and the network training and testing methods. The descriptions of data sets and experimental results are given in Section III. Finally, Section IV concludes this paper.

Ii Methodology

Ii-a Framework of the Proposed Model

As shown in Fig.1, our proposed model mainly consists of two networks: an HS network for spectral-spatial feature learning and a LiDAR network for elevation feature learning. Each of them includes an input module, a feature learning module and a fusion module. For the HS network, PCA is firstly used to reduce the redundant information of the original hyperspectral data, and then a small cube is extracted surrounding the given pixel. For the LiDAR network, we can directly extract an image patch at the same spatial position as the hyperspectral data. In the feature learning module, we use three convolutional layers, and the last two of them share parameters. In the fusion module, we construct three classifiers. Each CNN has an output layer, and their fused features are also fed into an output layer.

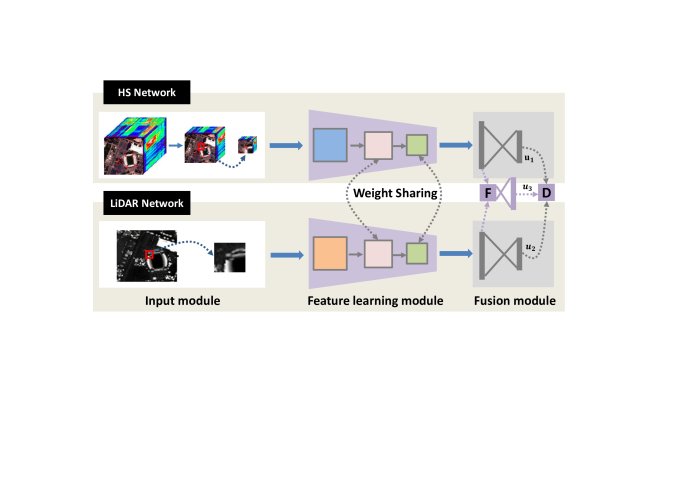

Fig. 1: Flowchart of the proposed model.

Ii-B Feature Learning via Coupled CNNs

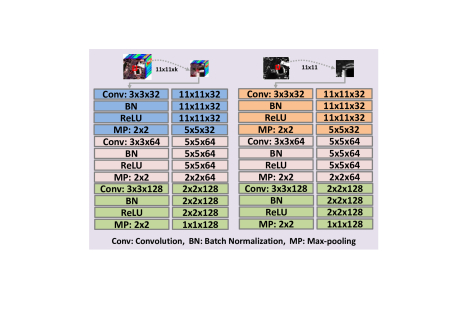

Fig. 2: Architecture of the coupled CNNs.

Given a hyperspectral image and a corresponding LiDAR image covering the same area on the Earth’s surface. Here, and represent the height and width, respectively, of the two images, and refers to the number of spectral bands of the hyperspectral image. Our goal is to sufficiently fuse the information from and to improve the classification performance. The same as other classification tasks, feature representation is a critical step here. Due to the effects of multi-path scattering and the heterogeneity of sub-pixel constituents, often exhibits nonlinear relationships between the captured spectral information and the corresponding material. This nonlinear characteristic will be magnified when dealing with [8]. It has been proved that CNNs are capable of extracting high-level features, which are usually invariant to the nonlinearities of hyperspectral [32, 31, 38] and LiDAR data [2, 14]. Inspired from them, we design a coupled CNN framework to learn features from and efficiently.

The detailed architecture of the coupled CNNs is demonstrated in Fig.2. First of all, PCA is used to extract the first principle components of to reduce the redundant spectral information. Then, for each pixel, a small cube and a small patch centered at it are chosen from and , respectively. According to [2] and [34], the neighboring size can be empirically set to 11. After that, and are fed into three convolutional layers to learn features. For the first convolutional layer, we adopt two different convolution operators (the blue box and the orange box) to obtain an initial representation of and

, respectively. This convolutional layer is sequentially followed by a batch normalization (BN) layer to regularize and accelerate the training process, a rectified linear unit (ReLU) to learn a nonlinear representation, and a max-pooling layer to reduce the data variance and the computation complexity.

For the second convolutional layer, we let the HS network and the LiDAR network share parameters. Such a coupling strategy has at least two benefits. First, it can significantly reduce the number of parameters by twice, which is very useful with small numbers of training samples. Second, it can make these two networks learn from each other. Without weight sharing, the training parameters in each network will be optimized independently using their own loss functions. After adopting the coupling strategy, the back-propagated gradients to this layer will be determined by the loss functions of both networks, which means that the information in one network will directly affect the other one. For the third convolutional layer, we also use the coupling strategy, which can further improve the discriminative ability of the learned representation from the second convolutional layer. Again, these two convolutional layers are followed by BN, ReLU, and max-pooling operators. The sizes (i.e.,

) and the number of kernels (i.e., 32, 64 and 128 sequentially) of each convolutional layer are shown at the left side under each data. Similarly, the output size (e.g.,

) of each operator is shown at the right side. It is worth noting that all the convolutional layers have padding operators to make the output size the same as the input size.

Ii-C Hyperspectral and LiDAR Data Fusion


Fig. 3: Structure of the fusion module.

After getting the feature representations of and , how to combine them becomes another important issue. Most of the existing deep learning models [2, 34, 30] choose to stack them together and use a few fully-connected layers to fuse them. However, fully-connected layers often contain large numbers of parameters, which will increase the training difficulty when there only exists a small number of training samples. To this end, we propose a novel combination strategy based on feature-level and decision-level fusions. Assume and denote the learned features for and , respectively. As shown in Fig.3, we first combine and to generate a new feature representation. Then, we input these three features into output layers separately. Finally, all the output layers are integrated together to produce a final result. The whole fusion process can be formulated as:

(1)

In the above equation, , where is the number of classes to discriminate, reprensents the final output of the fusion module; and are decision-level and feature-level fusions, respectively; , , and are three output layers connected to , , and , respectively; , , , denote the connection weights for , , and , respectively; corresponds to the fusion weight for .

For the feature-level fusion , we use summation and maximization methods in addition to the widely used concatenation method. The summation fusion aims to compute the sum of the two representations:

(2)

Similarly, the maximization fusion aims at performing an element-wise maximization:

(3)

Obviously, the performance of depends on its inputs and . Therefore, we add two output layers , and to supervise their learning processes. In the output phase, they can also help make decisions. The output value of can be derived as follows:

(4)

where represents the softmax function. Similar to Equation(4), we can also derive the output values and for and , respectively. For the decision-level fusion , we adopt a weighted summation method:

(5)

where is an element-wise product operator, , and are three column vectors of , and the -th element of depends on the -th class accuracy acquired by the -th output layer on the training data.

Ii-D Network Training and Testing

The whole network in Fig.1 is trained in an end-to-end manner using a given training set , where represents the number of training samples, and is the ground-truth for the -th sample. After a feed-forward process, we are able to obtain three outputs for each sample. Their loss values can be computed by a cross-entropy loss function. For instance, the loss value between the first output and the ground-truth can be formulated as

(6)

Similarly, we can also derive and for the other two outputs. is designed to supervise the learning process of the fused feature between hyperspectral and LiDAR data, while and are responsible for the hyperspectral and LiDAR features, respectively. The final loss value is represented as the combination of , , and :

(7)

where and represent the weight parameters for and , respectively. In the experiments, we empirically set them to 0.01 because it can achieve satisfactory performance. The effects of them on the classification performance will be analysed in section III-D.

The same as most CNN models,

can be optimized using a backpropagation algorithm. Note that

and can also be considered as regularization terms for , thus reducing the overfitting risk during the network training process.

Once the network is trained, we can use it to predict the label of each test sample. Firstly, is computed on the training set. Its -th element can be derived as

(8)

where is the -th class accuracy of the -th output, and is an indicator function, whose value equals to when the condition exists and otherwise. Secondly, for the -th test sample, we are able to obtain three output values , , and via a feed-forward propagation. Finally, the output value can be derived by using Equation(5).

Class No. Class Name Training Test
1 Healthy grass 198 1053
2 Stressed grass 190 1064
3 Synthetic grass 192 505
4 Tree 188 1056
5 Soil 186 1056
6 Water 182 143
7 Residential 196 1072
8 Commercial 191 1053
9 Road 193 1059
10 Highway 191 1036
11 Railway 181 1054
12 Parking lot 1 192 1041
13 Parking lot 2 184 285
14 Tennis court 181 247
15 Running track 187 473
- Total 2832 12197
TABLE I: Numbers of training and test samples in each class for the Houston data.

Iii Experiments

Iii-a Data Description

Class No. Class Name Training Test
1 Apple trees 129 3905
2 Buildings 125 2778
3 Ground 105 374
4 Wood 154 8969
5 Vineyard 184 10317
6 Roads 122 3252
- Total 819 29595
TABLE II: Numbers of training and test samples in each class for the Trento data.

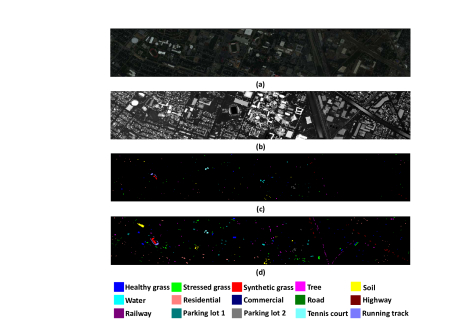

Fig. 4: Visualization of the Houston data: (a) a pseudo-color image for the hyperspectral data using 64, 43, and 22 as R, G, B, respectively, (b) a grayscale image for the LiDAR data, (c) the training data map, and (d) the test data map.

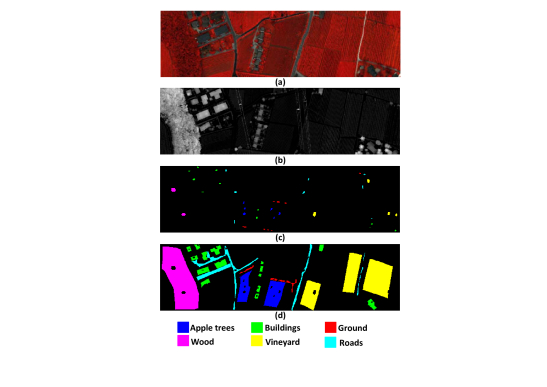

Fig. 5: Visualization of the Trento data: (a) a pseudo-color image for the hyperspectral data using 40, 20, and 10 as R, G, B, respectively, (b) a grayscale image for the LiDAR data, (c) the training data map, and (d) the test data map.

We test the effectiveness of our proposed model on two hyperspectral and LiDAR fusion data sets.

1) Houston Data: The first data was acquired over the University of Houston campus and the neighboring urban area on June, 2012 [4]. It consists of a hyperspectral image and LiDAR data, both of which contain pixels with a spatial resolution of 2.5 m. The number of spectral bands for the hyperspectral data is 144. Fig.4 demonstrates a pseudo-color image of the hyperspectral data, a grayscale image of the LiDAR data, and ground-truth maps of the training and test samples. As shown in the figure, there exist 15 different classes. The detailed numbers of samples for each class are reported in TableI. It is worth noting that we use the standard sets of training and test samples which makes our results fully comparable with several works such as [8] and [4].

2) Trento Data: The second data was captured over a rural area in the south of Trento, Italy. The LiDAR data was acquired by the Optech ALTM 3100EA sensor, and the hyperspectral data was acquired by the AISA Eagle sensor with 63 spectral bands. The size of these two data is pixels, and the spatial resolution is 1 m. Fig.5 visualizes this data, and TableII lists the number of samples in 6 different classes. Again, we also use the standard sets of training and test samples to construct experiments.

Iii-B Experimental Setup

In order to validate the effectiveness of our proposed models, we comprehensively compare it with several different models. Specifically, we first select the HS network (i.e., CNN-HS) and the LiDAR network (i.e., CNN-LiDAR) in Fig.1 as two baselines, and compare different fusion methods on both Houston and Trento data. Then, we focus on the Houston data, and compare our model with numerous state-of-the-art models.

All of the deep learning models are implemented in the PyTorch framework. To optimize them, we use the Adam algorithm. The batch size, the learning rate, and the number of training epochs are set to 64, 0.001, and 200, respectively. The experiments are implemented on a personal computer with an Intel core i7-4790, 3.60GHz processor, 32GB RAM, and a GTX TITAN X graphic card.

The classification performance of each model is evaluated by the overall accuracy (OA), the average accuracy (AA), the per-class accuracy, and the Kappa coefficient. OA defines the ratio between the number of correctly classified pixels to the total number of pixels in the test set, AA refers to the average of accuracies in all classes, and Kappa is the percentage of agreement corrected by the number of agreements that would be expected purely by chance.

Iii-C Experimental Results

Class No. CNN-HS CNN-LiDAR CNN-F-C CNN-F-M CNN-F-S CNN-DF-C CNN-DF-M CNN-DF-S
1 82.91 60.30 82.91 81.86 89.93 82.81 83.00 85.57
2 99.91 24.34 99.81 99.44 98.21 100 99.81 99.81
3 91.29 66.53 97.43 97.03 98.61 96.44 97.62 97.62
4 95.93 88.73 99.43 99.05 99.05 98.96 99.91 99.43
5 100 24.81 100 98.86 99.72 100 99.91 100
6 93.71 25.87 96.50 100 100 100 100 95.80
7 91.60 61.19 87.41 96.74 91.98 91.32 90.39 95.24
8 87.18 84.33 91.17 92.69 96.30 92.40 95.54 96.39
9 86.87 40.32 87.25 92.92 92.92 89.33 93.86 93.20
10 97.59 53.86 98.75 84.94 88.51 99.71 96.04 98.84
11 89.56 80.46 97.15 97.34 96.49 99.43 98.39 96.77
12 91.16 29.30 96.25 92.22 86.65 92.51 93.18 92.60
13 88.77 81.05 92.98 92.63 89.82 89.82 92.98 92.98
14 89.07 52.63 93.52 100 99.60 88.26 95.95 99.19
15 90.91 29.81 100 92.81 99.58 100 98.73 100
OA 92.05 54.52 94.37 93.92 94.49 94.74 95.29 96.03
AA 91.76 53.57 94.70 94.57 95.16 94.73 95.69 96.23
Kappa 0.9136 0.5082 0.9389 0.9340 0.9402 0.9429 0.9488 0.9569
TABLE III: Classification accuracies (%) and Kappa coefficients of different models on the Houston data. The best accuracies are shown with the bold type face.

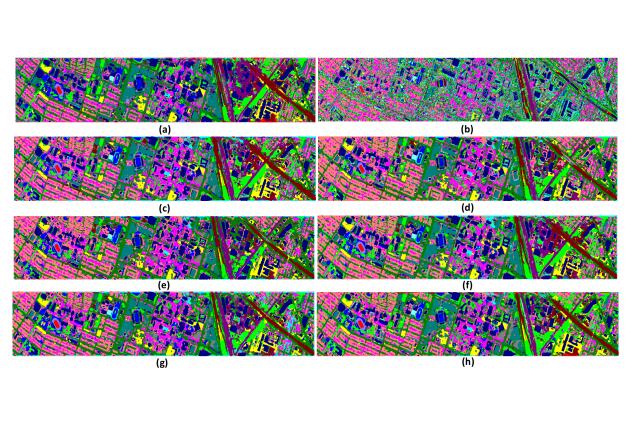

Fig. 6: Classification maps of the Houston data using different models: (a) CNN-HS, (b) CNN-LiDAR, (c) CNN-F-C, (d) CNN-F-M, (e) CNN-F-S, (f) CNN-DF-C, (g) CNN-DF-M, (h) CNN-DF-S.
Class No. CNN-HS CNN-LiDAR CNN-F-C CNN-F-M CNN-F-S CNN-DF-C CNN-DF-M CNN-DF-S
1 99.85 99.92 98.49 96.72 99.15 98.44 99.69 99.64
2 94.67 93.16 97.01 97.05 96.36 97.73 98.81 97.66
3 82.09 60.43 92.51 95.99 93.05 88.50 94.39 92.25
4 98.73 99.12 99.11 100 100 100 99.88 99.96
5 99.73 95.63 100 100 99.96 100 100 99.90
6 76.31 50.59 90.53 92.69 89.71 93.64 94.00 92.40
OA 96.31 91.91 98.17 98.48 98.37 98.77 99.12 98.80
AA 91.90 83.14 96.28 97.08 96.37 96.39 97.80 96.97
Kappa 0.9505 0.8917 0.9754 0.9796 0.9782 0.9835 0.9881 0.9839
TABLE IV: Classification accuracies (%) and Kappa coefficients of different models on the Trento data. The best accuracies are shown with the bold type face.

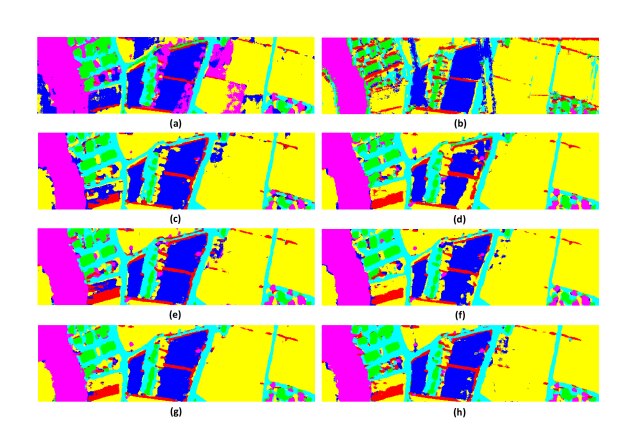

Fig. 7: Classification maps of the Trento data using different models: (a) CNN-HS, (b) CNN-LiDAR, (c) CNN-F-C, (d) CNN-F-M, (e) CNN-F-S, (f) CNN-DF-C, (g) CNN-DF-M, (h) CNN-DF-S.
Traditional models
Model MLR GGF SLRCA OTVCA ODF-ADE E-UGF HyMCKs
OA 92.05 94.00 91.30 92.45 93.50 95.11 90.33
AA 92.87 93.79 91.95 92.68 - 94.57 91.14
Kappa 0.9137 0.9350 0.9056 0.9181 0.9299 0.9447 0.8949
CNN-related models
Model DF CNNGBFF CNNCK TCNN PToPCNN CNN-DF-M CNN-DF-S
OA 91.32 91.02 92.57 87.98 92.48 95.29 96.03
AA 91.96 91.82 92.48 90.11 93.55 95.69 96.23
Kappa 0.9057 0.9033 0.9193 0.8698 0.9187 0.9488 0.9569
TABLE V: Performance comparison with the state-of-the-art models on the Houston data.

Iii-C1 Comparison with different fusion models

In addition to two single-source models (i.e., CNN-HS and CNN-LiDAR), we also test the effectiveness of feature-level fusion models, i.e., using only. The three feature-level fusion methods CNN-F-C, CNN-F-M, and CNN-F-S stand for the concatenation method, the maximization method, and the summation method, respectively. Similarly, the three decision-level and feature-level fusion methods in Fig.3 are abbreviated as CNN-DF-C, CNN-DF-M, and CNN-DF-S, respectively. TableIII shows the detailed classification results of eight models on the Houston data. Several conclusions can be observed from it. First, for the single-source models, CNN-HS achieves significantly better results than CNN-LiDAR in each class. It indicates that the spectral-spatial information in the hyperspectral data is more discriminative than the elevation information in the LiDAR data. Second, all of the three feature-level fusion models (i.e., CNN-F-C, CNN-F-M, and CNN-F-S) obtain higher accuracies than the CNN-HS model in most classes. This can be explained by that the LiDAR data can provide complementary information for the hyperspectral data, and by combining them together in a proper way, the classification performance can be improved. Third, based on the feature-level fusion models, if we further use the decision-level fusion (i.e., CNN-DF-C, CNN-DF-M, and CNN-DF-S), the performance is improved again. Taking the summation fusion method as an example, by the simultaneous use of feature-level and decision-level fusions, the OA is increased from 94.49% to 96.03%, which is the best result ever reported in the literature. Last but not the least, compared to the widely used concatenation method, our proposed maximization and summation fusion methods can achieve better OA, AA, and Kappa values. Besides the quantitative results, we also qualitatively analyze the performance of different models. Fig.6 demonstrates the classification maps of different models. In this figure, different colors represent different classes of objects. From Fig.6

(b), we can see that the CNN-LiDAR model generates many outliers, and misclassifies a lot of objects. In comparison with it, other models obtain more homogeneous classification maps. However, some objects are a little over-smoothed, because all of the models use the small patches and cubes as inputs.

Similar to the Houston data, TableIV and Fig.7 show the quantitative and qualitative results, respectively, on the Trento data. The data have larger and more homogeneous objects to discriminate than the Houston data, so all of the models can achieve relatively high performance (e.g., the OA values are larger than 90%). Specifically, CNN-HS is better than CNN-LiDAR, and the feature-level fusion method can improve the performance of CNN-HS. More importantly, the simultaneous feature-level and decision-level fusion is more effective than using feature-level fusion only. The best results appear when adopting the maximization fusion method.

Iii-C2 Comparison with state-of-the-art models

In the existing hyperspectral and LiDAR data fusion works, most of models tested their performance on the Houston data. To highlight the superiority of our proposed models, we also compare them with state-of-the-art models, including 7 traditional models and 5 CNN-related models, using standard training and test sets. These traditional models include the multiple feature learning model MLR in [17], the generalized graph-based fusion model GGF in [20], the sparse and low-rank component analysis model SLRCA in [27], the total variation component analysis model OTVCA in [26], the adaptive differential evolution based fusion model ODF-ADE in [37], the unsupervised graph fusion model E-UGF in [29], and the composite kernel extreme learning machine model HyMCKs in [7]. The CNN-related models include the deep fusion model DF in [2], the CNN model combined with graph-based feature fusion method CNNGBFF in [5], the three-stream CNN based composite kernel model CNNCK in [18], the two-branch CNN model TCNN in [30], and the patch-to-patch CNN model PToPCNN in [34].

TableV reports the detailed comparison results of different models in terms of OA, AA, and Kappa coefficients. Note that all the results are directly cited from their original papers, because we are not able to reproduce them due to missing parameters or availability of codes. For the traditional models, the best OA, AA, and Kappa values are 95.11%, 94.57%, and 0.9447, respectively, achieved by a recent work named E-UGF [29]. For the CNN-related models, CNNCK [18] obtains the best OA and Kappa values, while PToPCNN [34] acquires the best AA. Compared to the E-UGF model, both CNNCK and PToPCNN models obtain inferior performance, which indicate that the existing CNN-related fusion models still have some potentials to explore. Similar to DF [2] and TCNN [30] models, our proposed models (i.e., CNN-DF-M and CNN-DF-S) can also be considered as a two-branch CNN model. However, the proposed models can obtain significantly better results than them, even than E-UGF, which sufficiently certify the effectiveness of the proposed model.

Iii-D Analysis on the proposed model

Iii-D1 Analysis on the reduced dimensionality

For the proposed model, we have two hyper-parameters to predefine. The first one is the number of reduced dimensionality of hyperspectral data using PCA, and the second one is the neighboring size extracted from hyperspectral and LiDAR data. To evaluate the effect of , we fix and select from a candidate set . Since the fusion models have the same hyper-parameter values as single models (i.e., CNN-HS and LiDAR-HS), we only demonstrate the results of single models here. Fig.8 shows the performance (i.e., OA) of CNN-HS on the Houston (the blue line) and Trento (the red line) data. From this figure, we can observe that as increases, OA firstly increases and then tends to a stable state. Considering the computation complexity and classification performance, can be set to 20 for both data.

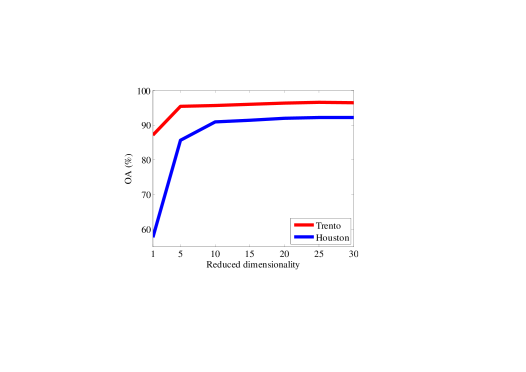

Fig. 8: Effect of the reduced dimensionality on the OA (%) achieved by the CNN-HS model.

Iii-D2 Analysis on the neighboring size

Similar to the analysis of , we can also fix and choose from a candidate set to evaluate the effect of . TableVI reports the changes of OA values at different sizes. When the size increases from 9 to 11 on the Houston data, the improvements of OA acquired by CNN-HS and CNN-LiDAR are more than 1 percent. But for the other sizes, these two models do not change significantly. For the Trento data, CNN-HS is relatively stable when the size changes, but CNN-LiDAR will increase more than 1 percent from 9 to 11, and decrease from 11 to 13. Based on the above analysis, 11 is a reasonable choice for CNN-HS and CNN-LiDAR on both data. This choice is consistent with the works in [2] and [34].

Houston Data
Size 9 11 13 15 17 19
CNN-HS 90.88 92.05 91.49 91.41 91.87 92.06
CNN-LiDAR 52.45 54.52 54.44 54.59 54.29 54.51
Trento Data
Size 9 11 13 15 17 19
CNN-HS 96.02 96.43 96.39 96.17 95.97 95.53
CNN-LiDAR 90.80 91.91 90.29 90.70 91.40 90.57
TABLE VI: Effect of the neighboring size on the OA (%) acquired by the CNN-HS and CNN-LiDAR models.
Time CNN-HS CNN-LiDAR CNN-F-C CNN-F-M
Train 43.68 38.04 71.57 70.85
Test 1.24 1.18 1.30 1.27
Time CNN-F-S CNN-DF-C CNN-DF-M CNN-DF-S
Train 70.90 185.71 182.54 184.43
Test 1.28 1.38 1.33 1.37
TABLE VII: Computation time (seconds) of different models on the Houston data.
Time CNN-HS CNN-LiDAR CNN-F-C CNN-F-M
Train 32.11 21.84 49.99 49.53
Test 1.33 1.24 1.44 1.37
Time CNN-F-S CNN-DF-C CNN-DF-M CNN-DF-S
Train 49.62 118.65 116.43 117.29
Test 1.43 1.66 1.62 1.65
TABLE VIII: Computation time (seconds) of different models on the Trento data.

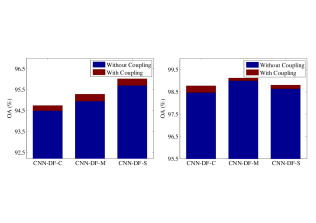

Fig. 9: Comparisons before and after adopting the coupling strategy on two data. From left to right is the Houston data and the Trento data.

Iii-D3 Analysis on the coupling strategy

Benefiting from the coupling strategy, the number of parameters in the second and the third convolutional layers is reduced by twice. Taking CNN-DF-M and CNN-DF-S models as an example, on the Houston data, the total number of parameters to train is 196128 without weight sharing, while this number is reduced to 103968 after adopting the coupling strategy; on the Trento data, the trainable parameters are 192672 and 100512 without and with weight sharing, respectively. In summary, the parameter numbers in CNN-DF-M and CNN-DF-S models are reduced by about 47% on both data when the coupling strategy is employed. Besides, we also test the effects of the coupling strategy on the classification performance. Fig.9 illustrates the changes of OA before and after adopting the coupling strategy on the Houston data (left one) and the Trento data (right one). It indicates that the performance of CNN-DF-C, CNN-DF-M, and CNN-DF-S in terms of OA is slightly improved after adopting the coupling strategy.

Iii-D4 Analysis on the computation cost

To quantitatively analyze the computation cost of different models, TableVII and TableVIII report their computation time on the Houston and Trento data, respectively. From these two tables, we can observe that CNN-HS and CNN-LiDAR models take less training time than the other fusion models, because they only need to process single-source data, without any interactions between different sources. On the contrary, the proposed decision-level and feature-level fusion models cost much more training time than the single-source and the feature-level fusion models. Nevertheless, once the networks are trained, their test efficiency is very high. In particular, it takes no more than 2 seconds to finish the test process, which is close to the time costs of the other models.

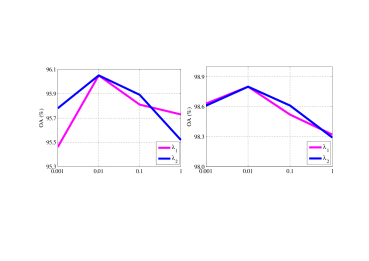

Fig. 10: Effects of weight parameters and on the classification performance achieved by the CNN-DF-S model on two data. From left to right is the Houston data and the Trento data.

Iii-D5 Analysis on the weight parameters

The loss function of the proposed model in Equation(7) contains two hyper-parameters (i.e., and ). In order to test their effects on the classification performance, we firstly fix and change from a candidate set . Then, we set to the optimal value and change from the same set . Fig.10 shows the OAs obtained by the proposed CNN-DF-S model on the Houston and Trento data with different and values. In this figure, the pink and the blue lines represent the CNN-DF-S model with different and values, respectively. It is shown that as increases, the OA will firstly increase and then decrease on both data. The highest OA value appears when . Similar conclusions can be observed for . Therefore, the optimal values for and are 0.01.

Iv Conclusions

This paper proposed a coupled CNN framework for hyperspectral and LiDAR data fusion. Small convolution kernels and parameter sharing layers were designed to make the model more efficient and effective. In the fusion phase, we used feature-level and decision-level fusion strategies simultaneously. For the feature-level fusion, we proposed summation and maximization methods in addition to the widely used concatenation method. For the decision-level fusion, we proposed a weighted summation method, whose weights depend on the performance of each output layer. To validate the effectiveness of the proposed model, we constructed several experiments on two data sets. The experimental results show that the proposed model can achieve the best performance on the Houston data, and very high performance on the Trento data. Additionally, we also thoroughly evaluated the effects of different hyper-parameters on the classification performance, including the reduced dimensionality and the neighboring size. In the future, more powerful neighboring extraction methods need to be explored, because the current classification maps still exist over-smoothing problems.

References

  • [1] Y. Chen, H. Jiang, C. Li, X. Jia, and P. Ghamisi (2016) Deep feature extraction and classification of hyperspectral images based on convolutional neural networks. IEEE Transactions on Geoscience and Remote Sensing 54 (10), pp. 6232–6251. Cited by: §I.
  • [2] Y. Chen, C. Li, P. Ghamisi, X. Jia, and Y. Gu (2017) Deep fusion of remote sensing data for accurate classification. IEEE Geoscience and Remote Sensing Letters 14 (8), pp. 1253–1257. Cited by: §I, §I, §II-B, §II-B, §II-C, §III-C2, §III-C2, §III-D2.
  • [3] G. Cheng, P. Zhou, and J. Han (2016) Learning rotation-invariant convolutional neural networks for object detection in vhr optical remote sensing images. IEEE Transactions on Geoscience and Remote Sensing 54 (12), pp. 7405–7415. Cited by: §I.
  • [4] C. Debes, A. Merentitis, R. Heremans, J. Hahn, N. Frangiadakis, T. van Kasteren, W. Liao, R. Bellens, A. Pižurica, S. Gautama, et al. (2014) Hyperspectral and lidar data fusion: outcome of the 2013 grss data fusion contest. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing 7 (6), pp. 2405–2418. Cited by: §I, §III-A.
  • [5] P. Ghamisi, B. Höfle, and X. X. Zhu (2017) Hyperspectral and lidar data fusion using extinction profiles and deep convolutional neural network. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing 10 (6), pp. 3011–3024. Cited by: §I, §III-C2.
  • [6] P. Ghamisi, E. Maggiori, S. Li, R. Souza, Y. Tarablaka, G. Moser, A. De Giorgi, L. Fang, Y. Chen, M. Chi, et al. (2018) New frontiers in spectral-spatial hyperspectral image classification: the latest advances based on mathematical morphology, markov random fields, segmentation, sparse representation, and deep learning. IEEE Geoscience and Remote Sensing Magazine 6 (3), pp. 10–43. Cited by: §I.
  • [7] P. Ghamisi, B. Rasti, and J. A. Benediktsson (2019) Multisensor composite kernels based on extreme learning machines. IEEE Geoscience and Remote Sensing Letters 16 (2), pp. 196–200. Cited by: §III-C2.
  • [8] P. Ghamisi, B. Rasti, N. Yokoya, Q. Wang, B. Hofle, L. Bruzzone, F. Bovolo, M. Chi, K. Anders, R. Gloaguen, et al. (2019) Multisource and multitemporal data fusion in remote sensing: a comprehensive review of the state of the art. IEEE Geoscience and Remote Sensing Magazine 7 (1), pp. 6–39. Cited by: §I, §II-B, §III-A.
  • [9] P. Ghamisi, N. Yokoya, J. Li, W. Liao, S. Liu, J. Plaza, B. Rasti, and A. Plaza (2017) Advances in hyperspectral image and signal processing: a comprehensive overview of the state of the art. IEEE Geoscience and Remote Sensing Magazine 5 (4), pp. 37–78. Cited by: §I.
  • [10] Y. Gu, Q. Wang, X. Jia, and J. A. Benediktsson (2015) A novel mkl model of integrating lidar data and msi for urban area classification. IEEE transactions on geoscience and remote sensing 53 (10), pp. 5312–5326. Cited by: §I.
  • [11] R. Hang, Q. Liu, D. Hong, and P. Ghamisi (2019-08)

    Cascaded recurrent neural networks for hyperspectral image classification

    .
    IEEE Transactions on Geoscience and Remote Sensing 57 (8), pp. 5384–5394. External Links: Document, ISSN 1558-0644 Cited by: §I.
  • [12] R. Hang, Q. Liu, H. Song, and Y. Sun (2015) Matrix-based discriminant subspace ensemble for hyperspectral image spatial–spectral feature fusion. IEEE Transactions on Geoscience and Remote Sensing 54 (2), pp. 783–794. Cited by: §I.
  • [13] L. He, J. Li, C. Liu, and S. Li (2018) Recent advances on spectral–spatial hyperspectral image classification: an overview and new guidelines. IEEE Transactions on Geoscience and Remote Sensing 56 (3), pp. 1579–1597. Cited by: §I.
  • [14] X. He, A. Wang, P. Ghamisi, G. Li, and Y. Chen (2018) LiDAR data classification using spatial transformation and cnn. IEEE Geoscience and Remote Sensing Letters. Cited by: §II-B.
  • [15] D. Hong, N. Yokoya, J. Chanussot, and X. X. Zhu (2018)

    An augmented linear mixing model to address spectral variability for hyperspectral unmixing

    .
    IEEE Transactions on Image Processing 28 (4), pp. 1923–1938. Cited by: §I.
  • [16] D. Hong, N. Yokoya, J. Chanussot, and X. X. Zhu (2019) Cospace: common subspace learning from hyperspectral-multispectral correspondences. IEEE Transactions on Geoscience and Remote Sensing. Cited by: §I.
  • [17] M. Khodadadzadeh, J. Li, S. Prasad, and A. Plaza (2015) Fusion of hyperspectral and lidar remote sensing data using multiple feature learning. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing 8 (6), pp. 2971–2983. Cited by: §III-C2.
  • [18] H. Li, P. Ghamisi, U. Soergel, and X. Zhu (2018) Hyperspectral and lidar fusion using deep three-stream convolutional neural networks. Remote Sensing 10 (10), pp. 1649. Cited by: §I, §III-C2, §III-C2.
  • [19] W. Liao, R. Bellens, A. Pižurica, S. Gautama, and W. Philips (2014) Combining feature fusion and decision fusion for classification of hyperspectral and lidar data. In Geoscience and Remote Sensing Symposium (IGARSS), 2014 IEEE International, pp. 1241–1244. Cited by: §I.
  • [20] W. Liao, A. Pižurica, R. Bellens, S. Gautama, and W. Philips (2015) Generalized graph-based fusion of hyperspectral and lidar data using morphological features. IEEE Geoscience and Remote Sensing Letters 12 (3), pp. 552–556. Cited by: §I, §III-C2.
  • [21] Q. Liu, R. Hang, H. Song, and Z. Li (2018) Learning multiscale deep features for high-resolution satellite image scene classification. IEEE Transactions on Geoscience and Remote Sensing 56 (1), pp. 117–126. Cited by: §I.
  • [22] J. Long, E. Shelhamer, and T. Darrell (2015) Fully convolutional networks for semantic segmentation. In

    Proceedings of the IEEE conference on computer vision and pattern recognition

    ,
    pp. 3431–3440. Cited by: §I.
  • [23] S. Morchhale, V. P. Pauca, R. J. Plemmons, and T. C. Torgersen (2016) Classification of pixel-level fused hyperspectral and lidar data using deep convolutional neural networks. In Hyperspectral Image and Signal Processing: Evolution in Remote Sensing (WHISPERS), 2016 8th Workshop on, pp. 1–5. Cited by: §I.
  • [24] S. Niazmardi, B. Demir, L. Bruzzone, A. Safari, and S. Homayouni (2018) Multiple kernel learning for remote sensing image classification. IEEE Transactions on Geoscience and Remote Sensing 56 (3), pp. 1425–1443. Cited by: §I.
  • [25] M. Pedergnana, P. R. Marpu, M. Dalla Mura, J. A. Benediktsson, and L. Bruzzone (2012) Classification of remote sensing optical and lidar data using extended attribute profiles. IEEE Journal of Selected Topics in Signal Processing 6 (7), pp. 856–865. Cited by: §I.
  • [26] B. Rasti, P. Ghamisi, and R. Gloaguen (2017) Hyperspectral and lidar fusion using extinction profiles and total variation component analysis. IEEE Transactions on Geoscience and Remote Sensing 55 (7), pp. 3997–4007. Cited by: §I, §III-C2.
  • [27] B. Rasti, P. Ghamisi, J. Plaza, and A. Plaza (2017) Fusion of hyperspectral and lidar data using sparse and low-rank component analysis. IEEE Transactions on Geoscience and Remote Sensing 55 (11), pp. 6354–6365. Cited by: §I, §III-C2.
  • [28] B. Rasti, P. Ghamisi, and M. O. Ulfarsson (2019) Hyperspectral feature extraction using sparse and smooth low-rank analysis. Remote Sensing 11 (2), pp. 121. Cited by: §I.
  • [29] J. Xia, N. Yokoya, and A. Iwasaki (2018) Fusion of hyperspectral and lidar data with a novel ensemble classifier. IEEE Geoscience and Remote Sensing Letters 15 (6), pp. 957–961. Cited by: §I, §III-C2, §III-C2.
  • [30] X. Xu, W. Li, Q. Ran, Q. Du, L. Gao, and B. Zhang (2018) Multisource remote sensing data classification based on convolutional neural network. IEEE Transactions on Geoscience and Remote Sensing 56 (2), pp. 937–949. Cited by: §I, §II-C, §III-C2, §III-C2.
  • [31] Y. Xu, L. Zhang, B. Du, and F. Zhang (2018) Spectral-spatial unified networks for hyperspectral image classification. IEEE Transactions on Geoscience and Remote Sensing (99), pp. 1–17. Cited by: §II-B.
  • [32] S. Yu, S. Jia, and C. Xu (2017) Convolutional neural networks for hyperspectral image classification. Neurocomputing 219, pp. 88–98. Cited by: §II-B.
  • [33] L. Zhang, L. Zhang, and B. Du (2016) Deep learning for remote sensing data: a technical tutorial on the state of the art. IEEE Geoscience and Remote Sensing Magazine 4 (2), pp. 22–40. Cited by: §I.
  • [34] M. Zhang, W. Li, Q. Du, L. Gao, and B. Zhang (2018) Feature extraction for classification of hyperspectral and lidar data using patch-to-patch cnn. IEEE transactions on cybernetics. Cited by: §I, §II-B, §II-C, §III-C2, §III-C2, §III-D2.
  • [35] Y. Zhang and S. Prasad (2016) Multisource geospatial data fusion via local joint sparse representation. IEEE Transactions on Geoscience and Remote Sensing 54 (6), pp. 3265–3276. Cited by: §I.
  • [36] Y. Zhang, H. L. Yang, S. Prasad, E. Pasolli, J. Jung, and M. Crawford (2015)

    Ensemble multiple kernel active learning for classification of multisource remote sensing data

    .
    IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing 8 (2), pp. 845–858. Cited by: §I.
  • [37] Y. Zhong, Q. Cao, J. Zhao, A. Ma, B. Zhao, and L. Zhang (2017) Optimal decision fusion for urban land-use/land-cover classification based on adaptive differential evolution using hyperspectral and lidar data. Remote Sensing 9 (8), pp. 868. Cited by: §I, §III-C2.
  • [38] Z. Zhong, J. Li, Z. Luo, and M. Chapman (2018) Spectral–spatial residual network for hyperspectral image classification: a 3-d deep learning framework. IEEE Transactions on Geoscience and Remote Sensing 56 (2), pp. 847–858. Cited by: §II-B.
  • [39] X. X. Zhu, D. Tuia, L. Mou, G. Xia, L. Zhang, F. Xu, and F. Fraundorfer (2017) Deep learning in remote sensing: a comprehensive review and list of resources. IEEE Geoscience and Remote Sensing Magazine 5 (4), pp. 8–36. Cited by: §I.
