Classification of Brain Tumours in MR Images using Deep Spatiospatial Models

05/28/2021
by   Soumick Chatterjee, et al.
16

A brain tumour is a mass or cluster of abnormal cells in the brain, which has the possibility of becoming life-threatening because of its ability to invade neighbouring tissues and also form metastases. An accurate diagnosis is essential for successful treatment planning and magnetic resonance imaging is the principal imaging modality for diagnostic of brain tumours and their extent. Deep Learning methods in computer vision applications have shown significant improvement in recent years, most of which can be credited to the fact that a sizeable amount of data is available to train models on, and the improvements in the model architectures yielding better approximations in a supervised setting. Classifying tumours using such deep learning methods has made significant progress with the availability of open datasets with reliable annotations. Typically those methods are either 3D models, which use 3D volumetric MRIs or even 2D models considering each slice separately. However, by treating the slice spatial dimension separately, spatiotemporal models can be employed as spatiospatial models for this task. These models have the capabilities of learning specific spatial and temporal relationship, while reducing computational costs. This paper uses two spatiotemporal models, ResNet (2+1)D and ResNet Mixed Convolution, to classify different types of brain tumours. It was observed that both these models performed superior to the pure 3D convolutional model, ResNet18. Furthermore, it was also observed that pre-training the models on a different, even unrelated dataset before training them for the task of tumour classification improves the performance. Finally, Pre-trained ResNet Mixed Convolution was observed to be the best model in these experiments, achieving a macro F1-score of 0.93 and a test accuracy of 96.98%, while at the same time being the model with the least computational cost.

READ FULL TEXT VIEW PDF

page 1

page 2

page 7

page 8

04/21/2020

4D Spatio-Temporal Deep Learning with 4D fMRI Data for Autism Spectrum Disorder Classification

Autism spectrum disorder (ASD) is associated with behavioral and communi...
10/03/2020

Deep Convolutional Neural Networks Model-based Brain Tumor Detection in Brain MRI Images

Diagnosing Brain Tumor with the aid of Magnetic Resonance Imaging (MRI) ...
03/10/2022

Deep Multimodal Guidance for Medical Image Classification

Medical imaging is a cornerstone of therapy and diagnosis in modern medi...
11/06/2019

Predictive modeling of brain tumor: A Deep learning approach

Image processing concepts can visualize the different anatomy structure ...
05/25/2022

Interaction of a priori Anatomic Knowledge with Self-Supervised Contrastive Learning in Cardiac Magnetic Resonance Imaging

Training deep learning models on cardiac magnetic resonance imaging (CMR...
11/20/2021

A Review on The Division of Magnetic Resonant Prostate Images with Deep Learning

Deep learning; it is often used in dividing processes on images in the b...
08/17/2020

Spherical coordinates transformation pre-processing in Deep Convolution Neural Networks for brain tumor segmentation in MRI

Magnetic Resonance Imaging (MRI) is used in everyday clinical practice t...

1 Introduction

A brain tumour is the growth of abnormal cells in the brain. Brain tumours are classified based on their speed of growth and the likeness of them growing back after treatment. They are mainly divided into two overall categories: malignant and benign. Benign tumours are not cancerous, they grow slowly and less likely to return after treatment. Malignant tumours on the other hand are essentially made up of cancer cells, they have the ability to invade the tissues locally or they can spread to different parts of the body, a process called metastasise [fritz2000international]. Glioma tumours are the result of glial cell mutations resulting in malignancy of normal cells. They are the most common types of Astrocytomas (tumour of the brain or spinal cord), account for of all brain and central nervous system tumours, and of all malignant tumours [goodenberger2012genetics]. The phenotypical makeup of glioma tumours can consist of Astrocytomas, Oligodendrogliomas, or Ependymomas. Each of these tumours behaves differently, and World Health Organisation (WHO) uses the following grading-based method to categorise each tumour based upon its aggressiveness:

  • Grade I tumours are are generally benign tumours, which means they are mostly curable, and they are commonly found in children.

  • Grade II includes three types of tumours: Astrocytomas, Oligodendrogliomas, and Oligoastrocytoma - which is a mix of both [claus2015survival]. They are common in adults. Eventually, all low-grade gliomas can progress to high-grade tumours [claus2015survival].

  • Grade III tumour can include Anaplastic Astrocytomas, Anaplastic Oligodendrogliomas or Anaplastic Oligoastrocytoma. They are more aggressive and infiltrating than grade II.

  • Grade IV glioma, also called Glioblastoma Multiforme (GBM), is the most aggressive tumour in the WHO category.

In general, grade I and II gliomas are considered as low-grade gliomas (LGG), while grade III and grade IV are known as high-grade glioma (HGG). The LGG are benign tumours and they can be excised using surgical resection. In contrast, HGG are malignant tumours which are hard to excise by surgical methods because of their extent of nearby tissue invasion. Fig. 1 shows an example MRI of LGG and HGG.

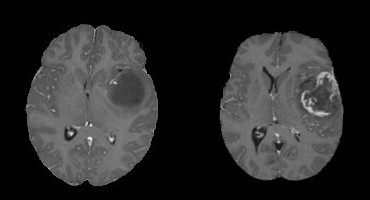

Figure 1: An example MRI of Low-grade glioma (LGG, on the left) and High-grade glioma (HGG, on the right), Source: BraTS 2019

A Glioblastoma Multiforme (GBM) typically has the following types of tissues (shown in Fig. 2):

  • The Tumour Core: This is the region of the tumour that has the malignant cells that are actively proliferating.

  • Necrosis: The necrotic region is the important distinguishing factor between low-grade gliomas and GBM [raza2002necrosis]. This is the region where the cells/tissue are dying or they are dead.

  • Perifocal edema: The swelling of the brain is caused by fluid build-up around the tumor core, this increases the intracranial pressure, Perifocal edema is caused by the changes in glial cell distribution [engelhorn2009cellular].

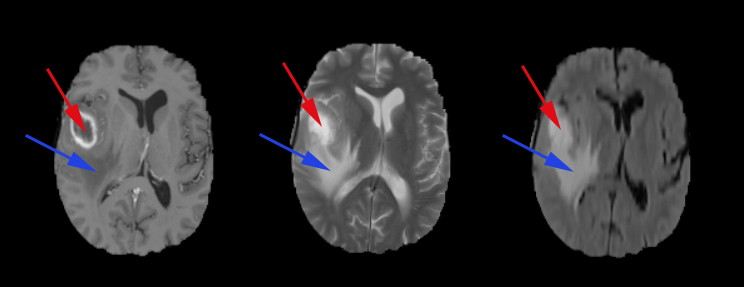

Figure 2: High-grade glioma structure on T1ce, T2 and FLAIR contrast images (from left to right), () Necrotic core, () Perifocal edema, Source: BraTS 2019

The prognosis of a brain tumour depends on many factors, such as the location of the tumour, the histological sub-type of the tumour, and the tumour margins. In many cases, the tumour reoccurs and progresses to grade IV even after treatment [claus2015survival]. Modern imaging methods such as MRI can be used for multiple diagnostic purposes, they can be used to identify the tumour location - which is used for investigating tumour progression, and also used for surgical pre-planning. MR imaging is also used to study the anatomy of the lesion, physiology, and metabolic activity along with its haemodynamics. Therefore MR imaging remains the primary diagnostic modality for brain tumours.

Detection of cancer, specifically an earlier detection, holds the potential to make a difference in treatment. Earlier detection is important because lesions in earlier stages are more likely curable, therefore if intervened early on, this can make the difference between life and death. Deep learning methods can help to automate the process of detecting and classifying brain lesions - they can also reduce the radiologists’ burden of reading many images, by prioritising only malignant lesions. This will eventually improve the overall efficiency and it can reduce diagnostic errors [menze2014multimodal]. Recent studies have shown that deep learning methods in the field of radiology have already achieved comparable and super-human performance for some pathologies [rajpurkar2018deep].

1.1 Related Work

Various deep learning based methods have been proposed in recent times to classify brain tumours. Mzoughi et al. [mzoughi2020deep] proposed an approach using volumetric CNNs to classify high-grade glioma and low-grade glioma using T1 contrast-enhanced images. Another similar work on glioma classification based on grading was done by Pei et al. [pei2019brain], where they first segmented the tumour and then classified the tumour between HGG and LGG. Most of the literature on glioma tumour classification and grading used one single MR contrast image at a time, but Ge et al. [ge2018deep] used a fusion framework, that uses T1 contrast-enhanced, T2, and FLAIR images simultaneously for classifying the tumour. Most of the literature only classifies between the different grades of tumour and does not consider healthy brains as an additional class.

1.2 Technical Background

ResNet or residual network, proposed by He et al. [he2016deep], has shown to be one of the most efficient network architectures for image recognition tasks, dealing with problems of deep networks, e.g. vanishing gradients. This paper introduced residual-link, the identity mappings, which are "skipped connections", whose outputs are added to the outputs of the rest of the stacked layers. These identity connections do not add any complexity to the network while improving the training process. The spatiotemporal models introduced by Tran et al. [tran2018closer]

for action recognition are fundamentally 3D Convolutional Neural Networks based on ResNet. In video data, there are two spatial dimensions and one temporal dimension - making the data three dimensional. For handling such data (e.g. action recognition task), using a network with 3D convolution layers is an obvious choice. Tran et al.

[tran2018closer] introduced two variants of spatiotemporal models: ResNet (2+1)D and ResNet Mixed Convolution. The ResNet(2+1)D model consists of 2D and 1D convolutions, where the 2D convolutions are used spatially while the 1D convolutions are reserved for the temporal element. This gives an advantage of increased non-linearity by the use of non-linear rectification, which allows this kind of mixed model to be more "learnable" than conventional full 3D models. On the other hand, the ResNet Mixed Convolution model is constructed as a mixture of 2D and 3D Convolution operations. The initial layers of the model are made of 3D convolution operations, while the later layers consist of 2D convolutions. The rationale behind using this type of configuration is that the motion-modelling occurs mostly at the initial layers, and applying 3D convolution there encapsulates action better.

Apart from trying to improve the network architecture, one frequently used technique to improve the performance of the same architecture is transfer learning

[torrey2010transfer]. This is a technique for re-purposing a model for another task that is different from the task the model was originally trained for. Typically, the model parameters are initialised randomly before starting the training. But, in the case of transfer learning, model parameters learned from task one are used as the starting point (called pre-training), instead of random values, for training the model for task two. Pre-training has shown to be an effective method to improve the initial training process, eventually achieving better accuracy [zhuang2020comprehensive, sarasaen2021fine].

1.3 Contribution

Spatiotemporal models are typically used for video classification tasks, which are three dimensional in nature. Their potential in classifying 3D volumetric images like MRI, considering them as "spatiospatial" models, has not been explored yet. The purpose of this work is to apply spatiotemporal models (ResNet(2+1)D and ResNet Mixed Convolution) to classify brain tumours of the different types of gliomas based on their grading as well as healthy brains from 3D volumetric MR Images, and compare their performances against a pure 3D convolutional model (ResNet3D). Furthermore, the models are to be compared with and without pre-training - to judge the usability of transfer learning for this task.

2 Methodology

This section explains the network models used in this research, implementation details, pre-training and training methods, data augmentation techniques, dataset information, data pre-processing steps, and finally, the evaluation metrics.

2.1 Network Models

Spatiotemporal models are mainly used for video-related tasks, where there are two spatial and one temporal dimension. These models deal with the spatial and temporal dimensions differently, unlike pure 3D convolution-based models. There is no temporal component in 3D volumetric image classification tasks, hence, using a 3D convolution-based model is a frequent choice. At times, they are divided into 2D slices, and 2D convolution-based models are applied to them. For the task of tumour classification, the rationale for using 3D filters is grounded in the morphological heterogeneity of gliomas [pallud2012quantitative], it is to make the convolution kernels invariant to tissue discrimination in all dimensions, learning more complex features spanning voxels, while 2D convolution filters will capture the spatial representation within the slices. Spatiotemporal models combine two different types of convolution into one model, while having the possibility of reducing the complexity of the model or of incorporating more non-linearity. These advantages might be possible to exploit while working with volumetric data by considering the spatiotemporal models as "spatiospatial" models - the motivation behind using such models for a tumour classification task. In this paper, the slice-dimension is treated as the pseudo-temporal dimension of spatiotemporal models, and in-plane dimensions are treated as the spatial dimensions. The spatiotemporal models used here as spatiospatial models are based on the work of Tran et al. [tran2018closer].

Two different types of spatiospatial models are explored here: ResNet (2+1)D and ResNet Mixed Convolution. Their performances are compared against ResNet3D, which is a pure 3D convolution-based model.

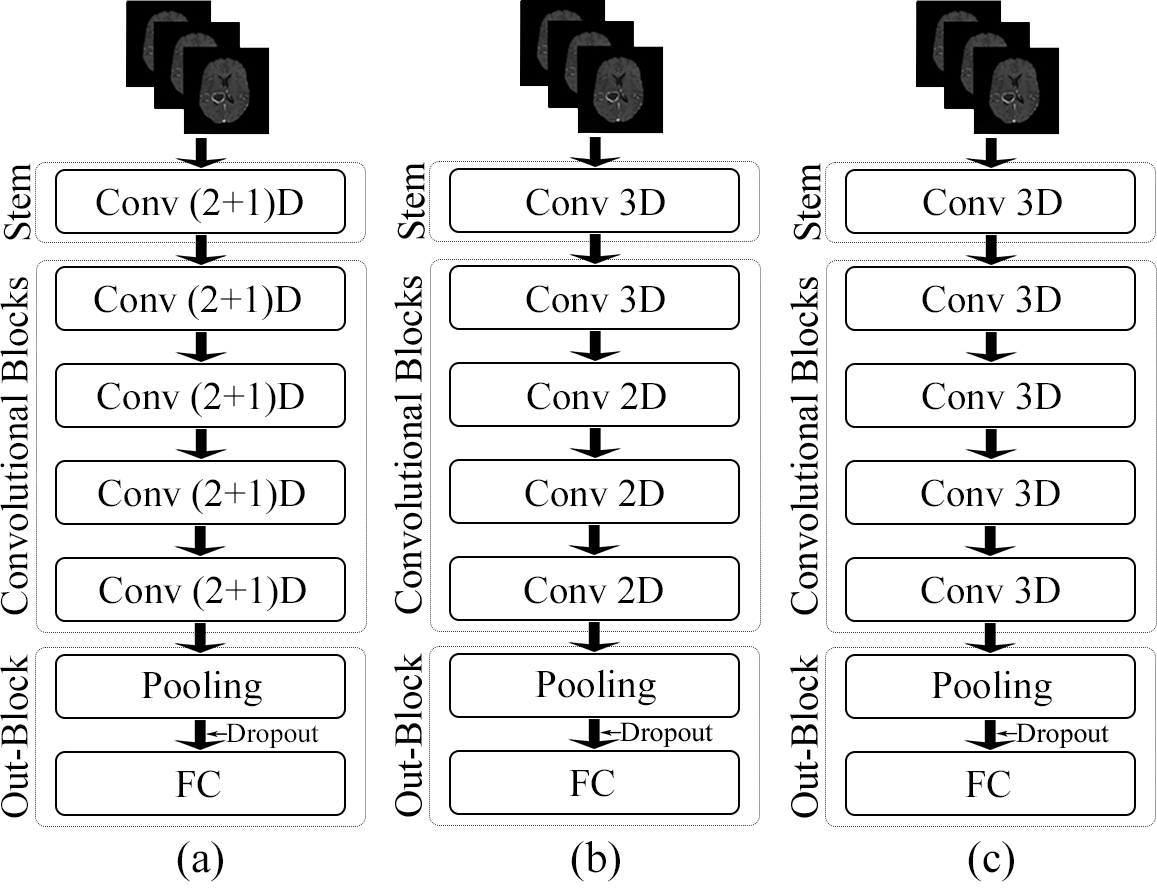

Figure 3: Schematic representations of the network architectures. (a) ResNet (2+1)D, (b) ResNet Mixed Convolution, and (c) ResNet 3D

2.1.1 ResNet (2+1)D

ResNet (2+1)D uses a combination of 2D convolution followed by 1D convolution, instead of a single 3D convolution. The benefit of using this configuration is that it allows an added non-linear activation unit between the two convolutions, as in comparison to using a single 3D Convolution [tran2018closer]

. This then results in an overall increase of ReLU units in the network, giving the model the ability to learn even more complex functions. The ResNet(2+1)D uses a stem that contains a 2D convolution with a kernel size of seven and a stride of two, accepting one channel as an input and providing 45 channels as output; followed by a 1D convolution with a kernel size of three and a stride of one, providing 64 channels as the final output. Next, there are four convolutional blocks, each of them contains two sets of basic residual blocks. Each of the residual blocks contains one 2D convolution with a kernel size of three and a stride of one, followed by a 1D convolution with a kernel size of three and a stride of one. Each convolutional layer in the model (both 2D and 1D) is followed by a 3D batch normalisation layer and a ReLU activation function. The 2D convolutions are applied in-plane and the 1D convolutions are applied on the slice dimension. Fig.

3(a) portrays the schematic diagram of the ResNet (2+1)D architecture.

2.1.2 ResNet Mixed Convolution

ResNet Mixed Convolution uses a combination of 2D and 3D Convolutions. The stem of this model contains a 3D convolution layer with a kernel size of (3,7,7), a stride of (1,2,2), and a padding of (1,3,3) - where the first dimension is the slice dimension and the other two dimensions are the in-plane dimensions, and accepts a single channel as input while providing 64 channels as output. After the stem, there is one 3D convolution block, followed by three 2D convolution blocks. All the convolution layers (both 3D and 2D) are with a kernel size of three and a stride of one, identical for all dimensions. Each of these convolution blocks contains a pair of residual blocks, each of which contains a pair of convolution layers. Each convolutional layer in the model (both 3D and 2D) is followed by a 3D batch normalisation layer and a ReLU activation function. The motivation behind using both modes of convolution in 2D and 3D is that the 3D filters can learn the spatial features of the tumour in 3D space while 2D can learn representation within each 2D slice. Fig.

3(b) shows the schematic representation of this model.

2.1.3 ResNet3D

The performance of the spatiospatial models are compared against a pure 3D ResNet model, schematic diagram shown in Fig. 3(c). The architecture of the ResNet3D model used here is almost identical to the architecture of ResNet Mixed Convolution (Section 2.1.2), except for the fact that this model uses only 3D convolutions. The stem of these models are identical, the only difference being this model uses four 3D convolution blocks, unlike ResNet Mixed Convolution which uses one 3D convolution block, followed by three 2D convolution blocks. This configuration of ResNet3D architecture results in a 3D ResNet18 model.

The convolution blocks of each of all three models double the input features by two (number of input features to the first block: 64, number of output features of the fourth (and final) block: 512). All of these models end with an adaptive average pooling layer, which forces the output to have a shape of 1x1x1, with 512 different features. A dropout with a probability of 0.3 is then applied on them to introduce regularisation, to prevent over-fitting, before supplying them to a fully-connected linear layer which generates

classes as output. The width and depth of these models are comparable, but they differ in terms of the number of trainable parameters depending upon the type of convolution used, as shown in Tab. 1.

Model No of Parameters
ResNet3D 33,150,522
ResNet (2+1)D 31,297,254
ResNet Mixed Convolution 11,472,963
Table 1: Total Number of Trainable parameters for each model

2.2 Implementation and Training

The models were implemented using PyTorch

[paszke2019pytorch], by modifying the Torchvision models [noauthor_torchvisionmodels_video] and were trained with a batch-size of using an Nvidia RTX 4000 GPU, which has a memory of

GB. Models were compared with and without pre-training. Models with pre-training were pre-trained on Kinetics-400

[noauthor_kinetics_nodate], except for the stems and fully-connected layers. Images from the Kinetics dataset contain three channels (RGB Images), whereas the 3D volumetric MRIs have only one channel. Therefore, the stem trained on the Kinetics dataset could not be used and was initialised randomly. Similarly, for the fully-connected layer, Kinetics-400 has 400 output classes whereas the task at hand has three classes (LGG, HGG and Healthy) - hence, this layer was also initialised with random weights.

Trainings were performed using mixed-precision [micikevicius2017mixed] with the help of Nvidia’s Apex library [noauthor_nvidiaapex_2021]

. The loss was calculated using the weighted cross-entropy loss function to minimise the under-representation of classes with fewer samples during training and was optimised using the Adam optimiser with a learning rate of 1e-5 and weight decay coefficient

=1e-3.

2.2.1 Weighted Cross-entropy Loss

The normalised weight value for each class () is calculated using:

(1)

where is the number of samples from class c and are the total number of samples from all classes. The normalised weight values from this equation is then used to scale cross-entropy loss of the respective class loss:

(2)

Where

is the true distribution and P(c) is the estimate distribution for class c. The total cross-entropy loss then is the sum of individual class losses.

(3)

2.3 Data Augmentation

Different data augmentation techniques were applied to the dataset before training the models, and for that purpose, TorchIO [perez-garcia_torchio_2020] was used. Initial experiments were performed using different amounts of augmentation and can be categorised as light and heavy augmentation, where light augmentation included only random affine (scale 0.9-1.2, degrees 10) and random flip (L-R, probability 0.25); on the other hand, heavy augmentation included the ones from light augmentation together with elastic deformation and random k-space transformations (motion, spike, and ghosting). It was observed that the training of the network with heavily augmented data not only performed poorly in terms of final accuracy, but the loss took a much longer time to converge. Therefore, only light augmentation was used throughout this research.

2.4 Dataset

Two different datasets were used in this work - the pathological brain images were obtained from the Brain Tumour Segmentation (BraTS) 2019 dataset, which includes images with four different MR contrasts (T1, T1 contrast-enhanced, T2 and FLAIR) [menze2014multimodal, bakas2017advancing, bakas2018identifying]; and non-pathological images were collected from the IXI Dataset [IXIsource]. Among the available four types of MRIs, T1 contrast-enhanced (T1ce) is the most commonly used contrast while performing single-contrast tumour classification [yang2018glioma, mzoughi2020deep]. Hence in this research, T1ce images of 332 subjects were used from the BRaTS dataset: 259 volumes of Glioblastoma Multiforme (high-grade glioma, HGG), and 73 volumes of low-grade glioma (LGG). 259 T1 weighted volumes were chosen randomly from the IXI dataset as healthy samples to have the same number of subjects as HGG. The final combined dataset was then randomly divided into 3-folds of training and testing split with a ratio of 7:3.

2.5 Data Pre-processing

The IXI images were pre-processed first by using the brain extraction tool (BET2) of FSL [smith2004advances, jenkinson2012smith]. This was done to keep the input data uniform throughout, as the BraTS images are already skull stripped. Moreover, the intensity values of all the volumes from the combined datasets were normalised by scaling intensities to [0.5,99.5] percentile, as used by Isensee et al [isensee2018nnu]. Finally, the volumes were re-sampled to the same voxel-resolution of 2mm isotropic.

2.6 Evaluation Metrics

The performance of the models was compared using precision, recall, F1 score, specificity, and testing accuracy. Furthermore, a confusion matrix was used to show class-wise accuracy.

3 Results

The performance of the models were compared with and without pre-training. Figures 4, 5, and 6 show the average accuracy over 3-fold cross validation using confusion metrics, for ResNet (2+1)D, ResNet Mixed Convolution, and ResNet 3D, respectively.

(a) Without pre-training
(b) With pre-training
Figure 4: Confusion Matrix for 3-fold cross-validation on Pre-trained ResNet(2+1)D
(a) Without pre-training
(b) With pre-training
Figure 5: Confusion Matrix for 3-fold cross-validation on ResNet Mixed Convolution
(a) Without pre-training
(b) With pre-training
Figure 6: Confusion Matrix for 3-fold cross-validation on ResNet3D18

Fig. 7 shows the class-wise performance of the different models, both with and without pre-training, using precision, recall, specificity, and F1-score.

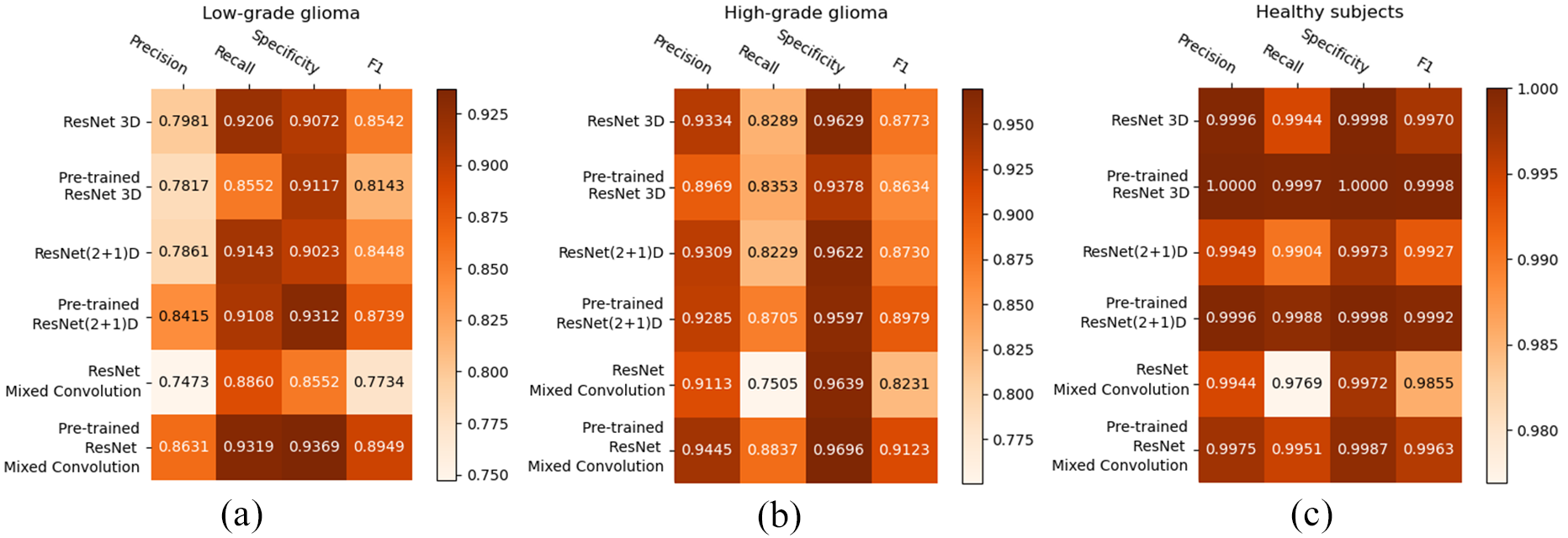

Figure 7: Heatmaps showing the class-wise performance of the classifiers, compared using Precision, Recall, Specificity, and F1-score: (a) LGG, (b) HGG, and (c) Healthy
