1 Introduction

Deep Neural Networks (DNNs) have been widely adopted in a variety of machine learning applications

(Krizhevsky et al., 2012; Hinton et al., 2012; Levine et al., 2016). However, recent work has demonstrated that DNNs are vulnerable to adversarial perturbations (Szegedy et al., 2014; Goodfellow et al., 2015). An adversary can add negligible perturbations to inputs and generate adversarial examples to mislead DNNs, first found in image-based machine learning tasks (Goodfellow et al., 2015; Carlini & Wagner, 2017a; Liu et al., 2017; Chen et al., 2017b, a; Su et al., 2018).

Beyond images, given the wide application of DNN-based audio recognition systems, such as Google Home and Amazon Alexa, audio adversarial examples have also been studied recently (Carlini & Wagner, 2018; Alzantot et al., 2018; Cisse et al., 2017; Kreuk et al., 2018)

. Comparing between image and audio learning tasks, although their state-of-the-art DNN architectures are quite different (i.e., convolutional v.s. recurrent neural networks), the attacking methodology towards generating adversarial examples is fundamentally unanimous - finding adversarial perturbations through the lens of maximizing the training loss or optimizing some designed attack objectives. For example, the same attack loss function proposed in

(Cisse et al., 2017) is used to generate adversarial examples in both visual and speech recognition models. Nonetheless, different types of data usually possess unique or domain-specific properties that can potentially be used to gain discriminative power against adversarial inputs. In particular, the temporal dependency in audio data is an innate characteristic that has already been widely adopted in the machine learning models. However, in addition to improving learning performance on natural audio examples, it is still an open question on whether or not the temporal dependency can be exploited to help mitigate negative effects of adversarial examples.

The focus of this paper has two folds. First, we investigate the robustness of automatic speech recognition (ASR) models under input transformation

, a commonly used technique in the image domain to mitigate adversarial inputs. Our experimental results show that four implemented transformation techniques on audio inputs, including waveform quantization, temporal smoothing, down-sampling and autoencoder reformation, provide limited robustness improvement against the recent attack method proposed in

(Athalye et al., 2018), which aims to circumvent the gradient obfuscation issue incurred by input transformations. Second, we demonstrate that temporal dependency can be used to gain discriminative power against adversarial examples in ASR. We perform the proposed temporal dependency method on both the LIBRIS (Graetz et al., 1986) and Mozilla Common Voice datasets against three state-of-the-art attack methods (Carlini & Wagner, 2018; Alzantot et al., 2018; Yuan et al., 2018) considered in our experiments and show that such an approach achieves promising identification of non-adaptive and adaptive attacks. Moreover, we also verify that the proposed method can resist strong proposed adaptive attacks in which the defense implementations are known to an attacker. Finally, we note that although this paper focuses on the case of audio adversarial examples, the methodology of leveraging unique data properties to improve model robustness could be naturally extended to different domains. The promising results also shed new lights in designing adversarial defenses against attacks on various types of data.

Related work An adversarial example for a neural network is an input that is similar to a natural input but will yield different output after passing through the neural network. Currently, there are two different types of attacks for generating audio adversarial examples: the Speech-to-Label attack and the Speech-to-Text attack. The Speech-to-Label attack aims to find an adversarial example close to the original audio

but yields a different (wrong) label. To do so, Alzantot et al. proposed a genetic algorithm

(Alzantot et al., 2018), and Cisse et al. proposed a probabilistic loss function (Cisse et al., 2017). The Speech-to-Text attack requires the transcribed output of the adversarial audio to be the same as the desired output, which has been made possible by Carlini and Wagner (Carlini & Wagner, 2018) using optimization-based techniques operated on the raw waveforms. Iter et al. leveraged extracted audio features called Mel Frequency Cepstral Coefficients (MFCCs) (Iter et al., 2017). Yuan et al. demonstrated practical “wav-to-API” audio adversarial attacks (Yuan et al., 2018). Another line of research focuses on adversarial training or data augmentation to improve model robustness (Serdyuk et al., 2016; Michelsanti & Tan, 2017; Sriram et al., 2017; Sun et al., 2018), which is beyond our scope. Our proposed approach focuses on gaining the discriminative power against adversarial examples through embedded temporal dependency, which is compatible with any ASR model and does not require adversarial training or data augmentation.

2 Do Lessons from Image Adversarial Examples Transfer to Audio Domain?

Although in recent years both image and audio learning tasks have witnessed significant breakthroughs accomplished by advanced neural networks, these two types of data have unique properties that lead to distinct learning principles. In images, the pixels entail spatial correlations corresponding to hierarchical object associations and color descriptions, which are leveraged by the convolutional neural networks (CNNs) for feature extraction. In audios, the waveforms possess apparent temporal dependency, which is widely adopted by the recurrent neural networks (RNNs). For the segmentation task in image domain, spatial consistency has played an important role in improving model robustness

(Lowe, 1999). However, it remains unknown whether temporal dependency can have a similar effect of improving model robustness against audio adversarial examples. In this paper, we aim to address the following fundamental questions: (a) do lessons learned from image adversarial examples transfer to the audio domain?; and (b) can temporal dependency be used to discriminate audio adversarial examples? Moreover, studying the discriminative power of temporal dependency in audios not only highlights the importance of using unique data properties towards building robust machine learning models, but also aids in devising principles for investigating more complex data such as videos (spatial + temporal properties) or multimodal cases (e.g., images + texts).

Here we summarize two primary findings concluded from our experimental results in Section 4.

Audio input transformation is not effective against adversarial attacks Input transformation is a widely adopted defense technique in the image domain, owing to its low operation cost and easy integration with the existing network architecture (Luo et al., 2015; Wang et al., 2016; Dziugaite et al., 2016). Generally speaking, input transformation aims to perform certain feature transformation on the raw image in order to disrupt the adversarial perturbations before passing it to a neural network. Popular approaches include bit quantization, image filtering, image reprocessing, and autoencoder reformation (Xu et al., 2017; Guo et al., 2017; Meng & Chen, 2017). However, many existing methods are shown to be bypassed by subsequent or adaptive adversarial attacks (Carlini & Wagner, 2017b; He et al., 2017; Carlini & Wagner, 2017c; Lu et al., 2018). Moreover, Athalye et al. (Athalye et al., 2018) has pointed out that input transformation may cause obfuscated gradients when generating adversarial examples and thus gives a false sense of robustness. They also demonstrated that in many cases this gradient obfuscation issue can be circumvented, making input transformation still vulnerable to adversarial examples. Similarly, in our experiments we find that audio input transformations based on waveform quantization, temporal filtering, signal down sampling or autoencoder reformation suffers from similar weakness: the tested model with input transformation becomes fragile to adversarial examples when one adopts the attack considering gradient obfuscation as in (Athalye et al., 2018).

Temporal dependency possesses strong discriminative power against adversarial examples in automatic speech recognition Instead of input transformation, in this paper we propose to exploit the inherent temporal dependency in audio data to discriminate adversarial examples. Tested on the automatic speech recognition (ASR) tasks, we find that the proposed methodology can effectively detect audio adversarial examples while minimally affecting the recognition performance on normal examples. In addition, experimental results show that an considered adaptive adversarial attack, even when knowing every detail of the deployed temporal dependency method, cannot generate adversarial examples that bypass the proposed temporal dependency based approach.

Combining these two primary findings, we conclude that the weakness of defense techniques identified in the image case is very likely to be transferred to the audio domain. On the other hand, exploiting unique data properties to develop defense methods, such as using temporal dependency in ASR, can lead to promising defense approaches that can resist adaptive adversarial attacks.

3 Temporal Dependency and Input Transformation in Audio Data

In this section, we will introduce the effect of basic input transformations on audio adversarial examples, and analyze temporal dependency in audio data. We will also show that such temporal dependency can be potentially leveraged to discriminate audio adversarial examples.

3.1 Audio Adversarial Examples Under Simple Input Transformations

Inspired by image input transformation methods and as a first attempt, we applied some primitive signal processing transformations to audio inputs. These transformations are useful, easy to implement, fast to operate and have delivered several interesting findings.

Quantization: By rounding the amplitude of audio sampled data into the nearest integer multiple of , the adversarial perturbation could be disrupted since its amplitude is usually small in the input space. We choose as our parameters.

Local smoothing: We use a sliding window of a fixed length for local smoothing to reduce the adversarial perturbation. For an audio sample , we consider the samples before and after it, denoted by , as a local reference sequence and replace by the smoothed value (average, median, etc) of its reference sequence.

Down sampling: Based on sampling theory, it is possible to down-sample an band-limited audio file without sacrificing the quality of the recovered signal while mitigating the adversarial perturbations in the reconstruction phase. In our experiments, we down-sample the original 16kHz audio data to 8kHz and then perform signal recovery.

Autoencoder: In adversarial image defending field, the MagNet defensive method (Meng & Chen, 2017) is an effective way to remove adversarial noises: Implement an autoencoder to project the adversarial input distribution space into the benign distribution. In our experiments, we implement a sequence-to-sequence autoencoder, and the whole audio will be cut into frame-level pieces passing through the autoencoder and concatenate them in the final stage, while using the whole audio passing the autoencoder directly is proved to be ineffective and hard to utilize the underlying information.

3.2 Temporal Dependency Based Method

Due to the fact that audio sequence has explicit temporal dependency (e.g., correlations in consecutive waveform segments), here we aim to explore if such temporal dependency will be affected by adversarial perturbations. The pipeline of the temporal dependency based method is shown in Figure 1. Given an audio sequence, we propose to select the first portion of it as input for ASR to obtain transcribed results as . We will also insert the whole sequence into ASR and select the first portion of the transcribed result as , which has the same length as . We will then compare the consistency between and in terms of temporal dependency distance. Here we adopt the word error rate (WER) as the distance metric (Levenshtein, 1966). For normal/benign audio instance,  and  should be similar since the ASR model is consistent for different sections of a given sequence due to its temporal dependency. However, for audio adversarial examples, since the added perturbation aims to alter the ASR ouput toward the targeted transcription, it may fail to preserve the temporal information of the original sequence. Therefore, due to the loss of temporal dependency,  and  in this case will not be able to produce consistent results. Based on such hypothesis, we leverage the the first portion of the transcribed results and the transcribed portion to potentially recognize adversarial inputs.

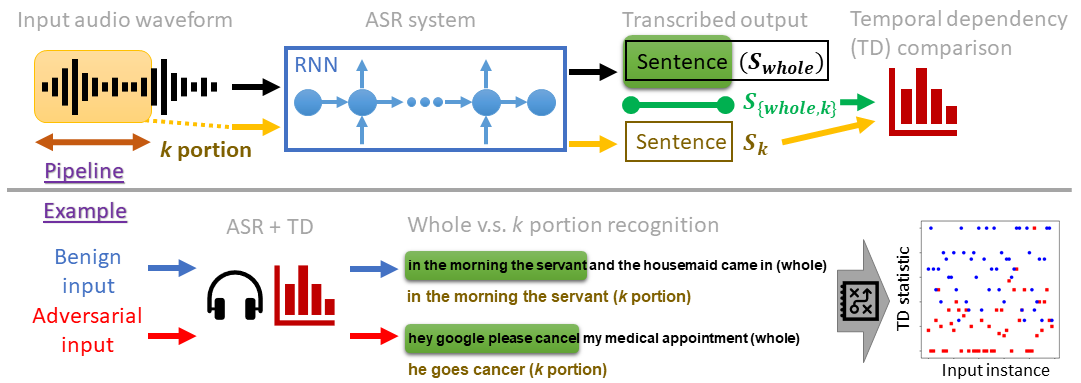

Figure 1: Pipeline and example of the proposed temporal dependency (TD) based method for discriminating audio adversarial examples.

4 Experimental Results

In this section, we will first empirically analyze the effects of input transformation on adversarial audio, inspired by defensive methods in image domain. We show that due to different data properties, such input transformation is less effective in defending adversarial audio than images (such as MagNet (Meng & Chen, 2017)). In addition, even when some input transformation is effective for recovering some adversarial audio data, we find that it is easy to perform adaptive attacks against them. We apply the analysis on both audio classification and speech-to-text tasks by considering three state-of-the-art attacks. Then we will introduce how to leverage the temporal dependency of audio data to potentially distinguish adversarial instances, and we also propose different types of strong adaptive attacks against such temporal dependency based detection. We show that these strong adaptive attacks are not able to generate effective adversarial audio facing the temporal dependency based detection.

4.1 Dataset and Evaluation Metrics

In our experiments, we measure the effectiveness on several adversarial audio generation methods. For speech-to-text attack, we benchmark each method on both LibriSpeech and Mozilla Common Voice dataset. For audio classification attack, we used Speech Commands dataset. For Commander Song attack (Yuan et al., 2018), we measure on the generated adversarial audios given by the authors.

Dataset LibriSpeech dataset: LibriSpeech (Panayotov et al., 2015) is a corpus of approximately 1000 hours of 16Khz English speech derived from audiobooks from the LibriVox project. We used samples from its test-clean dataset in their website and the average duration is 4.294s. We generated adversarial examples using the attack method in (Carlini & Wagner, 2018).

Mozilla Common Voice dataset: Common Voice is a large audio dataset provided by Mozilla. This dataset is public and contains samples from human speaking audio files. We used the 16Khz-sampled data released in (Carlini & Wagner, 2018), whose average duration is 3.998s. The first 100 samples from its test dataset is used to mount attacks, which is the same attack experimental setup as in (Carlini & Wagner, 2018).

Speech Commands dataset: Speech Commands dataset (Warden, 2018) is a audio dataset contains 65000 audio files. Each audio is just a single command lasting one second. Commands are ”yes”, ”no”, ”up”, ”down”, ”left”, ”right”, ”on”, ”off”, ”stop”, and ”go”.

Model For speech-to-text task, we use DeepSpeech speech-to-text transcription network, which is a biRNN based model with beam search to decode text. For audio classification task, we use a convolutional speech commands classification model. For the Command Song attack, we evaluate the performance on Kaldi speech recognition platform.

Evaluation Metrics For input transformation, since it aims to recover the ground truth (original instances) from adversarial instances, we use the word error rate (WER) and character error rate (CER) (Levenshtein, 1966)

as evaluation metrics to measure the recovery efficiency. WER and CER are commonly used metrics to measure the error between recovered text and the ground truth in word level or character level. Generally speaking, the error rate (ER) is defined by

, where is the number of substitutions, deletions and insertions calculated by dynamic string alignment, and is the total number of word / character in the ground truth text.

The proposed TD method is the first data-specific metric to detect adversarial audio, which focuses on how many adversarial instances are captured (true positive) without affecting benign instances (false positive). Therefore, we report the area under curve (AUC) score to evaluate the detection efficiency. For the proposed TD method, we compare the temporal dependency based on WER, CER, as well as the longest common prefix (LCP). LCP is a commonly used metric to evaluate the similarity between two strings. Given strings and , the corresponding LCP is defined as , where represents the first portion of a sentence.

4.2 Input Transformation for Different Tasks

Currently, there are two types of audio attacks: attacking audio classification and attacking speech-to-text tasks. We will first analyze the effect of various input transformations on different attacks.

Autoencoder transformation method for speech-to-text attack Towards defending against (non-adaptive) adversarial images, MagNet (Meng & Chen, 2017)

has achieved promising performance by using an antoencoder to mitigate adversarial perturbation. Inspired by it, here we apply a similar autoencoder structure for audio and test if such input transformation can be applied to defending against adversarial audio. We apply a MagNet-like method for feature-extracted audio spectrum map: we build an encoder to compress the information of origin audio features into latent vector

, then use for reconstruction by passing through another decoder network under frame level and combine them to obtain the transformed audio (Hsu et al., 2017). We implemented our autoencoder based on convolutional networks evaluated by WER and CER, and the results are shown in Tables S1 and S2 in Appendix. We find that MagNet which gained great effectiveness on defending adversarial images in the oblivious attack setting (Carlini & Wagner, 2017c; Lu et al., 2018), has limited effect on audio defense. We report that the autoencoder works fine for transforming benign instances (57.6 WER in Common Voice compared to 27.5 WER without transformation, 30.0 WER in LIBRIS compared to 12.4 WER without transformation), but fails to recover adversarial audio (76.5 WER in Common Voice and 99.4 WER in LIBRIS). This shows that the non-adaptive additive adversarial perturbation can bypass the MagNet-like autoencoder on audio, which implies different robustness implications of image and audio data.

Primitive transformation for speech-to-text attack In addition to autoencoder, here we study the effects of other general primitive transformations on benign and adversarial audio. In speech-to-text attack, we consider the state-of-the-art audio attack proposed in (Carlini & Wagner, 2018). We separately choose 50 audio files from two audio datasets (Common Voice, LIBRIS) and generate attacks based on the CTC-loss. We evaluate several primitive signal processing methods as input transformation. We then also evaluate the WER and CER to quantify the effectiveness of transformation. The results are shown in Tables S1 and S2 in Appendix. We first report the WER and CER for the translated instance using both ground truth and adversarial target “This is an adversarial example” as references. To fairly evaluate the effectiveness of these transformations, we also report the ratio between transformed instance and corresponding target. For instance, as an controlled experiment, given an instance we calculate the effectiveness ratio for benign instances as , where denotes the result of transformation and characterizes the distance function (WER and CER in our case). are shown in the brackets for the first two columns in Table S1 and S2. For adversarial audio, we calculate the similar effectiveness ratio as , which is shown in the brackets of last two columns within the tables. Here benign and adversarial referred to the benign or adversarial audio without transformation.

Here small indicates that transformation has little effect on benign instances, small represents transformation is effective recovering adversarial audio back to benign. From Tables S1 and S2 we showed that most of input transformations (e.g., Median-4, Downsampling and Quantization-256) effectively reduce the adversarial perturbation without affecting the original audio too much.

Commander Song Attack We also evaluate our input transformation method against the Commander Song attack (Yuan et al., 2018), which implemented an Air-to-API adversarial attack. In the paper, the authors reported attack detection rate using some defense techniques. We measured our Quant-256 input transformation on 25 adversarial examples obtained via personal communications. Based on the same detection evaluation metric in (Yuan et al., 2018), Quant-256 attains 100% detection rate for characterizing all the adversarial examples. Although these input transformations show certain effectiveness defending against adversarial audios, we show that it is still possible to generate adversarial audios by adaptive attack in Section 4.3.

Attack targeting on audio classification and recognition For audio classification task, we consider the state-of-the-art attack proposed in (Alzantot et al., 2018). Here an audio classification model is attacked and the audio classes include “yes, no, up, down, etc.”. They aimed to attack such a network to misclassify an adversarial instance based on either targeted or untargeted attack.

Primitive transformation method for Audio classification attack Here we perform the primitive input transformation for audio classification targeted attacks and evaluate the corresponding effects. (Due to the space limitation, we defer the results of untargeted attacks to the supplemental materials.) We first evaluate our input transformation against the audio classification attack proposed in (Alzantot et al., 2018). We implemented their attack with 500 iterations and limit the magnitude of adversarial perturbation within 5 (smaller than the quantization we used in transformation) and generated 50 adversarial examples per attack task (more targets in Supplementary Material). The attack success rate is on average. For the ease of illustration, we use Quantization-256 as our input transformation. As observed in Figures 3 and 3, the attack success rates decreased to only , and of the adversarial instances have been converted back to their original (true) label. We also measure the possible effects on original audio due to our transformation methods: the original audio classification accuracy without our transformation is , and the rate decreased to after our transformation, which means the effects of input transformation on benign instances are negligible. This shows that for classification tasks, such input transformation is more effective mitigating negative effects of adversarial perturbation. This potential reason could be classification tasks do not rely on audio temporal dependency but focuses on local features, while speech-to-text task will be harder to defend based on the tested input transformations.

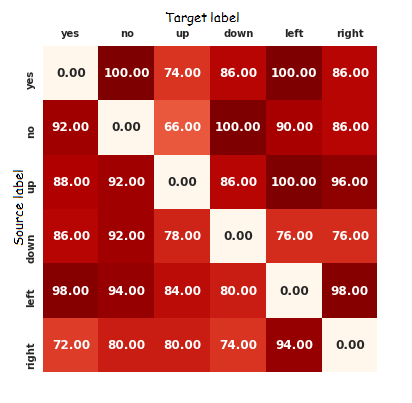

Figure 2: Attack success rates (%)

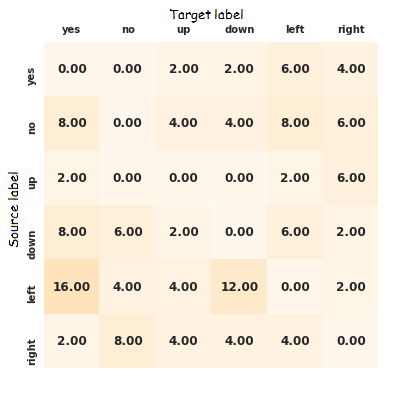

Figure 3: Attack success (%) after transformation

4.3 Adaptive Attacks Against Input Transformations

Here we apply adaptive attacks against the preceding input transformations and therefore evaluate the robustness of the input transformation as defenses. We implemented our adaptive attack based on three input transformation methods: Quantization, Local smoothing, and Downsampling. For these transformation, we leverage a gradient-masking aware approach to generate adaptive attacks.

In the optimization based attack (Carlini & Wagner, 2018), the attack achieved by solving the optimization problem: , where is referred as the perturbation, the benign audio, the target phrase, and the CTC-loss. Parameter is iterated to trade off the importance of being adversarial and remaining close to the original instance.

For quantization transformation, we assume the adversary knows the quantization parameter . We then change our attack targeted optimization function to: . After that, all the adversarial audios can be resistant against quantization transformations and it only increased a small magnitude of adversarial perturbation, which can be ignored by human ears. When is large enough, the distortion would increase but the transformation process is also ineffective due to too much information loss.

For downsampling transformation, the adaptive attack is conducted by performing the attack on the sampled elements of origin audio sequence. Since the whole process is differentiable, we can do adaptive attack through gradient directly and all the adversarial audios are able to attack.

For local smoothing transformation, it is also differentiable in case of average smoothing transformation, so we can pass the gradient effectively. To attack against median smoothing transformation, we can just convert the gradient back to the median and update its value, which is similar to the maxpooling layer’s back propagation process. By implementing the adaptive attack, all the smoothing transformation is shown to be ineffective.

We chose our samples randomly from LIBRIS and Common Voice audio dataset with 50 audio samples each. We implemented our adaptive attack on the samples and passed them through the corresponding input transformation. We use down-sampling from 16kHZ to 8kHZ, median / average smoothing with one-sided sequence length , quantization method with as our input transformation methods. In (Carlini & Wagner, 2018), Decibels (a logarithmic scale that measures the relative loudness of an audio sample) is applied as the measurement of magnitude of perturbation: , which referred as adversarial audio sampled sequence. The relative perturbation is calculated as , where is the crafted adversarial noise.

We measured our adaptive attack based on the same criterion. We show that all the adaptive attacks become effective with reasonable perturbation, as shown in Table 1. As suggested in (Carlini & Wagner, 2018), almost all the adversarial audios have distortion from -15dB to -45dB which is tolerable to human ears. From Table 1, the added perturbation are mostly within this range.

Dataset Non-adaptive Downsample Quantization-256 Median-4 Average-4
LIBRIS -36.06 -21.42 -11.02 -23.58 -25.64
CommmonVoice -35.65 -20.91 -9.48 -23.42 -25.12
Table 1: The evaluation of adaptive attack

4.4 Temporal Dependency Based Method

Here we show the empirical performance of distinguishing adversarial audios by leveraging the temporal dependency of audio dataset. In the experiments, we use these three metrics, WER, CER and LCP, to measure the inconsistency between  and . As a baseline, we also directly train a one layer LSTM with 64 hidden feature dimension based on the collected adversarial and benign audio instances for classification. Some examples of translated results for benign and adversarial audios are shown in Table 2. Here we consider three types of adversarial targets: short – hey google; medium – this is an adversarial example; and long – hey google please cancel my medical appointment. We report the AUC score for these detection results for in Table 3.

Type Transcribed results
Original then good bye said the rats and they went home
the first half of Original then good bye said the redraps

Adversarial (short)
hey google
First half of Adversarial redhe is
Adversarial (medium) this is an adversarial example
First half of Adversarial redthes on adequate
Adversarial (long) hey google please cancel my medical appointment
First half of Adversarial redhe goes cancer
Table 2: Examples of the temporal dependency based detection method
Dataset LSTM TD (WER) TD (CER) TD (LCP ratio)
Common Voice 0.712 0.936 0.916 0.859
LIBRIS 0.645 0.930 0.933 0.806
Table 3: AUC results of the proposed temporal dependency method

We can see that by using WER as the detection metric, the temporal dependency based method can achieve AUC as high as 0.936 on Common Voice and 0.93 on LIBRIS. We also explore different values of and we observe that the results do not vary too much (detailed results can be found in Table S6 in Appendix). When , the AUC score based on CER can reach , which shows that such temporal dependency based method is indeed promising in terms of distinguishing adversarial instances. Interestingly, these results suggest that the temporal dependency based method would suggest an easy-implemented but effective method for characterizing adversarial audio attacks.

Combination Detection TD metrics
Attack Parameter WER CER LCP
1/2 0.607 0.518 0.643
2/3 0.957 0.965 0.881
Rand(0.2, 0.8) 0.889 0.882 0.776


1/2 0.665 0.682 0.604
2/3 0.653 0.664 0.564
3/4 0.633 0.653 0.601
Rand(0.2, 0.8) 0.785 0.832 0.642
Table 4: AUC of detecting Combination Attack based on TD method

4.5 Adaptive Attacks Against Temporal Dependency Based Method

To thoroughly evaluate the robustness of temporal dependency based method, we also perform strong adaptive attack against it. Notably, even if the adversary knows , the adaptive attack is hard to conduct due to the fact that this process is non-differentiable. Therefore, we propose three types of strong adaptive attacks here aiming to explore the robustness of the temporal based method.

Segment attack: Given the knowledge of , we first split the audio into two parts: the first -portion audio  and the rest . We then apply similar attack to add perturbation to only . We hope this audio can be attacked successfully without changing since the second part would not receive gradient updates. Therefore, when performing the temporal based consistency check, () would be translated consistently with ().

Concatenation attack: To maximally leverage the information of , here we propose two ways to attack both  and  individually, and then concatenate them together.

1. the target of   is the first portion of adversarial target, and   is attacked to the rest.

2. the target of  is the whole adversarial target, while we attack  to be silence, which means  transcribing nothing. This is different from segment attack where  is not modified at all.

Combination attack: To balance attack success rate for both sections and the whole sentence against TD, we apply the attack objective function as , where refers to the whole sentence.

For segment attack, we found that in most cases the attack cannot succeed, that attack success rate remains as for 50 samples in both LIBRIS and Common Voice dataset, and some of the examples are shown in Appendix. We conjecture the reasons as: 1.  alone is not enough to be attacked to the adversarial target due to the temporal dependency; 2. the speech recognition results on  cannot be applied to the whole recognition process and therefore break the recognition process for .

For concatenation attack, we also found that the attack itself fails. That is, the transcribed result of ()+() differs from the translation result of +. Some examples are shown in Appendix. The failure of the concatenation adaptive attack more explicitly shows that the temporal dependency plays an important role in audio. Even if the separate parts are successfully attacked into the target, the concatenated instance will again totally break the perturbation and therefore render the adaptive attack inefficient. On the contrary, such concatenation will have negligible effects on benign audio instances, which provides a promising direction to detect adversarial audio.

For combination attack, we vary the section portion used by TD and evaluate the cases where the adaptive attacker uses the same/different section . We define Rand(a,b) as uniformly sampling from [a,b]. We consider stronger attacker, for whom the can be a set containing random sections. The detection results for different settings are shown in Table 4. From the results we can see that when , if the attacker uses the same as to perform adaptive attack, the attack can achieve relative good performance and if attacker uses different , the attack will fail with AUC above 85%. We also evaluate the case that defender randomly sample during the detection and find that it’s very hard for adaptive attacker to perform attacks, which can improve model robustness in practice. For , the attacker can achieve some attack success when the set contains . But when increases, the attacker’s performance becomes worse. The complete results are given in Appendix. Notably, the random sample based TD appears to be robust in all cases.

5 Conclusion

This papers proposes to exploit the temporal dependency property in audio data to characterize audio adversarial examples. Our experimental results show that while four primitive input transformations on audio fail to withstand adaptive adversarial attacks, temporal dependency is shown to be resistant to these attacks. We also demonstrate the power of temporal dependency for characterizing adversarial examples generated by three state-of-the-art audio adversarial attacks. The proposed method is easy to operate and does not require model retraining. We believe our results shed new lights in exploiting unique data properties toward adversarial robustness.

References

Appendix

5.1 Results on “autoencoder transformation method for speech-to-text attack” and “Primitive transformation for speech-to-text attack”

Transformation Methods OriginWER(%) OriginCER(%) AdvWER(%) AdvCER(%)
Without transformations 27.5 14.3 95.9 80.1
Autoencoder 57.6 (2.09) 34.1 (2.38) 76.5 (0.80) 49.8 (0.62)
Median-4 27.0 (0.98) 14.6 (1.02) 73.6 (0.77) 42.4 (0.53)
Downsample 31.2 (1.13) 17.6 (1.23) 69.6 (0.73) 41.2 (0.51)
Quant-128 34.4 (1.25) 21.3 (1.49) 75.9 (0.79) 45.3 (0.57)
Quant-256 42.9 (1.56) 26.7 (1.87) 70.7 (0.74) 41.8 (0.52)
Quant-512 52.4 (1.90) 37.1 (2.59) 68.5 (0.71) 45.0 (0.56)
Quant-1024 62.4 (2.27) 47.2 (3.3) 70 (0.73) 51.2 (0.64)


Table S1: Evaluation on Common Voice with language model
Transformation Methods OriginWER(%) OriginCER(%) AdvWER(%) AdvCER(%)
Without transformations 3.05 1.46 102.8 86.5
Autoencoder 30.0 (9.84) 15.1 (10.34) 99.4 (0.97) 58.1 (0.67)
Median-4 3.6 (1.18) 1.7 (1.16) 35.1 (0.34) 19.0 (0.22)
Downsample 11.8 (3.87) 5.7 (3.90) 41.2 (0.40) 21.8 (0.25)
Quant-128 3.2 (1.04) 1.5 (1.03) 49.7 (0.48) 28.2 (0.33)
Quant-256 3.5 (1.13) 1.7 (1.16) 29.1 (0.28) 15.4 (0.18)
Quant-512 12.0 (3.93) 6.6 (4.52) 25.1 (0.24) 13.3 (0.15)
Quant-1024 30.7 (10.06) 20.3 (13.90) 36.6 (0.36) 24.1 (0.28)

Table S2: Evaluation on LIBRIS with language model
Transformation Methods OriginWER(%) OriginCER(%) AdvWER(%) AdvCER(%)
Without transformations 37.7 18.5 95.8 83.0
Median-4 43.4 (1.15) 20.4 (1.10) 83.0 (0.87) 46.5 (0.56)
Down sampling 47.2 (1.25) 23.3 (1.26) 77.6 (0.81) 43.9 (0.53)
Quantization-128 47.3 (1.25) 25.7 (1.39) 80.7 (0.84) 49.0 (0.59)
Quantization-256 52.5 (1.39) 29.2 (1.58) 73.4 (0.77) 43.6 (0.53)
Quantization-512 64.1 (1.70) 37.5 (2.03) 73.7 (0.77) 44.2 (0.53)
Quantization-1024 72.1 (1.91) 50.4 (2.72) 76.9 (0.80) 53.0 (0.64)
Table S3: Evaluation on Common Voice without passing through language model
Transformation Methods OriginWER(%) OriginCER(%) AdvWER(%) AdvCER(%)
Without transformations 12.4 7.05 105.3 91.7
Median-4 16.4 (1.32) 8.0 (1.13) 57.9 (0.55) 27.5 (0.30)
Downsample 24.2 (1.95) 13.0 (1.84) 60.9 (0.58) 31.2 (0.34)
Quantization-128 13.4 (1.08) 7.6 (1.08) 66.1 (0.63) 37.1 (0.40)
Quantization-256 16.3 (1.31) 8.9 (1.26) 48.6 (0.46) 24.0 (0.26)
Quantization-512 27.5 (2.21) 13.8 (1.96) 47.0 (0.45) 23.0 (0.25)
Quantization-1024 46.8 (3.77) 25.4 (3.60) 52.3 (0.50) 30.0 (0.33)
Table S4: Evaluation on LIBRIS without passing through language model

5.2 More results on primitive transformation method for audio classification attack

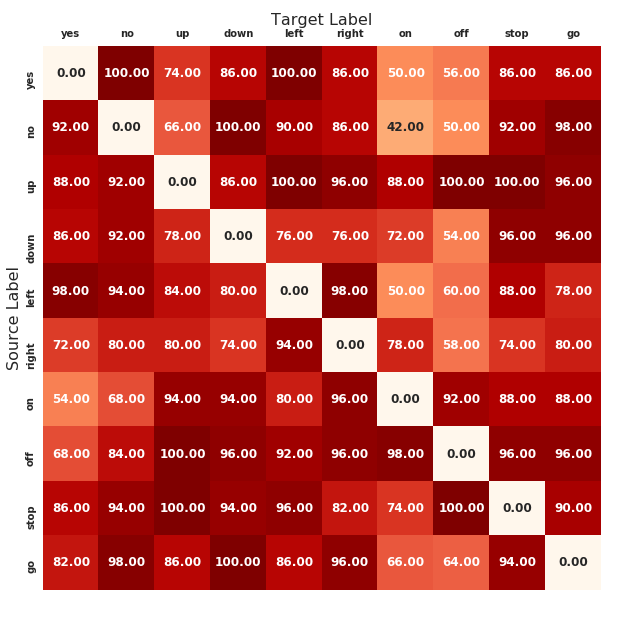

Figure S1: Successful attack rates

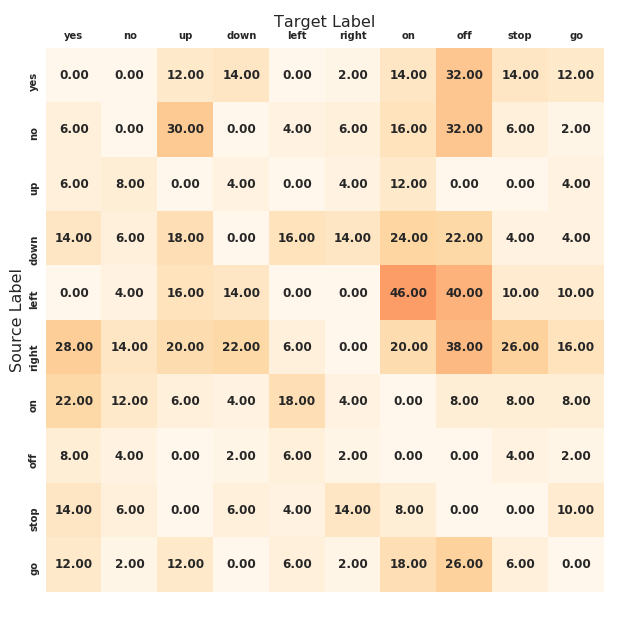

Figure S2: Unchanged label rates

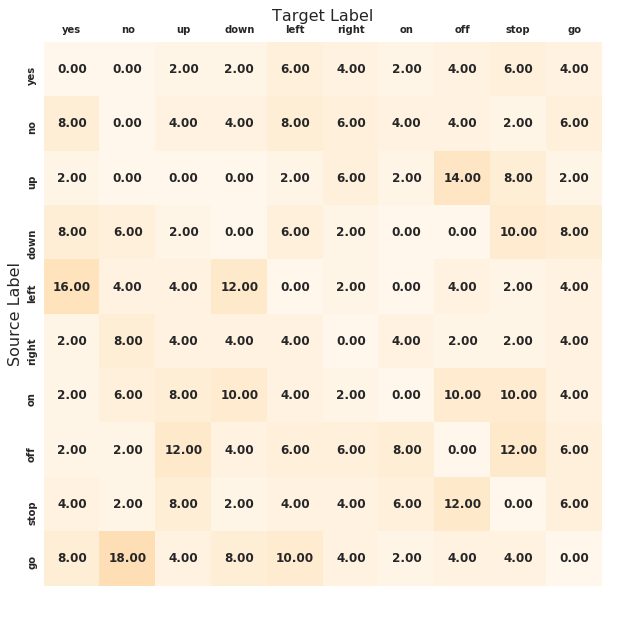

Figure S3: Successful attack rates after transformation

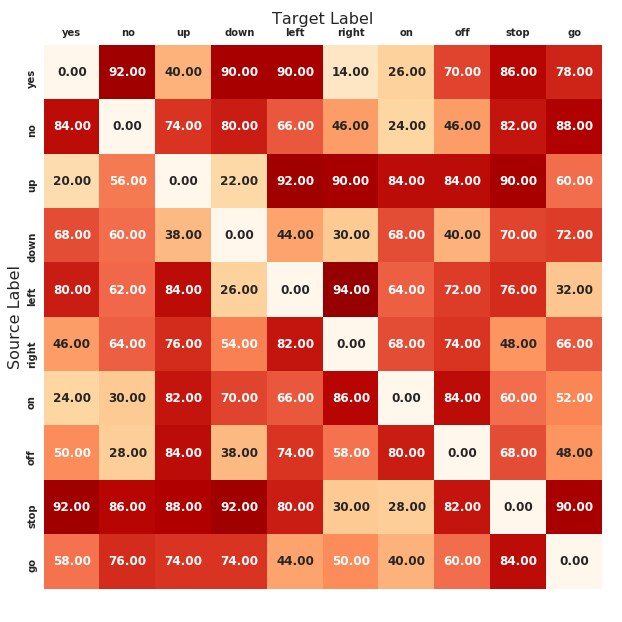

Figure S4: Unchanged label rates after transformation

5.3 More results on adaptive attacks against temporal dependency based method

Type Transcribed results
Original and he leaned against the wa lost in reveriey
the first half of Original and he leaned against the wa

Adaptive attack target
this is an adversarial example
Adaptive attack result this is an adversarial redlosin ver
the first half of Adv. this is a redagamsa

Adaptive attack target
okay google please cancel my medical appointment
Adaptive attack result okay google please cancel my redmedcalosinver
the first half of Adv. okay redgo please


Original
why one morning there came a quantity of people and set to work in the loft
Attack target this is an adversarial example

this is an
adversarial example
+ this is reda quantity of people and set to work in a lift

this is an adversarial example
+ this is an redadernari eanquatete of pepl and sat to work in the loft
Table S5: Examples of Segment Attack and Concatenation attack
WER CER LCP
0.930 0.933 0.806
0.930 0.948 0.826
0.933 0.938 0.839
0.955 0.969 0.880
0.941 0.962 0.858
Table S6: AUC scores of different
Combination Detection TD metrics
Attack Parameter WER CER LCP
1/2 0.607 0.518 0.643
2/3 0.957 0.965 0.881
3/4 0.943 0.951 0.875
Rand(0.2, 0.8) 0.889 0.882 0.776
1/2 0.932 0.912 0.860
2/3 0.611 0.543 0.604
3/4 0.956 0.944 0.872
Rand(0.2, 0.8) 0.879 0.890 0.762
1/2 0.633 0.690 0.552
2/3 0.536 0.615 0.524
3/4 0.942 0.974 0.934
Rand(0.2, 0.8) 0.801 0.880 0.664
1/2 0.665 0.682 0.604
2/3 0.653 0.664 0.564
3/4 0.633 0.653 0.601
Rand(0.2, 0.8) 0.785 0.832 0.642
1/2 0.701 0.712 0.615
2/3 0.684 0.701 0.583
3/4 0.681 0.693 0.613
Rand(0.2, 0.8) 0.742 0.811 0.623
1/2 0.736 0.784 0.601
2/3 0.723 0.763 0.612
3/4 0.715 0.755 0.584
Rand(0.2, 0.8) 0.734 0.801 0.620
Table S7: AUC of detecting Combination Attack based on TD method
