1 Introduction
Detecting and modeling changes in data is critical in statistical theory, scientific discovery, and public policy. For example, in epidemiology, detecting changes in disease dynamics can provide information about when and where a vaccination program becomes effective. In dangerous professions such as coal mining, changes in accident occurrence patterns can indicate which regulations impact worker safety. In city governance, policy makers may be interested in how requests for health services change across space and over time.
Changepoint models have a long history in statistics, beginning in the midtwentieth century, when methods were first developed to identify changes in a data generating process (Page, 1954; Horváth and Rice, 2014)
. The primary goal of these models is to determine if a change in the distribution of the data has occurred, and then to locate one or more points in the domain where such changes occur. While identifying these changepoints is an important result in itself, changepoint methods are also frequently applied to other problems such as outlier detection or failure analysis
(Reece et al., 2015; Tartakovsky et al., 2013; Kapur et al., 2011). Different changepoint methods are distinguished by the diversity of changepoints they are able to detect and the complexity of the underlying data. The simplest models consider mean shifts between functional regimes (Chernoff and Zacks, 1964; Killick et al., 2012), while others consider changes in the covariance structure or higher order moments
(Keshavarz et al., 2018; Ross, 2013; James and Matteson, 2013). A regime is a particular data generating process or underlying function that is separated from other underlying processes or functions by changepoints. Additionally, there is a fundamental distinction between changepoint models that identify changes sequentially using online algorithms, and those that analyze data retrospectively to find one or more changes in past data (Brodsky and Darkhovsky, 2013; Chen and Gupta, 2011). Finally, changepoint methods may be fully parametric, semiparametric, or nonparametric (Ross, 2013; Guan, 2004). For additional discussion of changepoints beyond the scope of this paper, readers may consider the literature reviews in Aue and Horváth (2013), Ivanoff and Merzbach (2010), and Aminikhanghahi and Cook (2017).Yet nearly all changepoint methods described in the statistics and machine learning literature consider system perturbations as discrete changepoints. This literature seeks to identify instantaneous differences in parameter distributions. The advantage of such models is that they provide definitive assessments of the location of one or more changepoints. This approach is reasonable, for instance, when considering catastrophic events in a mechanical system, such as the effect of a car crash on various embedded sensor readings. Yet the challenge with these models is that real world systems rarely exhibit a clear binary transition between regimes. Indeed, in many applications, such as in biological science, instantaneous changes may be physically impossible. While a handful of approaches consider nondiscrete changepoints (e.g., Wilson et al., 2012; Wilson, 2014; Lloyd et al., 2014) they still require linear, monotonic, onedimensional, and, in practice, relatively quick changes. Existing models do not provide the expressiveness necessary to model complex changes.
Additionally, applying changepoints to multiple dimensions, such as spatiotemporal data, is theoretically and practically nontrivial, and has thus been seldom attempted. Notable exceptions include Majumdar et al. (2005) who consider discrete spatiotemporal changepoints with three additive Gaussian processes: one for , one for , and one for all . Alternatively, Nicholls and Nunn (2010) use a Bayesian onsetfield process on a lattice to model the spatiotemporal distribution of human settlement on the Fiji islands. However, the models in these papers are limited to considering discrete changepoints.
1.1 Main contributions
In this paper, we introduce change surfaces as expressive, multidimensional generalizations of changepoints. We present a modelagnostic formulation of change surfaces and instantiate this framework with scalable Gaussian process models. The resulting model is capable of automatically learning expressive covariance functions and a sophisticated continuous change surface. Additionally, we derive massively scalable inference procedures, as well as counterfactual prediction techniques. Finally, we apply the proposed methods to a wide variety of numerical data and complex human systems. In particular, we:

Introduce change surfaces as multidimensional and highly flexible generalizations of changepoint modeling.

Introduce a procedure which allows one to specify background functions and change functions, for more powerful inductive biases and added interpretability.

Provide a new framework for counterfactual prediction using change surfaces.

Present the Gaussian Process Change Surface model (GPCS) which models change surfaces with highly flexible Random Kitchen Sink (Rahimi and Recht, 2007) features.

Develop massively scalable additive, nonstationary, nonseparable kernels by using the Weyl inequality (Weyl, 1912) and novel Kronecker methods. In addition we integrate our approach into the recent KISSGP framework (Wilson and Nickisch, 2015). The resulting approach is the first scalable Gaussian process multidimensional changepoint model.

Describe a novel initialization method for spectral mixture kernels (Wilson and Adams, 2013)
by fitting a Gaussian mixture model to the Fourier transform of the data. This method provides good starting values for hyperparameters of expressive stationary kernels, allowing for successful optimization over a multimodal parameter space.

Demonstrate that the GPCS approach is robust to misspecification, and automatically discourages extraneous model complexity, leading to the discovery of interpretable generative hypotheses for the data.

Perform counterfactual prediction in complex real world data with posterior mean and covariance estimates for each point in the input domain.

Use GPCS for discovering and characterizing continuous changes in large observational data. We demonstrate our approach on a recently released public health dataset providing new insight that suggests how the effect of the 1963 measles vaccine may have varied over space and time in the United States. Additionally, we apply the model to requests for lead testing kits in New York City from 20142016. The results illustrate distinct spatial patterns in increased concern about leadtainted water.
1.2 Outline
The paper is divided into three main units.
Section 2 formally introduces the notion of change surfaces as a multidimensional, expressive generalization of changepoints. We discuss a variant of change surfaces in section 2.1 and detail how to use change surfaces for counterfactual prediction in section 2.2. The discussion of change surfaces in this unit is methodagnostic, and should be relevant to experts from a wide variety of statistical and machine learning disciplines. We emphasize the novel contribution of this framework to the general field of change detection.
Section 3 presents the Gaussian Process Change Surface (GPCS) as a scalable method for change surface modeling. We review Gaussian process basics in section 3.1. We specify the GPCS model in section 3.2. Counterfactual predictions with GPCS are derived in section 3.3. Scalable inference using novel Kronecker methods are presented in section 3.4, and we describe a novel initialization technique for expressive Gaussian process kernels in section 3.5.
Section 4 demonstrates GPCS on outofclass numerical data and complex spatiotemporal data. We describe our numerical setup in section 4.1
presenting results for posterior prediction, change surface identification, and counterfactual prediction. We present a onedimensional application of GPCS on coal mining data in section
4.2 including a comparison to stateoftheart changepoint methods. Moving to spatiotemporal data, we apply GPCS to model requests for lead testing kits in New York City in section 4.3 and discuss the policy relevant conclusions. Additionally, we use GPCS to model measles incidence in the United States in section 4.4 and discuss scientifically relevant insights.Finally, we conclude with summary remarks in section 5.
2 Change surfaces
In human systems and scientific phenomena we are often confronted with changes or perturbations which may not immediately disrupt an entire system. Instead, changes such as policy interventions and natural disasters take time to affect deeply ingrained habits or trickle through a complex bureaucracy. The dynamics of these changes are nontrivial, with sophisticated distributions, rates, and intensity functions. Using expressive models to fully characterize such changes is essential for accurate predictions and scientifically meaningful results. For example, in the spatiotemporal domain, changes are often heterogeneously distributed across space and time. Capturing the complexity of these changes provides useful insights for future policy makers enabling them to better target or structure policy interventions.
In order to provide the expressive capability for such models, we introduce the notion of a change surface as a generalization of changepoints. We assume data are , where , are inputs or covariates, and ,
, are outputs or response variables indexed by
. A change surface defines transitions between latent functions defining regimes in the data. Unlike with changepoints, we do not require that the transitions be discrete. Instead we define warping functions where , which have support over the entire domain of . Importantly, these warping functions have an inductive bias towards creating a soft mutual exclusivity between the functions. We define the canonical form of a change surface as(1)
where is noise. Each defines how the coverage of varies over the input domain. Where , dominates and primarily describes the relationship between and . In cases where there is no such that , a number of functions are dominant in defining the relationship between and . Since has a strong inductive bias towards 1 or 0, the regions with multiple dominant functions are transitory and often the areas of interest. Therefore, we can interpret how the change surface develops and where different regimes dominate by evaluating each over the input domain.

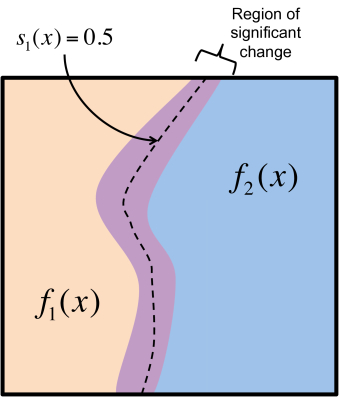

Figure 1 depicts a twodimensional change surface model where latent is drawn in orange and latent is drawn in blue. In those areas the first warping function, , is nearly 1 and 0 respectively. The region in purple depicts an area of transition between the two functions. We would expect that in this region since both latent functions are active.
In many applications we can imagine that a latent background function, , exists that is common to all data regimes. One could reparametrize the model in Eq. (1) by letting each latent regime be a sum of two functions: . Thus each regime compartmentalizes into , a common background function, and , a regimespecific latent function. This provides a generalized change surface model,
(2)
Change surfaces can be considered particular types of adaptive mixture models (e.g., Wilson et al., 2012), where are mixture weights in a simplex that have a strong inductive bias towards discretization. There are multiple ways to induce this bias towards discretization. For example, one can choose warping functions
which have sharp transitions between 0 and 1, such as the logistic sigmoid function. With multiple functions,
, we can also explicitly penalize the warping functions from having similar values. Since each of these warping functions are constrained to be in this penalty would tend move their values towards 0 or 1. More generally, in the case of multiple functional regimes, we can penalize from being far from . For example, we could place a prior over with a heavy weight on 1 and 0.The flexibility of defines the complexity of the change surface. In the simplest case, , and the change surface reduces to a univariate changepoint used in much of the changepoint literature. Alternatively, if we consider the change surface is a smooth univariate changepoint with a fixed rate of change. Such a model only permits a monotonic rate of change and single changepoint.
Comparison to changepoint models:

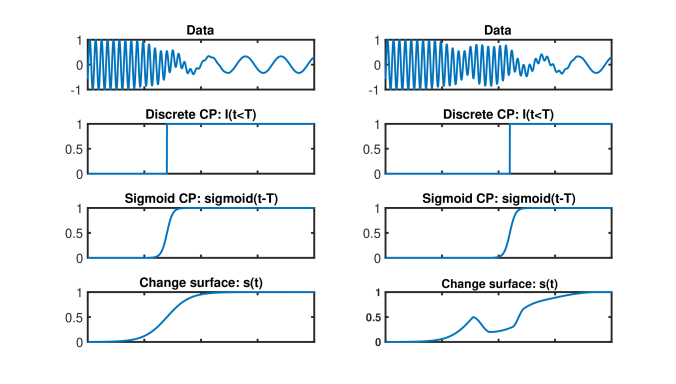

We illustrate the difference between the warping functions, , of a change surface model and standard changepoint methods in Figure 2. The top plot shows unidimensional data with a clear change between two sinusoids. The subsequent plots represent the changes modeled in a discrete changepoint, sigmoid changepoint, and change surface model respectively. The changepoint model can only identify a change at a point in time, and the sigmoid changepoint is a special case of a change surface constrained to a fixed rate of change. However, a general change surface can model gradual changes as well as nonmonotonic changes, providing a much richer representation of the data’s dynamics, and seamlessly extending to multidimensional data.
Expressive change surfaces consider regimes as overlapping elements in the domain. They can illustrate if certain changes occur more slowly or quickly, vary over particular subpopulations, or change rapidly in certain regions of the input domain. Such insights are not provided by standard changepoint models but are critical for understanding policy interventions or scientific processes. Table 1 compares some of the limitations of changepoints with the added flexibility of change surfaces.
Changepoints limited by:  Change surfaces allow for:

Considering unidimensional, often temporalonly problems  Multidimensional inputs with heterogeneous changes across the input dimensions. Indeed, we apply change surfaces to 3dimensional, spatiotemporal problems in section 4.
Detecting discrete or neardiscrete changes in parameter distribution  Warping functions, , can be defined flexibly to allow for discrete or continuous changes with variable, and even nonmonotonic rates of change.
Not simultaneously modeling the latent functional regimes  Learning and in Equation (1) to simultaneously model the change surface and underlying functional regimes.
Yet the flexibility required by change surfaces as applied to real data sets might seem difficult to instantiate with any particular model. Indeed, machine learning methods are often desired to be expressive, interpretable, and scalable to large data. To address this challenge we introduce the Gaussian Process Change Surface (GPCS) in section 3 which uses Gaussian process priors with flexible kernels to provide rich modeling capability, and a novel scalable inference scheme to permit the method to scale to massive data.
2.1 Change surface background model
In certain applications we are interested in modeling how a change occurs concurrent with a background function which is common to all regimes. For example, consider urban crime. If a police department staged a prolonged intervention in one sector of the city, we expect that some of the crime dynamics in that sector might change. However, seasonal and other weatherrelated patterns may remain the same throughout the entire city. In this case we want a model to identify and isolate those general background patterns as well as one or more clearly interpretable functions representing regions of change from the background distribution.
We can accommodate such a model as a special case of the generalized change surface from Eq. (2). Each latent function is modeled as where models “background” dynamics, and models each change function. Since changes do not necessarily persist over the entire domain, we fix , and allow . This approach results in the following change surface background model:
(3)

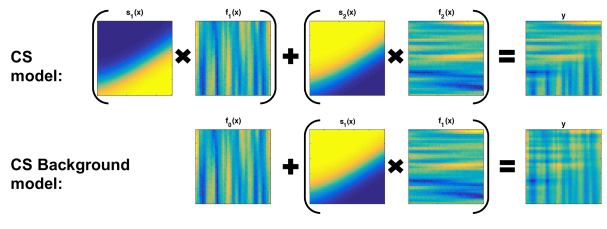

Figure 3 presents a twodimensional representation of the change surface and change surface background models. The data depicted comes from the numerical experiments in section 4.1.
The explicit decomposition into background and change functions is valuable, for instance, if we wish to model counterfactuals: we want to know what the data in a region might look like had there been no change. The decomposition also enables us to interpret the precise effect of each change. Moreover, from a statistical perspective, the decomposition allows us to naturally encode inductive biases into the change surface model, allowing meaningful a priori statistical dependencies between each region. In the particular case of , the change surface background model has the form , where is the only change function modulated by a change surface, . This corresponds to observation studies or natural experiments where a single change is observed in the data. We explore this special case further in our discussion of counterfactual prediction, in section 2.2.
Finally, for any change surface or change surface background model, it is critical that the model not overfit the data due to a proliferation of parameters, which could lead to erroneously detected changes even when no dynamic change is present. We discuss one strategy for preventing overfitting through the use of Gaussian processes in section 3.
2.2 Counterfactual prediction
By simultaneously characterizing the change surface, , and the underlying generative functions, , change surface models allow us to ask questions about how the data would have looked had there been only one latent function. In other words, change surface models allow us to consider counterfactual questions.
For example, in section 4.4 we consider measles disease incidence in the United States in the twentieth century. The measles vaccine was introduced in 1963, radically changing the dynamics of disease incidence. Counterfactual studies such as van Panhuis et al. (2013) attempt to estimate how many cases of measles there would have been in the absence of the vaccine. To be clear, since change surface models do not consider explicit indicators of an intervention, they do not directly estimate the counterfactual with respect to a particular treatment variable such as vaccination. Instead, they identify and characterize changes in the data generating process that may or may not correspond to a known intervention. The change surface counterfactuals estimate the values for each functional regime in the absence of the change identified by the change surface model. In cases where the discovered change surface does correspond to a known intervention of interest, domain experts may interpret the change surface predictions as a counterfactual “what if” that intervention and any contemporaneous changes in the data generating process (note that we cannot disentangle these causal factors without explicit intervention labels) did not occur.
Counterfactuals are typically studied in econometrics. In observational studies econometricians try to measure the effect of a “treatment” over some domain. Econometric models often measure simple features of the intervention effect, such as the expected value of the treatment over the entire domain, also known as the average treatment effect. A nascent body of work considers machine learning approaches to provide counterfactual prediction in complex data (Athey and Imbens, 2006; Brodersen et al., 2015; Johansson et al., 2016; Hartford et al., 2016), as well as richer measures of the intervention effect (Athey and Imbens, 2006; McFowland et al., 2016). Recent work by Schulam and Saria (2017) uses Gaussian processes for trajectory counterfactual prediction over time. However, these methods generally follow a common framework using the potential outcomes model, which assumes that each observation is observed with a discrete treatment (Rubin, 2005; Holland, 1986). With discrete treatments a unit, , is either intervened upon or not intervened upon — there are no partial interventions. For example, in a medical study a patient may be given a vaccination, or given a placebo. Such discretization is similar to a traditional changepoint model where can only be in one of two states. Yet discrete states prove challenging in practical applications where units may be partially treated or affected through spillover. For example, there may be herd effects in vaccinations whereby a person’s neighbor being vaccinated reduces the risk of infection to the person. Certain econometric models attempt to account for partial treatment such as treatment eligibility (Abadie et al., 2002), where partial treatments are induced by defining proportions of the population that could potentially be treated. Yet a model that directly enables and estimates continuous levels of treatment may be more natural in such cases.
Counterfactuals using change surfaces.
Change surface models enable counterfactual prediction in potentially complex data through the expressive parameterization of the latent functions, . Determining the individual function value over the input domain is equivalent to determining the counterfactual of in the absence of all other latent functions. We can compute counterfactual estimates for latent functions in either the regular change surface model or the change surface background model. In the latter case, if recall that the model takes the form . Determining the counterfactual for provides an estimate for the data without the detected change, while the counterfactual for estimates the effect of that change across the entire regime.
For example, Figure 4 depicts the counterfactual of from Figure 1, where is predicted over the entire regime, . The darker shading of the picture depicts larger posterior uncertainty. As we move toward the right portion of the plot, away from data regions where was active, we have greater uncertainty in our counterfactual predictions.
Computing counterfactuals for each provides insight into the effect of a change on the various regimes. When combined with domain expertise, these models may also be useful for estimating the treatment effect of specific variables. Additionally, given a Bayesian formulation of the change surface, such as that proposed in section 3, we can compute the full posterior distribution over the counterfactual prediction rather than just a point estimate. Finally, since change surfaces model all data points as a combination of latent functions, we do not assume that observed data comes from a particular treatment or control. Rather we learn the contribution of each functional regime to each data point.
Some simple changepoint models could, in theory, provide the ability for counterfactual prediction between regimes. But since changepoint models consider each regime either completely or nearly independently of other regimes, there is no information shared between regimes. This lack of information sharing across regimes makes accurate counterfactual prediction challenging without strong assumptions about the data generating process. Indeed, to our knowledge there is no previous literature using changepoint models for counterfactual prediction.
Assumptions in change surface counterfactuals:
Change surface models identify changing data dynamics without explicitly considering intervention labels. Instead, counterfactuals of the functional regimes are computed with respect to the change surface labels, . Thus these counterfactuals estimate the value of functional regimes in the absence of those changes but do not necessarily represent counterfactual estimates of any particular variable. The interpretation of these counterfactuals as estimates for each functional regime in the absence of a specific known intervention requires identification of the correct change surface, i.e.:

The intervention induces a change in the data generation process that cannot be modeled with a single latent functional regime.

The magnitude of the change is large enough to be detected.

The change surface model is sufficiently flexible to accurately characterize this change.

The change surface model does not overfit the data to erroneously identify a change.
Moreover, the resulting counterfactual estimates do not rule out the possibility that other changes in the data generating process occur contemporaneously with the intervention of interest. As such, these counterfactuals are most naturally interpreted as estimating what the data would look like in the absence of the intervention and any other contemporaneous changes. Disentangling these multiple potential causal factors would require additional data about both the intervention and other potential causes.
Change surface counterfactual predictions can provide immense value in practical settings. Although in some datasets explicit intervention labels are available, many observational datasets do not have such labels. Learning a change surface effectively provides a realvalued label that can be used to predict counterfactuals. Even when the approximate boundaries of an intervention are known, change surface modeling can still provide an important advantage since the intervention labels may not capture the true complexity of the data. For example, knowing the date that the measles vaccine was introduced does not account for regional variation in vaccine distribution and uptake (see section 4.4). Both observational studies and randomized control trials suffer from partial treatment or spillover, where an intervention on one agent or region secondarily affects a nonintervened agent or region. For example, increasing policing in one area of the city may displace crime from the intervened region to other areas of the city (VerbitskySavitz and Raudenbush, 2012). This effect violates the Stable Unit Treatment Value Assumption, which is the basis for many estimation techniques in economics (Rubin, 1986). By using the assumed boundaries of an intervention as a prior over , a change surface model can discover if, and where, spillover occurs. This spillover will be captured as a nondiscrete change and can aid both in interpretability of the results and counterfactual prediction. In all these cases change surface counterfactuals may lead to more believable counterfactual predictions by using a real valued change surface to directly model spillover and interventions.
3 Gaussian Process Change Surfaces (GPCS)
We exemplify the general concept of change surfaces using Gaussian processes (e.g., Rasmussen and Williams, 2006). We emphasize that our change surface formulations from section 2 are not limited to a certain class of models. Yet Gaussian processes offer a compelling instantiation of change surfaces since they can flexibly model nonlinear functions, seamlessly extend to multidimensional and irregularly sampled data, and provide naturally interpretable parameters. Perhaps most importantly, due to the Bayesian Occam’s Razor principle (Rasmussen and Ghahramani, 2001; MacKay, 2003; Rasmussen and Williams, 2006; Wilson et al., 2014), Gaussian processes do not in general overfit the data, and extraneous model components are automatically pruned. Indeed, even though we develop a rich change surface model with multiple mixture parameters, our results below demonstrate that the model does not spuriously identify change surfaces in data.
Gaussian processes have been previously used for nonparametric changepoint modeling. Saatçi et al. (2010) extend the sequential Bayesian Online Changepoint Detection algorithm (Adams and MacKay, 2007) by using a Gaussian process to model temporal covariance within a particular regime. Similarly, Garnett et al. (2009) provide Gaussian processes for sequential changepoint detection with mutually exclusive regimes. Moreover, Keshavarz et al. (2018)
prove asymptotic convergence bounds for a class of Gaussian process changepoint detection but are restricted to considering a single abrupt change in onedimensional data. Focusing on anomaly detection,
Reece et al. (2015) develop a nonstationary kernel that could conceivably be used to model a changepoint in covariance structure. However, as with most of the changepoint models discussed in section 1, these models all focus on discrete changepoints, where regimes defined by distinct Gaussian processes change instantaneously.A small collection of pioneering work has briefly considered the possibility of Gaussian processes with sigmoid changepoints (Wilson, 2014; Lloyd et al., 2014). Yet these models rely on sigmoid transformations of linear functions which are restricted to fixed rates of change, and are demonstrated exclusively on small, onedimensional time series data. They cannot expressively characterize nonlinear changes or feasibly operate on large multidimensional data.
The limitations of these models reflect a common criticism that Gaussian processes are unable to convincingly respond to changes in covariance structure. We propose addressing this deficiency by modeling change surfaces with Gaussian processes. Thus our work both demonstrates a generalization of changepoint models and an enhancement to the expressive power of Gaussian processes.
3.1 Gaussian processes overview
We provide a brief review of Gaussian processes. More detail can be found in Rasmussen and Williams (2006), Schölkopf and Smola (2002), and MacKay (1998).
Consider data, , as in section 2, where , are inputs or covariates, and , are outputs or response variables indexed by . We assume that is generated from by a latent function with a Gaussian process prior (GP) and Gaussian noise. In particular,
(4)
(5)
(6)
A Gaussian process is a nonparametric prior over functions completely specified by mean and covariance functions. The mean function, , is the prior expectation of , while the covariance function, , is a positive semidefinite kernel that defines the covariance between function values and .
(7)
(8)
Any finite collection of function values is normally distributed
where matrix. Thus we can draw samples from a Gaussian process at a finite set of points by sampling from a multivariate Gaussian distribution. In this paper we generally consider
and concentrate on the covariance function. The choice of kernel is particularly important in Gaussian process applications since the kernel defines the types of correlations encoded in the Gaussian process. For example, a common kernel choice is a Radial Basis Function (RBF), also known as a Gaussian kernel,
(9)
where
is the signal variance and
is a diagonal matrix of bandwidths. The RBF kernel implies that nearby values are more highly correlated. While this may be true in many applications, it would be inappropriate for data with significant periodicity. In such cases a periodic kernel would be more fitting. We consider more expressive kernel representations in section 3.2.2. This formulation of Gaussian processes naturally accommodates inputs of arbitrary dimensionality.Prediction with Gaussian processes
Given a set of kernel hyperparameters, , and data, , we can derive a closed form expression for the predictive distribution of evaluated at points ,
(10)
The predictive distribution provides posterior mean and variance estimates that can be used to define Bayesian credible sets. Thus Gaussian process prediction is useful both for estimating the value of a function at new points, , and for deriving a function’s distribution in the domain, , for which we have data.
Learning Gaussian process hyperparameters
In order to learn kernel hyperparameters we often desire to optimize the marginal likelihood of the data conditioned on the kernel hyperparameters, , and inputs, .
(11)
Thus we choose the kernel which maximizes the likelihood that the observed data is generated by the Gaussian process prior with hyperparameters . In the case of a Gaussian observation model we can express the log marginal likelihood as,
(12)
However, solving linear systems and log determinants involving the covariance matrix which incurs computations and memory, for training points, using standard approaches based on the Cholesky decomposition (Rasmussen and Williams, 2006). These computational requires are prohibitive for many applications, particularly in public policy — the focus of this paper — where it is normal to have more than few thousand training points. Accordingly, we develop alternative scalable inference procedures, presented in section 3.4, which enable tractability on much larger datasets.
3.2 Model specification
Change surface data consists of latent functions defining regimes in the data. The change surface defines the transitions between these functions. We could initially consider an inputdependent mixture model such as in Wilson et al. (2012),
(13)
where the weighting functions, , describe the mixing proportions over the input domain. However, for data with changing regimes we are particularly interested in latent functions that exhibit some amount of mutual exclusivity.
We induce this partial discretization with . These functions have support over the entire real line, but a range in and concentrated towards and . Thus, each in Eq. (13) becomes , where . Additionally, we choose such that it produces a convex combination over the weighting functions, . In this way, each defines the strength of latent over the domain, while normalizes these weights to induce weak mutual exclusivity. Thus considering the general model of change surfaces in Eq. (1) we define each warping function as .
A natural choice for flexible change surfaces is to let be the softmax function. In this way the change surface can approximate a Heaviside step function, corresponding to the sharp transitions of standard changepoints, or more gradual changes. For latent functions, the resulting warping function is:
(14)
The Gaussian process change surface (GPCS) model is thus
(15)
where each is drawn from a Gaussian process. Importantly, we expect that each Gaussian process, , will have different hyperparameter values corresponding to different dynamics in the various regimes.
Since a sum of Gaussian processes is a Gaussian process, we can rewrite Eq. (15) as , where has a single Gaussian process prior with covariance function,
(16)
In this form we can see that induce nonstationarity since they are dependent on the input . Thus, even if we use stationary kernels for all , GPCS observations follow a Gaussian process with a flexible, nonstationary kernel.
3.2.1 Design choices for
The functional form of determines how changes can occur in the data, and how many can occur. For example, a linear parametric weighting function,
(17)
only permits a single linear change surface in the data. Yet even this simple model is more expressive than discrete changepoints since it permits flexibility in the rate of change and extends to change regions in .
In order to develop a general framework, we introduce a flexible that is formed as a finite sum of Random Kitchen Sink (RKS) features which map the dimensional input to an dimensional feature space. We use RKS features from a Fourier basis expansion with Gaussian parameters and employ marginal likelihood optimization to learn the parameters of this expansion. Similar expansions have been used to efficiently approximate flexible nonparametric Gaussian processes (LázaroGredilla et al., 2010; Rahimi and Recht, 2007).
Using RKS features, is defined as,
(18)
where we initially sample,
(19)
(20)
(21)
Initialization of hyperparameters and diagonal matrix of lengthscales, , is discussed in section 3.5.
Experts with domain knowledge can specify a parametric form for other than RKS features. Such specification can be advantageous, requiring relatively few, highly interpretable parameters to optimize. For example, in an industrial setting where we are modeling failure of parts in a factory we could define such that it was monotonically increasing since machine parts do not selfrepair. This bias could take the form of a linear function as in Equation (17). Note that since parameters are learned from data, the functional form of does not require prior knowledge about if or where changes occur.
3.2.2 Kernel specification
Each latent function is specified by a kernel with its own set of hyperparameters. By design, each may be of a different form. For example, one function may have a Matérn kernel, another a periodic kernel, and a third an exponential kernel. Such specification is useful when domain knowledge provides insight into the covariance structure of the various regimes.
In order to maintain maximal generality and expressivity, we develop GPCS using multidimensional spectral mixture kernels (Wilson and Adams, 2013) where .
(22)
This kernel is derived via spectral densities that are scalelocation mixtures of Gaussians. Each component in this mixture has mean , covariance matrix , and signal variance parameter . With a sufficiently large , spectral mixture kernels can approximate any stationary kernel, providing the flexibility to capture complex patterns over multiple dimensions. These kernels have been used in pattern prediction, outperforming complex combinations of standard stationary kernels (Wilson et al., 2014).
Previous work on Gaussian processes changepoint modeling has typically been restricted to RBF (Saatçi et al., 2010; Garnett et al., 2009) or exponential kernels (Majumdar et al., 2005). However, expressive covariance functions are particularly critical for modelling multidimensional and spatiotemporal data – a key application for change surfaces – where structure is often complex and unknown a priori.
Initializing and training expressive kernels is often challenging. We propose a practical initialization procedure in section 3.5, which can be used quite generally to help learn flexible kernels.
3.2.3 GPCS background model
Following section 2.1 we extend GPCS to the “GPCS background model.” For this model we add a latent background function, , with an independent Gaussian process prior. Using the same choices for expressive and covariance functions, we define the GPCS background model as,
(23)
Recall that in this model we set . Additionally, since we continue to enforce , thus .
This model effectively places different priors on the background and change regions, as opposed to the the standard GPCS model which places the same GP prior on each regime. The different priors in the GPCS background model reflect an intentional inductive bias which could be advantageous in certain domain settings, such as policy interventions, as discussed in section 2.1 above.
3.3 GPCS Counterfactual Prediction
We consider counterfactuals when using two latent functions in a GPCS, and . This twofunction setup addresses a typical setting for counterfactual prediction when considering two alternatives. The derivations below can be extended to multiple functional regimes. As discussed above, we note that change surface counterfactuals are only valid with respect to the regimes of the data as identified by GPCS. Subsequent analysis and domain expertise are necessary to make any further claims about the relationship between an identified change surface and some latent intervention.
In counterfactual prediction we wish to infer the value of and in the absence of the other function. Therefore we condition on the observations, , and GPCS model parameters in order to compute the conditional distribution
from the multivariate Gaussian joint distribution
. For notational convenience we omit explicit reference to the model parameters in the subsequent derivations but note that all distributions are conditional on these parameters.To recall, for two latent functions, and , GPCS specifies
(24)
(25)
(26)
(27)
where for notational simplicity we let , , , and .
We consider the most general case when we want to predict counterfactuals for both and over the domain . No restrictions are placed over . It can include the entire original domain, parts of the original domain, or different inputs entirely. We concatenate and together,
(28)
Since in section 3.2 we assumed that and have independent Gaussian process priors, we know that,
(29)
Considering the observed data, , we know that and are jointly Gaussian,
(30)
and using multivariate Gaussian identities, we find that has the conditional Gaussian distribution
(31)
Thus in order to derive counterfactuals for both and we only need to compute , and . Note that with respect to we have already derived the covariance structure for in Equation (29).
Computation for
In order to compute , we expand the multiplication noting that is defined to be a twofunction GPCS,
(32)
(33)
Multiplying these elements is assisted by the following identities. Recall that kernels and define the covariance among function values in and respectively,
(34)
(35)
Additionally, since and have independent Gaussian process priors, . Furthermore, because is distributed with mean zero, . Finally, since and are constant (conditional on hyperparameters) and . Thus we can conclude that
(36)
(37)
where is elementwise multiplication.
Computation for
The computation for is very similar to that of so we omit its expansion for the sake of brevity. The slight difference is that we must consider which equals .
Thus,
(38)
(39)
3.3.1 GPCS background model counterfactuals
The counterfactual derivations above directly apply to the GPCS background model with , where . Recall that as we discussed in section 2.1, this is a special case of the GPCS background model where is an additive change function. In this case, the counterfactual for estimates what would have occurred in the absence of the identified change. The counterfactual for models how the change would have affected the entire domain.
If we let we can derive counterfactuals for the GPCS background model by setting in the equations for , , and above. Explicitly,
(40)
(41)
(42)
3.4 Scalable inference
Analytic optimization and inference for Gaussian processes requires computation of the log marginal likelihood from Eq. (12). Yet solving linear systems and computing log determinants over covariance matrices, using standard approaches such as the Cholesky decomposition, requires computations and memory, which is impractical for large datasets. Recent advances in scalable Gaussian processes (Wilson, 2014) have reduced this computational burden by exploiting Kronecker structure under two assumptions: (1) the inputs lie on a grid formed by a Cartesian product, ; and, (2) the kernel is multiplicative across each dimension. Multiplicative kernels are commonly employed in spatiotemporal Gaussian process modeling (Martin, 1990; Majumdar et al., 2005; Flaxman et al., 2015), corresponding to a soft a priori assumption of independence across input dimensions, without ruling out posterior correlations. The popular RBF and ARD kernels, for instance, already have this multiplicative structure. Under these assumptions, the covariance matrix , where each is such that .
Using efficient Kronecker algebra, Saatçi (2011) shows how one can solve linear systems and compute log determinants in operations using memory. Furthermore, Wilson et al. (2014) extends the Kronecker methods for incomplete grids. Yet for additive compositions of kernels, such as those needed for change surface modeling in Eq. (16), the resulting sum of matrix Kronecker products does not decompose as a Kronecker product. Thus, the standard Kronecker approaches for scalable inference and learning are inapplicable. Instead, solving linear systems for the kernel inverse can be efficiently carried out through linear conjugate gradients as in Flaxman et al. (2015)
that only rely on matrix vector multiplications, which can be performed efficiently with sums of Kronecker matrices.
However, there is no exact method for efficient computation of the log determinant of the sum of Kronecker products. Instead, Flaxman et al. (2015) upper bound the log determinant using the Fiedler bound (Fiedler, 1971) which says that for Hermitian matrices and
with sorted eigenvalues
and respectively,(43)
While efficient, the Fiedler bound does not generalize to more than two matrices.
3.4.1 Weyl bound
In order to achieve scalable computations for an arbitrary additive composition of Kronecker matrices, we propose to bound the log determinant of the sum of multiple covariance matrices using Weyl’s inequality (Weyl, 1912) which states that for Hermitian matrices, , with sorted eigenvalues , , and respectively,
(44)
Since we can bound the log determinant by . Furthermore, we can use the Weyl bound iteratively over pairs of matrices to bound the sum of covariance matrices .
As the bound indicates, there is flexibility in the choice of which eigenvalue pair to use for bounding . Thus for each eigenvalue, , we wish to choose that minimizes subject to . One might be tempted to minimize over all possible pairs for each eigenvalue, , in order to obtain the tightest bound on the log determinant. Unfortunately, such a procedure requires computations. Instead we explore two possible alternatives:

For each we choose the “middle” pair, , such that when possible, and
otherwise. This “middle” heuristic requires
computations.
We employ a greedy search to choose the minimum of possible pairs of eigenvalues. Using the previous and , we consider for all and the corresponding values. Setting corresponds to the middle heuristic. Setting corresponds to the exact Weyl bound. The greedy search requires computations.
In addition to bounding the sum of kernels, we must also deal with the scaling functions, . We can rewrite Eq. (16) in matrix notation,
(45)
where and . Employing the bound on eigenvalues of matrix products (Bhatia, 2013),
(46)
we can bound the log determinant of in Eq. (45) with an iterative Weyl approximation over where , , and are the largest eigenvalue of , , and respectively.
We empirically evaluate the exact Weyl bound, middle heuristic, and greedy search with pairs of eigenvalue indexes to search above and below the previous index. All experiments are evaluated using GPCS with synthetic data generated according to the procedure in section 4.1. We also compare these results against the Fiedler bound in the case of two kernels.

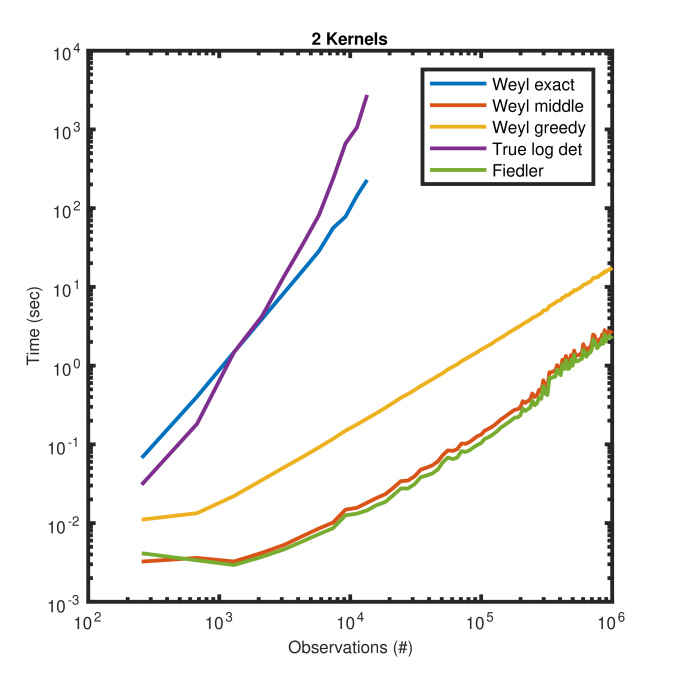

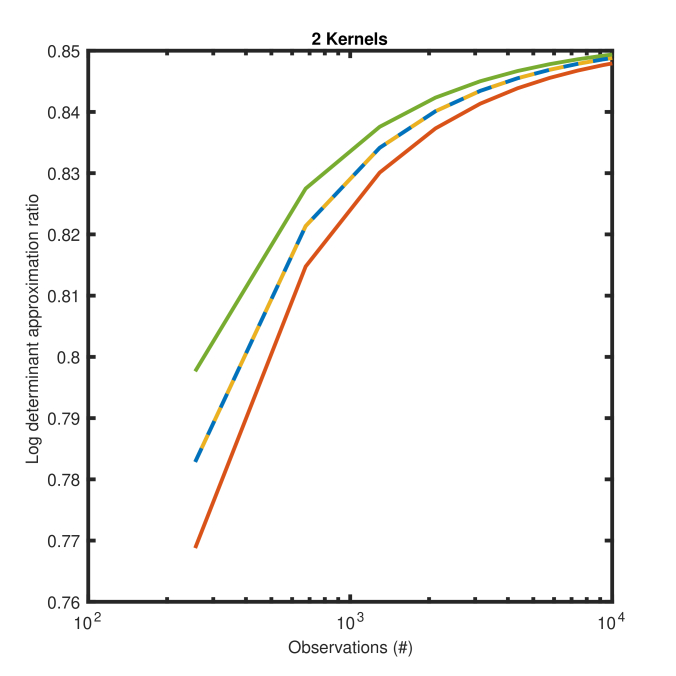

Figure 5 depicts the ratio of each approximation to the true log determinant, and the time to compute each approximation over increasing number of observations for two kernels. While the Fiedler approximation is more accurate than any Weyl approach, all approximations perform quite similarly (note the fine grained axis scale) and converge to of the true log determinant. In terms of computation time, the exact Weyl bound scales poorly with data size as expected. Yet both approximate Weyl bounds scale well. In practice, we use the middle heuristic described above, since it provides the fastest results, nearly equivalent to the Fiedler bound.

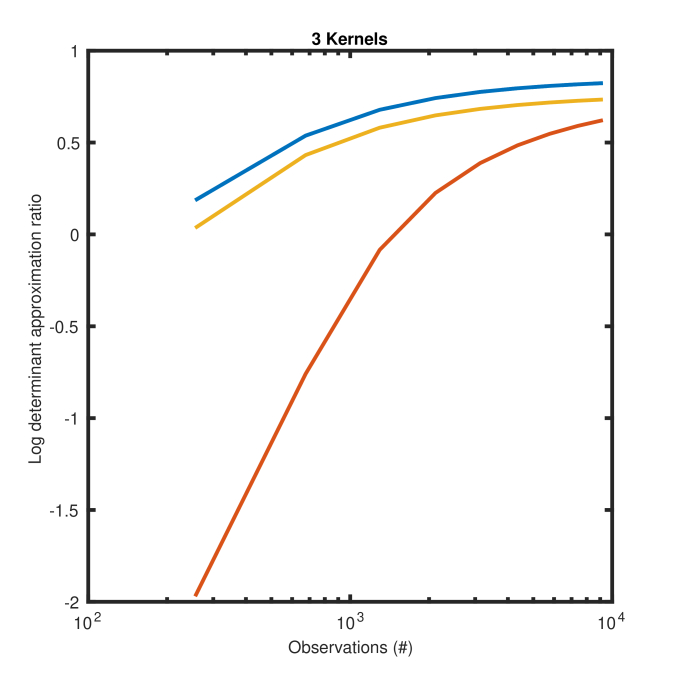

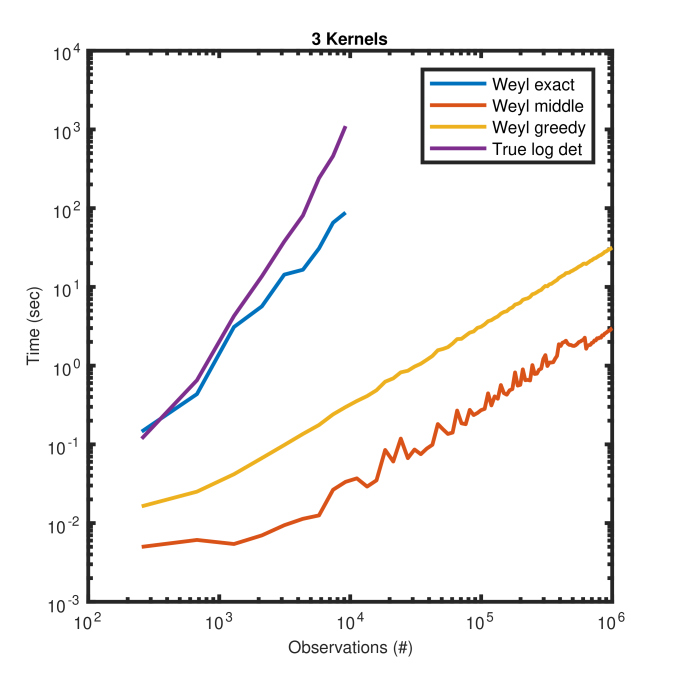

Figure 6 depicts the same quantities as Figure 5 but using three additive kernels. Since the Fiedler approximation is only valid for two kernels it is excluded from these plots. While the log determinant approximation ratios are less accurate for small datasets, as the data size increases all Weyl approximations converge to .
In addition to enabling scalable change surface kernels, the Weyl bound method permits scalable additive kernels in general. When applied to the spatiotemporal domain this yields the first scalable Gaussian process model which is nonseparable in space and time.
3.4.2 Massively Scalable Inference

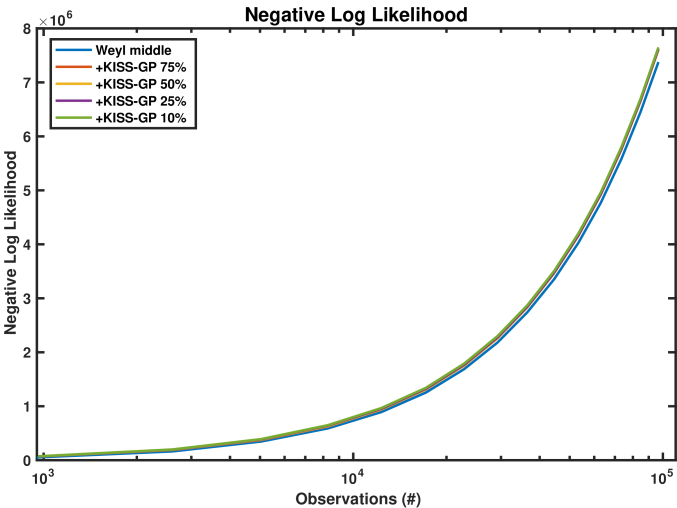

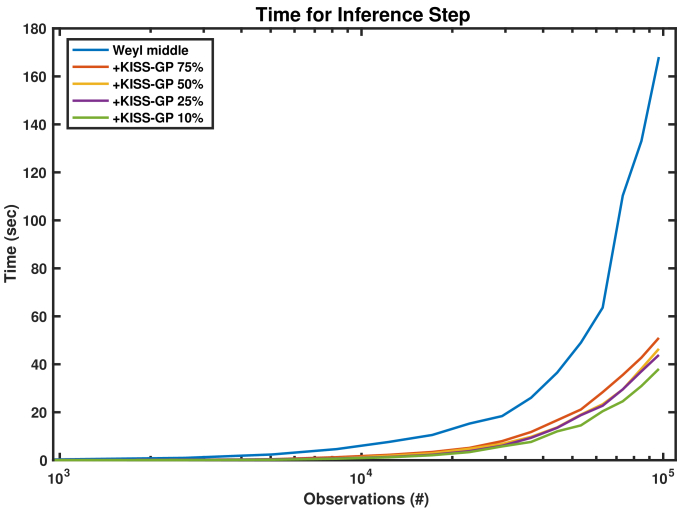

We further extend the scalability and flexibility of the Weyl bound method by leveraging a structured kernel interpolation methodology from the KISSGP framework
(Wilson and Nickisch, 2015). Although many spatiotemporal policy relevant applications naturally have neargrid structure, such as readings over a nearly dense set of latitudes, longitudes, and times, this integration with KISSGP further relaxes the dependencies on grid assumptions. The resulting approach scales to much larger problems by interpolating data to a smaller, userdefined grid. In particular, with local cubic interpolation, the error in the kernel approximation is upper bounded for latent grid points, and can be very large because the kernel matrices in this space are structured. These scalable approaches are thus very generally applicable as demonstrated in an extensive range of previously published experiments in Wilson et al. (2016b, a) based on these techniques. Additionally, KISSGP enables the Weyl bound approximation methods to apply to arbitrary, nongrid data.We empirically demonstrate the advantages of integration with KISSGP by evaluating an additive GPCS on the twodimensional data described above. Although the original data lies on a grid, we use KISSGP interpolation to compute the negative log likelihood on four grids of increasingly smaller size. Figure 7 depicts the negative log likelihood and the computation time for these experiments using the Weyl middle heuristic. The plot legend indicates the size of the induced grid size. For example, ‘KISSGP 75%’ is 75% the size of the original grid. Note that the time and log likelihood scales in Figure 7 are different from those in Figures 5 and 6 since we are now computing full inference steps as opposed to just computing the log determinant. The results indicate that with minimal error in negative log likelihood accuracy we can substantially reduce the time for inference.
3.5 Initialization
Since GPCS uses flexible spectral mixture kernels, as well as RKS features for the change surface, the parameter space is highly multimodal. Therefore, it is essential to initialize the model hyperparameters appropriately. Below we present an approach where we first initialize the RKS features and then use those values in a novel initialization method for the spectral mixture kernels. Like most GP optimization problems, GPCS hyperparameter optimization is nonconvex and there are no provable guarantees that the proposed initialization will result in optimal solutions. However, it is our experience that this initialization procedure works well in practice for the GPCS as well as spectral mixture kernels in general.
To initialize defined by RKS features we first simplify the change surface model by assuming that each latent function, , from Eq. (15) is drawn from a Gaussian process with an RBF kernel. Since RBF kernels have far fewer hyperparameters than spectral mixture kernels, starting with RBF kernels helps our approach find good starting vaglues for . Algorithm 1 provides the procedure for initializing this simplified change surface model. Note that depending on the application domain, a model with latent functions defined by RBF kernels may be sufficient as a terminal model.
In the algorithm, we test multiple possible sets of values for by drawing the hyperparameters , , and from their respective prior distributions (see section 3.2.1) number of times. We set reasonable values for hyperparameters in those prior distributions. Specifically, we let , , and . These choices are similar to those employed in LázaroGredilla et al. (2010).
For each sampled set of hyperparameters, we sample sets of hyperparameters for the RBF kernels and select the set with the highest marginal likelihood. Then we run an abbreviated optimization procedure over the combined and RBF hyperparameters and select the joint set that achieves the highest marginal likelihood. Finally, we optimize the resulting hyperparameters until convergence.
In order to initialize the spectral mixture kernels, we use the initialized from above to define the subset where each latent function, from Eq. (15), is dominant. We then take a Fourier transform of over each dimension, , of to obtain the empirical spectrum in that dimension. Note that we consider each dimension of individually since we have a multiplicative Qcomponent spectral mixture kernel over each dimension (Wilson, 2014). Since spectral mixture kernels model the spectral density with Gaussians on , we fit a 1dimensional Gaussian mixture model,
(47)
to the empirical spectrum for each dimension. Using the learned mixture model we initialize the parameters of the spectral mixture kernels for .
After initializing and spectral mixture hyperparameters, we jointly optimize the entire model using marginal likelihood and nonlinear conjugate gradients (Rasmussen and Nickisch, 2010).
4 Experiments
We demonstrate the power and flexibility of GPCS by applying the model to a variety of numerical simulations and complex human settings. We begin with 2dimensional numerical data in section 4.1, and show that GPCS is able to correctly model outofclass polynomial change surfaces, and that it provides higher accuracy regressions than other comparable methods. Additionally we compute highly accurate counterfactual predictions for both GPCS and GPCS background models and discuss how the posterior distribution varies over the prediction domain as a function of the change surface.
We next consider coal mining, epidemiological, and urban policy data to provide additional analytical evidence for the effectiveness of GPCS and to demonstrate how GPCS results can be used to provide novel policyrelevant and scientificallyrelevant insights. The ground truth against which GPCS is evaluated are the domain specific interventions in these case studies.
In order to compare GPCS to standard changepoint models, we use a 1dimensional dataset on the frequency of coal mining accidents. After fitting GPCS, we show that the change surface is able to identify a region of change similar to other changepoint methods. However, unlike changepoint methods that only identify a single moment of change, GPCS models how the data changes over time.
We then employ GPCS to analyze two complex spatiotemporal settings involving policy and scientific questions. First we examine requests for residential lead testing kits in New York City between 20142016, during a time of heightened concern about leadtainted water. GPCS identifies a spatially and temporally varying change surface around the period when issues of water contamination were being raised in the news. We conduct a regression analysis on the resulting change surface features to better understand demographic factors that may have affected residents’ concerns about leadtainted water.
Second, we apply GPCS to model statelevel measles incidence in the United States during the twentieth century. GPCS identifies a substantial change around the introduction of the measles vaccine in 1963. However, the shape of the change surface varies over time for each state, indicating possible spatiotemporal heterogeneity in the adoption and effectiveness of the vaccination program during its initial years. We use regression analysis on the change surface features to explore possible institutional and demographic factors that may have influenced the impacts of the measles vaccination program. Finally, we estimate the counterfactual of measles incidence without vaccination by filtering out the detected change function and examining the inferred latent background function.
4.1 Numerical Experiments
We generate a grid of synthetic data by drawing independently from two latent functions, and . Each function is characterized by an independent Gaussian process with a twodimensional RBF kernel of different lengthscales and signal variances. The synthetic change surface between the functions is defined by where , . We chose a polynomial change surface because it generates complex change patterns but is outofclass when we use RKS features for , thus testing the robustness of GPCS to change surface misspecification.
4.1.1 GPCS model
Using the synthetic data generation technique described above we simulate data as , where . We apply GPCS with two latent functions, spectral mixture kernels, and defined by RKS features. We do not provide the model with prior information about the change surface or latent functions. As emphasized in section 3.5, successful convergence is dependent on reasonable initialization. Therefore, we use and for Algorithm 1. Figure 8 depicts two typical results using the initialization procedure followed by analytic optimization. The model captures the change surface and produces an appropriate regression over the data. Note that in Figure (b)b the predicted change surface is flipped since the order of functions is not important in GPCS.

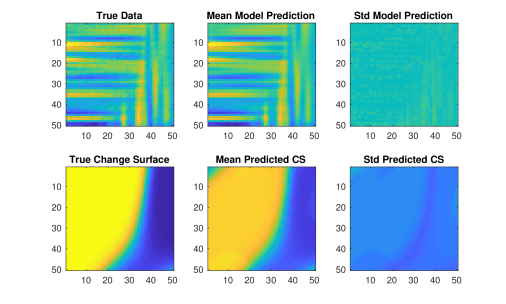

To demonstrate that the initialization method from section 3.5 provides consistent results, we consider a numeric example and run GPCS 30 times with different random seeds. Figure 9
provides the true data and change surface as well as the mean and standard deviation over the 30 experimental results using the section
3.5 initialization procedure. For the predicted change surface we manually normalized the orientation of the change surface before computing summary statistics. The results illustrate that the initialization procedure provides accurate and consistent results for both and across multiple runs. Indeed, when we repeat these experiments with random initialization, instead of the procedure from section 3.5, the MSE between the predicted and true change surface is greater than when using our initialization procedure. Additionally, the results have a larger standard deviation of over the 30 runs, demonstrating that the produre we propose provides more consistent and accurate results.Using synthetic data, we create a predictive test by splitting the data into training and testing sets. We compare GPCS to three other expressive, scalable methods: sparse spectrum Gaussian process with 500 basis functions (LázaroGredilla et al., 2010), sparse spectrum Gaussian process with fixed spectral points with 500 basis functions (LázaroGredilla et al., 2010), and a Gaussian process with multiplicative spectral mixture kernels in each dimension. For each method we average the results for 10 random restarts. For each method Table 2 shows the normalized mean squared error (NMSE),
(48)
where is the mean of the training data.
Method  NMSE

GPCS  0.00078
SSGP  0.01530
SSGP fixed  0.02820
Spectral mixture  0.00200
GPCS performed best due to the expressive nonstationary covariance function that fits to the different functional regimes in the data. Although the other methods can flexibly adapt to the data, they must account for the change in covariance structure by setting a shorter global lengthscale over the data, thus underestimating the correlation of points in each regime. Thus their predictive accuracy is lower than GPCS, which can accommodate changes in covariance structure across the boundary of a change surface while retaining reasonable covariance lengthscales within each regime.

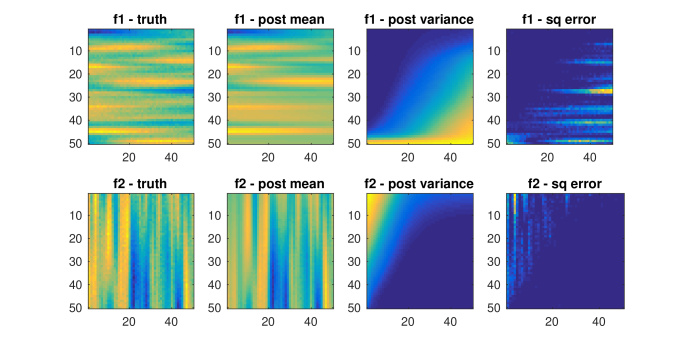

We use GPCS to compute counterfactual predictions on the numerical data. In the previous experiments we used the data, , to fit the parameters of GPCS, . Now we condition on to infer the individual latent functions and over the entire domain, . By employing the marginalization procedure described in section 3.3 we derive posterior distributions for both and . Since we have synthetic data we can then compare the counterfactual predictions to the true latent function values. Specifically, we use from Figure (b)b to infer the posterior counterfactual mean and variance for both and and show the results in Figure 10.
Note how the posterior mean predictions of and are quite similar to the true values. Moreover, the posterior uncertainty estimates are very reasonable. For both and the posterior variance varies over the twodimensional domain, , as a function of the change surface. Where the posterior variance of while the posterior variance of is large. In areas where the posterior variance of is large, while the posterior variance of . The uncertainty is also evident in the squared error, , where, as expected, each function has larger error in areas of high posterior variance.
As discussed in section 3, the underlying probabilistic Gaussian process model behind GPCS automatically discourages extraneous complexity, favoring the simplest explanations consistent with the data (MacKay, 2003; Rasmussen and Ghahramani, 2001; Rasmussen and Williams, 2006; Wilson et al., 2014; Wilson, 2014). This property enables GPCS to discover interpretable generative hypothesis for the data, which is crucial for public policy applications. This Bayesian Occam’s razor principle is a cornerstone of many probabilistic approaches, such as automatically determining the intrinsic dimensionality for probabilistic PCA (Minka, 2001)
, or hypothesis testing for Bayesian neural network architectures
(MacKay, 2003). In the absence of such automatic complexity control, these methods would always favour the highest intrinsic dimensionality or the largest neural network respectively.To demonstrate this Occam’s razor principle in our context, we generate numeric data from a single GP without any change surface by setting , and fit a misspecified GPCS model assuming two latent regimes. Figure 11 depicts the predicted change surfaces for 20 experiments of such data.
Comments
There are no comments yet.
