CBinfer: Exploiting Frame-to-Frame Locality for Faster Convolutional Network Inference on Video Streams

08/15/2018 ∙ by Lukas Cavigelli, et al. ∙ ETH Zurich 0

The last few years have brought advances in computer vision at an amazing pace, grounded on new findings in deep neural network construction and training as well as the availability of large labeled datasets. Applying these networks to images demands a high computational effort and pushes the use of state-of-the-art networks on real-time video data out of reach of embedded platforms. Many recent works focus on reducing network complexity for real-time inference on embedded computing platforms. We adopt an orthogonal viewpoint and propose a novel algorithm exploiting the spatio-temporal sparsity of pixel changes. This optimized inference procedure resulted in an average speed-up of 9.1x over cuDNN on the Tegra X2 platform at a negligible accuracy loss of <0.1 and no retraining of the network for a semantic segmentation application. Similarly, an average speed-up of 7.0x has been achieved for a pose detection DNN on static camera video surveillance data. These throughput gains combined with a lower power consumption result in an energy efficiency of 511 GOp/s/W compared to 70 GOp/s/W for the baseline.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 2

page 3

page 6

page 7

page 8

page 9

page 12

page 13

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

Computer vision (CV) technology has become a key ingredient for automatized data analysis over a broad range of real-world applications: smart cameras for video surveillance, robotics, industrial quality assurance, medical diagnostics, and advanced driver assistance systems have recently become popular due the rising accuracy and robustness of CV algorithms. This industry interest has fostered the procedure of a wealth of research projects yielding a fierce competition on many benchmarks datasets such as the ImageNet/ILSVRC

[Russakovsky2014], MS COCO [Lin2014], and Cityscapes [Cordts2016] benchmarks, on which scientists from academia and big industry players evaluate their latest algorithms.

In recent years, the most competitive approaches to address many CV challenges have relied on machine learning with complex, multi-layered, trained feature extractors commonly referred to as

deep learning [Goodfellow-et-al-2016]

. The most frequently used flavor of deep learning techniques for CV are convolutional neural networks (ConvNets, CNNs). Since their landslide success at the 2012 ILSVRC competition over hand-crafted features, their accuracy has further improved year-over-year even exceeding human performance on this complex dataset

[HePReLU2015, Russakovsky2014]. CNNs keep on expanding to more areas of computer vision and data analytics in general [Abu-El-Haija2016, Kaluarachchi2015, Zhang2016a, Park2016] and are moving towards analyzing video data for action recognition [Wang2015], tracking [Chen2017a], and improved object detection [Kang2017, Jie2018].

Unfortunately, the high accuracy of CNNs comes with a high computational cost, requiring powerful GPU servers to train these networks for several weeks using hundreds of gigabytes of labeled data. While this is a massive effort, it is a one-time endeavor and can be done offline for many applications. However, the inference of state-of-the-art CNNs also requires several billions of multiplications and additions to classify even low-resolution images by today’s standards

[Cavigelli2015]. While in some cases offloading to centralized compute centers with powerful GPU servers is also possible for inference after deployment, it is extremely costly in terms of compute infrastructure and energy. Furthermore, collecting large amounts of data at a central site raises privacy concerns and the required high-bandwidth communication channel causes additional reliability problems and potentially prohibitive cost of deployment and during operation [Ananthanarayanan2017]. For many applications, the introduced latency is prohibitive.

The alternative, on-site near sensor embedded processing, largely solves the aforementioned issues by transmitting only the less sensitive, condensed information—potentially only security alerts in case of a smart surveillance camera—but imposes restrictions on available computation resources and power. These push the evaluation of such networks for real-time semantic segmentation or object detection out of reach of even the most powerful embedded platforms available today for high-resolution video data [Cavigelli2015]. However, exactly such systems are required for a wide range of applications limited in cost (CCTV/urban surveillance, perimeter surveillance, consumer behavior and highway monitoring) and latency (aerospace and UAV monitoring and defense, visual authentication) [Ananthanarayanan2017, Nguyen-Meidine2017].

Large efforts have thus already been taken to develop optimized software implementations for heterogeneous platforms [Vasilache2018, Chetlur2014, Cavigelli2015, Lavin2015, Lavin2015a], to design specialized hardware architectures [Cavigelli2016, Andri2016, Cavigelli2015a, Chen2016, Park2016, Farabet2011], and to adapt the networks to avoid expensive arithmetic operations by reducing arithmetic precision, exploiting sparsity, and developing more compact DNNs [Rastegari2016, Zhang2016a]. However, they either 1) do not provide a strong enough performance boost, 2) are already at the theoretical limit of what can be achieved on a given platform, 3) are inflexible and not commercially available, or 4) incur a considerable accuracy loss. It is thus essential to extend the available options to efficiently perform inference on CNNs.

In this paper, we propose a novel method performing change-based inference (hence named CBinfer) for convolutional neural networks on video data from a static camera with limited frame-to-frame changes. We extend our preliminary work in [Cavigelli2017]:

  1. Enhancements to the algorithm for improved compute time and ensuring a consistent input-output relation for each convolution layer.

  2. In-depth analysis how changes propagate through the CBinfer DNN.

  3. Analysis of accuracy, compute time and energy efficiency for long frame sequences.

  4. Additional evaluations for pose and object detection applications with much deeper networks and datasets without annotations.

  5. Optimizations and evaluations on the more recent Nvidia Tegra X2 platform111The Nvidia Tegra X2 is a system-on-chip available on an embedded board with an affordable power budget ( W) for a stationary smart camera..

  6. Discussion and evaluation of the processing steps and how the chosen configuration provides the highest performance gain.

Overall the proposed method provides an average speed-up by a factor of 9.1–7.0 over an implementation relying on cuDNN and introducing only negligible accuracy loss. It thus significantly outperforms previous approaches exploiting frame-to-frame locality which all have measured performance gains in the range of a few ten percent while introducing accuracy losses of several percent (cf. Section II-C). Our method can be combined with most single-frame optimizations such as exploiting weight sparsity or the development of more compact DNN models. The code is available online at https://github.com/lukasc-ch/CBinfer.

Ii Related Work

In this section, we first describe existing optimized implementations for CNN inference and existing approximations trading accuracy for throughput. We then specifically survey related approaches exploiting the limited changes in video data to reduce the computational effort required to perform CNN inference. Finally, we discuss available datasets and CNNs with which we can evaluate our proposed algorithm.

Most per-frame optimization techniques can be combined with the method we propose herein. Existing approaches targeting video data have very limited gains and have not been specifically optimized for static camera frame sequences.

Ii-a Optimized Embedded System Implementations

The latest wave of interest in neural networks can be attributed to their sudden success driven by the availability of large datasets and the increasingly powerful computing platforms. One of the most economical and practicable solutions for training medium-sized CNNs is to use a workstation with GPUs. The available software frameworks to implement and train CNNs provide strong support for this kind of platform.

The massive amounts of compute time spent training CNNs has spurred the development of highly optimized GPU implementations. First, most widely used frameworks relied on their own custom implementations which have all converged to methods relying on matrix-multiplications, leveraging the availability of highly optimized code in BLAS libraries and the fact that GPUs are capable of achieving a throughput within a few percent of their peak performance with this type of workload. Specialized libraries such as Nvidia’s cuDNN and Nervana Systems’ Neon provide some additional performance gains through assembly-level implementations [Lavin2015] and additional algorithmic improvements such as Winograd and FFT-based convolution [Lavin2015a]. A specific implementation for non-batched inference on an embedded platform building on a matrix multiplication is documented in [Cavigelli2015], also showing that more than 90% of time is spent computing convolutions.

Ii-B Approximations Trading Accuracy for Throughput

DNNs commonly require a high computation effort in the order of 20 GOp/frame for classification of a pixel image (1 multiply-add is counted as 2 operations) [Canziani2017]. Extracting features when working with high resolution images (e.g. for object detection or semantic segmentation) scales up the effort proportional to the number of pixels, quickly reaching few 100 GOp/frame.

Admitting limited accuracy losses in order to gain a higher throughput by approximating existing networks, inference algorithms, and arithmetic operations can help overcome the computational obstacles preventing widespread adoption of CNN-based algorithms on embedded and mobile platforms. Several such approaches are surveyed and compared in [Sandler2018, Iandola2017]. In this section, we will provide an overview of different options that can be exploited.

One such option is the reduction of the required arithmetic precision to evaluation NNs. Various methods from normal fixed-point analysis to retraining networks to adapt for quantized weights and activations exist. On some off-the-shelf software programmable platforms, 16-bit or 8-bit arithmetic operations can be vectorized to obtain a performance boost

[Gysel2016a]. Extreme methods go as far as to enforce binary weights [AojunZhou2016, Andri2018], and in some cases also binary activations [Rastegari2016]

. This means that multiplications can be dropped entirely, and in case of binary activations even collapse some of the add/subtract operations into XNOR and bit count operations. Many networks can be quantized with 8 bit without an increase in error rate, before there is a trade-off between precision and accuracy

[Cavigelli2016, Hashemi2016]. Some methods try reducing the computational effort by pruning many very small weights to zero, making it possible to skip some operations [Li2016], or even dynamically skip operations when the activations are zero [Aimar2017]. More sophisticated quantization schemes such as vector quantization exist and can further compress a trained CNN model, but they require specialized hardware to bring an improvement in energy efficiency [Han2016a, Aimar2017].

Further research has focused on optimizing semantic segmentation and object detection algorithms to better reuse already computed features by eliminating any non-convolutional elements from the network [Redmon2016, Long2015] or introducing structured sparsity [Zhang2017]. Simplifying the operations in a network, such as low-rank approximations of 2D convolutions or by simply designing smaller networks with state-of-the-art methods have been evaluated in [Iandola2016, Canziani2017].

The method we propose in this paper does not supersede these methods, but can be combined with the aforementioned approximation methods to further improve throughput.

Ii-C Video-based Computation Reduction

Obtaining per-frame features naturally seems like an easier task when these frames belong to a video sequence rather than a random collection of images. Limited movement of objects in a frame can be exploited in object tracking by working with a limited search window within the frame [Held2016], not only reducing the problem size, but also simplifying the regression task—up until the tracked target is occluded by a large object.

Clockwork CNNs [Shelhamer2016] specifically target CNNs for semantic segmentation with a structure similar to [Long2015]

. They have extended this work on fully convolutional networks, which presents a CNN with skip connections and deconvolution layers to refine the lower-resolution feature maps obtained deep within the network using the features extracted early in the network. They exploit that lower-resolution feature maps within the network are more stable over time than the full-resolution input. They thus propose to reevaluate the first few layers and the last layers affected through the skip connections more frequently than the coarser grained feature maps. This is a strong limitation on the set of CNNs this method can be applied to. They present evaluations based on a static as well as a dynamic, content-adaptive reevaluation schedule, showing that they can reduce the number of full-frame convolutions by about 40% before the accuracy starts to drop on the Youtube-Objects dataset. However, this approach is limited to updating entire frames, whereas we exploit that often only small parts of the scene change and need to be reevaluated, which leads to larger savings.

CNNCache [Xu2017] describes a general approach pursuing a similar direction of work. They describe their method as a caching mechanism, where blocks of the image are matched to blocks in the previous frame, thereby fetching results of similar block from the cache instead of recomputing the results. Similarly to our work, this requires the selection of a threshold, and on top of that a block size and a cache depth in the form of an expiration time. The block matching allows to handle video data where the camera is not fully static, but it does not allow perspective changes. They have shown that their method achieves an average speed-up in the order of 20% at a top-1 accuracy loss of 3.5% performing image classification relative to the ncnn framework’s default implementation. The capability to recall convolution results even when the specific image tile has moved introduces a significant overhead comparing image tiles, thereby limiting the potential speed-up significantly. Further, this method requires a relatively high tolerance when comparing image tiles to be able to find matches, thereby introducing significant accuracy losses.

DeepMon [Huynh2017] proposes another method combining convolution layer decomposition, half-precision computation, and convolutional layer caching. Similarly to CNNCache, they divide the input to each convolutional layer into blocks and reuse the result when a block matches to the one in the previous frame. To reduce overhead, they do not directly compare the blocks, but instead extract histogram-based features. They apply their technique only to the first few layers, because in later layers the caching overhead exceeds the compute latency savings. They show a speed-up attributable to caching of 18% for object detection and 36% for image classification at an accuracy loss in the order of 3.8% to 6.2%. While their histogram-based comparison method for the image tiles reduces overhead, it still remains significant and the introduced accuracy loss increases further.

Sigma-Delta Quantized Networks [Connor2017] is the most similar method to ours. They combine quantizing the network and decomposing the input to each convolution layer with the difference of the current frame’s values to the previous frame’s values and accumulate the result over time. They show a reduction in the number of operations in total, of which can be attributed to the temporal differences aspect of their method at an accuracy drop. However, whether this reduction in number of multiply-add operations can be put into performance gains after all the introduced overhead remains an open question.

Ii-D Suitable Datasets and Neural Networks

Type Outp. Res. Feat. Maps CT [ms] rel. CT
L1 conv 72.9 13.6%
L2 act., pool 10.7 2.0%
L3 conv 116.2 21.7%
L4 act., pool 10.2 1.9%
L5 conv, act. 309.4 57.8%
L6 conv, act. 14.4 2.7%
L7 conv 1.6 0.3%
Total 535.4
TABLE I: Semantic Segmentation CNN Used For Evaluations.

We show the applicability of the concept to various applications, namely by evaluating the proposed method for semantic segmentation and pose detection. These are both often applied to high-resolution images and video streams with high frame rates above 10 frame/s for meaningful applications.

We are specifically interested in video sequences obtained from a static camera. While some such datasets exist (e.g. person or vehicle detection or re-identification), most of them are limited to extremely few (1-3) classes and rarely target semantic segmentation. However, for first application scenario—semantic segmentation—the dataset222Available online at https://doi.org/10.3929/ethz-b-000276417 used in [Cavigelli2016a] provides ground truth labels for 10-class semantic segmentation from an urban street surveillance perspective, and while they work with individual images, several surrounding unlabeled frames and a trained convolutional network are available. An example image labeled with the provided CNN is shown in Figure 1, and a sample sequence of 3 images is visualized in Figure 2.

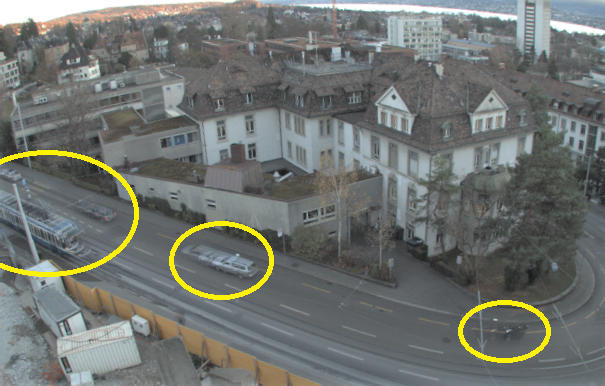

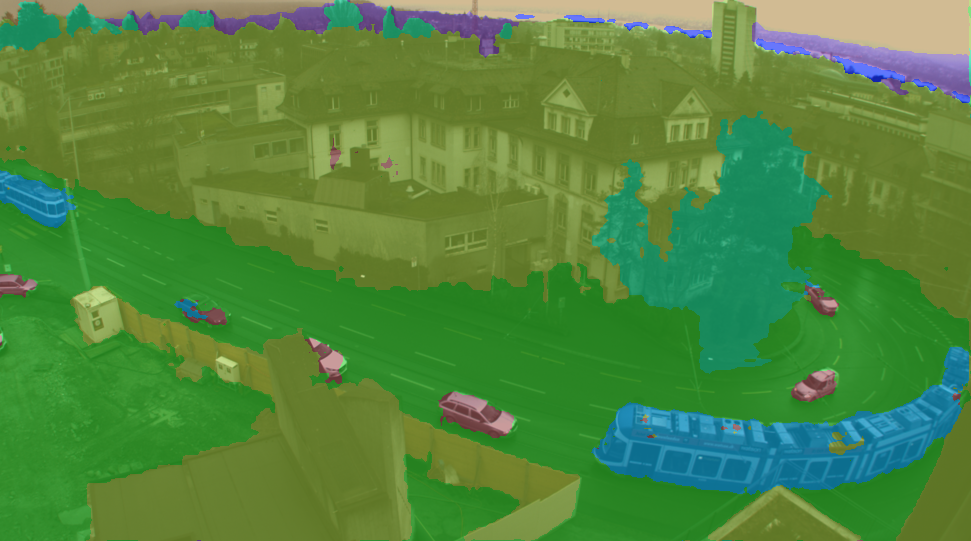

Fig. 1: Example output of the scene labeling network of [Cavigelli2016a] on which we evaluate our algorithm.

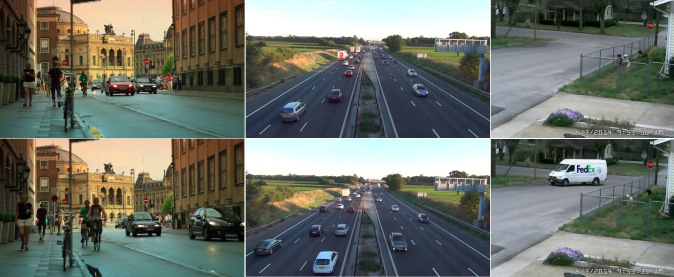

Fig. 2: A sample video sequence from the dataset of [Cavigelli2016a] showing the frame-by-frame changes by overlaying a sequence of length 3. Moving objects are only a small part of the overall scene and affect only a small share of the pixels.

For the second application—pose detection—several datasets to detect joints and limbs exist in the form of annotated images or a moving camera frame sequences, but none with a static camera. To overcome this and to show the feasibility of applying CBinfer without annotated data, we use unlabeled frame sequences from the CAVIAR dataset333Available at http://homepages.inf.ed.ac.uk/rbf/CAVIAR/, collected through the EC Funded CAVIAR project/IST 2001 37540. and take the pretrained network to generate the reference output. The dataset contains scenes recorded using surveillance cameras with wide-angle lenses and captures the interaction of few people. It has a resolution of pixel and a frame rate of 25 frame/s. A few sample frames are shown in Figure 3.

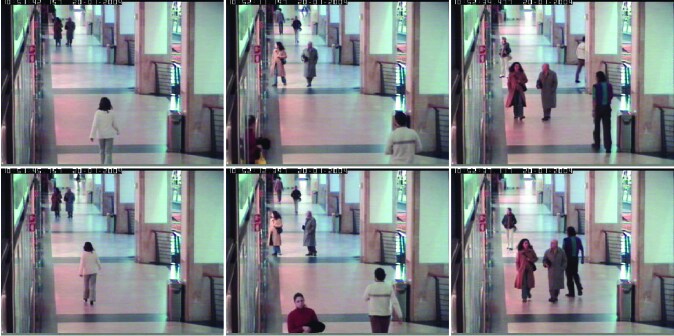

Fig. 3: Sample frames from sequences of the CAVIAR dataset on which we perform evaluations for pose detection.

For object detection—our third application scenario—we use video sequences of traffic surveillance cameras. Object detection is performed using YOLOv3 [Redmon2018] trained on the MS COCO dataset [Lin2014]. Since there is no ground truth available for the sequences, we generate our reference output by applying the original YOLOv3 network to each frame.

Fig. 4: Sample frames from the video sequences on which we perform evaluations for object detection.

Iii Methodology

The most straight-forward pixel-level approach is to detect changing pixels on the input frame based on a threshold on the difference to the previous frame, and then update all the pixels affected by them. This increases the number of pixels to be updated layer-after-layer due to the convolution operations. Thus for e.g. a convolution, a one-pixel change triggers an update of 49 pixels in the next layer and 169 pixels after another

convolution. Strided operations (often used with pooling layers) reduce this effect, but do not prevent it. This issue might seem prohibitive for multi-layer CNNs, particularly when considering that individual pixels might keep exceeding the threshold due to noise.

However, the change is not only spatially local at the input, but also at the output. Furthermore, noise-like changes will likely not have strong impacts on feature maps deeper within the network. We thus propose to perform the change-detection not only at the input, but before each convolution layer—relative to its previous input—and to compute an updated value only for the affected output pixels. This can be done without modifications to the training of the CNN, can be applied to existing pre-trained networks, and is not specific to the CNN on which we evaluate the proposed algorithm.

We propose to replace all spatial convolution layers (conv layers) with change-based spatial convolution layers (CBconv layers). This means adapting the widely used, simple and well-performing matrix-generation and matrix-multiplication sequence of operations [Jia2013, Cavigelli2015]. The convolution layer computes

(1)

where indexes the output channels and indexes the input channels . The pixel is identified by the tuple and denotes the support of the filters kernels . This can be computed by performing a matrix multiplication

(2)

The image matrix is constructed as with , , and , . The filter matrix is given by for , , and . The result matrix is stored as

. Zero-padding can be applied during the construction of the

matrix and an efficient strided convolution can be computed by dropping the unused rows.

We replace this matrix multiplication by the following sequence of processing steps, thereby drastically reducing the size of the matrix used in the main computation step.

Iii-a Processing Steps

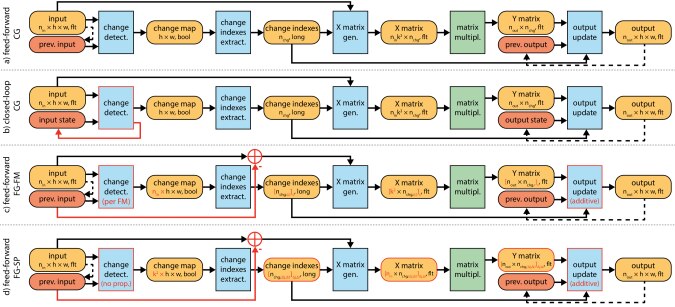

Fig. 5:
