1 Introduction

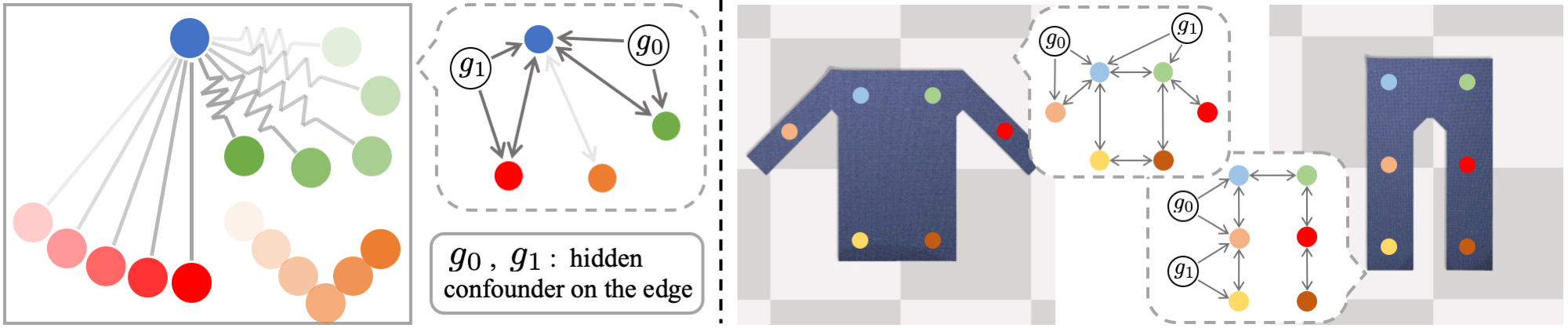

Causal understanding of the world around us is part of the bedrock of intelligence. This ability enables counterfactual reasoning, which often distinguishes algorithmic models from intelligent behavior in humans. This ability to discover latent causal mechanisms from data poses an important technical question towards building intelligent and interactive systems Spirtes et al. (2000); Peters et al. (2017); Glymour et al. (2019). For instance, Figure 1 shows an example of a multibody system. While the images may convey the identity and position of balls, the structural causal mechanism is latent. Each pair of balls is connected to each other through an edge (say a spring, a rigid rod, or be free). Further, each edge may have a set of hidden confounders, like the rest length of a spring or the rigid rod, that causally affect the physical interaction behavior. The underlying causal structure and governing functional mechanism may not be apparent if observations, such as images, are implicit measurements of groundtruth variables Zhang et al. (2017). Furthermore, they can also vary across different configurations and scenarios within a domain. Hence, we need fewshot causal discovery algorithms purely from image data.
In a special case, where the entities are all disconnected and the only interactions are of collisiontype, there have been a number of models proposed to employ an objectcentric formulation in recent literature to directly predict the future from images Watters et al. (2017); Janner et al. (2019); Kipf et al. (2018); Santoro et al. (2017). In such cases, model discovery may not even be necessary given these solutions. However these associative models crumble in the face of more complex stationary underlying generative structures such as different types of latent edges and edge mechanisms Gong et al. (2017). Moreover, they are insufficient to capture novel generative structures and make counterfactual predictions at test time.
In this work, we aim to discover the structural causal model (SCM) to predict the future and reason over counterfactuals. To recover an SCM only from images, we need to first learn a compact state representation, infer a causal graph among these variables as well as identify hidden confounders, finally learn the functional mechanism of dynamics. This is a particularly challenging task in that we only have images and do not have explicit knowledge of the node variables. Furthermore, we neither assume access to ground truth causal graph, nor the hidden confounders and the dynamics that characterize the effect of the physical interactions. In order to tackle this endtoend causal discovery problem in an unsupervised manner, we learn from datasets that contain episodes generated from different causal graphs but with a shared dynamics model.
Summary of results. The main contributions of this work lie in the oneshot discovery of unseen
causal mechanisms in new environments from partially observed visual data in a continuous state space. This entails jointly performing model class estimation, parameter inference and thereby building a predictive model for new latent structures at test time in a metalearning framework.
The proposed Visual Causal Discovery Network (VCDN), consists of three modules for visual perception, structure inference, and dynamics prediction (Figure 2). Specifically, we train the perception module that extracts unsupervised keypoints from the images to enable node discovery, building upon Kulkarni et al. (2019)
. The inference module then takes the predicted keypoints and infers the exogenous variables that govern the interactions between each pair of keypoints using graph neural networks. Conditioned on the inferred graph, the dynamics module learns to predict the future movements of the keypoints. We consider a variety of configurations and scenarios, which gives us different combinations of variables. Thus, we can hope to discover the correct underlying causal graph without explicit interventions.
Experiments show that our proposed model is robust to input noise and works well on multibody interactions with varying degrees of complexity. Notably, our method can facilitate counterfactual predictions and extrapolate to cases with a variable number of objects and scenarios where the underlying interaction graphs are never seen before. Experiments in a fabric environment also demonstrate the generalization ability of our method, where the same model can handle fabrics of different types and shapes, accurately identifying the dependency structure and modeling the underlying dynamics even when state variables are a reducedorder keypointbased representation of the original system.
2 Visual Causal Discovery in Physical Systems: VCDN
In this section, we present the details of our model, which extracts structured representations from videos, discovers the causal relationships, infers the hidden confounding variables on the directed edges, and then predicts the future. Our model directly learns from raw videos, which recovers the underlying causal graph without any ground truth supervision.
Problem formulation.
We consider a dataset of trajectories observed from a latent generative dynamical system, where each datapoint is generated with unknown interventions on both the underlying causal graph structure and parameters affecting the mechanism. The generative process of each episode follows a causal summary graph Peters et al. (2017), , where contains the subcomponents underlying the system at different time steps and , which we assume is invariant over time, denotes the causal relationships between the constituting components. Specifically, for each directed edge , there are both discrete and continuous hidden confounders denoting the type and parameters of the relationship that determines the computation of the underlying structural causal model (SCM) Pearl (2009) and affects the behavior of the dynamical system. We further assume that in the dynamical system, there are no instantaneous edges or edges that go back in time. Note that the causal summary graph may contain cycles, but when spanning over time, the derived causal full time graph is a directed acyclic graph (DAG), as shown in Figure 2.
In this work, we consider the case where we only have access to the data in the form of image sequences, , without any knowledge of the ground truth causal model and the intervention being applied, where is an image of dimension , denoting the data we received at time of episode . The goal is to perform oneshort recovery of the causal summary graph from a short sequence of images and simultaneously learn a shared dynamics model that operates on the identified graph to make counterfactual predictions into the future. This is a particularly challenging task and our method serves as a first step for tackling this problem in an endtoend fashion using unsupervised intermediate keypoint representation.

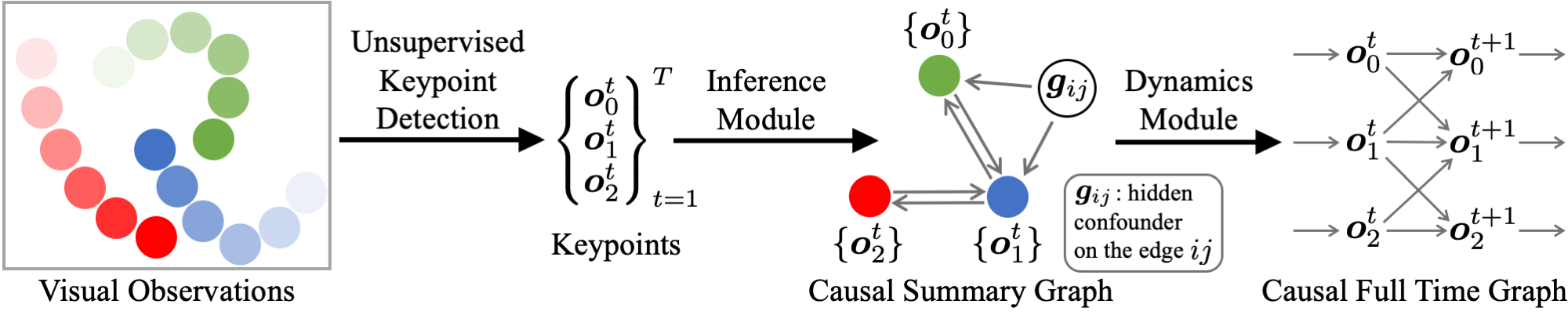

Overview of Visual Causal Discovery Network (VCDN).
We aim to find a temporallyconsistent (and possibly reducedorder) keypointbased representation from images using a perception module trained in an unsupervised way,
(1)
where the function , parameterized by , takes raw images as input and outputs a set of keypoints in 2D coordinates, , that reflect the constituting components in the system. Then, we use an inference module, , parameterized by , that takes the sequence of detected keypoints as input and predicts the edge set, ,
(2)
where . includes and , denoting the latent discrete and continuous confounders associated with the directed edge from to at episode . and together constitute our discovered causal summary graph, conditioned on which, a dynamics module, , parameterized by , aims to predict the state of the keypoints at time ,
(3)
By iteratively applying , we are able to make longterm future predictions.
The perception module, , the inference module, , and dynamics modules, , are shared among all episodes in the dataset consisting of various causal graphs with different discrete and continuous hidden confounders, which enables oneshot adaptation to an unseen graph at test time and make counterfactual predictions by intervening on the identified graph and rolling into the future using the dynamics module.
To train the system, we take an unsupervised keypoint detection algorithms Kulkarni et al. (2019) as our perception module and train it on the image set, , for extracting temporallyconsistent keypoints. The inference module and the dynamics module are trained together by minimizing the following objective:
(4)
where is a regularizer imposed on the identified graph, e.g., to encourage sparsity.
2.1 Unsupervised keypoint detection from videos
The perception module’s task is to transform the images into a keypoint representation in an unsupervised way. In this work, we leverage the technique developed in Kulkarni et al. (2019). In particular, we use reconstruction loss over the pixels for encouraging the keypoints to disperse over the foreground of the image. During training, it takes in a source image and a target image sampled from the same episode, and passes them through a feature extractor and a keypoint detector . The method then uses an operation call transport to construct a new feature map, , using a set of local features indicated by the detected keypoints. A refiner network takes in the feature map and generates the reconstruction, . The module optimizes the parameters in the feature extractor, keypoint detector and refiner by minimizing a pixelwise loss,
, using stochastic gradient descent.
By combining the keypointbased bottleneck layer and the downstream reconstruction task, the model extracts temporallyconsistent keypoints spreading over the foreground of the images. We denote the detected keypoints at time as , where .
2.2 Graph neural networks as the spatial encoder
We use graph neural networks as a building block to model the interactions between different keypoints and generates object and relationcentric embeddings. Both the inference and the dynamics modules will have the graph neural networks as a submodule to capture the underlying inductive bias.
Specifically, for a set of keypoints, we construct a directed graph , where vertices represent the information on the keypoints and edges represent the directed relation pointing to from , where denotes the associated edge attributes.
We employ a graph neural network with a similar structure as the Interaction Networks (IN) Battaglia et al. (2016) as our spatial encoder, denoted as , to generate the embeddings for the objects and the relations: .
2.3 Inferring the directed edge set of the Causal Summary Graph
After we obtain the keypoints from the images, we use an inference module to discover the edge set of the causal summary graph and infer the parameters associated with the directed edges. The inference module takes the detected keypoints over a small time window within the same episode as input and outputs a posterior distribution over the structure of the graph. More specifically, we denote the keypoint sequence as . Our goal is to predict the distribution of the edge set conditioned on the keypoint sequence using the parameterized inference function, .
To achieve our goal, we first use a graph neural network, as discussed in Section 2.2, to propagate information spatially for each frame, which gives us both node and edge embeddings for each keypoint at each frame. We then aggregate the embeddings over the temporal dimension for each node and edge using a
D convolutional neural network. Another graph neural network takes in the temporal aggregations and predicts a discrete distribution over the edge types, where the first edge type denotes “null edge”. Conditioned on a sample from the discrete distribution, the model will then predict the continuous edge parameters. The edge type and edge parameters together constitute the
causal summary graph, which determines the existence and the actual mechanism of the interactions between different constitutional components.In particular, we first propagate the information spatially by feeding the keypoints through a graph neural network , which gives us node and edge embeddings at each time step,
(5)
where the edge set, , contains an edge between edge pair of keypoints with the edge attributes being zero. We then aggregate the information over the temporal dimension for each node and edge using D convolutional neural networks (CNN):
(6)
which allows our model to handle input sequences of variable lengths.
Taking in the aggregated node and edge embeddings, we use another graph neural network, , that only makes predictions over the edges to predict the categorical distribution over the edge type:
(7)
where and . The output
represents the probabilistic distribution over the type of each edge. When an edge is classified as the first type, i.e.,
is true, which we denote as “null edge”, it will be removed in subsequent computation and no information will pass through it. Sampling from this discrete distribution is straightforward, but we cannot backpropagate the gradients through it. Instead, we employ the GumbelSoftmax
Jang et al. (2016); Maddison et al. (2016) technique, a continuous approximation of the discrete distribution, to get the biased gradients, which makes endtoend training possible.Conditioned on the inferred edge type , we would like to predict the continuous parameter on each one of the edges. For this purpose, we construct another edge set , and use a new graph neural network, , to predict the continuous parameters:
(8)
We denote the resulting edge set as , where , indicating the topology of the causal summary graph with both the type and the continuous parameter of the edge effect. The inferred causal summary graph is then represented as .
2.4 Future prediction using the forward dynamics module
The dynamics module, , predicts the future movements of the keypoints by conditioning on the current state and the inferred causal graph: , where we instantiate as a graph recurrent network, .
Since we are directly operating on the predicted keypoints from the perception module, the detected keypoints contain noise and introduce uncertainty on the actual locations. Hence, in practice, we represent the position in the future steps using a multivariate Gaussian distribution, where we predict both the mean and the covariance matrix of the next state for each keypoint.
2.5 Optimizing the model
The perception module is trained independently using the reconstruction loss, . To train the inference module and the dynamics module jointly, we instantiate the objective function shown in Equation 4 by making an analogy to the ELBO objective Kingma and Welling (2013):
(9)
For the prior , we assume that each edge is independent and use a factorized distribution over the edge types as the prior, where . The inference module and the dynamics module are then trained endtoend using stochastic gradient descent to maximize the objective .
3 Experiments
The goal of our experimental evaluation is to answer the following questions: (1) Can the model perform oneshort discovery of the causal summary graph and identify the hidden confounders, including both discrete and continuous variables? (2) How well can the model extrapolate to graphs of different sizes that are not seen during training? (3) How well can the learned model facilitate counterfactual prediction via intervening on the identified summary graph?
Environment.
We study our model in two environments: one includes masses, connected by invisible physical constraints, moving around in a 2D plane, and the other one contains a fabric of various shapes where we are applying forces to deform it over time (Figure 3).

[leftmargin=*]

MultiBody Interaction. There are balls of different colors moving around. At the beginning of each episode, we sample the invisible physical relations between each pair of balls independently, giving us the ground truth
that is fixed throughout the episode. For each pair of balls, there is a onethird probability that they are not connected or linked by a rigid rod or a spring. We also sample the continuous parameters for each existing edge and fix them within the episode, e.g., the length of the rigid relation or the rest length of the spring.

Fabric Manipulation. We set up fabrics of three different types: a shirt, pants, and a towel, where we also vary the shape of the fabrics like the length of the pant leg or the height and width of the towel (Figure 5). We also apply forces on the contour of the fabric to deform and move it around. Our goal is to produce one single model that can handle fabrics of different types and shapes, instead of training separate models for each one of them.

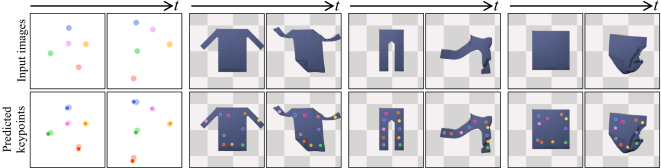

Results on unsupervised keypoint detection.
We employ the same architecture and training procedure described in Kulkarni et al. (2019) to train our perception module, . Figure 3 shows some qualitative results. Our perception module can spread the keypoints over the foreground of the image and consistently track the object. Please refer to our supplementary materials for video illustrations.
Discovery the Causal Summary Graph and the hidden confounders.
The inference module, , takes in a short sequence of the detected keypoints and aims to discover whether there is a causal relation, i.e., a physical connection, between each pair of keypoints and identifies the hidden confounders like the edge type and the edge parameters. The predicted graph will be conditioned by the dynamics module, , for future prediction. The optimization procedure does not require any supervision on the attributes associated with the edges, which allows us to infer the hidden confounders in an unsupervised way.
In the MultiBody environment, the perception module accurately tracks the location of balls, which allows us to perform a systematic evaluation of the model’s performance by comparing its prediction with the ground truth causal summary graph used to generate the episode. Because we are working in an unsupervised regime, where the predicted edge type is in a discrete latent space distinguishing between null edge, spring, and rigid relation, we need to find a global oneonone mapping between the prediction, , and the ground truth. We pick the one that gives us the highest accuracy, with the constraint that the first type, where there is no information passing through in the subsequence dynamics prediction, always corresponds to null edge. After the mapping, we evaluate the model’s ability to predict the continuous confounder, , by computing its correlation with the ground truth physical parameters like rest length of the spring connection.

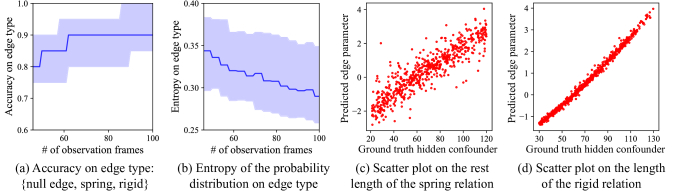

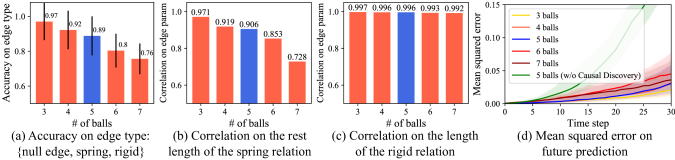

The results are shown in Figure 4. As the model observes more frames, the classification accuracy increases, and the uncertainty decreases, which correlates with our intuition that as we obtain more observations from the environment, we have a better estimate of the exogenous variables that govern the behavior of the system. We also show the comparison with a baseline that is the same as our method except that it does not have the inference module. Our model significantly outperforms the baseline, indicating the importance of the correct modeling of the causal mechanism (Figure 6 (d)). Figure 5 shows some qualitative results, where we include sidebyside comparisons between the identified causal summary graph and the ground truth.

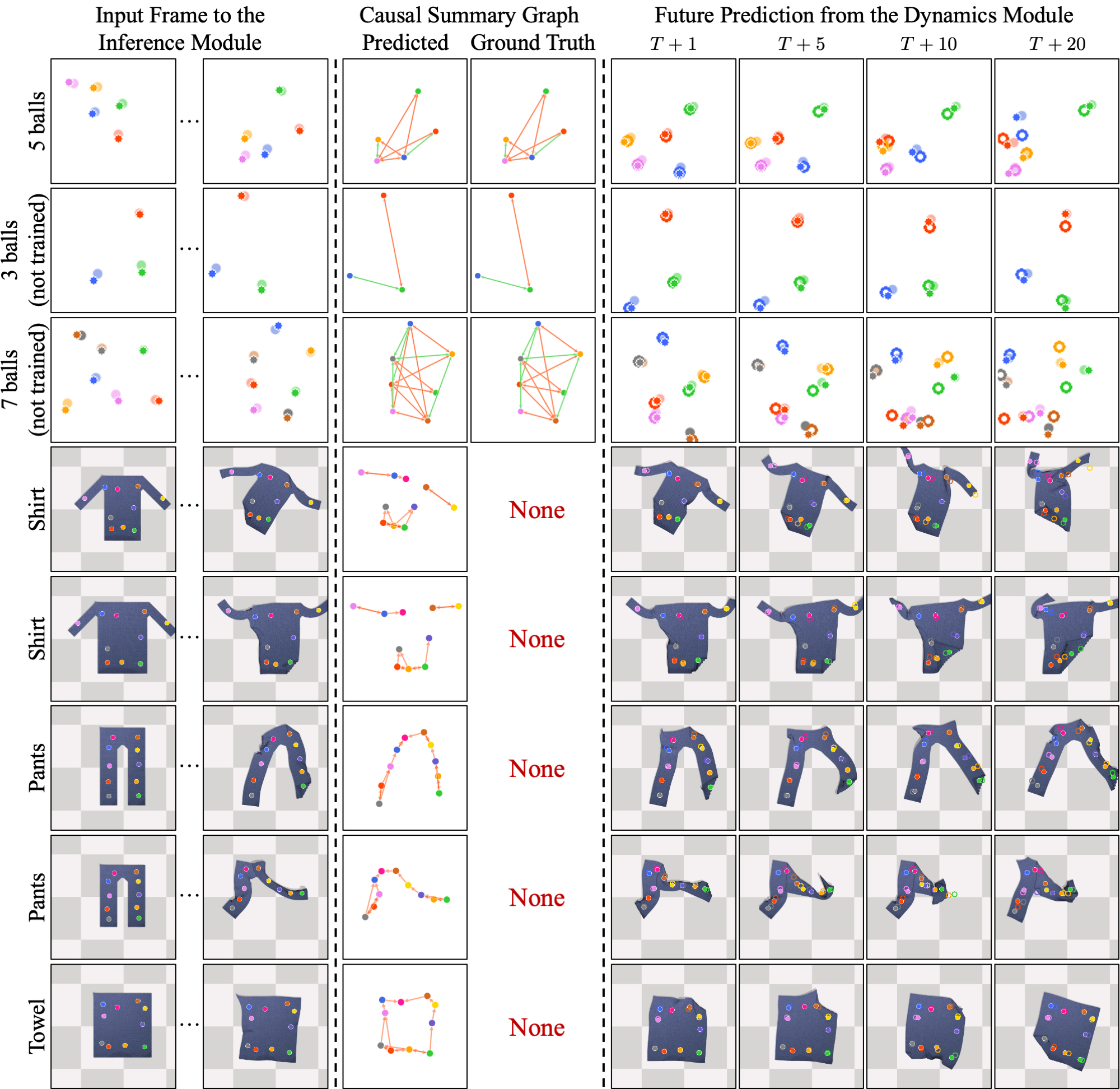

For the cloth environment, the keypoints on the fabrics act as a reducedorder representation of the original system, where we do not know the ground truth causal summary graph. As shown in Figure 5, the same inference module produces different causal graphs for different types of fabrics that reflect the underlying connectivity patterns, which illustrates the model’s ability to recognize the underlying dependency structure.
Extrapolation to unseen causal graphs of different sizes.
To evaluate our model’s performance on extrapolation, we also create another 4 test sets in the MultiBody environment, including 3, 4, 6, and 7 masses, respectively, for which we need to train separate perception modules to reflect the number of the moving components. However, the inference module and the dynamics module do not require retraining; instead, they can directly generalize to systems of different numbers of balls. As shown in Figure 6, the blue bar shows the performance on the test set that has the same number of balls as the training set, while the other bars illustrate the model’s ability to perform extrapolation. Interestingly, for environments with fewer balls, e.g., 3 or 4 balls, even if the model is not directly trained on these scenarios, the performance is yet better.
Counterfactual prediction and extrapolation on parameter change.

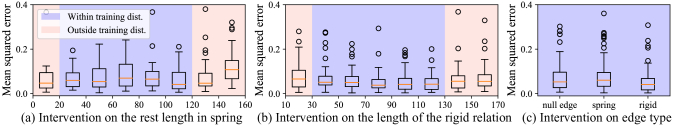

In our experiment, we make counterfactual predictions by intervening on the estimated hidden confounders and evaluate how well the model predicts the future by making the same intervention on the ground truth simulator. The estimated confounders are in the latent space, which requires a mapping function to get the corresponding parameters in the original simulator. We use the same mapping as described in Section 3, and train a simple linear regressor for transforming the continuous variable. Figure 7 shows the performance on counterfactual predictions, which illustrates our model’s ability to answer “what if” questions and extrapolate to parameter ranges that are outside the training distribution.
4 Related Work
Causal Discovery.
Methods for causal inference from observations can broadly be categorized into three classes. Constraintbased methods (such as PC and FCI) rely on conditional independence tests as constraintsatisfaction to recover MarkovEquivalent Graphs Entner and Hoyer (2010); Spirtes et al. (2000); Colombo et al. (2011). Score based methods (such as GES) assign a score to each DAG, and perform searching in this score space Chickering (2002); Zheng et al. (2018). The third class of methods exploits such asymmetries or causal footprints to uniquely identify a DAG Shimizu (2014); Kalainathan et al. (2018); Goudet et al. (2017); Zhang and Hyvärinen (2009). Further, causal discovery from a combination of observational and interventional data has been studied in the literature Hyttinen et al. (2013); Ghassami et al. (2018); Kocaoglu et al. (2017); Wang et al. (2017); Shanmugam et al. (2015); Peters et al. (2016); Rothenhäusler et al. (2015). Many of these approaches either assume full knowledge of the intervention, make strong assumptions about the model class, or have scalability limitations.
Relational Neural Models.
Several works have attempted modeling multibody dynamics with graphs Santoro et al. (2017); Battaglia et al. (2018, 2016) and attention Goyal et al. (2019); Vaswani et al. (2017). However, these methods assume the latent generative causal graph is stationary, resulting in poor generalization to variations in either graph structure or its functional parameters. A few recent works Alet et al. (2019); Kipf et al. (2018) have tried to infer the relationship between different entities in the system but not from image data and do not discover the causal structure.
Dynamics from Videos.
Video modeling and prediction have found much attention recently Ye et al. (2019); Hsieh et al. (2018); Kumar et al. (2019); Yi et al. (2020). The idea of learned latent space embeddings for unsupervised loss computation has also enjoyed recent success in prediction Watter et al. (2015); Hafner et al. (2019); Li et al. (2019b, 2020a); Hafner et al. (2020). However, the latent space may not be interpretable and overall model may not generalize. In contrast, keypoints (or particles) provide succinct and generalizable representions across a variety of use cases: particle representation Macklin et al. (2014); Mrowca et al. (2018); Li et al. (2019a); Ummenhofer et al. (2020); SanchezGonzalez et al. (2020); Li et al. (2020b), deformable object modelling Jakab et al. (2018); Suwajanakorn et al. (2018), instance independent class templates Manuelli et al. (2019). However, providing domainspecific labeled data can be tedious, hence unsupervised keypoint learning methods using reconstruction or viewconsistency as loss have broader appeal Dundar et al. (2020); Kulkarni et al. (2019).
This paper builds on ideas from unsupervised visual representation learning and leverages it for visual causal discovery wherein the underlying model components use relational modeling to output a Causal Summary Graph, which has not been achieved in prior work for complex video datasets.
5 Conclusion
Our method extracts a structured keypointbased representation from videos, understands the causal relationships between different constituting components, and makes predictions into the future. The model neither assumes access to the ground truth causal graph, nor the hidden confounders, nor the dynamics that describes the effect of the physical interactions; instead, we learn to discover the dependency structures and model the causal mechanisms endtoend from images in an unsupervised way, which we hope can facilitate future studies of more generalizable visual reasoning systems.
Broader Impact
Causal reasoning is the process of identifying causality: the relationship between a cause and its effect, which is at the core of human intelligence. Learning directly from observations only without the modeling of the underlying causal structure can lead to the emergence of incorrect associations between the input and the output. The learned model can overfit to the bias associated with the dataset, limiting its ability to generalize outside the training distribution and often leading to catastrophic outcomes when deploying in the real world.
Discovering the causal relationships typically requires learning from data collected in randomized controlled trials or A/B tests where the experimenter controls certain variables of interest. However, carrying out the intervention or randomized trials may be impossible or at least impractical or unethical in many situations.
This work aims at discovering the causal structure and modeling the underlying causal mechanism from visual inputs, where we have access to data from different configurations and scenarios under unknown interventions both on the structure of the causal graph and its parameters. The ability to accurately capture the dependency structures and identify the hidden confounders is of vital importance towards helping the learned models generalize. As we discussed in our experiments, causal modeling improved generalization to both outside the training distribution and also towards high likelihood counterfactual data augmentation.
While excited about these results, it is important to acknowledge that this is a particularly challenging task, and our method serves as an initial step towards the broader goal of building physically grounded visual intelligence. We mainly focussed on the modeling of the dynamical system, while some aspects of the causal graph such as sophisticated dependencies and practical issues arising from sampling rates are not touched upon. Nonetheless, we hope to draw people’s attention to this grand challenge and inspire future research on generalizable physically grounded reasoning from visual inputs without domainspecific feature engineering.
References
 Neural relational inference with fast modular metalearning. In Advances in Neural Information Processing Systems, pp. 11804–11815. Cited by: §4.
 Interaction networks for learning about objects, relations and physics. In Advances in neural information processing systems, Cited by: §A.2, §2.2, §4.

Relational inductive biases, deep learning, and graph networks
. arXiv:1806.01261. Cited by: §4.
Optimal structure identification with greedy search.
Journal of machine learning research
3 (Nov), pp. 507–554. Cited by: §4.  Learning highdimensional dags with latent and selection variables. In UAI, pp. 850. Cited by: §4.
 Unsupervised disentanglement of pose, appearance and background from images and videos. arXiv preprint arXiv:2001.09518. Cited by: §4.
 On causal discovery from time series data using fci. Probabilistic graphical models, pp. 121–128. Cited by: §4.
 Budgeted experiment design for causal structure learning. In International Conference on Machine Learning, pp. 1724–1733. Cited by: §4.
 Review of causal discovery methods based on graphical models. Frontiers in Genetics 10. Cited by: §1.

Causal discovery from temporally aggregated time series.
In
Uncertainty in artificial intelligence: proceedings of the… conference. Conference on Uncertainty in Artificial Intelligence
, Vol. 2017. Cited by: §1.  Causal generative neural networks. arXiv preprint arXiv:1711.08936. Cited by: §4.
 Recurrent independent mechanisms. arXiv preprint arXiv:1909.10893. Cited by: §4.
 Dream to control: learning behaviors by latent imagination. In International Conference on Learning Representations, Cited by: §4.
 Learning latent dynamics for planning from pixels. In International Conference on Machine Learning, Cited by: §4.
 Learning to decompose and disentangle representations for video prediction. In Advances in Neural Information Processing Systems, pp. 517–526. Cited by: §4.
 Experiment selection for causal discovery. The Journal of Machine Learning Research 14 (1), pp. 3041–3071. Cited by: §4.
 Unsupervised learning of object landmarks through conditional image generation. In Advances in Neural Information Processing Systems, pp. 4016–4027. Cited by: §A.1, §4.
 Categorical reparameterization with gumbelsoftmax. arXiv preprint arXiv:1611.01144. Cited by: §2.3.
 Reasoning about physical interactions with objectcentric models. In International Conference on Learning Representations, Cited by: §1.
 Sam: structural agnostic model, causal discovery and penalized adversarial learning. arXiv preprint arXiv:1803.04929. Cited by: §4.
 Adam: a method for stochastic optimization. arXiv preprint arXiv:1412.6980. Cited by: §C.1.
 Autoencoding variational bayes. arXiv preprint arXiv:1312.6114. Cited by: §2.5.
 Neural relational inference for interacting systems. In International Conference on Machine Learning, pp. 2688–2697. Cited by: §1, §4.
 Experimental design for learning causal graphs with latent variables. In Advances in Neural Information Processing Systems, pp. 7018–7028. Cited by: §4.
 Unsupervised learning of object keypoints for perception and control. In Advances in Neural Information Processing Systems, pp. 10723–10733. Cited by: §A.1, §C.1, §1, §2, §2.1, §3, §4.
 VideoFlow: a conditional flowbased model for stochastic video generation. arXiv preprint arXiv:1903.01434. Cited by: §4.
 Learning compositional koopman operators for modelbased control. In International Conference on Learning Representations, Cited by: §4.
 Visual grounding of learned physical models. In International Conference on Machine Learning, Cited by: §4.
 Learning particle dynamics for manipulating rigid bodies, deformable objects, and fluids. In ICLR, Cited by: §4.
 Propagation networks for modelbased control under partial observation. In ICRA, Cited by: §A.2, §4.
 Unified particle physics for realtime applications. ACM Transactions on Graphics (TOG) 33 (4), pp. 153. Cited by: §B.2, §4.

The concrete distribution: a continuous relaxation of discrete random variables
. arXiv preprint arXiv:1611.00712. Cited by: §2.3.  KPAM: keypoint affordances for categorylevel robotic manipulation. arXiv preprint arXiv:1903.06684. Cited by: §4.
 Flexible neural representation for physics prediction. In Advances in Neural Information Processing Systems, pp. 8799–8810. Cited by: §4.
 PyTorch: an imperative style, highperformance deep learning library. In Advances in Neural Information Processing Systems, pp. 8024–8035. Cited by: Appendix C.
 Causality. Cambridge university press. Cited by: §2.

Causal inference by using invariant prediction: identification and confidence intervals
. Journal of the Royal Statistical Society: Series B (Statistical Methodology) 78 (5), pp. 947–1012. Cited by: §4.  Elements of causal inference: foundations and learning algorithms. MIT press. Cited by: §1, §2.
 BACKSHIFT: learning causal cyclic graphs from unknown shift interventions. In Advances in Neural Information Processing Systems, pp. 1513–1521. Cited by: §4.
 Learning to simulate complex physics with graph networks. In International Conference on Machine Learning, Cited by: §4.
 Graph networks as learnable physics engines for inference and control. arXiv preprint arXiv:1806.01242. Cited by: §A.2.
 A simple neural network module for relational reasoning. In Advances in neural information processing systems, pp. 4967–4976. Cited by: §1, §4.
 Learning causal graphs with small interventions. In Advances in Neural Information Processing Systems, pp. 3195–3203. Cited by: §4.
 LiNGAM: nongaussian methods for estimating causal structures. Behaviormetrika 41 (1), pp. 65–98. Cited by: §4.
 Causation, prediction, and search. MIT press. Cited by: §1, §4.
 Discovery of latent 3d keypoints via endtoend geometric reasoning. In Advances in Neural Information Processing Systems, pp. 2059–2070. Cited by: §A.1, §4.
 Lagrangian fluid simulation with continuous convolutions. In International Conference on Learning Representations, Cited by: §4.
 Attention is all you need. In Advances in neural information processing systems, pp. 5998–6008. Cited by: §4.
 Permutationbased causal inference algorithms with interventions. In Advances in Neural Information Processing Systems, pp. 5822–5831. Cited by: §4.
 Embed to control: a locally linear latent dynamics model for control from raw images. In Advances in neural information processing systems, pp. 2746–2754. Cited by: §4.
 Visual interaction networks: learning a physics simulator from video. In Advances in neural information processing systems, pp. 4539–4547. Cited by: §1.

Compositional video prediction.
In
Proceedings of the IEEE International Conference on Computer Vision
, pp. 10353–10362. Cited by: §4.  {clevrer}: collision events for video representation and reasoning. In International Conference on Learning Representations, Cited by: §4.
 On the identifiability of the postnonlinear causal model. In 25th Conference on Uncertainty in Artificial Intelligence (UAI 2009), pp. 647–655. Cited by: §4.
 Causal discovery in the presence of measurement error: identifiability conditions. arXiv preprint arXiv:1706.03768. Cited by: §1.

Unsupervised discovery of object landmarks as structural representations.
In
Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition
, pp. 2694–2703. Cited by: §A.1.  DAGs with no tears: continuous optimization for structure learning. In Advances in Neural Information Processing Systems, pp. 9472–9483. Cited by: §4.
Appendix A Model details
a.1 Unsupervised keypoint detection from videos
The perception module maps the input images into a set of keypoints in an unsupervised way. Any unsupervised keypoint detection methods that can track a component consistently overtime should suit our use case, and there have been many recentlyproposed methods that can serve this purpose Suwajanakorn et al. (2018); Jakab et al. (2018); Zhang et al. (2018). In this work, we use the technique developed in Kulkarni et al. (2019).
As described in Section 2.1 of the main paper, we use reconstruction loss over the pixels for encouraging the keypoints to spread over the foreground of the image. During training, it takes in a source image and a target image sampled from the same episode, and passes them through a feature extractor and a keypoint detector . The model then uses an operation call transport to construct a new feature map using a set of local features indicated by the detected keypoints:
(10)
where
is a heatmap image containing fixedvariance isotropic Gaussians around each of the
points specified by (Figure 8). The model then passes the feature map through a refiner network to get the reconstruction, . We optimize the parameters in the feature extractor, keypoint detector and refiner by minimizing a pixelwise loss, , using stochastic gradient descent.a.2 Graph neural networks as the spatial encoder
Graph neural networks act as a building block in our model to capture the interactions between different keypoints and generates object and relationcentric embeddings. Here, we describe the specific formulation of the graph neural network we used in our inference and dynamics modules.
For a set of keypoints, we construct a directed graph , where vertices represent the information on the keypoints and edges represent the directed relation pointing from to . is the associated edge attributes.
Our graph neural network employs a similar structure as the Interaction Networks (IN) Battaglia et al. (2016) to generate the embeddings for the objects and the relations:
(11)
(12)
where and are object and relation encoders respectively. denotes all edges that point to object . and are the derived object and relation embeddings individually. In practice, we usually propagate the node and edge information over the graph multiple times to improve the expressiveness of the model SanchezGonzalez et al. (2018); Li et al. (2019b).
The graph neural network, denoted as , aggregates the spatial information spanned by the keypoints, passes the information along the edges, and outputs embeddings for the nodes and edges, i.e., . Please see our main paper for how we instantiate as a submodule in the inference and the dynamics modules.
Appendix B Environment details
b.1 MultiBody Interaction
We use the Pymunk simulator to generate episodes of frames, among which episodes are reserved for testing, and the remaining goes to the training set. At the beginning of each episode, we randomly assign the balls in different positions. For each pair of balls, there is a onethird probability that they are connected by nothing, rigid rod, and spring. The stiffness of the spring relation is set to , and we randomly sample the rest length between . For the rigid relation, we allow the connected two balls to move freely in a small fixed window on their opposing direction, e.g., if the rigid relationship is of length , the distance between the two balls can vary between to . This treatment will force the model to infer the length of the rigid relation instead of naively exploiting the distance between the two balls.
b.2 Fabric Manipulation
We generate episodes of frames. Similar to the MultiBody environment, we reserve episodes for testing and use the remaining for training our model. As shown in Figure 8, we build fabrics of three different shapes: a shirt, pants, and a towel, where we also vary the shape of the fabrics like the length of the pant leg or the height and width of the towel. To deform the fabrics and move them around, we apply forces on the contour of the fabric and employ the NVIDIA FleX simulator to simulate the motion Macklin et al. (2014).
Appendix C Implementation details
Our implementation is based on PyTorch Paszke et al. (2019), and each instance of the model is trained using one NVIDIA TITAN Xp graphics card.
c.1 Unsupervised keypoint detection
We employ a similar encoderdecoder structure as described in Kulkarni et al. (2019). Both the keypoint detector, , and the feature extractor, , have blocks of convolutional layers that reduce the height and width of the image into a quarter of their original size. The output of the keypoint detector has channels, representation the confidence map of the keypoints, over which computes the exact location of each keypoint by calculating the spatial expectation. We use the operation describe in Equation 10 to get the feature maps . The refiner network, consisting of a few transpose convolutional operators, transforms the features map back to the original size of the target image.
We optimize using Adam optimizer Kingma and Ba (2014) with a learning rate of for about k iterations.
c.2 Predicting the directed edge set using the inference module
We use simple multilayer perceptron (MLP) to instantiate the object encoder,
, and the relation encoder, . To aggregate the temporal information, we use three blocks of convolutional layers for and. The use of convolutional operators allows the model to handle time series of different lengths, and the output of the CNNs is fed through a maxpooling layer to compute a fixeddimensional feature vector.
c.3 Joint optimization of the inference module and the dynamics module
We train the inference module, , and the dynamics module,
jointly by optimizing the loss function defined in Section 2.5 using stochastic gradient descent via Adam optimizer with a learning rate of
for about k iterations.For the exact network architecture and more details in the training procedures of the individual modules, please refer to our code.
Appendix D Additional experimental results
d.1 Unsupervised keypoint detection

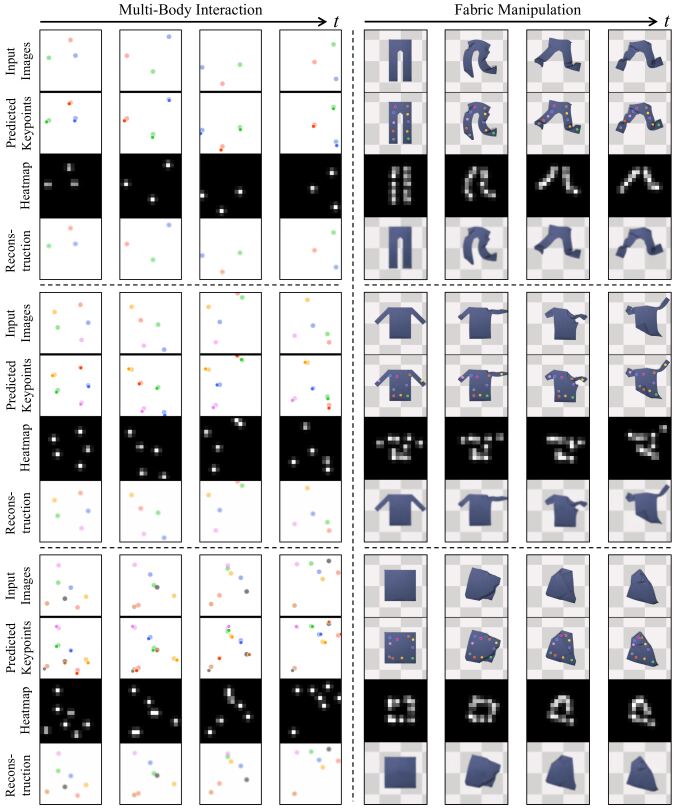

The combination of the keypointbased bottleneck layer and the downstream reconstruction task allows the perception module to extract temporallyconsistent keypoints dispersing over the foreground of the images. The model accurately tracks the movement of the objects and can naturally handle deformable objects. Figure 8 shows some more qualitative examples of our perception module in both the MultiBody and the Fabric environments.
d.2 Future prediction in the Fabric environment

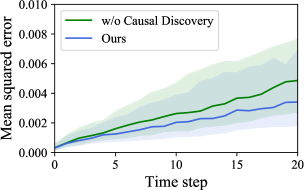

Figure 9 shows a comparison between our model and the baseline, which is the same as our model except that it does not contain an inference module to perform causal discovery. Our model can make more accurate future predictions, indicating the importance of an accurate modeling of the causal mechanisms in the underlying physical system.
