I Introduction
Nowadays, most traditional payments on the Internet are based on trusted third parties. The trust based payment model has some shortcomings which make completely nonreversible transactions impossible [1]. In the past decade, public’s interest has focused on decentralized cryptocurrencies based on cryptographic proof. These cryptocurrencies, presented by Bitcoin which is the first fully decentralized cryptocurrency [18], rely on blockchain technology to guarantee their security. Generally speaking, a blockchain is an open ledger used to store and maintain a list of record. Its consensus protocol guarantees that previous data written in a blockchain is irreversible and consistent to all users. A series of consensus protocol such as proof of work (PoW), proof of stake (PoS) and practical Byzantine fault tolerance (PBFT) are applied to cryptocurrencies. Proof of work, applied by Bitcoin, takes the largest market share. In 2016, proofofwork blockchains take about 90% of the market [9]. In a proofofwork blockchain such as Bitcoin, the participants are required to generate PoWs by solving cryptographic puzzles when they are finding blocks. The one who tries to generate new blocks are called miners, and the process to find a new block is called mining. When a miner finds a new block, he propagates his solution to other miners. All other miners confirm his solution and beginning solving a new crytographic puzzle [1]
. To lower the variance of a solo miner’s revenue, a group of miners are organized to form a mining pool.
A miner or a mining pool with a large amount of computational power may threaten the blockchain. The most basic requirement for a proofofwork blockchain is that the records in the blockchain cannot be modified. But a wellknown attacking strategy named 51% attack can revert the transaction records in a proofofwork blockchain [1, 11]. 51% attack requires the attacker to control more than 50% of the network’s computational power. In 2018, a proofofwork cryptocurrency called Bitcoin Gold suffered 51% attack. 51% attack requires a large amount of computational power and breaks the reliability of a blockchain. Generally speaking, only those attackers whose aim is to revert transaction records will launch a 51% attack.
For these attackers, block reward can be one of their aims. In a proofofwork blockchain, the ideal case is that a miner or a mining pool with fraction of computational power in the blockchain should gain fraction of block reward in a long period of time. But many studies have indicated that an attacker in a proofofwork blockchain can get more share of block reward than he deserves through some strategies. The most wellknown one is selfish mining presented by Eyal and Sirer in 2014 [2]. In May 2018, a Japanese proofofwork cryptocurrency was hit by selfish mining attack and the attack has caused roughly $90,000 in damages.
Like Bitcoin Gold and Monacoin, Bitcoin is a proofofwork based powered blockchain as well. A statistic from blockchain.info indicates that, in 2017, the mining difficulty which is approximately proportional to the whole computational power in Bitcoin has increased by four times. The huge computational power in Bitcoin makes it unrealistic to launch a 51% attack to Bitcoin. But the threshold of the computational power to launch a selfish mining attack is far lower. Another statistic from blockchain.info demonstrate that, in 2018, the price of Bitcoin has dropped by more than 70%. The dropping price may result in the fleeing of computational power in Bitcoin which can lower the threshold of computational power to launch a selfish mining attack. Under this situation, Bitcoin has to face the fact that it might suffer from selfish mining attack in the future. Many former studies [4, 8, 18] have presented attacking strategis towards a proofofwork blockchain which have better performance than selfish mining. They put their emphasis on the optimization of one single attacker’s strategy.
Former studies do not consider the case with two or more attackers. We assumes that the number of attackers may increase to two. In this paper, we establish a mining attack model of a proofofwork blockchain with two attackers. To the best of our knowledge, this is the first effort on systematically modeling a mining attack model with two attackers. We explain why the second attacker may occur by dividing attackers into two types: the internal attacker and the external attacker. We define the proofofwork cryptocurrency system which consists of the honest miner and internal attacker as original system, and the system which consists of the honest miner, the internal attacker and the honest miner as multiattacker system. Our work reveals that the internal attacker weakens the original system, so the original system is more likely to be attacked by the external attacker. And in multiattacker system, both external attacker and internal attacker’s revenue do not meet their expectation. This paper makes the following contributions:
Contribution 1: Establishing a proofofwork blockchain model with internal attacker and external attacker. We propose a new proofofwork blockchain model, which consists of two attackers. The decision making process, the mining behavior, the state transition and the attacking strategies of the attackers are different from the former blockchain models with one single attacker.
Contribution 2: Theoretical and quantitative analysis on the conditions that external attacker may occur. Our analysis reveals the relationship between the computational power of the internal attacker and the degree that the original system’s computational power is weaken. We prove that the external attacker may attack the original system if his computational power is in a certain scope.
Contribution 3: A new attacking strategy named Partial Initiative Release (PIR). We have proved that both the internal attacker and the external attacker may face the fact that they do not gain as much revenue as their expectation in the multiattacker system. We discuss the Catfish Effect in the multiattacker system. We propose a new attacking strategy called Partial Initiative Release (PIR) which is the countermeasure for the internal attacker after he notices the existence of the external attacker. Our simulations demonstrate that internal attacker with strategy PIR can gain more revenue than the external attacker with strategy selfish mining.
The previous version of this paper has appeared in [17]. This paper has extended and improved the previous version. The most important extensions includes distinguishing the type of attackers and the phase of our mining attack model (Section III. A), theoretical analysis and quantitative analysis on how internal attacker weakens the original system (Section IV), theoretical analysis and quantitative analysis on the condition that the external attacker may attack the original system (Section V), discussion on the Catfish Effect in multiattacker system (Section VI. C). Compared with the previous version [17], distinguishing the type of attackers and the phase of our mining attacker model better explains why and how two attackers occur, newly added theoretical and quantitative analysis provides more solid proofs, and the discussion on Catfish Effect explains more clearly why the attacks need to switch their attacking strategy in multiattacker system.
The rest of our paper is organized as follows: We begin by introducing the basic concepts of proofofwork blockchain in Section II. In Section III we introduce our proofofwork blockchain model including attackers’ state space, action space and assumptions in our analysis. In Section IV we present the theoretical and quantitative analysis about how the internal attacker weakens the original system. In Section V, we provide with the condition that the external attacker may attack the original system. We also illustrate the fact that the external attacker will fail to gain as much revenue as he expects. In Section VI, we describe the Catfish Effect in multiattacker system and propose the PIR strategy for the internal attacker. In Section VII, we conclude our paper.
Ii Preliminaries
In this section, we describe some basic concepts of Bitcoin and some attacking strategies in Bitcoin including selfish mining since Bitcoin is the most wellknown and most typical instance of proofofwork blockchain. The basic concepts and attacking strategies are also suitable for other proofofwork blockchain instances.
Iia Basis of Bitcoin
IiA1 Miner and Mining Process
In Bitcoin, the miners are the participants who are working on finding new blocks. The process for the miners to find new blocks are called mining process. In the blockchain of Bitcoin, the block header identifies each block [1]. A block header consists of the hash of previous block header, the Merkle root of the transactions stored in the block and a nonce. The miners’ work is to select the transactions which has not been stored in previous blocks can generate nonces. If the hash value of all data in the block header is lower than a specific threshold t, then the miner can propagate the new block found by him to the Bitcoin network. Other miners will accept the new block after verification. The mining process of the miner seriously rely on the miner’s computational power. In Bitcoin, the threshold t is adjusted about every two weeks [1]. The more computational power is in the Bitcoin system, the lower the threshold is and the more difficult it is to find new blocks.
For a solo miner, he has to wait for a long time which is not intolerable before he finds a new block [18]. To gain block revenue in a more stable way, a group of solo miners organize a mining pool. Mining pools benefit their members, but increases uncertainty to the whole system. Once the pool manager of a mining pool wants to gain more revenue than the share he deserves, with a large amount of computational power, he can easily launch mining attacks. The largest pool in Bitcoin history has the computational power which exceeds 40% of the computational power in Bitcoin system [8].
IiA2 Honest Miners and Attackers
Honest miners in Bitcoin follow Bitcoin protocol. They immediately propagate their newly found blocks to the Bitcoin network and accept the longest blockchain as their main chain. If there exists a fork in blockchain, the honest miners accept the block they receive first.
Solo miners and mining pools can be the attackers in Bitcoin and act in a different way. Some typical attacking tricks are [2, 3, 5, 8, 13]:

Denial of propagating the blocks which is found by others to other miners.

Denial of immediately propagating the blocks found by themselves to the Bitcoin network.

Denial of accepting the longest chain instead of their own chain as the main chain.
The behavior of the attackers includes but is not limit to the tricks above. An attacker can adjust their behavior and choose which tricks to be used according to his attacking strategy.
IiA3 Forks in Blockchain
A fork in Bitcoin occurs when two miners find and propagate their newly found block at roughly the same time. Due to the information propagation delay in Bitcoin network [3, 14], part of honest miners receive and verify one branch of the fork first while other honest miners receive and verify the other branch of the fork. This kind of forks is randomly generated and will be eliminated when the next block is found so that one branch is extended and accepted by all the honest miner while the other branch is staled. Gervais [7] and Decker [3]estimate the probability that a randomly generated fork occurs in Bitcoin. Both two works suggest that the randomly generated fork rate of Bitcoin ranges from 0.41% [7] to 1.7% [3] according the information propagation in Bitcoin.
IiB Mining Attacks
IiB1 Selfish Mining
Bitcoin, as the proofofwork cryptocurrency, is designed under the assumption that as long as the majority of the hashpower is honest, Bitcoin’s safety is guaranteed [1]. But this assumption has been overthrown by selfish mining proposed by Eyal and Sirer [2]. Selfish mining allows the adversarial miners or mining pools to get more revenue than they deserve. The attackers do not immediately release the blocks found by themselves. They do not accept the longest chain as their main chain as long as they are holding some unreleased blocks. An attacker with 33% of the computational power of Bitcoin system can ensure that he can earn extra revenue (more than 33% of the revenue of the entire system). The threshold can even lower to 0 with the increase of information propagation delay among the honest miners.
IiB2 Optimization of Selfish Mining
After Eyal and Sirer’s work, many researchers are focusing on optimization of selfish mining. Sapirshtein’s work [4] and Nayak’s work [8] extend the attackers’ strategy space. Nayak’s work [8] also combines selfish mining and eclipse attack [6] which is a networklevel attack. Kwon’s work [18] combines selfish mining with block withholding attack [15]. The former studies present two possible approaches to optimize selfish mining: Extending the attacker’s strategy space or combining selfish mining with other mining attacks. The former works only consider the attacking scenes with a single attacker.
IiB3 Methods to Evaluate a Strategy
Gervais’s work points out that selfish mining is an irrational strategy in a short term since it wastes both the attacker’s and honest miner’s computational power [7]. But in a long term, Bitcoin will lower the mining difficulty [1]. So for selfish mining and mining attacks which optimize selfish mining, block reward can not directly measure the performance of the attacking strategies. In a short term the attackers’ aim is increasing their fraction of block reward of the entire system instead of increasing block reward directly. According to attacker’s aim, relative revenue (RR) and stale block rate (SBR) are used to evaluate the performance of a attacking strategy in many former works [2, 4, 5, 8].
Iii Attack model
In this section, we introduce our attack model from the following aspects: two phases of our model, attackers’ state and action , attackers’ decision making process and the evaluation of attackers’ revenue.
Iiia Two Phases of Our Model
There are two attackers in our model: the internal attacker and the external attacker. Either a solo miner or a mining pool can act as an attacker. The honest miners, no matter whether they are solo miners or mining pools, accept the same main chain when there are no forks in the blockchain. When no forks exist, the honest miners can be seen as an whole honest entity. Otherwise, the computational power of the honest miners splits due to information propagation delay.
We define the first phase of our model as the original system. The original system consists of the internal attacker and the honest miner. In the original system, internal attacker can launch a selfish mining attack. After the attack, the original system can be considered as a selfish mining model with one single attacker.
The second phase of our model is defined as the multiattacker system. The multiattacker system consists of the internal attacker, the external attacker and the honest miner. The multiattacker system results from the external attacker’s selfish mining attack against original system after internal attacker’s attack.
IiiB State and Action
IiiB1 Attackers’ state
Each attacker’s state contains the information of the attacker in the blockchain. The attackers make decisions based on their state. Our attacking model, with two attackers, considers some special states which do not exist in those models with a single attacker. The following information should be included in the state:

The attacker’s lead: The private chain of an attacker consists of the main chain accepted by the attacker and the unreleased blocks. We define an attacker’s lead as the height of the attacker’s private chain minus the main chain accepted by the honest miner.

Whether the attacker is in a competition or not: When an attacker intentionally generates forks in Bitcoin, it is possible for him to be involved in a competition. Whether the attacker is in a competition or not determines his next action.

If there are another fork in the blockchain: Another fork means the fork which is not generated by the attacker randomly or intentionally. If other miners release a new block at roughly the same time, there will be an competition in the blockchain which the attacker is not engaged in.
We use the notation in selfish mining attack model to represent the attacker’s state. means that the attacker’s lead is and there is no forks in the blockchain. represents that the attacker is in a competition with other miners.
The notation of the attacker’s state above is designed for the attacking model with a single attacker. It cannot cover all situations in our model. We define to cover the situations that there is a fork in the blockchain, but the attacker is not involved in the competition.
IiiB2 Attacker’s action
Attacker’s action determines whether the attacker should release his blocks or not and how the attacker release his blocks. Similar to attacker’s state, we use the notation of attacker’s action in selfish mining attack model. But the meaning of notations is adjusted so as to be suitable for our model with two attackers. The attacker have five basic actions:
Hold: The attacker do not release any blocks or select a new main chain.
Match: The attacker releases one or of his unreleased blocks so that the attacker’s released chain can catch up the other miner’s chain. Override: The attacker releases two or of his unreleased blocks so that the attacker’s released chain can exceed the other miner’s chain just right.
Adopt: The attacker gives up on his private chain and select the longest chain as his main chain.
Release: The attacker extend his released chain by one block.
IiiC Decision Process
An attacker needs to decide which basic action he should take and when to take the basic action based on his state. The whole process is decision process of the attacker.
Any attacker faces a Markov decision problem: where is attacker’s state, is attacker’s action space which consists of five basic actions, is the probability of attacker’s state transition and is the revenue of attacker’s action. If we denote the attacker’s previous state as and attacker’s current state as , then we have the state transition equation for the attacker at any state:
(1)
The processing of finding the best response in the next steps is usually too complicated for the attacker. Thus an attacker needs to apply a specific mining attack strategy (Expressed in the form of a state machine) to find a suboptimal response. A mining attack strategy can be considered as a method to reduce the complexity of finding a solution at the cost of part of the revenue.
IiiD Attacker’s Revenue
Attacker’s revenue is used to quantify whether the attacker can gain extra revenue from his attack. Our model consider all mining attacks as irrational so that block reward is not suitable for our model. When quantifying the attacker’s or the honest miner’s revenue, we use stale block rate (SBR) and relative revenue (RR).
A miner’s SBR shows how much computational power of the miner is wasted. Denote the number of blocks which are found by the miner and accepted by all honest miners as . And denote the number of blocks which are found by the miner and not accepted by all honest miners as . The miner’s SBR can be calculated as:
(2)
A miner’s RR shows whether a miner receives as much block reward as he deserves. Denote the number of blocks which are found by other miners and accepted by all honest miners as . The miner’s RR can be calculated as:
(3)
IiiE Our assumptions
We have made the following five assumptions in our analysis:

There are three participants in our model: The honest miner, the internal attacker and the external attacker. The internal attacker mines in the original system from the beginning, and he decides to starts selfish mining attack. The external attacker joins into the system after the internal attacker’s attack.

The honest miner, the internal attacker and the external attacker can either be a solo miner or a mining pool. We make the assumption that honest miner’s computational power is always greater than the internal attacker’s and the external attacker’s.

We do not consider the mining attack strategy which do not intentionally create forks, such as Eclipse attack and block withholding attack.

The total computational power of the honest miner, the internal attacker and the external attacker is normalized which means that the total computational power of the multiattacker system is 1. Meanwhile, we assume that the total computational power will not change any more after the external attacker’s participation.

Both the internal attacker and the external attacker are selfish mining attackers at the beginning. After noticing the existing of the external attacker, the internal attacker will take some countermeasures. During their attack, except the forks intentionally created by them, we do not consider the randomly generated forks since the fork rate is negligible.
Iv Original System
In this section, we will demonstrate how the internal attacker’s attack weakens the computation power of the original system which consists of the honest miner and the internal attacker from two aspect: Theoretical analysis and simulation. In this section, the internal attacker launches a selfish mining attack.
Iva Theoretical Analysis
The relevant parameters are as follows:

: Computational power of the honest miner the honest miner.

: Computational power of the internal attacker.

: Computational power of the external attacker.

: Probability that the internal attacker’s chain win the competition when the internal attacker is competing with the honest miner or the external attacker.

: Probability that the external attacker’s chain win the competition when the external attacker is competing with the honest miner or the internal attacker.

: The fraction of honest miner that helps the internal attacker when the internal attacker’s chain is competing with others.

: The fraction of honest miner that helps the external attacker when the external attacker’s chain is competing with others.

: The fraction of honest miner that helps the attackers when there is a competition.
First, we normalize the computational of the original system first. In the original system, the fraction of the computational power of internal attacker is: , and the fraction of computation power of the honest miner is: .

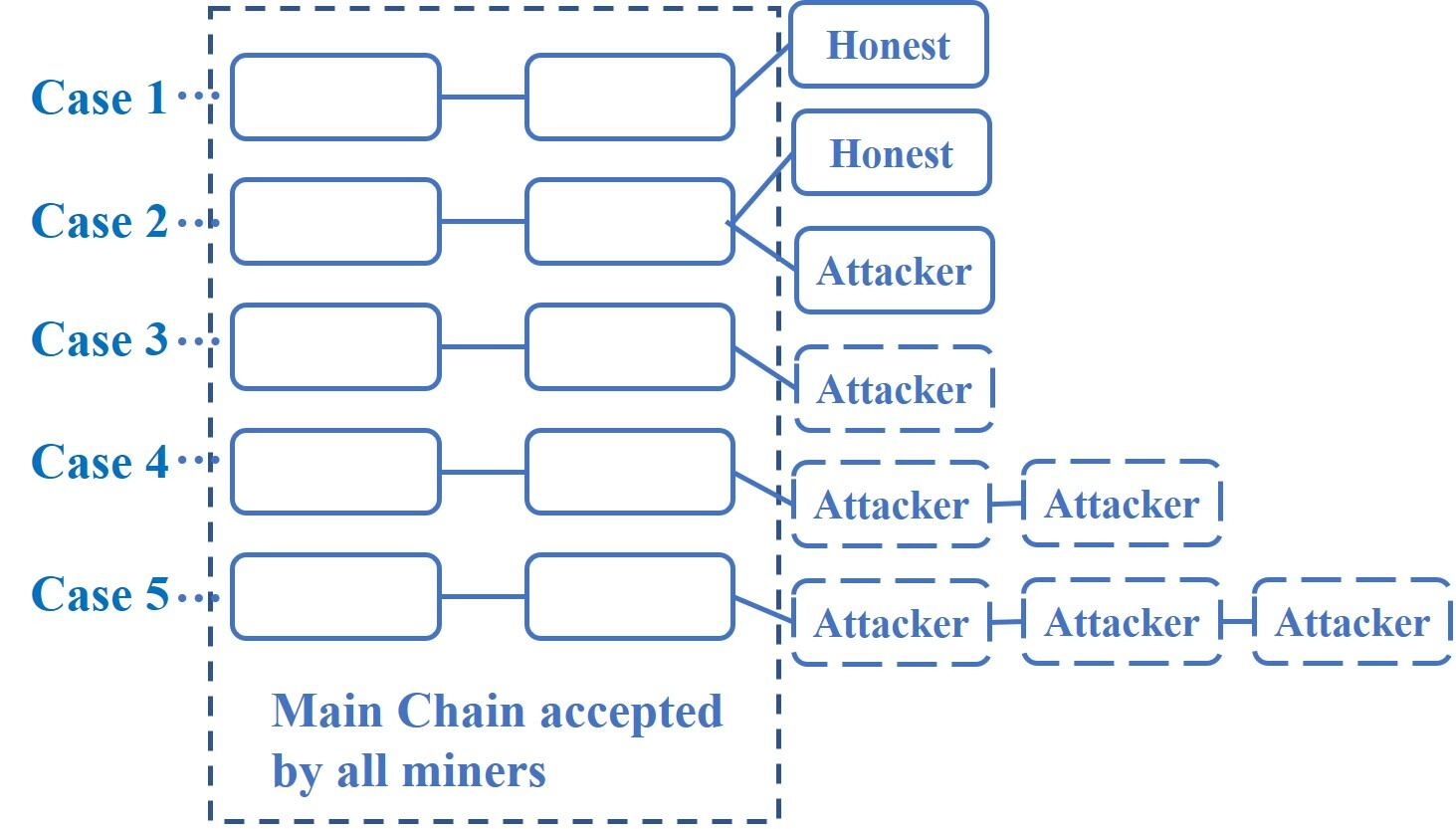

To show how the internal attacker weakens the original system, we classify the case based on the internal attacker’s state as shown in Fig.
1. In the first case, the internal attacker is at state 0 with the probability . In the second case, the internal attacker is at state 0’ with the probability . In this case, the internal attacker has the probability to win the competition, and the probability that the internal attacker finds the next block in the competition is . Note that, is not necessarily equal to . Typically, due to the information propagation delay and some other factors, part of the honest miner’s computational power will help the internal attacker in the competition, which means that is usually greater than . In the third case, the internal attacker is at stage 1 with the probability .In the forth case, the internal attacker is at state 2 with the probability . In the final case, the internal attacker has the state that greater than two with the probability .Lemma IV.1
The probability that the internal attacker is at any state is:
(4)
Proof:

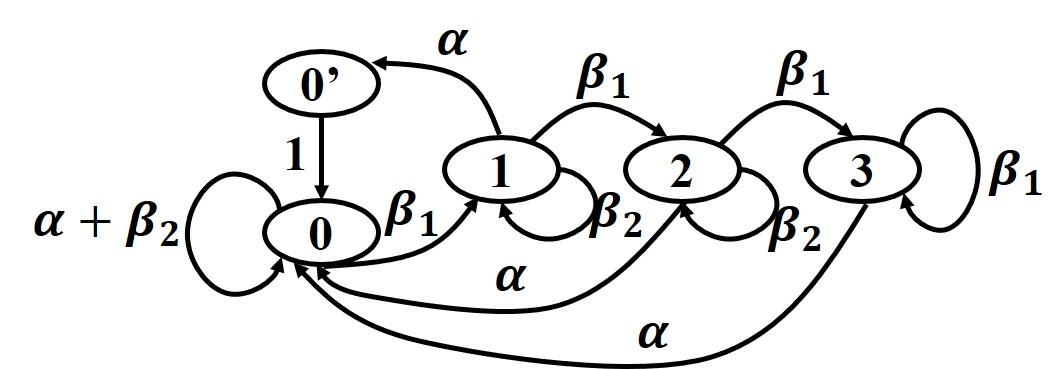

From the selfish mining state machine, we can focus on one unique point: . When , the internal attacker’s state transition probability from state to state is which is always less than 0.5. Thus, for , we have . In addition, based on a selfish miner’s behavior when his state is less than 2, we can derive:
(5)
With equation(2), we can finally derive equation(1) in Lemma 1. Further, the probability of the five cases we discuued above is:
(6)
Lemma IV.2
The probability that the internal attacker can extend the length of chain when a new block is found is: . It is irrelevant to the value of .
Proof:
In Case 1, the internal attacker has the probability to remain his state 0 and has the probability to move on to state 1. In Case 3, the internal attacker has the probability to state 0’ and has the probability to state 2. In Case 5, the internal attacker has the probability to state and has the probability to state . None of the six results shown above can result in the increase of the main chain in Bitcoin.
In Case 2, the internal attacker has the probability to win the competition and increase the length of main chain by 1. The probability that the competition is won by the honest miners who support the internal attacker is . So the probability that the internal attacker wins the competition can increase the length of main chain by himself is actually . In Case 4, the internal attacker has the probability to increase his state to 3 which will not result in the increase of the main chain. So, the probability that the internal attacker increase the length of main chain in this case is .
From the analysis above, The probability that the internal attacker can lengthen the length of chain when a new block is found by original system is:
Lemma IV.3
The original system’s probability to extend the main chain when a new block is found is always less than 1.
Proof:
For the honest miner, the probability to extend the main chain is always , so the probability that the original system can extend the main chain when a new block is found is: . Let .
when ranges from 0 to . . Then, we can derive the inequality:
Generally speaking, after the selfish mining attacker launched by the internal attacker, in a long period of time(in Bitcoin, about 2 weeks), the computational power of the original system is equivalent to a single honest miner with the computational power . The factor shows the degree that internal attacker the internal attacker weakens the original system. We name the factor as the shrinkage factor.
IvB Quantitative Analysis and Simulation
Theoretically, from the external attacker’s perspective, the original system’s computational power will shrink by . We use the definition stale block rate(SBR) to show how much computational power the internal attacker and honest miner have lost after the internal attacker launches selfish mining attack in this simulation. We use a Monte Carlo method to generate a blockchain with the height blocks by 100 times.
In this simulation, we consider the a simple case: The external attacker has not joint the whole system yet and the internal attacker launches a selfish mining attack to the honest miner.
Fig. 2(a) shows the SBR of the original system, given the internal attacker’s computational power, when the parameter is 0.2 and 0.5 respectively. Fig. 2(a) demonstrates that when the computational power of the internal attacker(normalized) increases, the stale block rate of the original system also increases. The simulation result in Fig. 2(a) also indicates that the SBR of the original system is irrelevant to the parameter . This result confirms Lemma 2
Fig. 2(b) shows the shrinkage factor in the simulation. In this simulation, shrinkage factor is equal to . The more computational power is wasted due to the internal attacker’s attack, the less shrinkage factor is.
Besides, in theoretic the shrinkage factor can be calculated as where , and . Table I compares the shrinkage factor in the simulation and the shrinkage factor in theoretic. It indicates that the shrinkage factor is predictable in the external attacker’s view.
in the simulation  in theoretic  Error
0.25  0.81995  0.82000  0.00597%
0.29  0.79482  0.79479  0.00461%
0.33  0.76714  0.76718  0.00528%
0.37  0.73471  0.73478  0.00975%
0.41  0.69363  0.69336  0.03813%
0.45  0.63485  0.63431  0.08428%

V Existence of the external attacker
In this section, according to the results in former section, we will explain why the external attacker chooses to join this system after the internal attacker’s attack. In this section, the internal attacker will not change his strategy. And the external attacker launches a selfish mining attack.
Va Theoretical Analysis
Suppose that the external attacker is looking for a target cryptocurrency to attack. The external attacker is also tending to launch a selfish mining attack to the target cryptocurrency is he finds one. The external attacker infers the target system’s computational power through the increasing speed of the system’s main chain and its mining difficulty. Meanwhile, we make the assumption that the external attacker considers all the miners in her target system honest.
The external attacker, with the computational power and the target system with inferred computational power construct the multiattacker system with the total computational power . Similarly. we normalize the computational power of this multiattacker system. The fraction of computational power of the external attacker is: , and the fraction of computational power of the honest miner in the target system is: . Similar to the former section, we can calculate the probability that the external attacker is at a certain state:
(7)
The expected revenue of the external attacker is:
(8)
The expected revenue of honest miner in the multiattacker system is:
(9)
Lemma V.1
The external attacker will launch selfish mining attack to the target system if . And in terms of parameter , the computational power of the external attacker should satisfy:
Proof:
As is indicated in many works, the aim of a selfish miner is to increase his or her relative revenue. In the multiattacker system with the external attacker, his aim is . With and , we can derive the inequality . With the relationship: and the fact that can be considered as a constant in a specific cryptocurrency system for the external attacker, we derive .
Lemma V.2
The external attacker will launch the selfish mining attack to the original system which consists of internal attacker with computational power and the honest miner with computational power after the internal attacker’s attack if the external attacker’s computational power satisfies:
(10)
Proof:
With Lemma V.1, we know that if , the external attacker would start the selfish mining attack regardless whether the internal attacker has launched an attack or not. The external attacker has already set the original system as the target before the internal attacker launches attack. Similarly, if , from the external attacker’s perspective, even if the internal attacker launches selfish mining attack and weakens the computational power of the original system, the external attacker’s computation power is still not large enough. One special case is that . In this case, the external attacker’s expected revenue in the multiattacker system is equal to honest mining. This revenue is not large enough to motivate the external attacker to join the cryptocurrency system.
If we rewrite the inequality in terms of :
(11)
We can derive the upper bound and the lower bound of the external attacker’s computational power.
VB Quantitative Analysis and Simulation
In this section, we first consider two cases: In the original system, the parameter equals to 0.25 and 0.45. According to Table I, the theoretical shrinkage factor in these two cases is 0.82 and 0.63431 respectively. In Fig. 3(a) equals 0.25, and in Fig. 3(b) equals 0.45. In these two figures, Yaxis represents ratio of the external attacker’s computational power to the original system’s computational power. Compared with Fig. 3(b), in Fig. 3(a) the gap between the upper bound and the lower bound is narrower.
For each , there exists a specific lower bound for the external attacker. In the external attacker’s perspective, as long as the ratio of his computational power to the original system’s computational power is above the curve of lower bound, he can always gain extra revenue. This is a reasonable but unrealistic expectation since the external consider the original system as an honest entity.
To explain why the external attacker’s expectation is an unrealistic one, we simulate two specific cases. In the first case, the parameter equals to 0.25 which results in . We set the computational power of the external attacker as so that it will always satisfy the inequality when . After normalization, we get the computational power of the honest miner, the internal attacker and the external attacker in the first case which is , and respectively. In the second case, the parameter equals to 0.45 which results in . The external attacker’s computational power is set as . After normalization, we get the computational power of the honest miner, the internal attacker and the external attacker in the second case which is , and respectively. We use a Monte Carlo method to generate a blockchain with the height blocks and iterate for 100 times.
Fig. 4(a) shows the simulation result of the first case and demonstrates that the external attacker will not earn as much revenue as he expected. Here, we define relative revenue as where is the block reward of the external attacker, and represents the block reward earned by the internal attacker and the honest miner. The horizontal curve is the relative revenue that the external attacker will receive if he mines honestly. In the simulation with , the relative revenue of the external attacker is still higher than the relative revenue of the external attacker if he mines honestly.
Fig. 4(b) demonstrates that when , the external attacker’s relative revenue is even less than that of honest mining. Note that, the theoretical results predicted by the external attacker in the two cases are the same. From the external attacker’s perspective, the ratio of his computational power to the original system’s computational power is in both 2 cases.
Table II shows the difference between the relative revenue in external’s expectation and that in the simulation when . The result suggests that the external attacker cannot predict his block reward precisely before he launches the attack. The higher influence factor is in the external attacker’s prediction, the larger the gap is between the relative revenue in external’s expectation and that in the simulation. In this case, an error which is less than is acceptable for the external attacker since he can still earn some extra revenue by launching an attack.
Theoretical result  Simulation result  Error
0  0.33333  0.29441  11.67734%
0.2  0.35384  0.30996  12.40035%
0.4  0.37435  0.32504  13.17319%
0.6  0.39487  0.34063  13.73518%
0.8  0.41538  0.35655  14.16162%
1.0  0.43589  0.37355  14.30192%

Table III shows the difference between the relative revenue in external’s expectation and that in the simulation when . The error becomes unacceptable since it is lar/ower of the internal attacker can seriously affect the decision of the external attacker. When the internal attacker has a high computational power which results in a larger and a smaller shrinkage factor , the external attacker may launch an attack against the original system with the computational power which is far from enough.
Theoretical result  Simulation result  Error
0  0.33333  0.19036  42.89060%
0.2  0.35384  0.20056  43.31764%
0.4  0.37435  0.21361  42.93750%
0.6  0.39487  0.22163  43.871046%
0.8  0.41538  0.23104  44.376730%
1.0  0.43589  0.24120  44.664646%

Vi MultiAttacker System
The former section has indicated that the external attacker always overestimates his relative revenue before he launches an attack against the original system. The gap between the estimation of the relative revenue and the relative revenue in real case becomes more and more unacceptable for the external attacker when the internal attacker’s computational power becomes larger.
Similar to the external attacker, after the external attacker’s attack, the internal attacker’s relative revenue cannot meet his expectation either. In this section, we will demonstrate how the internal attacker notices the existence of the external attacker. We also infers the reasons that both external attacker and internal attack’s relative revenue do not meet their expectation. Further more, we presents some countermeasures for the internal attacker after he notices the external attacker.
Via The External Attacker’s Influence
We define three stage so as to demonstrate how much the internal attacker lose and how the internal attacker notices the existence of the external attacker.

Stage one: In stage one, the external attacker has not launched an selfish mining attack against the original system. The relative revenue of the internal attacker corresponds with the internal attacker’s expectation.

Stage two: In stage two, the external attacker launches the attack. The internal attacker notices the existence of external computational power, but he has not been aware that the external computational power is an attacker. According to the probability that the external computational power finds a block, the internal attacker can easily estimate the entity’s computational power. After normalization, the internal attacker’s computational power is in multiattacker system. The internal attacker makes a new expectation of his relative revenue according to the value of .

Stage three: In stage three, the internal attacker notices that his relative revenue is less than his expectation. This fact indicates that the external computational power is an attacker as well.
We conduct two specific cases to better illustrate the process for the internal attacker to notice the existence of the external attacker. To accord with the simulations in former sections, in the first case, parameter which results in . The computational power of the external attacker is so that after normalization, , and . In the second case, and . The external attacker’s computational power is so that , and . In the simulation of both cases, we use Monte Carlo method to generate a blockchain with blocks for 100 times.
Fig. 5(a) demonstrates the relative revenue of the internal attacker when in state one and stage two. In stage one, the theoretical result is approximately equivalent to the simulation result so that the internal attacker can precisely calculate his relative revenue in stage one. In stage two, the internal attacker has not noticed that the external computational power is also an attacker. He calculates a new expectation based on his new computational power . But at stage two, his expected relative revenue does not hold the relative revenue in the real case. Especially when , the expected relative revenue exceeds his relative revenue in the real case.
Fig. 5(b) demonstrates the relative revenue of the internal attacker when in state one and stage two. In this case, relative revenue of the internal attacker exceeds internal attacker’s expectation.
Table IV and Table V show that, in both two cases, there is a significant reduction of the original’s relative revenue from stage one to stage two. The reduction of relative revenue let the internal attacker be aware of the existence of the external computational power. In stage two, the difference between internal attacker’s relative revenue in real case and that in expectation let the internal attacker be aware that the external computational power is an attacker.
Stage two(real)  Stage two(Expectation)  Stage one
0  0.120  0.104(13.672%)  0.196(62.65%)
0.2  0.133  0.123(7.632%)  0.216(62.051%)
0.4  0.144  0.143(0.459%)  0.239(65.584%)
0.6  0.158  0.165(4.412%)  0.262(66.136%)
0.8  0.168  0.184(9.121%)  0.282(67.163%)
1.0  0.181  0.205(12.751%)  0.304(67.461%)

Stage two(real)  Stage two(Expectation)  Stage one
0  0.424  0.350(17.413%)  0.657(54.848%)
0.2  0.433  0.368(14.880%)  0.653(52.685%)
0.4  0.444  0.390(12.188%)  0.679(52.908%)
0.6  0.457  0.411(10.140%)  0.685(49.846%)
0.8  0.462  0.430(7.009%)  0.698(50.935%)
1.0  0.476  0.449(5.663%)  0.699(46.869%)

ViB Reasons for Both Attackers’ Loss
Both the external attacker and the internal attacker’s expectations of their RR differs from their RR in the real case. Even internal attacker’s expected RR in stage two is sometimes higher than his real RR in state two, there is a significant reduction of his RR from state one to stage two.
The external attacker and the internal attacker’s wrong expectations of their RR result from the fact that they use the basic attacking model with a single attacker to predict their RR. Some cases in the multiattacker system are not considered in attacking models with a single attacker.
ViB1 Competition between attackers
Competitions, or forks in the multiattacker system not only exist between one attacker(or both two attackers) and the honest miner, but also exist between the external attacker and the internal attacker. We define the competitions which include the honest miner as Type one and the competitions between internal attacker and external attackers as Type two.
Two type of competitions differ in how they are generated. Type one competition results from the action Match of the attackers and Type two competition results from action Override of two attackers. We present a simple case study to make it clear.

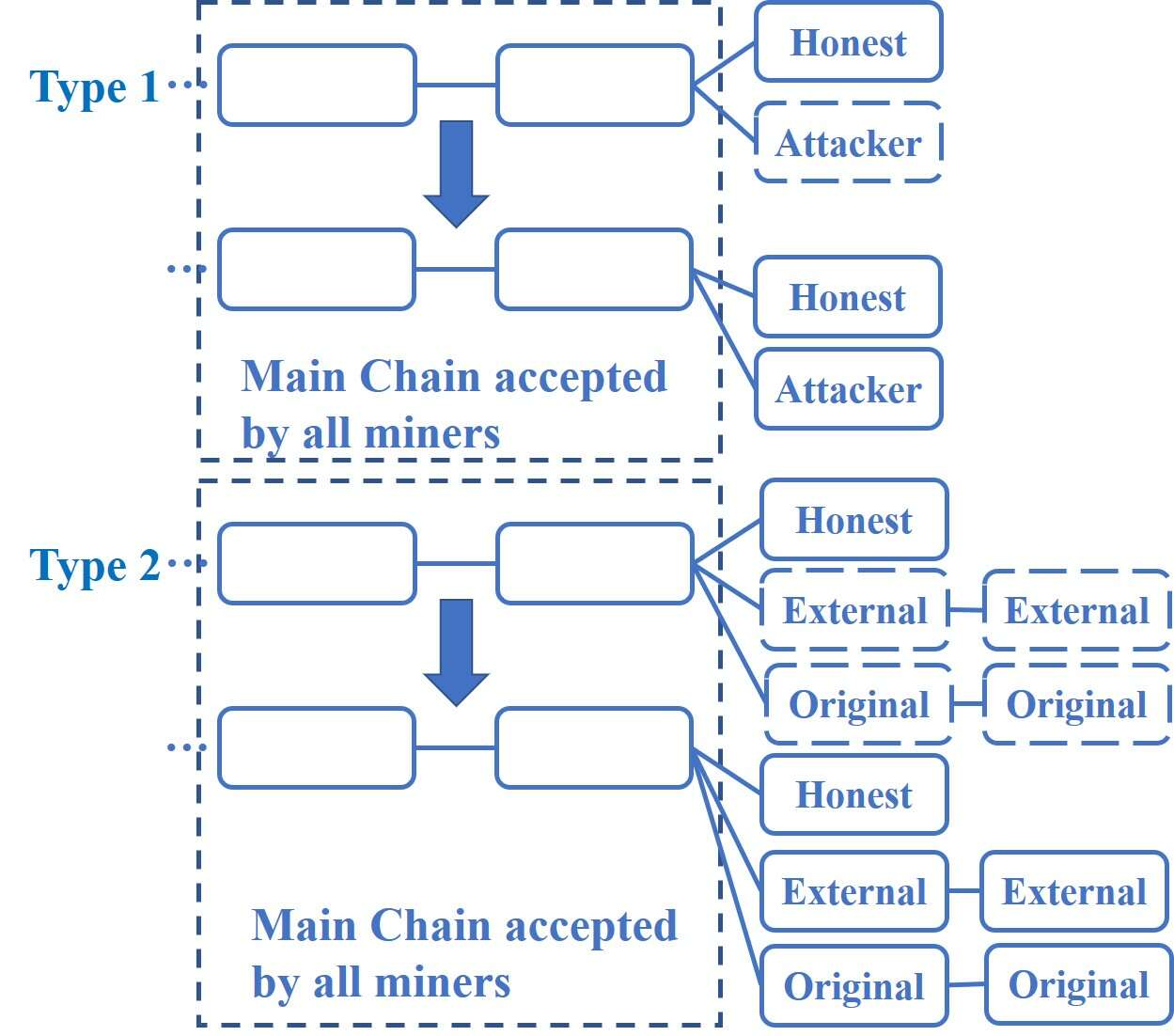

Fig. 6 demonstrates two specific cases of type one competition and type two competition respectively. The dash line in the figure means that the block is unreleased. In type one competition, the honest miner release a newly found block while one attacker(Either the internal attacker or external attacker) is holding a unreleased block. After receiving the block found by honest miner, The attacker takes action Match to generate a fork in the blockchain. In type two competition, the honest miner release a block while both two attackers have two unreleased blocks. Both attackers take action Override. Neither of them intends to form a competition in the blockchain, but a unexpected competition is generated.
Type two competitions are unexpected competitions. These competitions waste the attackers’ computational power since only one of the attackers’ released chain can be eventually accepted as the main chain by all miners. The blocks on another unaccepted chain are staled.
ViB2 Action Override made by another attacker
Unexpected competitions waste attacker’s computational power, but action Override made by another attacker harms the attacker more. In mining attacker models with a single attacker, it is unnecessary for the attacker to consider the risk that other miner will override his released chain. But in our model, both external and internal attacker have to worry about this risk.

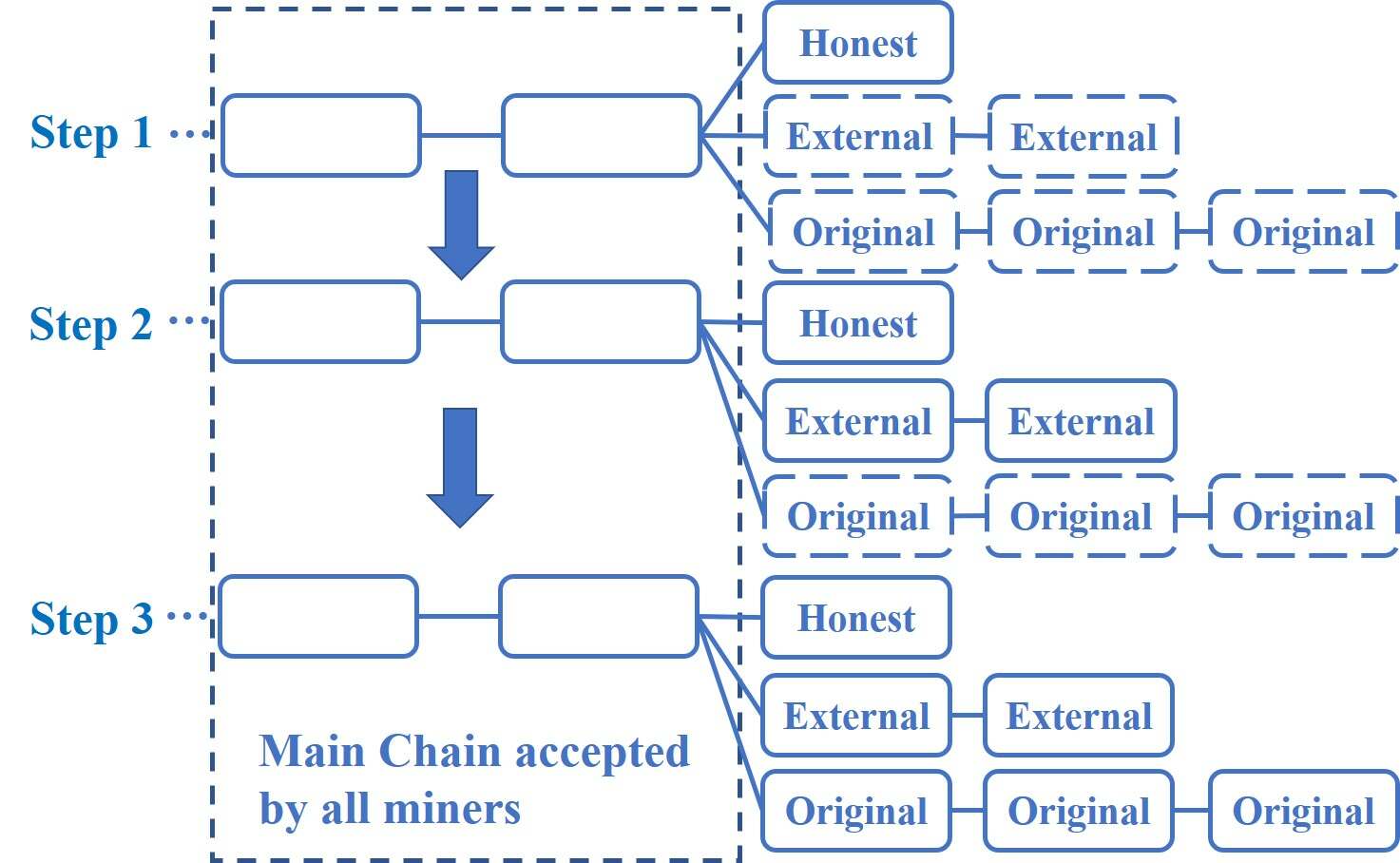

Action Override of another attacker can be described as the auction between external attacker and the internal attacker. Fig. 7 is the simplest case in which the auction between the attackers occurs. The dash line in the figure means that the block is unreleased. Suppose in step one, the external attacker holds two unreleased blocks and the internal attacker holds three unreleased blocks. The honest miner releases a newly found block. Suppose both attackers’ mining strategies are selfish mining. Then, in step two, the external attacker takes the action Override and the internal attacker takes the action hold since he has not received the blocks released by the external attacker yet. In step 3, the original received the blocks released by the external attacker. So he takes action Override as well.
In this case study, two of the external attacker’s blocks are staled and one of the honest miner’s block is staled. The external attacker’s loss is more than the loss of honest miner.
ViB3 Support from honest miner is split
Unexpected competitions and auctions are two reasons that attackers wrongly estimate their relative revenue. Besides, attackers’ influence parameters and are always overestimated by themselves.
When attackers estimate of and in former sections, they have not realized the existence of another attacker yet. Suppose the fraction of computational power of the honest miner affected by the attackers is . internal attacker and external attacker will estimate his influence rate as and .
Apparently, attacker’s overestimate of their influence rate is another factor that causes attackers’ wrongly estimation of their RR.
In our model, we calculate attacker’s real influence rate and based on the following three steps:

Denote the fraction of computational power of the honest miner affected by the attackers as . If there is a type two competition in the blockchain, .

If the competition is a type two competition, , and

If the competition is a type one competition, denote the computational power of all attackers involved in the competition as . If internal attacker is in the competition, and . Otherwise, and .
ViC Catfish Effect in Multiattacker System
Due to the existence of the external attacker, the internal attacker need to seek a better attacking strategy.
In section VI. B, we propose three reasons for the wrong expectation of the internal attacker and the external attacker. They are unexpected competitions, auctions between attackers and overestimation of influence factor.
For the internal attacker, auctions between attackers are inevitable because the external attacker’s state is unavailable to the internal attacker.
But the influence factor of the internal attacker can be increased. internal attacker’s overestimate of his influence factor only exists in the cases that both attackers are involve the competition. Note that a great part of these cases are unexpected competitions.

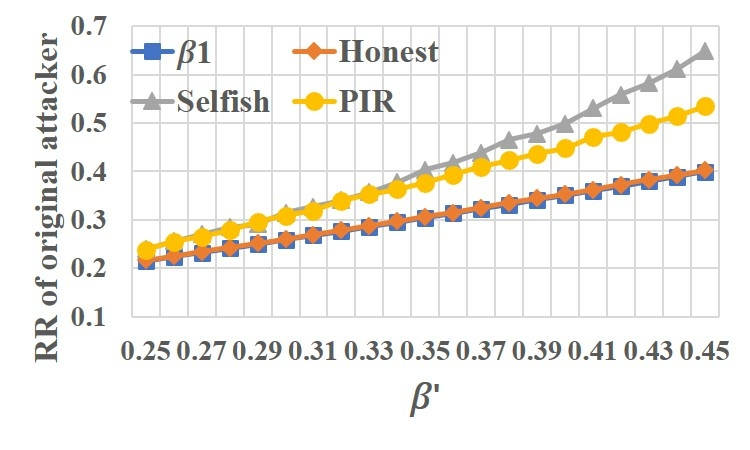

The countermeasures of the internal attacker can be considered as a mining strategy which reduces unexpected competitions and wastes other miner’s computational power.
ViC1 Mining Honestly
An interesting fact is that, mining honestly can be considered as an effective counter method. As mentioned in Section V. A, the upper bound of the computational power of the external attacker is . This upper bound ensures that even in the worst case in which the external’s computational power reaches its upper bound, the internal attacker can earn as much revenue as he deserves.
The internal attacker can avoid unexpected competitions by mining honestly. But he fails to waste the other miner’s computational power.
ViC2 Partial initiative release
We propose a new mining attack strategy: partial initiative release(PIR). PIR is designed for the mining attacker model with two or more attackers. Similar to selfish mining, PIR’s state transition is based on a state machine.
PIR is a strategy set which consists of {}. Fig. 8 is the state machine of . By demonstrating how works, we explain why PIR is suitable for multiattacker system.
When the internal attacker is at state , a block released by honest miner results in the internal attacker’s state transition from to . A block found by internal attacker himself results in the internal attacker’s state transition from to . In one round of multiattacker system, the probability that an honest miner finds and releases a block is , and the probability that the original miner finds a block is . When the external attacker finds the block in one round with probability , the internal attacker’s state does not change.
Different from state machine of selfish mining, the number of states is finite. In , the max state is three. When the internal attacker’s state is and he finds the next block, he will initiative release a block to ensure that his state does not exceed three. When the honest miner releases a block, the internal attacker will release all his three unreleased blocks. Since the internal attacker will take the action Release in some specific situation, we named this strategy as Partial initiative release.
cannot completely avoid unexpected competitions. For example, when the internal attacker takes action Override when and the external attacker happens to take action Override, an unexpected competition shows up.
But when and the honest miner releases a block, initiative releasing all three blocks can lower the probability of unexpected competitions. We explain how initiative releasing all blocks lowers the probability of unexpected competitions by three cases:

External attacker’s state is lower than three. The external attacker will take action Adopt which ensures that the released blocks of internal attacker can be accepted by all miners.

External attacker’s state is equal to three. the external attacker will take action Match. Consider the case that internal attacker takes action Hold instead of releasing all three blocks. An unexpected competition will occur if the honest miner finds and releases another block. In unexpected competition, the two attackers take action Override at roughly the same time so that the honest miner’s support is split. But when internal attacker initiative releases all three blocks and external attacker takes action Match, the blocks of internal attacker are released before external attacker’s. So most of the honest miners receive and accept internal attacker’s blocks. In this case, internal attacker gains more support from the honest miner.

External attacker’s state is greater than three. As is indicated in the former section, in this case, action Override made by external attacker is inevitable. But the external attacker’s Override prevents the internal attacker from wasting more computational power.
ViD Quantitative Analysis and Simulation
In this section, we analyze internal attacker’s countermeasures through simulations. We demonstrate when the internal attacker should take countermeasures and which countermeasure should be taken.
In the simulations of this section, we set as the variable. Meanwhile is chosen from the set . The shrinkage factor . For a more comprehensive explanation of the problem, we simulate the cases with and . The two values of is the upper bound and lower bound respectively in Fig. 3.Meanwhile, and . When is the upper bound, , and . When is the lower bound, , and .
ViD1 is the lower bound
We compare RRs of the internal attacker when he takes different mining strategies including selfish mining, honest mining and . We also present the curve of according to as the baseline. With , the internal attacker can earn extra revenue.

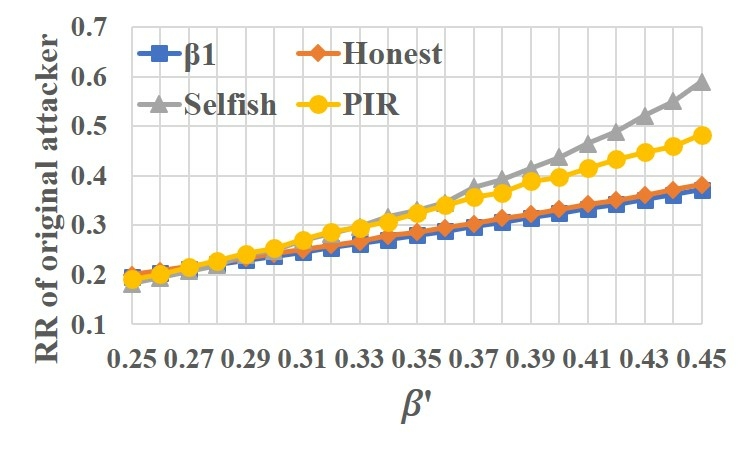

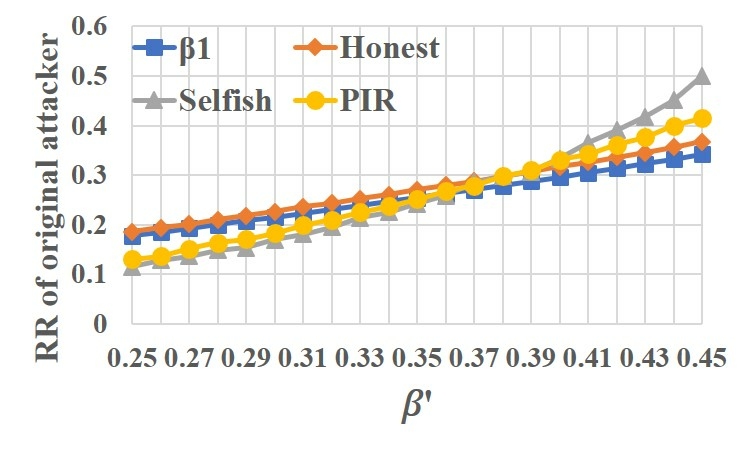

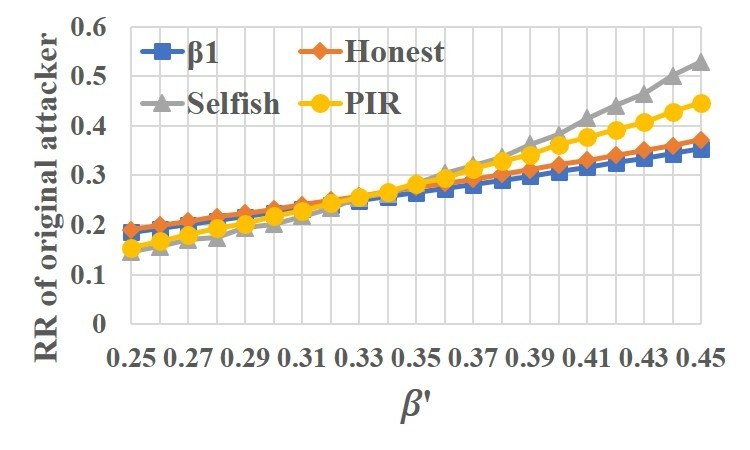

Fig. 9 demonstrates the internal attacker’s relative revenue when he takes different mining strategies including selfish mining, honest mining and . We consider and as low values while and as high values. In the four cases, when is high, selfish mining outperforms honest mining and . This result suggests that when is high, the internal attacker do not need to take any countermeasures. When is low and is low, honest mining is the best strategy and both selfish mining and is under the baseline. In the cases in which is low and is high, beats other mining strategies by a slight advantage. Table VI shows the best strategy among selfish mining, honest mining and
Low  High
Low  Honest mining
High  Selfish mining  Selfish mining

ViD2 is the upper bound
We compare RRs of the internal attacker as well when is the upper bound.

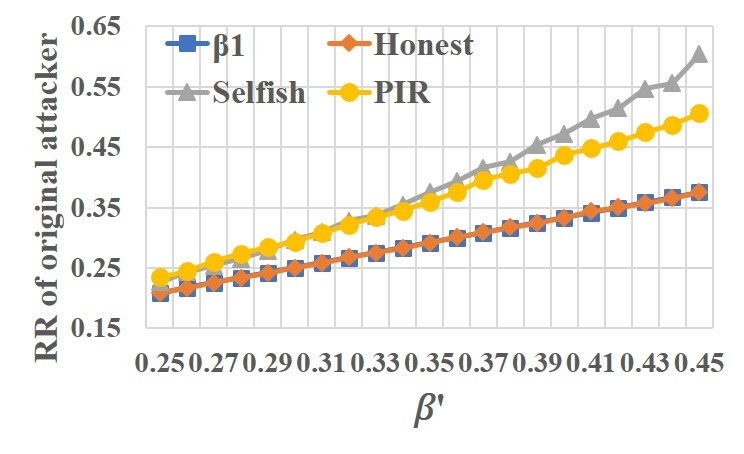

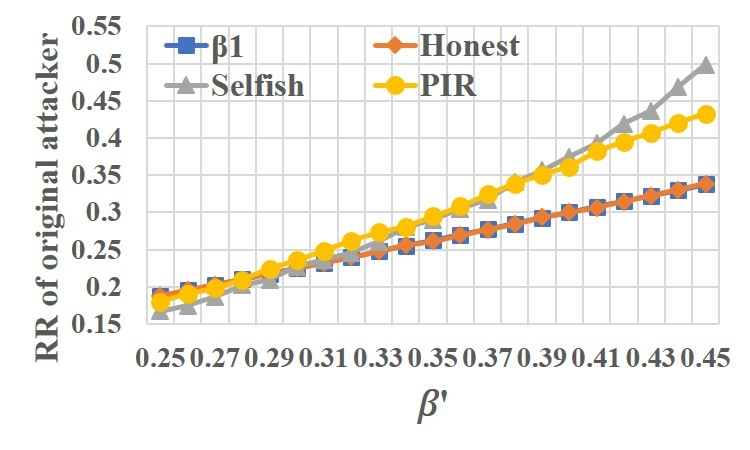

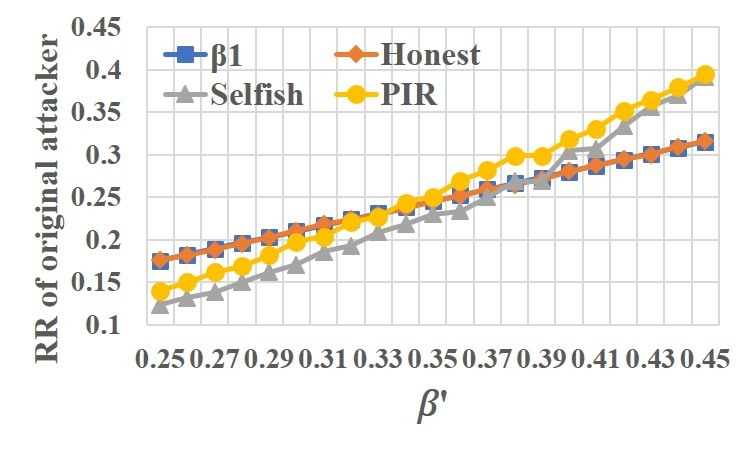

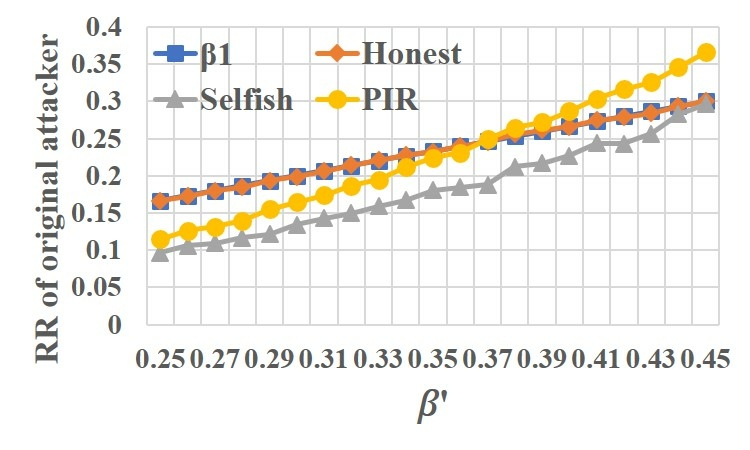

Fig. 10 demonstrate the internal attacker’s relative revenue when he takes different mining strategies including selfish mining, honest mining and . In the four cases, note that the curve of honest mining always coincides the baseline. When is at the upper bound, internal attacker can ensure that he can earn as many block rewards as he deserves by mining honestly. Table VII demonstrates the best strategy among selfish mining, honest mining and in different cases when is at the upper bound. Table VII differs from Table VI when is high and is low.
Low  High

Low  Honest mining
High  Selfish mining

Vii Conclusion
In this paper, we propose an attacking model in a proofofwork blockchain with an internal attacker and an external attacker. Our model consists of two phase: the original system and the multiattacker system. From our theoretic and quantitative analysis, we demonstrate the catfish effect between the internal attacker and the external attacker. The internal attacker has to improve his attacking strategy due to the threat brought by the external attacker. We propose an attacking strategy in multiattacker system named Partial Initiative Release (PIR). An interesting fact is that, mining honestly is another countermeasure of the internal attacker. Our simulation results shows that the original can select a mining strategy among PIR, honest mining and selfish mining based on the parameter , and .
References
 [1] S.Nakamoto,“Bitcoin: A peertopeer electronic cash system,” 2008.
 [2] I.Eyal and E. G. Sirer, “Majority is not enough: Bitcoin mining is vulnerable,” Communications of the ACM, vol. 61, no. 7, pp. 95102, 2018.
 [3] C. Decker and R. Wattenhofer, “Information propagation in the bitcoin network,” in proceeding of the 13th IEEE International Conference on PeertoPeer Computing, pp. 110, IEEE, 2013.
 [4] A. Sapirshtein, Y. Sompolinsky, and A. Zohar, “Optimal selfish mining strategies in bitcoin,” in proceeding of the International Conference on Financial Cryptography and Data Security, pp. 515532, Springer, 2016.
 [5] I. Eyal, “The miner’s dilemma,” in proceeding of the IEEE Symposium on Security and Privacy (S&P’ 15), pp. 89103, IEEE, 2015.
 [6] E. Heilman, A. Kendler, A. Zohar, and S. Goldberg, “Eclipse Attacks on Bitcoin’s PeertoPeer Network,” in proceeding of the USENIX Security Symposium, pp. 129144, USENIX, 2015.
 [7] A. Gervais, H. Ritzdorf, G. O. Karame, and S. Capkun, “Tampering with the delivery of blocks and transactions in bitcoin,” in proceedings of the 22nd ACM SIGSAC Conference on Computer and Communications Security, pp. 692705, ACM, 2015.
 [8] K. Nayak, S. Kumar, A. Miller, and E. Shi, “Stubborn mining: Generalizing selfish mining and combining with an eclipse attack,” in proceeding of the IEEE European Symposium on Security and Privacy, pp. 305320, IEEE, 2016.
 [9] A. Gervais, G. O. Karame, K. Wust, V. Glykantzis, H. Ritzdorf, and S. Capkun, “On the security and performance of proof of work blockchains,” in proceedings of the ACM SIGSAC Conference on Computer and Communications Security, pp. 316, ACM, 2016.
 [10] Y. Sompolinsky and A. Zohar, “Secure highrate transaction processing in bitcoin,” in proceeding of the International Conference on Financial Cryptography and Data Security, pp. 507527, Springer, 2015.
 [11] G. O. Karame, E. Androulaki, and S. Capkun, “Doublespending fast payments in bitcoin,” in proceedings of the ACM conference on Computer and communications security, pp. 906917, ACM, 2012.
 [12] M. Rosenfeld, “Analysis of hashratebased double spending,” arXiv preprint arXiv:1402.2009, 2014.
 [13] Y. Lewenberg, Y. Bachrach, Y. Sompolinsky, A. Zohar, and J. S. Rosenschein, “Bitcoin mining pools: A cooperative game theoretic analysis,” in proceedings of the International Conference on Autonomous Agents and Multiagent Systems, pp. 919927, International Foundation for Autonomous Agents and Multiagent Systems, 2015.
 [14] A. Miller, J. Litton, A. Pachulski, N. Gupta, D. Levin, N. Spring, and B. Bhattacharjee, “Discovering bitcoin’s public topology and influential nodes,” 2015.
 [15] S. Bag, S. Ruj, and K. Sakurai, “Bitcoin block withholding attack: Analysis and mitigation,” IEEE Transactions on Information Forensics and Security, vol. 12, no. 8, pp. 19671978, 2017.
 [16] N. T. Courtois and L. Bahack, “On subversive miner strategies and block withholding attack in bitcoin digital currency,” arXiv preprint arXiv:1402.1718, 2014.
 [17] H. Liu, N. Ruan, R. Du, and W. Jia, “On the Strategy and Behavior of Bitcoin Mining with Nattackers,” in proceedings of the 2018 on Asia Conference on Computer and Communications Security, pp. 357368, ACM, 2018.
 [18] Y. Kwon, D. Kim, Y. Son, E. Vasserman, and Y. Kim, “Be selfish and avoid dilemmas: Fork after withholding (faw) attacks on bitcoin,” in proceedings of the ACM SIGSAC Conference on Computer and Communications Security, pp. 195209, ACM, 2017.
