I Introduction

Fig. 1: Time lapse of drone trajectory during filming in photo-realistic environment. Since the left hand side is occupied, the drone switches from left to front and then right shot.

Aerial filming has invoked considerable attention within both large-scale drone companies and well-established research groups [1, 2, 3, 4]. Today, the accessibility of personal filming drones is vast. There are still a number of research problems in this area though: to create safer, more compact, aesthetically aware, user-friendly, and autonomous filming drones. In this work, we address aesthetical awareness of autonomous filming drones at the junction of well-known scientific problems such as motion planning of unmanned aerial vehicles in unknown environments, and motion forecasting of moving targets, i.e. humans, cars, bicycles.

Fig. 2: Our overall system flow merged into a generic RL diagram.

Current state-of-the-art methods for aerial filming generally require partial or complete trajectory inputs from an expert user. In the cases where complete trajectory inputs are required, the job of the expert pilot is intractable. He or she is required to solve a complex optimization problem intuitively on-the-fly by considering dynamic feasibility, collision avoidance, motion forecast of the actor, and visual aesthetics simultaneously. In the other cases where only high-level supervision or partial trajectory inputs are required by an expert user, the first two considerations may be circumvented, but the last two will still possibly remain to be optimized by the expert user. In this vein, we attempt to automate even this process by training a deep reinforcement learning (RL) agent with aesthetical awareness.

Deep RL has started revolutionizing many research areas in recent years. It has shown great success in accomplishing tasks which are substantially difficult to be hard-coded or planned in advance such as playing Atari games [5], Go [6] and learning dynamic motor skills for legged robots [7] or recovery maneuvers for multi-rotors [8]. Besides these tasks where a well-specified reward function is available, it has yielded promising results for the tasks for which designing a suitable reward function is non-trivial such as socially compliant robot navigation [9, 10]. While both classes of problems are already challenging enough to be solved, task success subjectivity makes the learning process even harder in some cases. In this regard, deep RL has also successfully incorporated human preferences (human reward functions) [11, 12] while achieving a higher level goal. Inspired by the competitive success of RL algorithms with hand-engineered and human reward functions in literature, we propose a novel, deep RL system for autonomous aerial filming by incorporating both hand-crafted and human reward functions in this work. We discuss their performance in capturing aesthetical values of video shots and yielding high-level supervision for motion planning of a filming drone.

We build upon our previous work [13] in which smooth and safe trajectories are generated in real-time using CHOMP [14]. In our previous motion planning pipeline, CHOMP is utilized to optimize the cinematographic trajectories considering obstacle and occlusion avoidance as well as smoothness. However, it needs a higher level input from the user, i.e., shot type, which defines the raw cinematographic path. CHOMP uses this path as a baseline while conducting trajectory optimization. In order to automate the overall filming process even further in this work, we attempt to train a deep RL agent which provides the shot type input intelligently, replacing the user input. Starting from no prior knowledge, the agent selects different shot types (action) for different situations (state) and observes their corresponding values (reward) based on certain aesthetical criteria. While these criteria are coded into a complex mathematical function considering widely-recognized cinematographic rules for the hand-crafted reward, they are solely humans’ aesthetical assessment in the case of human reward function. Using this retrospective knowledge enhanced over a number of trials, the agent explores a desirable policy which is able to replace external user inputs and supervise the whole filming process autonomously. The specific contributions of this work are:

  • A deep RL agent which supervises shot type selection for aerial filming.

  • Incorporating human preferences into aesthetical metrics.

  • A comprehensive user study to evaluate our method.

  • Real world tests with a filming drone.

The rest of this work is organized as follows: Section II discusses the previous related work. Section III explains our approach. Section IV introduces the systems used for experimental validation. Section V presents the results while Section VI evaluates and discusses them through a comprehensive user study. Lastly, Section VII states the conclusion.

Ii Related Work

Intelligent shot mode or viewpoint selection for aerial camera control borrows concepts from the disparate fields of virtual cinematography, aerial filming, human-preference learning, and learning artistic beauty. We go through each of these briefly in the next subsections.

Ii-a Arts and computer graphics

Camera control in virtual cinematography has been extensively examined by the computer graphics community [15]. These methods usually employ through-the-lens control where a virtual camera is manipulated while maintaining focus on certain image features [16, 17, 18, 19]. Artistic features for camera control follow different empirical principles known as composition rules [20, 21].

Several works analyse the choice of which viewpoint to employ for a particular situation. For example, in [17], the researchers use an A* planner to move a virtual camera in pre-computed indoor simulation scenarios to avoid collisions with obstacles in 2D. More recently, we find works such as [22] that post-processes videos of a scene taken from different angles by automatically labeling features of different views. The approach uses high-level user-specified rules which exploits the formerly labeled features in order to automatically select the optimal sequence of viewpoints for the final movie. Besides, [23] helps editors by defining a formal language of editing patterns for movies.

Ii-B Autonomous aerial cinematography

We also see works specific to aerial cinematography using unmanned aerial vehicles. For example, [4, 24, 25, 26] focus on key-frame navigation, filming static landscapes or structures. [27] also touches the idea of image key-frames, which are defined by a user using through-the-lens control instead of positions in the world frame.

Another line of work on aerial filming focuses on tracking moving targets in dynamic contexts. For example, [1, 2, 3, 13, 28] present different approaches with varying levels of complexity in terms of obstacle and occlusion avoidance as well as real-life applicability.

Ii-C Making artistic choices autonomously

A common theme behind all the work presented so far is that a user must always specify which kind of output they expect from the system in terms of artistic behavior. If one wishes to autonomously specify artistic choices, two main points are needed: a proper definition of a metric for artistic quality of a scene, and a decision-making agent which takes actions that maximize this quality metric.

Several works explore the idea of learning a beauty or artistic quality metric directly from data. [29] learns a measure for the quality of selfies; [30] learns how to generate professional landscape photographs; [31] learns how to transfer image styles from paintings to photographs.

On the action generation side, we find works that have exploited deep reinforcement learning [5] to train models that follow human-specified behaviors. Closest to our work, [12] learns behaviors for which hand-crafted rewards are hard to specify, but which humans find easy to evaluate.

Our work, as described in Section III, brings together ideas from all the aforementioned areas to create a generative model for shot type selection in aerial filming drones which maximizes an artistic quality metric.

Iii Approach

Iii-a Learning objectives

The main aim of the deep RL agent is to supervise motion planning of a filming drone intelligently by selecting desirable shot modes or viewpoints at the right time. The agent is expected to create desired shot type sequences while satisfying the following conditions:

  • The actor is in view and within desired shot angle limits.

  • The overall video sequence switches shot directions to not only show one side of the actor and keep the shot interesting.

  • The drone does not crash into obstacles.

  • Other implicit human sense of aesthetics is complied.

Iii-B RL Problem Formulation

The main challenge in applying RL successfully in real-world scenarios is to formulate the problem in such a way that the agent is able to derive useful representations of the environment and it is able to exploit these to generalize to new situations using an informative feedback, i.e., reward. In this vein, the proposed approach can be examined in three folds, each referring to the main elements of RL, i.e., state, action, and reward.

Iii-B1 State

In the proposed approach, state (s) is formulated to have three elements: a 2.5D local height map around the actor, current shot type, and repetition count for the current shot. The 2.5D map around the actor gives insight into obstacles close to the actor and paths the actor is likely to take based on obstacle locations. It is an informative representation of the local environment which is composed of a gray scale image in which each pixel has a value governing the highest obstacle occupying that grid. Alongside its informativeness, it is compact enough to be fed into deep Q-network (DQN) easily. It is represented as a 2424 matrix containing values between 0 and 255.

Current shot type is included in the state definition in order to provide a grasp of favorable switching between different modes. That is, although a particular shot type works the best for a given situation, direct switching to that mode from the agent’s current shot mode may be undesirable due to a difficult transition in between considering the control effort for the drone. While the shot types available in today’s filming drones have a variety such as left/right, front/back, orbit, high pan, fly-through, etc., we focus on the four basic types in this work: left, right, front and back shot. Current shot type information is coded as one-hot vector in order to be fed to DQN easily.

Repetition count for the current shot is a number which states how many times the current shot type is repeated without switching to the other shots in the preceding time steps. Since keeping the same shot type for a long duration would possibly be undesirable from the cinematographic perspective, this number provides insight on whether the shot stagnates so long where it might become boring. Before this number is fed to the DQN it is normalized to a value between 0 and 1.

Iii-B2 Action

Action is the shot mode that the agent selects at the beginning of each time step. Similar to the current shot type element of state, our action space is composed of four different shot modes, i.e., left, right, front, and back. Each shot mode selection results in a new desired cinematographic path for our low-level planning algorithm (CHOMP) at each time step. The essential aim of the agent is to explore the desirable shot mode sequences in a given situation to maximize the sum of the rewards.

Iii-B3 Hand-crafted reward

Hand-crafted reward is designed based on aesthetical cinematography rules. While some of these rules might be subjective and may depend on the context, some of them, such as actor’s presence ratio in the frame, are fairly objective and well-applicable to a majority of filming scenarios. The beauty of the second group of qualitative rules is that they can also be mathematically formulated and included in the reward function. In this work, we focus on three of them, namely, actor’s presence ratio in the shots, shot angle, and current shot type duration.

Actor’s presence ratio yields an instructive feedback on both whether the actor is occluded in the video and whether the actor is too far from or too close to the camera. It is an essential aesthetical measure together with shot angle, especially in the context of personal filming drones whose aim is to track the owner and shoot the video. Current shot type duration, on the other hand, is another aesthetical measure which helps in assessing whether the overall shot is too calm with long durations of the same shot types or it is too dynamic with frequent switching between different shot types.

While calculating the reward, we first consider the actor’s presence ratio and shot angle for each image taken in the current time step (6s). We set the ‘best’ presence ratio and shot angle which would yield the highest reward, if achieved. Then, given an image, we calculate the reward by linear decaying from the highest possible reward via considering the deviation of these two values from their ‘best’. In addition, we set upper and lower boundaries for these two values beyond which an artistic punishment is given for the image. Mathematically, these two criteria are utilized to calculate sub-rewards for each image as follows:

(1)

where and represents sub-rewards for presence ratio and shot angle. The term is the possible maximum reward which is set to 1, and is the artistic punishment given if the boundaries of these criteria are exceeded, and it is equal to -0.5 in this work. If the values for both criteria are within the boundaries, then the weighted average of and forms the reward for the image of interest. Otherwise, the reward for the image is equated to .

Once the sub-rewards for each image are calculated, they form the overall reward for the current time step . Firstly, the average of all the rewards obtained for all the images within a time step is calculated. Then, it is discounted by current shot mode duration as in the following:

(2)

where is the repetition count for the current shot and is the optimal value for repetition amount. Afterwards a collision check is incorporated into the reward function in order to avoid dangerous movements of the drone in dense environments. If a collision is detected during the current time step, all aforementioned calculations are discarded and a collision punishment () of -1 is given as the reward. Otherwise, the reward is assigned as the value obtained from the previous calculations.

Iii-B4 Reward from human preferences

Because it might be questionable to define aesthetical values in a mathematical reward function precisely, we test a second training approach where the reward is directly generated by the human perception of aesthetics (Fig. 3

). We use the same training pipeline with the same hyperparameters for our human reward training as for all our other training sessions. The only difference being that the reward given during training is not delivered by a mathematical function, but by humans rating the shot quality of the scene on-the-fly. During training, multiple people from our lab constantly rate the observed camera image. Every time step (6s), the rating person is asked to give an evaluation from 1 to 5 stars for shot quality, or 0 for a collision. This rating is mapped linearly to a reward ranging from -0.5 to +1, and -1 for a collision, respectively. The range of rewards resembles the possible rewards from our hand-crafted reward configuration.

Iii-C Algorithmic Details

The essential idea behind the use of DQN is to estimate the highly complex action-value function

which yields the value of an action taken on a particular state considering its long-run gains for the agent. It is formally defined as:

(3)

where is the current state and is the action taken. The terms and are the next state which agent reaches and the reward it observes, respectively. The term is the discount factor which determines the present value of future rewards [32].

The DQN considered in this work is composed of fully connected neural networks which fuse three different inputs in three main lanes. The architecture is depicted in detail in Fig.

4

. Three inputs (2.5D local map, current shot type, repetition count for the current shot) are first fed through three different lanes separately. Then, they are combined in a single lane which eventually yields the Q values for each action. All consecutive layers are fully connected to each other, and all of them applies ReLU (rectified linear unit) except the very last layer. We train this network using Adam optimizer

[33]

with default settings in PyTorch. We use Huber loss

[34] for creating the gradient for the parameter update:

(4)

The variable is a data sample indice within a minibatch,

is a constant which determines the steepness of the piece-wise loss function and it is equal to 1. The terms

and are the target and estimated values for the network with parameters where stands for episode number. The pseudocode for overall training using experience replay (ER) is given in Algorithm 1.

Fig. 3: Training pipeline with human in the loop.
Fig. 4: DQN architecture.
  for i in episodes do
     observe state
     for t in timesteps do
        take action governed by -greedy policy
        observe state and reward
        save data sample (,,,)
         :=
        update experience replay (ER) with the new data
     end for
     if i min episodes for update == 0 then
        divide ER into random minibatches of size
        for j in minibatches do
           apply = + (,; )
           update DQN weights by ( - (,; ))
        end for
     end if
  end for
Algorithm 1 Pseudocode for training DQN.

Iv System

Iv-a Simulation

We train our agent exclusively in simulation. The environment we use for training is the Microsoft AirSim ([35]). AirSim is an open source simulation environment for drones and cars that is based on the games engine Unreal Engine. It offers the ability to simulate highly realistic conditions, especially for aerial vehicles.

Iv-A1 Artificial Worlds

We train our agent in different types of artificial world settings. In our simple block environment, the actor is walking on a path with alternating blocks on the left and right side in varying heights and lengths (Fig. 6, left).

Our second artificial training environment is a much larger map that is separated into three distinguishable areas: a slightly more complex block area, an area with two parallel rows of pillars, and an area with mountain-like structures (Fig. 6, middle). In contrast to the former simple block environment, the block section of the larger map features varying sizes of corridors, more different block shapes, and better possibilities for traversing in multiple directions. This section is created to resemble a city landscape.

The column section features two rows of lean pillars in varying heights. In contrast to the block section, the obstacle shapes are much slimmer.

(a) simple block world environments.
(b) bigmap environment; from left to right: block section, pillar section, mountain section.
Fig. 5: Heightmaps of artificial environments.show one shot of 3d view? the script on the right side is not visible, move them to the bottom?
Fig. 6: Height maps and screenshots of AirSim environments. Actor routes: red: block world training route, blue: block world test route 1, green: block world test route 2, yellow: bigmap long route, orange: neighborhood training route, purple: neighborhood test route.

The mountain section features three rows of mountain-shaped structures. All mountains are similar in shape and modeled after a real world drone testing environment near Pittsburgh. The exact height and shape of the mountains are randomly created within a predefined range.

There are four training routes that the actor can walk along in the larger environment: through the block section, through the pillars, in between the mountains, and a large route through the whole map. We also let the actor walk randomly over the map (‘roaming’). In this mode, the actor randomly selects a point on the map and takes the shortest route towards that point. Afterwards, the actor randomly chooses the next point.

(a) Height map of photo-realistic
neighborhood environment.
(b) Time lapse of drone trajectory
during filming in photo-realistic environment.
Fig. 7: Photo-realistic environment.change the height map to 3d view?

Iv-A2 Photo-realistic World

To showcase scenarios closer to real world environments, we also train our agent in a slightly modified version of the ‘Neighborhood’ environment by Unreal Engine (Fig. 6, right). This environment offers a photo-realistic simulation of a suburban residential area that could act as the place of a movie scene. We create an actor trajectory along streets, houses, bushes, trees, and cars to have a variety of obstacles that could interfere with the drone. We also make use of the roaming approach for training again.

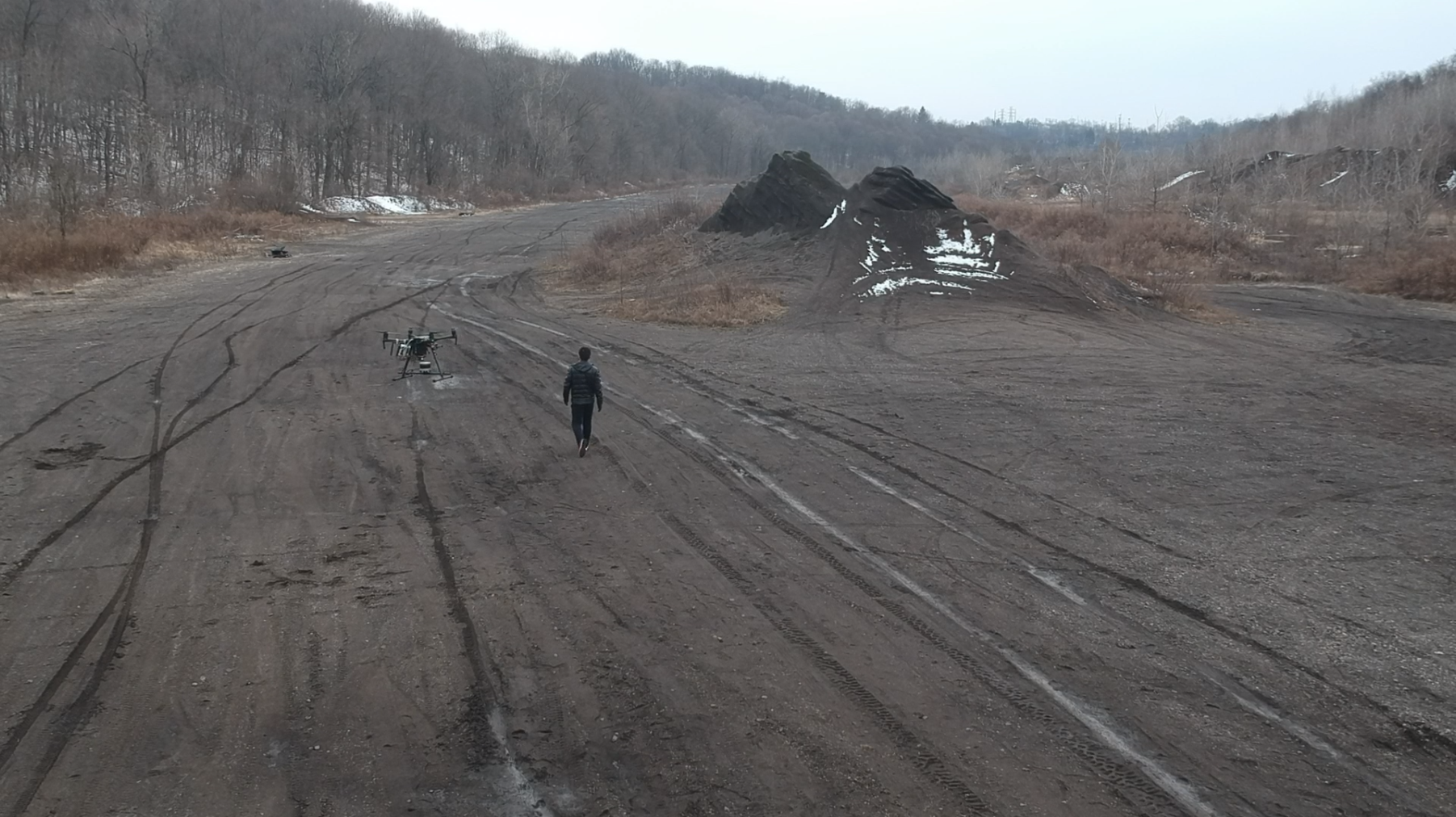

Fig. 8: Real robot with its on-board sensors on the left and in action in the test facility on the right.

Iv-B Hardware

We train our agent exclusively in simulation. However, for testing, we deploy our algorithm in real world conditions. Our platform is a DJI M210 drone, shown in Fig. 8. All processing is done with an NVIDIA Jetson TX2 computer, with 8GB of RAM and 6 CPU cores. An independently controlled gimbal DJI Zenmuse X4S records high-resolution images. We operate in pre-mapped environments, for which we generate a height map that is later cropped locally and used as one of the inputs for the network.

Our pre-mapped testing facility near Pittsburgh, PA has a heap of rubble that is used as the obstacle for the experiments.

V Results

For the purpose of presenting training and testing results, we consider 5 consecutive time steps (each with a duration of 6s) per episode. Therefore, each episode entails 5 decision points and 30 seconds of filming. Training is performed over 300-2000 episodes, depending on the complexity of the environment and the length of the training route.

V-a Hand-crafted reward

V-A1 Artificial worlds

We train the agent in our simple block world for 300 episodes (Fig. 10). This environment offers a decent opportunity to evaluate the performance of the trained agent as it has a clear pattern of blocks that the drone can avoid. Our agent performs significantly better than a random policy in the training environment, as well as in the two previously unknown testing environments (Table I). Our agent is able to achieve all goals that it was supposed to learn:

  • It keeps the actor in view by preferring 90 shot mode switches (i.e., from left to back or front) to 180 switches (i.e., from left to right), which often lose sight of the actor.

  • It switches shot types regularly to keep the shot interesting.

  • It avoids flying above obstacles to keep the shot angle in desirable limits.

  • It avoids extremely high obstacles which might pose a threat of crashing.

It achieves these goals both in the training map and in the testing maps.

training map test map 1 test map 2
random policy -0.0061 0.0616 0.0308
trained policy 0.3444 0.3581 0.3662
TABLE I: Average rewards per time step for testing in block world environment.

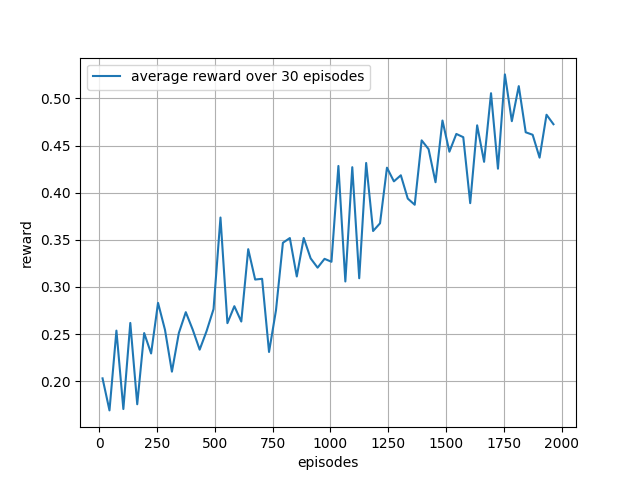

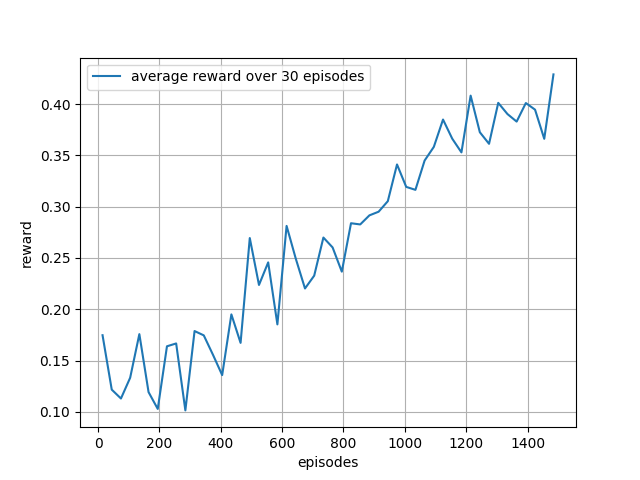

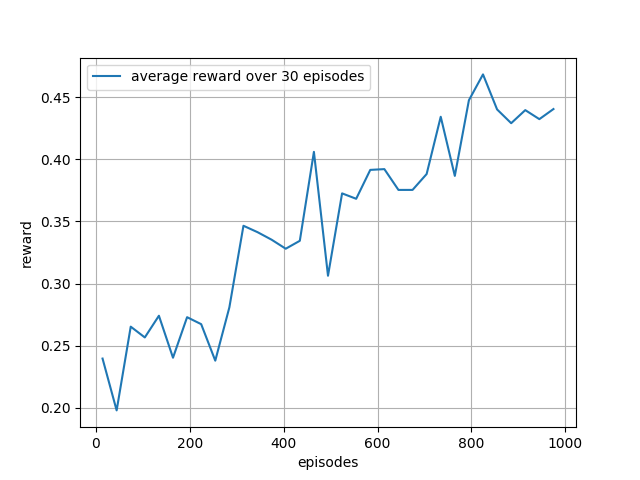

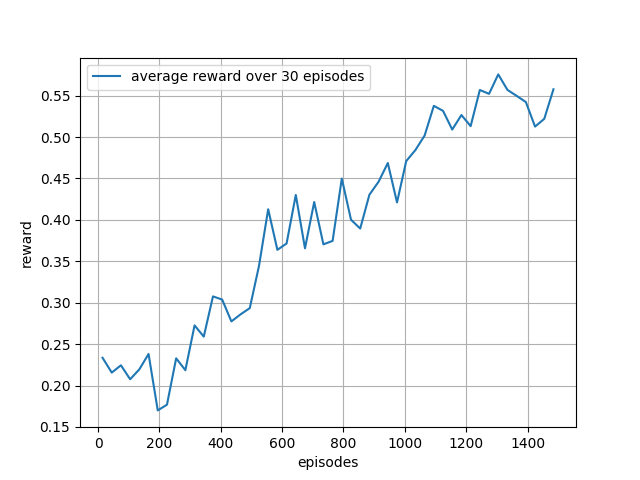

Fig. 9: Plots of rewards during training in an artificial world setting. (Left to right) Top row: Block world, bigmap - mountain section, pillar section. Bottom row: Bigmap - block section, roaming, long route. the legend and axis label in the figure are not visible, what is the difference between these 6 plots? maybe just showing 2 is enough? The caption of the figure is not clear

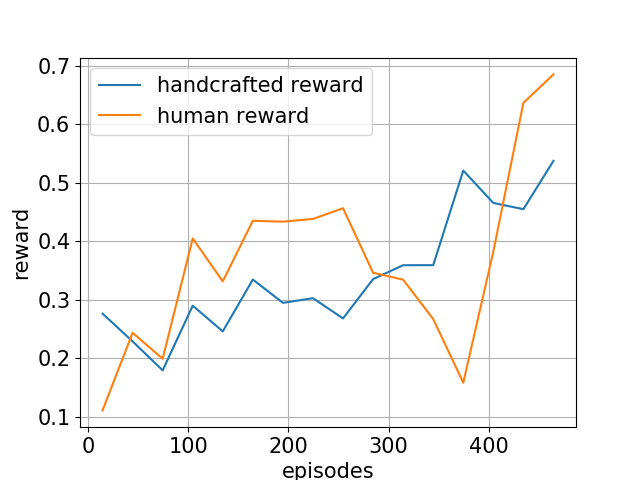

Fig. 10: Reward curves during training for hand-crafted reward and human reward (30 episodes grouped to one data point). left: block world, right: neighborhood.

In our second artificial training environment (bigmap), we train our agent in different sections of the map in a range of 1000-2000 episodes, depending on the complexity of the section and the length of the training route (pillar section: 1000 episodes, block and mountain section: 1500 episodes, long route and in roaming mode: 2000 episodes).

mountain mountain block pillar long
route route 2 route route route
random policy 0.2931 0.1531 0.1203 0.2319 0.1944
mountain policy 0.5908 0.5966 - - -
block policy - - 0.3957 - -
pillar policy - - - 0.4687 -
long route policy - 0.5432 - - 0.5052
roaming policy - - - - 0.4794
TABLE II: Average rewards per time step for testing in bigmap environment. right format for the table? Not clear about the difference between those policies

The result of our training is shown in Table III. In all routes, a significant increase of rewards over a random policy can be noticed. Even around more complex structures like mountains, our agent satisfies our goals of keeping the actor in view, keeping the shot within the desired shot angle limits, switching shot type for an interesting scene, and avoiding high obstacles due to the danger of crashes. Only in the pillar section of the environment, the trained policy is not able to avoid occlusions. This is a result of our reward function not punishing short occlusions very harshly. Due to the thin, cylindrical shape of the pillars, the agent will only be occluded for very short time frames, thus the rewards are still acceptable.

V-A2 Photo-realistic world

In our photo-realistic neighborhood environment, we train our agent on a fixed training route for 500 episodes (Fig. 10) and in roaming mode for 2000 episodes.

(a) Long route.
(b) Roaming.

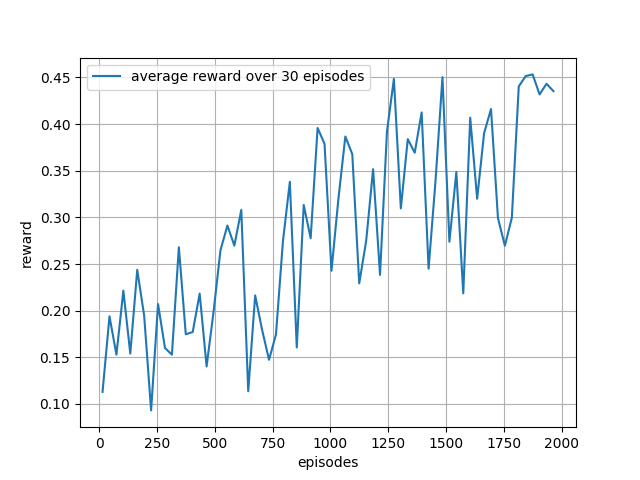

Fig. 11: Plots of rewards during training in a photo-realistic neighborhood setting. the plots do not convey extra info, combine these with figure 7, draw two dashlines showing the reward of a random/backward policy for comparison?
mountain block pillar long
route route route route
random policy 0.2654 0.1203 0.2319 0.1944
trained policy 0.5908 0.3957 0.4687 0.5052
TABLE III: Average rewards per time step for policies trained in bigmap environment. All policies are tested on their respective training route.
neighborhood test route
random policy 0.2047
big map long route policy 0.5760
big map block section policy 0.4638
neighborhood training route policy 0.5882
neighborhood roaming policy 0.5546
TABLE IV: Average rewards per time step for testing in neighborhood environment.

Our results in the photo-realistic environment (Table IV) show that our agent is capable of handling real world scenarios. While the policy trained on the training route of the neighborhood environment performs best, the policy trained on the long route in the bigmap environment gets surprisingly close, confirming a successful generalization from an artificial map to a realistic environment. The policy trained solely in the block section of bigmap performs significantly worse, despite the idea of the blocks resembling the shapes of houses. It seems like the policy overfits to the block shape and can not handle different shapes like trees and houses with sloping roofs.

V-A3 Real world

To test our trained policy in a real world setting, we implement our shot selection algorithm on the aforementioned DJI M210 drone. We test the algorithm around a heap of rubble in the Gascola region near Pittsburgh, PA (Fig. 8). For the testing procedure, we deploy a DQN which was previously trained in the mountain section of the bigmap environment. We shoot 3 video clips comparing 3 different drone filming policies:

  • our trained policy

  • a policy that stays exclusively in the back of the actor

  • a policy that selects an action randomly

Our trained policy is able to transfer the learned objectives to the real world environment. It chooses shot modes based on the environment, the heading of the actor, and the current drone position relative to the actor. The shot selection follows all previously learned principles to form a smooth, occlusion-free, and interesting film scene. Our algorithm performs in real time. A forward pass through the network to select the next shot takes 10ms.

The random policy and the back shot policy serve as a reference for the shot quality. Neither of these policies result in a satisfactory video clip. The back shot policy produces a very stable, but also unexciting shot while the random policy results in a lot of turbulent drone movements that lose sight of the actor multiple times. Only the trained policy is able to produce a satisfactory video clip.

V-B Reward from human preferences

Visual aesthetics are subjective and difficult to define through a mathematical function. Therefore, we compare the results of our hand-crafted reward policy to the results of a policy trained through human reward. Since the amount of time and effort which the participants can dedicate are limited, this training is only performed in two maps, the simple block world and the neighborhood environment for 300 episodes and 500 episodes, respectively (Fig. 10). The valleys in the reward curves are caused by different human raters having different subjective evaluations of the quality of a shot. While the reward curve is not as steadily increasing as in the previous training sessions, the final reward and the difference to the initial reward are a lot higher, indicating a strong increase in knowledge. To get a numerical evaluation of the human trained policies and compare them to our previous policies, we conduct a user study.

Average Scene 1 Scene 2 Scene 3 Scene 4 Scene 5
hand-crafted 8.2 10.0 5.3 9.3 7.7 8.7
human 7.1 5.0 9.0 6.0 7.7 8.0
back shot 3.8 4.0 4.7 4.3 4.0 2.0
random 0.9 1.0 1.0 0.3 0.7 1.3
TABLE V:

Average score of video clips in the user study (from 0: worst to 10: best) via linear transformation from average rated position.

V-C User study results

In the user study for evaluating drone filming policies, we ask 10 participants to watch video clips taken by different policies and to order them as well as to write a short comment about each clip. We use 4 different policies to create the video clips:

  • our policy trained using the hand-crafted reward function

  • our policy trained by human preferences

  • a policy that always stays in the back of the actor

  • a policy that selects actions at random

This way, we can compare both of our own policies to each other as well as to two baseline policies. The back shot policy takes the role of the safe option that can film the actor in almost any situation without having occlusion problems. The random policy is there as a sanity check to ensure that our trained policies are performing better than arbitrary actions.
During the study, we present participants with a total of 5 scenes, two from the simple block world environment and three from the neighborhood environment. The scenes are selected based on interesting obstacles. None of the scenes were previously encountered by either of the trained policies. For the simple block world environment, the policies are trained for 300 episodes in the training map and the video clips taken in the first testing map. For the neighborhood environment scenes, we train our agent for 500 episodes on the neighborhood training route. The scenes are chosen from different parts of the map not featured on the training route.

For each of the scenes, participants watch four 30s-video clips, one for each policy. The order of the video clips is randomized. After each scene, participants are asked to order the clips from ‘most visually pleasing’ to ‘least visually pleasing’ and to write a short comment for each clip.

The results of the user study are shown in Table V.

Vi Discussion

Our user study showcases that both our trained policies, one with a hand-crafted reward function and one trained through rewards via human input, perform a lot better than a random policy or one that only stays in one shot mode. Video clips from both policies are consistently rated the two highest in different environments on sceneries that were previously unknown to them. While the hand-crafted reward policy performs slightly better on average, participants opinions are very divided in some cases.

The stated comments offer insight into the ranking of the four policies and human evaluation of drone filming aesthetics:

  • All participants criticize the back shot policy as ‘boring’ or ‘unexciting’.

  • All participants mention that the random policy loses view of the actor too often.

  • The most common complaint is that the actor gets out of view.

  • There is a small window of how often the view angle should change. Many participants complain about too few changes, when only one shot angle change is performed. On the other hand, many participants criticize too much camera movement in a scene where the drone switches every time step.

  • Participants frequently mention that they would like to get an overview of the surrounding instead of just seeing the actor in front of a building or a wall. When the drone gives multiple fields of view around the actor by switching the shot angle, this is positively remarked.

  • The hand-crafted reward policy is often described as the most exciting while the human reward policy is described as very smooth.

The main difference between the hand-crafted reward policy and the human reward policy is the consistency of switching shots. Our hand-crafted reward function leads to a policy that tries to switch exactly every 2 time steps (12s), if not disturbed by an obstacle. Based on the user study results, this seems to be a relatively favorable time frame that achieves not being too boring while still giving enough time to get a good impression of the scene. The human reward policy is less consistent and switches the shot type more irregularly. We assume that an optimal switching frequency depending on the surrounding environment can be learned by more human training data input. Another interesting result of the study is that losing the view of the actor, even for a very short moment, is always rated as being very poor by the participants of the study. No policy that loses sight of the actor at any point is rated the highest in any scene. This leads to the conclusion to punish a loss of view of the actor even more harshly for future training episodes.

Vii Conclusion

In this work, we present a fully autonomous drone cinematographer that follows a moving actor while making intelligent decisions about the shot type in real time. These decisions are based on previous experience, gained during training via deep reinforcement learning with a hand-crafted as well as a human-generated reward function. Our approach works robustly in realistic simulation environments as well as in real world tests on a physical drone and successfully generalizes to previously unseen environments. The decisions about the shot direction acknowledge the environment around the actor and follow cinematographic principles such as occlusion avoidance, flat shot angles and frequent camera angle switches. Our user study confirms that our trained policies satisfy the human sense for aesthetics and offers insight into possible future improvements of the algorithm.

Acknowledgment

We thank Cherie Ho, Weikun Zhen, and Greg Armstrong for the assistance in field experiments and robot construction.

References

  • [1] Q. Galvane, J. Fleureau, F.-L. Tariolle, and P. Guillotel, “Automated cinematography with unmanned aerial vehicles,” arXiv preprint arXiv:1712.04353, 2017.
  • [2] T. Nägeli, L. Meier, A. Domahidi, J. Alonso-Mora, and O. Hilliges, “Real-time planning for automated multi-view drone cinematography,” ACM Transactions on Graphics (TOG), vol. 36, no. 4, p. 132, 2017.
  • [3] Q. Galvane, C. Lino, M. Christie, J. Fleureau, F. Servant, F. Tariolle, P. Guillotel et al., “Directing cinematographic drones,” ACM Transactions on Graphics (TOG), vol. 37, no. 3, p. 34, 2018.
  • [4] C. Gebhardt, S. Stevsic, and O. Hilliges, “Optimizing for aesthetically pleasing quadrotor camera motion,” 2018.
  • [5] V. Mnih, K. Kavukcuoglu, D. Silver, A. A. Rusu, J. Veness, M. G. Bellemare, A. Graves, M. Riedmiller, A. K. Fidjeland, G. Ostrovski et al., “Human-level control through deep reinforcement learning,” Nature, vol. 518, no. 7540, p. 529, 2015.
  • [6] D. Silver, J. Schrittwieser, K. Simonyan, I. Antonoglou, A. Huang, A. Guez, T. Hubert, L. Baker, M. Lai, A. Bolton et al., “Mastering the game of go without human knowledge,” Nature, vol. 550, no. 7676, p. 354, 2017.
  • [7] J. Hwangbo, J. Lee, A. Dosovitskiy, D. Bellicoso, V. Tsounis, V. Koltun, and M. Hutter, “Learning agile and dynamic motor skills for legged robots,” Science Robotics, vol. 4, no. 26, p. eaau5872, 2019.
  • [8] J. Hwangbo, I. Sa, R. Siegwart, and M. Hutter, “Control of a quadrotor with reinforcement learning,” IEEE Robotics and Automation Letters, vol. 2, no. 4, pp. 2096–2103, 2017.
  • [9] H. Kretzschmar, M. Spies, C. Sprunk, and W. Burgard, “Socially compliant mobile robot navigation via inverse reinforcement learning,” The International Journal of Robotics Research, vol. 35, no. 11, pp. 1289–1307, 2016.
  • [10] J. Fu, K. Luo, and S. Levine, “Learning robust rewards with adversarial inverse reinforcement learning,” arXiv preprint arXiv:1710.11248, 2017.
  • [11] D. Hadfield-Menell, S. J. Russell, P. Abbeel, and A. Dragan, “Cooperative inverse reinforcement learning,” in Advances in neural information processing systems, 2016, pp. 3909–3917.
  • [12] P. F. Christiano, J. Leike, T. Brown, M. Martic, S. Legg, and D. Amodei, “Deep reinforcement learning from human preferences,” in Advances in Neural Information Processing Systems, 2017, pp. 4299–4307.
  • [13] R. Bonatti, Y. Zhang, S. Choudhury, W. Wang, and S. Scherer, “Autonomous drone cinematographer: Using artistic principles to create smooth, safe, occlusion-free trajectories for aerial filming,” International Symposium on Experimental Robotics, 2018.
  • [14] N. Ratliff, M. Zucker, J. A. Bagnell, and S. Srinivasa, “Chomp: Gradient optimization techniques for efficient motion planning,” 2009.
  • [15] M. Christie, P. Olivier, and J.-M. Normand, “Camera control in computer graphics,” in Computer Graphics Forum, vol. 27, no. 8.   Wiley Online Library, 2008, pp. 2197–2218.
  • [16] M. Gleicher and A. Witkin, “Through-the-lens camera control,” in ACM SIGGRAPH Computer Graphics, vol. 26, no. 2.   ACM, 1992, pp. 331–340.
  • [17] S. M. Drucker and D. Zeltzer, “Intelligent camera control in a virtual environment,” in Graphics Interface.   Citeseer, 1994, pp. 190–190.
  • [18] C. Lino, M. Christie, R. Ranon, and W. Bares, “The director’s lens: an intelligent assistant for virtual cinematography,” in Proceedings of the 19th ACM international conference on Multimedia.   ACM, 2011, pp. 323–332.
  • [19] C. Lino and M. Christie, “Intuitive and efficient camera control with the toric space,” ACM Transactions on Graphics (TOG), vol. 34, no. 4, p. 82, 2015.
  • [20] D. Arijon, Grammar of the film language.   Silman-James Press, 1976.
  • [21] C. J. Bowen and R. Thompson, Grammar of the Shot.   Taylor & Francis, 2013.
  • [22] M. Leake, A. Davis, A. Truong, and M. Agrawala, “Computational video editing for dialogue-driven scenes.” ACM Trans. Graph., vol. 36, no. 4, pp. 130–1, 2017.
  • [23] H.-Y. Wu, F. Palù, R. Ranon, and M. Christie, “Thinking like a director: Film editing patterns for virtual cinematographic storytelling,” ACM Transactions on Multimedia Computing, Communications, and Applications (TOMM), vol. 14, no. 4, p. 81, 2018.
  • [24] M. Roberts and P. Hanrahan, “Generating dynamically feasible trajectories for quadrotor cameras,” ACM Transactions on Graphics (TOG), vol. 35, no. 4, p. 61, 2016.
  • [25] N. Joubert, M. Roberts, A. Truong, F. Berthouzoz, and P. Hanrahan, “An interactive tool for designing quadrotor camera shots,” ACM Transactions on Graphics (TOG), vol. 34, no. 6, p. 238, 2015.
  • [26] K. Xie, H. Yang, S. Huang, D. Lischinski, M. Christie, K. Xu, M. Gong, D. Cohen-Or, and H. Huang, “Creating and chaining camera moves for quadrotor videography,” ACM Transactions on Graphics, vol. 37, p. 14, 2018.
  • [27] Z. Lan, M. Shridhar, D. Hsu, and S. Zhao, “Xpose: Reinventing user interaction with flying cameras,” in Robotics: Science and Systems, 2017.
  • [28] N. Joubert, D. B. Goldman, F. Berthouzoz, M. Roberts, J. A. Landay, P. Hanrahan et al., “Towards a drone cinematographer: Guiding quadrotor cameras using visual composition principles,” arXiv preprint arXiv:1610.01691, 2016.
  • [29] A. Karpathy. (2015) What a deep neural network thinks about your# selfie. [Online]. Available: http://karpathy.github.io/2015/10/25/selfie
  • [30] H. Fang and M. Zhang, “Creatism: A deep-learning photographer capable of creating professional work,” arXiv preprint arXiv:1707.03491, 2017.
  • [31]

    L. A. Gatys, A. S. Ecker, and M. Bethge, “Image style transfer using convolutional neural networks,” in

    Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition

    , 2016, pp. 2414–2423.
  • [32] R. S. Sutton and A. G. Barto, Reinforcement learning: An introduction.   MIT press Cambridge, 1998, vol. 1, no. 1.
  • [33] D. P. Kingma and J. Ba, “Adam: A method for stochastic optimization,” arXiv preprint arXiv:1412.6980, 2014.
  • [34] P. J. Huber et al., “Robust estimation of a location parameter,” The annals of mathematical statistics, vol. 35, no. 1, pp. 73–101, 1964.
  • [35] S. Shah, D. Dey, C. Lovett, and A. Kapoor, “Airsim: High-fidelity visual and physical simulation for autonomous vehicles,” in Field and Service Robotics, 2017. [Online]. Available: https://arxiv.org/abs/1705.05065
