I Introduction

An accurate characterisation of lower limb neuromechanics is required to understand lower limb neurophysiology and to design appropriate control for a robotic walking aid. To identify the limbs neuromechanics, a rigid robotic interface equipped with powerful actuators is typically required to apply force/position disturbances while sensors record the resulting modification of position/force. Available robotic interfaces to identify the lower limb neuromechanics include motor-driven dynamometers [24, 15, 2, 12, 9, 27] and gait rehabilitation exoskeleton devices [19, 17], whose characteristics are compared in Table I.

I-a Existing neuromechanics estimation devices

Motor-driven dynamometers are robotic interfaces that perform single joint rotations while the two limbs are fixed to the interface. It can be used for single joint identification and physical therapy, providing isotonic, isometric and isokinetic experimental conditions. Such robotic interfaces have been used to estimate the torque-angle relation of the ankle joint [15], injury or disease induced increase in ankle joint stiffness [18], passive resistance torque increased at the knee [23] or at all joints [1] due to spinal cord injury (i.e. spasticity), and the difference in ankle range of motion (ROM) in individuals with cerebral palsy [10, 25]. These interfaces however impose movement constraints on a joint, which may result in unnatural motions and accounts for variability in torque-angle identification results using single-joint motor-driven dynamometer relative to estimations from multi-joint inverse dynamics [15]. Furthermore, motor-driven dynamometers are not equipped with body weight support for hip joint measurements. Therefore, hip joint neuromechanics investigations with those interfaces could only involve healthy participants [8], or be used with impaired individuals only in postures not requiring weight bearing.

Gait rehabilitation robotic exoskeletons are interfaces affixed to the body. They can provide controlled gait assistance and be used to analyse neuromechanical factors such as spasticity and voluntary muscle force level [19], or joint impedance during leg swinging [17]. However, exoskeletons constrain the joints movement, and may induce non-negligible vibrations due to the difficulty to design a rigid mechanical structure. Furthermore, they may not be suitable to develop specific experiment protocols required to measure the lower limb neuromechanics. For example, the stiffness estimation method of [22, 21] relies on perturbation pulse trains of 1.72 amplitude and 150ms pulse width, which is challenging to implement on existing gait rehabilitation exoskeletons due to their limited rigidity and torque capabilities.

Until present, most existing devices focused on ankle or knee joint measurements, while devices targeting the hip joint could usually be used only for isokinetic motion [8, 6] or for multi-joint torque perturbations [17] that may limit the measurements accuracy. In view of these functional limitations, we developed a robotic interface that can be used to systematically investigate the single-joint neuromechanics of the hip, knee and ankle joint in a natural upright position, without constraining the targeted joint motion, and with negligible structural vibrations even during highly dynamic perturbations.

device name max force/torque speed characteristics relevant papers
IsoMed2000 (D & R Ferstl GmbH, Germany) 500N/750Nm Single-joint direct drive (hip, knee and ankle) [15, 11]
no name (MOOG FCS Inc., Netherlands) unknown unknown Ankle joint direct drive [10, 25]
Biodex 3 dynamometer (Biodex Medical Systems, USA) 890N Single-joint direct drive (hip, knee and ankle) [8, 6]
Cybex 770 Norm (Lumex Inc., USA) 678Nm Single-joint direct drive (hip, knee and ankle) [9, 23]
Kin-Com model 500H (Charracx Co., TN, USA) unknown unknown Single-joint direct drive [1]
Lokomat (Hocoma AG, Switzerland) unknown Gait rehabilitation device [19]
LOPES (University of Twente & Moog, Netherlands) 250N/60Nm unknown Gait rehabilitation and research device [17, 20]
TABLE I: Characteristics of existing lower limb neuromechanics evaluation devices

I-B Functional requirements

We want to develop a versatile device with a powerful actuator, a rigid mechanical structure and suitable control, that can be used to implement various protocols, including isometric and isokinetic conditions as well as brief mechanical perturbations, in order to characterise the lower body joints neuromechanics. To implement isometric conditions, the device should be able to provide a strong standstill torque to resist the subject’s maximum voluntary contractions. The joint torque measurements obtained during a stair climbing experiment [4] were used as a reference for our device’s actuator’s standstill torque. To perform isokinetic experiments and quantify velocity-dependent muscle or joint behaviour, our device should also be able to implement a full range of movements with constant velocity range from 0 to 250/s [13]. Finally, the device should be able to realise the highly dynamic movements required for estimating mechanical joint impedance. For instance, evaluating ankle reflexes as in [22, 21] requires a fast ankle angle perturbation with 1.72 amplitude and 150ms pulse width. In order to perform similar controlled position perturbations on the hip joint, considering that a human leg contributes to 15-20% of the body weight [28], a torque up to 100Nm would be required for a 90kg subject.

Large forces and accelerations required to characterise the lower limb neuromechanics demand a powerful and thus heavy actuator. Therefore, this actuator should be rigidly fixed away from the moving limb and reliable motion transmission should be used. A pneumatic cylinder connection [5] or a two-bar linkage transmission [14] could be used in this purpose, which would however result in a limited workspace. A pretensioned cable transmission can provide actuation with low inertia and without backlash [26], and is therefore selected for our interface.

The structure of the interface should be rigid, to minimise undesired vibrations and deformations. An additional structure is required to support the subject in an upright posture such as for walking. This structure should be mechanically independent from the robotic interface in order to avoid the transmission of vibrations from the motor. Finally, to avoid constraining the hip and knee joints motion such as with the Lokomat [19] and LOPES [17] exoskeletons, we developed an end-point based interface interacting with the extremity of the examined limb while the rest of the body can move freely.

This paper presents and validates the resulting Neuromechanics Evaluation Device (NED). Section II explains its design concept, its components and control. Section III analyses the resulting kinematics and parameters sensitivity, with mechanical characterisations. Typical applications are illustrated in section IV.

Ii Device design

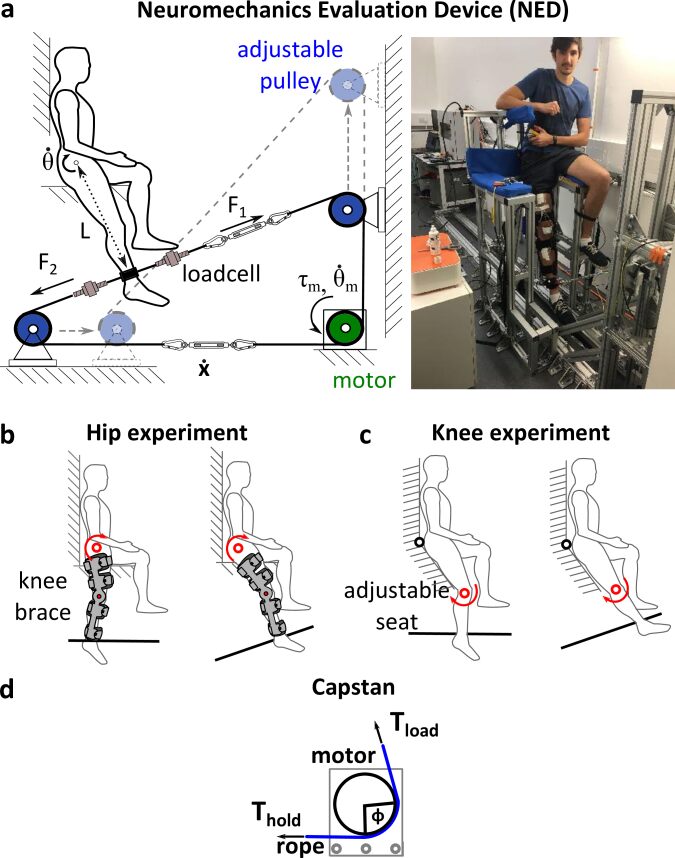

Fig. 1: Description of the Neuromechanics Evaluation Device (NED). Panel (a) shows how the subject seated in a rigid chair with an open design allowing the leg movement. The motor force transmitted by the cable is recorded by load-cells placed on both sides of the ankle fixture, with and as measured front and rear force respectively. and are the speed and torque at the motor, the hip joint angular velocity, the cable linear movement speed and the measured leg length. Panel (b) and (c) show how NED can be used to carry out experiments to investigate the knee and hip neuromechanics. The front and back pulleys can be shifted along the rail to ensure a perpendicular cable interaction. Panel (d) shows a schematic of the interaction force between pulley and a rope. The relation between the holding force and the loading can be described as Equ. 1 with a contact angle of and a coefficient of friction .

Ii-a General description

Considering all the design factors presented in the previous section, our solution included a cable driven device with a large actuator placed outside of the workspace transmitting power to the limb, while the subject is supported in a natural upright posture by an independent structure. The developed Neuromechanics Evaluation Device (NED) is illustrated in Fig. 1.

As shown in Fig.1a, the subject is half seated on a rigid chair (of length 0.55m, width 0.7m and height 1.5m) with one leg suspended in the workspace and attached to the system via a foot fixture. The leg is moved by the motor (AM8061, Beckhoff, Germany) located at the bottom of the workspace, via a steel cable (7x7 galvanised steel with PVC coating). Two load-cells (TAS510, HT sensors, China) are placed between the extremities of the foot fixture and the cable to measure the respective interaction forces. The front and rear pulleys can be locked at different positions along the rail (3m in the horizontal direction and 1.5m vertically) in order to keep the cable perpendicular to the leg (as shown in Fig.1a) and tensed. The cable tension is adjusted by the turnbuckles placed in series with the cable. All structures are made with aluminum strut profiles (40x40L, Bosch Rexroth, Germany) and bolted to the cement floor.

The open seat enables the experimenter to perform hip experiments at different knee angles as shown in Fig.1b. In this case the knee joint can be kept at a specific joint angle using a knee brace (T-scope, Breg), which enables us to study the influence of the knee angle. By adjusting the seat, it becomes also possible to study the knee neuromechanics as shown in Fig.1c.

In order to select an actuator based upon our design criteria, motors produced by Beckhoff, ETEL and Infranor were evaluated depending on their technical specifications including motor peak torque, standstill torque, moment of inertia and possible gearbox reduction ratio. The actuator selection process is detailed in Appendix

-A. Appendix -D lists NED’s components and their characteristics, including the selected actuator.

Ii-B Cable transmission

The cable transmission, using the Capstan effect, requires a sufficiently large contact force between the cable and the pulley to prevent slippage. The Capstan equation

(1)

defines the force relation between both the cable and the contact area of a cylinder while pulling a leg forward (Fig.1d), where is the front cable tension which bares larger loading, the force required to hold the loading on pulley, the friction coefficient between the cable and pulley, and the contact angle.

The minimum contact angle to prevent slippage is calculated from the friction coefficient and the expected cable force on both sides of the pulley. Assuming a joint torque of 150Nm [4] and a plastic-metal friction coefficient of 0.1-0.3, the minimum number of cable turns must be four. Conservatively, the cable was wounded five times around the pulley.

Ii-C Control system

Fig. 2: The control system of NED.

The control architecture of NED is depicted in Fig. 2. The supervisor computer provides the position command to the control computer (CX5130, Beckhoff), which performs the real-time control and monitors the motor controller (AX5112, Beckhoff) and motor (AM8061, Beckhoff). The cable system transmits the motion. In the example of a position disturbance, the angular displacement of motor shaft is monitored by the software limits to avoid over-stretching the leg. The two load-cells at the extremities of the ankle fixture record the interaction forces , , which are fed back via a resister bridge unit. Muscle activity of the subject are recorded with surface electromyography (EMG) electrodes and filtered by an amplifier. Safety relays, which are controlled by a laser safety system and emergency buttons, are connected to the power supply of the motor controller in case of need. Both the control computer and motor controller are powered separately by a power supply (PRO ECO 120W, Weidmuller, Finland). The operating software environment TwinCAT plans and implements the fastest point-to-point motion with given speed, acceleration and jerk limits.

In addition to considering the feedback error, the motor controller uses three sensor channels. Two resister bridges (EL3351, Beckhoff) are used to measure the interaction force between the device and the subject’s leg, and an analog channel (EL3255, Beckhoff) can be used e.g. for measuring the leg motion.

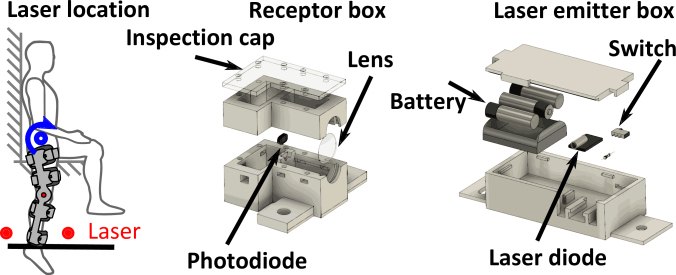

Fig. 3: Laser safety system composed of a laser emitter box (with a focusing lens) and a receptor box. Any obstacle blocking the laser transmission will immediately shut down the power supply to the motor controller.

Ii-D Safety measure and ergonomics

Safety is a critical factor for robotic interfaces which are in contact with the human body. Therefore, we implemented redundant hardware and software measures to ensure safety throughout our experiments. A safety system was developed to define the allowable range of motion as shown in Fig.3. The laser box emits a signal to the photodiode in the receptor box, which controls two safety relays. If the laser beam is blocked by any obstacle, e.g. leg moving beyond the expected range, safety relays will shut down the motor controller. Second, software safety measures implemented in the motor controller shut down the power when a position, speed, acceleration or power/torque limit is reached. Specific software limits define the workspace in which the leg should move depending on the targeted experiment. Finally, the power supply of both the motor and motor controller will shut down if any of the three emergency buttons is pressed. These buttons, which are available to the subject and experimenters during the experiment, are connected to another two safety relays and a master switch. In total, four safety relays (PSR-MS35, Phoenix Contact, Finland) control the power supply of the controller. If any safety threshold is reached the power motor is set off.

Beside the safety measures described above, various factors are included to provide a comfortable environment for different subjects. The dimensions of NED, that includes rail lengths and chair size, are designed based on subjects of height between 1.5-1.8m. The rigid chair is covered with memory-foamed cushions to increase experiment contentment, and handrail location is adjustable to optimised body weight support.

Iii System characterisation

This section first analyses the kinematics of the developed system. It then examines sensor measurement errors and solutions to ensure an accurate recording. Lastly, a series of system identification tests are performed to characterise the system in different dynamical conditions.

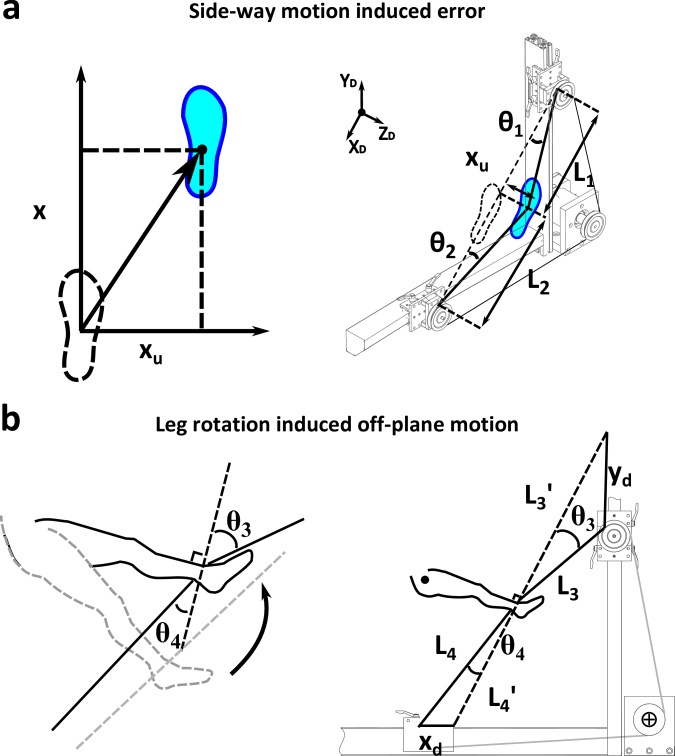

Fig. 4: Off-plane motion induced error. Panel (a) illustrates the measurement error resulting from side-way motions. and are the misalignments between the load-cell and the desired leg motion, and the distances between the foot and both pulleys. The maximum permissible side-way motion can be calculated by trigonometry. Panel (b) depicts the error resulting from a large leg rotation. Since both pulleys are fixed for each experiment, large leg motions will cause an angle between the load-cell and line of motion, which is described as angles and . and are the distances between the foot and the pulleys. On the other hand, and are the distances between the foot and the ideal pulley location. and are the distances between the ideal pulley location and actual pulley location.

Iii-a Kinematics and the sensitivity analysis

NED is designed to measure the lower limb joints’ flexion-extension biomechanics assuming that the cable and leg motions are restricted to the sagittal plane (with high enough cable pretension). For small angular displacements with the knee stretched and locked to maintain the leg straight, the kinematics is:

(2)

where is the motor pulley diameter, is the motor speed, is the cable linear motion speed, the leg length and the hip joint rotation speed.

To ensure that the aforementioned planar movement assumption is valid we investigated how lateral leg movements can potentially influence the accuracy of the biomechanical measurements. We assume that during an experiment the leg-cable attachment point can displace sideways by an undesired distance measured from the normal plane of movement as shown in Fig. 4a. Then, the cable force measurements are affected by the off-plane configuration described by the angles and as shown in Fig. 4a. By considering different leg lengths {80-95cm}, hip angles {5-60} and different pulley locations {80-165cm horizontal and 45-110cm vertical}, it is shown that the side-way motion should be limited within 14.3cm to result in a force measurement error below 5%. A side-way motion test (with 200N cable pretension) shows that a 14cm side-way motion requires an external force of 225N. Experiments should therefore be limited within such force limitations.

As large angular displacement cannot be considered as linear motion, we further investigated the influence of limb rotation upon measurement accuracy. For each experiment, the pulley locations are relocated and fixed to yield a perpendicular cable connection minimising the measurement errors (shown as the gray dashed line in Fig. 4b). Moving far away from the initial position will cause measurement error due to angles and (the black lines). By considering different leg lengths {80-95cm}, different experiment hip angles {-} and different sizes of leg motions, the largest acceptable leg motion before reaching an 5% error in measurement is 21cm. This can be considered as maximum acceptable position displacement to design experiments.

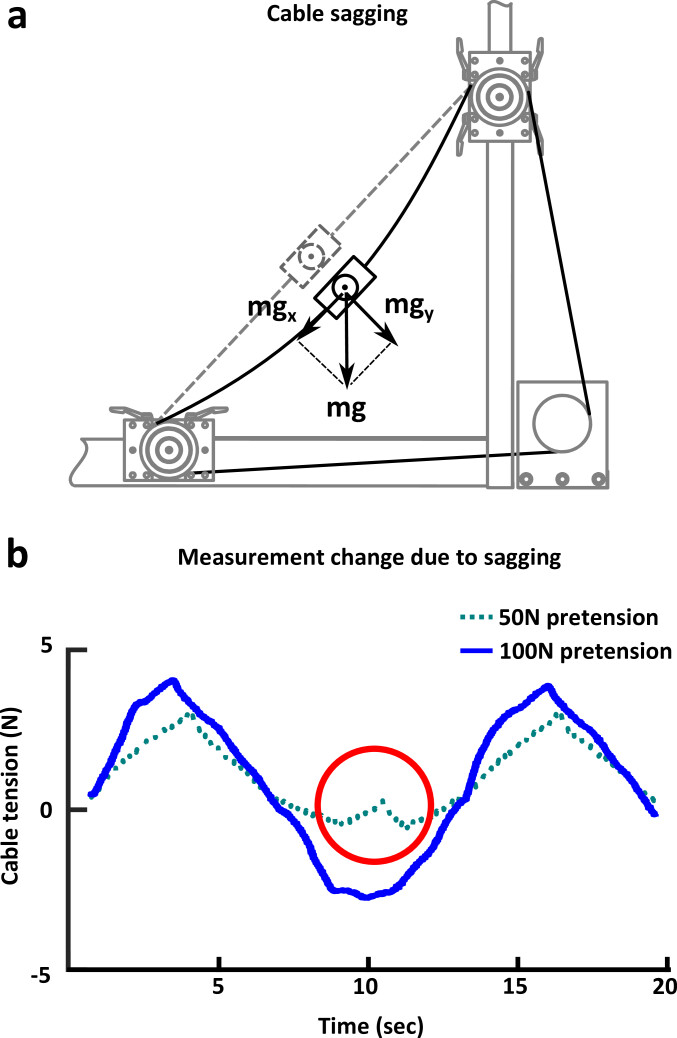

Fig. 5: Cable sagging. The weight of the cable system (i.e. cable, harness, load-cells and turnbuckles) deforms the cable as illustrated in (a). (b) During a back and forth motion, the measured force will not change monotonically, which is marked by a red circle. Cable sagging can be minimised by increasing the cable tension.

Iii-B Cable’s tension spatial and temporal dependency

The mass of the load-cells, connecting the elements and the cable itself (0.5kg) will slightly bend the cable and create cable sagging as shown in the left panel of Fig. 5. As the cable is not perfectly straight, we observe that the tension does not change monotonically (as shown in Fig. 5b with cable tension measured from a single load-cell during a back and forth motion) and this discontinuity in force measurements is caused by a misalignment between the load-cells’ axis and the cable’s motion. Trigonometric calculations showed that a pretension of 200N limits the relative error between the measured and actual tensions below 2.5%. All further experiments were then performed with 200N pretension.

As in most cable-based systems, NED has mechanical characteristics that can slightly change over time. During the validation tests, it was observed that the measured cable tension will drop for 1N every 33.6s (during a cyclic movement test of speed 750mm/s with a pretension values of 200N while holding a 18kg dummy leg, which will be described in Section IV-A). This tension drop is negligible since most movements for neuromechanics evaluation require short perturbations with duration 1s (as will be developed in Section IV-B). Mathematical description of the cable temporal dependency is described in Appendex -B.

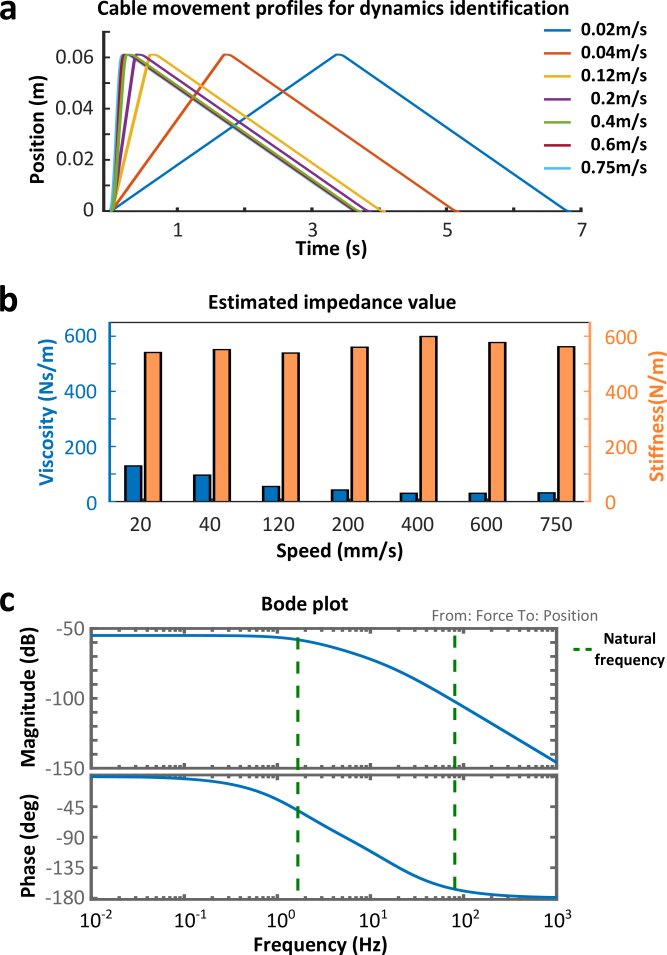

Fig. 6: Identification results of NED as a linear second order system. Panel (a) depicts the perturbation profiles at different speed with estimated impedance values shown in panel (b). Panel (c) is the Bode plot of the system (with average values) that contains two poles at 1.6 and 17.2Hz (marked with dashed line).

Iii-C Cable system modelling

We performed system identification tests to demonstrate that the behaviour of the designed interface can be characterised with the second order linear dynamical system under different speed. Hence, the transfer function describing the cable’s dynamics with cable tension, , as input, and cable displacement, , as output can be expressed as:

(3)

with the mass of the moving components on the cable, and the cable viscosity and stiffness, respectively.

For system identification tests, we pre-programmed NED’s controller to perform 10 saw-shape displacement patterns with 60mm amplitude and different speeds of 20-750mm/s as shown in Fig. 6a. The force acting on the cable was measured with a load-cell and recorded at 1kHz. All ten trials at a given speed conditions were used to estimate the transfer function (3) using a least square method tfest of Mathworks Matlab. Additionally the mass of all moving mechanical components was known and was used as an initial estimate for mass component () of function (3).

The parameters identified at different speeds are shown in Fig. 6

b, demonstrating that our interface is characterised as high stiffness and low viscosity (which reduces with the speed). This indicates that (despite the inherent cable compliance) NED is a rigid device that can be used to identify the lower limb mechanics. The performance of the fitting were confirmed by normalised root mean square error value (NRMSE) with values higher than 70%. Due to both low variance in estimated impedance and relatively high NRMSE value, the mechanical characteristic of NED can be described by the average transfer function parameter’s values, with the averaged Bode plot shown in Fig.

6c which has two poles, at 1.6 and 17.2Hz respectively. Further identification of the cable’s nonlinearities is described in Appendix -C.

Iv Validation

In this section, we demonstrate how NED can be used for lower limb neuromechanics characterisation. First, two experiments were conducted to identify the dynamic parameters of a dummy leg and a pair of springs seperately, and then the experiment identification results were compared to know mechanic properties of the components. We then determined an optimal position perturbation for estimating hip joint stiffness of healthy subjects.

Fig. 7: Identification of the mechanics of a 18kg dummy leg at joint angles between 15-55 and speed 20-750mm/s, with 20 trials at each condition. Panel (a) shows the CAD drawing of the dummy leg, Panel (b) the boxplot of the estimated inertia, damping and stiffness value of the dummy leg, with a green line indicating the estimated inertia from CAD (1.84kgm). Panel (c) shows the NRMSE value (which defines the estimation’s quality) at five different hip angles and seven different speeds. Panel (d) shows the measurement results (dash line) and estimated model output (solid line) of the dummy leg identification.

Iv-a Dummy leg mechanics

To validate the functionality of the developed interface, experiments are carried to identify the mechanical properties dummy leg and compare with the values obtained from CAD calculations (Fig. 7a). The design parameters of the leg were: mass 18kg (resembles the leg mass of a 90kg subject), length of 70cm and moment of inertia of 1.84kgm with respect to the hip joint. This mechanical dummy leg was fixed in NED for neuromechanics experiments. During the experiment, the leg was rotated about the hip joint (flexion/extension sequences) with the amplitude of 5 (6cm endpoint displacement) and with the speed range of 20-750mm/s as shown in Fig.7d. The prior mentioned flexion/extension movements were tested at five different hip angles between 15 and 55 to test the the influence of gravity to the identification results. In total, 20 repetitions were performed at each combined condition of speed {20-750mm/s} and hip angle {15-55}.

As described in Section III-C, the developed robot exhibits high stiffness and low viscosity which resembles a rigid device. Therefore, the cable dynamics in series with the leg could be neglected, and the recorded displacements and cable-leg interaction forces were used to estimate a linear second-order model of the mechanical dummy leg (with the nonlinear least square method tfest of Mathworks Matlab):

(4)

where is the change of interactive torque, the leg inertia, the viscous parameter of the joint, the hip joint stiffness, and are the two load-cells’ signals. It is important to note that the change in interaction torque () was used here rather than change in one load-cell measurement (), as the purpose of this section was to estimate dummy leg impedance through position displacement and resulting force changes.

The estimated impedance values are shown in Fig. 7b with the NRMSE value depicted in Fig. 7c which suggests that the dummy leg’s dynamic parameters were successfully identified for velocities larger than 40mm/s (with NRMSE 80%). The inertia estimated in this dynamic identification is close to the value predicted from the CAD parameters (1.84kgm) while the viscosity and stiffness values are both low. These results indicate that NED can be used to identify the hip mechanical impedance.

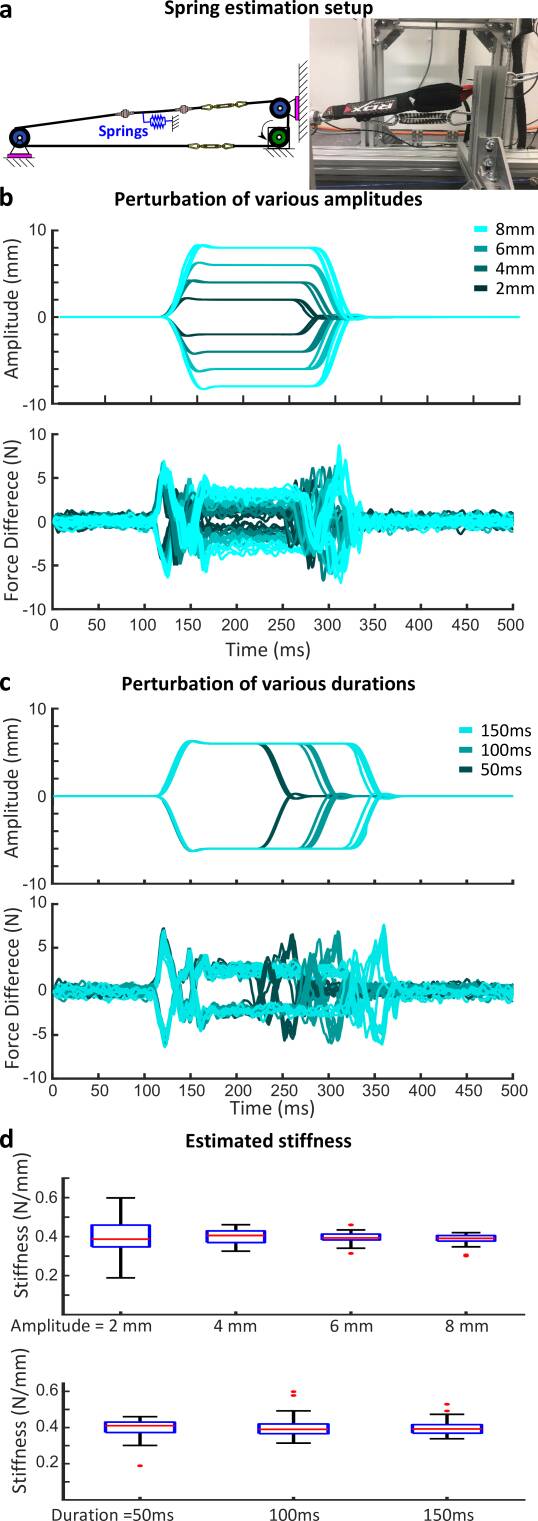

Fig. 8: Stiffness identification of a spring with known elasticity using NED. Panel (a) shows where the spring is attached. Panel (b) and (c) shows the perturbations of different amplitude and duration together with the resulting force difference. Panel (d) shows the values obtained with these perturbations, which are similar to the spring constant with less deviation using a larger perturbation.

Iv-B Stiffness estimation

To evaluate whether NED can be used to identify stiffness, we used two parallel springs attached to the cable as shown in Fig.8a. The stiffness of these two springs was then identified using a smooth position displacement as described in [7]. In this method, stiffness can be simply computed from:

(5)

on the constant position plateau where inertia and viscosity have little influence, as , see Fig.8b. Twenty tests were carried out for each perturbation with the amplitude of 2-8mm and duration 50-150ms. Stiffness was then evaluated from (5) with mean displacement and mean measured torque during the plateau region. The results of Fig. 8

d demonstrate that this method can identify stiffness accurately, with estimations improved with a larger perturbation amplitude and no observable difference in different duration or perturbation direction. Since the load-cells’ measurement suffers from noise with standard deviation of 0.29N and maximum 1N, a large amplitude with stronger spring force will increase the signal to noise ratio and improve the estimation. In the mean time, the angle measurement of the motor shaft has a resolution of 0.019

corresponding to a 0.35mm cable displacement and angle of 0.46 for a 90cm long leg. This also implies a small perturbation amplitude (e.g. 2mm amplitude) will suffer from measurement errors.

Iv-C Optimal position perturbation to identify stiffness

A pilot study with one healthy subject (male, weight: 54kg, height: 172cm) was carried out to evaluate the feasibility of using NED to identify hip stiffness with the technique described in the previous section. The experimental protocol was approved by the Imperial College Research Ethics Committee, and all procedures were performed according to the principles described in the Declaration of Helsinki. The subject was informed on the device and experiment, and signed an informed consent form prior to the experiment. The participant’s weight and leg length (from the anterior superior iliac spine to the lateral malleolus) were measured to estimate the leg inertia. A lockable knee brace was used to fix the knee joint at 0 angle.

Fig. 9: Estimation result of a pilot study with one subject. Panel (a) is an example of the profile with the position at the top and the force feedback at the bottom. Panel (b) shows the estimated joint impedance. The estimated inertia is close to the estimation from the anatomical model (Winter, 1995) shown is a green line.

The subject was half seated on the chair with one leg suspended, was asked to support his body weight on the handle and relax the lower limb. A harness was attached to the ankle of the tested leg which was connected to the cable and the motor (Fig.1). The participant was given an emergency stop and can stop the experiment whenever needed. The laser safety system was initiated and adjusted to define the range of motion of the tested leg at 15. The motor performed a slow motion to move the participant’s leg to define the comfortable range of motion for additional system adjustments. A single pulse perturbation was also given to provide the participant with an experience of a perturbation and adjust the system’s safety.

As described in Section II-C, the motor controller implements the fastest displacement given the safety limits in speed, acceleration and jerk. The position perturbation with a constant displacement plateau was thus determined by these limits as well as by the plateau duration and displacement amplitude. Our goal was to use a perturbation of minimum amplitude and duration, which would disturb the subject minimally and thus avoid any voluntary reaction. However, this comes in trade-off with the perturbation amplitude, which should be large enough to maximise the signal to noise ratio (SNR) of the stiffness estimation. On the other hand, very large accelerations to yield a fast perturbation could cause cable oscillations which would disturb the subject and affect the stiffness estimation quality. To achieve fast displacement with minimal cable oscillations and stable force measurements, we increased the perturbation amplitude iteratively (starting from 6cm) and reduced the controller’s dynamic limits (speed, acceleration and jerk) while recording the magnitudes of cable oscillation. In total, 50 combinations of the speed, acceleration and jerk limits were tested for position perturbation command with the hip flexed at 15.

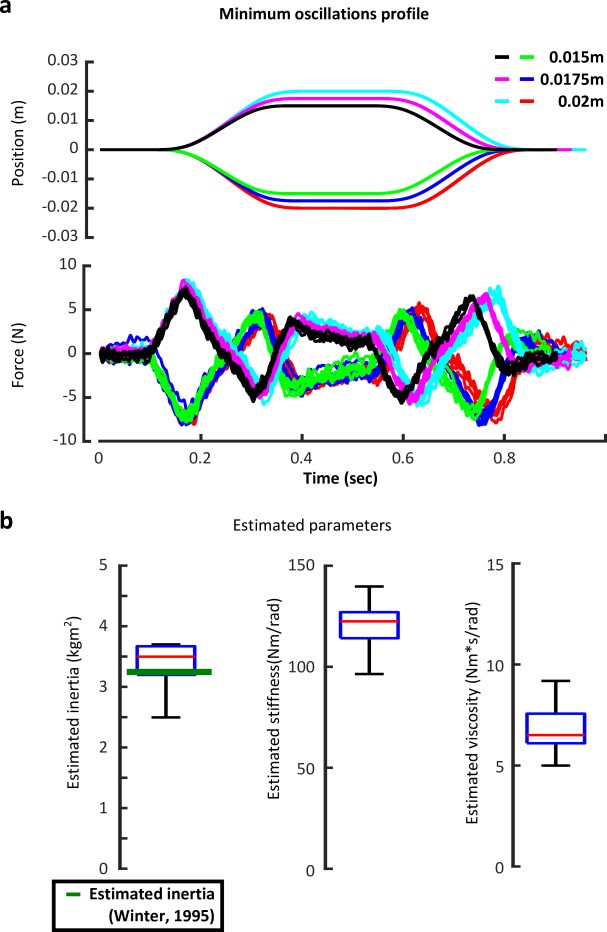

The resulting optimal perturbation is shown in Fig. 9a. The amplitude of the perturbation is largely above the position resolution (0.35mm cable displacement) and from the test with the spring of Fig. 8, should have a large signal to noise ratio. Considering the large motor variability in human movements, we selected a larger displacement than required to maintain a high signal to noise ratio. The collected kinematics and interaction forces were again least square fitted to estimate the hip joint impedance using (4). As shown in Fig. 9a, the optimised perturbation resulted in consistent and reproducible motions with negligible force oscillations.

Fig.9b shows the estimated joint impedance () of three different perturbation amplitudes {15,17.5,20}mm with a 150ms long plateau. The green line shown in Fig. 9b is the inertia calculated from the anatomical model [28] using the subject’s weight and leg length. We can see that the variance of estimation is small (11% for inertia, 10% for stiffness and 19% for viscosity). The inertia estimate is close to the anatomical model, and the values of viscoelasticity are in the same order of magnitude as reported in [17].

V Discussion

Investigating the lower-limb neuromechanics is critical to understanding the control of standing and walking in healthy and neurologically affected individuals, as well as to efficiently control assistive and rehabilitation devices for performance augmentations. However, so far only few studies could use a single device to investigate lower-limb neuromechanics of different joints and specific to the hip. Importantly, hip joint viscoelasticity investigation was only performed in multi-joint torque perturbation [17], which is usually limited in accuracy, and never with precise single joint position displacement. In this context, we have developed and validated a novel robotic interface named NED (Neuromechanics Evaluation Device) to investigate the lower-limb neuromechanics.

NED can apply a large range of dynamic interactions to a subject’s leg at static posture or during movement. This enables the neuromechanics identification of hip and knee joints in flexion/extension. Importantly, NED allows the experimenter to estimate a subject lower limb neuromechanics in a natural upright posture under controlled environment, which also makes the device well suited for carrying out investigations on patients’ neuromechanics. The device can be quickly adapted to a subject’s specific anatomy and to carry out various measurements. The use of a closed mechanical cable loop with powerful actuator fixed outside the rigid supporting structure enables us to implement highly dynamic environments with little vibrations.

In this paper, NED’s mechanics was characterised, and its performance to estimate a lower limb neuromechanics was demonstrated through the identification of a dummy leg and a spring’s mechanical impedance. As a result of a powerful actuator and stiff mechanical frame of NED, it was possible to achieve accurate and repeatable position perturbation which enabled more efficient dynamics identification of individual leg joint compare to the mechanisms with rigid links [15, 14]. The good match of the identified and measured parameters as well as the range of protocols that can be implemented on NED makes it an effective tool to identify the hip, knee and ankle joint biomechanics. The techniques developed in this paper could be used to systematically investigate hip joint viscoelasticity as described in [16].
