In recent years, multi-channel speech recognition has been applied on devices used in daily life, such as Amazon Echo and Google Home. The recognition accuracy is greatly improved by exploiting microphone arrays when compared to single channel microphone devices [1, 2, 3]. However, satisfactory performance is still not achieved in noisy everyday environments. Hence, the CHiME-4 challenge is designed to conquer this scenario by recognizing speech in challenging noisy environments . Through the series of the challenge activities, several speech enhancement and recognition techniques are established as an effective method for this scenario including mask-based beamforming, multichannel data augmentation, and system combination with various front-end techniques [5, 6, 7, 8, 9].
Although many submitted systems in the CHiME-4 challenge have yielded a lot of outcomes in this multi-channel Automatic Speech Recognition (ASR) scenario [6, 7, 8], one of the drawbacks is that all top systems are highly complicated due to multiple systems and fusion techniques, and it is not easy for the other research groups to follow these outcomes. This paper aims to deal with the above drawback by building a new baseline to promote the development of noisy ASR in speech enhancement, separation, and recognition communities.
We propose a single ASR system to further push the border of this challenge. Most important of all, our system is reproducible since it is implemented in the Kaldi ASR toolkit and other opensource toolkits. All the scripts in our experiments can be downloaded from the official GitHub website111https://github.com/kaldi-asr/kaldi/pull/2142. The original CHiME-4 baseline is described in , which uses a delay-and-sum beamformer (BeamformIt) , a deep neural network with state-level minimum Bayes Risk (DNN+sMBR) criterion
, and recurrent neural network-based language model (RNNLM). On the contrary, our proposed system is shown in Figure 1. We adopt to use Bidirectional long short-term memory (BLSTM) mask based beamformer (Section 3.2), which has been shown to be more effective [13, 14] than BeamformIt. For an acoustic model, the DNN used in baseline is limited to represent long-term dependencies between acoustic characteristics. Hence, a sub-sampled time delay neural network (TDNN)  with the lattice-free version of the maximum mutual information (LF-MMI) is used for our acoustic model  (Section 3.3). This paper also shows the great improvement on the word error rate (WER) when we combine it with data augmentation in a multichannel scenario using all six microphones plus the enhanced data after beamforming. Then, we further use a LSTM language model (LSTMLM), which uses a new training criterion and importance sampling, and has been shown to be more efficient and better in performance , to re-score hypotheses.
We also incorporate computation of four different speech enhancement measures in our recipe - perceptual evaluation of speech quality (PESQ) , short-time objective intelligibility measure (STOI) , extended STOI (eSTOI)  and speech distortion ratio (SDR) . We include these measurements as part of the recipe for two reasons. First, the ASR performance shows only one aspect of the speech enhancement algorithm. Objective enhancement metrics can give an indication on how well the enhancement is with different aspects (e.g., intelligibility, signal distortions). Second, testing an enhancement algorithm with ASR takes a significant amount of computational time, whereas obtaining these scores is quite fast. Hence, it can give an initial indication of how good the enhancement is.
2 Related work
In , a fusion system in the DNN posterior domain is proposed to get the best result in the competition. [7, 8, 9] also use fusion systems in the decoding hypothesis domain with multiple systems mainly using different front-end techniques. Unlike these highly complicated systems, our proposed system is based on a single system without the above fusion systems, yet achieves comparable performance to these top systems in the challenge task. One of the unique technical aspects of our proposed system is to fully utilize the effectiveness of TDNN with LF-MMI by combining it with multichannel data augmentation techniques, which achieves significant improvement. Our new LSTMLM also contributes to boost the final performance.
3 Proposed system

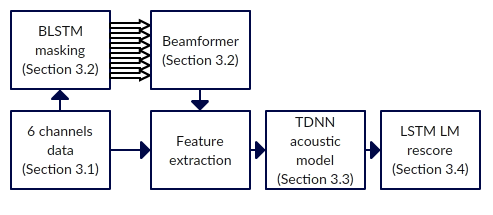

Our system starts from BLSTM mask based beamformer and followed by feature extraction. Phoneme to audio alignments are then generated by GMM acoustic model and are fed into TDNN acoustic model for training. Finally, the lattices after first pass decoding in TDNN is re-scored by a 5-gram LM and further re-scored by LSTMLM.
3.1 Data augmentation
Training with multichannel data has been shown to be effective for ASR systems [8, 1, 22]. This augmentation can increase the variety in the training data and help the generalization to test set. In our work, we not only use data from all 6 channels but also add the enhanced data generated by beamformer to training set.
Let be a sequence of
-dimensional feature vectors with length, which is a single channel speech recognition case. In our case, we deal with an -channel input (), which is represented as . Then, the original training method only uses a particular channel input (e.g., -th input) as training data to obtain acoustic model parameters , as follows:
where is an objective function (log likelihood for the GMM case and negative cross entropy for the DNN case), with reference labels as supervisions. Data augmentation approach tries to use training data of all channels, as follows:
Further, we extend to include an enhanced data with the above multichannel data, that is
where the enhancement data is obtained by a single-channel masking or beamformer method, which is described in Section 3.2.
3.2 BLSTM mask based beamformer
We use the BLSTM mask based Generalized Eigenvalue (GEV) beamformer described in
. The GEV beamforming procedure requires an estimate of the Cross-Power Spectral Density (PSD) matrix of the noise and the target speech. The BLSTM model estimates two masks: the first mask indicates the time frequency bin that are probably dominated by speech and the other indicates which are dominated by noise. With the combined speech and noise masks, we can estimate the PSD matrices of speech componentsat frequency bin , and that of noise components , as follows:
where is an -dimensional complex spectrum at time (frame) in frequency bin . denotes the conjugate transpose. is the mask value.
The goal of GEV beamformer  is to estimate the beamforming filter , which maximizes the expected SNR for each frequency bin as given by the equation below:
Eq. (5) is equivalent to solve the following eigenvalue problem:
where at each frequency bin is the
-dimensional complex eigenvector andis the eigenvalue.
|Dev (Simu)||Test (Simu)|
3.3 Time delayed neural network with lattice-free MMI
For acoustic model, we use TDNN with LF-MMI training  instead of DNN+sMBR . The architecture is similar to those described in . The LF-MMI objective function is shown below, which is different from usual MMI training  in a sense that we use phoneme sequence instead of a word sequence to narrow down a search space in the denominator:
where is the likelihood function of a speech feature sequence given the state sequence at 'th utterance. is the phoneme language model probability and is the probability scale.
Note that when combined with the data augmentation technique (described in Section 3.1), TDNN is more effective than DNN.
3.4 LSTM language modeling
The LSTM based language model (LSTMLM) has been shown to be effective on language modeling . It is better in finding a longer period of contextual information than conventional RNN. With this property, LSTMLM can predict the next word in a more accurate way than RNNLM. Hence, instead of using a vanilla RNNLM
, we train an LSTMLM on WSJ data, which combines the use of subword features and one-hot encoding. An importance sampling method is used to speed up training. Most important of all, a new objective functionis used for LM training, which behaves like cross-entropy objective but trains the output to auto-normalize in order to speed up test time computation:
where is a pre-activation vector in the layer of neural network before the final softmax operation and is an index for the correct word. More detail can be found in .
|BLSTM mask estimation|
|input layer dimension||513|
|L1 - BLSTM layer dimension||256|
L2 - FF layer 1 (ReLU) dimension
|L3 - FF layer 2 (clipped ReLU) dimension||513|
|L4 - FF layer (Sigmoid) dimension||1026|
|for L1, L2 and L3||0.5|
|TDNN acoustic model|
|input layer dimension||40|
|hidden layer dimension||750|
|output layer dimension||2800|
|LSTM language model|
|N-best list size||100|
|RNN re-score weight||1.0|
4.1 Speech Enhancement Experiments
First experiments describe the speech enhancement performance of BLSTM-based speech enhancement. For the single channel track, we used the BLSTM masking technique  trained on the 6 channel data and took only the speech mask after the forward propagation. We took a Hadamard product of the single channel spectrogram with the speech mask and used it as the enhanced signal to compare it with the original signal without any enhancement. For the 2 channel and 6 channel tracks, we used the BLSTM based GEV beamformer described in Section 3.2 and compare it with BeamformIt. Four different scores as described in Section 1 - PESQ, STOI, eSTOI and SDR are computed. The BLSTM architecture used in the experiments is listed in Table 2.
The enhancement scores are shown in Table 1. The 5th channel clean signal from the 6ch data convolved with room impulse response was used as the reference signal for computing all the four metrics. For the 1 channel track, the BLSTM mask gives significantly better scores in all four metrics compared to using the noisy data without any enhancement. However, this is contrary to the ASR results, which will be discussed in the next section. BeamformIt has better SDR scores compared to BLSTM GEV in both the multi-channel tracks. Also, for both the multi-channel track data, eSTOI is slightly better for BLSTM GEV. In the 6ch track experiments, BLSTM GEV has a significantly better PESQ score. Overall, BLSTM-based speech enhancement shows improvement in most of conditions except for the case of the multichannel SDR metric.
4.2 Speech Recognition Experiments
Our system is trained on the speech recognition toolkit Kaldi . For TDNN acoustic model training, backstitch optimization method  is used. The decoding is based on 3-gram language models with explicit pronunciation and silence probability modeling as described in . The model is re-scored by a 5-gram language model first. Then the Kaldi-RNNLM  is used for training the LSTMLM, and n-best re-scoring is used to improve performance. We got our best result in 6 channel experiments by averaging forward and backward LSTMLM. The RNN re-score weight is set to be 1.0, which means the results of 5-gram LM is completely discarded. All the results in this section are reported in terms of word error rate (WER). We also provide the parameters used in our system in Table 2.
|Data Augmentation||Dev (%)||Test (%)|
|all 6ch data||3.97||4.33||7.04||7.39|
|all 6ch and enhanced data||3.74||4.31||6.84||7.49|
|Method||Dev (%)||Test (%)|
|Data Augmentation||Acoustic Model||Beamforming||Language Model||real||simu||real||simu|
|only 5th channel||DNN+sMBR||BeamformIt||RNNLM||5.79||6.73||11.50||10.92|
|all 6ch data||DNN+sMBR||BeamformIt||RNNLM||5.05||5.82||9.50||9.24|
|all 6ch and enhanced data||DNN+sMBR||BeamformIt||RNNLM||5.62||6.46||10.27||9.41|
|all 6ch and enhanced data||TDNN with LF-MMI||BeamformIt||RNNLM||3.74||4.31||6.84||7.49|
|all 6ch and enhanced data||TDNN with LF-MMI||BLSTM Gev||RNNLM||2.83||2.94||4.01||3.80|
|all 6ch and enhanced data||TDNN with LF-MMI||BLSTM Gev||LSTMLM||1.90||2.10||2.74||2.66|
|Method||Dev (%)||Test (%)|
|Data Augmentation||Acoustic Model||Beamforming||Language Model||real||simu||real||simu|
|only 5th channel||DNN+sMBR||BeamformIt||RNNLM||8.23||9.50||16.58||15.33|
|all 6ch data||DNN+sMBR||BeamformIt||RNNLM||6.87||8.06||13.33||12.57|
|all 6ch data||TDNN with LF-MMI||BeamformIt||RNNLM||5.57||6.08||10.53||9.90|
|all 6ch and enhanced data||TDNN with LF-MMI||BeamformIt||RNNLM||5.03||6.02||10.20||10.35|
|all 6ch and enhanced data||TDNN with LF-MMI||BLSTM Gev||RNNLM||3.79||5.03||6.93||6.07|
|all 6ch and enhanced data||TDNN with LF-MMI||BLSTM Gev||LSTMLM||2.85||3.94||5.40||5.03|
|Dev (%)||Test (%)|
|Data Augmentation||Acoustic Model||Beamforming||Language Model||real||simu||real||simu|
|only 5th channel||DNN+sMBR||-||RNNLM||11.57||12.98||23.70||20.84|
|all 6ch data||DNN+sMBR||-||RNNLM||8.97||11.02||18.10||17.31|
|all 6ch data||TDNN with LF-MMI||-||RNNLM||6.64||7.78||12.92||13.54|
|all 6ch data||TDNN with LF-MMI||-||LSTMLM||5.58||6.81||11.42||12.15|
|all 6ch data||TDNN with LF-MMI||BLSTM masking||RNNLM||13.15||15.62||22.47||21.61|
|all 6ch and enhanced data||TDNN with LF-MMI||BLSTM masking||LSTMLM||6.78||9.10||13.64||14.95|
Table 3 shows the effectiveness of the data augmentation for the system using TDNN with BeamformIt and RNNLM, which are described in Section 2, in the 6 channel track experiment. We confirmed the improvement by adding enhanced data in almost all cases except for the simulation test data. This is also found in 2 channels experiment when using TDNN (i.e. row 3 and row 4 in table 6).
Tables 6 and 6 show the WER of 6 channel and 2 channel experiments. We change our experimental condition incrementally to compare the effectiveness of each method described in Section 2. In most of the situations, every method improved the WER steadily. We observed that the performance was degraded if we applied enhanced data on the system using DNN+sMBR (i.e. row 2 and row 3 in table 6), while TDNN with LF-MMI could make use of the enhanced data, as discussed above. In addition, comparing with the speech enhancement results in Table 1, it shows that better speech enhancement scores do not necessarily gives lower WER. Especially, there always seems to be a negative correlation between the ASR performance and the SDR scores.
Table 6 illustrates the results of the 1 channel track experiment. We found that BLSTM masking was not effective if we only used one microphone although it scores better in terms of all four speech enhancement metrics in Table 1. From row 3 and row 5 of 6, the WER with BLSTM masking was degraded more than twice when compared to the system without BLSTM masking. However, we also discovered that after adding the enhanced data into the system with BLSTM masking, the WER became closer to the best setup without masking, which can be seen in row 4 and row 6 of 6. Thus, adding the enhanced data seems to be a good strategy to mitigate the degradation of speech enhancement.
Finally, Table 7 presents the comparison with the official baseline and top systems in the CHiME-4 challenge. We can see that all of these systems use a fusion technique to get their best WER. On the other hand, our proposed single system achieved 76% relative improvement from the official baseline, and achieved the 2nd best performance.
This paper describes our single ASR system for CHiME-4 speech separation and recognition challenge. The system consists of BLSTM masked GEV beamformer (Section3.2), TDNN with LF-MMI as acoustic model (Section3.3) and re-scoring using LSTMLM (Section3.4), which trained on all 6 channels data plus enhanced data generated by beamformer (Section3.1). The system finally achieved 2.74% WER, which outperforms the 2nd place result in the challenge. The system is publicly available through the Kaldi speech recognition toolkit.
-  J. Barker, R. Marxer, E. Vincent, and S. Watanabe, “The third ‘CHiME’speech separation and recognition challenge: Dataset, task and baselines,” in IEEE Workshop on Automatic Speech Recognition and Understanding (ASRU), 2015, pp. 504–511.
-  K. Kinoshita, M. Delcroix, S. Gannot, E. A. Habets, R. Haeb-Umbach, W. Kellermann, V. Leutnant, R. Maas, T. Nakatani, B. Raj et al., “A summary of the REVERB challenge: state-of-the-art and remaining challenges in reverberant speech processing research,” EURASIP Journal on Advances in Signal Processing, vol. 2016, no. 1, p. 7, 2016.
-  B. Li, T. Sainath, A. Narayanan, J. Caroselli, M. Bacchiani, A. Misra, I. Shafran, H. Sak, G. Pundak, K. Chin et al., “Acoustic modeling for google home,” INTERSPEECH-2017, pp. 399–403, 2017.
-  E. Vincent, S. Watanabe, A. A. Nugraha, J. Barker, and R. Marxer, “An analysis of environment, microphone and data simulation mismatches in robust speech recognition,” Computer Speech & Language, vol. 46, pp. 535–557, 2017.
-  T. Yoshioka, N. Ito, M. Delcroix, A. Ogawa, K. Kinoshita, M. Fujimoto, C. Yu, W. J. Fabian, M. Espi, T. Higuchi et al., “The NTT CHiME-3 system: Advances in speech enhancement and recognition for mobile multi-microphone devices,” in Automatic Speech Recognition and Understanding (ASRU). IEEE, 2015, pp. 436–443.
-  J. Du, Y.-H. Tu, L. Sun, F. Ma, H.-K. Wang, J. Pan, C. Liu, J.-D. Chen, and C.-H. Lee, “The USTC-iFlytek system for CHiME-4 challenge,” Proc. CHiME, pp. 36–38, 2016.
-  T. Menne, J. Heymann, A. Alexandridis, K. Irie, A. Zeyer, M. Kitza, P. Golik, I. Kulikov, L. Drude, R. Schlüter et al., “The RWTH/UPB/FORTH system combination for the 4th CHiME challenge evaluation,” in CHiME-4 workshop, 2016.
-  H. Erdogan, T. Hayashi, J. R. Hershey, T. Hori, C. Hori, W.-N. Hsu, S. Kim, J. Le Roux, Z. Meng, and S. Watanabe, “Multi-channel speech recognition: LSTMs all the way through,” in CHiME-4 workshop, 2016.
-  Y. Fujita, T. Homma, and M. Togami, “Unsupervised network adaptation and phonetically-oriented system combination for the chime-4 challenge,” Proc. CHiME, pp. 49–51, 2016.
-  X. Anguera, C. Wooters, and J. Hernando, “Acoustic beamforming for speaker diarization of meetings,” IEEE Transactions on Audio, Speech, and Language Processing, vol. 15, no. 7, pp. 2011–2022, 2007.
-  K. Veselỳ, A. Ghoshal, L. Burget, and D. Povey, “Sequence-discriminative training of deep neural networks.” in Interspeech, 2013, pp. 2345–2349.
-  T. Mikolov, M. Karafiát, L. Burget, J. Černockỳ, and S. Khudanpur, “Recurrent neural network based language model,” in Interspeech, 2010.
-  H. Erdogan, J. R. Hershey, S. Watanabe, M. I. Mandel, and J. Le Roux, “Improved MVDR beamforming using single-channel mask prediction networks.” in INTERSPEECH, 2016, pp. 1981–1985.
-  J. Heymann, L. Drude, and R. Haeb-Umbach, “Neural network based spectral mask estimation for acoustic beamforming,” in 2016 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), March 2016, pp. 196–200.
-  A. Waibel, T. Hanazawa, G. Hinton, K. Shikano, and K. J. Lang, “Phoneme recognition using time-delay neural networks,” in Readings in speech recognition. Elsevier, 1990, pp. 393–404.
-  D. Povey, V. Peddinti, D. Galvez, P. Ghahremani, V. Manohar, X. Na, Y. Wang, and S. Khudanpur, “Purely Sequence-Trained Neural Networks for ASR Based on Lattice-Free MMI,” in Interspeech, 2016, pp. 2751–2755.
-  H. Xu, K. Li, Y. Wang, J. Wang, S. Kang, X. Chen, D. Povey, and S. Khudanpur, “Neural network language modeling with letter-based features and importance sampling,” 2018.
-  A. W. Rix, J. G. Beerends, M. P. Hollier, and A. P. Hekstra, “Perceptual Evaluation of Speech Quality (PESQ)-a New Method for Speech Quality Assessment of Telephone Networks and Codecs,” in Proceedings of the Acoustics, Speech, and Signal Processing, 200. On IEEE International Conference - Volume 02, ser. ICASSP ’01. IEEE Computer Society, 2001, pp. 749–752.
-  C. H. Taal, R. C. Hendriks, R. Heusdens, and J. Jensen, “An algorithm for intelligibility prediction of time-frequency weighted noisy speech,” IEEE Transactions on Audio, Speech, and Language Processing, vol. 19, no. 7, pp. 2125–2136, Sept 2011.
-  J. Jensen and C. H. Taal, “An algorithm for predicting the intelligibility of speech masked by modulated noise maskers,” IEEE/ACM Transactions on Audio, Speech, and Language Processing, vol. 24, no. 11, pp. 2009–2022, Nov 2016.
-  E. Vincent, R. Gribonval, and C. Fevotte, “Performance measurement in blind audio source separation,” IEEE Transactions on Audio, Speech, and Language Processing, vol. 14, no. 4, pp. 1462–1469, July 2006.
-  T. Hori, Z. Chen, H. Erdogan, J. R. Hershey, J. Le Roux, V. Mitra, and S. Watanabe, “Multi-microphone speech recognition integrating beamforming, robust feature extraction, and advanced DNN/RNN backend,” Computer Speech & Language, vol. 46, pp. 401–418, 2017.
-  E. Warsitz and R. Haeb-Umbach, “Blind acoustic beamforming based on generalized eigenvalue decomposition,” IEEE Transactions on audio, speech, and language processing, vol. 15, no. 5, pp. 1529–1539, 2007.
-  V. Peddinti, D. Povey, and S. Khudanpur, “A time delay neural network architecture for efficient modeling of long temporal contexts,” in Interspeech, 2015.
-  D. Povey, “Discriminative training for large vocabulary speech recognition,” Ph.D. dissertation, University of Cambridge, 2005.
-  M. Sundermeyer, R. Schlüter, and H. Ney, “LSTM neural networks for language modeling,” in Interspeech, 2012.
-  “Speech enhancement with LSTM recurrent neural networks and its application to noise-robust ASR, author=Weninger, Felix and Erdogan, Hakan and Watanabe, Shinji and Vincent, Emmanuel and Le Roux, Jonathan and Hershey, John R and Schuller, Björn, booktitle=International Conference on Latent Variable Analysis and Signal Separation, pages=91–99, year=2015, organization=Springer.”
-  D. Povey, A. Ghoshal, G. Boulianne, L. Burget, O. Glembek, N. Goel, M. Hannemann, P. Motlicek, Y. Qian, P. Schwarz et al., “The Kaldi speech recognition toolkit,” in IEEE 2011 workshop on automatic speech recognition and understanding. IEEE Signal Processing Society, 2011.
-  Y. Wang, V. Peddinti, H. Xu, X. Zhang, D. Povey, and S. Khudanpur, “Backstitch: Counteracting finite-sample bias via negative steps,” in Interspeech, 2017.
-  G. Chen, H. Xu, M. Wu, D. Povey, and S. Khudanpur, “Pronunciation and silence probability modeling for ASR,” in Interspeech, 2015.
-  I. McCowan, J. Carletta, W. Kraaij, S. Ashby, S. Bourban, M. Flynn, M. Guillemot, T. Hain, J. Kadlec, V. Karaiskos et al., “The AMI meeting corpus,” in Proceedings of the 5th International Conference on Methods and Techniques in Behavioral Research, vol. 88, 2005, p. 100.
-  J. Barker, S. Watanabe, E. Vincent, and J. Trmal, “The fifth ‘CHiME’ speech separation and recognition challenge: Dataset, task and baselines,” in Interspeech, 2018, (submitting).
